Show your tidy pedalboard!
- Thread starter JakobT
- Start date

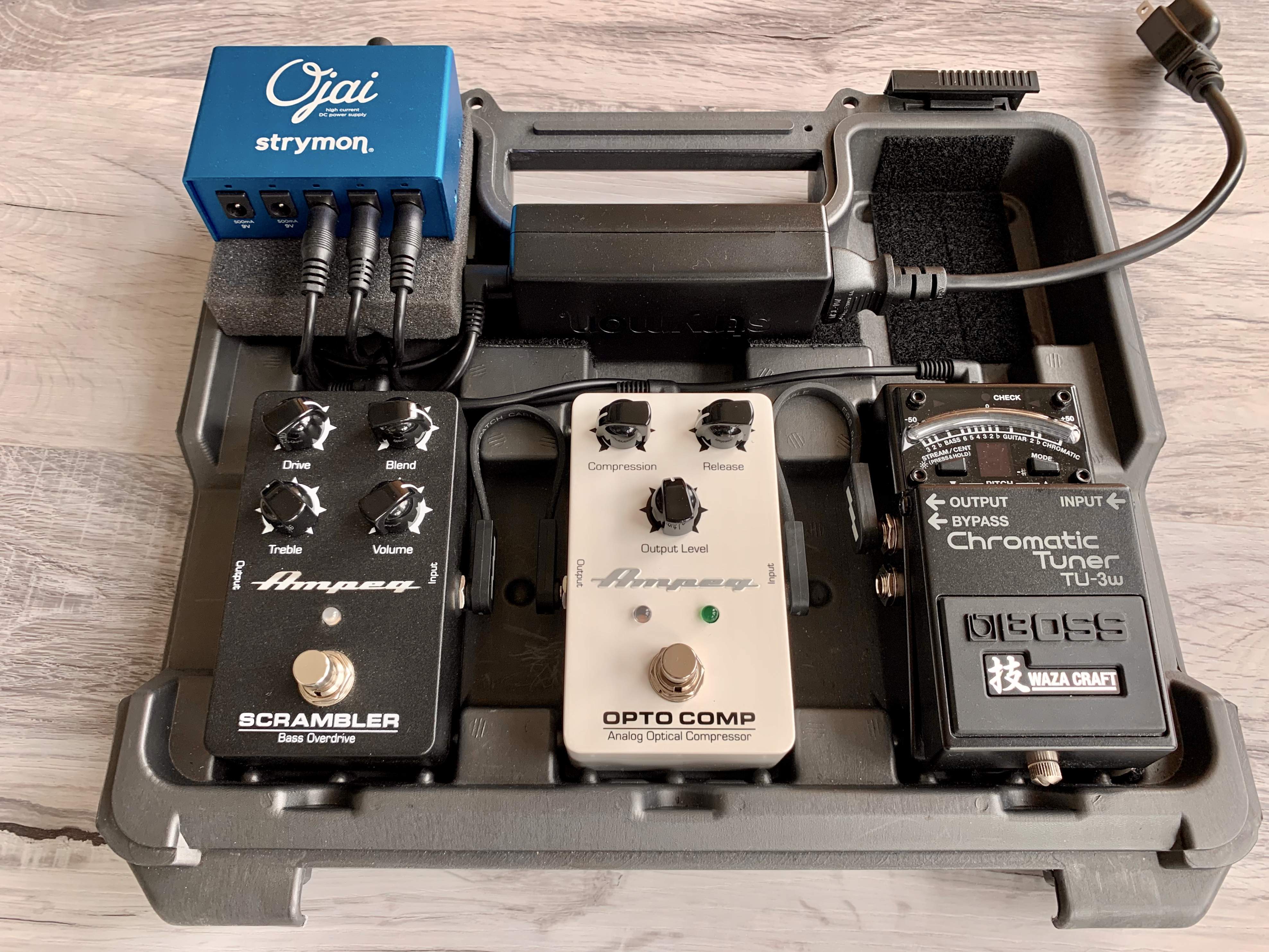

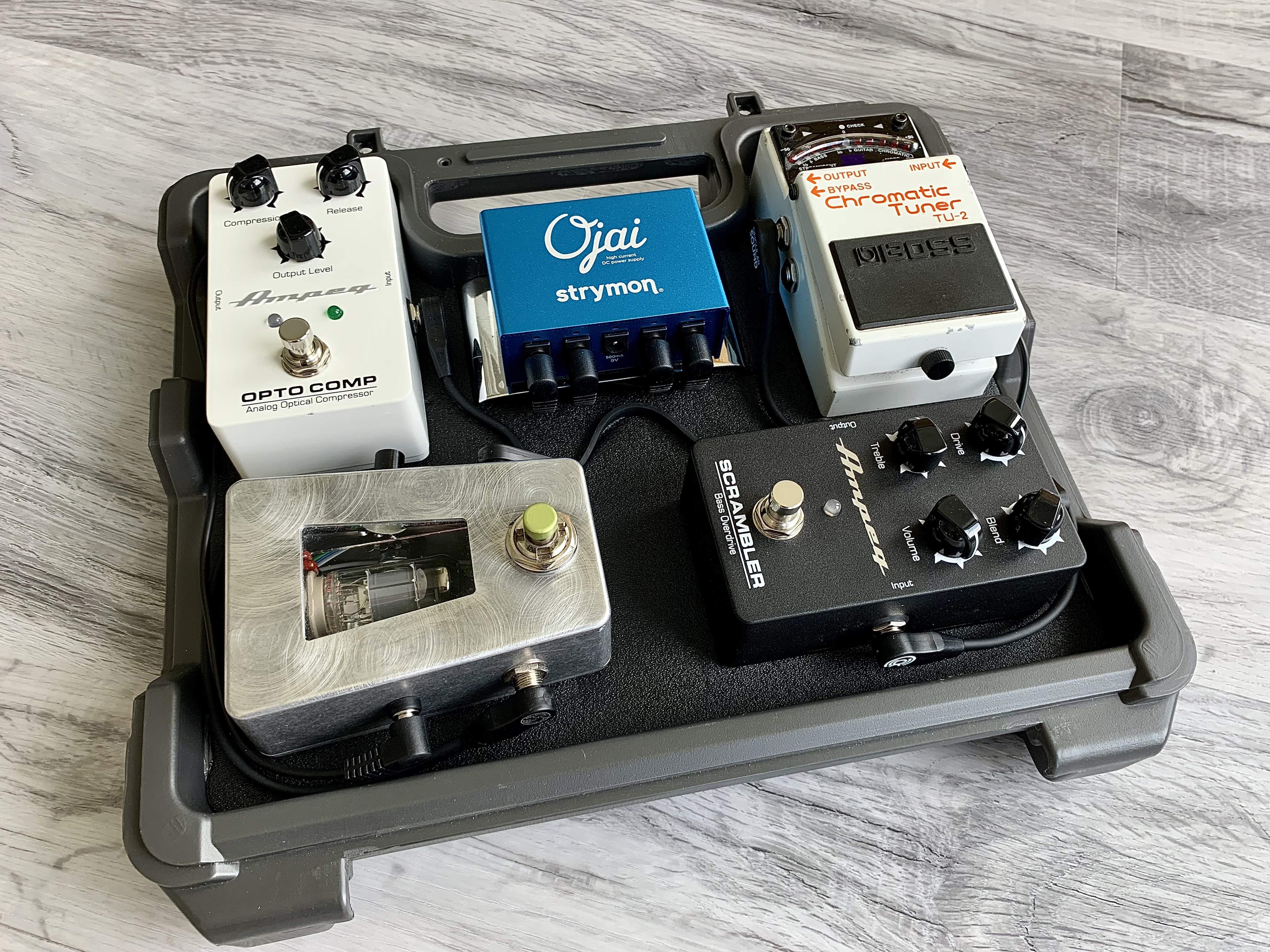

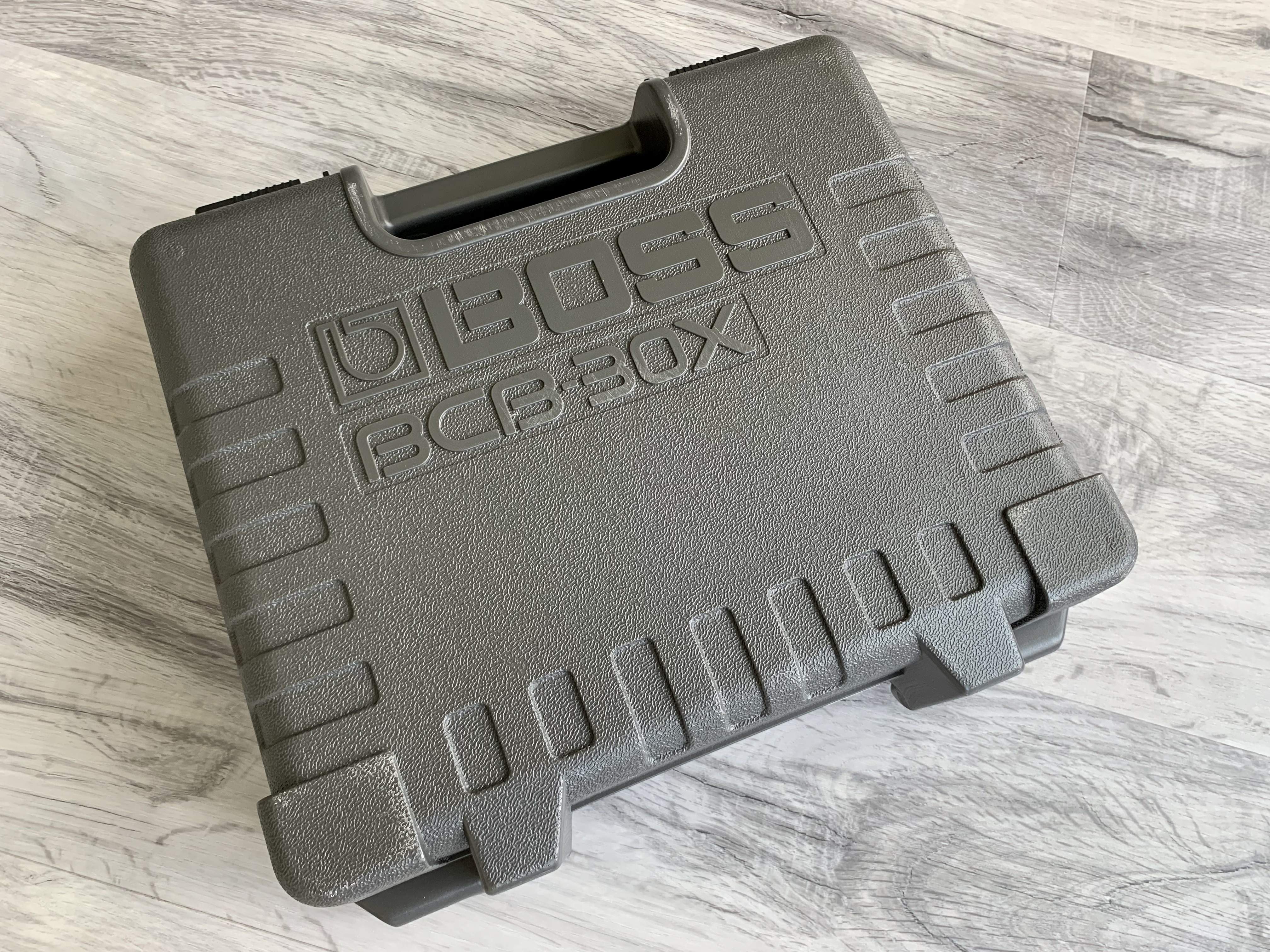

It's the BCB-30X. It has an open floorpan allowing 4 pedals vs the BCB-30 which is made for 3 pedals.
The Dingbat small was too small. The Dingbat medium was too big. Back to the small--still too small. Oh, there's a "small-ex"? Yes there is, and it's perfect.
Finally invested in some wire management, too.
Finally invested in some wire management, too.
Thank you. Been playing through it all day. I think it sounds even better than it looks, and I am fairly certain it could handle any tone or function that I would want.
Last edited:
Talk us through your board Greg and if don’t mind tell us what each pedal does, sometimes the name doesn’t give away much
Talk us through your board Greg and if don’t mind tell us what each pedal does, sometimes the name doesn’t give away much

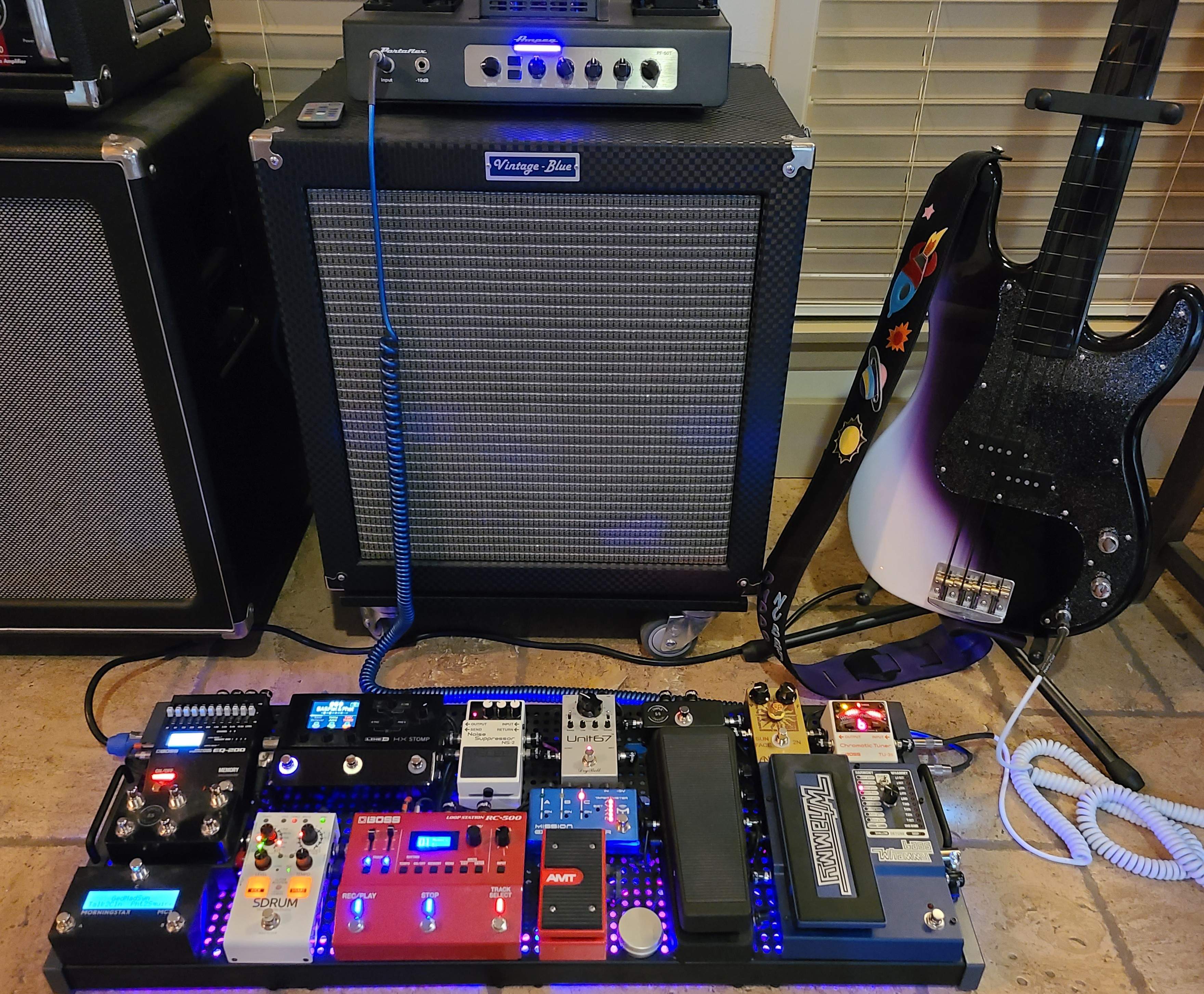

Here you go:
Before buffer
Bass > Simple Switch True-Bypass Loop (send) > Analogman Sun Face Ge Unmarked 2N (fuzz) > Wilson Freaker Wah (wah-wah filter) > Radial Engineering Twin City (ABY buffer) >
Effected bass channel
--Twin City (A) > Digitech Bass Whammy (pitch/octave/chords) > Boss NS2 (send) (noise surpressor/mute) > Dry Bell Unit67 (compressor, boost, tone control, Rangemaster) > Boss EQ200 (A) (programmable EQ) > Line 6 HX Stomp (multi-effects) > NS2 (return) > Boss RC500 (looper) > EQ200 (B) > Loop (return) > Temple Audio SumMod (rt) > amp
Drum channel
--Twin City (B) > Boss TU3s (tuner) > Digitech SDrum (monitor lt) (drums) > Pigtronix Philosopher's Tone Germanium Micro (compressor/germanium dirt) > SumMod (lt)(summmer/splitter, buffer) > drum monitor (if separate, drums only)/summed with (A)
Dry bass channel
--SDrum (aux) > amp or mixer)
Controls
--EXP/Vol - AMT EX50 (mini expression) > Mission Engineering Expressionator 1 in/3 out exp controller) > Stomp Exp 1, Stomp Exp 2, EQ200 Vol
--Aux Switches - Simple Switch dual FS3X (MC3, SDrum)
--MIDI - Morningstar MC3 (MIDI controller) and SDrum (tempo and triggering) > MIDI Solutions Merger (MIDI combiner) > Stomp > EQ200 > RC500 > Whammy
Power
PSUs: Strymon Ojai R30 (2) & Ojai, Gigrig Battery Emulators
Board
Temple Audio Duo 34 w/ LEDs
I think that's all of it. Let me know if you have any questions.
Last edited:
Wow cheers, scanned that and will re-read later when I’ve a spare half hour and some black coffee

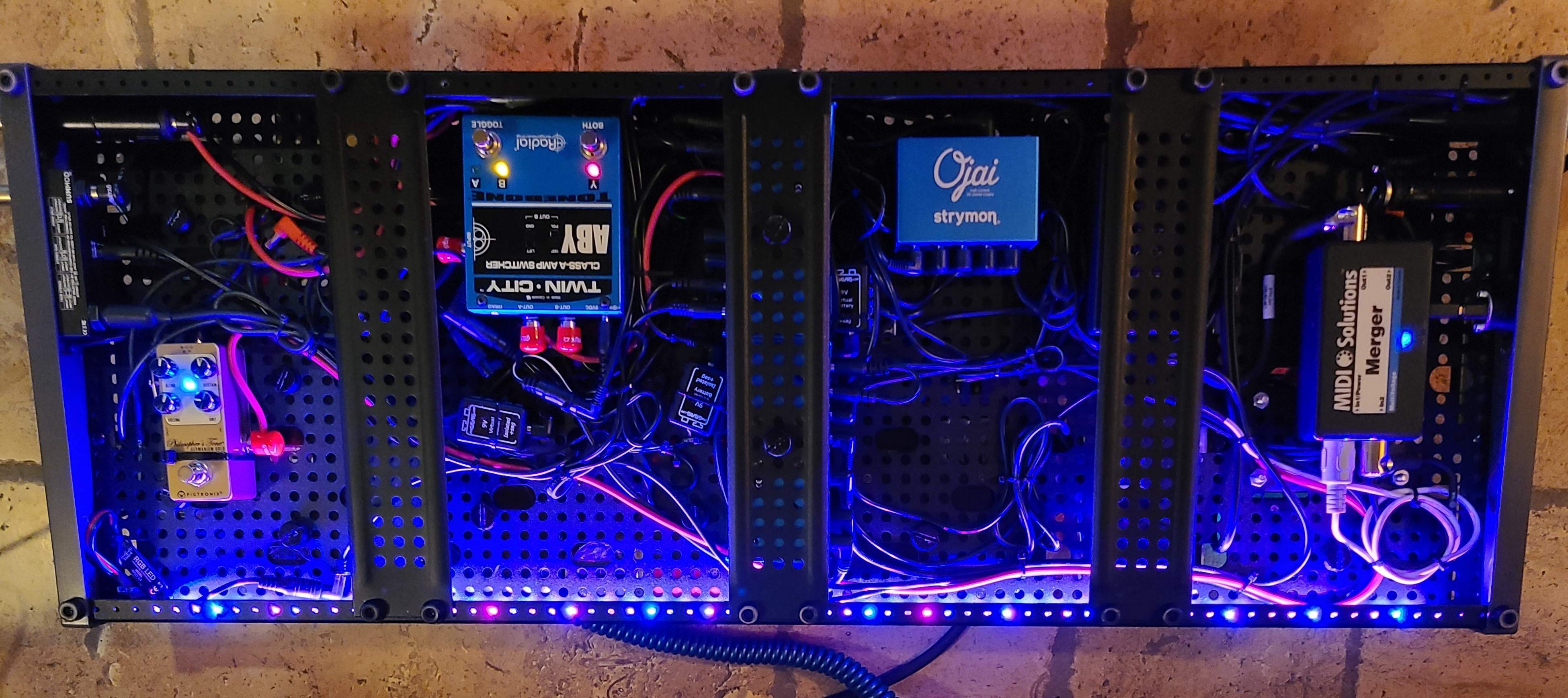

Finished soldering cables, looking much neater. Might need to take another pass on the undercarriage though:

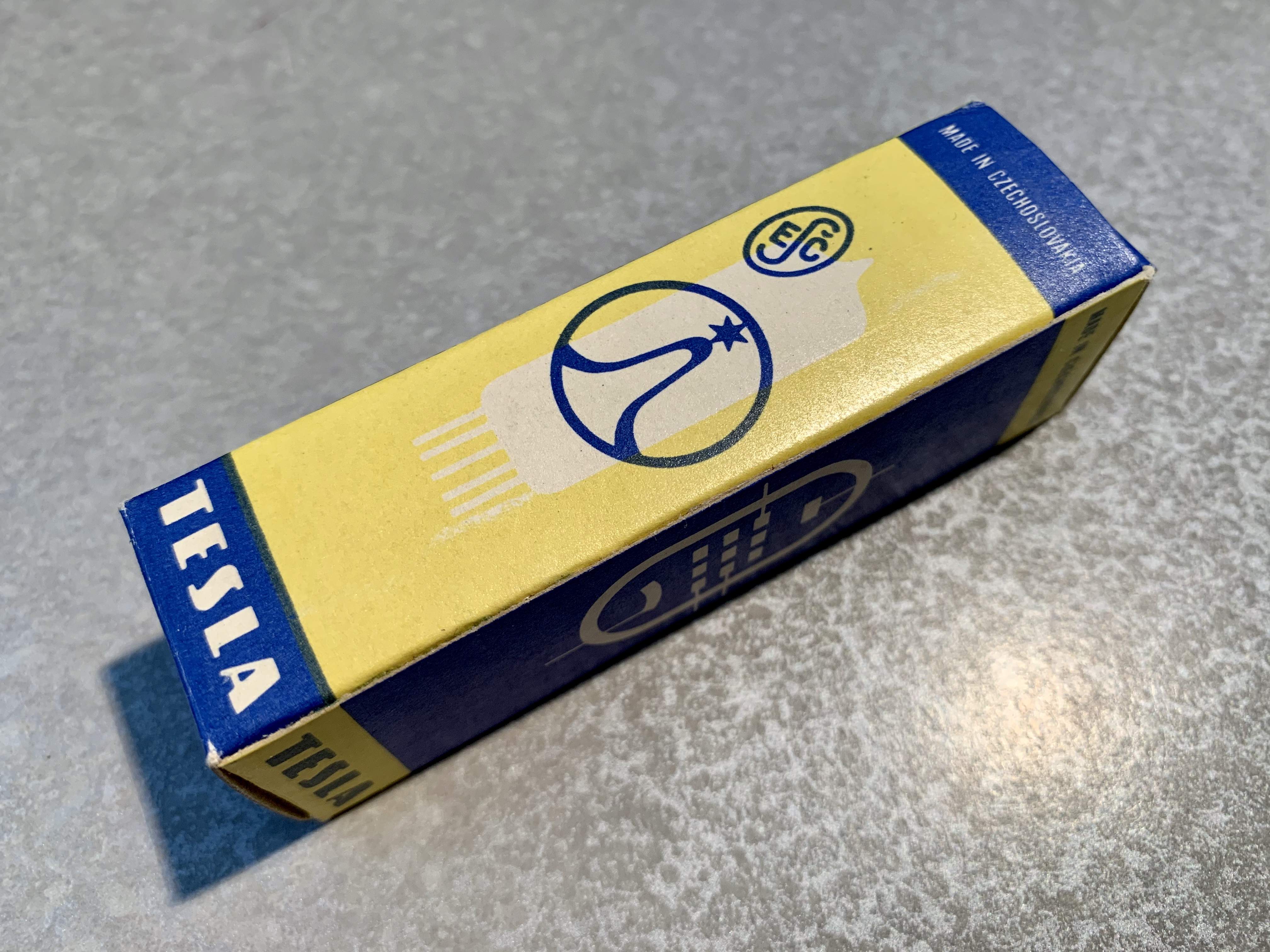

Tesla bulb in an Edison pedal just sounds wrong; next thing you know they're talking about electrocuting elephants.
Yep, the irony of Tesla & Edison working together was not lost on me.

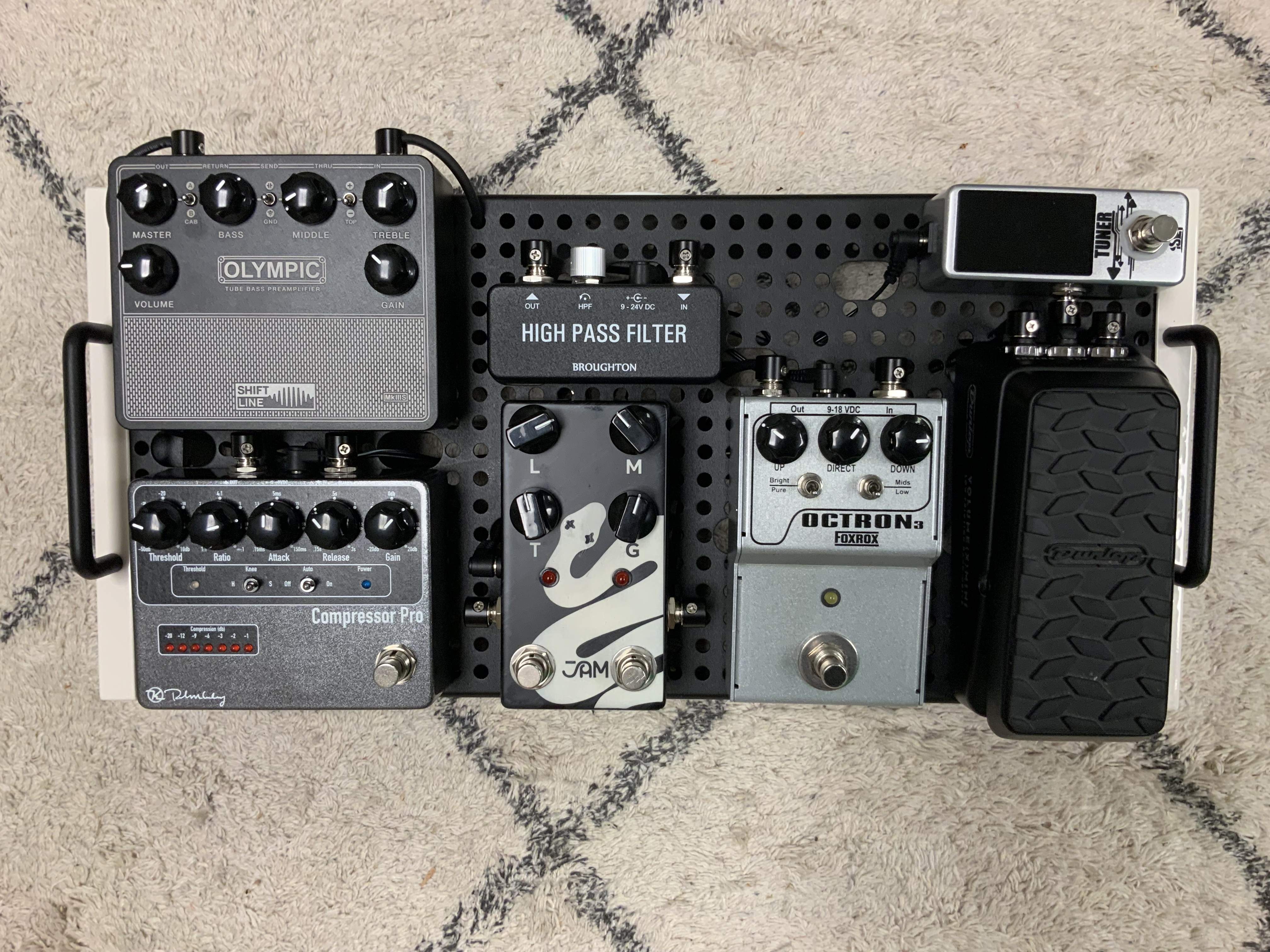

Finally can qualify into this club. Temple Audio boards and K&E solderless cables made this come together so well! The fortunate color-scheming doesn’t hurt either.
Finally can qualify into this club. Temple Audio boards and K&E solderless cables made this come together so well! The fortunate color-scheming doesn’t hurt either.
View attachment 4336060
ha ha did a double take to check it wasn’t a black n white photo!
how you liking that octron? I’ve got one arriving this week

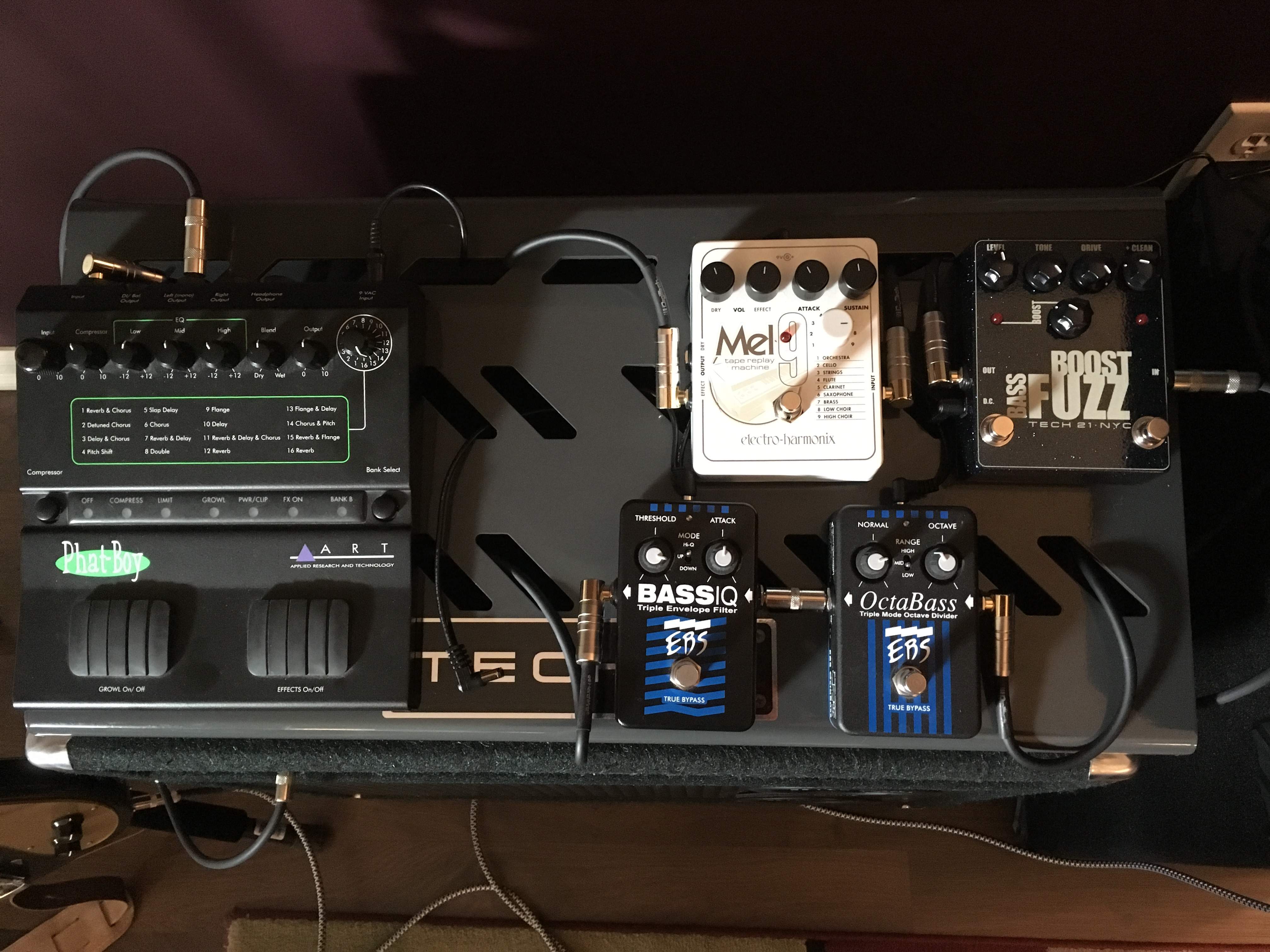

In the heat of battle I’d get the two EBS pedals mixed up for sureMine is semi-tidy.
