Special Edition Build Off - Tinozza style

[Nagromicon]

Going to build a fretless ABG based on the Tinozza design of RM Mottola.

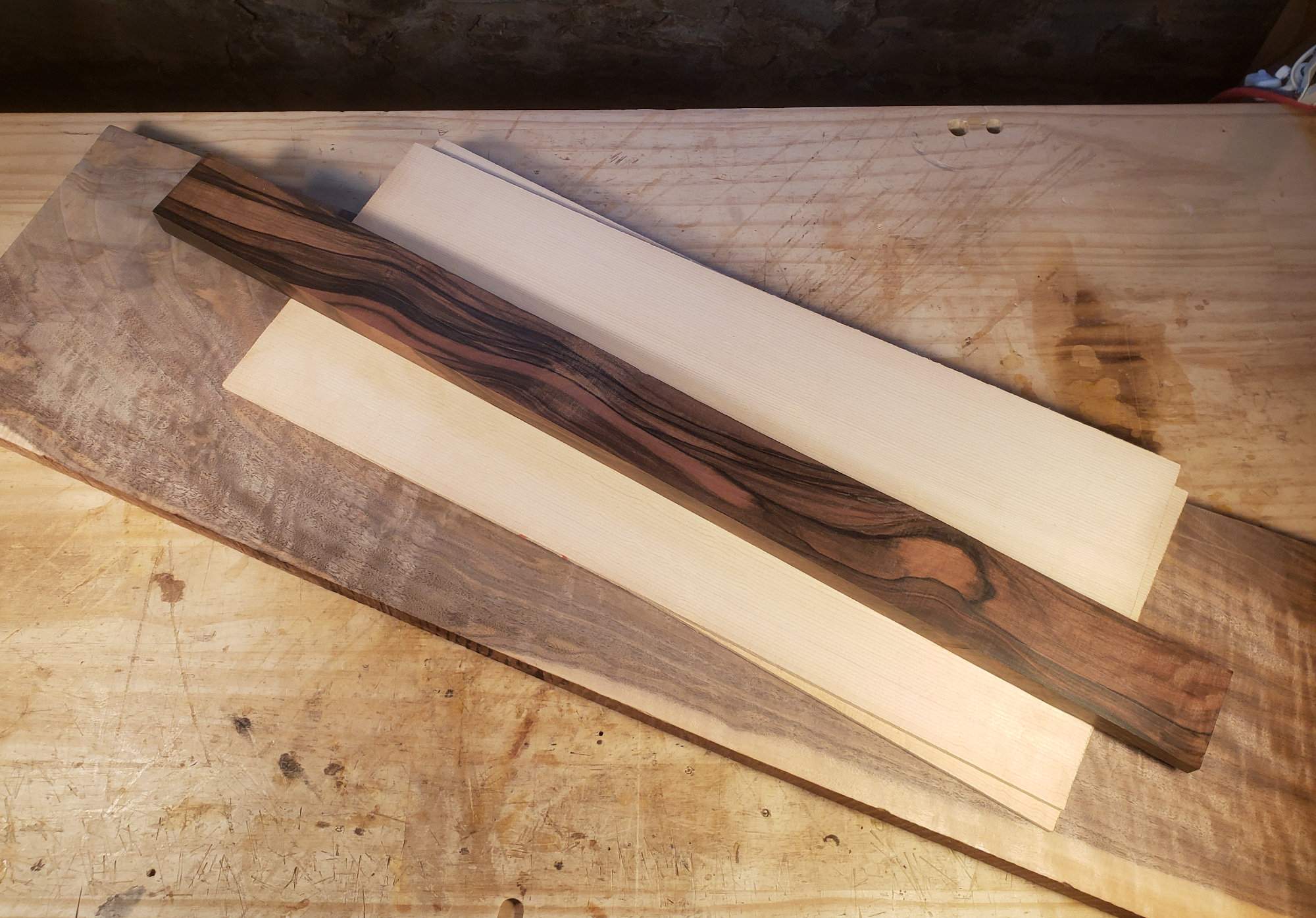

Figured Claro Walnut back and sides, bearclaw Sitka top, Macassar Ebony fingerboard.

Special Edition Build off - Build em if ya got em



[postalflunkie]

Should be an amazing combination, love that fingerboard



[Jon Clegg]

Subbed!



[cholyoke]

That fingerboard...where is the drool button?



[Nagromicon]

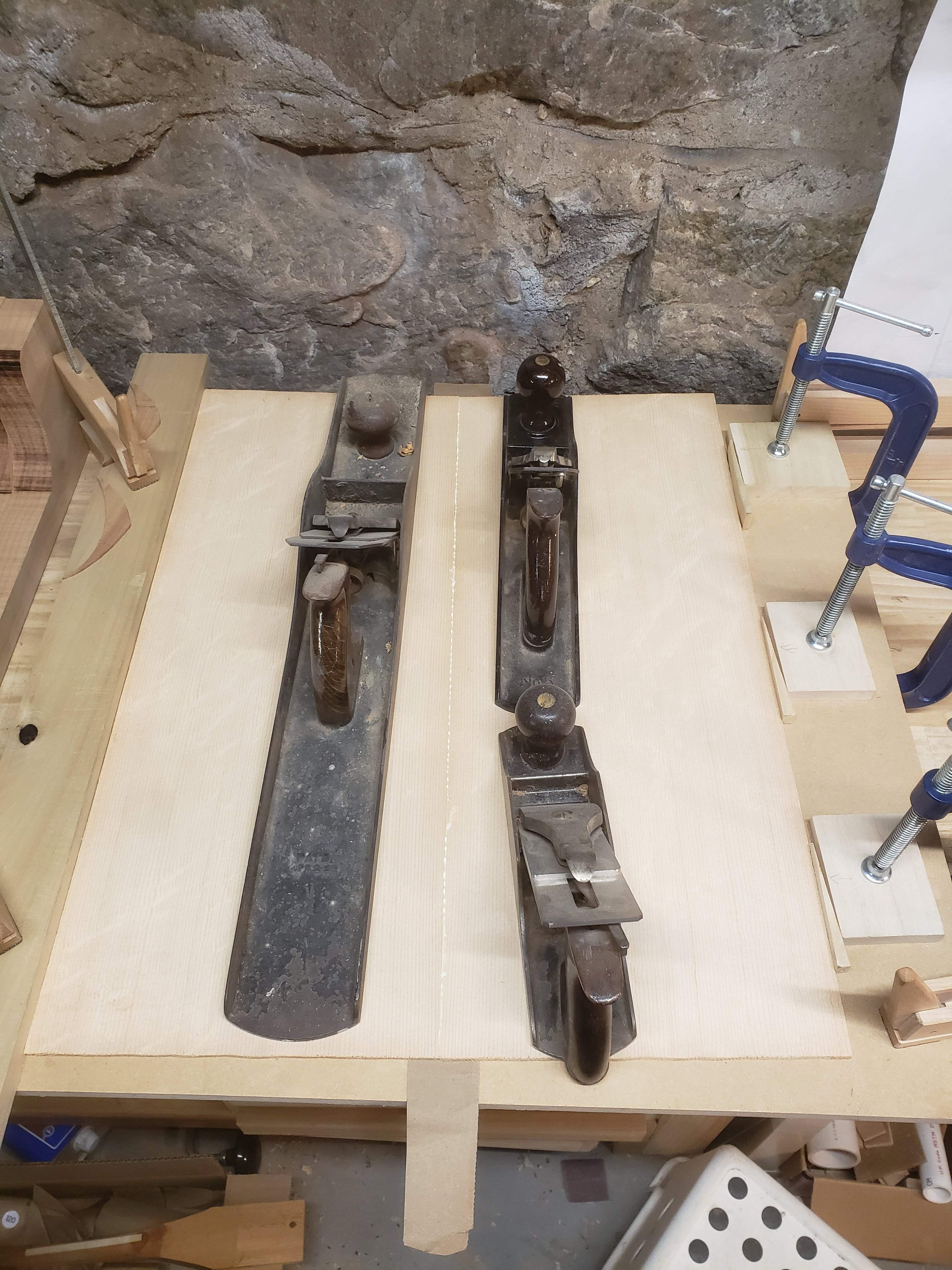

Top joined!



[ctmullins]

Holy crap, I’d trade my first-born for that fingerboard!



[SLivinghouse]

Holy crap, I’d trade my first-born for that fingerboard!

Hopefully your first born didn't read that...



[Nagromicon]

Made some progress yesterday and today.

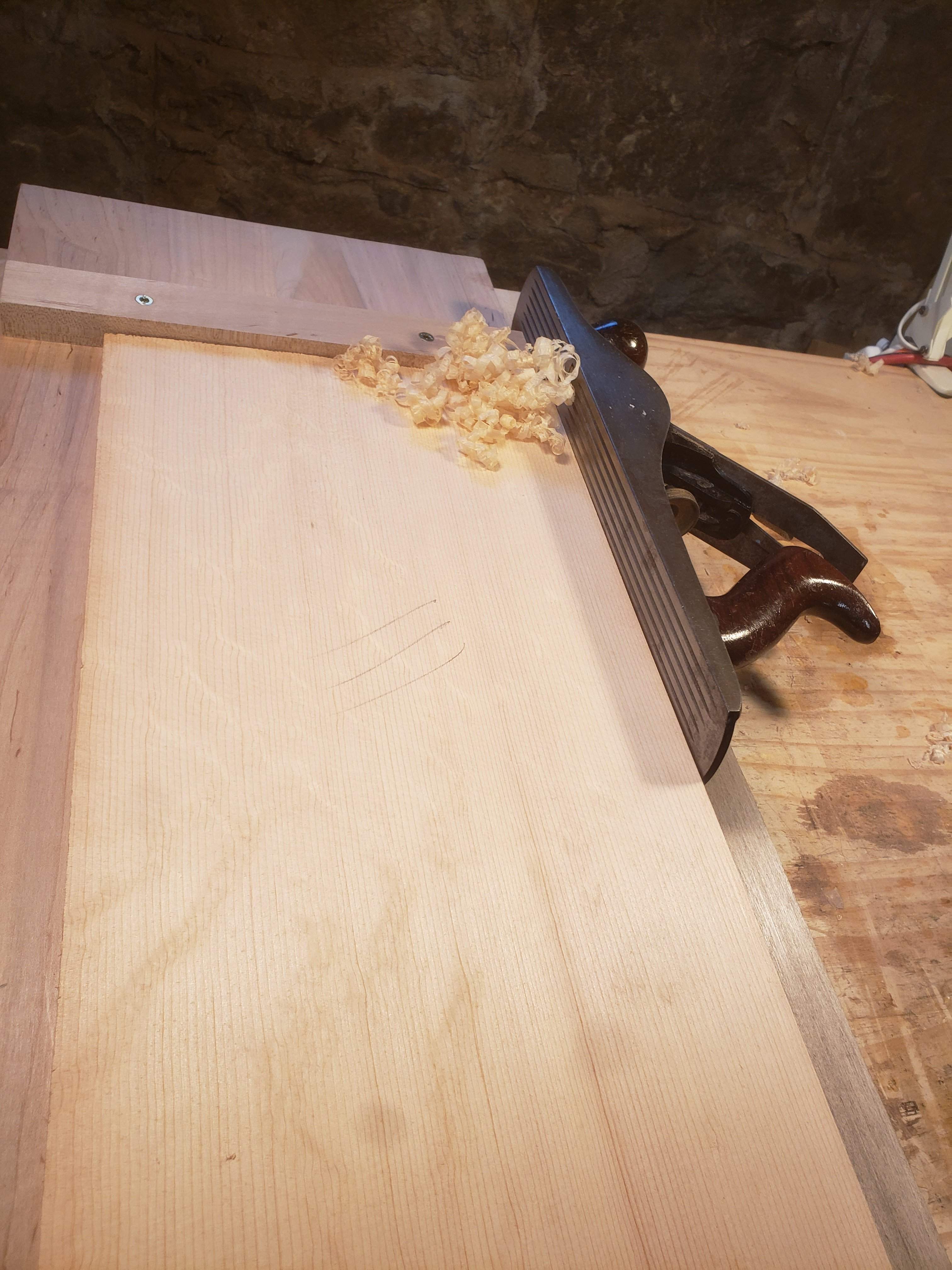

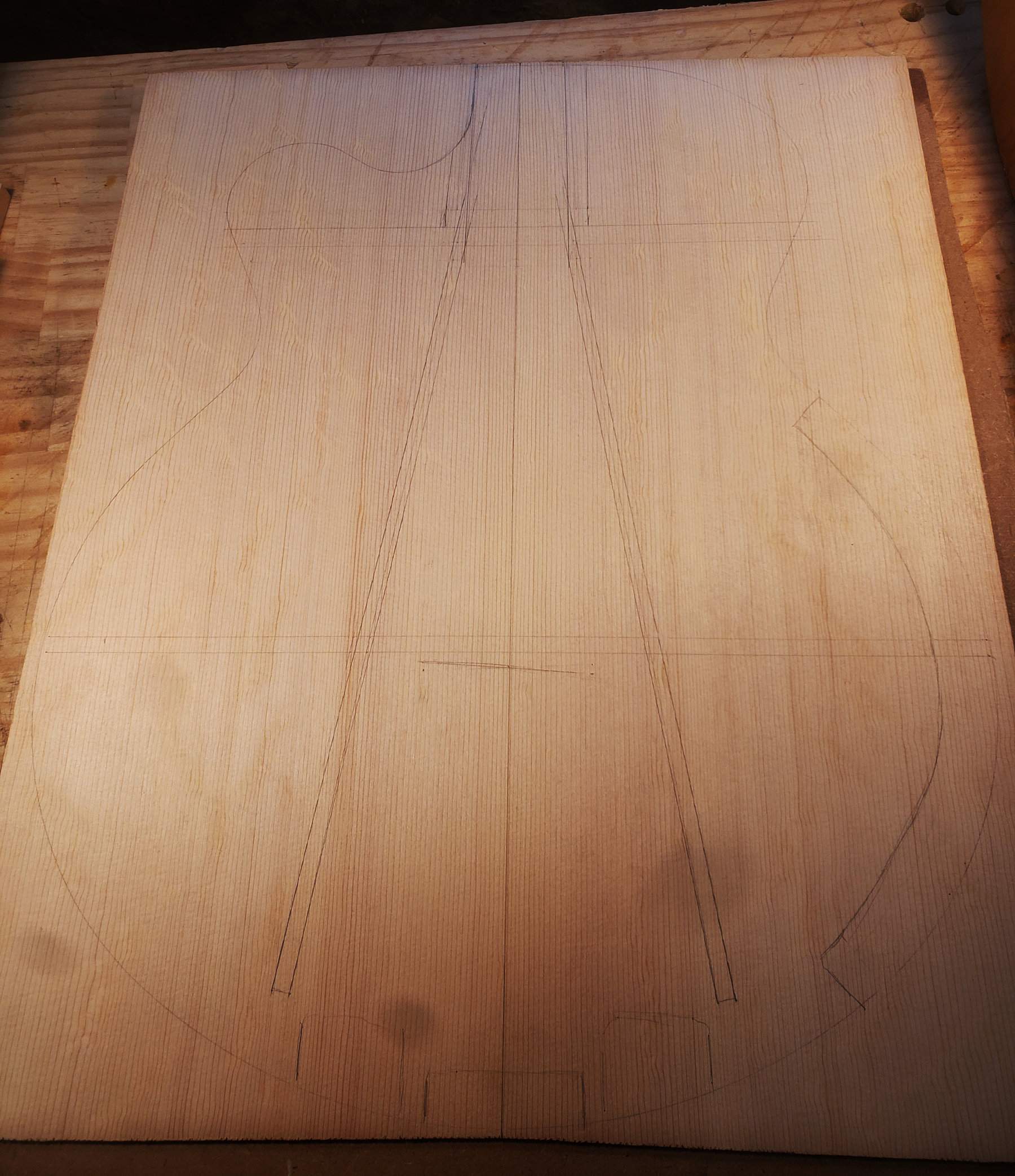

Thicknessed the top to .125" and laid out the plan:

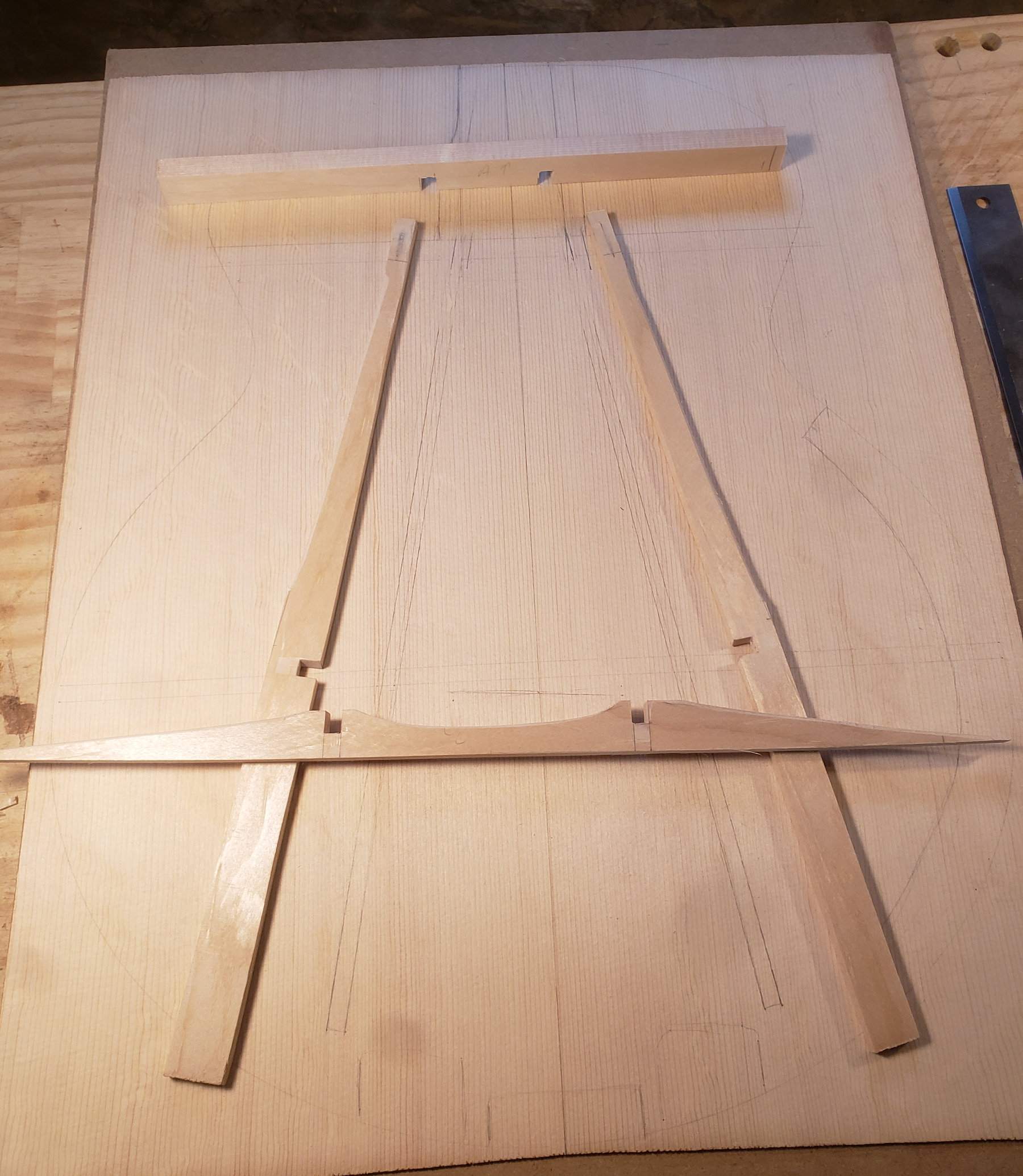

This piece of Sitka was just big enough! A few changes from Mottola's plan: I would like to add an arm bevel as this thing is huge (6" deep). Also moved the upper brace a little north as I'm going to do a side soundport instead of the soundhole in the top.

I've made one of these before and had a mold CNC'd from Mottola's drawings:

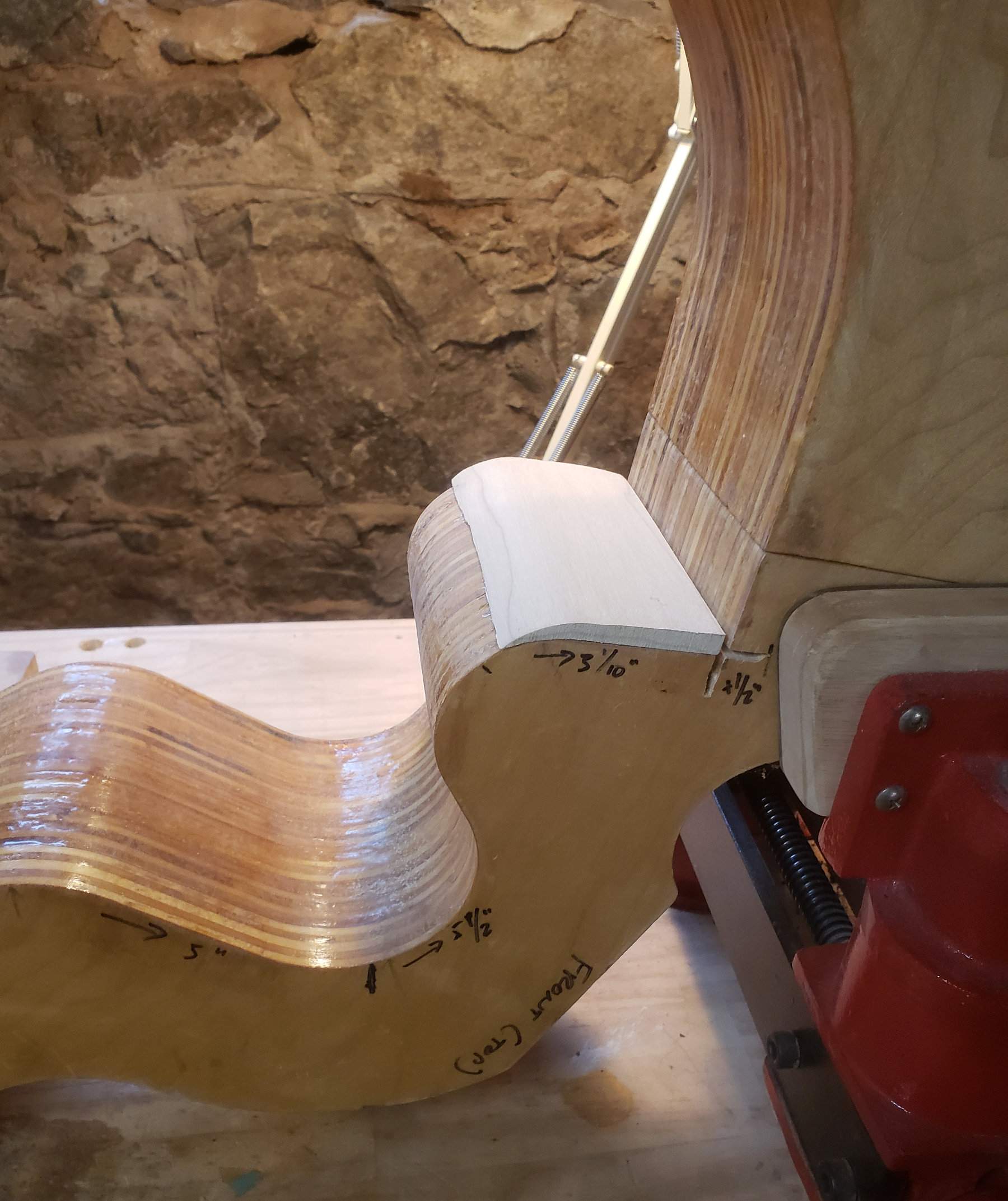

As-is, there is a little shelf at the edge of the neck heel and the start of the cutaway. I added a little piece here this morning that should make for a smooth transition between neck and body and the cutaway



[Nagromicon]

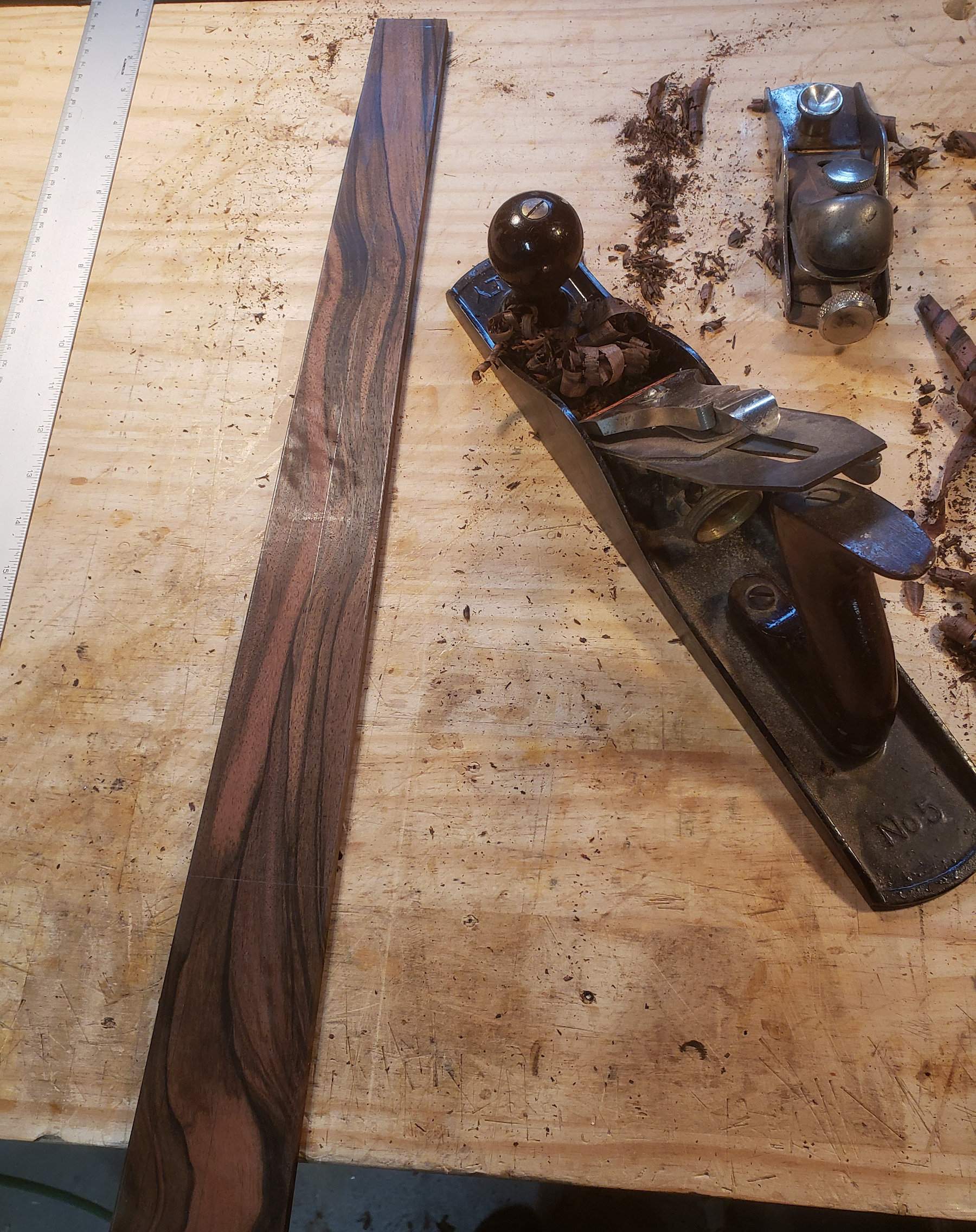

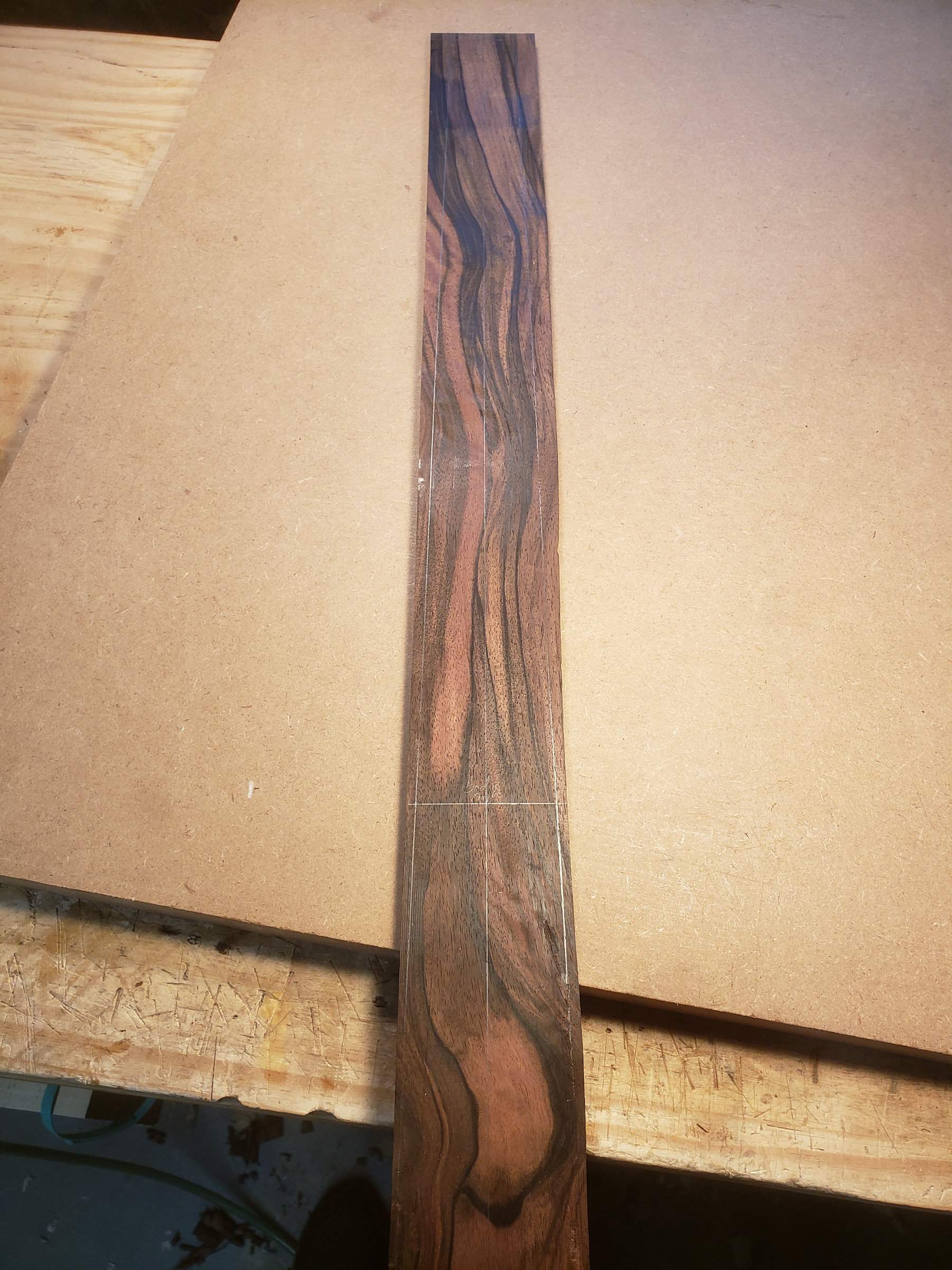

Laid out the fretboard, then trimmed and planed it to final dimensions:

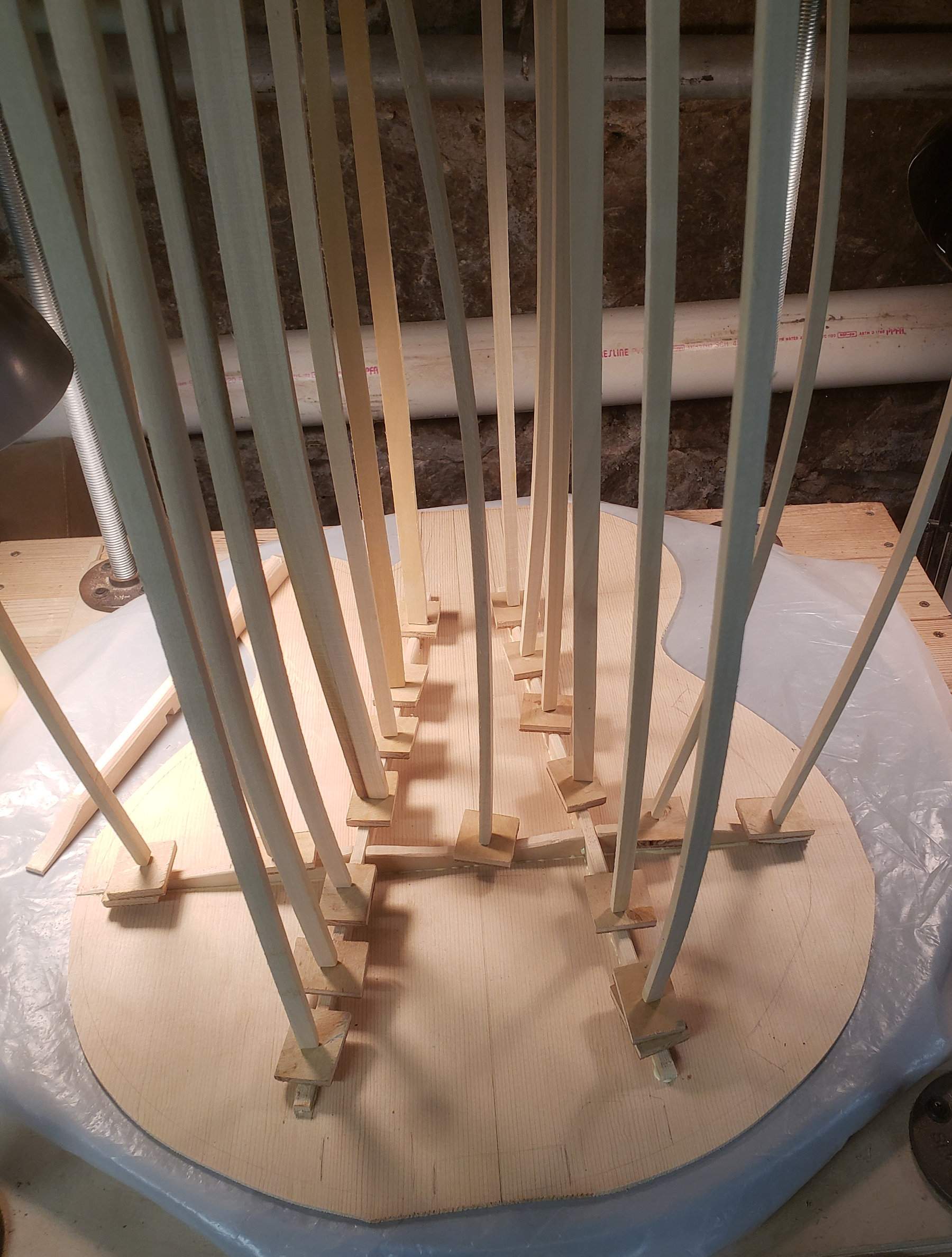

Got the braces done and glued up!



[Nagromicon]

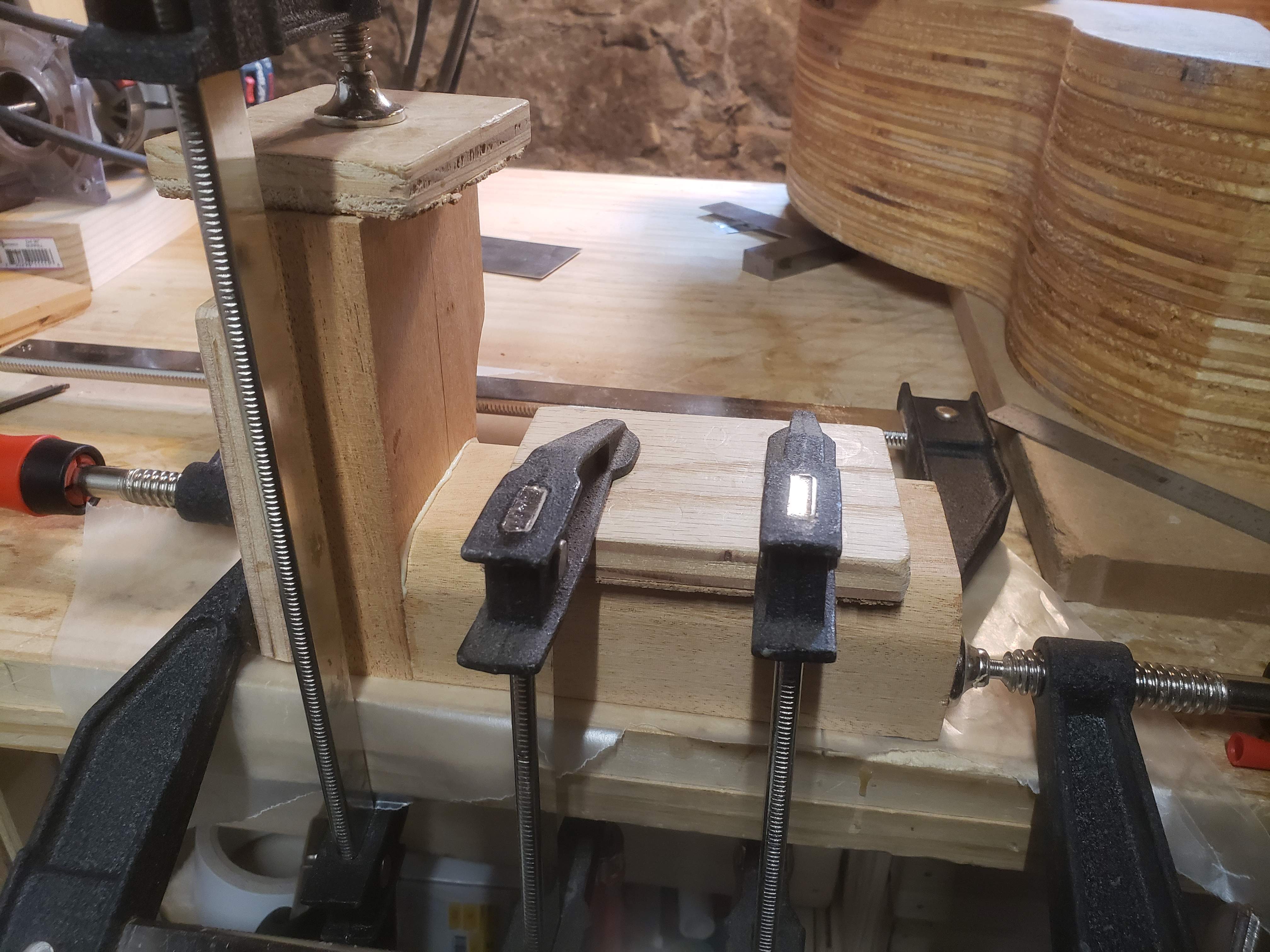

Not the most productive day, but got the neck block made and started laminating the neck:

Holding off on sawing up my walnut billet because I've got a new resaw blade on the way.

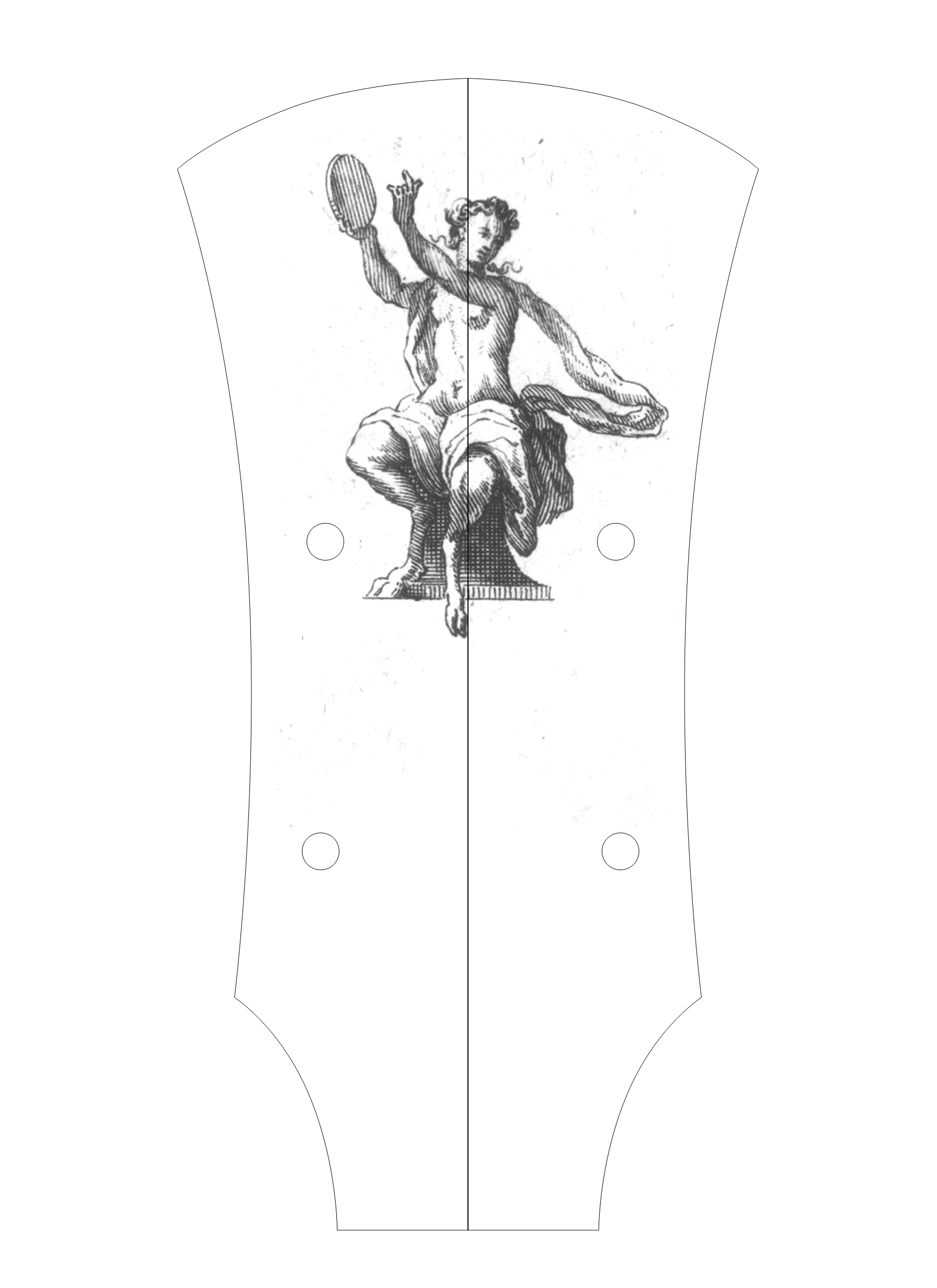

Thinking of doing this on the headstock:

It's from a Jean Berain drawing, who was a real freak from the 1700s (public domain imagery at this point). I saw it at some peoples' mansion at a wedding in south carolina recently. Really weird stuff, worth checking out.
My girlfriend says she needs bigger boobs (the goat lady, not my gf).



[Scoops]

NO FAIR!

You've done this before!

Actually, we don't get many of this type of build here, so in reality, it's great to see this build.

Cant wait to see the end



[Nagromicon]

NO FAIR!

You've done this before!

Well, only once, and this is my first arm bevel and side sound port!



[dwizum]

Really exciting to see your build, as someone who has just recently gotten into simple small acoustic instruments, I am aspiring to build something like this some day. I'm definitely going to be following every detail!



[Nagromicon]

Really exciting to see your build, as someone who has just recently gotten into simple small acoustic instruments, I am aspiring to build something like this some day. I'm definitely going to be following every detail!

Here is where the design is from and more info on it:
Liutaio Mottola Lutherie Information Website



[dwizum]

Thanks - after clicking on that link realized I've been to his site before (got there from the Guild of American Luthiers site I think) but somehow missed the Tinozza design on there.



[2groggy]

Here is where the design is from and more info on it:
Liutaio Mottola Lutherie Information Website

That was the plan that I used as the starting point for the body shape of my last build



[Nagromicon]

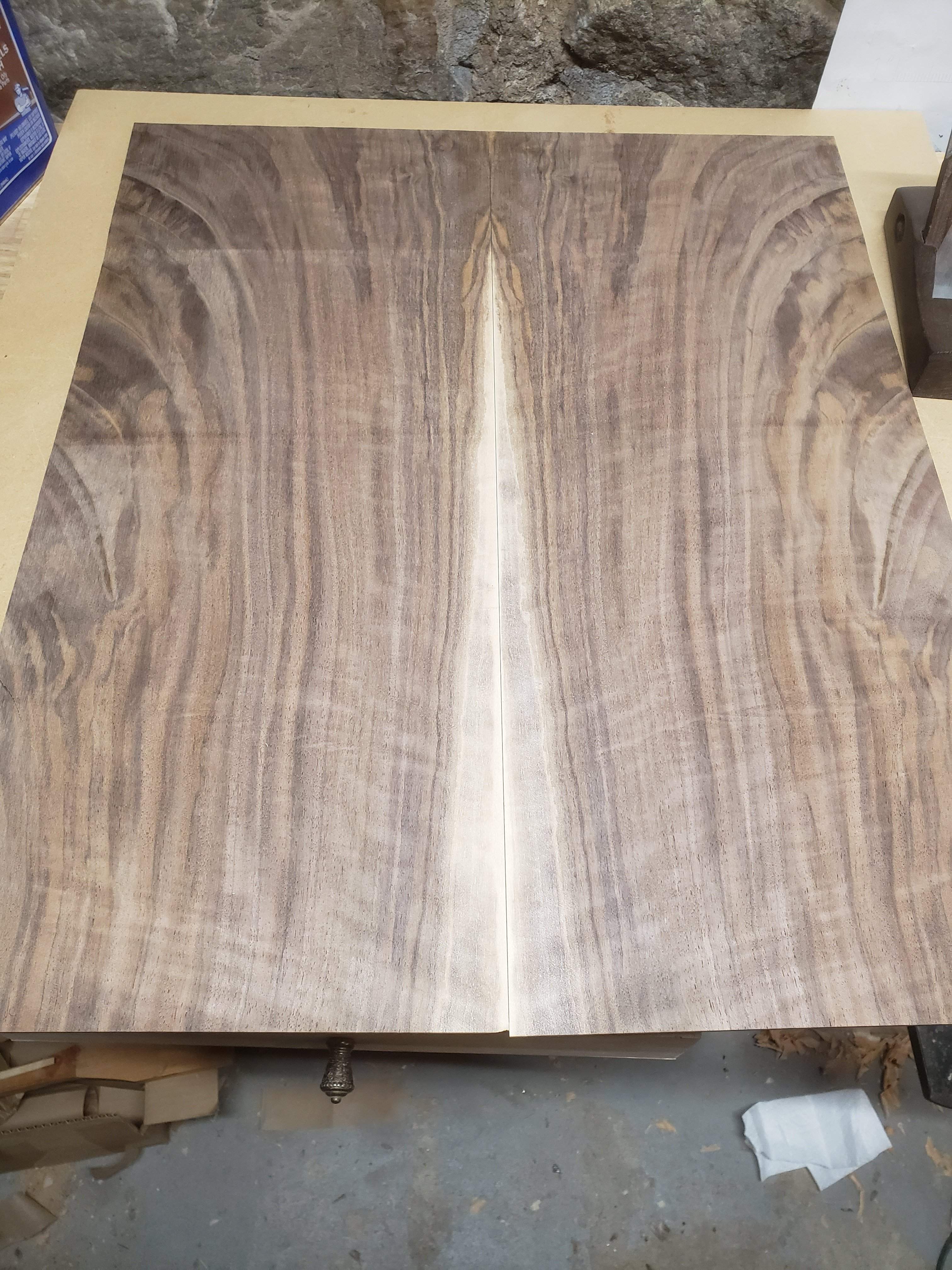

My resaw blade got here a day early! Back jointed:

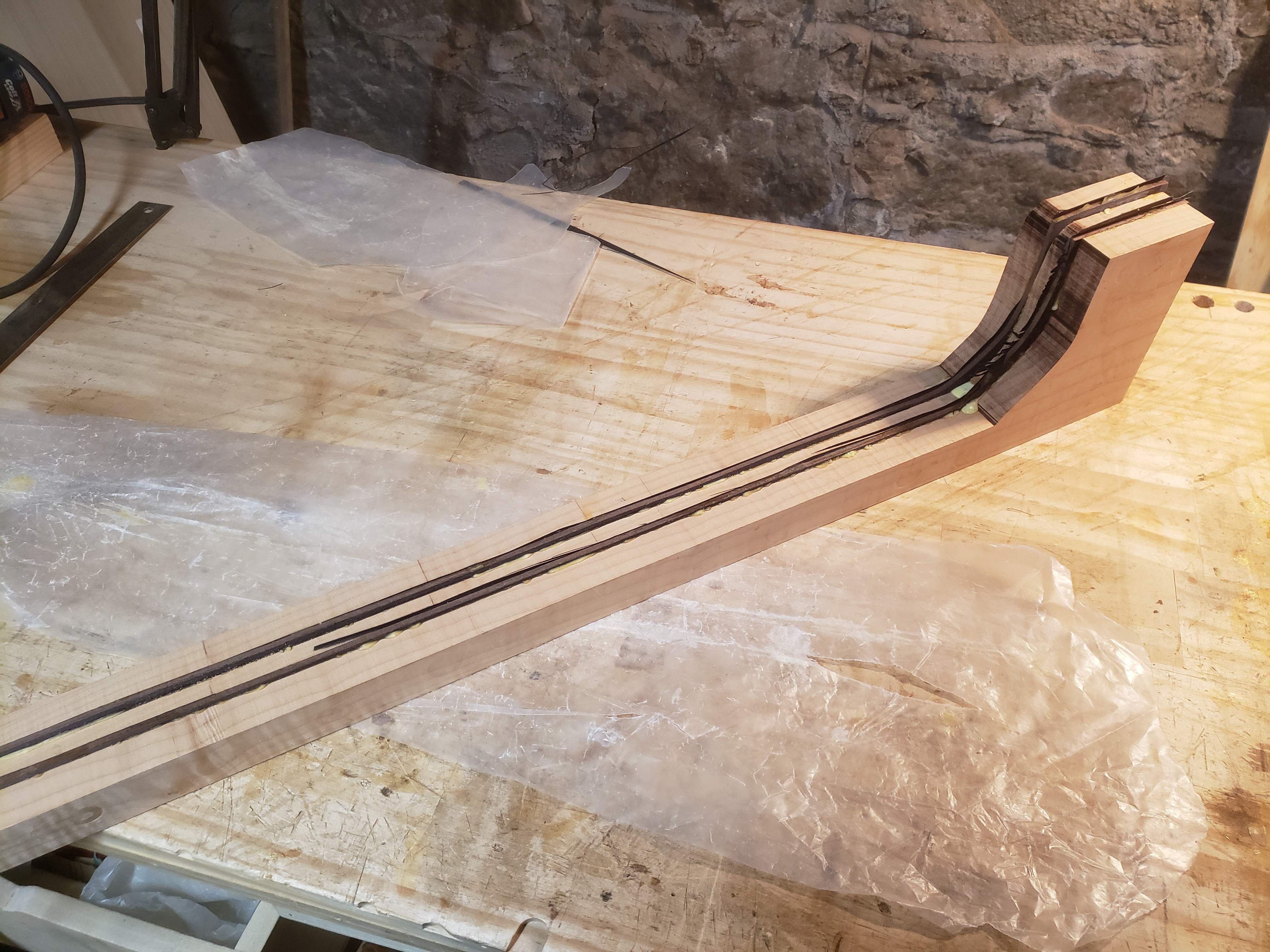

And neck blank glued, currently looking like a dog's dinner



[dwizum]

What lead you to put the sapwood in the middle? Just liked it better that way, or something specific?

I don't want to get too far ahead of you revealing things as you go, but are you planning on any purfling, binding, or other details?



[Nagromicon]

I liked how the sapwood looked in the middle, i tried it the other way and it looked a little weird, plus i'd be joining a lot of runout.
The sides are from the same billet as this back, they will be wide enough to make bindings from them so i might do that, or i have a bunch of rosewood i might use. Purfling I might just do a single black line if i go with the walnut bindings, probably a bwb on the top.



[Nagromicon]

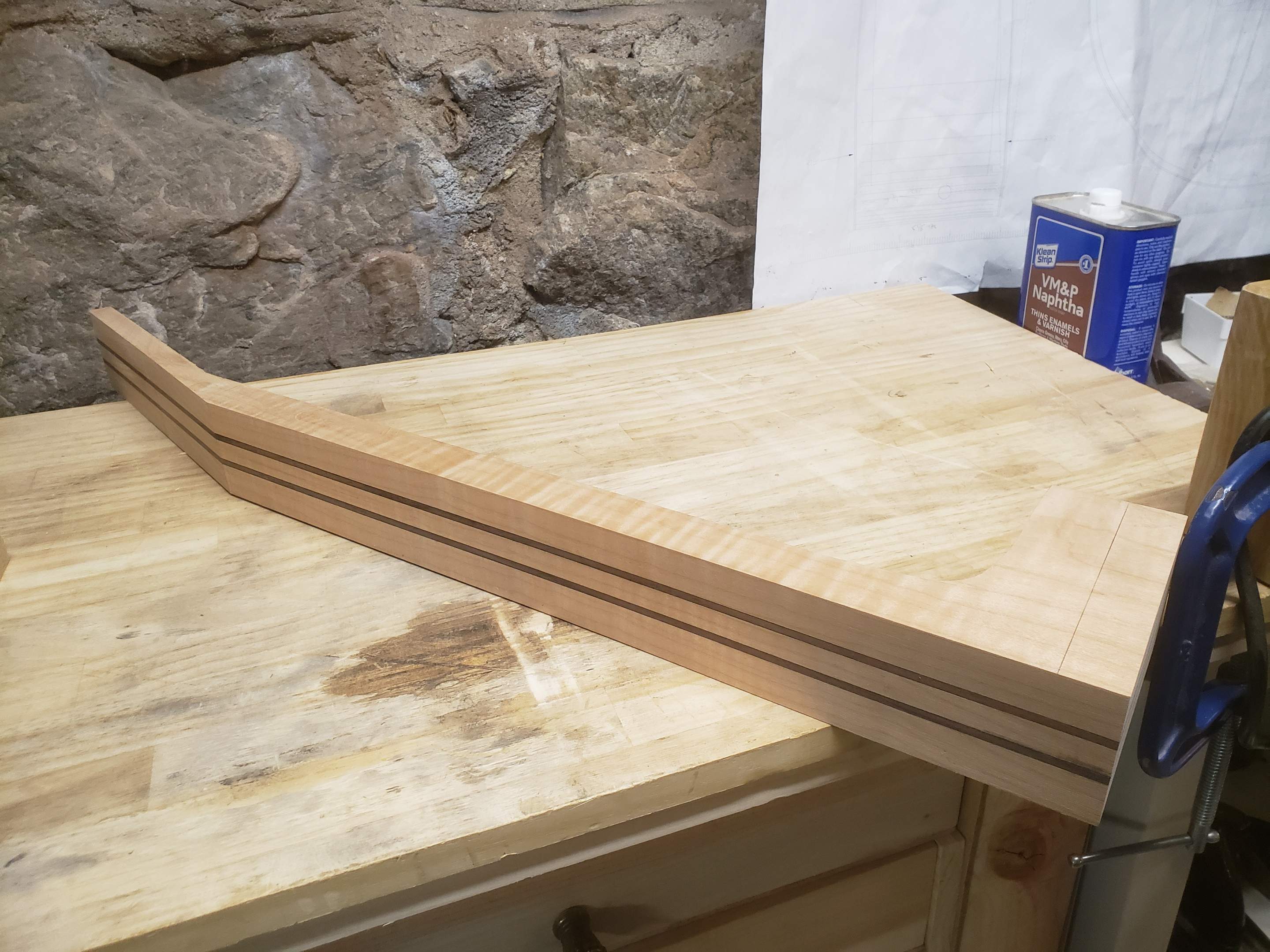

Moving right along....got the neck blank cleaned up and scarf joint done

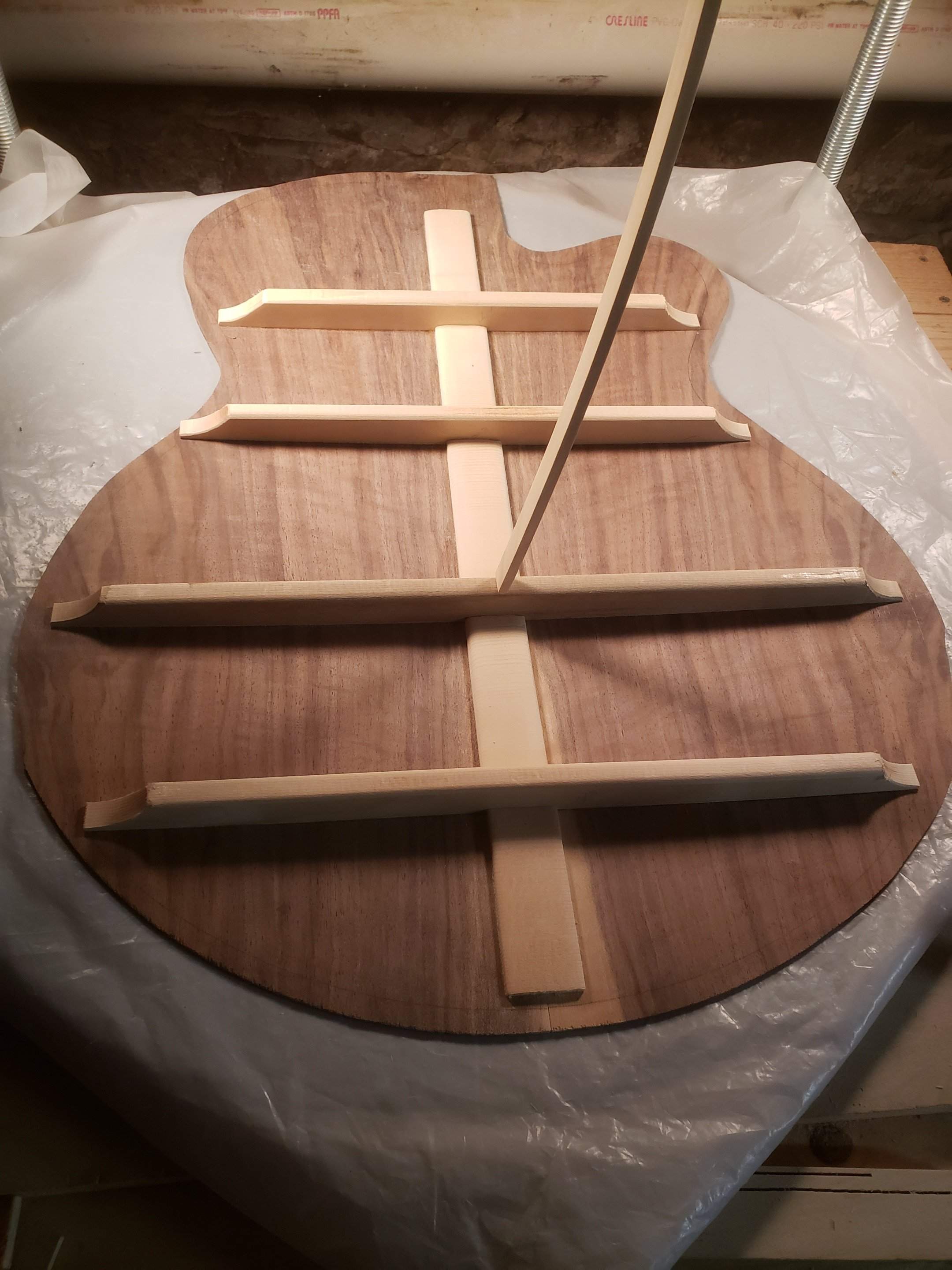

After long hours nursing the thickness sander, the back is braced!

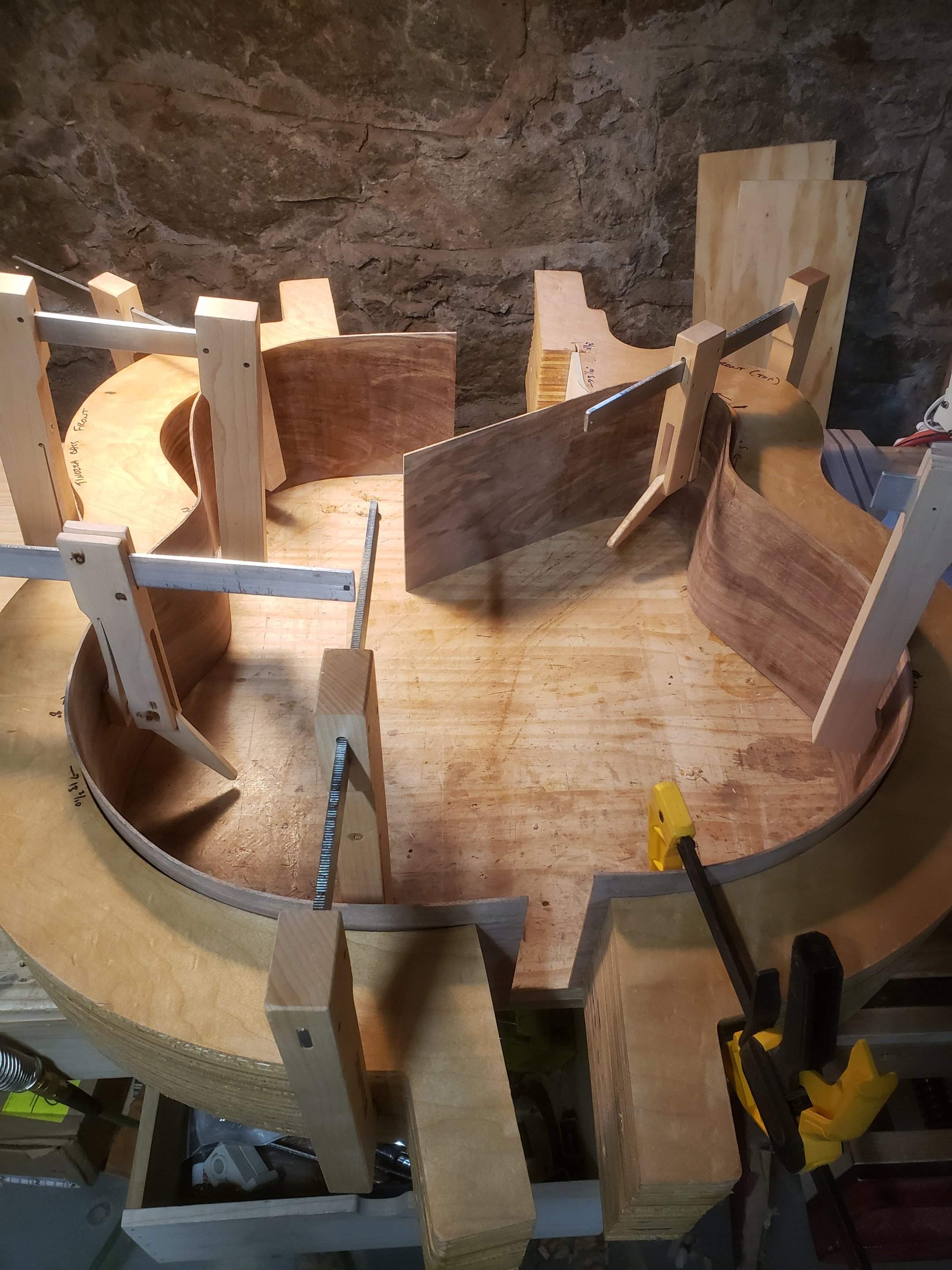

And started bending the sides
