Special Edition Build Off - Tinozza style
- Thread starter Nagromicon
- Start date

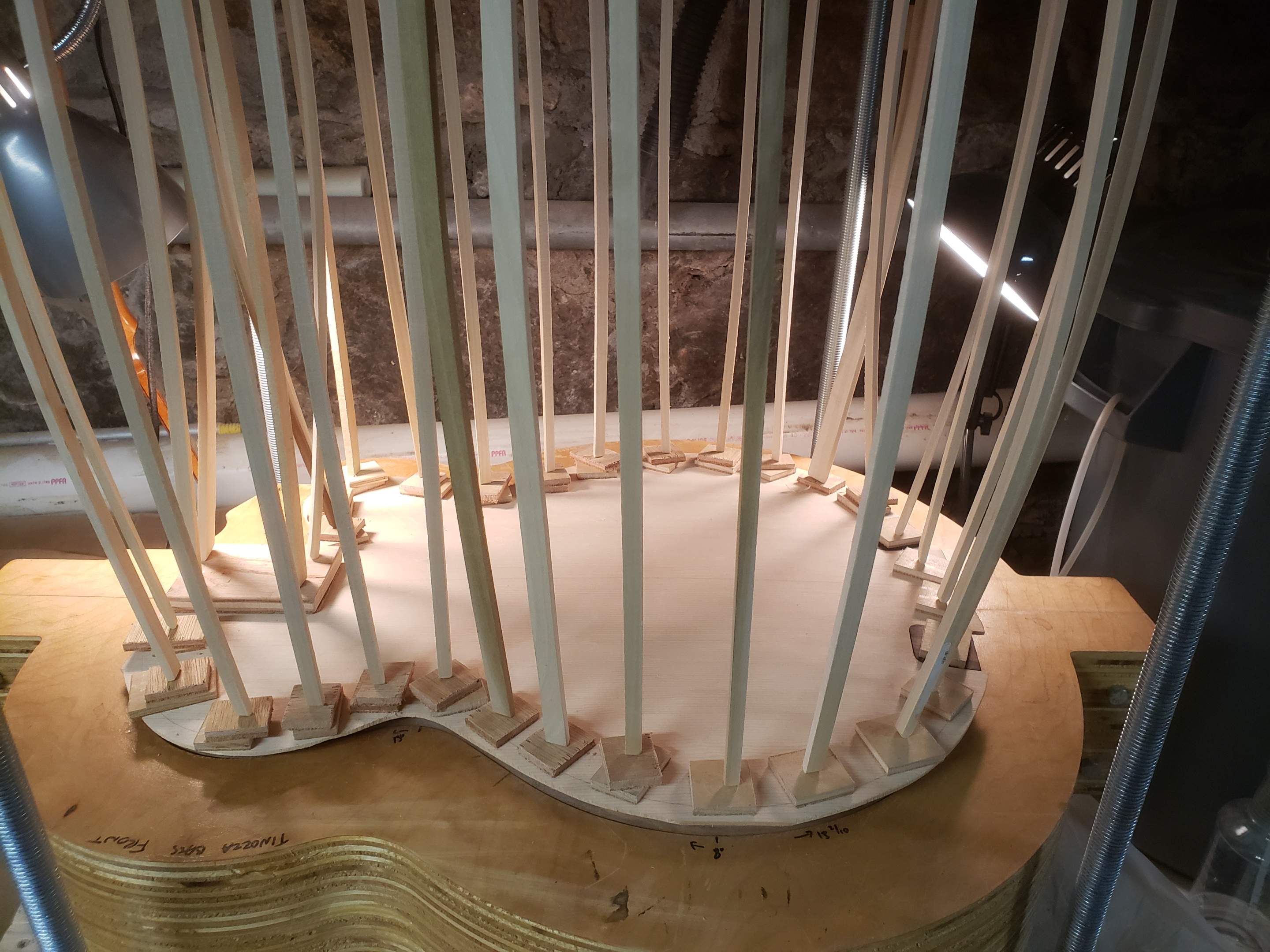

Top glued on!

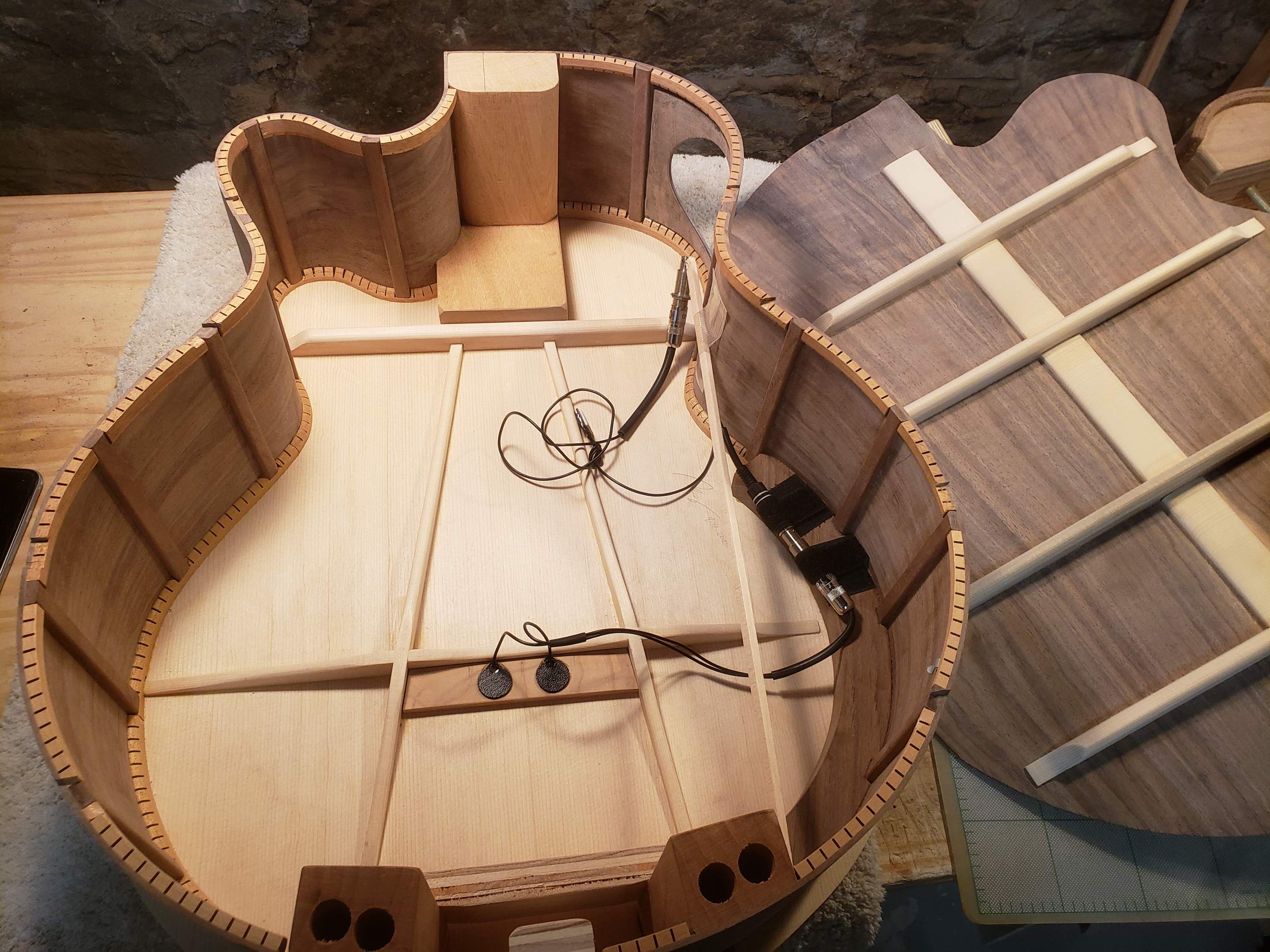

Next i installed the pickup, using a truebass with the volume knob attachment. I've got the jack tied to a little stick here so i can feed it through the tail later - need to do the end graft before I drill the hole.

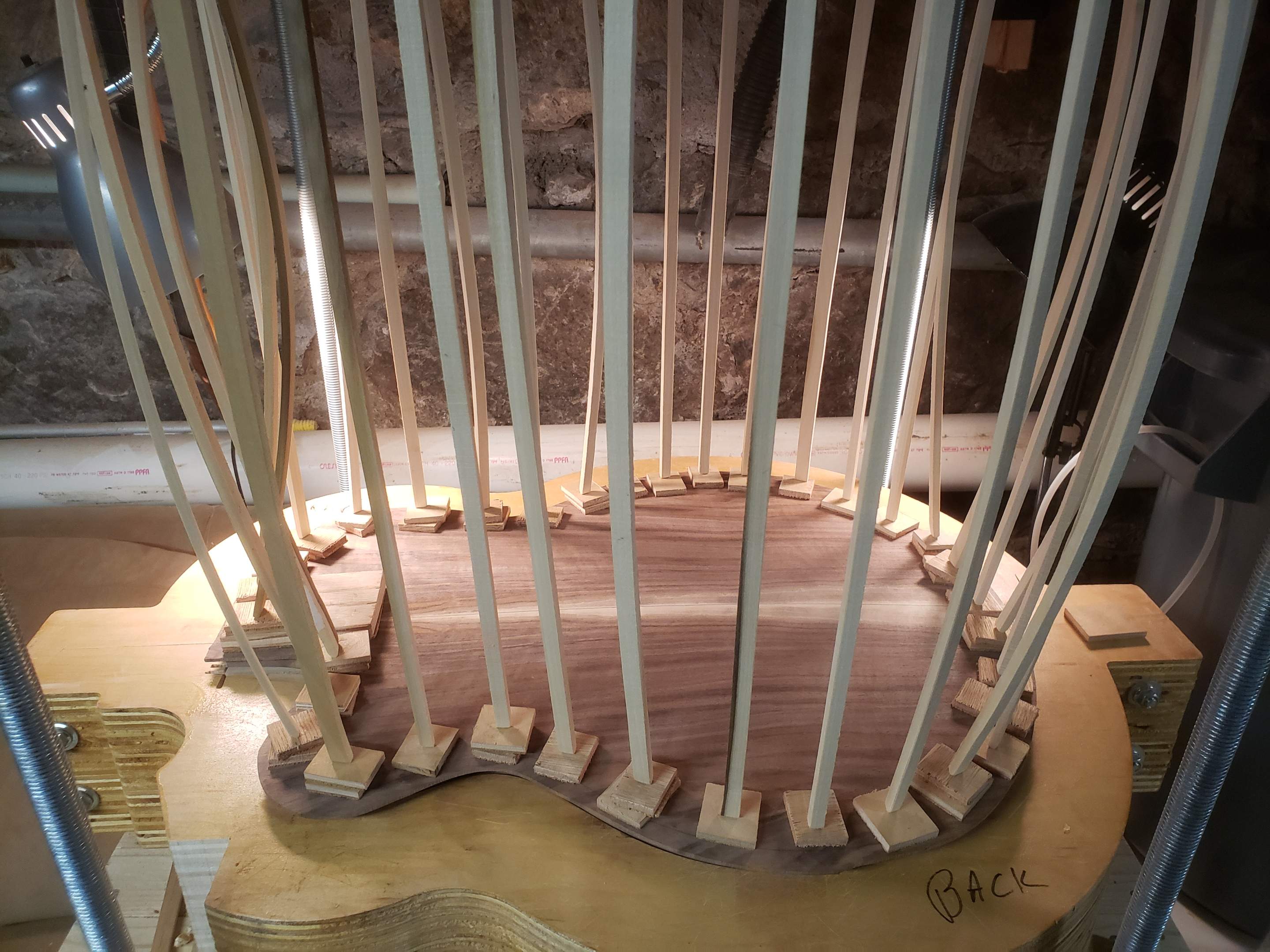

And back into the go-bar deck to attach the back, waiting for the glue to set!
Next i installed the pickup, using a truebass with the volume knob attachment. I've got the jack tied to a little stick here so i can feed it through the tail later - need to do the end graft before I drill the hole.
And back into the go-bar deck to attach the back, waiting for the glue to set!

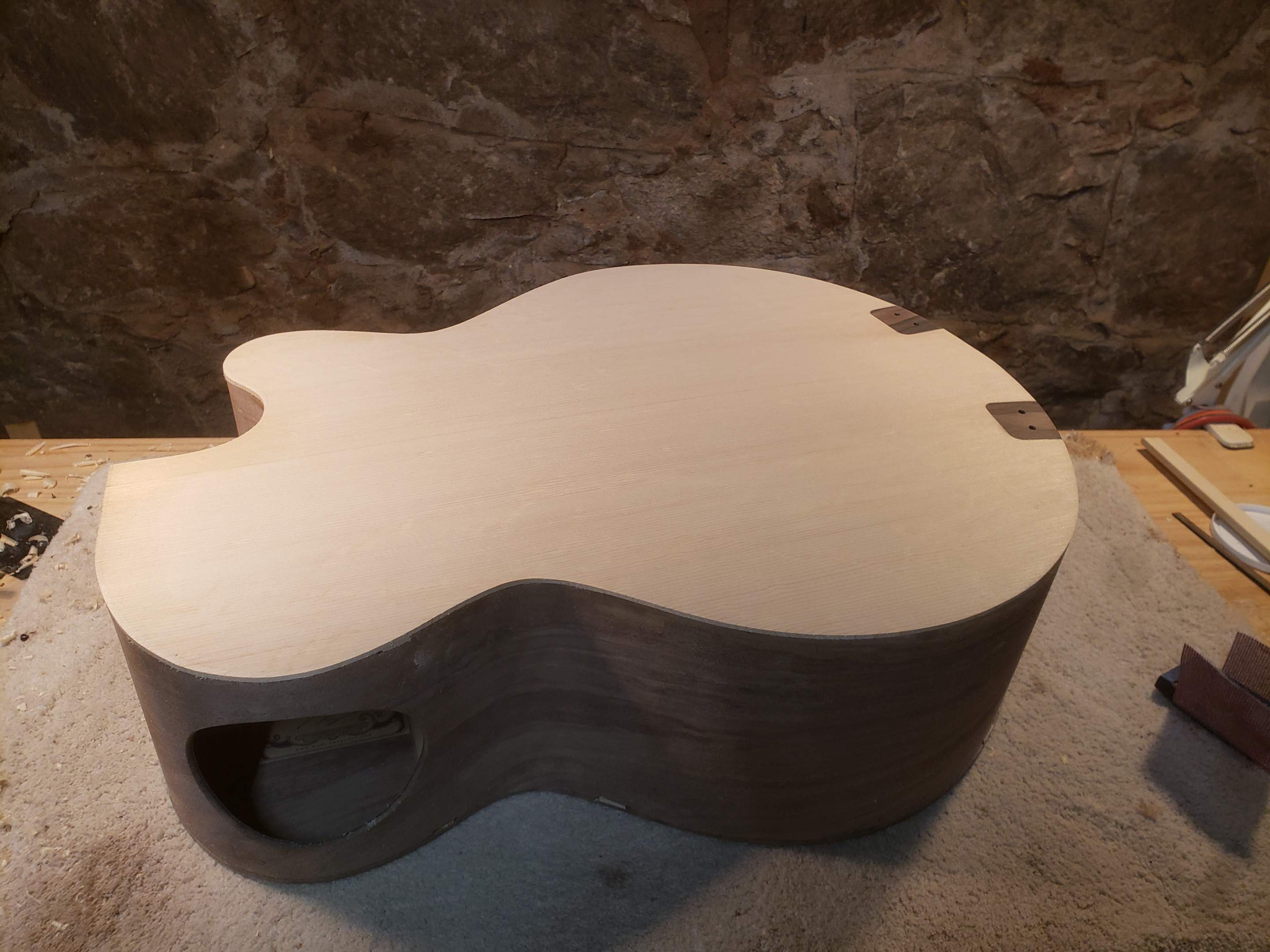

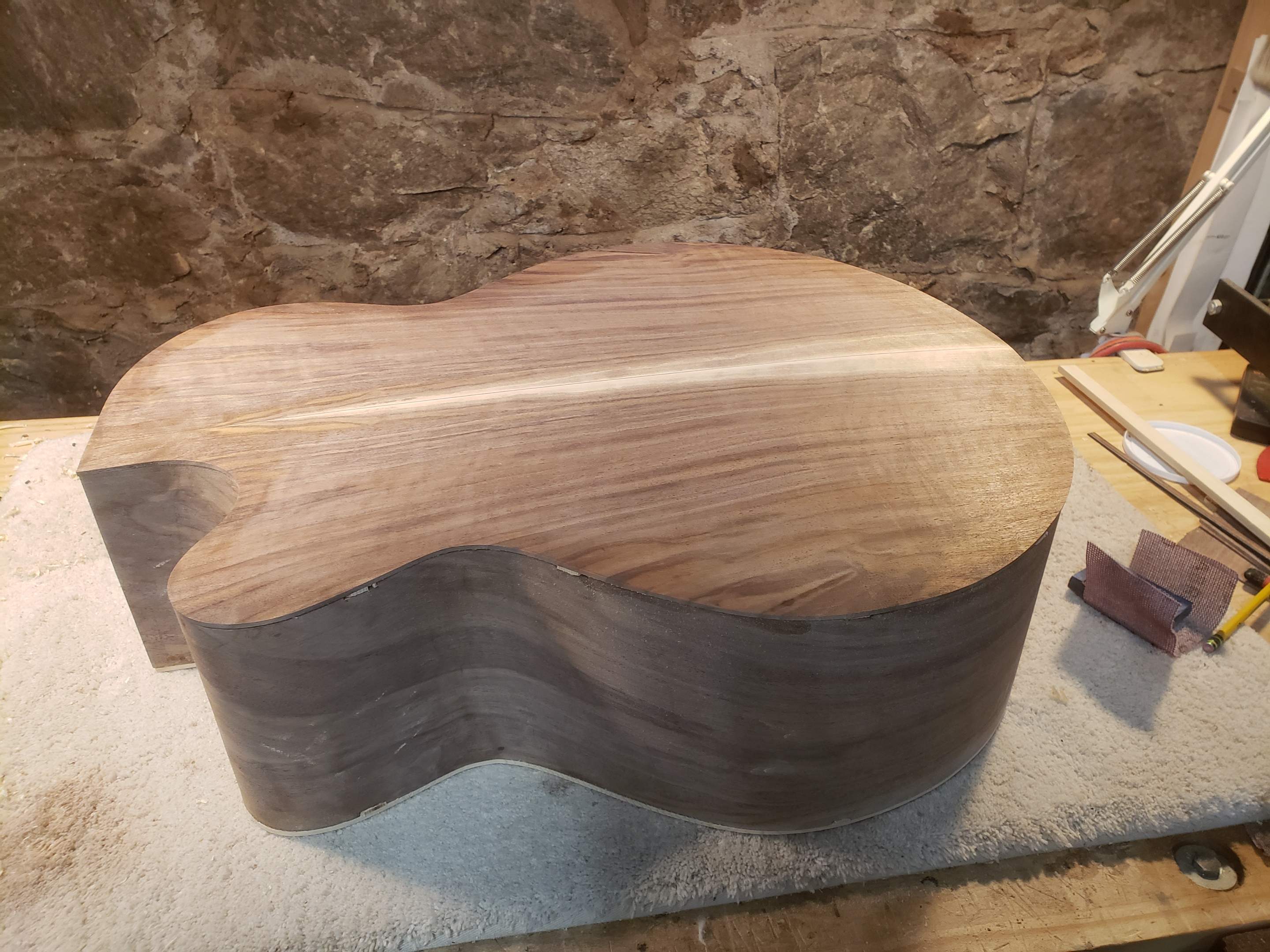

Trimmed the top and back, survived round 1 with the spinning dick of death!
- Apr 18, 2008
- 16,013
- 1
- 31,724
- Disclosures
- I'm highly opinionated and extremely self-assured
Good lord, you weren’t kidding when you said that body was deep. It’s half acoustic bass body, half bass drum!
turindev
Commercial User
- Jul 1, 2005
- 514
- 1,594
- Disclosures
- Builder, m7bassworks.com
Some beautiful work happening here, and major craftsmanship! A buddy of mine builds acoustics, I’m constantly in awe of all of the steps to build one of these masterpieces. Thanks for sharing, can’t wait to see the result!
- Apr 18, 2008
- 16,013
- 1
- 31,724
- Disclosures
- I'm highly opinionated and extremely self-assured
I have a curious question. I am not so learned in acoustic instruments
With the large acoustic chamber, what are you attempting to accomplish?
More Volume? Focus on a frequency? Sonic alien trigger for tele-transportation?
With the large acoustic chamber, what are you attempting to accomplish?
More Volume? Focus on a frequency? Sonic alien trigger for tele-transportation?
This design uses 1/4 upright bass strings, and the goal is to mimic an upright sound more than an electric fretless sound.
Bigger box makes for a lower resonant frequency of the sound box, so more bass.
There's a few of ways to lower the frequency, one is to make the edges of the top thinner, or the braces smaller, or to add mass to the sides. I dont want to thin the top too much because you lose some sustain when you do that, and the strings are really heavy so it could sound like a floppy hot dog pretty quick.
This one is tap testing at around 85Hz right now, which will change a bit when I add the bridge and do the side arm bevel. - the arm bevel has an impact because I'm removing some mass, so the frequency will go up, but the bridge will lower it again. Attaching the neck lowers it a little too (adding mass).
85 isn't as low as I hoped really, I target 95 on OM sized acoustics, so I might thin the top some more and try to get it to drop a bit.
The most important thing, is you want the box to resonant between two real notes (like a quarter tone) when it's all said and done to help minimize wolf tones.

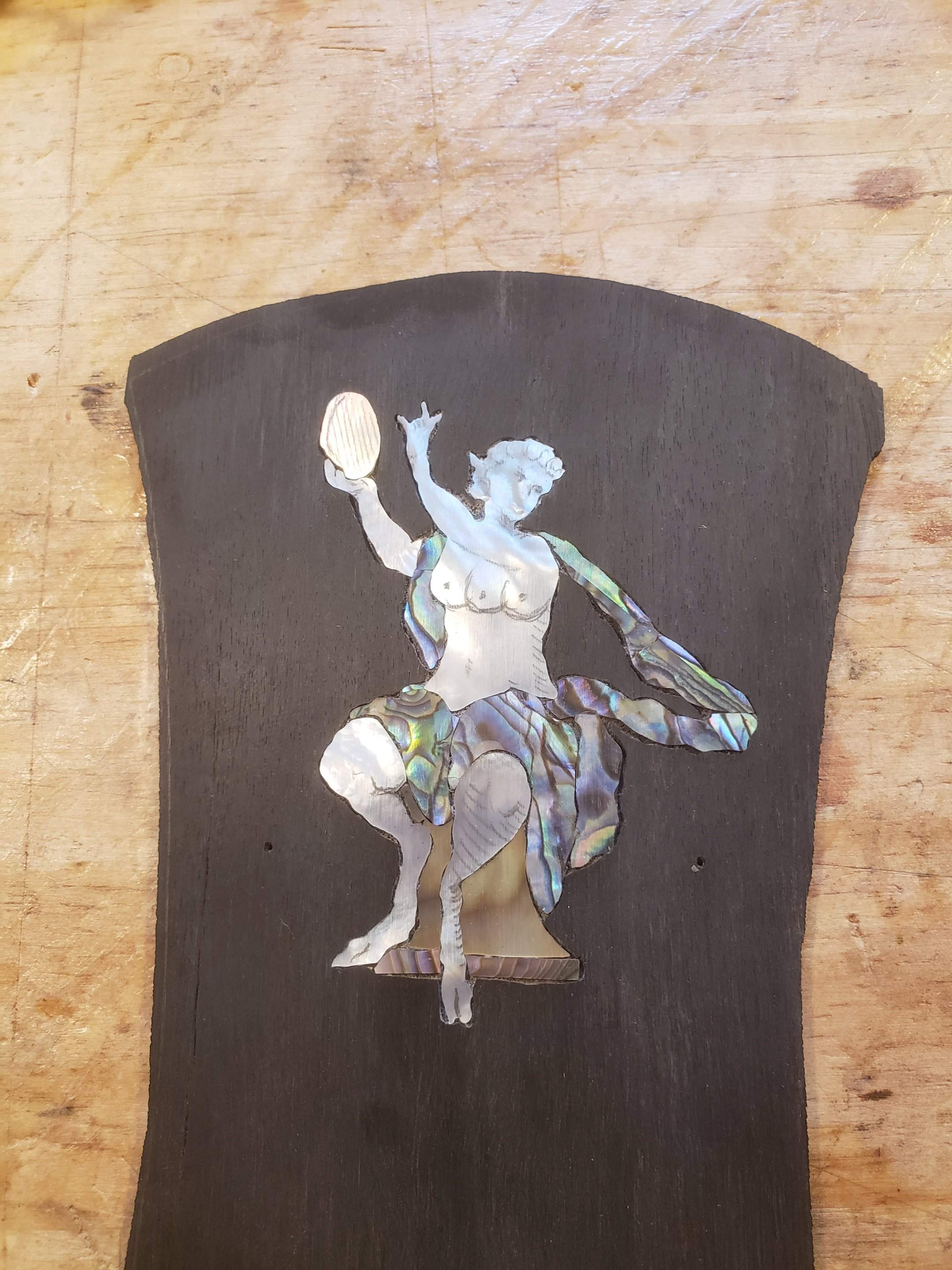

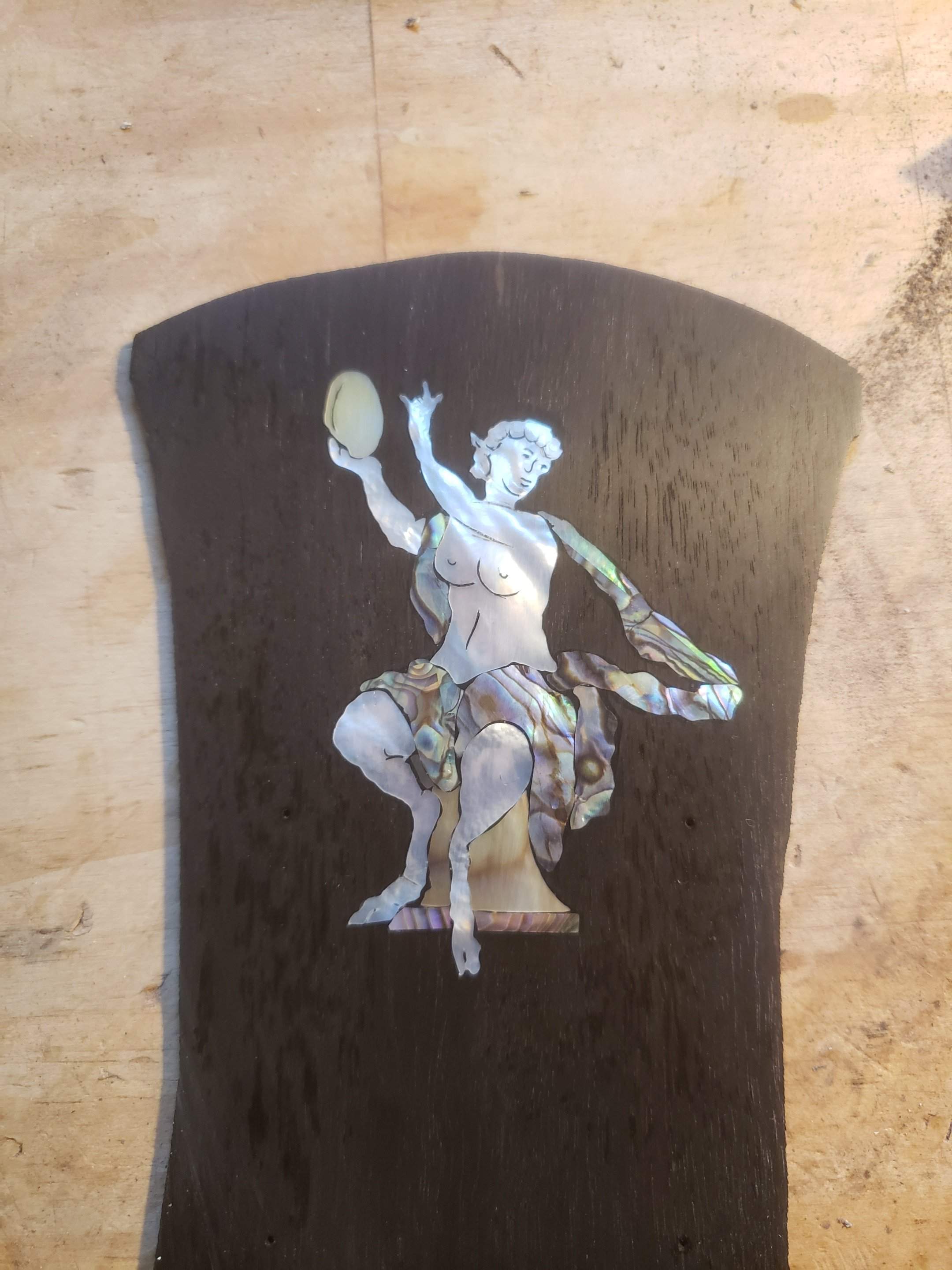

Well, between sanding the sides, and breaking a bunch of binding on the bending iron I did finish up the satyr lady.
That inlay turned out great! The third boob on the mock-up reminded me of the movie "Paul"
It’s like an episode of the origins Star Trek !
And Total Recall - 1990 version
- Apr 18, 2008
- 16,013
- 1
- 31,724
- Disclosures
- I'm highly opinionated and extremely self-assured

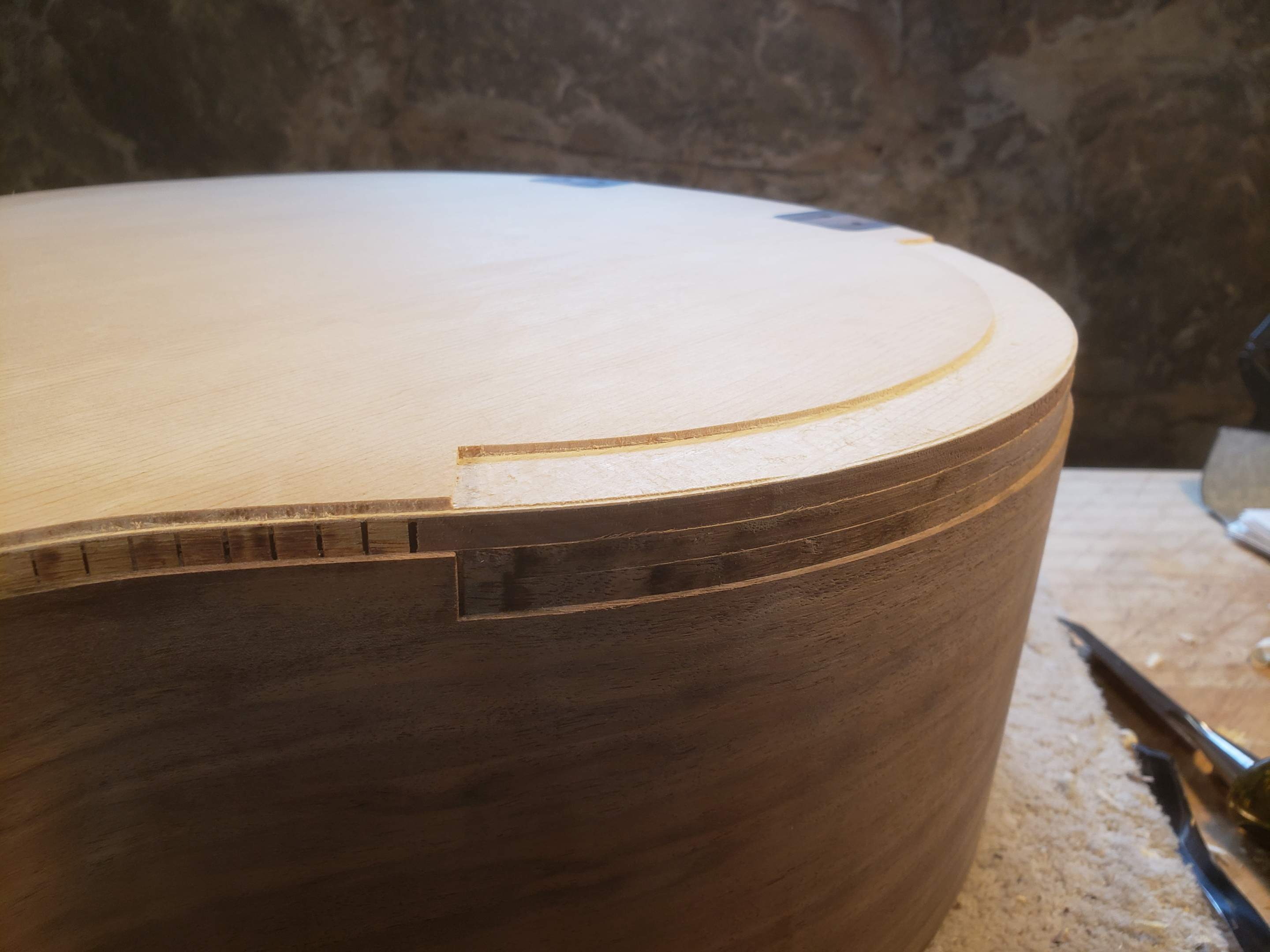

Cut the binding channels

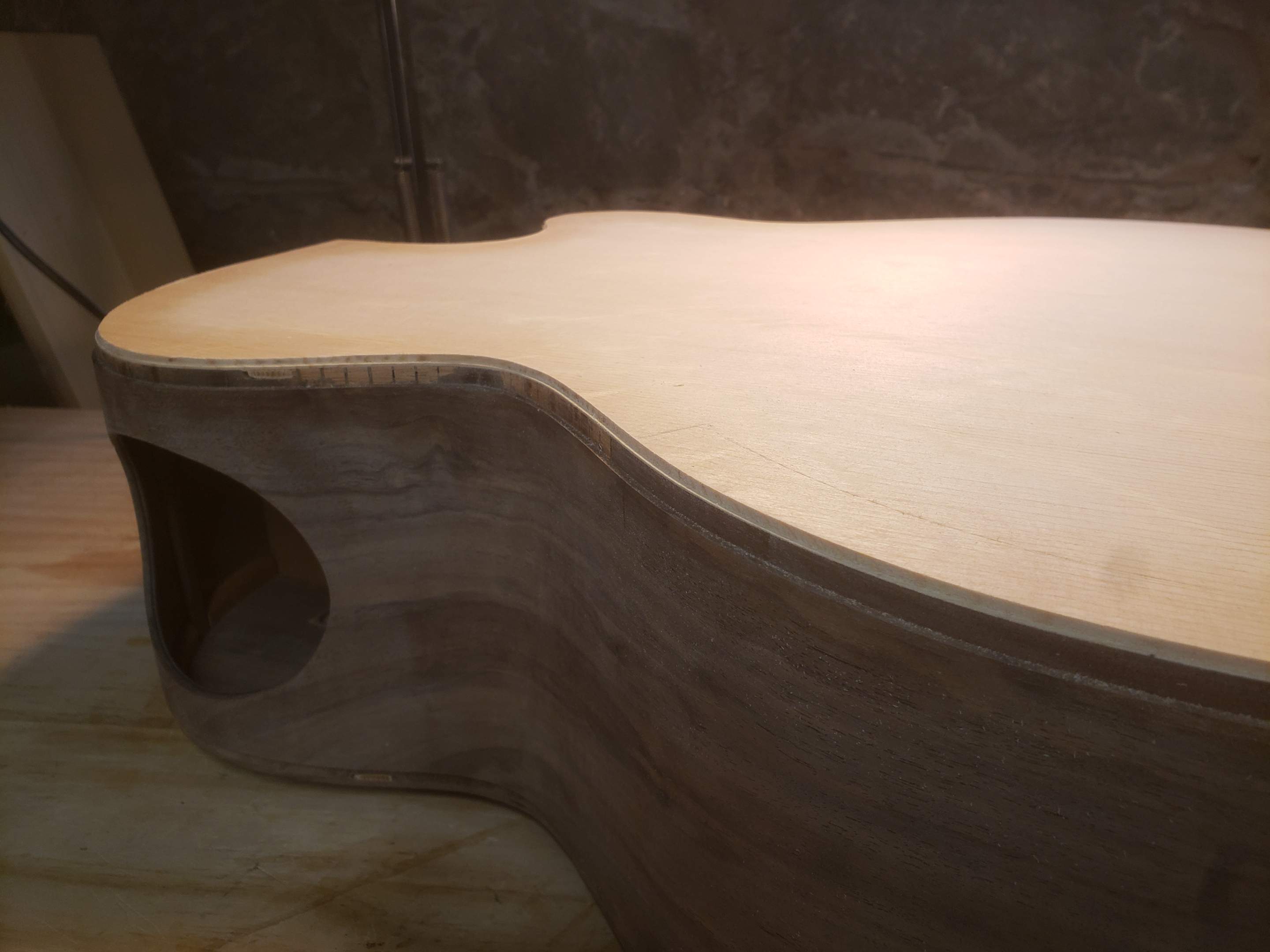

Prepped for the arm bevel
One side of the back done
Prepped for the arm bevel
One side of the back done
