Special Edition Build Off - Tinozza style

[Nagromicon]

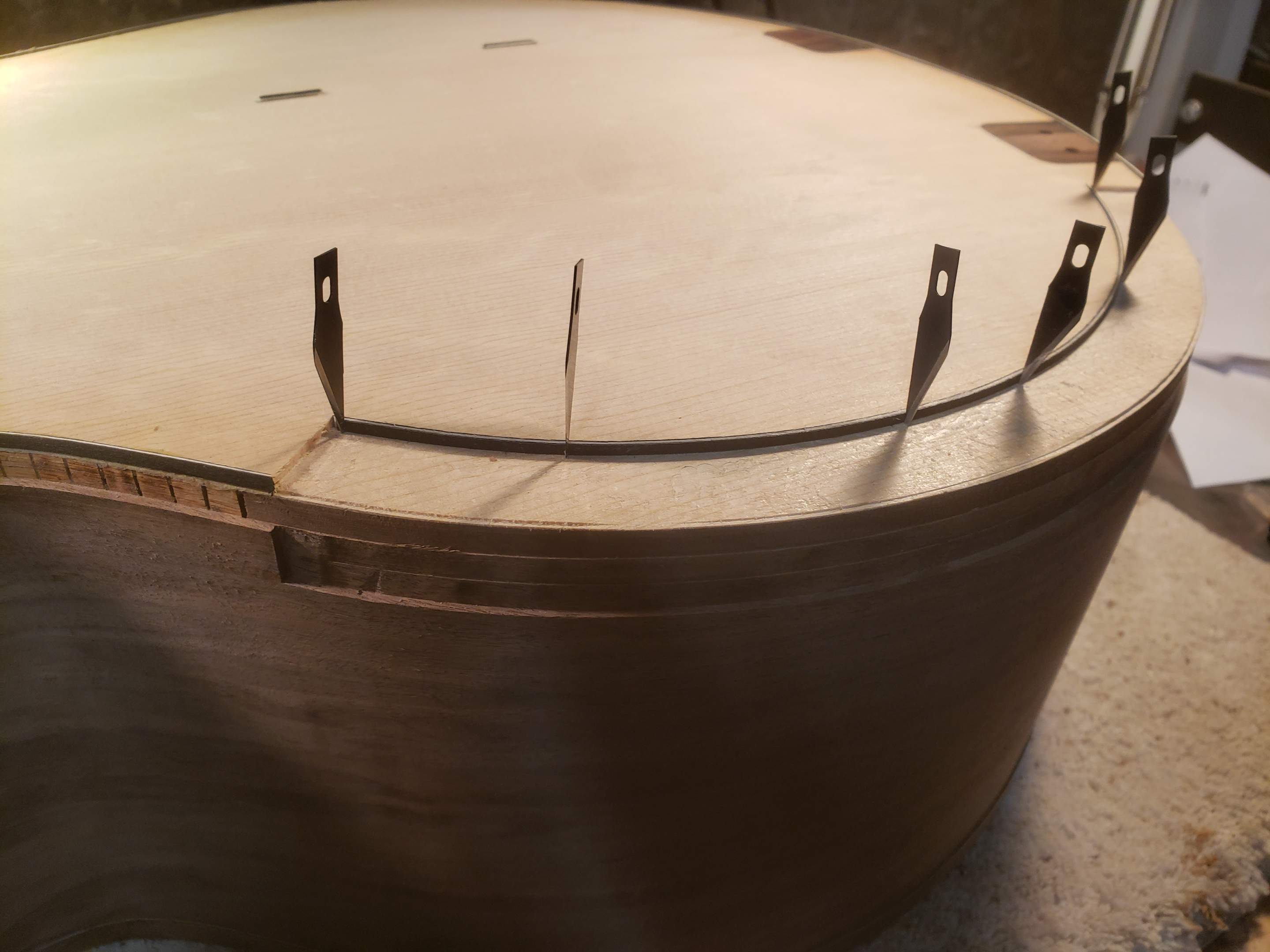

Getting purfled



[daveman50]

I've never seen that particular technique with the razor blades... very cool. This is my favorite thread right now.



[Nagromicon]

Progress on the arm bevel!

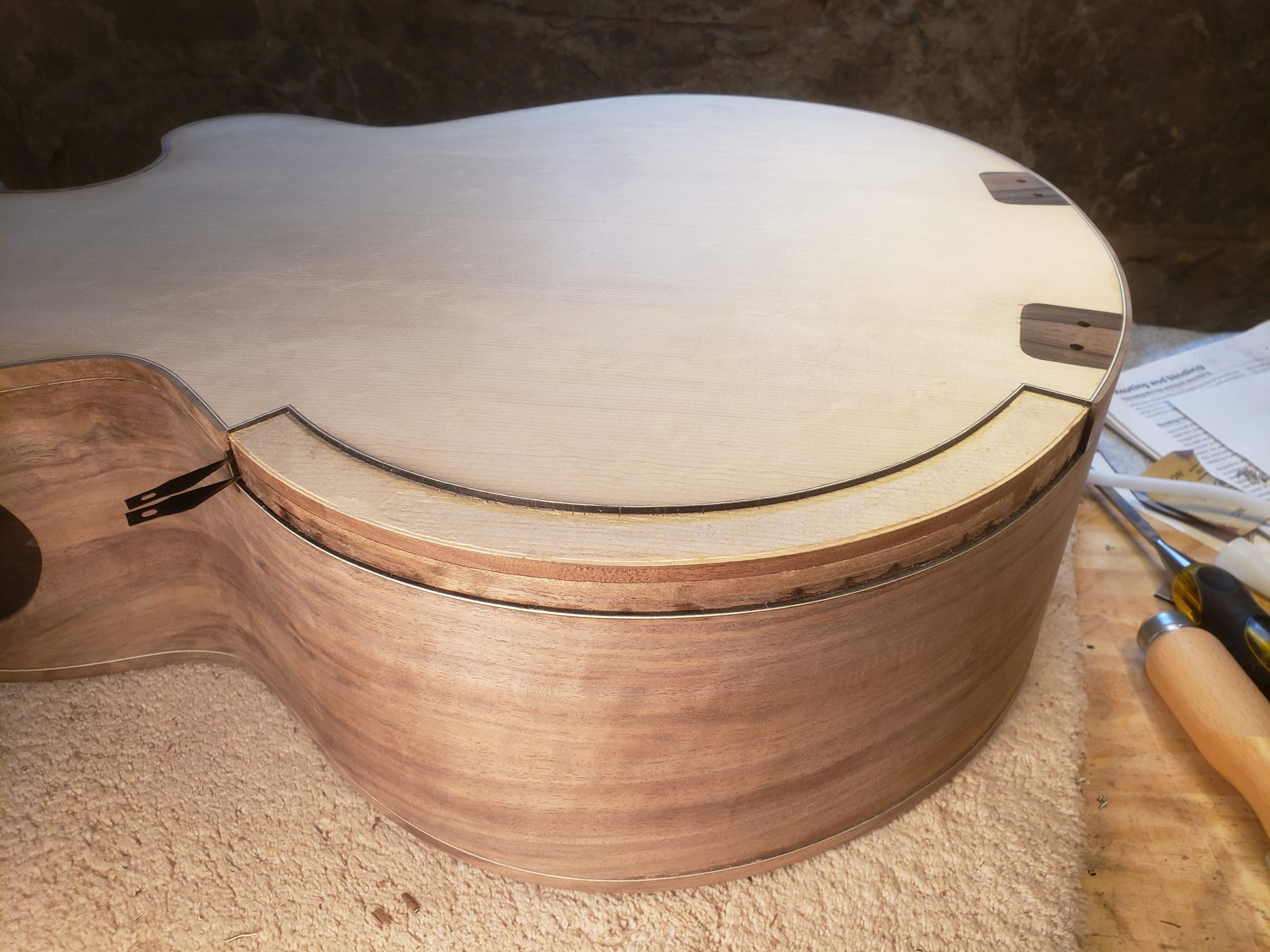

Got it all purfled:

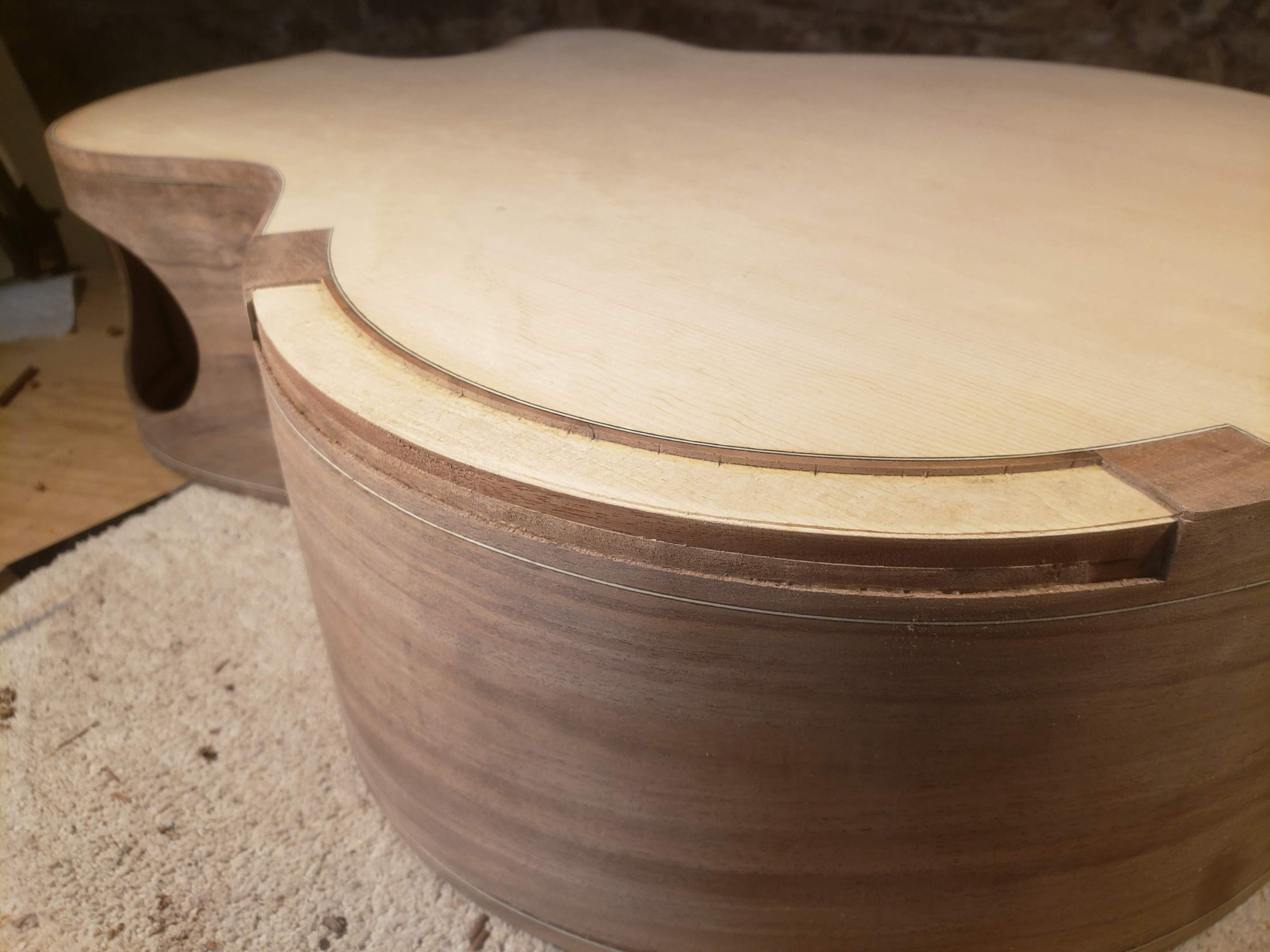

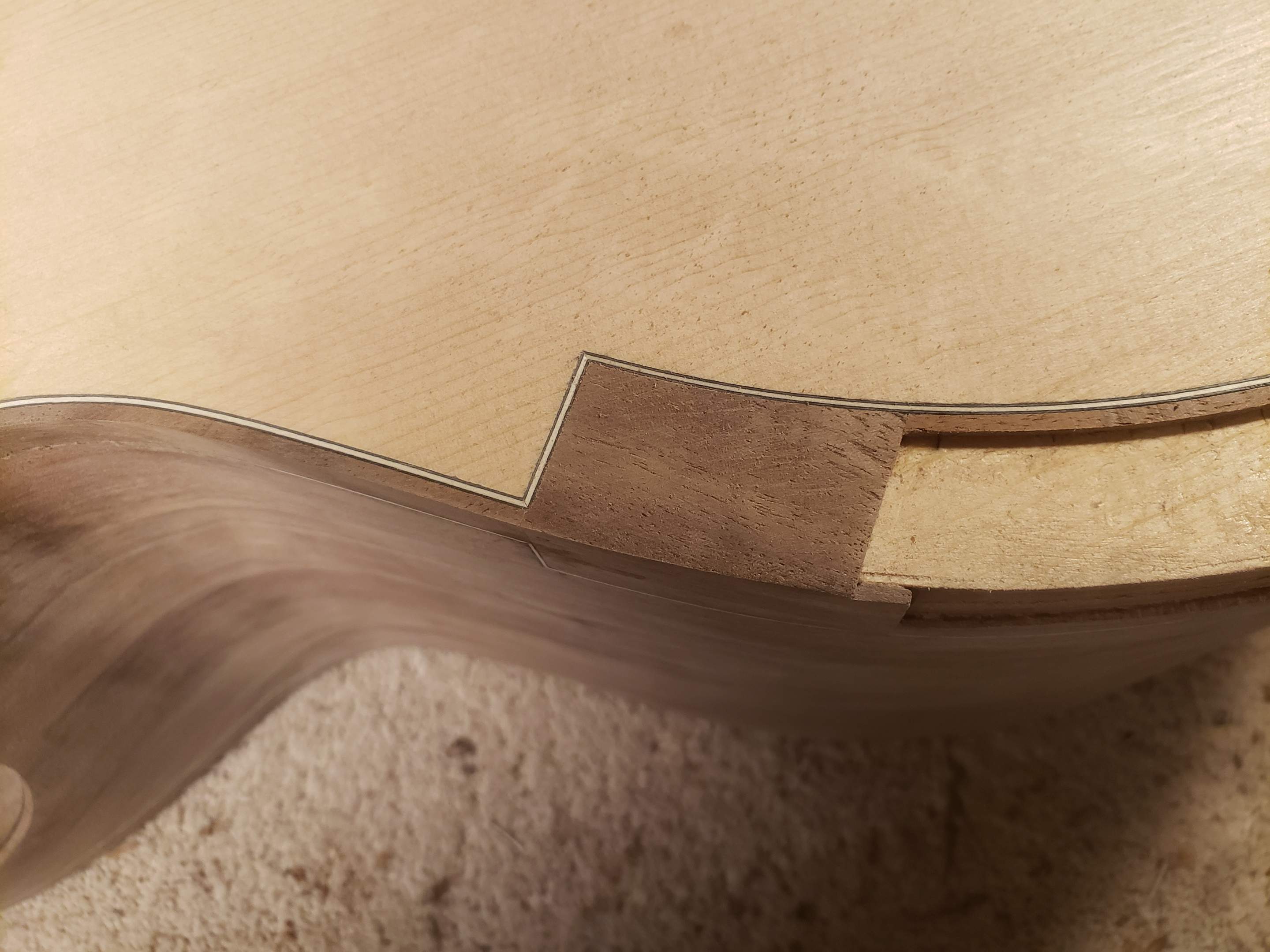

Then added some blocks to the ends and some buffer between the purfling and where the bevel will be:

Next I'll carve in the bevel, and then put a walnut veneer over it and hopefully it will all blend well!



[dwizum]

I am looking forward to seeing how this bevel comes together. I've never seen the process laid out like this.



[Nagromicon]

Me too! I saw this method on instagram.



[Nagromicon]

Arm bevel continued....

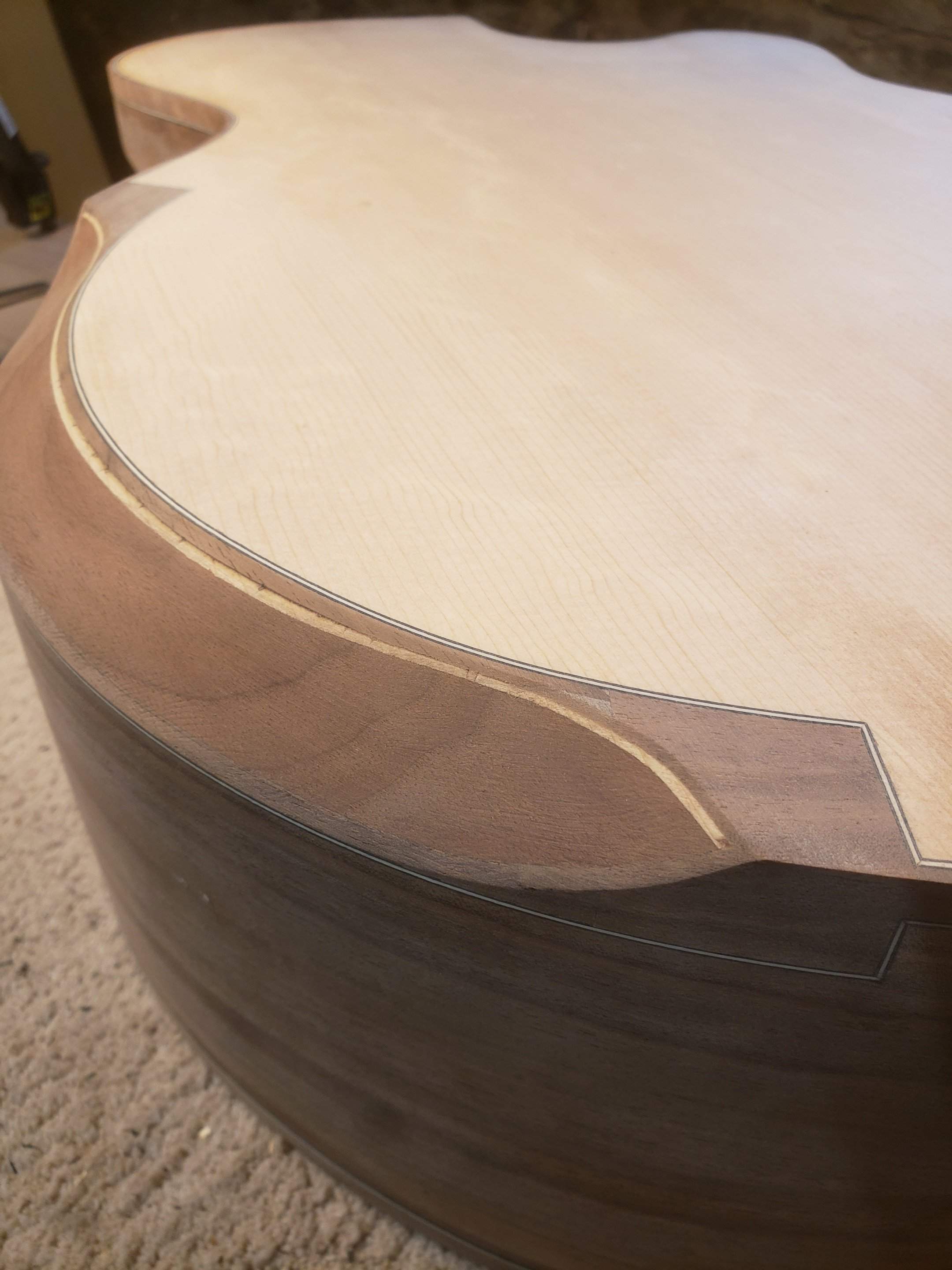

Here it is carved. A 45 degree roundover bit would have been nice, but I got it done with planes, chisels and files. What you're seeing exposed here is the walnut rim I put in this section before I attached the top:

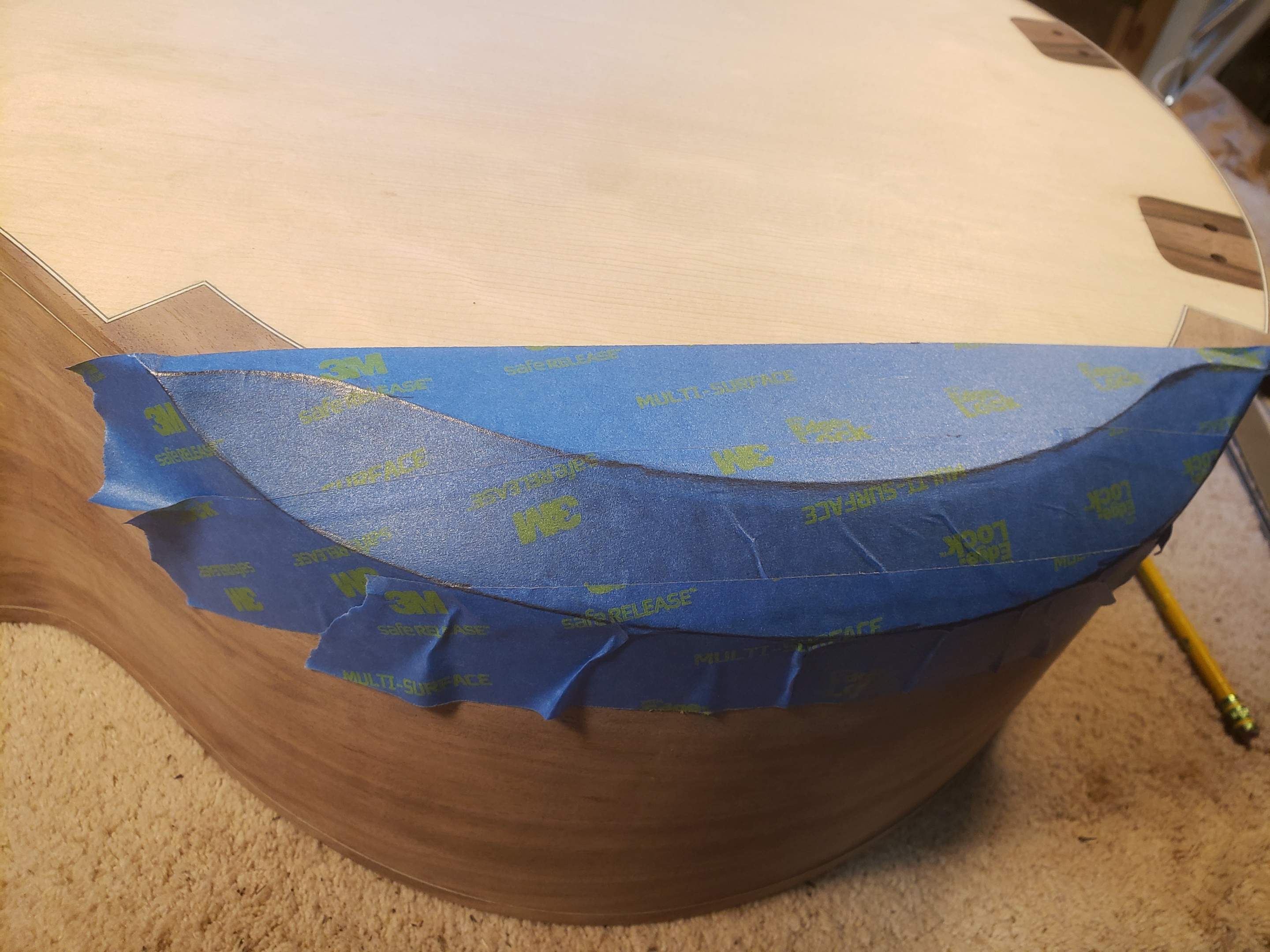

Then I put some tape on it and rubbed a pencil to get the outline.

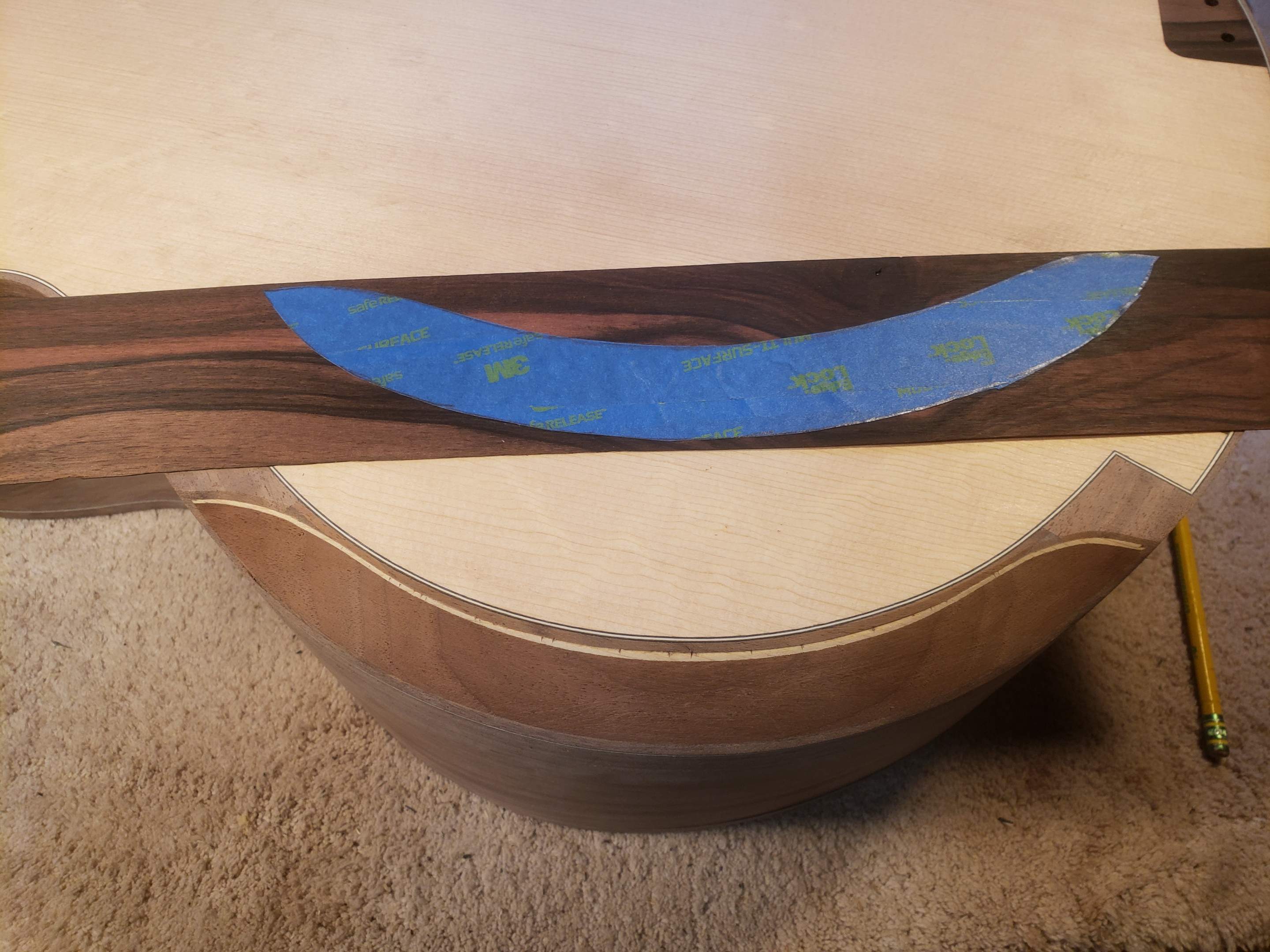

I was going to use the same walnut as the sides as a veneer, but decided to go with some more of the macassar ebony I'm using in other areas of the build (bridge, fretboard, endwedge, etc). I sliced a little off the billet with the bandsaw, then glued the ends of it down onto a board and ran it through the sander a bunch to get veneer-thickness. The tape gets peeled off the side and stuck to the veneer

Next I cut it out carefully, bent it a bit on the iron, and epoxied it on

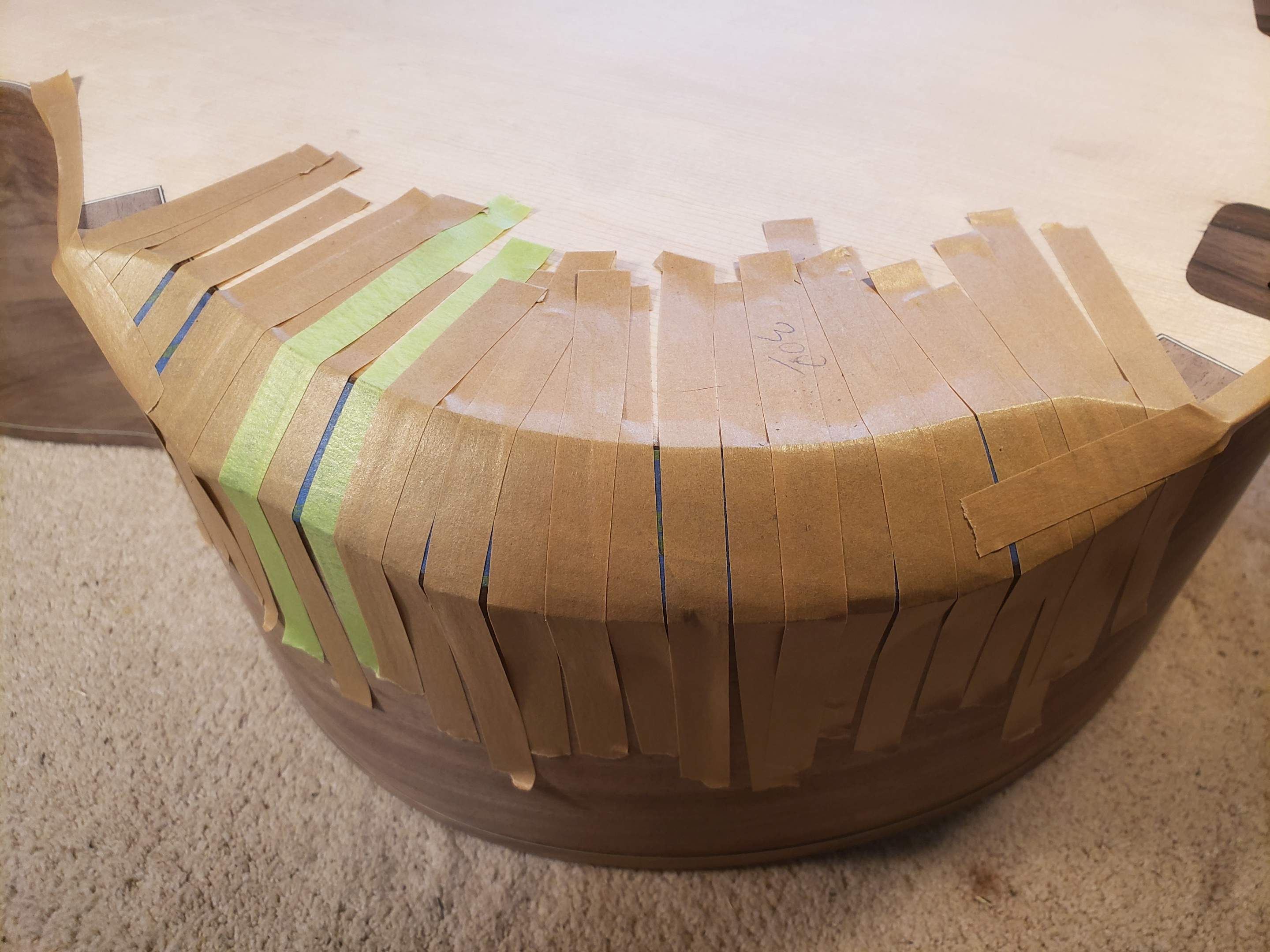

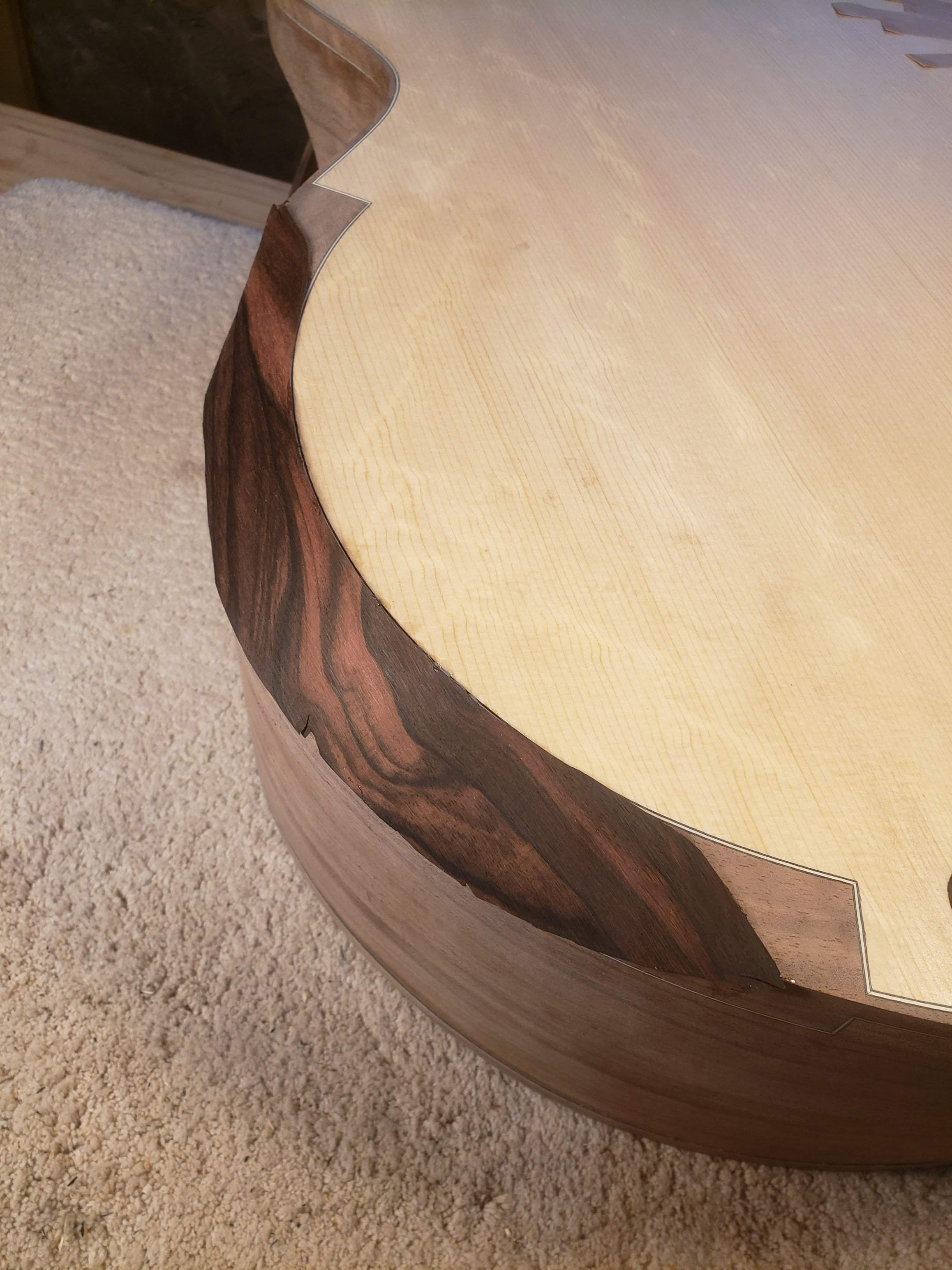

Unwrapped:

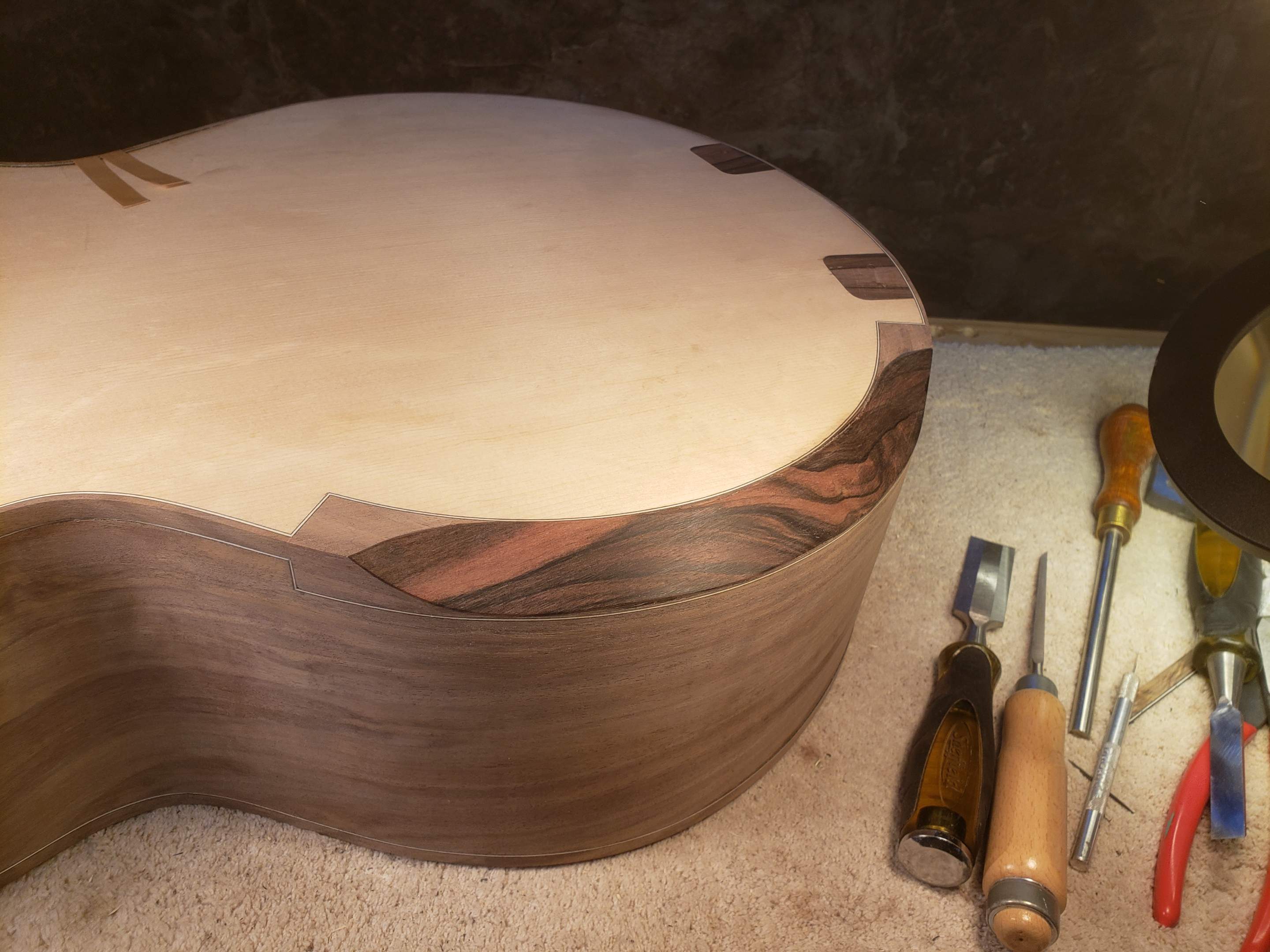

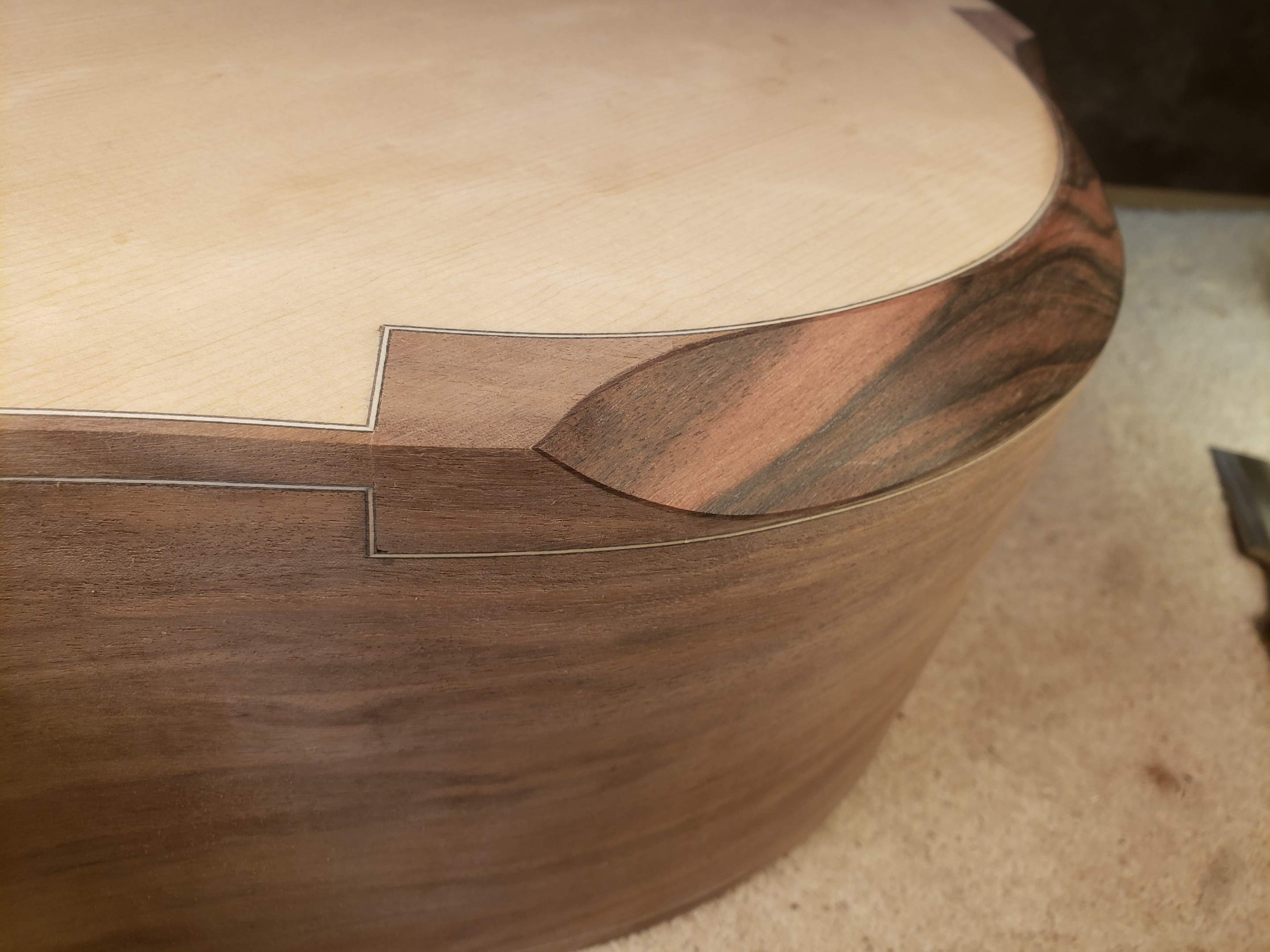

Then carefully filed and sanded it back:

I learned this method from beauhannamguitars on instagram



[Reedt2000]

Wow, that is really impressive. Its so cool to get to see this kinda work step by step. Amazing craftsmanship, I've never seen an arm scoop like that. I though it looked cool without the veneer. Thanks for sharing the process



[Matt Liebenau]

Dang! Just plain, DANG! Ok, maybe something else but I don’t want to get in trouble!



[ctmullins]

Yep, it’s builds like this that remind the rest of us what actual luthiery looks like. The bald truth is that gluing planks together, slapping a finish on, and screwing pickups to it pales in comparison.



Not that I’m going to stop anytime soon.....



[Dark Horse]

I think I mentioned earlier that I hate you.

but not really.

I think what you’re doing here is astonishingly good. Seriously inspired work.



[Scoops]

When I grow up, I wanna be like Nagromicon



[Reedt2000]

So, he just wins now, right?



[Dark Horse]

So, he just wins now, right?

This contest sure has some amazing entries, doesn’t it ?!?



[Reedt2000]

This contest sure has some amazing entries, doesn’t it ?!?

Yours counts among them

Still stoked to see the Alembic meets Thompson design come to completion



[Five String]

Breathtaking.



[Dark Horse]

Yours counts among them

Still stoked to see the Alembic meets Thompson design come to completion

thanks

All depends on how my treatments go and stuff. Everything is slow down to a crawl right now. Though I did get a few of the parts that I need in today.

still, there are a couple of these builds that are really blowing my mind. Some of them just incredible technically, others just design wise visually is wonderful. Something to be learned every single day just by looking through these threads.



[Reedt2000]

thanks

All depends on how my treatments go and stuff. Everything is slow down to a crawl right now. Though I did get a few of the parts that I need in today.

still, there are a couple of these builds that are really blowing my mind. Some of them just incredible technically, others just design wise visually is wonderful. Something to be learned every single day just by looking through these threads.

I wish you the best man. You seem like a good dude, and that's some heavy stuff. Not sure what to say other than count me among those pulling for positive outcomes

(Ok, nuff with the thread hijackin' )



[Dark Horse]

I wish you the best man. You seem like a good dude, and that's some heavy stuff. Not sure what to say other than count me among those pulling for positive outcomes

(Ok, nuff with the thread hijackin' )

Thanks, my brother!



[Nagromicon]

Yep, it’s builds like this that remind the rest of us what actual luthiery looks like. The bald truth is that gluing planks together, slapping a finish on, and screwing pickups to it pales in comparison.

Nah, I really don't think so, electrics take crazy skills and precision too. And acoustics take so long, you really need to have brain damage to do them



[Gary_M]

So, he just wins now, right?

That is exactly what I was thinking too.
