Special Edition Build Off - Tinozza style
- Thread starter Nagromicon
- Start date

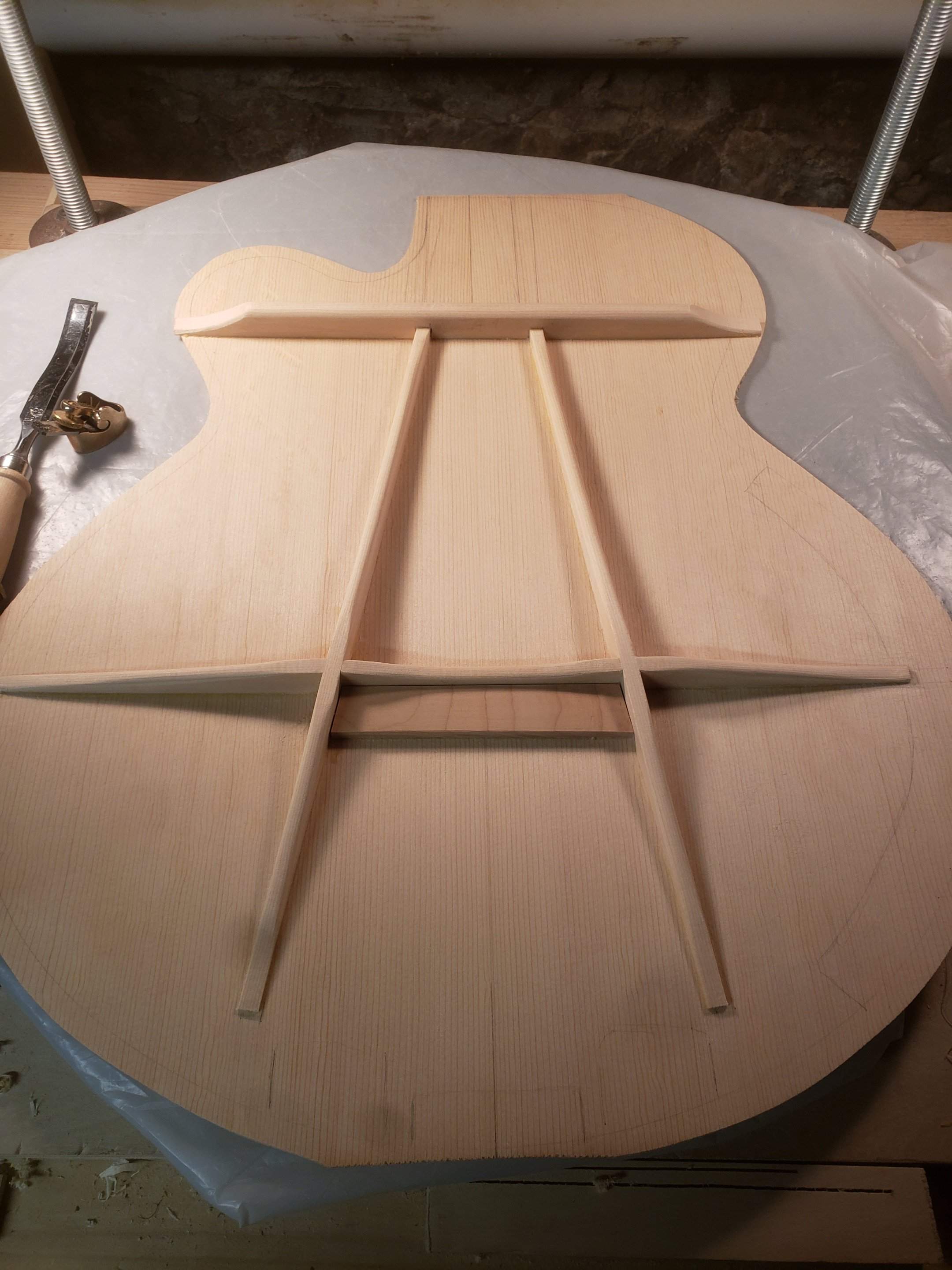

Top braces shaped and cleaned up:
The bracing is a bit weird, one thing to keep in mind is the strings are pushing down on the top in this design, rather than pulling up like a typical acoustic.

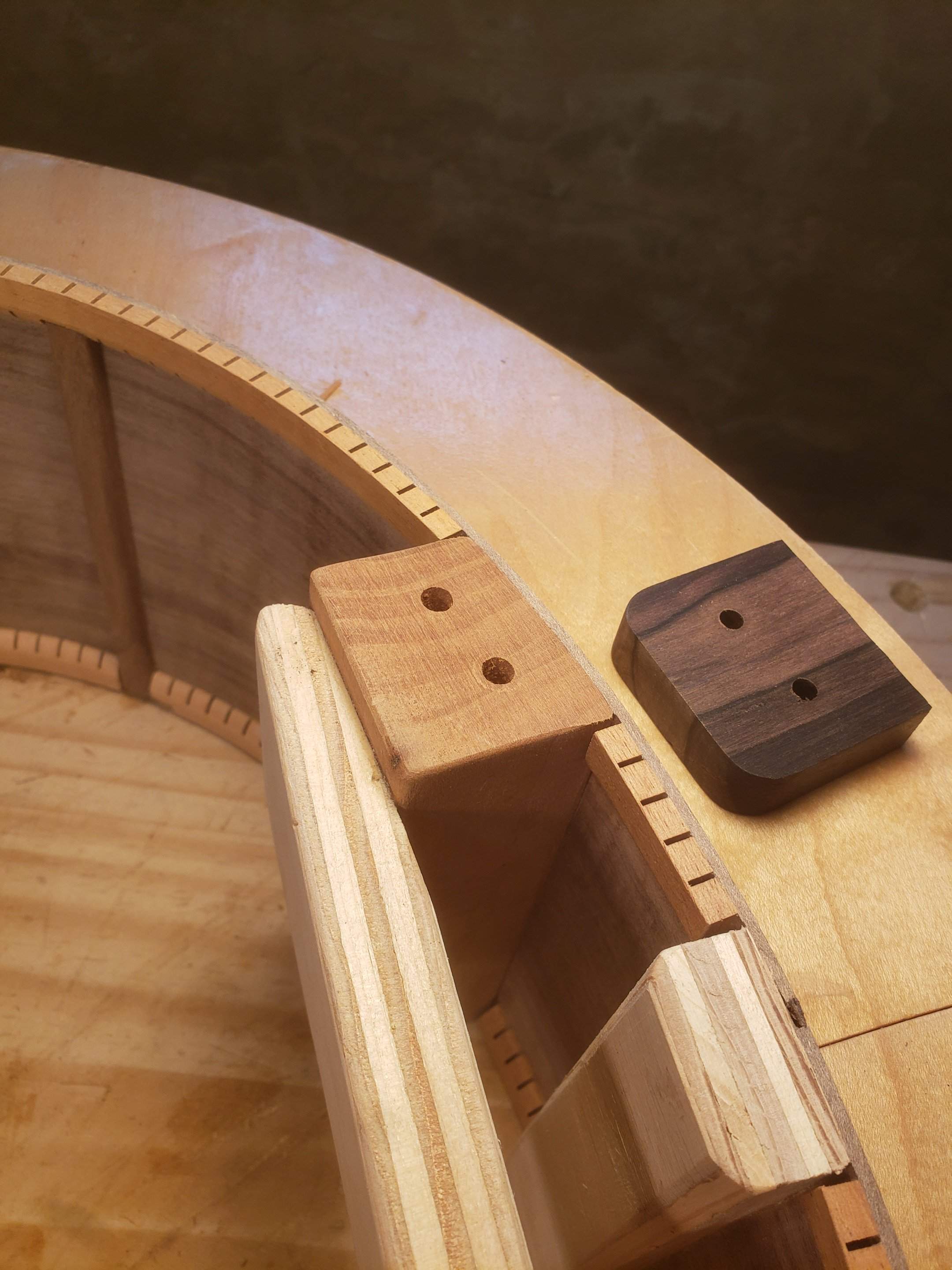

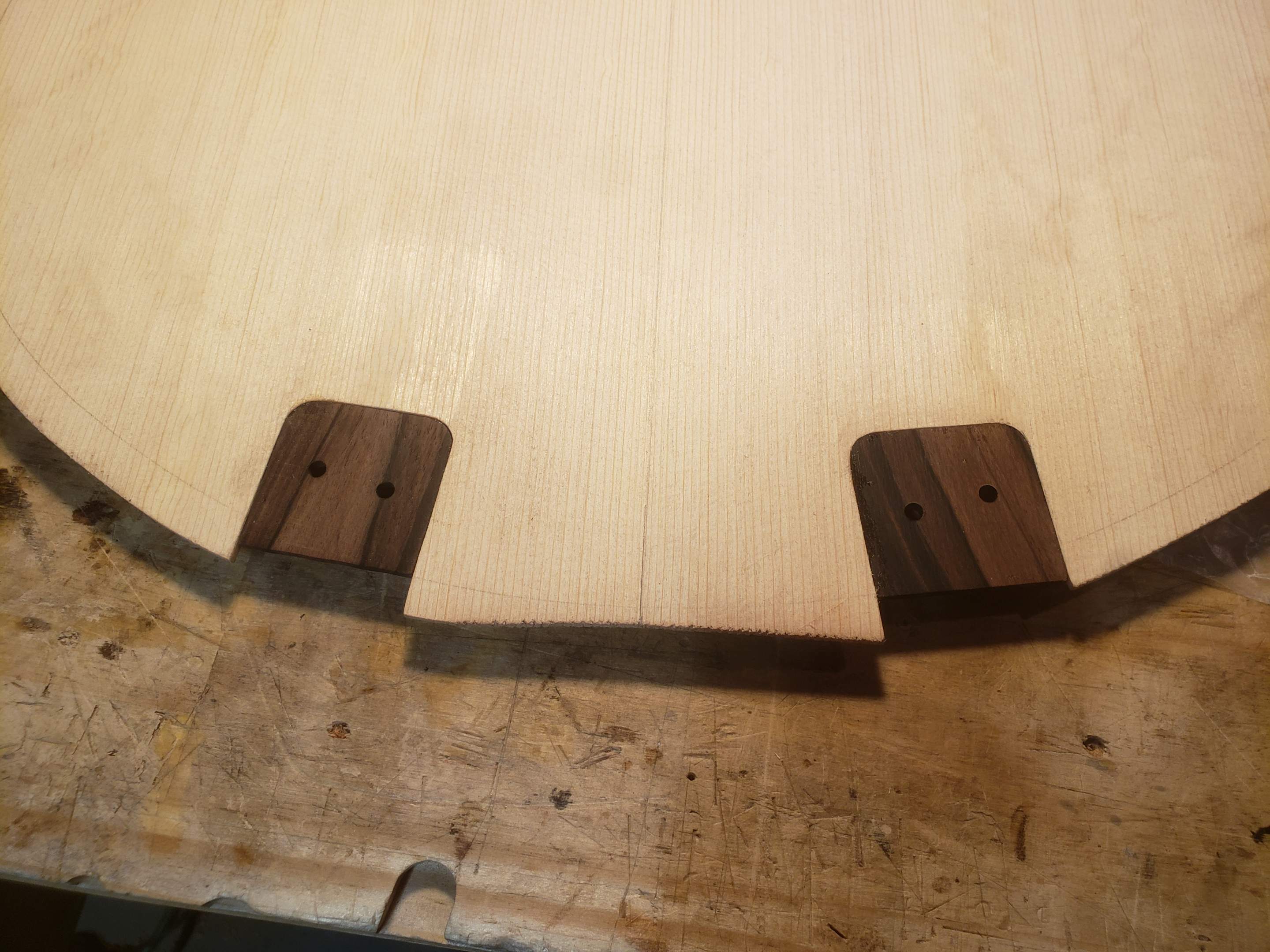

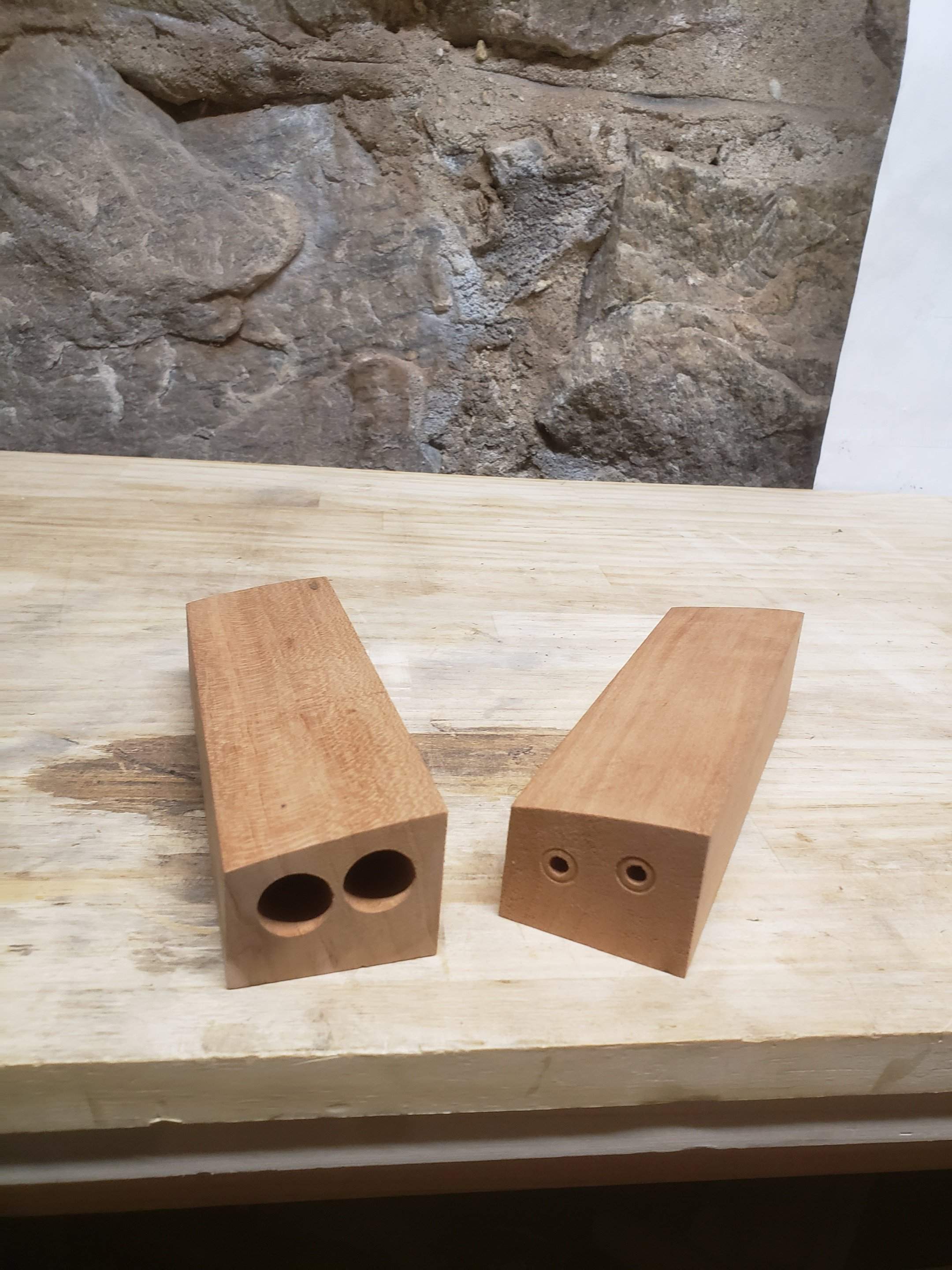

Also got the tail blocks done. The strings actually anchor into these on either side of the tail. This bass uses upright bass strings, which need a break angle of about 15 degrees at the bridge to isolate them properly. It also allows for the correct string length from the ends to the nut. So, the blocks have a 5/8" hole that runs about 3.75" deep where the ball ends anchor, and then the strings exit through a 3/16 hole in the other end. They get the 15 degree angle at the bridge from the side rather than up and down.
The bracing is a bit weird, one thing to keep in mind is the strings are pushing down on the top in this design, rather than pulling up like a typical acoustic.
Also got the tail blocks done. The strings actually anchor into these on either side of the tail. This bass uses upright bass strings, which need a break angle of about 15 degrees at the bridge to isolate them properly. It also allows for the correct string length from the ends to the nut. So, the blocks have a 5/8" hole that runs about 3.75" deep where the ball ends anchor, and then the strings exit through a 3/16 hole in the other end. They get the 15 degree angle at the bridge from the side rather than up and down.

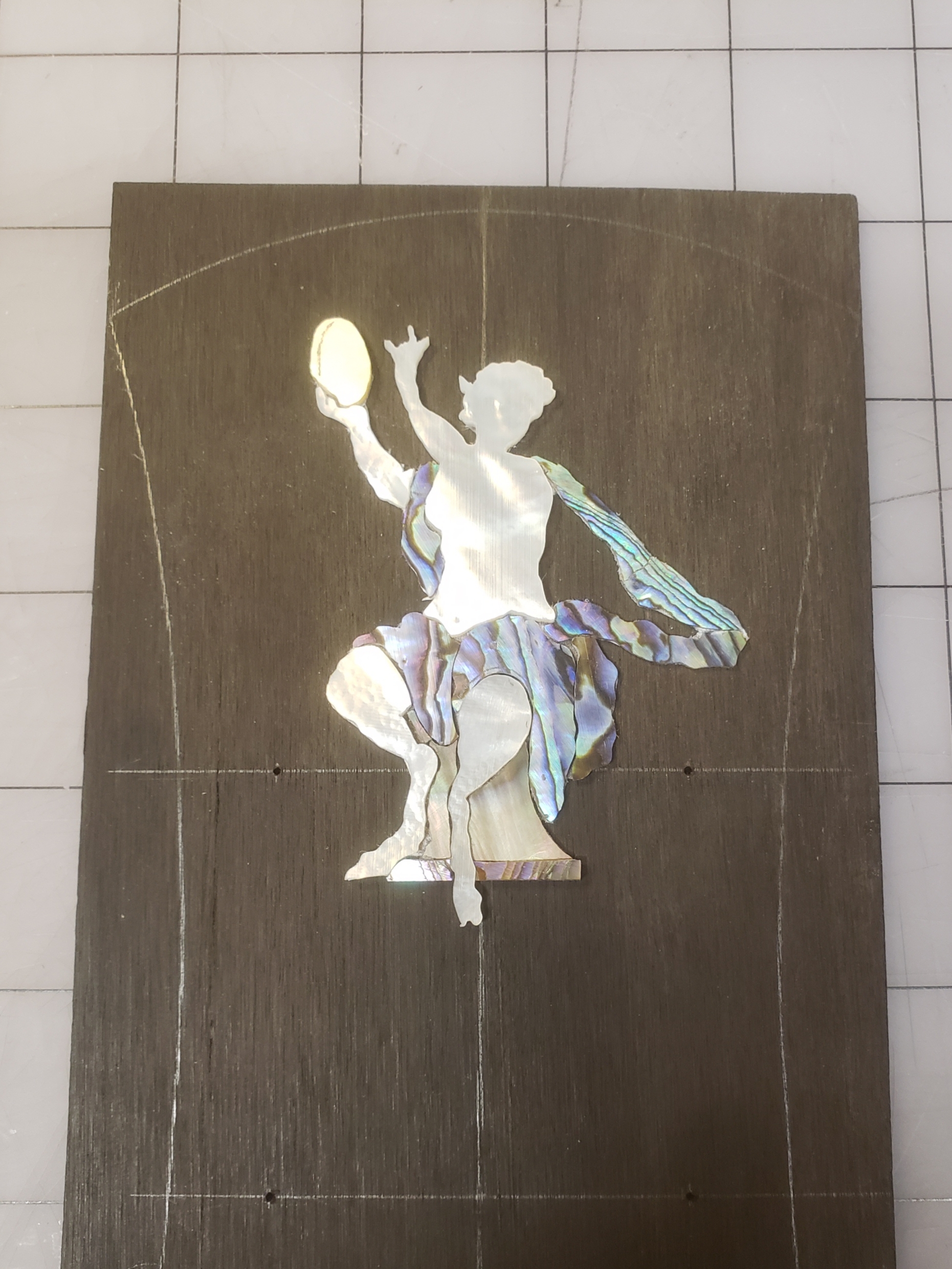

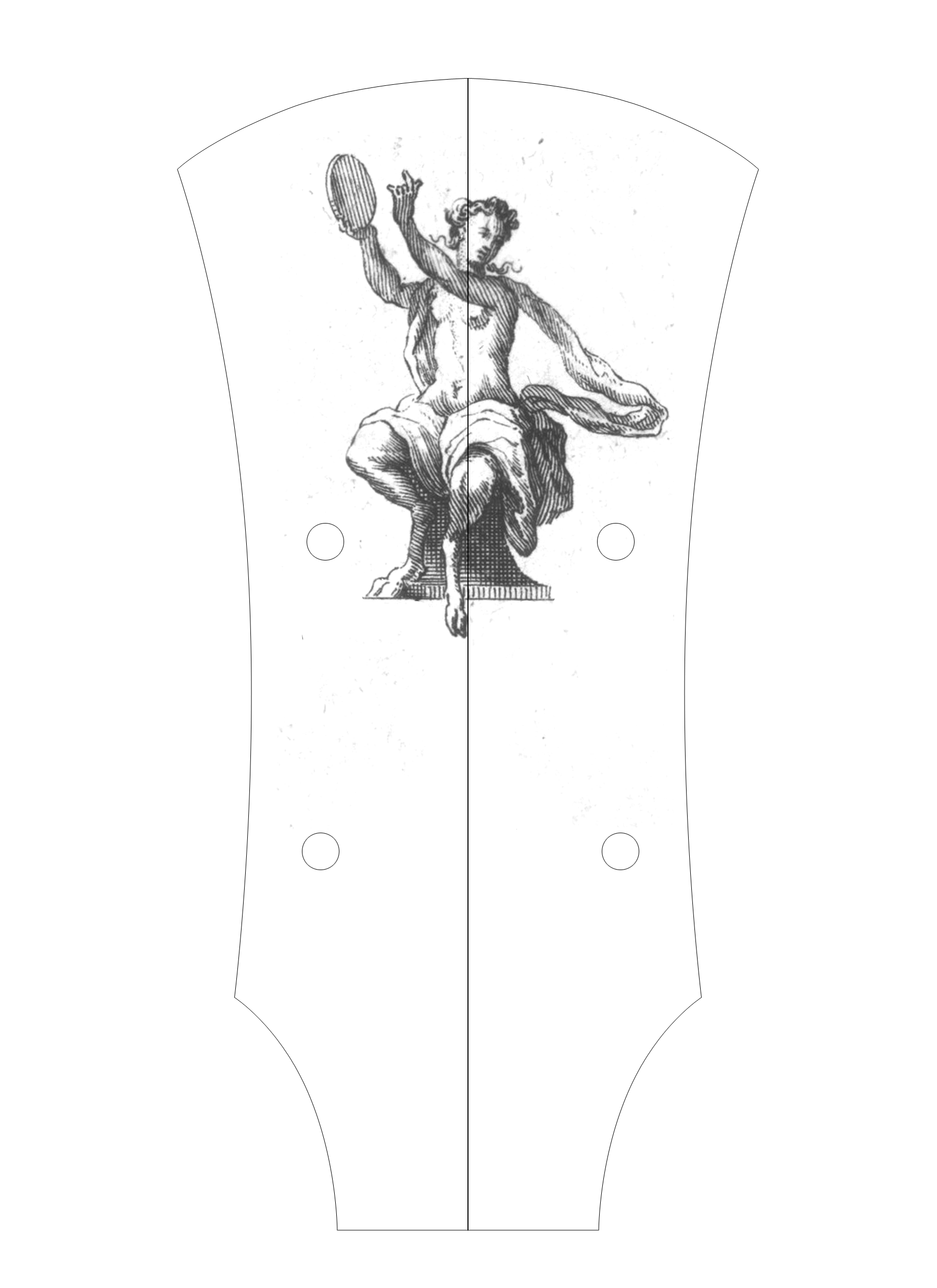

Finished bending the sides, and like to let them rest in the mold a few days before working more on them. So, I cut the pearl for the headstock inlay. I will etch in details after it's inlaid into the ebony.
- Apr 18, 2008
- 16,013
- 1
- 31,724
- Disclosures
- I'm highly opinionated and extremely self-assured
Maybe if the female parts were enhanced a bit, you might have won the internet today.
They are a little bigger than the original!Maybe if the female parts were enhanced a bit, you might have won the internet today.
Wait for the etching to happen!

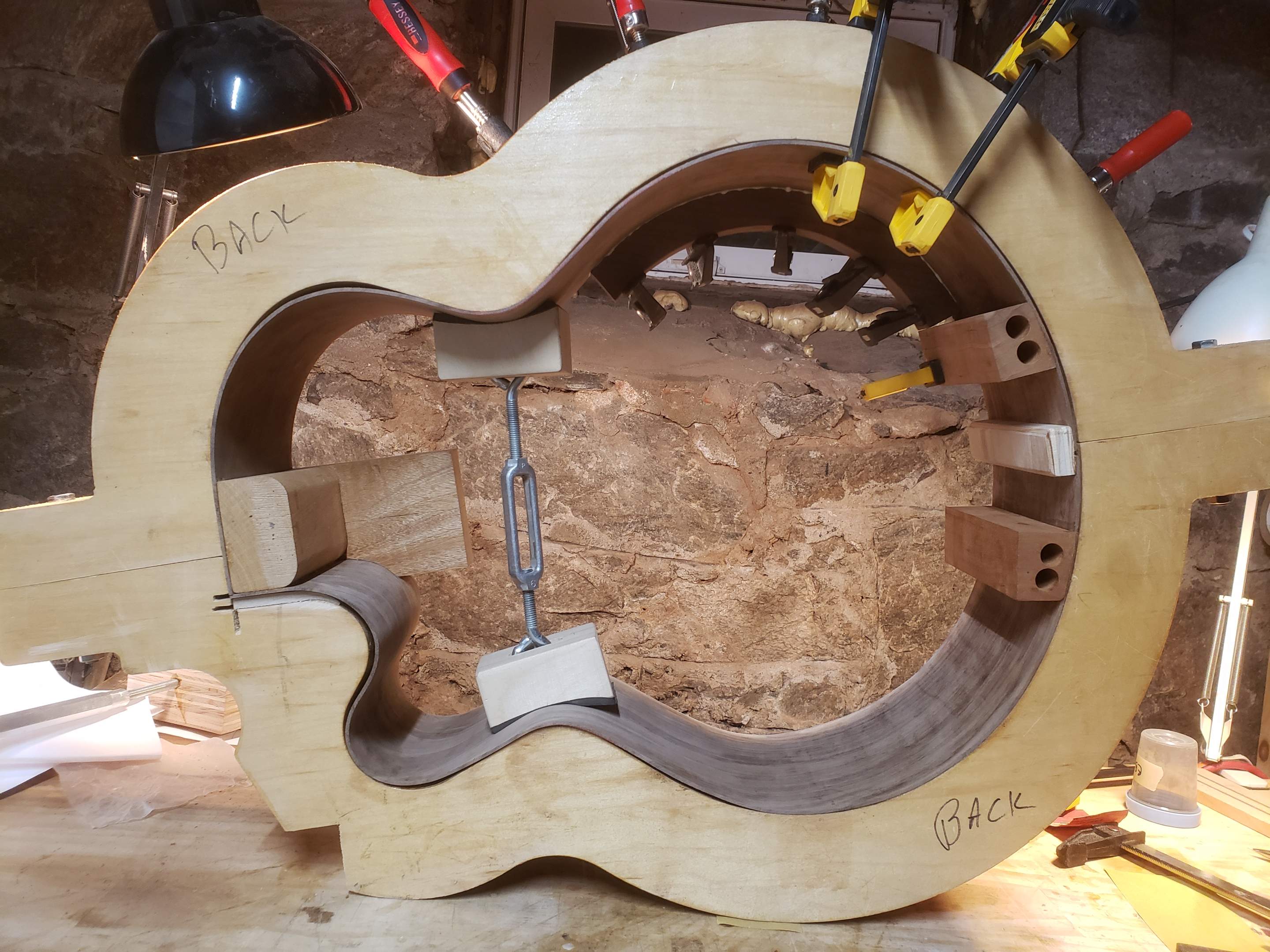

Got the blocks all fitted and glued in today
Laundry day

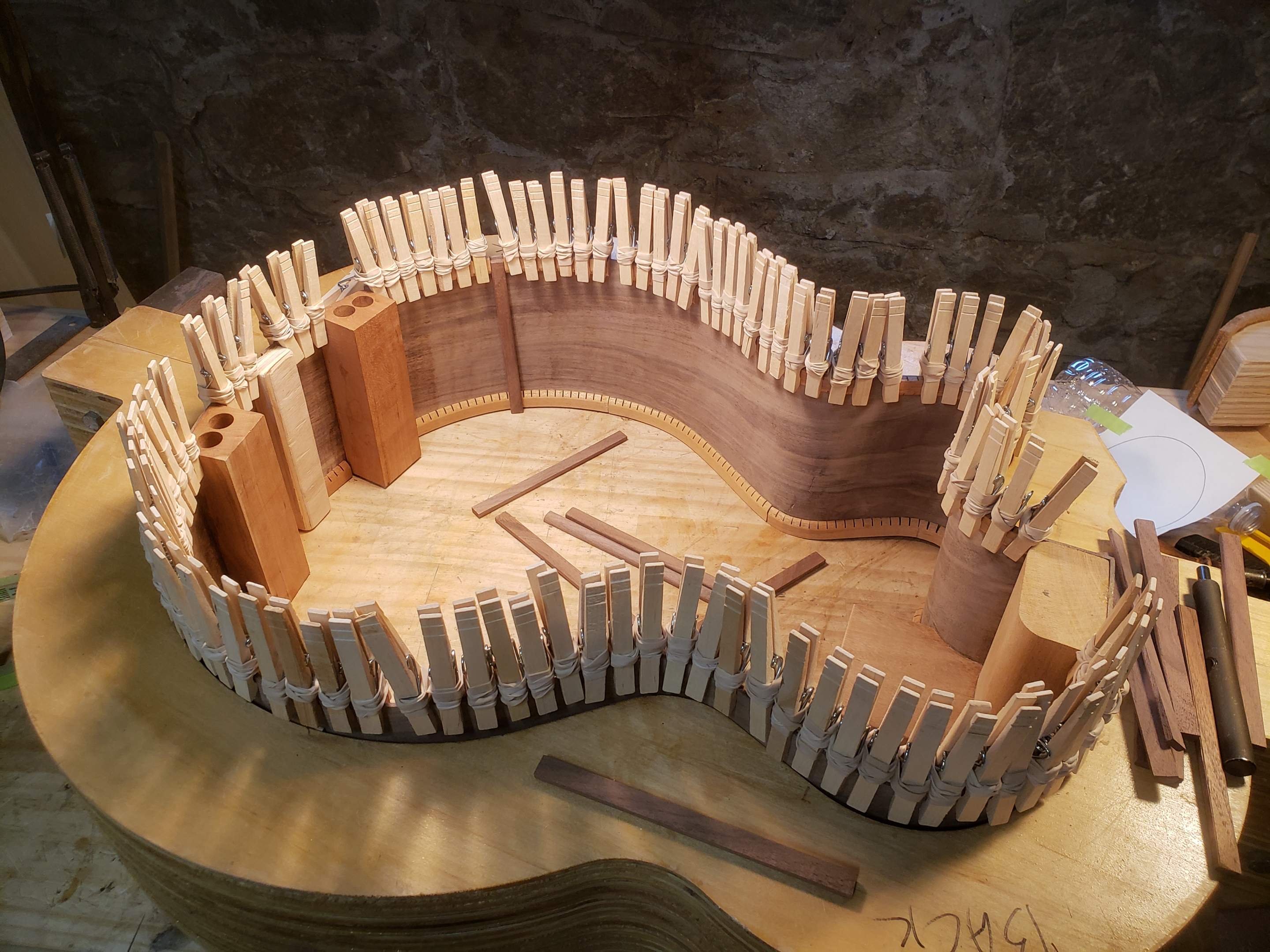

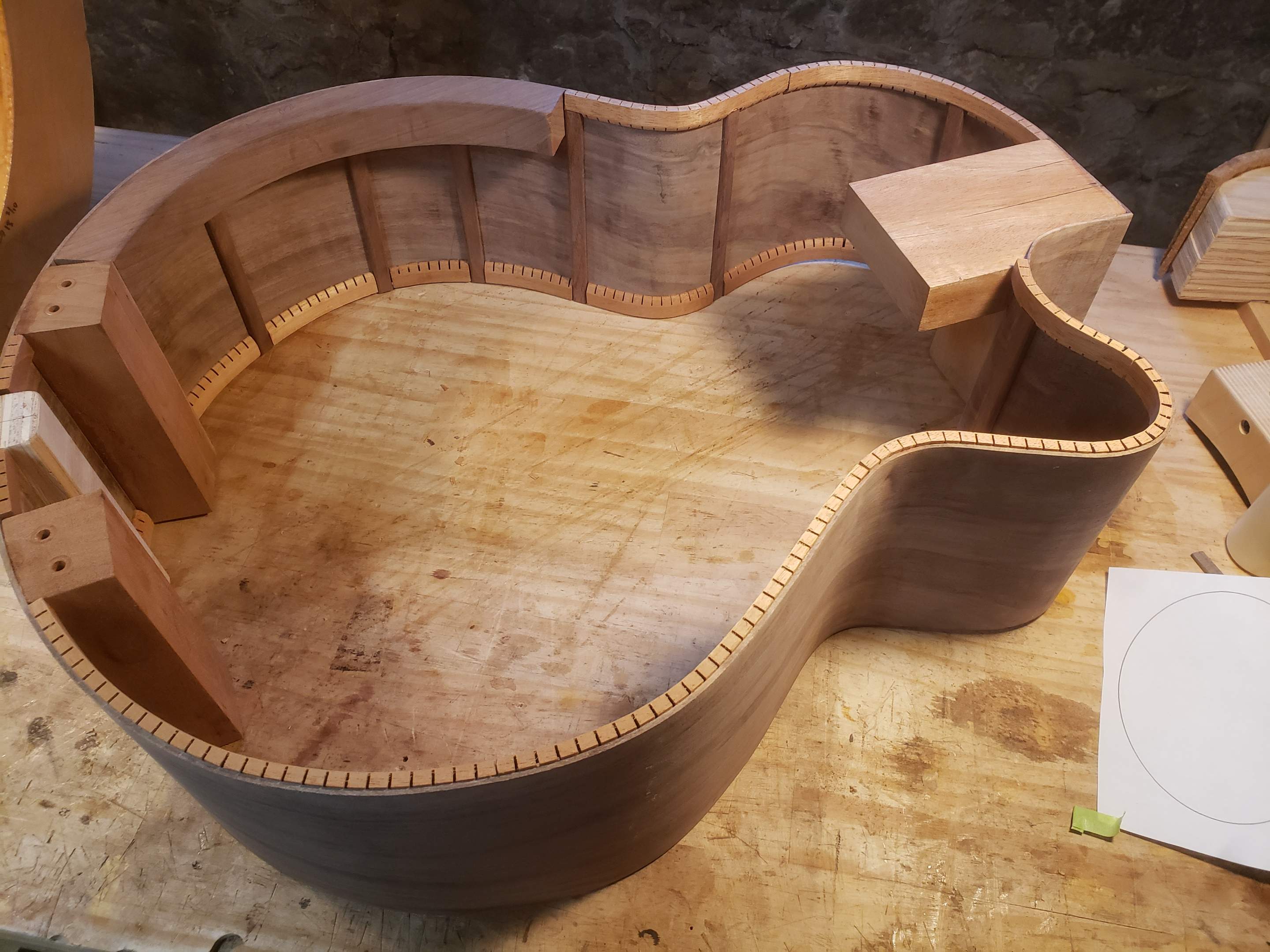

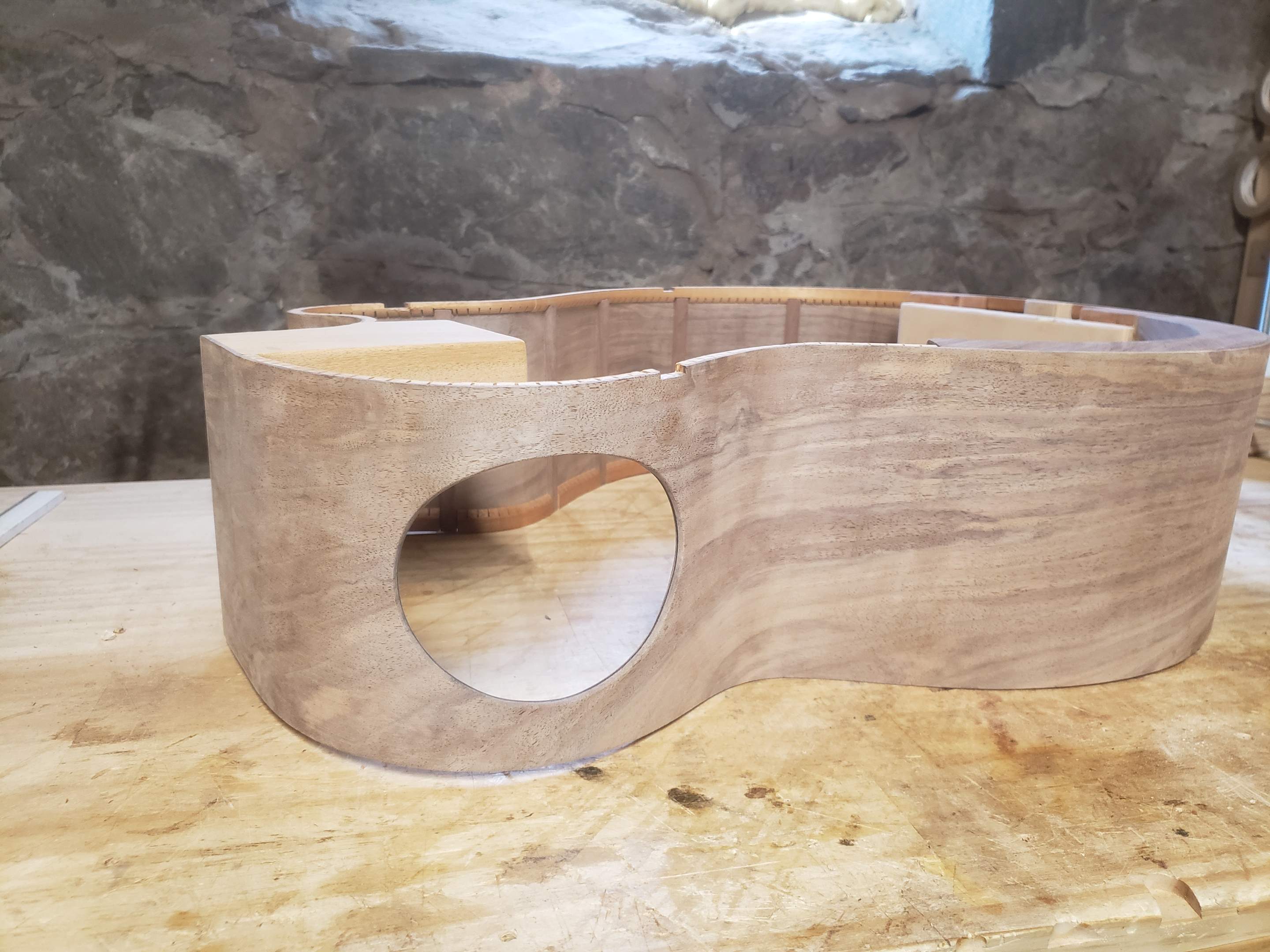

Got all the kerfing on and then did the side supports, which is important on a body this big (6+" deep).
Got all the kerfing on and then did the side supports, which is important on a body this big (6+" deep).
- Apr 18, 2008
- 16,013
- 1
- 31,724
- Disclosures
- I'm highly opinionated and extremely self-assured
I hate you.
ok. Not really. You’re doing amazing work. Man, that’s some serious patience !
Such an awesome build
ok. Not really. You’re doing amazing work. Man, that’s some serious patience !
Such an awesome build

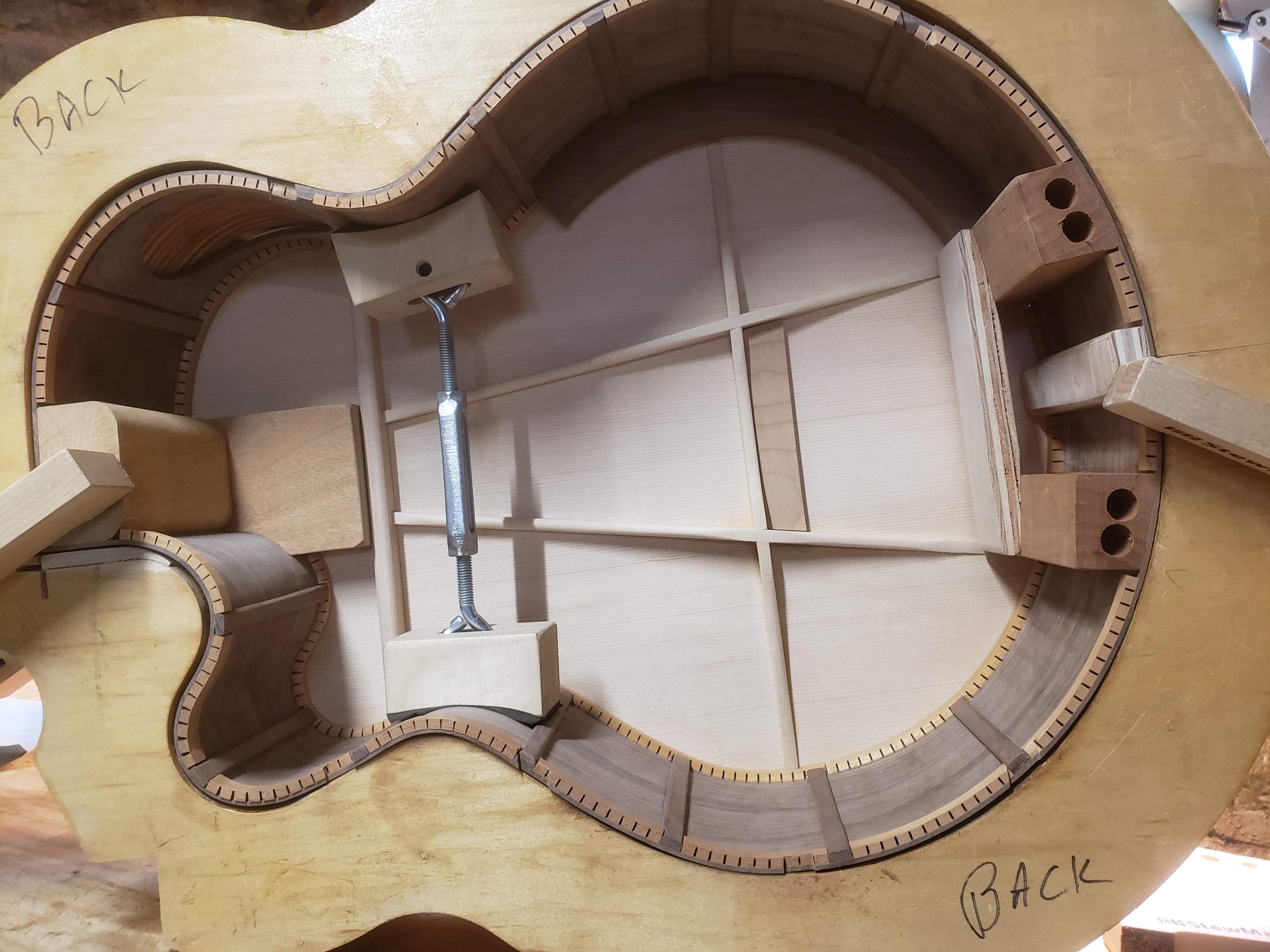

I try to isolate the top from the rest of the body to get a better sound. They go through to the back for coupling and structural reasons.

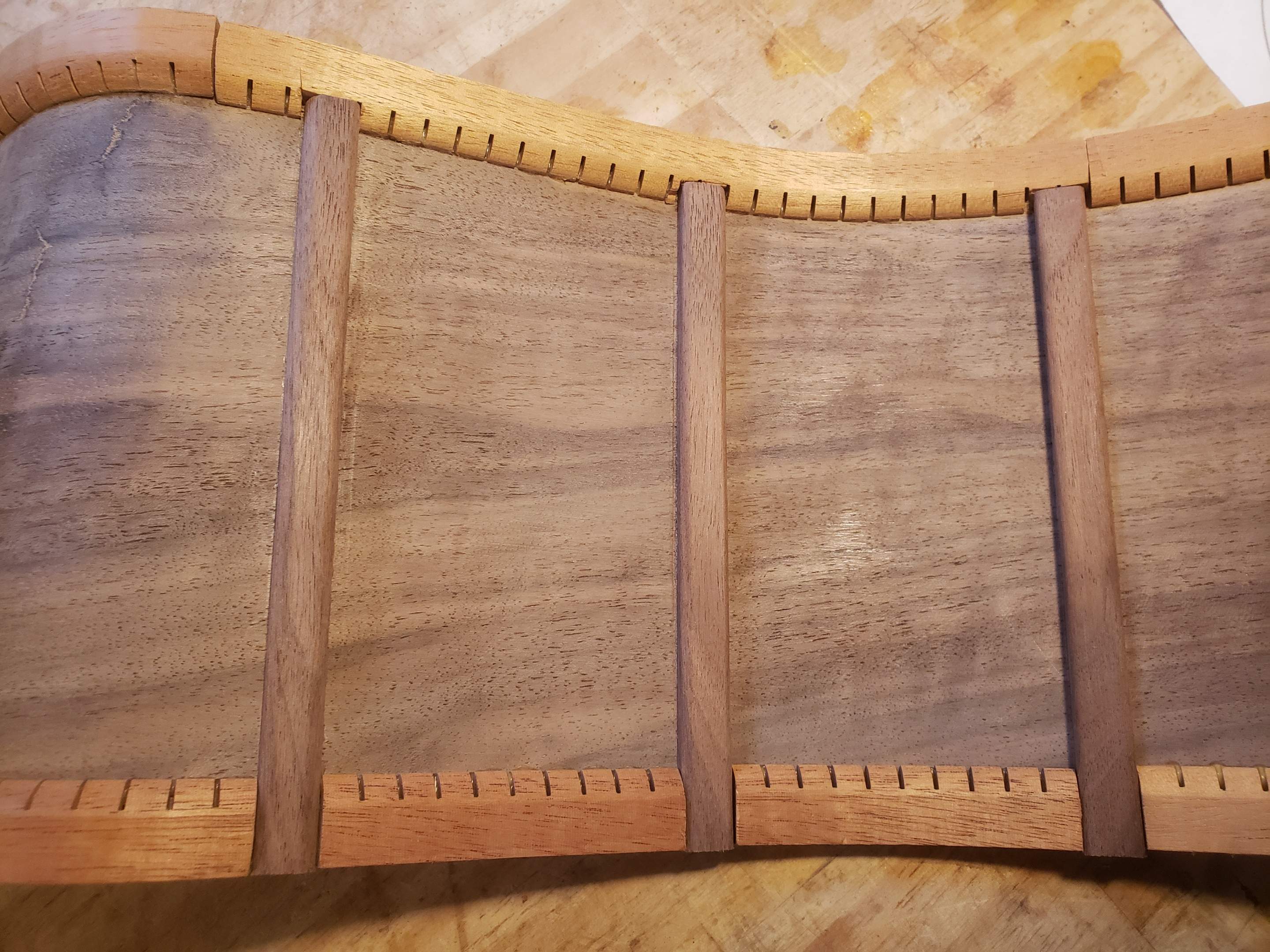

A lot of times you will see side supports stopping at the kerfing - this is really bad because you are actually encouraging the side to split at the ends of the supports. That's why I pocket them into the top kerfing a bit.
A lot of times you will see side supports stopping at the kerfing - this is really bad because you are actually encouraging the side to split at the ends of the supports. That's why I pocket them into the top kerfing a bit.
Yeah it sucked! Drilled a hole, then used a coping saw, followed by files, sandpaper glued to pvc, stuff like that
