Special Edition Build off - Walter Ripper

[Skelf]

Gotcha. Thank you for confirming!

Any time.
Cheers

Alan



[Scoops]

Update

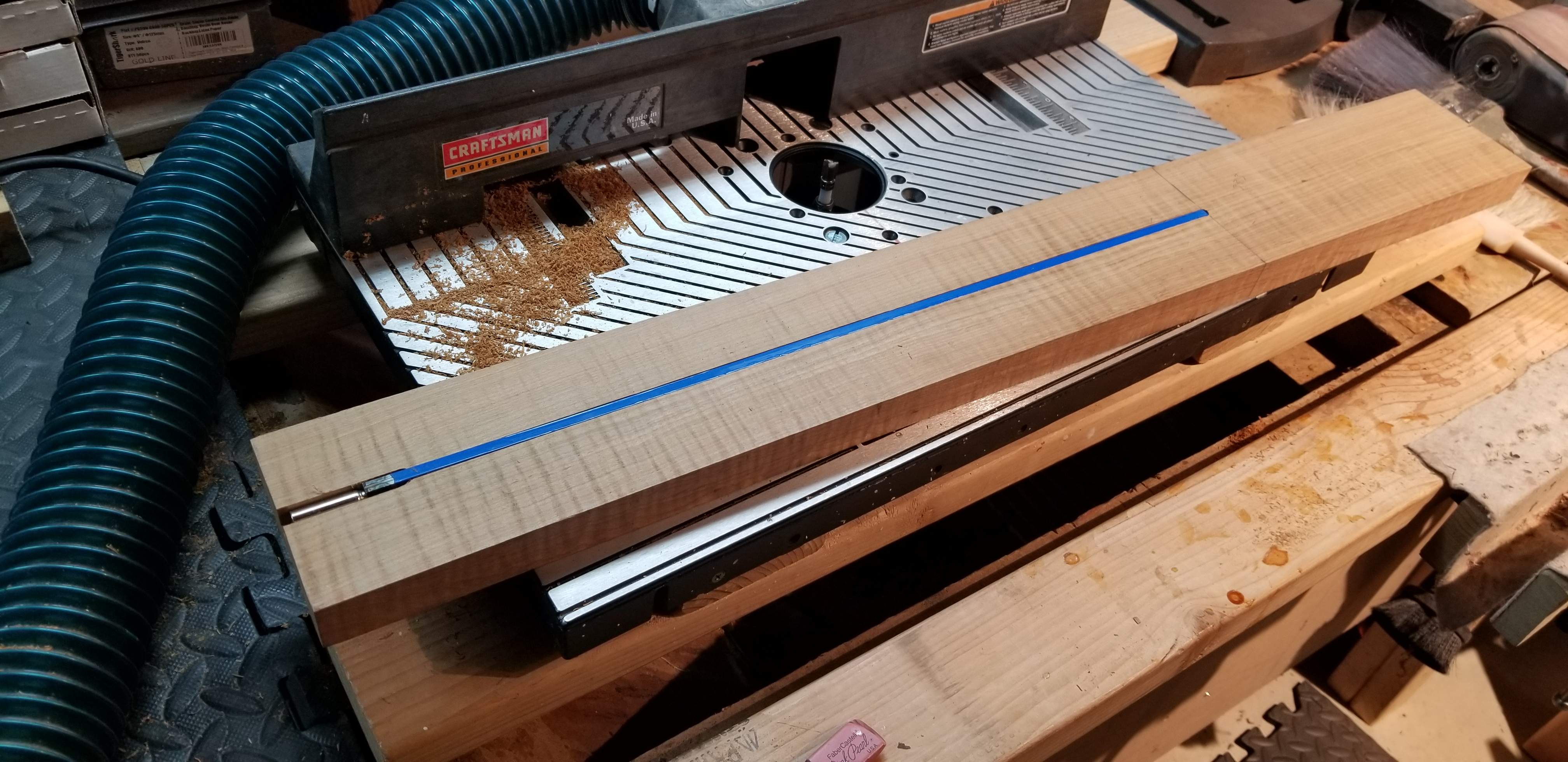

I routed the TR slot in the neck.

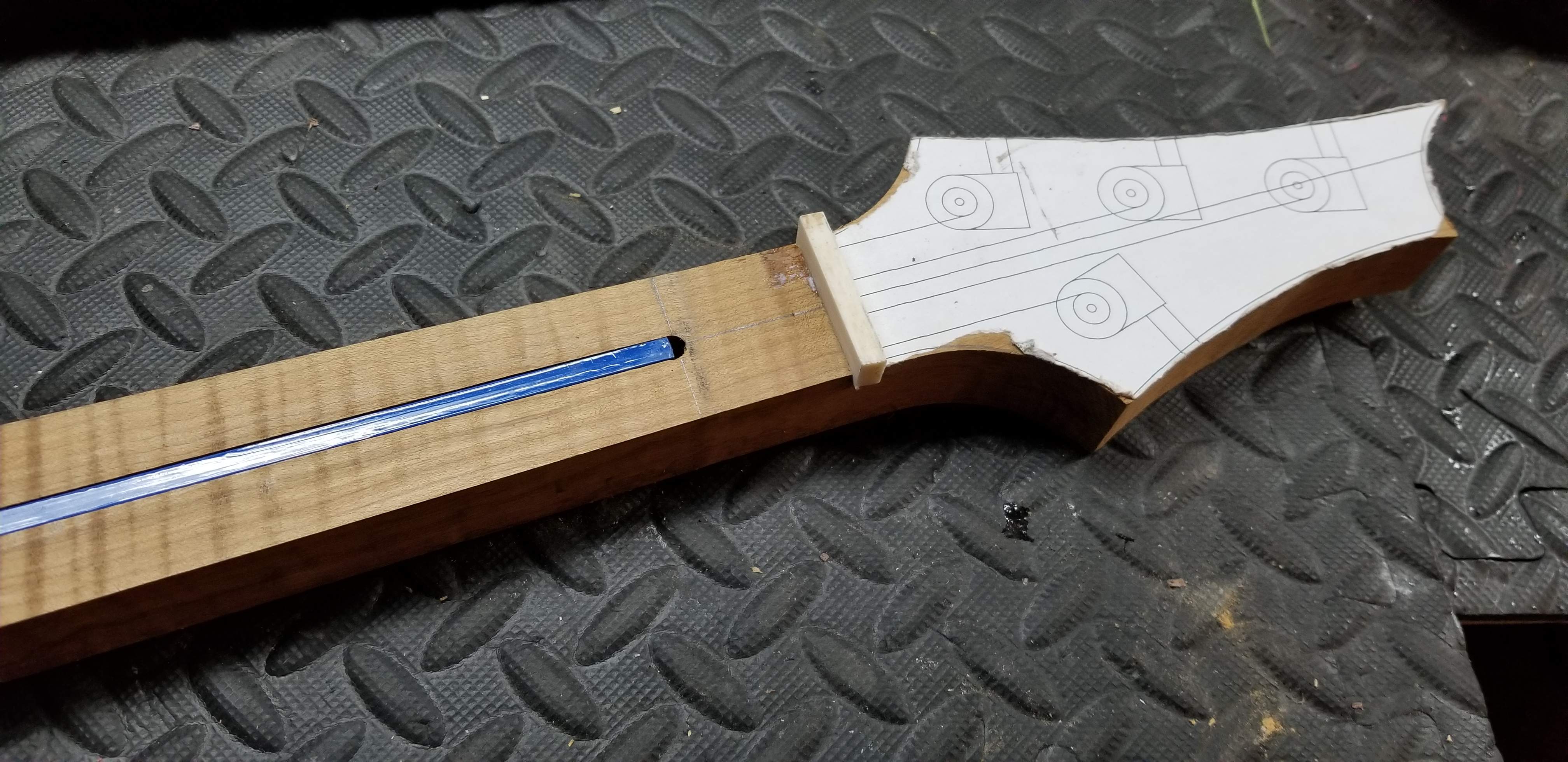

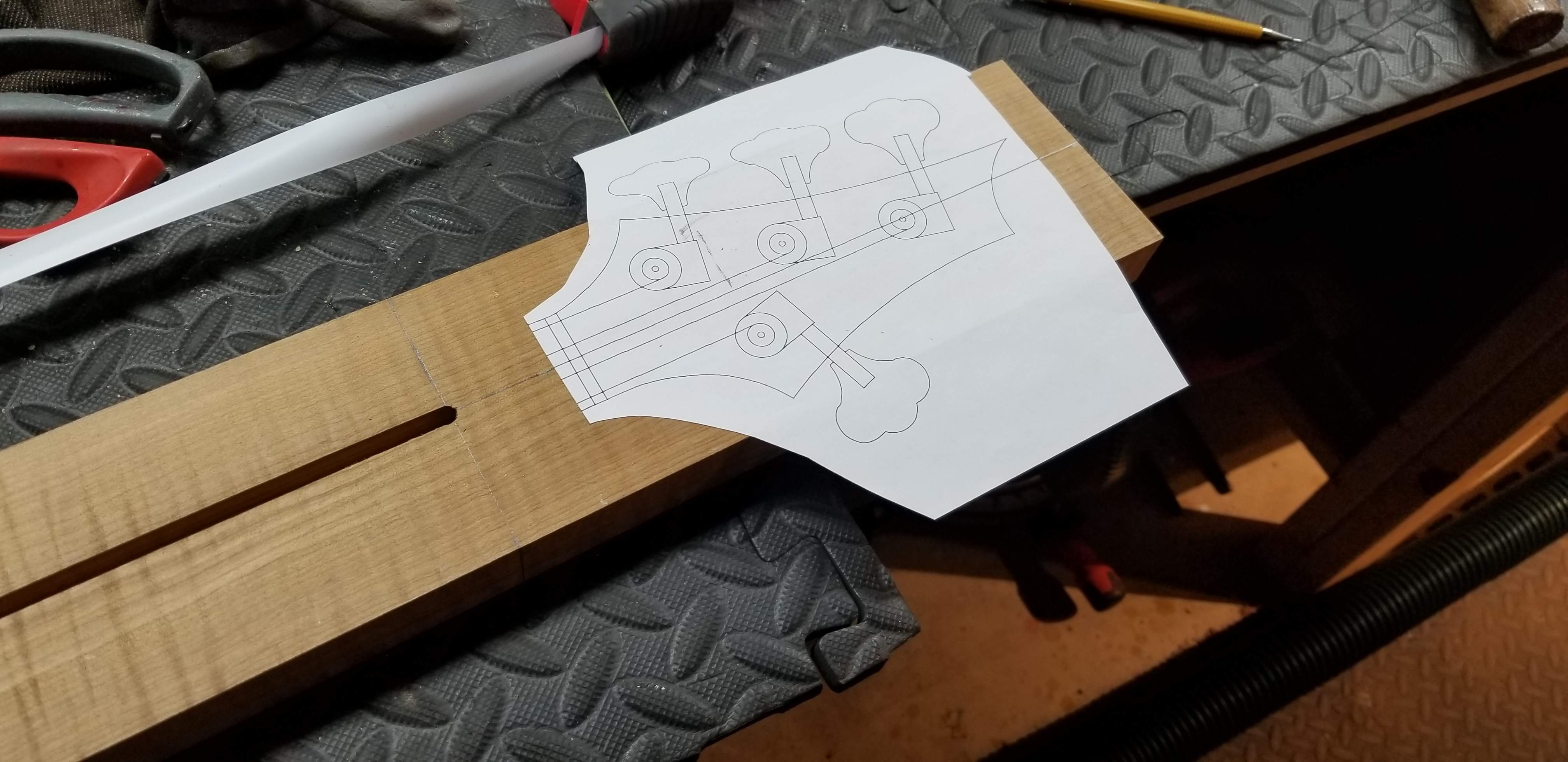

Then I glued on a drawing of the headstock which I'll use to drill the tuner holes, cut the slot, and give the shape to the headstock (all later operations)

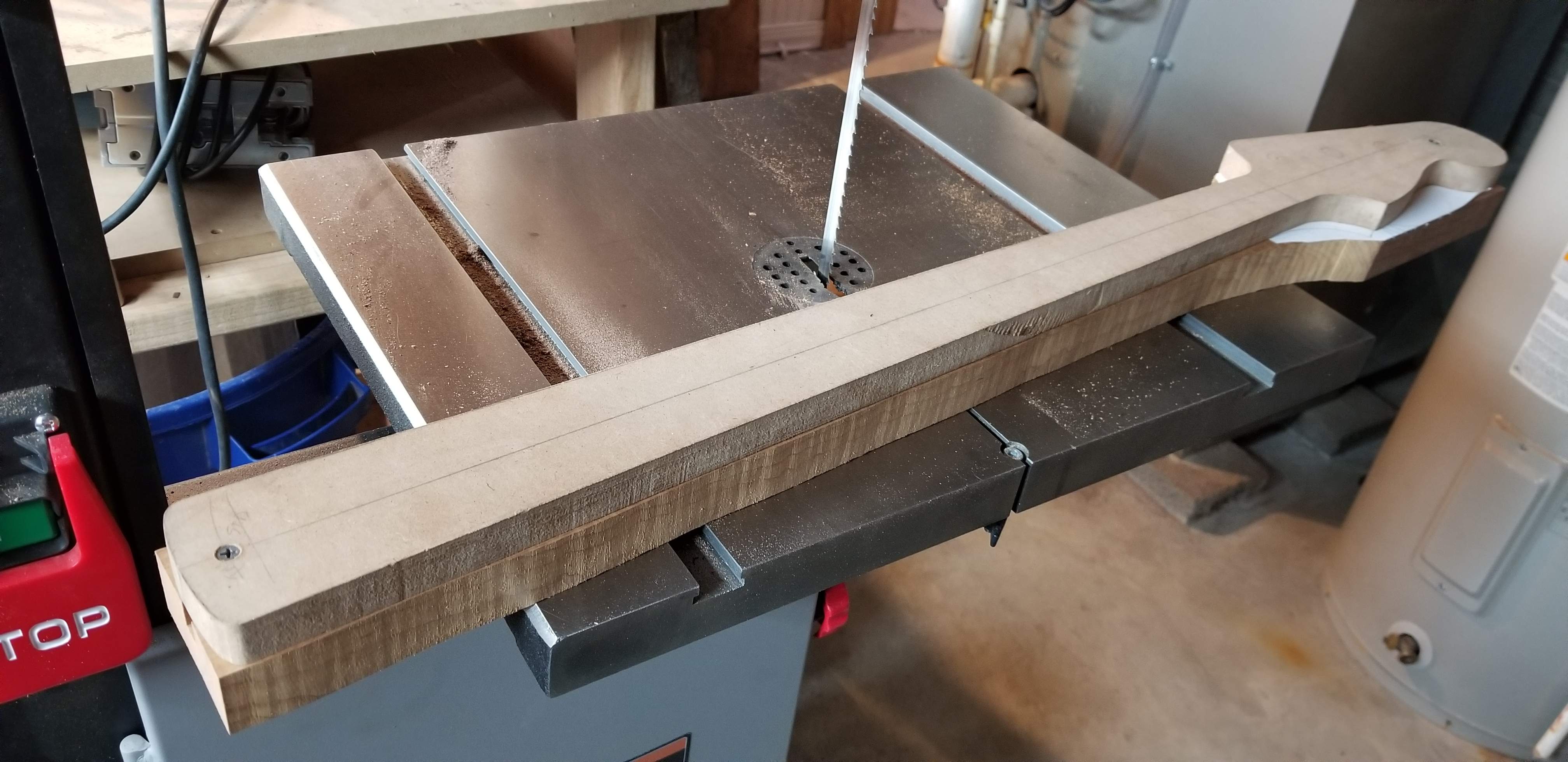

Then I cut out the outline with the band saw. I'll use my Jazz bass neck template to cut out most of the neck. After I took the pic I saw that my template was messed up so I took other steps to make sure I didn't use that porttion of the template. I need to make a new template.

Cheers and thanks for looking



[Scoops]

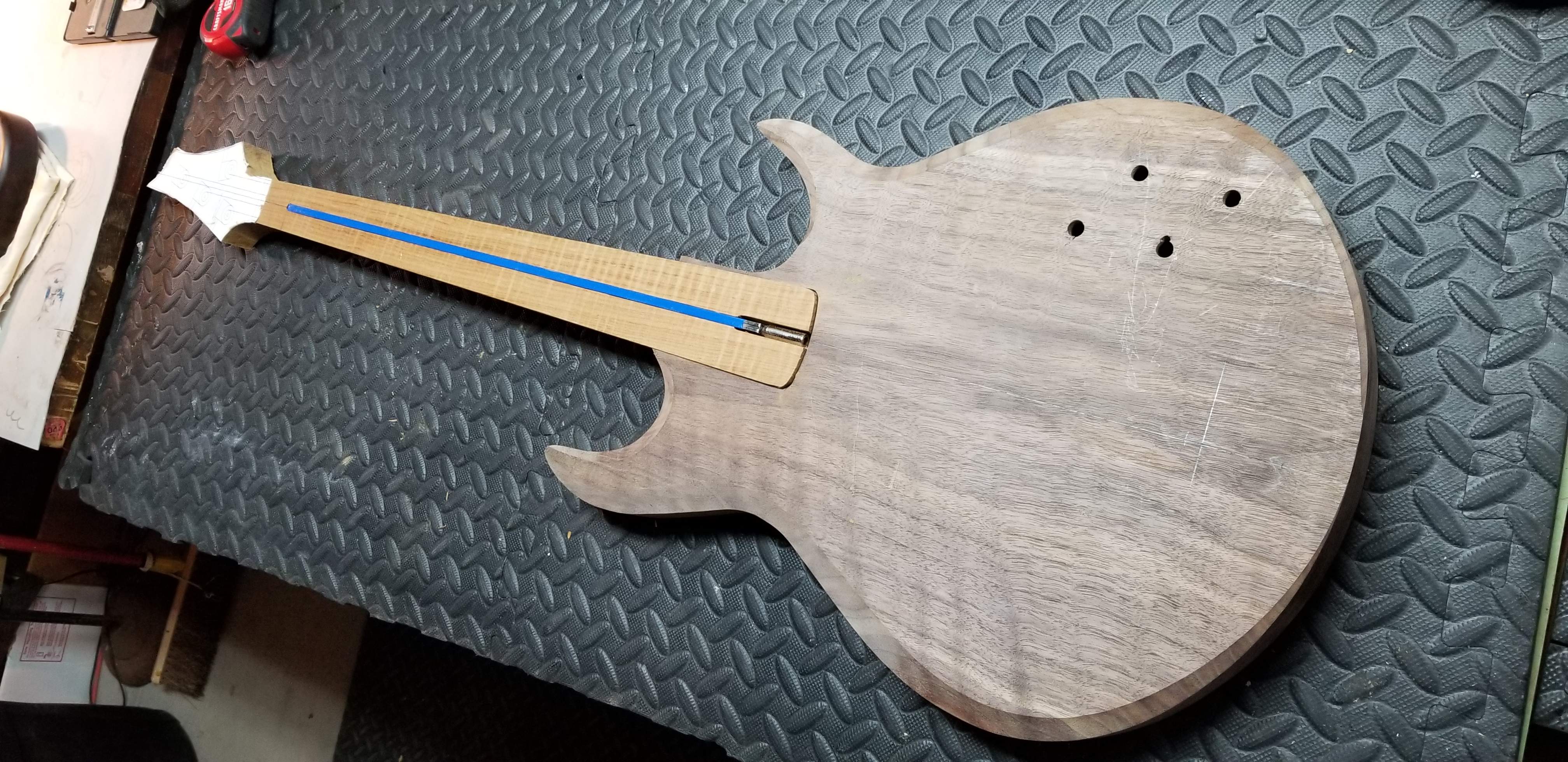

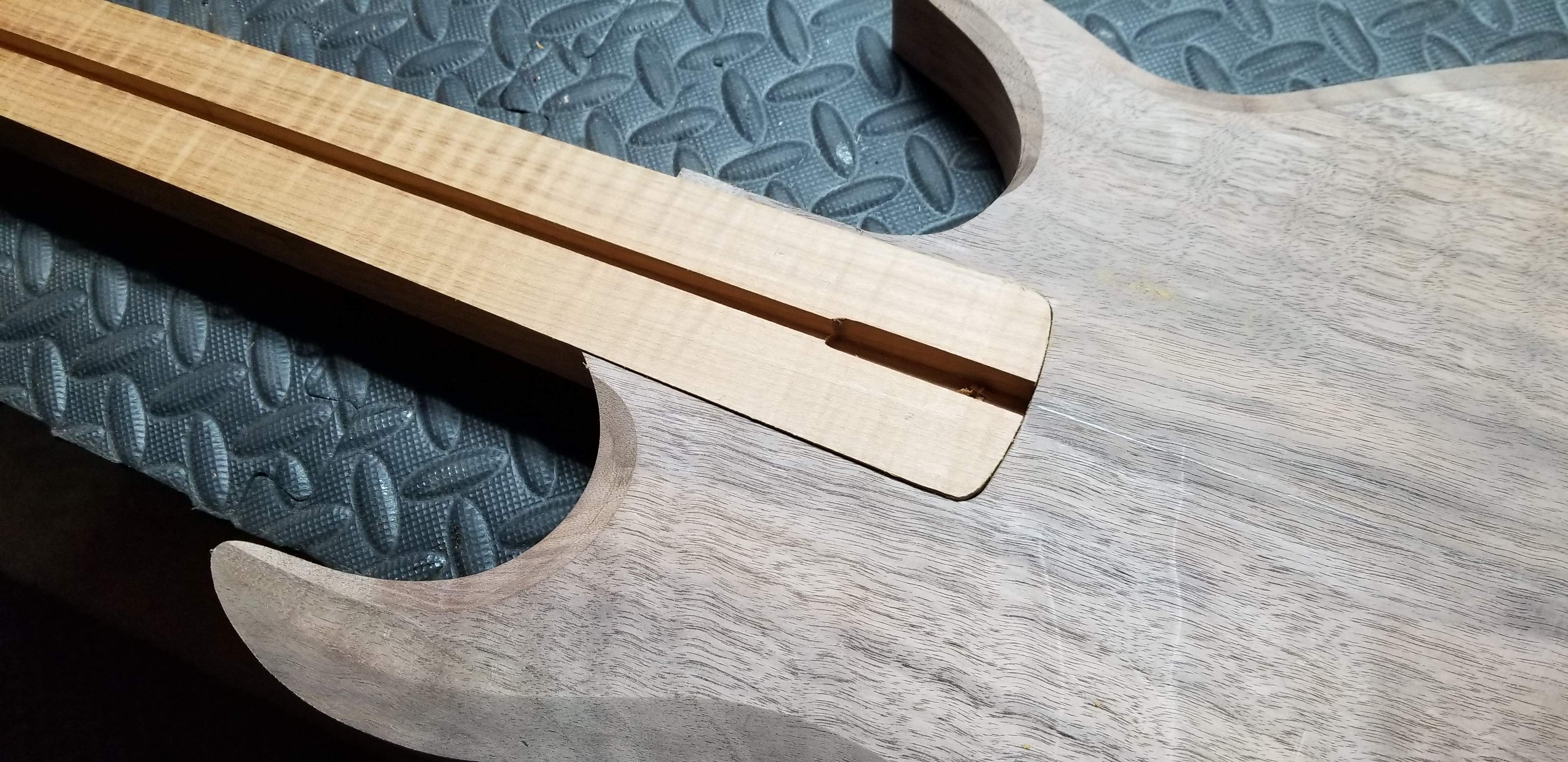

Then I fit the neck to the body
The heel isn't a perfect fit to the body. I'll cleverly cover that up with the FB

Cheers



[Beej]

Hot damn, Scooparino!



[Scoops]

Hot damn, Scooparino!

The real fun part is when I oil the wood!



[Scoops]

More Updates

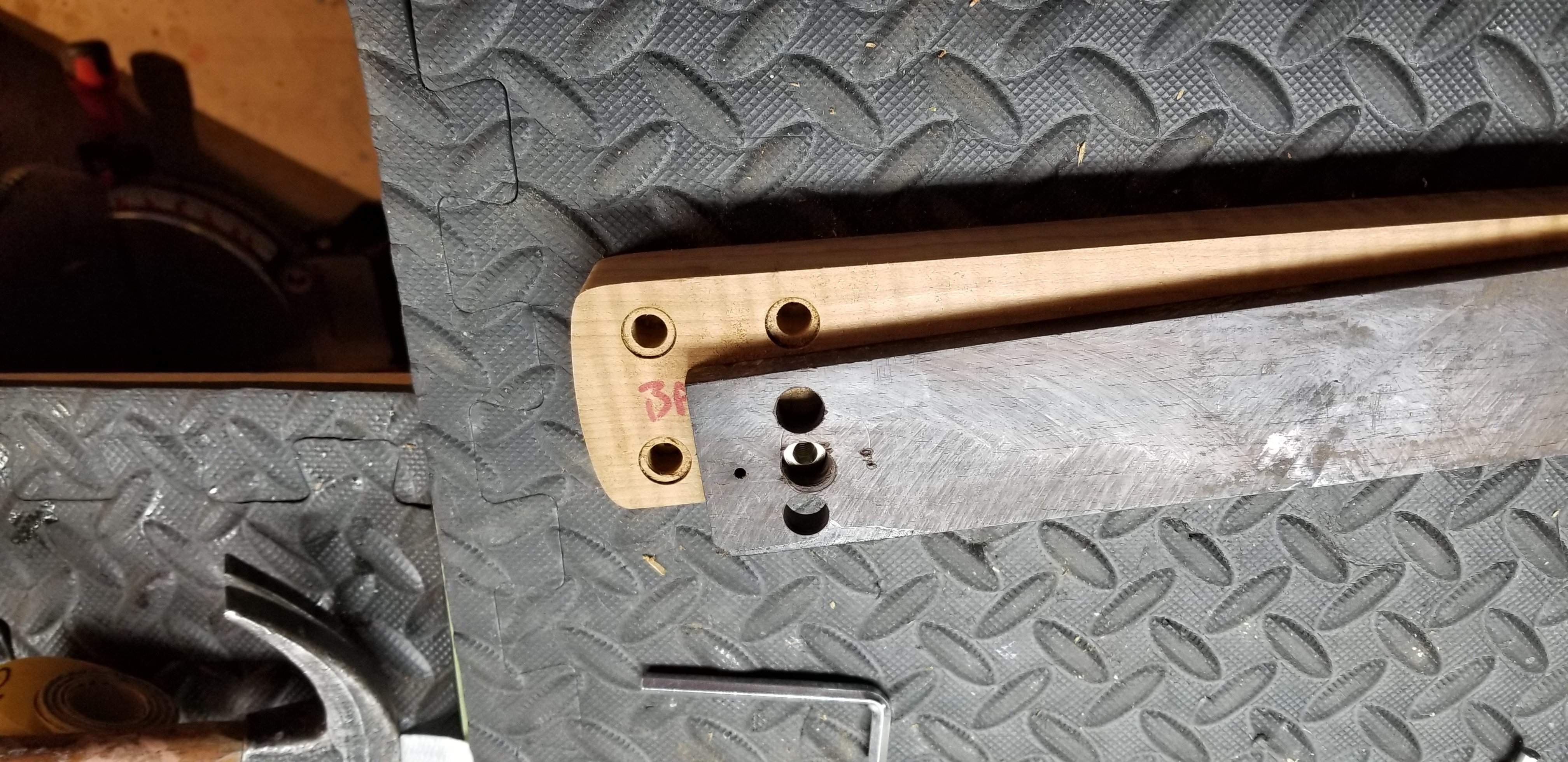

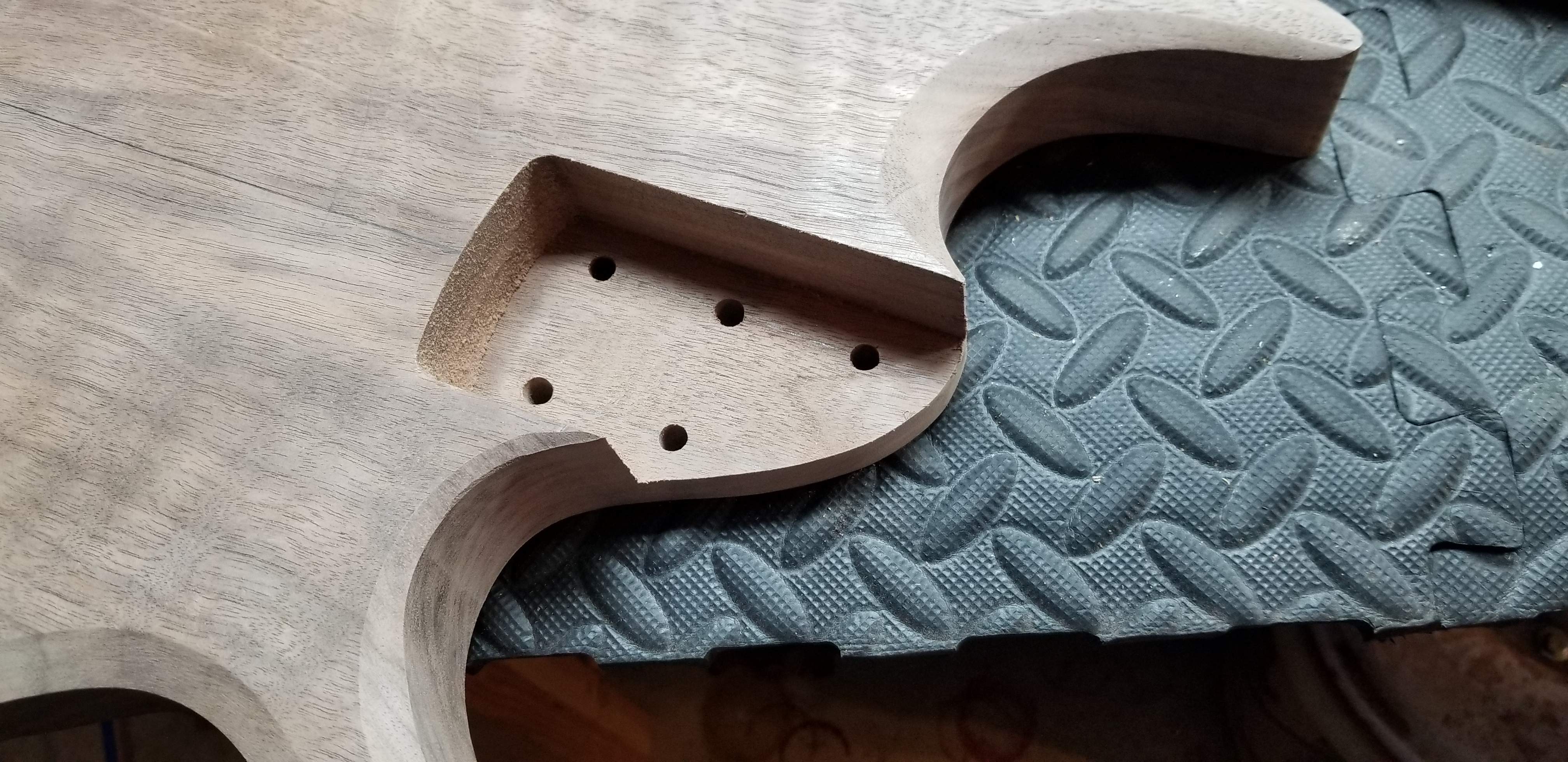

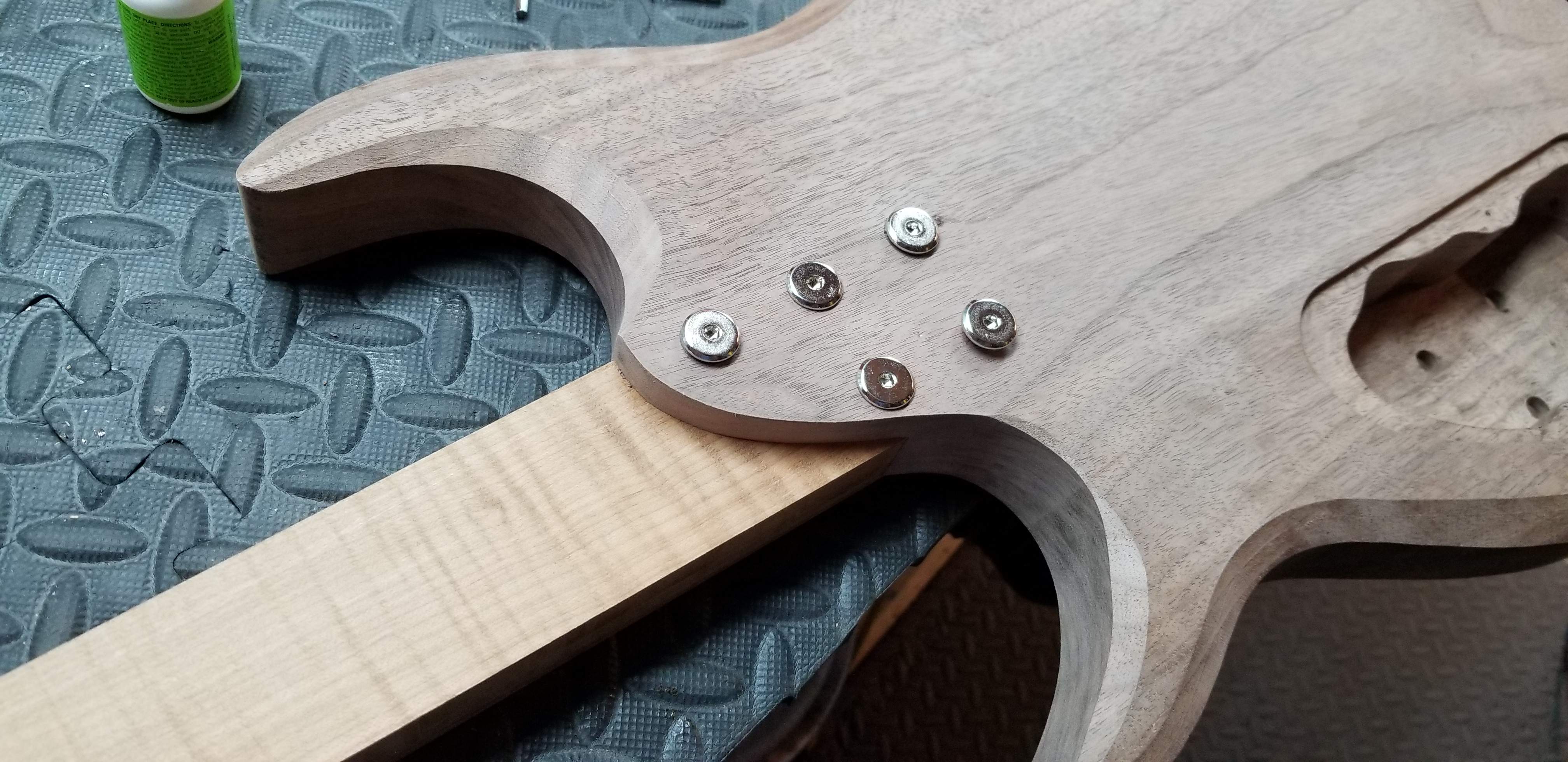

I drilled holes in my neck and mounted my threaded inserts. I at times have problems with getting inserts in straight. To fix that I drill a hole just slightly larger than the insert into a piece of wood, and use that as a guide

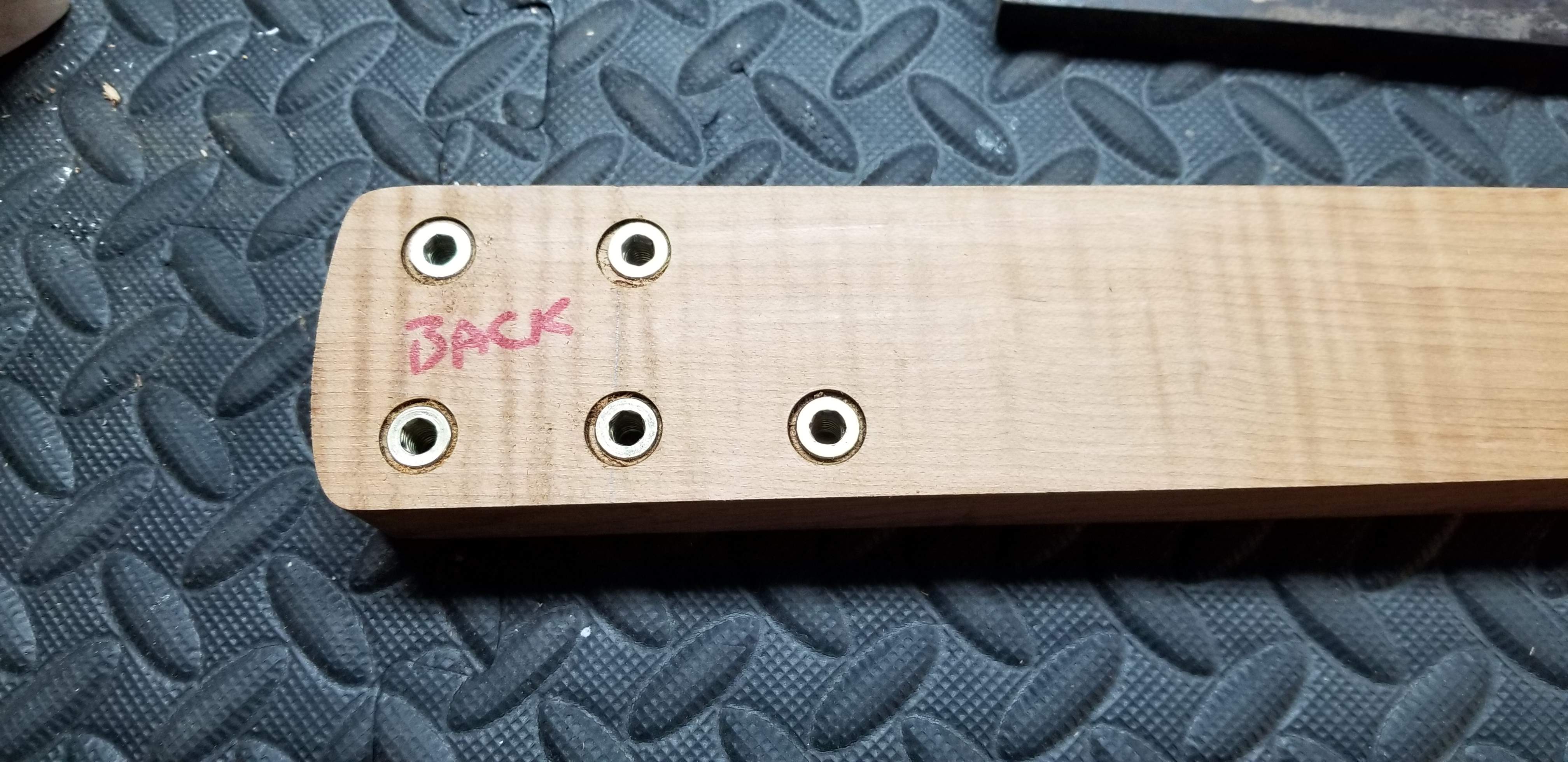

Also, got a new batch of threaded inserts and I have to countersink em



[Scoops]

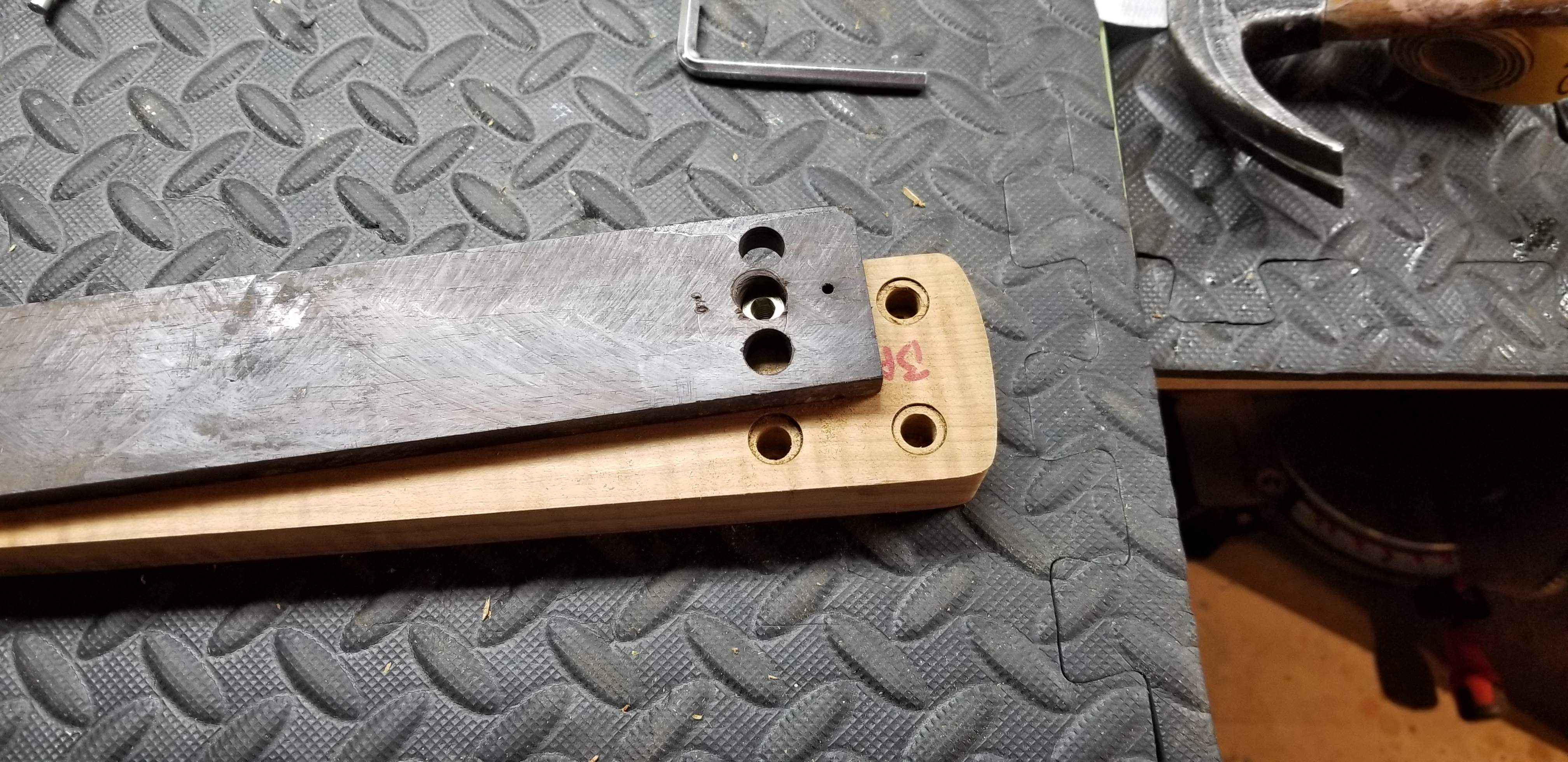

Then I cut off the excess at the neck pocket and Mounted the neck to check for fit.

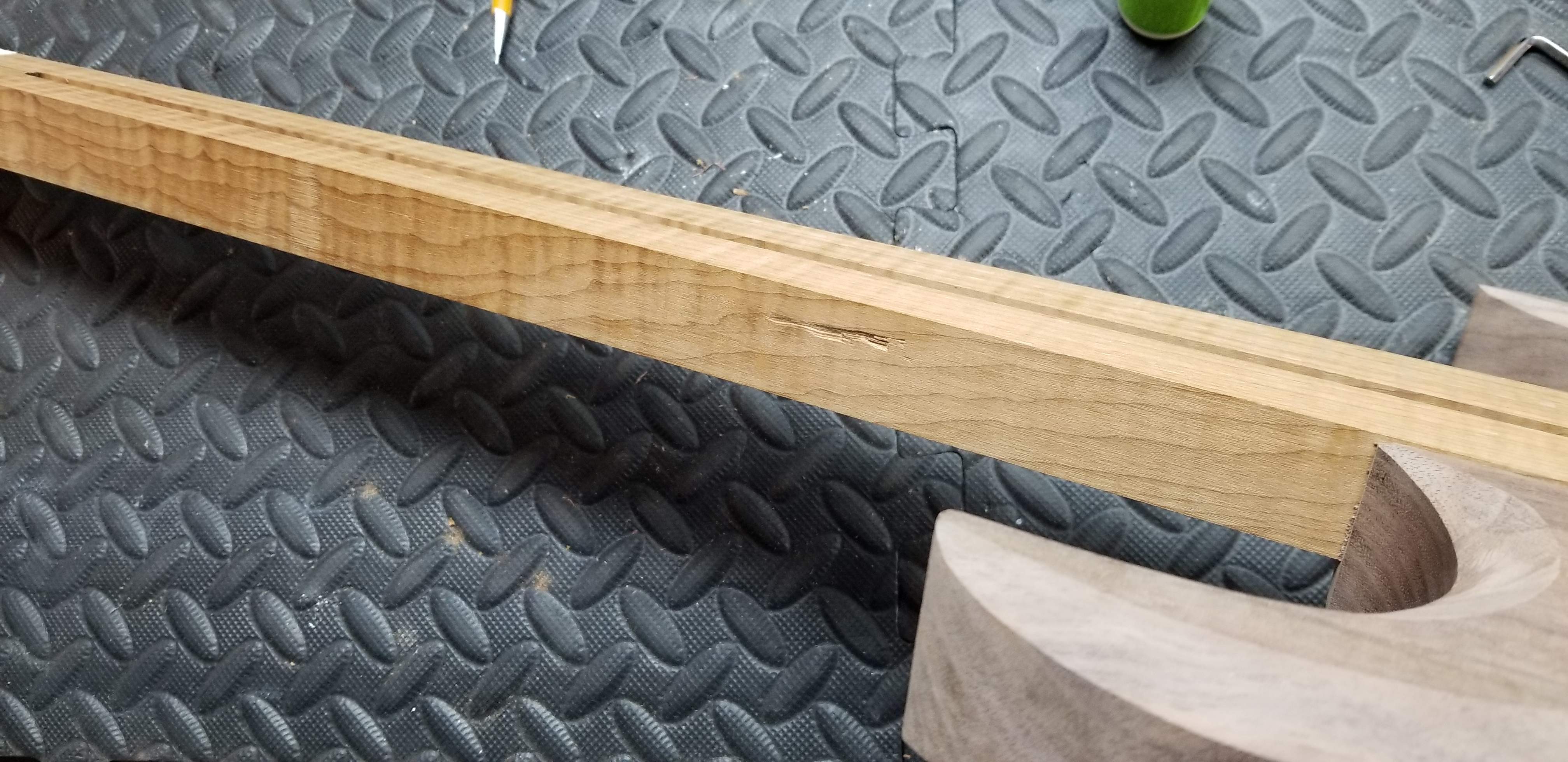

One downside that I think I'll be able to recover from. I had a chip out on the neck, Hoping this will go away when I profile the neck. It will be close

Cheers



[bbh]

Looking forwards to the next entry.



[Scoops]

Not much to show here now, but I do have one little update

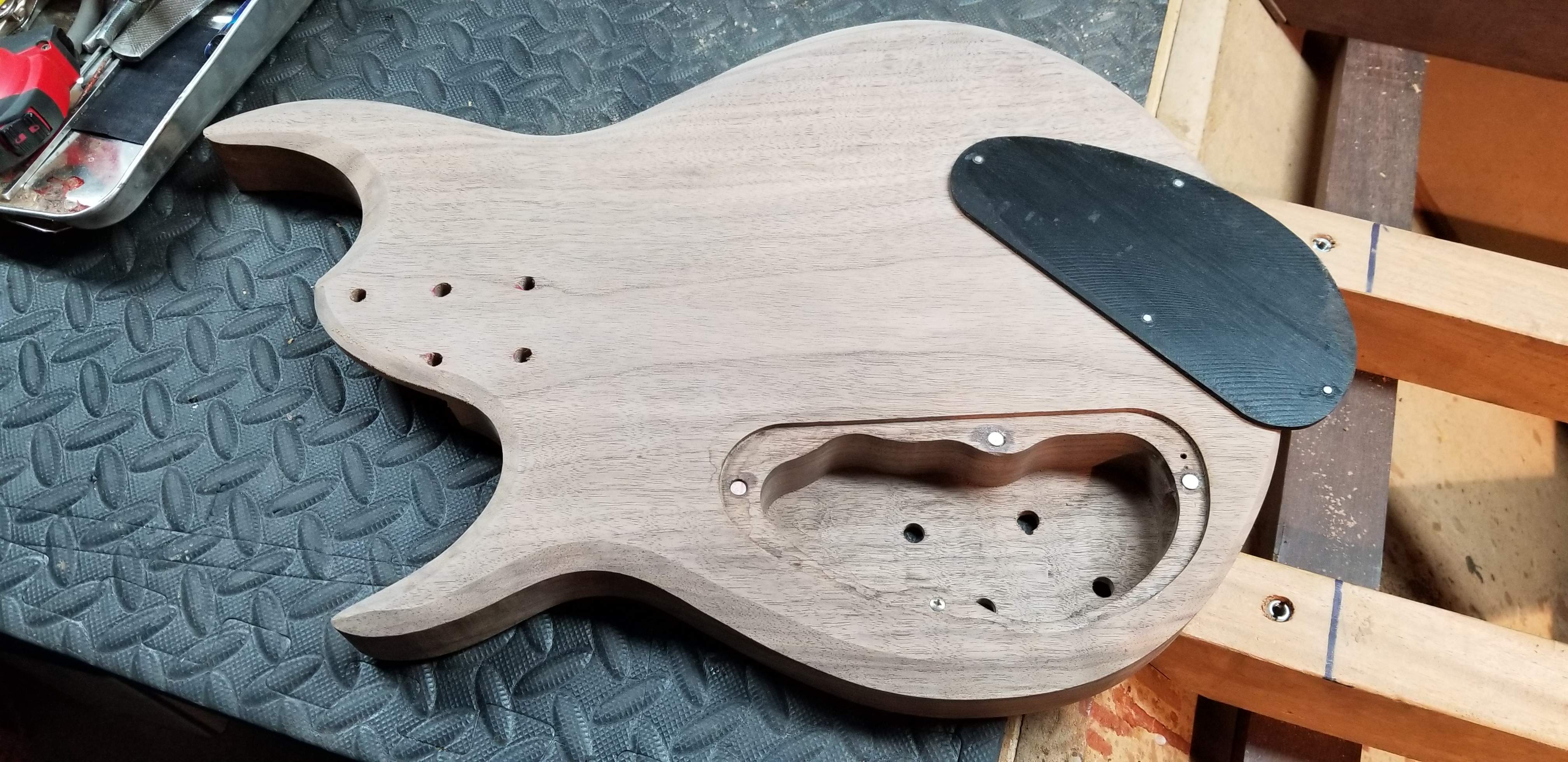

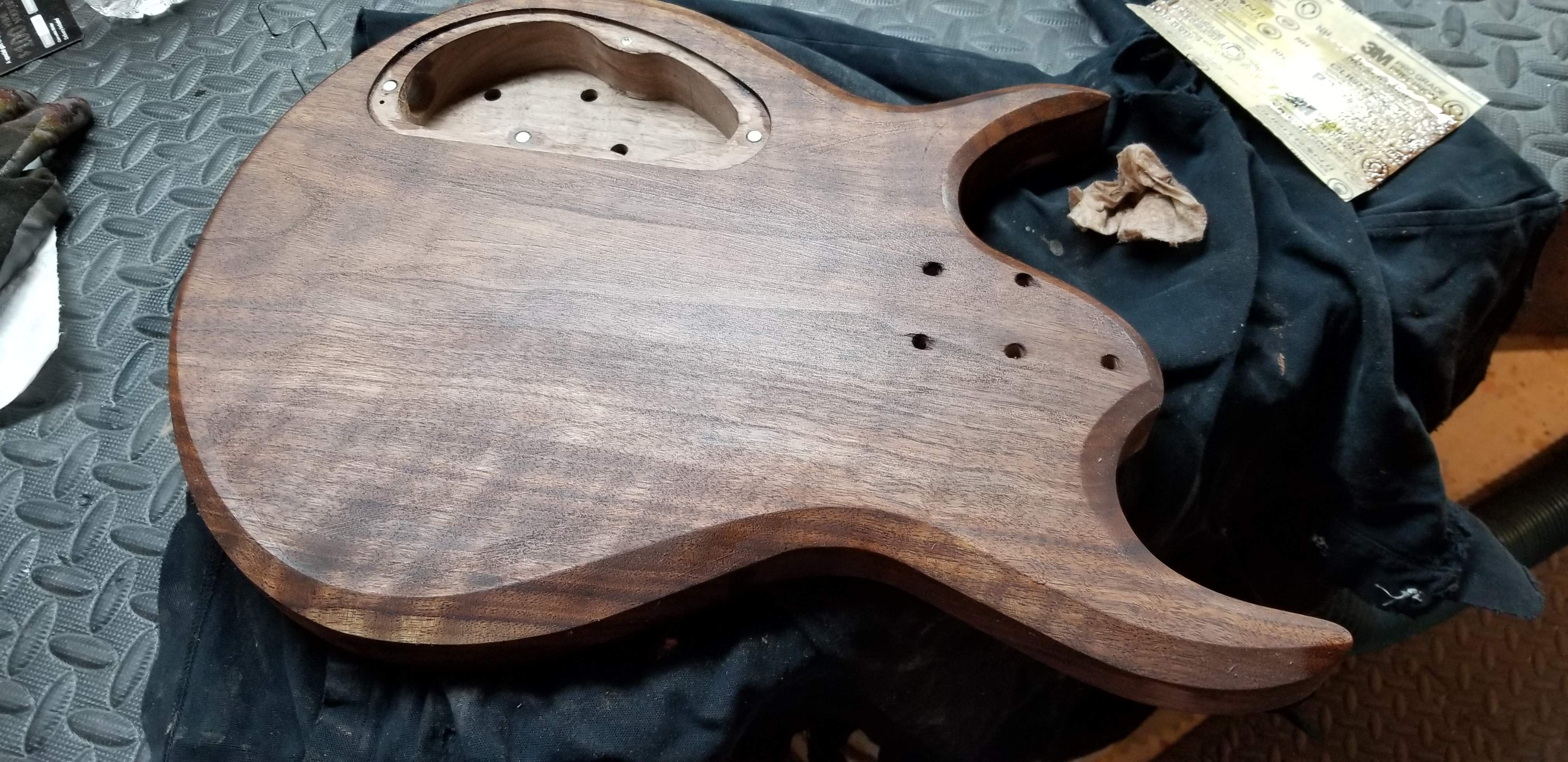

Got the back sanded to 220, and have the control cover doing the magnet thing.

Also decided to go with black hardware. (no pics yet)



[Scoops]

Small update

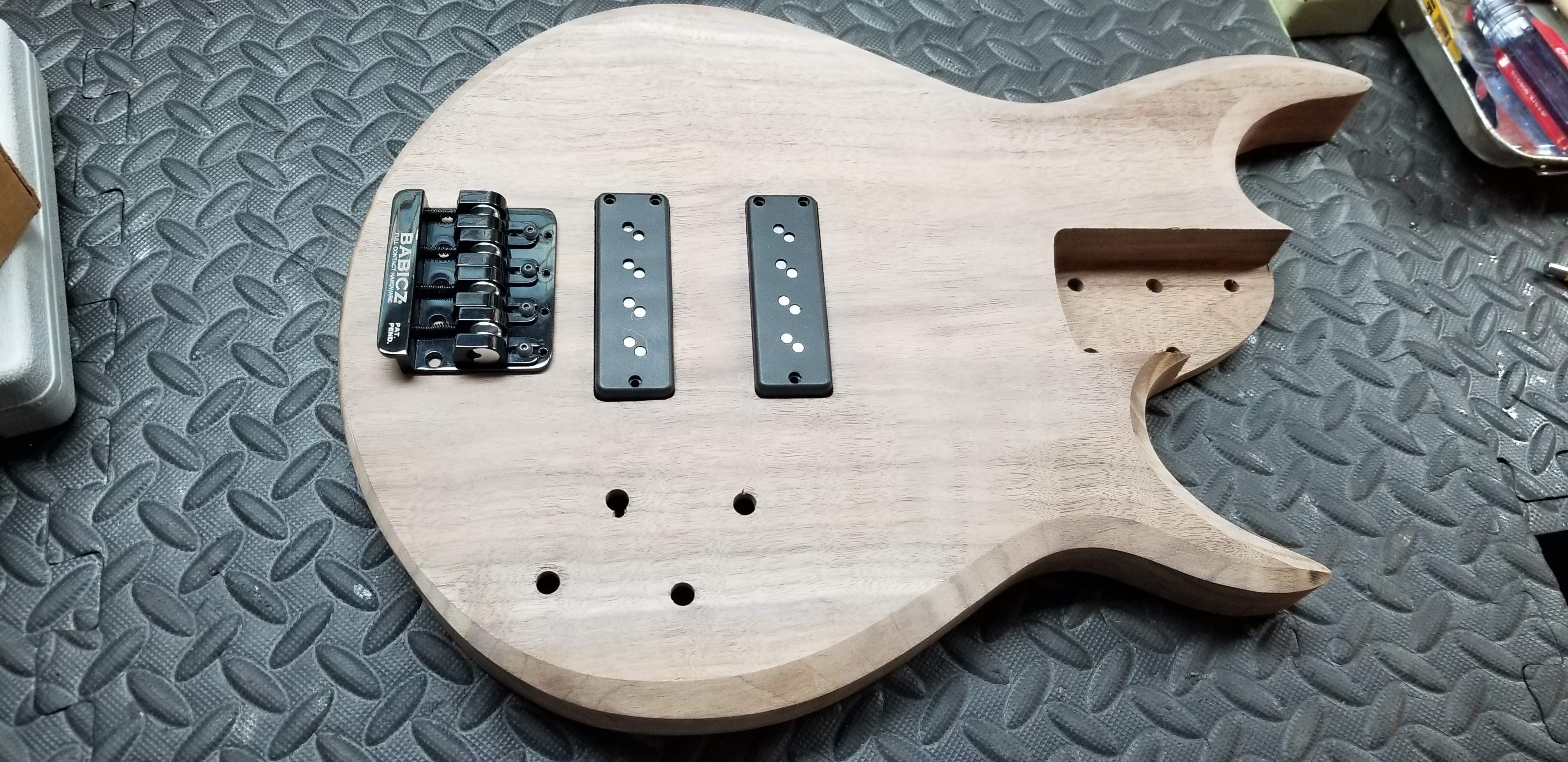

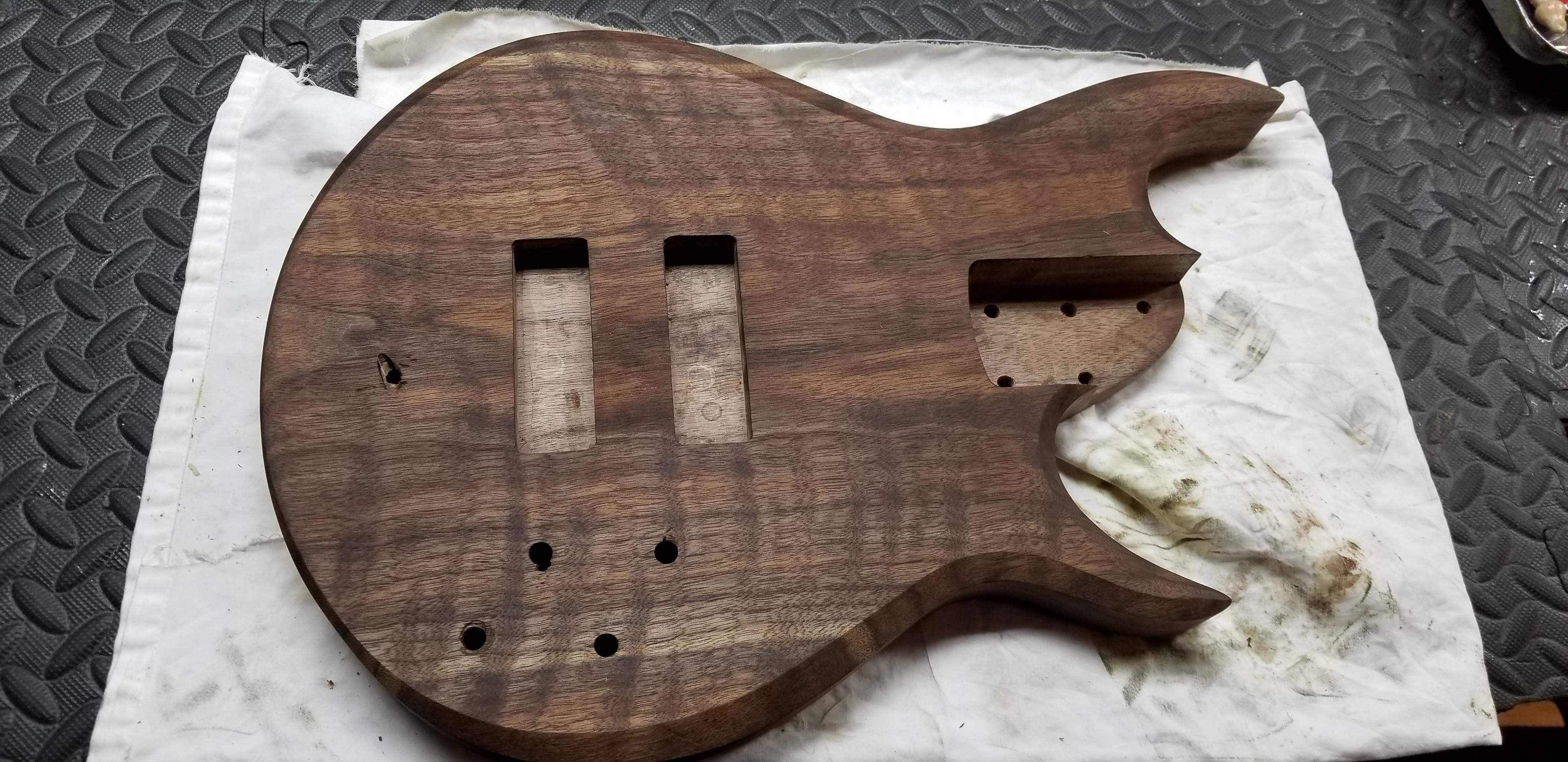

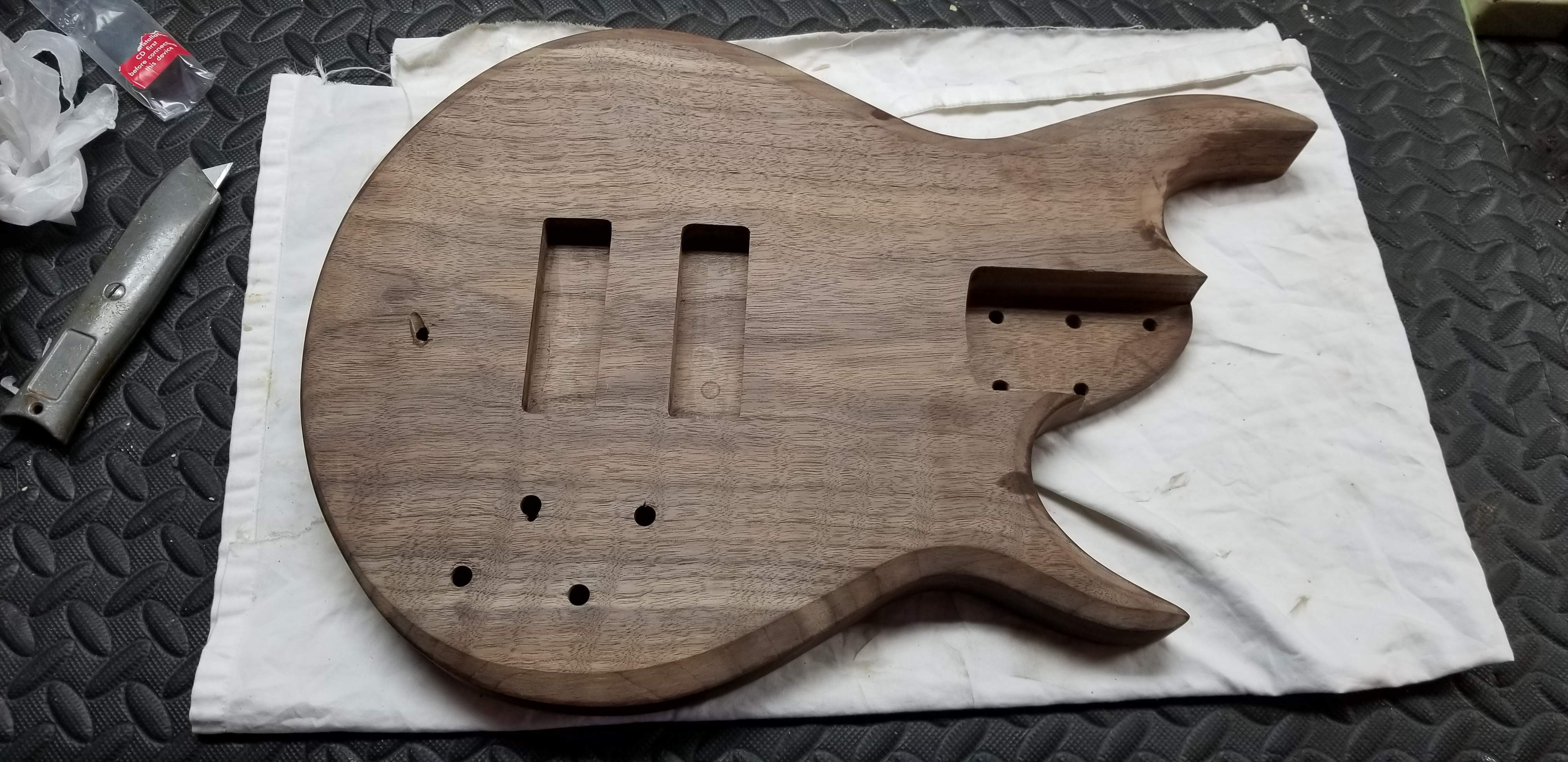

Made a Bartolini BC pup routing template, and put in pup routes.

I like the black hardware better already. I have some black hipshot clovers, and I've ordered some black John East knobs.

Cheers



[Scoops]

Update

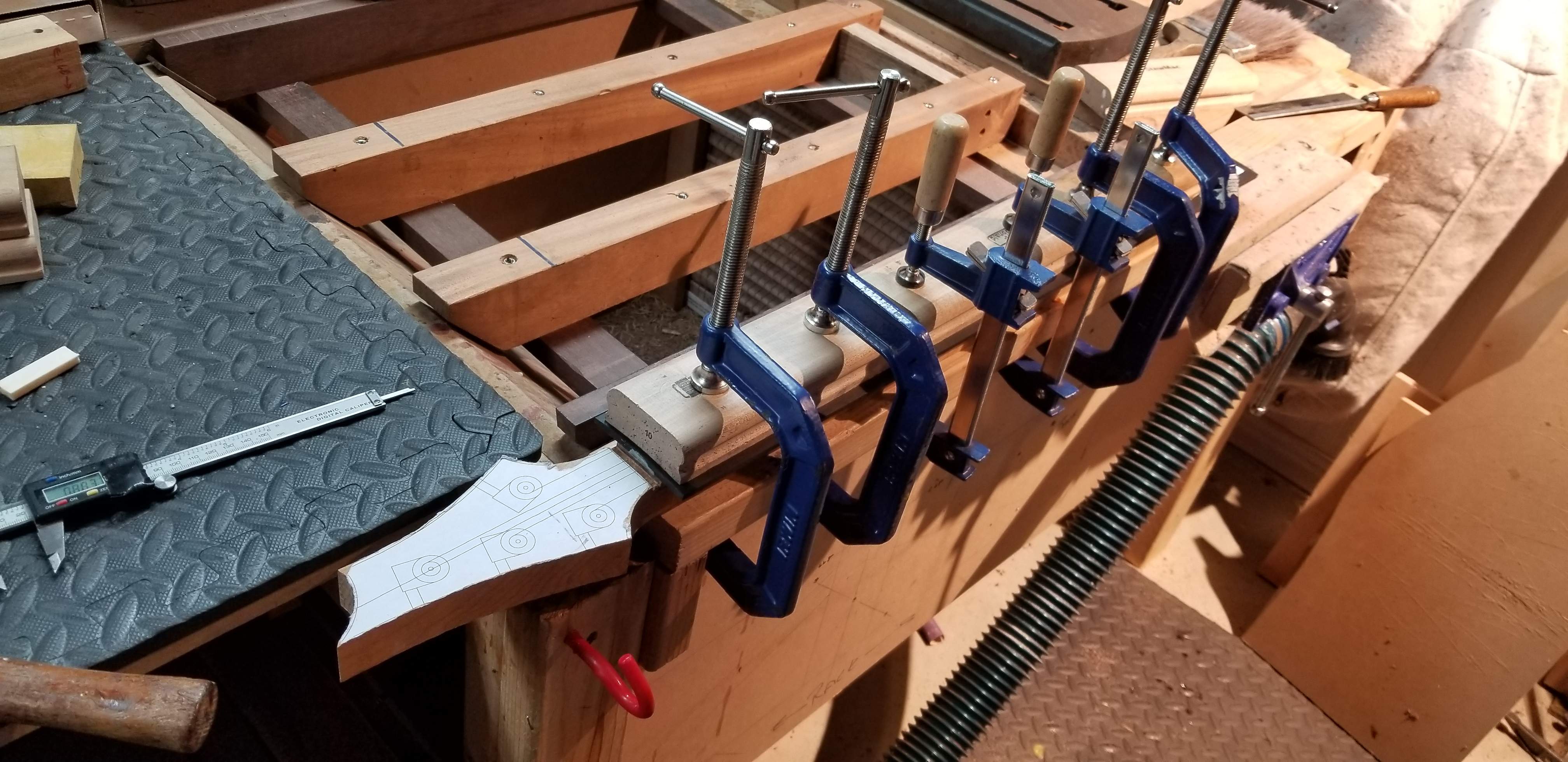

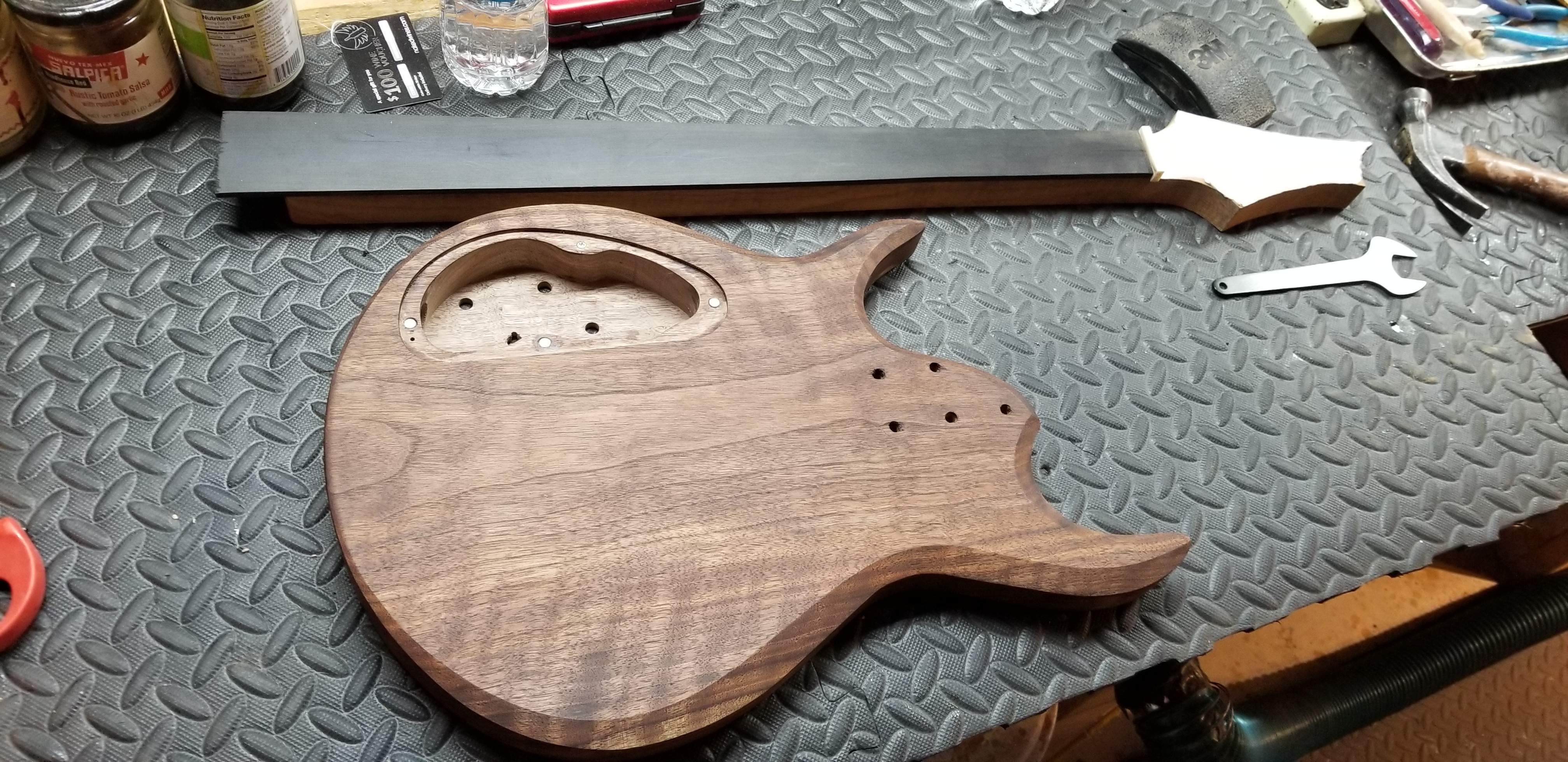

I routed the nut slot and glued the FB down

I was originally thinking I'd do the head stock ala Fender, but the more I think about it I'll be putting in an angled head stock. I might be lucky to get 4 degrees, so if that doesn't give me a good enough break angle, I'll have room to put in string trees



[Scoops]

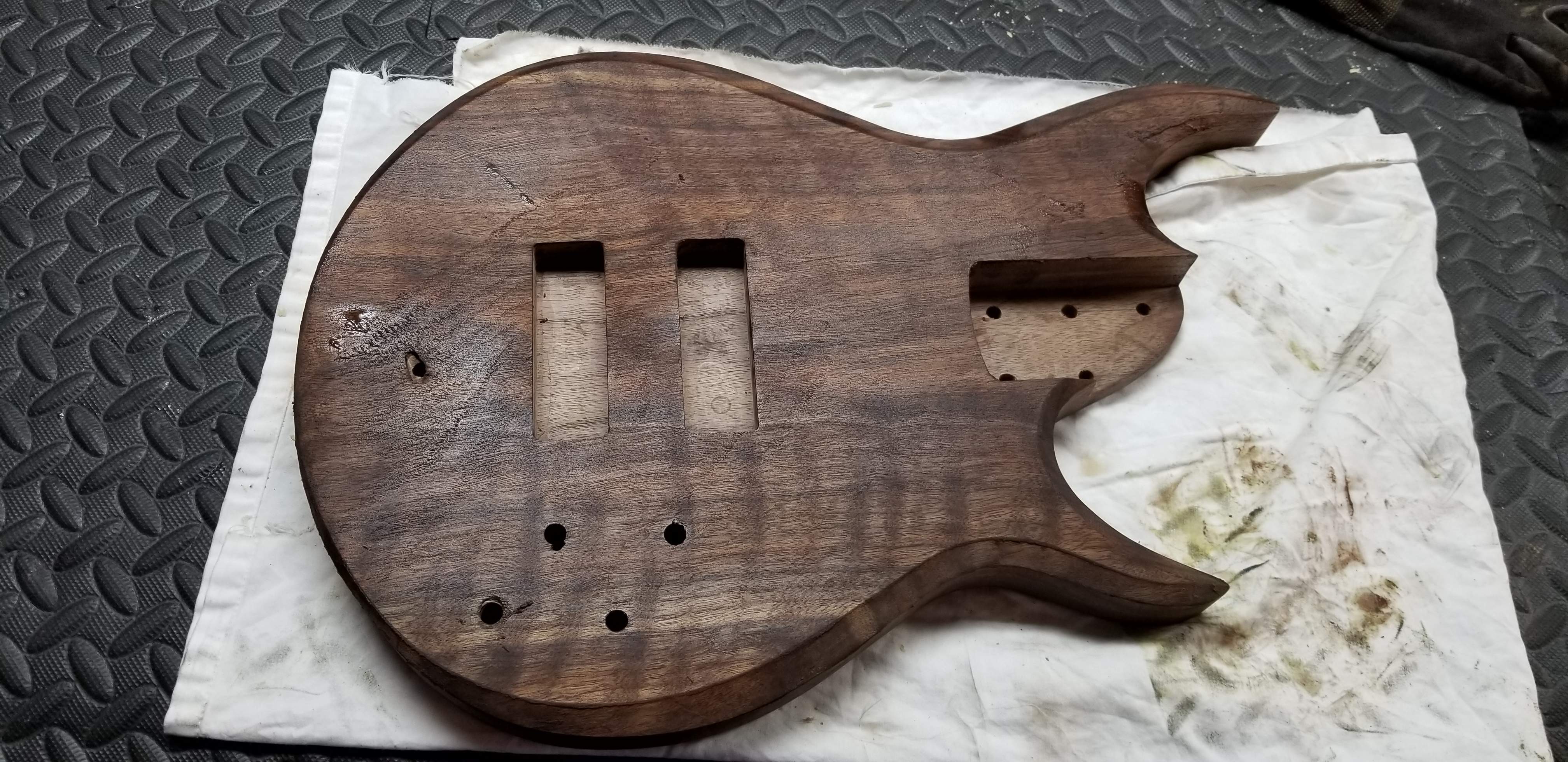

So I now just sanded in the first coat of oil. I'll be taking off the goop in about 15 minutes.



[Scoops]

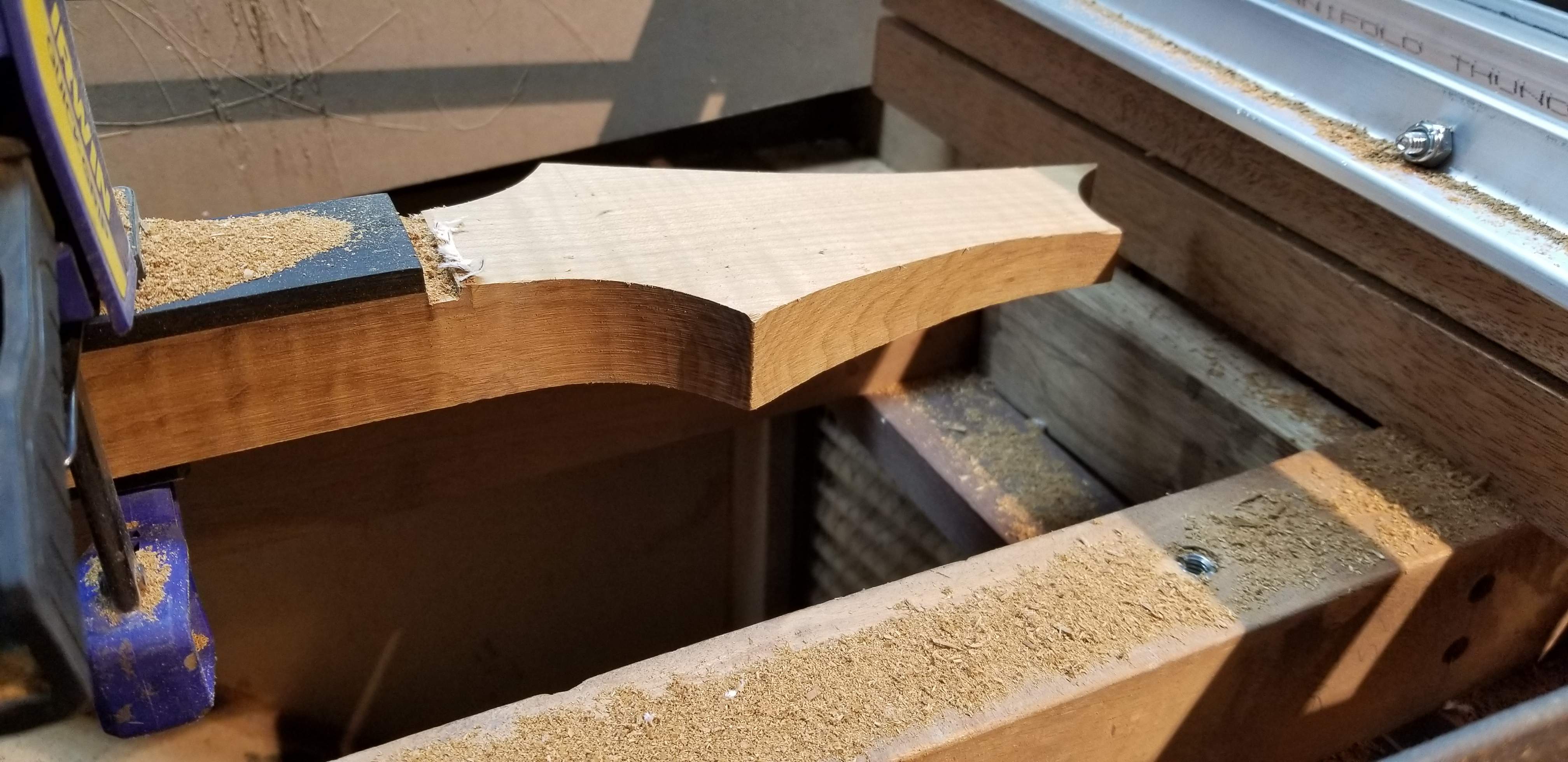

Wiped off the sledge, and trimmed the FB



[ctmullins]

Glad to hear you're going to angle that headstock.

As usual, your work looks gorgeous!



[Scoops]

Glad to hear you're going to angle that headstock.

As usual, your work looks gorgeous!

Yeah,
Once I get it done I think to myself, "Why did I ever consider the Fender thing anyway"?
Thanks for the comps as well!

On a different note, unlike other roasted maple I've worked om before, this piece seems very prone to chipping out



[Scoops]

A little oil, some sanding, that makes slurry



[Nagromicon]

Is that how you're pore filling?



[Scoops]

........and wipe off

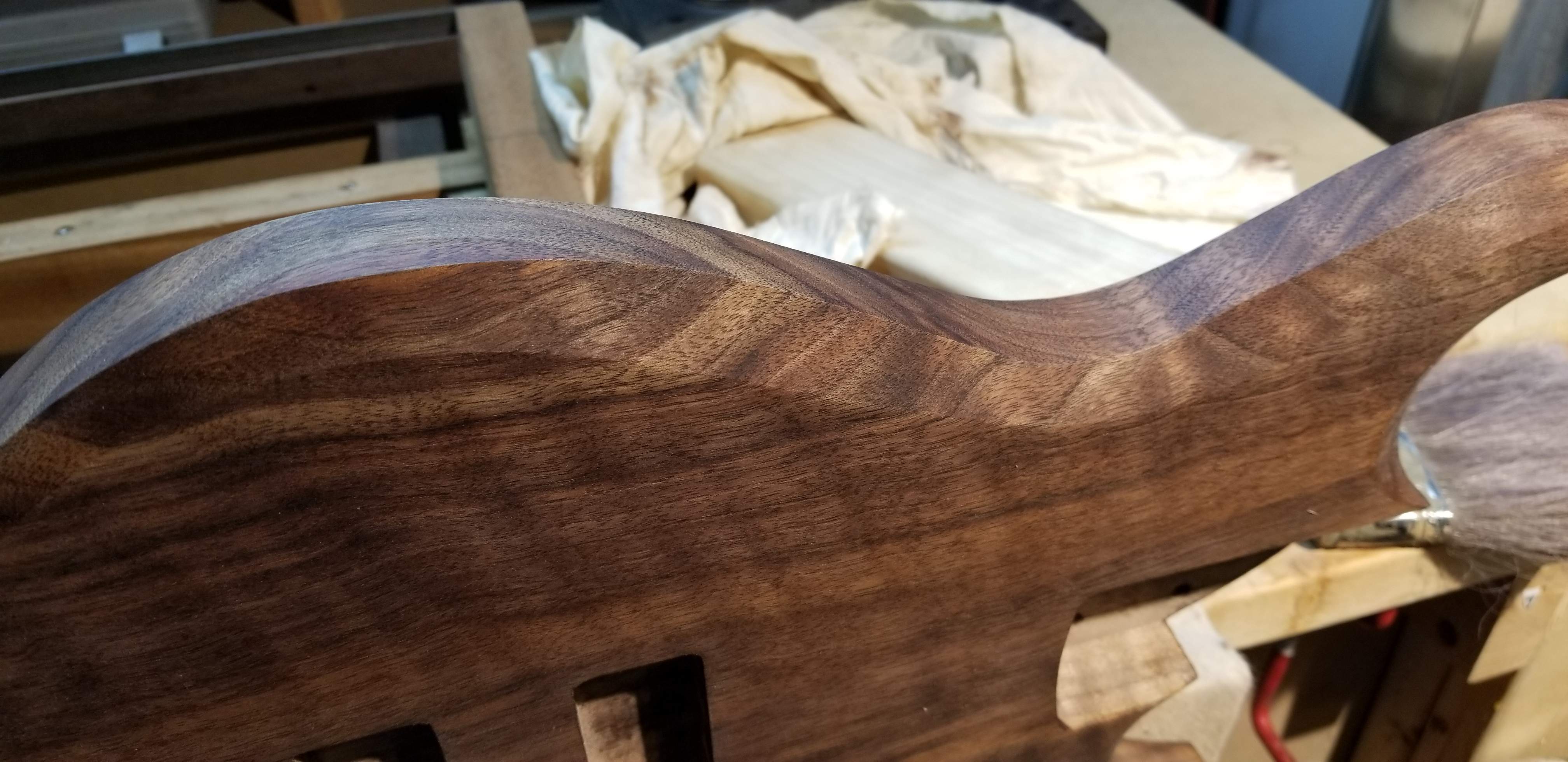

I like this, The grain is allowed to "speak out" more with the bevel than a round over



[NKBassman]

Correct me if I’m wrong, but the pickup positioning looks more like Jazz bass than Ripper.



[Scoops]

Correct me if I’m wrong, but the pickup positioning looks more like Jazz bass than Ripper.

More like a G&L L2000
