Stingray aftermarket 2 band pre

#145
The original is a bit blurry so I'm going to redraw it. Will keep the layout and wiring the same to avoid confusion but the traces may move slightly as it'll be on a fixed grid.

For those who want one, it'll be just the cost of a beer (to keep me lubricated while working) + shipping.

#146
I'm off to bed. Anyone who's suffering from insomnia, please feel free to check this first draft of a cleaned-up layout:


#151
CapnSev said:
Goes to show you get what you pay for I guess. I'll shell out for the East pre if I need to after reading all this.
Click to expand...


Apparently Jeff has been doing something right. His Ebay feedback bears that out. He has shown that he cares for what he does by standing in front of the fire here on TB...which can be a very tough audience.

The bottomline is that it is a product that is offered at a substantially reduced cost over the East offering. Grant it, it is only $40 and some change but it should work. And it should give the appearance of being a professionally manufacturing dispite the reasonable costs.

I do believe that you do get what you pay for. But I think that the East pre is out of my price spec. The East setup is a complete package with plate, pots and wiring. But I just want something more simple like Jeff is offering here.

#152
BassLife77 said:
it was acccording to this pre-EB StingRay preamp. the one they sent me has the same parts and layout. since the board looks pretty good I'm gonna attempt :hmm: to desolder it and replace all the parts. with my limited skills it might take a month :scowl:
Click to expand...

You might have soldered something up wrong. I messed up at first on the one I've got setup as a stompbox. It was a bitch troubleshooting it but I got it up and running. You guys are crazy if you think these are crap. It's one of the best sounding active pres I've used.

#153
moobass said:
You might have soldered something up wrong. I messed up at first on the one I've got setup as a stompbox. It was a bitch troubleshooting it but I got it up and running. You guys are crazy if you think these are crap. It's one of the best sounding active pres I've used.
Click to expand...

its soldered correctly. I traced every wire a million times. I am getting a clean signal despite the voltage leakage. there is something bad on the board.

#159
BassLife77 said:
that wouldn't make much sense. I have it wired exactly like the original diagram. same wire colors
Click to expand...

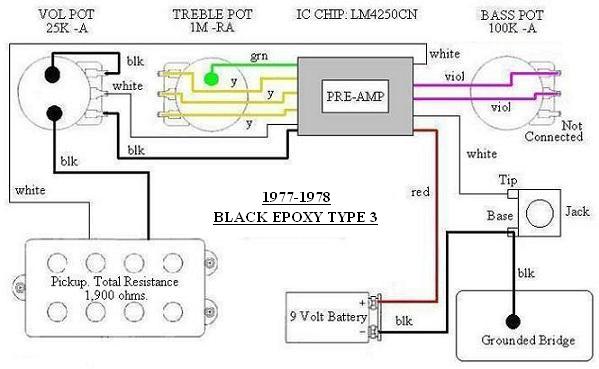

That's not the diagram that came with mine. That might be the problem. The one I have looks more like this below. What I am getting at is you need a special jack. I forget the model number but it disconnects the battery turning off the preamp when you unplug your bass. You could get away with a stereo jack but the battery will be on even when the bass is unplugged. Ernie Ball sells the right jack that's where I got mine.
