Stingray aftermarket 2 band pre

#161
moobass said:
That's not the diagram that came with mine. That might be the problem. The one I have looks more like this below. What I am getting at is you need a special jack. I forget the model number but it disconnects the battery turning off the preamp when you unplug your bass. You could get away with a stereo jack but the battery will be on even when the bass is unplugged. Ernie Ball sells the right jack that's where I got mine.

Click to expand...

what does a switching jack have to do with the voltage leakage? the jack doesn't matter. both diagrams complete the same circuit when the bass is plugged in

#164
BassLife77 said:
what does a switching jack have to do with the voltage leakage? the jack doesn't matter. both diagrams complete the same circuit when the bass is plugged in
Click to expand...

I don't understand what you mean by voltage leakage? I'm guessing you have the wrong jack or the jack is wired up wrong. That preamp uses a special switchcraft jack that makes and breaks a connection to the battery B+. Notice the 4 solder lugs in the layout I posted? I forget the model switchcraft jack but it's not a standard stereo or mono. You can get them from Ernie Ball, I did.

#166
UncleFluffy said:
The original is a bit blurry so I'm going to redraw it. Will keep the layout and wiring the same to avoid confusion but the traces may move slightly as it'll be on a fixed grid.

For those who want one, it'll be just the cost of a beer (to keep me lubricated while working) + shipping.
Click to expand...


I'd love to have 2. Will be more than glad to provide funds for lubrication...

#169
about to buy the parts, correct me if I screwed up

LM4250CN
8 pin DIP socket

radial electrolytic caps
(3) 1uf
(2) 10uf

metal film caps
.047uf
.0018uf

mica caps
120pf
500pf

metal film resistors
10K
100K
220K
1.2M
(2) 2.2M

wires - red, green, yellow, white, black, violet

#174
Wow. Way more interest than I expected. I've only got enough photoetch board for a dozen or so, but will be able to get more on Monday. Might have to do a second batch later on in the week.

Will PM everyone who's let me know they're interested with a status update before end of Sunday to confirm details.

  • Like
Reactions: mikenyc
#175
UncleFluffy said:
Wow. Way more interest than I expected. I've only got enough photoetch board for a dozen or so, but will be able to get more on Monday. Might have to do a second batch later on in the week.

Will PM everyone who's let me know they're interested with a status update before end of Sunday to confirm details.
Click to expand...

:eek: WOW it went from 1 board for me to a couple hundred in a few days! This board definitely has a market. Ernie Ball just reissued the classic StingRay bass with the same vintage 2 band preamp.

#178
Hmmm.

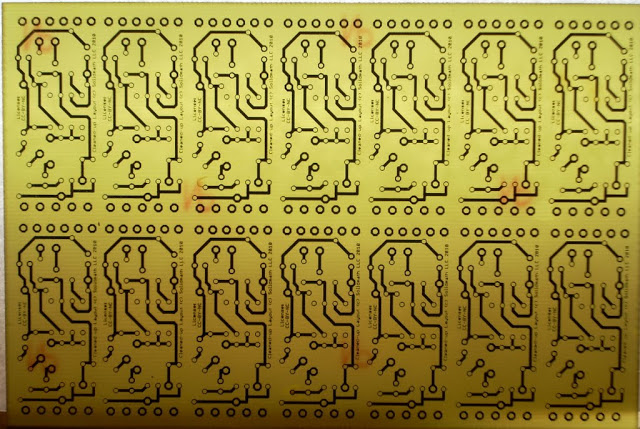

We have a board:

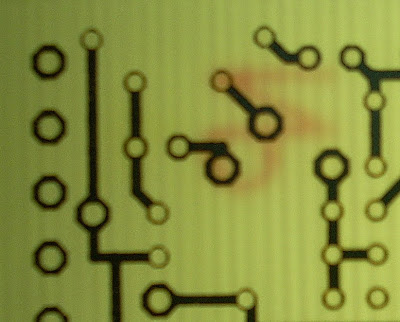

but I'm not happy with it. The software I used uses very small pads for the library components and it's going to be a bear to drill and solder:



Might be better to grab another board and redo it right.

#180
UncleFluffy said:
Hmmm.

We have a board:

but I'm not happy with it. The software I used uses very small pads for the library components and it's going to be a bear to drill and solder:

Might be better to grab another board and redo it right.
Click to expand...


I noticed the small pads too. I've been playing with your schematic in Gimp - thickening the pads and some runs.

BTW, does your board measure .8" x 2" ?
