The Squier Mini Precision Bass Club

#4,221
I sincerely doubt that any holes were drilled by hand. That is just not economically feasible for production runs of this size. Cheap copy basses maybe. More likely the positioning jig is getting a little worn in this case. And 1 mm?

I like seeing how the new controls will fit using the full-size drawings. Be SURE to check that there is clearance underneath where the hole is routed. Sometimes the hole barley clears the pots. You may need to rotate the PCBs about 90 degrees from your photo, so they are not pressing against the side of the opening.

  • Like
Reactions: Cambo351
#4,222
J Posega said:
I'm guessing pickguard, bridge, and tuner mounting holes are drilled by hand with a flimsy template. Luckily, my bridge and tuners are on straight enough for my liking, but damn the pickguard screws are crooked.
Click to expand...
Yeah there's a couple of pickguard screws that don't line up well either, will have to fix them.

J Posega said:
I can confirm the EMG pots will fit, as I put an EMG GZR in my Mini P.
Click to expand...
Cheers, the regular EMG pots weren't too much of a concern, but i'm putting in a BTC and VMC, which have a much bigger circuit board on them.

Bassamatic said:
I sincerely doubt that any holes were drilled by hand. That is just not economically feasible for production runs of this size. Cheap copy basses maybe. More likely the positioning jig is getting a little worn in this case. And 1 mm?
Click to expand...

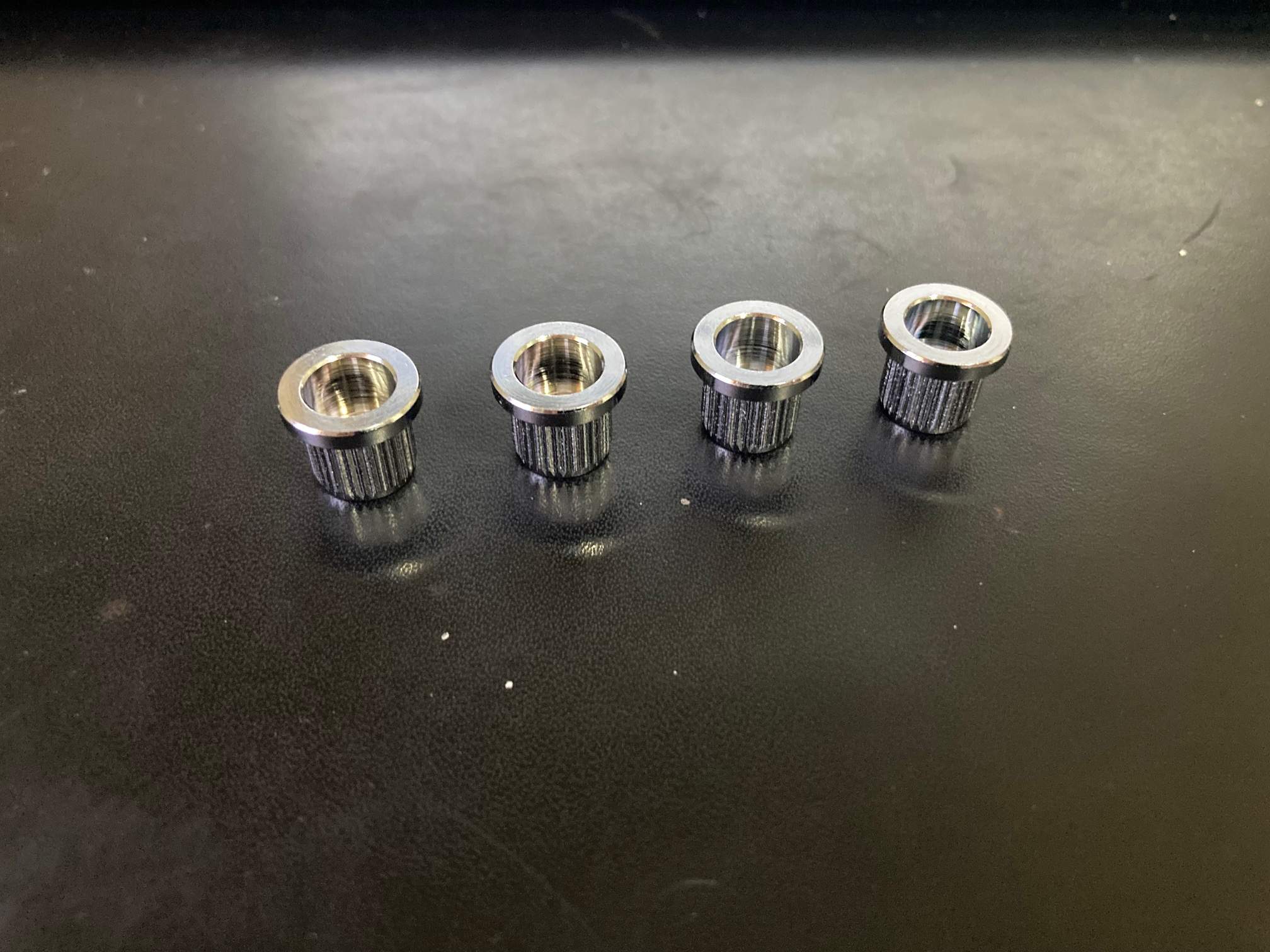

Yes 1mm is a bit pedantic, but with the big square Badass bridge that 1mm is quite obvious, and since i'm drilling through and putting ferrules on the back, it's worthwhile to get it spot on.

Bassamatic said:
I like seeing how the new controls will fit using the full-size drawings. Be SURE to check that there is clearance underneath where the hole is routed. Sometimes the hole barley clears the pots. You may need to rotate the PCBs about 90 degrees from your photo, so they are not pressing against the side of the opening.
Click to expand...
Cheers, it's definitely one of those measure 100 times then cut things, but I will have to rout out some clearance either way, still trying to figure out the best orientation.

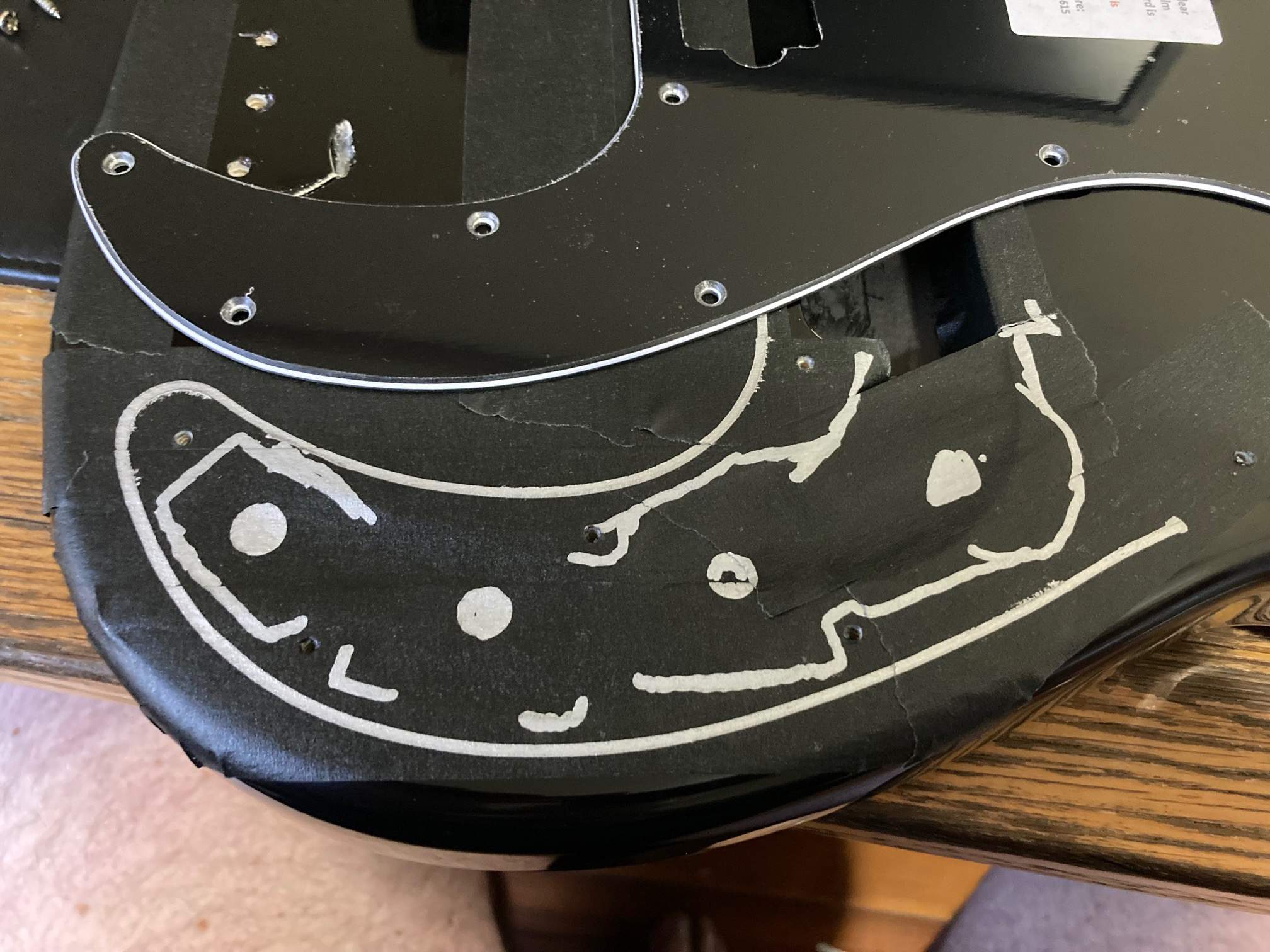

Just a rough idea for first time around, will do this again with a much finer marker & straighter lines, before signing of and cutting in to it.

Currently undecided about the jack location, so I figure it's a good idea to make space for something else while i'm in there routing. EXB? AB220?

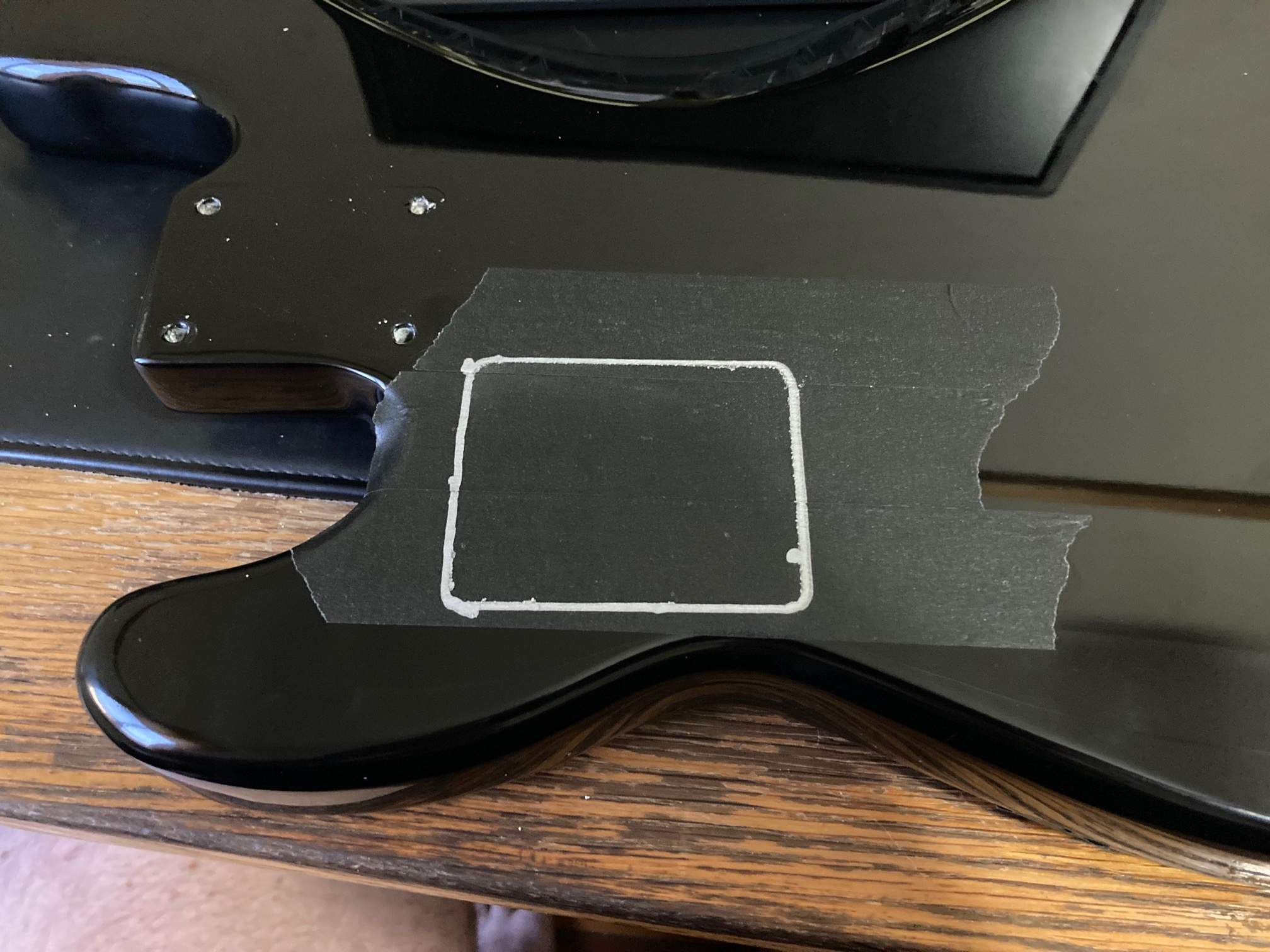

And the battery box on the back


That's the outside of it, the routed hole is a bit smaller.

  • Like
Reactions: J Posega
#4,223
Do yourself a big favor and get the battery box that just flips up and has no wired connectors. The battery just drops in and closes. Much easier to change batteries and more reliable as you won't break off the battery wire when changing.

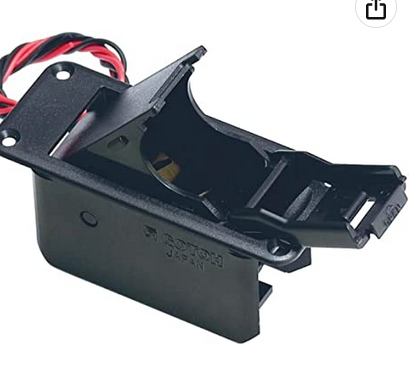

This is Gotoh - needs 1-1/2" depth

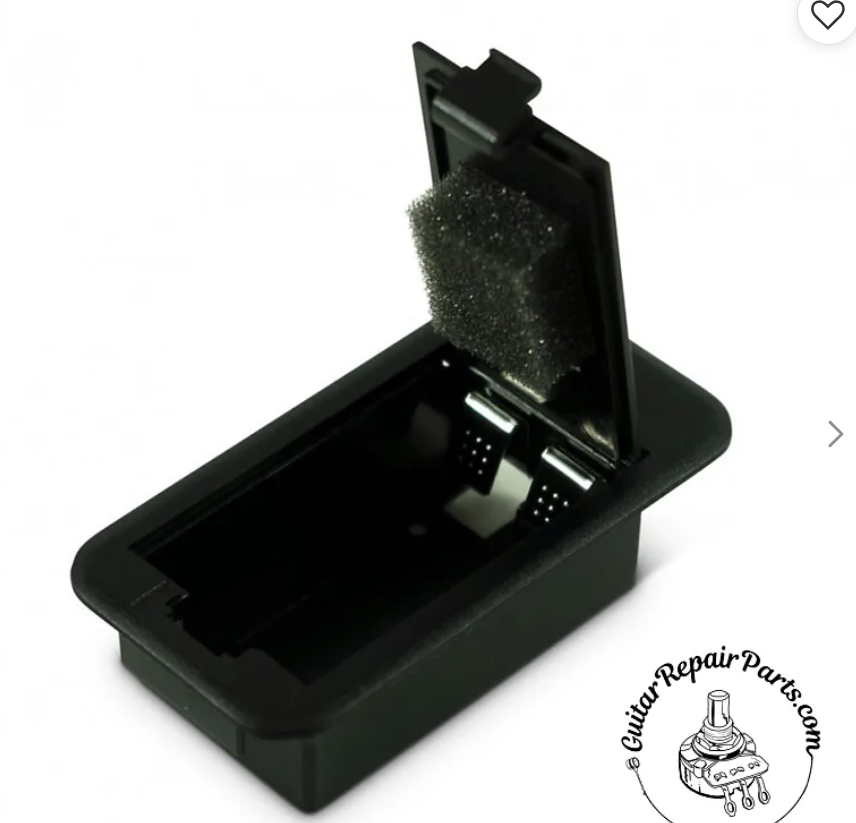

This is from WD Music

  • Like
Reactions: Pemalfer, Brocephus, RodRy and 1 other person
#4,224
Bassamatic said:
Do yourself a big favor and get the battery box that just flips up and has no wired connectors. The battery just drops in and closes. Much easier to change batteries and more reliable as you won't break off the battery wire when changing.

This is Gotoh - needs 1-1/2" depthView attachment 4992615
Click to expand...
I put one of these in a Warmoth bass and I like it a whole lot. Battery slides in, battery slides out, no fingernail breaking fiddly connectors.

  • Like
Reactions: Pemalfer, RodRy and Cambo351
#4,228
HaphAsSard said:
@Cambo351:
since you're doing surgery to the Mini, consider adding a string-through-body option to it: this may save you headaches later when looking for strings, since it would make "standard" short-scale ones fit better.
Click to expand...

I have been planning to do this to my Mini. I was going to do it at an angle towards the bottom of the bass instead of 90 degrees so I could use flats without breaking them. HOWEVER - I got a set of the special Mini-P Flats from LaBella and it is no longer necessary. They sound so good I will never change them. Many Thanks to Rsteady for letting me know they were available.

  • Like
Reactions: Rsteady and HaphAsSard
#4,229
Bassamatic said:
Do yourself a big favor and get the battery box that just flips up and has no wired connectors. The battery just drops in and closes. Much easier to change batteries and more reliable as you won't break off the battery wire when changing.

This is Gotoh - needs 1-1/2" depthView attachment 4992615

This is from WD Music
View attachment 4992617
Click to expand...
The Gotoh looks just like one on my Ibby SR in which the battery seems to be irretrievably jammed. Not a fail-safe design (unless somebody can tell me how to get a jammed battery out!)

  • Like
Reactions: RodRy
#4,230

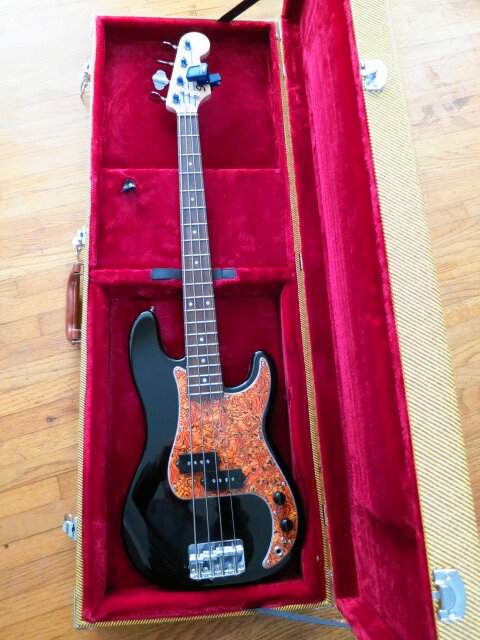

OK - Here's my completed, ready-to-gig Mini-P! Finally.

New Pickguard from earlpilanz on eBay
Rounded fretboard edges and smoothed fret end with 180 foam sanding block.
Black Metal knobs
DiMarzio DP121 pickups I had laying around
Triple string tree to hold the A down better
Mute switch
Puretone output jack
Glarry tweed Strat guitar case
and the icing on the cake - LaBella 760FM-P Flats specially made for the Mini-P. WOW they are great.


Last edited:
  • Like
Reactions: lowplaces, Mcboomport, GrahamNN3 and 6 others
#4,234
Cambo351 said:
Nice! what was the reason behind putting the string tree at an angle? because of the spacing? or just to clear the logo?

I have one here to put on mine, but the logo is going so i can put it straight if need be.
Click to expand...

Some of them are just made that way. I have used both styles. It can really make a difference with an open A.

  • Like
Reactions: Cambo351
#4,236
Last August, in post #3804 (page 191) of this thread, Club member #11 @pistonrod8 indicated his intent to sell his very extensively modded and upgraded Squier Mini Precision bass. I was the "knucklehead" who expressed interest and purchased it. I now intend to sell this bass myself, and wish to offer it to Club members first. A photo and list of mods and upgrades are provided in post #3804. It is in even better condition now than before, as it has undergone a recent fret leveling and polishing. Any interested parties are very welcome to PM me about it. Lacking any interest from the Club, I'll just go ahead and post an ad in the TB Classifieds.

  • Like
Reactions: Pemalfer, OLD-PLAYER, RodRy and 3 others
#4,238
Rocket Queen said:
Last August, in post #3804 (page 191) of this thread, Club member #11 @pistonrod8 indicated his intent to sell his very extensively modded and upgraded Squier Mini Precision bass. I was the "knucklehead" who expressed interest and purchased it. I now intend to sell this bass myself, and wish to offer it to Club members first. A photo and list of mods and upgrades are provided in post #3804. It is in even better condition now than before, as it has undergone a recent fret leveling and polishing. Any interested parties are very welcome to PM me about it. Lacking any interest from the Club, I'll just go ahead and post an ad in the TB Classifieds.
Click to expand...
Man I LOVE that one.
It's THE inspiration for my (still upcoming :woot:) mods on my Bronco and Mini.
The gold Squier logo (like the current Affinity and CVs) especially sells it.
The plain black logos just scream "cheap" to me and with how nice the Mini is it deserves more.

  • Like
Reactions: andare
#4,239
Rocket Queen said:
Last August, in post #3804 (page 191) of this thread, Club member #11 @pistonrod8 indicated his intent to sell his very extensively modded and upgraded Squier Mini Precision bass. I was the "knucklehead" who expressed interest and purchased it. I now intend to sell this bass myself, and wish to offer it to Club members first. A photo and list of mods and upgrades are provided in post #3804. It is in even better condition now than before, as it has undergone a recent fret leveling and polishing. Any interested parties are very welcome to PM me about it. Lacking any interest from the Club, I'll just go ahead and post an ad in the TB Classifieds.
Click to expand...
