I assume different gain stages...
And that results will differ slightly depending on whether you dedicate one to to one output, or let one tube drive two outputs.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
The Sushi Box FX Secret Society
- Thread starter kranahan
- Start date
And that results will differ slightly depending on whether you dedicate one to to one output, or let one tube drive two outputs.
I guess that’s contributing to my confusion, as I’ve seen multiple comments including yours discussing to “dedicate one (tube) to one output, or let one tube drive two outputs”, but in reply to my previous comment Sushi noted that he was “not sure what you mean by "dedicated" tube.”
I could be wrong but the line out of the Noble has a tube buffered output, these new Neptunium’s have a FET buffered out.
Ahh, okay. So in all of the pedals, it’s probably something like this:
Input > Tube gain stage > EQ > Buffer > Outputs
The difference in Neptunium vs Noble/Nobelium is what component makes up the buffer, FET vs 2nd tube.
The second tube in the Noble/Nobelium was used on only the 1/4" out, and it was after the 1/4" volume control.
In the Nobelium the first tube has a triode before the tone stack and a triode after the tone stack but before the XLR and 1/4" volume controls
Each tube has 2 triodes in the pedals giving each tube 2 stages.
I would imagine the Neptunium does not have the parts that are after the 1/4" volume pot in the Nobelium.
I don't know where the FET buffer is installed but I would guess after the second triode but before the 1/4" volume control, that way the 2 volume controls do not affect each other.
This is purely my opinion but I have never seen the pedal or the schematic for the Neptunium. (But I have built a nobelium)
The Nobelium's schematic is in the build docs for the C2CE Nobelium PCB. (The Nobelium that is DIY at C2CE, (thank you Nathan))
c2celectronics.com
In the Nobelium the first tube has a triode before the tone stack and a triode after the tone stack but before the XLR and 1/4" volume controls
Each tube has 2 triodes in the pedals giving each tube 2 stages.
I would imagine the Neptunium does not have the parts that are after the 1/4" volume pot in the Nobelium.
I don't know where the FET buffer is installed but I would guess after the second triode but before the 1/4" volume control, that way the 2 volume controls do not affect each other.
This is purely my opinion but I have never seen the pedal or the schematic for the Neptunium. (But I have built a nobelium)
The Nobelium's schematic is in the build docs for the C2CE Nobelium PCB. (The Nobelium that is DIY at C2CE, (thank you Nathan))
Nobelium PCB Set
This is a PCB set for building your own Nobelium preamp. This is not a beginner project, so if you’ve never built a pedal before, then this isn’t for you. I’ve tried to make this as affordable and …
c2celectronics.com
Nobelium uses a second tube for the output buffer for the 1/4" output. Neptunium uses a high-voltage FET for the output buffer.
This is giving me a warm phat tone for a jazz thing going down. The trusty old Zoom B2.1u was a bit too dry going into a powered speaker, the Bass Dude has the right warm and fuzzy for a vintage vibe. YMMV. I have just enough room to add a DIm stick if needed.
What is the output impedance of the XLR out for the pedals with D.I.? Are they all about the same?
They are all about the same, should be around 600Ω or so.
I have 10 units built up ready to drop, but I want them to ship stock with 12AT7, and my order of 12AT7 is "In Transit to Next Facility, Arriving Late"Man I want this
Well looky here I have a 12AT7 on my desk ;-)

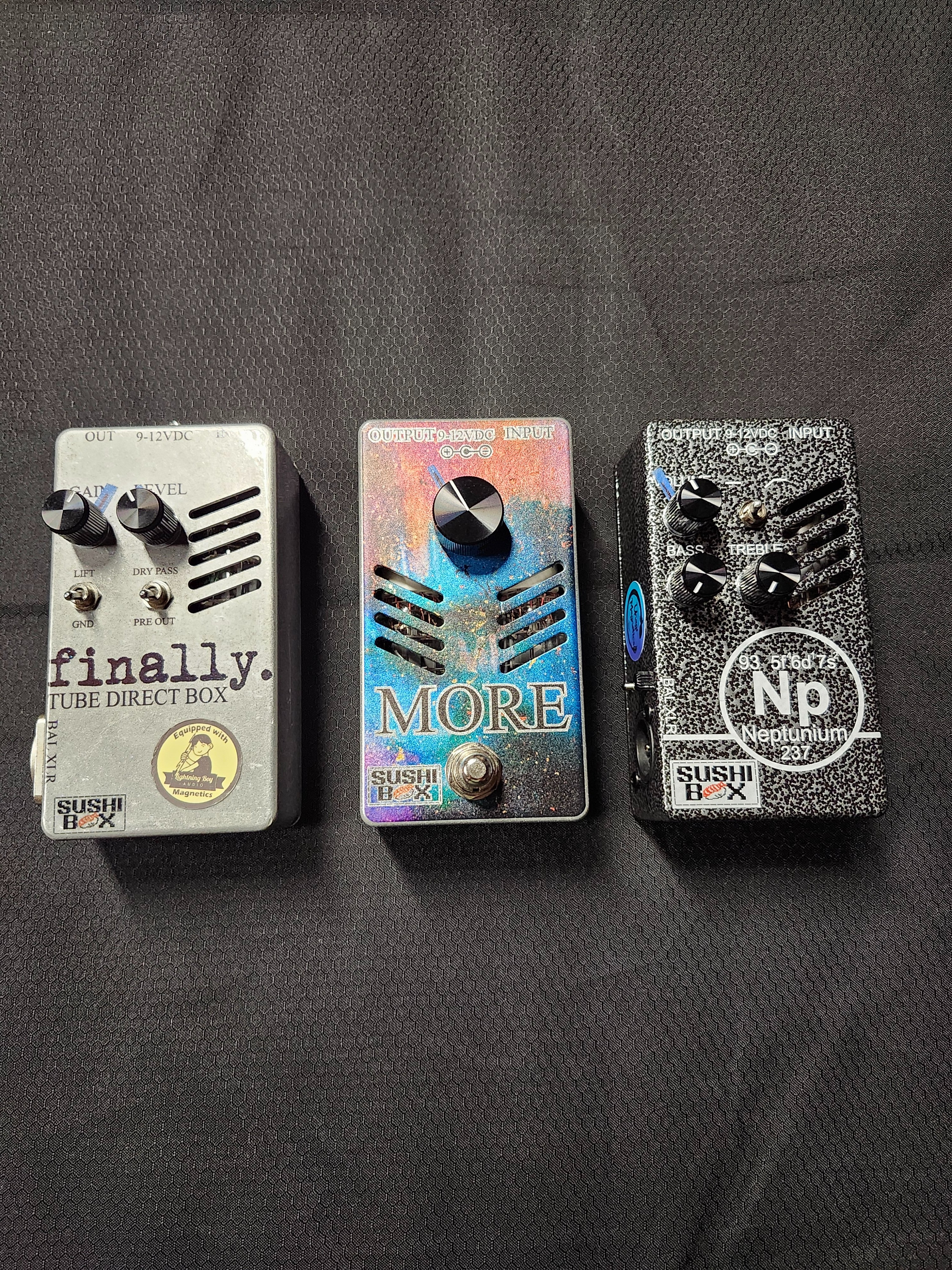

I still love the tone of my Finally...it has the wool I really dig.

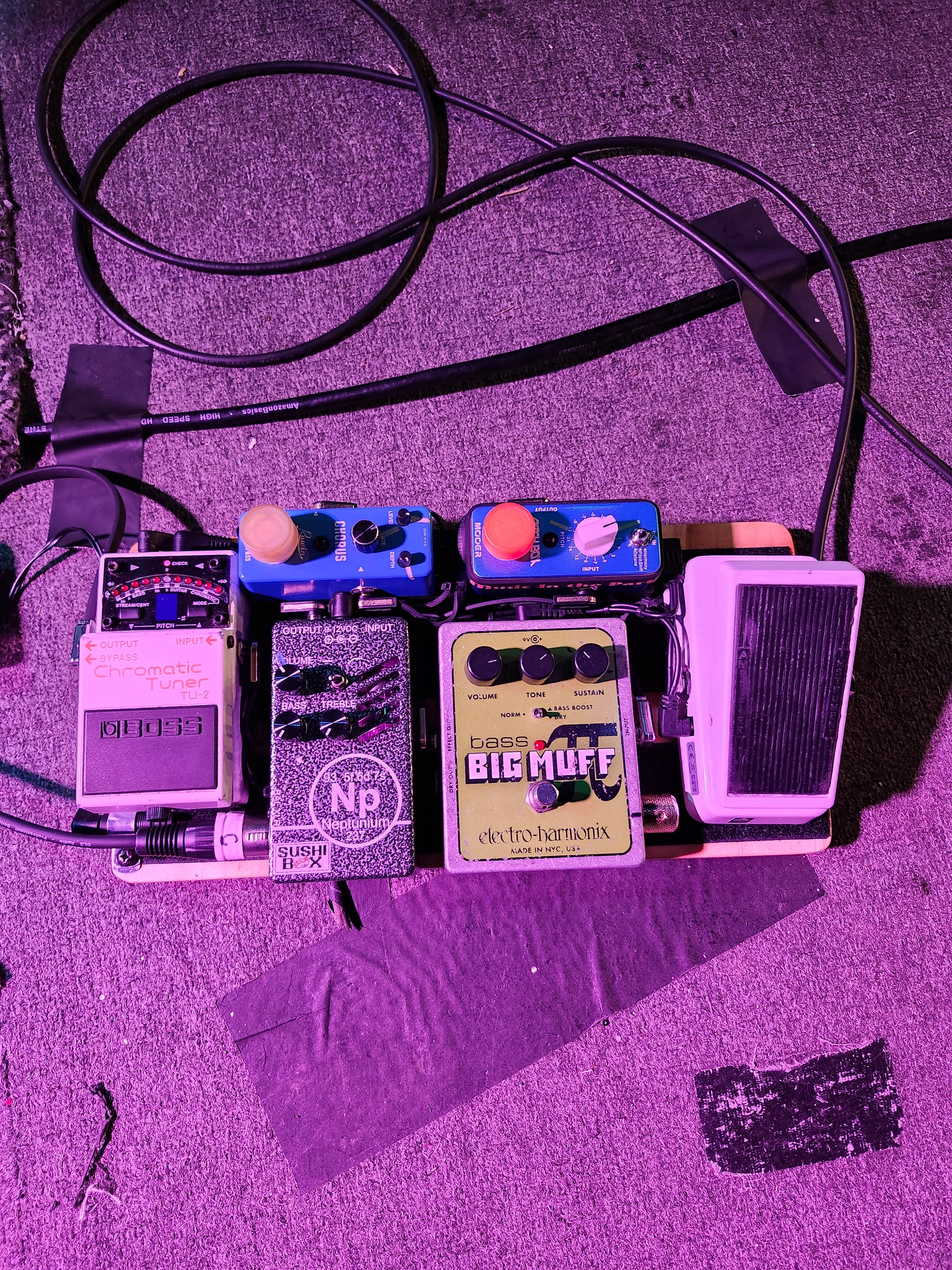

The Np is on the board for tonight.
The Np is on the board for tonight.
Amidst all the Neptunium excitement, I finally got an order in for the Tarantula Fuzz. Very excited to mess around with it.
Would love to hear any A/B/C comps of your nep, finally and more. Saw your comments in the other thread about their differences
I'm putting my board together atm and needed some longer screws for my More and Space Heater, popped into town to my local hardware store, took the screws to see if they had what i needed to be told in the sales assistants best somerset drawl that "they do be imperial, we don't stock those"!
@Sushi Box FX are you able to let me know what size base plate screws are used on the More and Space Heater please?
@Sushi Box FX are you able to let me know what size base plate screws are used on the More and Space Heater please?
I don't have a pedal board myself but I always thought you stuck Velcro strips to the board and the bottom of the pedals, that way you can easily remove them if you wanted to. (Hook and Loop tape)
www.stewmac.com
Search - StewMac
Last edited:
you can also use bike links.
Last edited:
I have been playing around with a new pedalboard design idea that uses replacement box screws, but is fairly easy to move the pedals around. One of the challenges I have found is that the screw sizes are not universal and have wide variationI don't have a pedal board myself but I always thought you stuck Velcro strips to the board and the bottom of the pedals, that way you can easily remove them if you wanted to. (Hook and Loop tape)
Search - StewMac
My Neptunium pedal appears to use 6-32 machine screws. Hopefully you can get the actual answer from Nathan.
