The Sushi Box FX Secret Society
- Thread starter kranahan
- Start date
Yes, I will be definitely be checking in when my watts arrives, I was going to get into it with my PA but it was so clean I didn't bother, but this essentially does a similar function to what your new pedal does?
I once did this in a Japanese restaurant back in the eighties. What the meal cost me would have easily covered the cost of a sushi pedal.Sushi is to be consumed with sake. Drink more sake until you forget how much you're spending on sushi
Just go get yourself a Radial JDI and use any pedal you like in front of it.

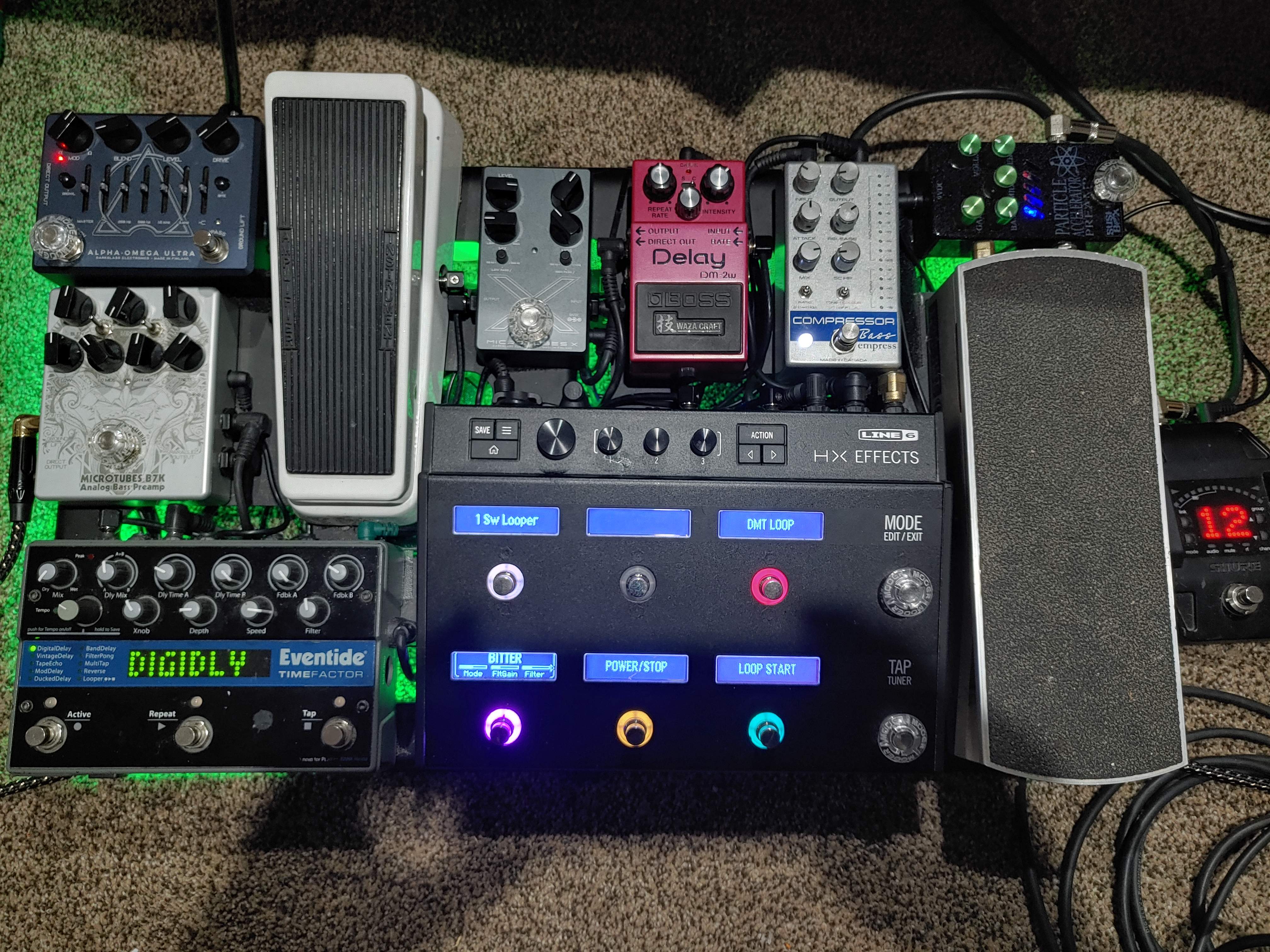

I welcomed Particle Accelerator to the ol pedalboard today. Placed it first to help warm up the digital wireless signal. It could have been placed last, can definitely power a power amp.
Yes, Westinghouse essentially has the trimpot moved to an external knob to safely control the voltage without opening it. I added a resistor to adjust the sweep so it won't go higher than the capacitors can handle so you won't damage the Westinghouse by adjusting the Volt knob. I did this externally on this one for two reasons:
1) the original Edison sounds very good at 30V so I wanted people to have the option to get that EXACT sound, but also wanted them to be able to dial in what I consider "proper" tube voltage without having to open up the pedal and stick their hands in a dangerous circuit. This is the main reason.
2) I use board-mounted pots to anchor the circuit board so it's not floating around in the box and I don't need any additional mounting hardware, and two pots are much better than one for securely anchoring. This was a less important reason, but still a factor.
Yup, that will work. I was hoping to use CineMag transformers but their lack of communication caused me to cancel my order and contact Jensen, so I will be using the same DI transformer found in the Radial JDI.
Wow, Jensen transformer. This is going to be very big.
Crap! Jensen is the one word you found to separate me from my money, again!!
So this thing is pretty freaking great.
Too late to switch mine eh lol. Knew you could fit two in there
Yeah, I was talked into it
and I won't have them available for order until the March batch, it always takes me a little bit after the first prototype to figure out logistics of manufacturing before I can offer them.
are you going to try making other pedals all regular tube?Yeah, I was talked into it
I guess. Based on my own understanding, the so-called “tube saturation” sound is more a product of the sag from a tube rectifier, and a power amp stage driving a (usually underspecced) output transformer rather than the mere presence of a 12AX7 type tube in the preamp stage. Although phase inversion from a tube preamp stage also plays a part in some classic amps.
But whatever. If I can get very close to the B-15 sound using the Linden, Slampegg, of Alex-1 when compared side by side against my vintage Ampeg B-15N then to me it’s moot what you call it or market it as. Especially since they don’t output line level and therefore can’t directly drive a power amp. Something that arguably disqualifies them from being called genuine preamps. “B-15 emulators” might be a a better designation if you really want to split hairs over it since all three products incorporate additional circuitry beyond a Baxandall EQ stage to get something remarkably close to an Ampeg fliptop vibe.
But maybe that’s just me.

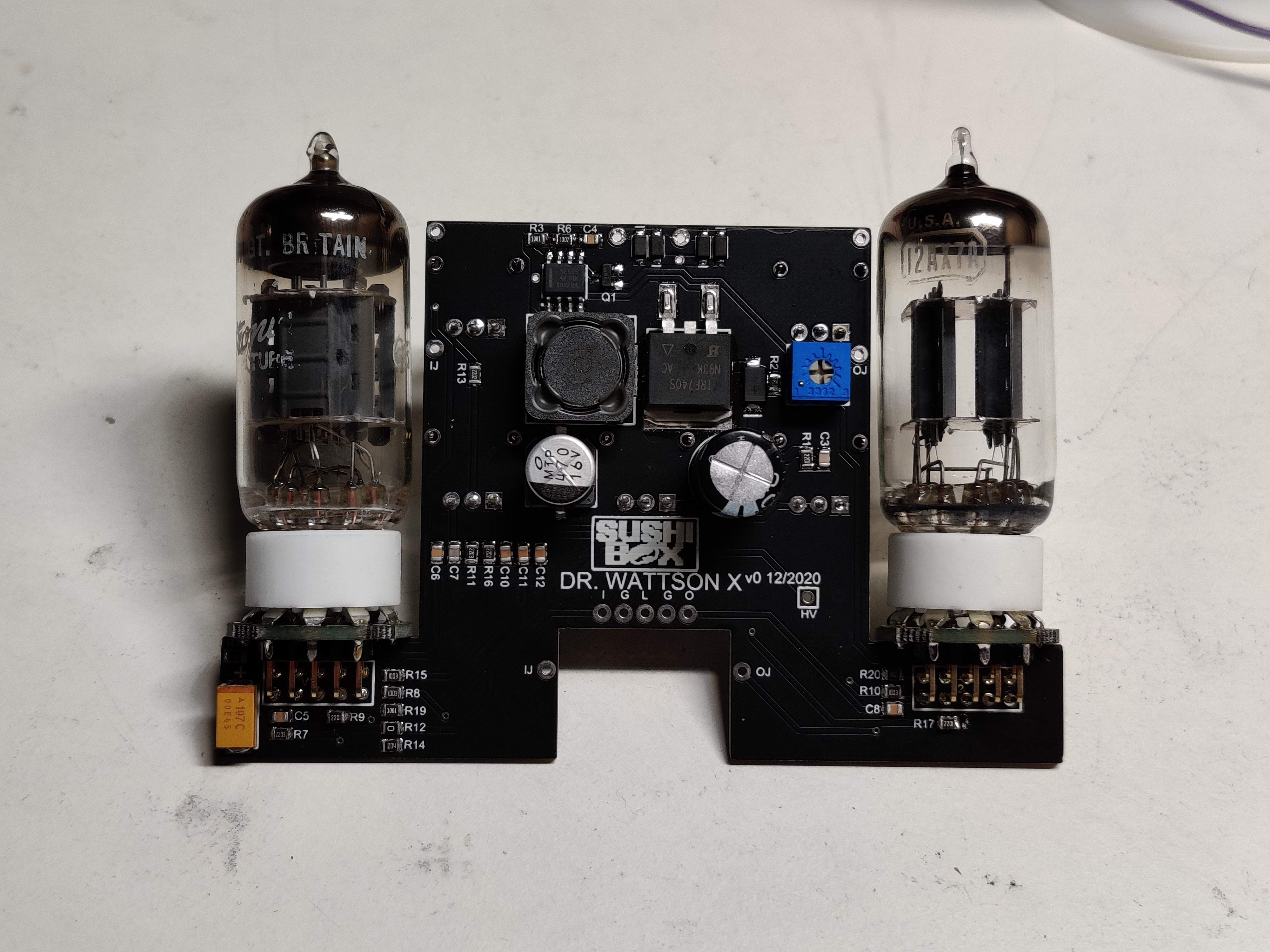

I mean so far the only ones I haven't done are Sunnday Drive and Black Eye, and there's no reason I can't do those, so I think they will happen eventually. The X series is getting enough attention (more than half of January is X series) that I'm toying with the idea of not doing any more new 6N21B designs and working on making X series cheaper and easier (9V power supply compatible will happen soon).
I had also forgotten about it, so I went to write it on my whiteboard where I keep my to-do list, and it was already there
so it's going to happen for sure, but I expect it to take at least a couple prototypes, so don't go reserving slots for it or anything. I'll see if I can throw together an initial design to send out at the end of the month with my February circuit board order so I can at least start the prototype process.
Don't rush yourself on my account, I already have a SWR IODI had also forgotten about it, so I went to write it on my whiteboard where I keep my to-do list, and it was already there
.
