The Sushi Box FX Secret Society

[Kendescending]

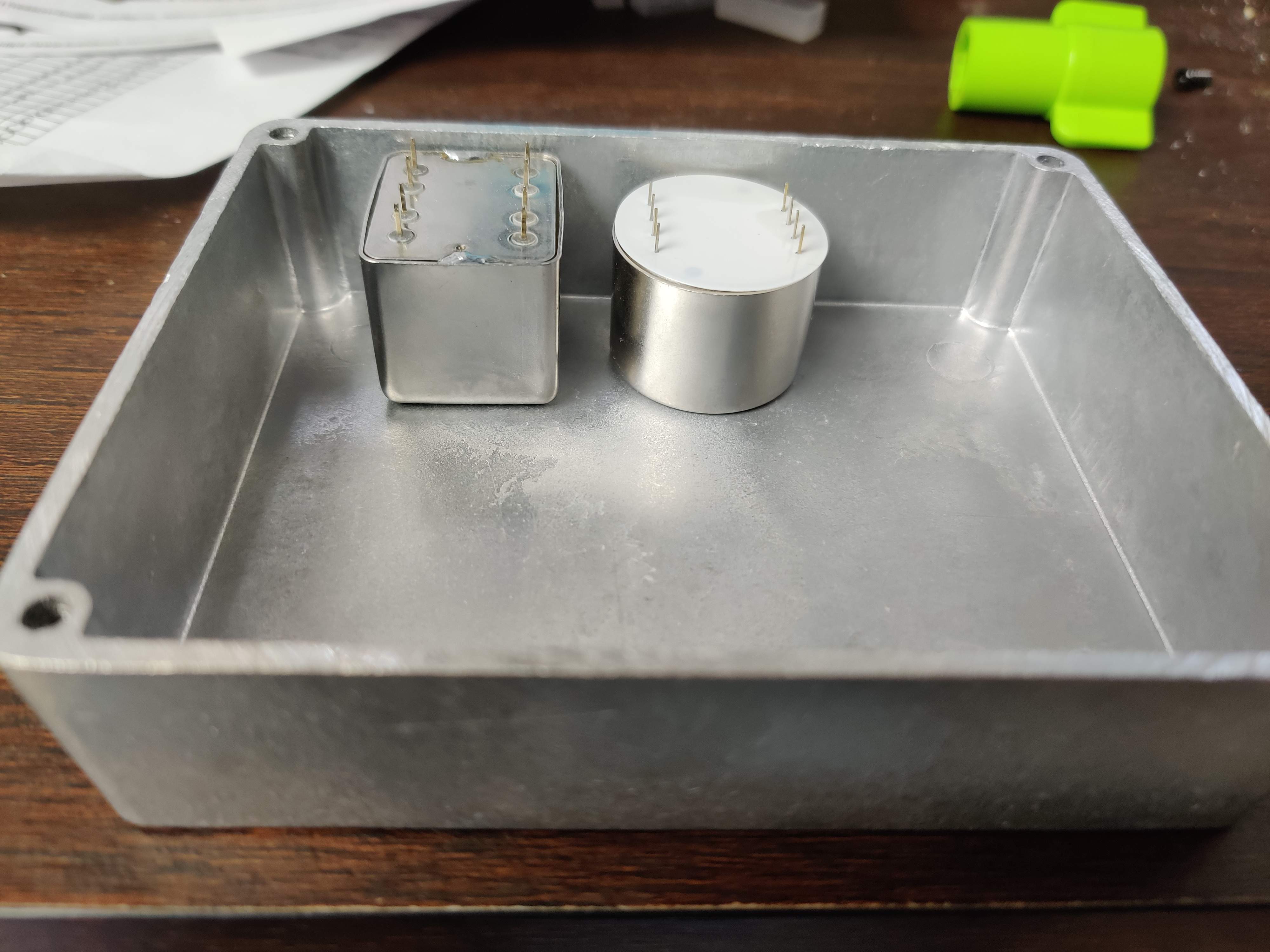

1590BB are great, that's what I have Deep Dish, Sunnday Drive X, Black Eye X, and Dr. Wattson X in. The biggest problem is the D.I., the transformers are too tall. Ideally I would want them mounted on the board for stability, but in the interest of size it's looking like I may have to figure out some other way to mount them.

View attachment 4196580[/QUOTE
How much more depth do you need? You could add a light plate, but you'd have to remove material around that area, and that would add more time to your build. Or, you could machine the desired size and thickness that you need. It's basically a clear spacer, and when you add an LED or two, it will light up.
Invalid Link Removed



[MascisMan]

I wonder if that LED ring can be programmed to be turned on when active like the Starlifter DI?



[MascisMan]

1590BB are great, that's what I have Deep Dish, Sunnday Drive X, Black Eye X, and Dr. Wattson X in. The biggest problem is the D.I., the transformers are too tall. Ideally I would want them mounted on the board for stability, but in the interest of size it's looking like I may have to figure out some other way to mount them.

View attachment 4196580



[Sushi Box FX]

I wonder if that LED ring can be programmed to be turned on when active like the Starlifter DI?

They don't actually have LEDs in them, you drill holes in them and stick LEDs in, so the LEDs do whatever they were wired to do. I used them a few times several years ago. The big problem with light plates is that it's another step of assembly, and the way LEDs mount to it you either need long wires or LEDs that slide in and out of the holes so the user can open it up to change the tube. I don't think it's the right solution for this case.



[Sushi Box FX]

*Every pedal building forum I'm a member of*: Adding a tube to an effect doesn't automatically make it better.

Me: Pretty sure I can make a tube envelope filter.



[Pedalnetics]

*Every pedal building forum I'm a member of*: Adding a tube to an effect doesn't automatically make it better.

Me: Pretty sure I can make a tube envelope filter.

I'm picturing a tube volume pedal. Heel-down = no signal passed through. Toe-down = zero gain change from input signal, whatever tube/resistors that required. Literally a gain-controlled tube-thru basically. Funny enough, that might actually sell...

Or a mute switch. Adding a tube to a mute switch might not be worthwhile.



[mmbongo]

I'm picturing a tube volume pedal. Heel-down = no signal passed through. Toe-down = zero gain change from input signal, whatever tube/resistors that required. Literally a gain-controlled tube-thru basically. Funny enough, that might actually sell...

Or a mute switch. Adding a tube to a mute switch might not be worthwhile.

I'm waiting for the SushiBox Tube Tuner Pedal, personally.



[krfoss]

I'm picturing a tube volume pedal. Heel-down = no signal passed through. Toe-down = zero gain change from input signal, whatever tube/resistors that required. Literally a gain-controlled tube-thru basically. Funny enough, that might actually sell...

Or a mute switch. Adding a tube to a mute switch might not be worthwhile.

I've fantasized about nearly this exact thing in a preamp pedal. The tube flavor would be added in through a knob and allow that channel to fluctuate between modern/ solid state clean with knob down, to full tube amp flavor with the knob up.



[labeledbass]

*Every pedal building forum I'm a member of*: Adding a tube to an effect doesn't automatically make it better.

Me: Pretty sure I can make a tube envelope filter.

In those instances does the tube do anything for a "color" of the tone or is it just a boost on the back end?



[moon-bass]

I've fantasized about nearly this exact thing in a preamp pedal. The tube flavor would be added in through a knob and allow that channel to fluctuate between modern/ solid state clean with knob down, to full tube amp flavor with the knob up.

I've never seen this in a pedal, but a few amps/rack Preamps - Markbass LMT 500 and Eden Navigator to name two



[NKBassman]

SWR IOD has a similar feature too.



[Sushi Box FX]

I'm picturing a tube volume pedal. Heel-down = no signal passed through. Toe-down = zero gain change from input signal, whatever tube/resistors that required. Literally a gain-controlled tube-thru basically. Funny enough, that might actually sell...

So like a tube buffered volume pedal?

In those instances does the tube do anything for a "color" of the tone or is it just a boost on the back end?

Depends on how it's set up, but the way I'm looking at the envelope filter it would be similar topology to LA-1A or my tube tremolo; all-tube signal path, but the modulation part is done with solid-state devices.



[Sushi Box FX]

So I just found out EHX already beat me to it with the Tube Zipper. Oh well, doesn't stop me from building one for educational purposes

EDIT: Just watched a couple demos of the Tube Zipper, now I just want one of those



[NKBassman]

Depends on how it's set up, but the way I'm looking at the envelope filter it would be similar topology to LA-1A or my tube tremolo; all-tube signal path, but the modulation part is done with solid-state devices.

So what’s the function of the tube in your trem if you’re using solid state modulation?



[Rich48]

1590BB are great, that's what I have Deep Dish, Sunnday Drive X, Black Eye X, and Dr. Wattson X in. The biggest problem is the D.I., the transformers are too tall. Ideally I would want them mounted on the board for stability, but in the interest of size it's looking like I may have to figure out some other way to mount them.

View attachment 4196580

Maybe you could mount it on top of the pedal with the leads going down into the box. This would add some height to the pedal but keep the box small. You could then add camel to the name since it would have a hump.



[fivestringgecko]

Me: Pretty sure I can make a tube envelope filter.

I've been waiting for you to say this since I've known about Sushi Box/this thread!!!

5sg.



[psychovox]

I had a Tube Zipper for a while some years ago. I had an absolute blast playing around with that thing. Somehow though, it never made its way into a live performance or onto any recording. So it was very useful for recreation, but I ended up selling it because it was a want and not a need. "Since when has that stopped you?" Well, since... family...money...you know.



[fivestringgecko]

Oh, I'm an envelope filter JUNKIE (tried or owned 39 or 40 filters so far!) and would TOTALLY find a use for an envelope filter with toobz!!! I've had my eye on a Tube Zipper for a while...

A Sushi-fied Zipper? Just take my money now. lol

5sg.



[Real Soon]

Tube envelope? So like, variable t00b gain into a variable-Q envelope?? Hot Tuna? Salmon Sweep? (the latter maybe needing envelope vs expression control like the Iron Ether Xerograph Deluxe)

(yes, I am poor now due to pedals but have some furniture I can sell to buy more)



[Lowendtech]

Looks awesome. The Fractured Cherry is sweet. No customs holdup this time. Thanks @Sushi Box FX
