The Sushi Box FX Secret Society

#10,281
Currently at home and enjoying playing thru a new-to-me Quilter InterBass head, and the thought occurred to me:

Señor Sushi, if you ever got completely bored with designing and building pedals, you could undoubtedly slay micro head builds.

Sidenote, I've got two gigs coming up this weekend where I'll be taking my baby board (tuner/HPF/comp/OD/Linden/PA)... and I'm pretty sure I can run that board thru the FX loop on this sweet lil amp head for both as they'll have PA support (and no drums for the second one). The FX circuit on it is post-gain, and the InterBass's gain is dirty, so things ought to get interesting.

  • Like
Reactions: Sushi Box FX
#10,283
4Mal said:
I wants more booty! I want like SlampeggX level booty...
Click to expand...

More booty? Deep switch? Similar tone stack?


  • Like
Reactions: BrentSimons
#10,284
4Mal said:
12au7 installed in PAx .. better yet.

@Sushi Box FX What would it take to adjust the tonestack in the PAx/UAx. Make it less brite. Maybe also add a deep switch... I wants more booty! I want like SlampeggX level booty...
Click to expand...
Doubling the capacitor values in the cathode bypass caps should do it, I'd have to try it, and you may start to wish for a HPF.

Looking at the schematics between the three (Slampegg, UA, PAX), they all have the same coupling cap value throughout, but their cathode bypass cap values change.

PAX has a 47uF cathode bypass cap on both stages, so its pre-tonestack response looks like this:



UA has 47uF on the second stage, but 100uF for the first stage cathode bypass cap, which gives it a little more ultra low-end:



Ever wonder why Slampegg has such a low output level compared to the others? Slampegg doesn't have any cathode bypass caps, so even though it has a higher plate resistor value, it's still 5dB less gain on the first stage and 9dB less gain on the second stage. Why would Ampeg design an amp like that? Well, take a look at the frequency response:



If you take either a PAX or a UA and increase the cathode bypass capacitance to 220uF you can get super close to the absurd, sub-audible low end that Slampegg gets with no cathode bypass but keeping the high output level of PAX and UA.



Anyway, thanks for coming to my TED talk.

  • Like
Reactions: bonin in the boneyard, gonzkal, MrBass617 and 12 others
#10,285
Sushi Box FX said:
Doubling the capacitor values in the cathode bypass caps should do it, I'd have to try it, and you may start to wish for a HPF.

Looking at the schematics between the three (Slampegg, UA, PAX), they all have the same coupling cap value throughout, but their cathode bypass cap values change.

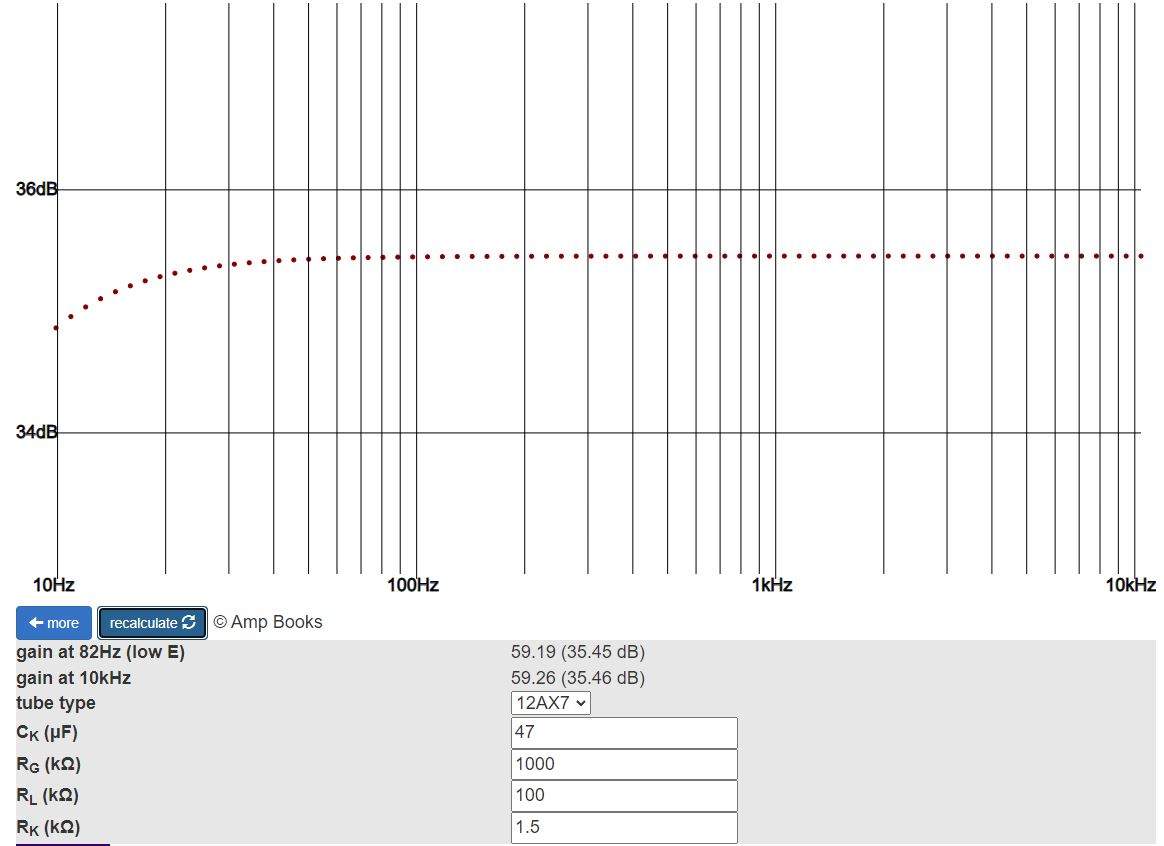

PAX has a 47uF cathode bypass cap on both stages, so its pre-tonestack response looks like this:

View attachment 4550295

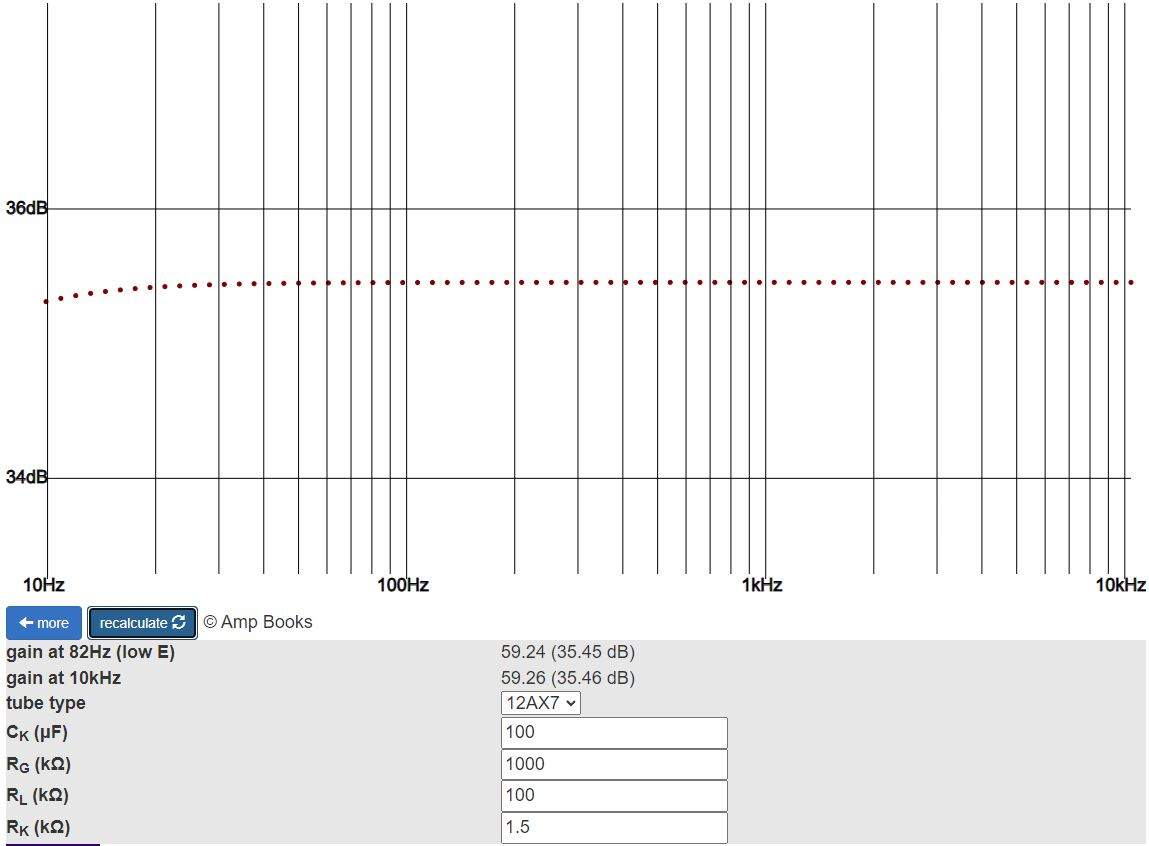

UA has 47uF on the second stage, but 100uF for the first stage cathode bypass cap, which gives it a little more ultra low-end:

View attachment 4550297

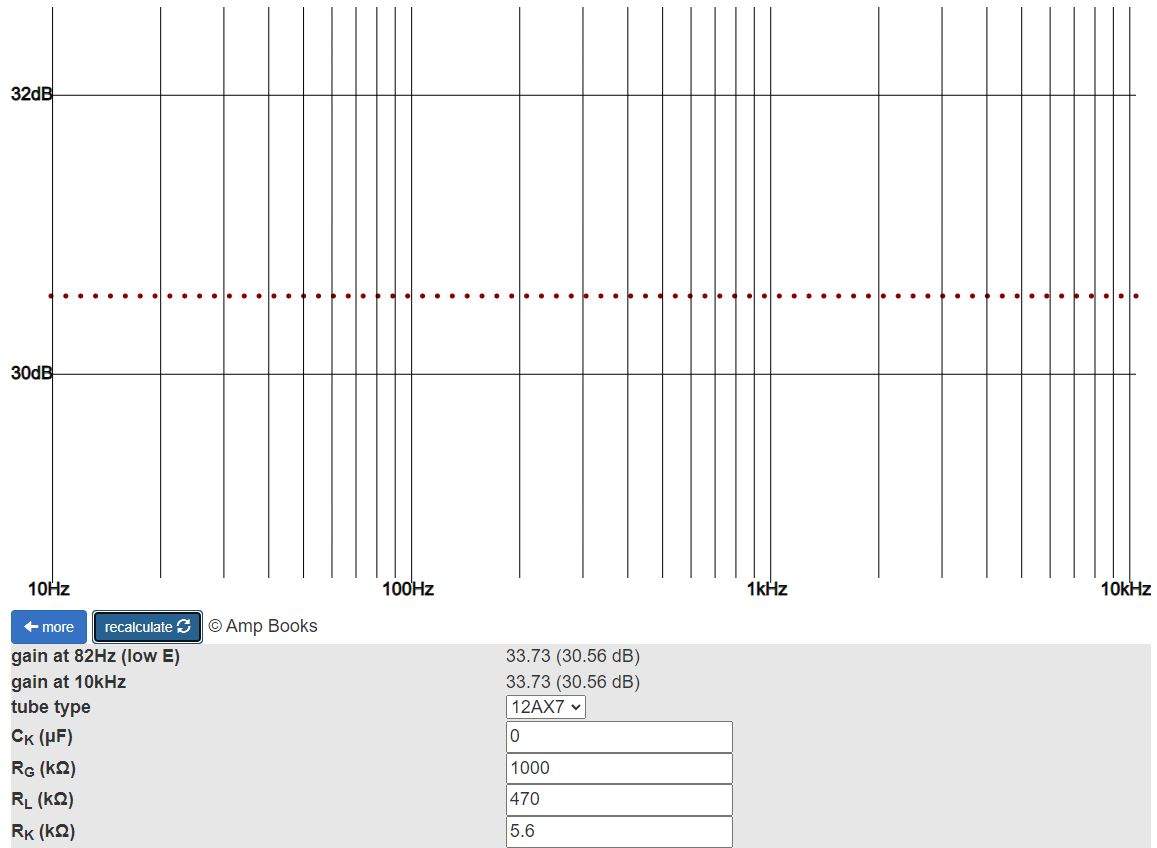

Ever wonder why Slampegg has such a low output level compared to the others? Slampegg doesn't have any cathode bypass caps, so even though it has a higher plate resistor value, it's still 5dB less gain on the first stage and 9dB less gain on the second stage. Why would Ampeg design an amp like that? Well, take a look at the frequency response:

View attachment 4550301

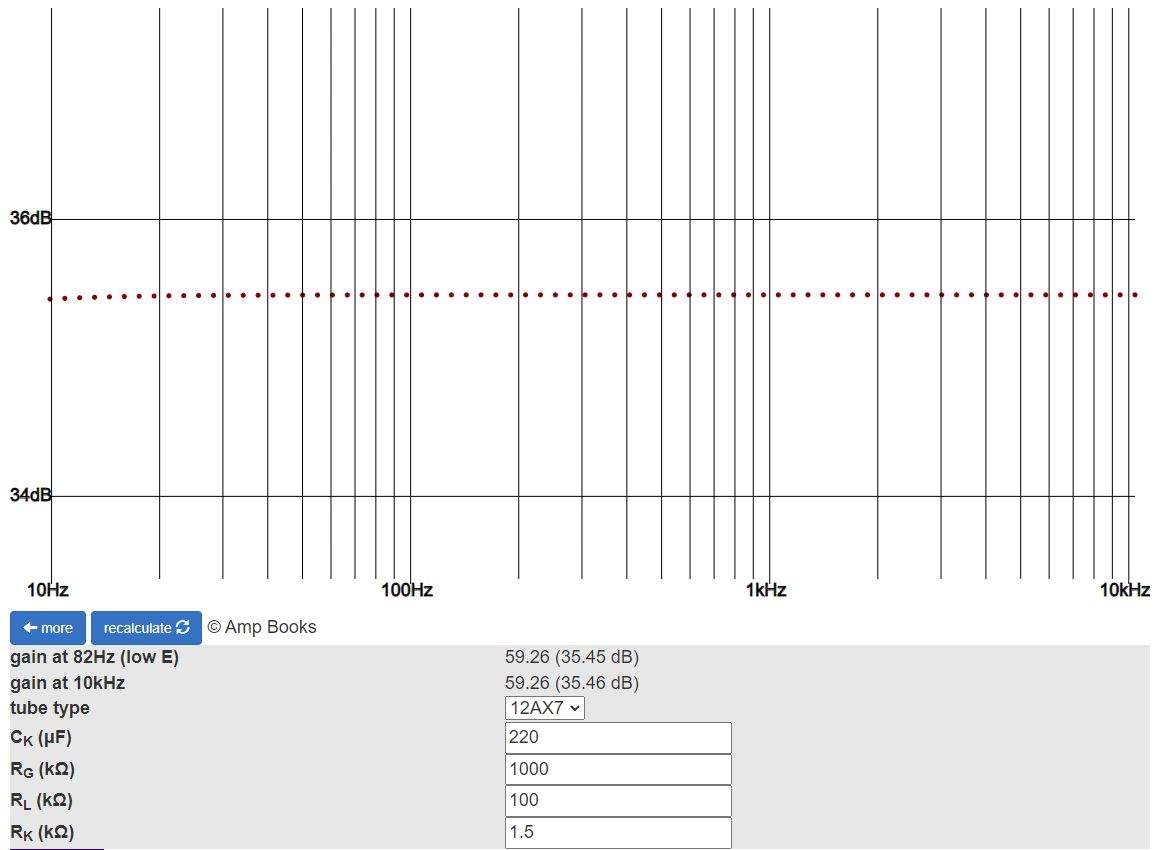

If you take either a PAX or a UA and increase the cathode bypass capacitance to 220uF you can get super close to the absurd, sub-audible low end that Slampegg gets with no cathode bypass but keeping the high output level of PAX and UA.

View attachment 4550306

Anyway, thanks for coming to my TED talk.
Click to expand...
Your TED talks never cease to catch my attention. There is much knowledge to be gained from Professor Sushi.

  • Like
Reactions: gtirard, macmanlou and Sushi Box FX
#10,286
Whow, another user that seems to like booty.
I have the bass knob dimed on my UA, but that seems to do the job for me. I got enough lows to make my cabs dance and I do not wish for more. But I never tried the SVBT because I never was able to warm to the ampeg tone stack. Nothing wrong with playing an SVT through a Fridge, that's glorious, but anyting else and I'm not so happy with it any more.

  • Like
Reactions: Sushi Box FX
#10,288
@Sushi Box FX HPF I have! I can actually apply HPF in at least 3 places... A UA with a deep switch would be ever so cool... I am auditioning my sounds using headphones pre processing, post fader off a console. I adjust the input trims for a constant -24 which gives me peaks of -12. For me, in the age of digital boards, -12db is the new 0...

This is also my live rig. No amp... FOH channel strip and a dedicated Aux out to a healthy power amp and either a 12/6 (and sometimes sub) or a 15/6 cab. It is a reasonably neutral setup that takes EQ well.

For my testing and sound and synth patch development though, all the digital EQ, HPF and LPF, comp and gate at the console are bypassed ... I'm trying to get as close as absolutely possible to the sound in my head at the pedal board so that when I am also not providing sound for my band, the FOH guy has nothing to do except adjust for the venue.

  • Like
Reactions: Ethereal Thorn and Sushi Box FX
#10,289

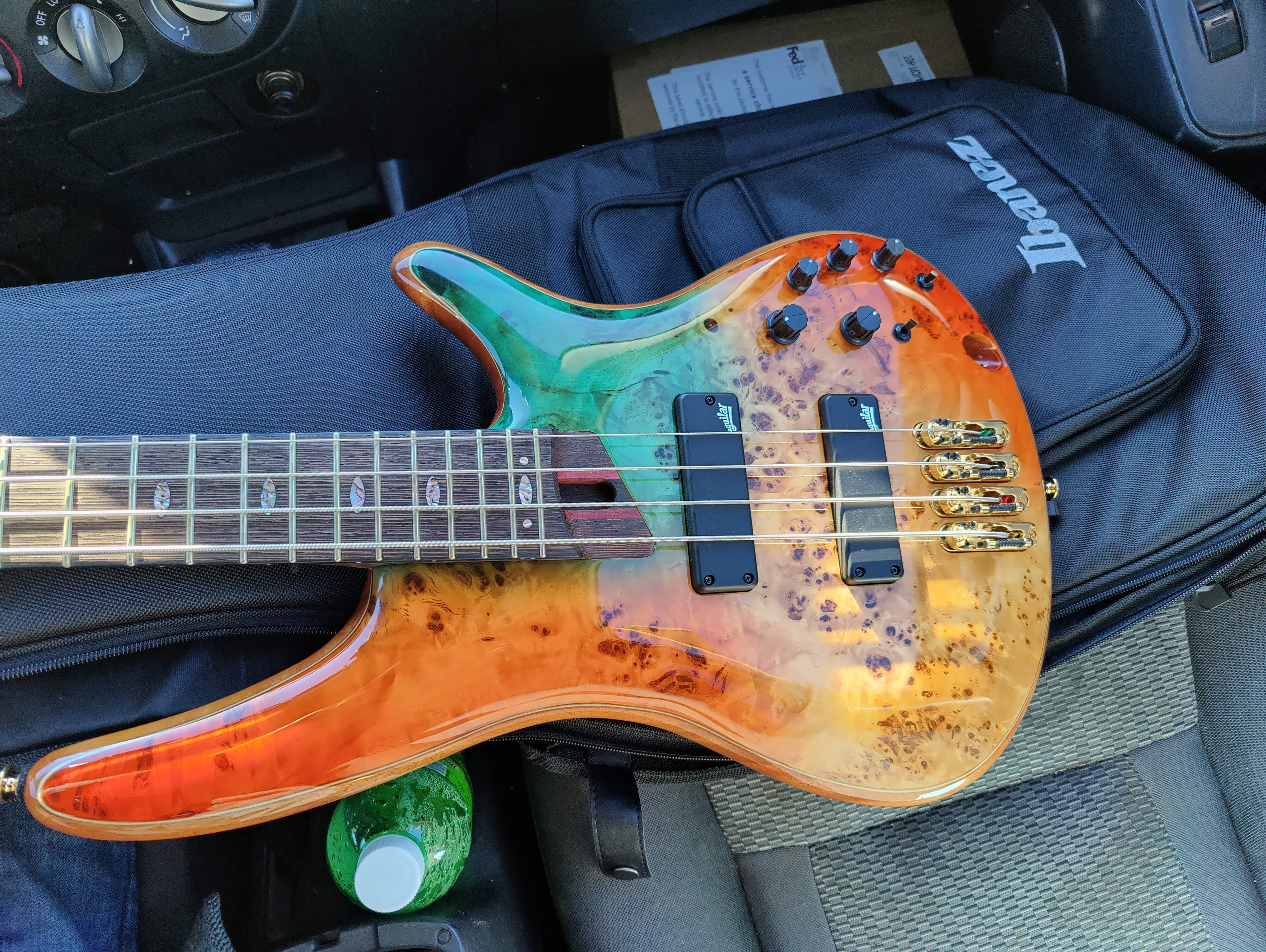

Oh man. I am not building anything tonight. So I picked up my new head yesterday, and I just picked up my new bass 15 minutes ago. Everything I thought it would be and more.

I love the feel of the Ibanez SR, so I stepped up a model or two. Ibanez SR1600D in "autumn sunset sky" finish.


  • Like
Reactions: ThomNC, Bleeds Horchata, S-Bigbottom and 35 others
#10,290
Sushi Box FX said:
Oh man. I am not building anything tonight. So I picked up my new head yesterday, and I just picked up my new bass 15 minutes ago. Everything I thought it would be and more.

I love the feel of the Ibanez SR, so I stepped up a model or two. Ibanez SR1600D in "autumn sunset sky" finish.

View attachment 4550710
Click to expand...
Congrats dude! I've played the 5 string of that and they're killer!

  • Like
Reactions: Killing Floor and Sushi Box FX
#10,291
Sushi Box FX said:
Oh man. I am not building anything tonight. So I picked up my new head yesterday, and I just picked up my new bass 15 minutes ago. Everything I thought it would be and more.

I love the feel of the Ibanez SR, so I stepped up a model or two. Ibanez SR1600D in "autumn sunset sky" finish.

View attachment 4550710
Click to expand...
That’s pretty. Wear the paint off it.

  • Like
Reactions: Bleeds Horchata and Nuage420
#10,292
Sushi Box FX said:
Oh man. I am not building anything tonight. So I picked up my new head yesterday, and I just picked up my new bass 15 minutes ago. Everything I thought it would be and more.

I love the feel of the Ibanez SR, so I stepped up a model or two. Ibanez SR1600D in "autumn sunset sky" finish.

View attachment 4550710
Click to expand...

That bass is gorgeous… Very sushi lol I know you tend towards the colorful :-)

What amp head did you get?

  • Like
Reactions: Sushi Box FX
#10,294
Sushi Box FX said:
Oh man. I am not building anything tonight. So I picked up my new head yesterday, and I just picked up my new bass 15 minutes ago. Everything I thought it would be and more.

I love the feel of the Ibanez SR, so I stepped up a model or two. Ibanez SR1600D in "autumn sunset sky" finish.

View attachment 4550710
Click to expand...
What a beauty! Those are super nice basses.

  • Like
Reactions: Sushi Box FX
#10,295
letsgethandsome said:
That bass is gorgeous… Very sushi lol I know you tend towards the colorful :)

What amp head did you get?
Click to expand...
I should probably just do a "new rig day" post since I don't think I posted about my new cab when I got it :P

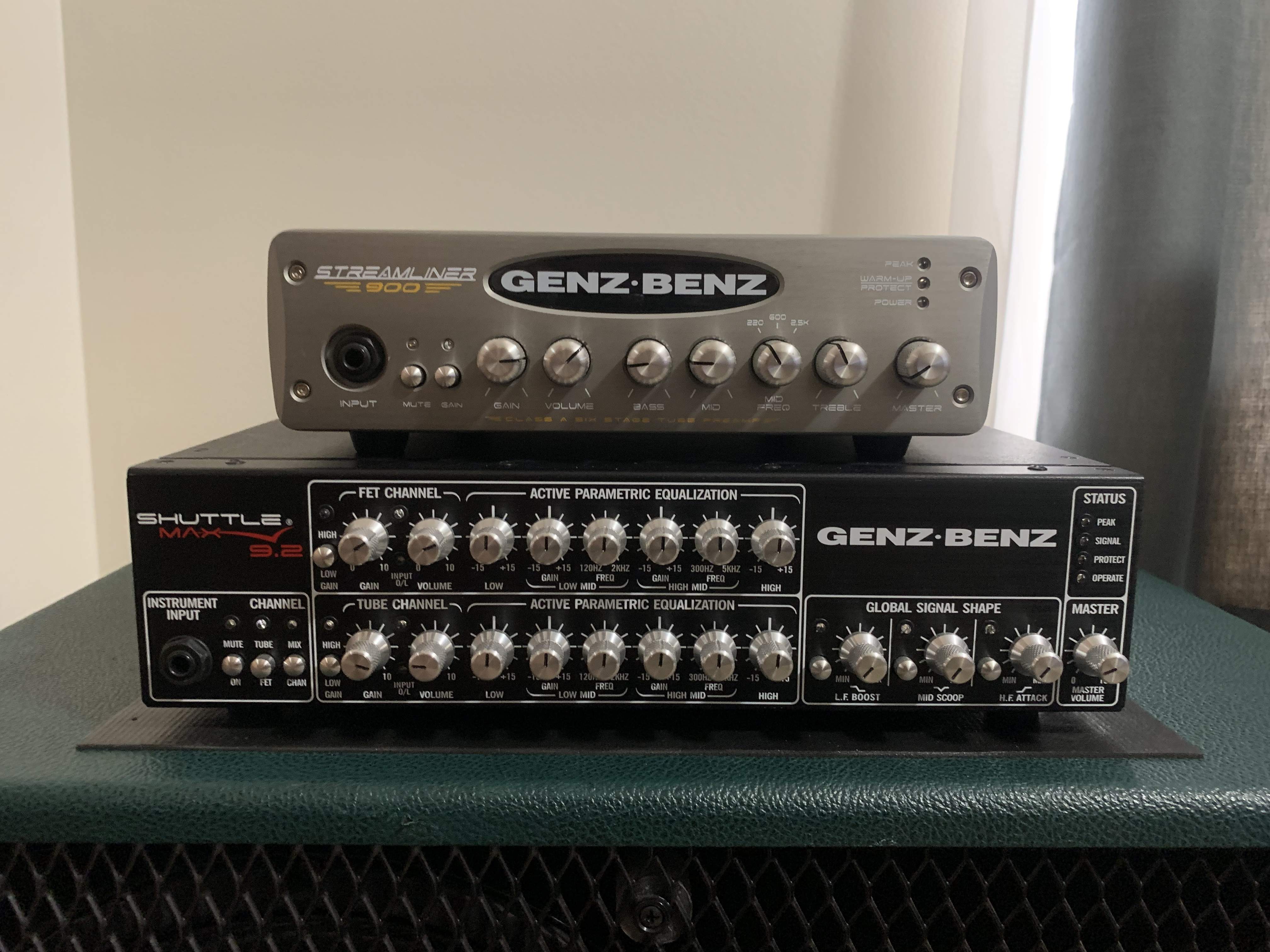

The head is a Genz Benz Streamliner 900. I plugged it in and ran a looper into it to verify it works yesterday, but I didn't have a bass so I didn't get to really give it a thorough test. This is my first amp that has actually had enough power to have a speakon connector instead of just 1/4" :P

  • Like
Reactions: S-Bigbottom, gonzkal, agedhorse and 8 others
#10,296
Sushi Box FX said:
I should probably just do a "new rig day" post since I don't think I posted about my new cab when I got it :p

The head is a Genz Benz Streamliner 900. I plugged it in and ran a looper into it to verify it works yesterday, but I didn't have a bass so I didn't get to really give it a thorough test. This is my first amp that has actually had enough power to have a speakon connector instead of just 1/4" :p
Click to expand...
Awesome! That’s my all time fav amp! Beautiful bass you got there too.

  • Like
Reactions: Sushi Box FX
#10,297
Sushi Box FX said:
I should probably just do a "new rig day" post since I don't think I posted about my new cab when I got it :p

The head is a Genz Benz Streamliner 900. I plugged it in and ran a looper into it to verify it works yesterday, but I didn't have a bass so I didn't get to really give it a thorough test. This is my first amp that has actually had enough power to have a speakon connector instead of just 1/4" :p
Click to expand...
Try the SVT setting on the Streamliner. That amp has a whole lotta bottom. Was messing with mine yesterday.

  • Like
Reactions: S-Bigbottom, Kubicki Fan, gh0st42 and 4 others
#10,298
Sushi Box FX said:
I should probably just do a "new rig day" post since I don't think I posted about my new cab when I got it :p

The head is a Genz Benz Streamliner 900. I plugged it in and ran a looper into it to verify it works yesterday, but I didn't have a bass so I didn't get to really give it a thorough test. This is my first amp that has actually had enough power to have a speakon connector instead of just 1/4" :p
Click to expand...

Awesome! I love that amp. I actually just sold mine :-) no particular reason just wanted to mix things up a little bit, try something different. It’s a good ‘un.

  • Like
Reactions: Sushi Box FX
