Trying to do a modified VVT setup, having issue (edit: FIXED)

[rojo412]

Here was my planned setup:

Nordy Big Split Neck
Nordy Dual Coil bridge with 3 way Series/Split/Parallel, running the neck side coil in single (which is the "Neck" wiring, according to Nordy):

Both pickups run series/parallel together on a DPDT switch (with the bridge's switch outputs being the "+" and "-" on the DPDT)
Volume/Volume/Tone with cap select added on a push/pull.

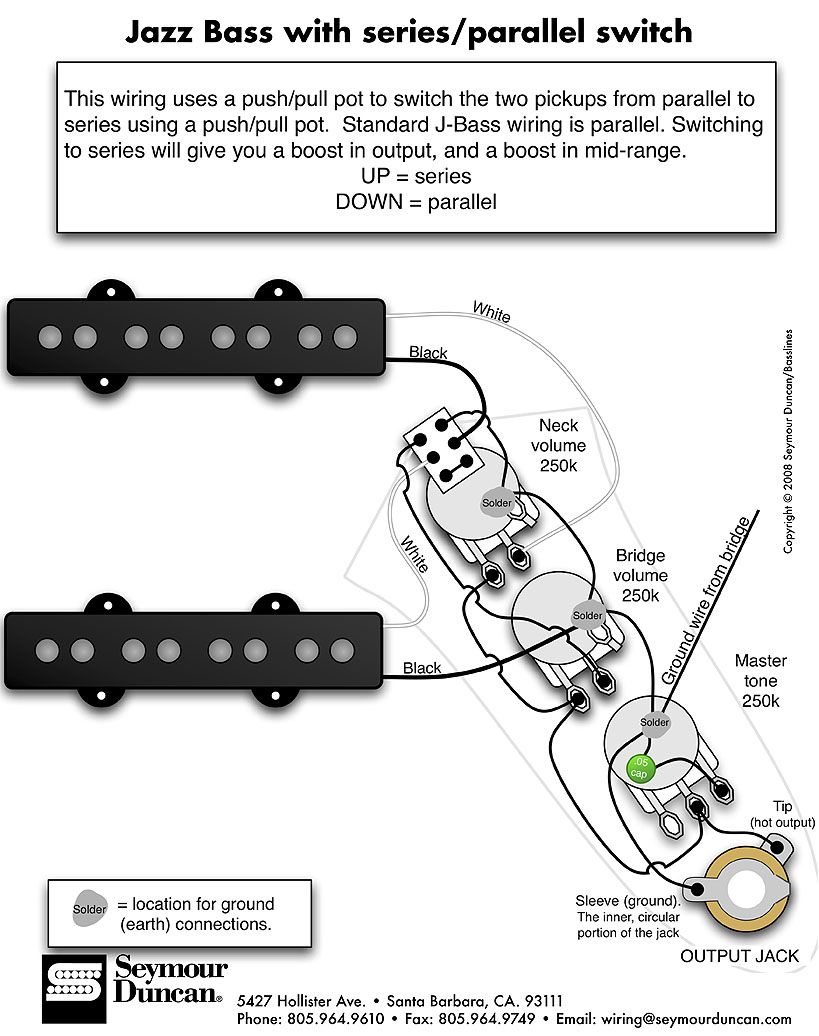

I wired it all up according to the standard Jazz wiring setup with series/parallel -

I can't tell you how many times I've wired a VVT by itself successfully. And I've done plenty with the series/parallel mod as well. But this one is being difficult and I'm not sure why.

IN PARALLEL MODE:
- Turn down the volume on the neck pickup, no problem, bridge works fine;
- Turn down the volume on the bridge, it turns BOTH down (master volume-style).

IN SERIES MODE:
- Both volumes act as master volume.

So what am I getting wrong here? Or what issue am I not seeing?
Any suggestions are much appreciated.



[ThmJ513]

There may be too much interaction between the pickups' inductance, capacitance and resistance along with that of the volume controls and associated capacitors. It may require a pickup selector switch as used on regular guitars [neck, bridge or both] to isolate the pickups possibly prior to or post tone circuit. Just my semi-educated guess. Thmj.



[rojo412]

Okay... I figured it out. Turns out, I'm kind of a dumbass sometimes. But I'm a tenacious dumbass who doesn't give up.

All of the above wiring DOES work. You CAN have an intRA-pickup switch AND an intER-pickup switch that work together. They work well, as a matter of fact.

- When wiring said pickup to its own personal switch, the outputs of that switch coincide with the + and - leads of a pickup by itself. So if you're going with a master S/P switch, follow the wiring and it will work.
- You can also do this with 2 separate pickups with separate switches. Same thing, follow the diagram properly and it will work.

What NOT to do? DON'T put the output wire on the center lug like I did. The diagram I followed for this, I accidentally drew wrong when I copied it to put on the bench. For some reason, I kept making the same mistake, thus the result of the bridge volume acting like it did.

Anyway, here's how it sounds with the following settings:
Bridge only, single, parallel, series;
Both in parallel, bridge series, parallel, single;
Both in series, bridge series, parallel, single.



[Matt Liebenau]

You know, I almost suggested that but I've seen your other builds and figured you had that part right. Oh well, I wish I could say I haven't made an obvious mistake then spent an hour or more trying to track down a complicated solution. Glad she's working!



[Killed_by_Death]

I must have made a similar mistake years ago when I was reviewing diagrams to see if series/parallel per pickup AND overall series/parallel was possible, & at the time I came up with NO.
Maybe my memory is failing me, but it feels like I reviewed it many times, LOL!

Also, I've NEVER seen it done on any stringed-instrument, be it guitar or bass.
Looking at the diagrams today, it seems obvious that it is possible, so I wonder why it's not done.

I also wonder how I thought it was impossible for years, and I don't mean figuratively.
