Did this ever belong to one of you guys? I picked it up at a music-go-round in pennsylvania, with an older seymour duncan basslines pickup already in it and a really beat up hardcase which I'm currently in the process of fixing
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
U.S. Peavey Club
- Thread starter Soundchaser11460
- Start date
-
- Tags
- club
Hey Guys,

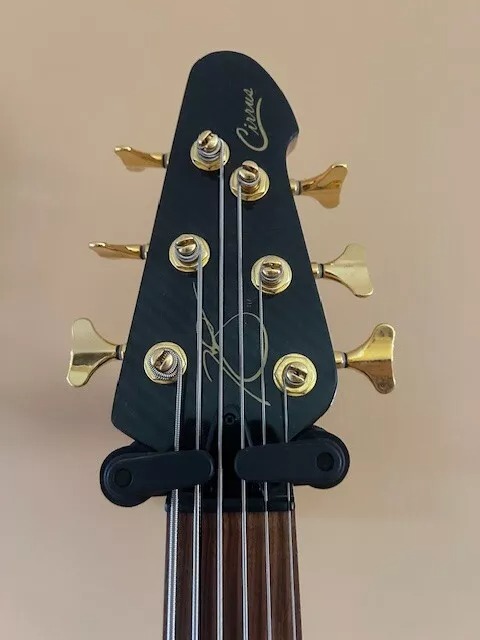

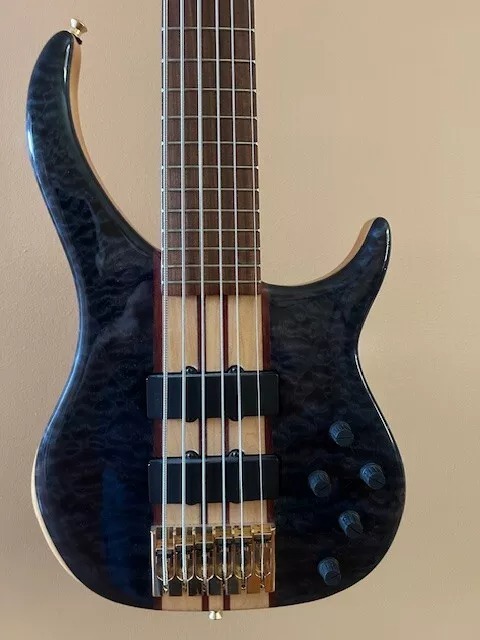

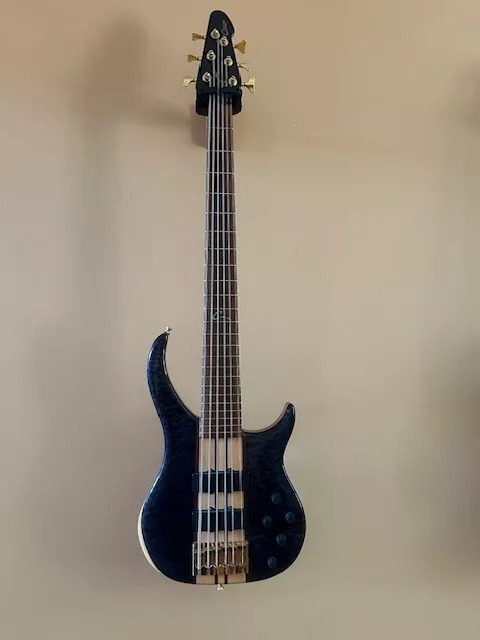

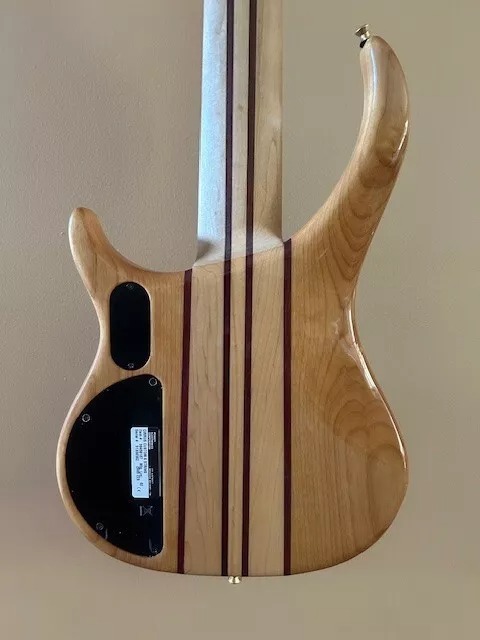

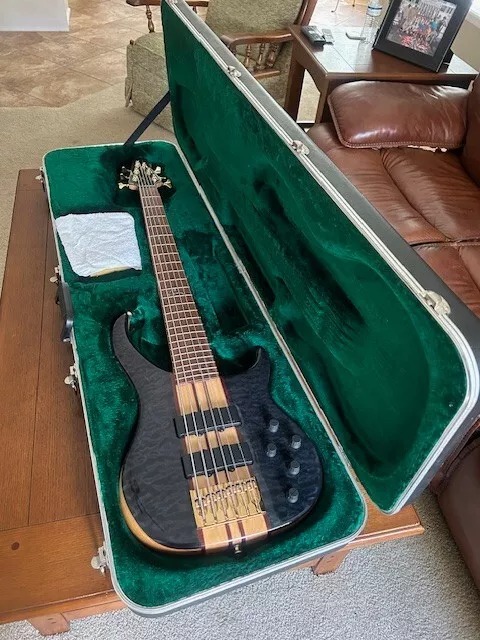

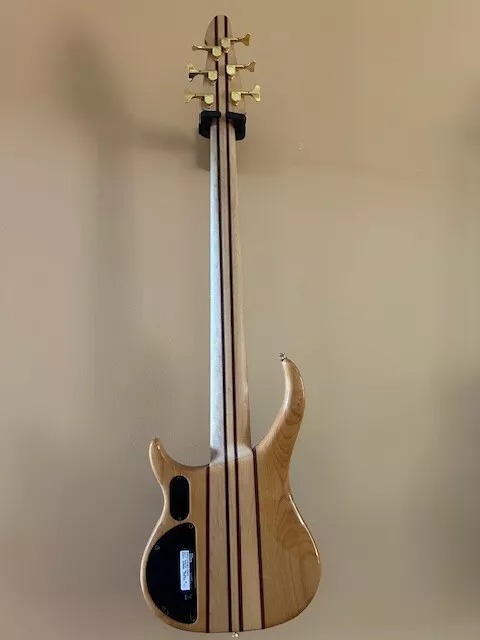

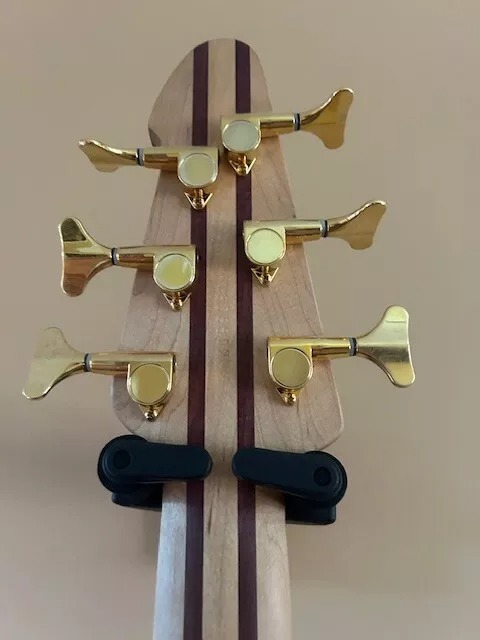

I can't wait to receive my newly purchased Custom Cirrus 6! What do you think of it? Legit?
I can't wait to receive my newly purchased Custom Cirrus 6! What do you think of it? Legit?
Not me but I have one just like it. Yours seems in great condition despite the case. Mine has a bunch of chips and nicely yellowed finish but a great player with the original pup. Enjoy it.
Does anyone know off hand what value pots to use for a Patriot bass? I need to replace mine, and would like to get them ordered. I could pull mine apart to look, but I'd like to have the parts in hand before I take it apart if possible. I'm assuming 250k, just want to make sure
Peavey bought a ton of 250k audio log pots and used them for both Vol & Tone in just about everything
From memory you want 2 x 250k audio + 0.022uF cap, might be a 0.001uF on the Vol pot
Peavey bought a ton of 250k audio log pots and used them for both Vol & Tone in just about everything
From memory you want 2 x 250k audio + 0.022uF cap, might be a 0.001uF on the Vol pot
Thanks. From looking at the pots/knobs I have, these would be fine spline correct? I'd like to reuse the original knobs if I can.
Such as this:
Allparts EP-0085 CTS 250 kohm Split Shaft Audio Taper Potentiometer | Guitar Center
Last edited:
My Foundation is B250k with a 0.047 cap.Peavey bought a ton of 250k audio log pots and used them for both Vol & Tone in just about everything
From memory you want 2 x 250k audio + 0.022uF cap, might be a 0.001uF on the Vol pot
An early run would have shipped with surplus T-40/60 250k 'S' taper for Tone and 250k A for Vol; though still with the 0.002 cap.

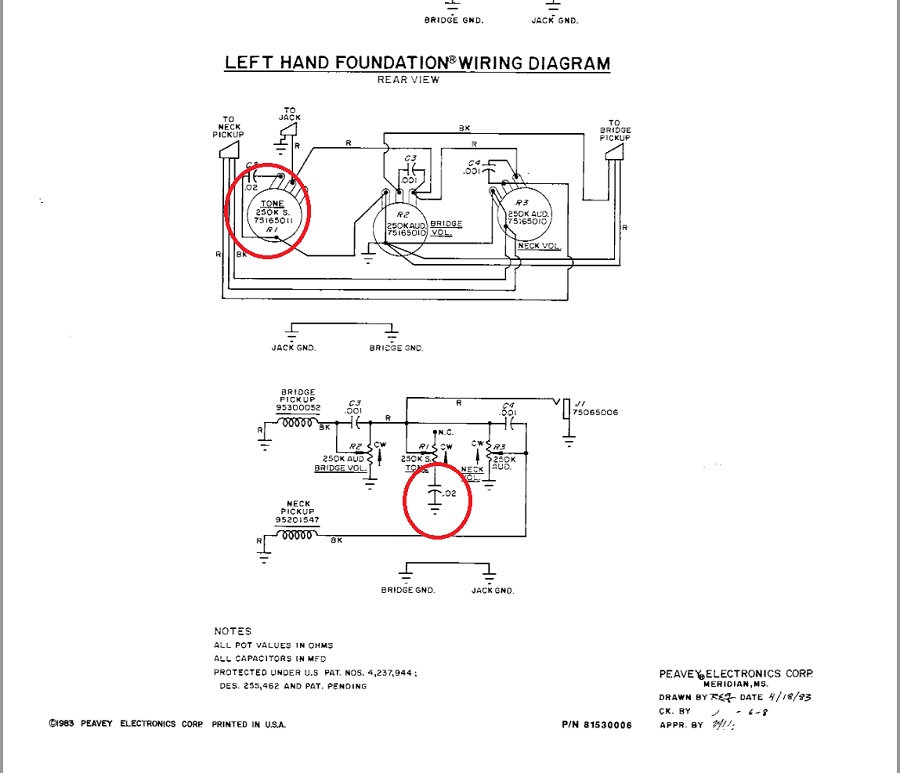

I've marked them in red on the Peavey schematic for you

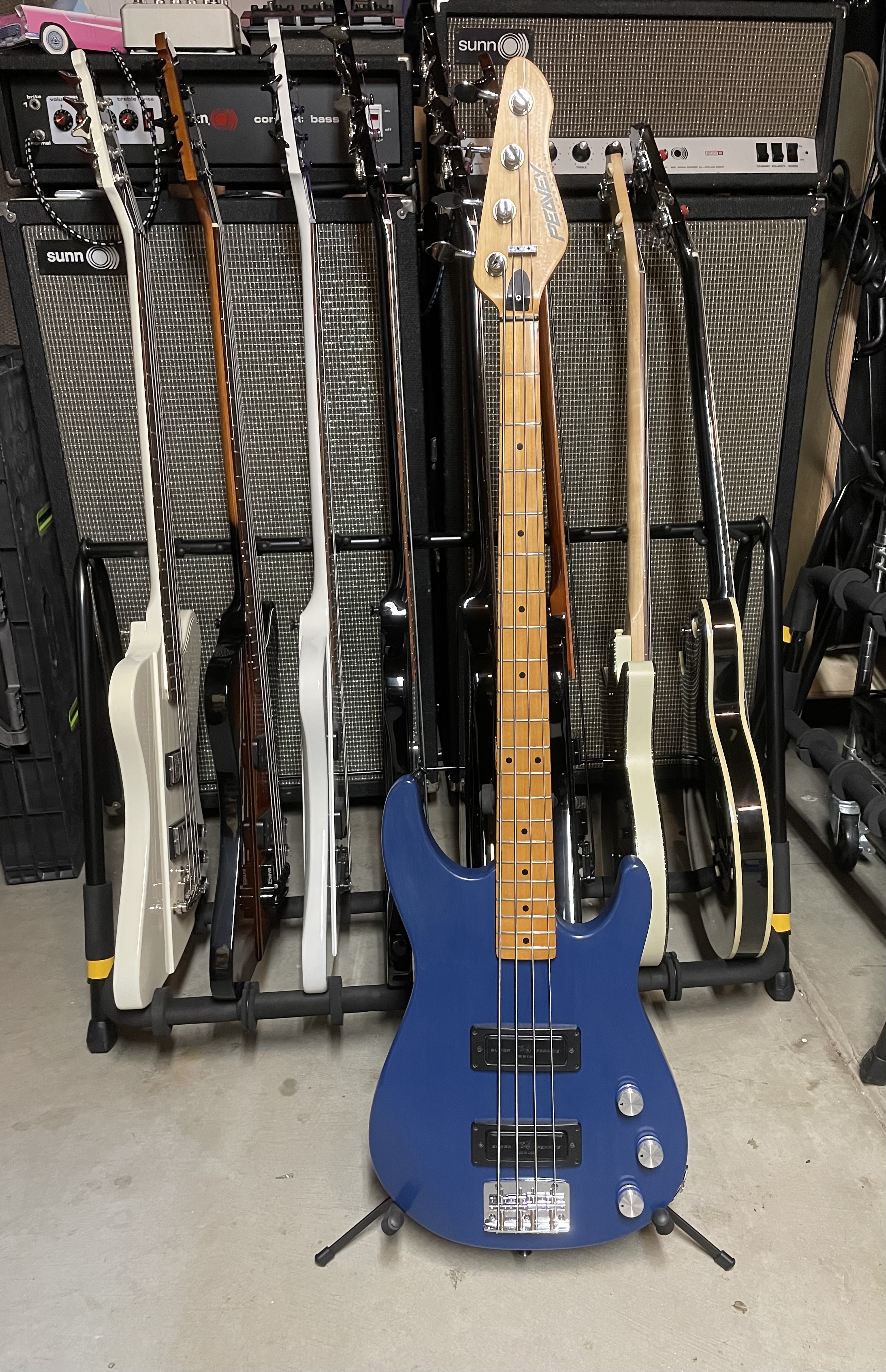

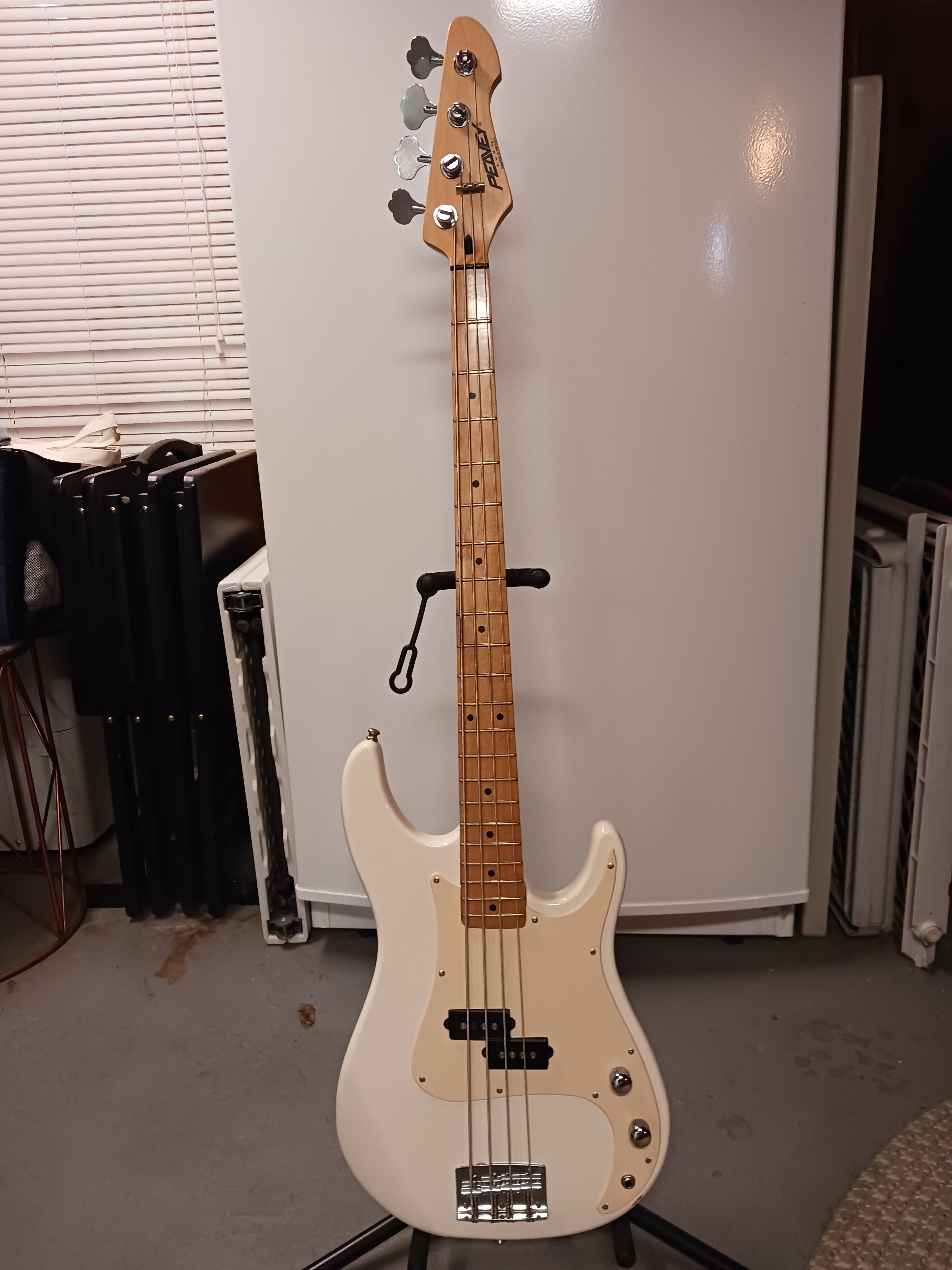

Black poly gone and controls are now VBT.
Those would work.
When I redid my Patriot with the extra pickup (RicRiot), I switched out the tone pot with a 500KA audio and .047uF cap to get more range out of the control. The 500K tone pot gives a little more sweep/air to the high end, yet you can roll it back to 7 and it sounds just like a stock 250KA tone pot. The larger cap gives a little more cut into the mids and a darker tone when rolled back lower than 3 or so. It's become my usual thing, 500KA tone pots, regardless of the pickups.
My 80s Foundations had 250KA audio taper volumes, but when I had the 93 Foundy, it had the 250KB Linear taper volumes. The Linear volumes allow a little finer blending from a slightly wider usable range on the top end of the pot.
Yep, my 84 and 85 Foundations had the leftover S taper tones.An early run would have shipped with surplus T-40/60 250k 'S' taper for Tone and 250k A for Vol; though still with the 0.002 cap.
I've marked them in red on the Peavey schematic for you
View attachment 5493401
What are you all using to adjust the truss rod nut on your Foundations? It appears to be 5/16". My standard socket set can't get the angle right.
Something like this?
https://www.amazon.com/Truss-Wrench-Gibson-Luthier-Guitar/dp/B01GZBLUTC
Something like this?
https://www.amazon.com/Truss-Wrench-Gibson-Luthier-Guitar/dp/B01GZBLUTC
As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
If you have an earlier 80's Foundation, that Amazon-Gibson wrench won't go deep enough into the access port to reach the 5/16" nut. You'll either have to source a wrench with a longer barrel (good luck with that) or make one yourself from a small, thin walled 5/16" socket. Careful not to crack the fretboard end with a DIY-made socket. Might wanna remove a couple tuners first to come in at a shallow angle? Enjoy!
As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
1991 Foundation. The nut is close to the opening and not buried.If you have an earlier 80's Foundation, that Amazon-Gibson wrench won't go deep enough into the access port to reach the 5/16" nut. You'll either have to source a wrench with a longer barrel (good luck with that) or make one yourself from a small, thin walled 5/16" socket. Careful not to crack the fretboard end with a DIY-made socket. Might wanna remove a couple tuners first to come in at a shallow angle? Enjoy!
I guess you're safe, then.
You must get yourself an early Foundation so you can fully enjoy some of the idiosyncracies of Peavey's design choices of the era!
If you do a little filing, any typical 5/16" Gibson style wrench will reach just fine. Just file the edge of the cavity closest to the nut. Doesn't take much, and the truss rod cover will hide the work. Here's my 85 Patriot neck that needed a touch of filing. i also put a new hole for the truss rod cover to move it closer to the fingerboard as well as center the cover better.
I also use this time to clean out any residual glue blobs/wood shavings out of the cavity (especially any around the truss rod and truss rod nut), add a thin washer under the nut (not only gives more range for tightening, but also helps the nut stick out further and get more purchase from the wrench), and lightly lube the threads of the rod with a really small dab of vaseline or lithium grease.
