Warmoth Owners Club!!

Hi Rob thanks, I use a Hipshot A style .728 bridge. That is the widest I would go on a Warmoth Deluxe V neck, which when adjusted to align with pickup pole pieces comes close to 18.3 mm. Right now this instrument is passive with the longer threaded 250K CTS pots. plans are in the works for the addition of a preamp and I'll route one hole in the top that is equivalent to a top mount cavity so I can utilize smaller 50K pots. When I started this project I was planning on no pickguard/control plate but I'm a sucker for a more traditional Fender look and I couldnt be any happier with the outcome.
Many thanks Doug!

So it sounds like the an 18mm Hipshot .708 bridge would work well with this model....which is great news for me and not so great for my bank account....!

It sure does look the business and I really like the matt finish with the scratchplate and control panel, I bet the body just rings out without any lacquer on it.

Thanks again amico!

Peace,

Rob.

Many thanks Doug!

So it sounds like the an 18mm Hipshot .708 bridge would work well with this model....which is great news for me and not so great for my bank account....!

It sure does look the business and I really like the matt finish with the scratchplate and control panel, I bet the body just rings out without any lacquer on it.

Thanks again amico!

Peace,

Rob.


I strongly urge you to consider the 18.5 mm. Depending on your pickups and how the neck joins and seats with the body you may very well need the extra lee way width wise. I've built a ton of these with 18mm bridges and almost always had to push the bridge saddles to their extreme width and even then sometimes it was not as *perfect* as I would have hoped. YMMV.

I strongly urge you to consider the 18.5 mm. Depending on your pickups and how the neck joins and seats with the body you may very well need the extra lee way width wise. I've built a ton of these with 18mm bridges and almost always had to push the bridge saddles to their extreme width and even then sometimes it was not as *perfect* as I would have hoped. YMMV.

Thanks Doug.

I have been researching a bit and have discovered that only the Hipshot A style bridges are available in the 18.5mm (.728") string spacing. I really want to use their B style bridge and that's only available in 17.5, 18 or 19mm. I was worried that the 18mm spacing may place the outer strings too closely to the fret ends, but if you say that an 18.3mm spacing is still workable, I'm somewhat less worried about the 18mm now! ;)

With regards to pickups, I was going to sneakily avoid the pole piece line up problem altogether by getting a pair of Bartolini Musicman 5 pickups which have blades under their covers.

Thanks again for all your help, I really can't afford to make mistakes with this -buying from Europe, and your helpful insights are greatly appreciated.

Peace,

Rob.

  • Like
Reactions: Doug Parent

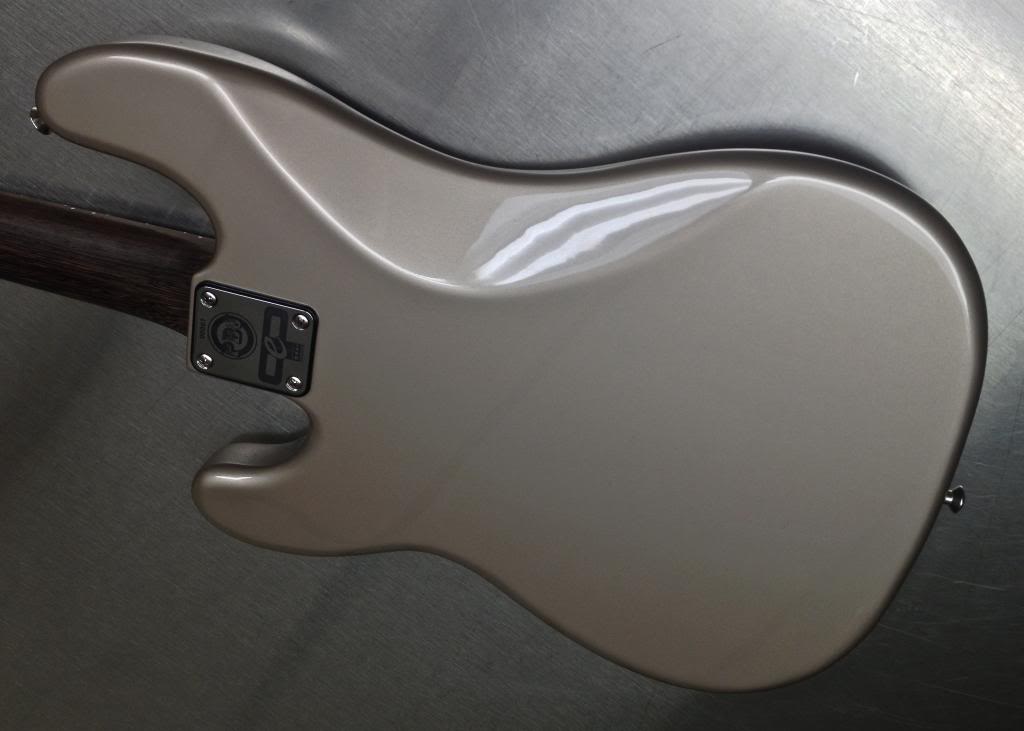

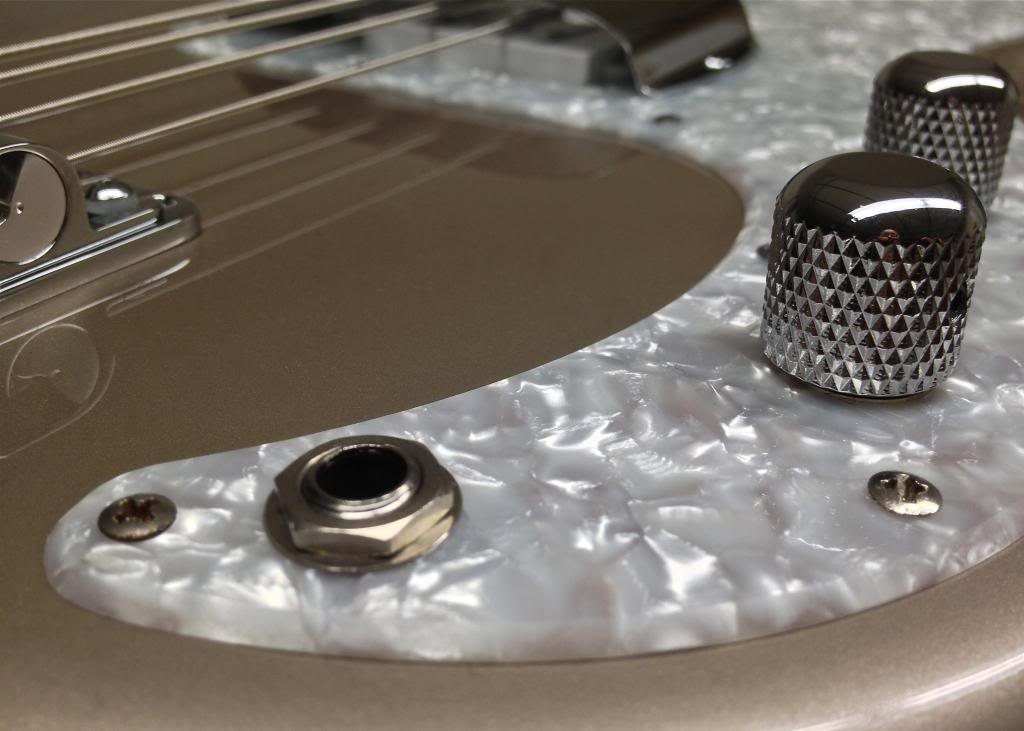

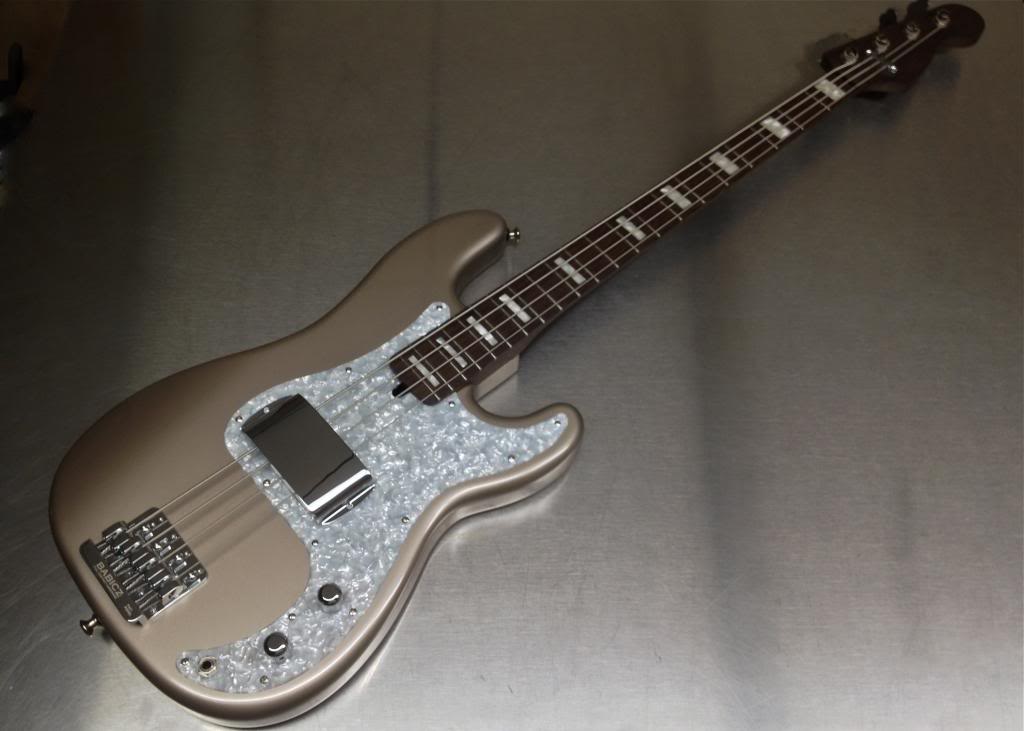

PB&J #00007 (P-Bass & Jazz Neck)

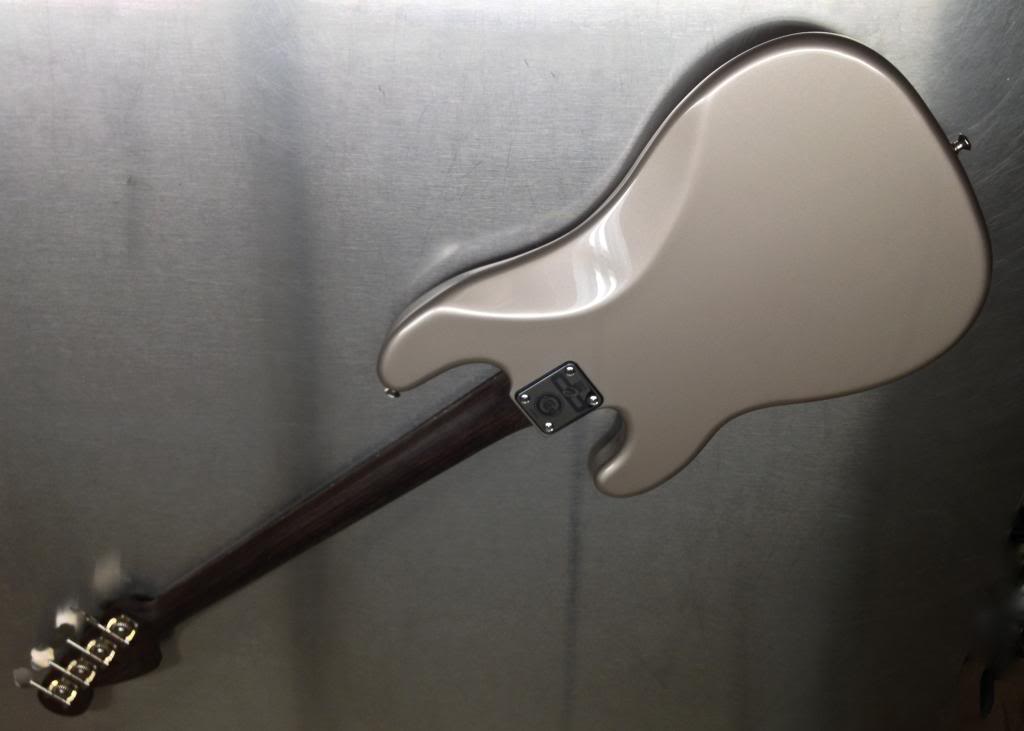

Warmoth Swamp Ash P-Bass in Shoreline Gold

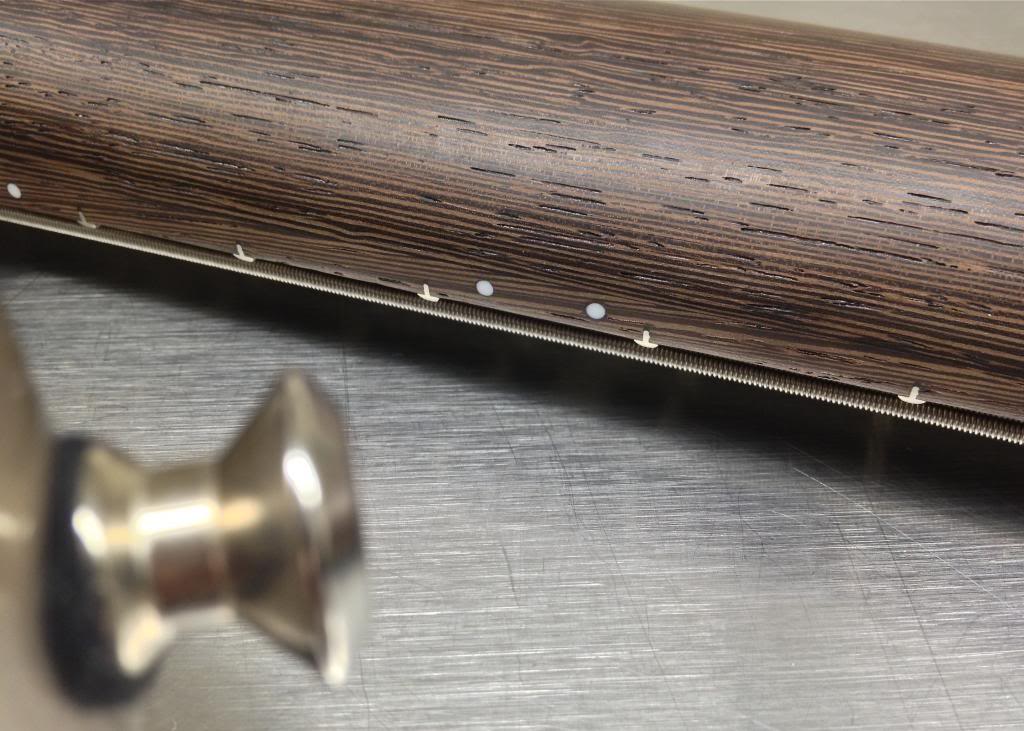

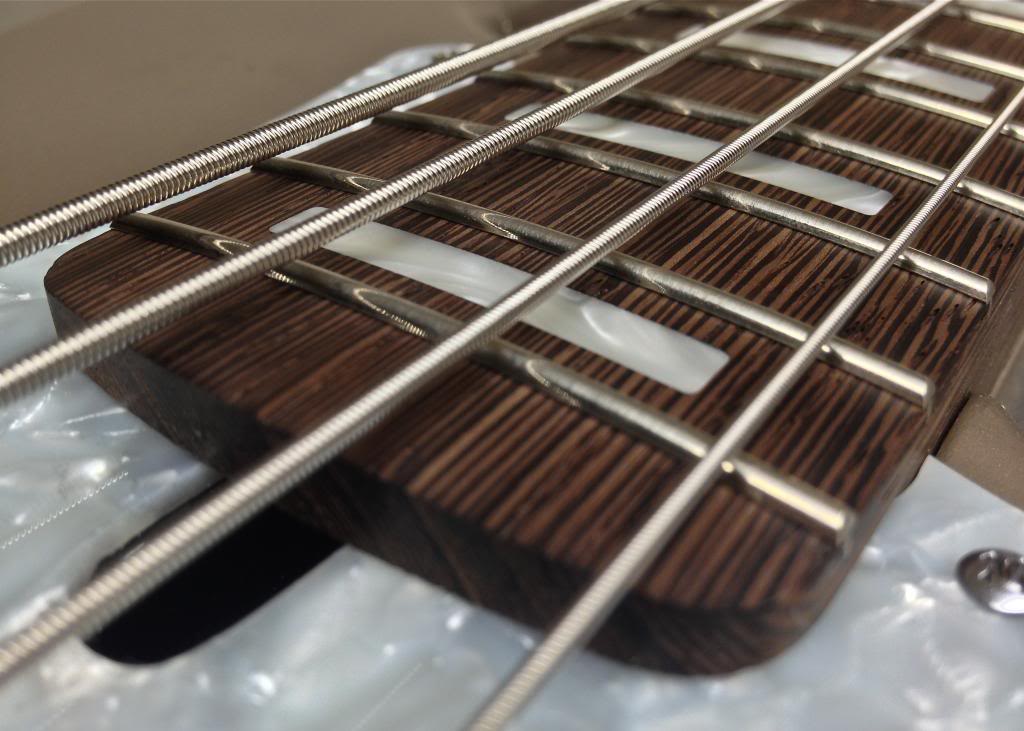

Warmoth wenge/wenge Jazz neck with MoP blocks
GraphTech Black TUSQ XL nut
Hipshot HB1 machines
Hipshot 3-string retainer
Babicz Full Contact Hardware bridge
Lindy Fralin Split-P PUP
CTS 250k volume/tone Pots
Warmoth single-ply white pearl pickguard
Fender chrome PUP cover
Switchcraft jack

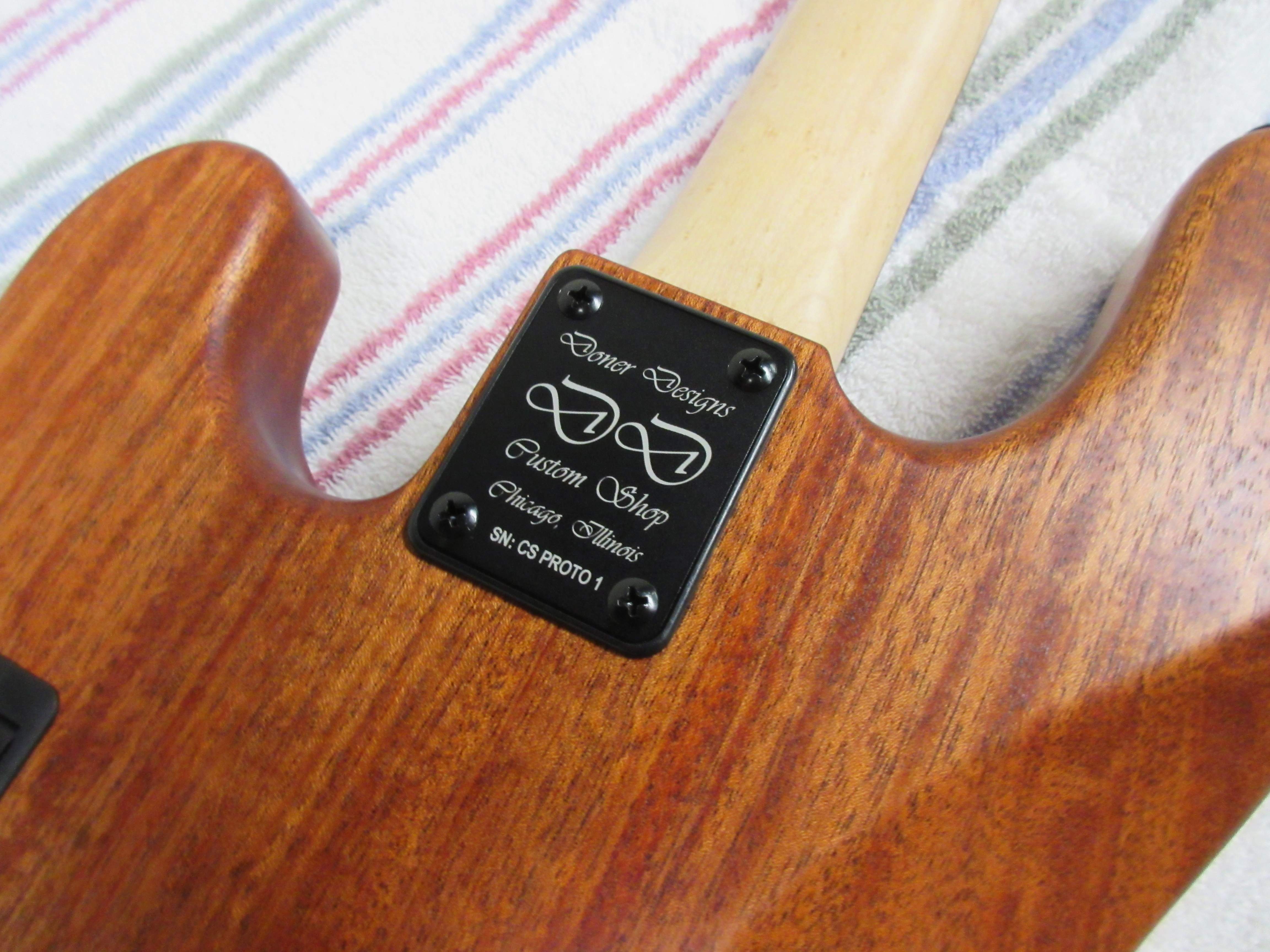

Custom laser engraved logo neck-plate from LazrArt
Dunlop Dual Design strap buttons

Classy look if I do say so myself!



















wenge is the best wood

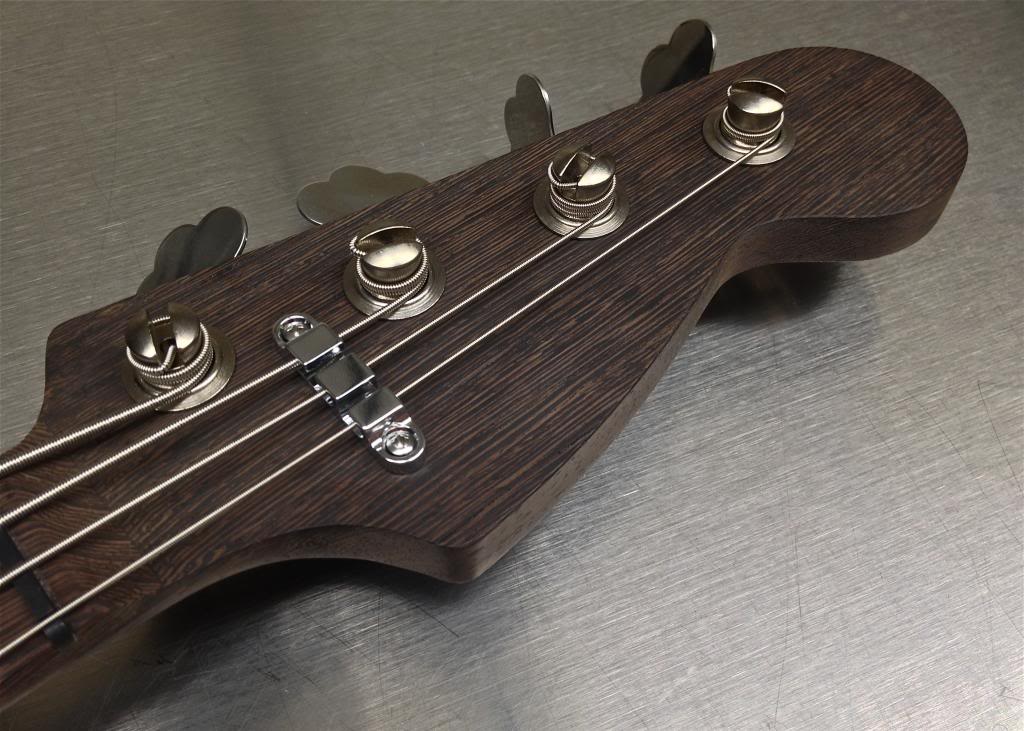

how was it putting the screw holes in for the tuners?

  • Like
Reactions: BassHappy
A few months ago I got my Fender PJ fretless rosewood fingerboard redressed and decided I could save money if I switched to flatwounds. So I got Thomastik Jazz Flats. I love them. But I kinda missed the roundwound sound. So I was going to put a fretless ebony fingerboard/maple shaft on my Fender fretted Jazz bass. My luthier suggested Warmoth as a good company to get necks from. But once the neck showed up, I got cold feet. My Fender fretted is semi-vintage, from the 70s, and I didn't want to screw it up. Plus I like having a fretted bass around, even though I'm mostly a fretless guy. A DuckDuckGo search led me to this Talkbass Warmoth Owners Club, and you guys inspired me to try a custom build. That Warmoth bass is still a few weeks from being completed. It's going to be a five-string fretless, Wenge neck and body, Bocote fingerboard, with piezo bridge saddles and midi control. Complicated, and my luthier, John Brown's Guitar Factory in Inver Grove Heights, MN, is super meticulous, i.e., slow. The Bocote fingerboard will also be vulnerable to roundwound wear, so, while I was waiting for the five-string to be assembled, I decided I would still like a bass that could handle roundwounds. Today I got that bass build back. John and his colleague Adam did a fantastic job!:

Body: Warmoth Z, Walnut + Figured Walnut top (not sure if it wouldn't have been better to go with just plain walnut on top too)

Neck: Moses Graphite, lined fretless

Radius: 7.25"

String-spacing at bridge: 3/4"

Tuners: Hipshot + Detuner on the E

Bridge: 2TEK

Pickups: Delano MC4 FE/J-M2

Preamp: John East Uni-Pre (V/Bl, T/B, M/M)

Switches: Active/Passive and Series/Parallel/Split Coil for each pickup (might get rid of Parallel for more Split Coil options).

Strings: Kalium Nickel Roundwound (BH-102, 076, 057, 041)

Dominant colors: Brown, Chrome, Black

In the photos the body doesn't appear as brown as it is, except at the end of the long neck shot. The photos introduce an orange hue that isn't there. This is my first bass porn shoot, so forgive the ignorance about lighting, aperture, etc.--I just used a Canon point-n-shoot.

Z Bass.00.jpg
Z Bass.01.jpg
Z Bass.02.jpg
Z Bass.03.jpg
Z Bass.04.jpg
Z Bass.05.jpg

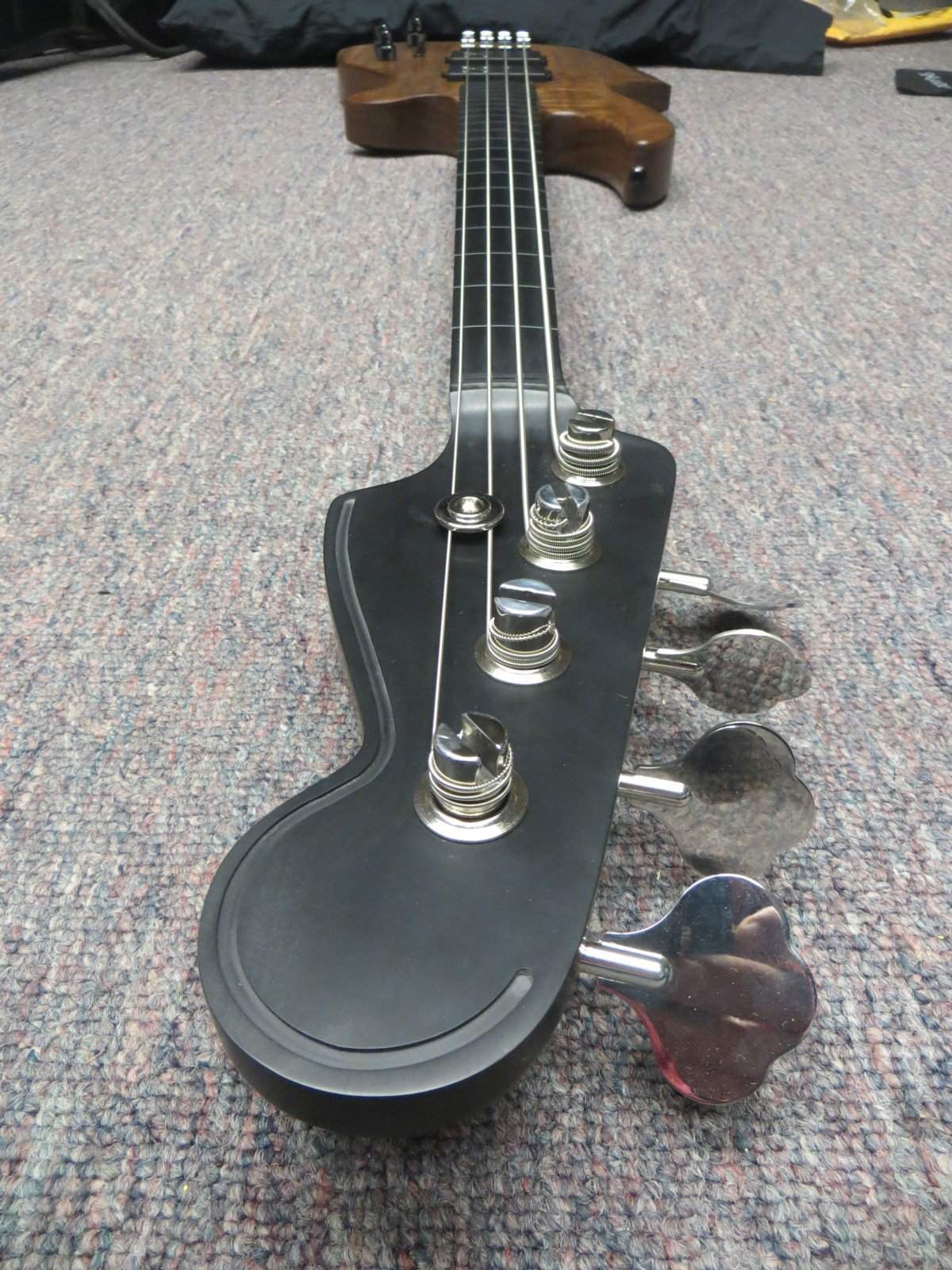

Z Bass.06.jpg

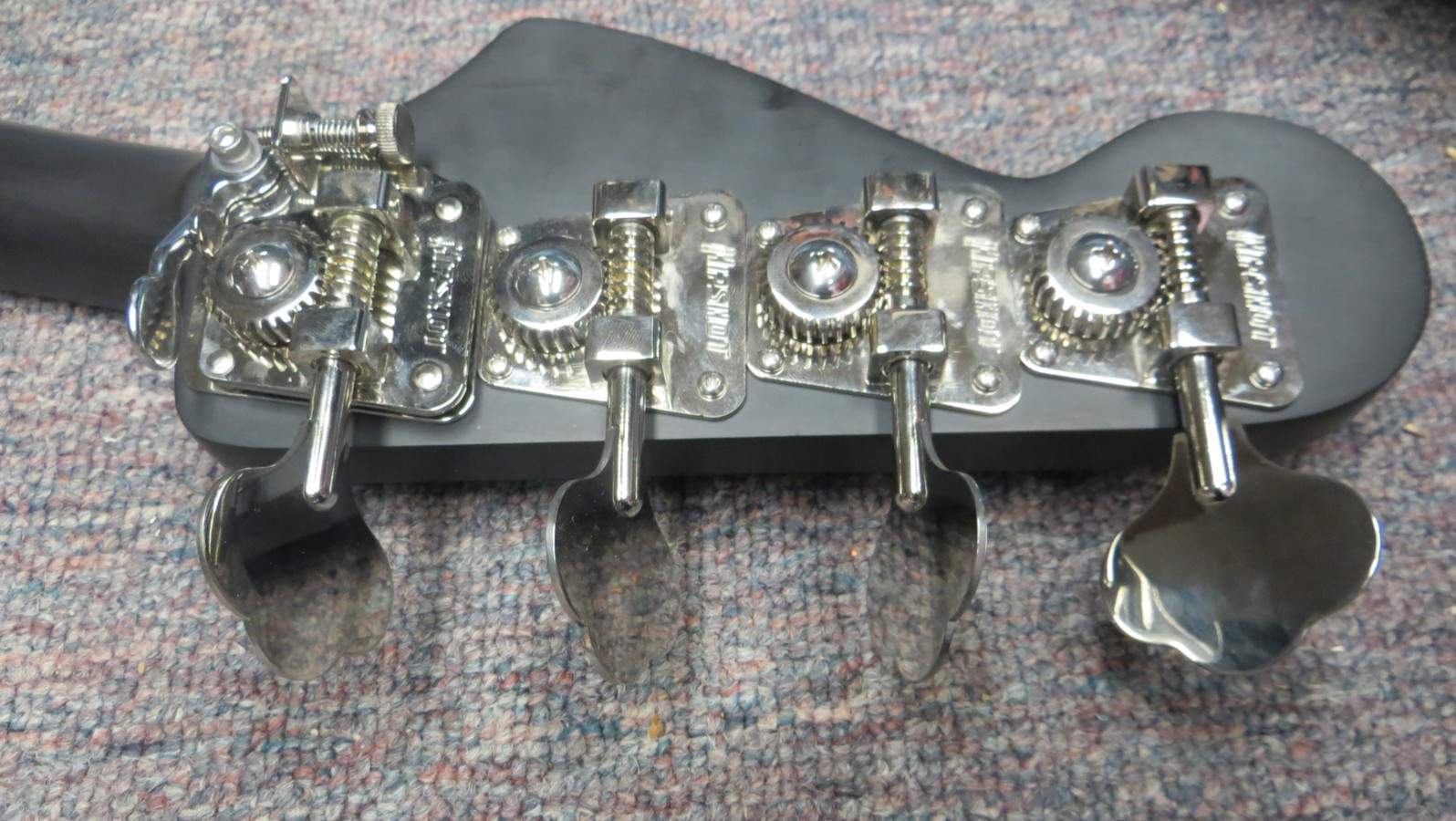

Z Bass.07.jpg

Z Bass.08.jpg


The basic design concept was to build a fretless that could handle roundwounds with minimal wear and lots of sustain, hence the graphite neck, walnut body, and 2TEK bridge. I'm a long-standing Fenderer so I wanted a graphite neck with a decent radius, and only Moses seemed to offer that, so that explains why I didn't go with a different graphite brand.

I just played it for an hour this afternoon. It's pretty much what I hoped it would be. Some initial impressions:

1.) It's my first lined fretless and I'm digging it. The lines help with double and triple stops, finger-picking, and upper register intonation. Plus they make me see the fingerboard differently than an unlined fretless. I like that visual variety. Not better or worse, just different.

2.) It's as close to a fretted sound as a fretless can get, I think, with all the advantages of fretless (glissando, vibrato) and none of the disadvantages of fretted (fret buzz). I mostly use flat- or tapewounds on fretless fingerboards now, so it's cool to get the bright, roundwound sound for variety.

3.) It's also my first coffeetable/driftwood bass. I love the look just as much as I love coffee and lakes. After decades of playing standard Fender basses (a fretless PJ and a fretted J, both white/cream finishes), I'm enjoying the new look of the Walnut Z body and totally black graphite neck.

4.) There is no four.

5.) It's super heavy when I pick it up, but once it's strapped on, I don't notice it. I have a big frame so that helps.

Anyway, thanks to everyone here who unknowingly helped give me ideas. I couldn't have done it without you!

I'll post pics of the five-string Warmoth build as soon as it's done.

Last edited:

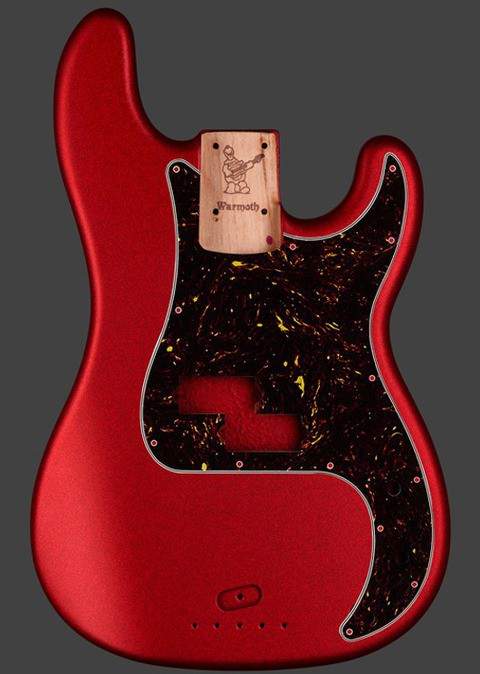

So I'm undecided about what to use on this . I have a Maple roadworn neck or a Duff neck , so I can either black it out with a new Hipshot kickass or go Maple with an Aluminum p/g that is Al color not Gold or a aged White MOT p/g with chrome hardware . Hmmm... Also I have a p/g delete plate that little chrome control cover . so....... what to do....

  • Like
Reactions: JIO
So I'm undecided about what to use on this . I have a Maple roadworn neck or a Duff neck , so I can either black it out with a new Hipshot kickass or go Maple with an Aluminum p/g that is Al color not Gold or a aged White MOT p/g with chrome hardware . Hmmm... Also I have a p/g delete plate that little chrome control cover . so....... what to do....

Is that a satin finish? Looks great! A vote for the maple RW neck and prefer the gold-tint anodized pg look, especially w/that red. :thumbsup: I'm expecting my Hipshot KickAss bridge on Friday - looks like a great take on the BA.
