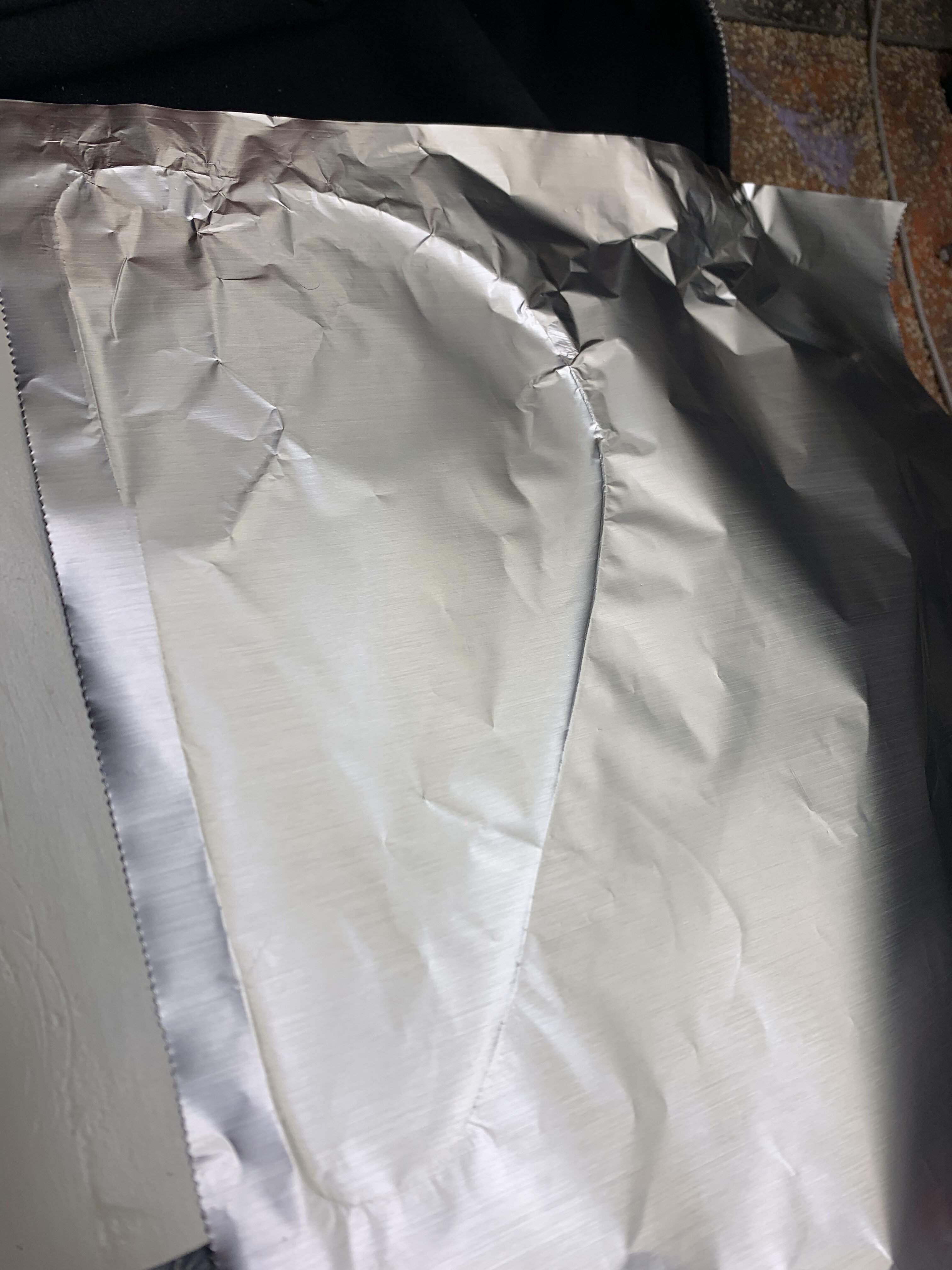

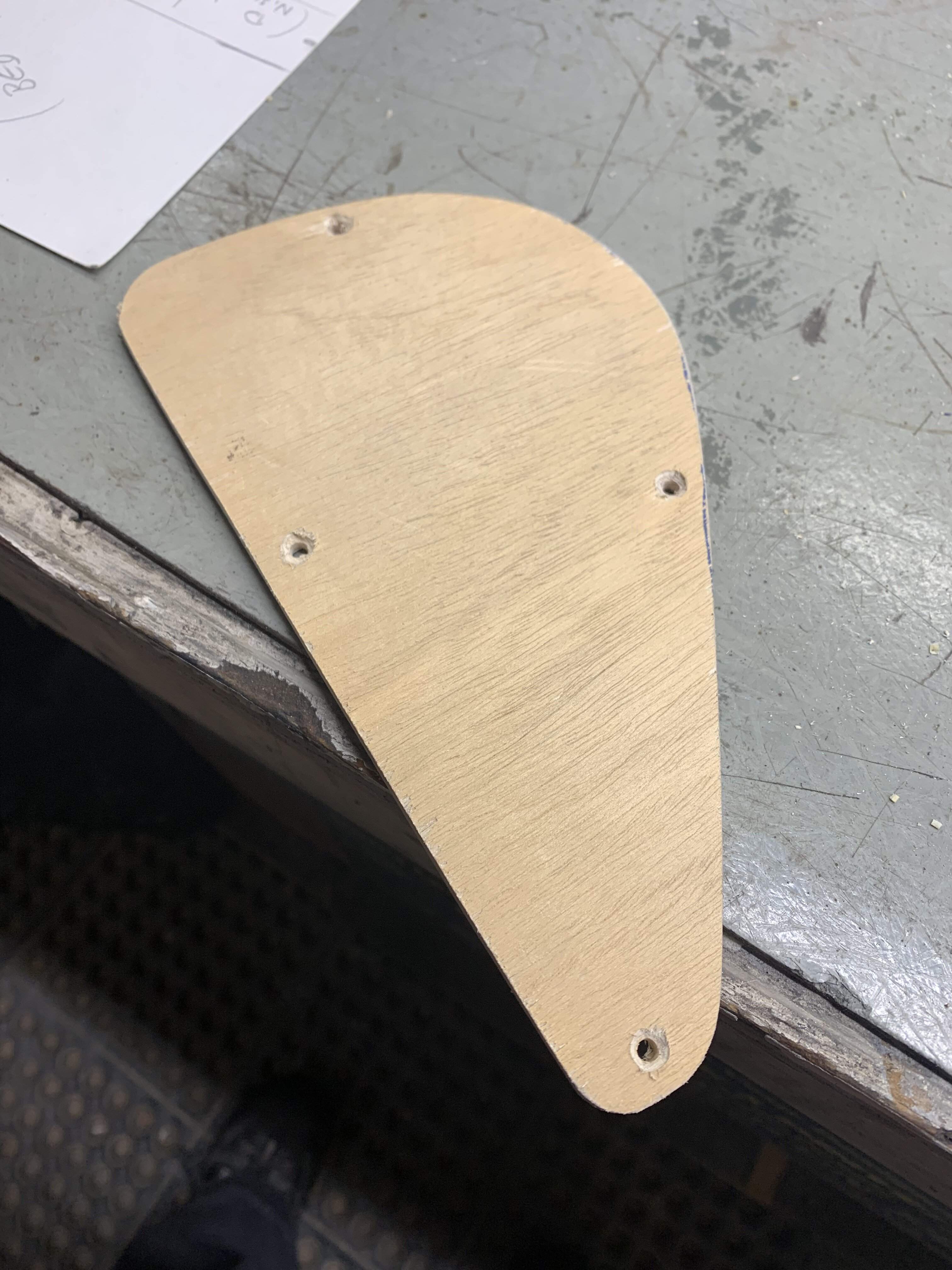

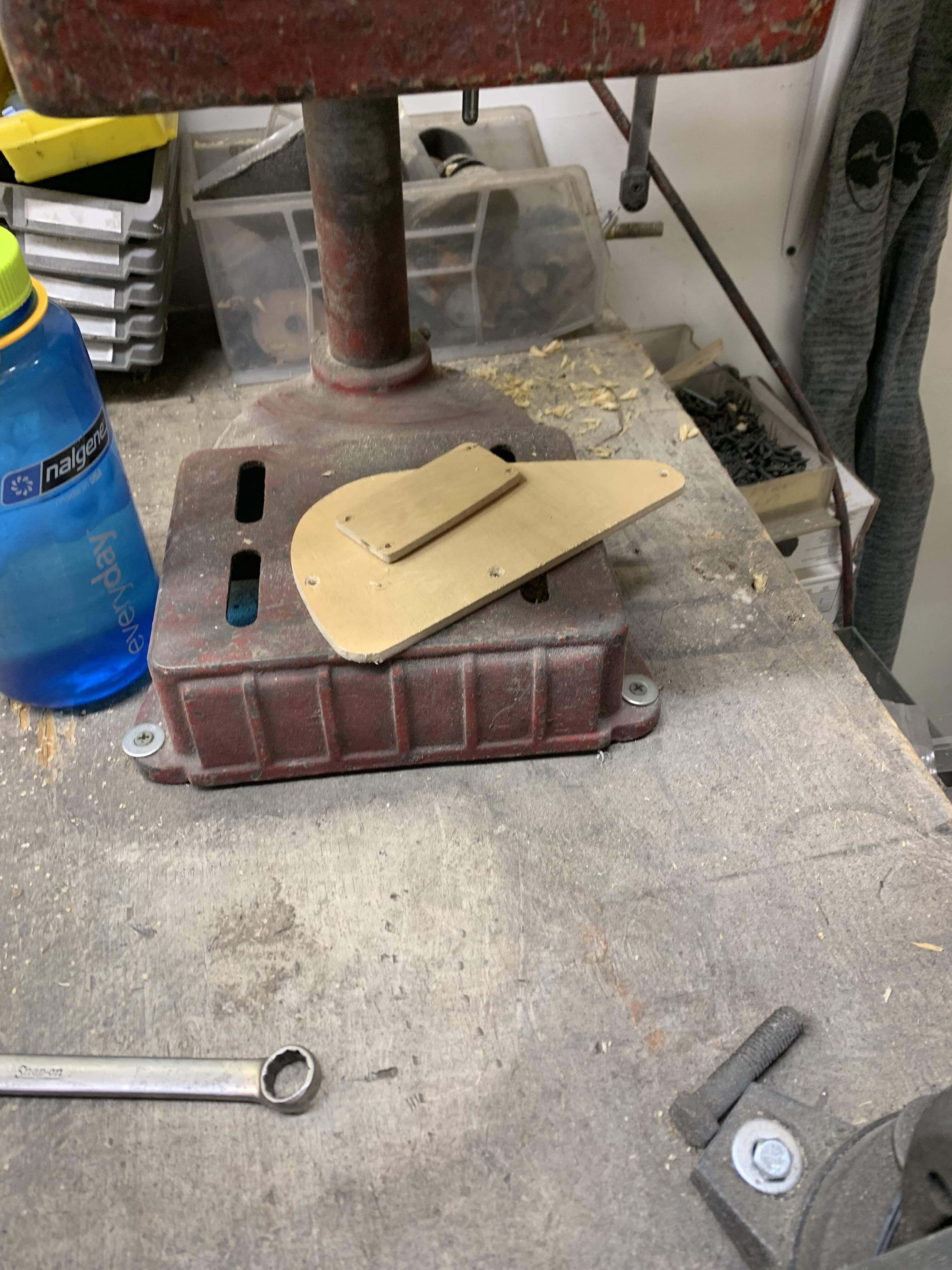

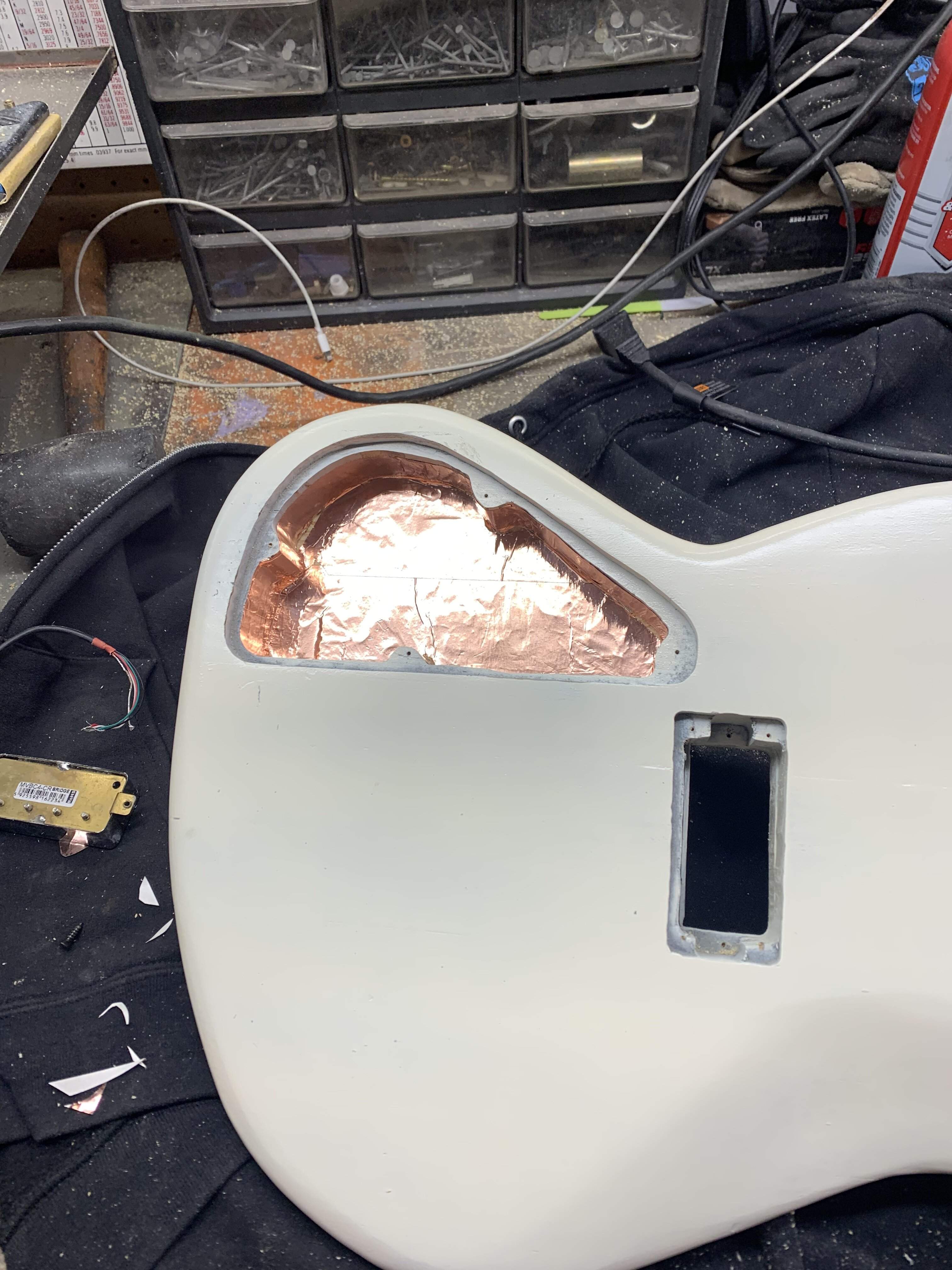

Made all the control plates, nothing fancy. Wouldn't use this wood again, but just harvesting what's available
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
WBO 2022 ReReRebuilt little mule
- Thread starter Camaro69
- Start date

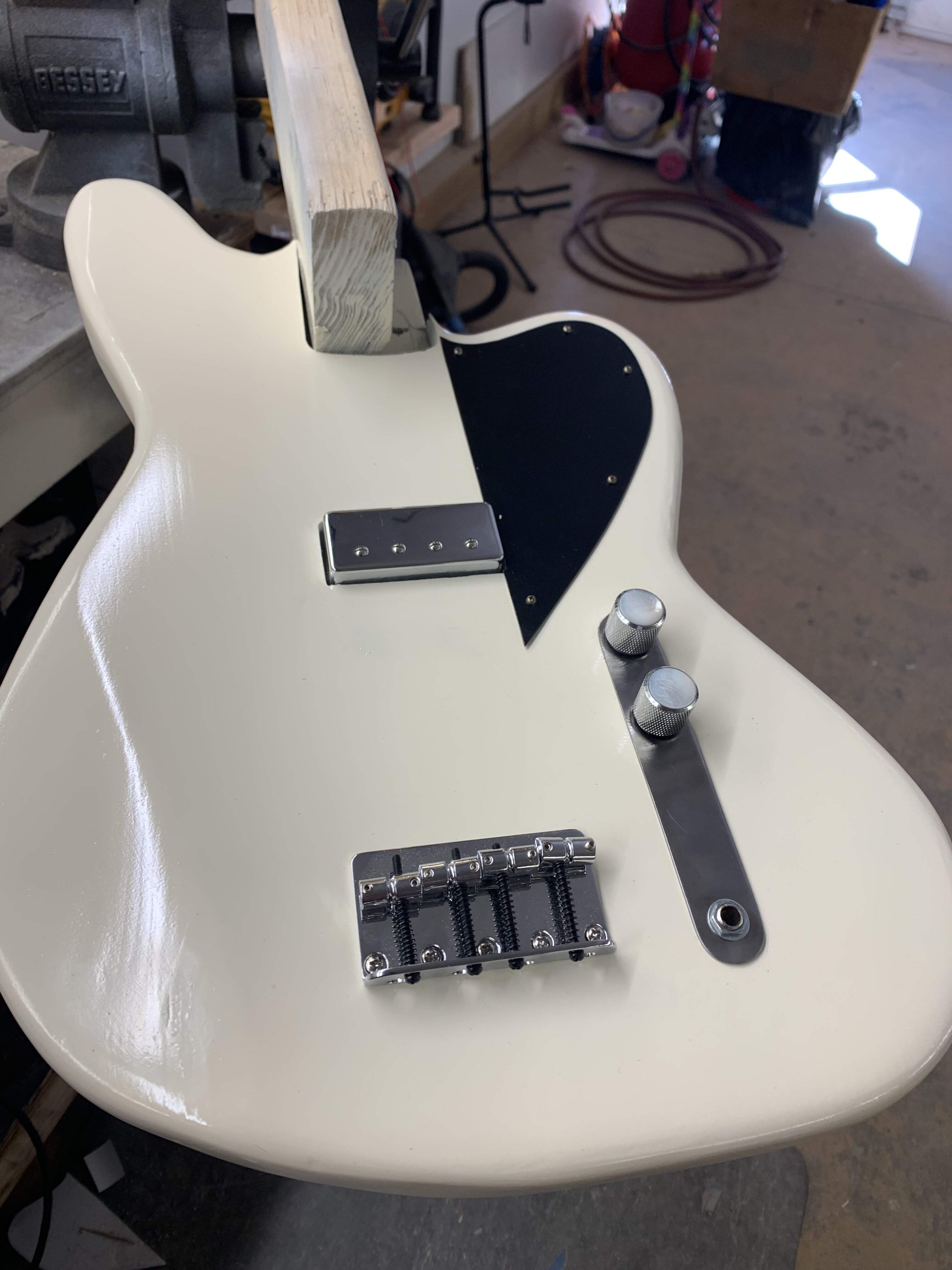

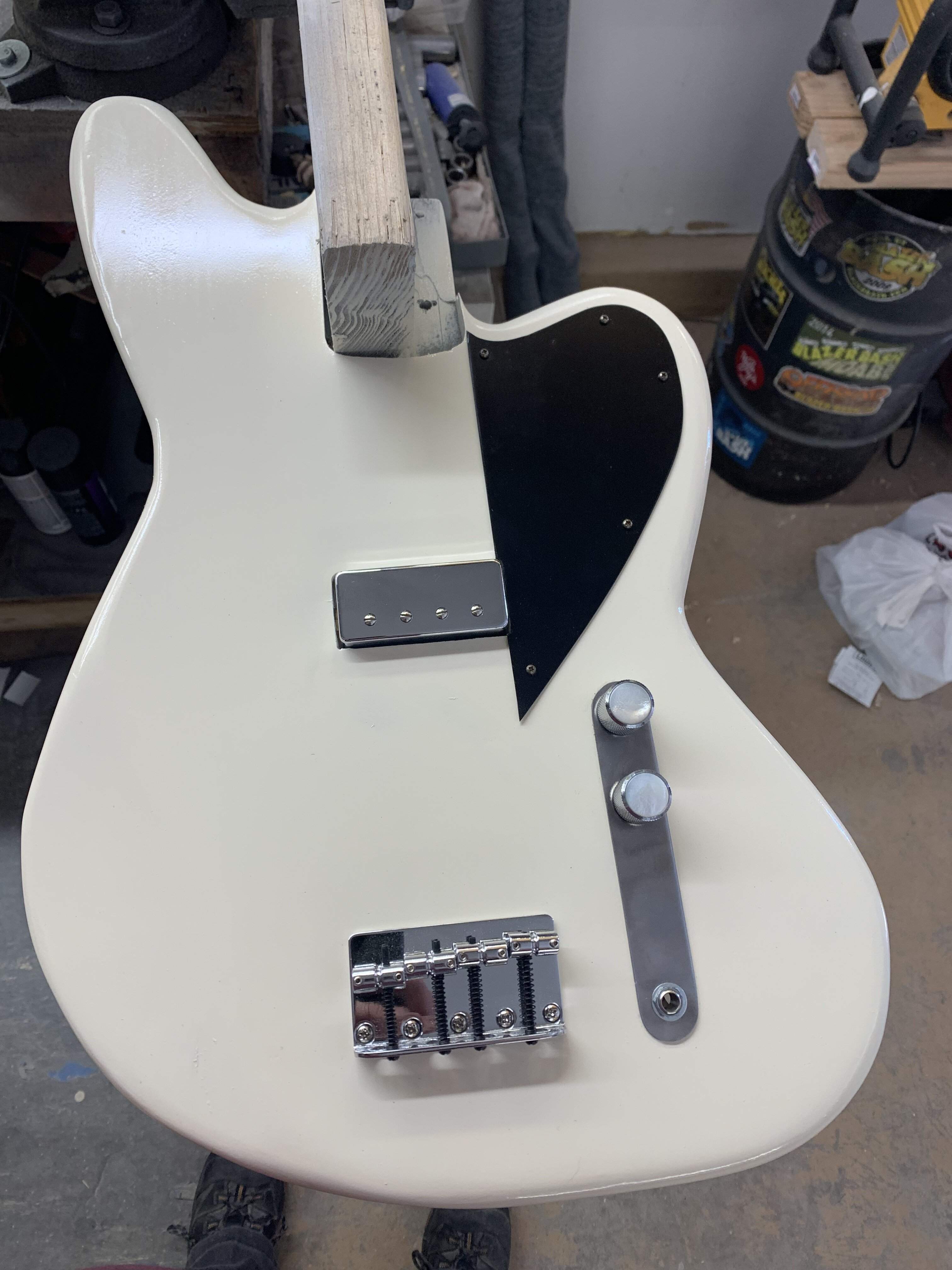

Well I need to get to the fancy part, but it's assembled and plays well. Sounds a lot like a P bass, good tone and nice weight. I'll have to scale it
No, because I suck! Other than crappy iPhone, I don't have an interface
But I'm really digging what it does. Has that nice clack in the top end without a bunch of high frequency ring

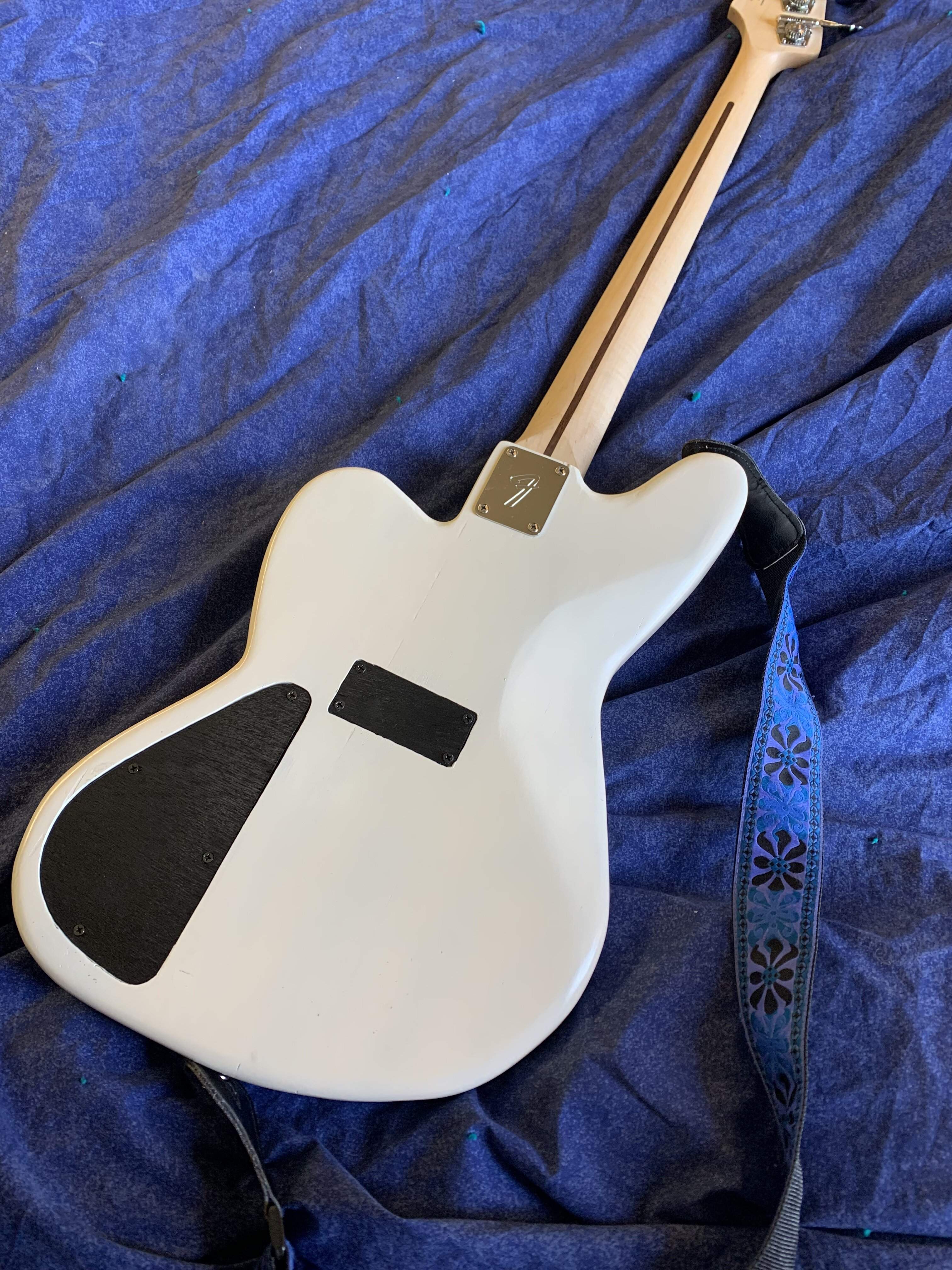

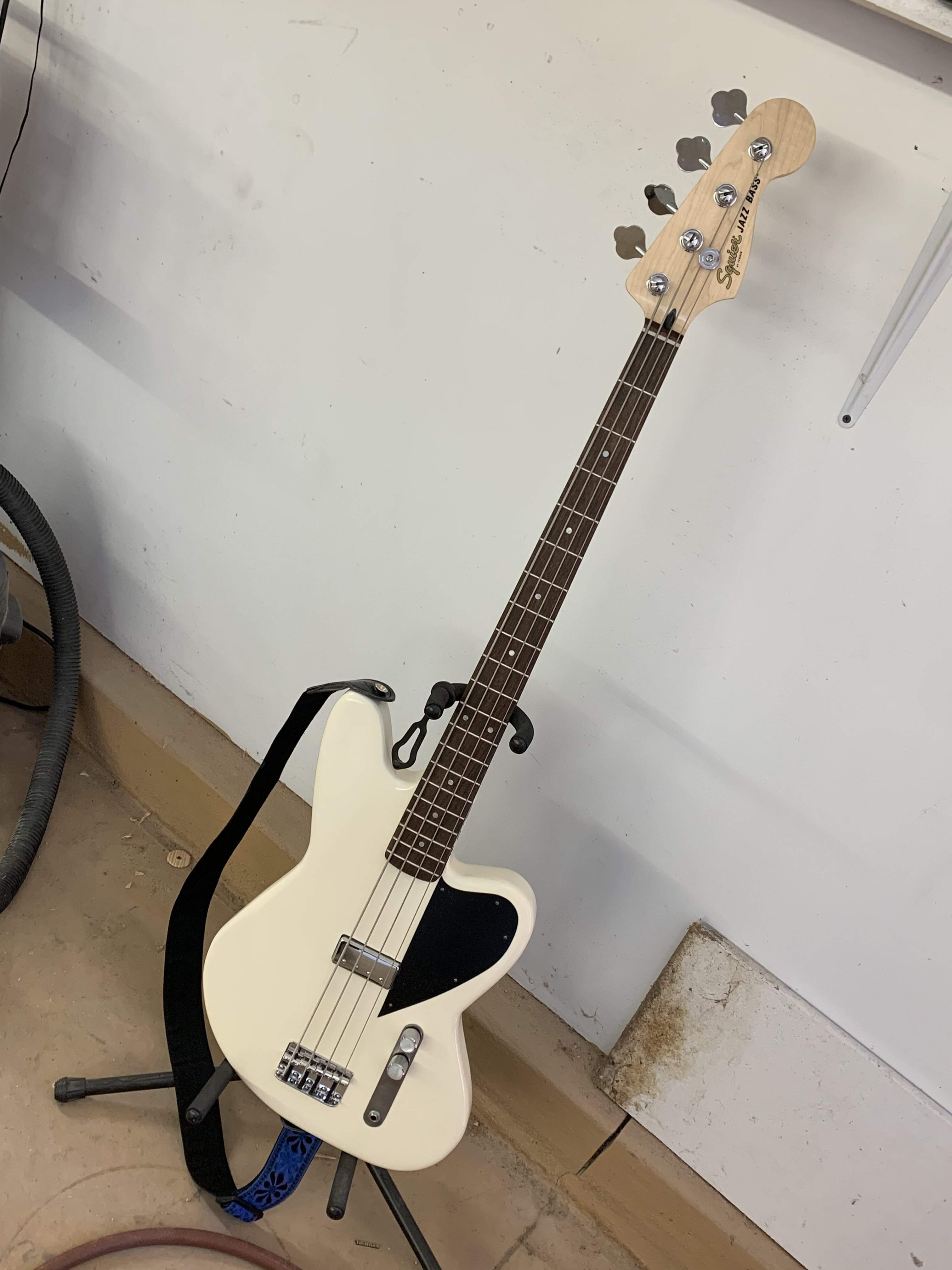

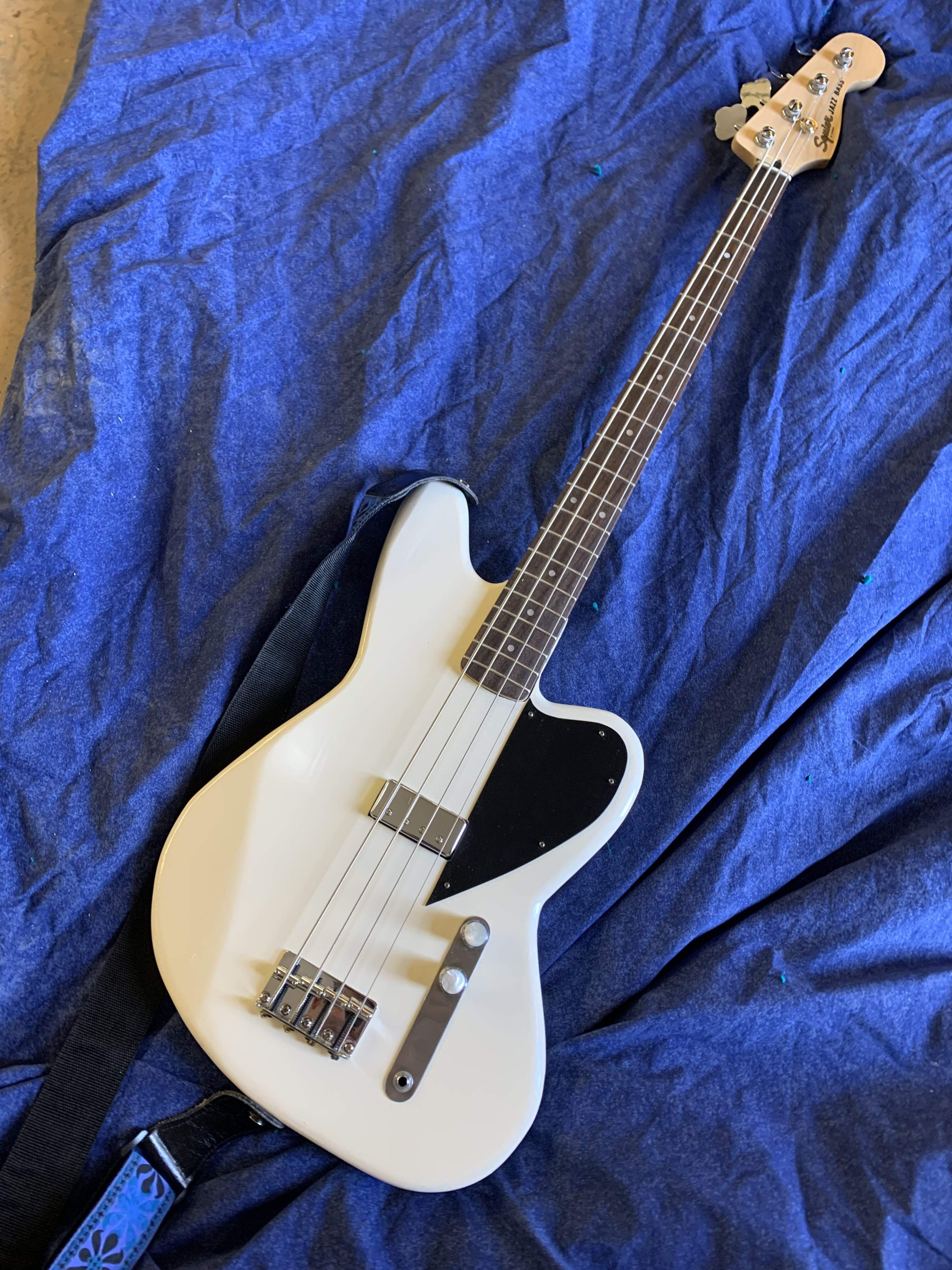

Here's the completed Partial build for the Mule
Specs:
Body: multi-piece pine from used 2x4"
Neck: Used neck from 2019 Squier Jazz (used from classifieds)
Neck/Body Join: bolt on with Fender neck plate
Scale Length: 34"
Fingerboard Radius: 9.5" radius, rosewood
Strings: Very well broken in EB Slinky .045"-.100"
Pickups: Altec ceramic EB-0 humbucker (donated for another project)
Electronics: Passive
Controls: Volume/Tone
Knobs: pearl inlay dome top knurled (used from classifieds)
Covers: wood panel, sprayed black
Jack: Front mount through recycled stainless steel
Pickguard: black painted recycled stainless
Bridge: Fender standard in standard chrome
Tuners: Squier Jazz, standard chrome
Finish: Krylon Heirloom white
Strap: Onani's
Strap mount: traditional chrome
Build cost: approximately $125
Specs:
Body: multi-piece pine from used 2x4"
Neck: Used neck from 2019 Squier Jazz (used from classifieds)
Neck/Body Join: bolt on with Fender neck plate
Scale Length: 34"
Fingerboard Radius: 9.5" radius, rosewood
Strings: Very well broken in EB Slinky .045"-.100"
Pickups: Altec ceramic EB-0 humbucker (donated for another project)
Electronics: Passive
Controls: Volume/Tone
Knobs: pearl inlay dome top knurled (used from classifieds)
Covers: wood panel, sprayed black
Jack: Front mount through recycled stainless steel
Pickguard: black painted recycled stainless
Bridge: Fender standard in standard chrome
Tuners: Squier Jazz, standard chrome
Finish: Krylon Heirloom white
Strap: Onani's
Strap mount: traditional chrome
Build cost: approximately $125
Attachments
Last edited:
Some after thoughts
After plugging 2 pickup routes, I would probably have done the filler a little different. It's not bad, but could be better
I will start routing the neck pockets deeper on any bolt on builds, maybe .030 to .060" deeper. Most of my basses have the screws out of the saddles for the E and G, some have to bottom of the saddle filed off
With the pine body, it's light. Between the wood, dead strings, and the humbucker, it not a top end sound. But it nails the woody, thick, round tone. The E string is clear and massive
I hope the cheap spray paint finish wears so it gets a nice worked in look
Thanks for reading through the thread everyone!
After plugging 2 pickup routes, I would probably have done the filler a little different. It's not bad, but could be better
I will start routing the neck pockets deeper on any bolt on builds, maybe .030 to .060" deeper. Most of my basses have the screws out of the saddles for the E and G, some have to bottom of the saddle filed off
With the pine body, it's light. Between the wood, dead strings, and the humbucker, it not a top end sound. But it nails the woody, thick, round tone. The E string is clear and massive
I hope the cheap spray paint finish wears so it gets a nice worked in look
Thanks for reading through the thread everyone!
Can you clarify what you mean by "Most of my basses have the screws out of the saddles for the E and G, some have to bottom of the saddle filed off"? Do you mean the saddles are as low as you can get them (i.e.: the screws are sticking out of the top) and you are filing the bottoms to get them lower? If so then you want to make the pocket shallower, not deeper.
Why yes, you are correct. Good thing I wasn't running the router yesterday!
But I absolutely despise shims, so for me that is not an option to lower the action
But shims work perfectly well. You could always make your own full contact shim if you don't wanna use the little slivers of whatever the way Fender does. I've never had an issue using a shim.
Yup, Max is right. A slight angle change (I mean really slight) is all you need
It's WAY more work than a shim though
\/
Update
part of my plan was to see if I can make a decent enough instrument that someone will play
The second part, is donating it to an area school. The music teacher returned my call, and I will be dropping it off next week
part of my plan was to see if I can make a decent enough instrument that someone will play
The second part, is donating it to an area school. The music teacher returned my call, and I will be dropping it off next week
Dropped it off this morning. I hope some kids find some appreciation in it
Good on ya'. Anytime you can lead a youngster down the highly questionable path of being a musician!
Just wait until you find an instrument you built or rebuilt in a pawn shop. It's an odd feeling to say the least.
Just wait until you find an instrument you built or rebuilt in a pawn shop. It's an odd feeling to say the least.
