Winter 2019 Build Off - the EUV

#61
A really interesting build - I'm curious how the double, wide pegged Flying V design will function. The central peg on an upright allows for swivel, even if subtle. Two pegs will plant it and in a way that may prove awkward either seated or standing or both. Another issue is bow clearance. (body sides) The tapered V should allow full bow angle but it depends on where the bridge ends up. And lastly, pu poles will need to follow the arch of the fb to balance string output, so a flat pu won't work. I'm not sure if this has already been covered - sorry if I missed it.

Last edited:
  • Like
Reactions: SLivinghouse and ctmullins
#64
Thanks Steve, that’s helpful! I did consider buying some cheap used strings from the DB Classifieds, but gosh - old used DB strings cost as much as a top-of-the-line new set of BG strings! What’s up with that? They’re essentially the same technology (excepting the gut and nylon strings), only longer... ;)

#65
JIO said:
A really interesting build - I'm curious how the double, wide pegged Flying V design will function. The central peg on an upright allows for swivel, even if subtle. Two pegs will plant it and in a way that may prove awkward either seated or standing or both.
Click to expand...

Is swivel a thing? As I said earlier, I have zero experience playing any sort of DB-like thing. I assumed, though, that minimizing swivel would be beneficial.... :bookworm:

Another issue is bow clearance. (body sides) The tapered V should allow full bow angle but it depends on where the bridge ends up.
Click to expand...

Yep. We shall see....

And lastly, pu poles will need to follow the arch of the fb to balance string output, so a flat pu won't work. I'm not sure if this has already been covered - sorry if I missed it.
Click to expand...

I considered a mag pickup, but right now I think I’m going to stick with piezo. All of the off-the-shelf mag pickups are for four-string, so I’d have to order custom or fabricate my own. Pretty sure I won’t have time for that during the actual build-off timeline!

#66
ctmullins said:
I considered a mag pickup, but right now I think I’m going to stick with piezo. All of the off-the-shelf mag pickups are for four-string, so I’d have to order custom or fabricate my own. Pretty sure I won’t have time for that during the actual build-off timeline!
Click to expand...
5 lipsticks, oriented longways under the strings.

  • Like
Reactions: littlebooner, JIO and ctmullins
#67
I may have missed this somewhere, but what are you doing about electronics for the piezo element(s)? A buffer?

I'm putting an Artec undersaddle element in my next build and I don't have a buffer picked out yet. In a state of analysis paralysis looking at all the options. All I really want is something to match impedance, and I'll put my own passive vol/tone after it.

#68
dwizum said:
I may have missed this somewhere, but what are you doing about electronics for the piezo element(s)? A buffer?

I'm putting an Artec undersaddle element in my next build and I don't have a buffer picked out yet. In a state of analysis paralysis looking at all the options. All I really want is something to match impedance, and I'll put my own passive vol/tone after it.
Click to expand...
Schatten have their Mini Pre buffer for piezo pickups. Just a buffer with input and output so you can put any passive or active EQ afterward. Available direct but also see on E-Bay from vendors.
Also available is a SB-2 piezo capable buffer/EQ on website www.shc-music.com. These are also available from some E-Bay vendors.
These are two economical options. The other end of the scale is Richter Electronics with their multichannel piezo buffer for individual string pickups.

Last edited:
#69
At the risk of hijacking this thread... I want thumbwheel-style pots (to align with the edge of a soundhole) so the SB-2 is out since the pots are built into the PCBs. I've seen on other forum threads that the Schatten unit has a dramatic low frequency cutoff and isn't bass-appropriate (though I don't know how reliable that info is). I'm talking right now with an ebay vendor guitar_acquisition_syndrome to determine if any of his products will work, he does have one model (with a condenser mic in addition to the piezo, would be interesting) that has thumbwheel controls, otherwise I'd be happy to add my own thumbwheels after a basic buffer unit that has no controls. It looks like he sells the shc-music units since the part numbers and descriptions are all similar, so the unit I'm talking to him about may be one of theirs anyways.

#70
dwizum said:
I may have missed this somewhere, but what are you doing about electronics for the piezo element(s)? A buffer?
Click to expand...

I don’t think I said, because I’ve been debating with myself around a number of different options. But as of today, I’m pretty sure it’ll be a Link Removed into a standard two-band active EQ (like an EMG BTS).

  • Like
Reactions: Will_White
#71
dwizum said:
At the risk of hijacking this thread... I want thumbwheel-style pots (to align with the edge of a soundhole) so the SB-2 is out since the pots are built into the PCBs. I've seen on other forum threads that the Schatten unit has a dramatic low frequency cutoff and isn't bass-appropriate (though I don't know how reliable that info is).QUOTE]


I see that for the Schatten Mini-pre but I can't find info for the Micro-pre? I have one but have not wired it to anything yet. From what I see the micro-pre should be just a buffer and shouldn't color the tone.
Click to expand...

#72
ctmullins said:
Is swivel a thing? As I said earlier, I have zero experience playing any sort of DB-like thing. I assumed, though, that minimizing swivel would be beneficial.... :bookworm:
I considered a mag pickup, but right now I think I’m going to stick with piezo. All of the off-the-shelf mag pickups are for four-string, so I’d have to order custom or fabricate my own. Pretty sure I won’t have time for that during the actual build-off timeline!
Click to expand...

It will be determined with use - it's not like 'swivel' is necessary but it factors in. Never seen a double bass or cello with anything but a single post. Who knows, you might be onto something.
Jon Clegg said:
5 lipsticks, oriented longways under the strings.
Click to expand...

That could work for sure.

  • Like
Reactions: ctmullins
#74

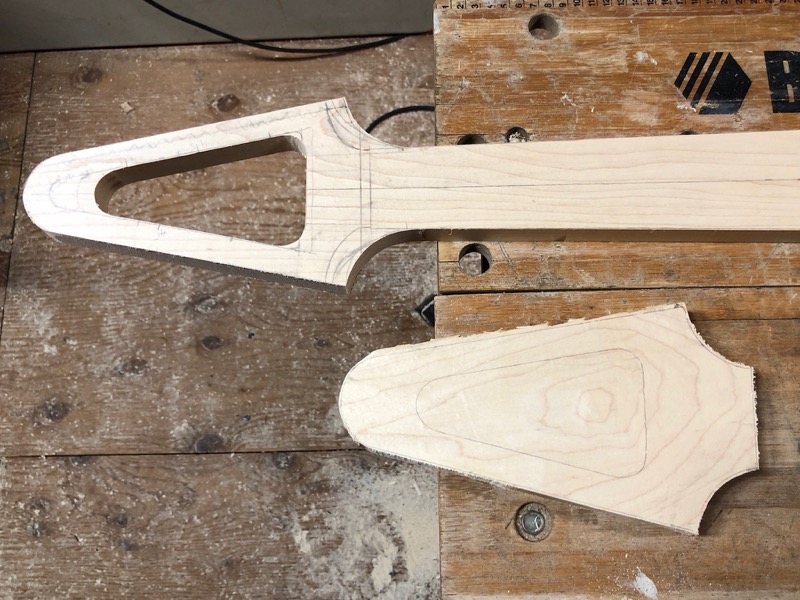

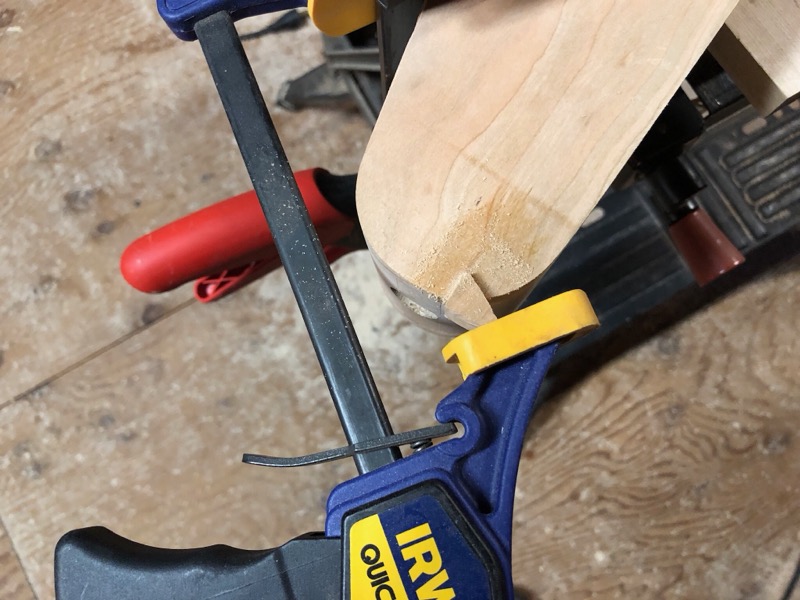

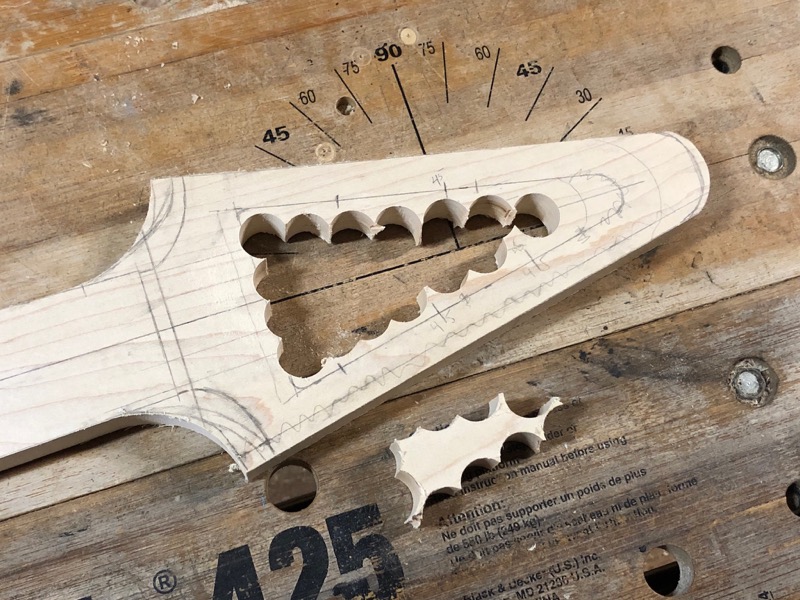

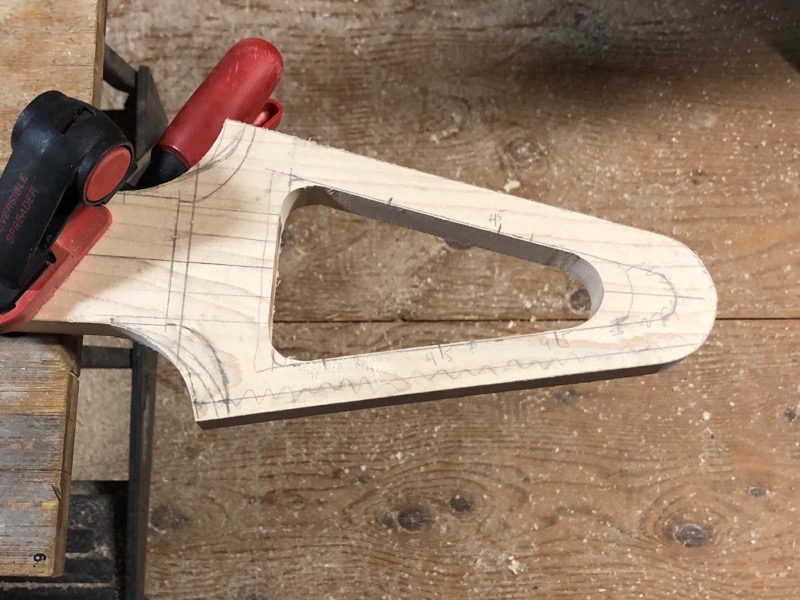

Started on the pegbox.




  • Like
Reactions: D-Smith, SlingBlader, wraub and 8 others
#76
Do you have tuning pegs picked out yet? Are there "special" pegs for that style of headstock or do you just use "normal" electric bass tuners turned sideways?

Also I don't think I've said this yet but I love the cherry you're using.

#77
dwizum said:
Do you have tuning pegs picked out yet? Are there "special" pegs for that style of headstock or do you just use "normal" electric bass tuners turned sideways?
Click to expand...

Years ago I bought some Grover Titan tuners. They’re massive, and finely machined, and gorgeous. When I (quickly) realized that they were far too heavy to use on a BG, I stashed them away, saving them for the EUB build I knew I wanted to eventually do. So yes, just normal tuners mounted sideways.

Also I don't think I've said this yet but I love the cherry you're using.
Click to expand...

Thanks! I paid a decent amount for it, and I’m really looking forward to seeing the grain under a finish. :hyper:

  • Like
Reactions: Dadagoboi
#78
ctmullins said:
Years ago I bought some Grover Titan tuners. They’re massive, and finely machined, and gorgeous. When I (quickly) realized that they were far too heavy to use on a BG, I stashed them away, saving them for the EUB build I knew I wanted to eventually do. So yes, just normal tuners mounted sideways.

Thanks! I paid a decent amount for it, and I’m really looking forward to seeing the grain under a finish. :hyper:
Click to expand...
I can cut you a deal on some lightly used DB tuners (4 string) :D
