Got room for more? I could use a vacation alsoTO THE AIRPORT!........
All are welcome!!!....Got room for more? I could use a vacation also
Somebody warn Warsaw!....
- Apr 18, 2008
- 16,016
- 1
- 31,730
- Disclosures
- I'm highly opinionated and extremely self-assured
Lol, always wanted to visit Poland. @b3e, you have to be our host and translator!
Guys, you are all welcome! I can be a local guide
) if you come over, I'll do my best to be good host ) wanna build a bass together or what?)
) if you come over, I'll do my best to be good host ) wanna build a bass together or what?)
Well, of course, we'll all have to stay at your place and eat all of your food and drink all of your beer....Guys, you are all welcome! I can be a local guide
Also....can you build a bass in a Tapas bar?....

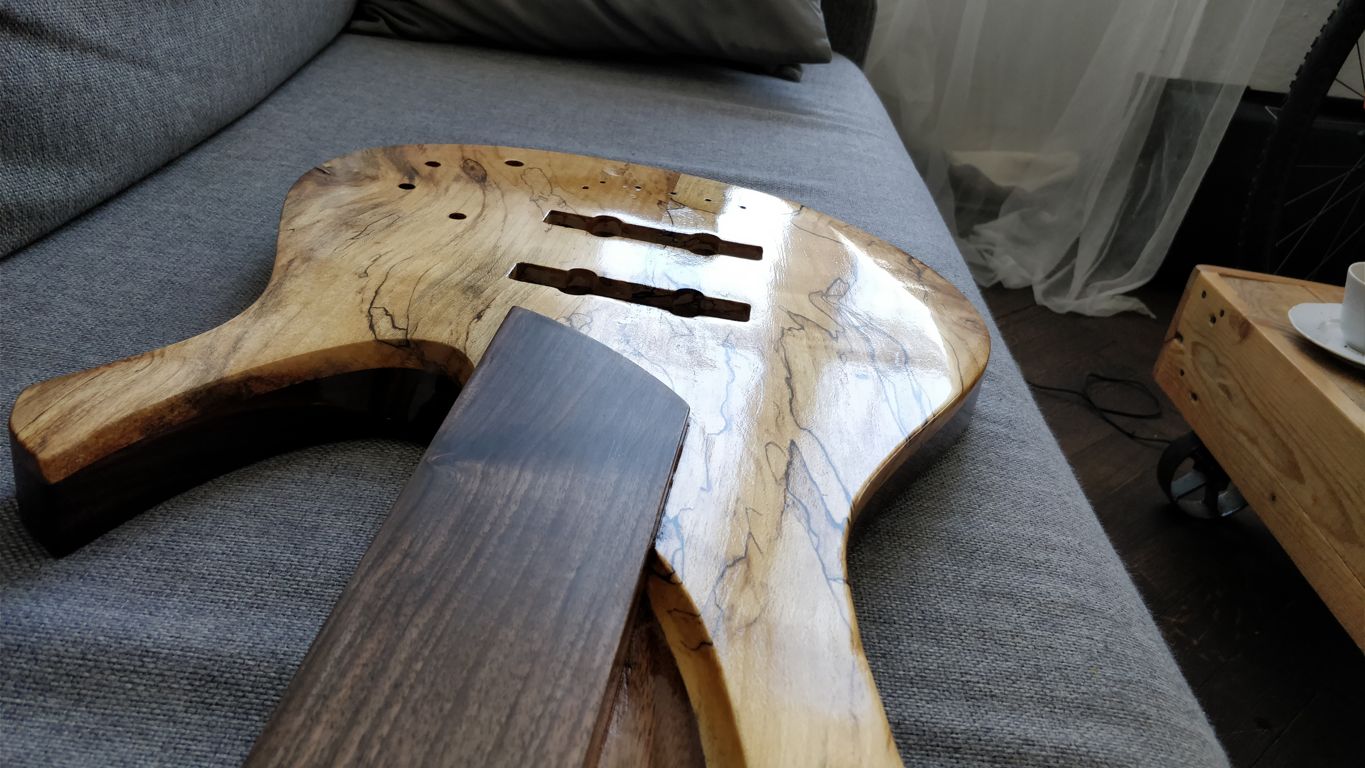

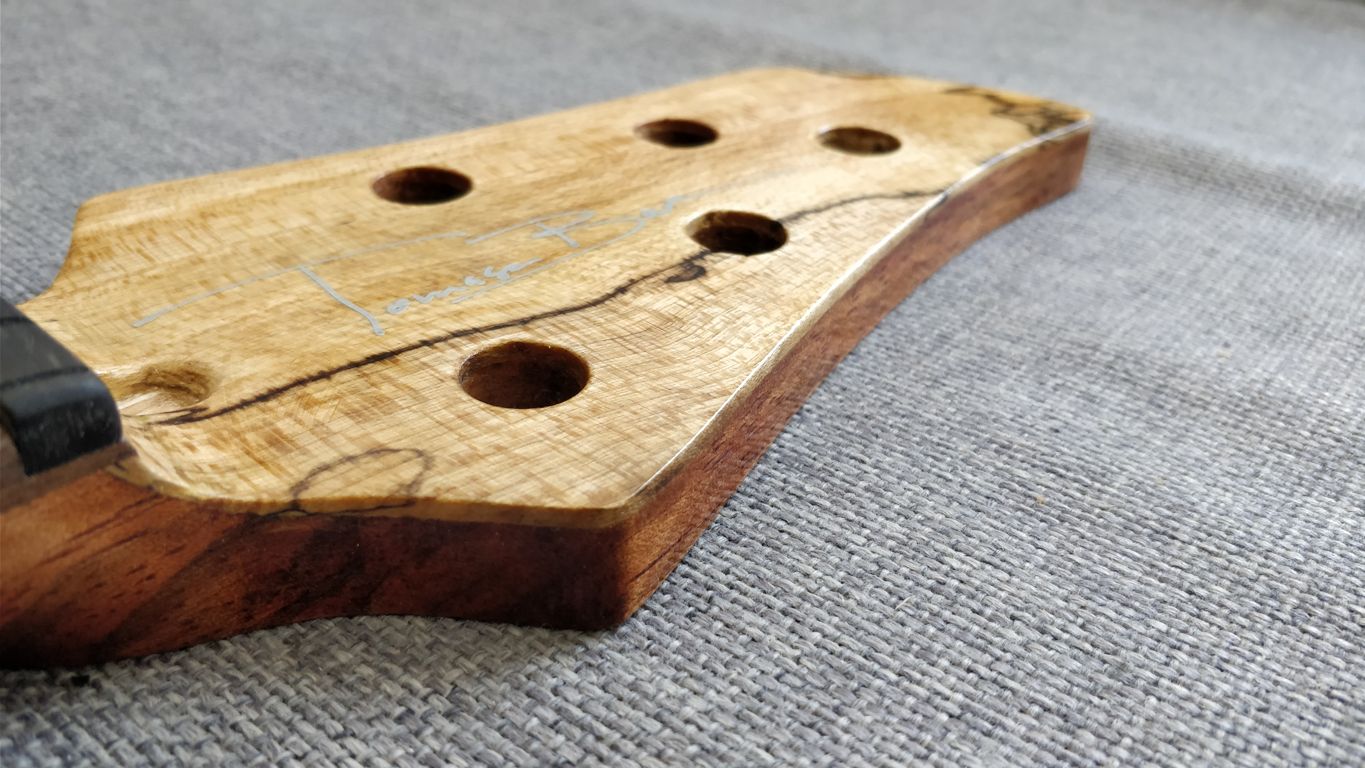

I started the assembly today afternoon. The poly had a chance to dry, probably will be curing for another few days or weeks. I have to say, I would be happy sticking to Tru oil all the way. The poly came out ok, too shiny though and I don't think it matches the instrument. Well too late for this one and I know it's all very subjective. Maybe I just got used to a lesser shine

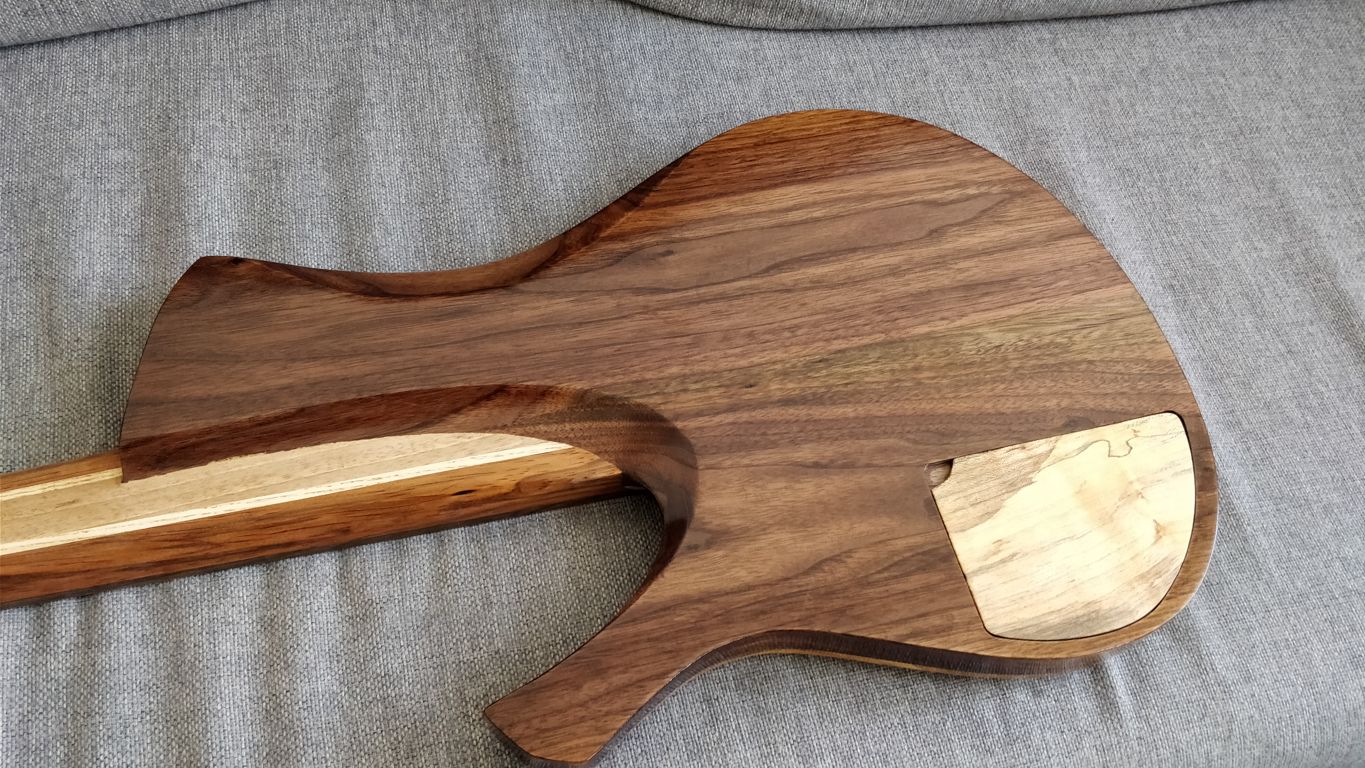

As you see I managed to make the back cover. Assembling the pickups and electronics was very easy with the eng solderless system. Two issues I ran into were:
1. I routed the pickup cavities probably too deep. I had 7 mm of wood left and I drilled just 4mm deep for pickup screws. Iamaged not to run through the back, but I wonder how the adjustment will work
2. I had to deepen the route for the input jack some more, cause it wouldn't fit under the cover by 2mm. Currently it really is a thin piece of top under there.
After deepening the rout it was just there
I have to say, 32mm for a body is not a lot to work with. I feel I'm just a hair from drilling to the other side.

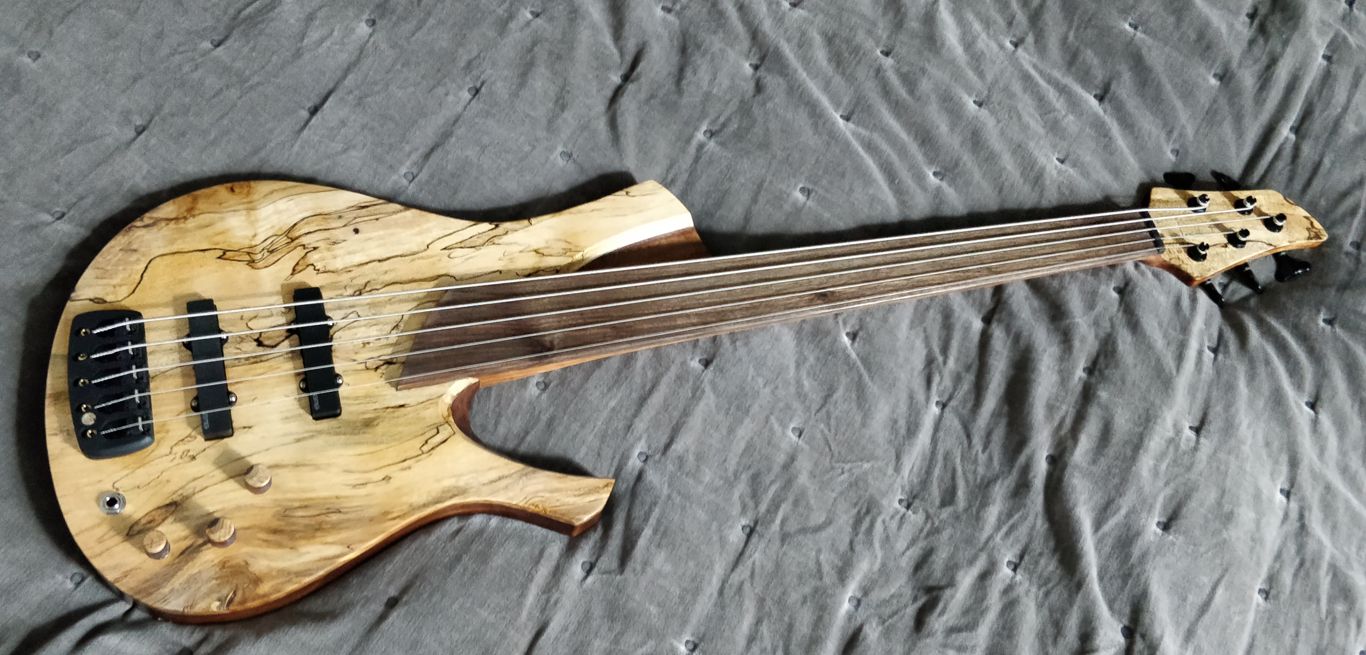

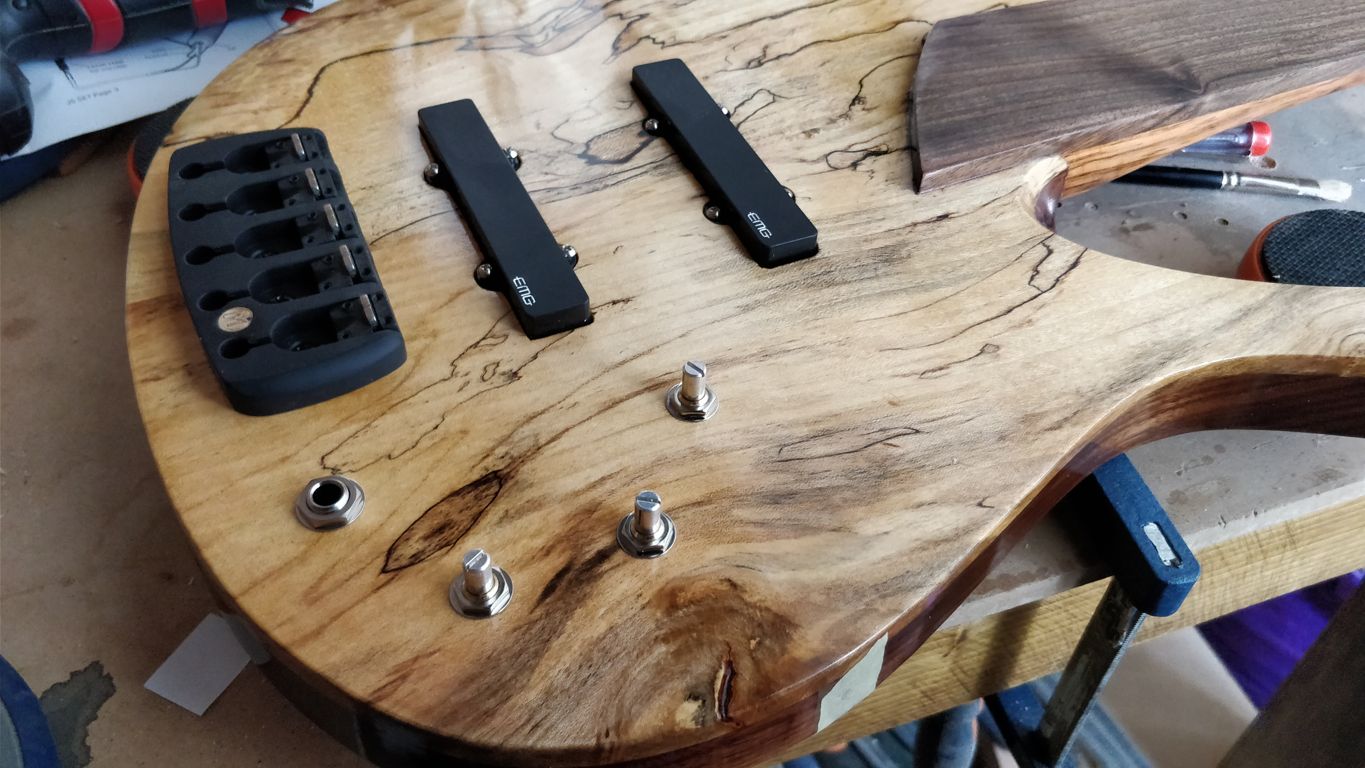

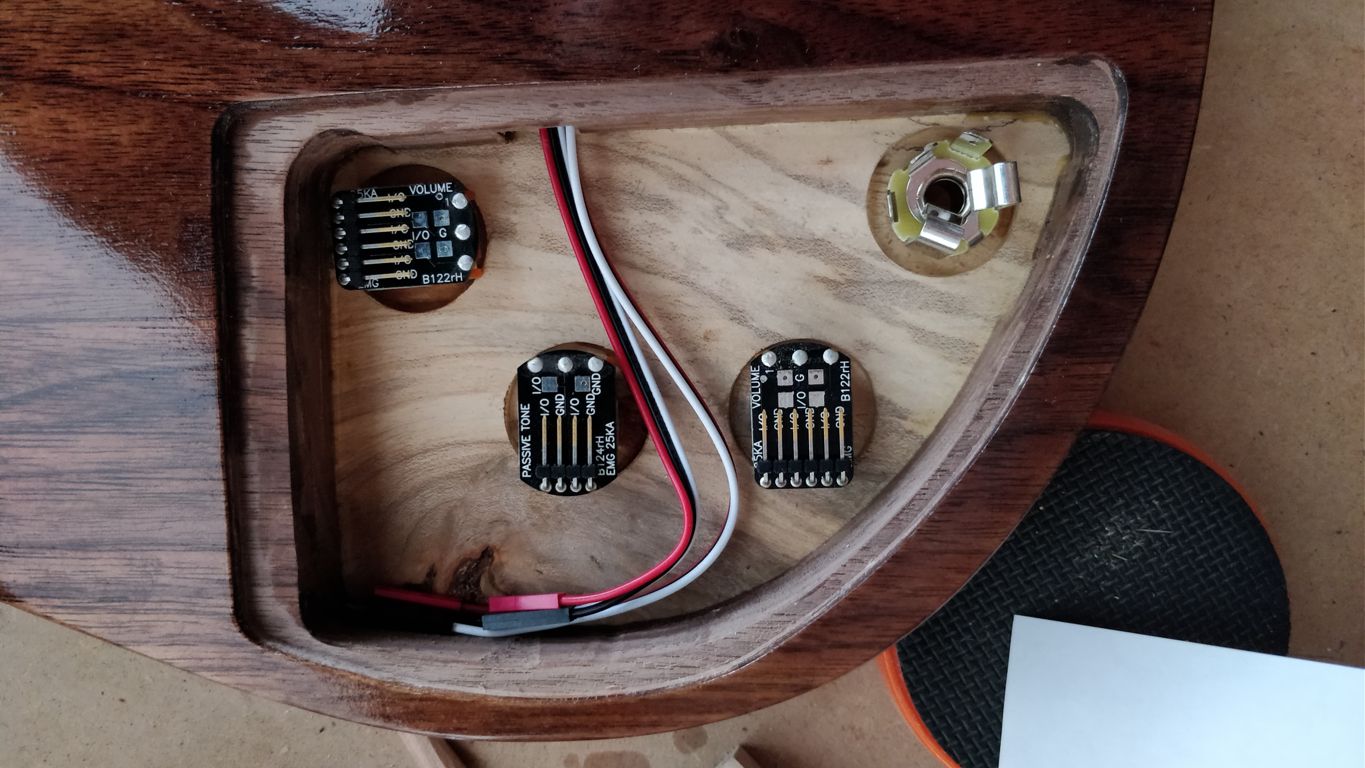

Finally I have everything put together and working
I'm tempted to put her all together and do a test drive
As you see I managed to make the back cover. Assembling the pickups and electronics was very easy with the eng solderless system. Two issues I ran into were:
1. I routed the pickup cavities probably too deep. I had 7 mm of wood left and I drilled just 4mm deep for pickup screws. Iamaged not to run through the back, but I wonder how the adjustment will work

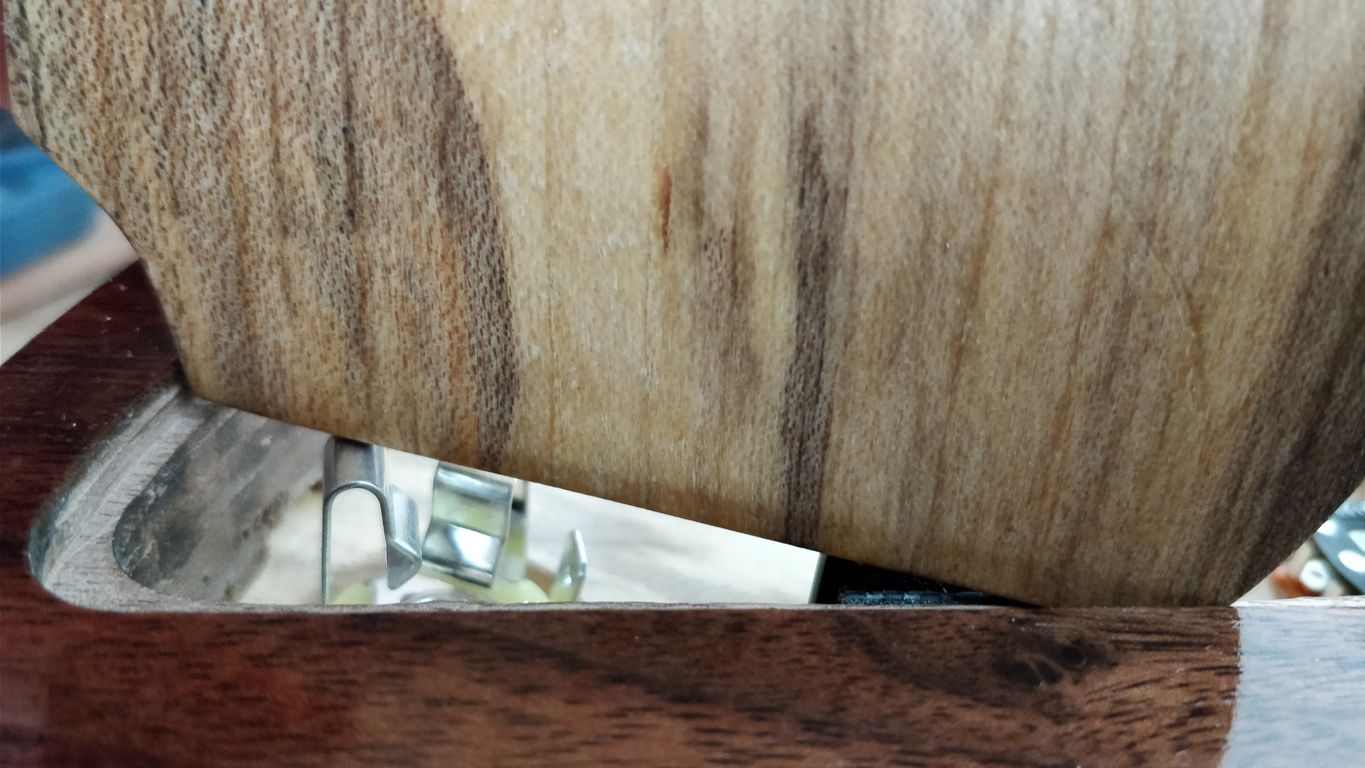

2. I had to deepen the route for the input jack some more, cause it wouldn't fit under the cover by 2mm. Currently it really is a thin piece of top under there.
After deepening the rout it was just there
I have to say, 32mm for a body is not a lot to work with. I feel I'm just a hair from drilling to the other side.
Finally I have everything put together and working
I'm tempted to put her all together and do a test drive
Let it cure, disassemble, hit with some steel wool or Scotchbrite (generically, "non-woven abrasive pad") and you want a fine one (gray or white for Scotchbrite - color may vary with other brands.) Sure, it will be after the deadline, but it's not something you have to accept as unchangeable. And I doubt anyone is going to judge based on the shiny/satin state of things.
I think your jack issue illustrates the reason most folks go to the side when doing thin bodies, unless they go for the "reverse strat jack plate." Have you tried it with a cable plugged in? If it needs any more, you might put a small recess in the back cover (yeah, not a lot of wood there either, but it's under less stress.)
If the pickup routes turn out to be too deep, presumably you could glue in more wood where the screws go.
I think your jack issue illustrates the reason most folks go to the side when doing thin bodies, unless they go for the "reverse strat jack plate." Have you tried it with a cable plugged in? If it needs any more, you might put a small recess in the back cover (yeah, not a lot of wood there either, but it's under less stress.)
If the pickup routes turn out to be too deep, presumably you could glue in more wood where the screws go.
Last edited:
Thanks @T_Bone_TL for all the tips. I guess it's fine for the deadline, but I won't say done, until it fits my QC )

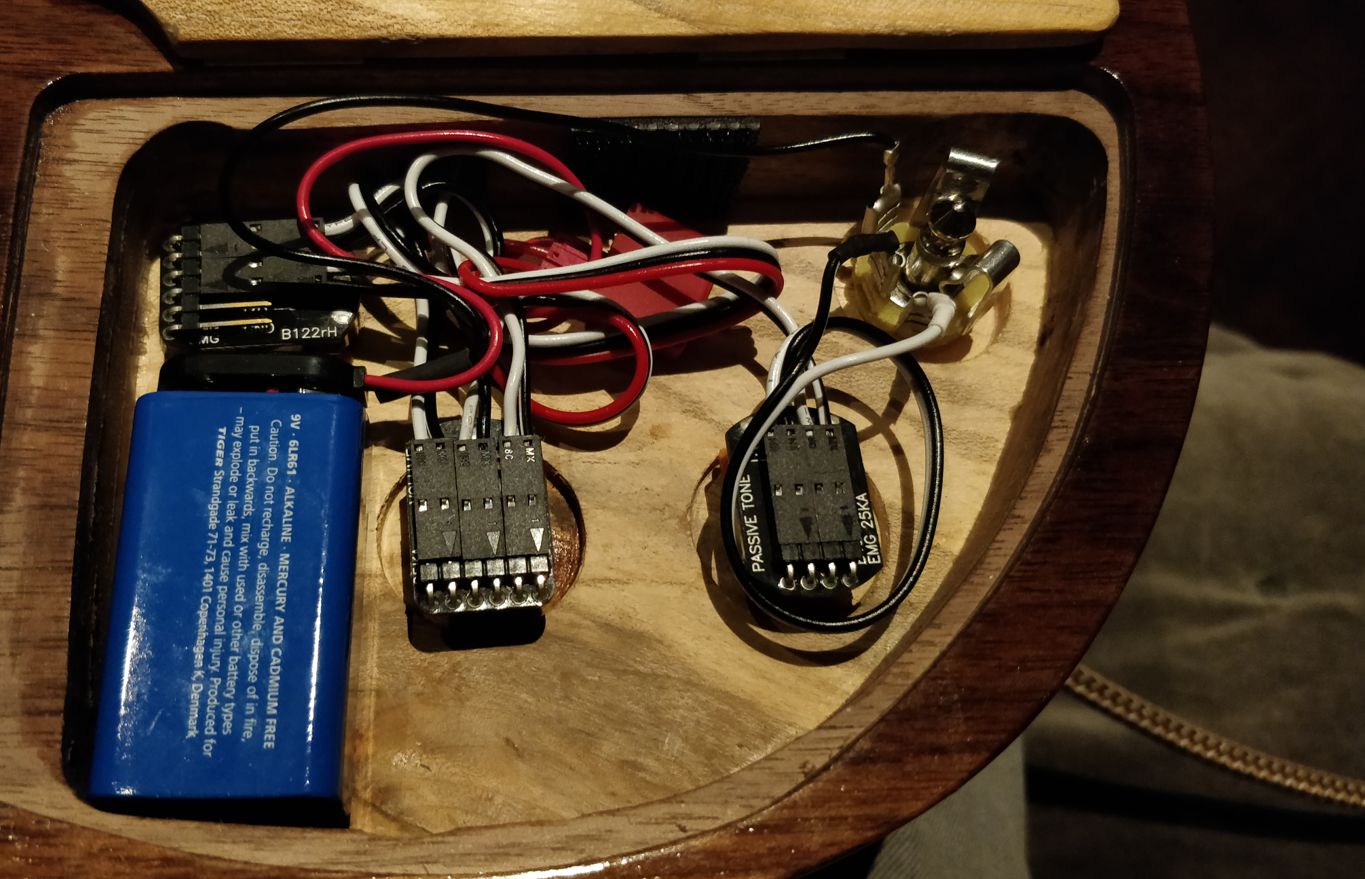

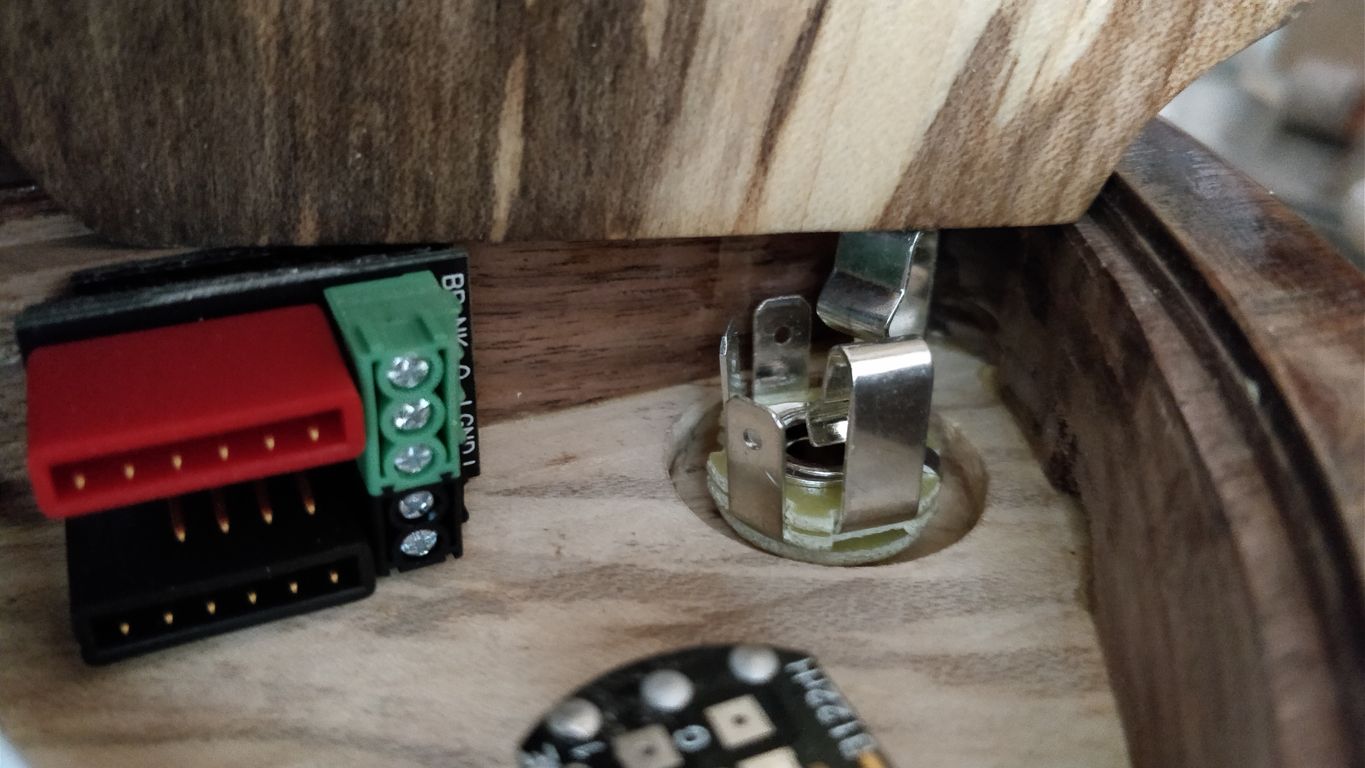

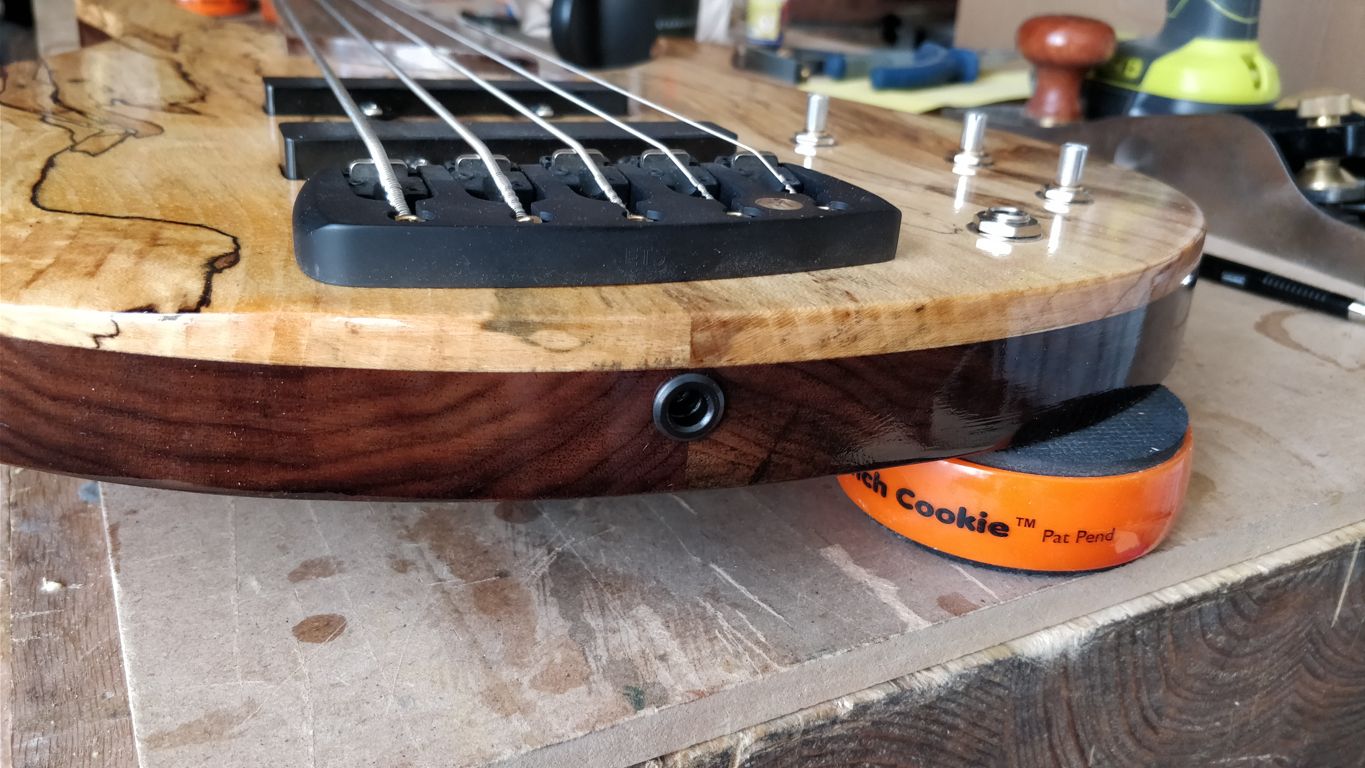

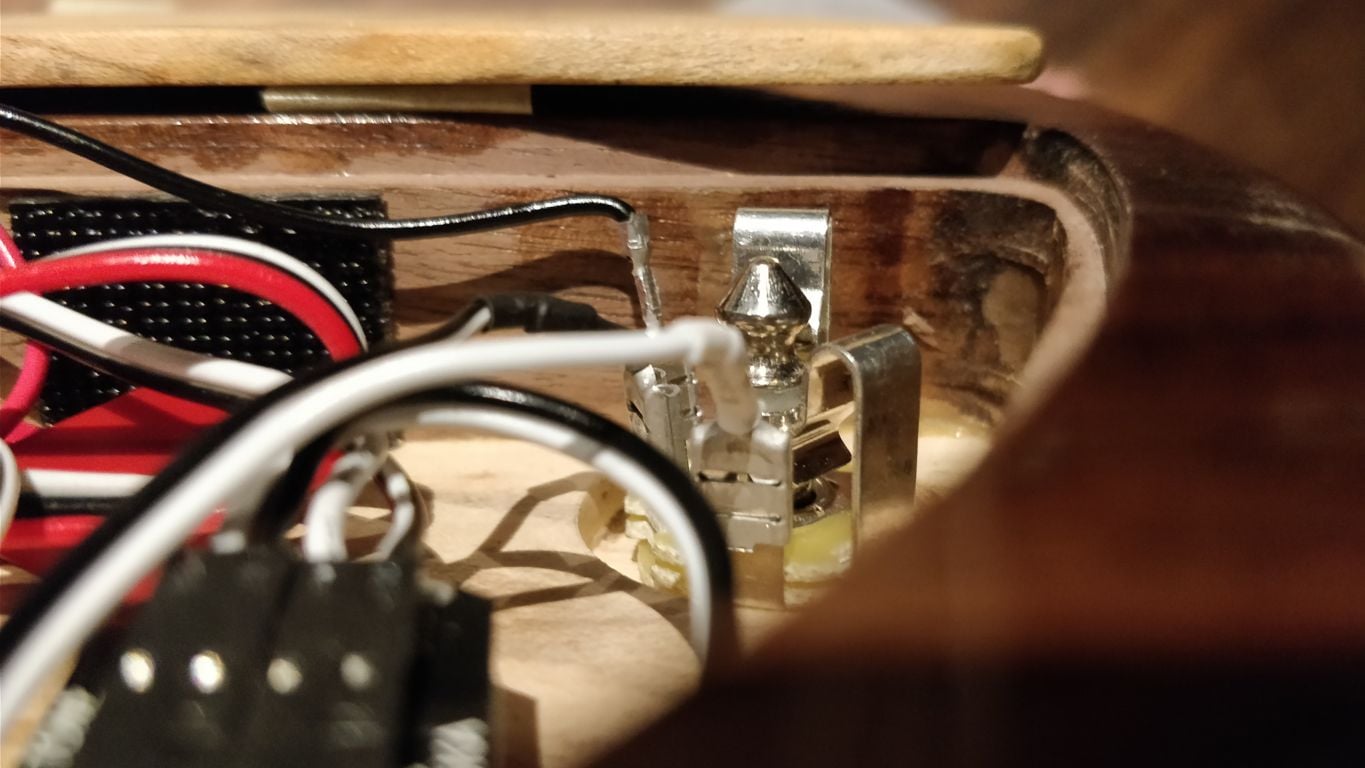

The jack fits fine, it's actually shorter than the socket by 3mm I guess. And I totally like the socket being on the top plate. It doesn't affect sitting down with the guitar. Here is how it looks inside:
I would say 32mm body thickness is really the minimum of how thin you can go using standardized elements and mounting methods.
I will see how the pickups height works out and what it means, but gluing in some support is a possibility I consider.
)The jack fits fine, it's actually shorter than the socket by 3mm I guess. And I totally like the socket being on the top plate. It doesn't affect sitting down with the guitar. Here is how it looks inside:
I would say 32mm body thickness is really the minimum of how thin you can go using standardized elements and mounting methods.
I will see how the pickups height works out and what it means, but gluing in some support is a possibility I consider.
Audere preamps come with these super thin pots, I don't have one right here to measure though. The preamp itself is the same size as a 9v battery (though very thin), I bet you could get pretty thin with that set up. I really like the way the Audere sounds, especially paired up with the Lace Alumnitones.
I just put her together with roundwounds, I'm no fretless player (yet) and can't keep the tone to pitch (yet again), but I thought you should hear it yourself, no matter how bad the player is. I'm sorry and good luck
Rôckhewer
Commercial User
- Feb 28, 2015
- 2,922
- 9,028
- Disclosures
- Owner/Builder- RockHewer Custom Guitars LLC

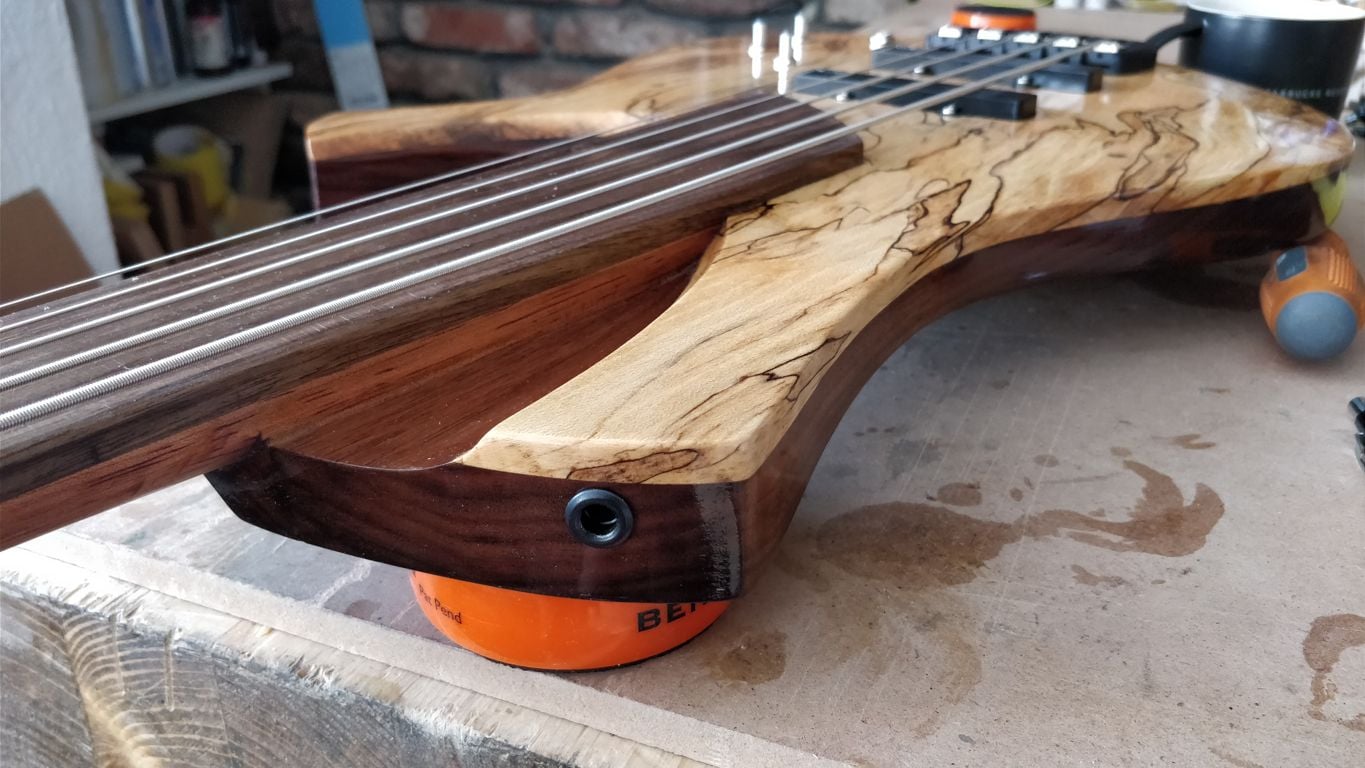

Last touches - installed the strap locks today, otherwise under the term "giggable" it's ready for submission. I admit I have one thing left to do - install the magnets for the rear cavity, but I just don't have them at hand now. I could do screws, but it's not that easy for exchanging the battery.
It was not easy to drill through the poly already. That will be a tough coat.
Ok, up to the submission pics!
It was not easy to drill through the poly already. That will be a tough coat.
Ok, up to the submission pics!

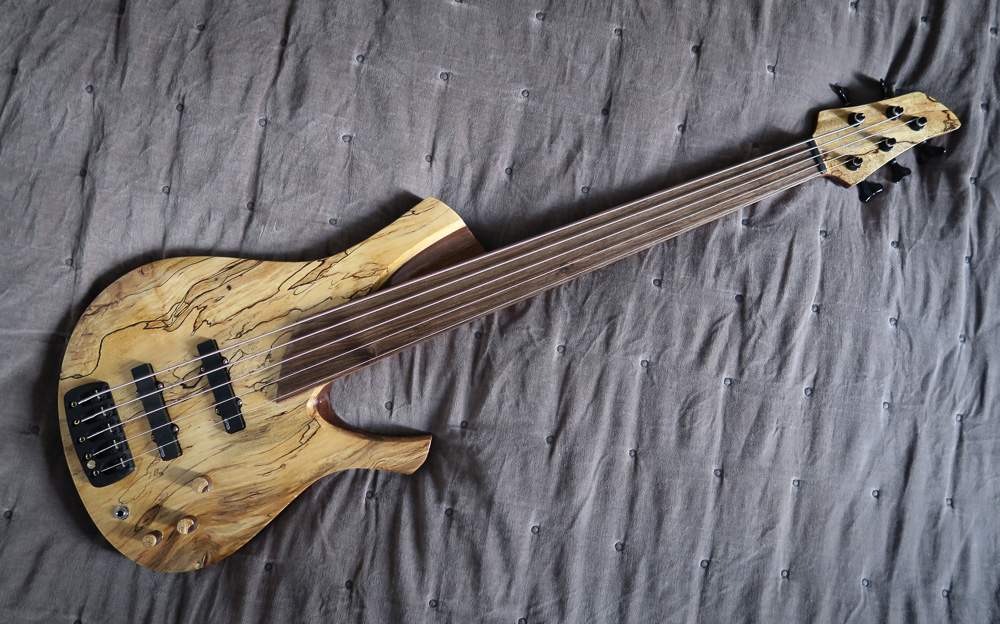

This is my submission for the Winter Build Off 2018
Please read my build thread for the whole story:
Winter Build Off 2018 - WalnutKarma Bass
Specs:
Construction: Set neck 5 string fretless (High C), 24+ fret, chambered body
Scale Length: 33"
Neck: 5 ply laminate of African Walnut (Bodo), Ash, European Walnut
Finger Board: European Walnut, CA polish
Fingerboard radius: 16-20"
Body: American Black Walnut with Spalted Maple
Number of strings: 5 (High C)

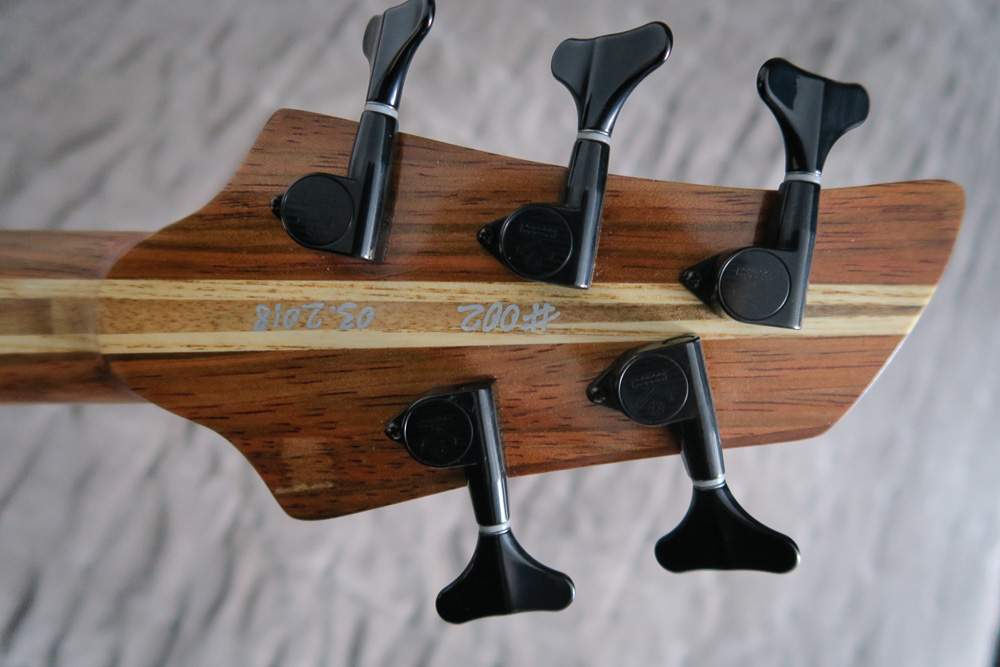

Tuners: Kluson
Bridge: ETS
Pickups: EMG J5
Electronics: EMG Volume/Volume/Tone
Finish: Poly over Tru-Oil, Tru Oil neck
Strings: Fodera Light-High C, 28-100
Weight: 7.5 lbs
SoundFiles:

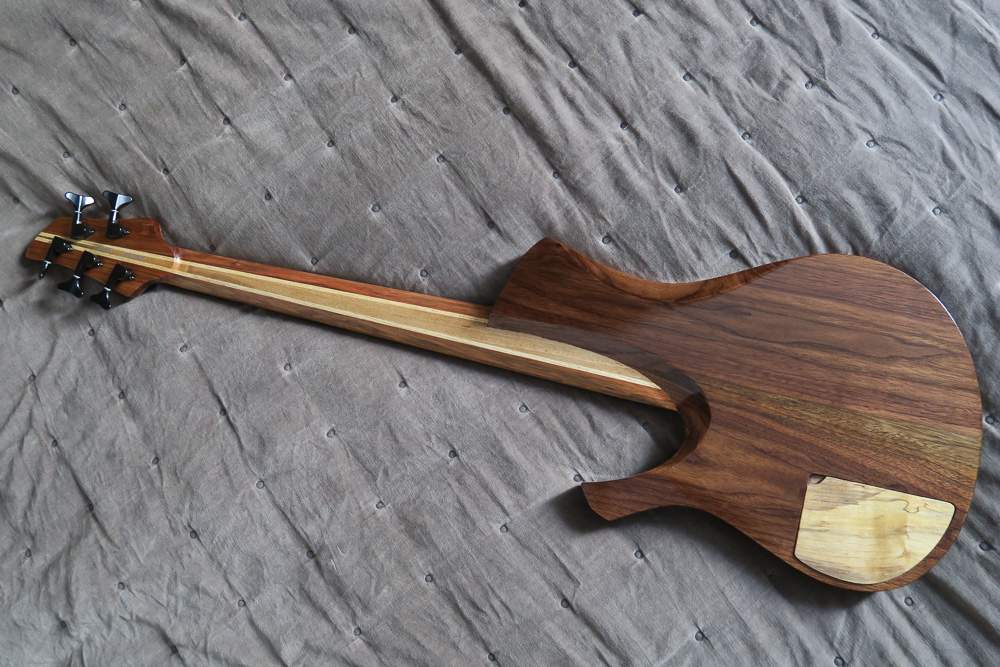

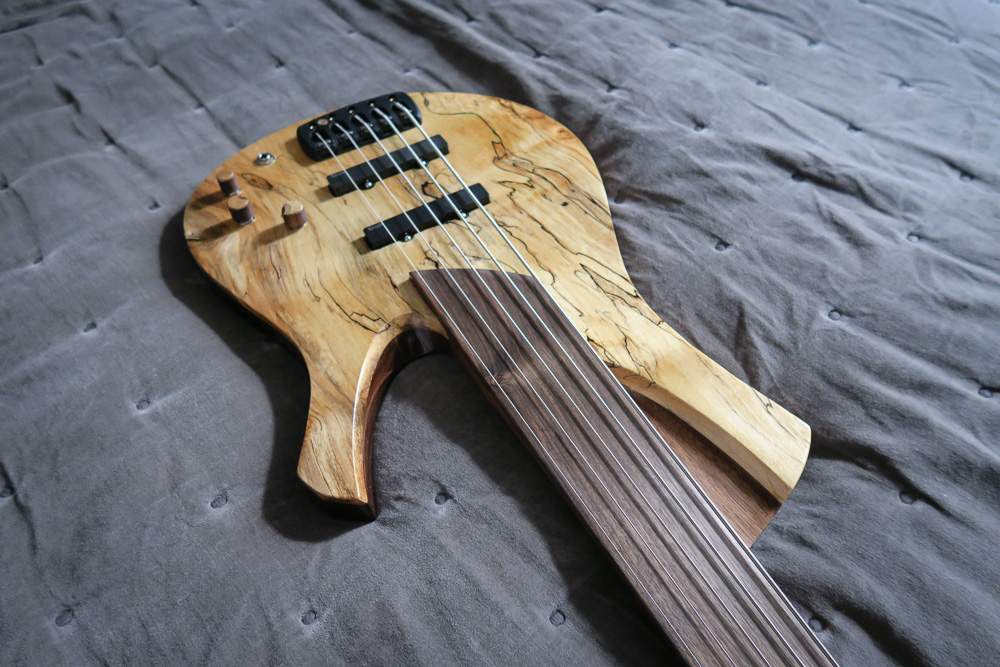

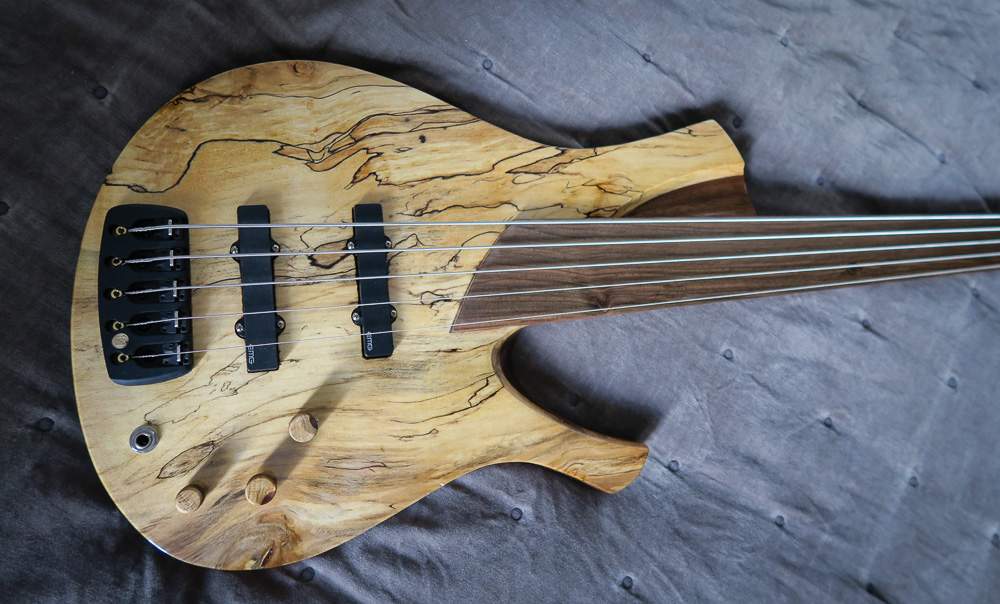

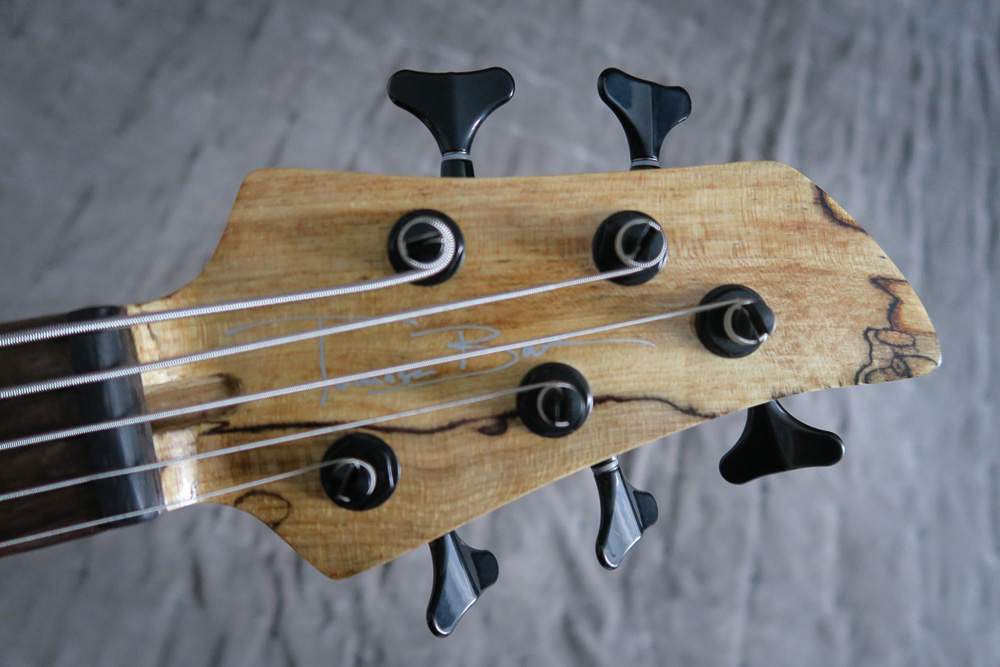

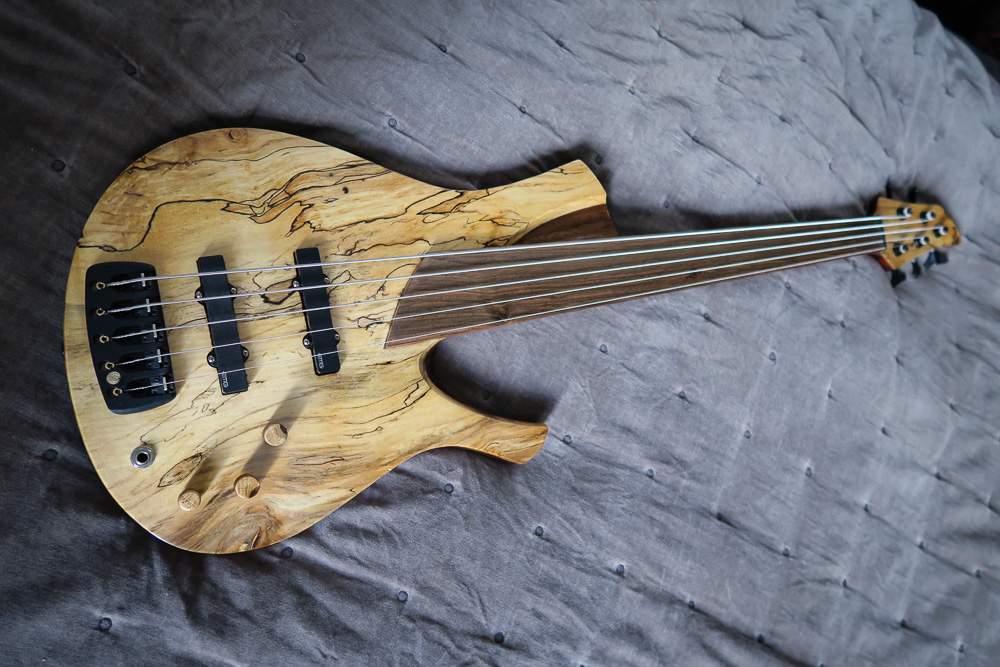

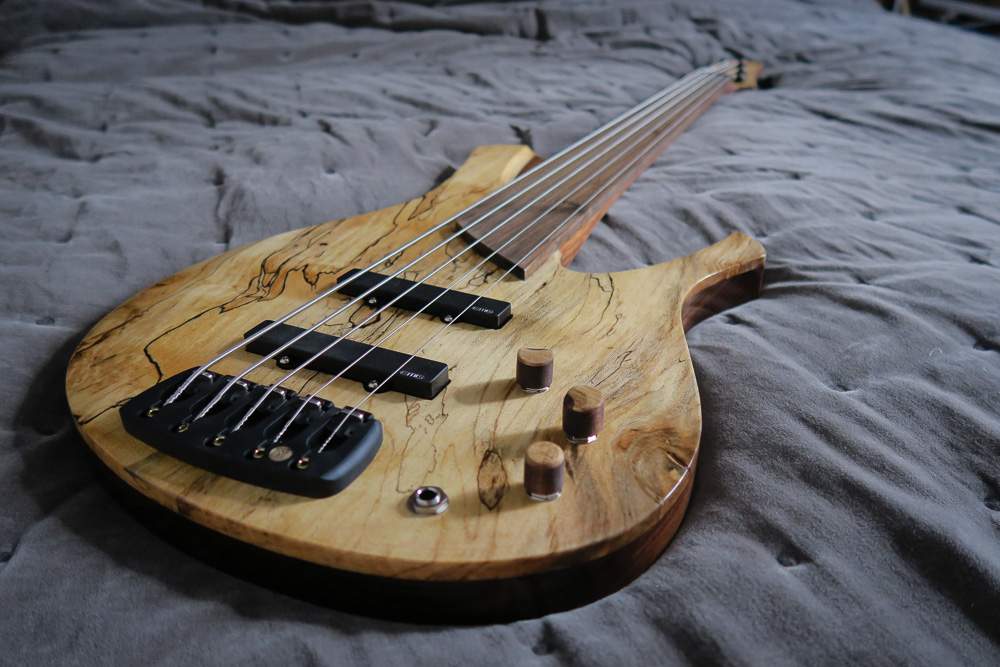

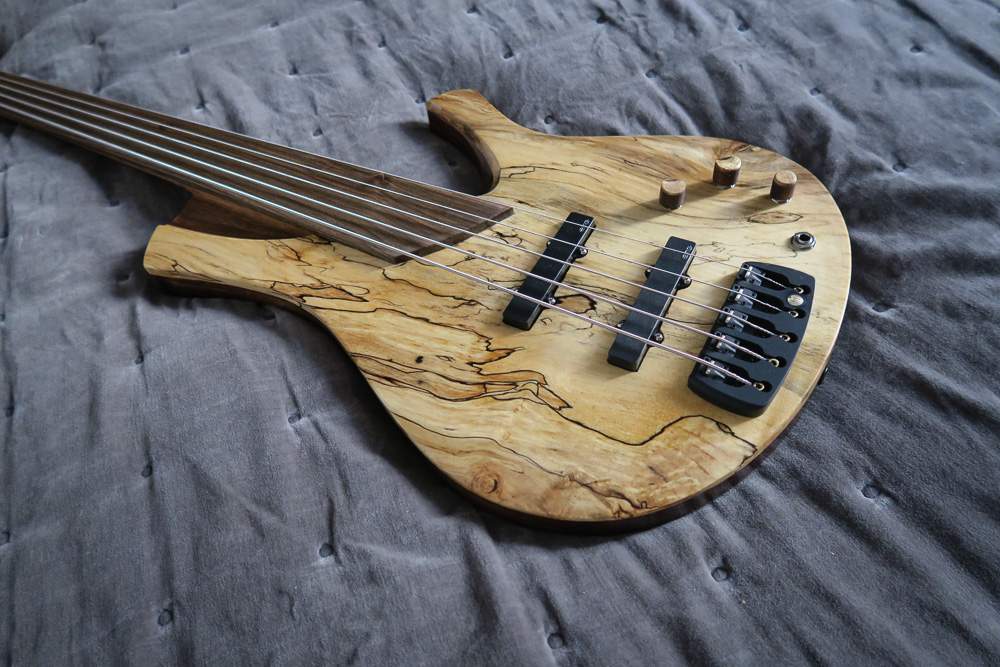

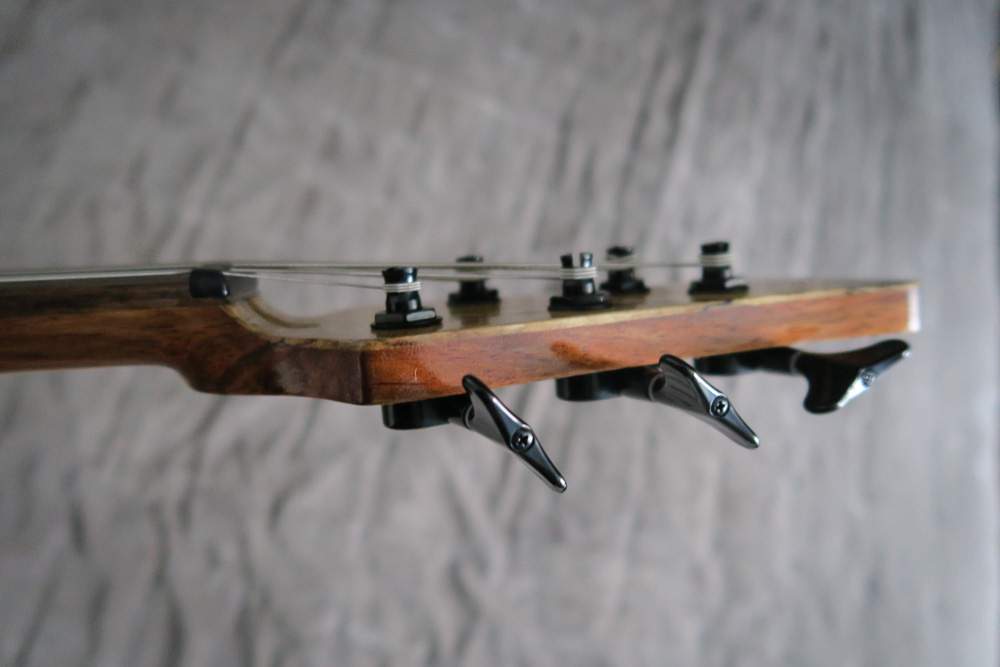

Pics:
Please read my build thread for the whole story:
Winter Build Off 2018 - WalnutKarma Bass
Specs:
Construction: Set neck 5 string fretless (High C), 24+ fret, chambered body
Scale Length: 33"
Neck: 5 ply laminate of African Walnut (Bodo), Ash, European Walnut
Finger Board: European Walnut, CA polish
Fingerboard radius: 16-20"
Body: American Black Walnut with Spalted Maple
Number of strings: 5 (High C)
Tuners: Kluson
Bridge: ETS
Pickups: EMG J5
Electronics: EMG Volume/Volume/Tone
Finish: Poly over Tru-Oil, Tru Oil neck
Strings: Fodera Light-High C, 28-100
Weight: 7.5 lbs
SoundFiles:
Pics:
