Winter Build Off 2020 - Leftovers and Locust

[rojo412]

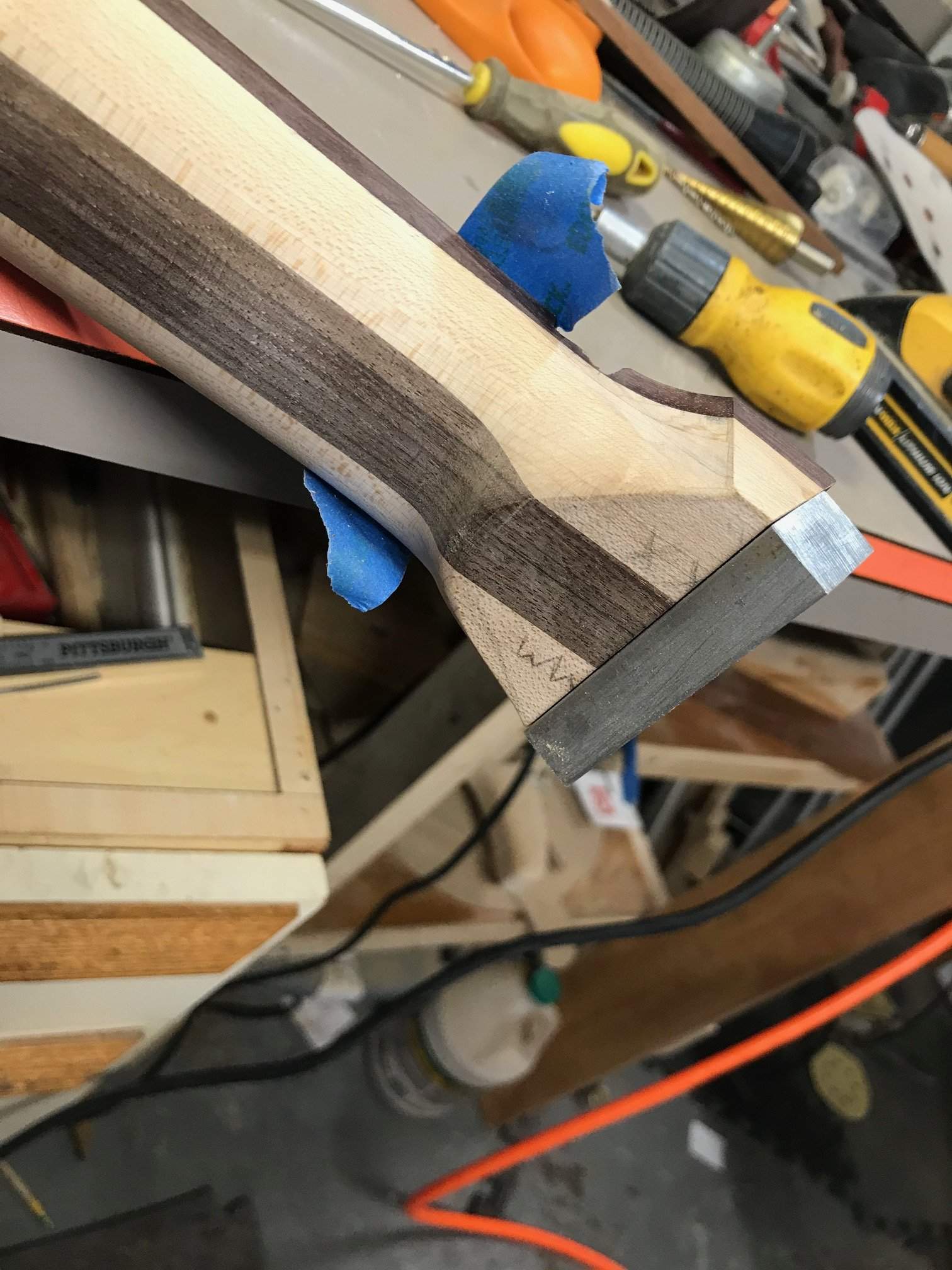

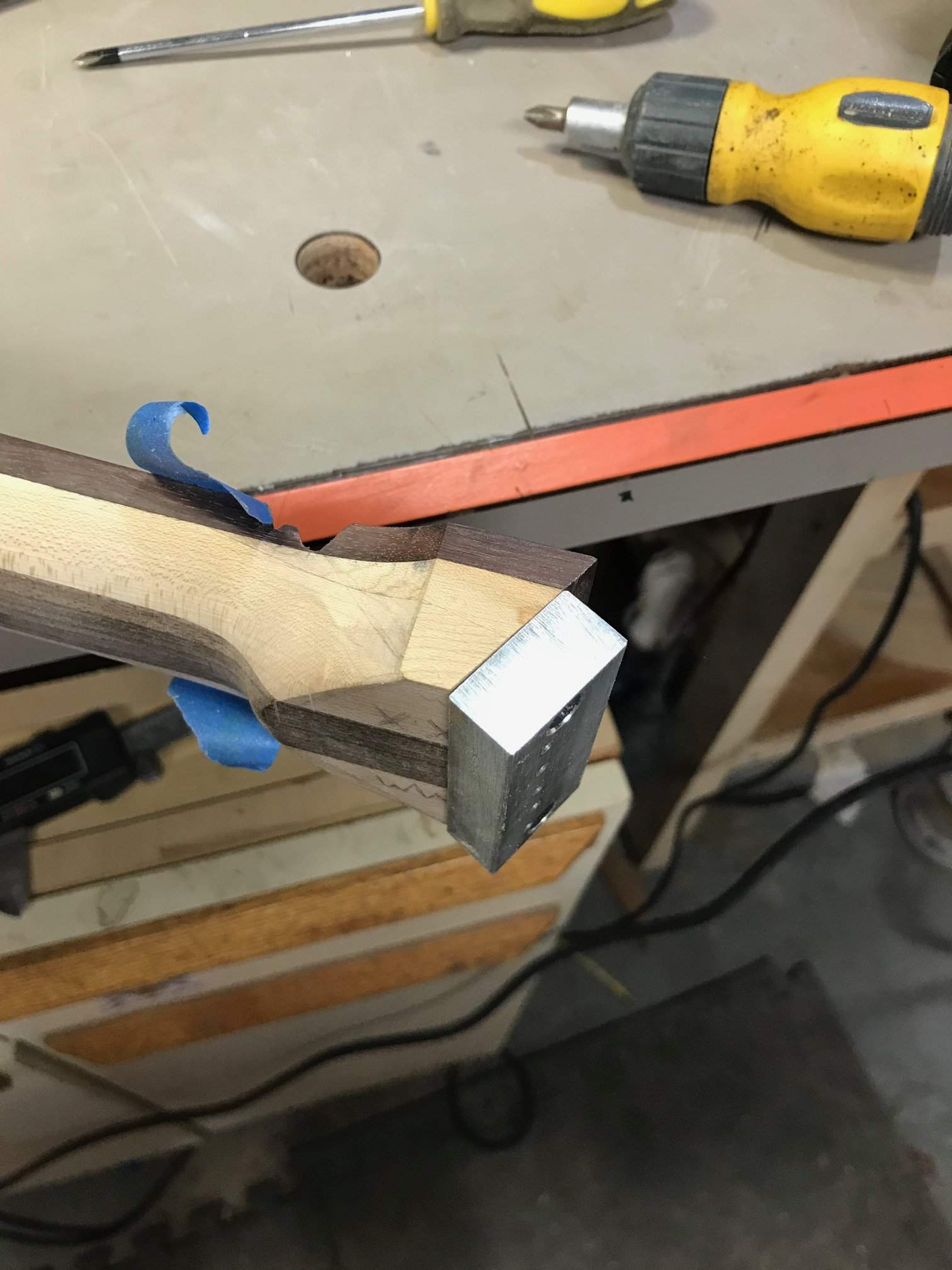

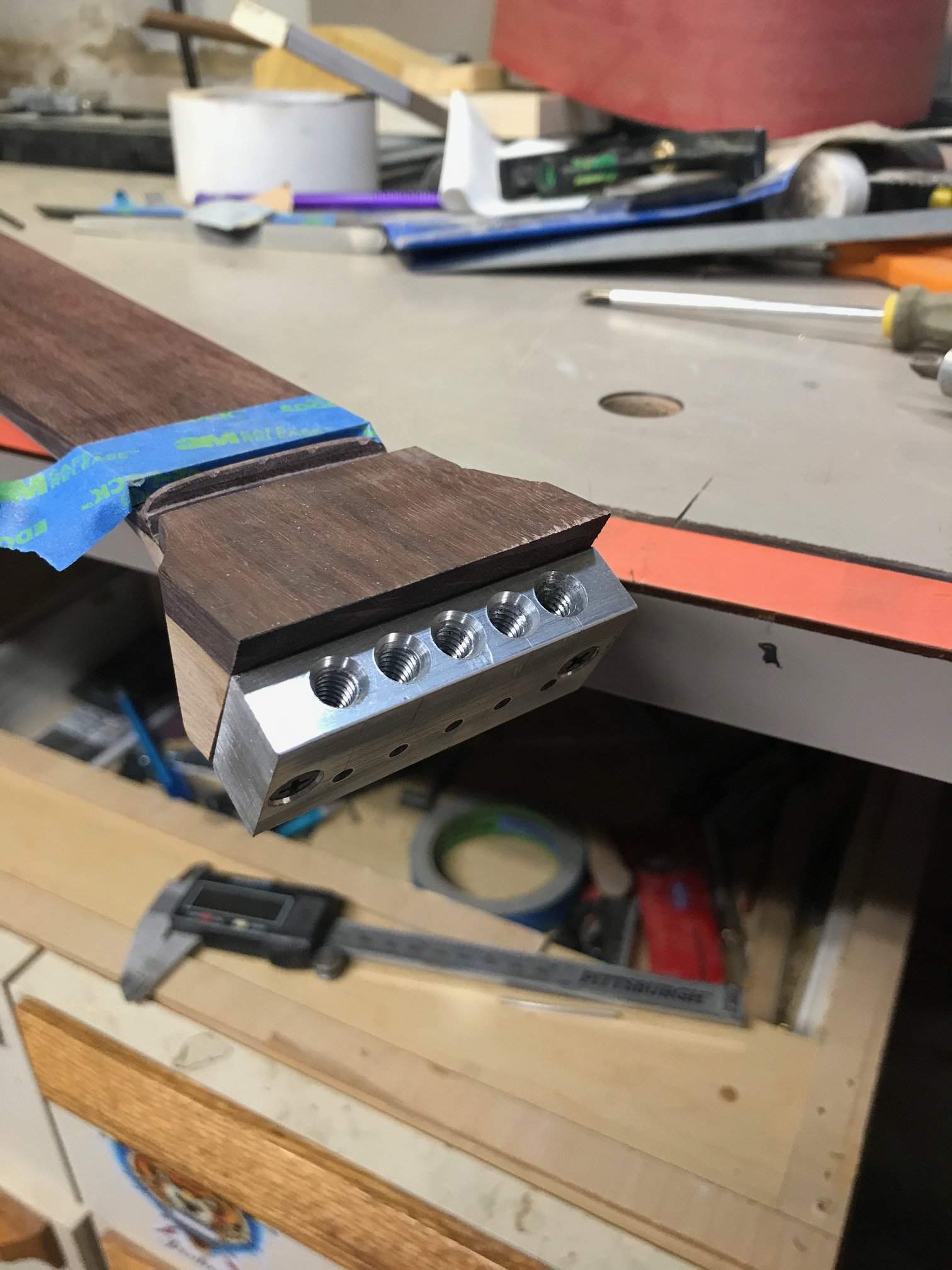

Give head piece a chance.

I'll eventually be smoothing all of this out, but it fits, it's tapped for set screws, all is well!



[rojo412]

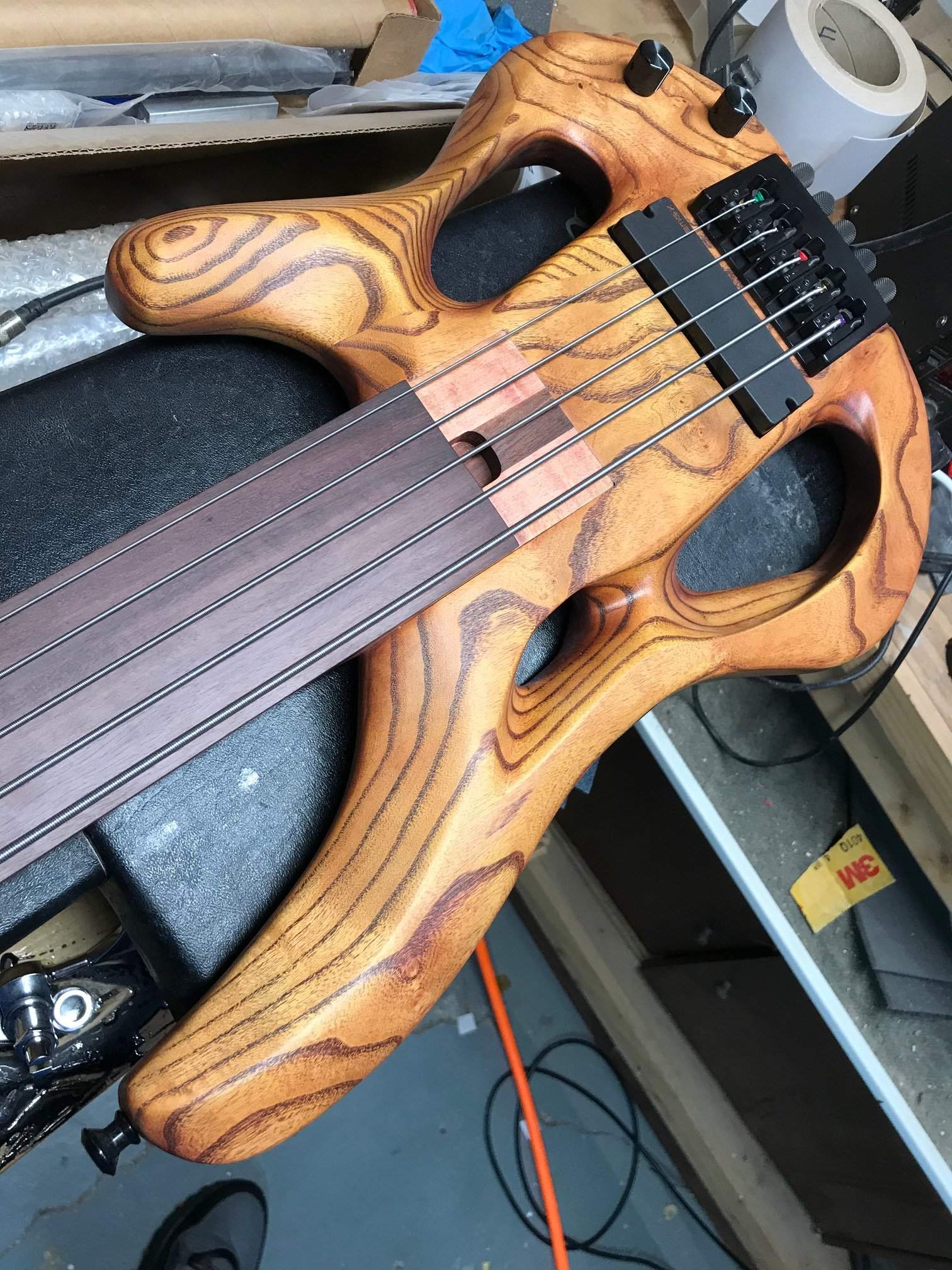

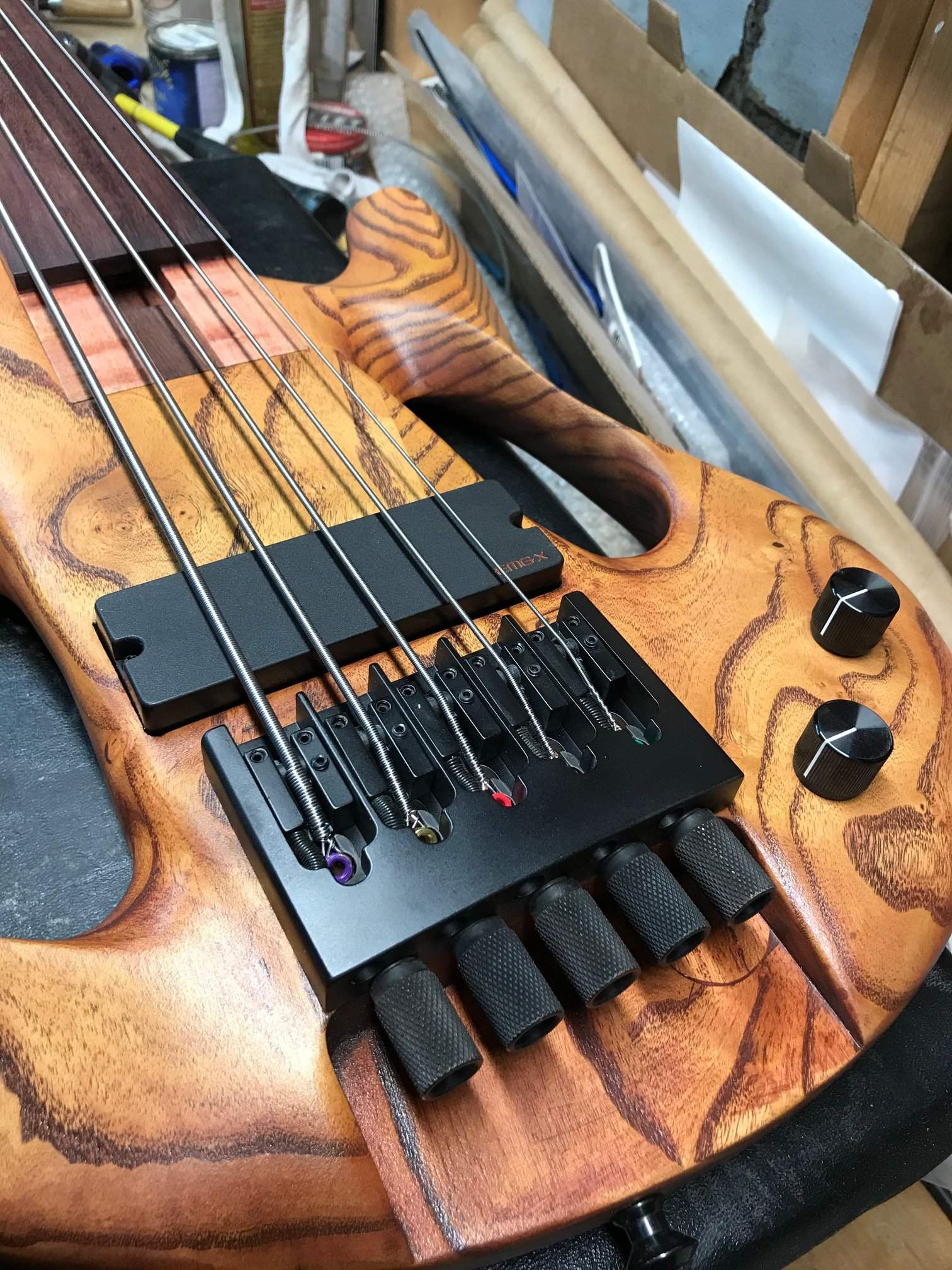

Been a busy week. I got the neck wiped down with Tru Oil and painted the head piece. The body was sprayed with clear and I ended up getting far enough to assemble it for a trial run:

An unintentional bonus? The EMG logo matches the body nicely.
It works and sounds pretty good. Definitely "mwah" city with the rounds and low action. I'm gonna need to fine tune some minor details, but this one may be pretty much wrapped up shortly.

It balances fantastically, it's quite light (8 lbs), and you can definitely move air through it.



[TerribleTim68]

Okay, I’m gonna admit, this thing had me scratching my head the whole time thinking that I wasn’t sure about this. But seriously, the finished product has this weirdness about it that I really dig. The way some of the shapes flow is amazing. I was pretty skeptical the entire way, but seeing it done, I’m sold. Well done man!



[eddododo]

Holy moly! I forgot to ‘watch’ this thread , what a transformation, nice job



[Reedt2000]

It's looking really good! Are you gonna make a cover for the truss rod access?



[rojo412]

No cover, I find them annoying.



[Jisch]

Lots of great stuff happening in this one! Nice.



[rojo412]

I do that with the control covers on my builds, it works so well. I just don’t find the need for covering the truss access, I like that to be readily available.



[Five String]

I just went through this whole thread. Really imaginitive. You may be on to something.



[TN WOODMAN]

Wow. Even better than I expected and I had high expectations. I play only 4 strings but would definitely love to have this . Beautiful.



[Klondike]

First: this is beautiful, your craftsmanship is nothing short of miraculous.

Second: I don't understand the Head, how does the block work and what does it do(beside holding the strings) and how does it accomplish that?

I have never paid any attention to headless basses, for me it's kinda weird but yours peeks my interest.
thanks in advance.



[rojo412]

Thanks to everyone for all of the nice comments!

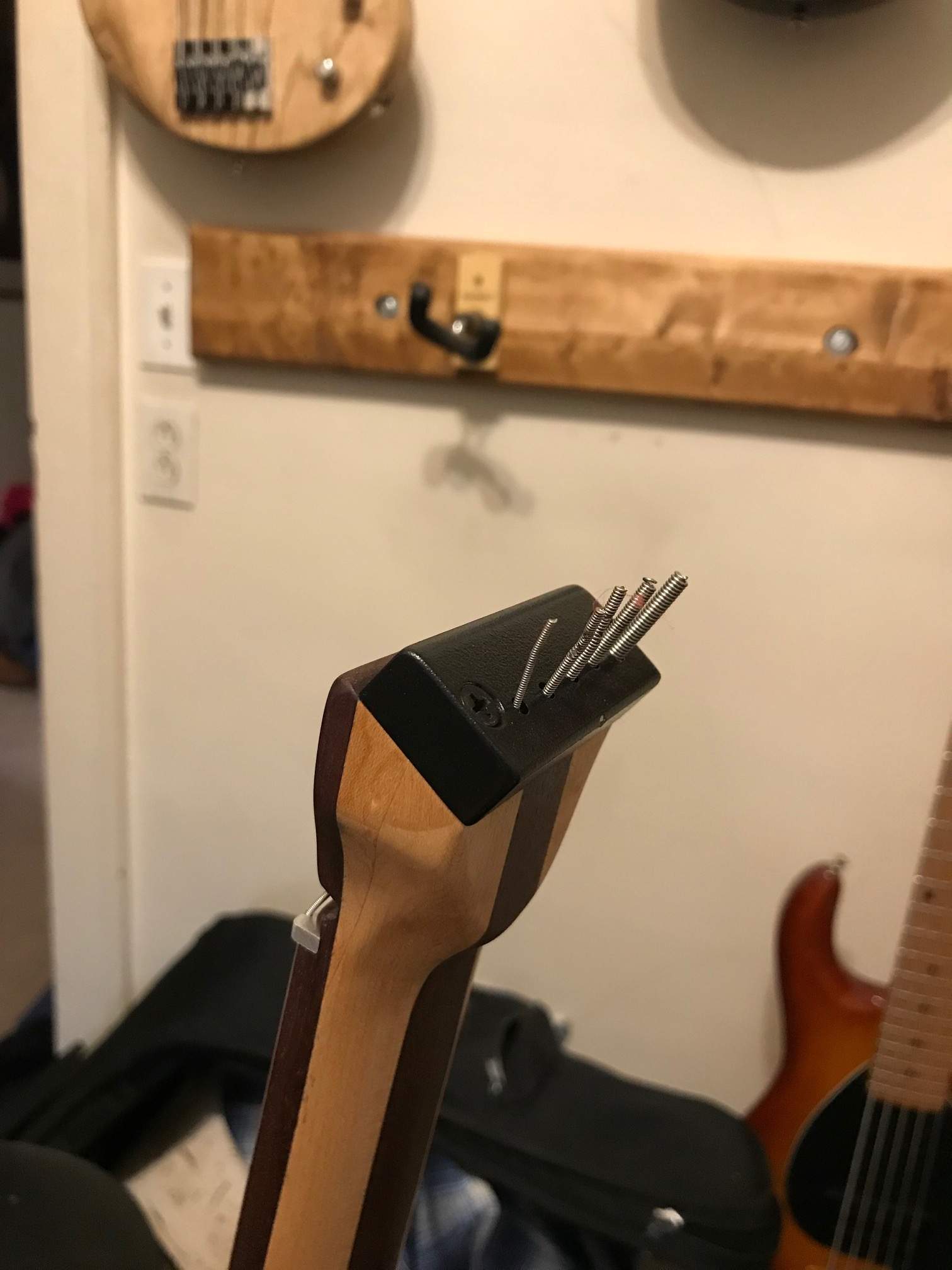

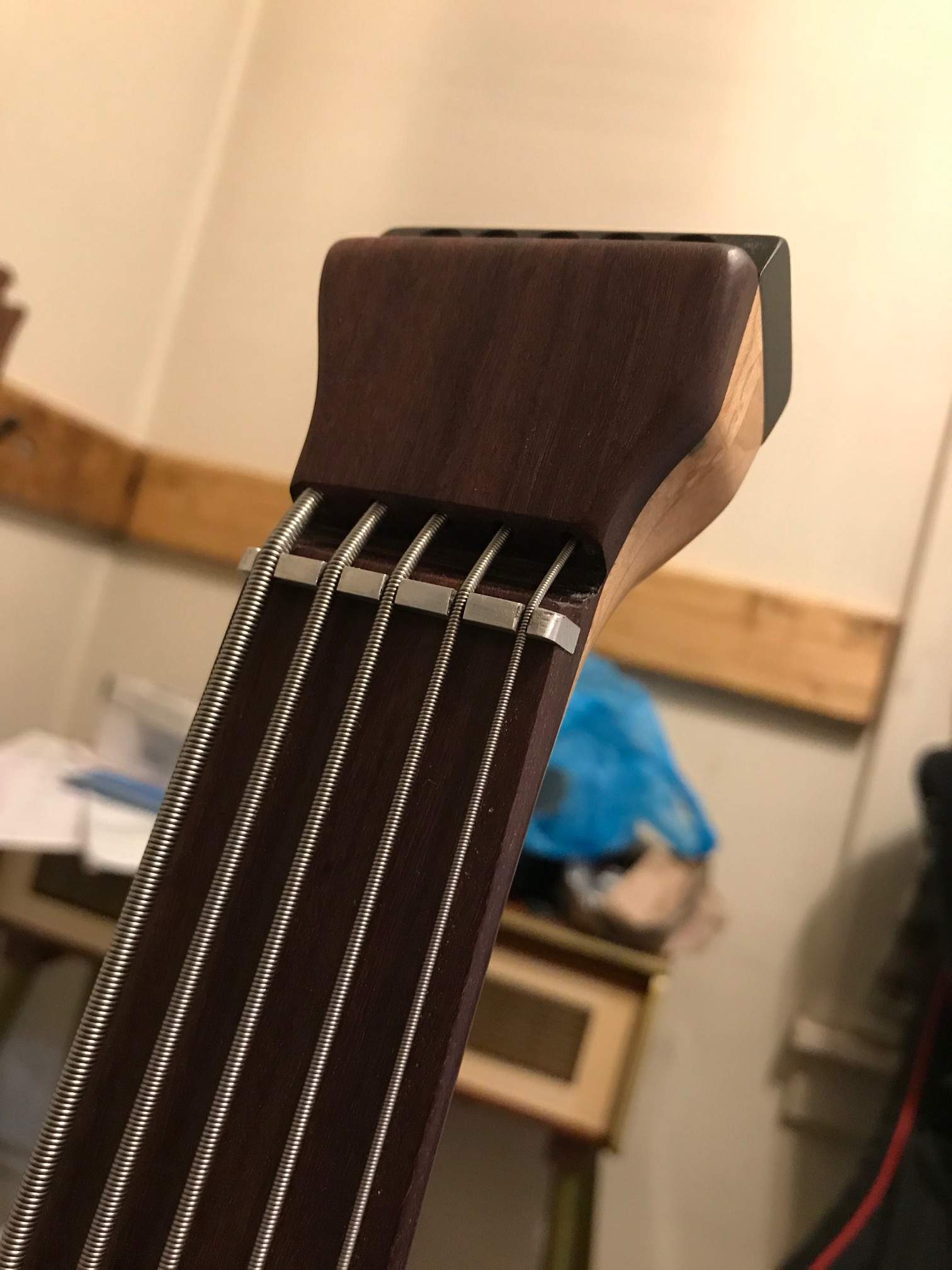

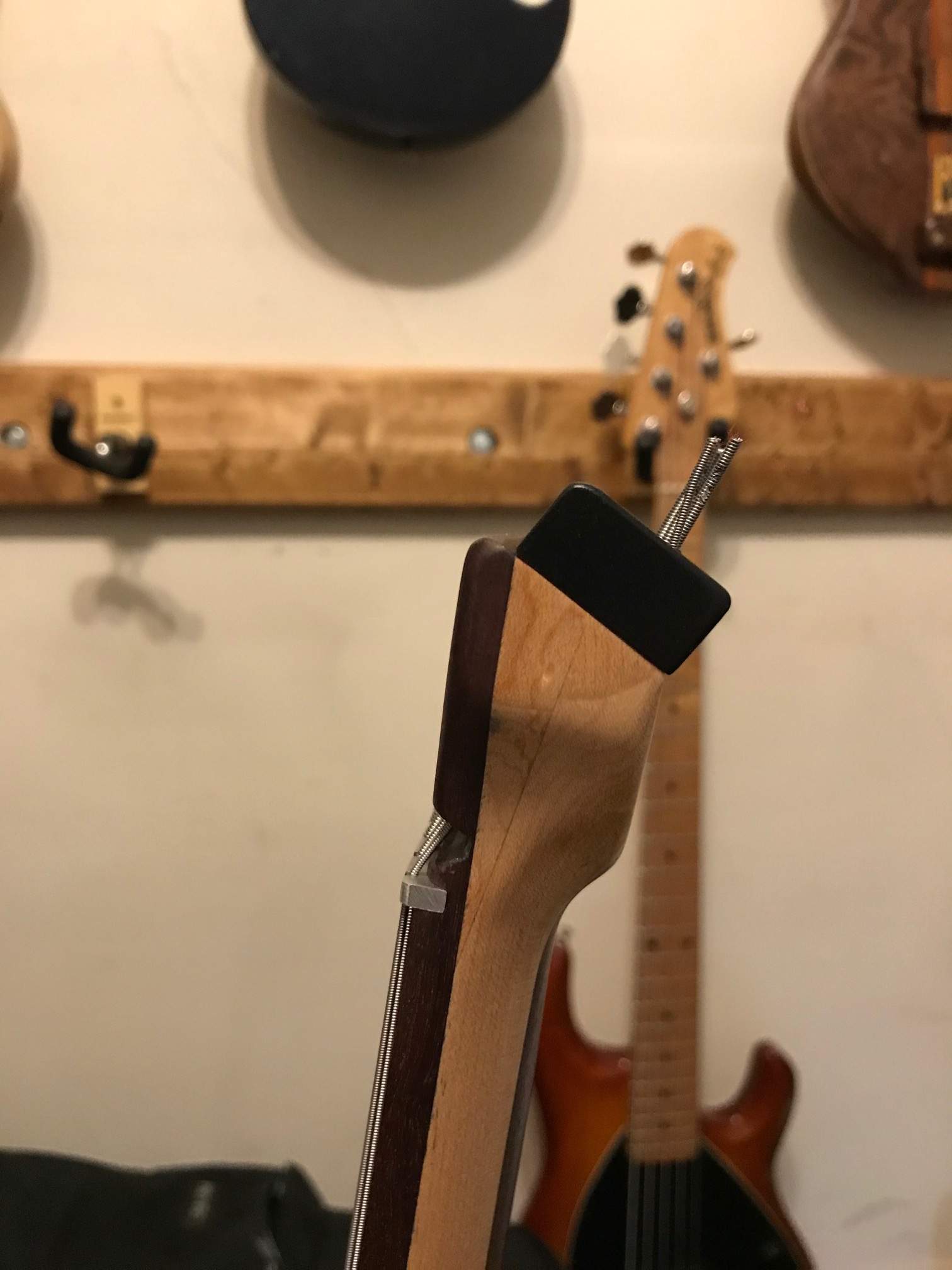

Here's a couple of shots of the headstock setup:

The strings pass through the headpiece and the locking block in a straight path. There are grub screws in the locking block that "guillotine pinch" the strings. Once they are properly tightened, the bridge pulls it into tune.

I had a couple other ideas that were more complex, but this was elegant enough and relatively easy.



[Klondike]

Thanks to everyone for all of the nice comments!

Here's a couple of shots of the headstock setup:

View attachment 3684944
View attachment 3684942
View attachment 3684943
The strings pass through the headpiece and the locking block in a straight path. There are grub screws in the locking block that "guillotine pinch" the strings. Once they are properly tightened, the bridge pulls it into tune.

I had a couple other ideas that were more complex, but this was elegant enough and relatively easy.

That makes sense, thank you for the clarification. Nice work!



[Fat Freddy]

Subbed...



[Fat Freddy]

What a thoroughly beautiful instrument......



[kesslari]

I like that a lot. Curious - what's the string spacing? Looks like 19 mm.



[BishopJP]

Man, that looks great!

Your build is giving me ideas....!



[rojo412]

I like that a lot. Curious - what's the string spacing? Looks like 19 mm.

Thanks!
It’s 18mm, actually. But the bridge is kind of adjustable.



[kesslari]

Cool. Beautiful build, with a lot of really nice touches.



[Andyman001]

Are the string ends left long to prod the guitarist into finishing his solo?
