This is my submission for the 2022 Winter Build Off in the Partial Build category.

I made all of the components, but I glued up the neck beam in 2018 when I built the first version of this design. That is the reason that this build is in the partial build category. If you would like to take a look at the first version, you can find it here.

I see this build as a refinement, or rebirth (to tie in with the build theme) of my previous design. My goals were to take my craftsmanship up a notch, refine the body and headstock shape, reduce the overall weight and take the carving a step further. I'm very happy with the results and I feel like I've achieved my goals while adding some additional experience and skills to my "tool box".

Unofficially, this bass has been dubbed "Qüïmsgëfääërdën ÏÏ (rëvïsïtëd)", since I didn't have a cool sounding name like so many of the other cool kids in the build off.

Specifications:
Neck-through construction
Scale: 34"
Fingerboard radius: 12"
Neck materials: Wenge, hard maple (tapered), bloodwood, black poplar veneer, spoke wheel truss rod
Fingerboard: Figured Gabon ebony
Nut: Gabon ebony
Position markers: White PVC side markers with additional inlaid aluminum/brass/black plastic "bullseye" markers at 3,5,7, etc. Bullseye markers on fingerboard face from 12-24.
Body wings: Mahogany core, padauk, black poplar veneer, with grain matched electronics cover (padauk)
Body top: Book matched quilted big leaf maple
Body thickness: 1 5/16", a little over 33mm
Finish: Rubio Monocoat hard wax over ZPoxy finishing resin sealer coat
Tuners: Hipshot Ultra Lite
Bridges: Generic individual bridges
Strings: Ken Smith taper core rounds (I'm not sure why the B string has a slightly different silk color)
Pickups: Nordtrand Big Splits
Electronics: Passive circuit with volume, blend and tone
Weight: 7lb 11oz (roughly 3.5kg)

A huge thank you to everyone who followed along, commented, encouraged, etc. This has been a lot of fun and something that I enjoyed tremendously. The gang here at TB are a wonderful bunch of people!

An extra special thank you to @Beej for keeping this herd of cats in line. You've done an amazing job all while completing a build of your own. Bravo!

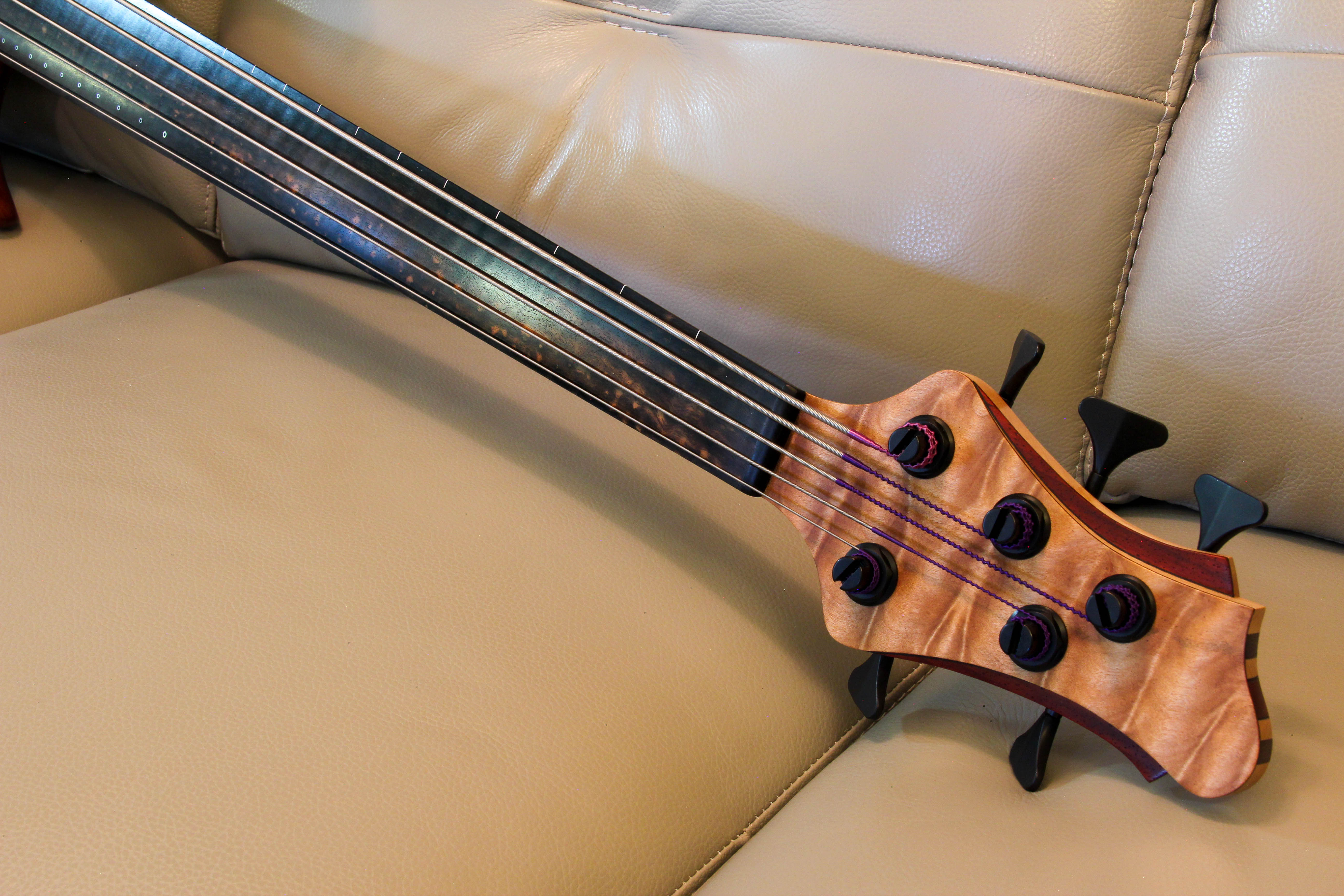

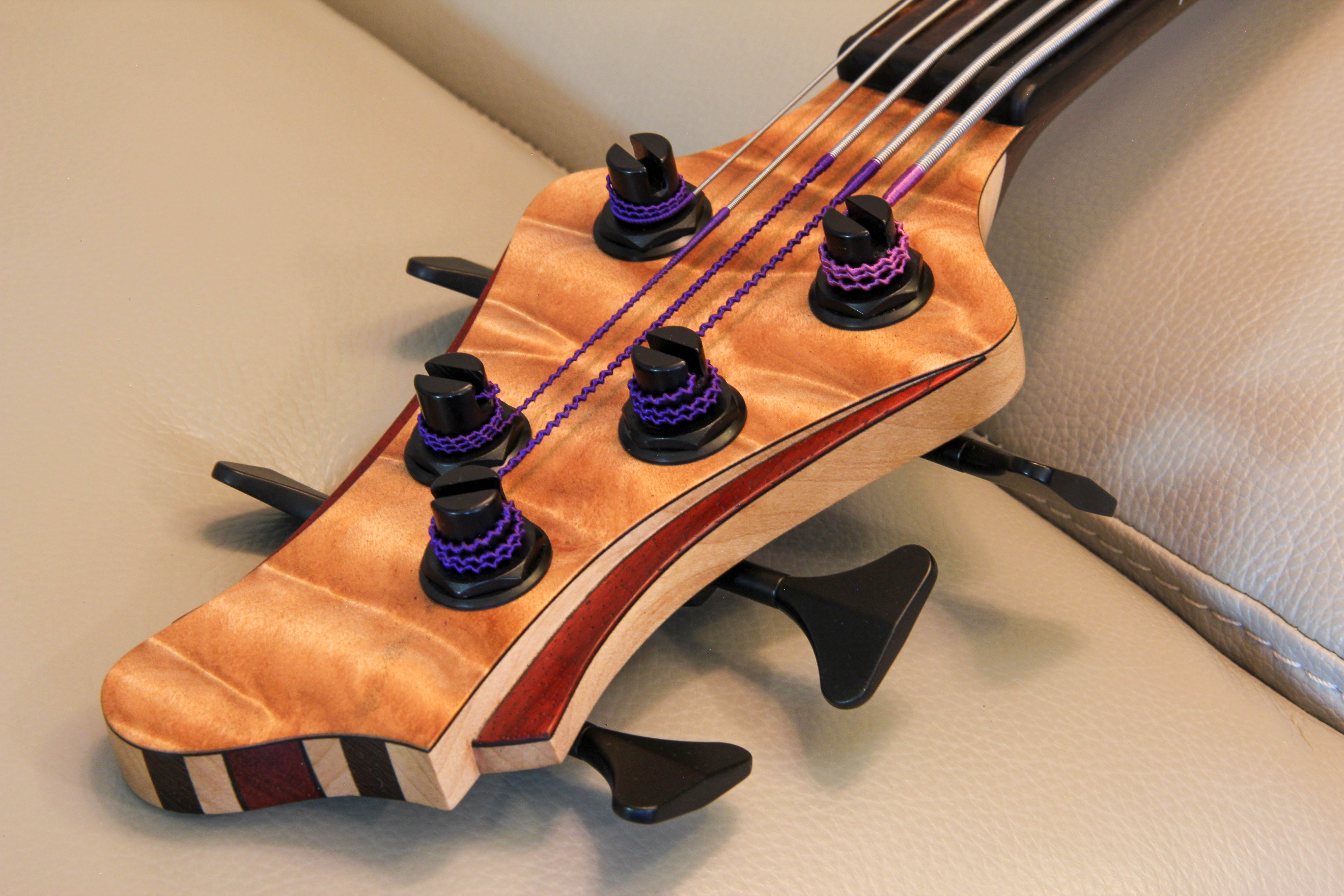

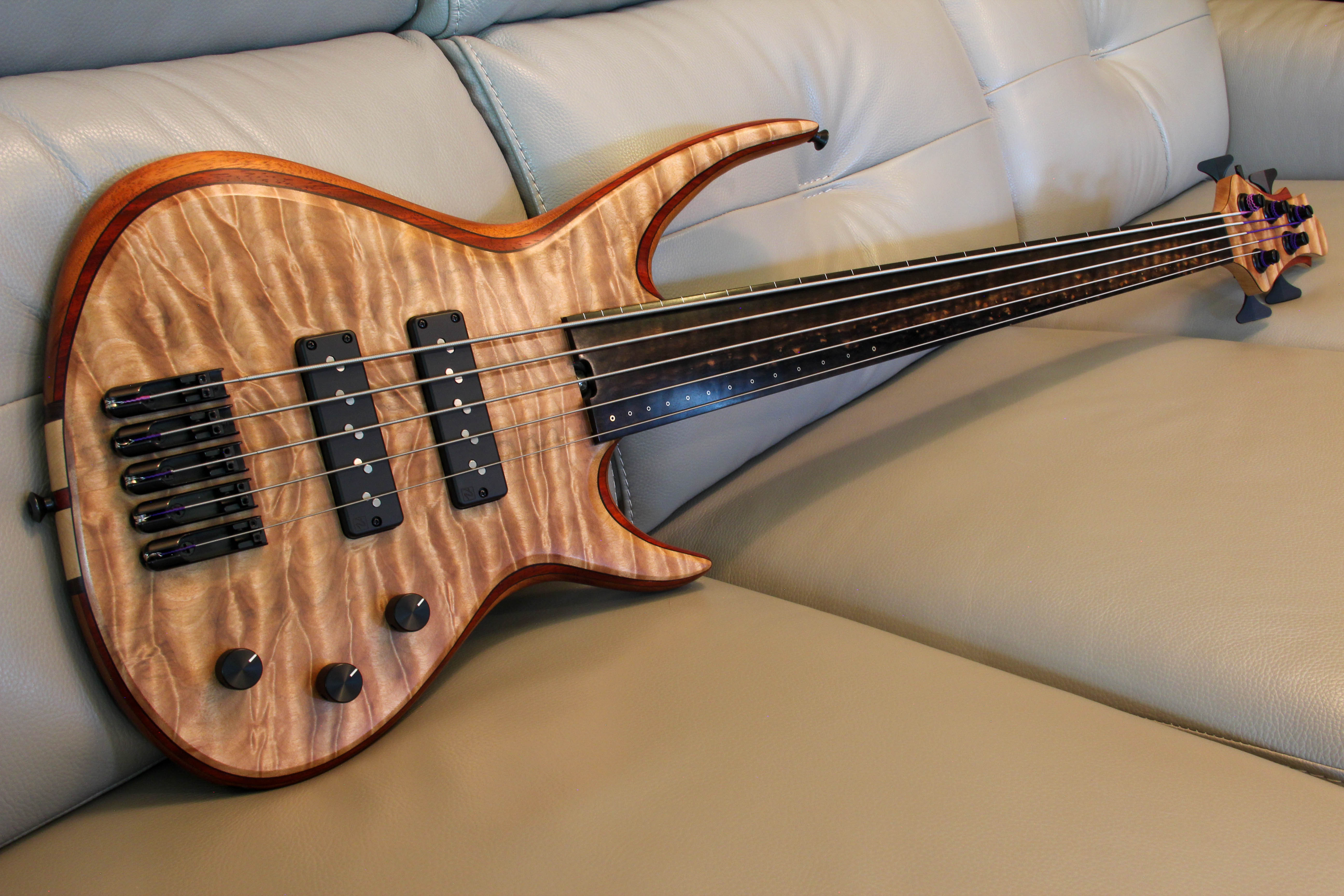

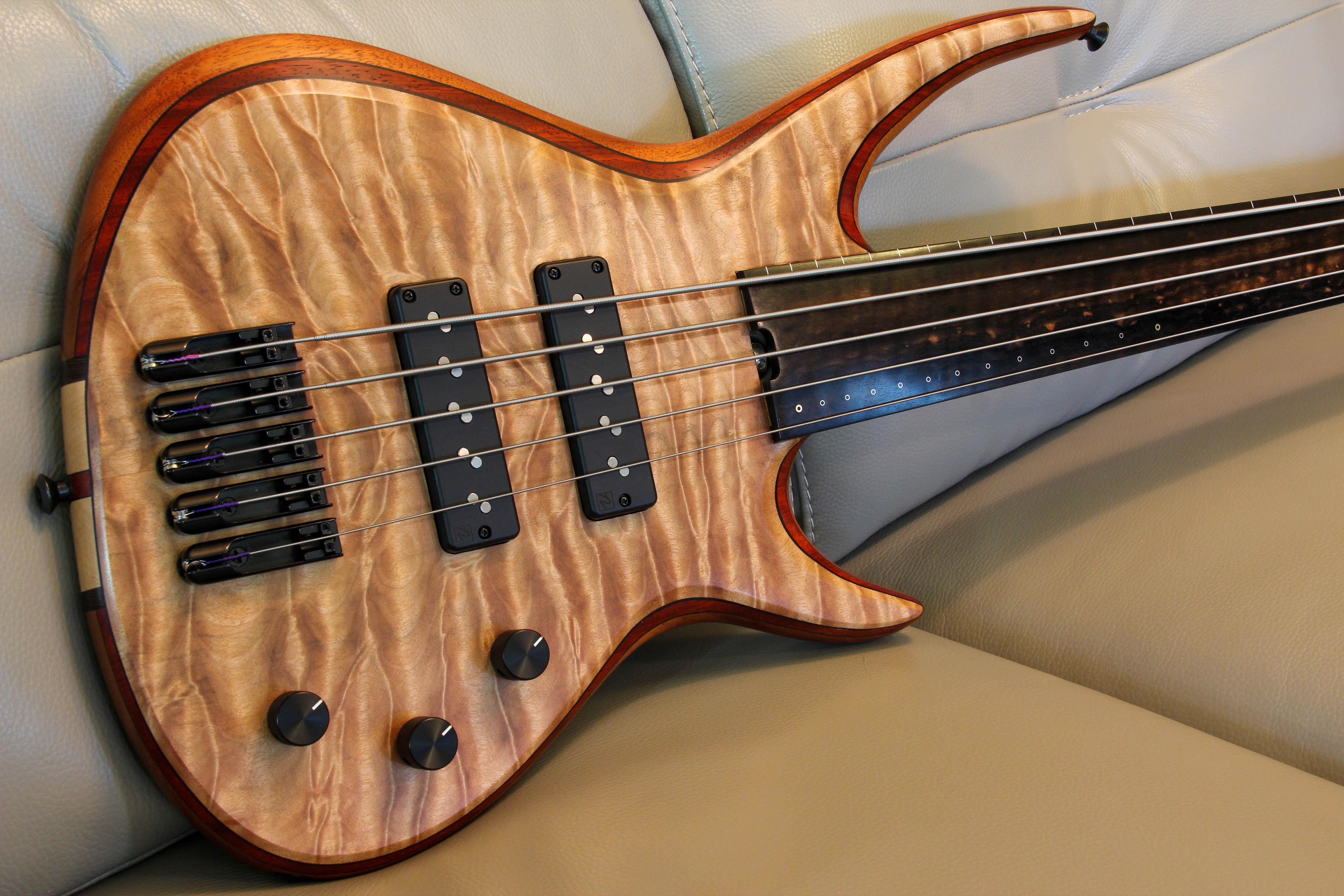

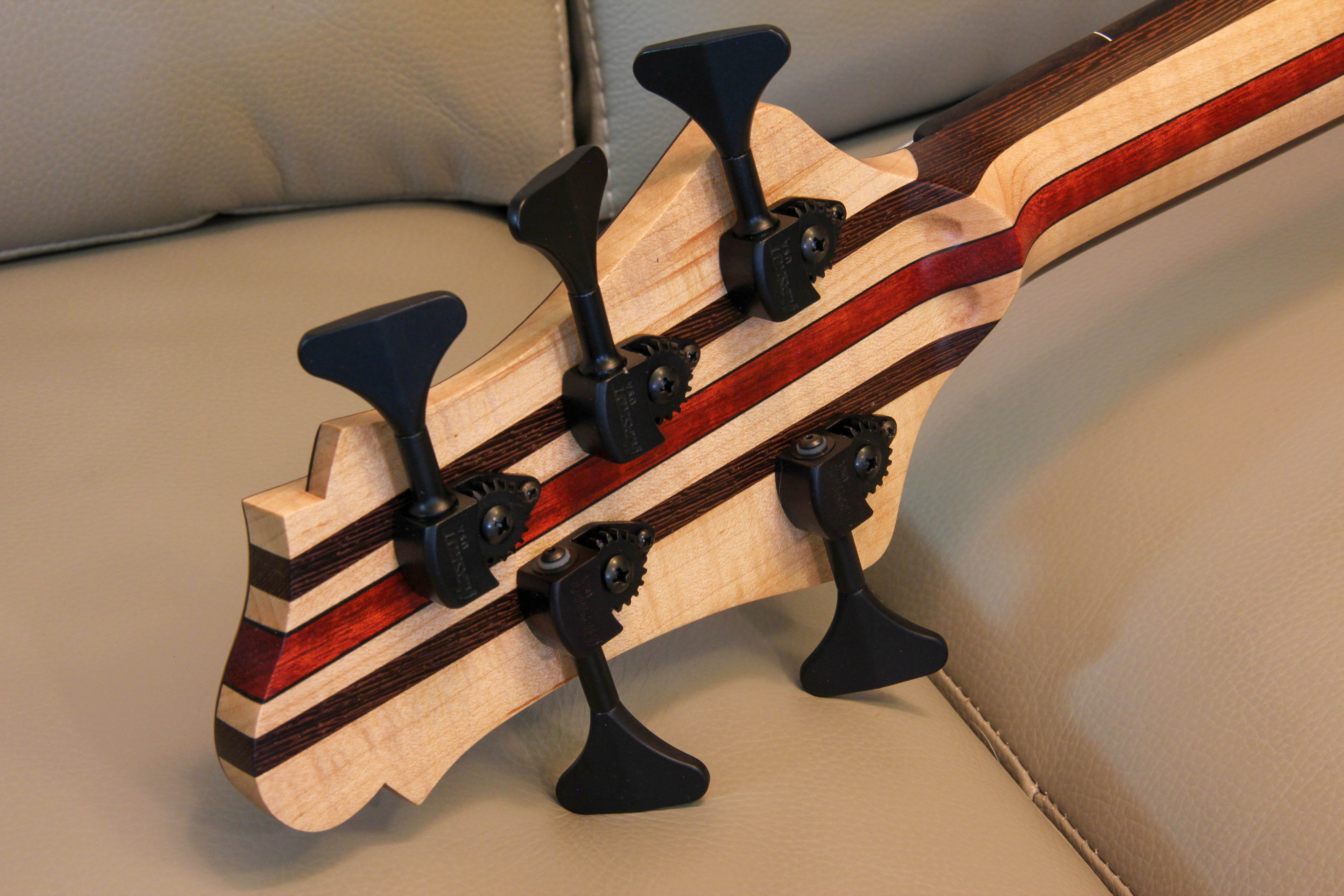

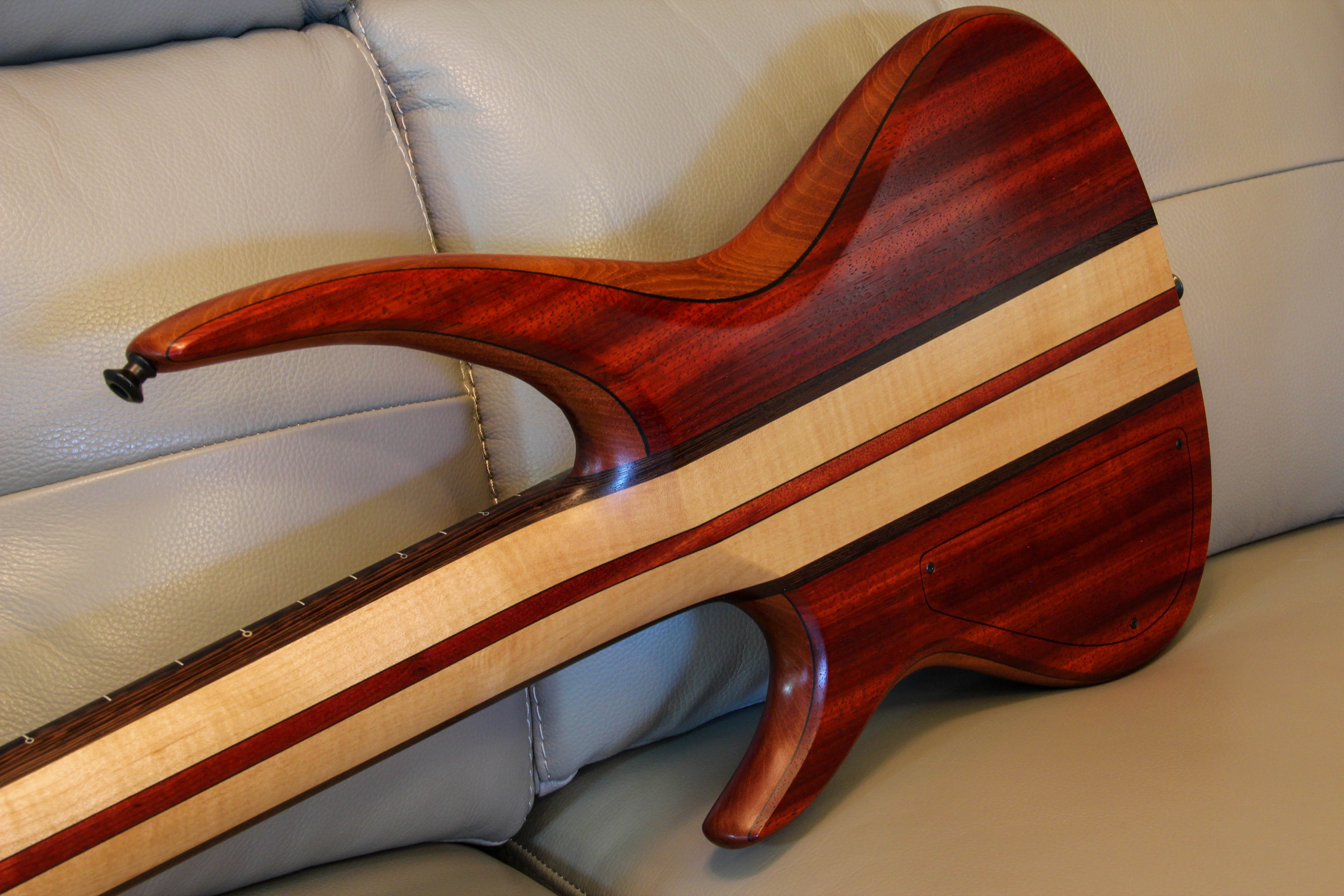

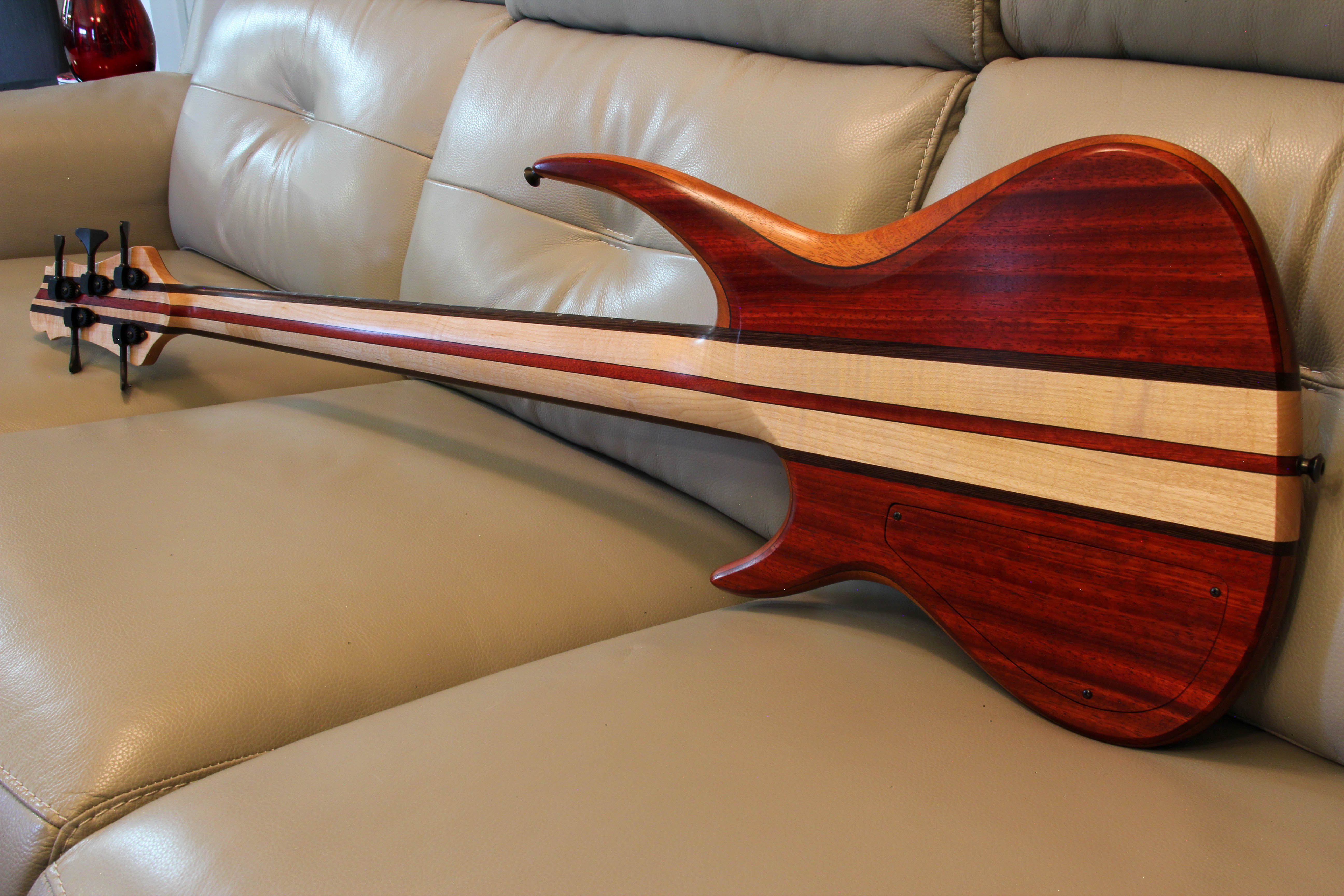

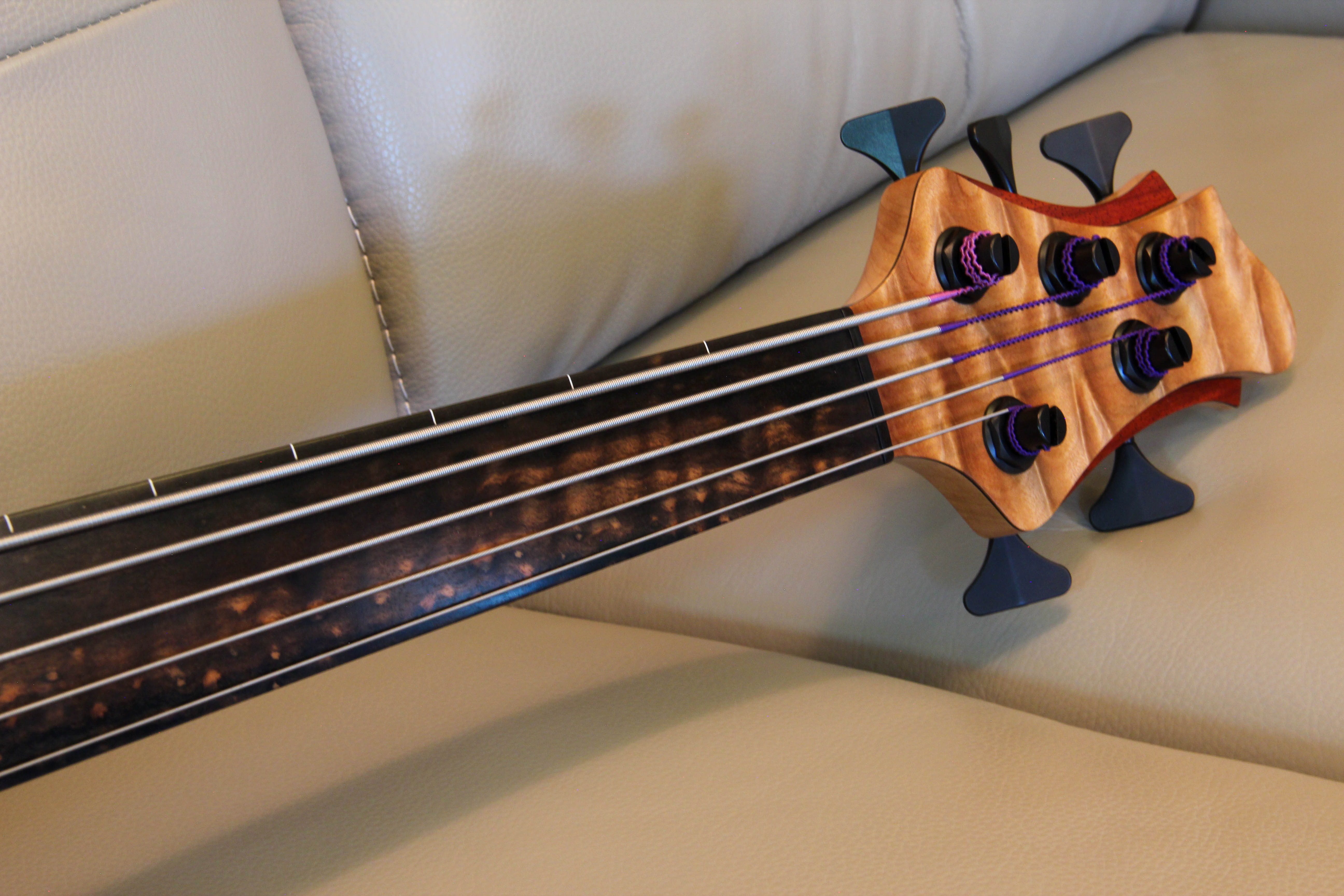

Here are a bunch of pictures of the finished bass, it is completely finished, the electronics work, it sounds great! If I have time later I'll try to upload a sound clip.

Yeah, I know, that's a lot of photos.

I'll make another post shortly with a "build summary". Thanks for looking.



[Reedt2000]



[Bent77]

..



[dmarino]



[Gary_M]

Here's a build summary pictorial.

Pile 'o wood

Gluing on the maple headstock veneer

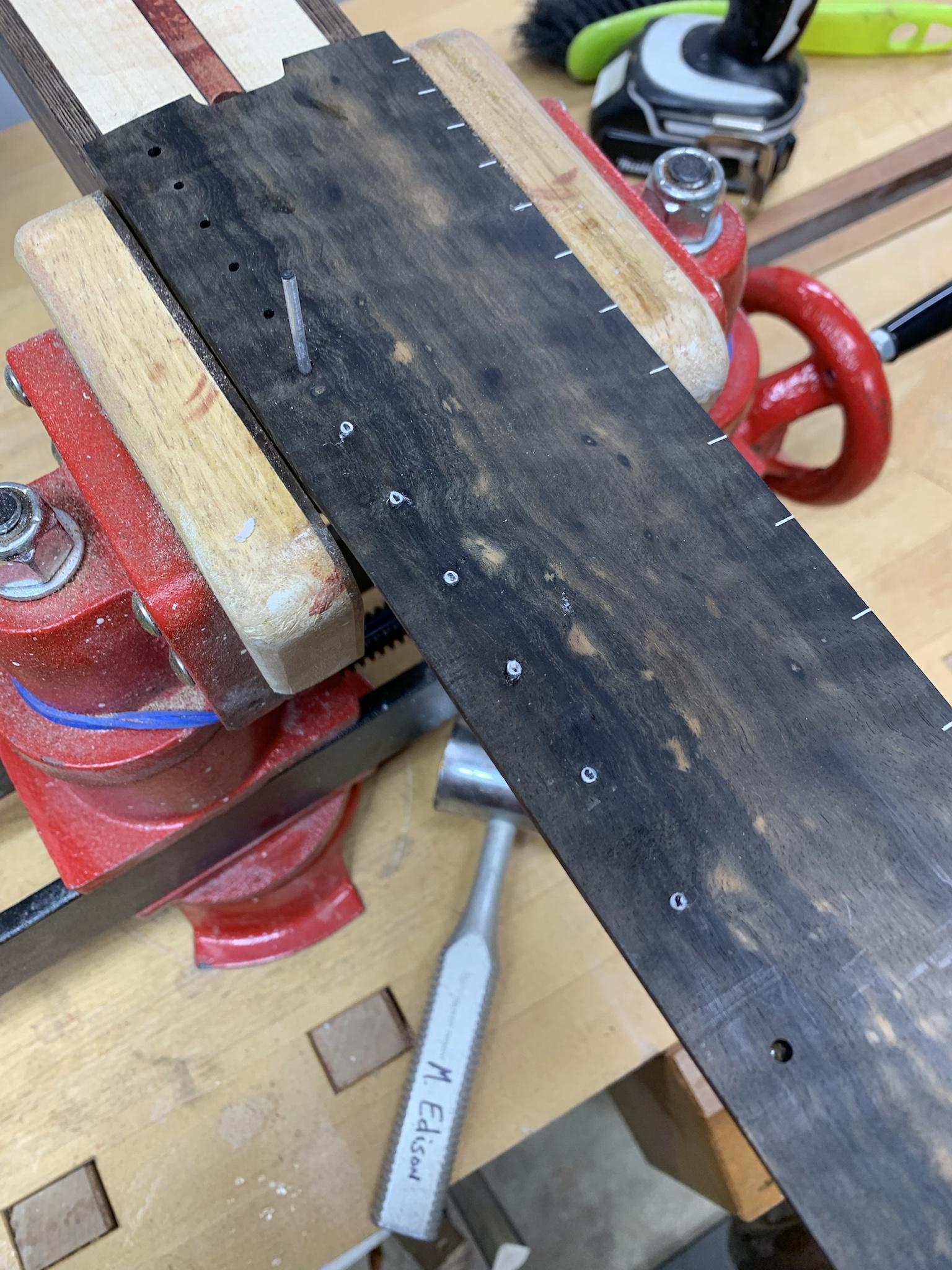

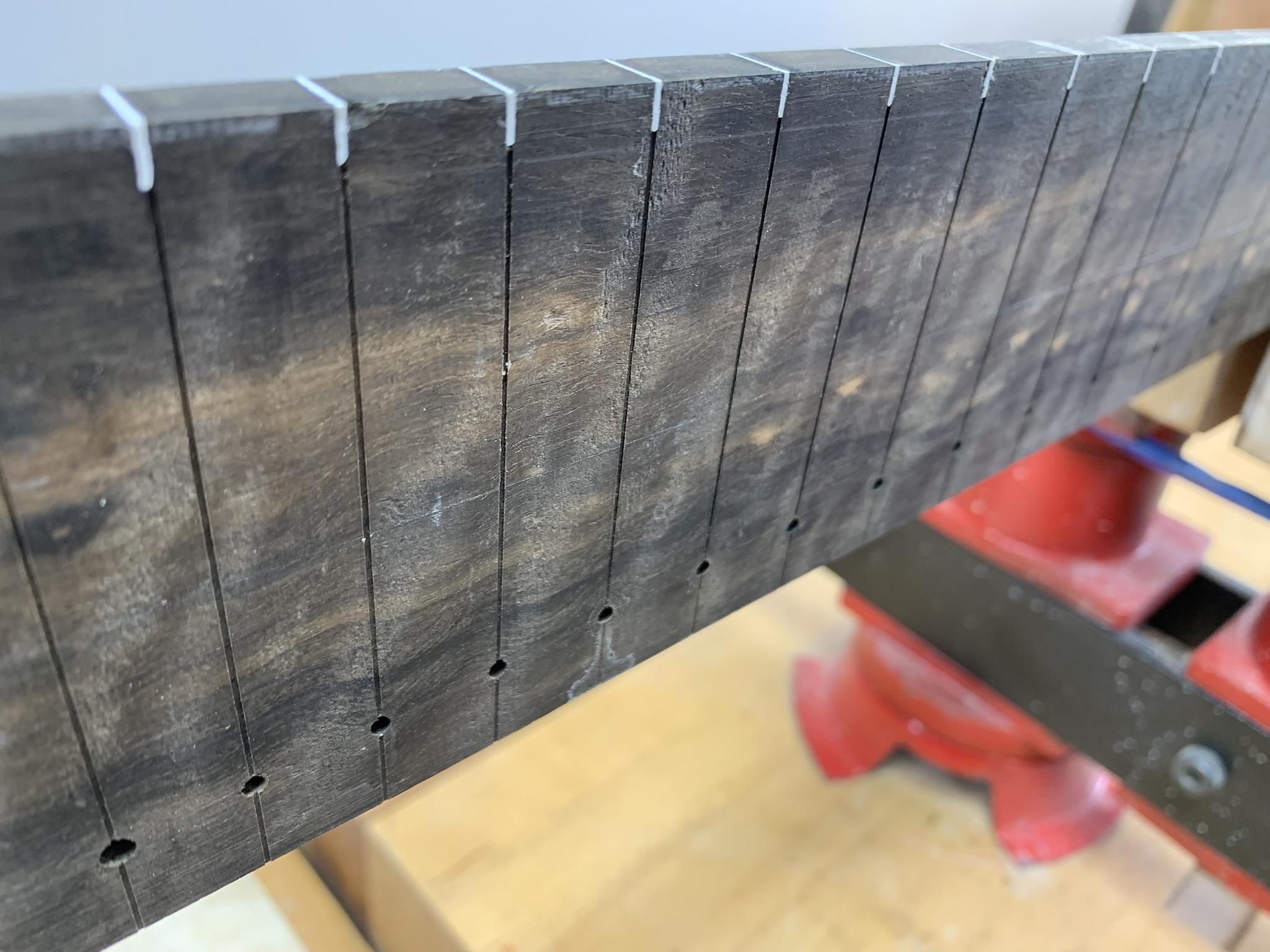

Working on fingerboard position markers

Routing the truss rod slot

Gluing the fingerboard to the neck

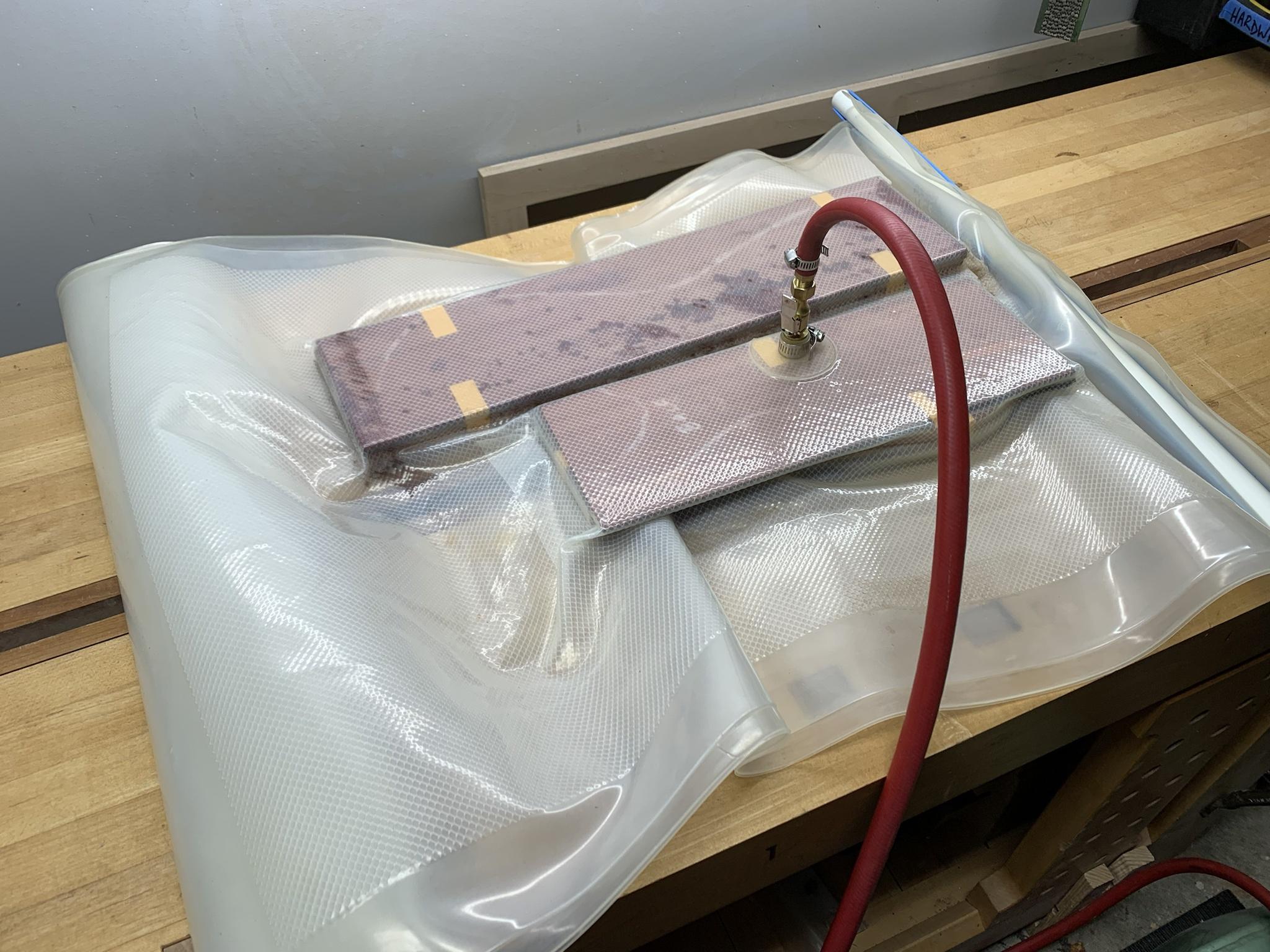

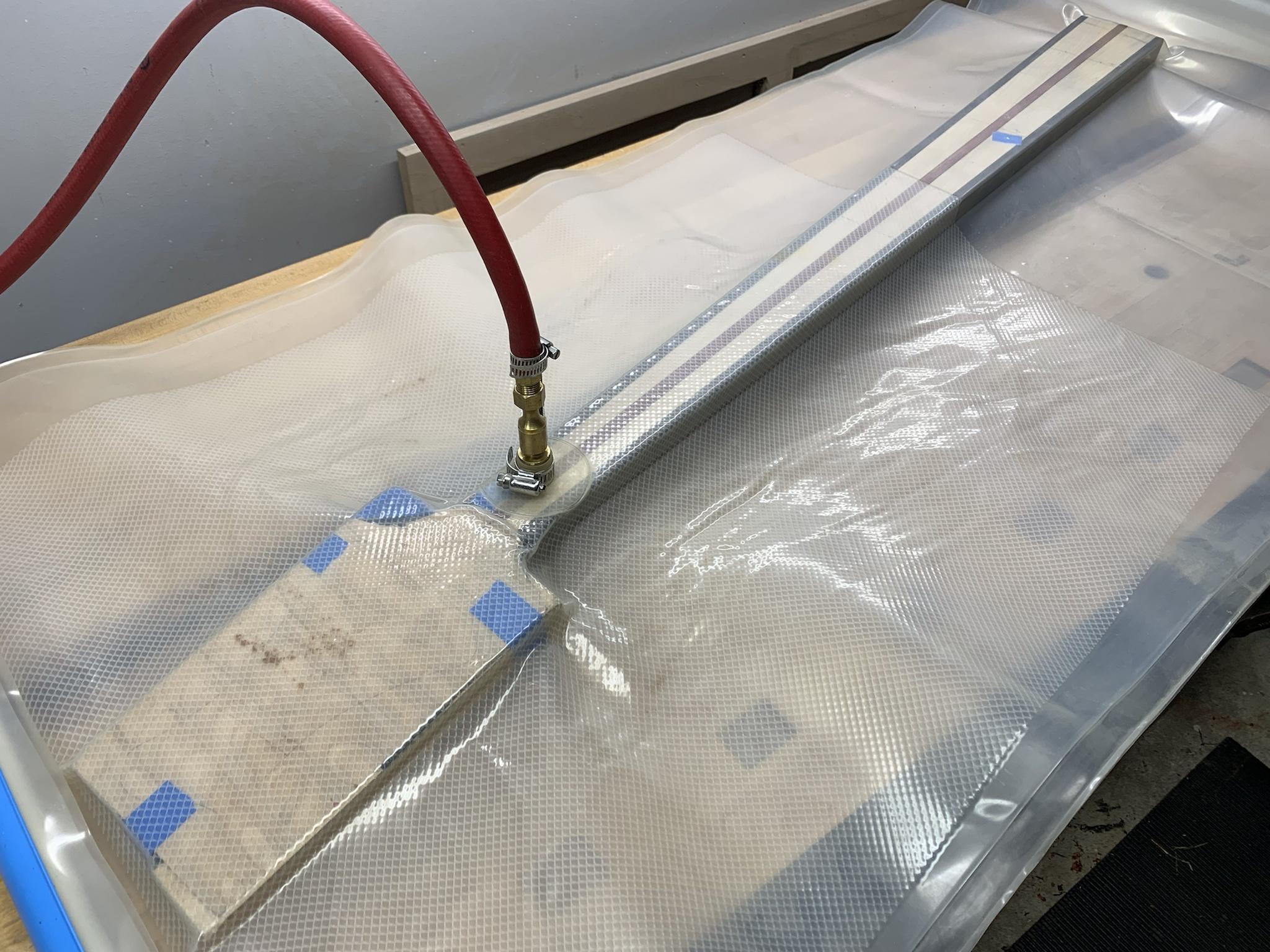

Gluing up the body wing sammiches in the vacuum bag

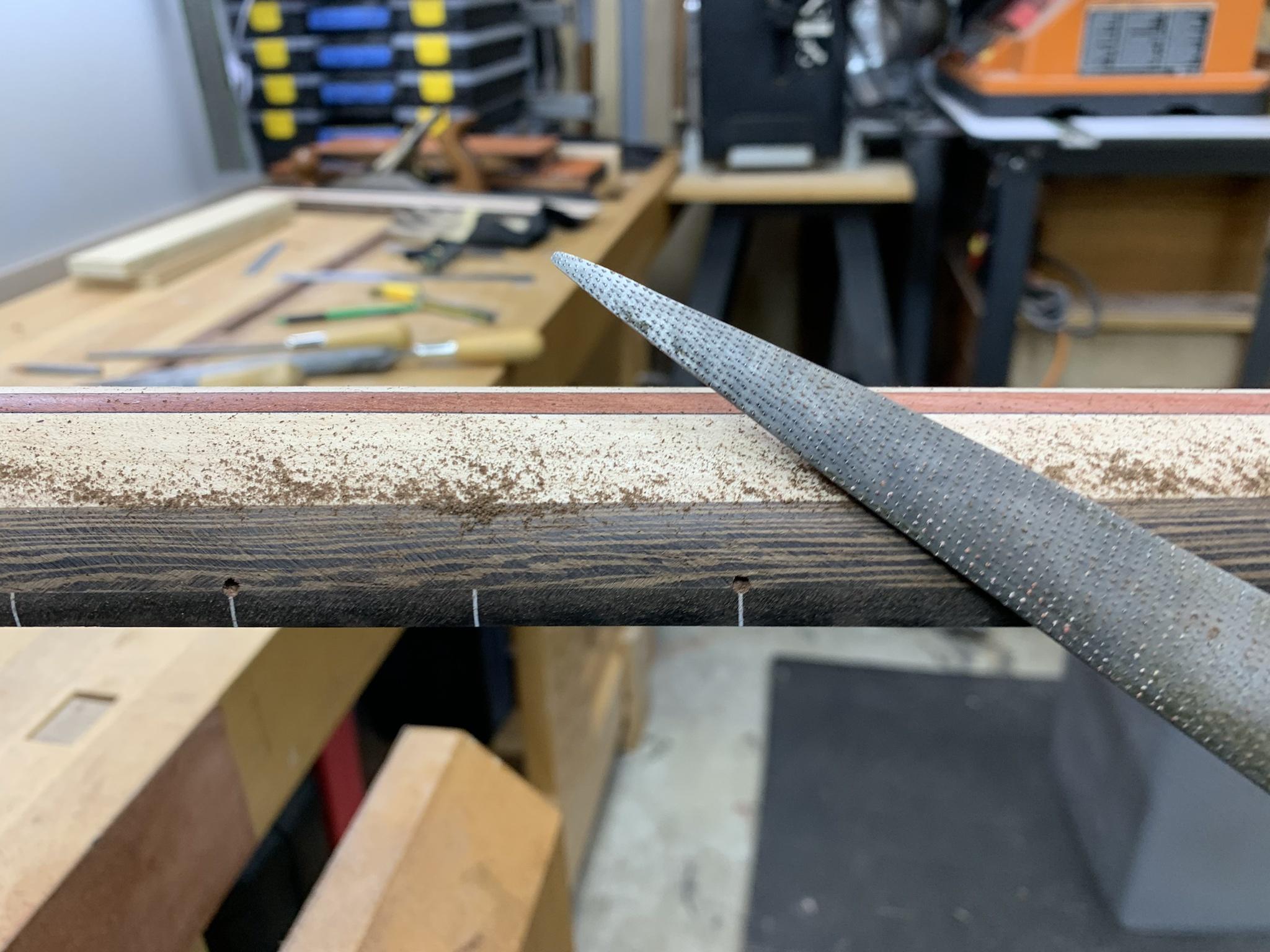

Carving the neck

Installing face markers on the fingerboard

Routed out the headstock "winglet" features which will receive matching padauk and black poplar

Cutting out the control cavity from the rear, treble side padauk laminate

Gluing in the winglet accents

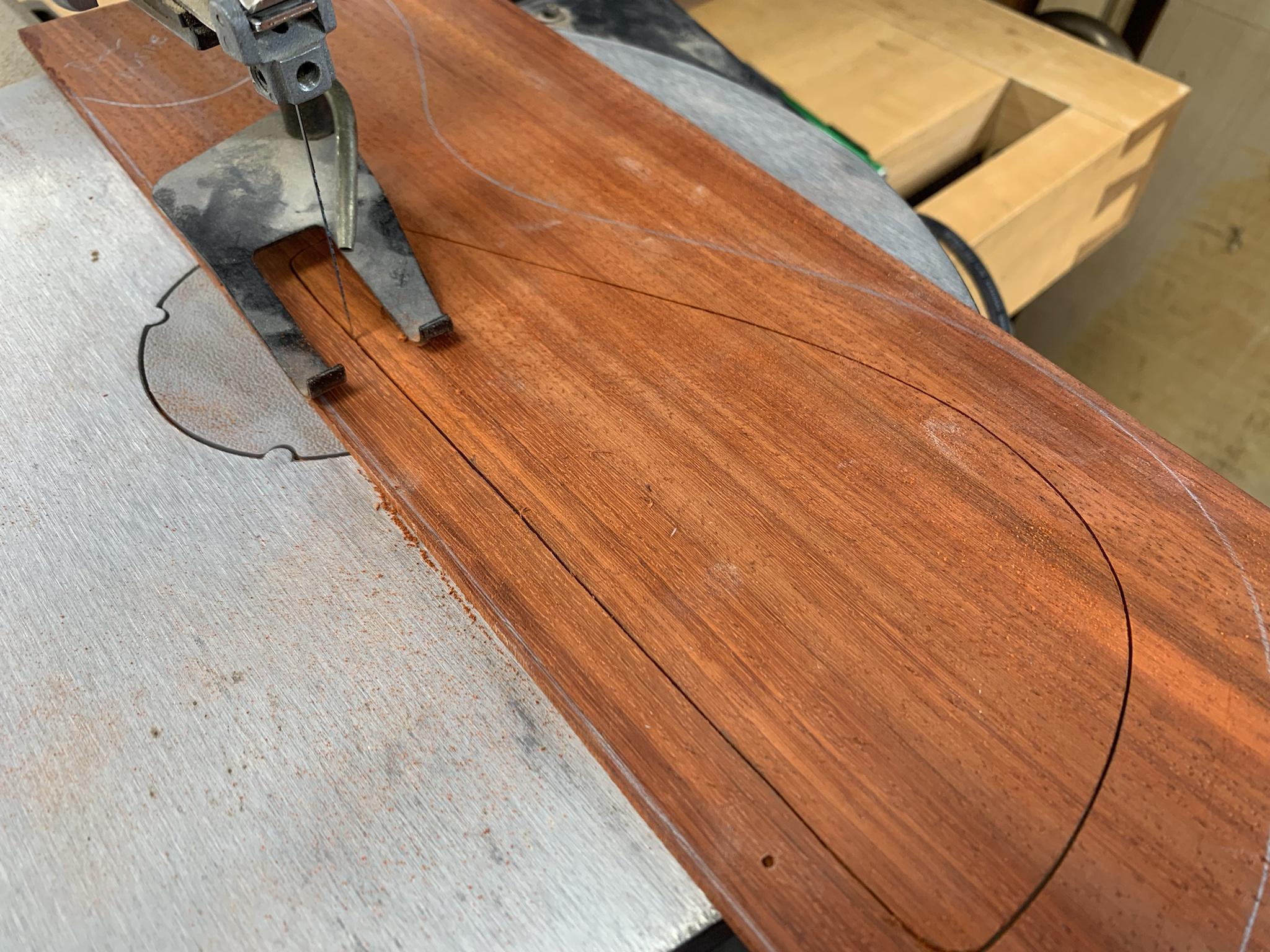

Body wings have been rough cut and ready for pattern routing

Gluing the body wings to the neck beam

Attaching the quilted maple top in the vacuum bag

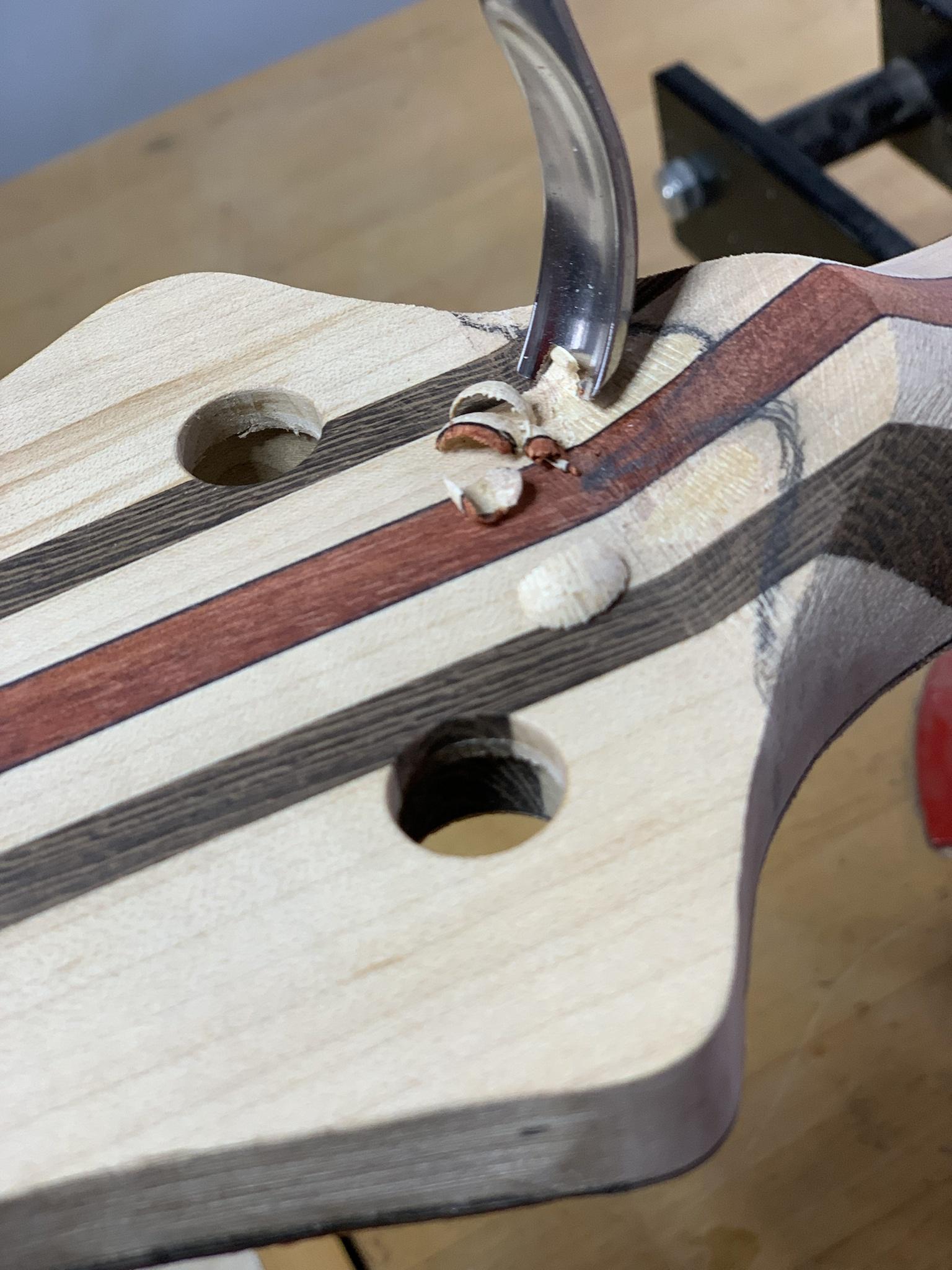

Carving out a little detail work on the volute

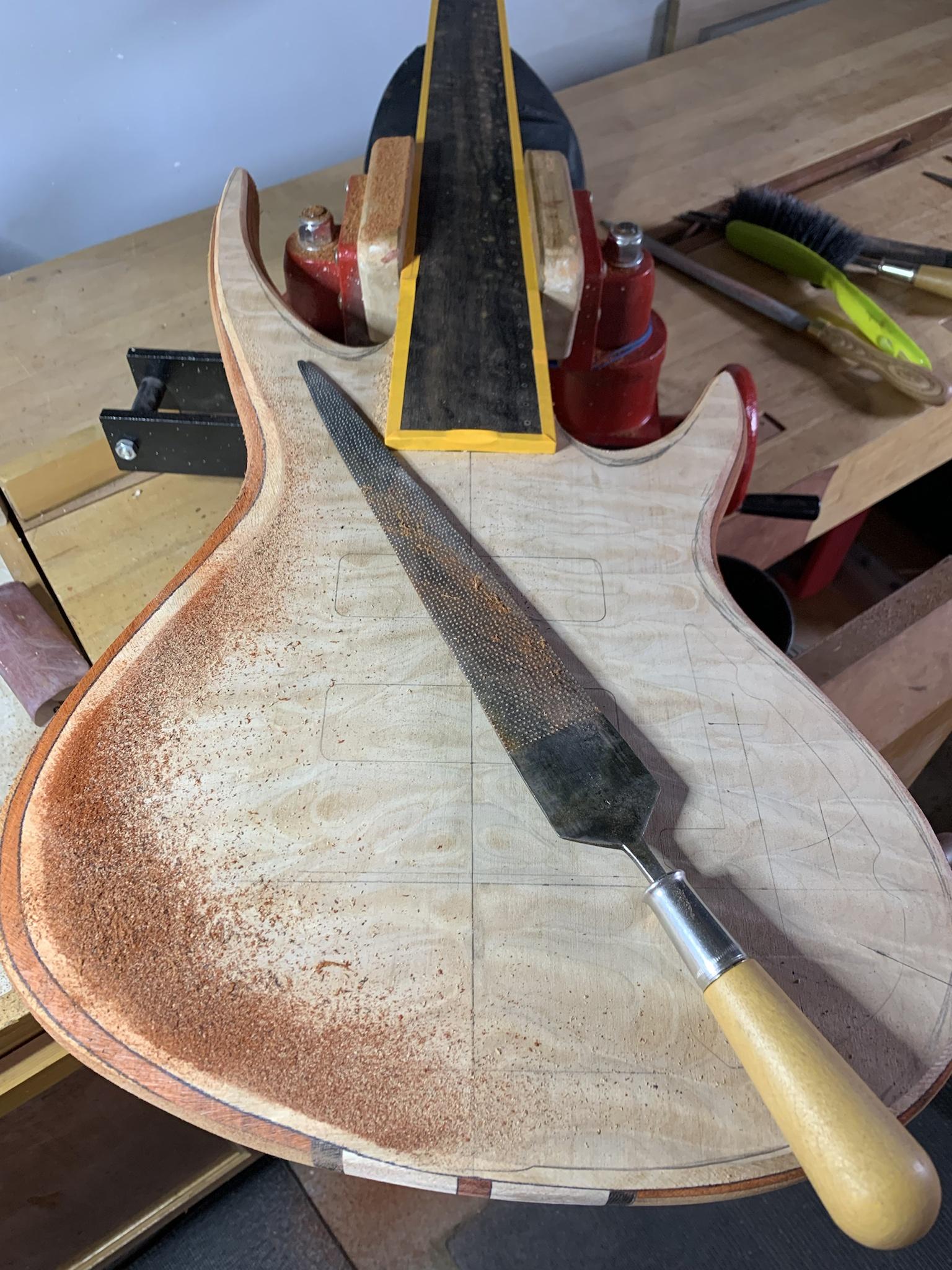

Carving the contours in the body

Shaping the neck heel

Mock up and rough set up before applying the finish

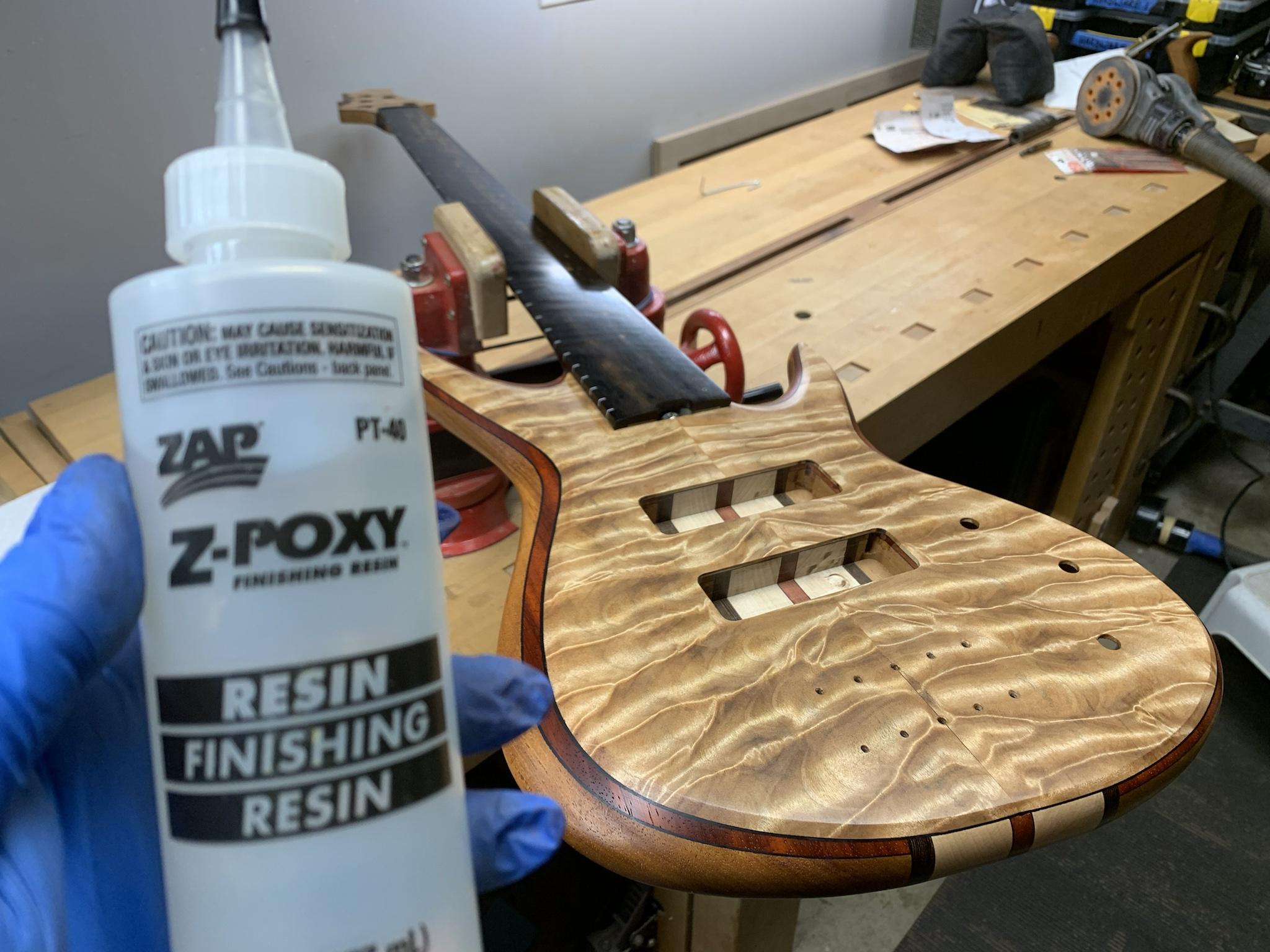

Applying a sealer coat of Z-Poxy finishing resin

A side by side picture with the siblings... V1 and V2

Thanks for following along.
