Winter Build Off 2022 - The Crook

Beej

Supporting Member
Feb 10, 2007
14,272
28,568
Vancouver Island
I’m happy to be entering this: Winter Build Off 2022 - Renewal/Rebirth


This is my entry in the Assembly Build Category

Specs:
Body: Laminated padauk with maple centre stringer and purpleheart stripes
Neck: Fretless 1 piece roasted walnut with purpleheart fingerboard and nut. Padauk/maple veneer headstock cap and back.
Neck/Body Join: bolt on
Scale Length: 34”
Fingerboard Radius: 20”
Strings: some kind of flats, probably chromes
Pickups: EMG 40 DC under custom cover/ramp (walnut with purpleheart cap)
Electronics: EMG active
Controls: Volume/Tone
Knobs: to be determined
Bridge: Sung Il BB105
Tuners: GB7 knockoffs
Finish: Epoxy sealcoat with Minwax wipe on poly
How the theme applies to my build:
I bought this incomplete bass project impulsively when scrolling (get it?) through local ads and the price was right. It was apparently built to this point intentionally and purchased this way with the owner planning to take it to the end. He completed another project like it but decided to part with this one instead. Since it needed completion and is an interesting curiosity that I can’t imagine myself building, I decided to finish it off, while also changing a few things to give it a new lease on life. It will hopefully be comfortable when it’s complete. I plan to keep this as my main fretless when it’s done, but as with many things these days… we’ll see. :D


I was really on the fence about this project initially, but I've fallen into the deep end over the last few weeks. :) With my "shop" still not complete, I needed to be able to do much less scratch building, hence the assembly choice. That said, I've done myself in anyway with all the planned modifications to this thing. Looks like I'll still be freezing my butt off routing in my unheated shed. But I do have a spare room that I can use for many aspects of the build, so I'm going to do my best. :D

I was hoping to get more things ready today as I'd taken the day off, but my little guy had his first dose of Pfizer pediatric yesterday and he was low energy today and needing lots of daddy cuddles and personal attention. He took it like a champ though - compared to the little girl next to us, whom if I had to guess by the sounds only, had two toes cut off with rusty pinking shears by freddy krueger. :whistle: My son was like "that girl hates her nurse now". :D

Well, I was hoping to spend the day working on this build, but as some know, I work in health care, so thanks to omicron, I'm called back to work. Yesterday was the highest case count of any time in the pandemic and we are already slammed with preparation and action. I literally can't believe the workload facing me for the next two days. First proper update will likely be the 25th, unless I have enough energy tonight to attack this thing. :woot:

Well, I was hoping to spend the day working on this build, but as some know, I work in health care, so thanks to omicron, I'm called back to work. Yesterday was the highest case count of any time in the pandemic and we are already slammed with preparation and action. I literally can't believe the workload facing me for the next two days. First proper update will likely be the 25th, unless I have enough energy tonight to attack this thing. :woot:
Yikes! Stay safe!

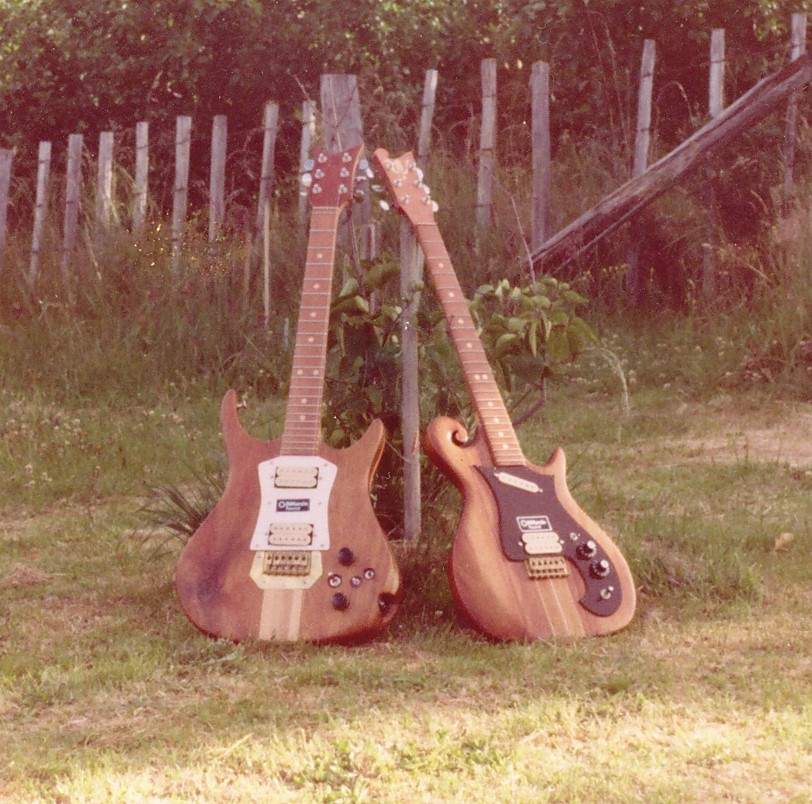

I do like a scroll too. The second scratch build I ever did back in 1977 was a through neck "hippie sandwich" (I really hate that term!) with a scroll.

Anyway, looking forward to the build.

(excuse the dodgy photo, back in 77 I was a penniless student with only an Instamatic camera. (Kids, ask your grand parents what an 'Instamatic' camera was/is...)

1 A. First Electric Guitars.jpg

  • Like
Reactions: DucRyder and Beej
I'm no hero, but I get to work with them. :angel: I worked late christmas eve and then yesterday was a writeoff with all the usual shenanigans. I was going to tackle it this morning, but I awoke to find our water line has frozen solid. o_O On-call plumbers are like "huh, don't know what to do about that" and other versions of "I made the mistake of agreeing to take the on-call cell over the holidays and now I don't want to respond to any calls no matter how easy because it's colder outside than it's been in years". One guy actually said "well, suppliers are closed, so I don't know where I'd get some temp pex line". Seriously? You're a plumber with 6 trucks on the road. Try any of them, there will be a 900' roll in each one! :rage:

Anyway, while I book a hotel for my house full of people, I thought I'd at least update where things are at. Here are a few closer shots of what I'm working with for this rebuild. I first took everything apart and took some detailed measurements. Then I traced it and used those detailed measurements to create an accurate measured drawing, which is under everything in the wood pile pic above. The neck needs lots of shaping and a rework of the headstock, but the heel and width dimensions are workable for moving ahead as they are, so I'll work on addressing stuff on the body.

I traced the measure drawing with a sheet of parchment paper, cut it out and overlaid it on the body to mark where a few reshaping cuts will be.

I'm reshaping a little area by the lower horn - mostly to help improve access to the upper registers of the fingerboard, and to smooth out the visual line between the horns as it crosses the neck.

I also will change the tail of the bass quite a bit by adding in a swoop reminiscent of May Custom Basses scroll designs. There's a lot of meat from the bridge base to the tail and my previous experience tells me this negatively affects ergonomics on a full scale instrument. So I'd like to get that tail strap button much closer to the bridge to help with this. I traced around the parchment paper with a sharpie to transfer the line much more clearly to the body so I can better see where to cut.

Here's a shot of the neck pocket that shows where it needs some cleaning up and possible reshaping. I have some padauk veneers I will probably glue inside the pocket edges so I can re-rout the neck pocket for better centering on the body.

The pickup rout is also not square, much too close to the bridge, and routed for an overly large pickup. I'll be making a cover/ramp and making a much larger rout for the EMG.

The control cavity is fine as-is even though I'm not a huge fan of the location way against the extra deep tail. I'll be making a new purpleheart control cavity cover that will be close to the edges of the cavity, countersunk flush with the top, and held in place with magnets. I'm thinking the jack will be on the back of the bass in a strat jack format like several of my designs.

Lastly, here's the scroll as carved by the builder - it should work well enough as is for my purposes, though I'll be carving it more.

Overall, the joinery is pretty good on this bass, the shaping is a bit rudimentary and the lines could be a little cleaner, but not bad as a frame to work something up. :thumbsup:

Ouch! Hope nothing is burst. Amazed you managed to get anything done with all that going on :jawdrop:
Super annoying :/ It's temp line that has frozen, so it would be nothing for them to heat the copper pipe on either end and just run a new temp. I'll then keep the water running. One guy has refused to touch it since it's a job already already underway by another contractor.
