Winter Build Off 2022 - The PeavEsh StinGer

[Flamingo21]

The factory 4-string versions of these bridges have 4 across.

.... and the 5-string version has three. What this tells me is that they found three screws to be sufficient, but they decided that on the 4-string version, leaving one of the four channels screwless would not look good. On the 5-string version, they didn't have that problem.

But your 5 screw bridge will be fine.



[AudioTaper]

Why y'all pickin' on muh' bridge?!



[Flamingo21]

Why y'all pickin' on muh' bridge?!

Cuz ain't no strings on yo' bass fer us to pick.



[AudioTaper]

Cuz ain't no strings on yo' bass fer us to pick.

Shoooot, if it were up to me itd be done a month ago.

I still have a week to get strings on it



[AudioTaper]

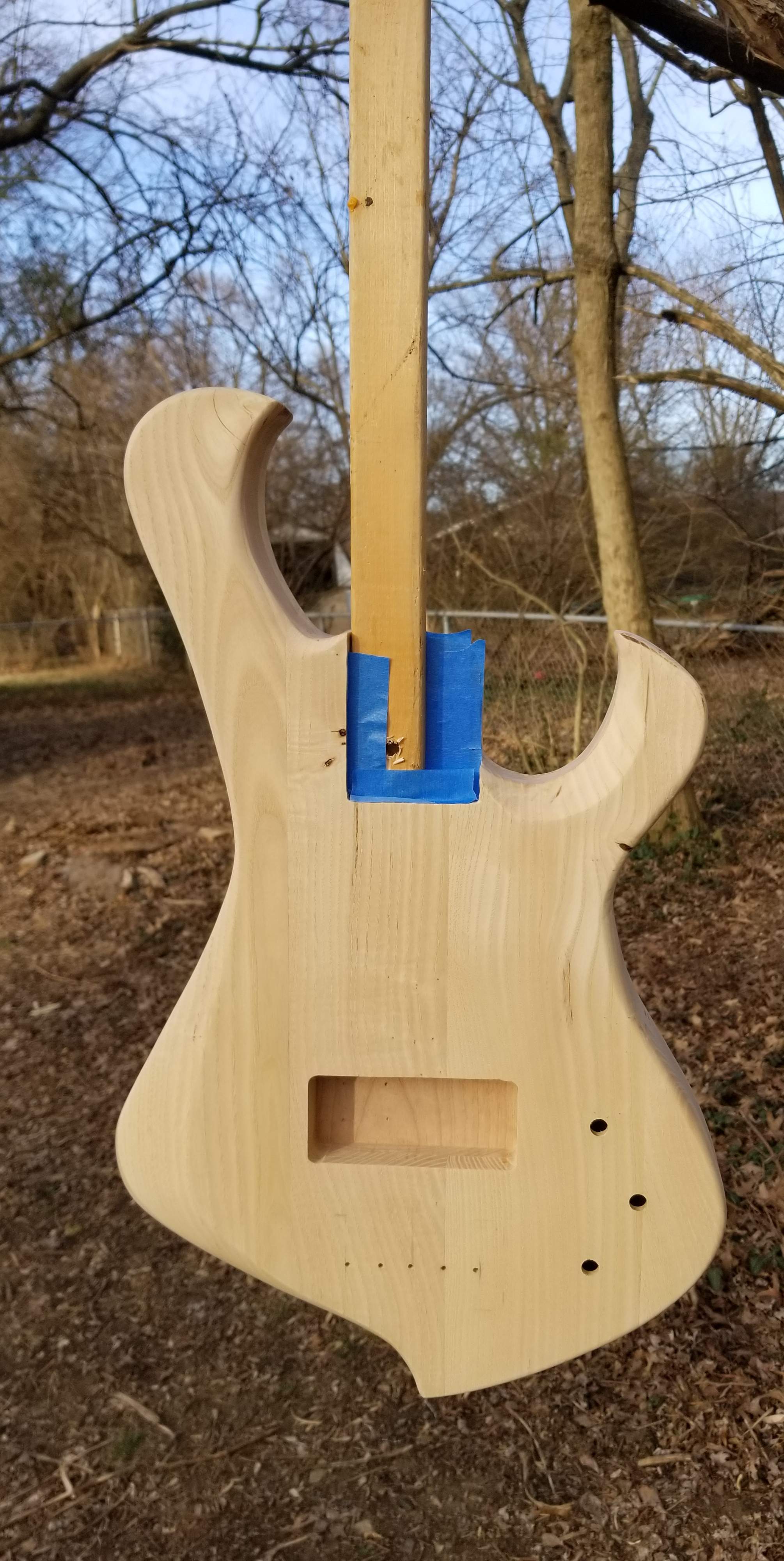

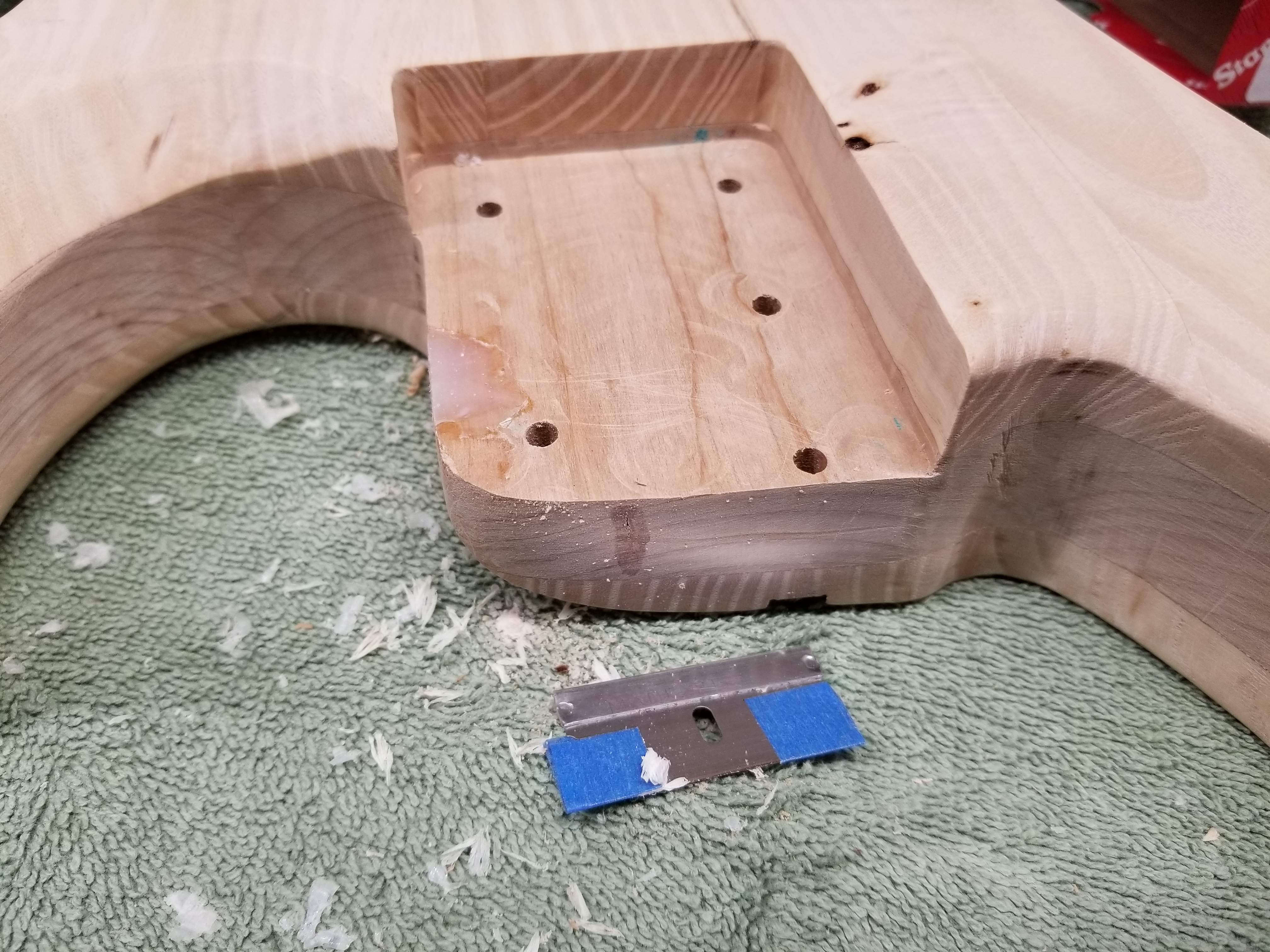

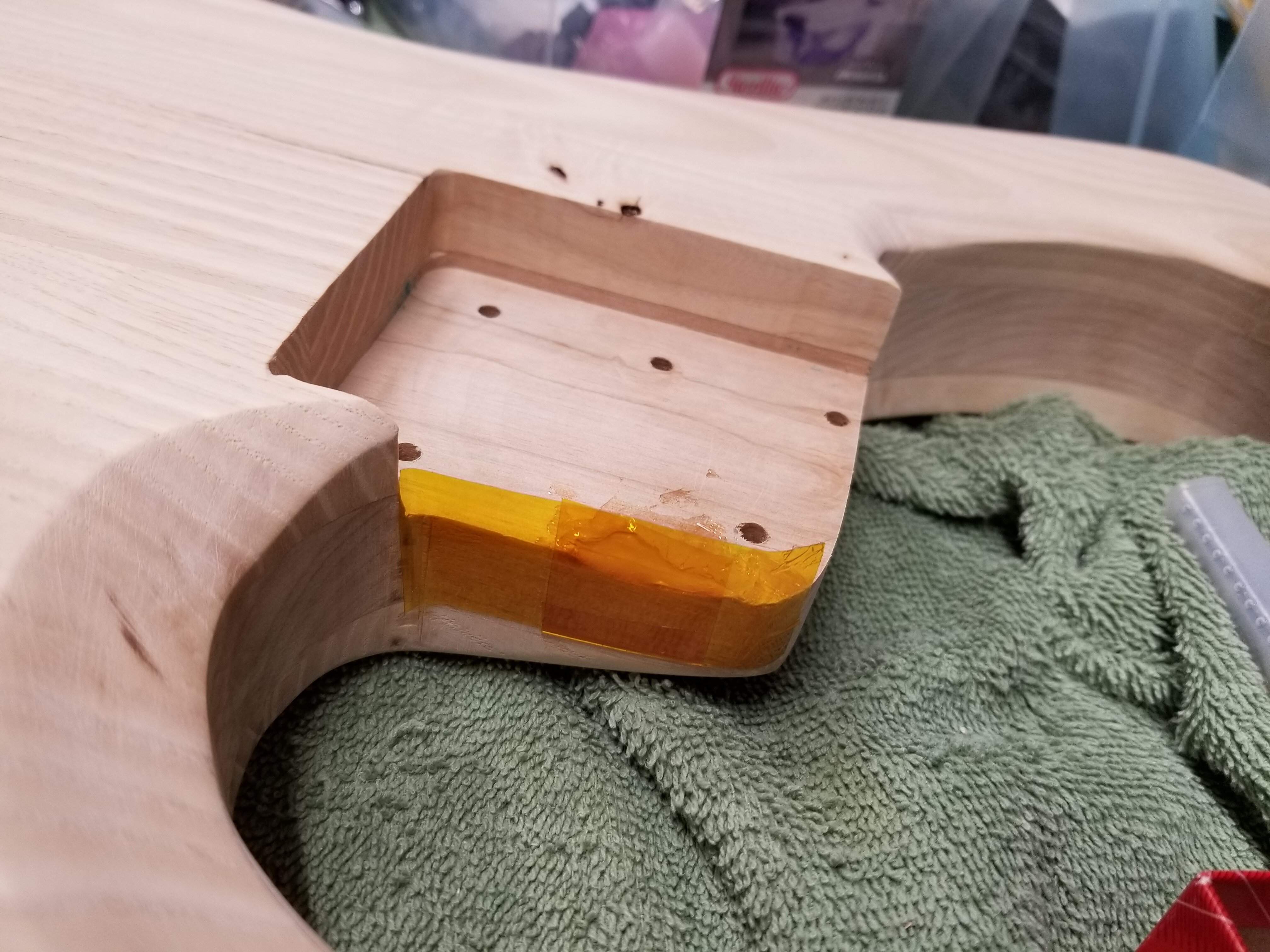

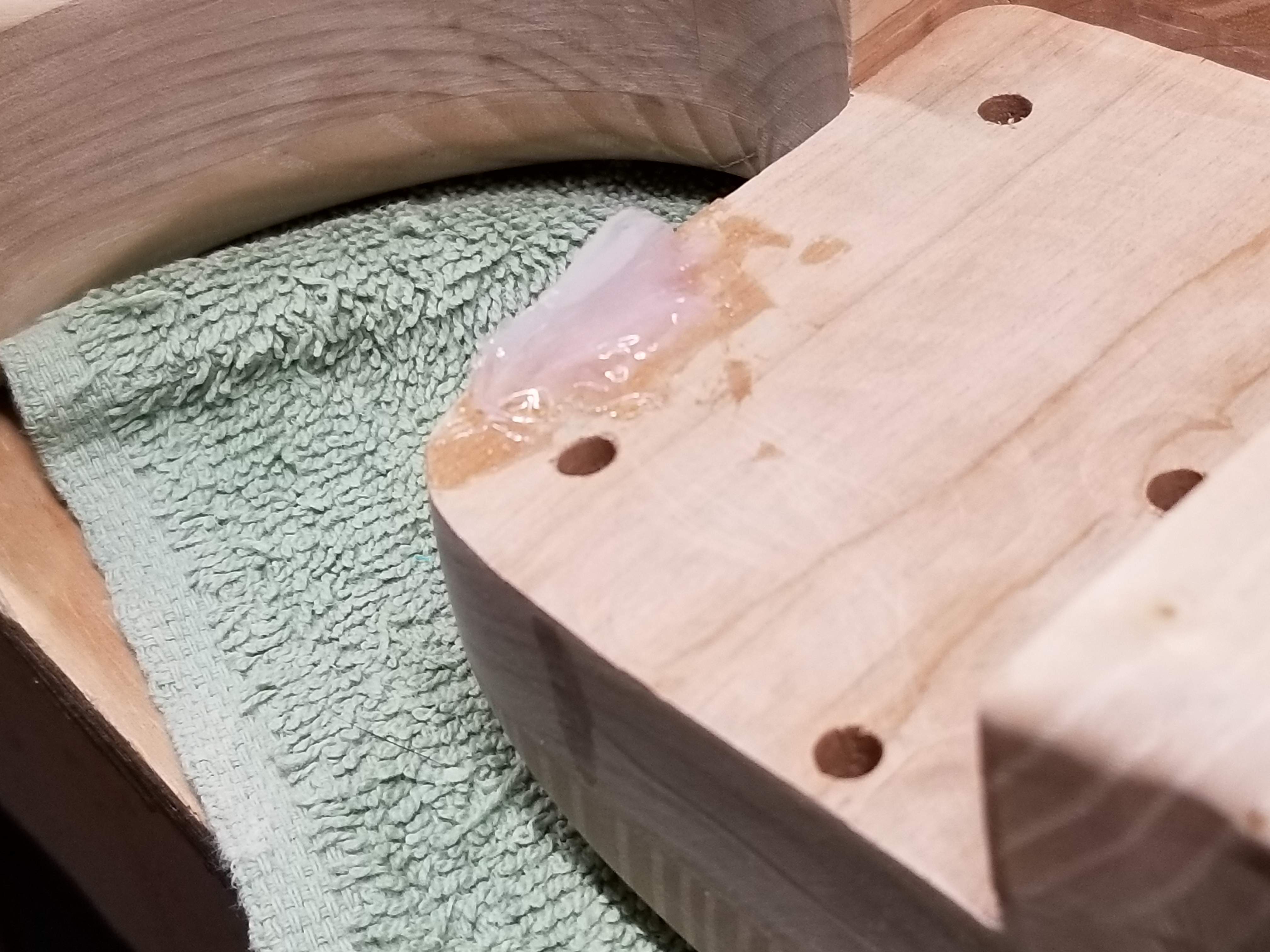

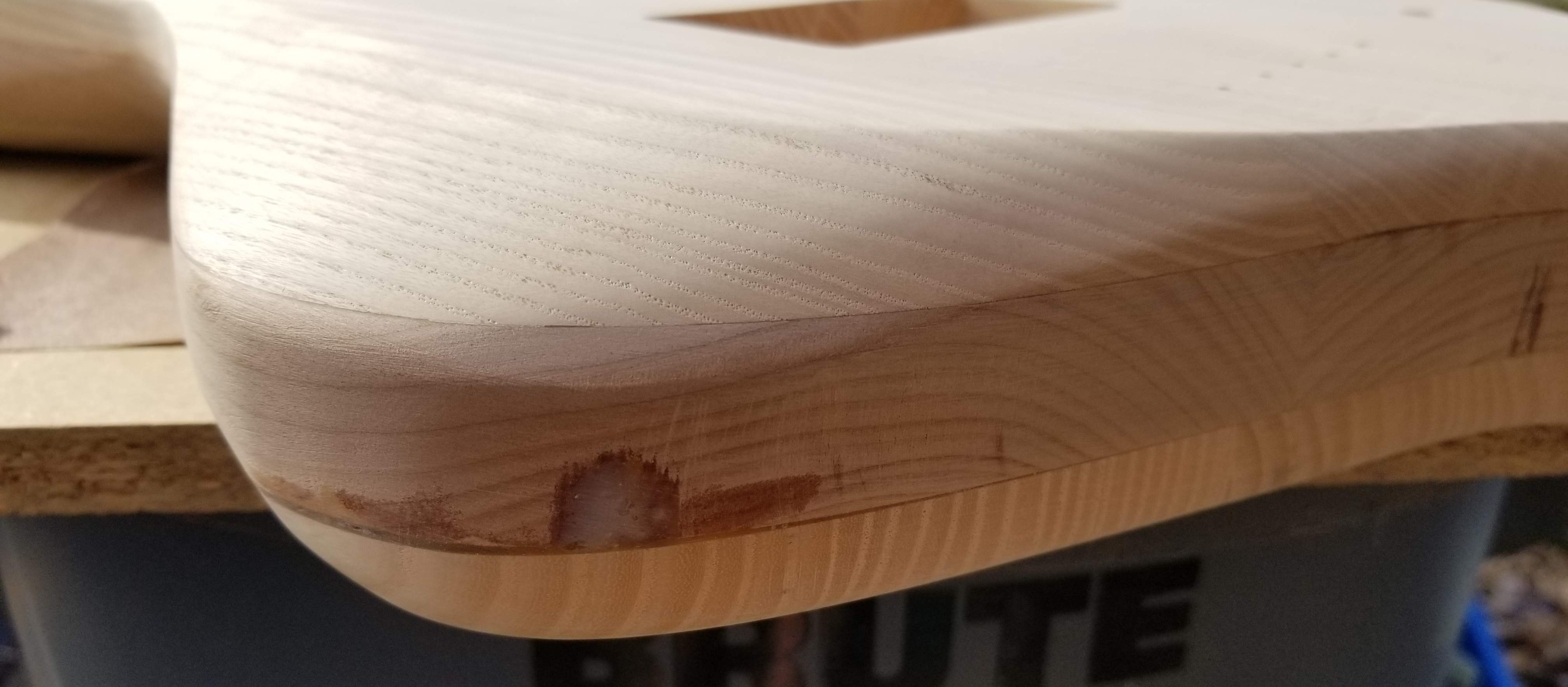

That low spot on the neck pocket (operator error with the angle grinder) was taped off with Kapton tape and filled with epoxy.

Once it was cured, the tape was removed and the epoxy was leveled.



[AudioTaper]

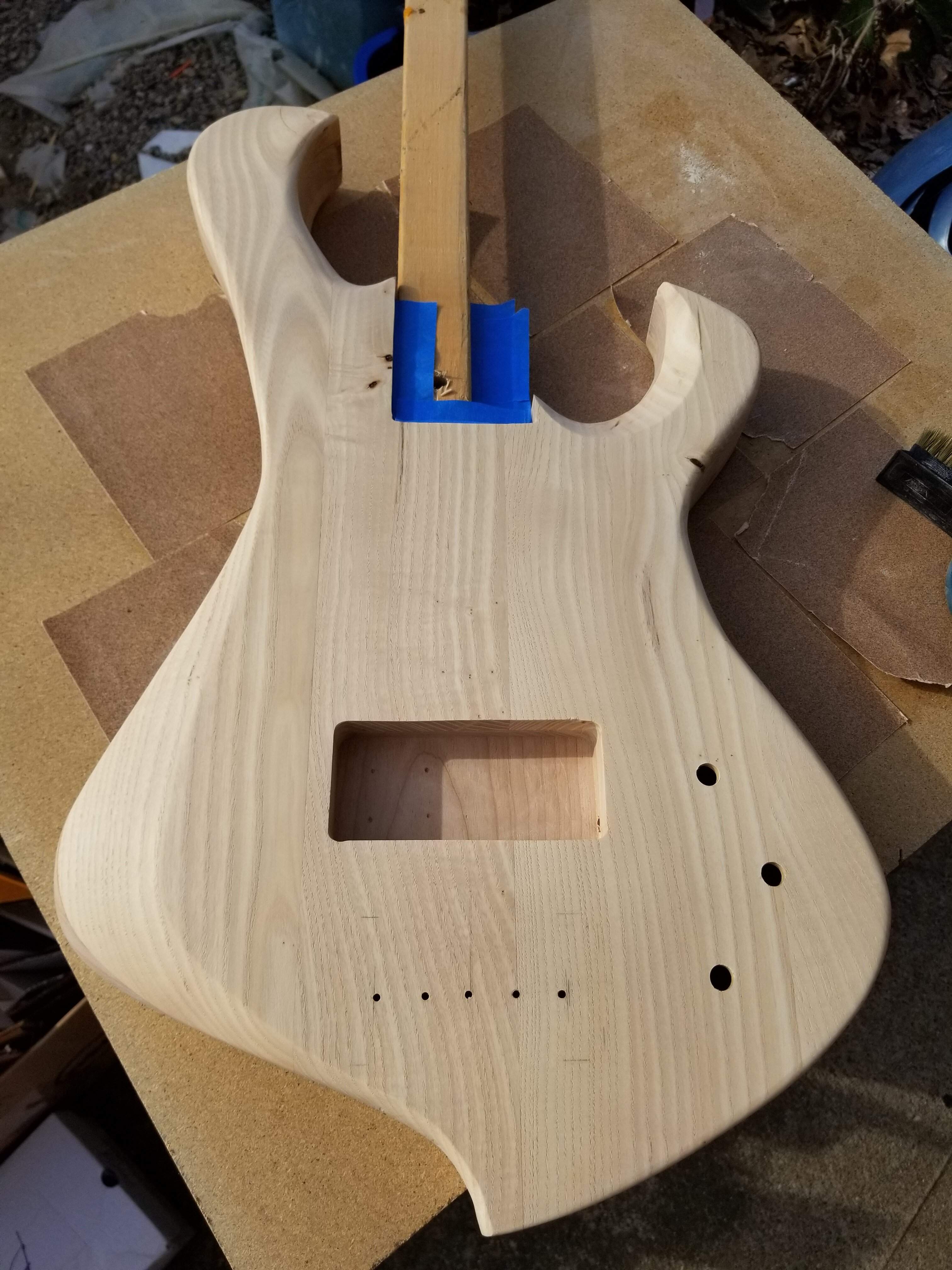

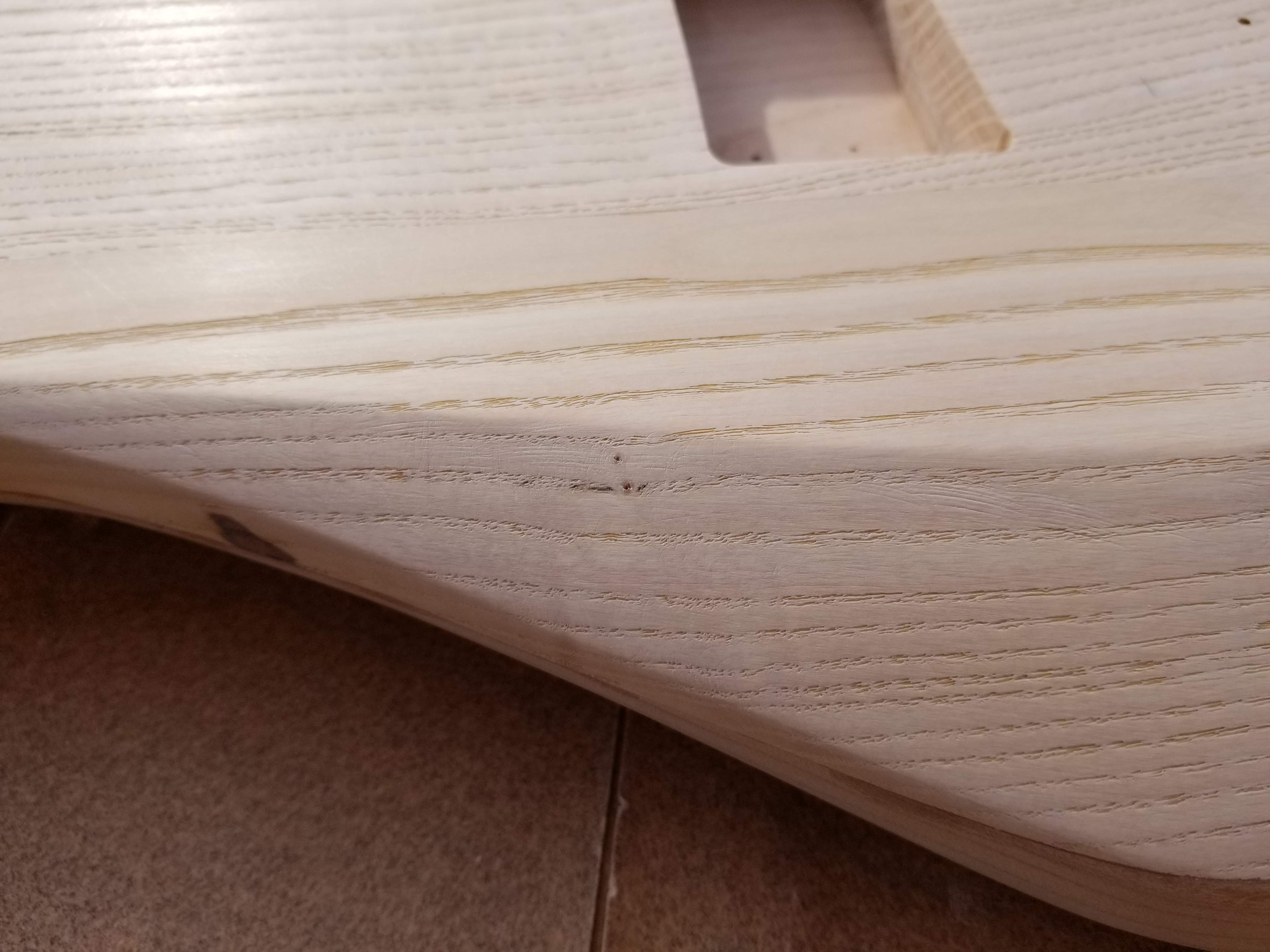

The body was sanded then gone over with a brass brush to take out some of the softer grain lines. I didnt brush the sides, just the top and back

That spot that was filled with epoxy was sanded flush.

Took it to my high-tech spray booth



[AudioTaper]

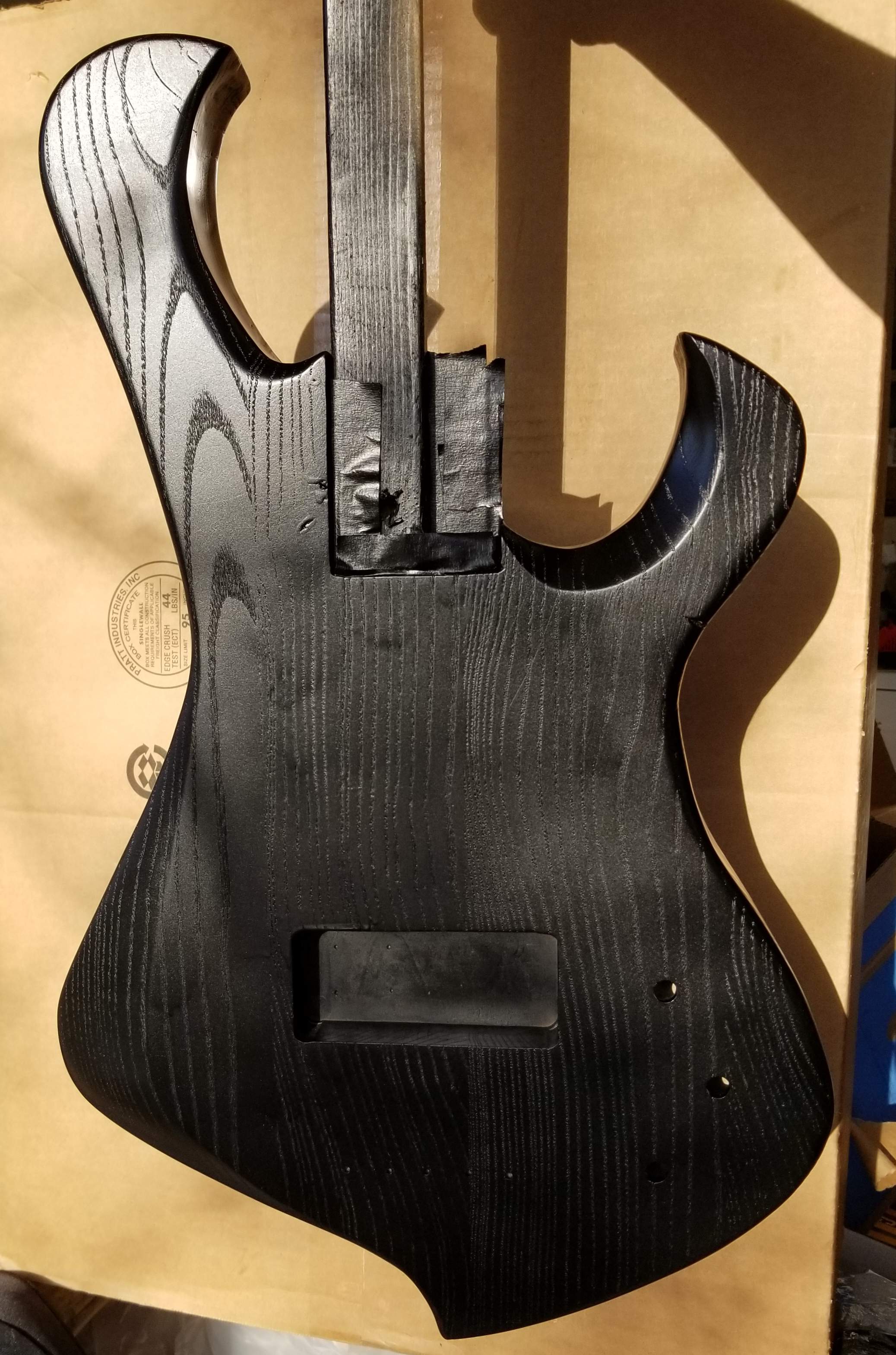

Another reason for the purists to cringe. Here it is! I used VHT epoxy paint (which is supposed to be used for OTV rollbars) in satin black. It needs to dry/cure a few days, but I should be able to get it wrapped up in time.



[AudioTaper]

The neck needs a string tree. I could buy one, but that's kinda boring.

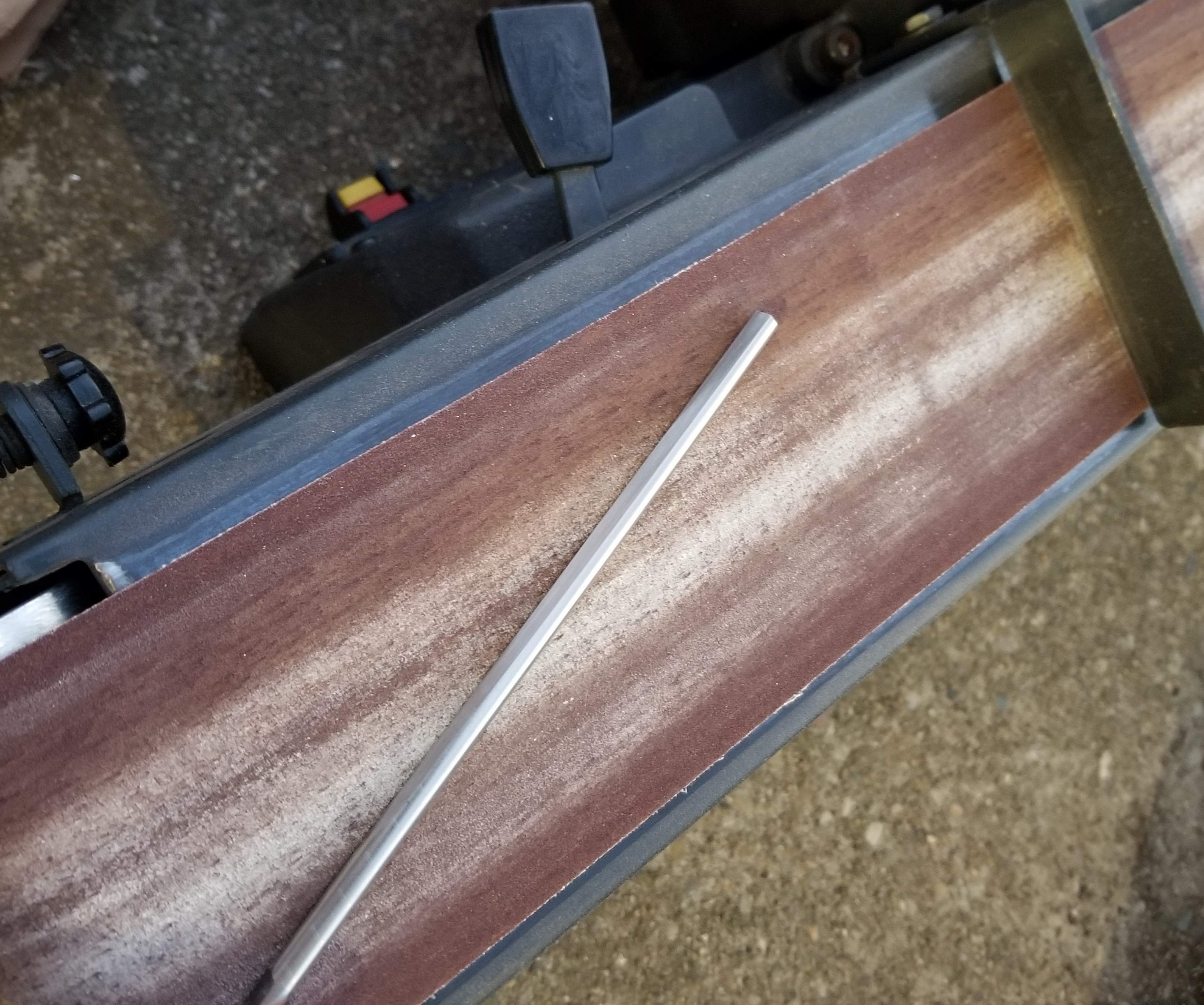

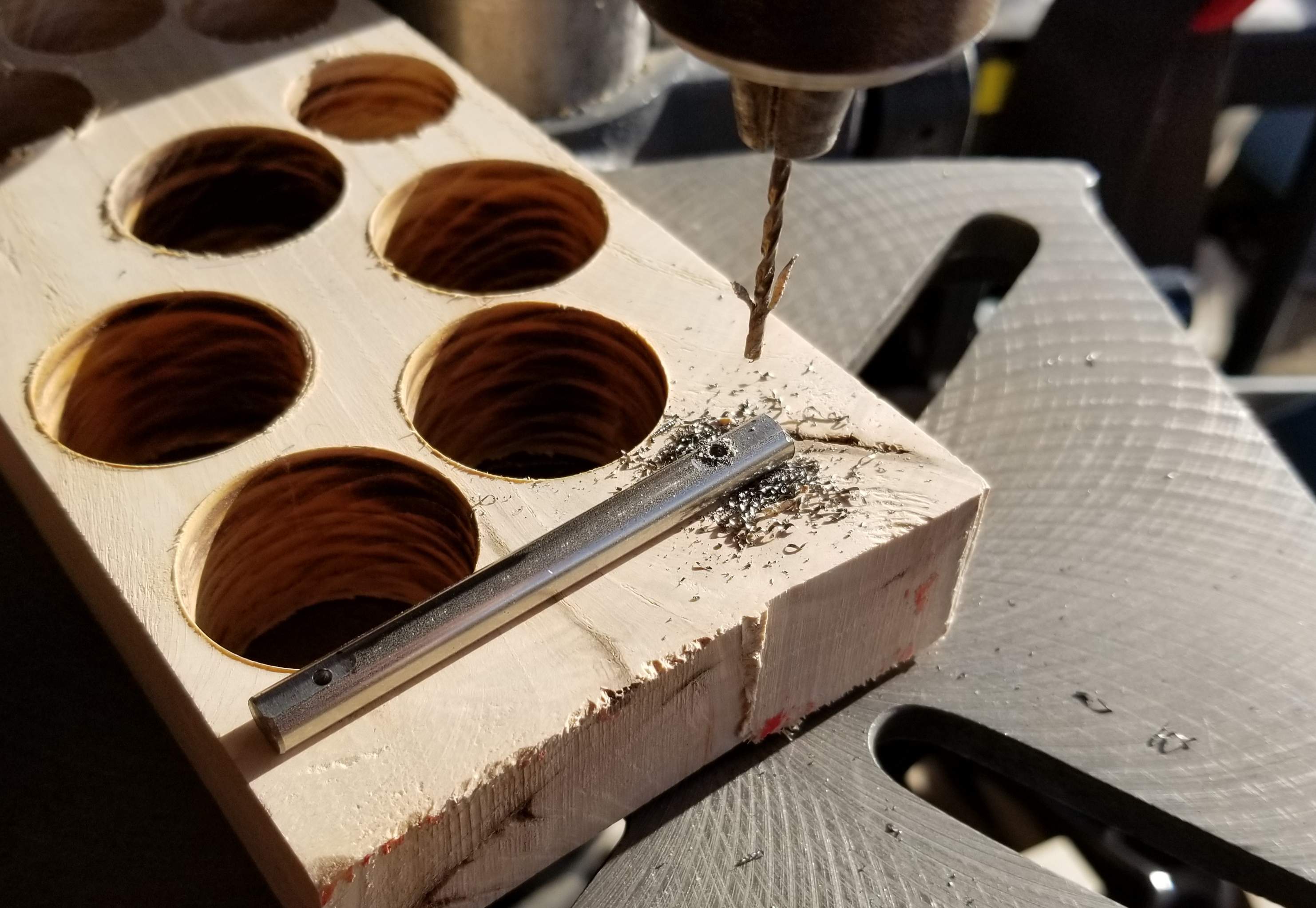

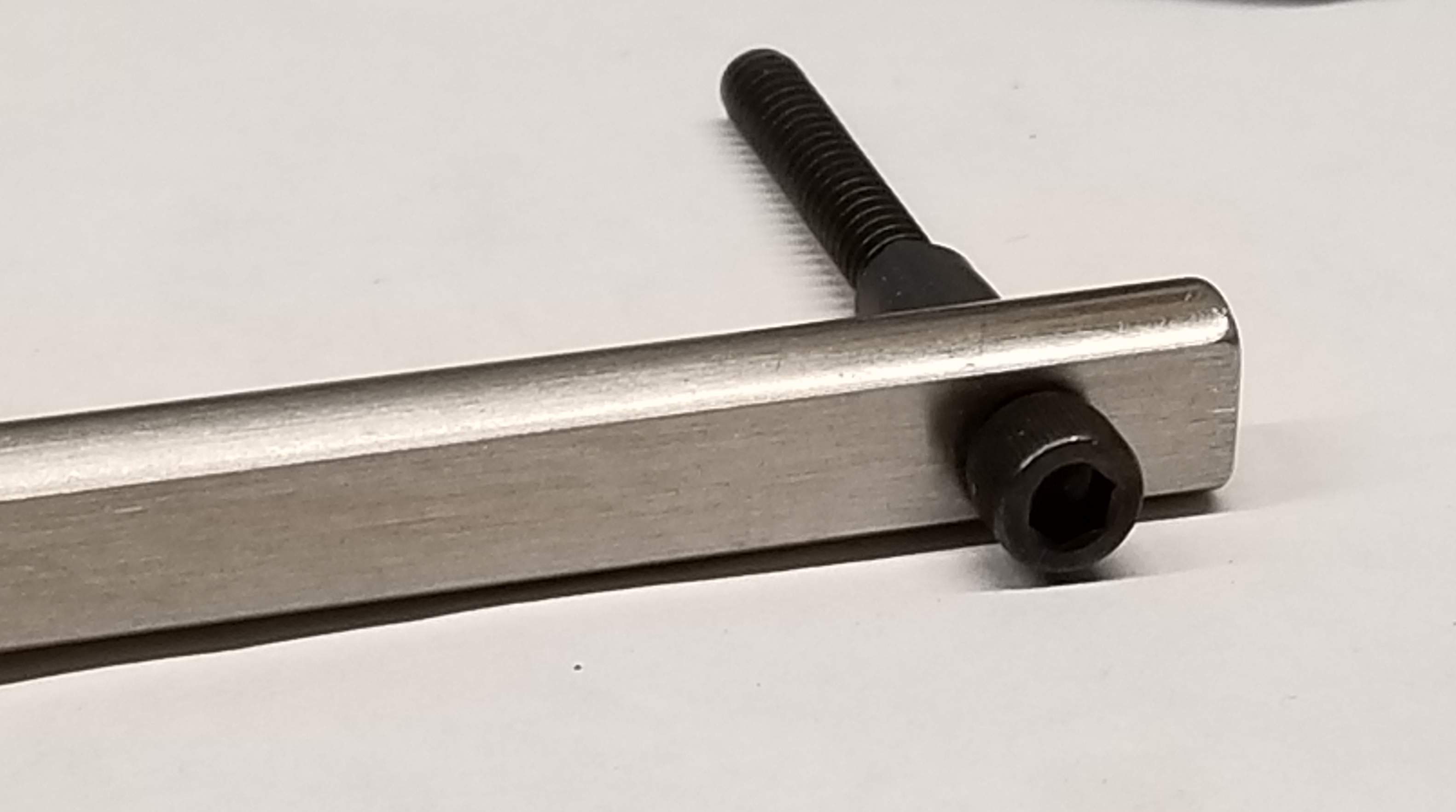

I picked up a piece of 1/4" rod in 316 Stainless. I ground one side flat on my belt sander, made a flat on the other side with a file and drilled for #4 hardware.



[AudioTaper]

The surplus neck didnt have holes for the string tree. Time to drill! I also drilled out the somewhat pre-drilled tuner screw holes to 1/16".

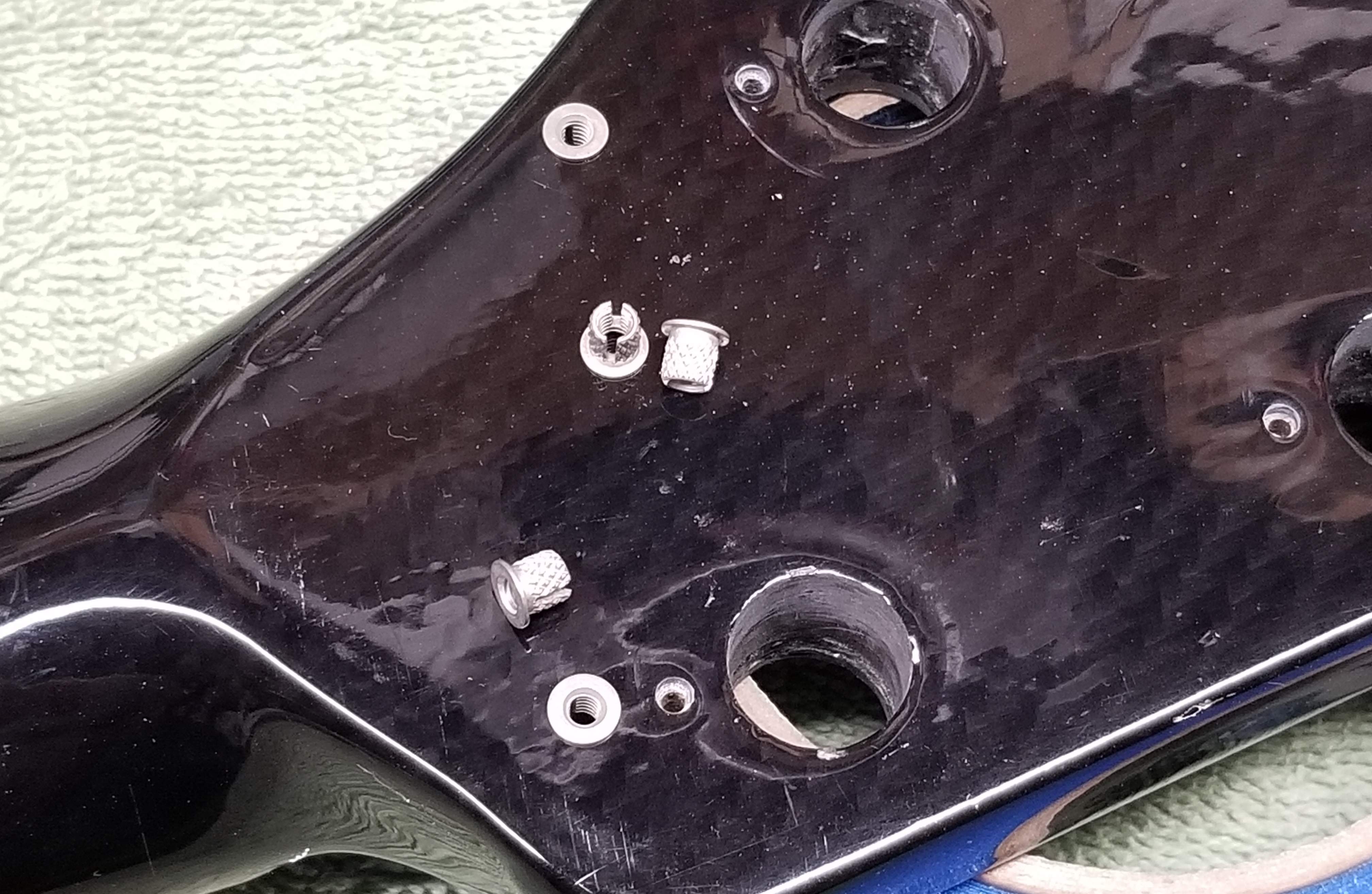

I bought some stainless threaded inserts for the back of the headstock. They worked well.

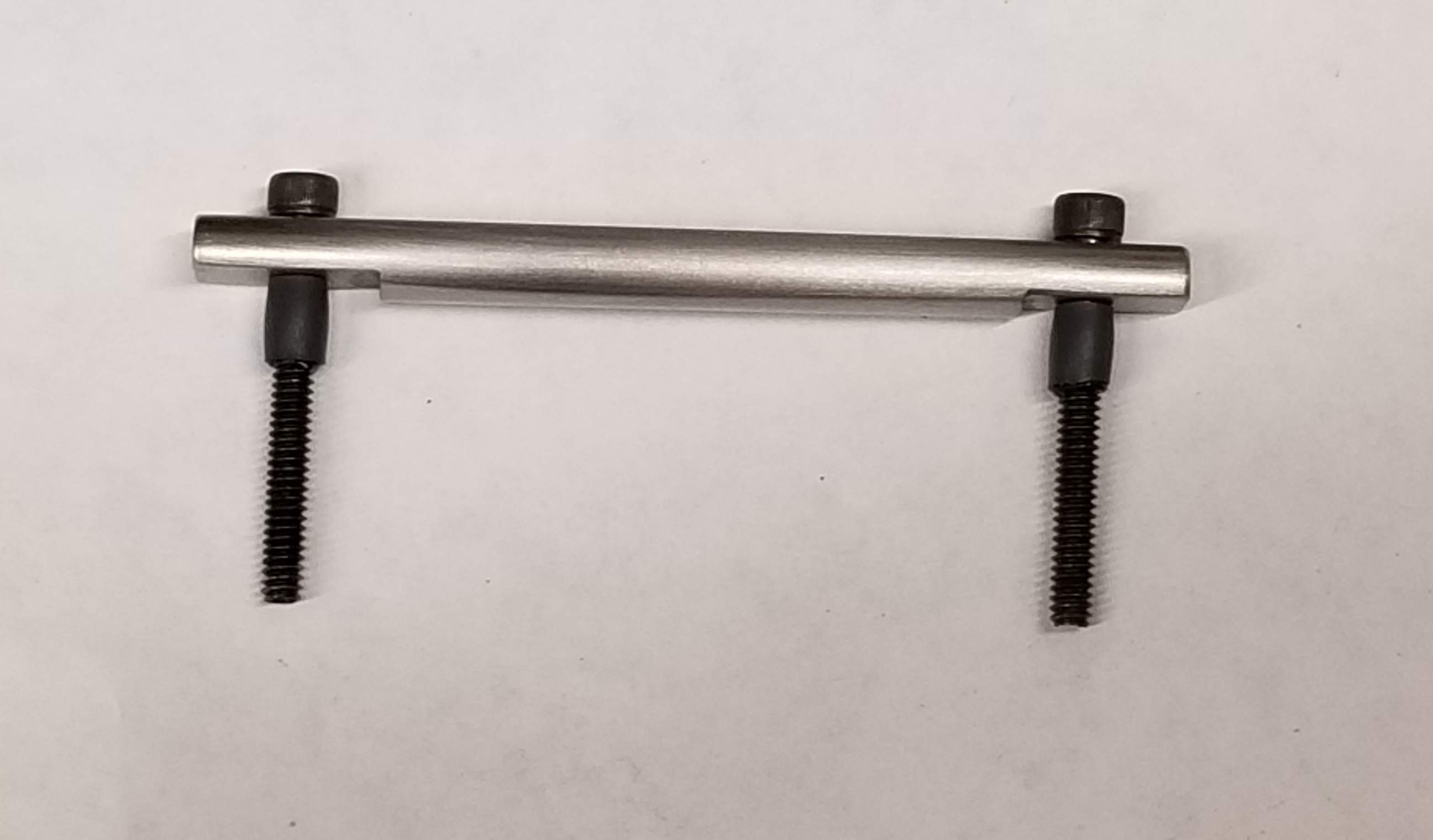

Heres the completed string tree. I used a hand file to finish off the flats. I'll probably have to make a new one at some point because I took it in too far and the B string might be right on the edge. My plan was to use aluminium standoffs, but I didnt have the right size, so I used a little heatshrink tubing to keep the tree off the headstock while there are no strings on it.

I also realized if I'm not using standoffs, I dont need the flat parts on the bottom.



[AudioTaper]

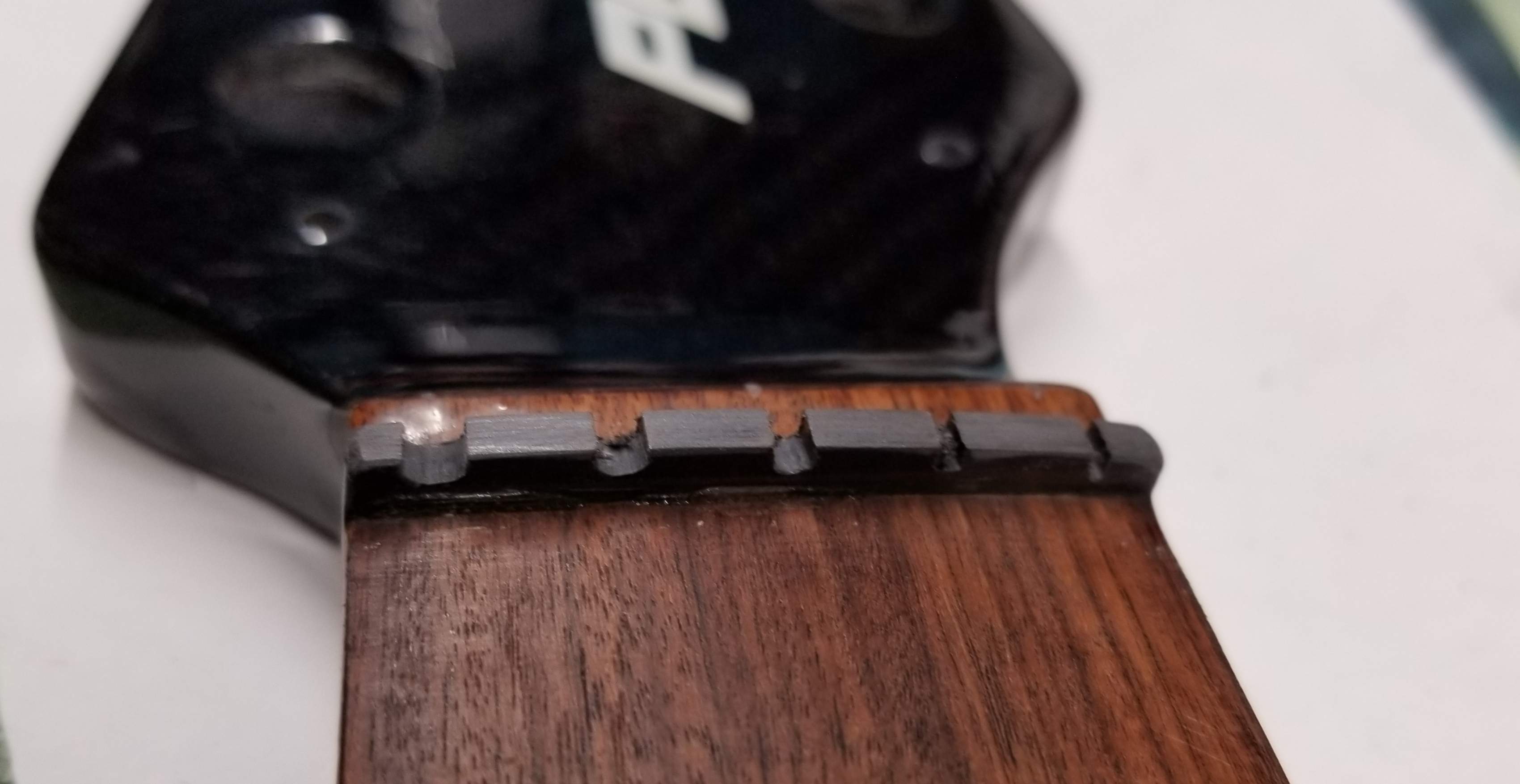

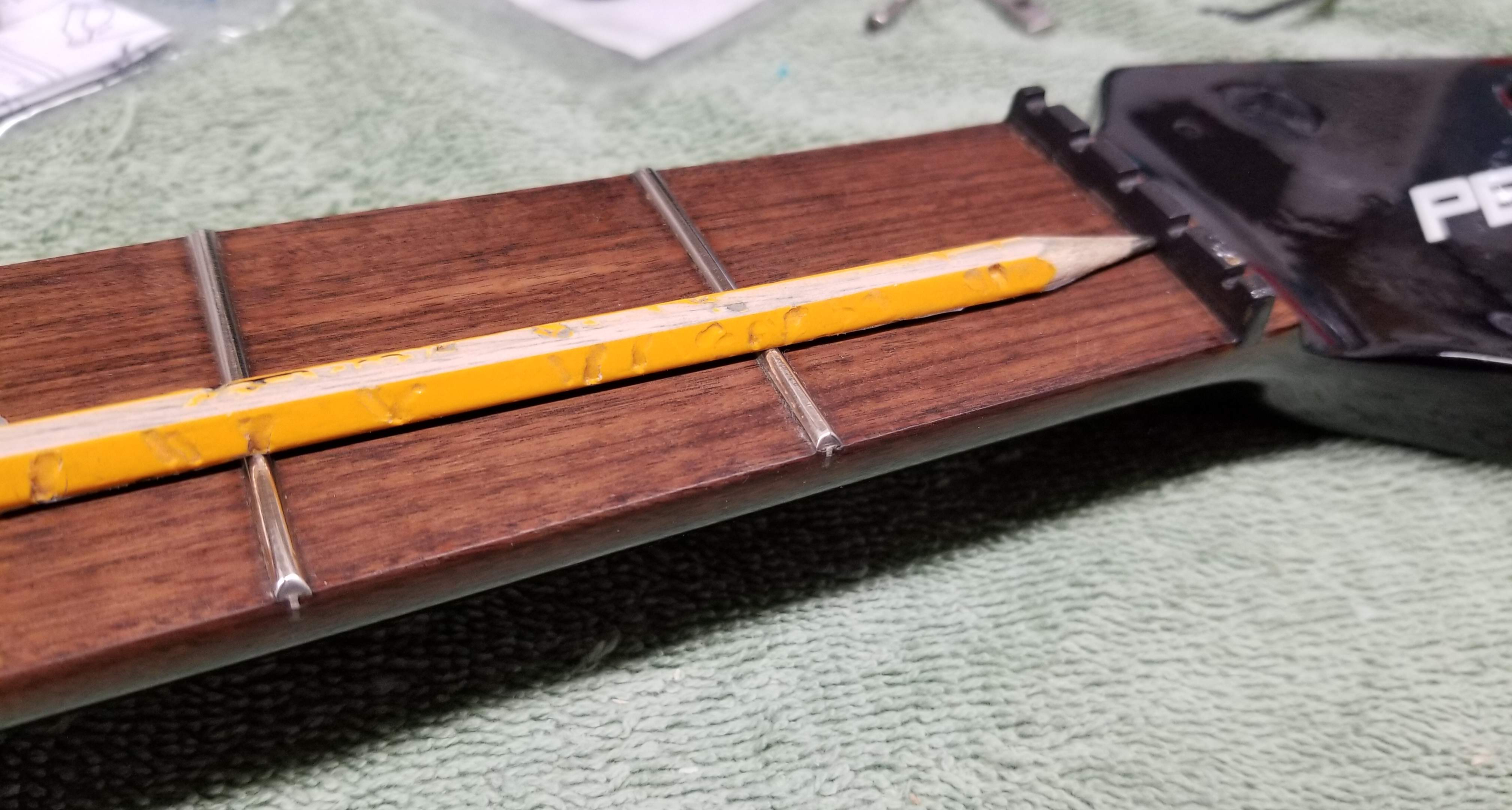

The nut from the factory was comically high. I used the pencil trick to get the it close to height of the string groove, I'll trim it down once the strings are on it.



[AudioTaper]

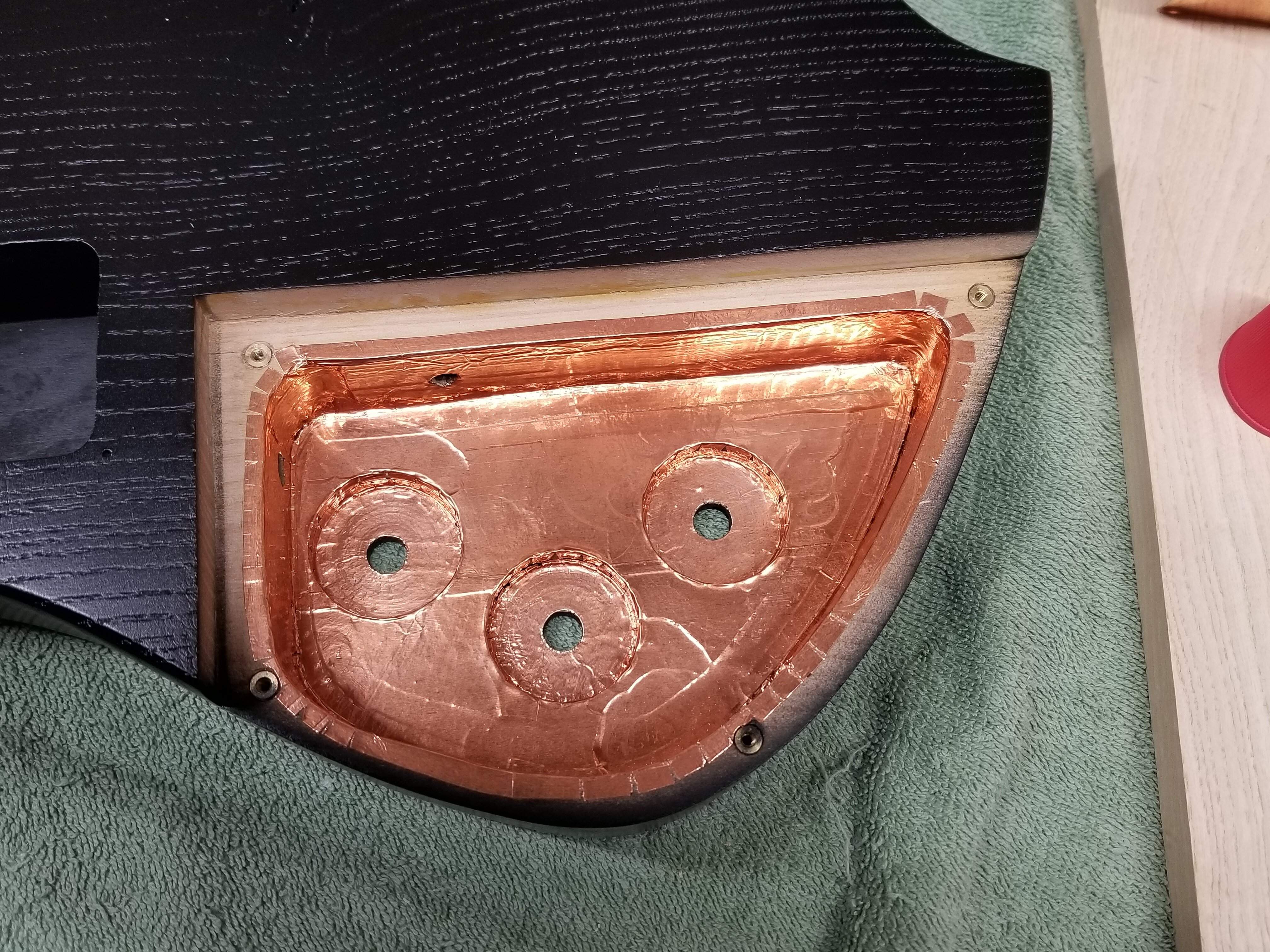

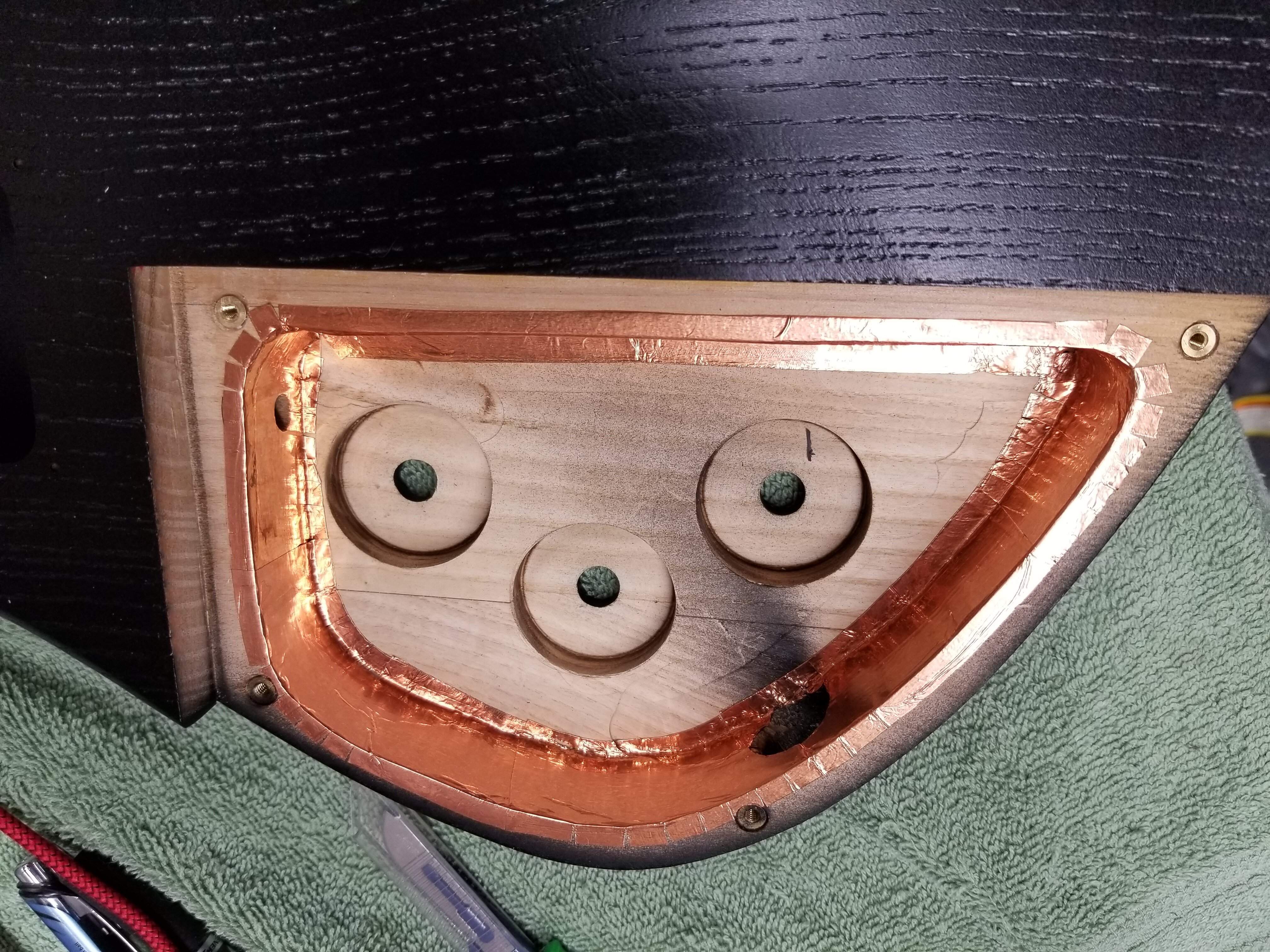

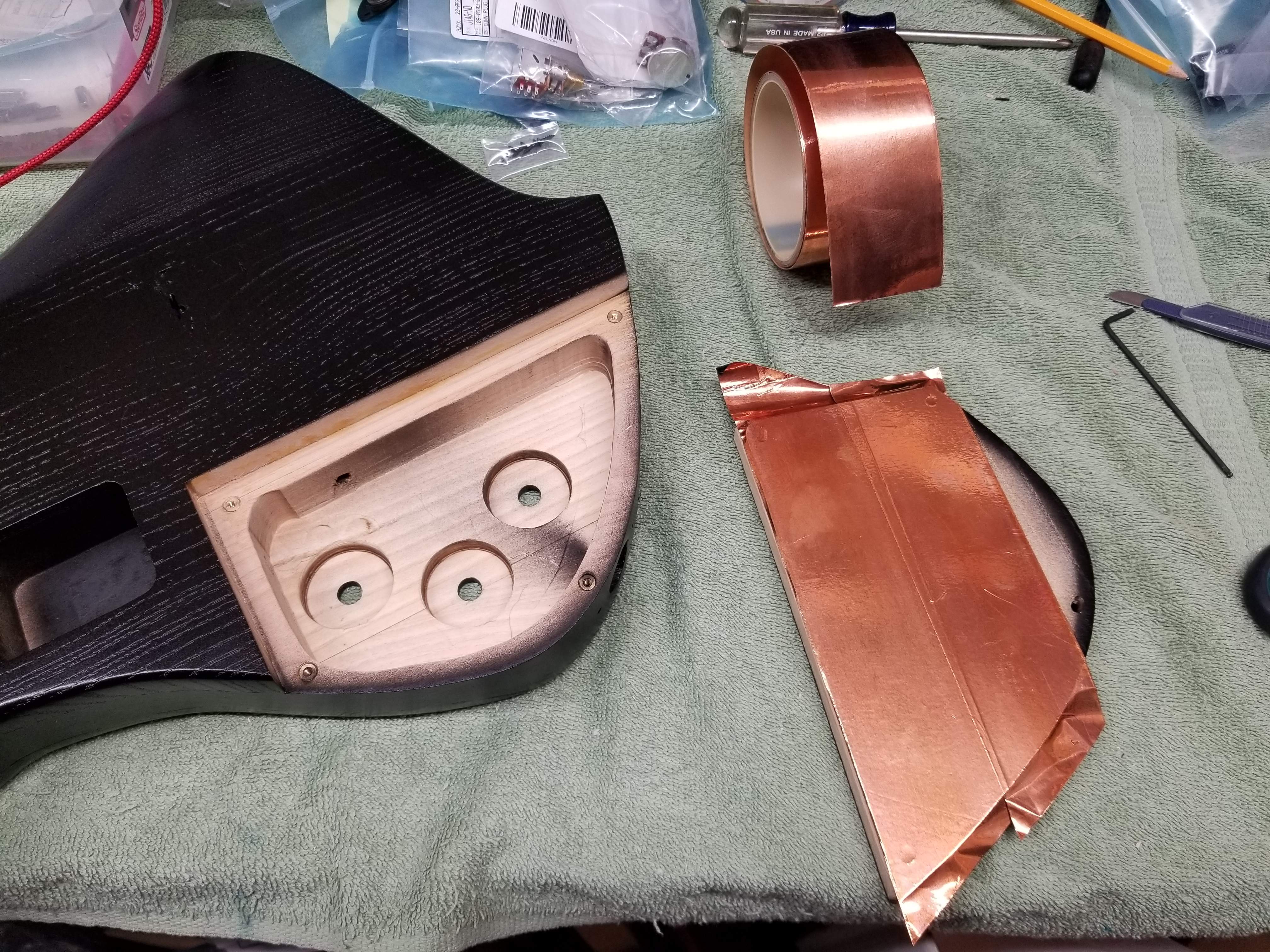

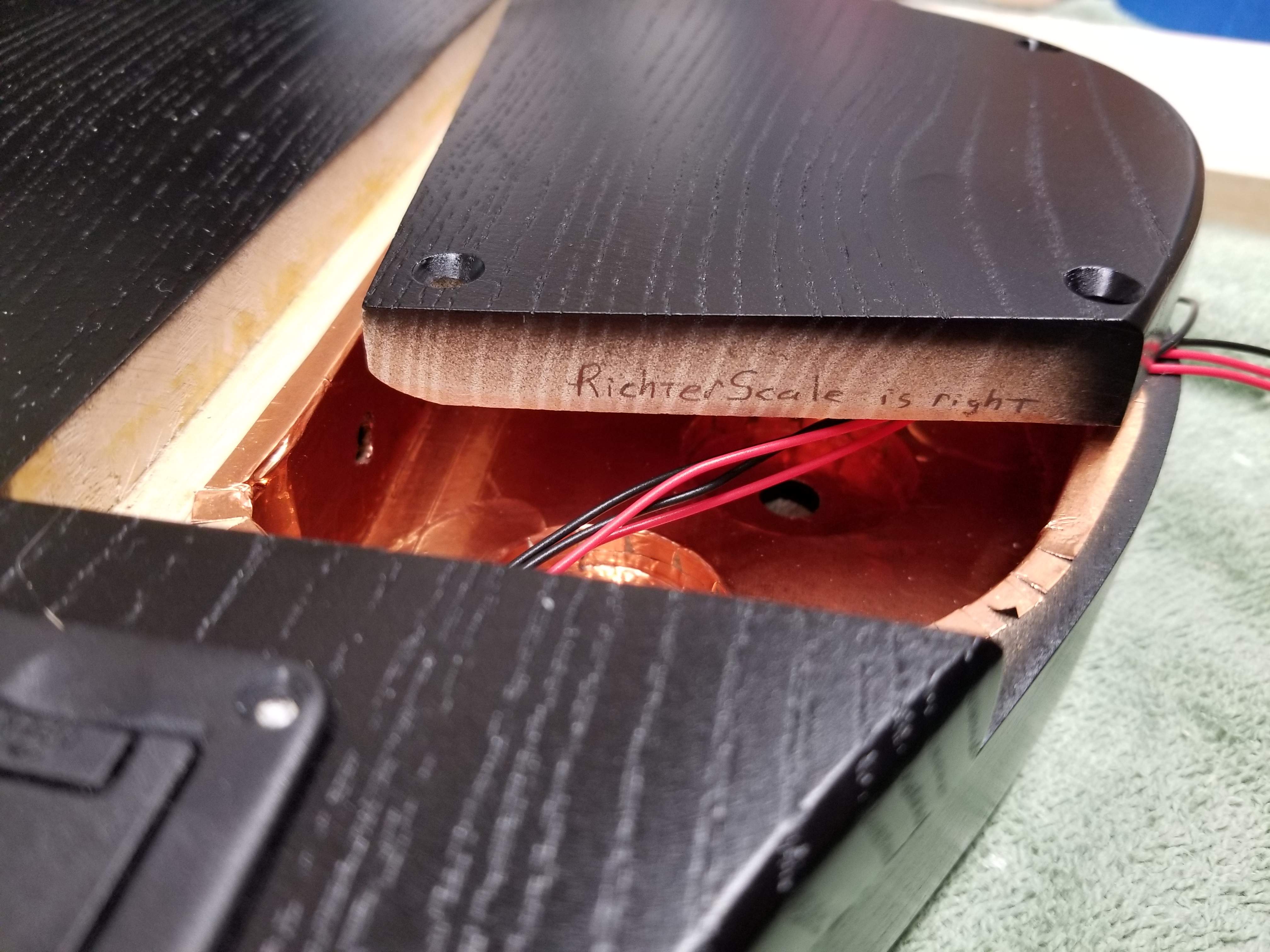

Gotta keep it quiet



[RichterScale]

Out of all the ways I've seen ash finished, I'm pretty sure that matte/satin black with the grain not filled is my favorite.



[Beej]

Yeah, @RichterScale is right that really pops. It looks great. I just may play around with it some.



[RichterScale]

RichterScale is right

This needs to be carved into the side of a mountain.



[AudioTaper]

This needs to be carved into the side of a mountain.

I dont have a mountain handy, so hows this?



[RichterScale]



[AudioTaper]

That's. Just. Great.



[T_Bone_TL]

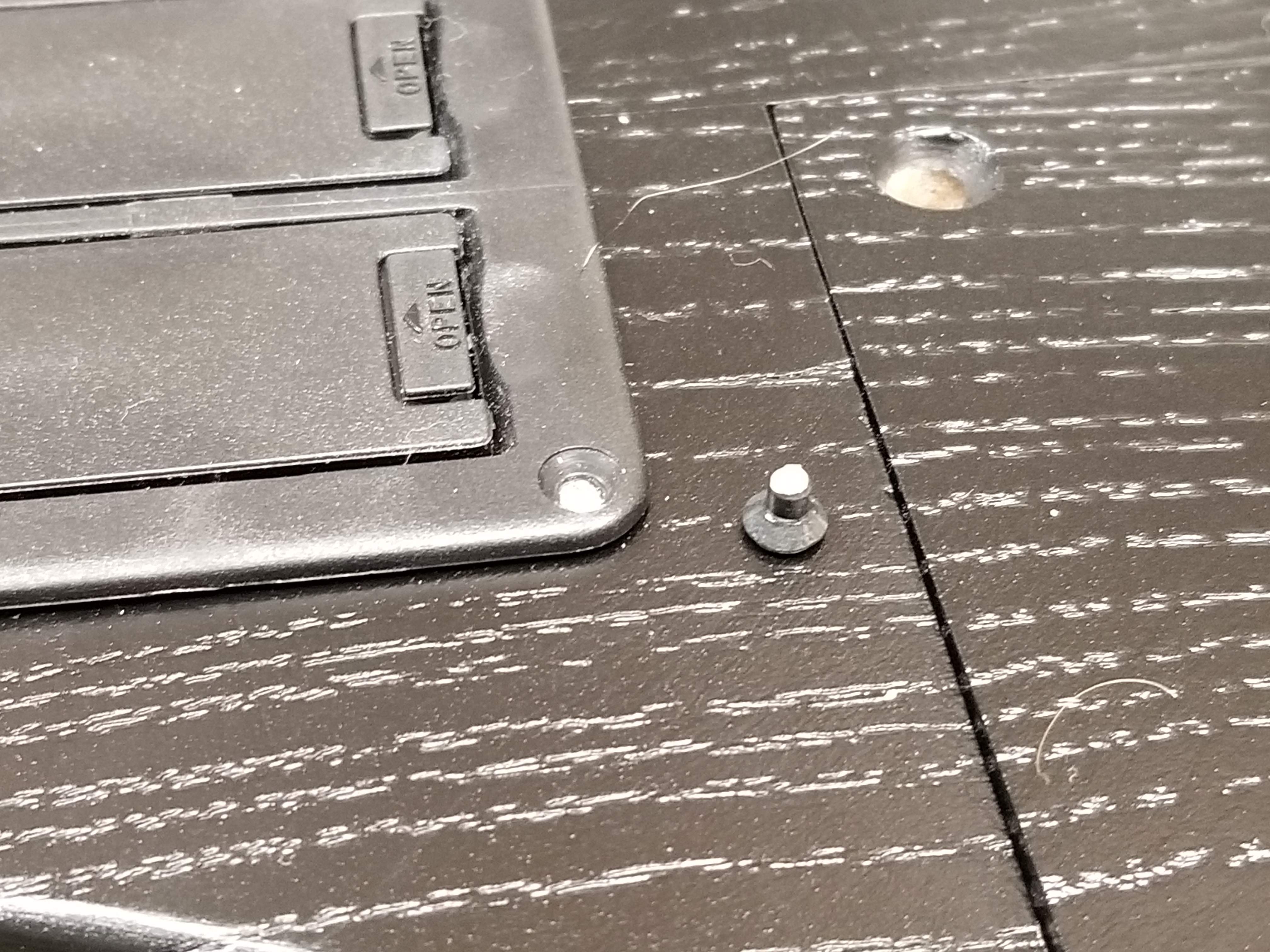

That's. Just. Great. View attachment 4627201

Cheap (by which I don't mean inexpensive - rather the opposite, all told) hardware is really annoying.



[Matt Liebenau]

That's. Just. Great. View attachment 4627201

Again, sympathy like. I feel your pain.



[Flamingo21]

Out of all the ways I've seen ash finished, I'm pretty sure that matte/satin black with the grain not filled is my favorite.

Yes! It makes the wood so tangible even on a photo, when I zoom in on it I can smell it.
