So as I save a little more money for my 4001-ish build, I thought I'd start another to keep me busy. I'm trying to do this one with a low budget.

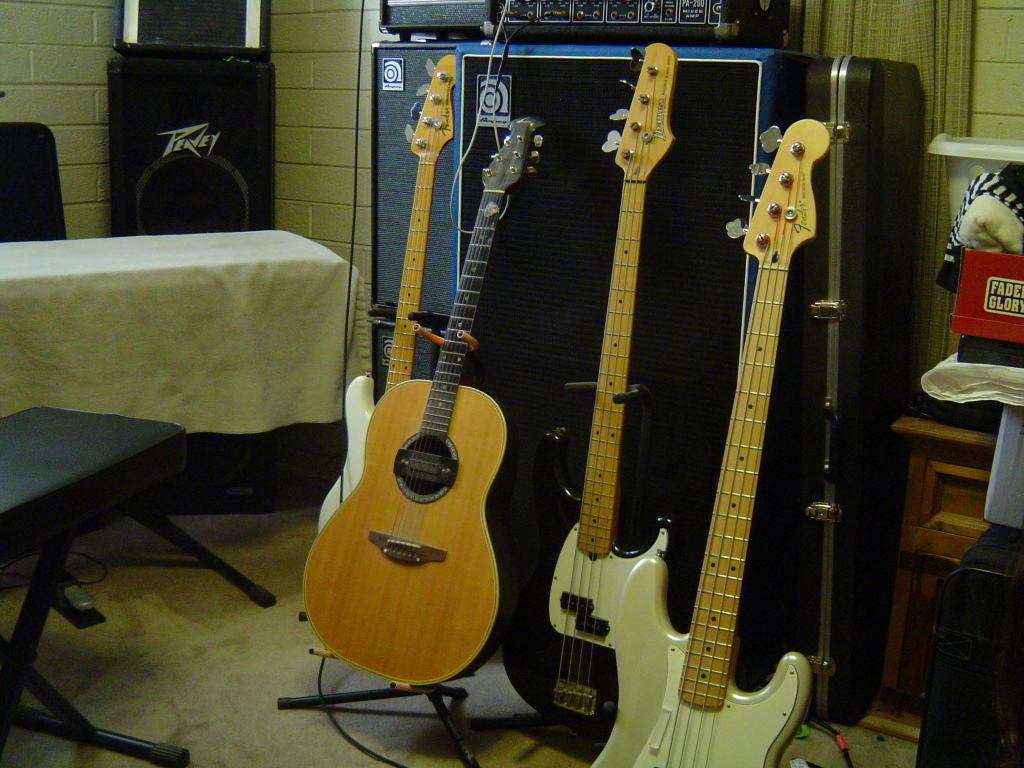

I have this old Ovation Matrix acoustic guitar which I bought back in the 70's.

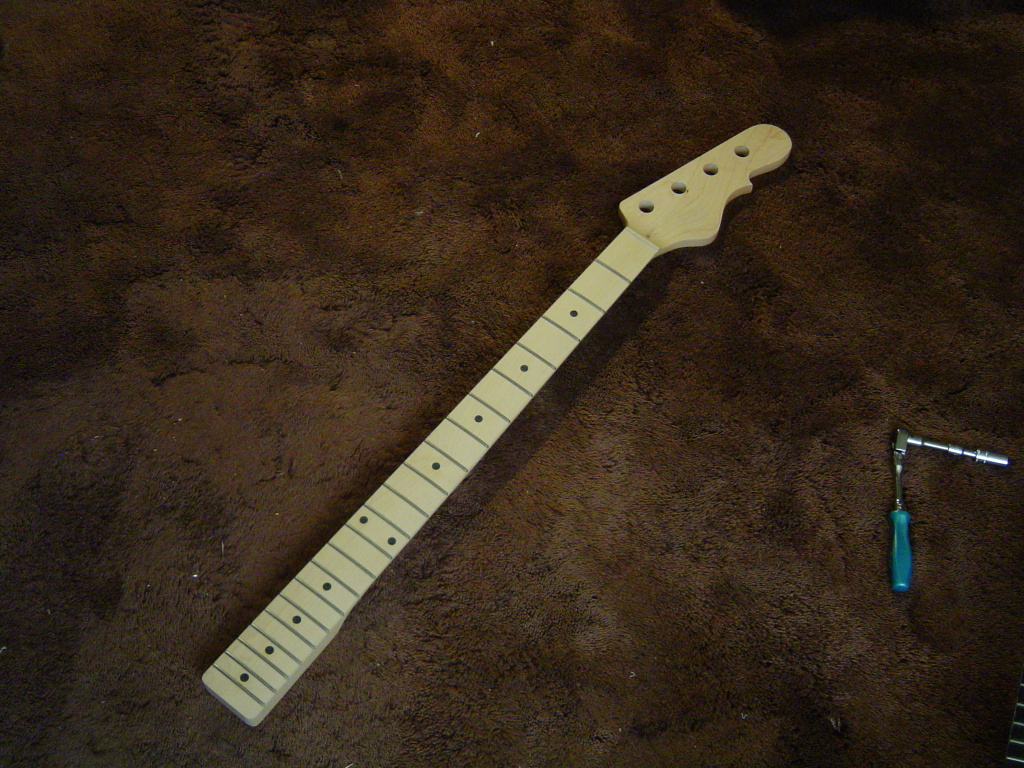

And I bought one of those G&L necks for like $35 or so.



It's a pretty nice neck, though it's in desperate need of fretwork. The fret edges stick out quite far, so I can get some practice dressing them in preparation for my 4001 build.

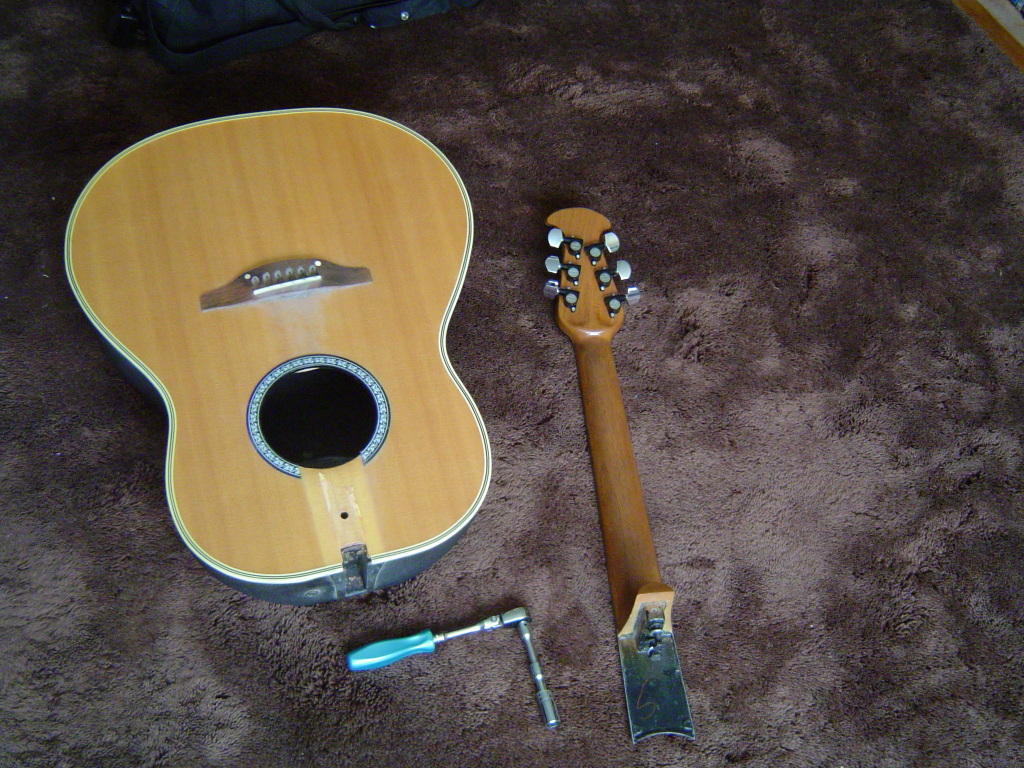

So first, I took apart the Ovation.

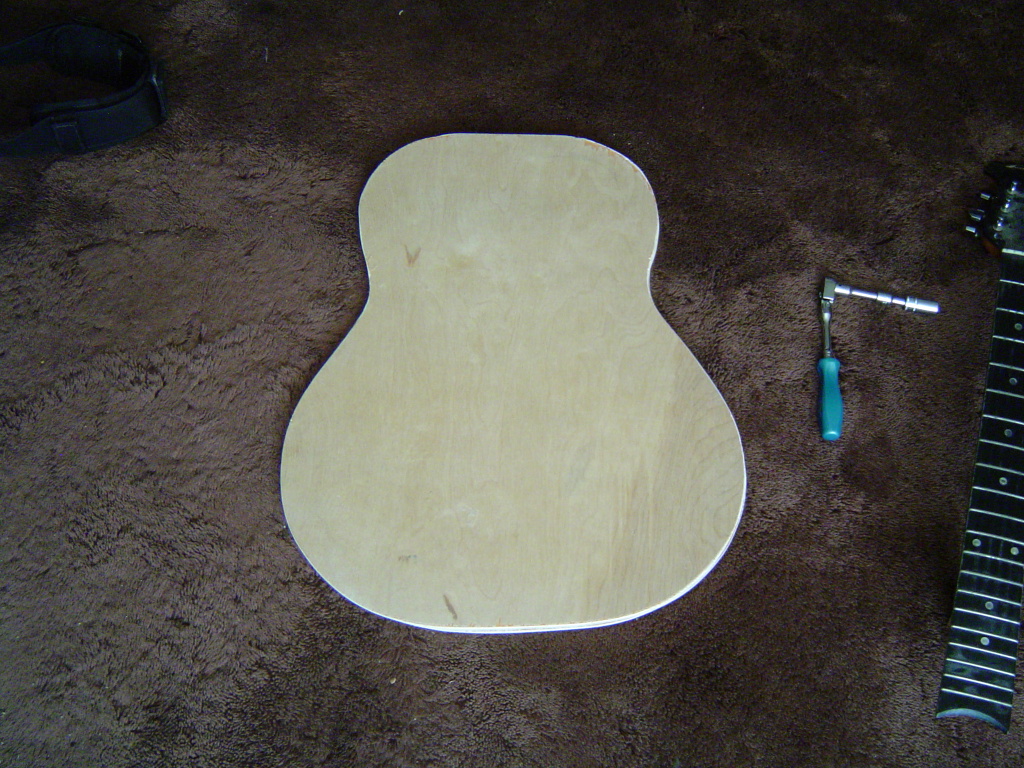

Then I cut out a piece of plywood to match the face.

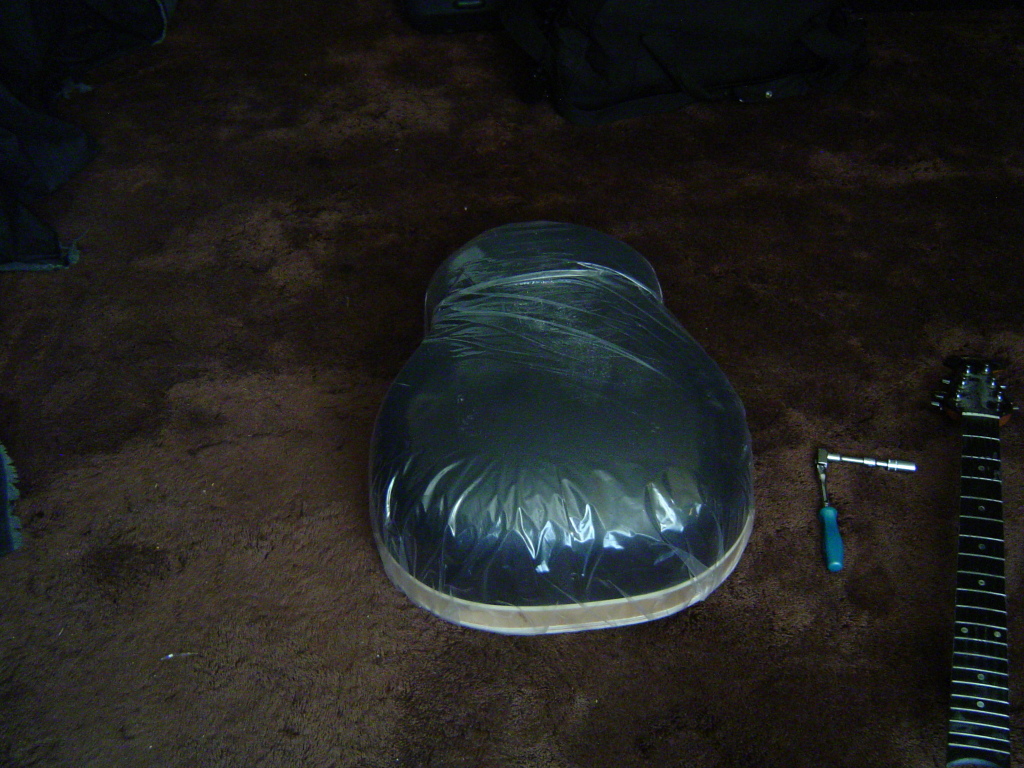

I laid the guitar body face down, space it off the surface with a few pieces of 2x4, and covered it with plastic.

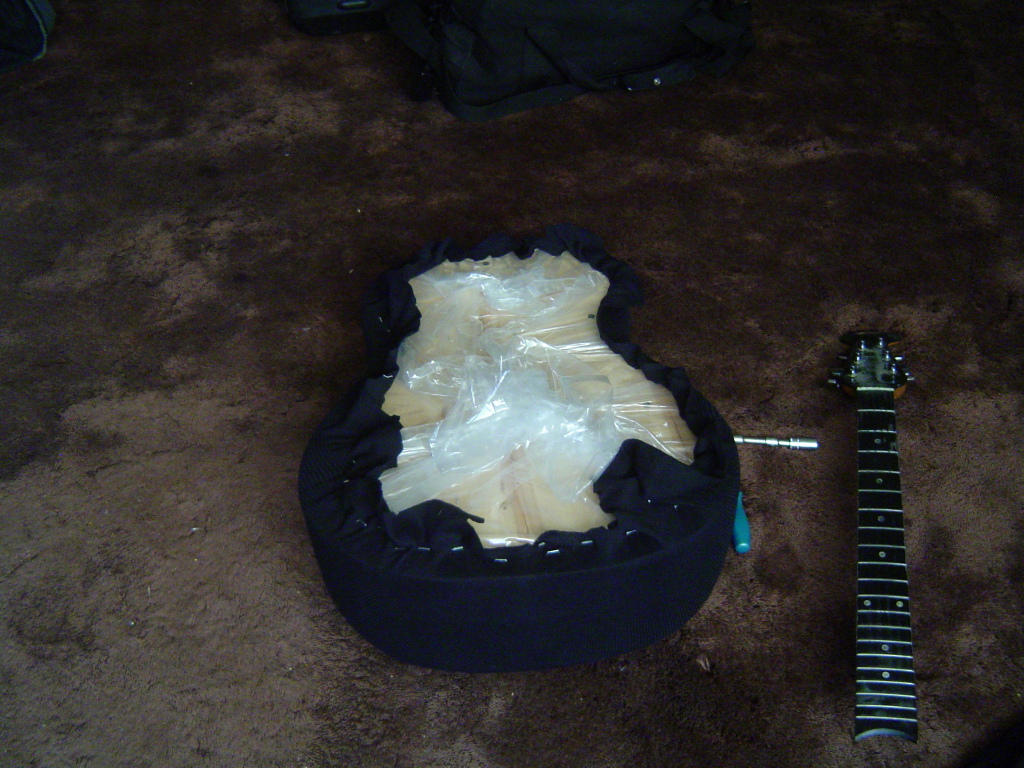

I stapled the plastic in place. Then I covered it with some stretchy fabric I bought yesterday, and stapled that in place.





Then I mixed up some fiberglass resin, and brushed it on the cloth.

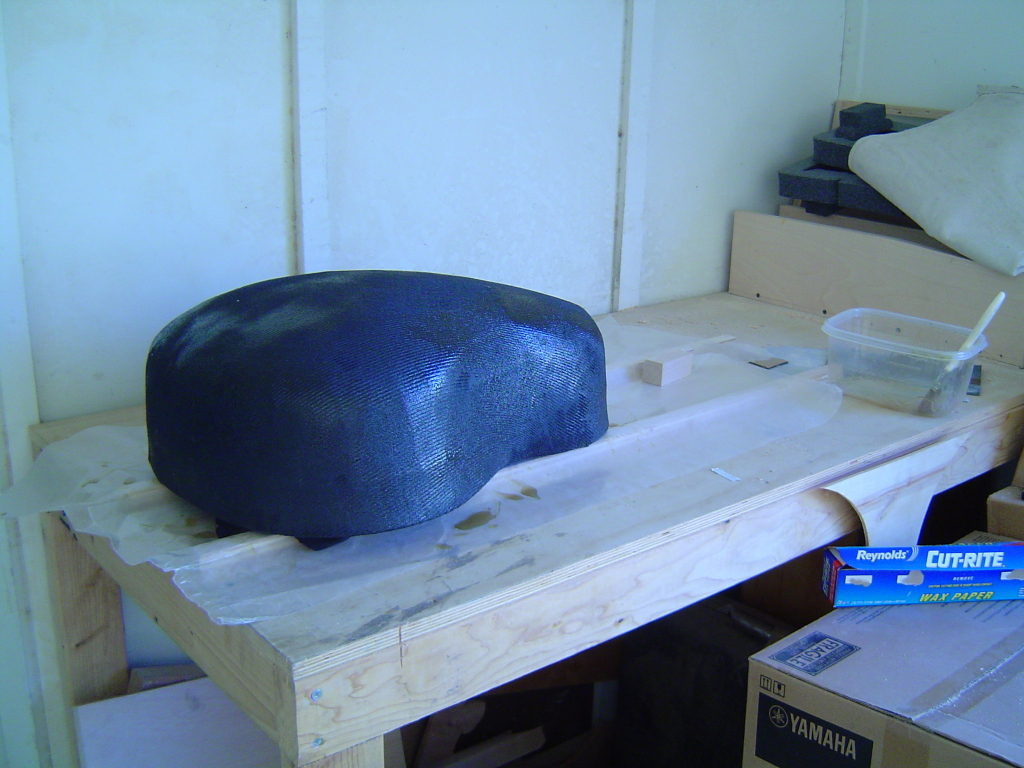

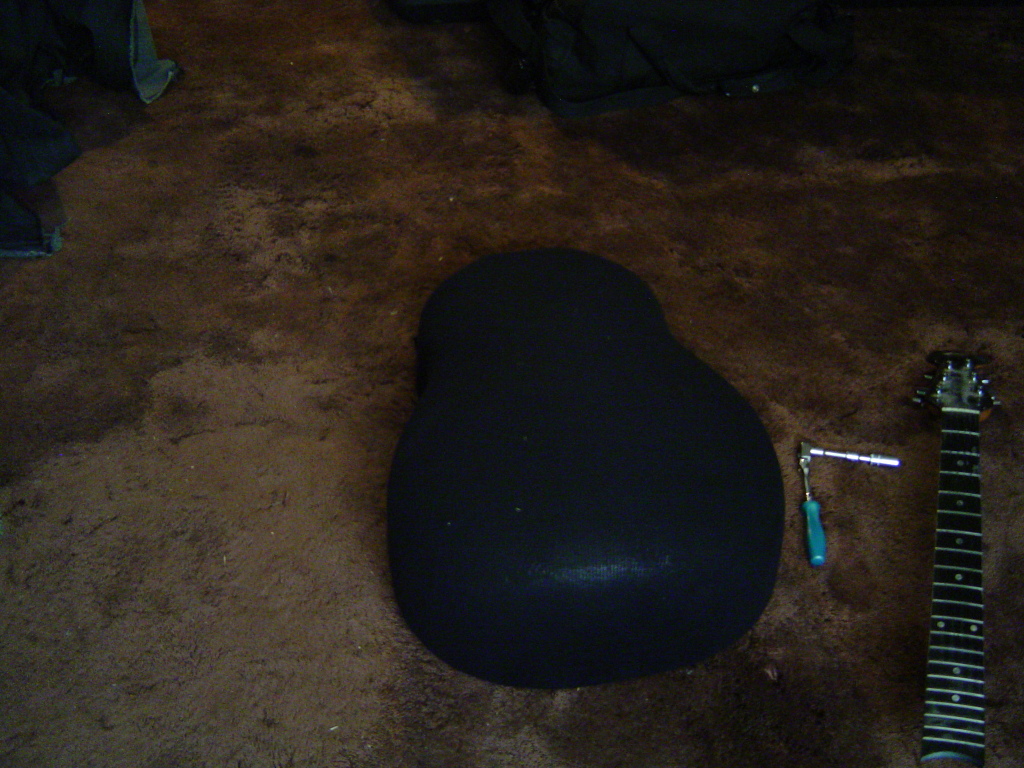

And That's where I am now, waiting for it to cure. Once done, I'll cover it with the remaining fabric, and apply another coat. I've seen this technique used for making car panels in a car stereo install shop, and the resulting panels are pretty rigid. I think it should be tough enough for the back of the bass.

I'm thinking of using one pickup that remained from my Leaf build, and I have some tuners sitting around that I originally bought for the Reformer build, but didn't use. The only real hardware I'll have to buy is a bridge, unless I use the Fender one I swapped out on my Precision for the Babicz.

I'll use a piece of maple to mount the bridge and neck to, which will span the length of the body, and glue up some thinner wings, and fiberglass that into the "bowl". I have no idea how loud it will be, and I'm not too concerned about it. I'm using this as an experiment in acoustic bass building.

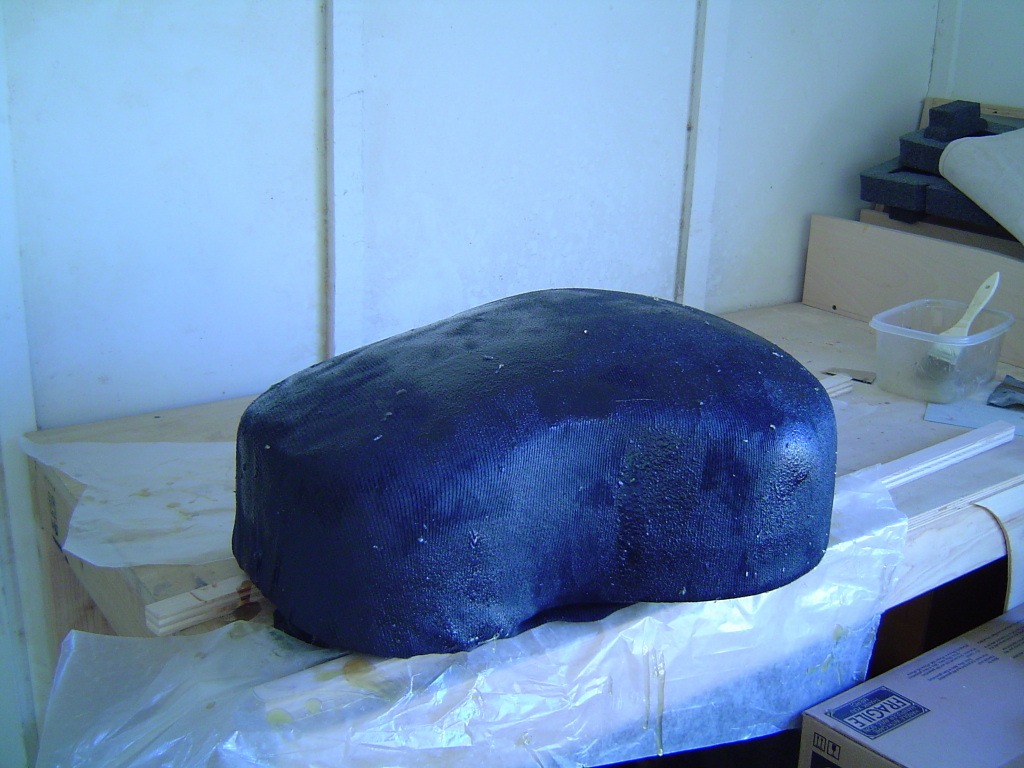

Put on the second coat, only I made the resin mix a little too hot, so it started gelling about half way through. I should be ok though. I'll just have to sand it down a bit, and recover it with the resin.


  • Like
Reactions: vmabus
Dang Maple, you are on a creative roll! I've done a little fiberglass work, and that stuff is nasty all around. Hope you are well ventilated, gloved, the works. I think I've seen black fiberglass fabric, but it's probably a lot more expensive.

Yeah, fiberglass resin stinks, and it can be quite overpowering. I did the work outside, and I still had to step back from it occasionally. I probably should have worn the respirator. I think it's worse than nitro.

Yeah, fiberglass resin stinks, and it can be quite overpowering. I did the work outside, and I still had to step back from it occasionally. I probably should have worn the respirator. I think it's worse than nitro.

Call me crazy, but I love the smell of nitro. I absolutely hate sanding fiberglass resin. This looks like a very interesting and cool project, but better you than me :D

Thanks. I also find the smell of nitro pleasing, but it can also be overwhelming. And I agree about sanding the resin. The dust is so fine, and it gets everywhere.

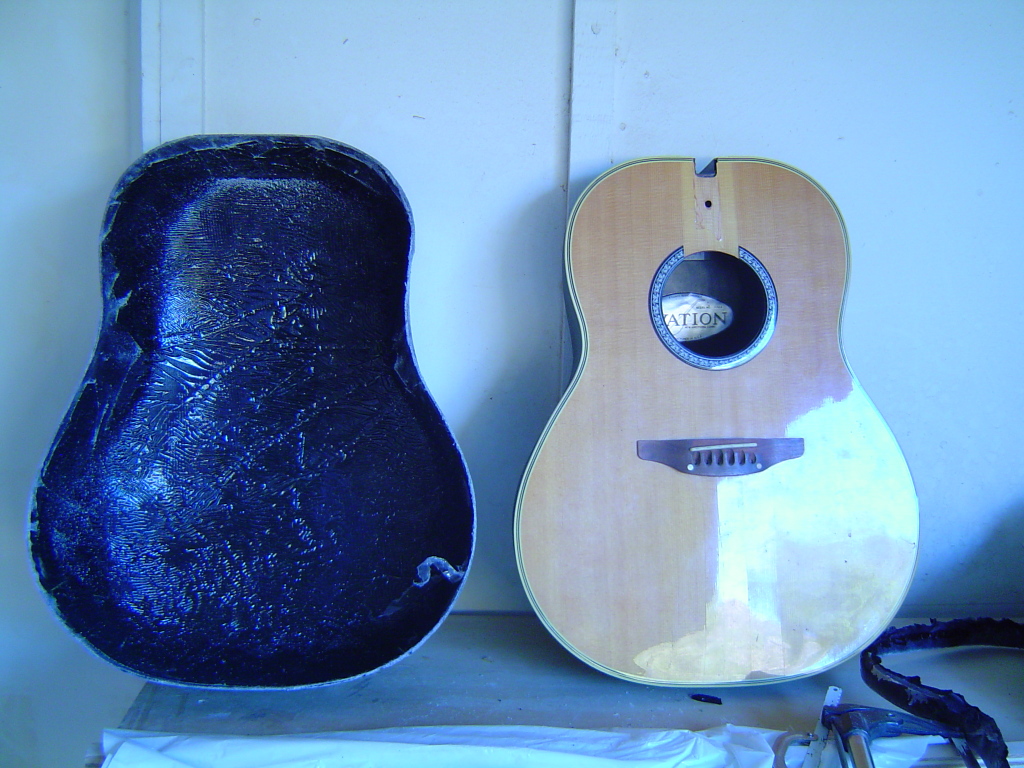

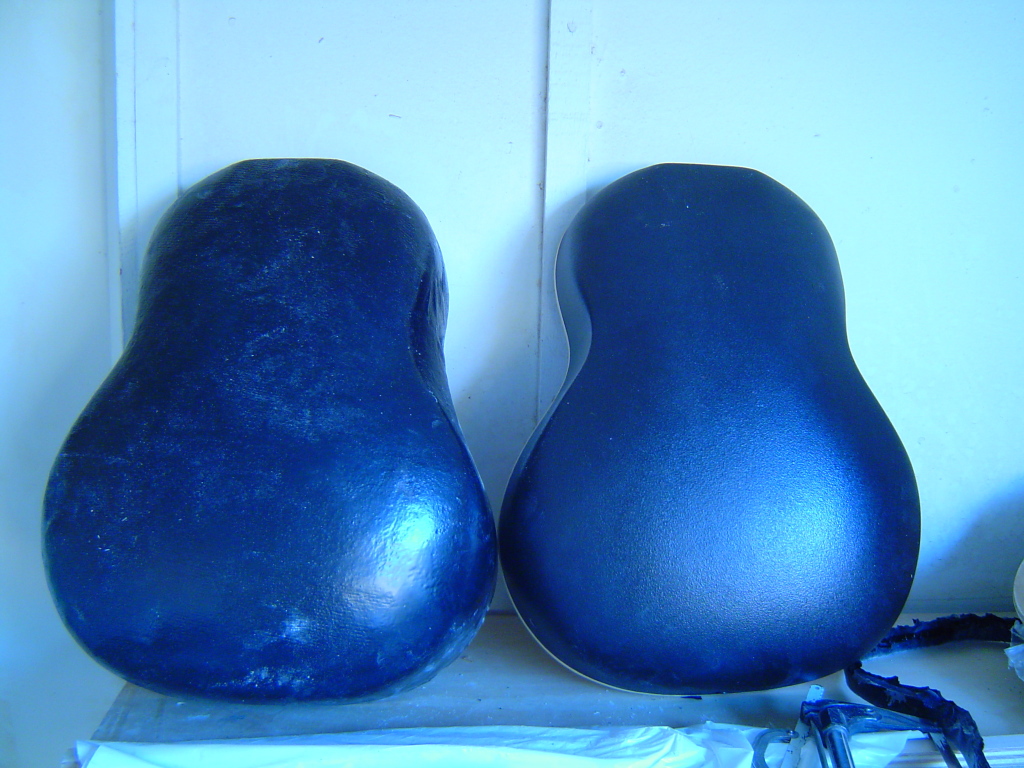

That said, I separated the body from the mold today.





It's not quite as rigid as I had hoped, so I'm thinking of putting in a couple of plywood cross members, and perhaps another layer of material. For those I may use actual fiberglass cloth for strength. It's still pretty light, so I think I'm good on weight.

Note to self - mark a straight line on the inside for the final cut using the original body as a straight line around the inside perimeter.

Funny thing, I've found about 5 guitar picks that fell inside the body over the years that I could never seem to get out. A few of them must be 30 years old. One was stuck under the Ovation sticker.

  • Like
Reactions: vmabus and SBassman
When you get the braced top attached, the body will stiffen up nicely. What are your plans for attaching the neck?

I'm thinking this will be basically a solid body bass guitar with a big sound hole cut somewhere, that has a big hollow back. I realize that may reduce the sound output, but I'm just looking for a bass that I can practice with unplugged, and perhaps for an instrument that will look "right" if I ever join an acoustic band again. From what I hear, most acoustic bass guitars aren't loud enough to play unplugged with acoustic guitars anyway, so I'm not too concerned about the volume, or lack thereof. So the neck will attach the same way as a normal solid body. I'll have to do that before I glue in the top, and use plenty of locktite - there's no access after it's together, unless I can get to it through the sound hole.

How thick is the back now? All of the sub boxes I've made that were odd compound curves were around 3/16" thick and were light and incredibly stiff. Put a layer of thick mat on the inside and it should stiffen quite nicely.

Yeah, I'm thinking Hopkins is right. Once I put on the top, it will stiffen back up. It's just under 3/16" now.

I was really spooked for a minute there - I thought you were going to permanently mummify that nice old Ovation body!

Whew! Must be the imminent Halloween creeping out...

Cool stuff!

"The Cask of Ovation" By Edgar Allen Mapleglo?

Stupid jokes aside, subbed. This is definitely an interesting concept.

Thanks! I like the Edgar Allen Mapleglo :P

And for what it's worth, the ovation body is from an old, entry level guitar. The finish has major cracks in it, and the frets have heavy wear, though the guitar is still playable - barely. The neck on those old Ovation Matrix's were cast in aluminum, including the frets. So I don't believe it feasible to even do any fret work. They can't be replaced easily. I'd have to sand them down completely, somehow cut fret slots (in a radiused aluminum fret board), and put in new ones. All on a guitar that cost probably under $200 in the late 70's.

It does have some sentimental value to me - it's the oldest instrument I own and I bought it new. We've been through a lot together.

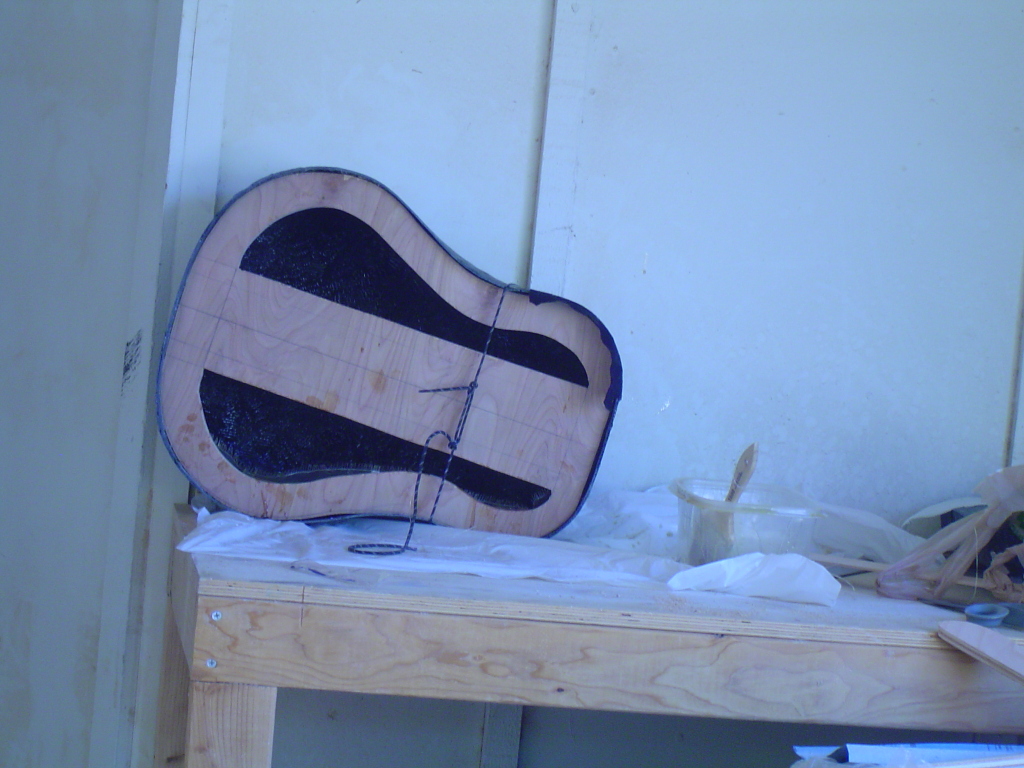

So today I fitted what I'm calling an "undertop" to the shell. I cracked the shell during the process, so I patched it.

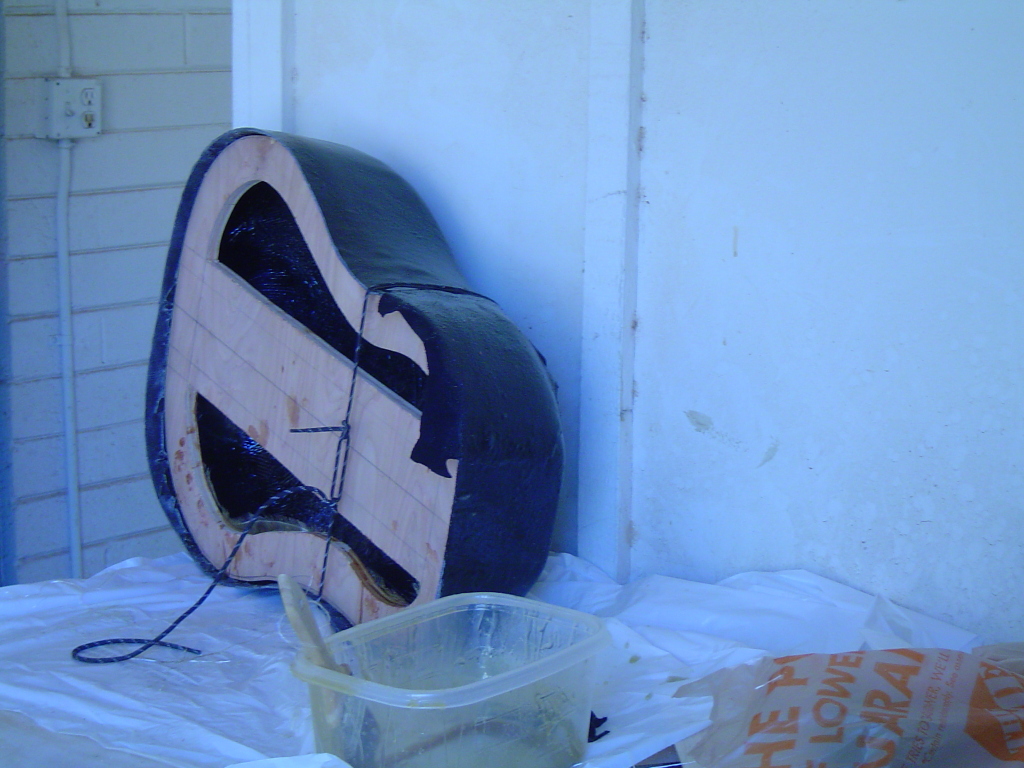

Then I placed a strip of fiberglass cloth inside to secure the "undertop" to the shell. I'll have to do this in steps because I'm kind of working with gravity.

I'm remembering a few things about working with fiberglass, aside from the fact it smells. The resin gets everywhere. Even though I wore gloves, it still gets on my fingers. Last time, a few clumps of it got on my work bench, so I had to sand that flat this morning. The cloth is "stick-y". I always feel like I have little shards of it on my hands and arms. That might be psychological. I'm remembering the ratio of hardener to resin for a good mix. And you can never have enough cheap brushes.



Once this step is completed, I may lay on another coat of the black cloth to the back, to help cover the repair.

  • Like
Reactions: vmabus and Splods
