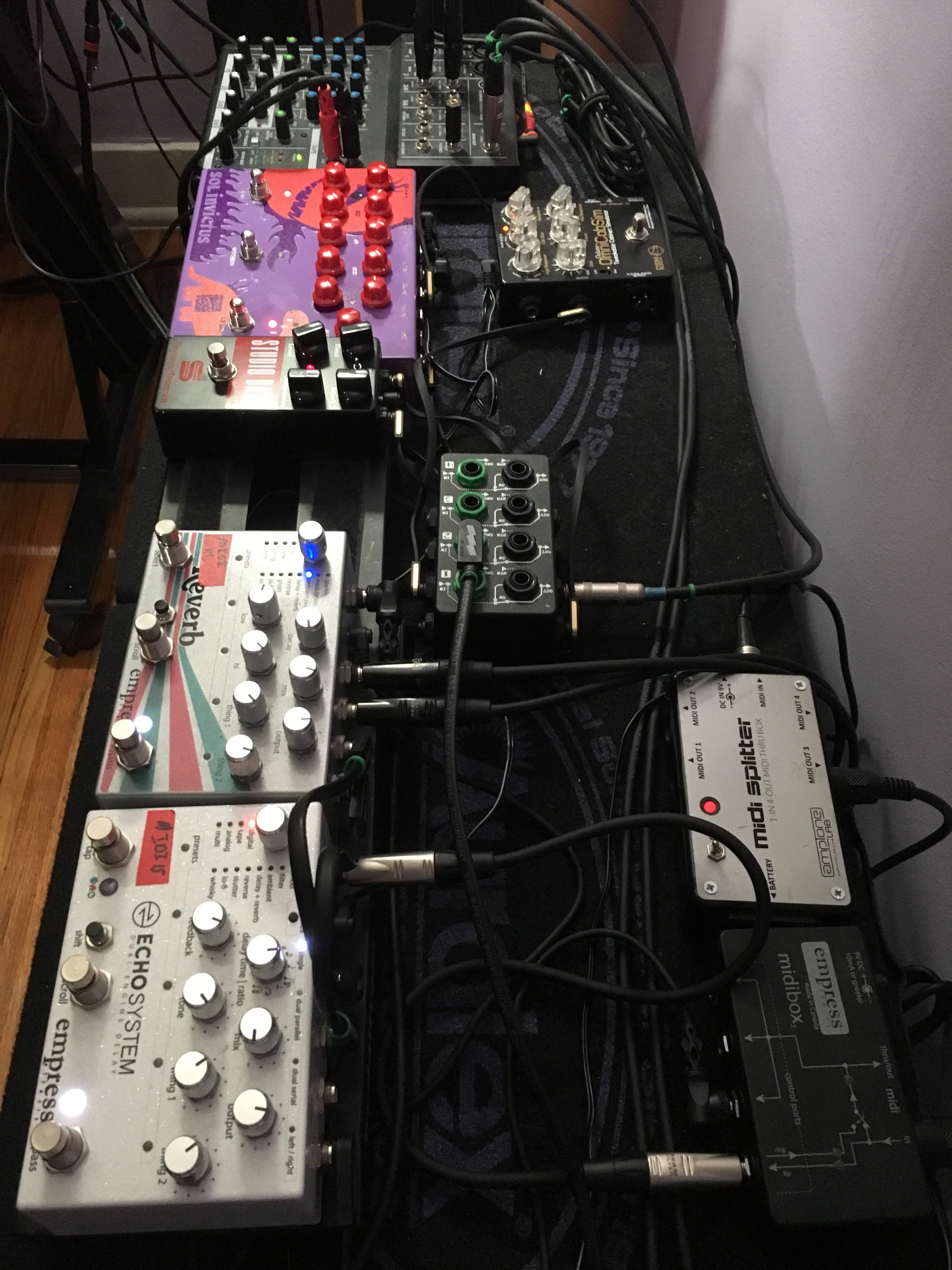

Testing out the new (z)ambiance rig.
As currently routed:
- Bass into Terminal slot 1. This allows for a looper to be inserted for the dry signal.
- Terminal slot 1 sends the signal to the Duncan Comp, the Sol Invictus. Sol’s Instrument Out will send the channel A, B or A+B at Inst level out. It then goes into the DSM Cab Sim. Sol’s individual outs for channels A and B are available should I want to run them direct to the DAW Interface. Currently it is routed so the Line Level our goes to the DAW, which enables me to record a dry signal and apply plugin sims, while also direct-monitoring using the DSM Sim sound as an approximation. No need to run a smaller buffer and smash my CPU.
- DSM Cab Sim routes back to the Terminal slot 2, which taps the Send signal and routes it to the Empress Echo and Reverb. The Empress pedals send stereo to the mixer. Since the Terminal is half-normal the dry signal passes to the slot 2 output.
- Slot 2 output routes to slot 3, which allows for an insert of a looper or Zoia or whatever else I want. The signal then goes through to the mixer.
It’s a lot of wires, but it allows me to run a clean/dirty signal from the Sol, with the blended signal getting routed to the time-based pedals and the DAW/mixer at the same time, and the option to easily route the clean and dirty signals from the Sol into separate DAW tracks, or send them so knows where else.
Now, if I could only play something worth recording
