amp blew a capacitor need help selecting

#41
spankdaplank said:
Sorry for coming to this party a little late, but the same thing happened to me.
Carvin BX500 with blown 1000uf 200v filter cap. Manufactured by CapXon as are all the electrolytics in the BX500..
I'm posting because I found this website:

Invalid Link Removed

dedicated to identifying the bad cap manufacturers which includes CapXon. They also list the good, reliable brands.
Click to expand...


This is a street parade good sir, its impossible to be late!:eyebrow:

#42
It would be cheap insurance to get an ESR meter and check out the rest of the capacitors for signs of failure and/or replace them proactively. After many incidents with cheap Chinese capacitors, I tend to not trust them.

#44
Heard back from Orange today. They have switched the 16v caps in that position for 25v. So check your cap! He said that you have to register your head on their site, but you get an extra year (2 years total) on everything but fuses and tubes. As of today, if you ship it to them they will replace the cap and/or power board and send it back on them. Not sure if that's just for me, all TB500's, or ones within warranty period.

#46
3l3phantstomp said:
Heard back from Orange today. They have switched the 16v caps in that position for 25v. So check your cap! He said that you have to register your head on their site, but you get an extra year (2 years total) on everything but fuses and tubes. As of today, if you ship it to them they will replace the cap and/or power board and send it back on them. Not sure if that's just for me, all TB500's, or ones within warranty period.
Click to expand...

Good to know. Thanks for the update. Going to check my amp tomorrow.

#47

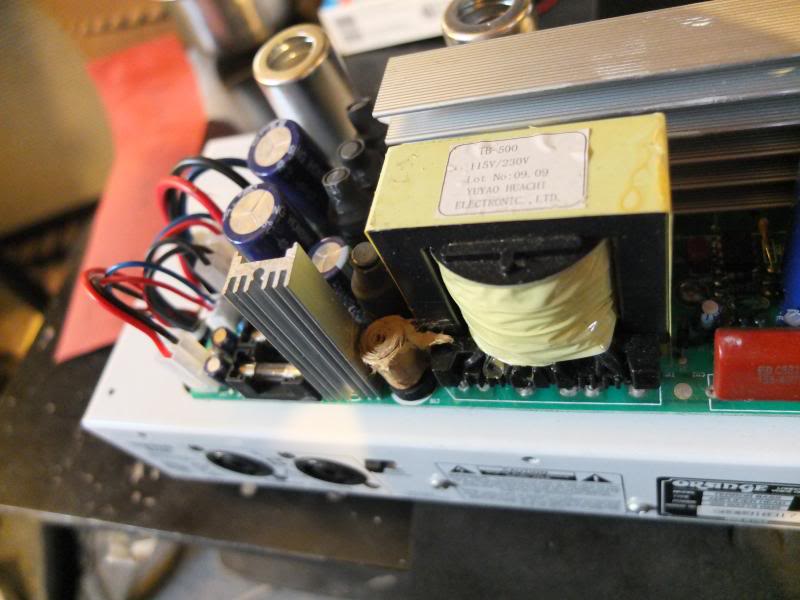

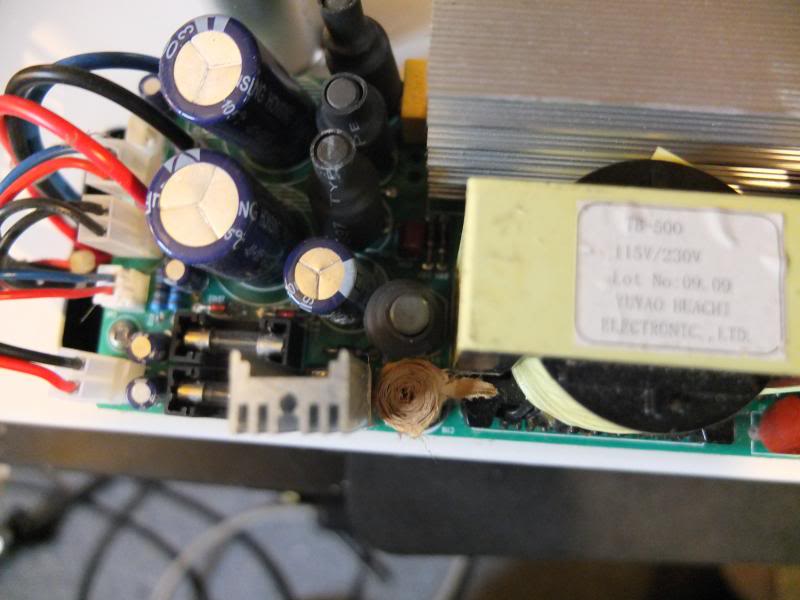

So I checked my cap today on my functioning Terror Bass 500 and guess what I found...:rollno::scowl::crying::help:




Yup. A blown cap with no shroud? like it blew and was removed at some point. It is C116 and I guessing it was the same that has been blowing on other peoples amps? Mine looks like the original version of the amp. (no rev. number and slightly different part placement)The amp works fine though. Obviously won't be using again until I get a replacement.

very strange...:eyebrow:

*edit* found the cap casing stuck to the top of the psu cover.

#48
Mine is all fixed up. Replaced a few other caps while I was at it. Sounds great. Hopefully won't have any more issues down the road. I really love this amp and plan on using it a lot more.
