Amp Guts Photos - Official Thread - Lets see those pics

[svtb15]

sweet

Here's the guts of my '63 B-15N

Link Removed



[jmpiwonka]

found this
thought i'd drop it in here...

Repair of three Ampeg SVT Amps



[hennessybass]

not really a gut shot, but...

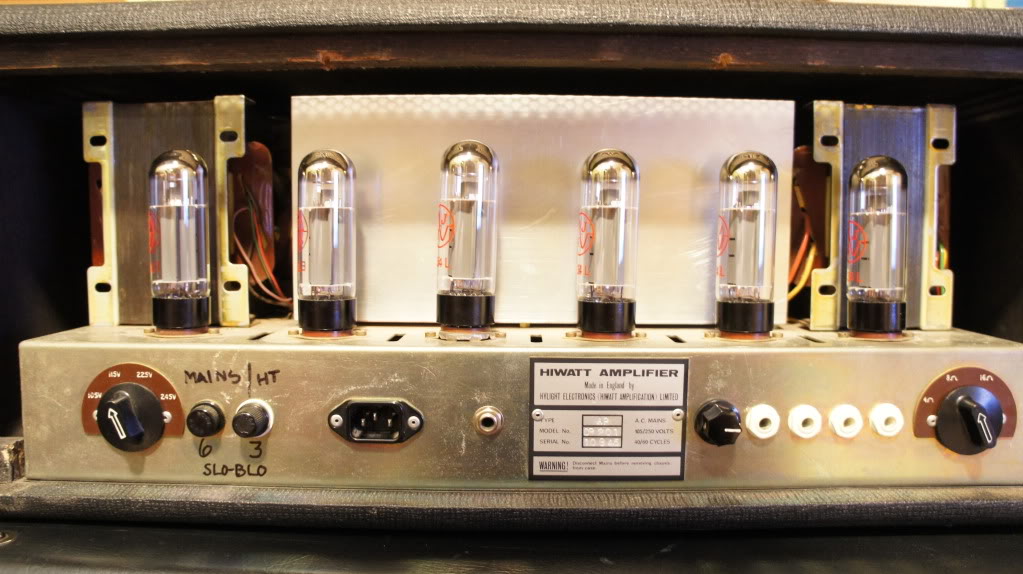

Hiwatt DR201 - there is a 4xKT88 version and a 6xEl34
I'll try to get some actual gut shots tonight.



[Dominic D]

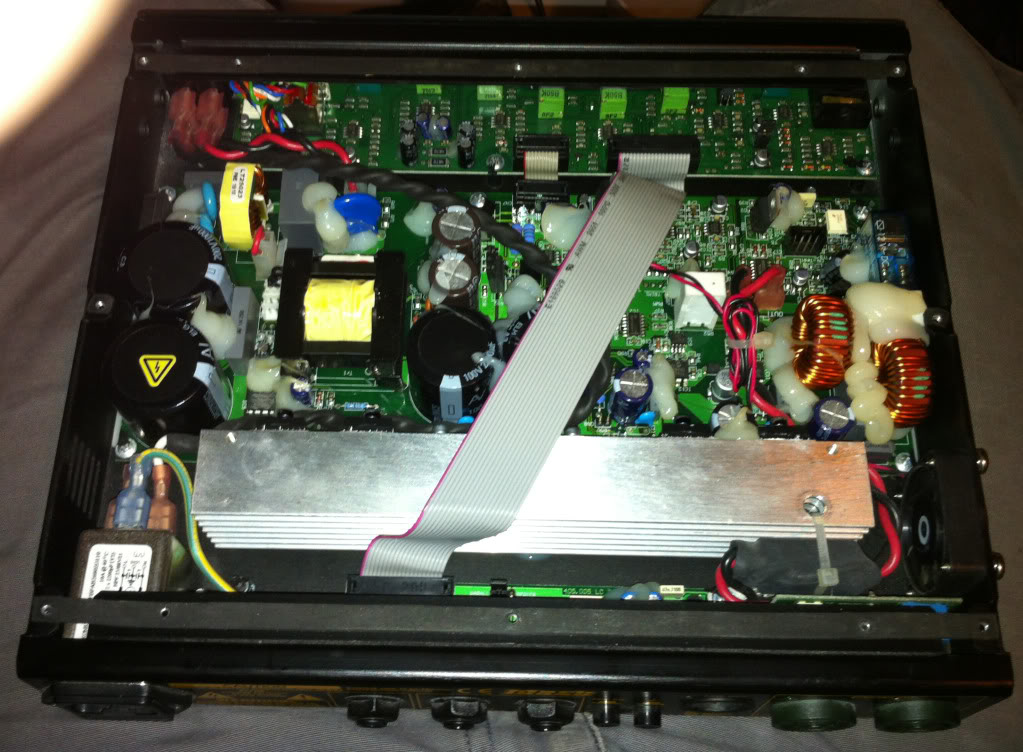

I don't recall seeing this on here, so here's the inside of my Markbass F500 head:



[nikifena]

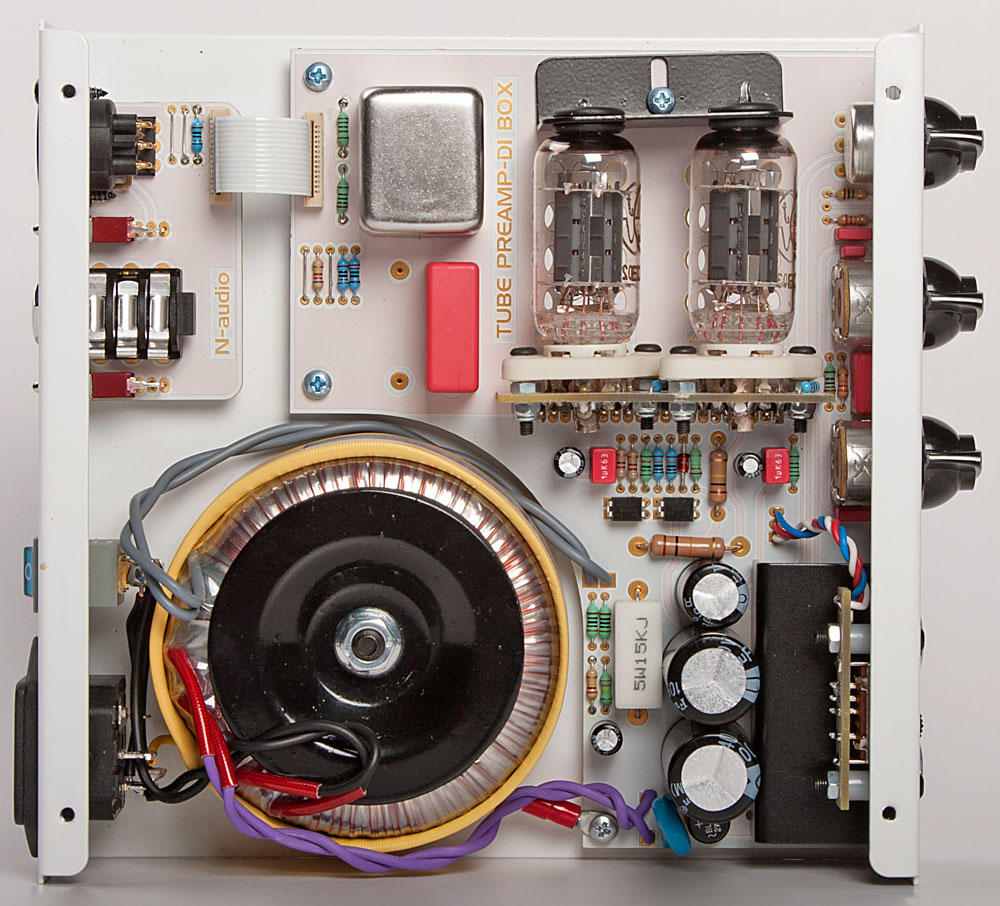

N-audio Tube Preamp DI Box guts inside:



[Jeff Scott]

N-audio Tube Preamp DI Box guts inside:

Nice! I have not heard of your company, before. Do you have any US dealers or is this just direct purchase from you via your website?



[Jeff Scott]

BTW, you should register as a manufacturer/sales, etc. with the TB forum admin:

http://www.talkbass.com/forum/faq.php?faq=commuserpolicy#faq_cup

I like your website, too.



[dincz]

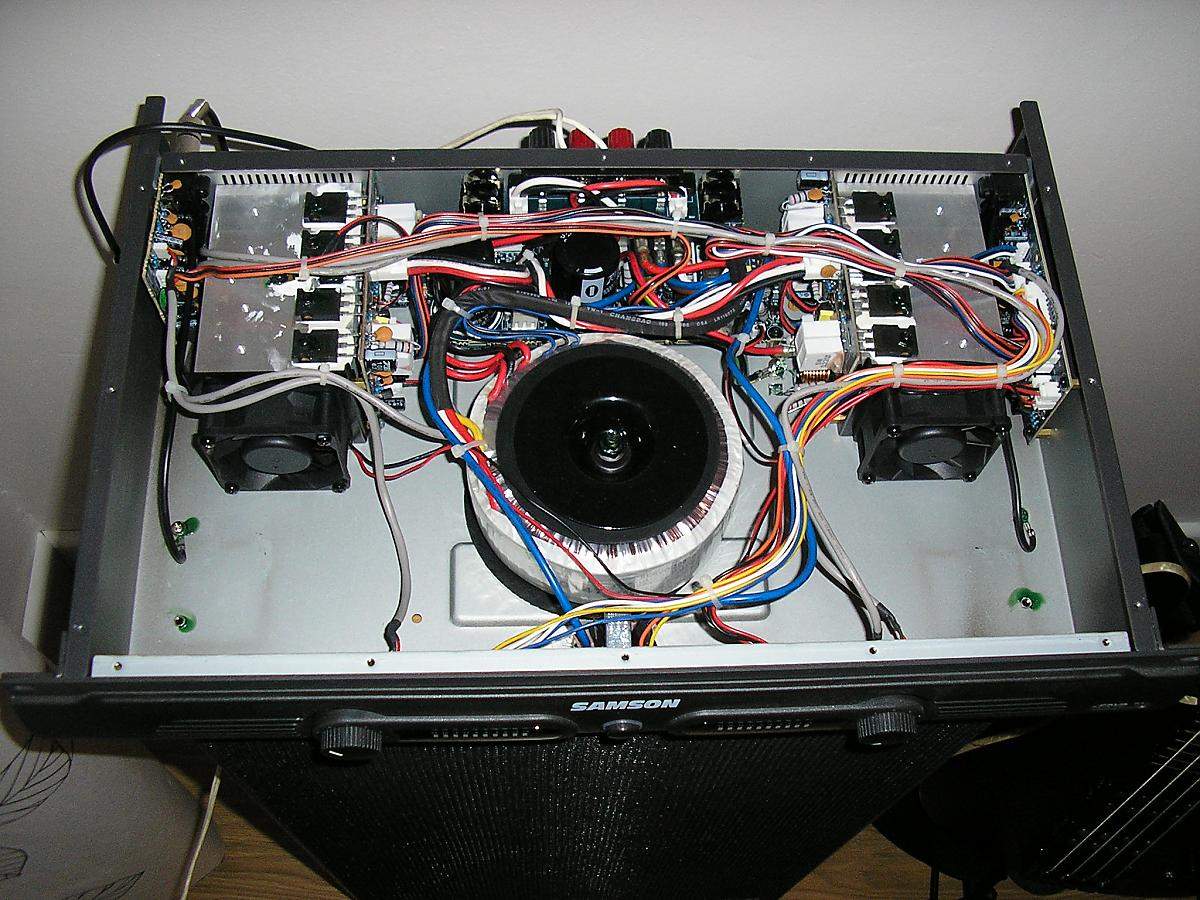

Samson Servo 300 power amp



[nikifena]

^^ Thanks, Jeff. Thanks!

Sorry, if you think that this is not allowed, please delete my post.

Unfortunately I'm one man company and I don't have any distributors around the world. I just add free shipping for all my products and they are avaible for buying direct from my site at this time.

Niki



[MAMMOTHvolume]

N-audio Tube Preamp DI Box guts inside:

very nice i like it!



[chillerthanmost]

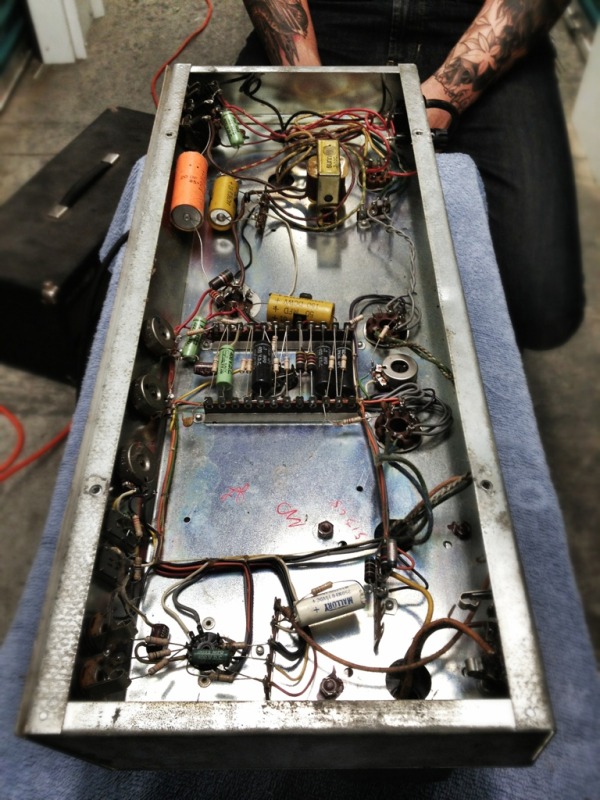

'68 Sunn Sorado



[dincz]

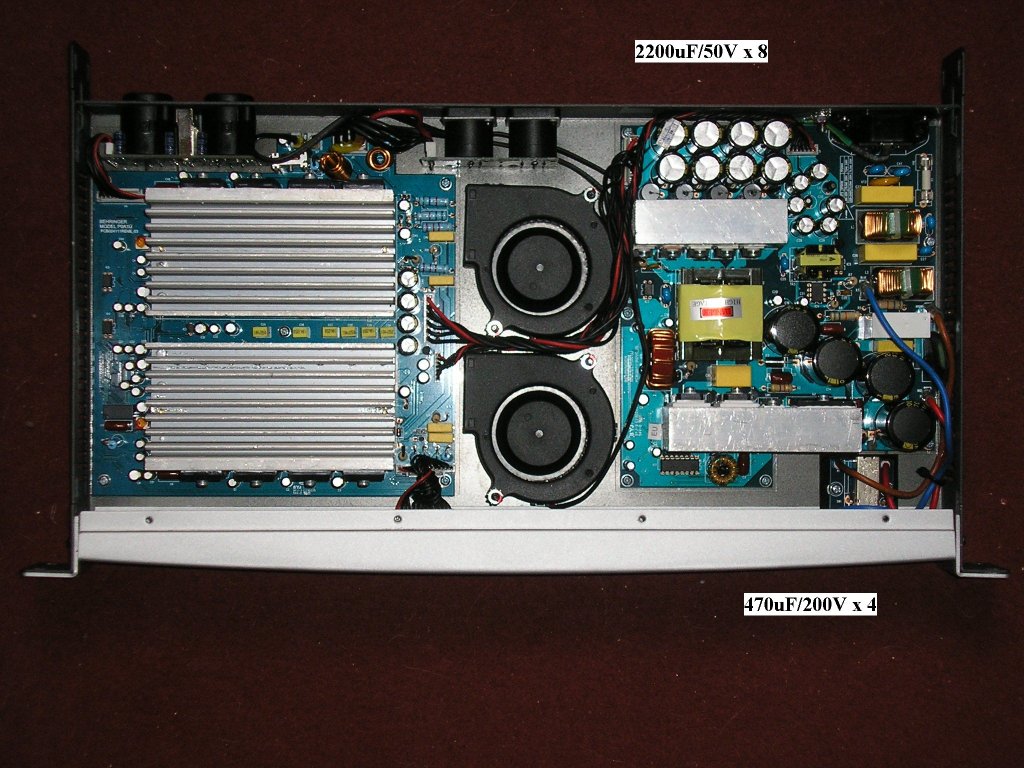

Another cheap one - Behringer EPQ900 power amp:

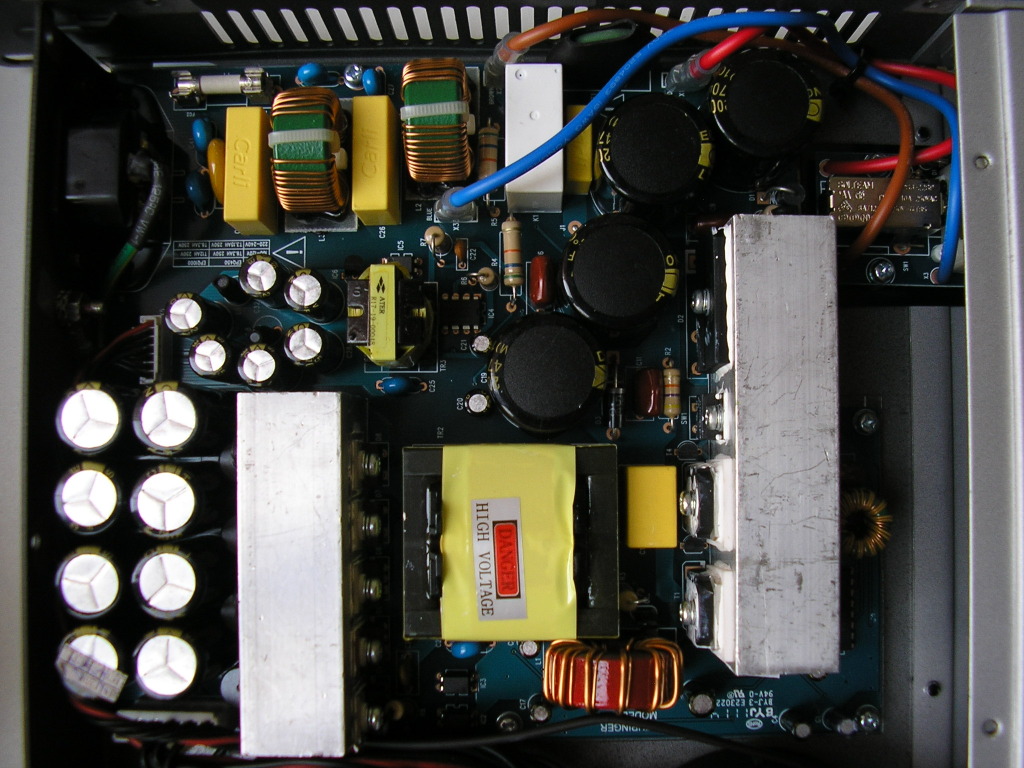

Power supply board:

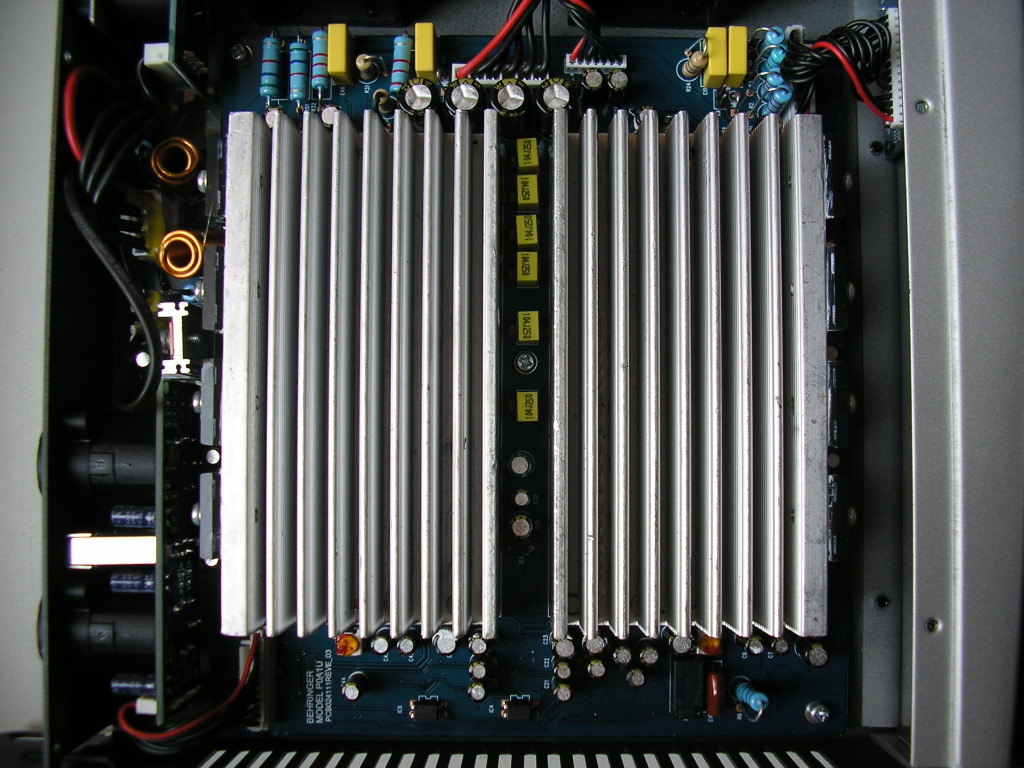

Amp board:



[B-string]

Actually nicely layed out. The PA stuff usually gets a lot more respect.



[dincz]

Actually nicely layed out. The PA stuff usually gets a lot more respect.

I only got this last week and haven't used it above apartment volume. Cooling in a 1U format is tricky. Fingers crossed.



[SnowCal]

That's one of 'em. Of course I've plugged my bass into that little guy. Might be nice for recording, I dunno. Point to point wiring and you've gotta love those rusty transformers.





And that's the decrepit Peavey head I've been trying to ruin.

Maybe I'll get some pictures of some real bass amps up soon. Gotta liberate those from the band house though.



[majortoby]

As I recall, that series of PA amp from B* has gotten more or less universally good reviews. Un-cross thy fingers, and rock out!



[KramerBassFan]

What model Peavey is that? I have one that looks just like it, except no Reverb.



[SnowCal]

What model Peavey is that? I have one that looks just like it, except no Reverb.

Peavey Musician 300-Series. Fuzz, reverb, and "phaser".



[George M.]

Not an amp...

SWR Mr. Tone Controls, extremely rare 9 band semi-parametric EQ, designed and hand made by Steve Rabe himself, especially for bass guitar equalization. It was made aproximately 200 pieces, only for SWR endorsers and never was available for sale.



[GreaserMatt]

Nice piece of gear you have there!!! ^^^^
