Not sure. Possibly to help contain leakage in the future? The red really pops against the black chassis? Warning: high voltage red?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Amp Guts Photos - Official Thread - Lets see those pics
- Thread starter svtb15
- Start date
Not sure. Possibly to help contain leakage in the future? The red really pops against the black chassis? Warning: high voltage red?
Mr. Foxen
Commercial User
Beautiful pics. Thanks for posting, and getting this thread back on track!
Not sure. Possibly to help contain leakage in the future? The red really pops against the black chassis? Warning: high voltage red?
I don't think I've seen that before so I was just curious. I think the red makes it go faster.

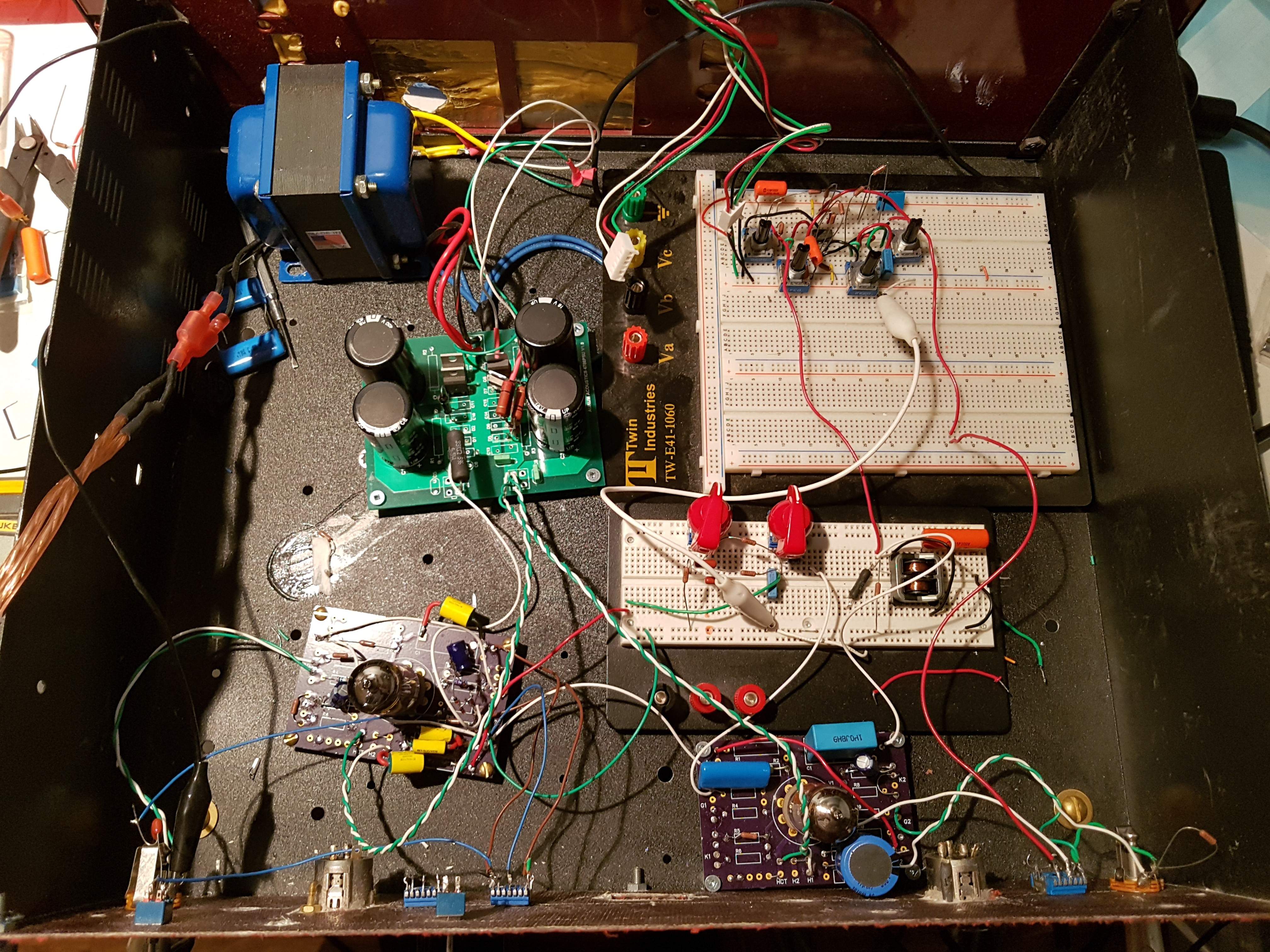

Sort of related: Here's what several months of experimenting with preamp topologies ends up looking like. A box of spaghetti!
I don't think I've seen that before so I was just curious. I think the red makes it go faster.
Sort of related: Here's what several months of experimenting with preamp topologies ends up looking like. A box of spaghetti!
View attachment 3548702
An electronics sandbox!
Last edited:
I don't think I've seen that before so I was just curious. I think the red makes it go faster.
Sort of related: Here's what several months of experimenting with preamp topologies ends up looking like. A box of spaghetti!
View attachment 3548702
I especially like the jewelers screwdriver laying in the chassis waiting to slide around and short something out.
Sadly I've seen a few really cheap import amps that looked very much like that inside. Sans screwdriver of course.
Surprisingly, it's not very noisy like this. In my basement anyway. I've pretty much settled on a design topology so I will be committing it all to PCBs shortly.
I especially like the jewelers screwdriver laying in the chassis waiting to slide around and short something out.
I didn't even remember that was in there. It's been there for months but the box hasn't moved in months either so it's all good. I've seen some "high end" gear that wasn't a whole lot better inside. You can be sure when I put it in a proper enclosure it will look neater than this.
I especially like the jewelers screwdriver laying in the chassis waiting to slide around and short something out.
Looks like a Radio Shack set.
Mr. Foxen
Commercial User

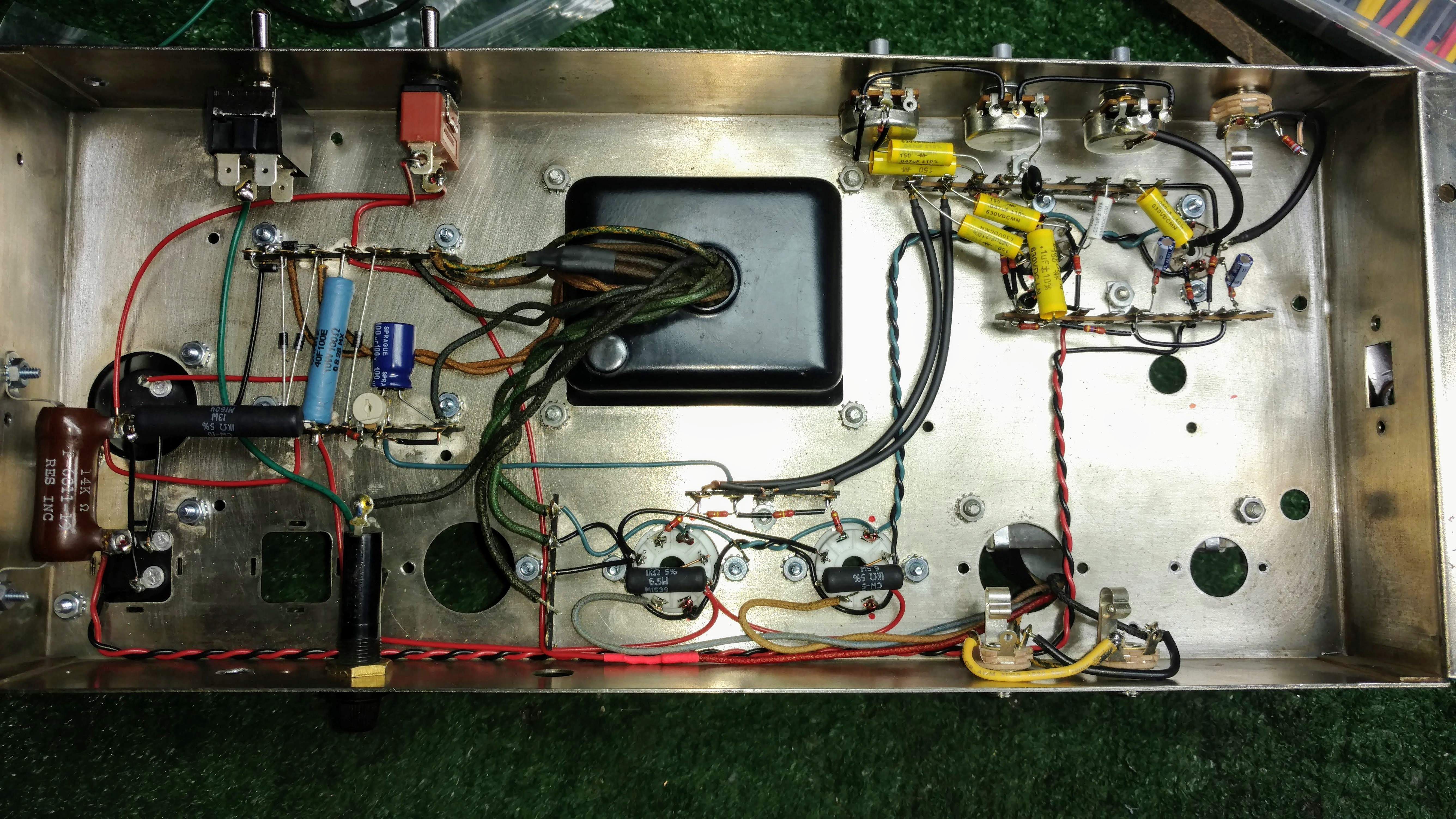

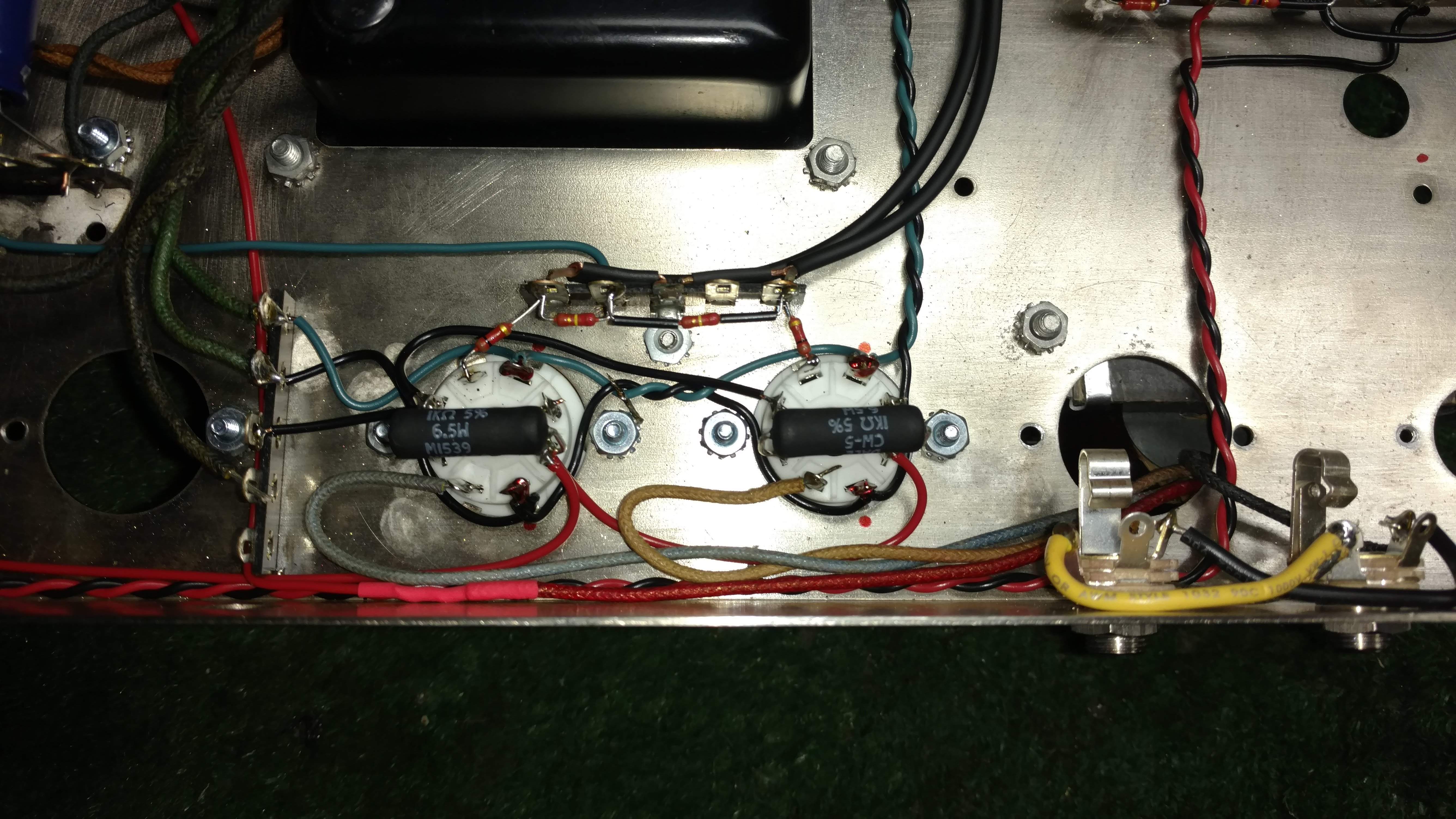

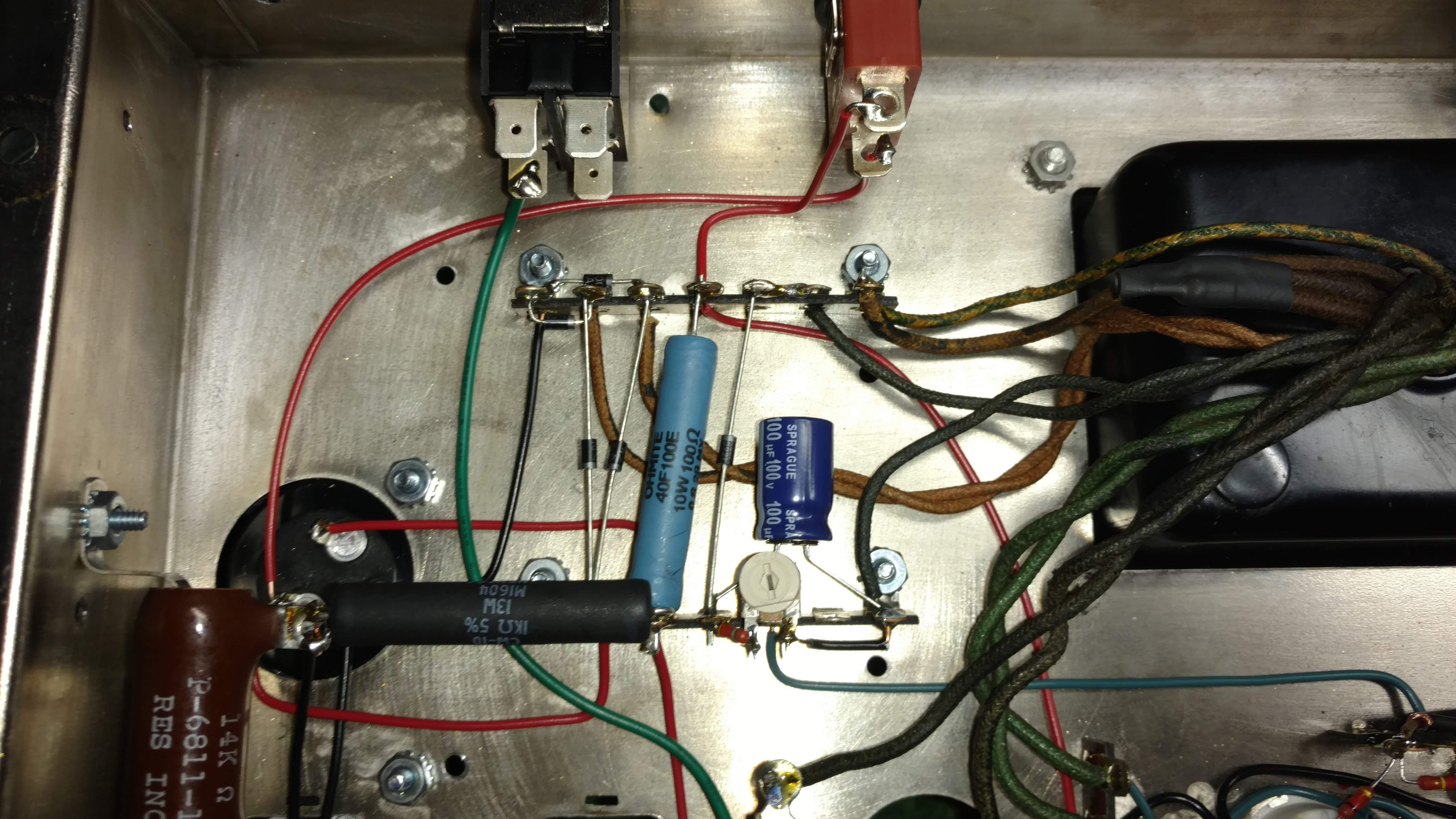

Here is an amp I built for a buddy, I call it the buzzbomb. I have built 3 of them so far.

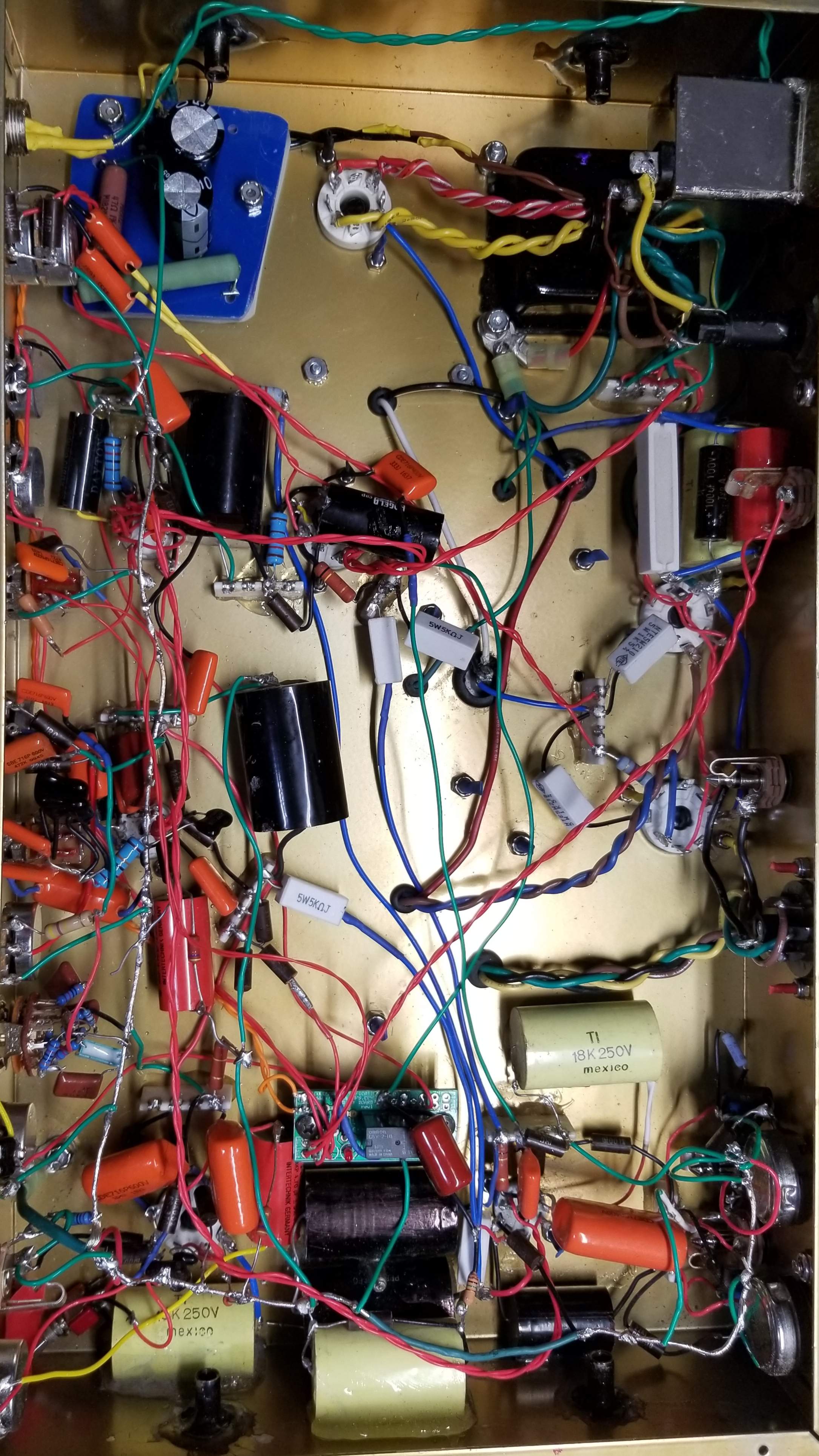

7591 power tubes and it's built into a 60's era Cordovox chassis using the Cordovox transformers.
High gain, super touch sensitive and great power tube breakup. It's about 25 watts in theory but I have not measured the power output.
7591 power tubes and it's built into a 60's era Cordovox chassis using the Cordovox transformers.
High gain, super touch sensitive and great power tube breakup. It's about 25 watts in theory but I have not measured the power output.
- Feb 12, 2006
- 61,062
- 5
- 221,106
- Disclosures
- Development Engineer-Mesa Boogie, Development Engineer-Genzler (pedals), Product Support-Genz Benz
That's a lot of big, heavy parts with long leads to be a bouncing around. You might want to be sure they are secure if you plan on transporting the amp IMO.
The big caps are light (metalized poly) and epoxied to the chassis. I remove the tubes and give the chassis three drops from 4 ft. to a thin carpet over concrete. Not quite the torture of a loading dock toss of six feet to concrete that a Canadian amp maker used to perform, but this chassis goes into a 40 x 18 x 11 inch cab which should help with both being less likely to be knocked over, and deceleration trauma.
