Amp Guts Photos - Official Thread - Lets see those pics

[disssa]

Invalid Link Removed

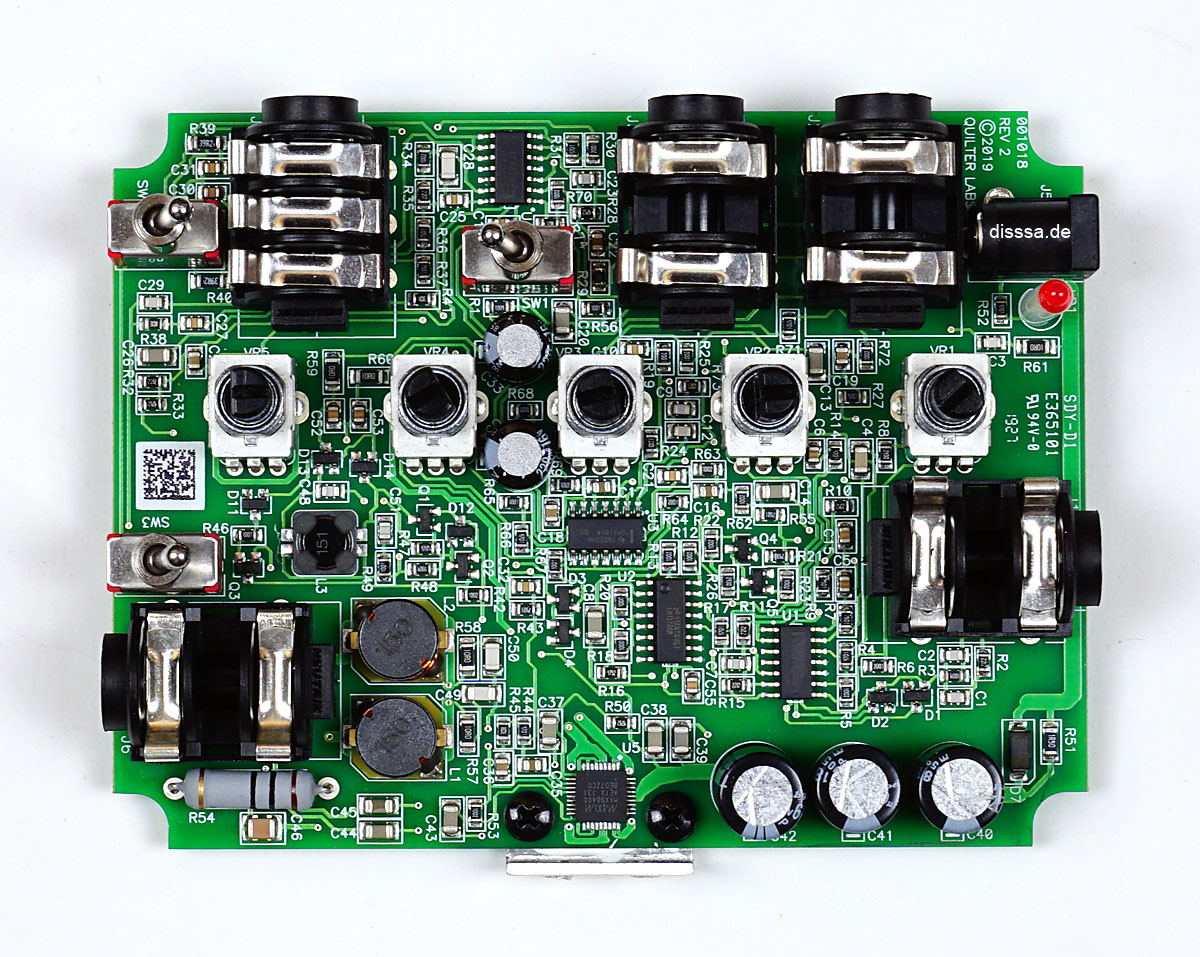

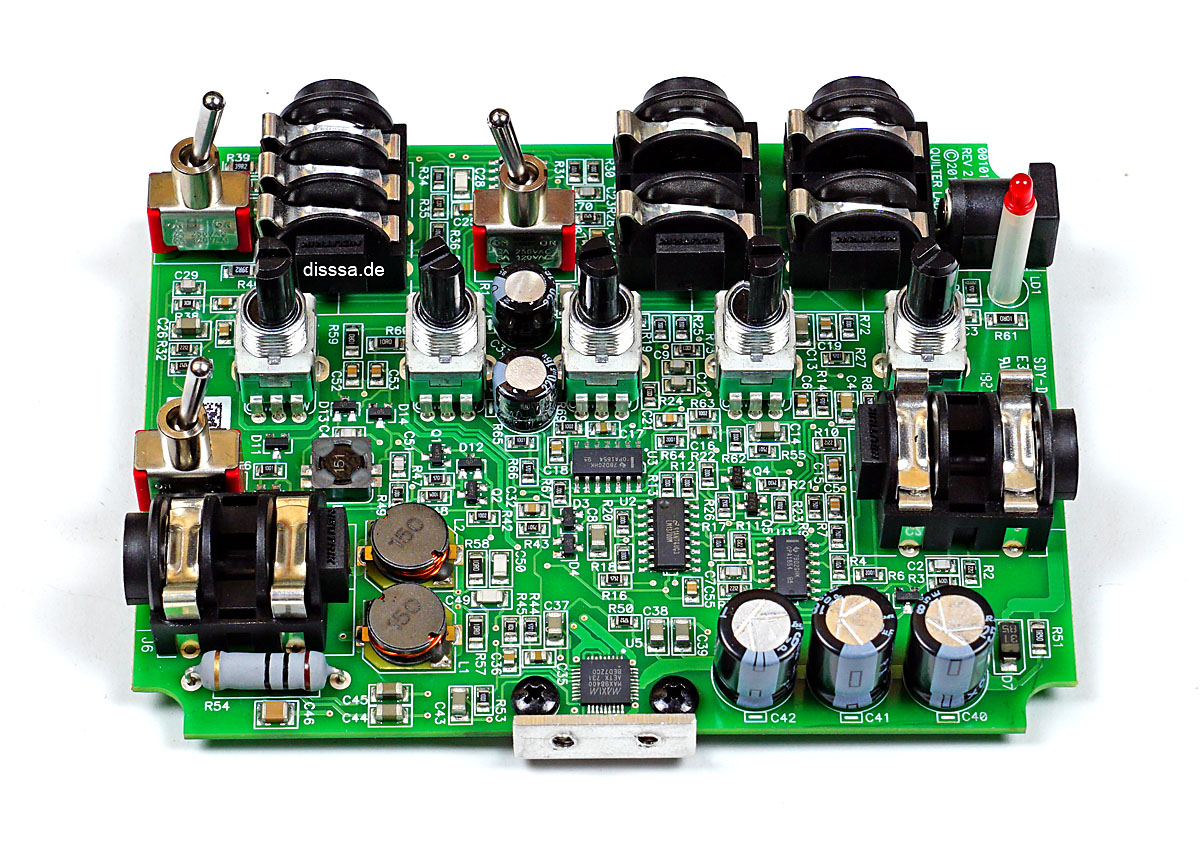

...and yes, it is an amp!



[seamonkey]

Invalid Link Removed
View attachment 3606405
...and yes, it is an amp!

Amazingly clean layout.
That 10 ohm resistor has me speculating that it's part of the Vintage circuit.

I'll bet a lot of pedal style preamps with a low powered amplifiers come out soon to capture this market segment.

My only concern is the power brick may be an extra irritation but I see the benefit to an off the shelf power brick.



[disssa]

Invalid Link Removed



[jazzbass_5]

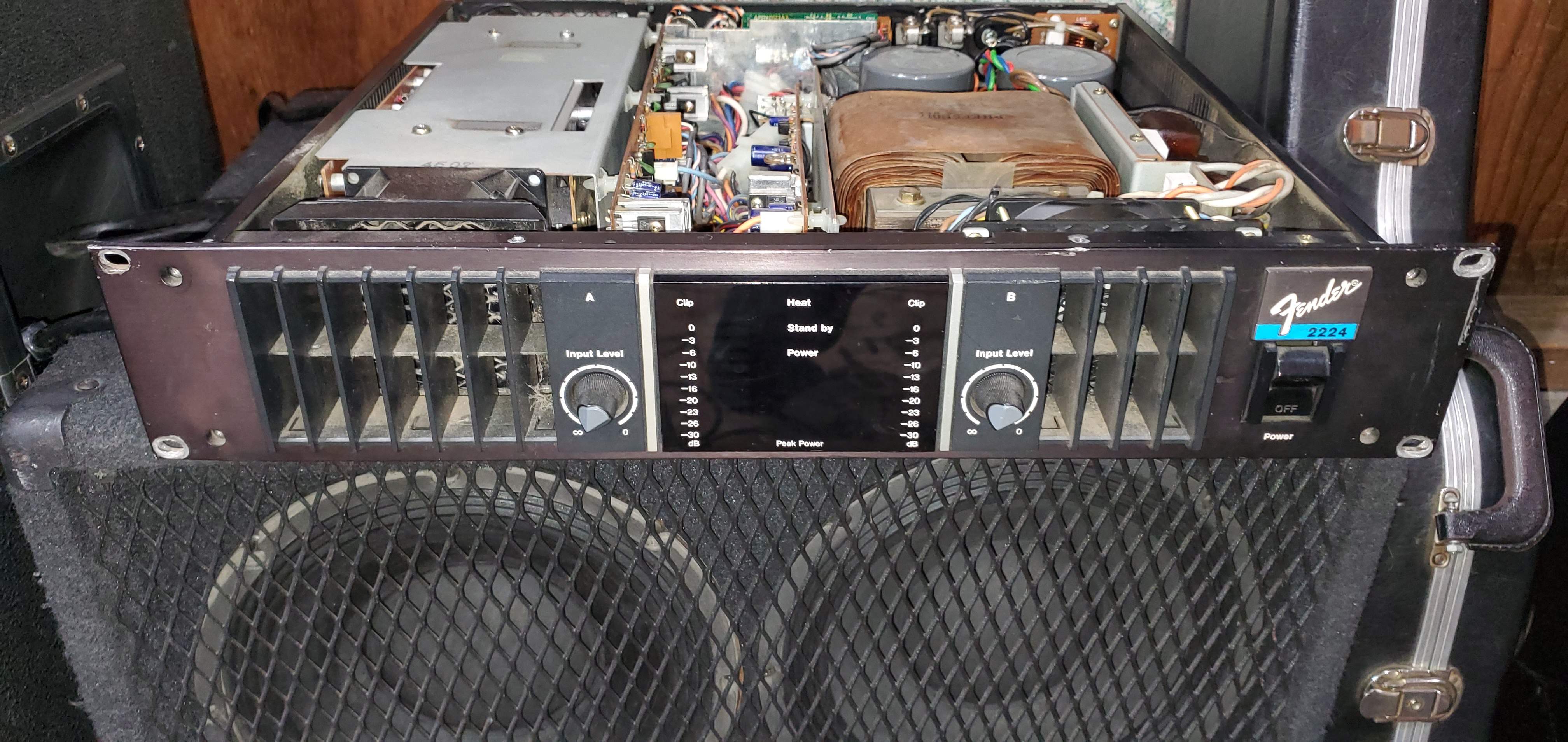

Fender 2224.



[rufus.K]

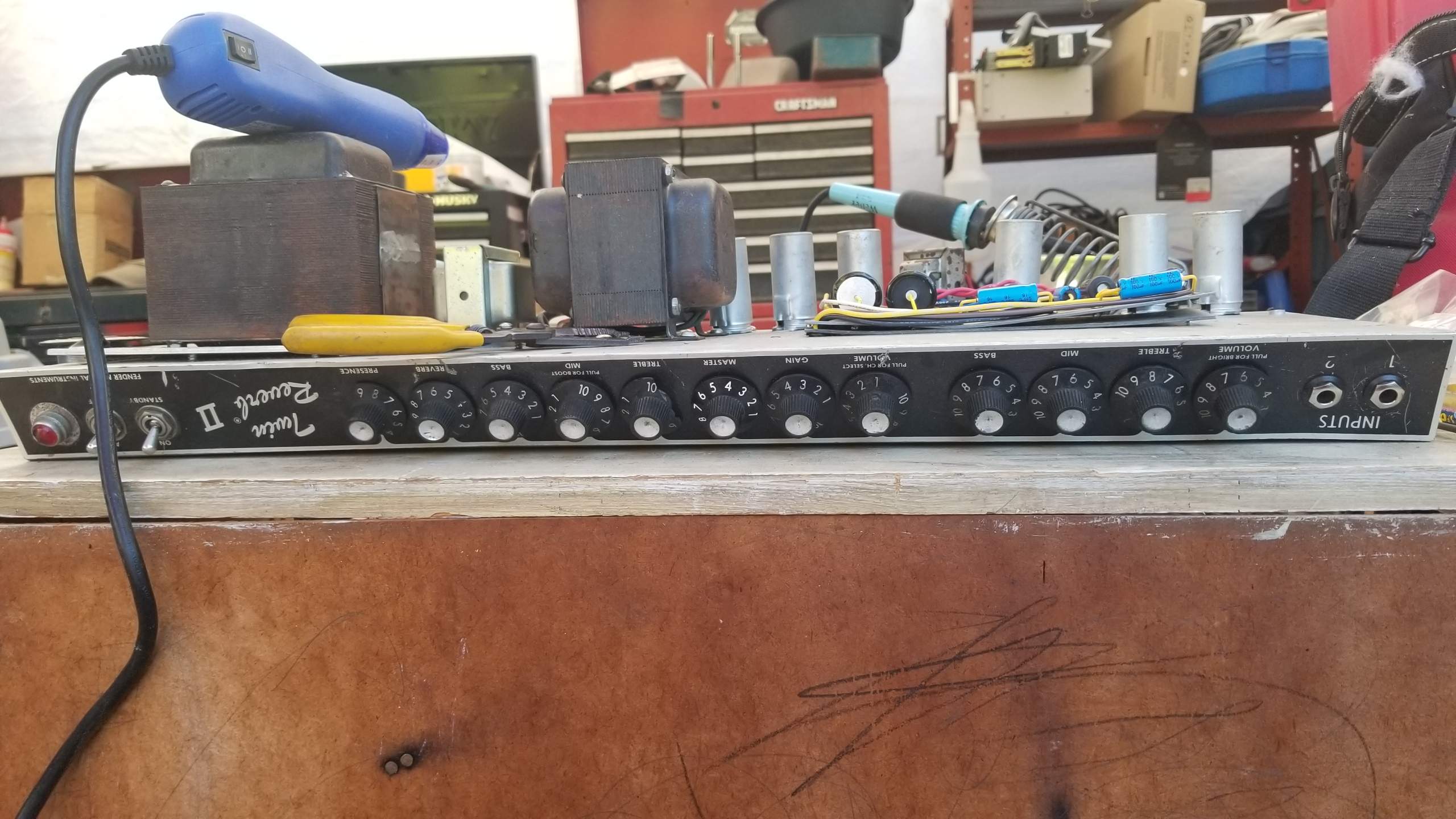

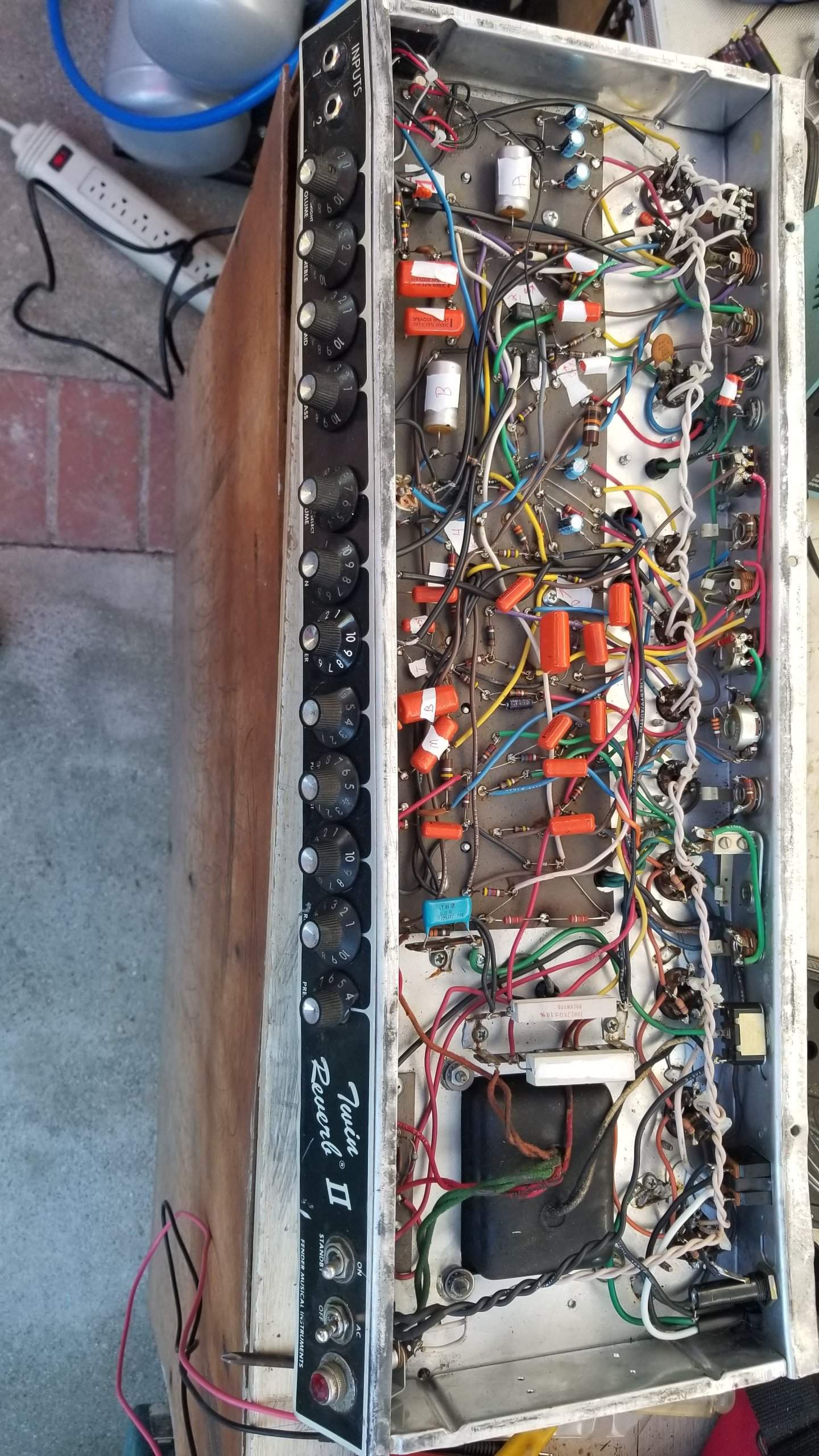

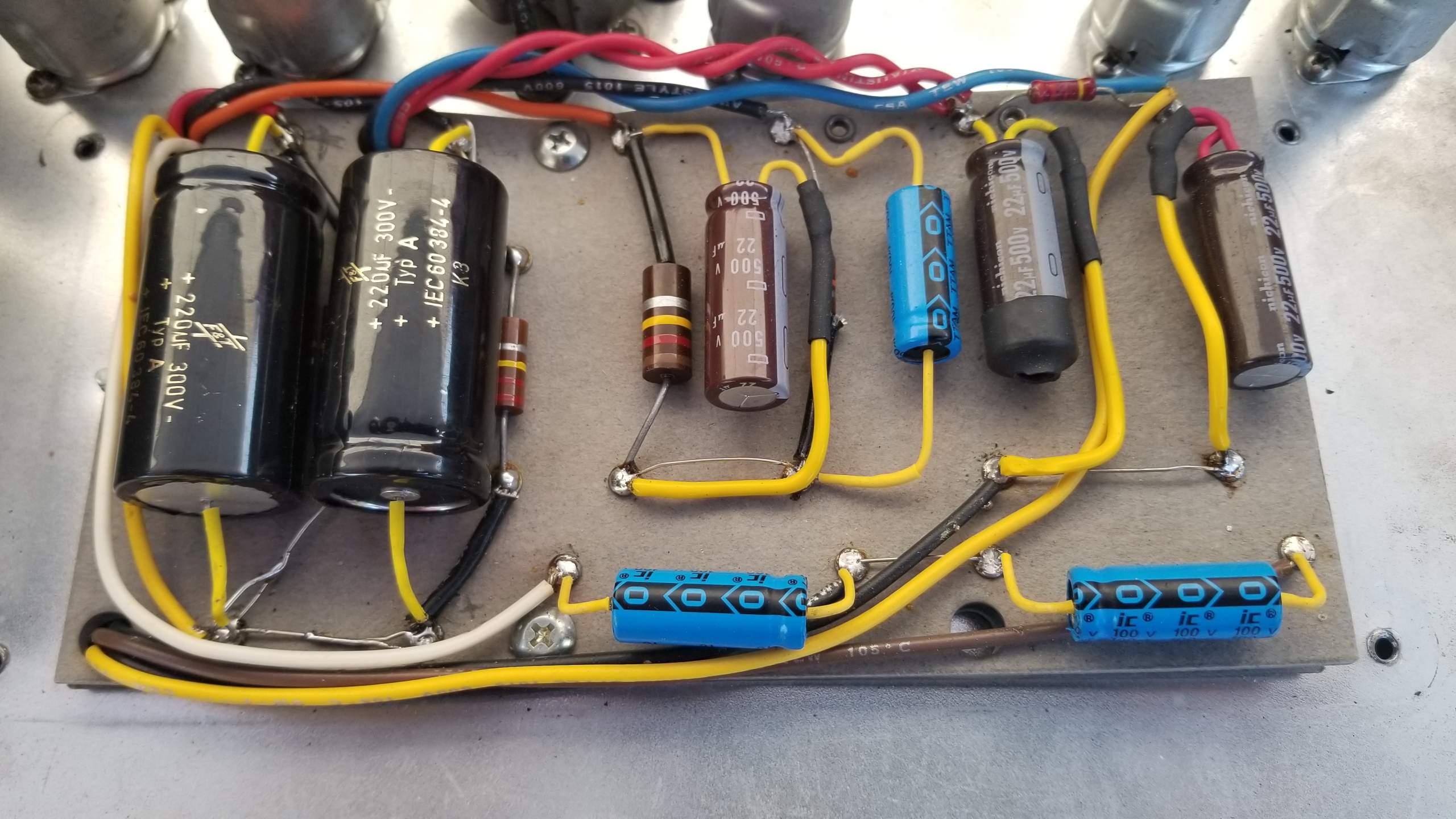

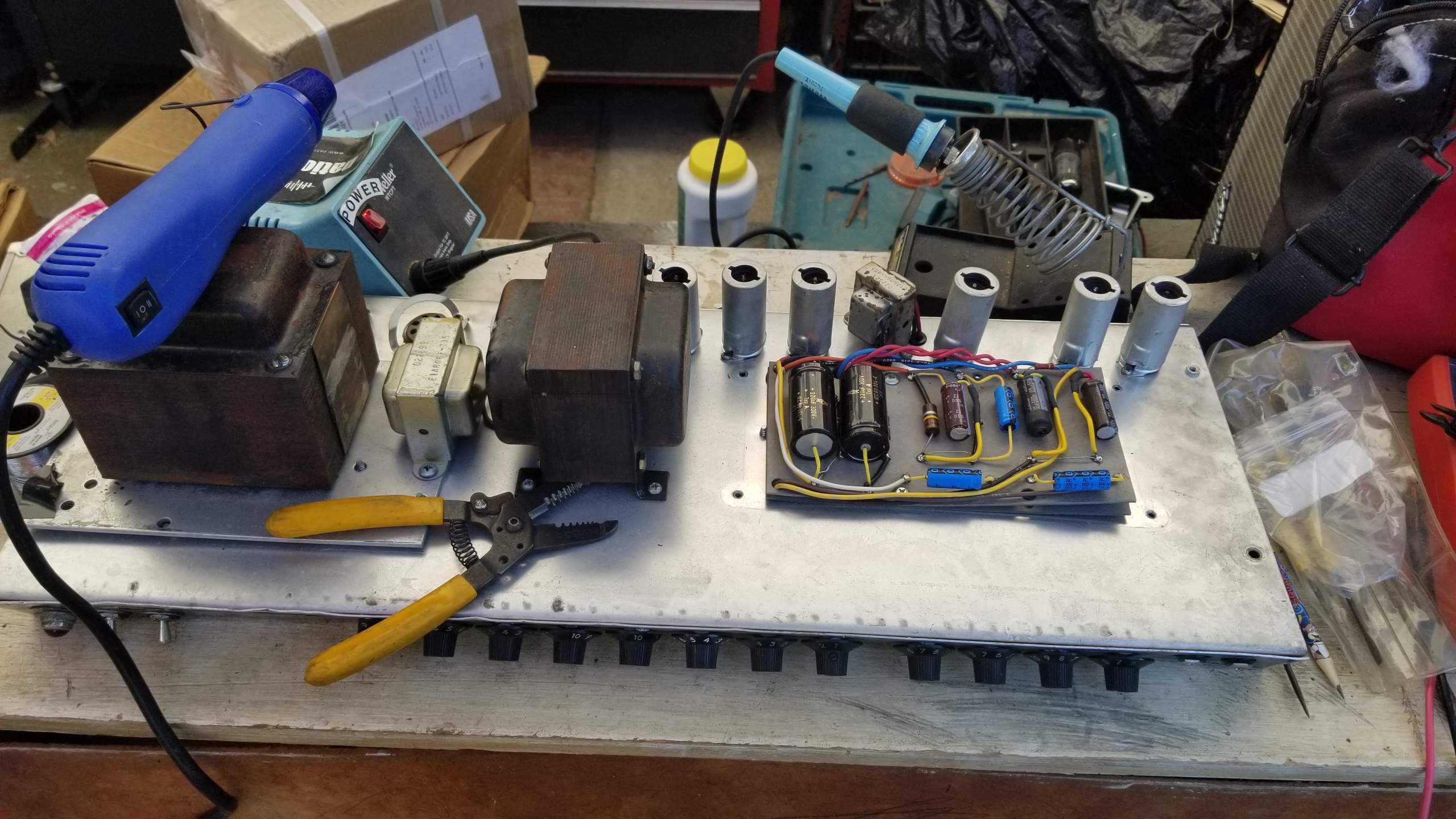

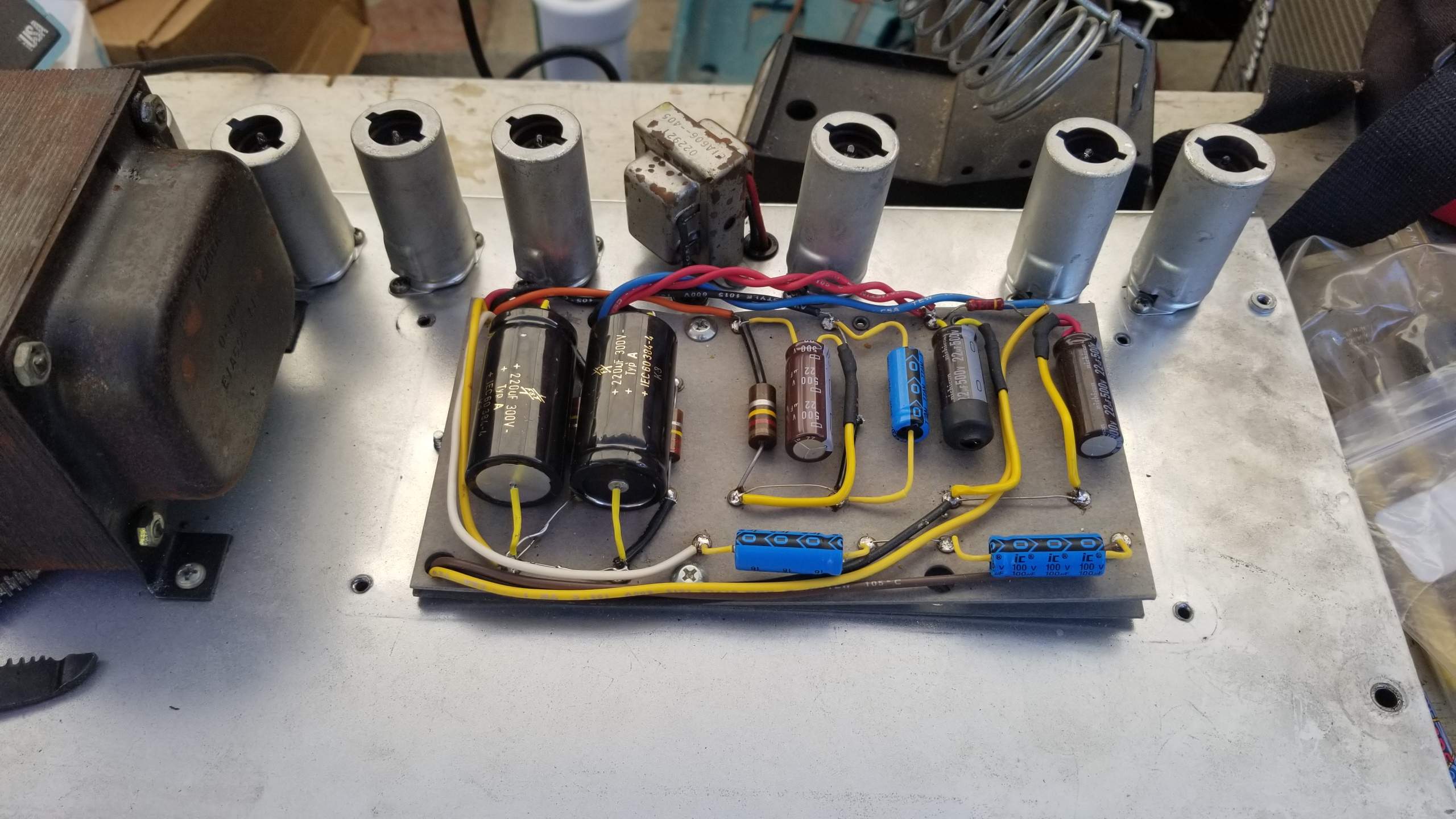

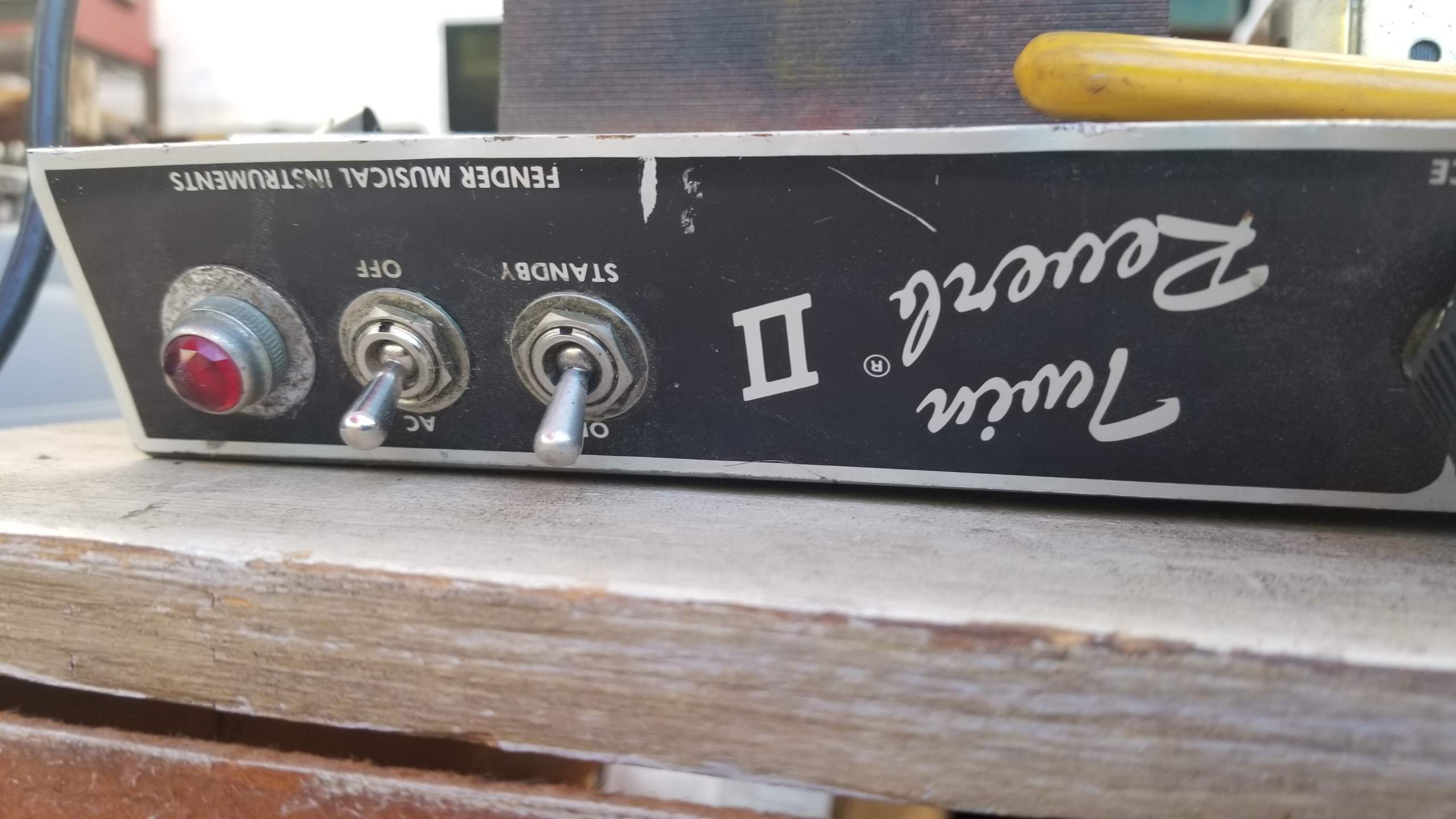

TwinReverb II
Rivera era.



[Michael J Toren]

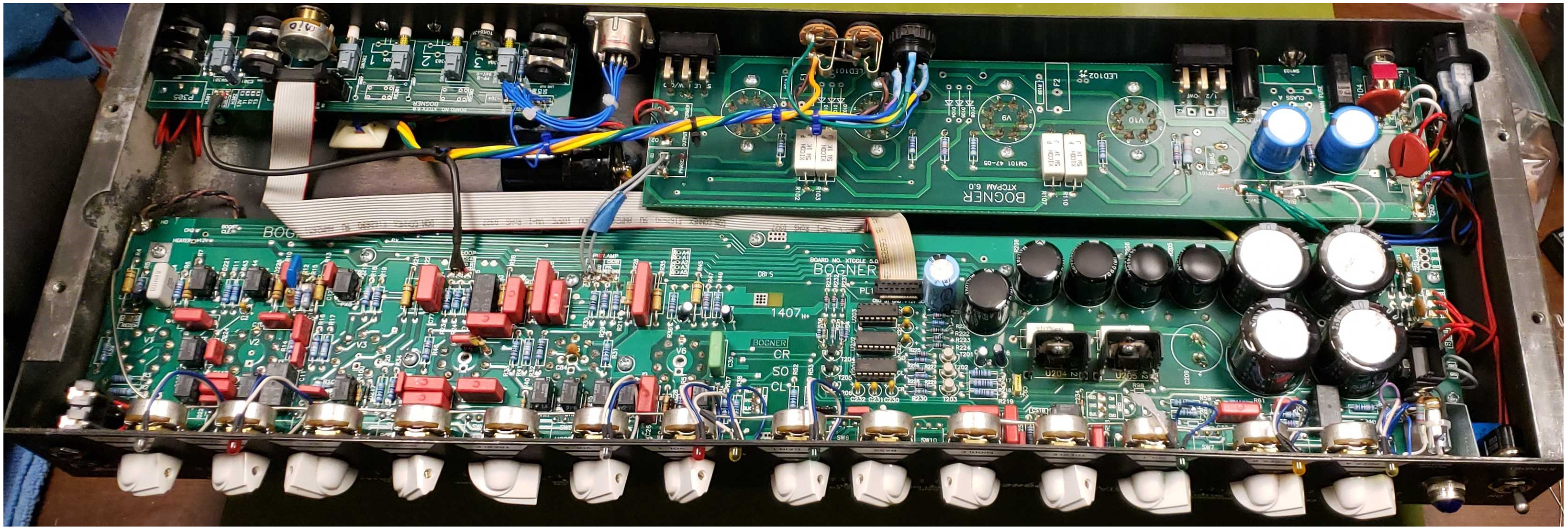

If we are going to step into the guitar side... Bogner Ecstasy



[Michael J Toren]

Aguilar Agro (Rack Version)



[Michael J Toren]

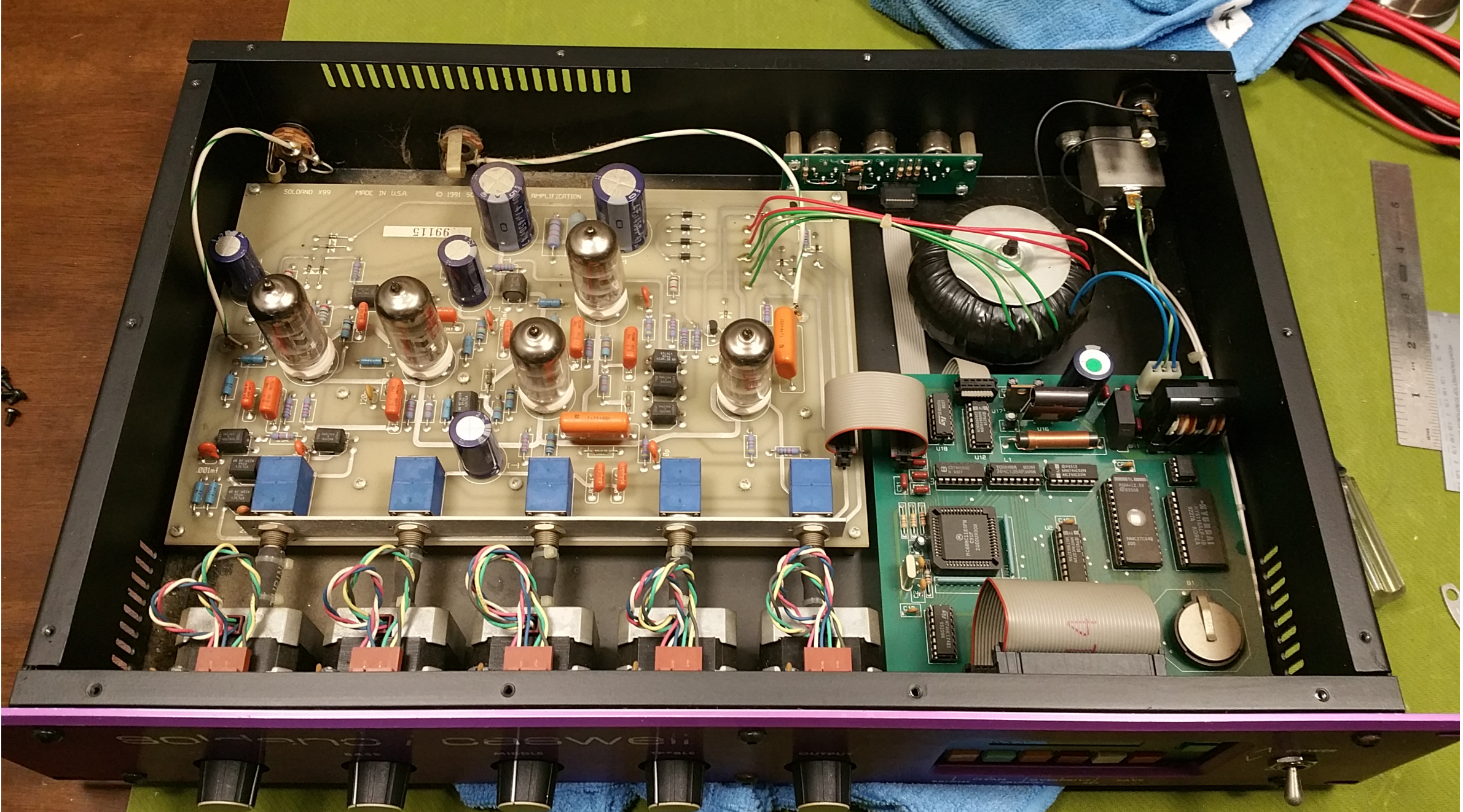

Soldano X99 (pots are servo driven)



[StereoPlayer]

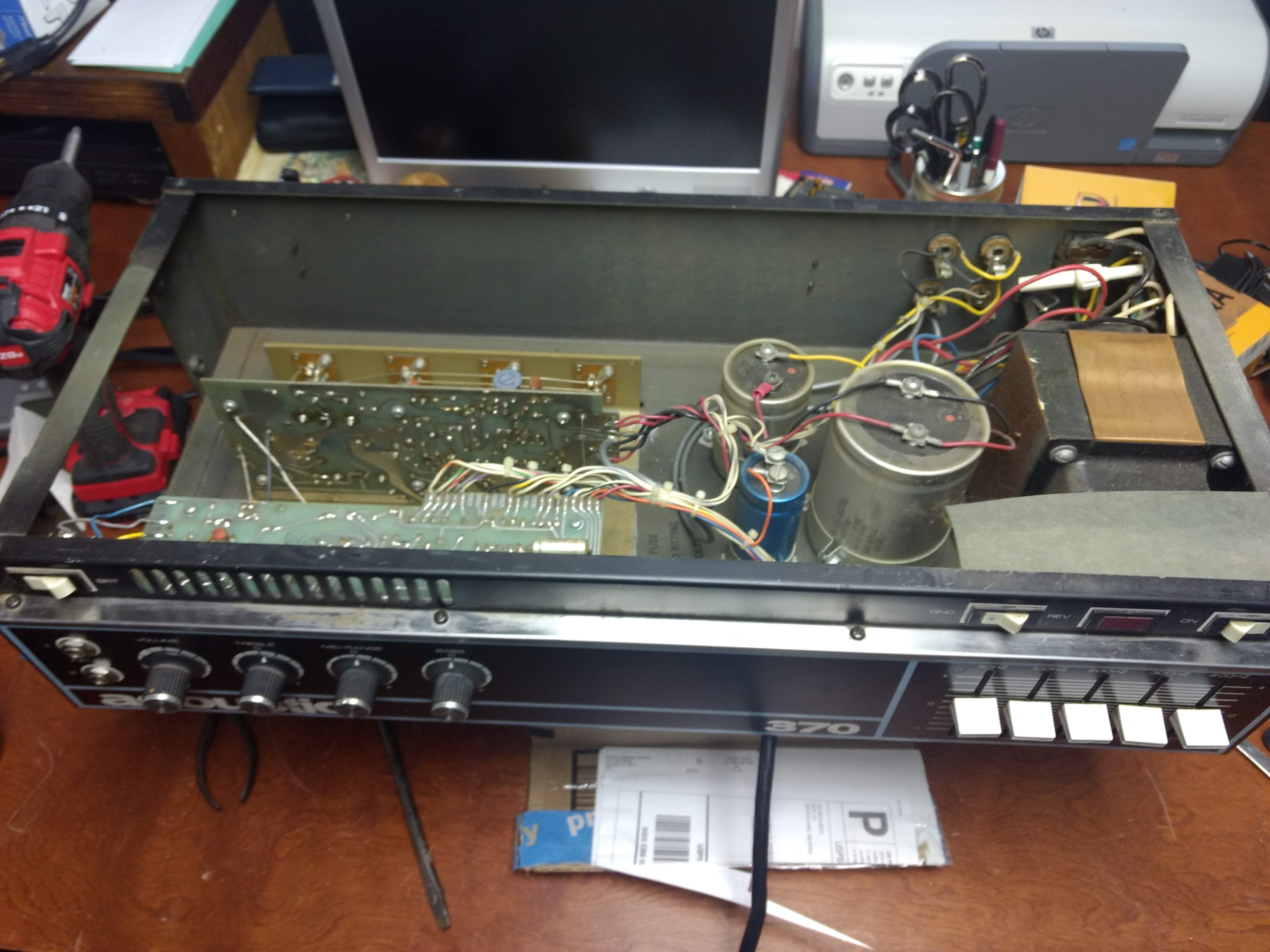

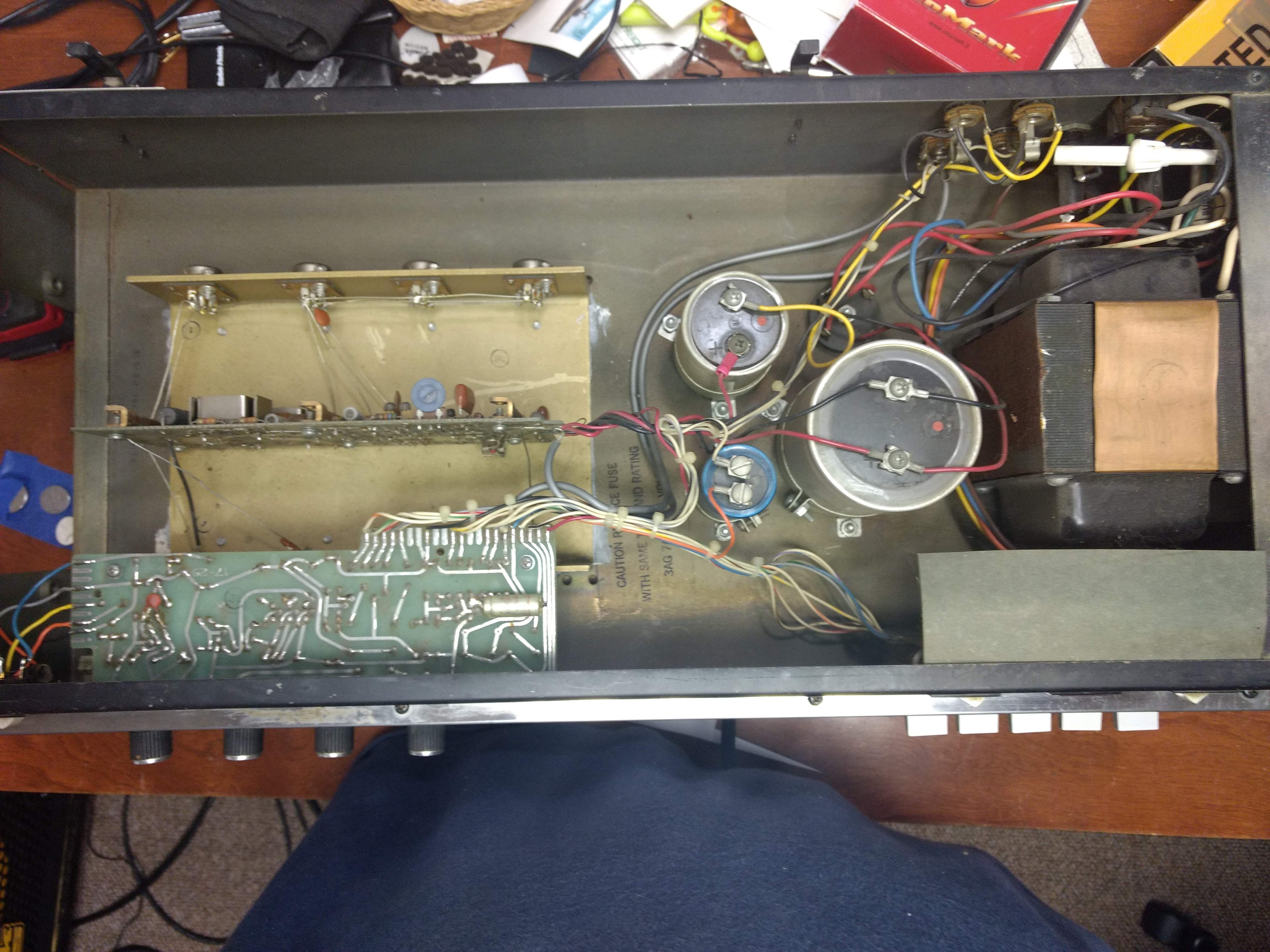

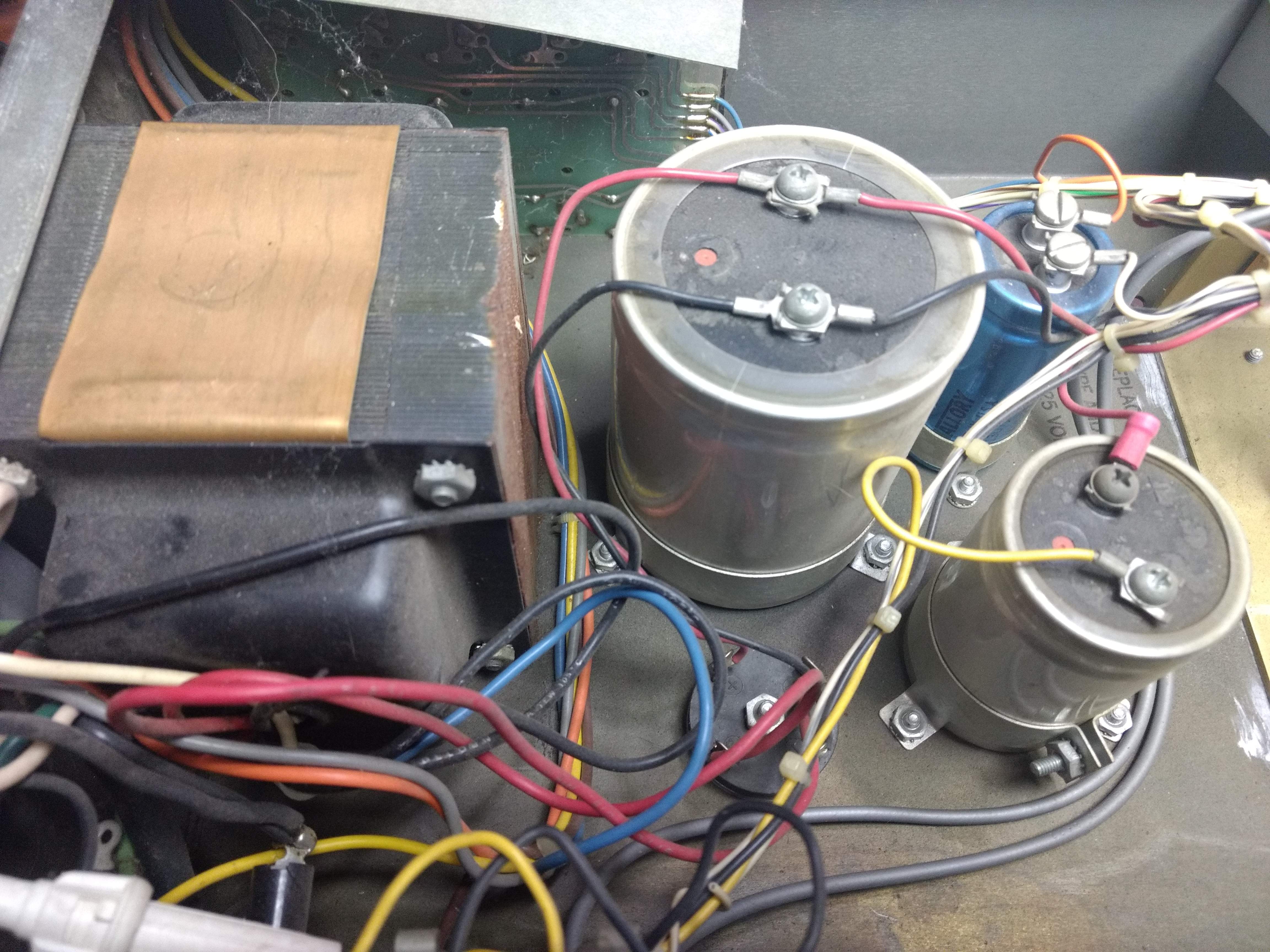

1974 Acoustic Control Corp. model 370



[60bass]

1974 Acoustic Control Corp. model 370
View attachment 3607985 View attachment 3607986 View attachment 3607987 View attachment 3607988

That brings back memories. I used to play through one of these with two 301's. A monster of an amp.



[Humbled]

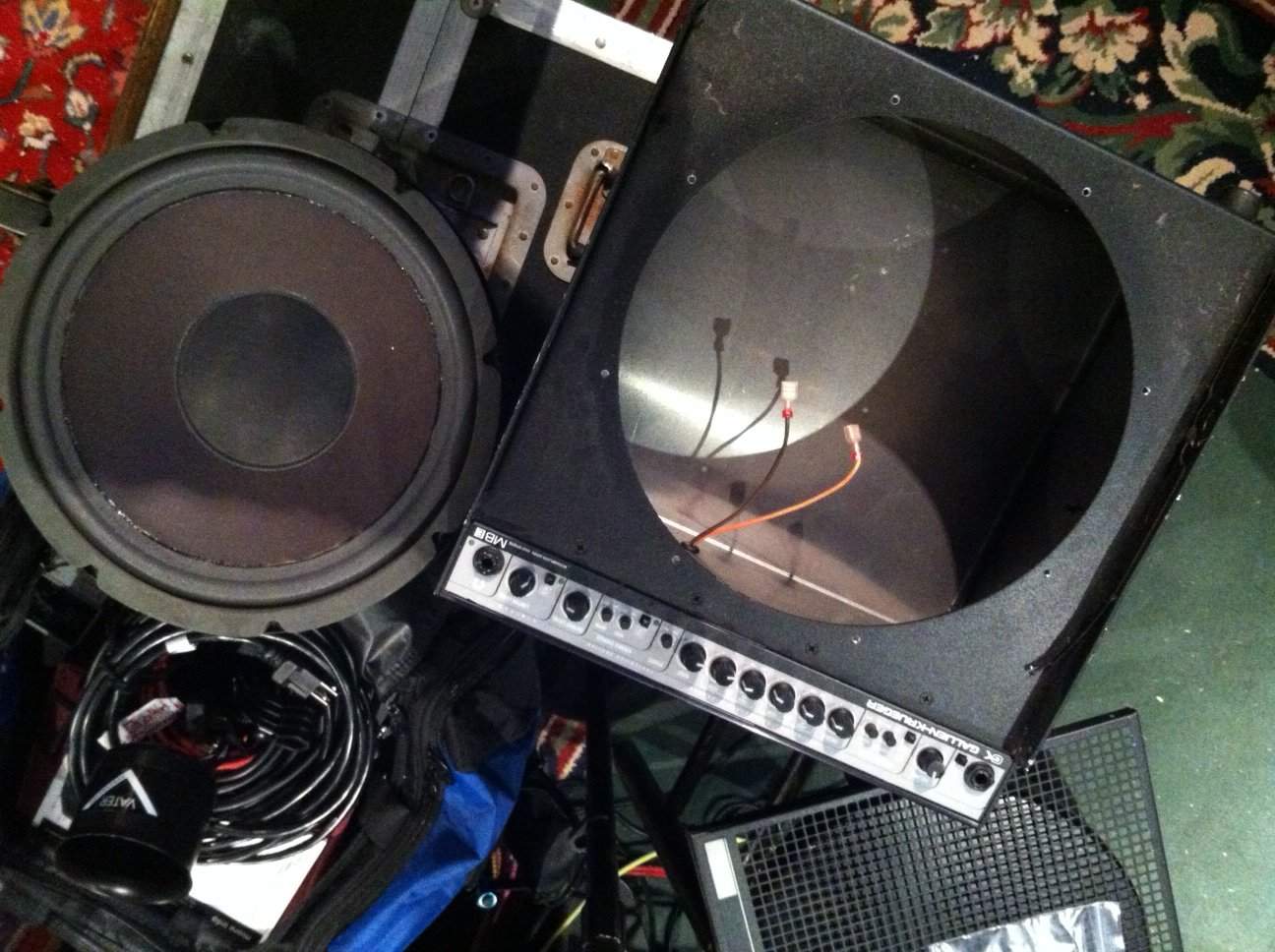

GK MBE 112. Speaker was toe up.



[seamonkey]

1974 Acoustic Control Corp. model 370

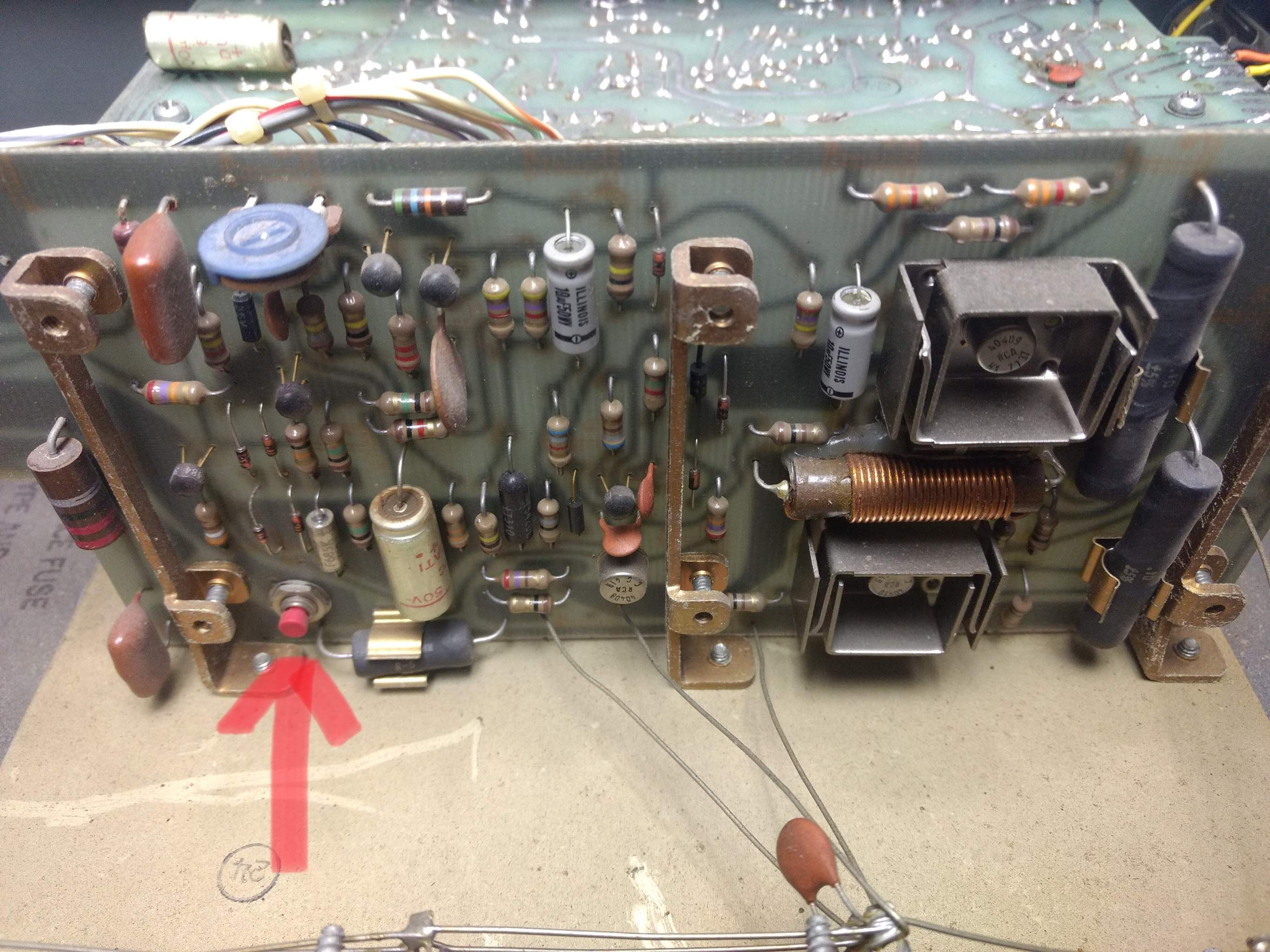

And a mysterious red button!
It is just teasing you to push it.



[BoogieZK]

Capacitors discharge?



[StereoPlayer]

And a mysterious red button!
It is just teasing you to push it.

I was told by others in the Acoustic club not to push it. I think it’s for diagnosing problems.

Maybe a red shirt guy dies on Star Trek every time it’s pushed.



[Jeff Scott]

I was told by others in the Acoustic club not to push it. I think it’s for diagnosing problems.

Or, perhaps, pushing the button creates problems; then, there is something to diagnose?



[Leo was right]

Probably it reset the CPU!



[StereoPlayer]

And a mysterious red button!
It is just teasing you to push it.

It defeats the automatic gain control circuit (AGC) temporarily for setting up during servicing.



[StereoPlayer]

Invalid Link Removed
View attachment 3606405
...and yes, it is an amp!

This amp looks intriguing. The link is all in German. How much are these and where can you get one. I’ll bet $$$.



[Passinwind]

This amp looks intriguing. The link is all in German. How much are these and where can you get one. I’ll bet $$$.

Sweetwater, MF, etc. $249 street.



[StereoPlayer]

Sweetwater, MF, etc. $249 street.

Thank you.
