Amp Guts Photos - Official Thread - Lets see those pics

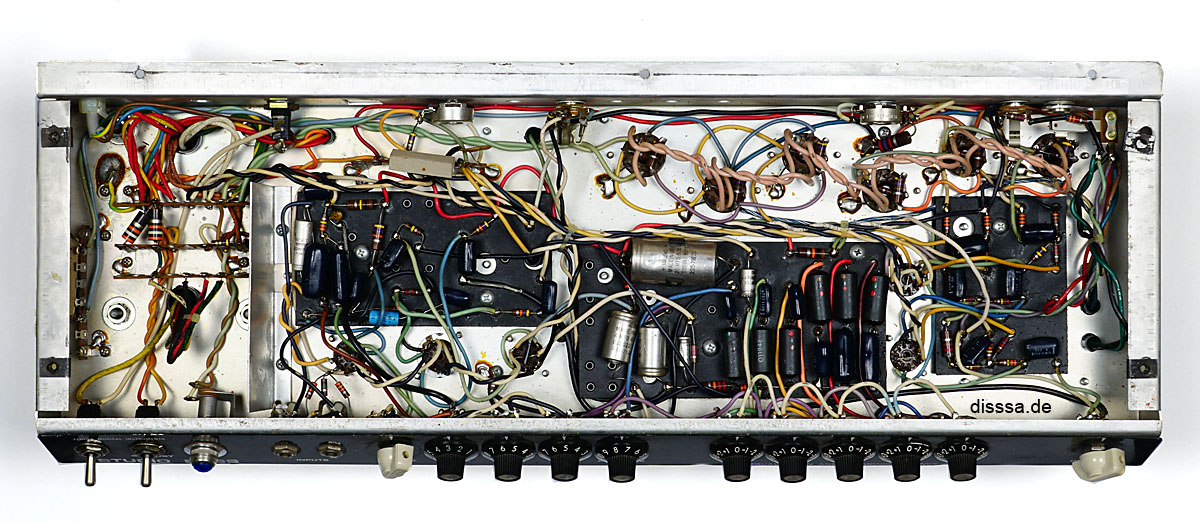

[disssa]

Invalid Link Removed



[Bass Jones]

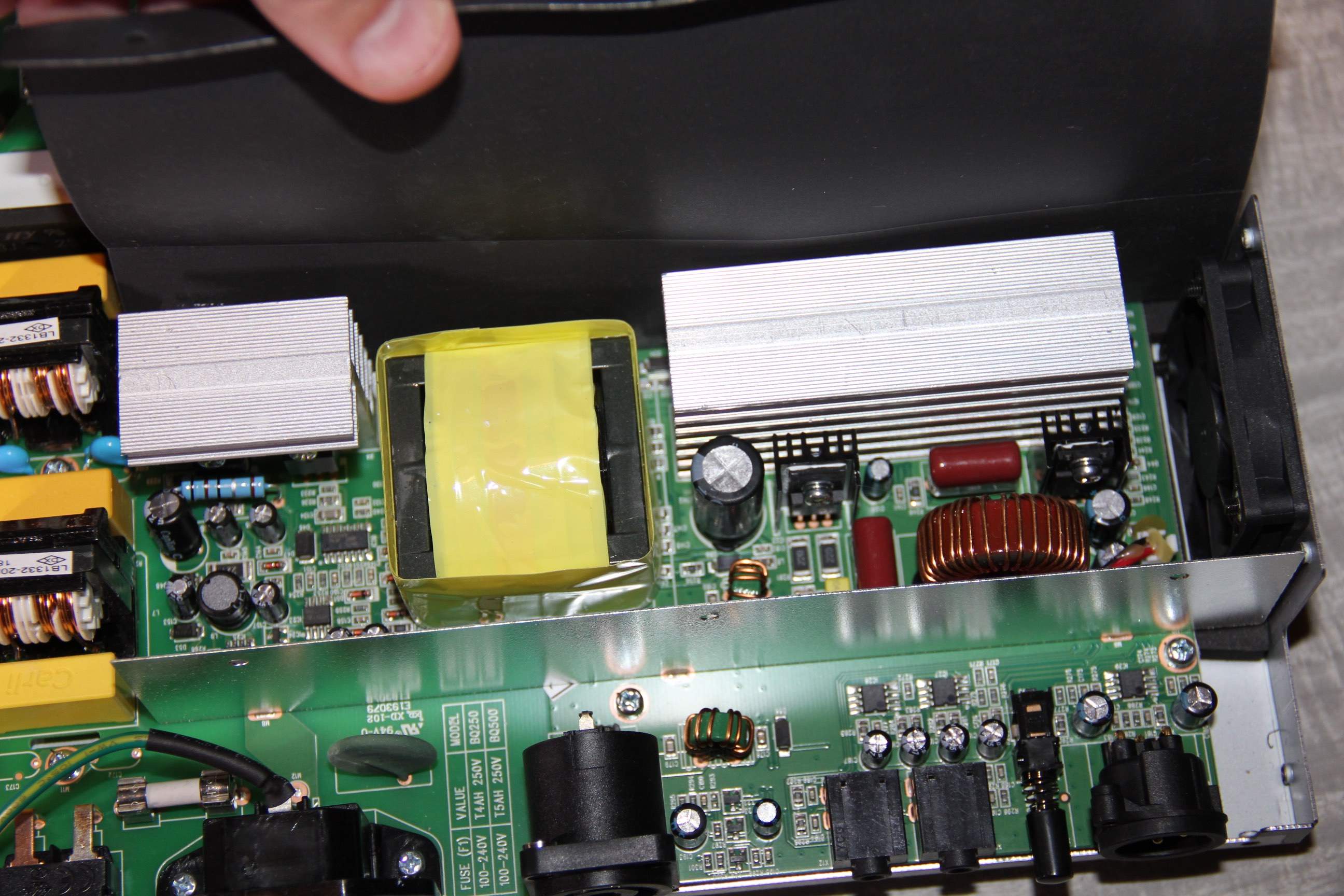

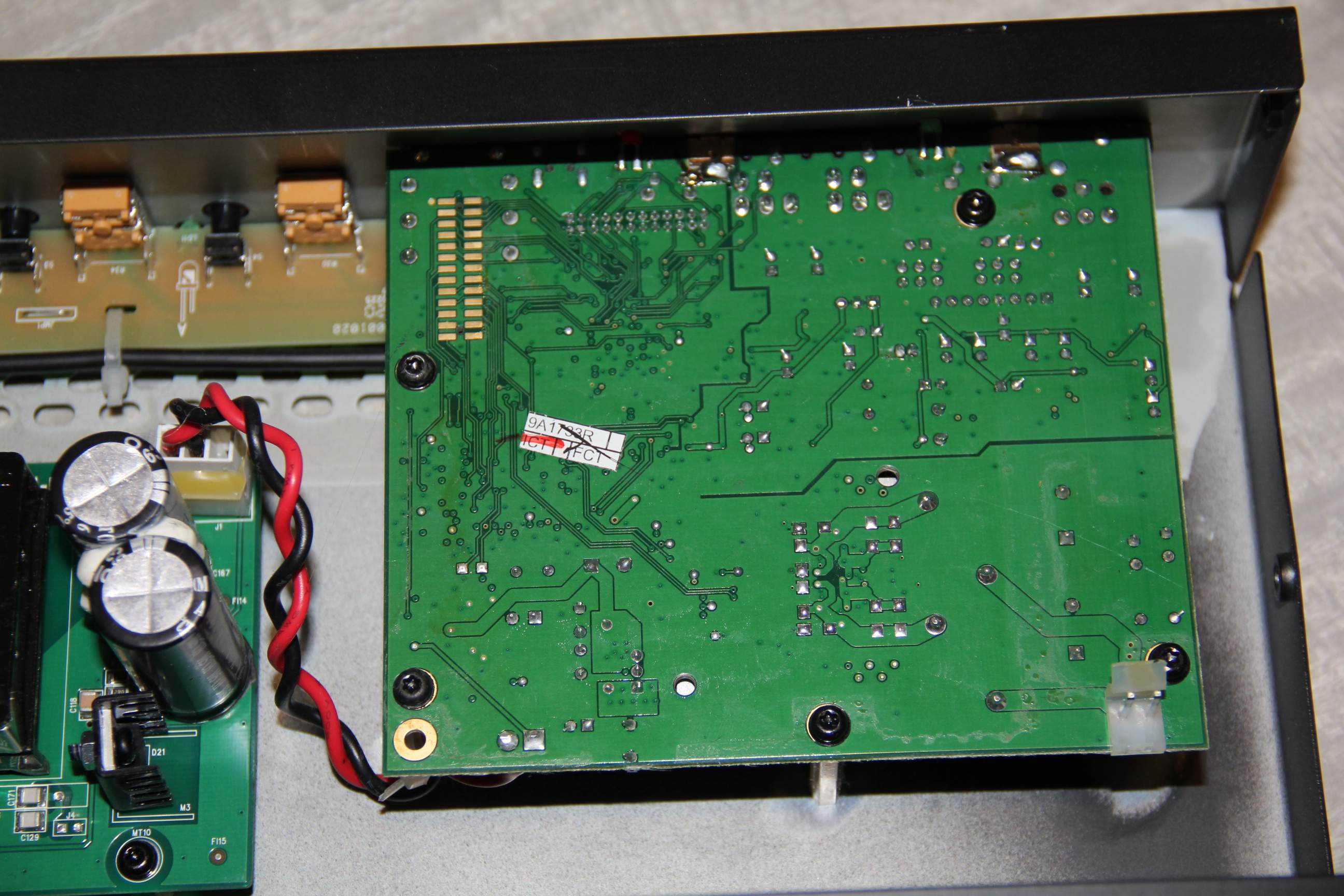

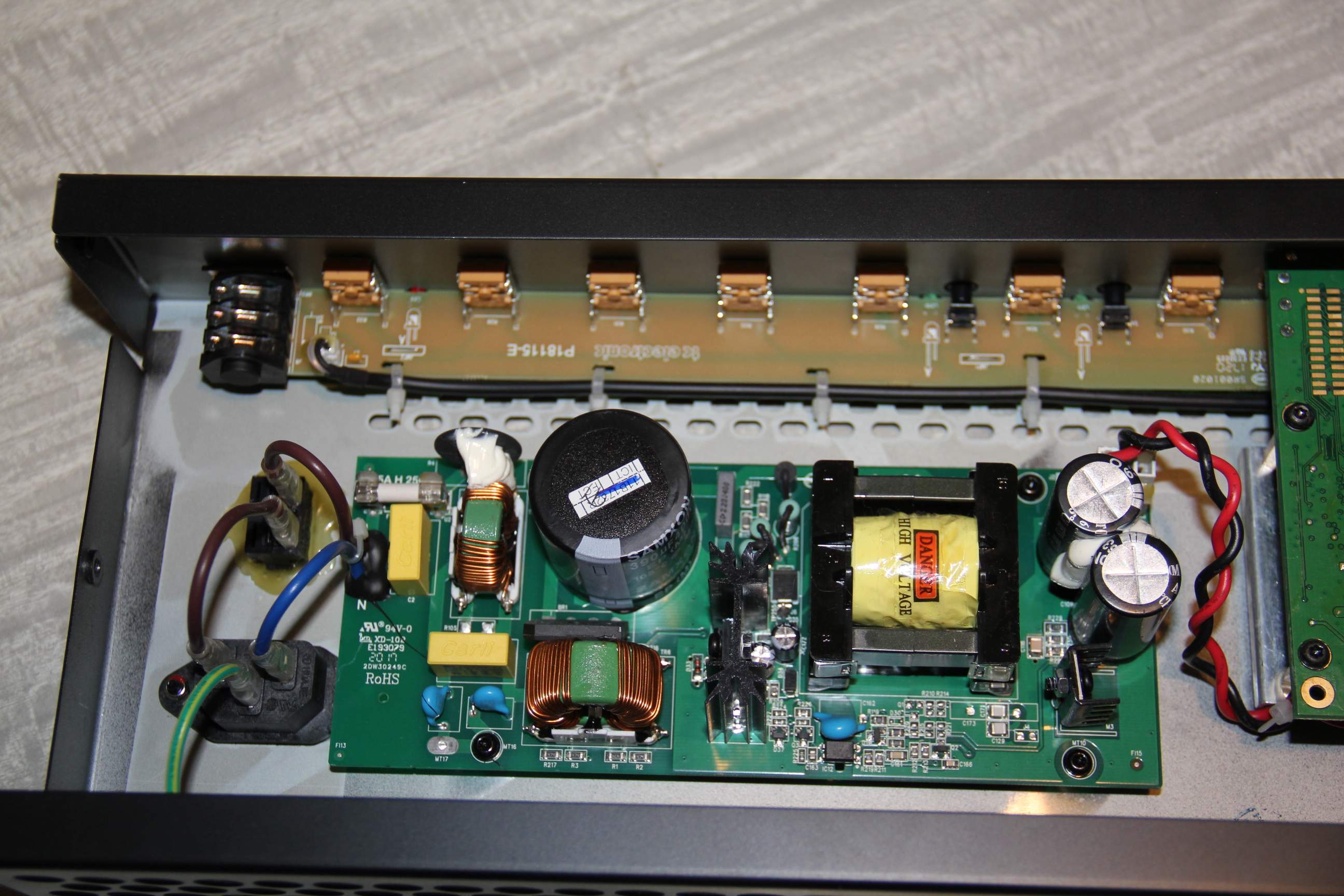

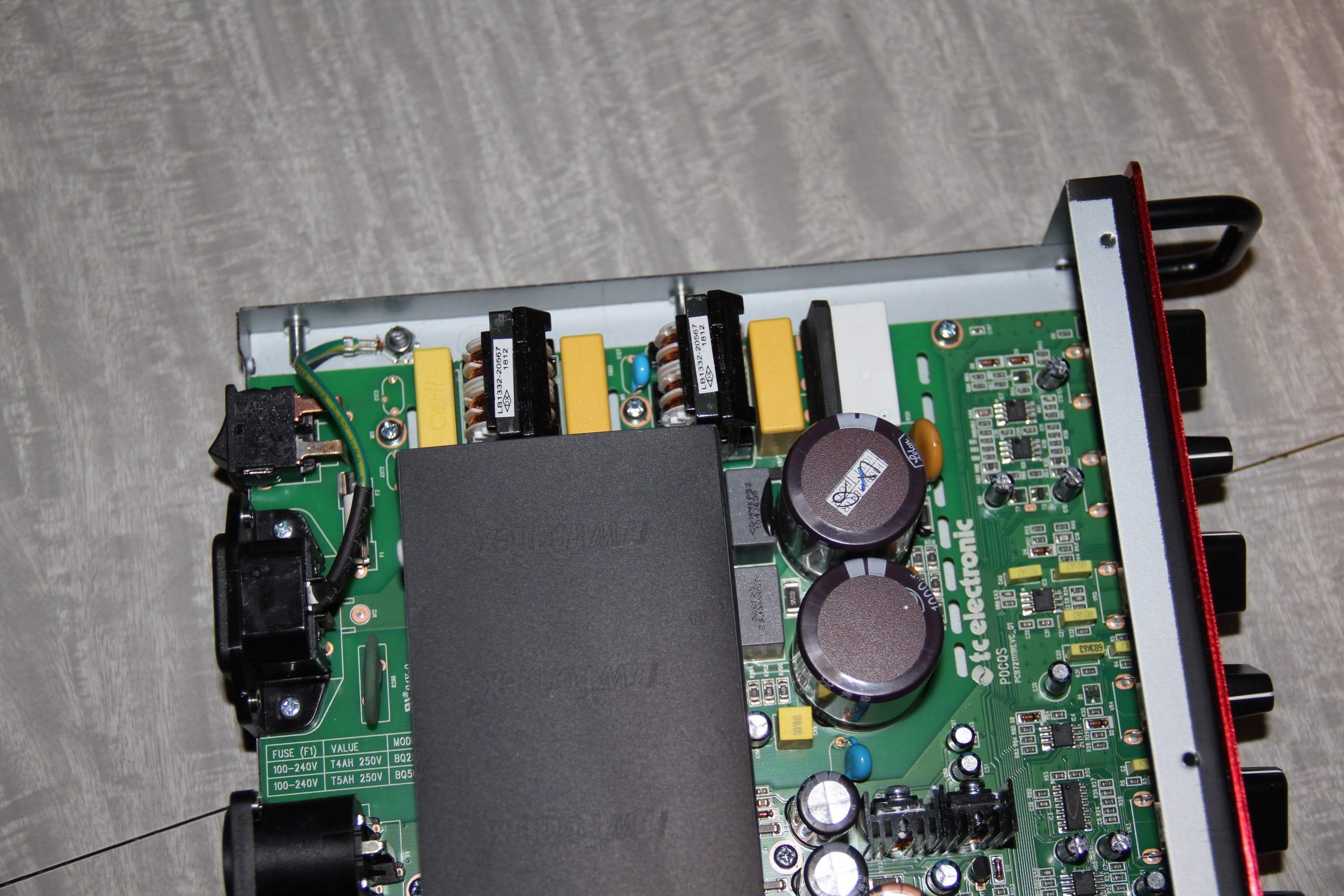

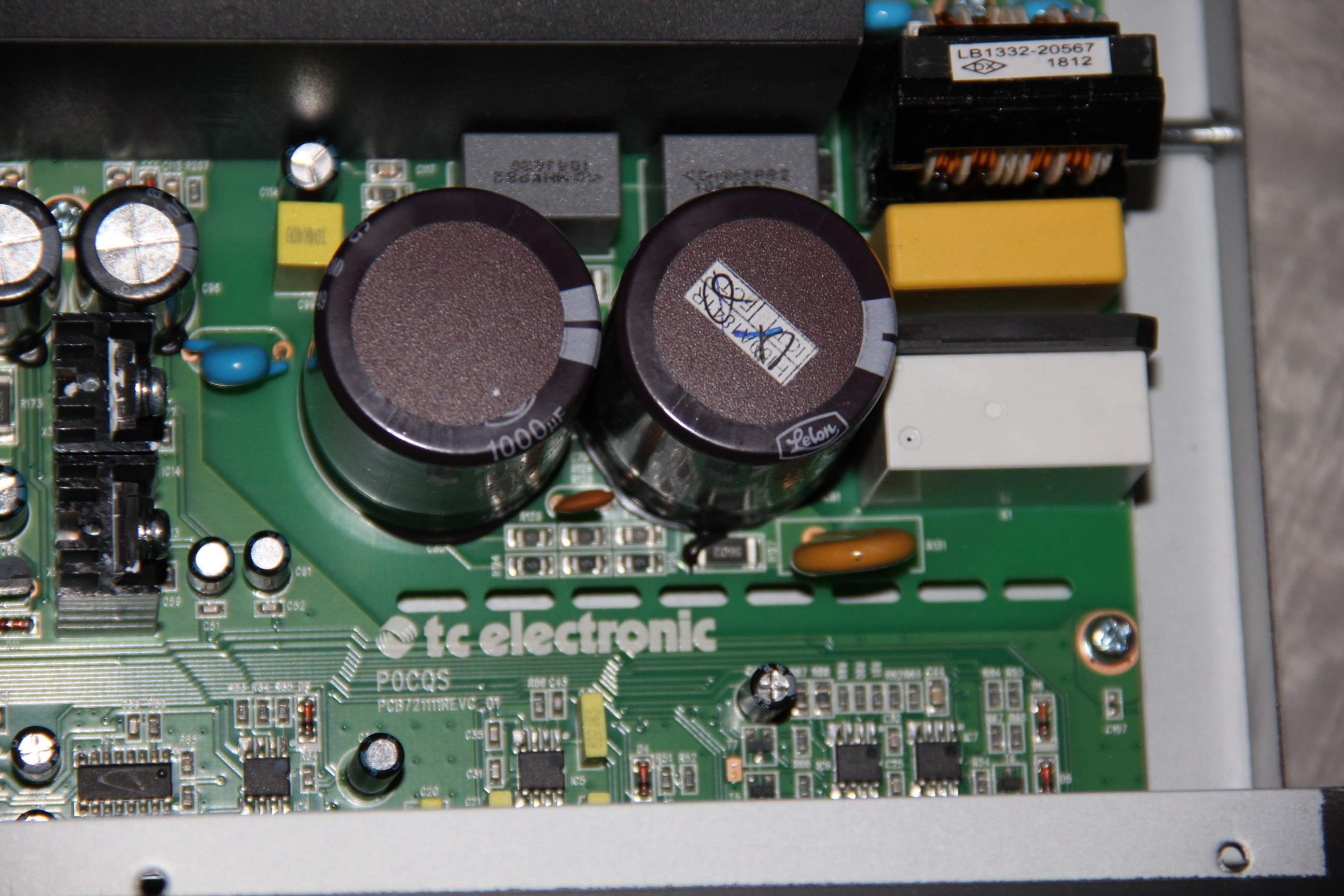

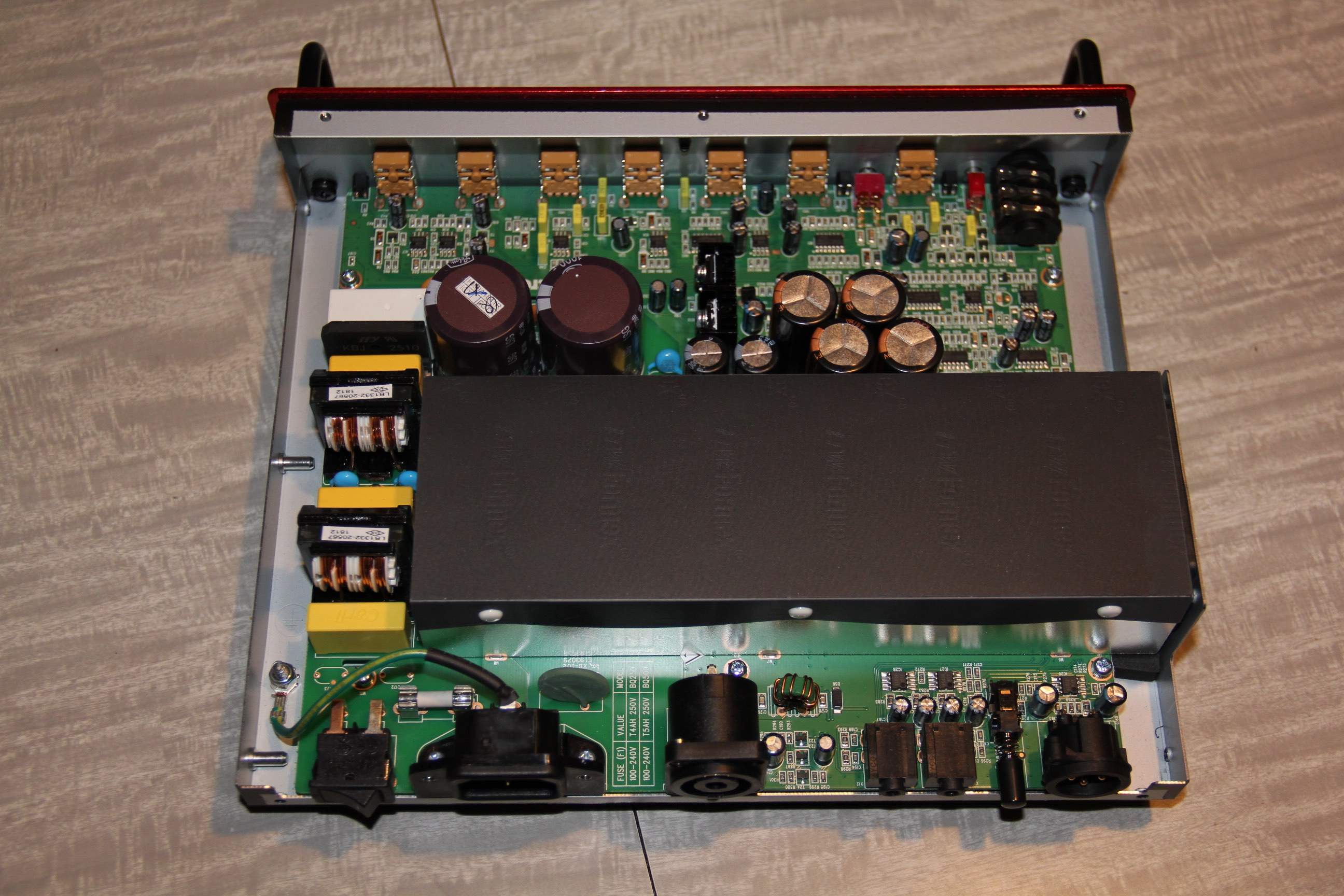

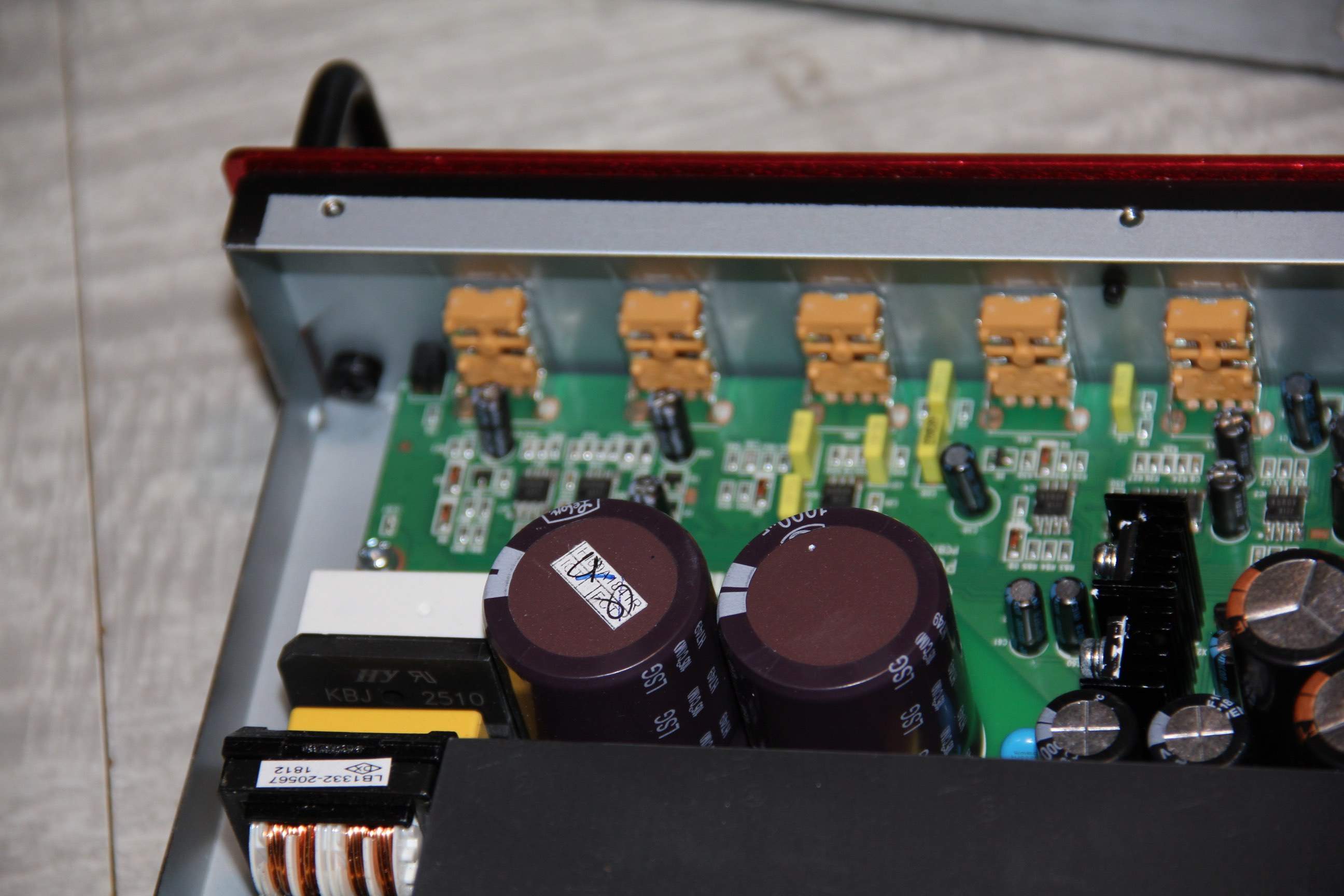

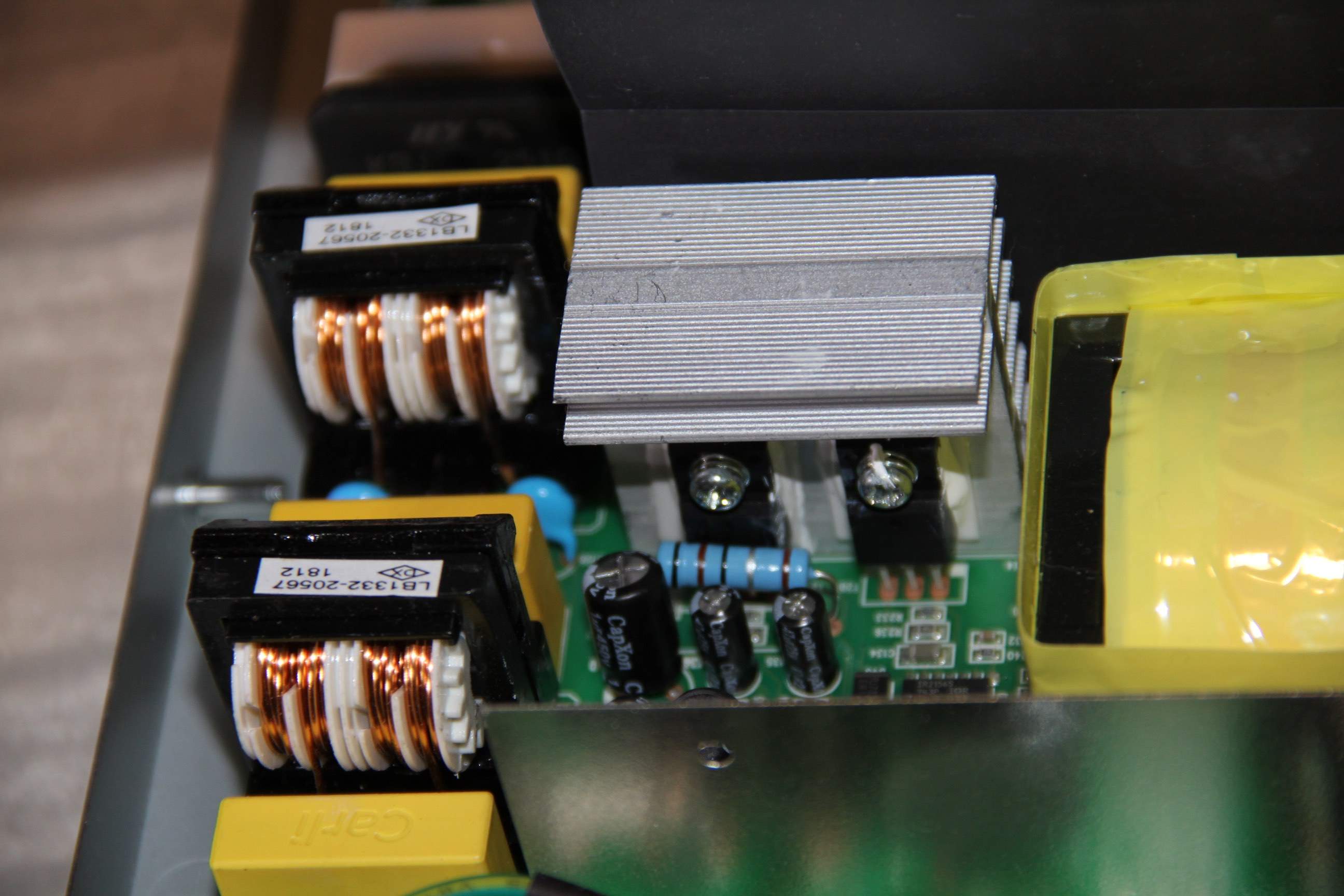

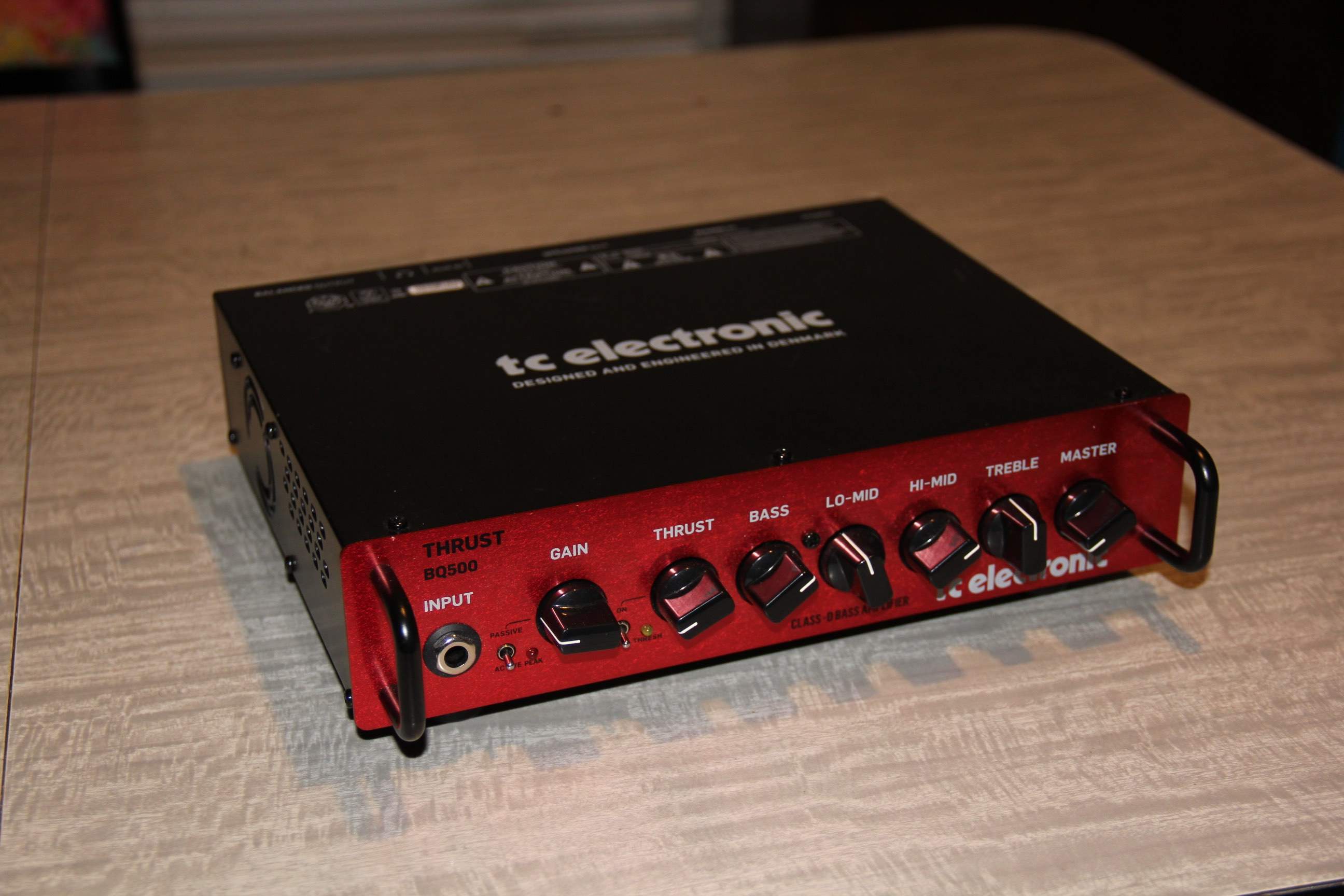

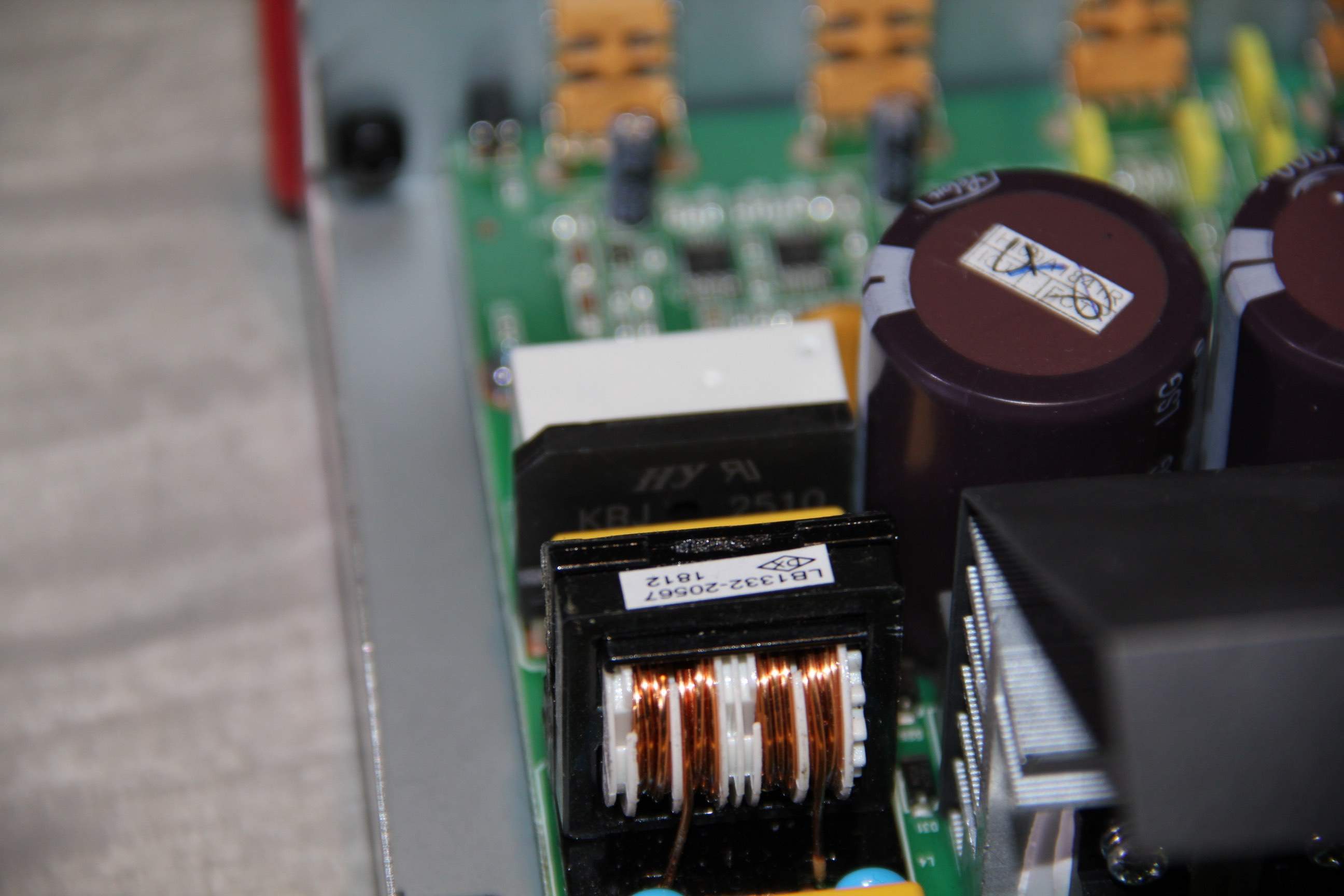

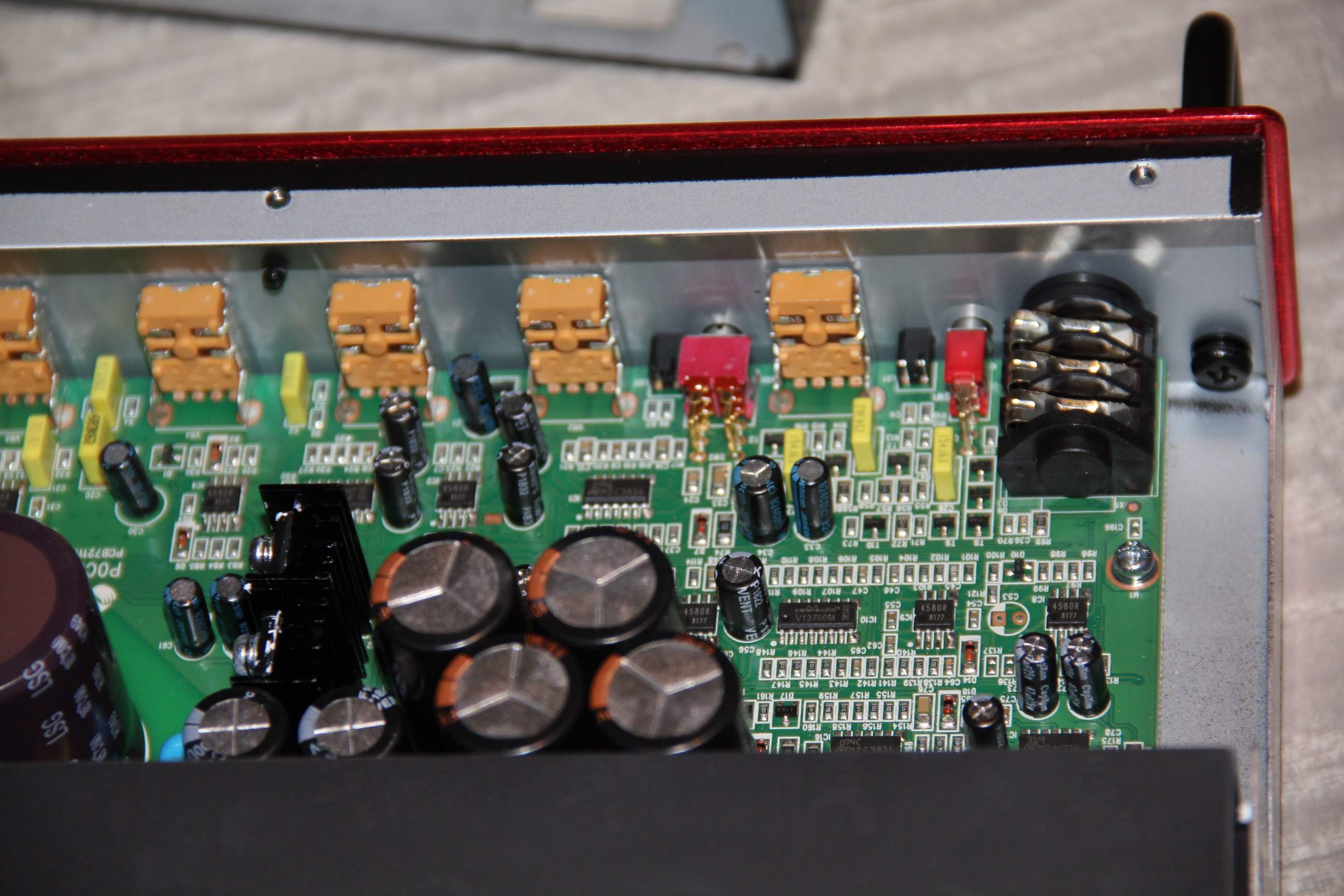

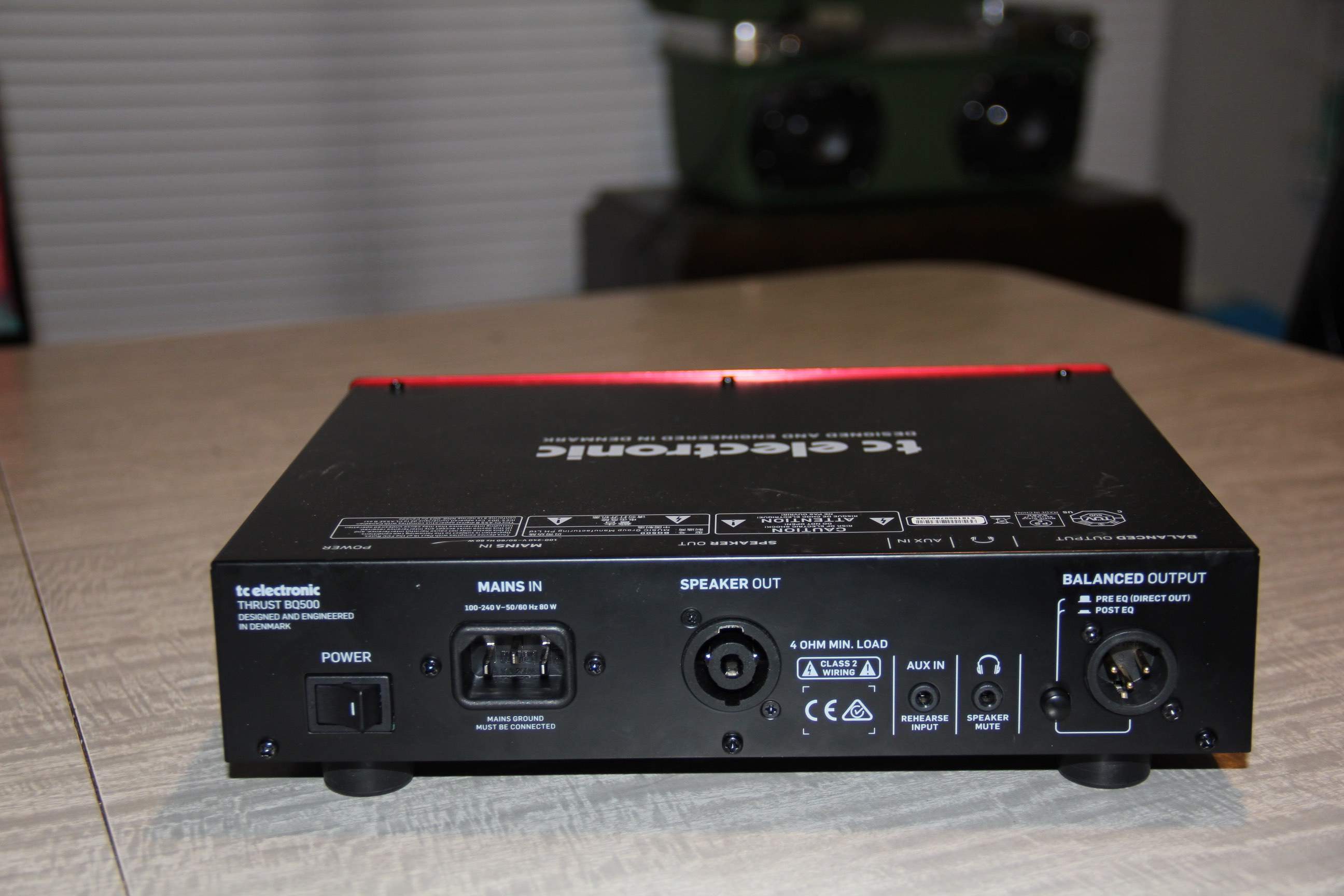

TC Electronic BQ500



[Bass Jones]

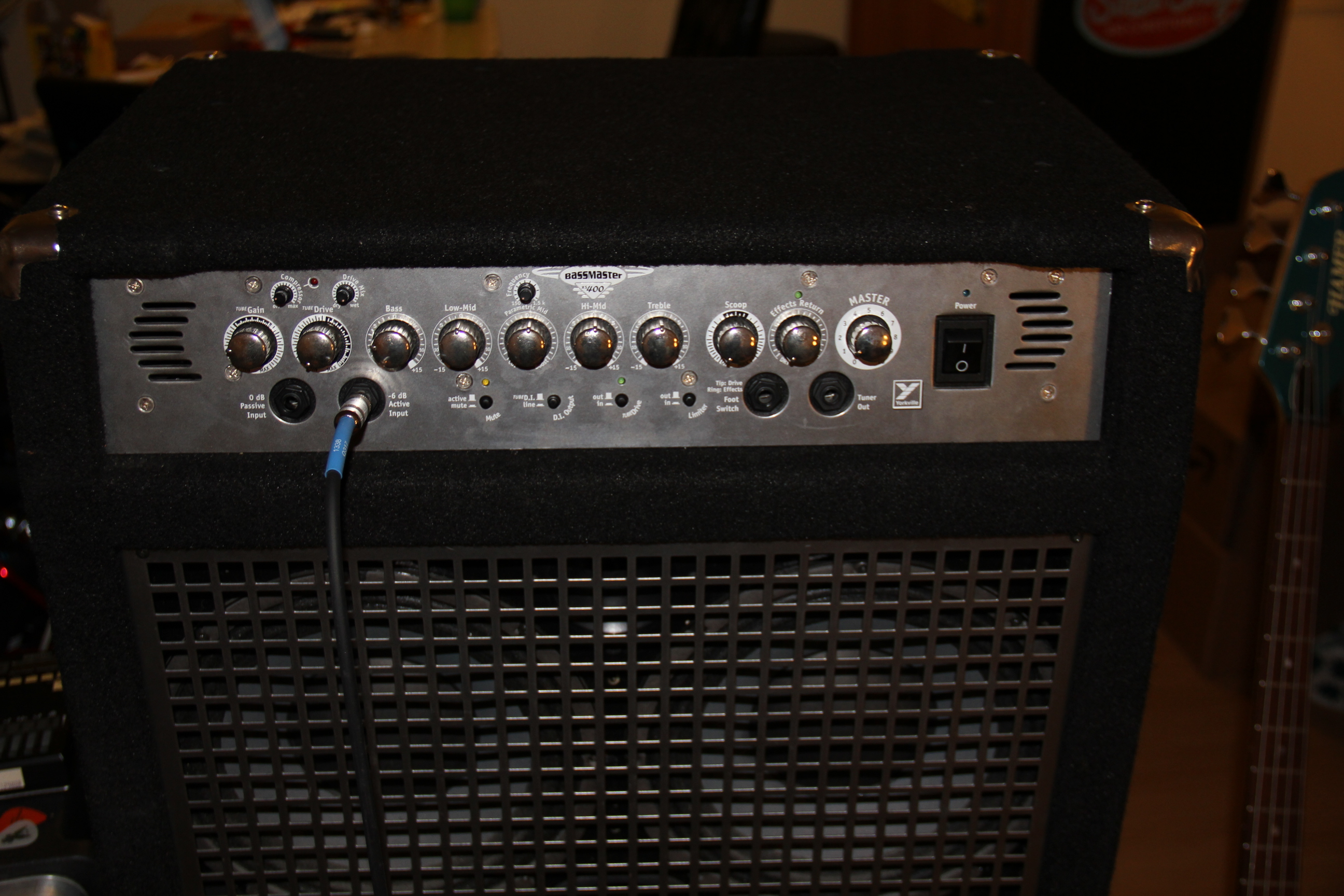

Yorkville Bassmaster XS400TC

Sorry I didn't get better shots while I had it open.



[Bass Jones]

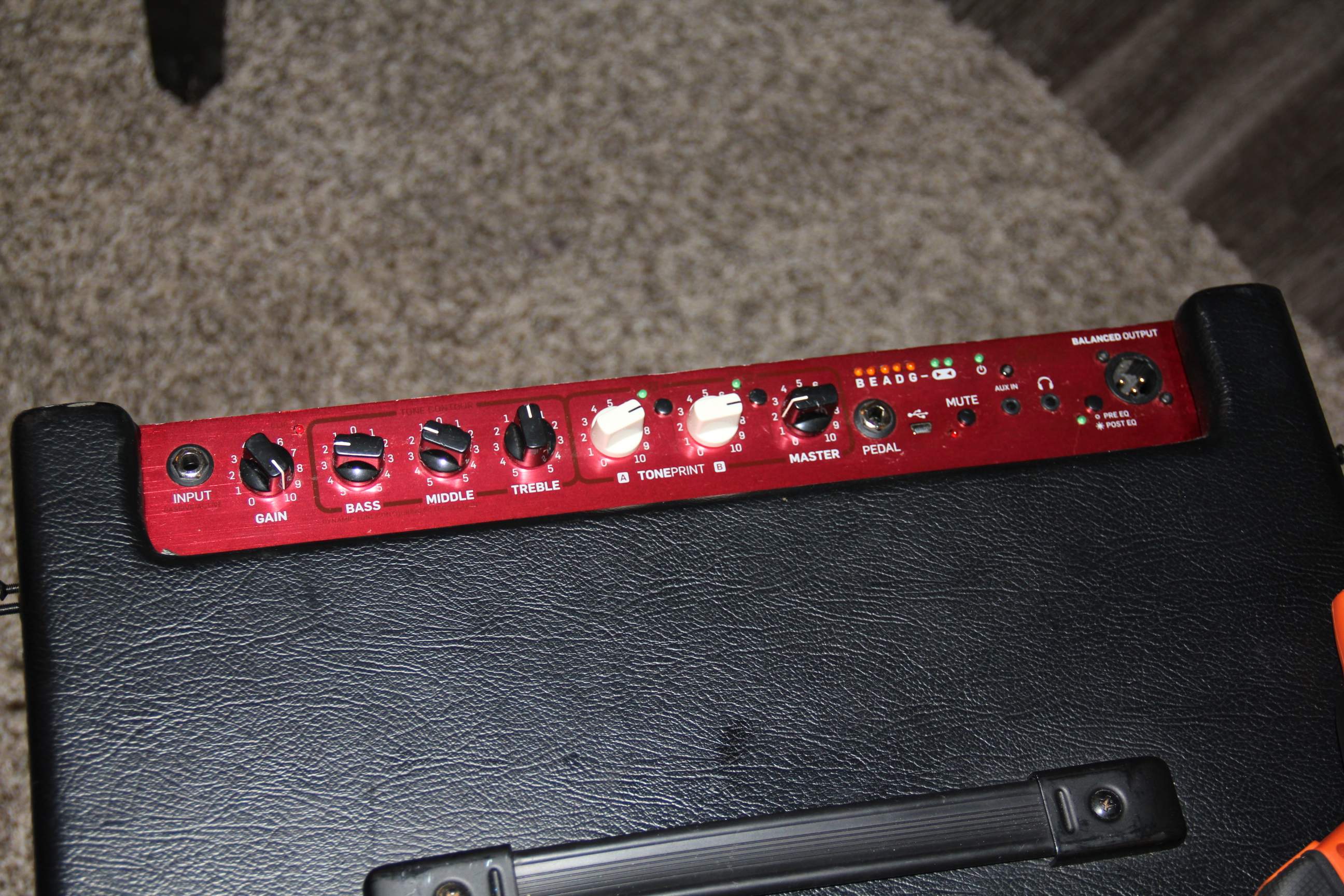

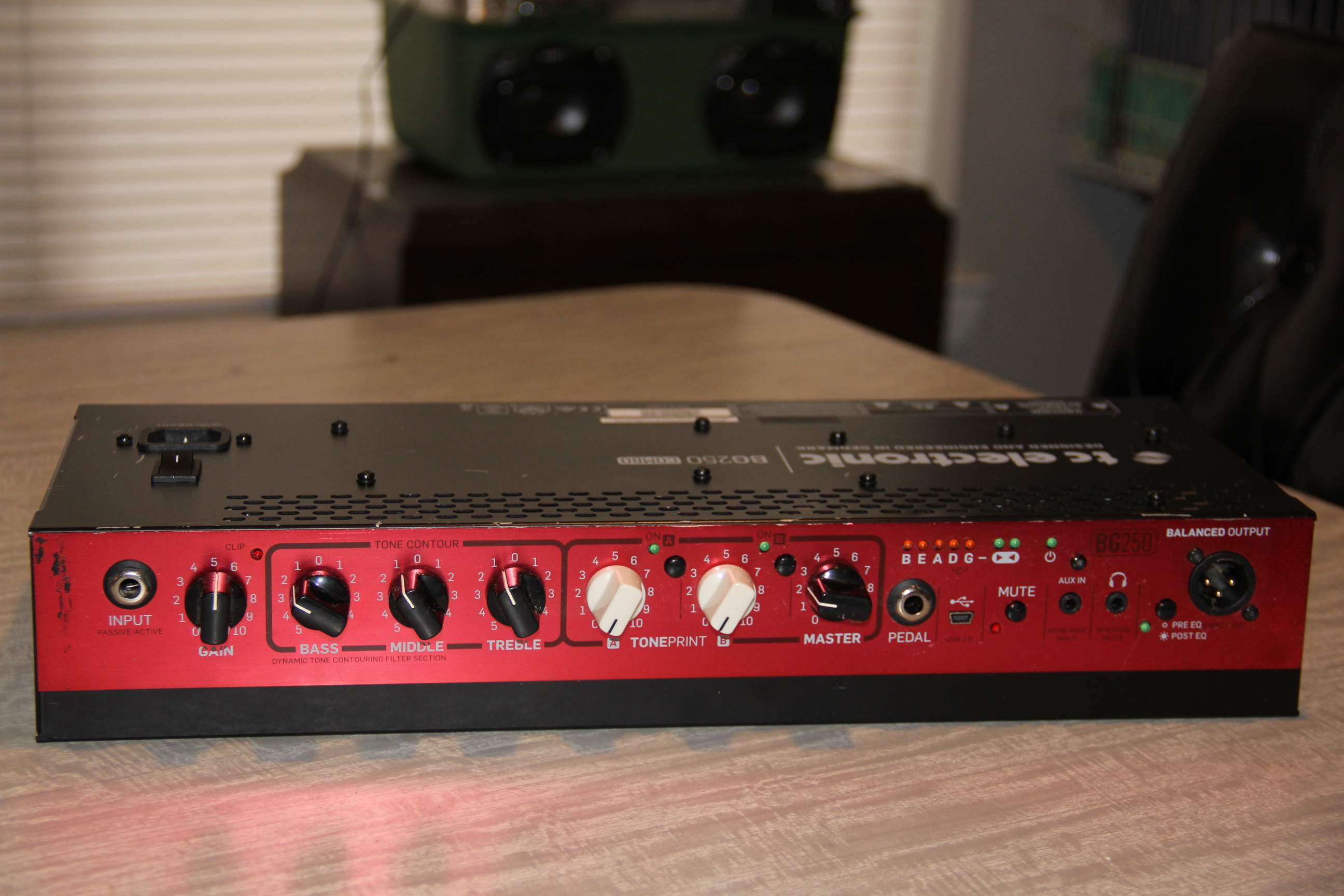

TC Electronic BG250-112



[JB1962]

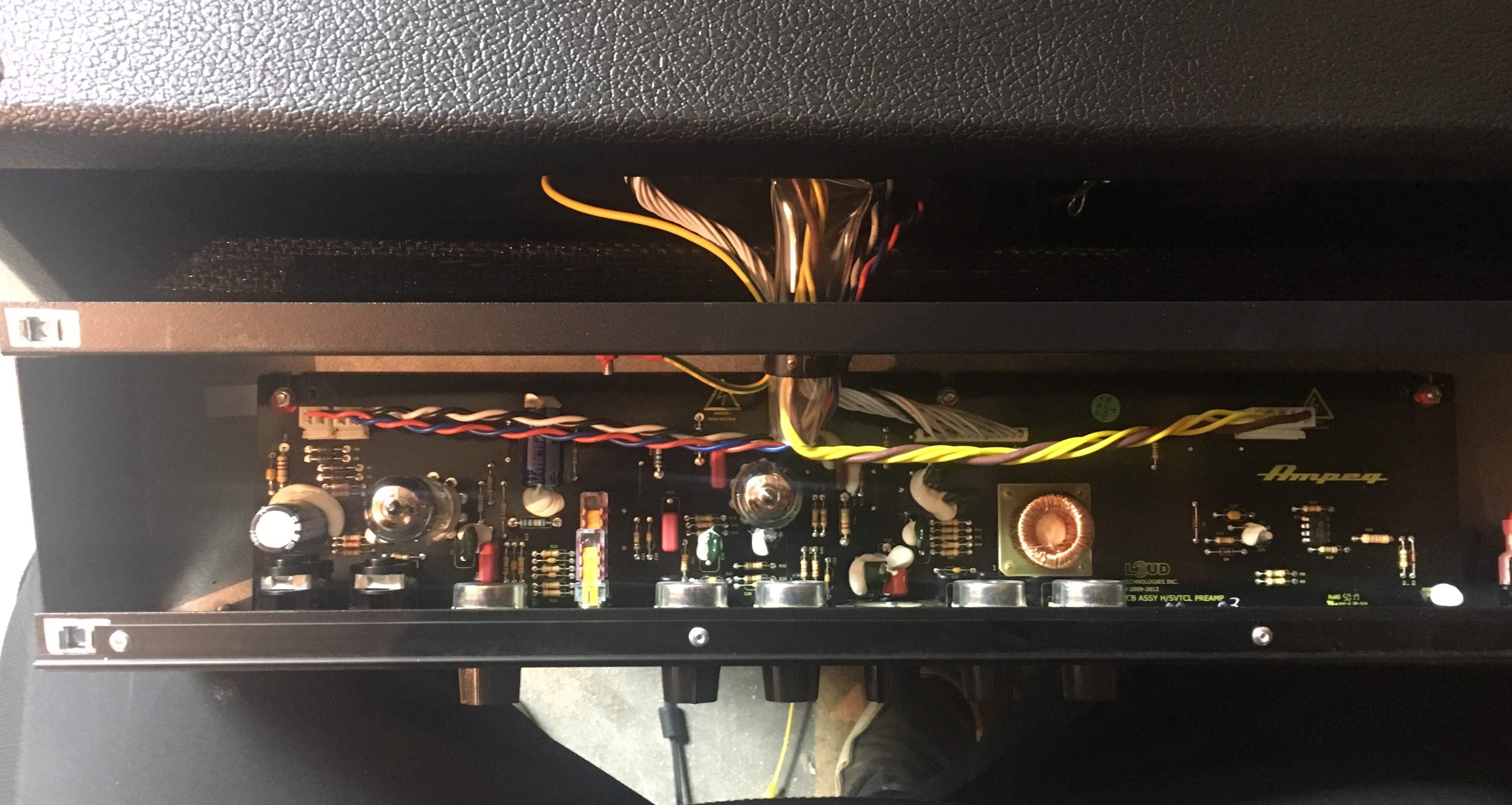

Ampeg Heritage SVT CL Preamp Section



[JB1962]

The business end of an Ampeg Heritage SVT CL



[Dave814]

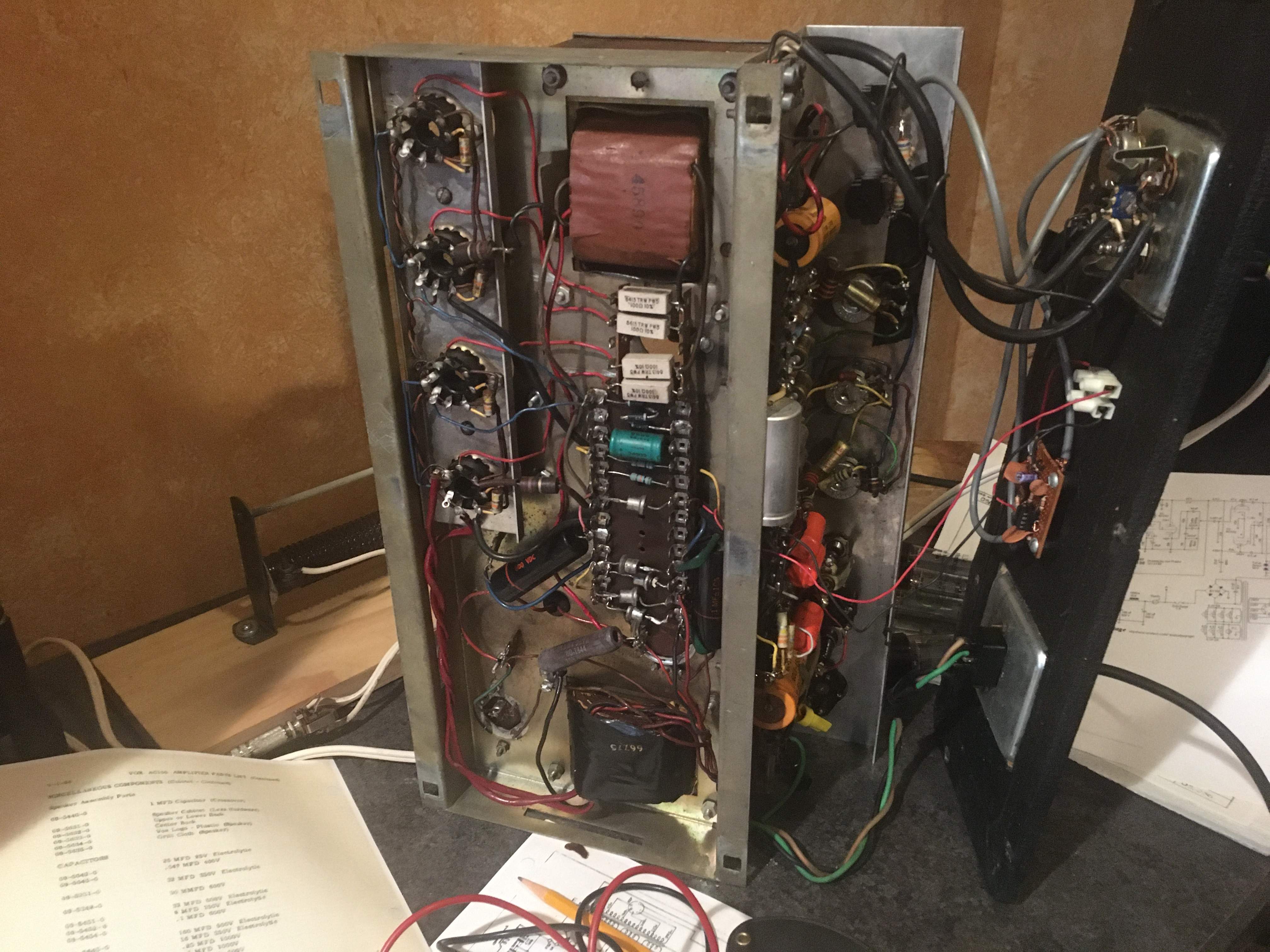

My 1965 Vox AC100 on the bench. Way back in time I think someone tried making a guitar amp out of the little beast. It has a 50W output transformer in it. I gigged with this thing for several years back in the 80s, early 90s. I’m going to rebuild it back to as near original as possible. I can actually get a new OT from Mercury I believe.



[atrapp]

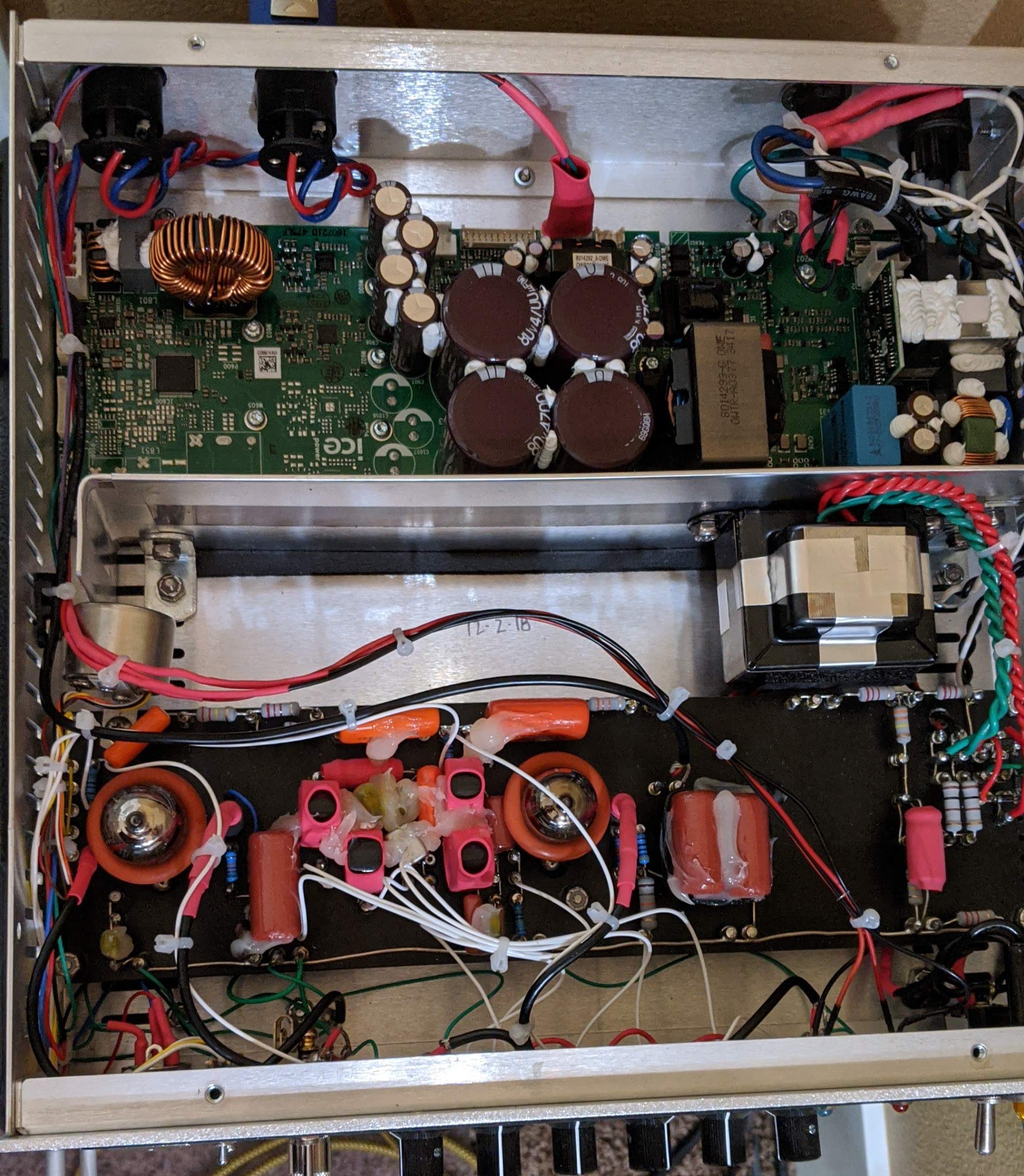

Reiner Amplification Saturn V #02 flat out the best amp I have ever owned, and I've owned a lot!
Specs lifted from the FB page
Specs:
- All tube, high voltage, hand-wired, shock-mounted, low noise, original preamp design with active four-band, tube-driven inductor EQ
- Premium Jensen DI with pre/post and ground/lift.
- 10 lbs 4 oz, compact (chassis is ~12”x12”x3”)
- 600 watts RMS at 8 ohms, 1200 watts RMS at 4 ohms @1% THD+N, 20Hz-20kHz
- STABLE to 2 ohm
- Hand-built in U.S.A., premium construction throughout (teflon wire, stainless hardware with nylock nuts, Switchcraft and Neutrik jacks, premium capacitors, Tung Sol and JJ gold pin tubes with dampers, metal film resistors)



[JB1962]

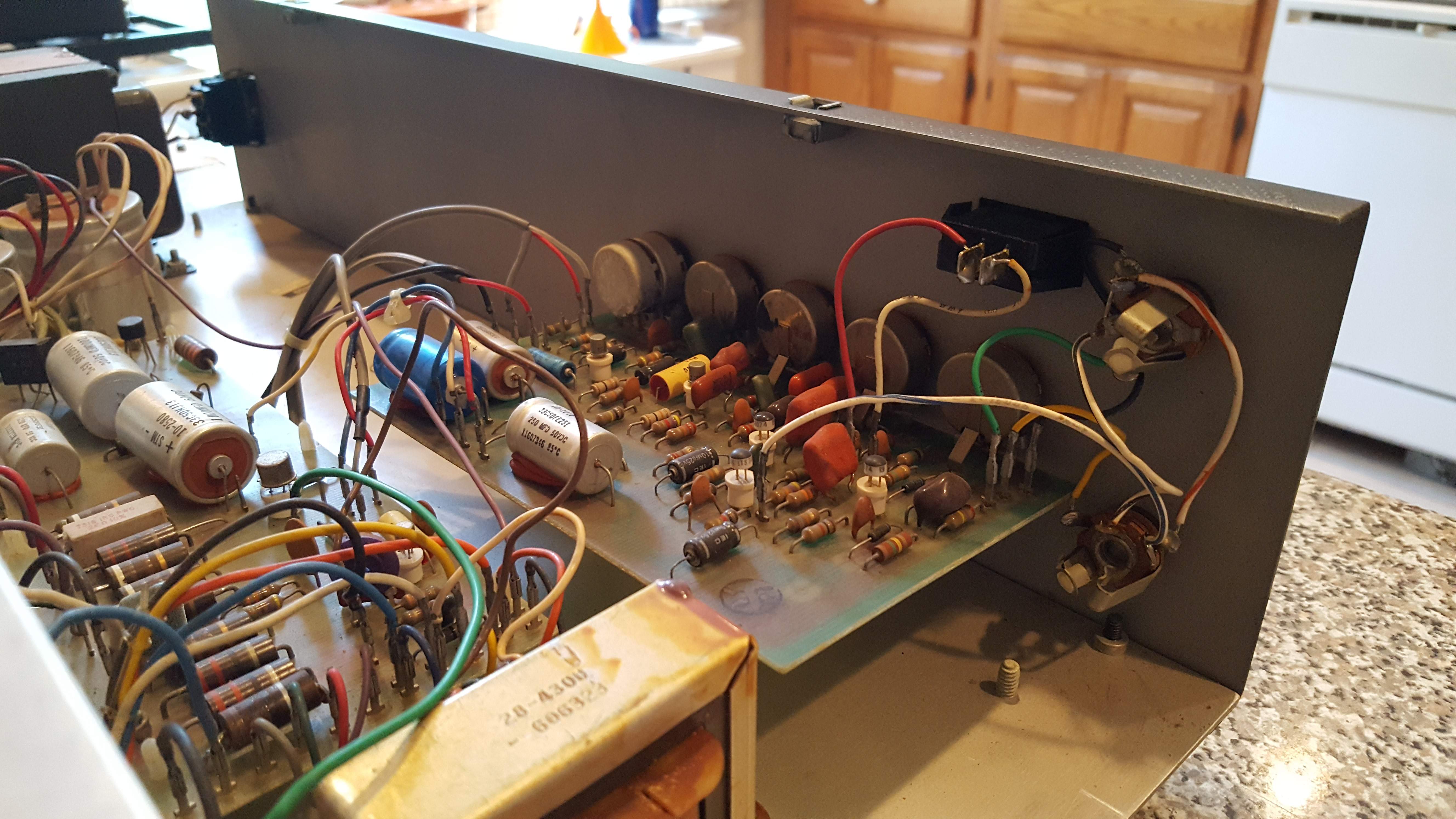

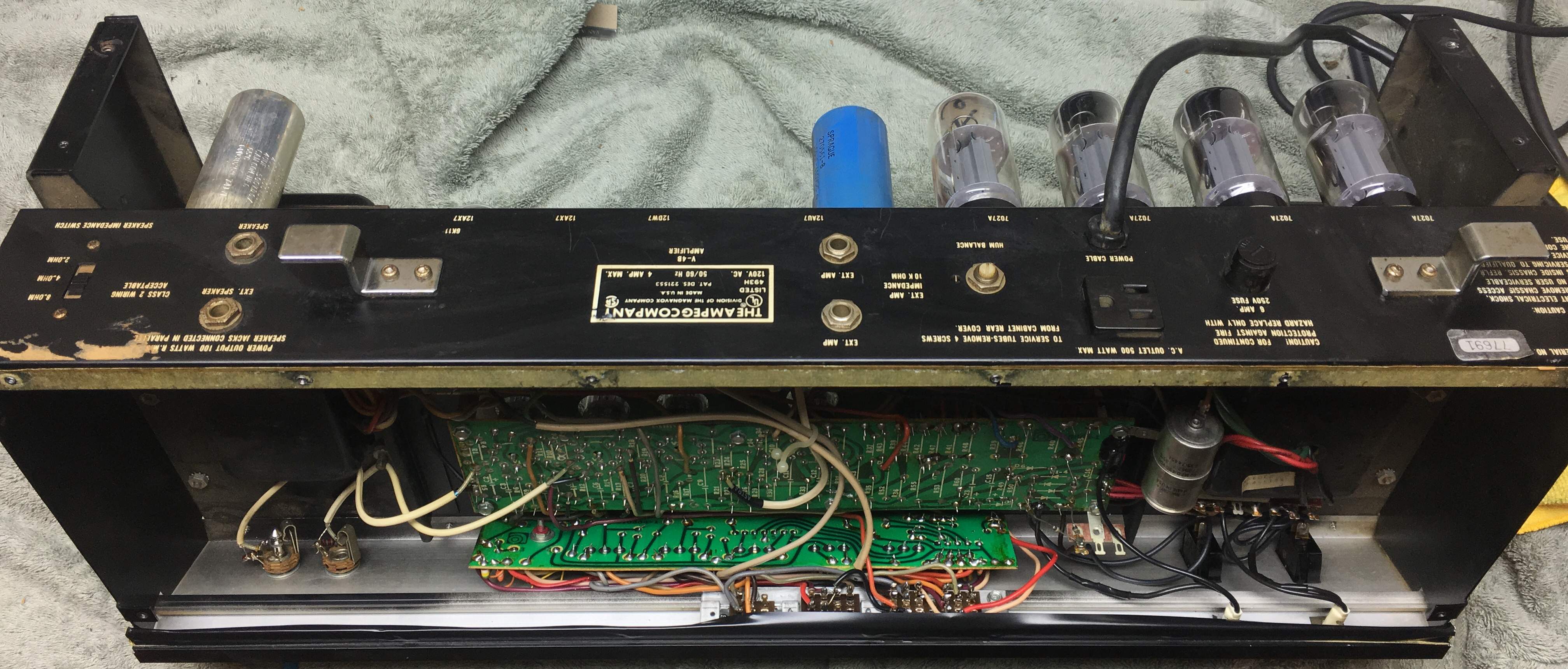

1977 Ampeg V-4B



[bassfreakah]

Invalid Link Removed
View attachment 3609039

work of art!!!!!!



[BlacknWhite]

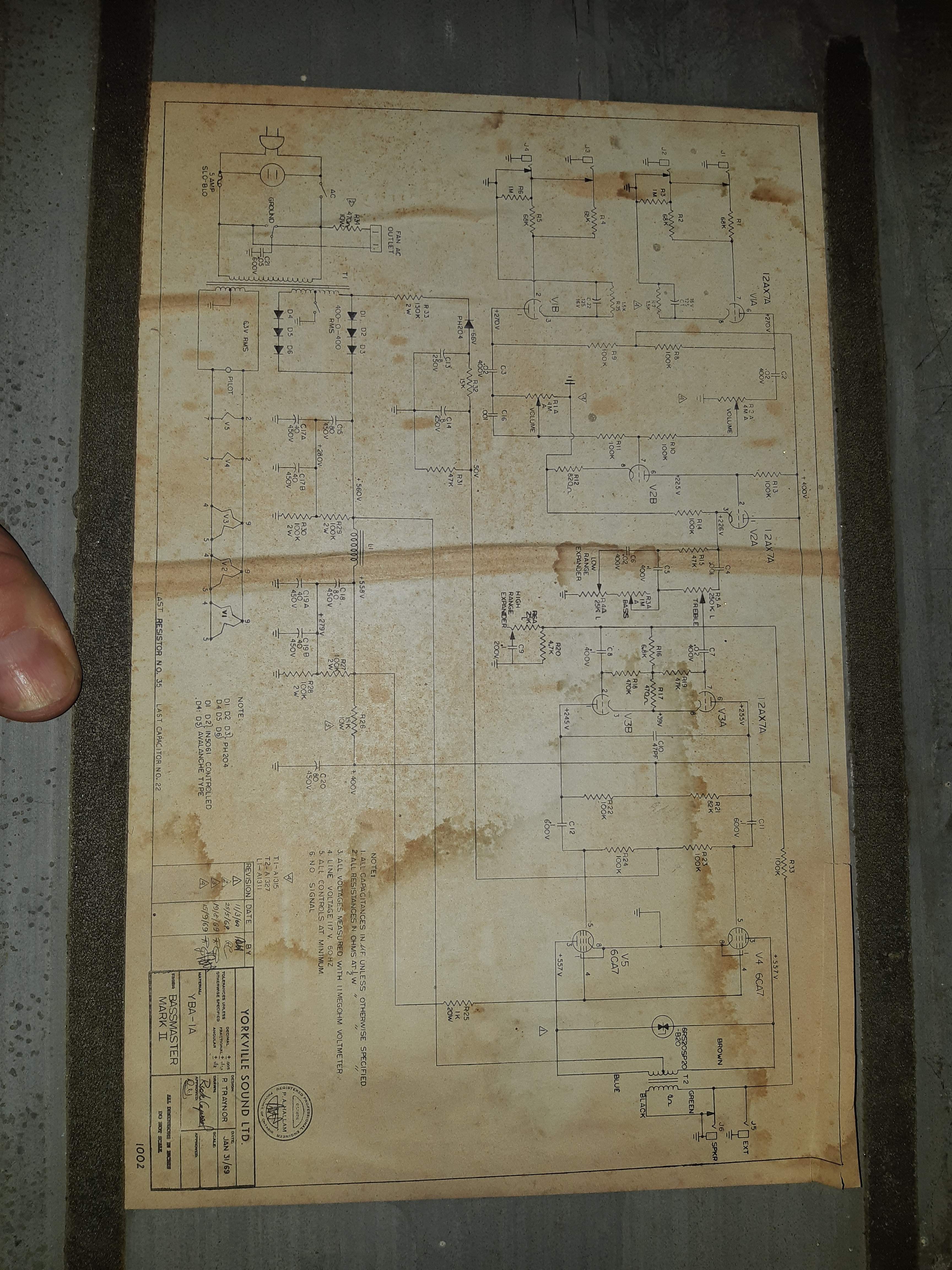

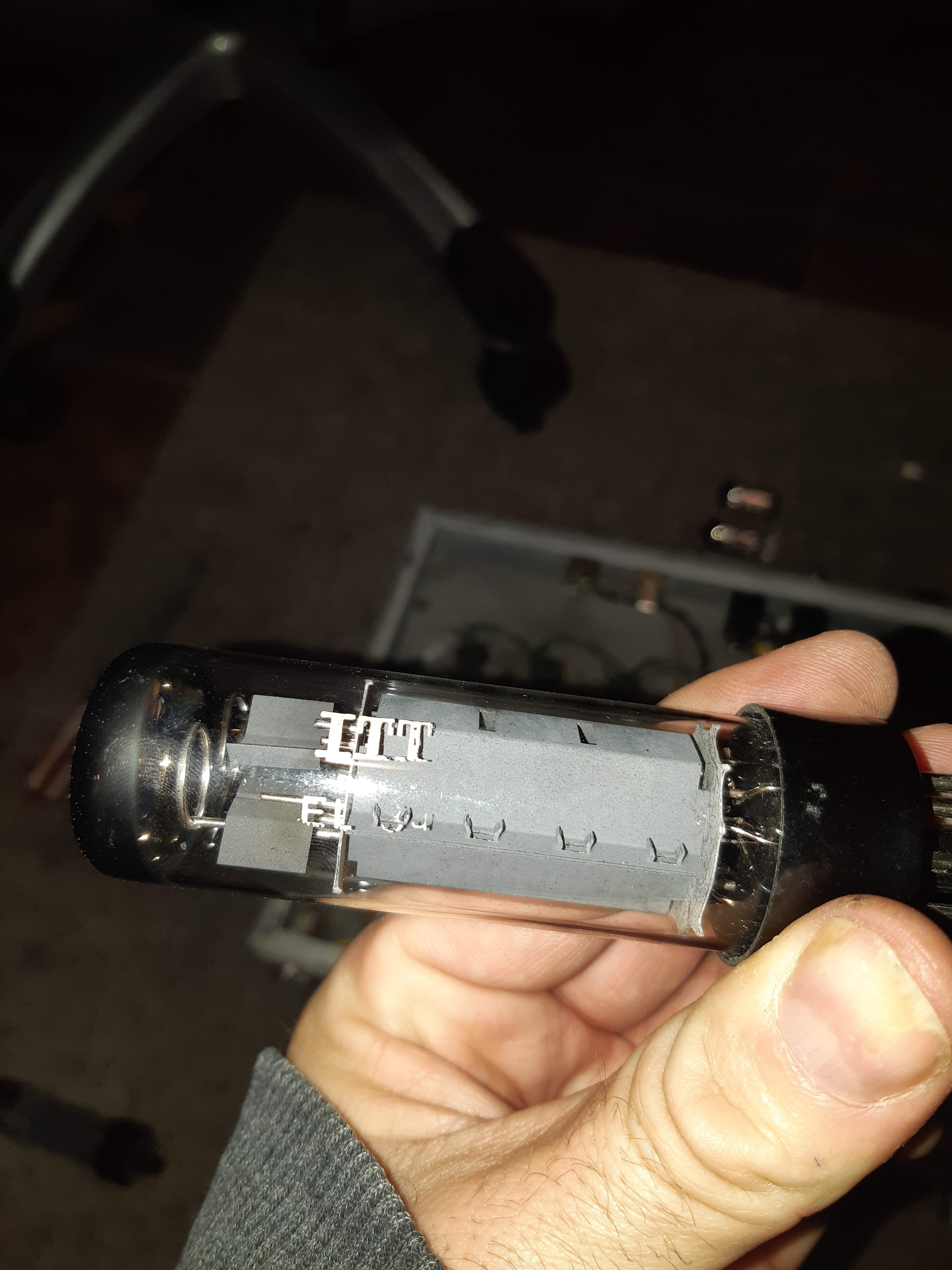

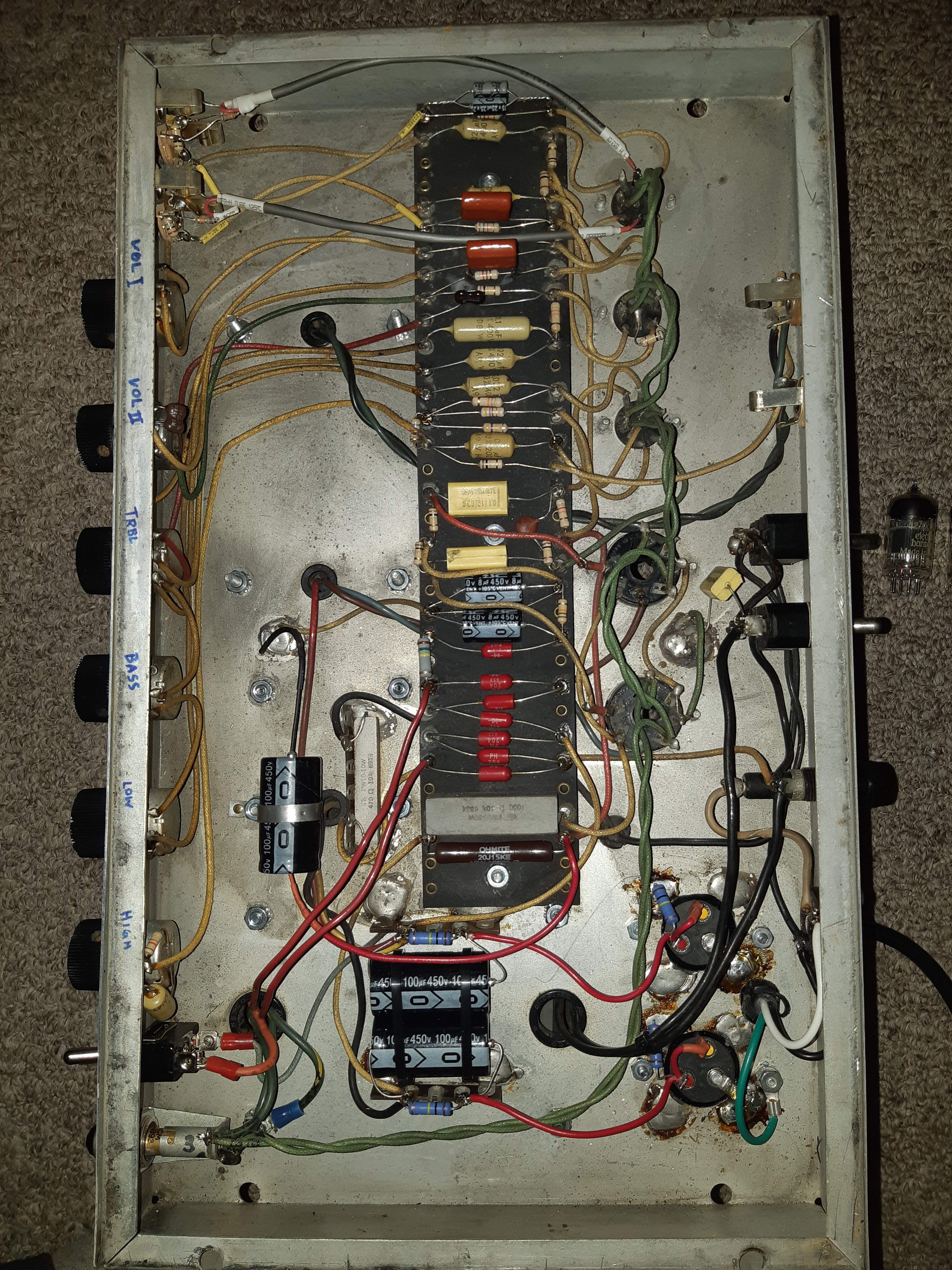

1967 Traynor bass master mark II.



[fdeck]

@BlacknWhite , that was the first big amp that I played through. It belonged to my high school.



[Hot Rats]

Carvin PB150. 1994



[Jim C]

Is it me or did the 70's era Acoustics have surprisingly few components compared to the competition?



[BassmanPaul]

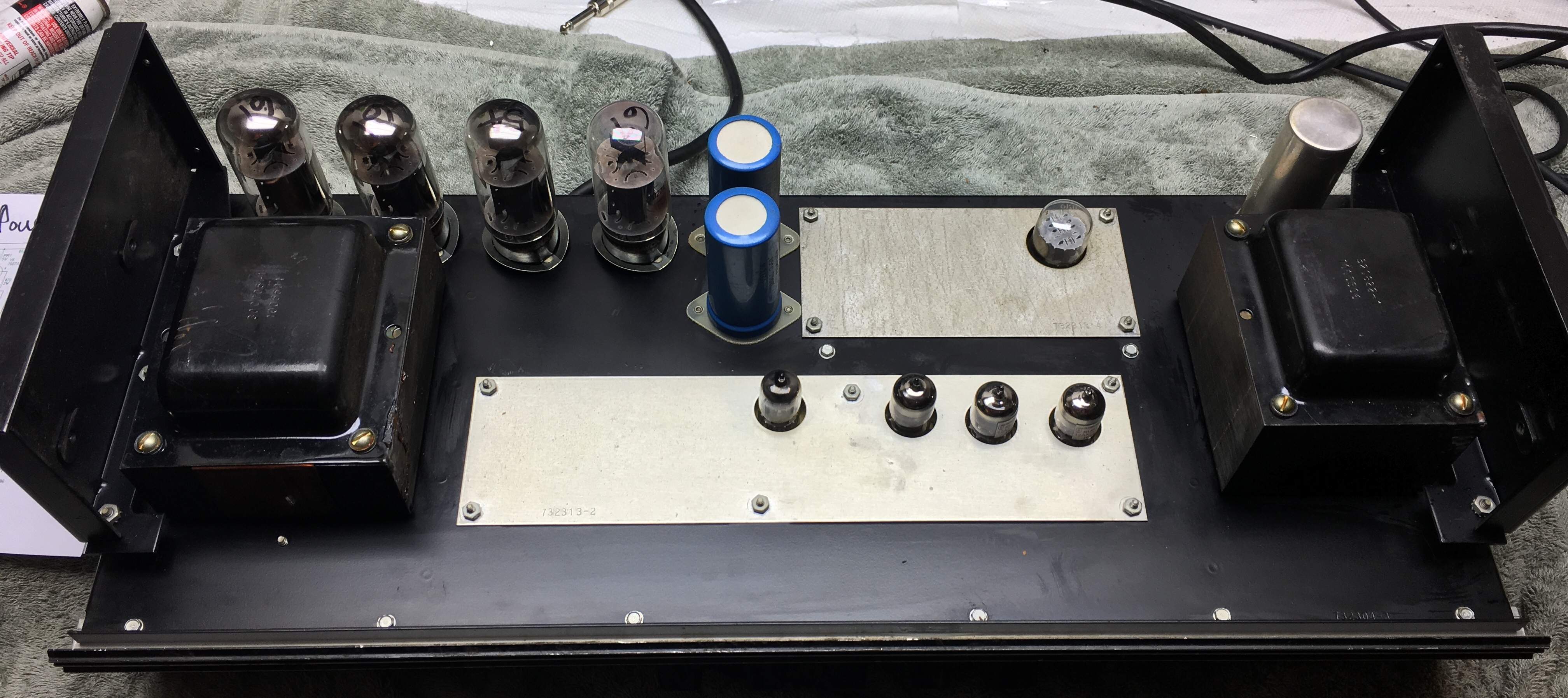

My 1965 Vox AC100 on the bench. Way back in time I think someone tried making a guitar amp out of the little beast. It has a 50W output transformer in it. I gigged with this thing for several years back in the 80s, early 90s. I’m going to rebuild it back to as near original as possible. I can actually get a new OT from Mercury I believe.

View attachment 3621897

If you’re going to rebuild it rebuild it into something that actually sounds good.



[AE1]

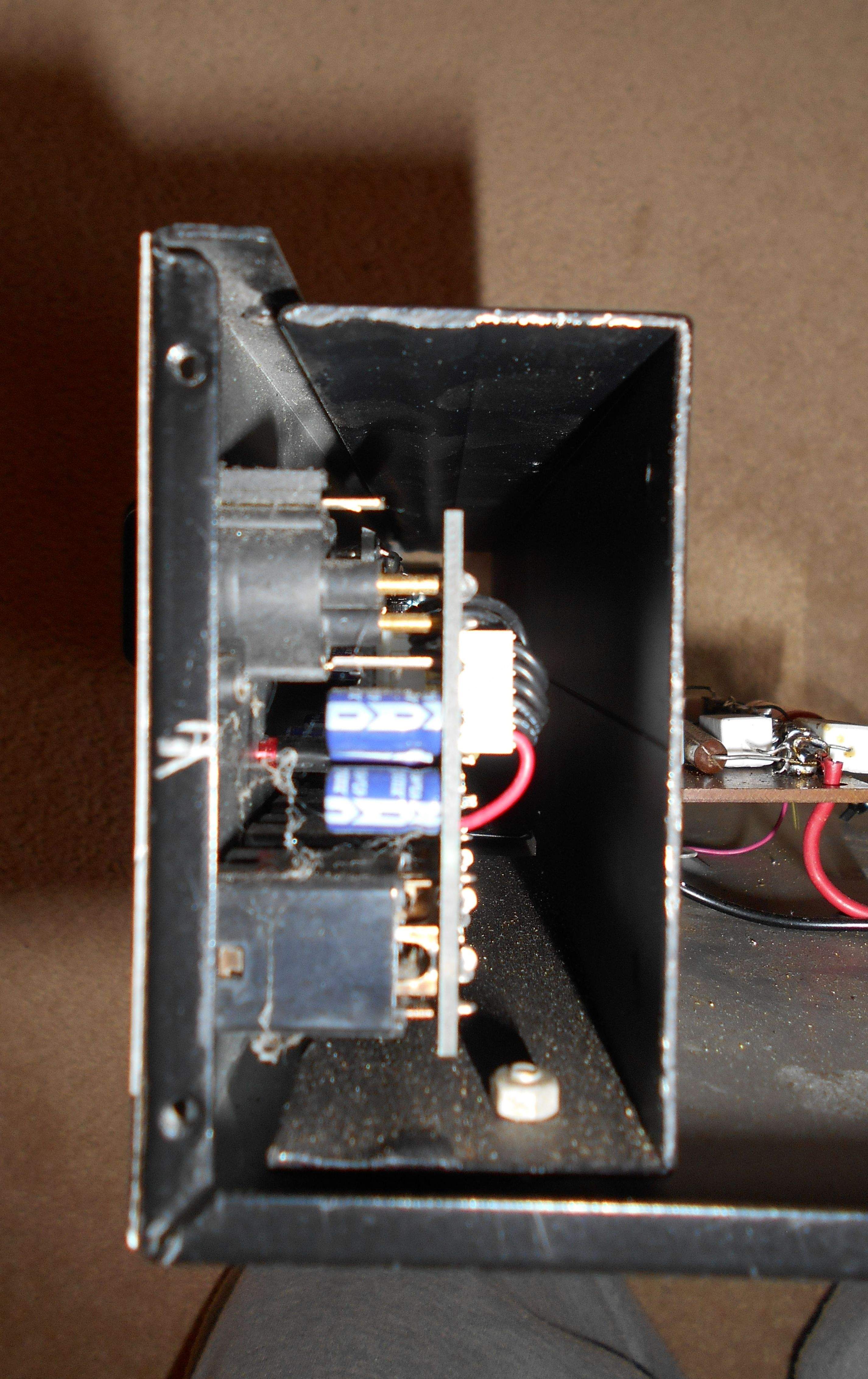

Here is something different

My Behringer BX4500H Bass Amp expired mid gig with a total wipeout of the power amp. Uneconomic to repair.

The BX4500H pre-amp section is really good with plenty of features so decided to salvage it and use as a pre-amp for rack mounted power amps. Similar pre-amp to the BX3000T.

Removed the heavy toroidal transformer and replaced with a small LV power supply for the pre-amp and fan.

The fan is not really needed but left it in for looks and to fill the large hole.

The component and wiring layout used existing chassis holes to save work, so is not as neat as it could be with more time and care.

All audio wiring is shielded to prevent annoying proximity coupling with the bass guitar – common in open top chassis amps. The front panel shield is 3 x 1 ½" aluminium channel and the rear shield is an aluminium hobbyist case.

Good bass preamps are hard to find.

This one works really well and is an easy project.

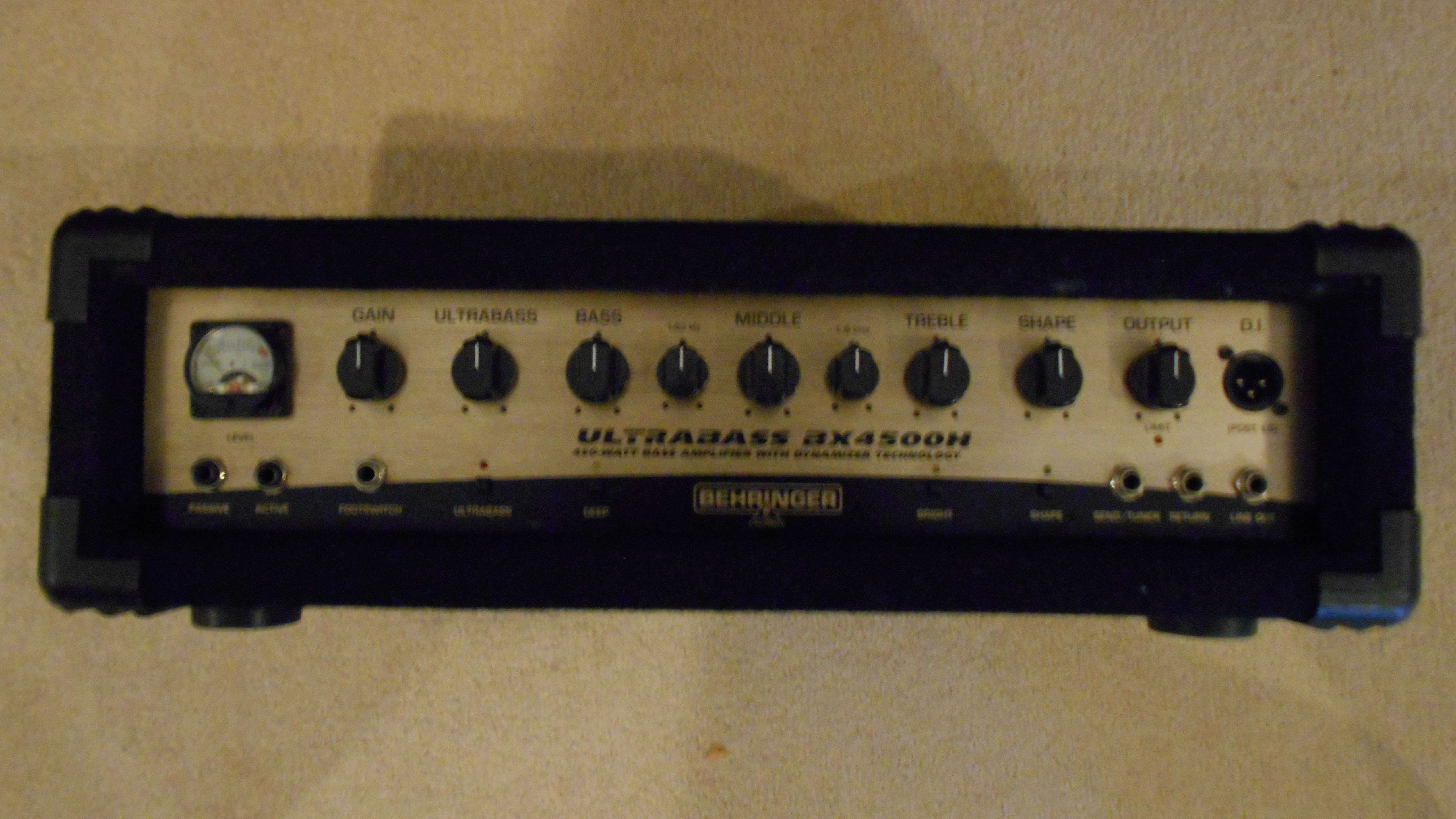

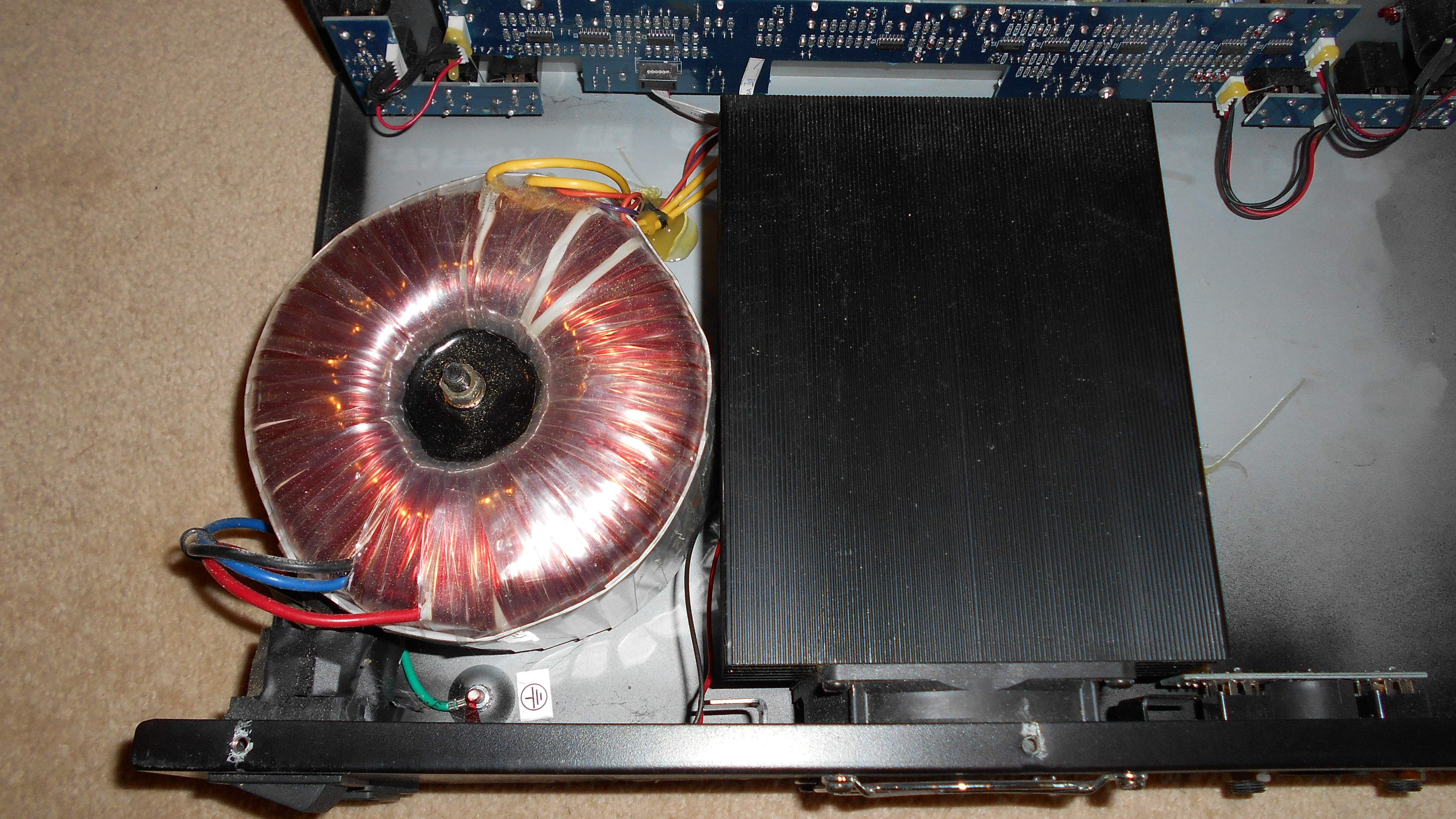

The first pic is the OEM amp as-built.



This is the end result



[daveman50]

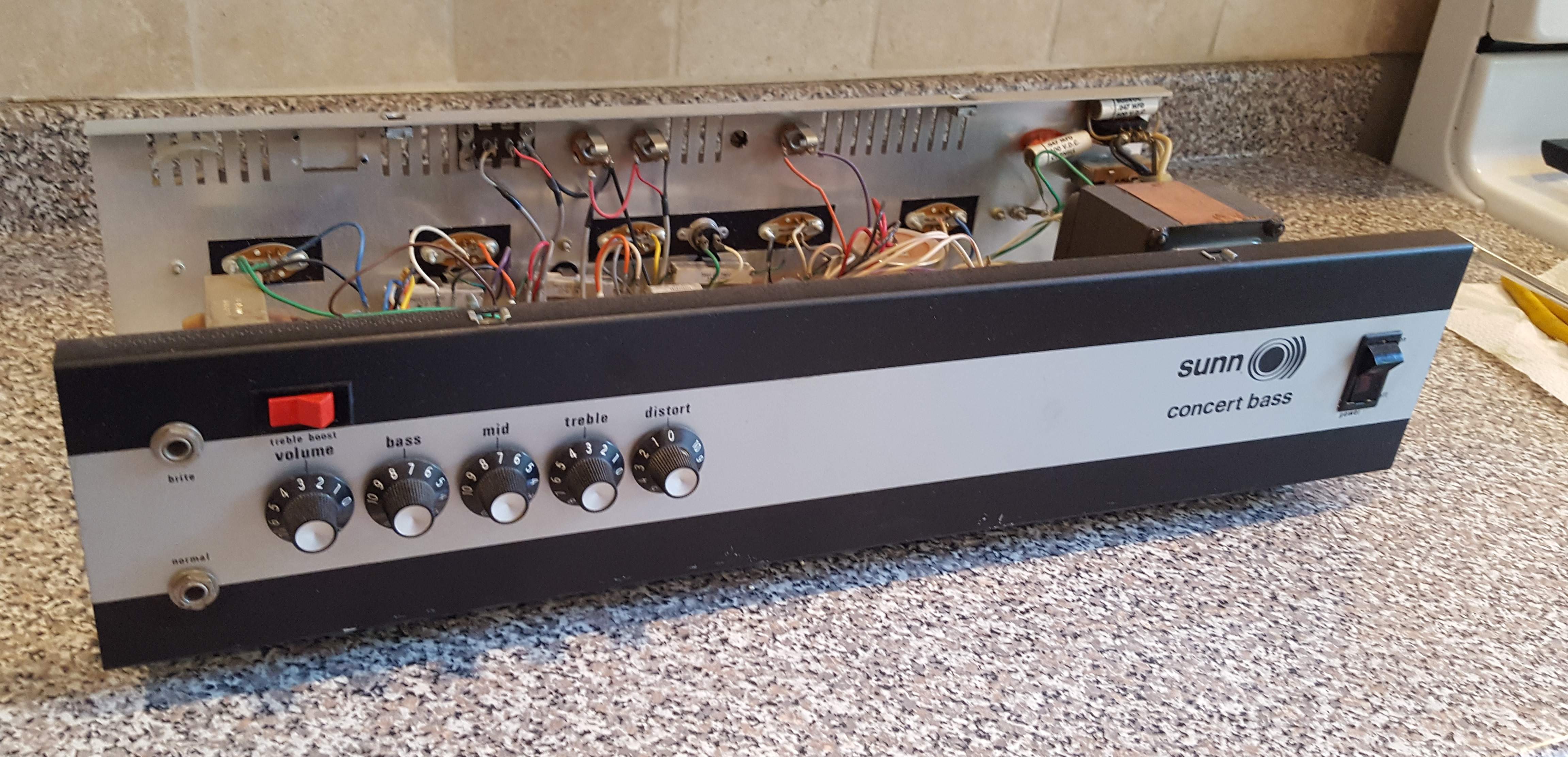

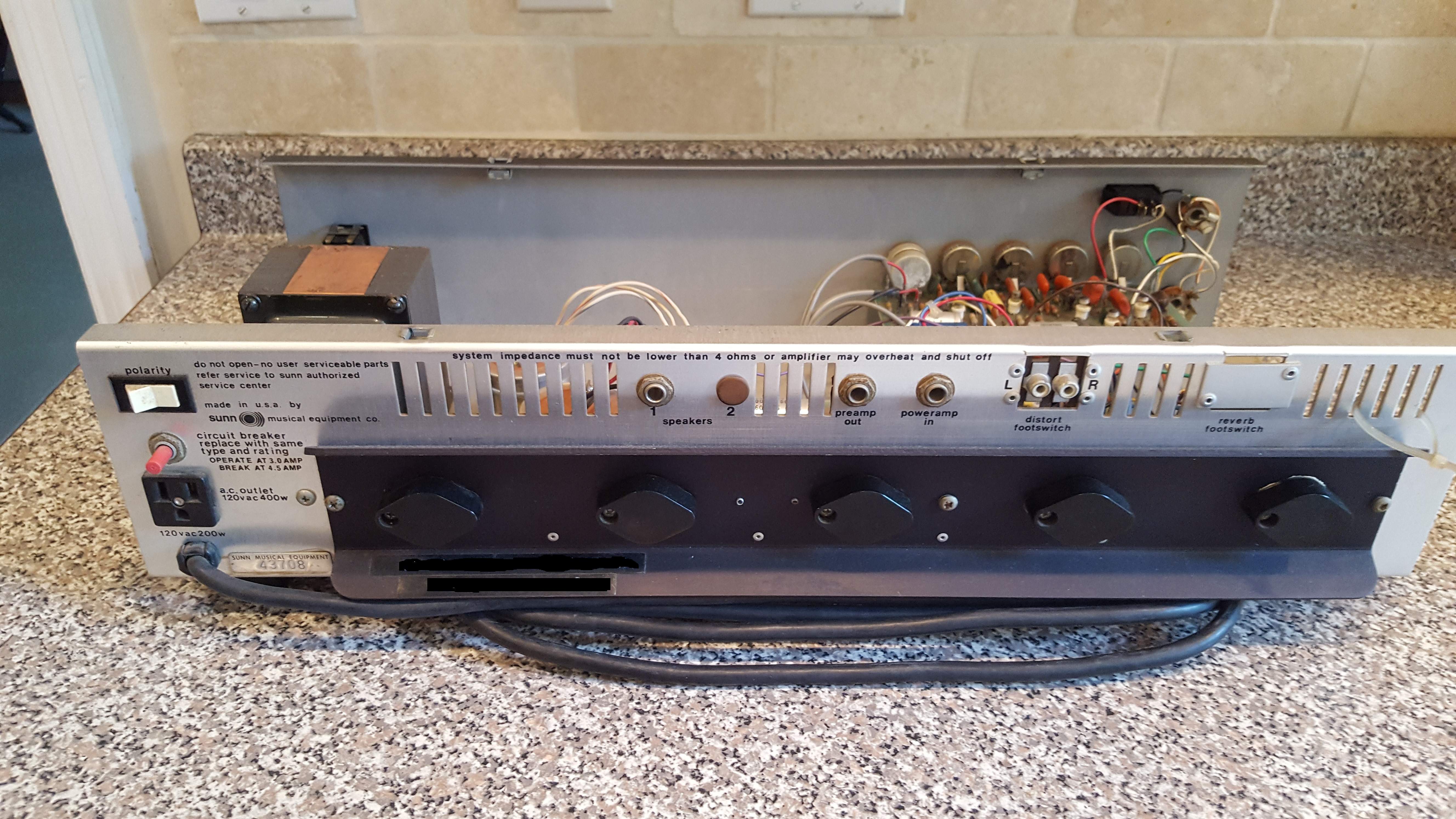

Sunn Concert Bass, 1973/74. Still sounds good.



[daveman50]

Sunn Concert Bass, 1973/74. Still sounds good.

Part 2:



[Roxbororob]

Part 2:
View attachment 3635313 View attachment 3635314

Beautiful and pristine, but can I humbly suggest you disconnect your death cap?



[daveman50]

Beautiful and pristine, but can I humbly suggest you disconnect your death cap?

Is that necessary? It has a 3 prong cord and it appears to be grounded to the chassis.
