Amp Guts Photos - Official Thread - Lets see those pics

Should we also add Bass Guts to this thread too?

  • Yes, Allow Bass guts, afterall Guts is Guts

    Votes: 223 28.7%

  • No way! Keep 'em seperate

    Votes: 553 71.3%
  • Total voters
    776
#1,461

#1,462
daveman50 said:
Is that necessary? It has a 3 prong cord and it appears to be grounded to the chassis.
Click to expand...

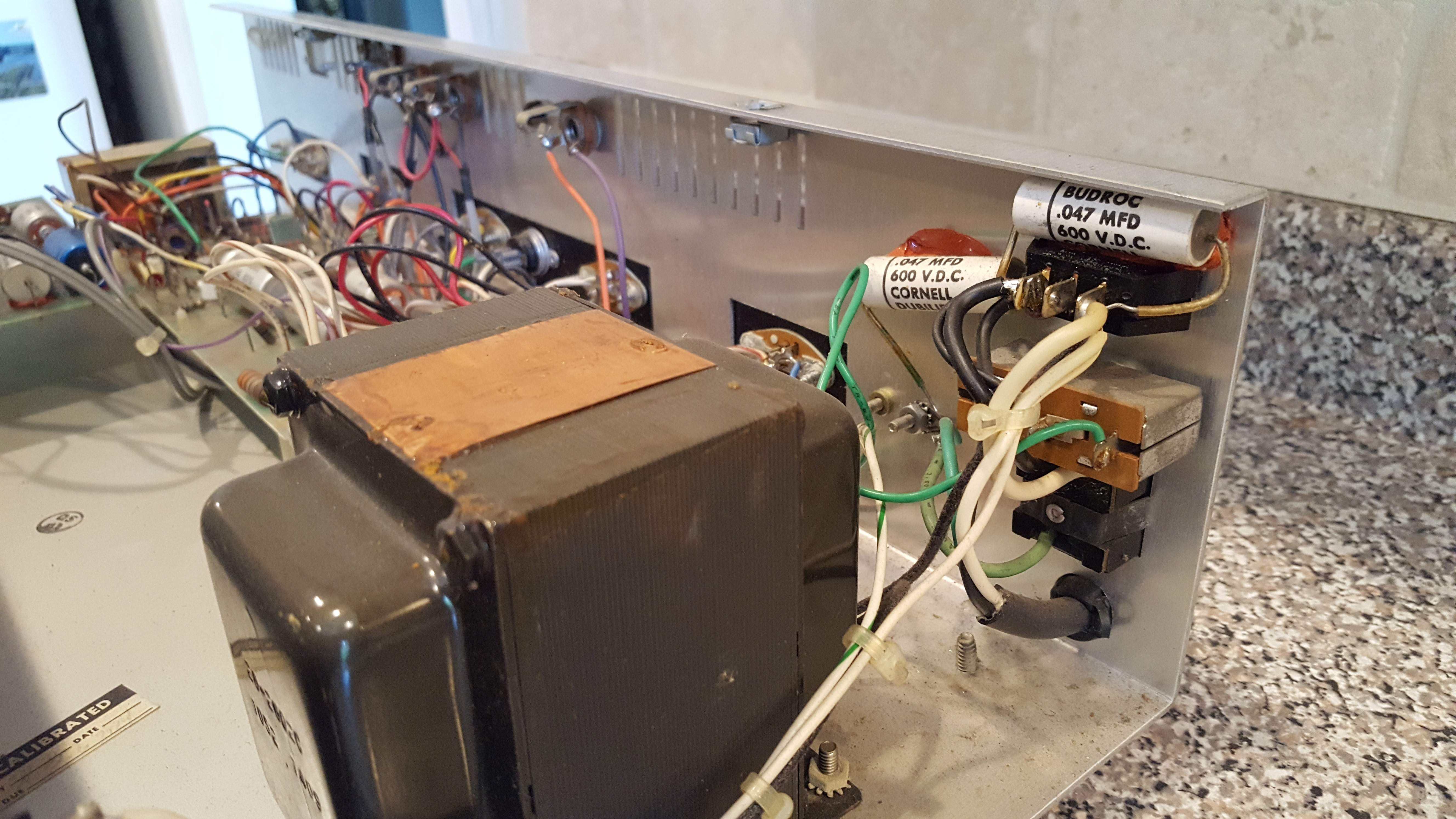

The cap from the polarity switch to ground, while not "dangerous" with a grounded chassis (unless the power source is not grounded) but may trip ground fault interrupters if the slightest bit leaky.

It's no longer good practice to use them as they are being used in these amps, and when used for EMC control, they are a special type of approved part.

  • Like
Reactions: daveman50, Leo was right and BassmanPaul
#1,463
AE1 said:

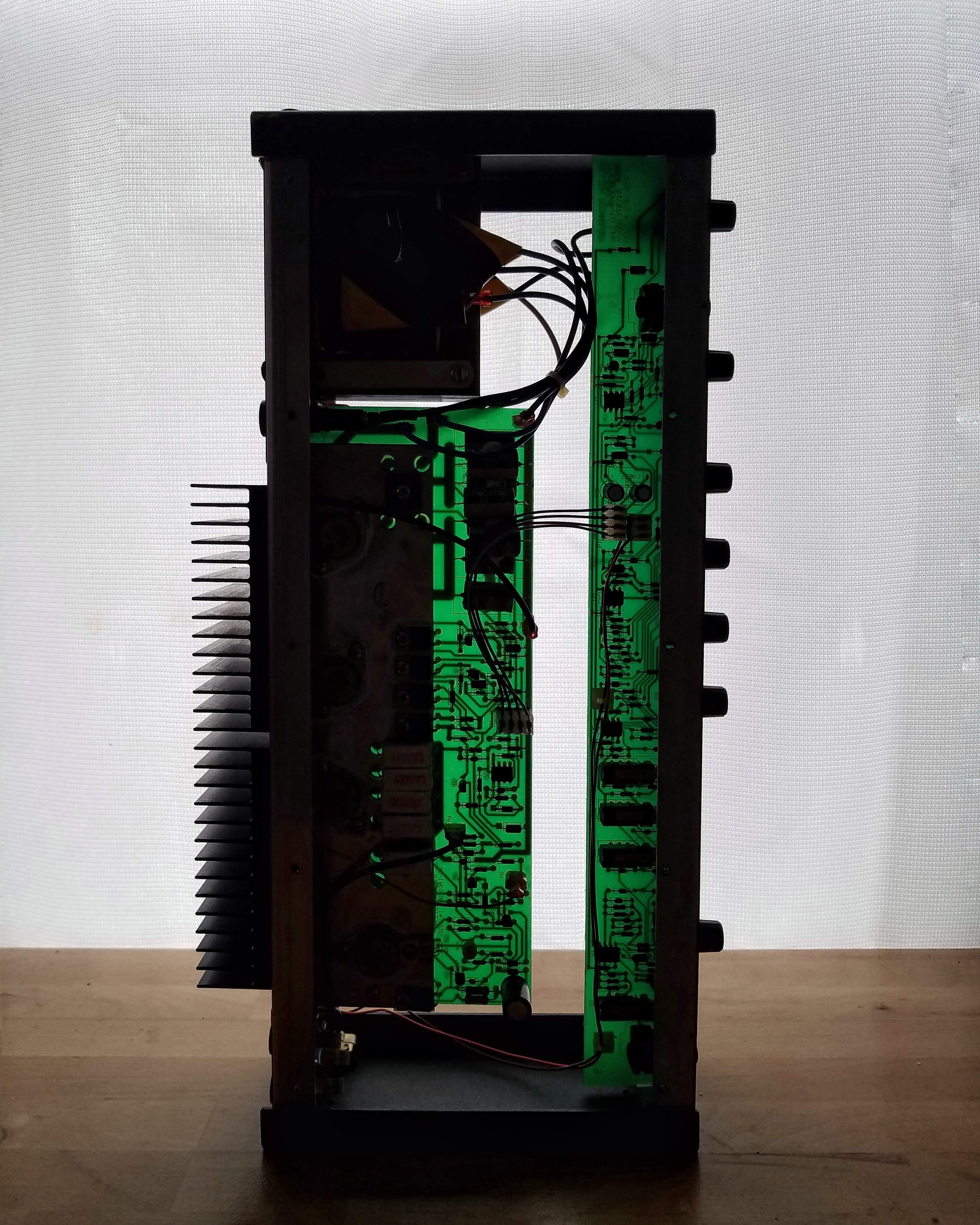

Here is something different

My Behringer BX4500H Bass Amp expired mid gig with a total wipeout of the power amp. Uneconomic to repair.

The BX4500H pre-amp section is really good with plenty of features so decided to salvage it and use as a pre-amp for rack mounted power amps. Similar pre-amp to the BX3000T.

Removed the heavy toroidal transformer and replaced with a small LV power supply for the pre-amp and fan.

...
Click to expand...

Not a bad idea.
If you like the pre-amp you can salvage it. Tone is from the pre-amp.

Going further one can rip out the power amp part and replace it with a amplifier module. Some have power supplies that can power the existing pre-amp.

Making a fairly economical Hot Rod!

#1,464
agedhorse said:
The cap from the polarity switch to ground, while not "dangerous" with a grounded chassis (unless the power source is not grounded) but may trip ground fault interrupters if the slightest bit leaky.

It's no longer good practice to use them as they are being used in these amps, and when used for EMC control, they are a special type of approved part.
Click to expand...

Thanks.

  • Like
Reactions: Leo was right
#1,479
Jeff Scott said:
I had one of those in the beginning of this century. Nice clean tone, horrible OD/distortion, though.
Click to expand...

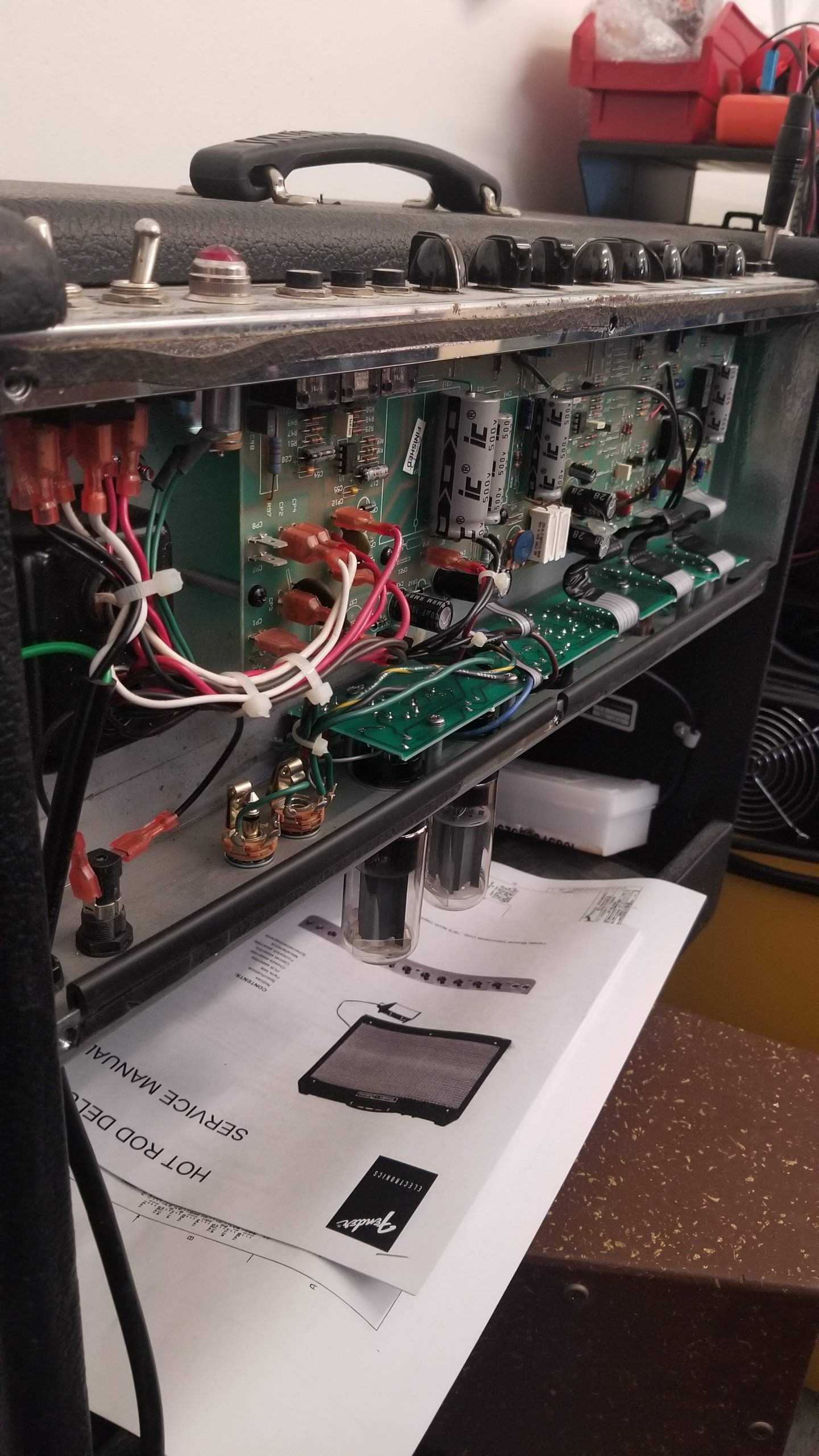

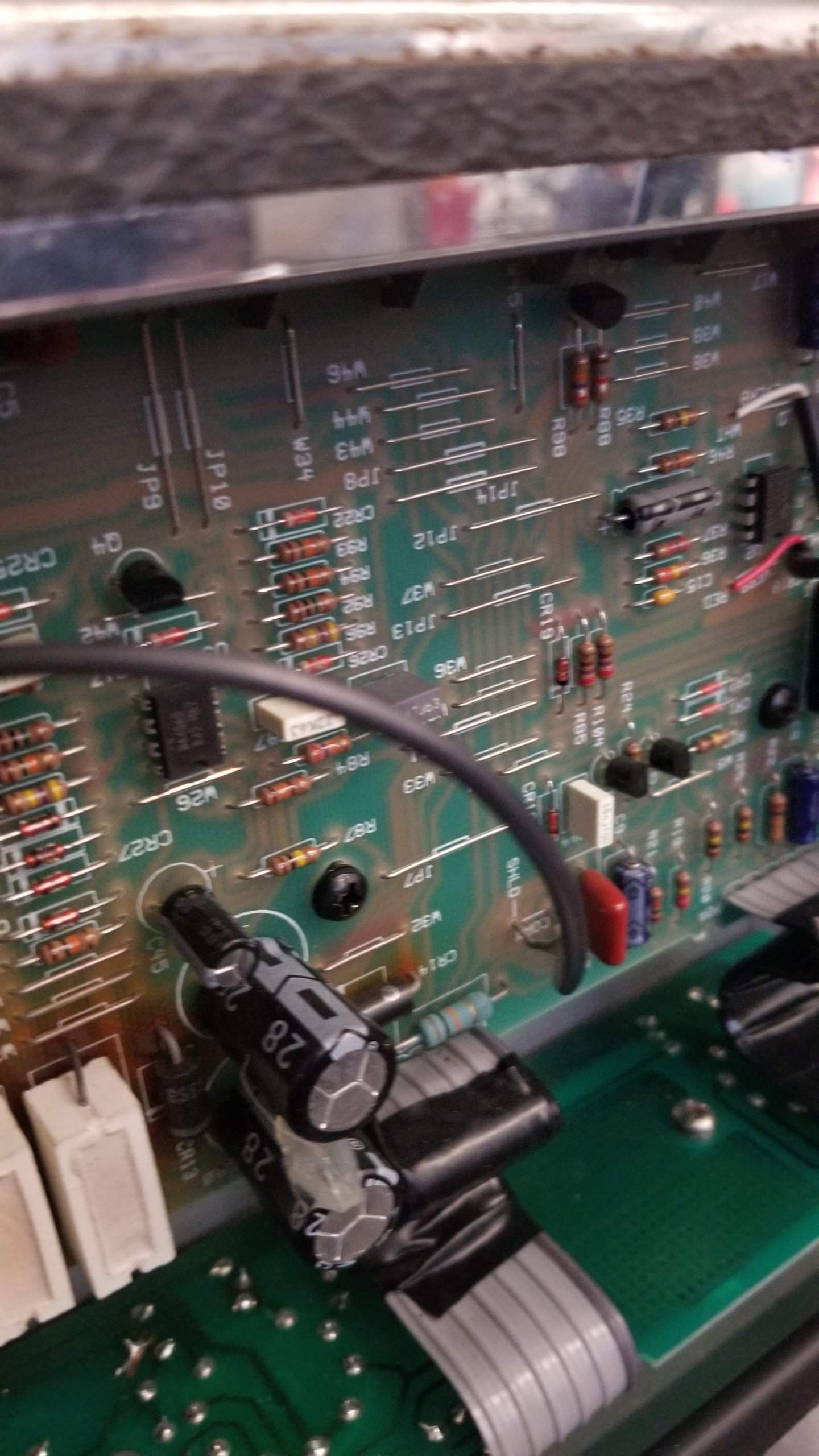

In one of his videos on YouTube, Brian Wampler was talking about adding a Graphic EQ pedal in the effects loop to fix the tone of the overdrive. He also commented that he "fixed" his amp so it sounds good without the pedal. I suppose I should try to find out what he did... I have a Blues DeVille that needs some help.
