Amp Guts Photos - Official Thread - Lets see those pics

[chevaliernoir]

Behringer BVT4500H

... and it's home made enclosure:



[6thplanet]

You've really had your hands in a bunch of amps!



[MuthaFunk]

Great posts!! Thanks for sharing @chevaliernoir



[disssa]

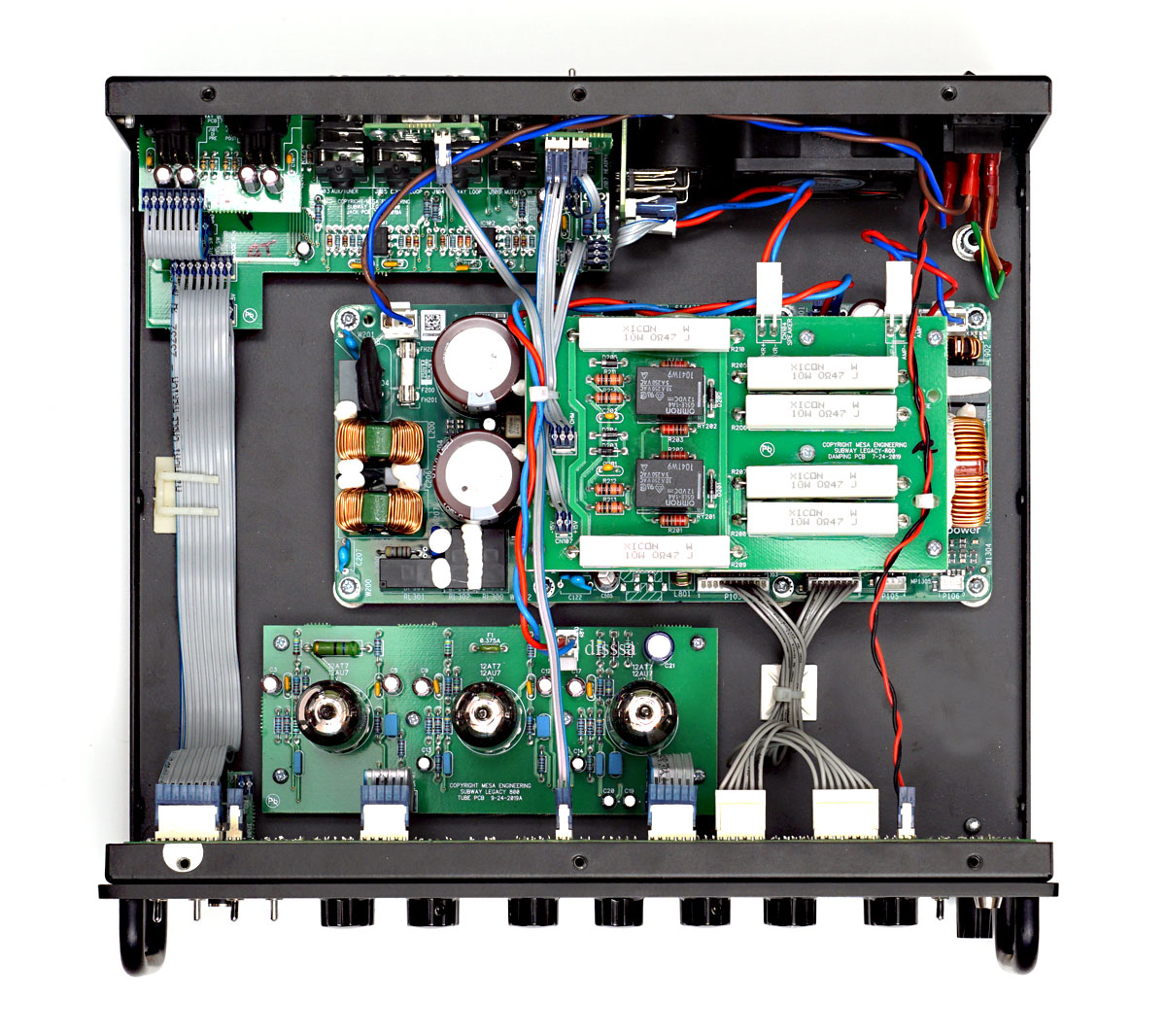

Mesa Boogie TT-800:



[hennessybass]

Very clean looking!



[Jeff Scott]

Very clean looking!



[bassfreakah]

That dampening board with the 10 watt resistors is cool. Making that class D amp sound a little more tube power ampish. Such an interesting concept to a dummy like me. Love looking at amp porn.



[Kindness]

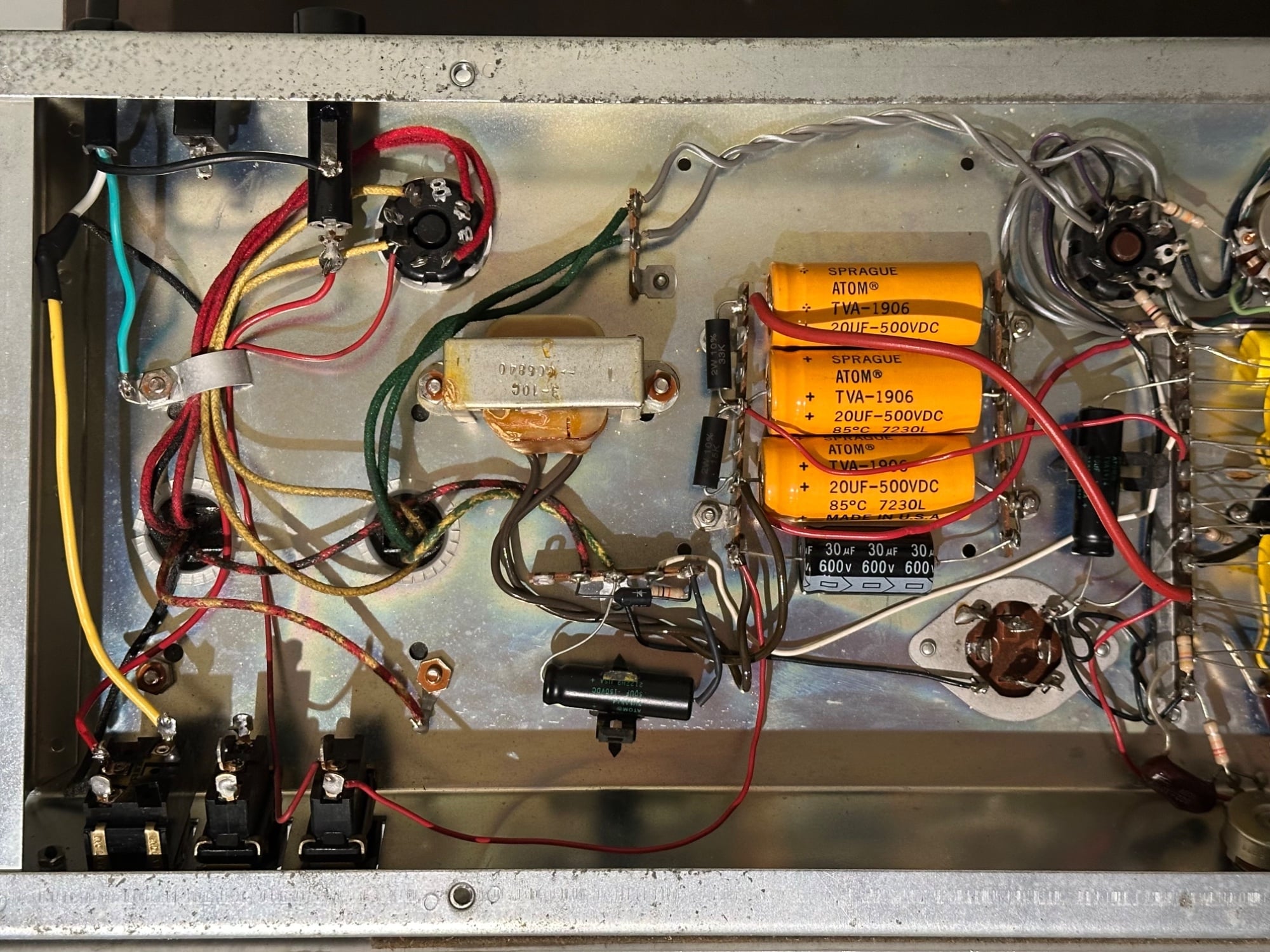

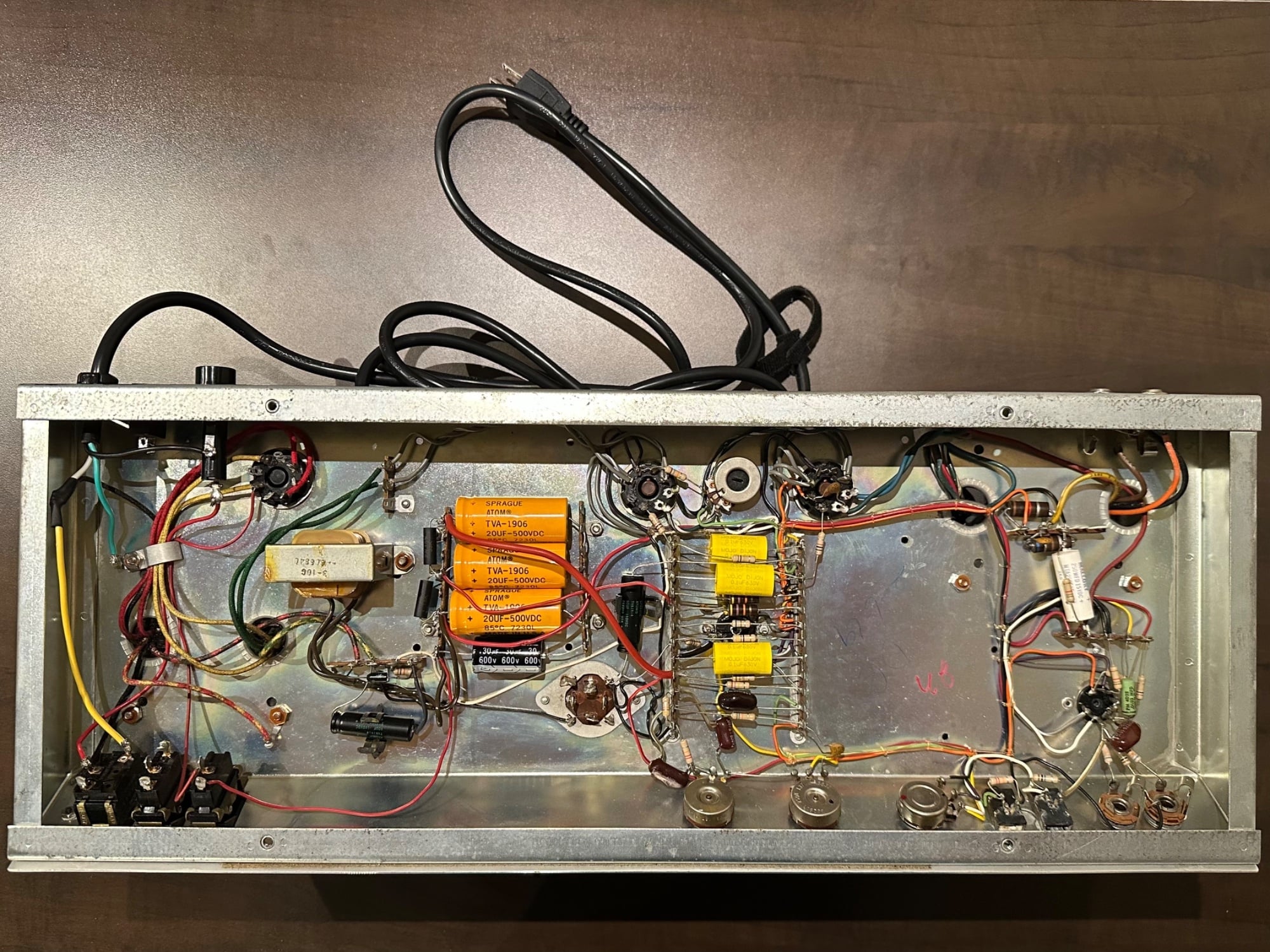

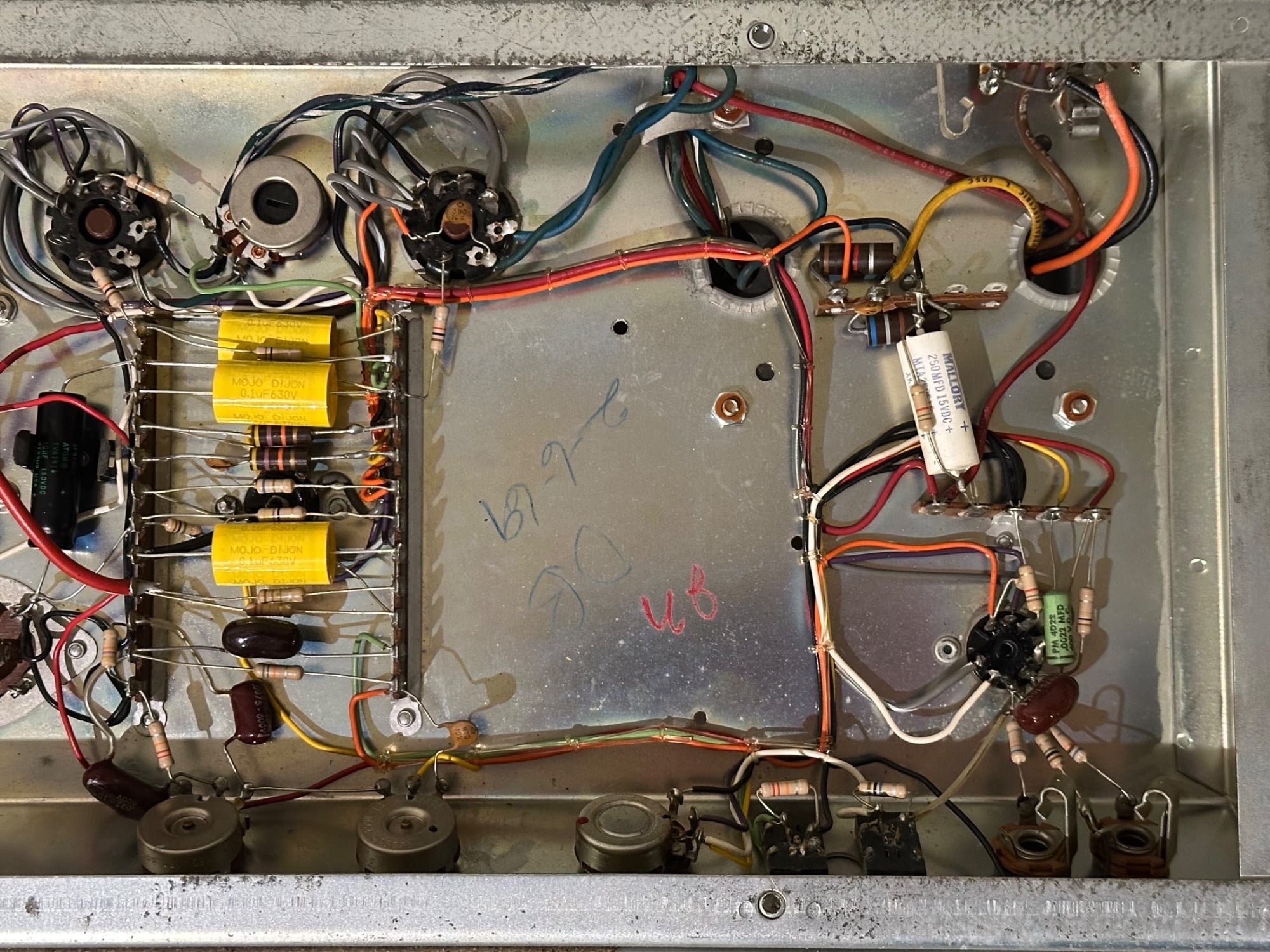

I just closed up a 1969 Sunn 200S after a few repairs. I loved the project and would be happy to get my hands on another one of these!



[Oddextreme]

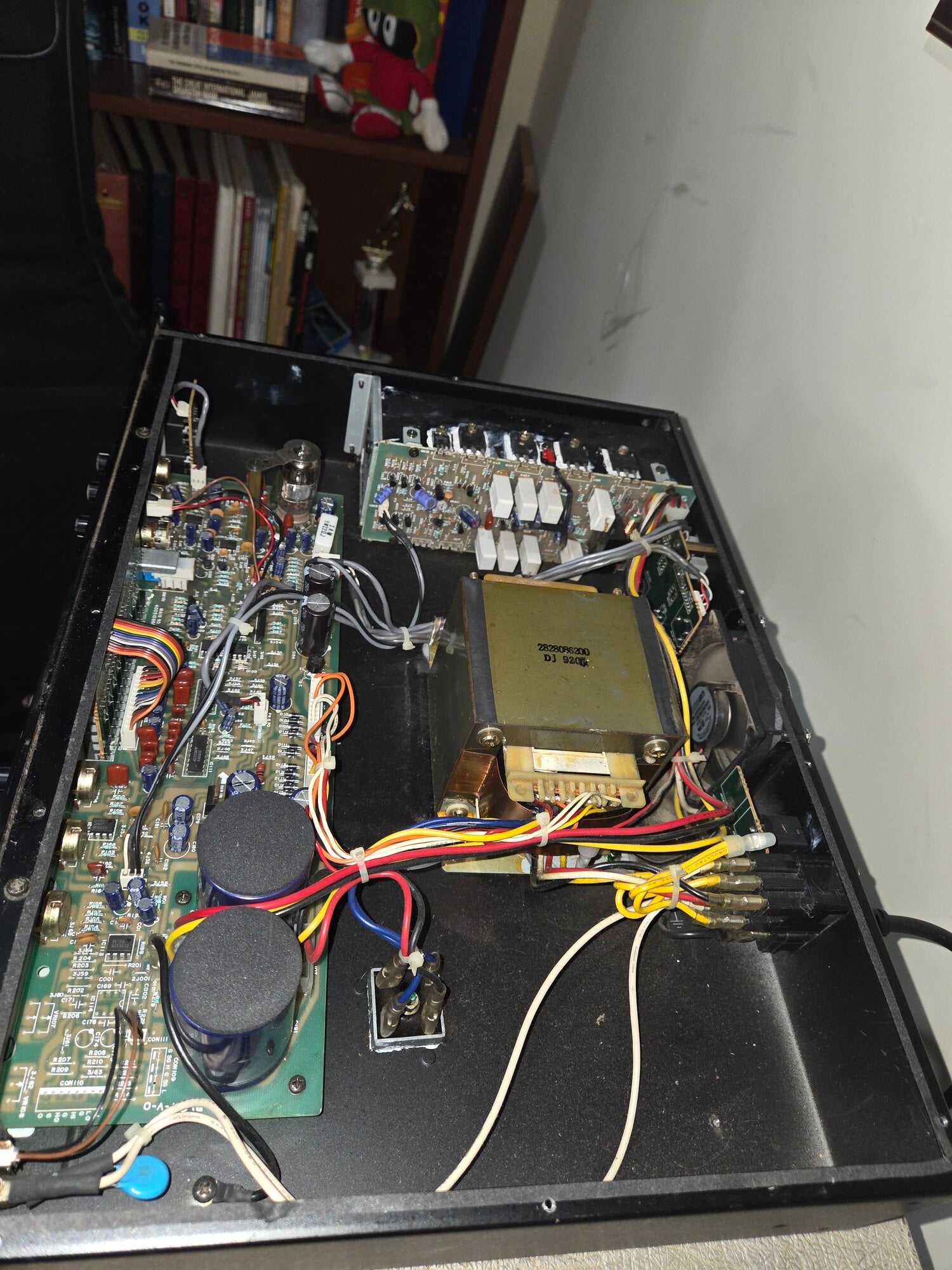

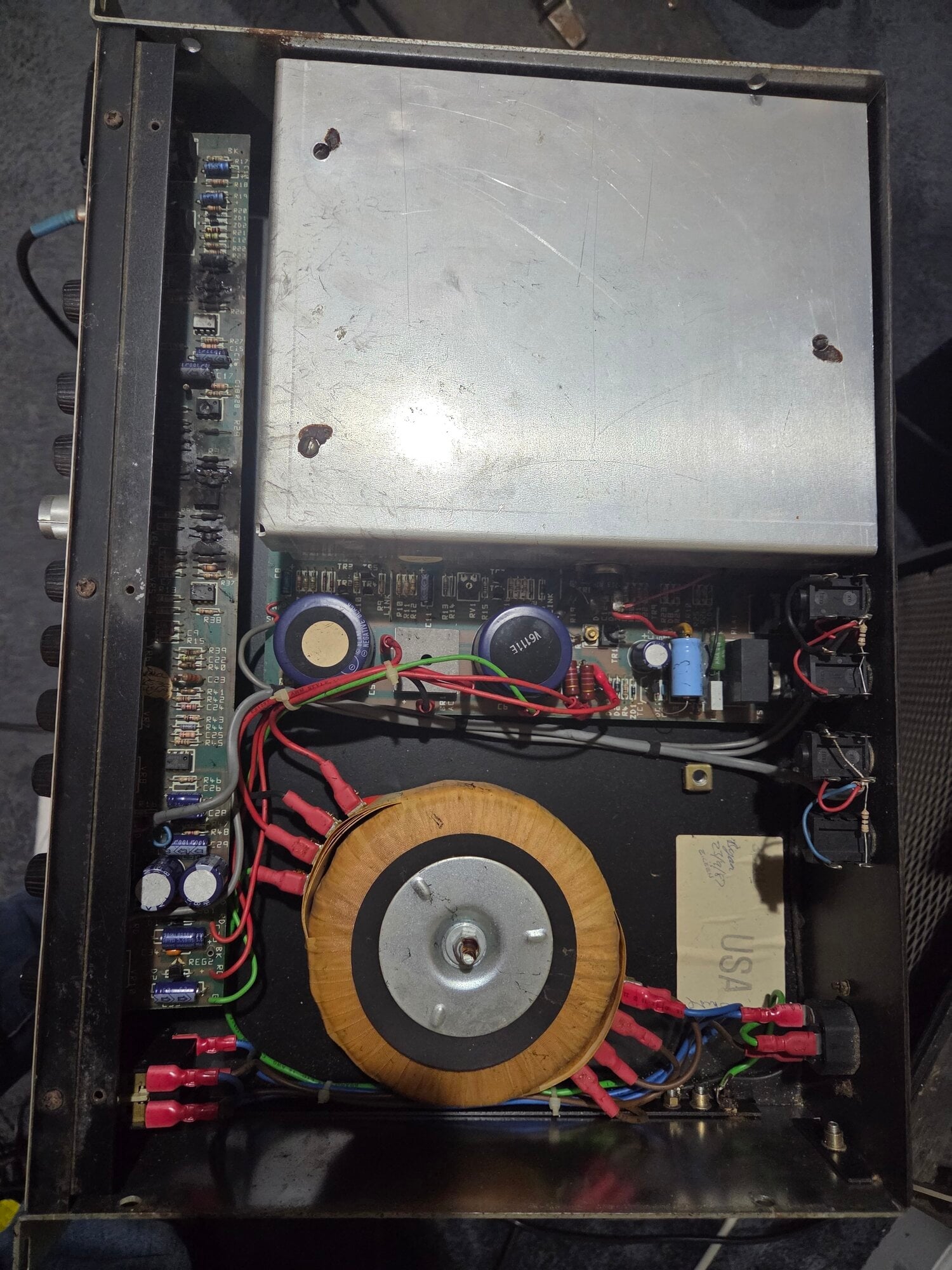

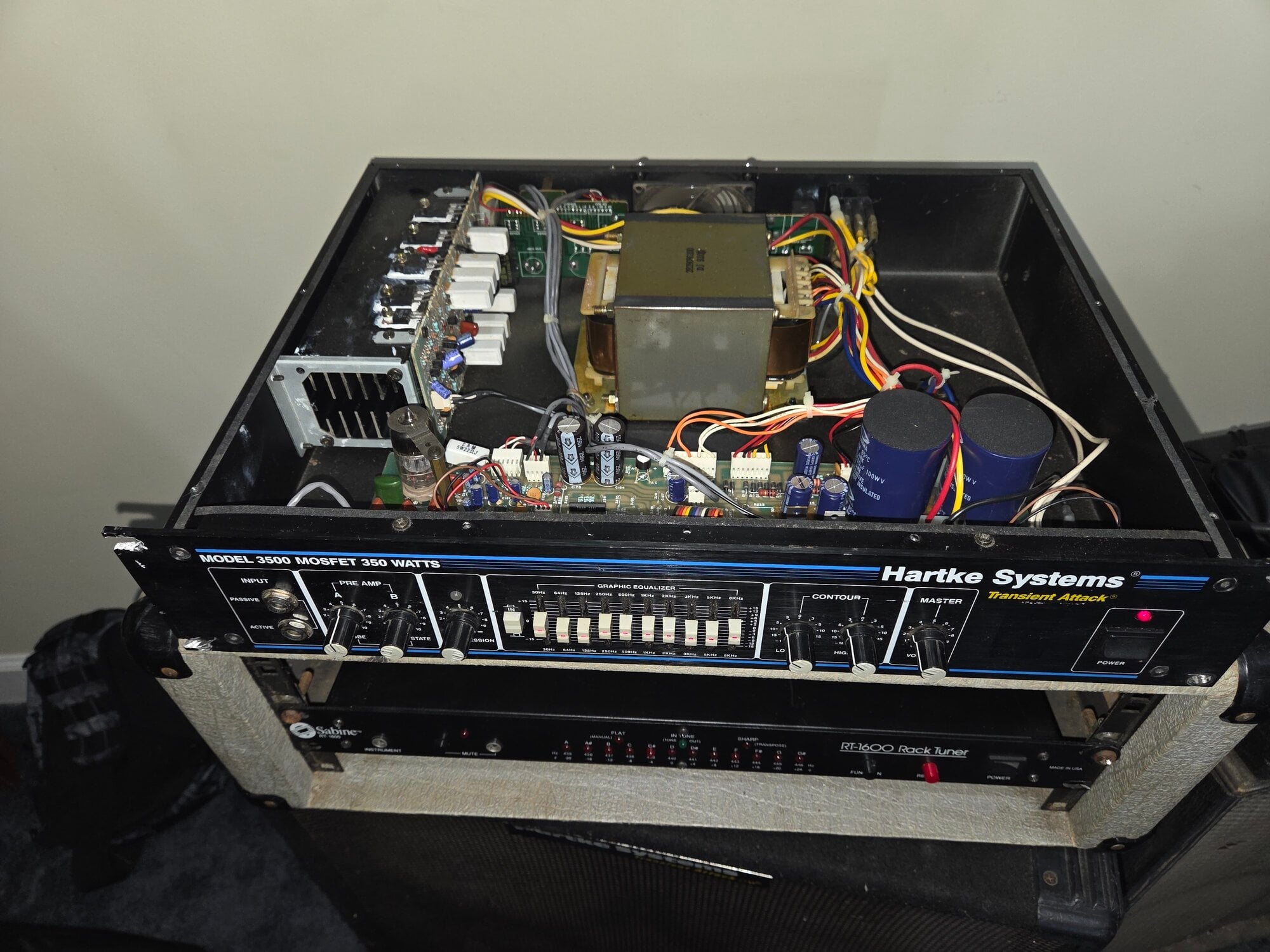

Hartke 3500 Mosfet, Transient Attack. Trying to diagnose the no sound issue, and saw this thread, already had it open so... Almost 35 years of good use.



[Oddextreme]

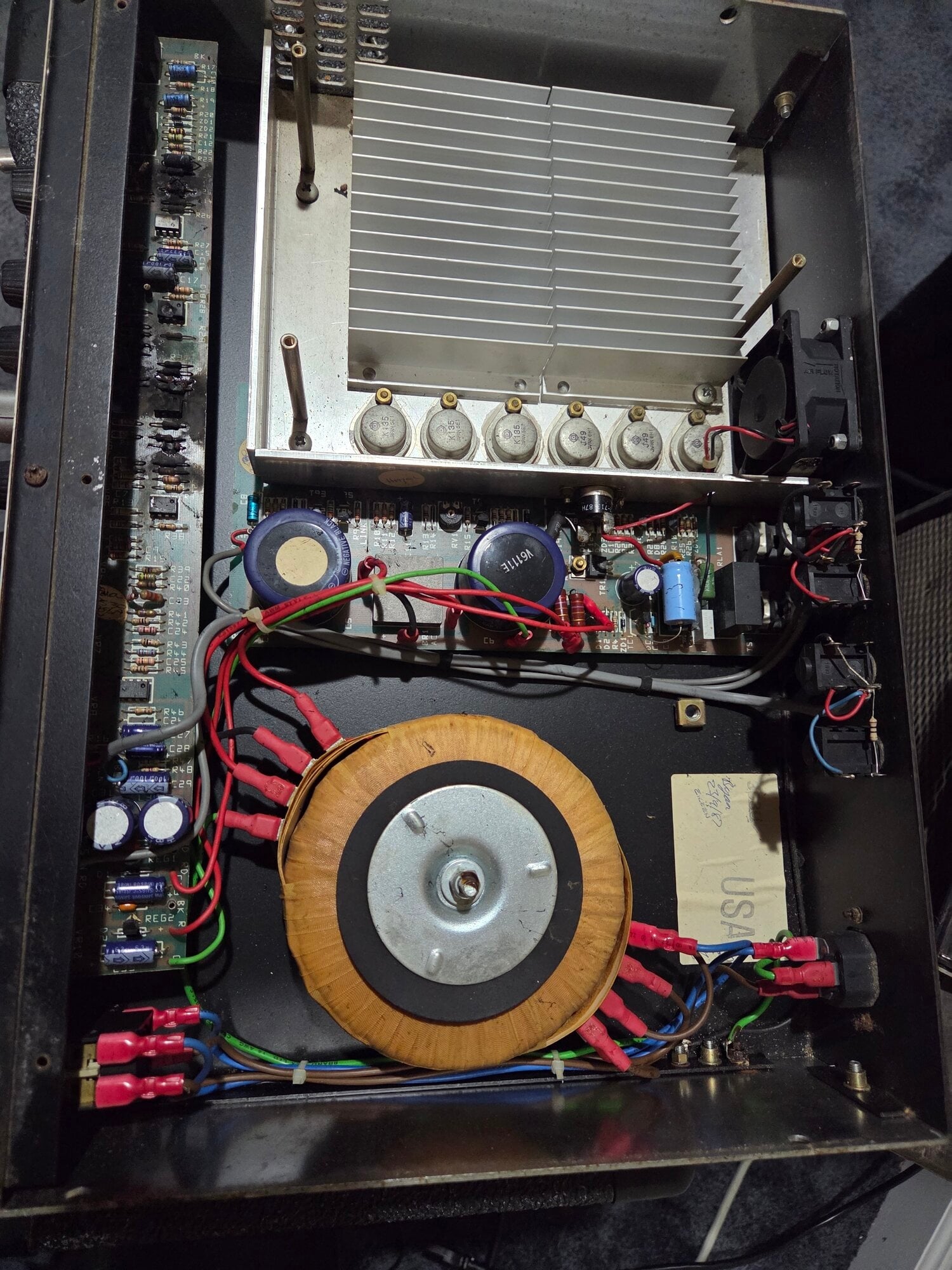

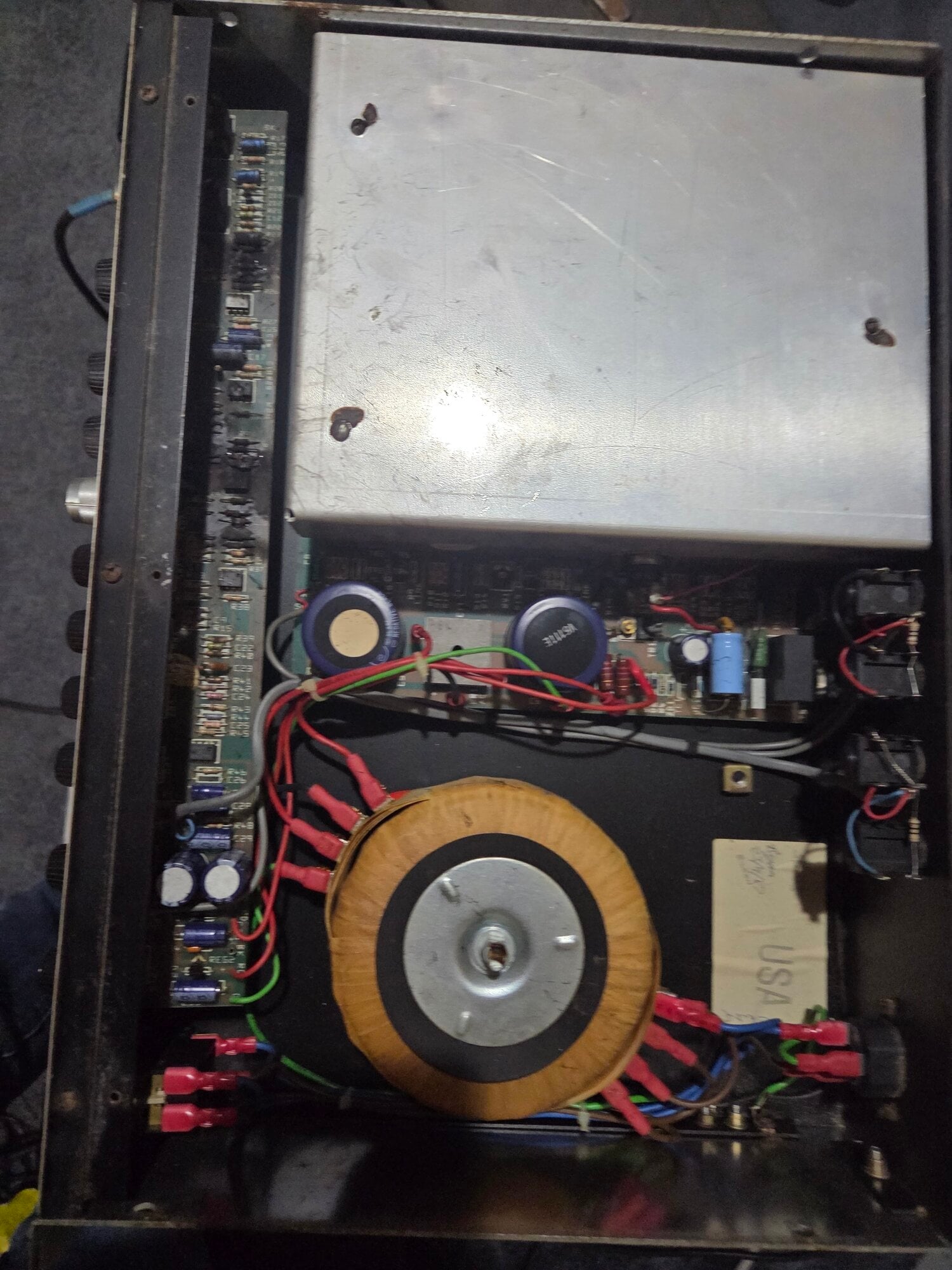

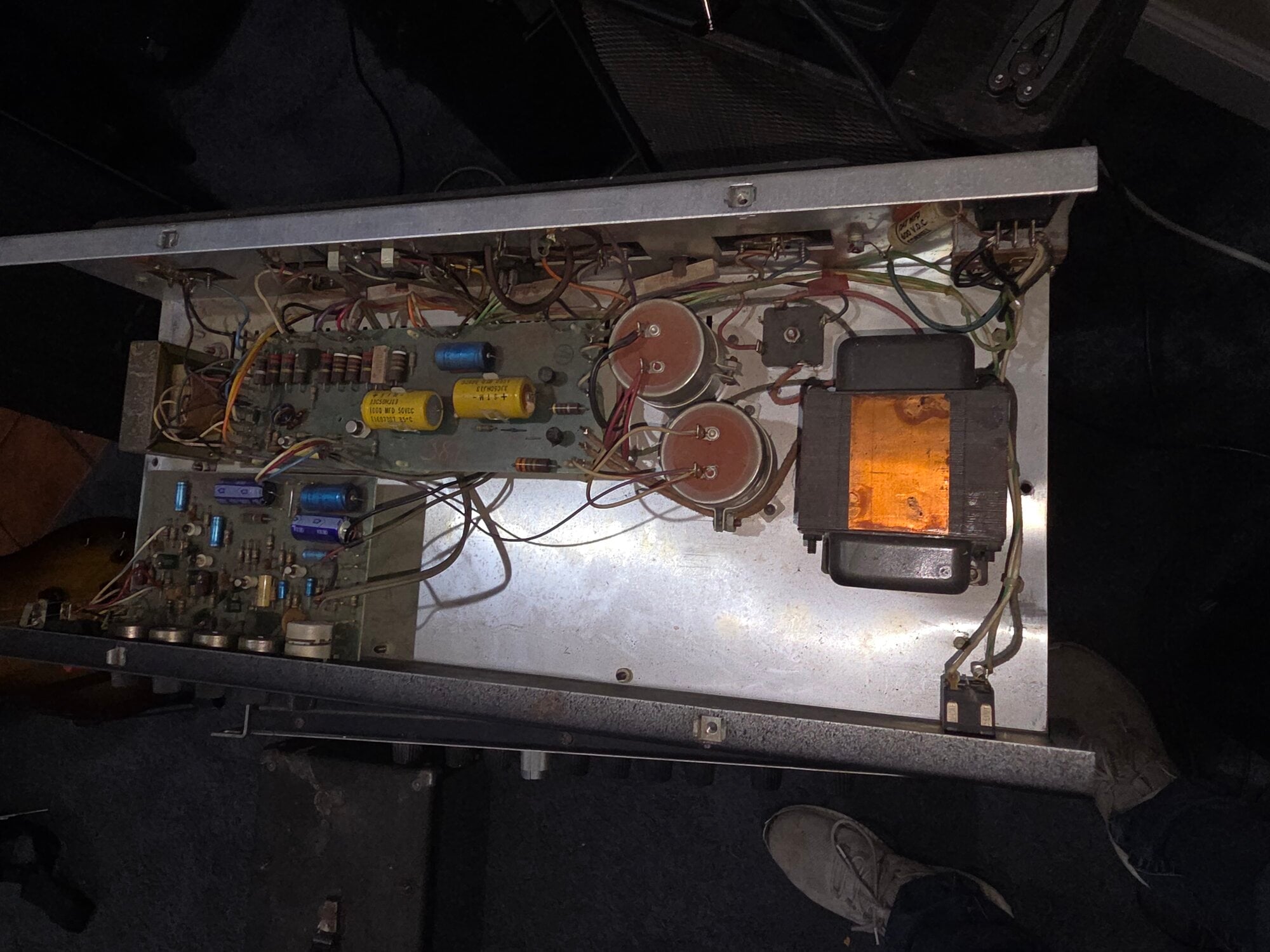

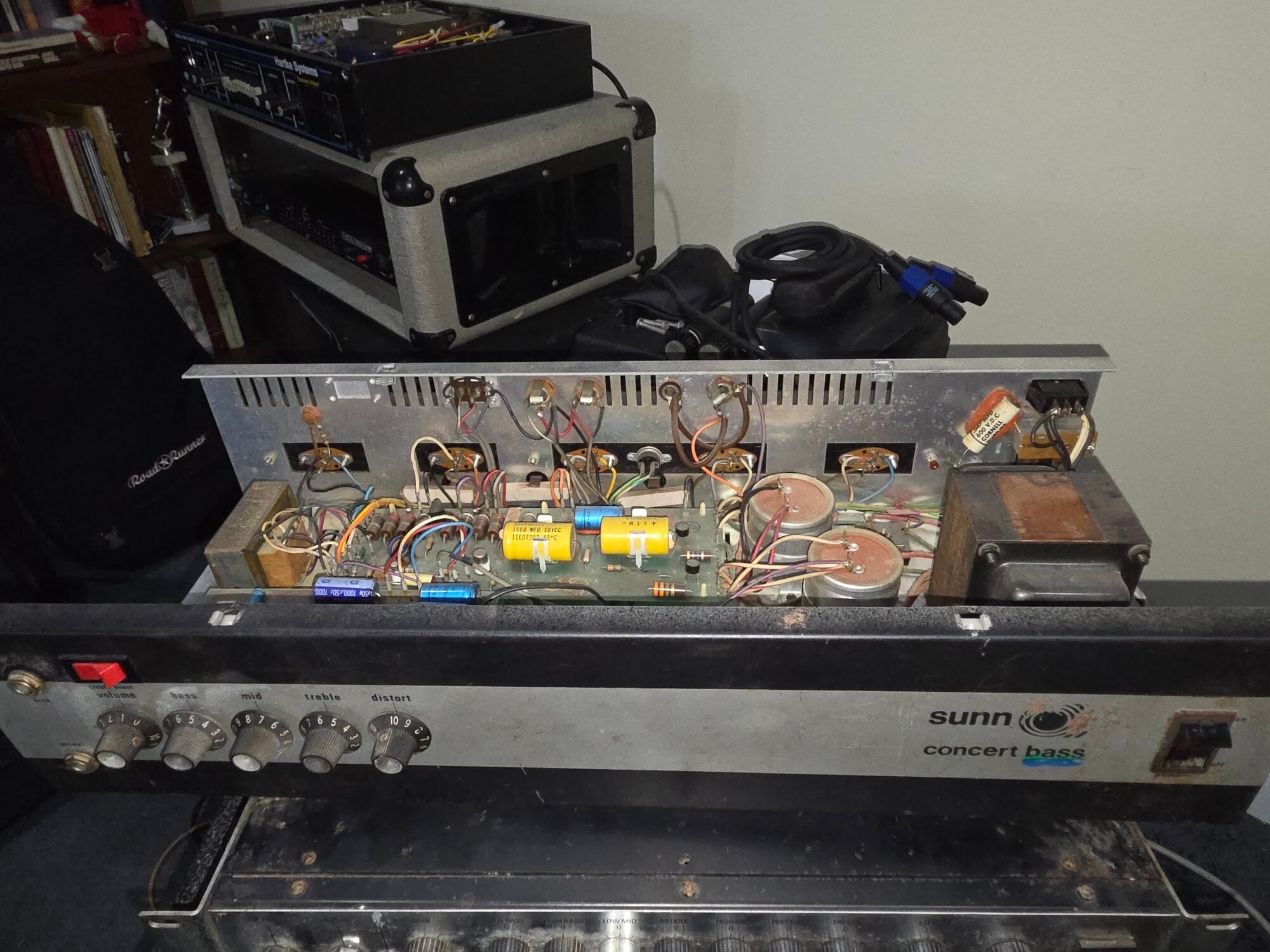

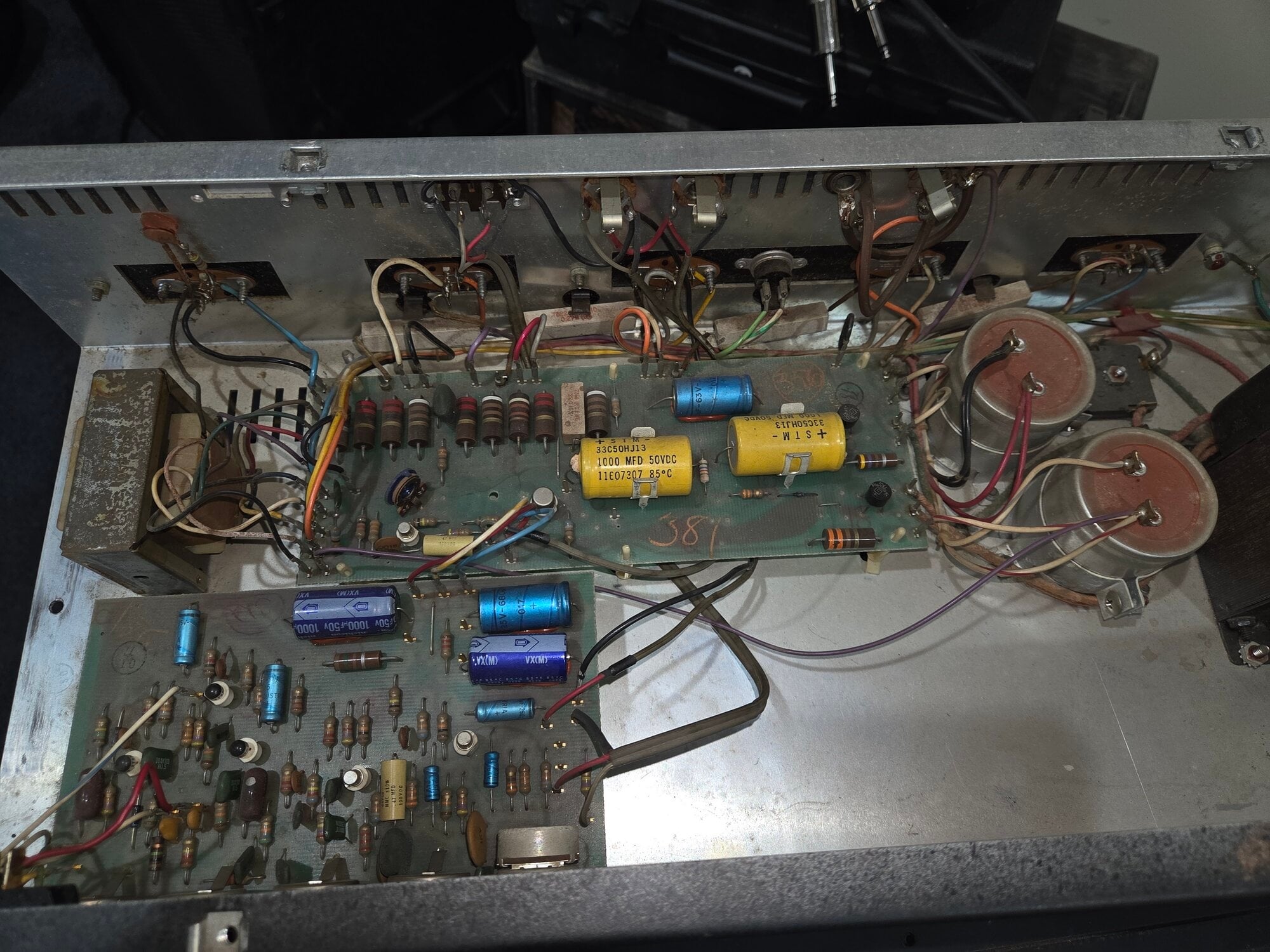

While trying to fix my Hartke, I put my old Sunn Concert Bass head back together after replacing a couple caps.



[spiritbass]

Hartke 3500 Mosfet, Transient Attack. Trying to diagnose the no sound issue, and saw this thread, already had it open so... Almost 35 years of good use.
View attachment 7331999View attachment 7332001

I hope that your MosFets are still kicking!



[12bass]

Hartke 3500 Mosfet, Transient Attack. Trying to diagnose the no sound issue, and saw this thread, already had it open so... Almost 35 years of good use.

Briefly had a 3500 back in the 90s and it had a number of cold solder joints. Suggest cleaning/reseating the jacks and connectors, and checking for power with a multimeter. Could also be cold solder joints or possibly a component failure. Can check the preamp by feeding the preamp output (effects send) to another amp and check the power section by plugging into the effects return. If neither works, then that suggests something more fundamental.



[MadJack]

A little late to this thread. I've seen it mentioned a couple time, but I never got around to looking it up.

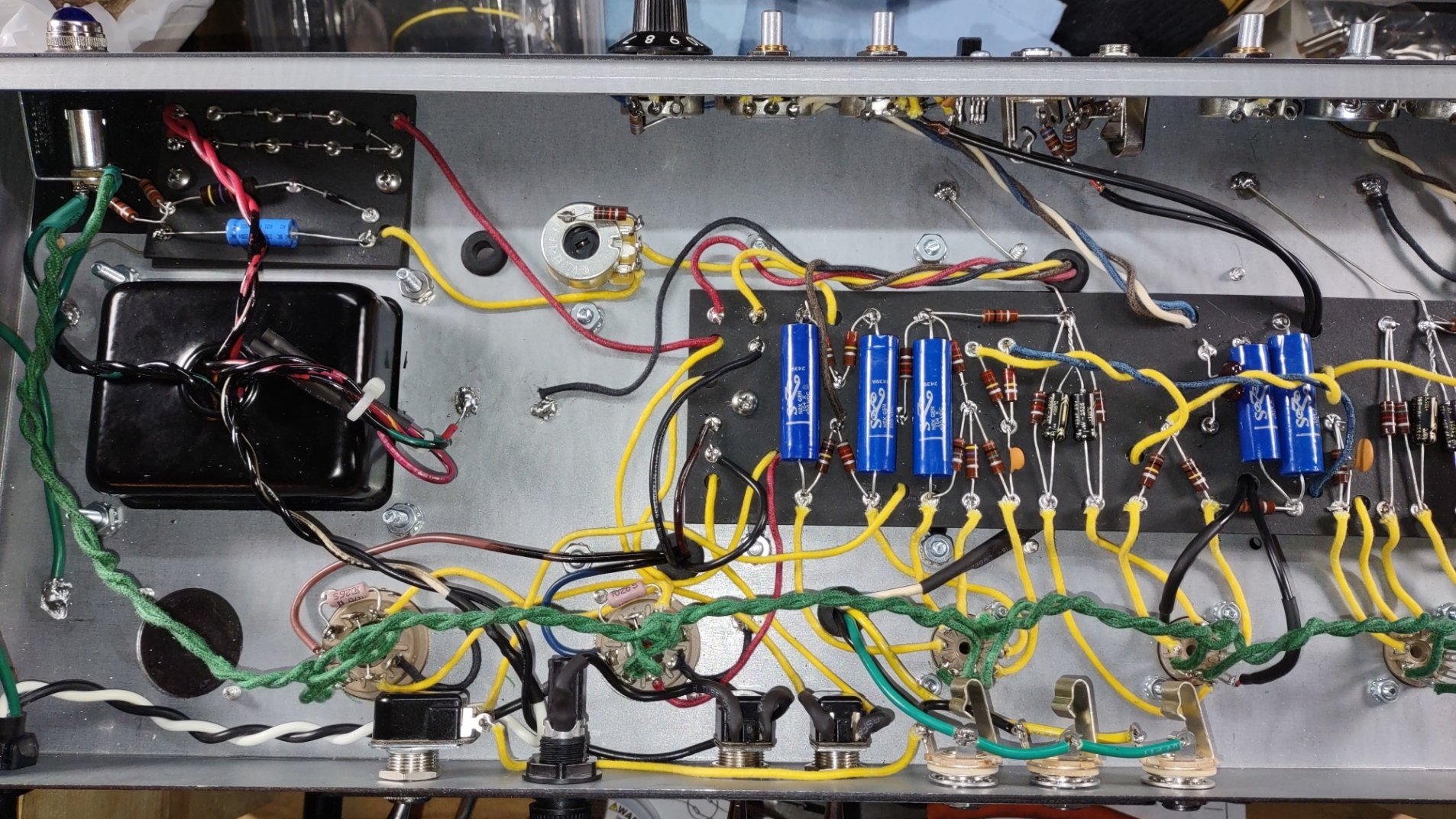

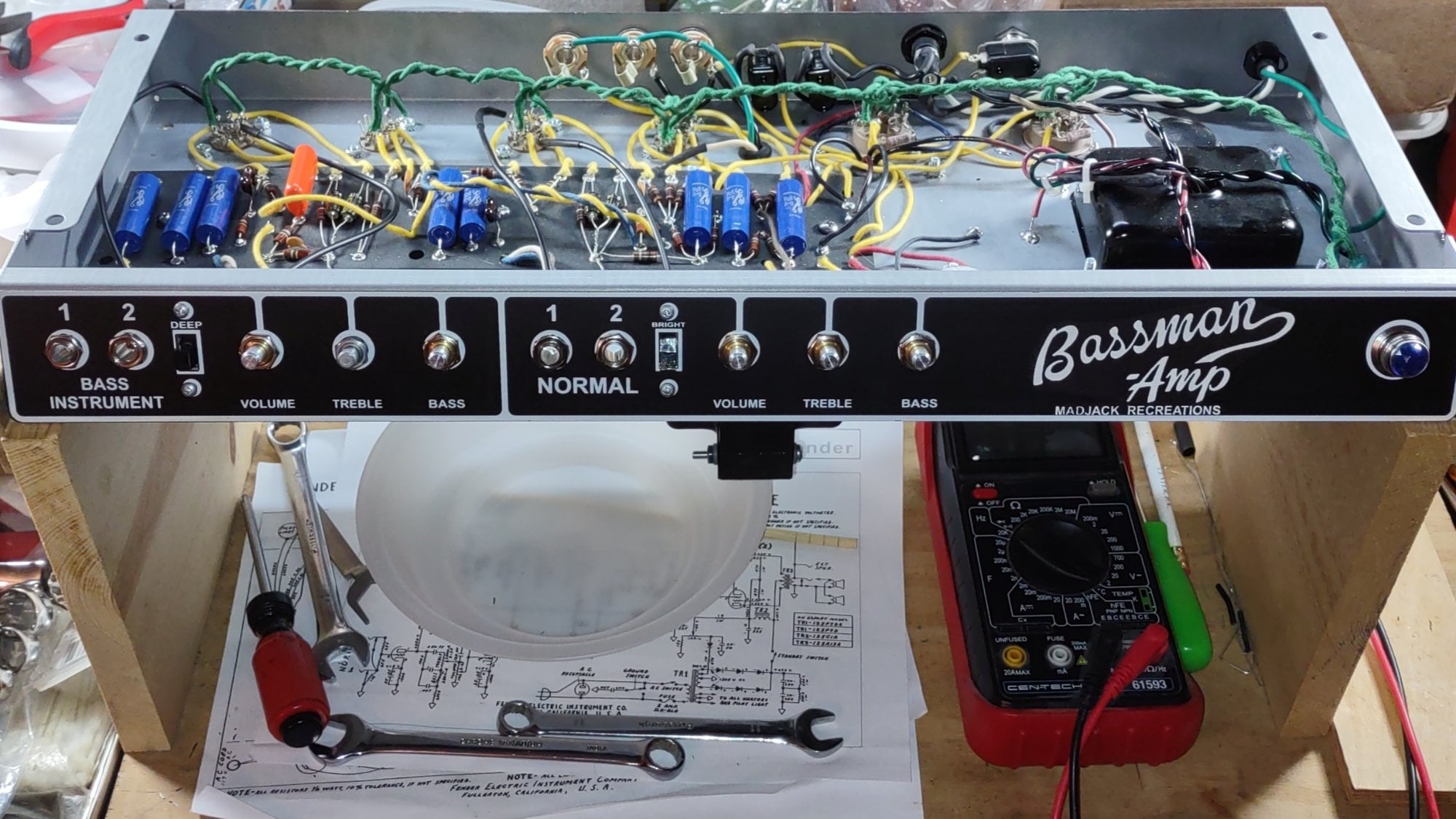

My most recently completed project was my Fender Bassman AA864.

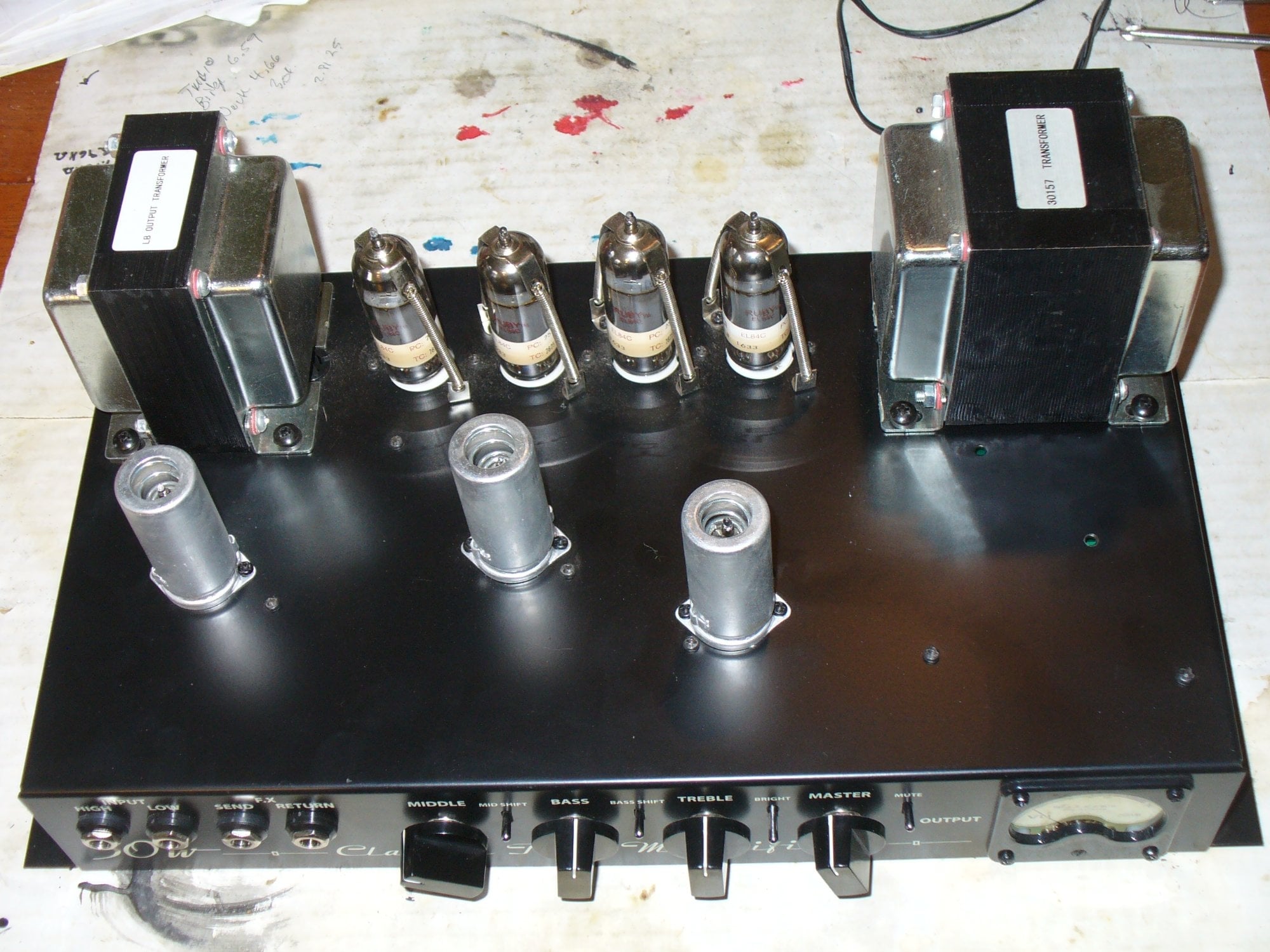

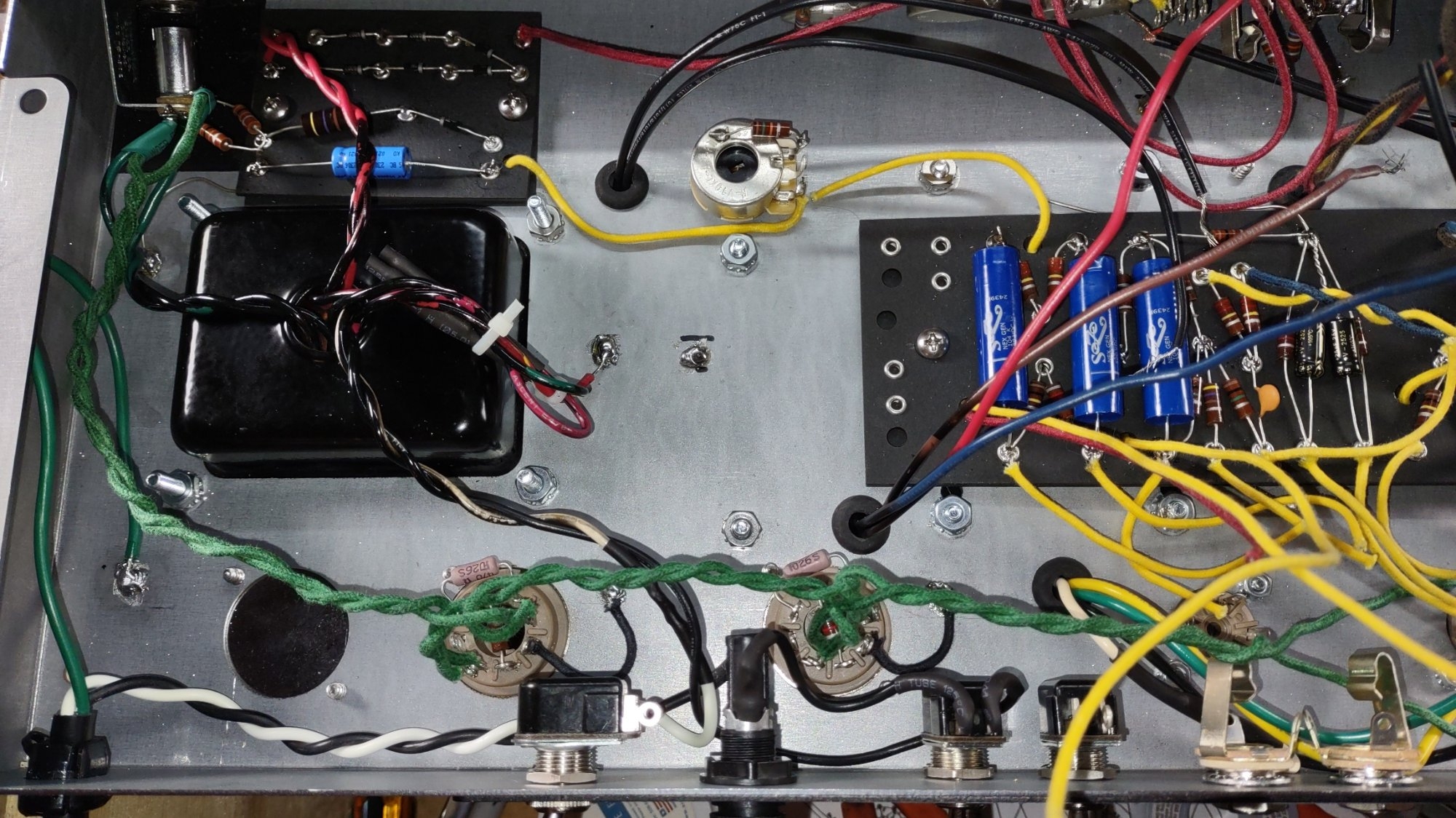

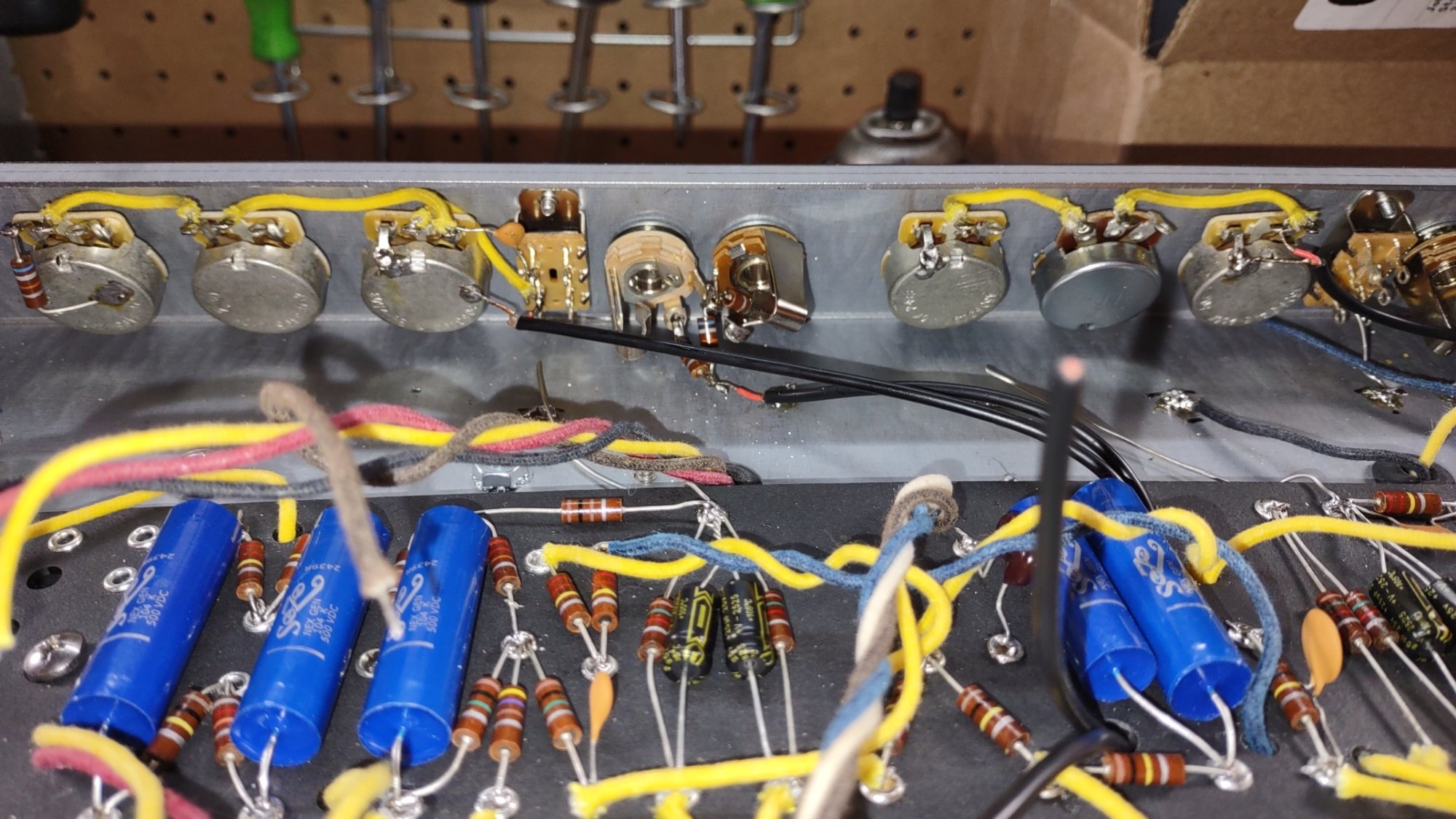

Under construction:

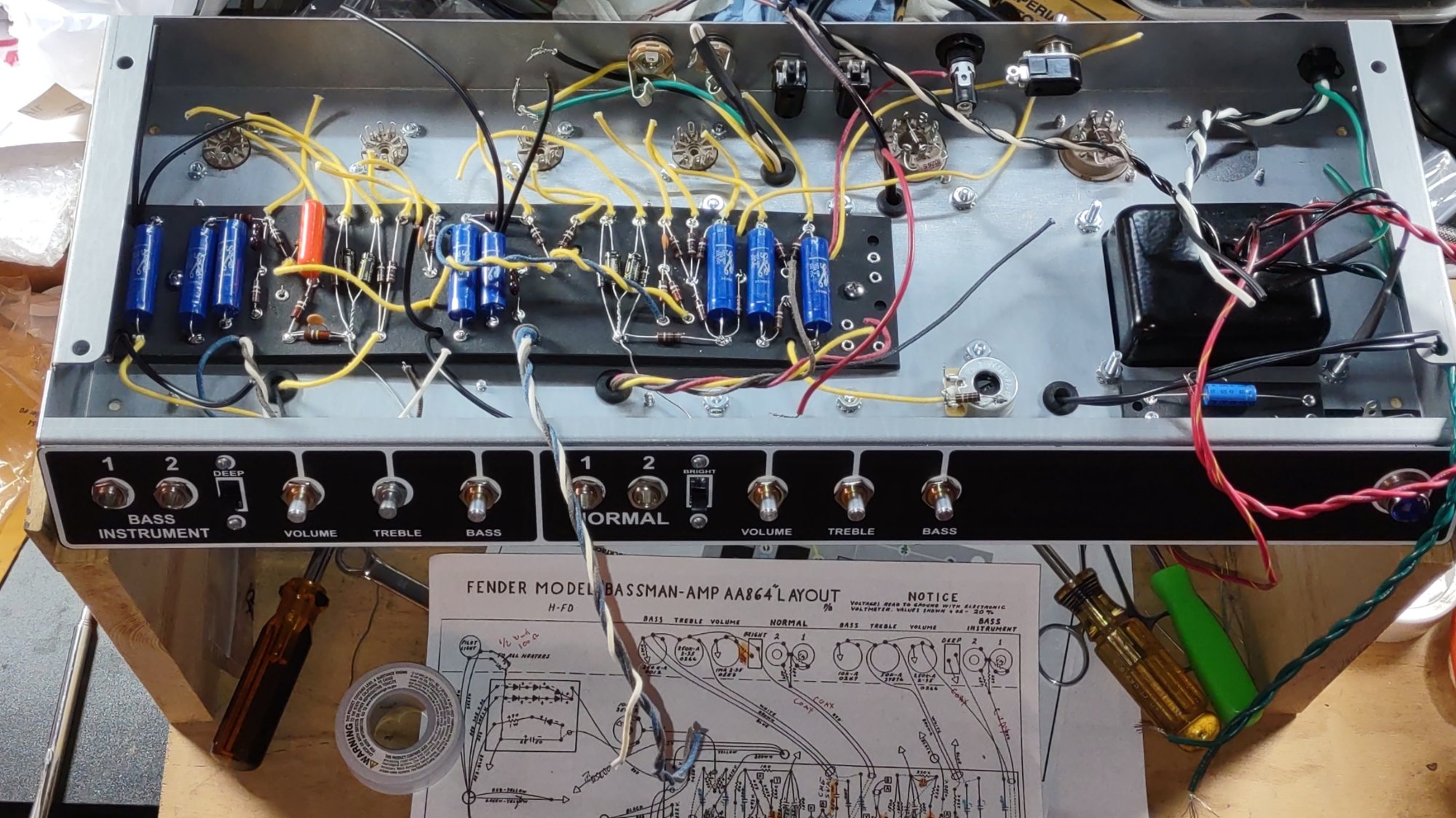

Nearly complete:



[MadJack]

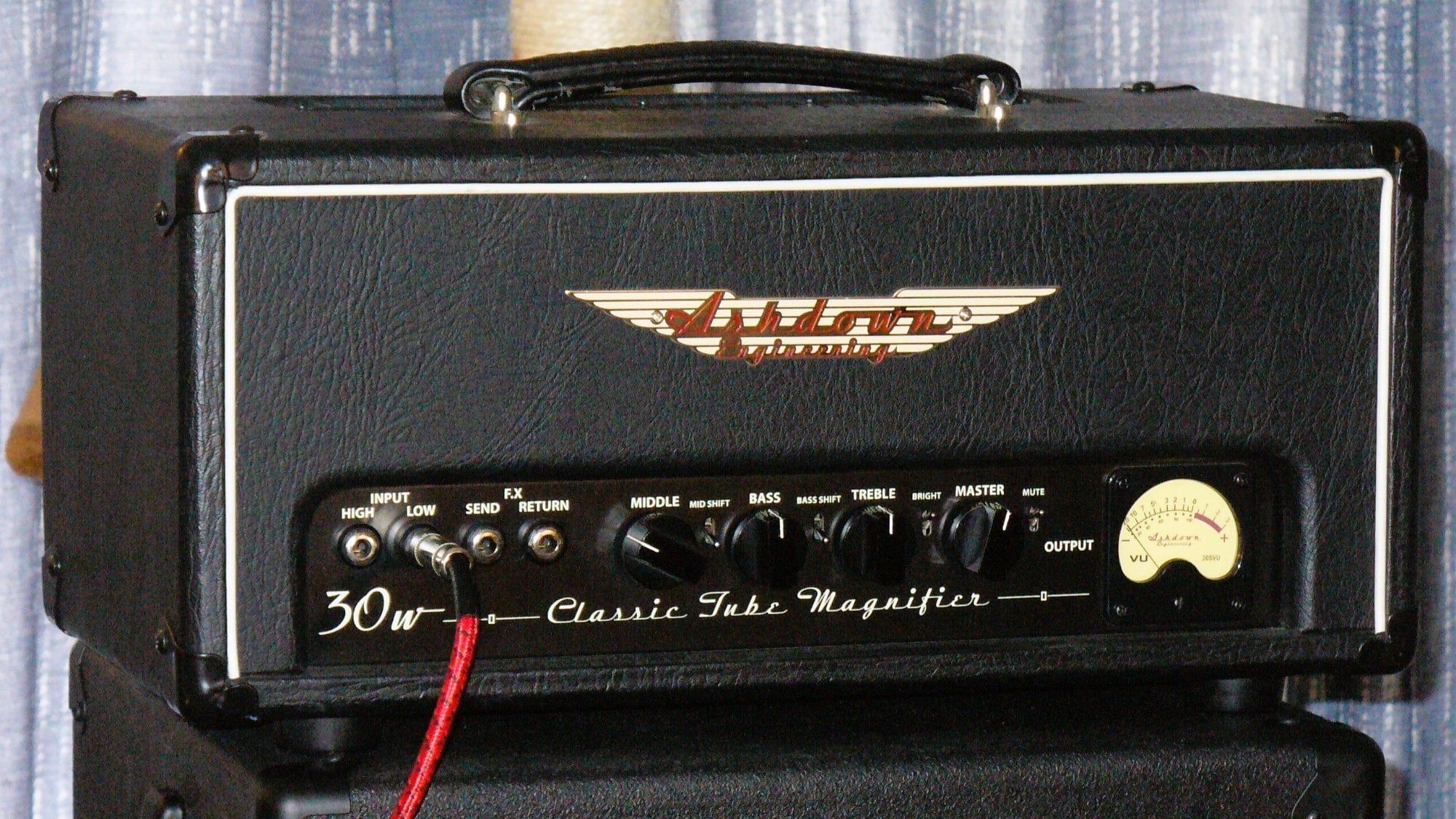

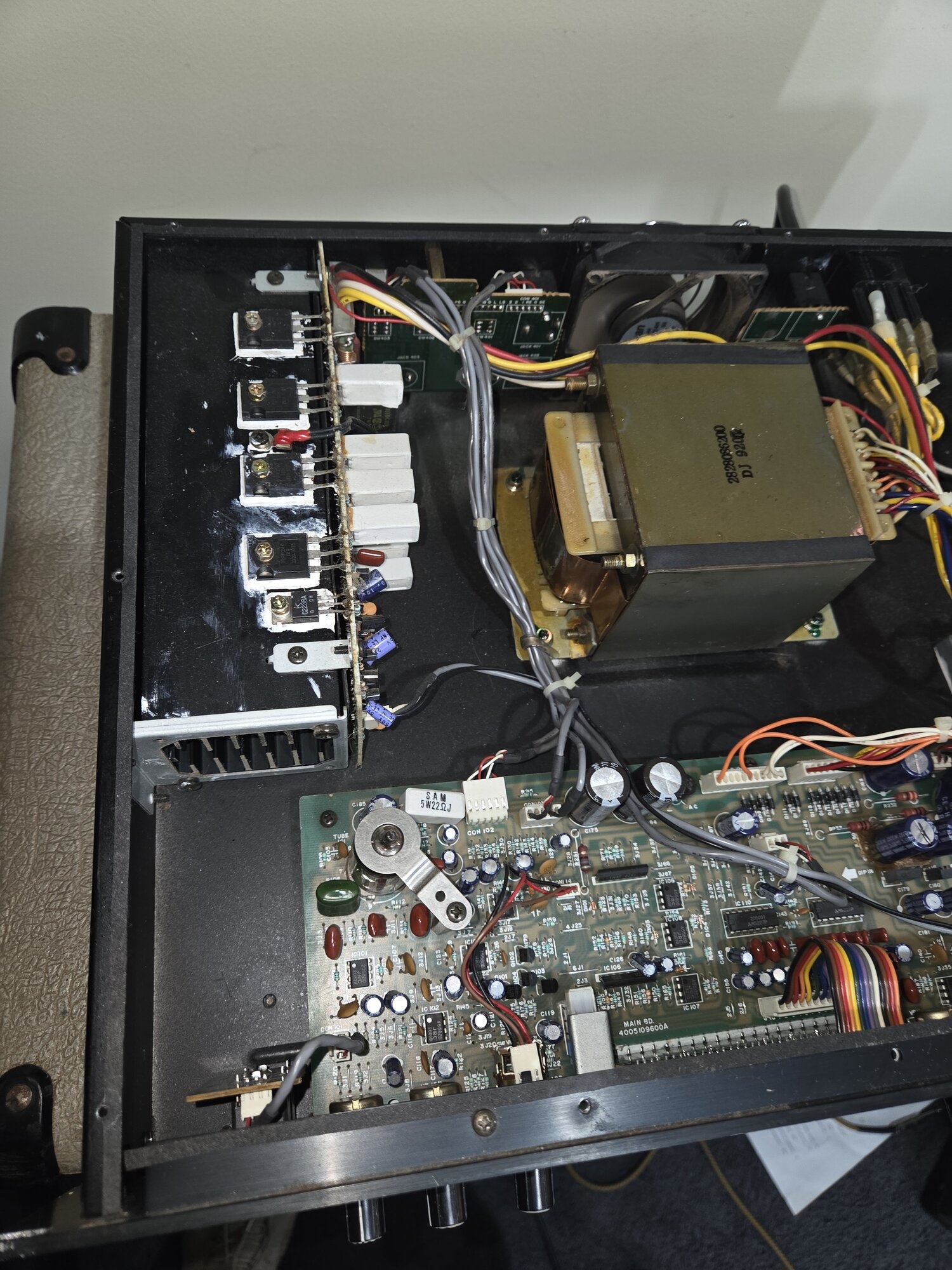

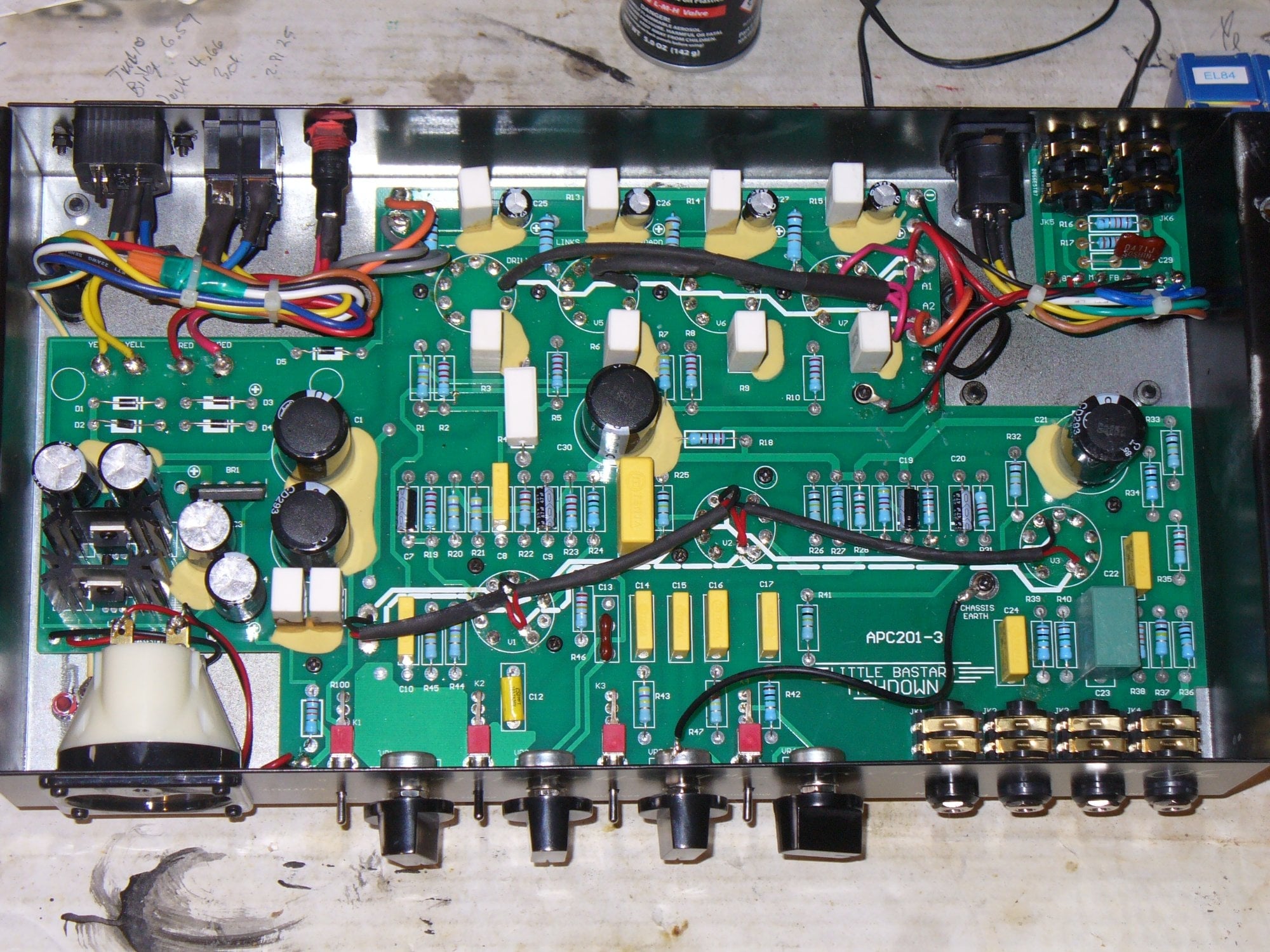

I also have an Ashdown CTM30:



[JGR]

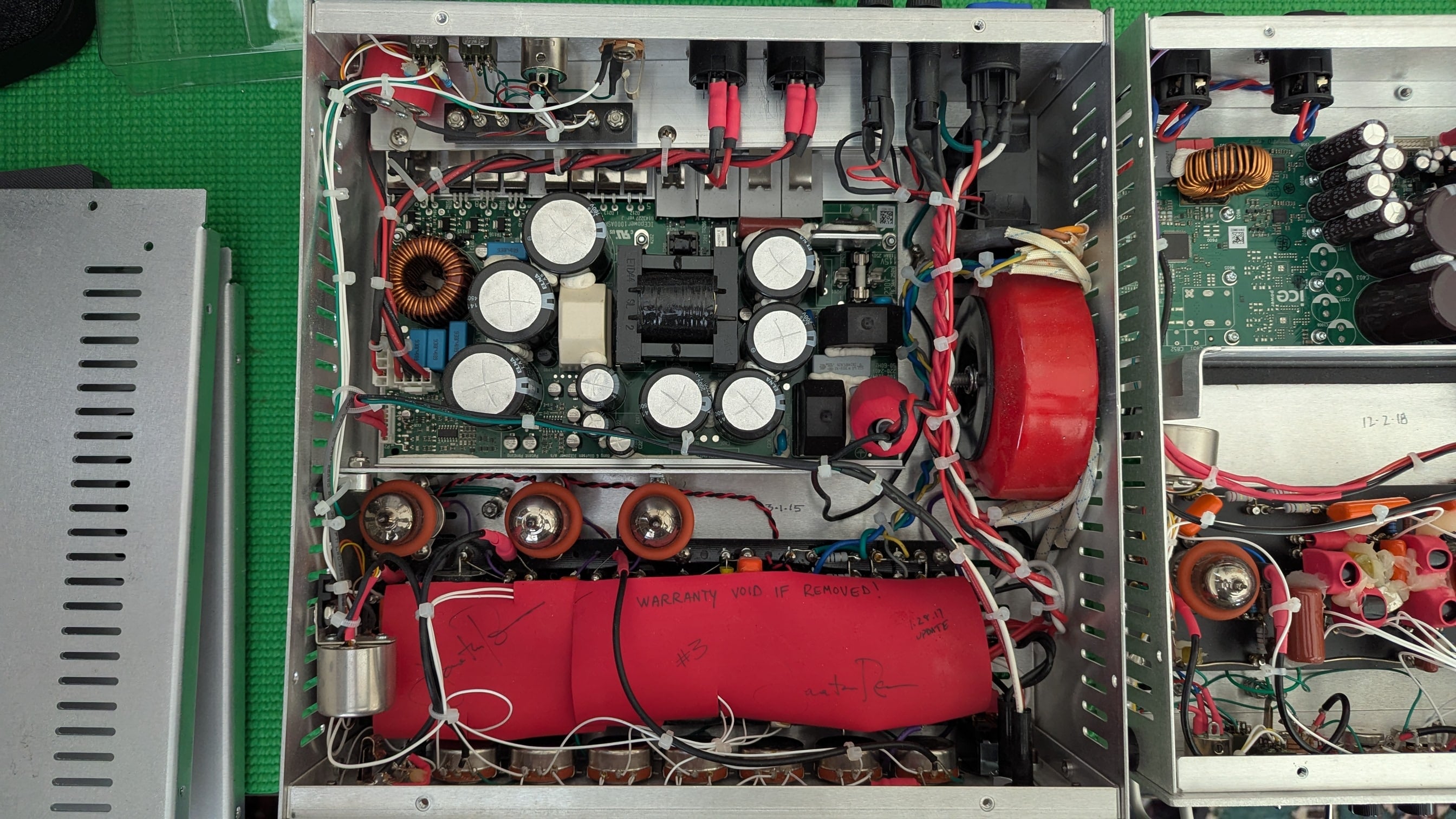

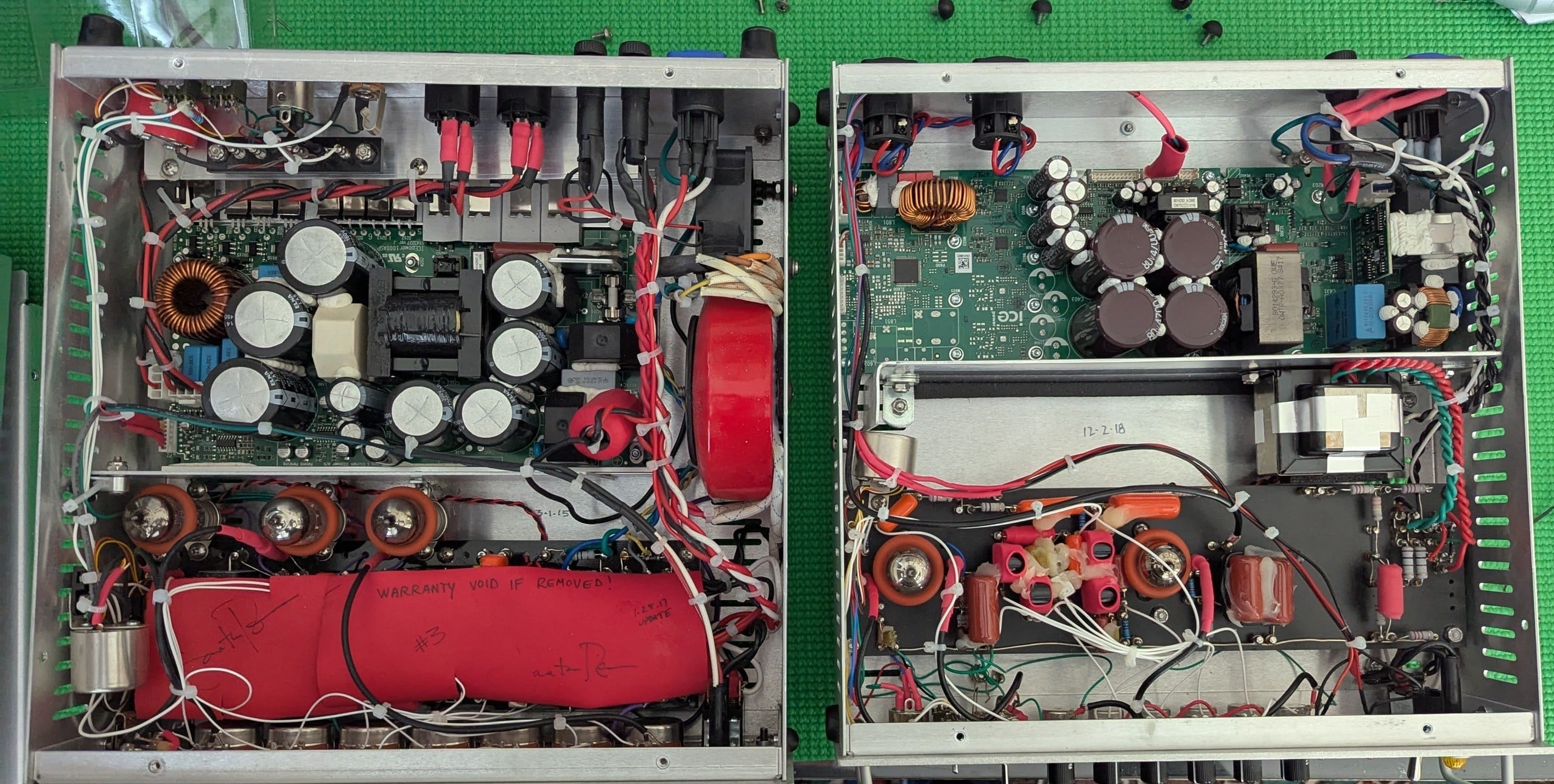

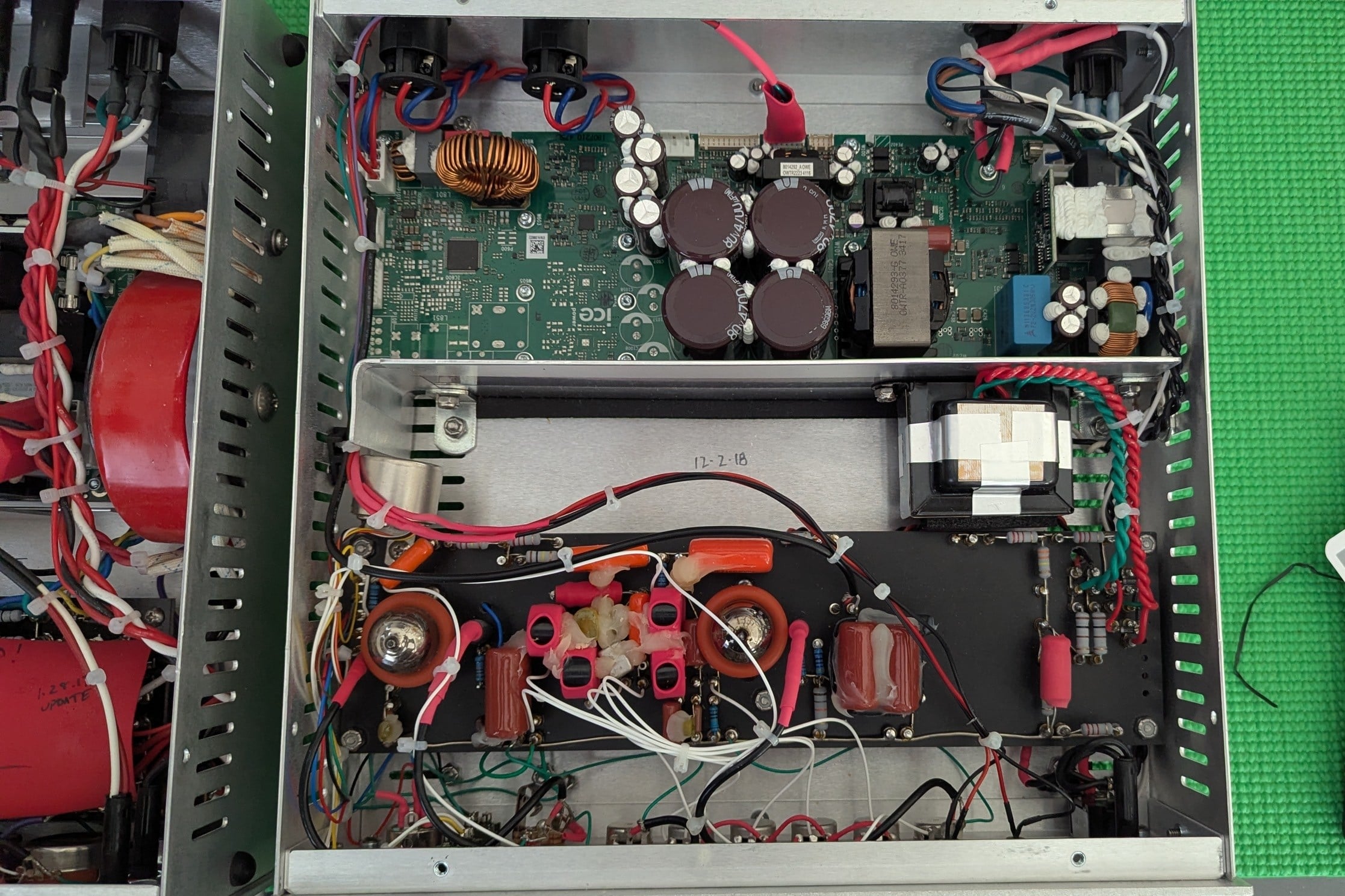

Reiner Studio 1200 and Saturn V


View attachment 7169173View attachment 7169174View attachment 7169175

Interesting. The "warranty void if removed" statement makes one wonder what is under the red blanket...

________________________________________________________________________________________________________________________________

I was a bit concerned when I initially started building the amps because there was so much tracing and posting of schematics (predominantly on the guitar / pedal side of things) - it was kind of scary given the small numbers and so much work involved - and I was building in the middle of the night with a newborn that didn't sleep! But in the end, the bass community was awesome and very supportive, and it was a lot of fun! And reliability has been very good!



[agedhorse]

Interesting. The "warranty void if removed" statement makes one wonder what is under the red blanket...

________________________________________________________________________________________________________________________________

I was a bit concerned when I initially started building the amps because there was so much tracing and posting of schematics (predominantly on the guitar / pedal side of things) - it was kind of scary given the small numbers and so much work involved - and I was building in the middle of the night with a newborn that didn't sleep! But in the end, the bass community was awesome and very supportive, and it was a lot of fun! And reliability has been very good!

There is absolutely a culture of appropriating other people's work... and without any shame either.



[spiritbass]

A little late to this thread. I've seen it mentioned a couple time, but I never got around to looking it up.

My most recently completed project was my Fender Bassman AA864.

Under construction:
View attachment 7332806

View attachment 7332809

View attachment 7332798

View attachment 7332799

Nearly complete:
View attachment 7332800

Clean work, brother.



[Oddextreme]

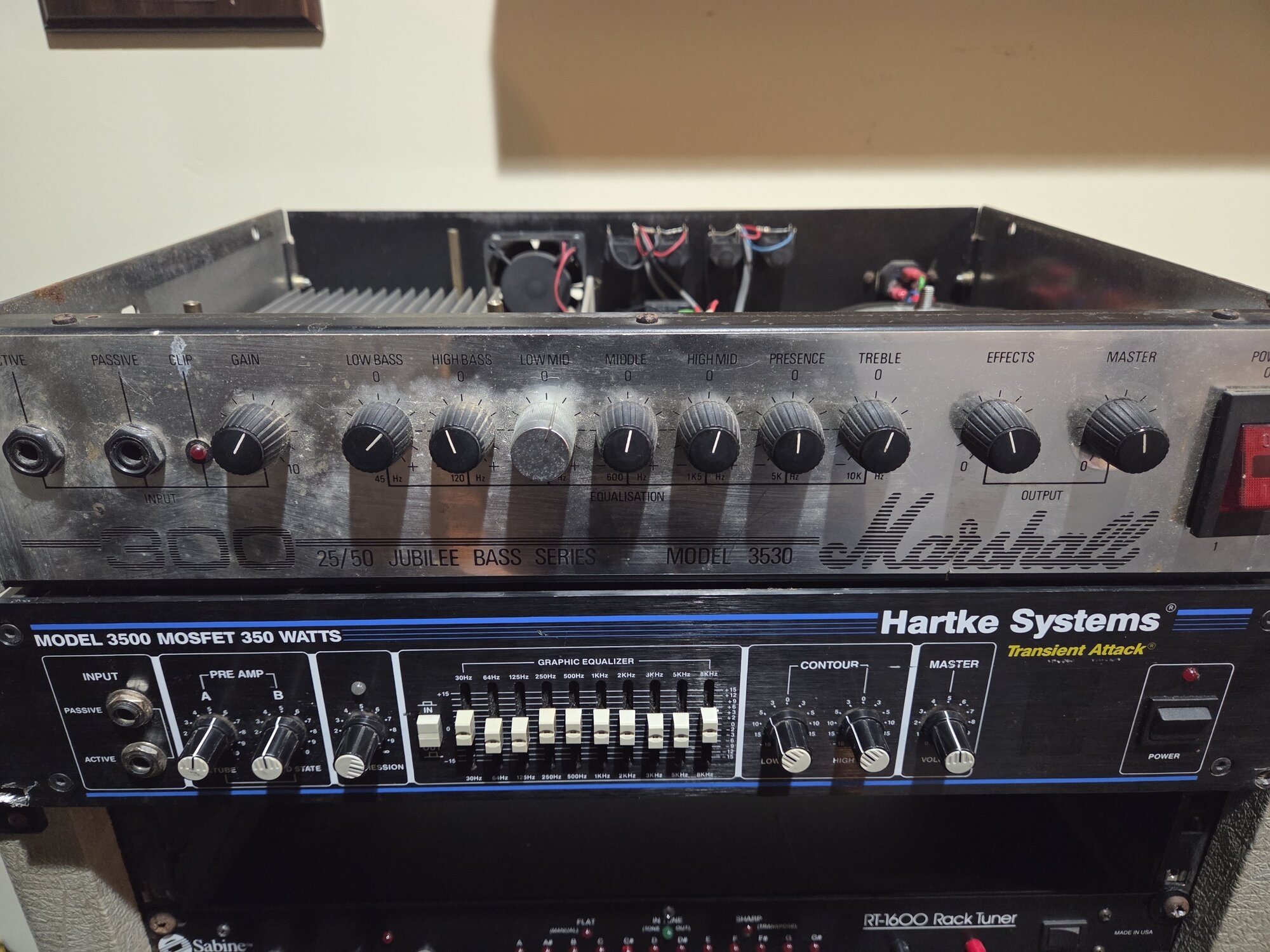

As long as I was tearing stuff apart, I torn apart my Marshall that caught fire... yay Marshall



[spiritbass]

As long as I was tearing stuff aprshaart, I torn apart my Marshall that caught fire... yay Marshall View attachment 7333224View attachment 7333230View attachment 7333231

Serious scorching there.



[darev]

Woof!
