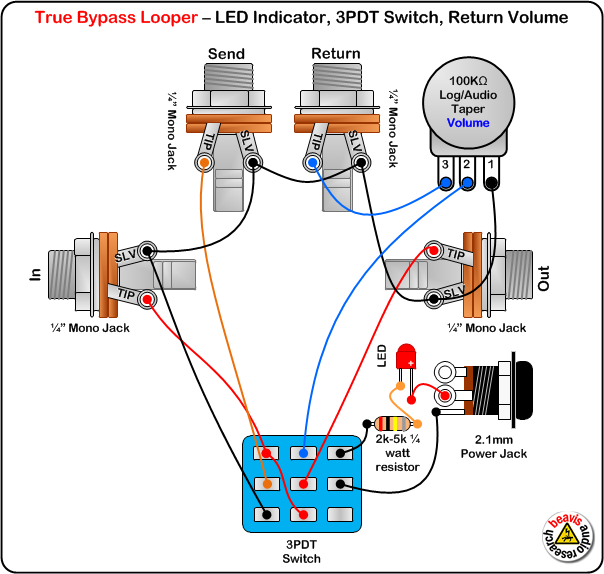

I found this picture, and I’m wondering if any of y’all could let me know how to adjust it so the “return volume” is instead a wet/dry mix knob. When I get time I’ll make a new picture with a schematic…
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Any DIY pedal builders on TB? Strut your stuff!
- Thread starter SubHuman
- Start date
there’s a few reasons why a passive blend is going to cause more problems than is worth.

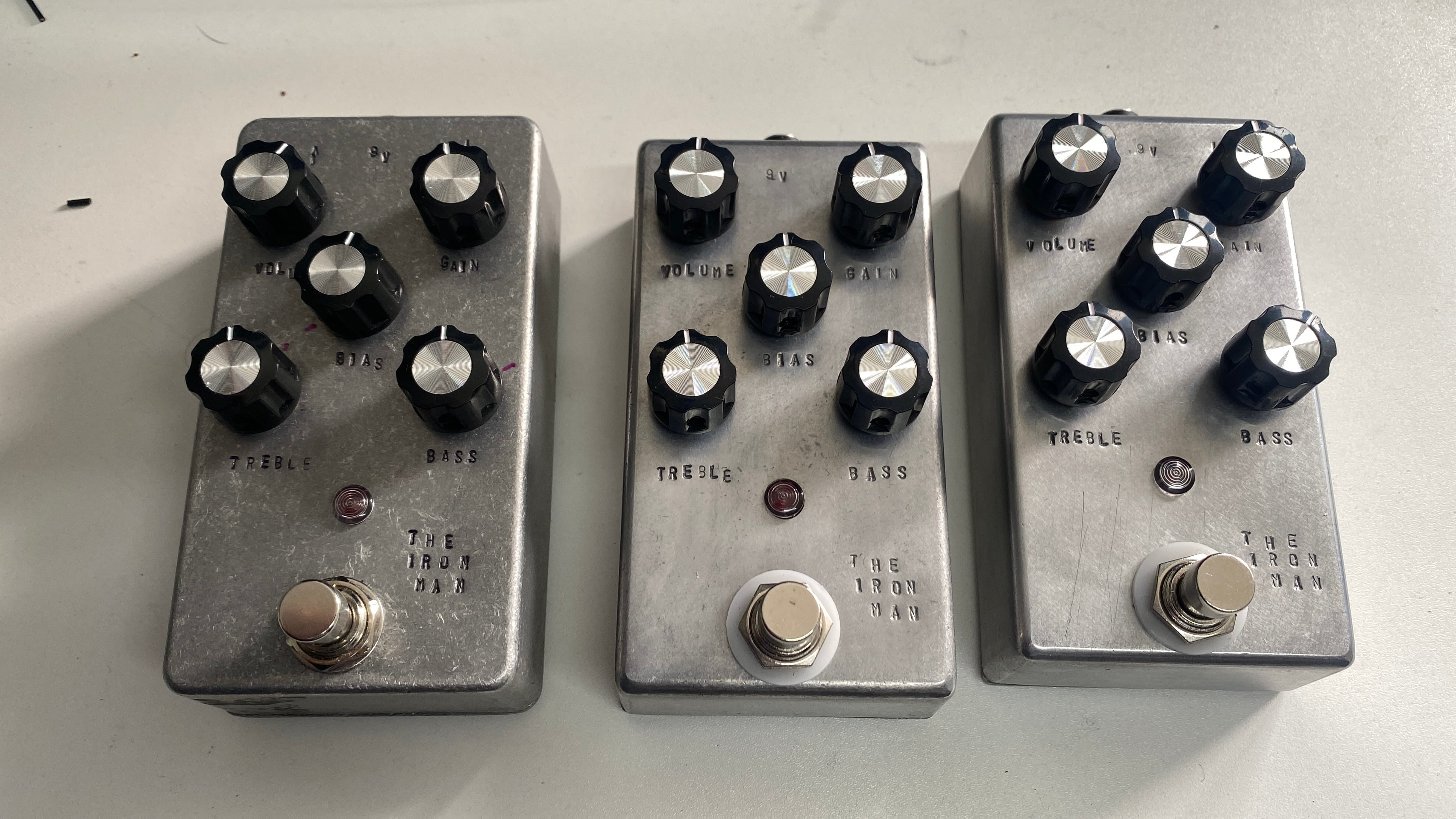

You know when you build something and it’s amazing … so you build a few more to share the amazingness
Yep - used the barbershop ldss figures for the J201, no idea if it makes much difference but figured seeing it’s the same topology it wouldn’t hurt! Amazing pedal - somehow richer sounding at the same gain level than a barbershop.

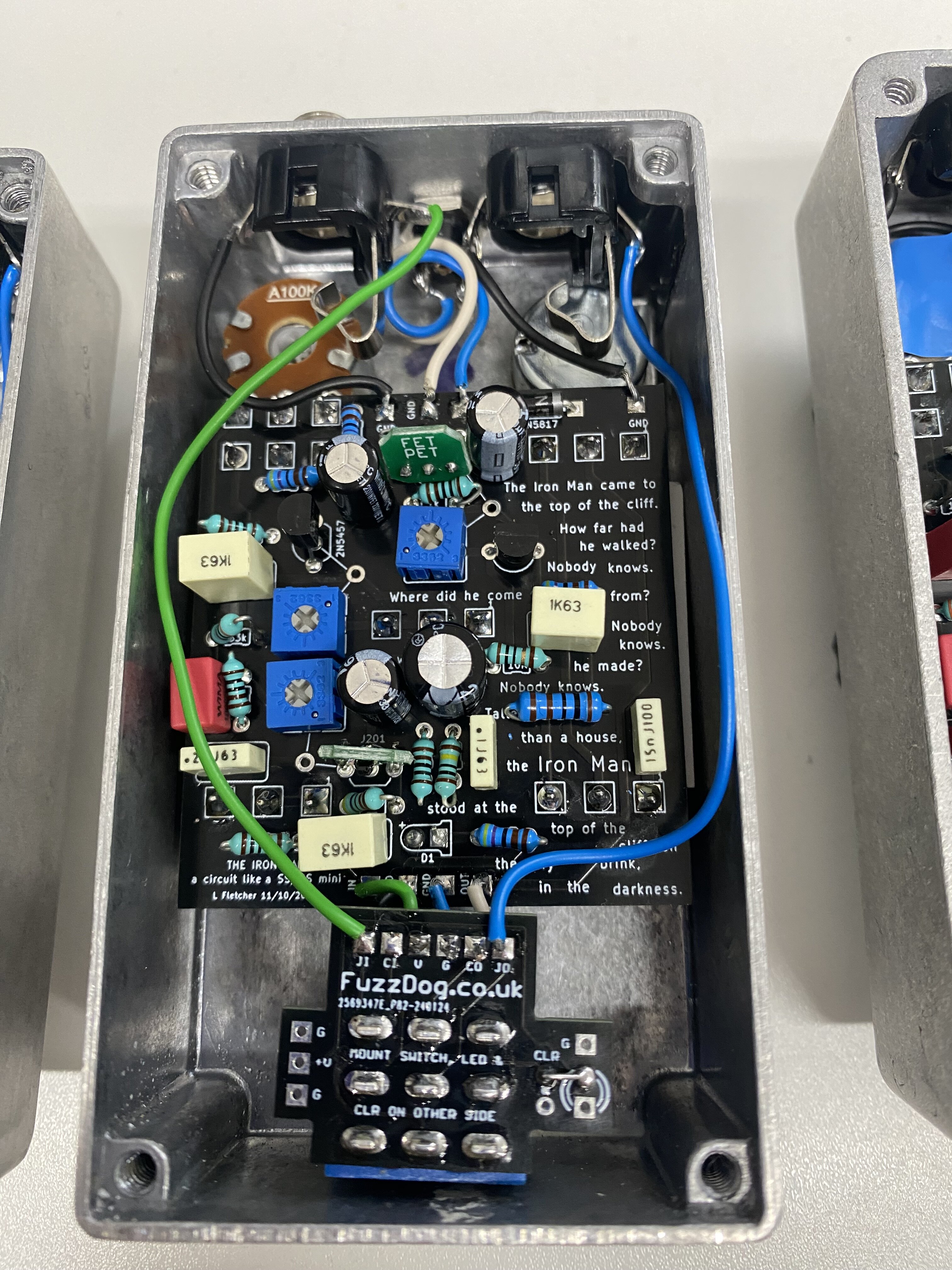

my first (successful) laying out a PCB and in KiCad
When 10 pcb posted to your door costs the same as a nice pint in the pub there’s no real reason to have to bug fix vero! I still haven’t quite got a handle on a decent library for parts in KiCad - you might see that the resistors are too big for the space I had left for them -
Agreed on the pcbs. I have pretty much gone that route myself.

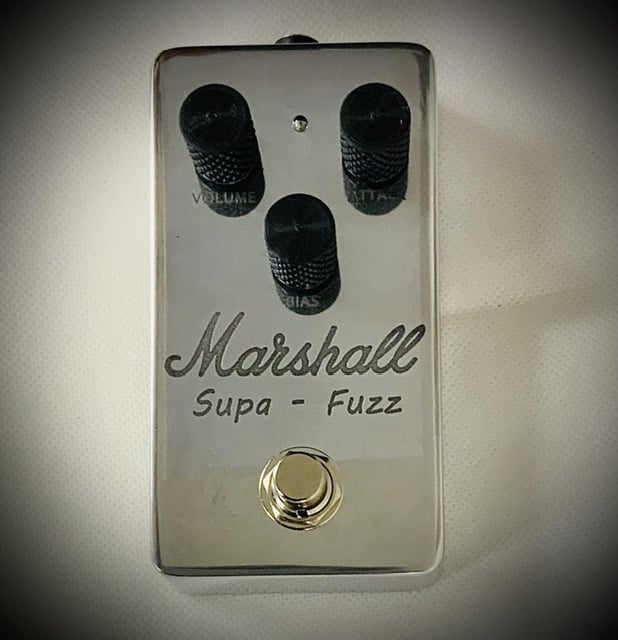

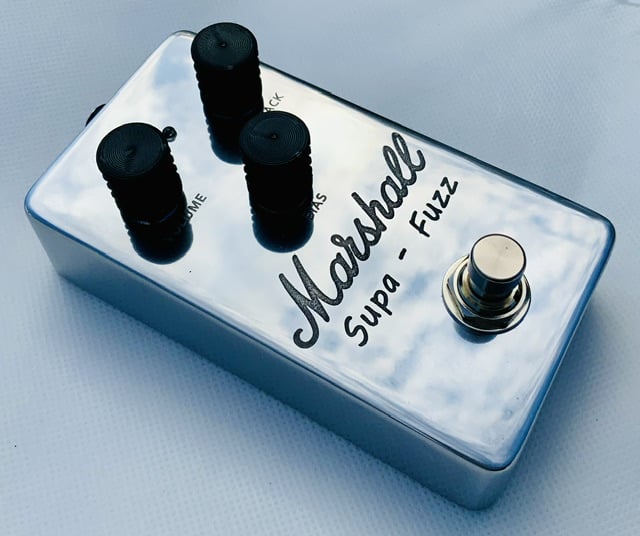

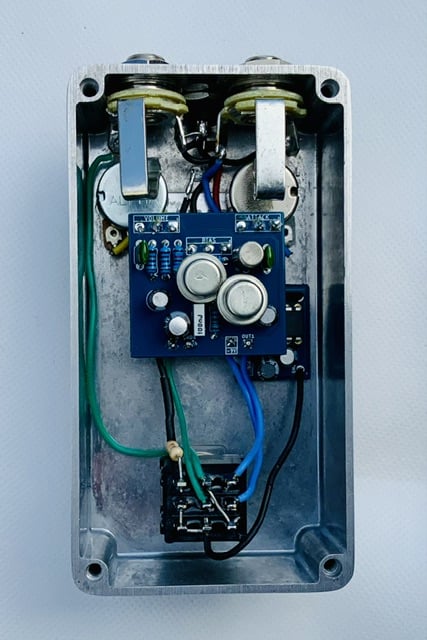

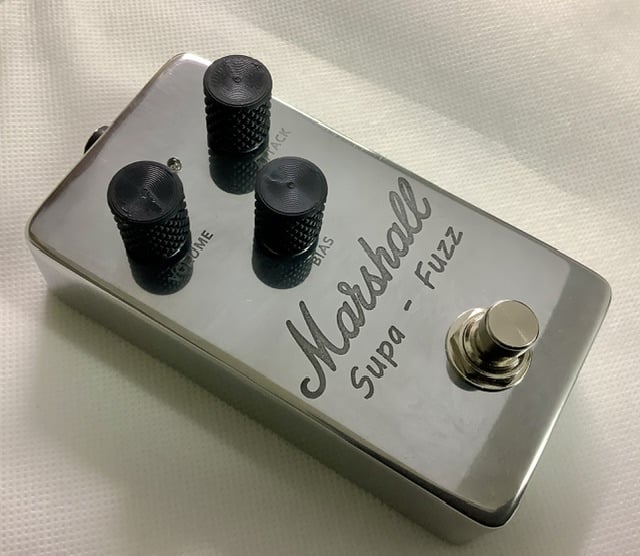

Just finished this up. Not really a bass pedal as it sucks out to much low end but it is nice and sputtery and it’s fun to play with.
I have made one for our guitar player and he swears it’s never leaving his board.
It’s a PNP circuit and uses a +9v ground so I have a converter in there as well.
The only problem I have with polished enclosures is that it’s hard to get good pictures due to reflections.
I have learned how to do knurling in Fusion and printed my own knobs.
The bias knob is not part of the original circuit. It’s a very useful mod that someone came up with though.
Hopefully I’ll find a guitar player that would like to take it off my hands.
Matt
Just finished this up. Not really a bass pedal as it sucks out to much low end but it is nice and sputtery and it’s fun to play with.
I have made one for our guitar player and he swears it’s never leaving his board.
It’s a PNP circuit and uses a +9v ground so I have a converter in there as well.
The only problem I have with polished enclosures is that it’s hard to get good pictures due to reflections.
I have learned how to do knurling in Fusion and printed my own knobs.
The bias knob is not part of the original circuit. It’s a very useful mod that someone came up with though.
Hopefully I’ll find a guitar player that would like to take it off my hands.
Matt
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

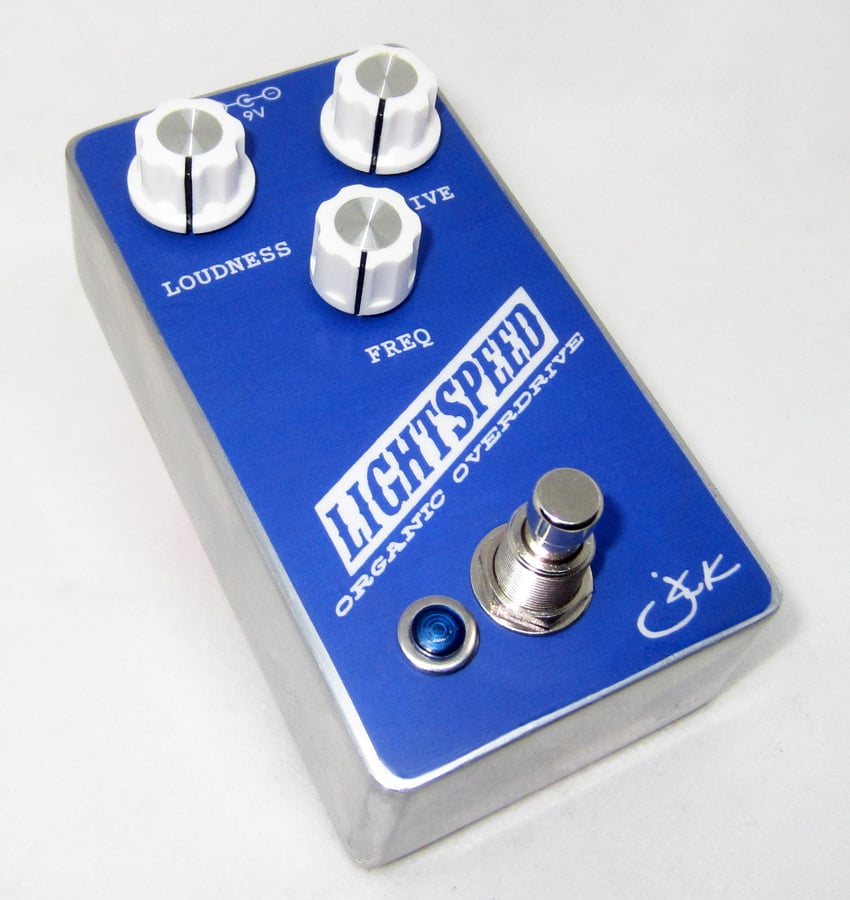

i just finished this one (a Greer Lightspeed clone with all top jacks & a relayed true bypass).
IMO, it's a great low to moderate overdrive for bass.
IMO, it's a great low to moderate overdrive for bass.
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

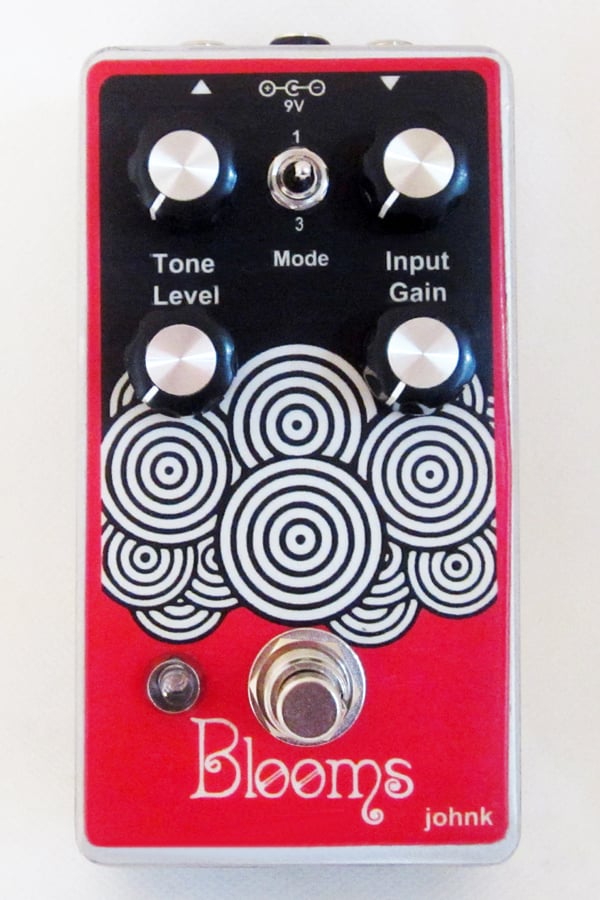

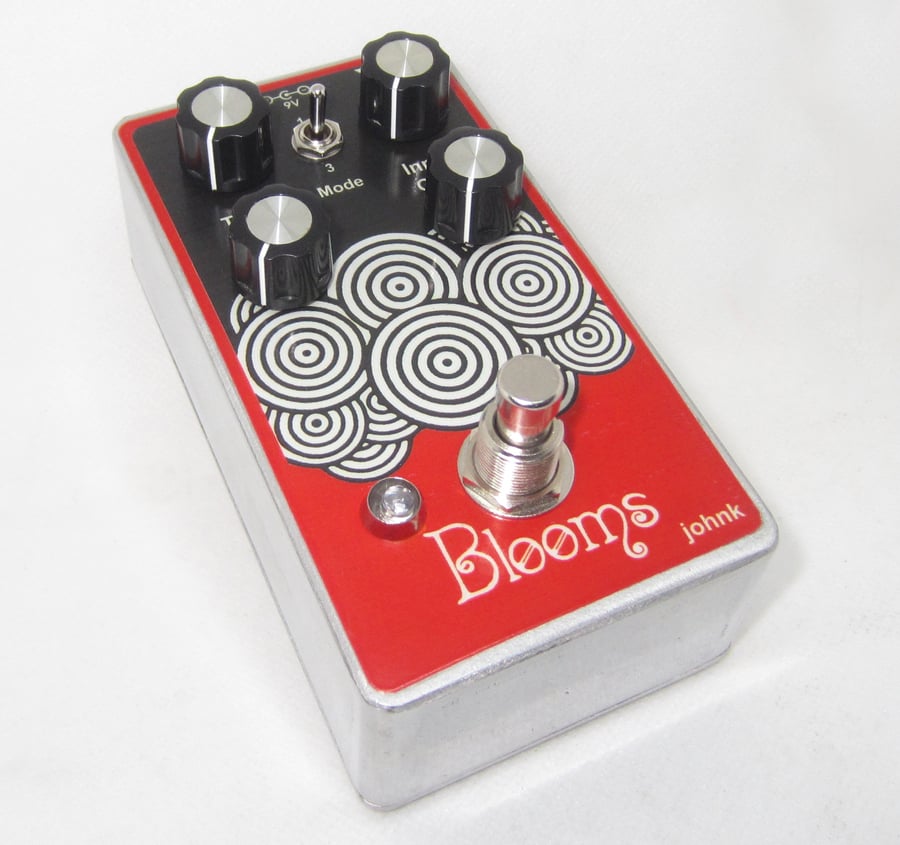

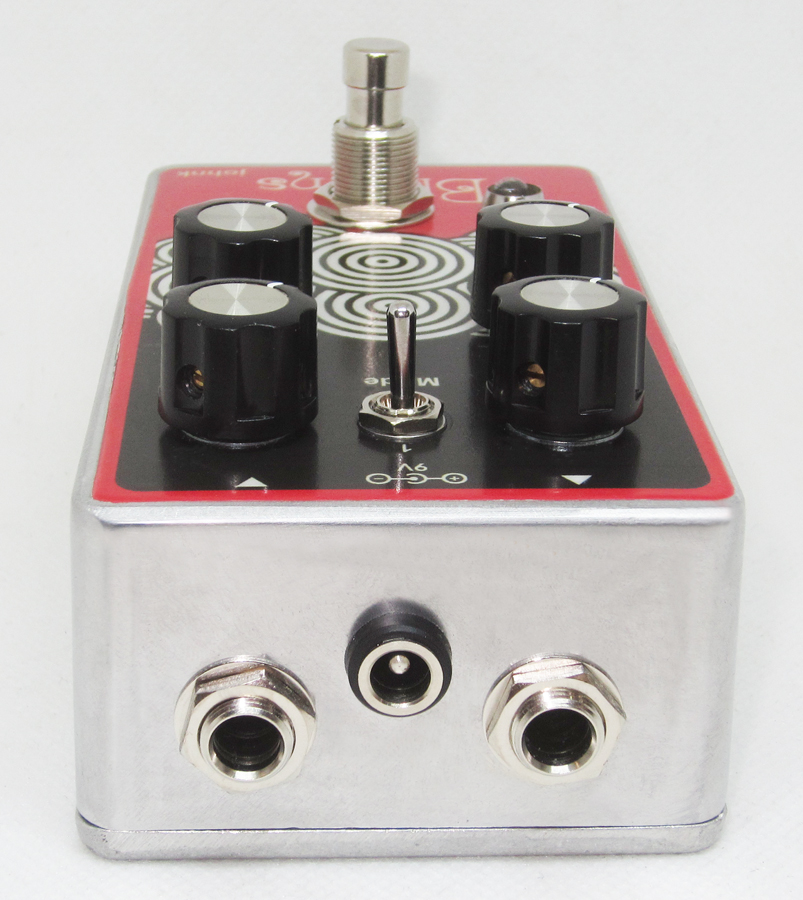

just finished a couple more. my second (modified) Blumes:

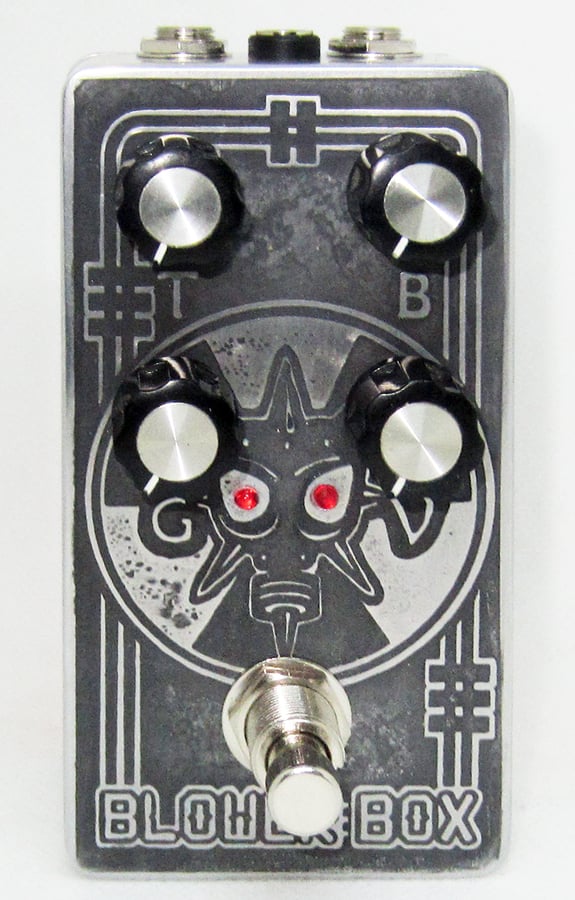

and my third Blower Box in a 1590B2 with a relayed true bypass:
and my third Blower Box in a 1590B2 with a relayed true bypass:
@johnk_10 - if I was going to build myself an envelope filter in your stash what’s your favourite? (Or will analogue not have much difference over source audio)
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

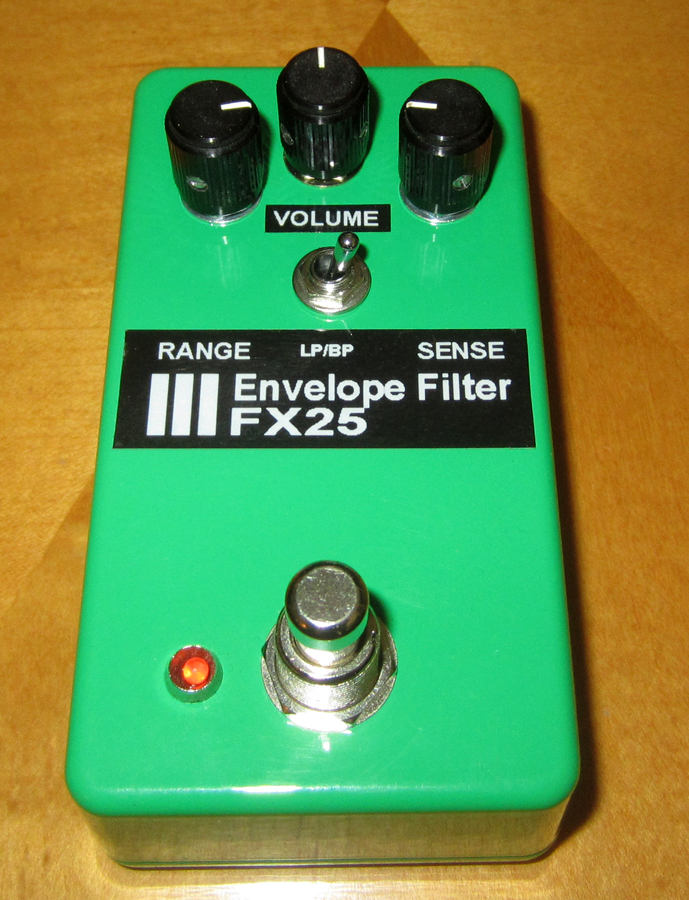

lately i've really been liking my FX25 clone with the LP/BP switch and a master volume.
on the one above, the volume control was added after i already built it without it, so i if i built another one i would've located it below range and sensitivity controls. it sounds like no other envelope filter that i have.

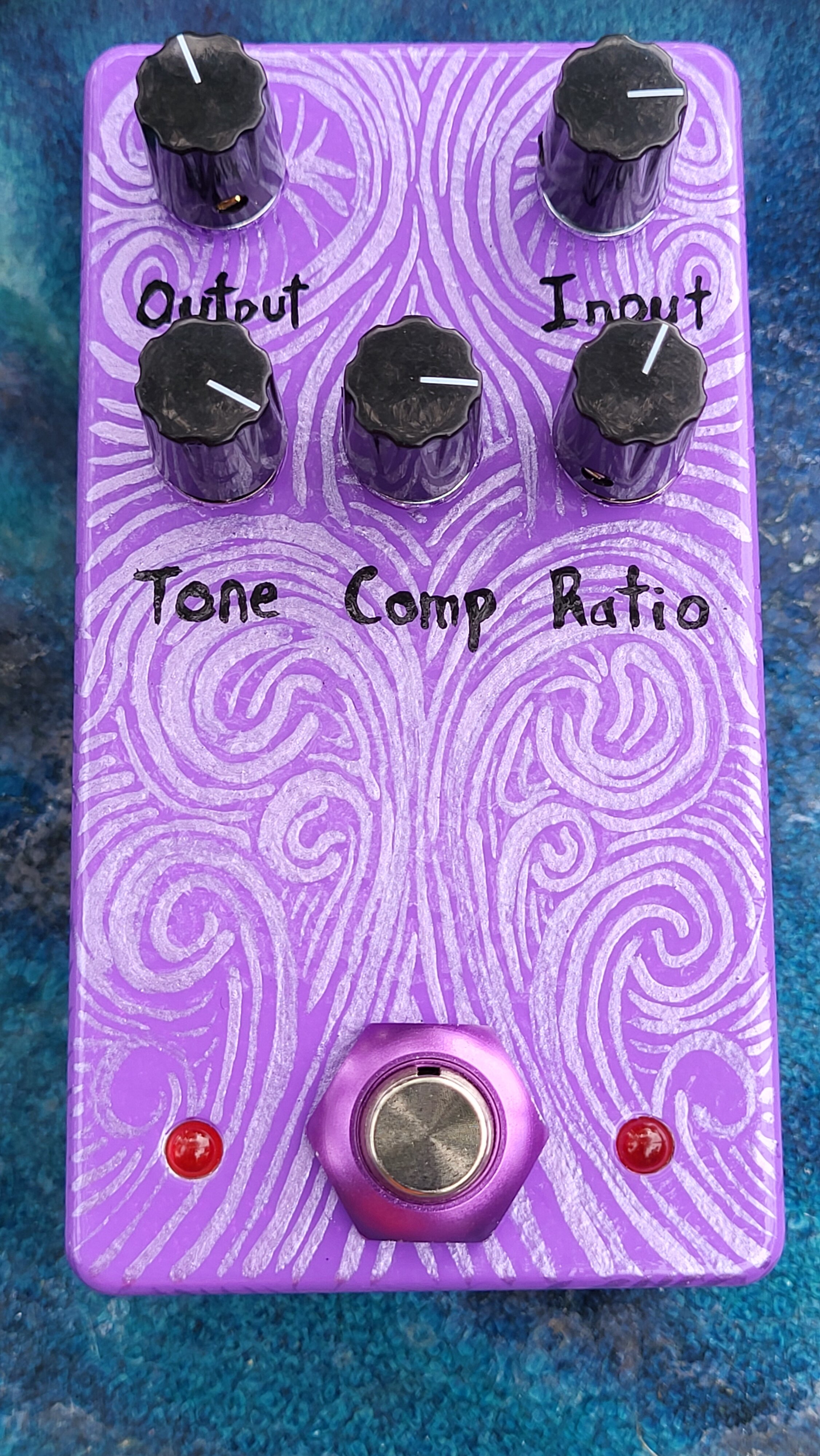

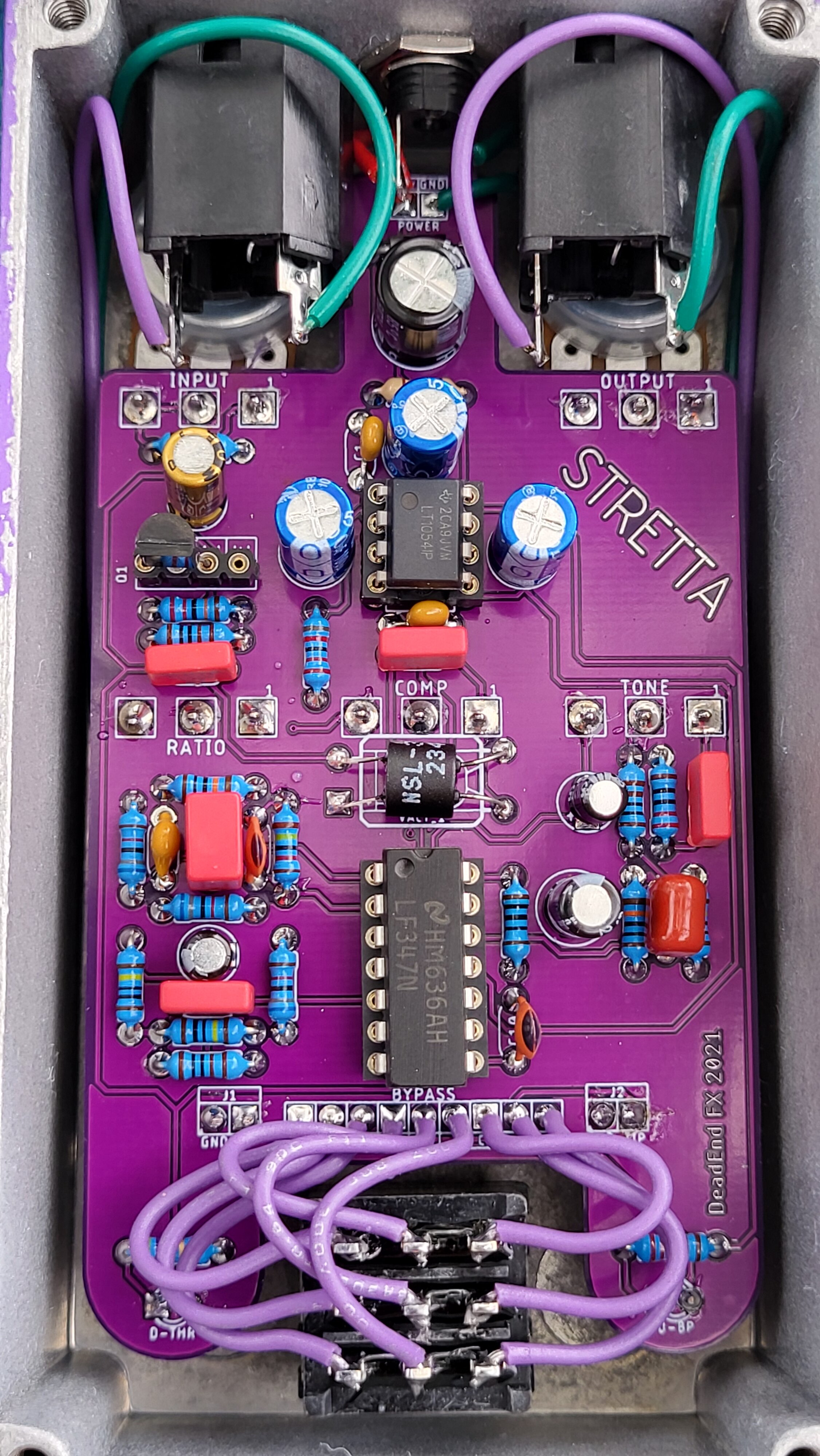

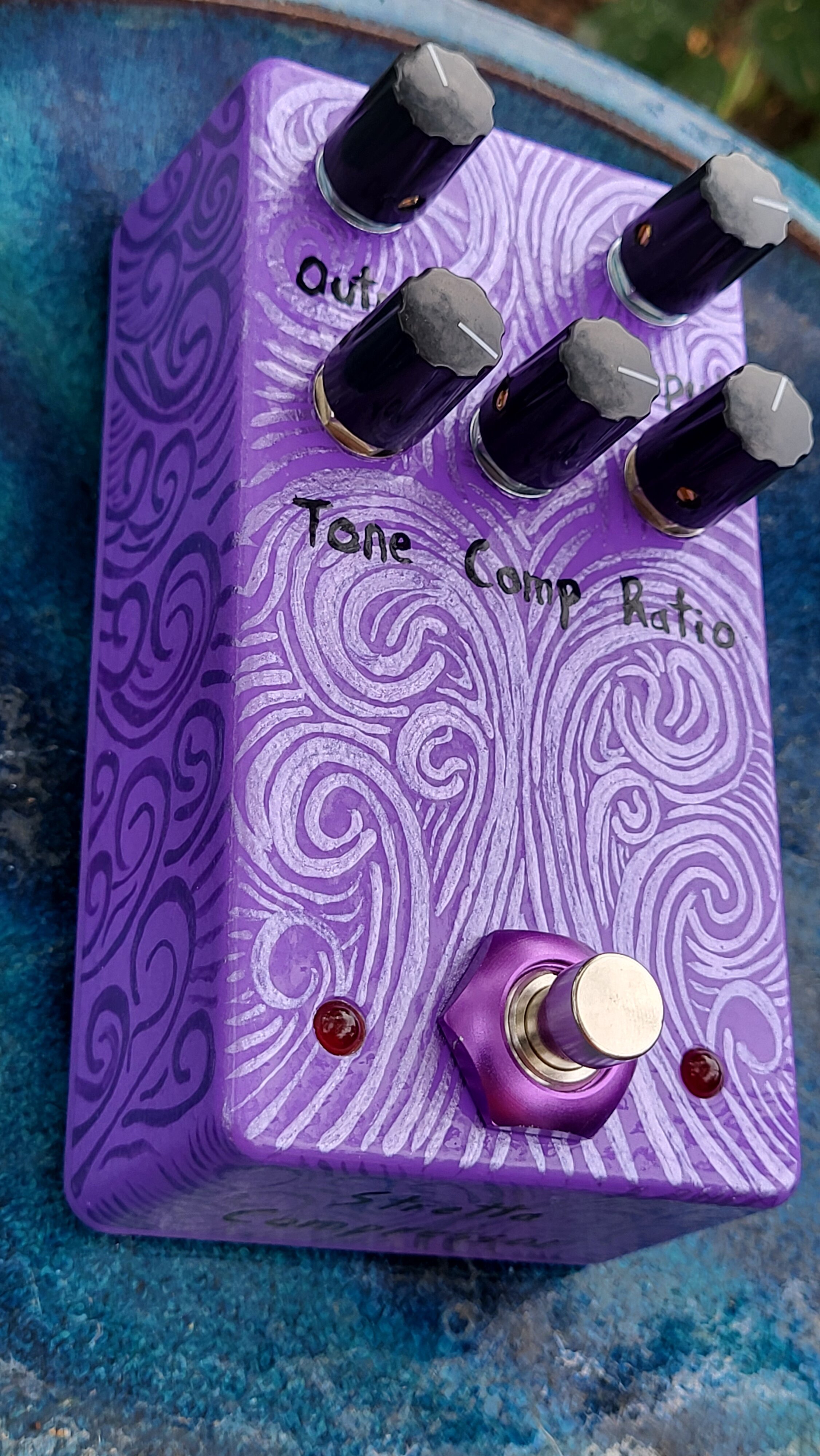

DeadEndFX Stretta compressor/limiter
This pedal has become my 2nd favorite DIY compressor. LectricFX ZircJr is still my favorite DIY comp for mild tone-fattening compression. The Stretta is better for fast comp/limiting. The thing both compressors have in common are charge pumps for extra headroom, an essential feature for bass guitar. Stretta has a threshold indicator LED that is very clear and intuitive to use, an uncommon feature on DIY compressors.
Pattern was painted free hand with a brush. Metallic purple swirls on top of a glossy purple base coat.
This pedal has become my 2nd favorite DIY compressor. LectricFX ZircJr is still my favorite DIY comp for mild tone-fattening compression. The Stretta is better for fast comp/limiting. The thing both compressors have in common are charge pumps for extra headroom, an essential feature for bass guitar. Stretta has a threshold indicator LED that is very clear and intuitive to use, an uncommon feature on DIY compressors.
Pattern was painted free hand with a brush. Metallic purple swirls on top of a glossy purple base coat.

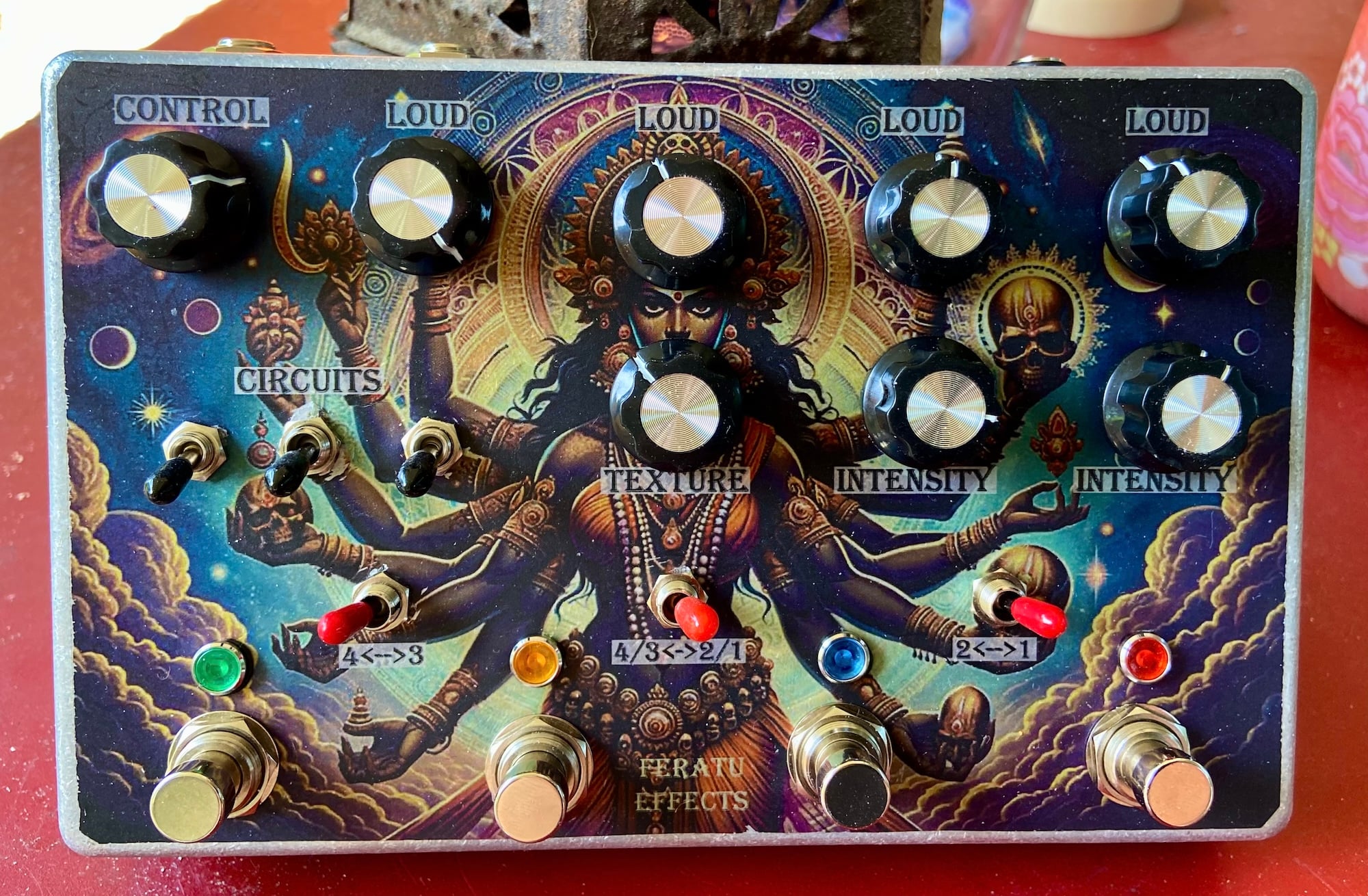

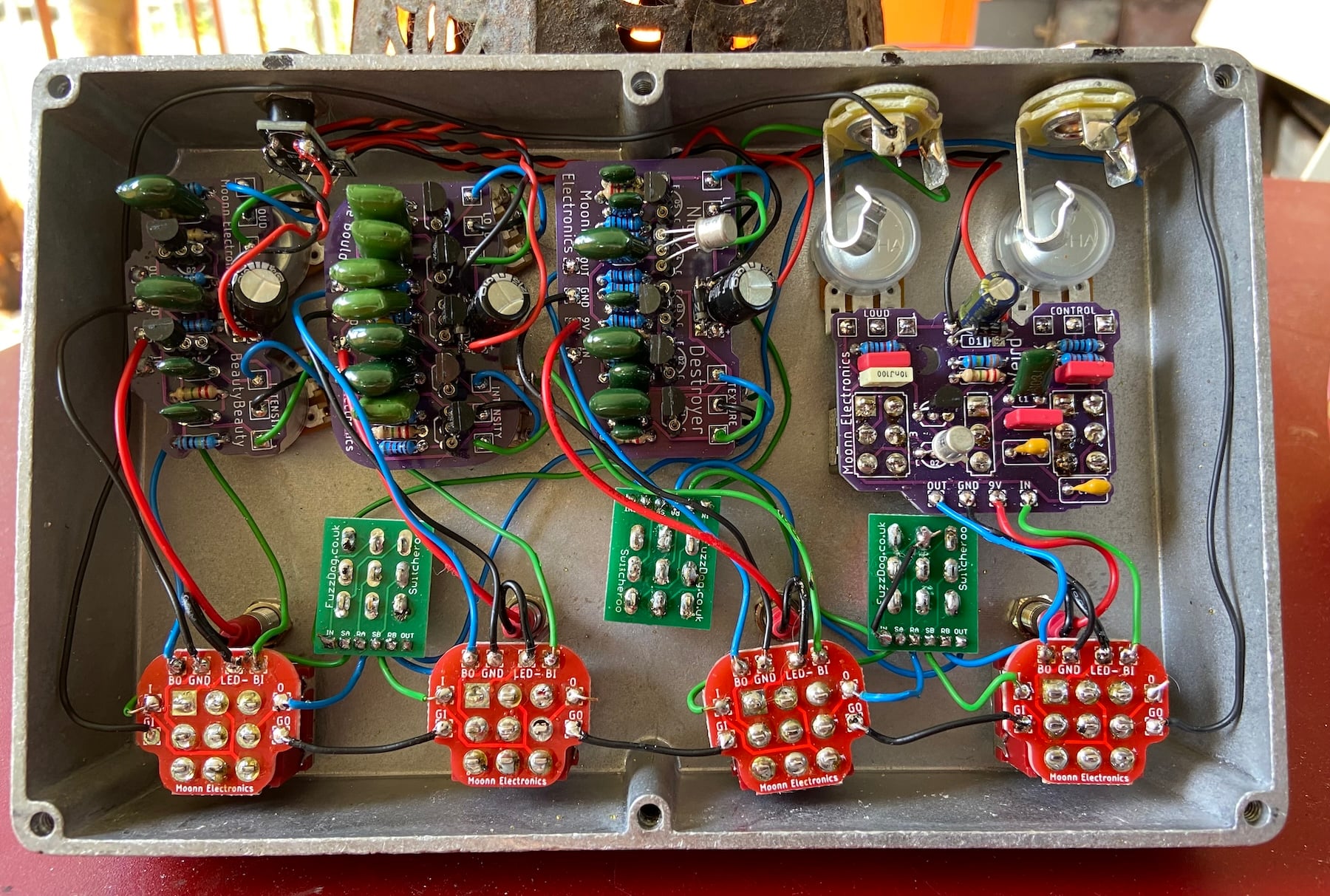

On one of my orders from Moonn, I kinda randomly grabbed 4 Devi PCBs for some sort of hommage noise maker pedal.
Fastforward a few months and here we are - behold the Devi4Ever brick of brutal sounds'n'noizes.
We have, following the signal in "standard mode" *** :
1. Ruby, vroom-vroom.
2. Stone, brrr-chak.
3. Destructo Octavia, oscillating and noisy signal destruction.
4. Weird Flex, which - with the 3 black toggle switches - should give you the following choices: Punch Love, Punch Hate, Silver Crank, Dark Boost or Karaoke Party
*** There are 3 order switches:
The first changes pairs: 1/2 <--> 3/4
Then one for each pair: 1<-->2 and 3<-->4
I tried to tame the Destructo a bit by replacing one of the MPSA18 with a 2N2222A, but that just altered the oscillation pitch a bit, I think. Well, it's supposed to be noisy and a good way to tame it, is to use it with another circuit.
Actually, turning all 4 circuits on sounds quite cool too.

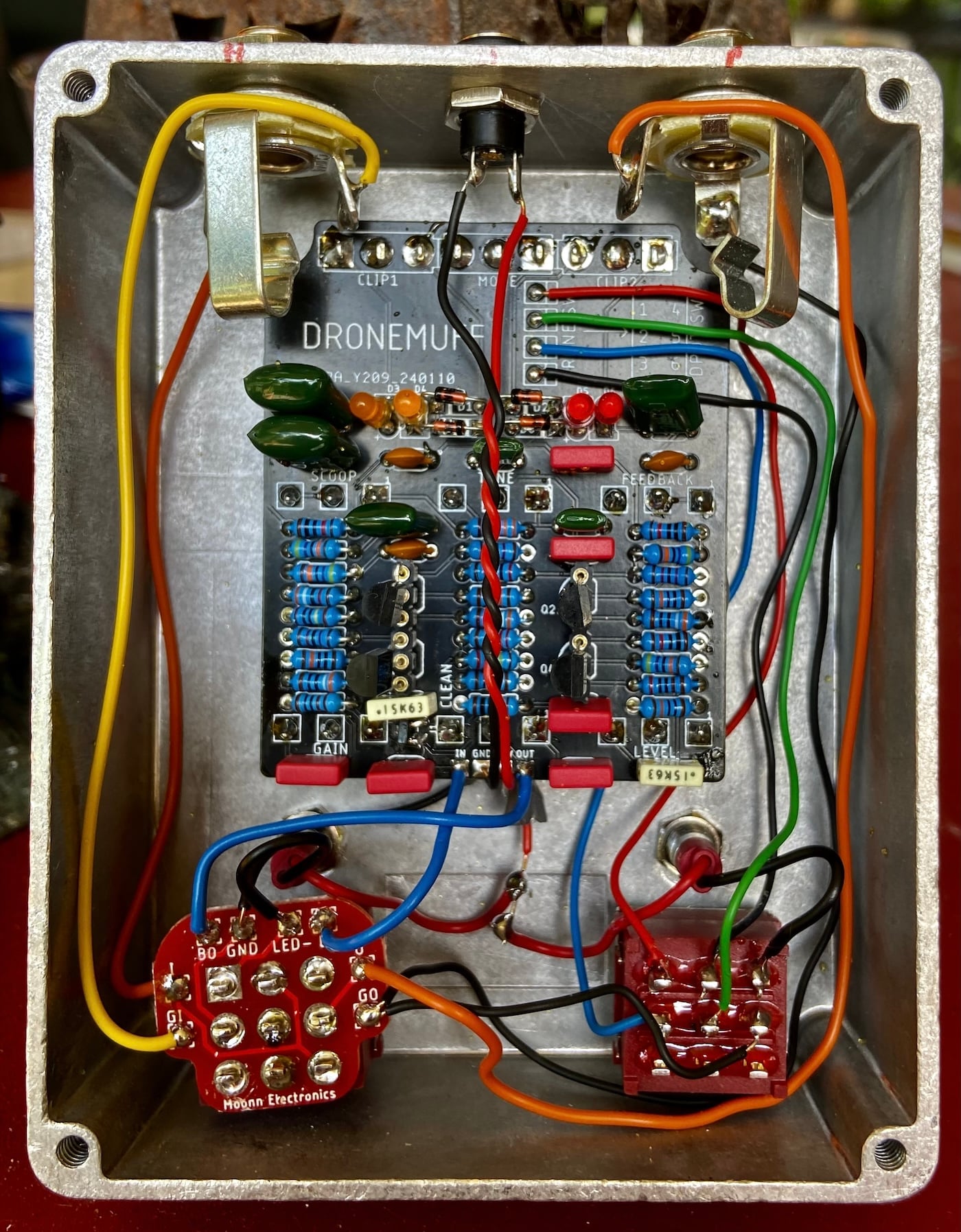

And a DRONE MUFF - with some variation of the Drone Mods (as mentioned here).
We also have a clean blend, Tone and Scoop, clipping options in the first and second stage (si/none/LED) and a feedback potentiometer for the sustainer drone mode. There are 2 drone modes, the other one turns the pedal more or less into a drone/noise synth.
The layout of the PCB was for a 125B, with the option to put a Drone on/off toggle switch somewhere on the side .... really?!? Well, nope. I put the whole thing into a BB and wired the Drone on/off switch as a footswitch with an on/off LED.
Fastforward a few months and here we are - behold the Devi4Ever brick of brutal sounds'n'noizes.
We have, following the signal in "standard mode" *** :
1. Ruby, vroom-vroom.
2. Stone, brrr-chak.
3. Destructo Octavia, oscillating and noisy signal destruction.
4. Weird Flex, which - with the 3 black toggle switches - should give you the following choices: Punch Love, Punch Hate, Silver Crank, Dark Boost or Karaoke Party
*** There are 3 order switches:
The first changes pairs: 1/2 <--> 3/4
Then one for each pair: 1<-->2 and 3<-->4
I tried to tame the Destructo a bit by replacing one of the MPSA18 with a 2N2222A, but that just altered the oscillation pitch a bit, I think. Well, it's supposed to be noisy and a good way to tame it, is to use it with another circuit.
Actually, turning all 4 circuits on sounds quite cool too.
And a DRONE MUFF - with some variation of the Drone Mods (as mentioned here).
We also have a clean blend, Tone and Scoop, clipping options in the first and second stage (si/none/LED) and a feedback potentiometer for the sustainer drone mode. There are 2 drone modes, the other one turns the pedal more or less into a drone/noise synth.
The layout of the PCB was for a 125B, with the option to put a Drone on/off toggle switch somewhere on the side .... really?!? Well, nope. I put the whole thing into a BB and wired the Drone on/off switch as a footswitch with an on/off LED.
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

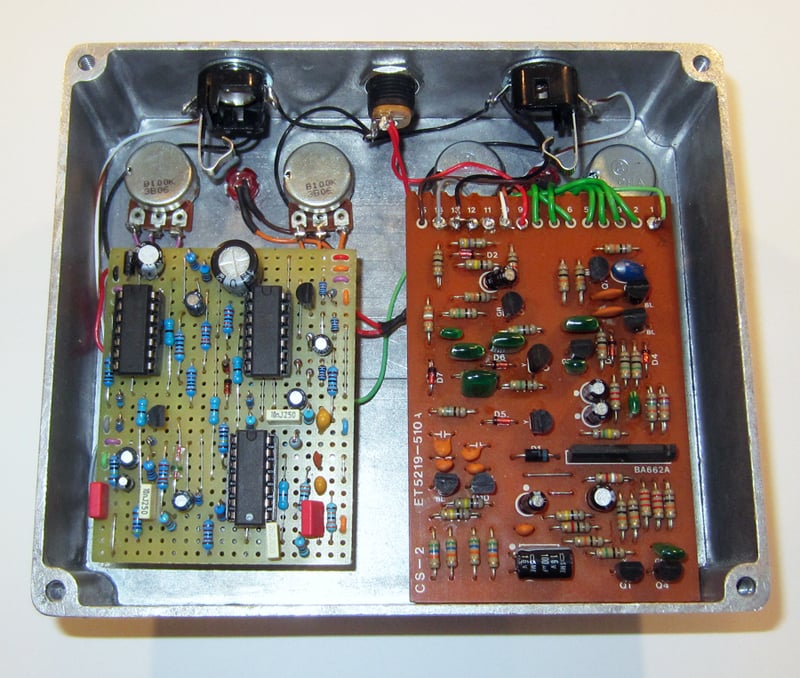

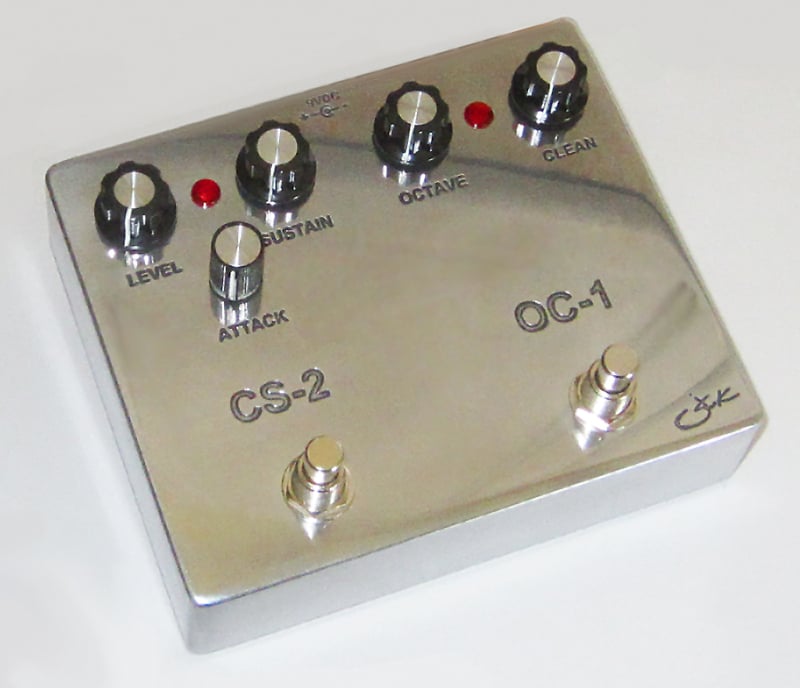

just finished building this one for a TB member that wanted an single octave down OC-2 with a Boss CS-2 in a single enclosure. they play really nice with each other:
Back when I first got into pedal building, I built this one on stripboard. It never seemed to work right.
It has been awhile since I etched my own pcb so I figured I would give this one another chance.
First try and it fired right up with no issues. It sounds great and works unbelievably well on bass.

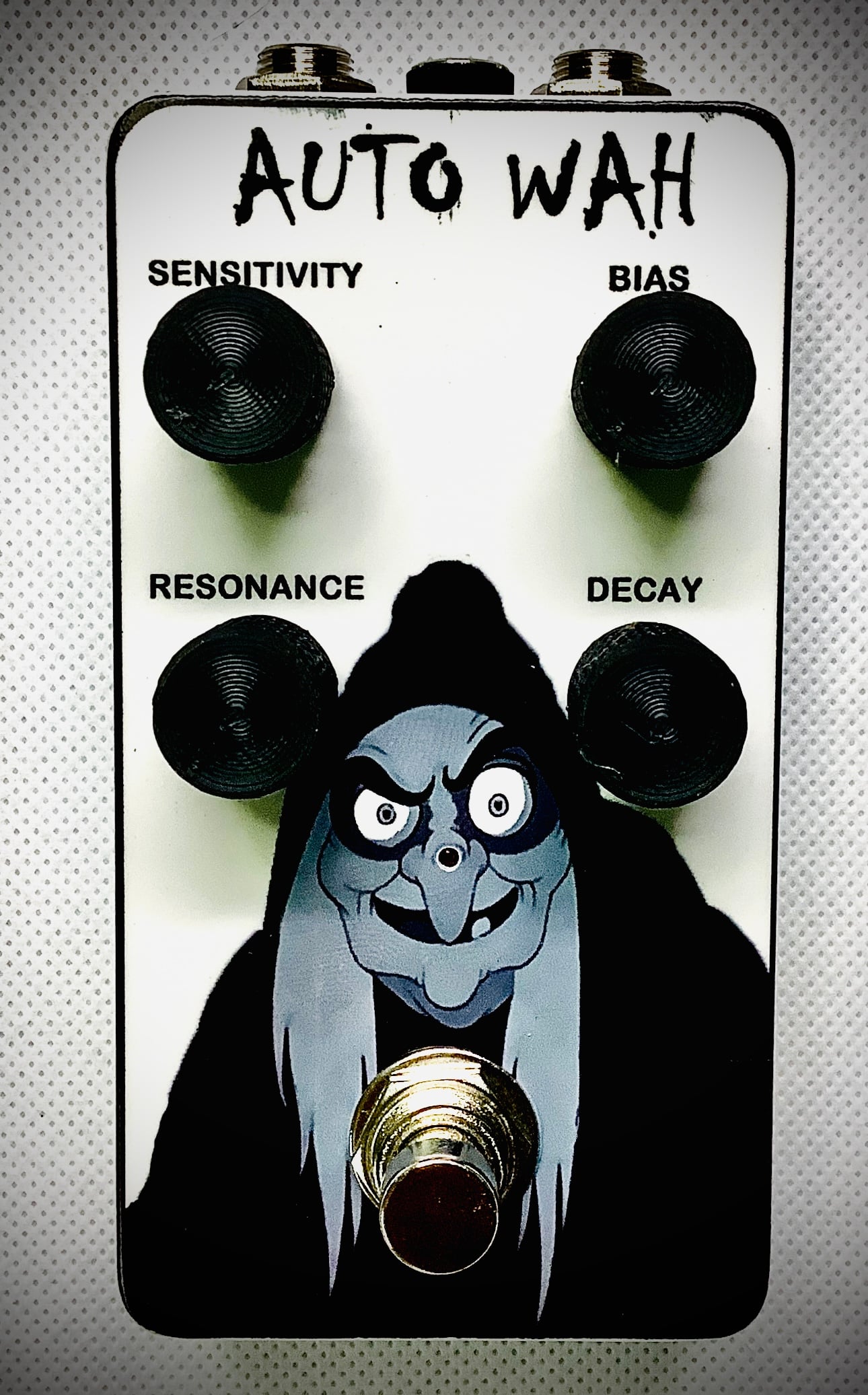

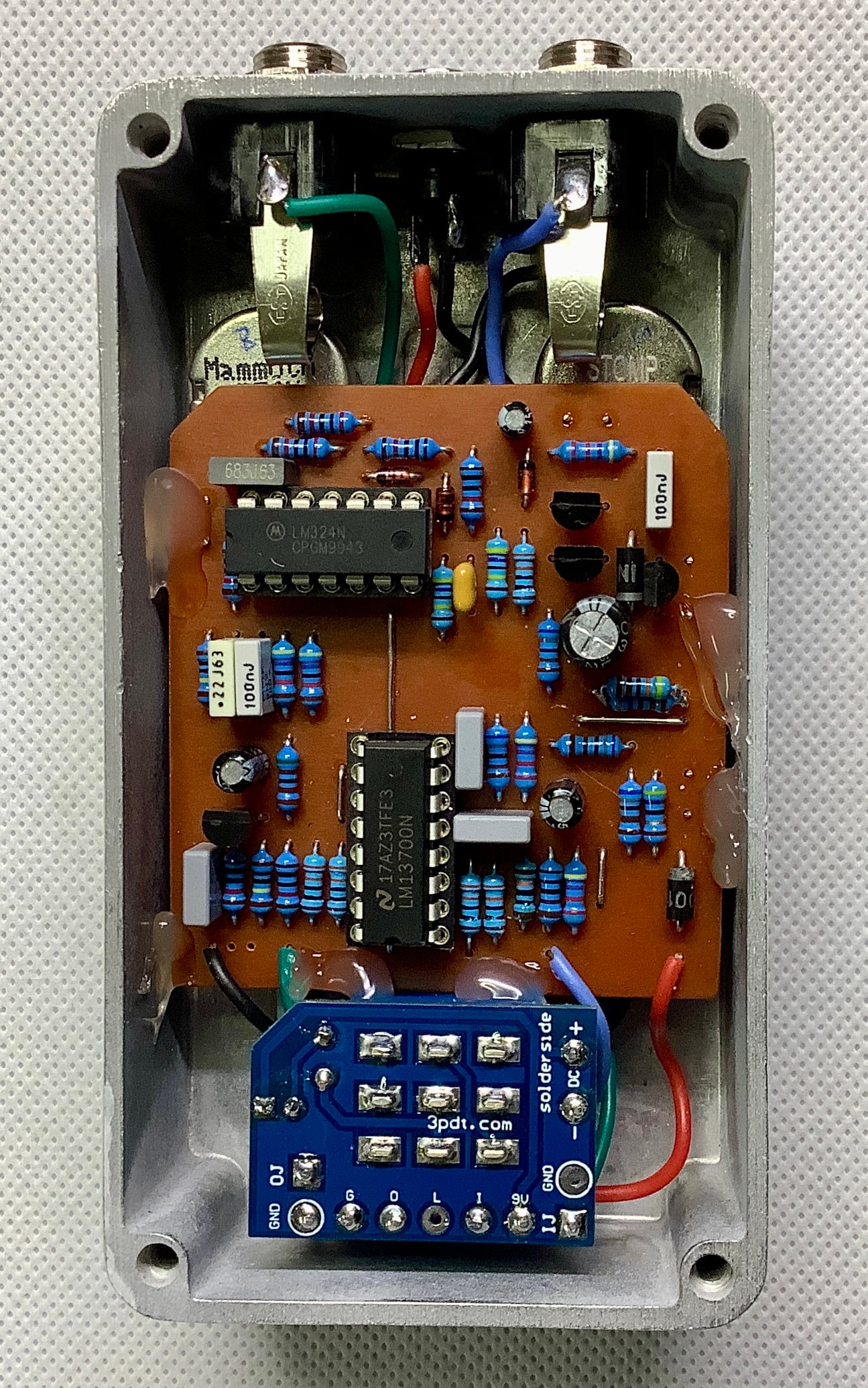

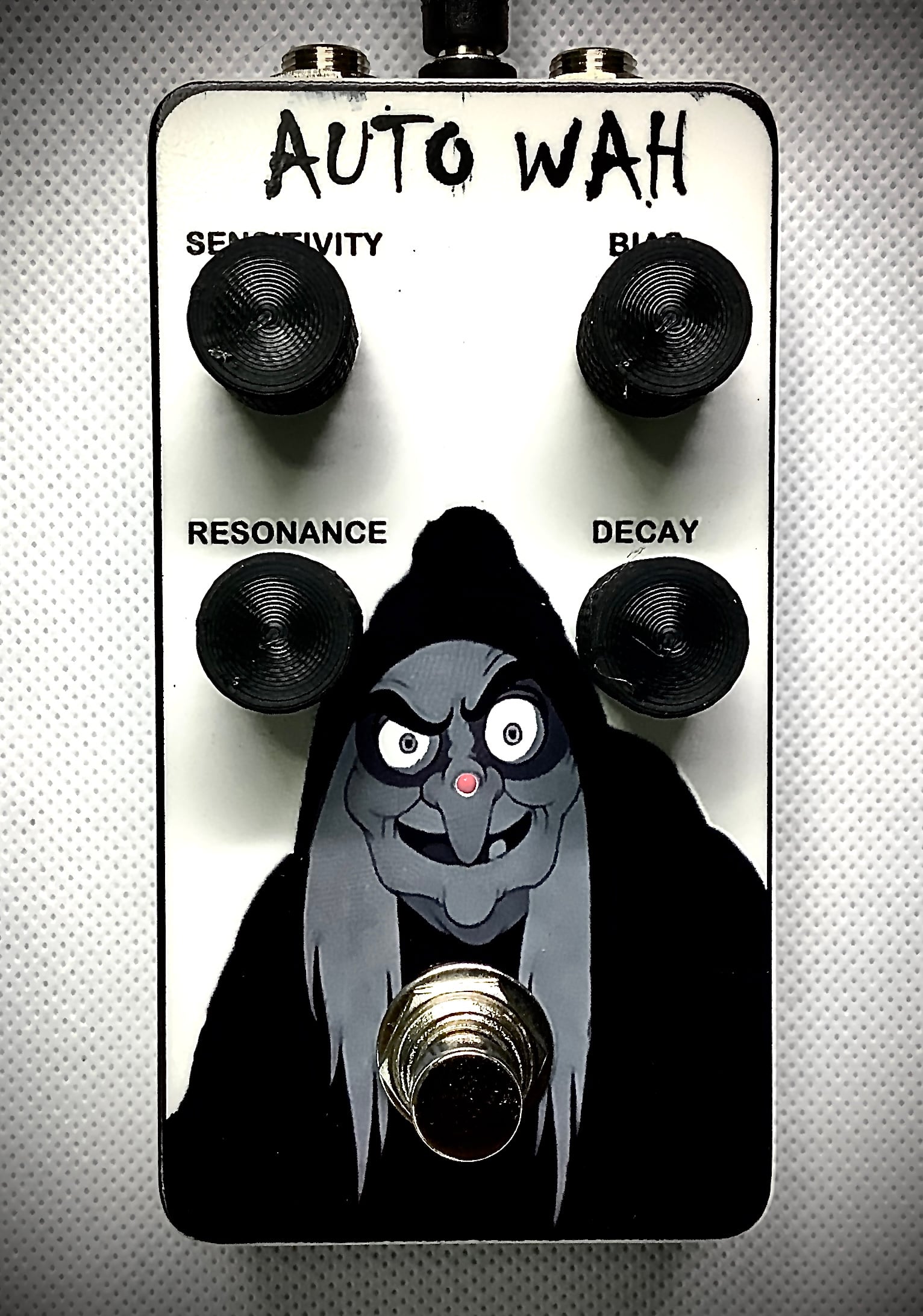

This is the Mad Professor Snow White Auto Wah ( clone) . I’m having fun playing with this one.
It has been awhile since I etched my own pcb so I figured I would give this one another chance.
First try and it fired right up with no issues. It sounds great and works unbelievably well on bass.
This is the Mad Professor Snow White Auto Wah ( clone) . I’m having fun playing with this one.

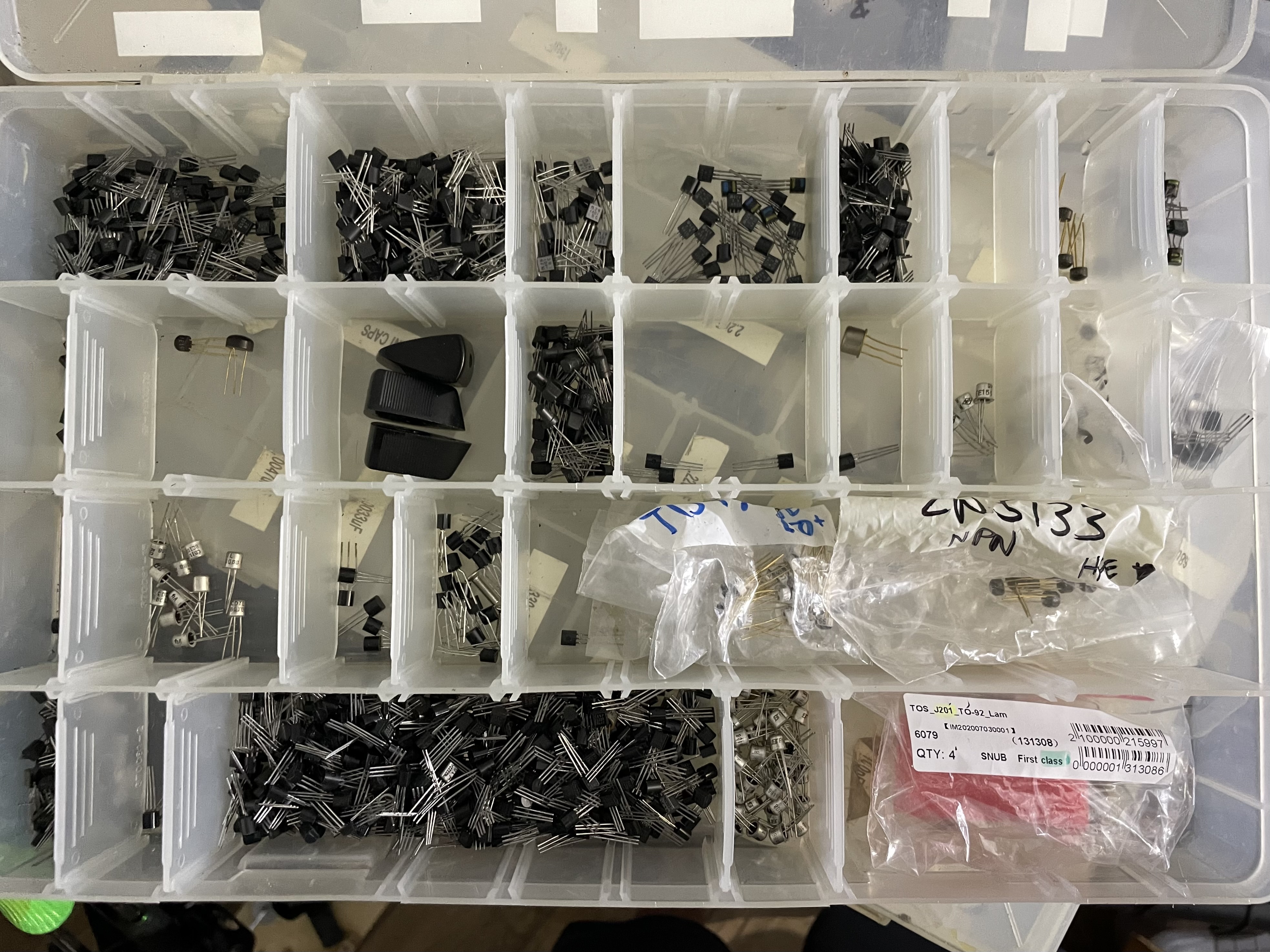

I used to build a ton (mostly between 2003 and 2015 or so), but over the past bunch of years I haven’t. I still have a ton of parts, from NOS germanium transistors to cc resistors to ic’s to pcb’s, enclosures, caps, the list goes on and on and on. I need to dig all that stuff out and sort it, maybe offer it up for sale. Or maybe it’ll give me the urge to build something ? Hmm….
Gonna sort through this stuff and probably offer some/all for sale. There isn’t really an appropriate classified forum here so maybe I’ll try the “parts and accessories “ forum in the classifieds ? There’s a ton of stuff here, thousands and thousands of parts ….

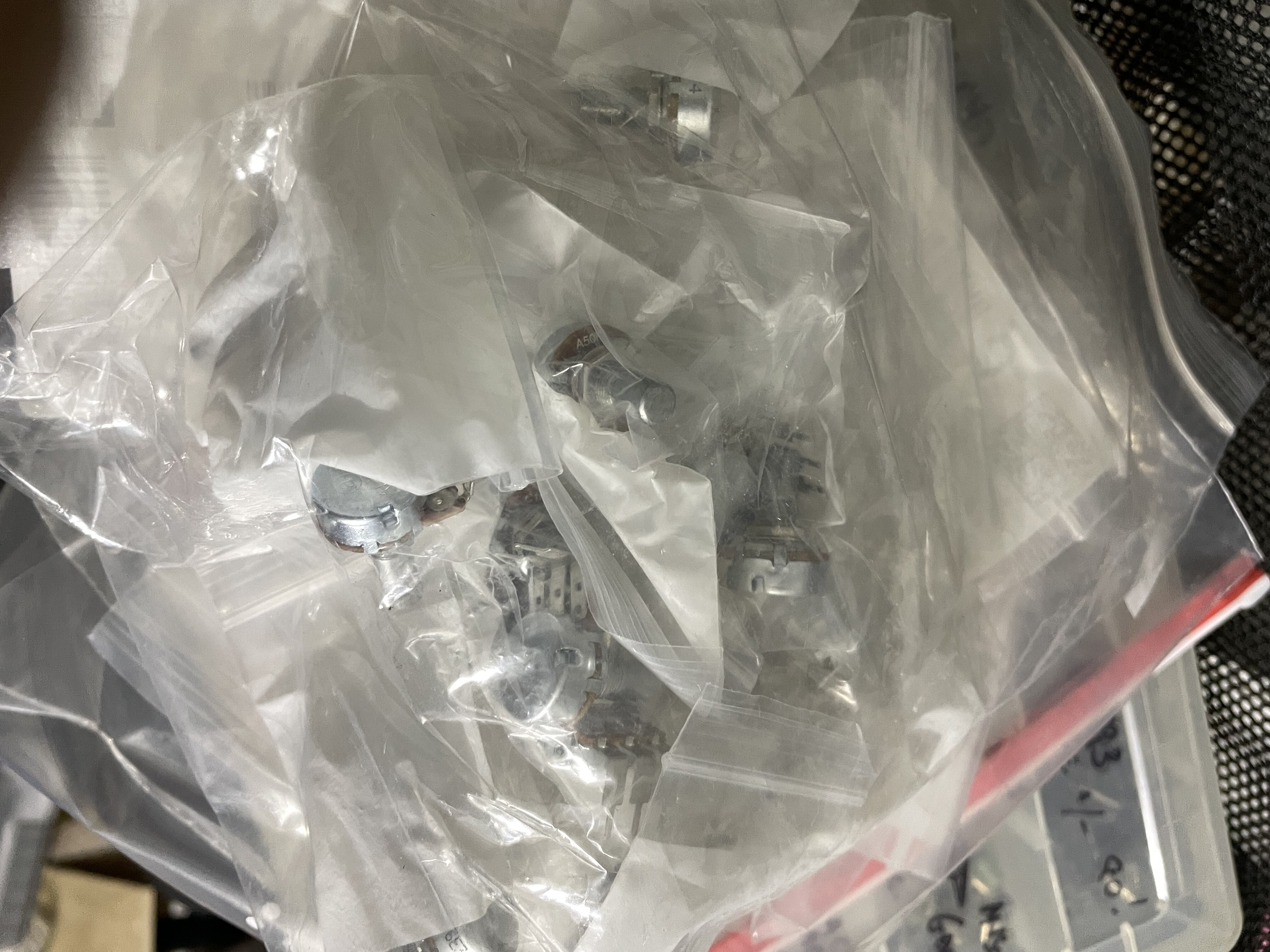

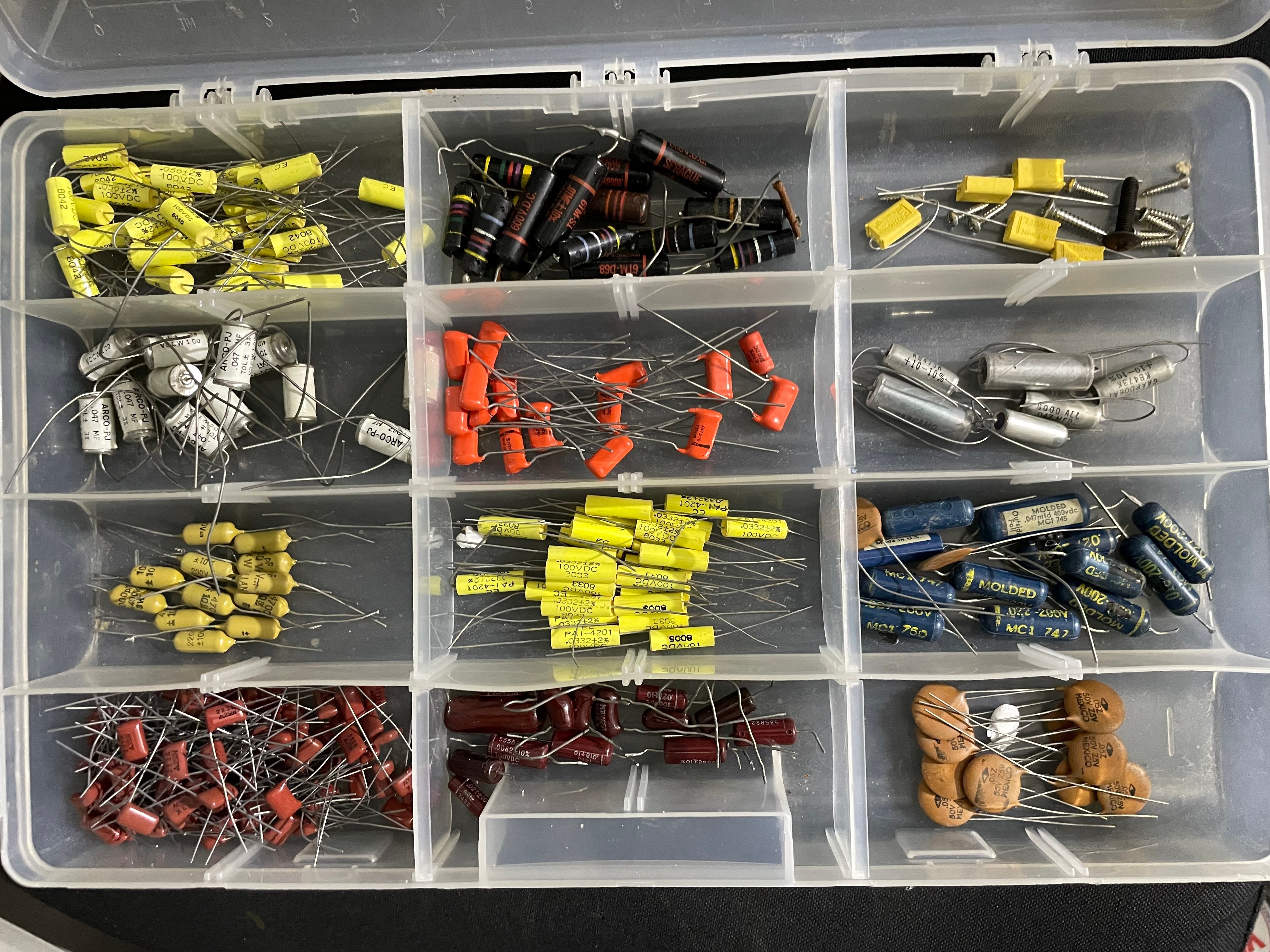

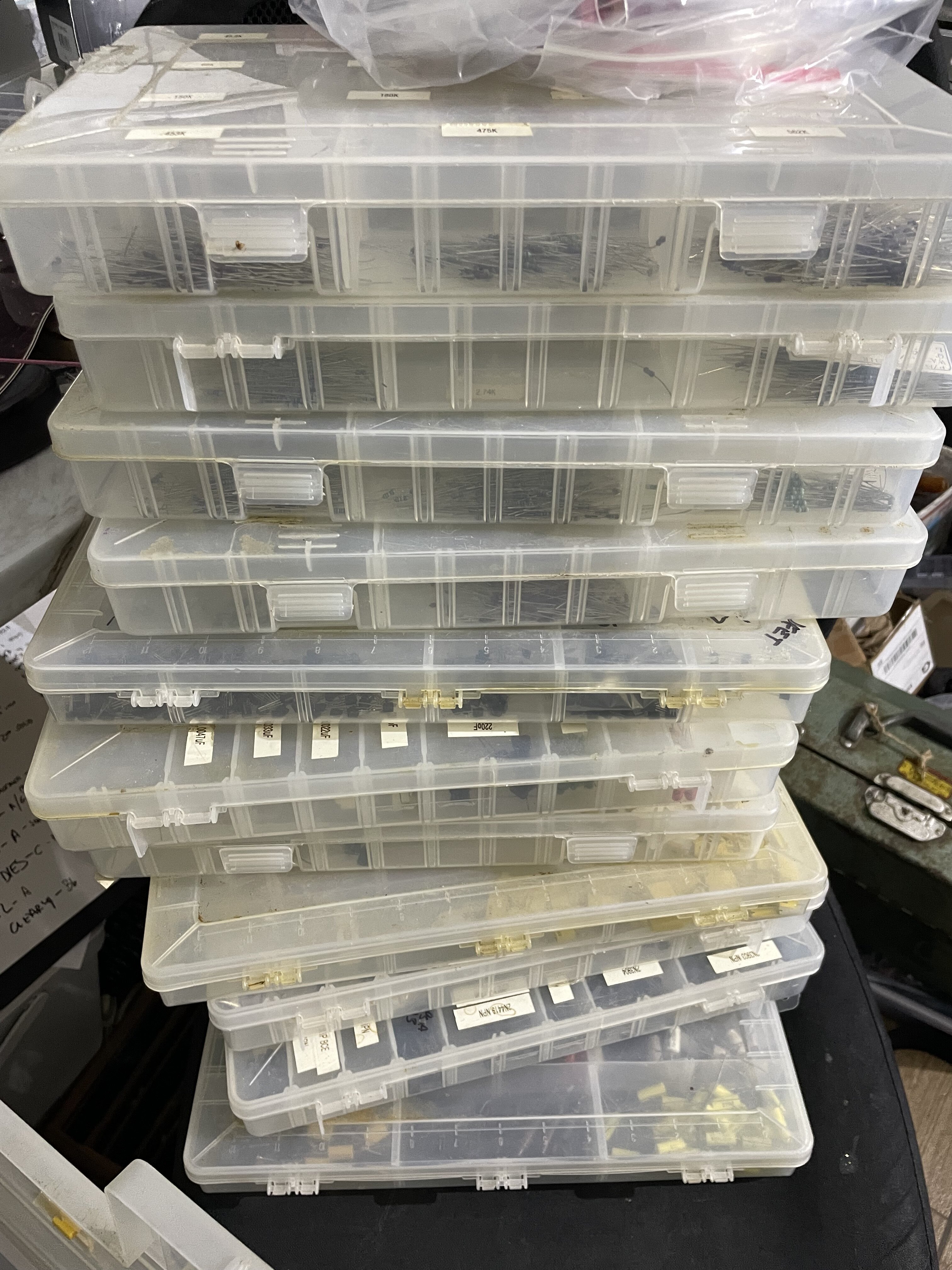

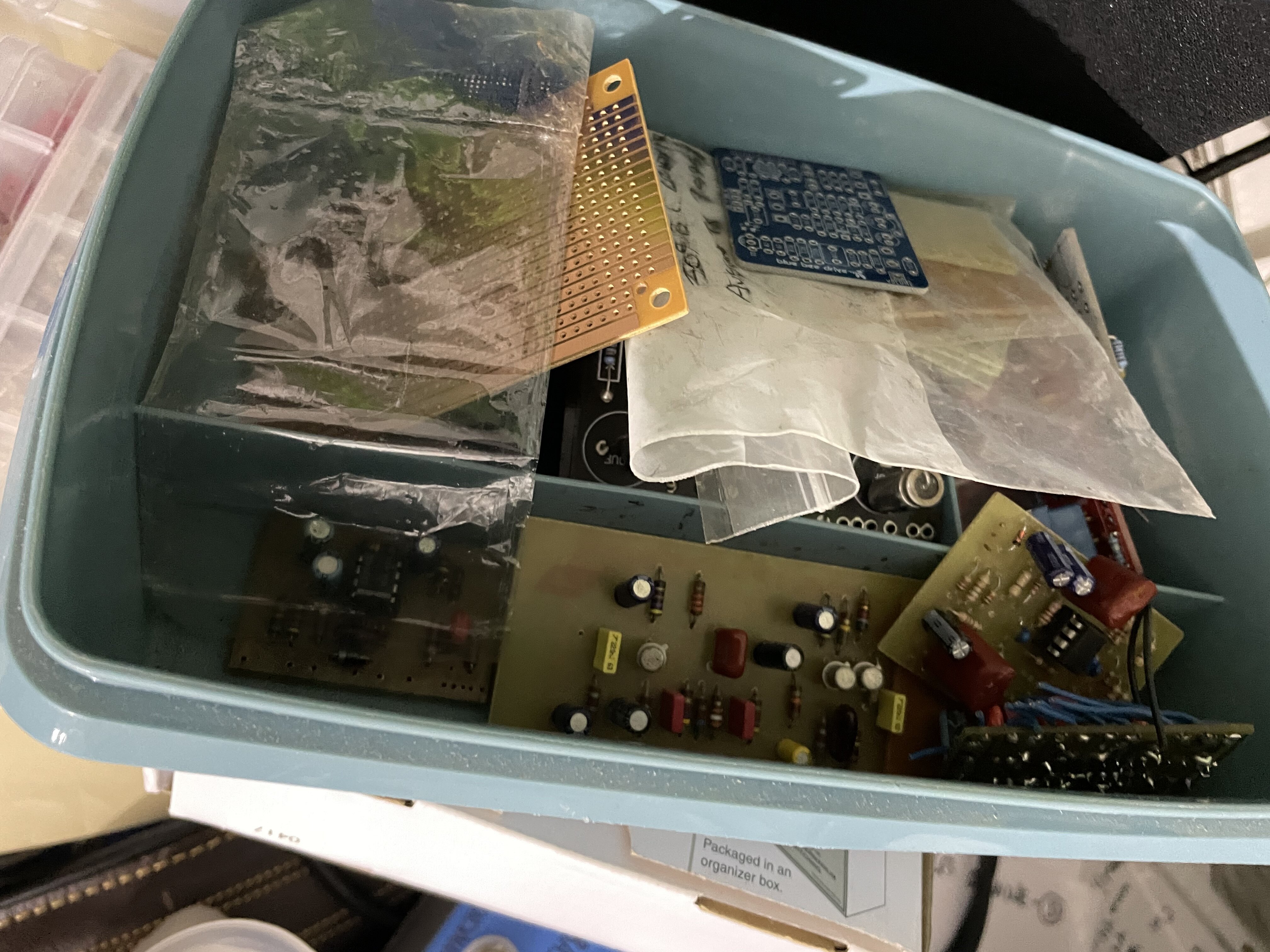

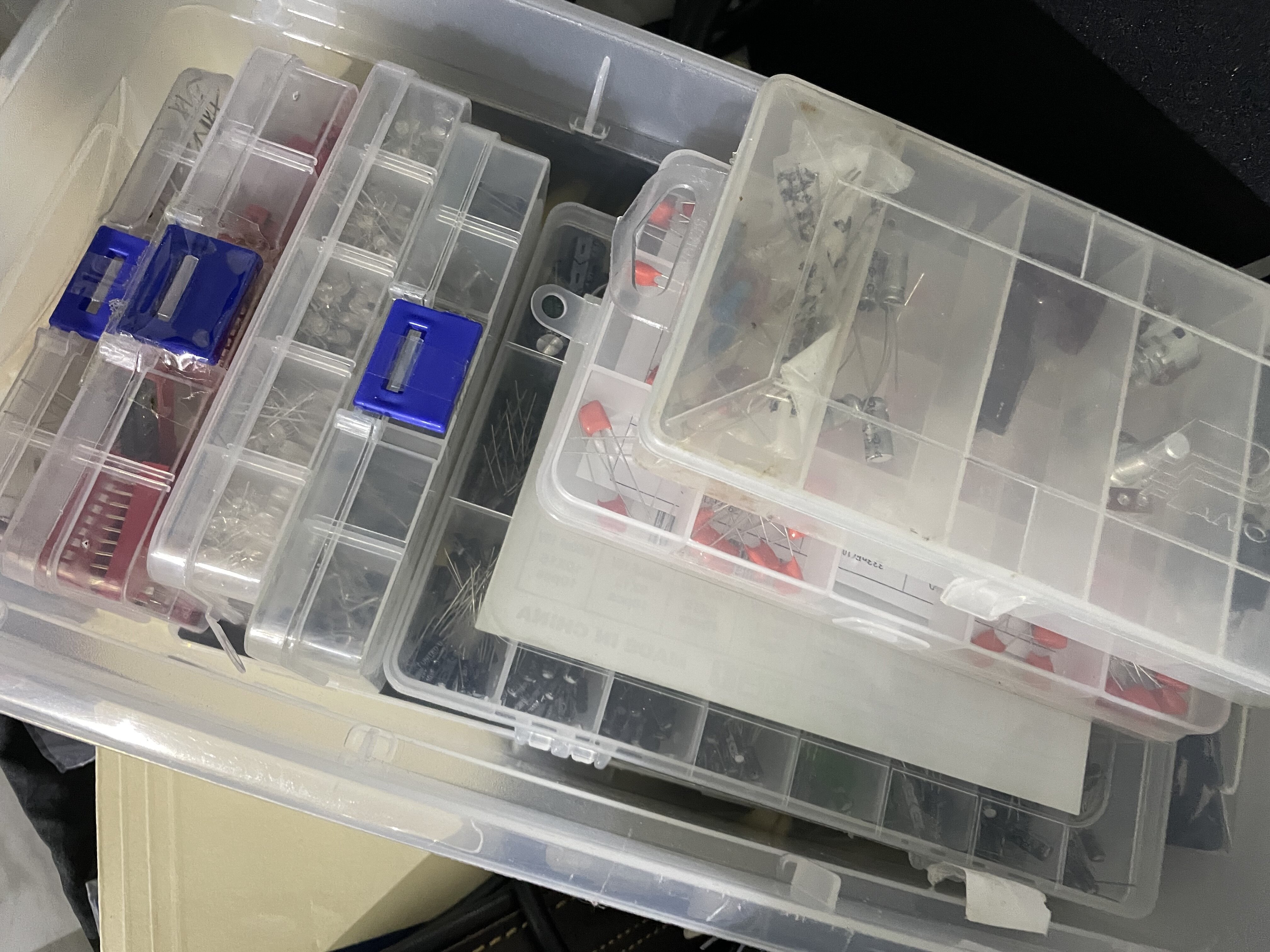

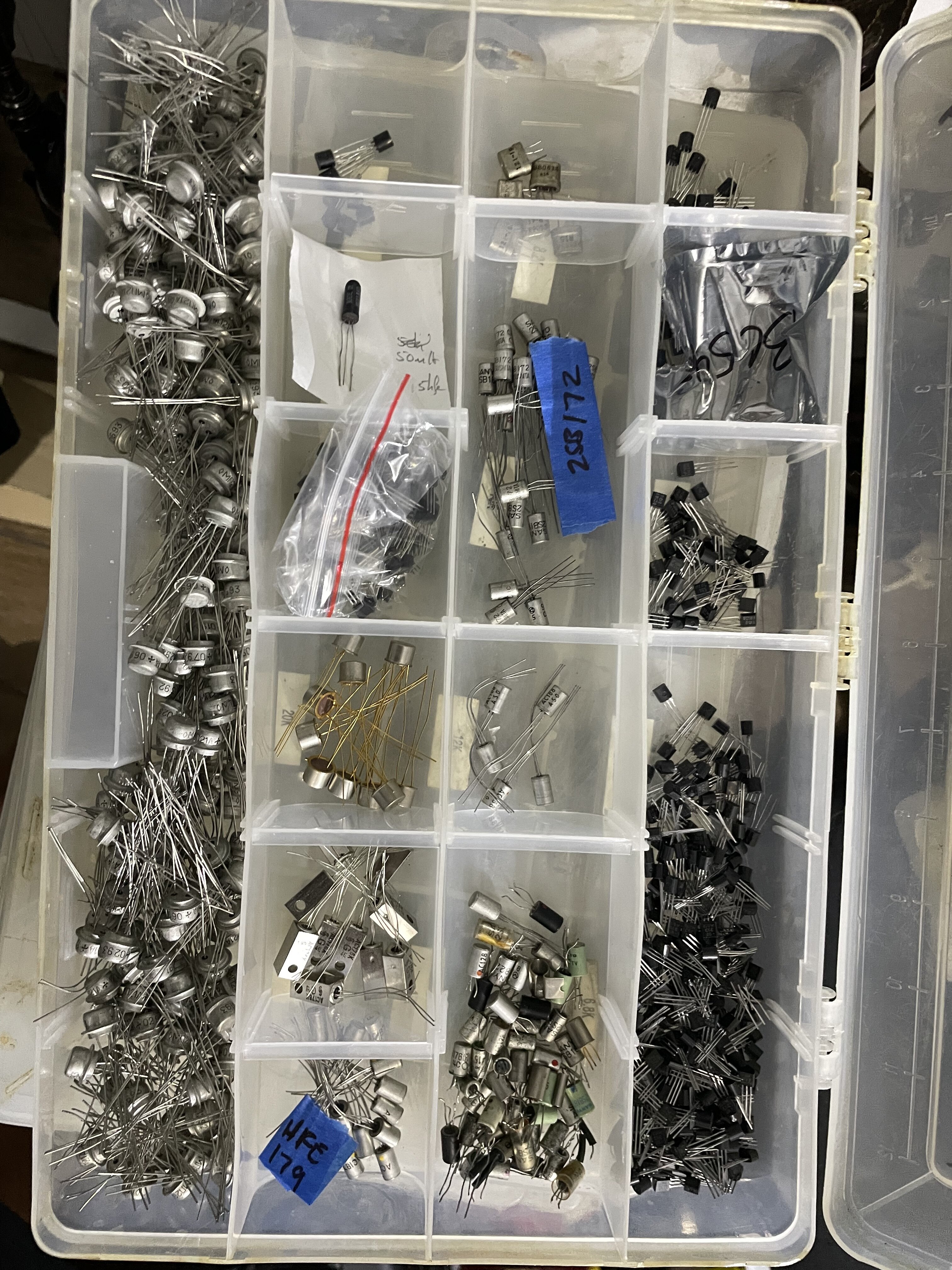

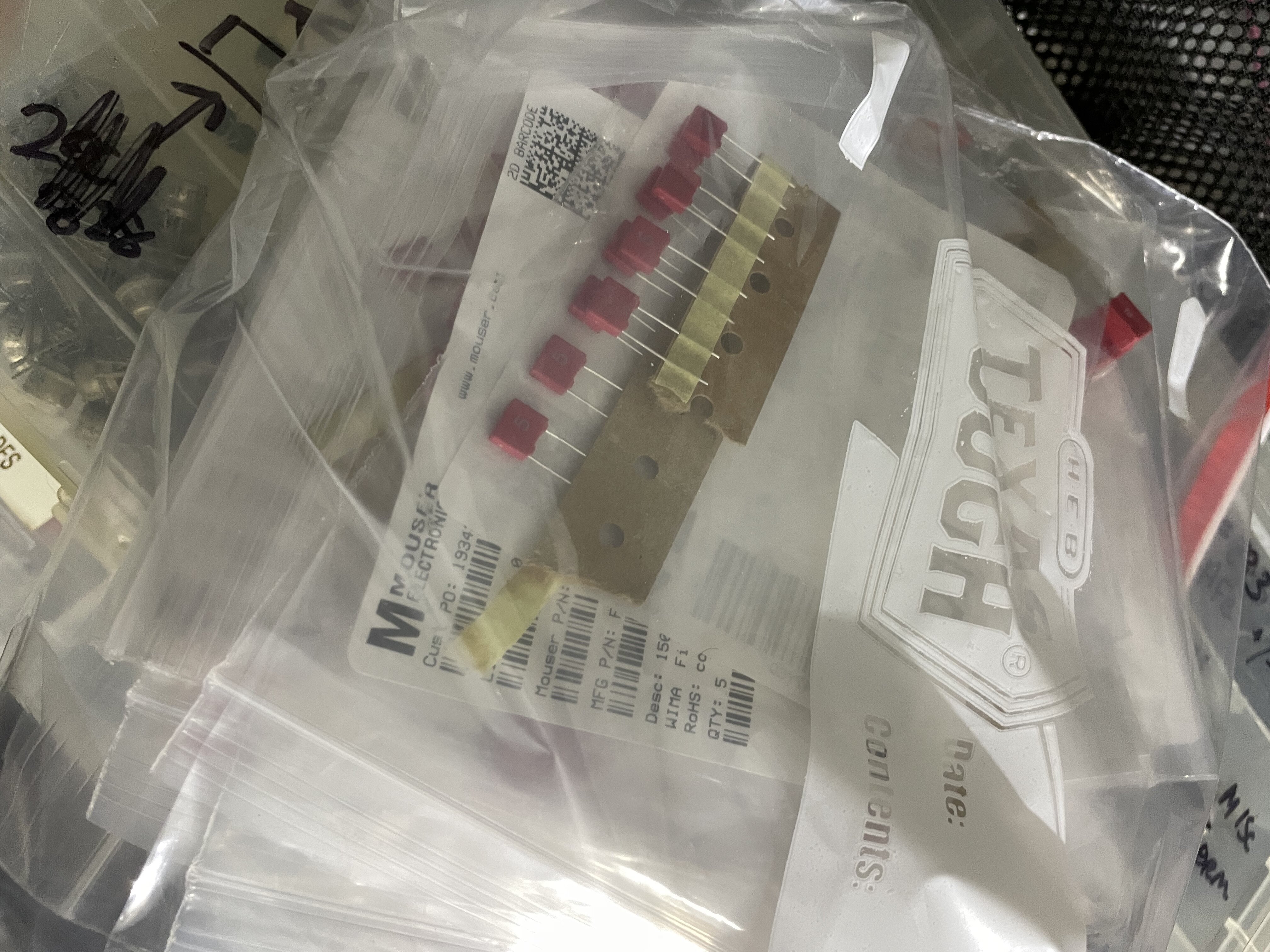

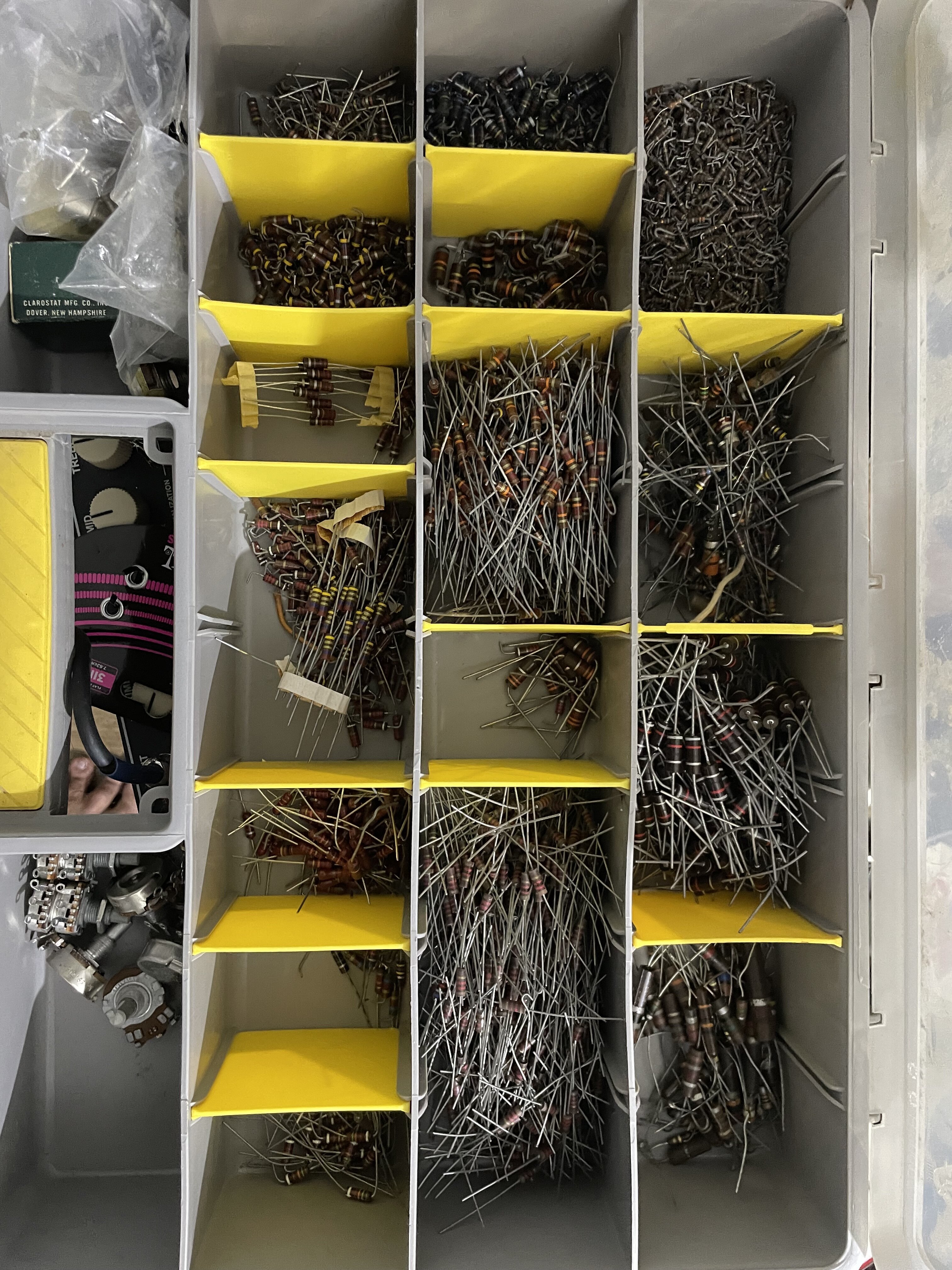

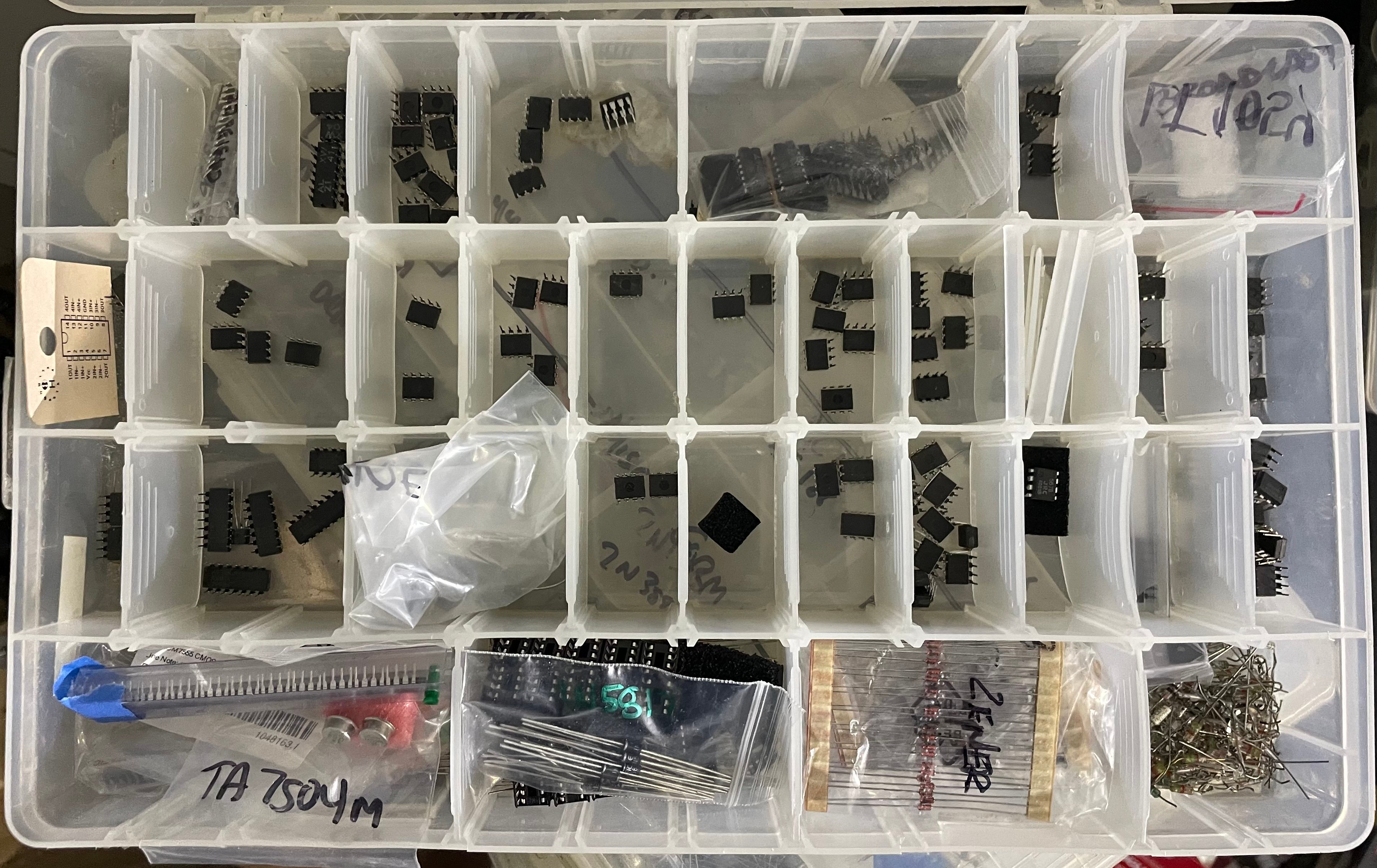

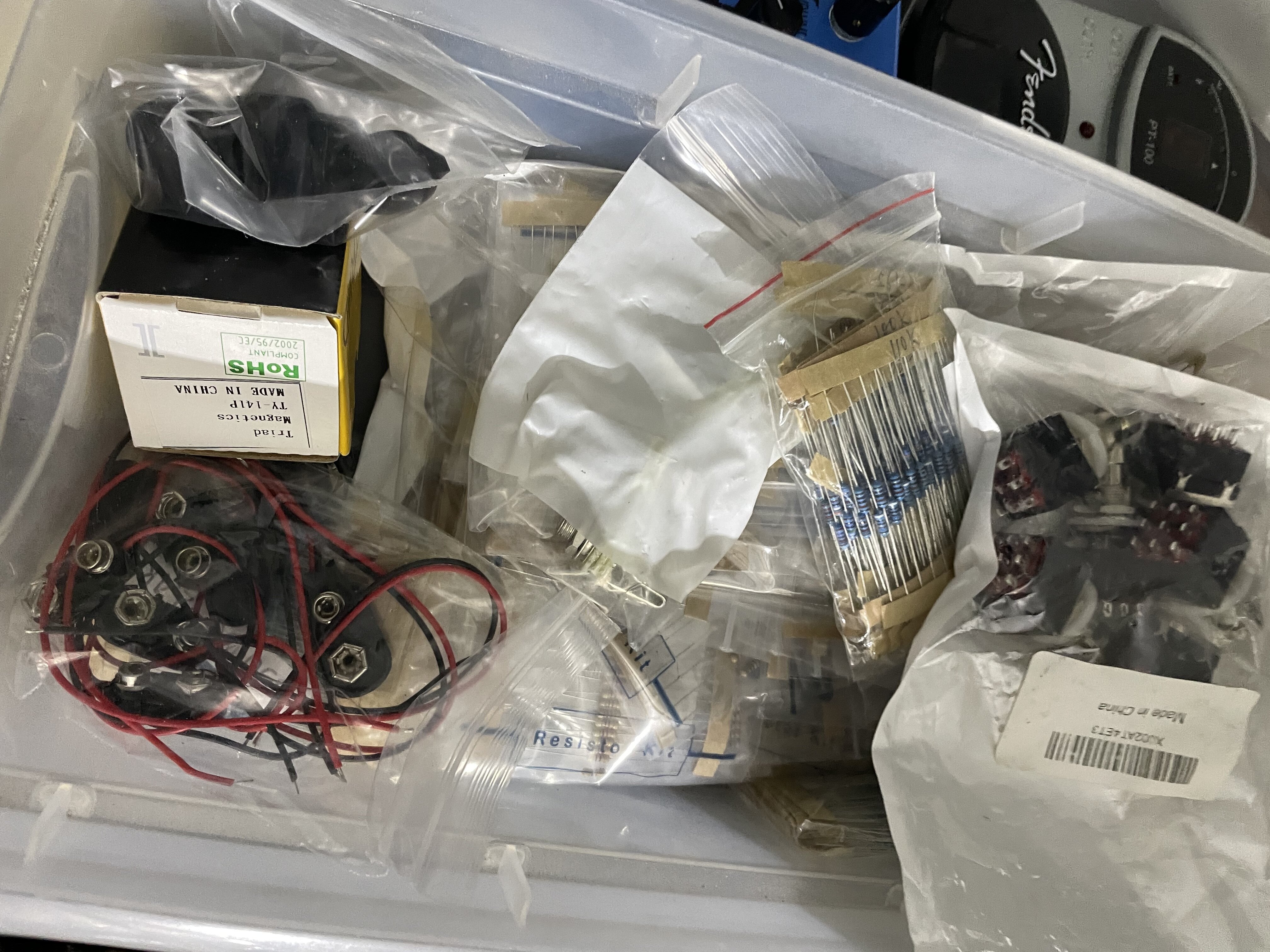

Here are a few pics of some of it…
Here are a few pics of some of it…
