I made a LTspice model of the next pedal i intend to build to try to learn something.



[Bolsyo]

https://www.annabellekhoo.com/2021/10/29/rothwell-love-squeeze-ne-1-simulation/

I made a LTspice model of the next pedal i intend to build to try to learn something.

I was about to make a Rothwell Love Squeeze a while back, but then I read quite a few stories about it distorting on bass. I came across this fix but never got around to build one:

Instead I built an Engineer's Thumb that I really love (replaced my Aguilar TLC, that again replaced an MXR M87), and I've also made a DOD280 for when I want an optical comp, and to experiment with home rolled LDRs. But please post some clips if you make a Rothwell Love Squeeze, or try the fixes in the link. It's an interesting circuit!



[johnk_10]

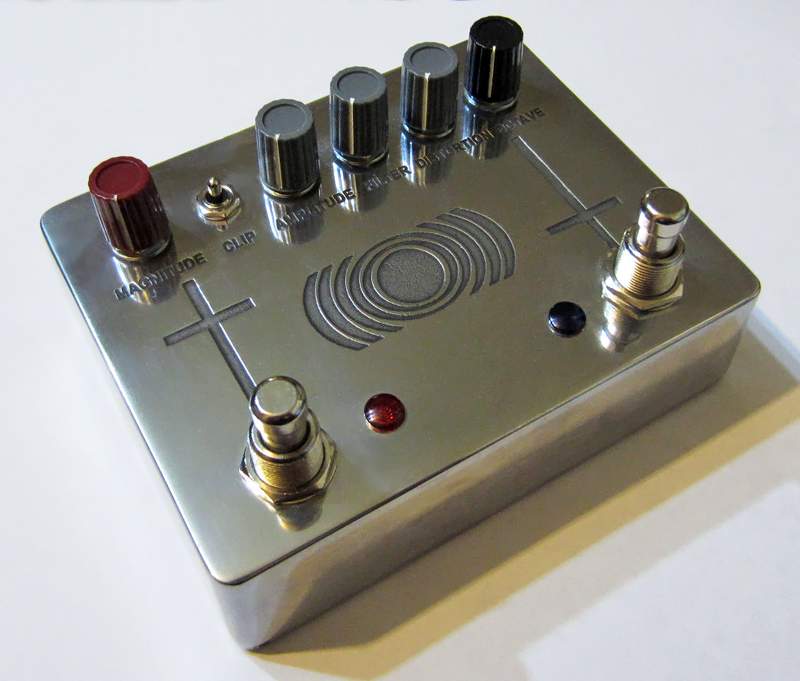

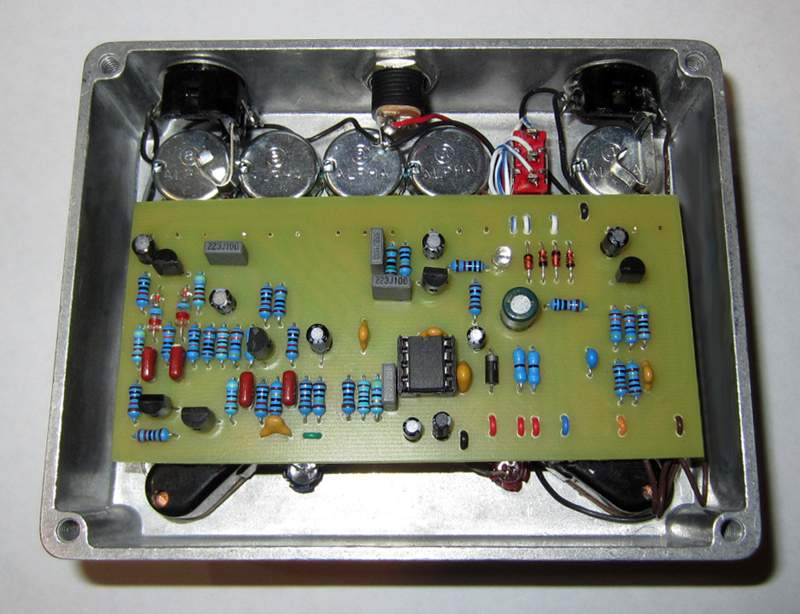

i built this one yesterday. an earthquaker Life pedal clone. IMO, it sounds awesome.



[JoeDaddio]

i built this one yesterday. an earthquaker Life pedal clone. IMO, it sounds awesome.

View attachment 4455439

View attachment 4455440

I love checking out your builds. Always such craftsmanship and attention to detail. Wonderful stuff.


joe



[JKos]

Rothwell Love Squeeze

I used a Love Squeeze for bass for a couple years and it never distorted once. It is so clean, transparent, and super quiet. Just saying that the stock values can work for bass.



[JKos]

I have a few 2SA70 (Ge, PNP) transistors. Any circuit ideas to use them in?



[Silver Blues]

I have a few 2SA70 (Ge, PNP) transistors. Any circuit ideas to use them in?

Those work nicely in the "Germanium Giant"; I built one with a 2SA49 and 1N34As and it sounds great.



[G.Bisson]

Happy Halloween!

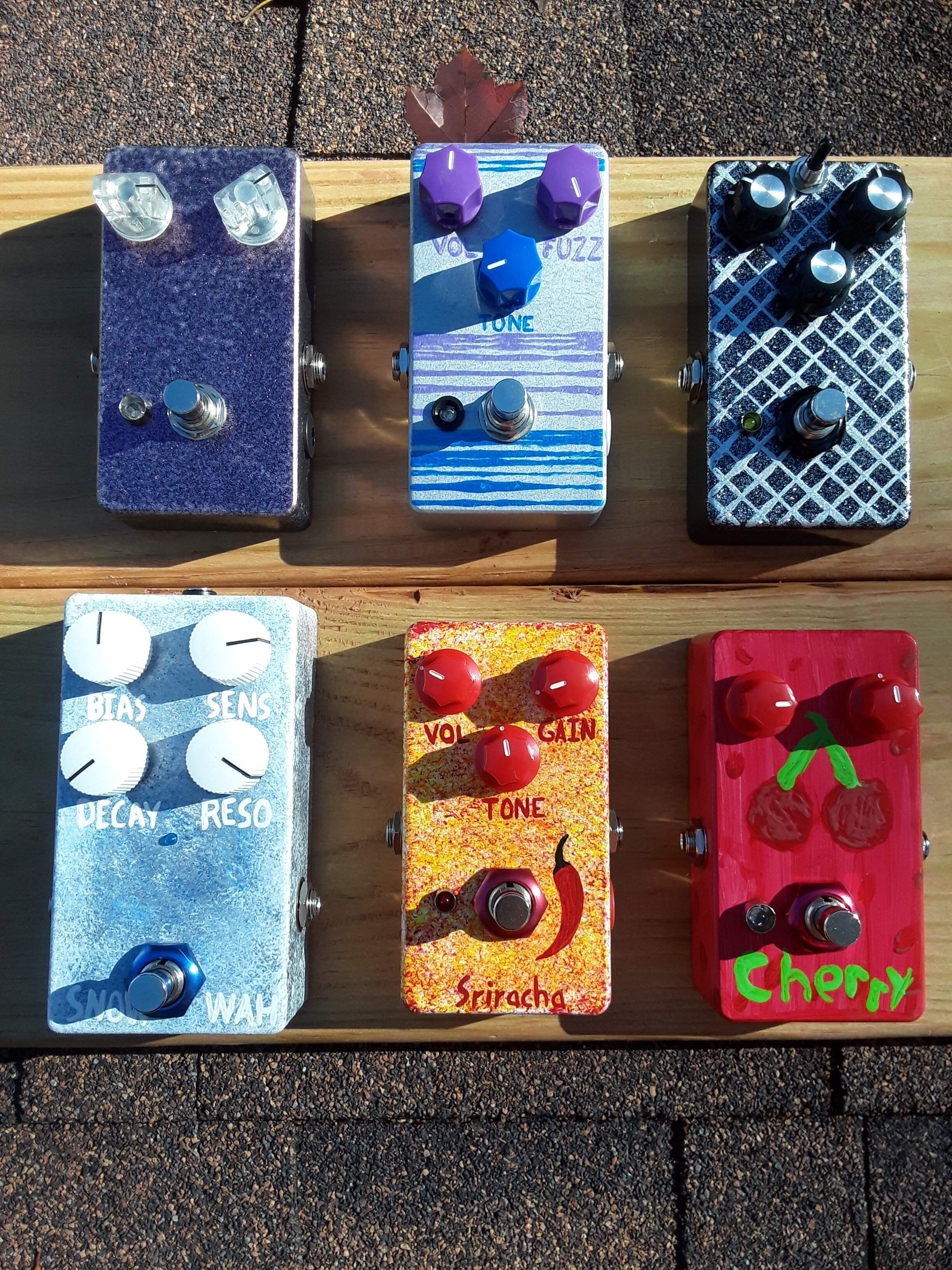

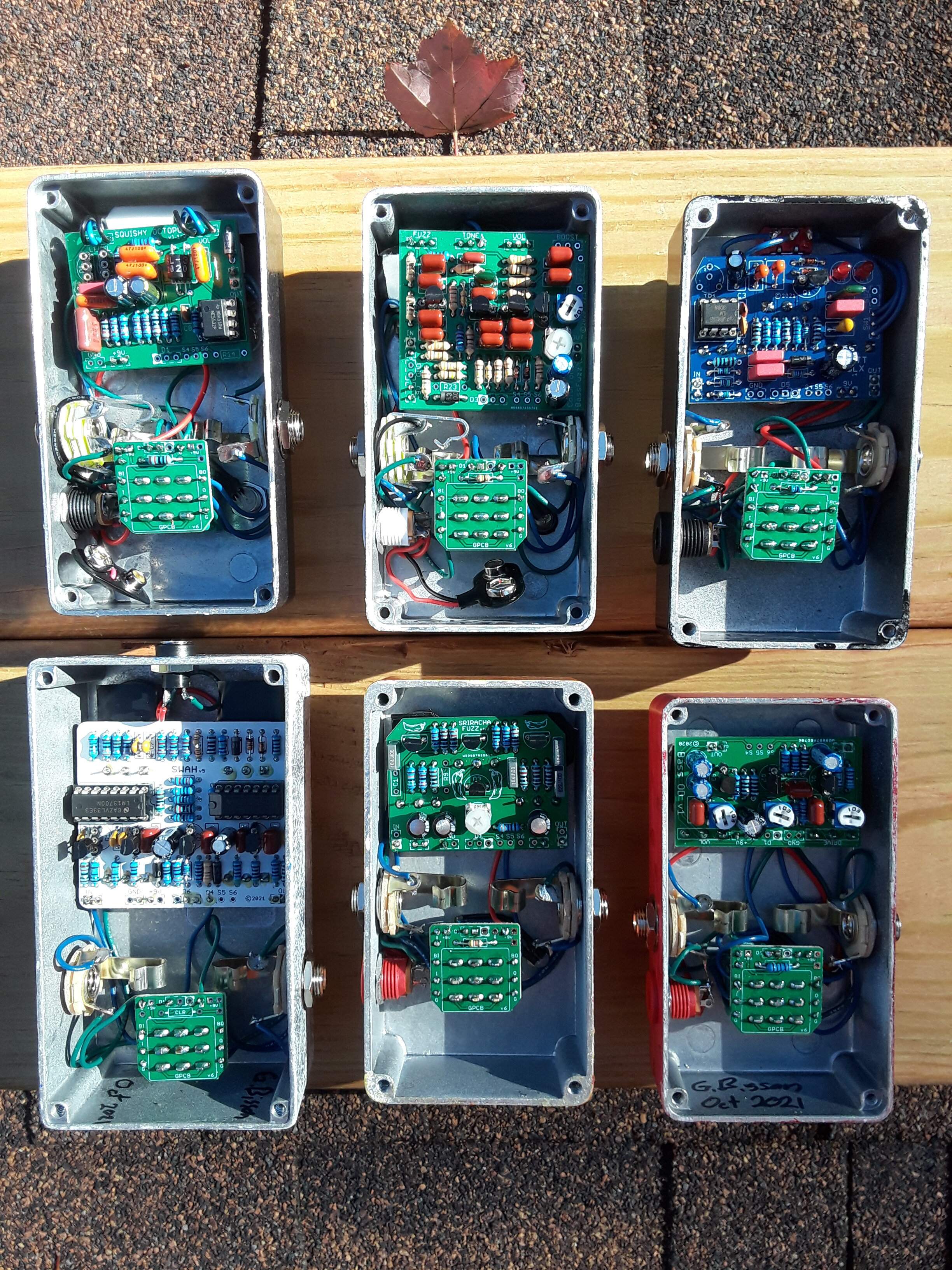

GuitarPCB October sessions
Top row left-to-right:
Squishy Octopus, ColorTone Bass Fuzz, RATT Deluxe
Bottom row:
SWAH v.5, Srircha Fuzz, Bass Overdrive v.1



[disssa]

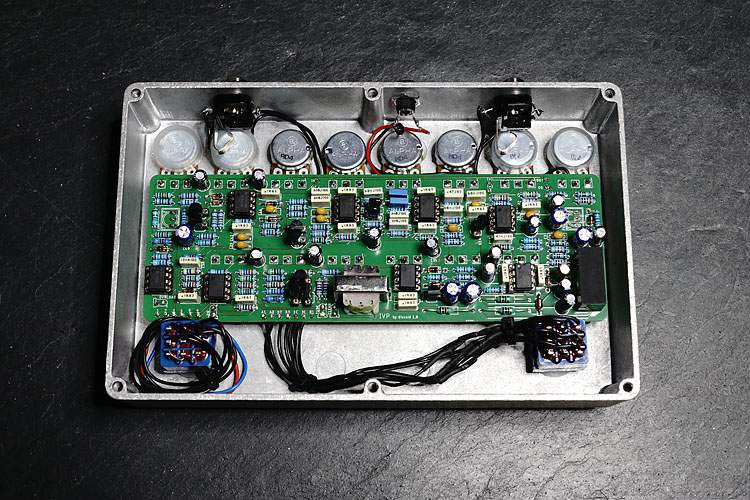

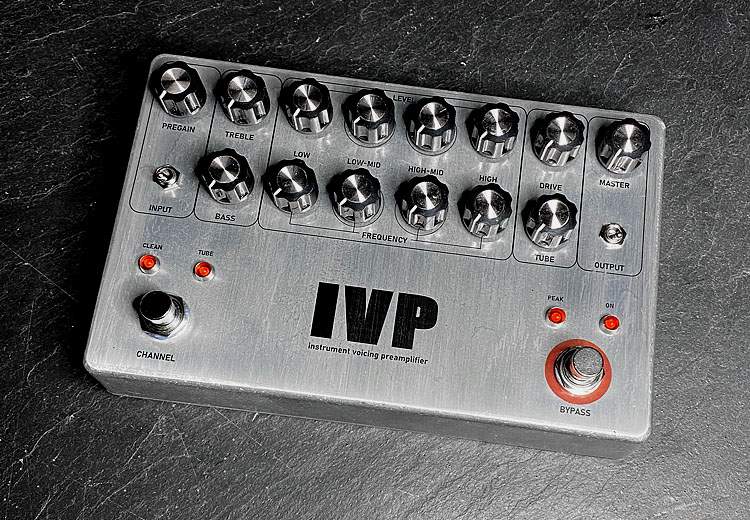

IVP-Clone. I used the original schematics to create my own PCB:



[mdalamond]

IVP-Clone. I used the original schematics to create my own PCB:
View attachment 4457709
View attachment 4457710

Great job @disssa . l2ooks like a very challenging project to take on. I have also got into having pcbs made and fully understand the challenge and effort that goes into designing a PCB. That is a very well designed and layed out board. Did you convert the schematic from all tube to IC / transistor?



[disssa]

Did you convert the schematic from all tube to IC / transistor?

The IVP is a SS-Preamp. The tuby sound is achieved by a very good circuit and by overdriving a transformer.



[WilbursaurusRex]

I used a Love Squeeze for bass for a couple years and it never distorted once. It is so clean, transparent, and super quiet. Just saying that the stock values can work for bass.

Agreed. Ive only used mine with a passive bass at this point, but it hasn't distorted on me at all



[deepestend]

The IVP is a SS-Preamp. The tuby sound is achieved by a very good circuit and by overdriving a transformer.

Aion makes a version of the PCB: Intersound IVP Preamp



[disssa]

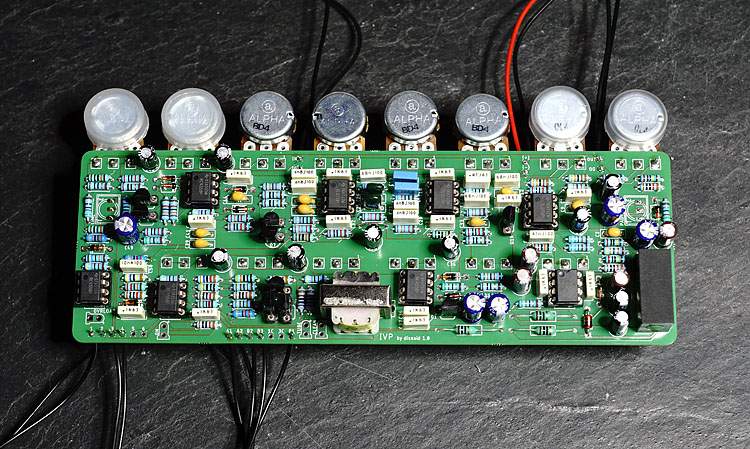

Another view:



[johnk_10]

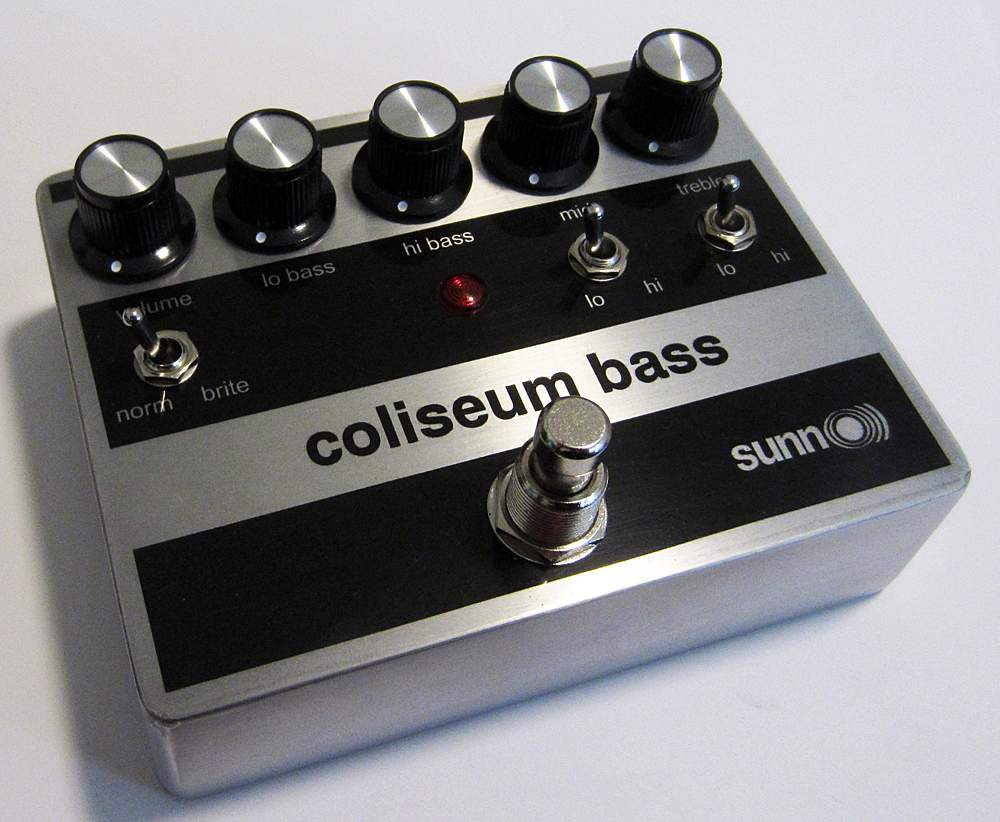

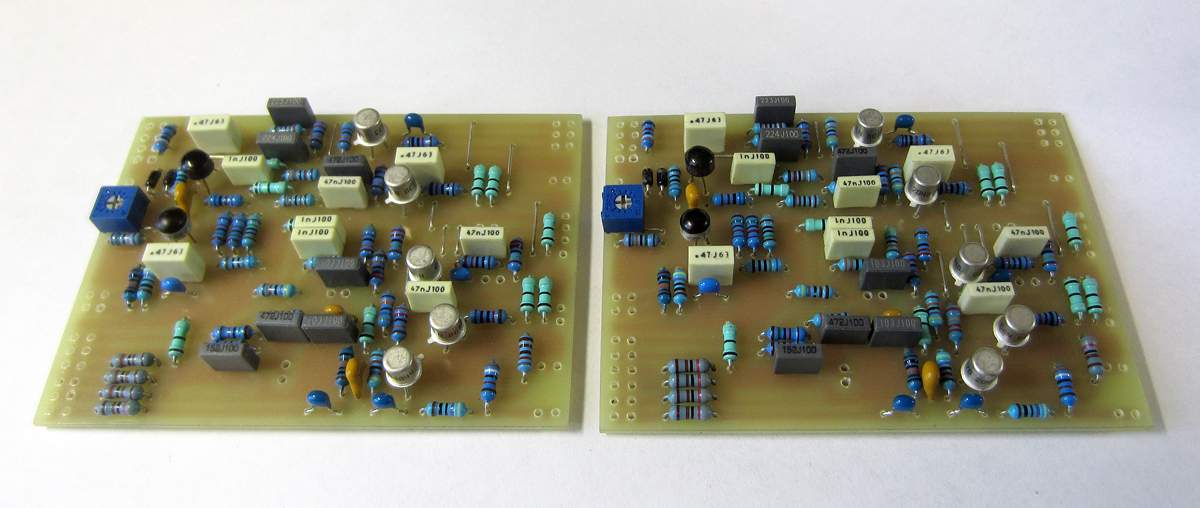

two Sunn Coliseum preamp PCBS with OEM vintage transistors. the power supply boards are currently being built.



[mdalamond]

two Sunn Coliseum preamp PCBS with OEM vintage transistors. the power supply boards are currently being built.

View attachment 4460742

Reading that this is a recreation of the original preamp and NOT an emulation have you ever tried running it to a say a rack mount power amp. Maybe a 900 - 1000w. I bet that would sound awesome.



[johnk_10]

Reading that this is a recreation of the original preamp and NOT an emulation have you ever tried running it to a say a rack mount power amp. Maybe a 900 - 1000w. I bet that would sound awesome.

yes i have and it sound just like the coliseum head:



[Fuzzonaut]

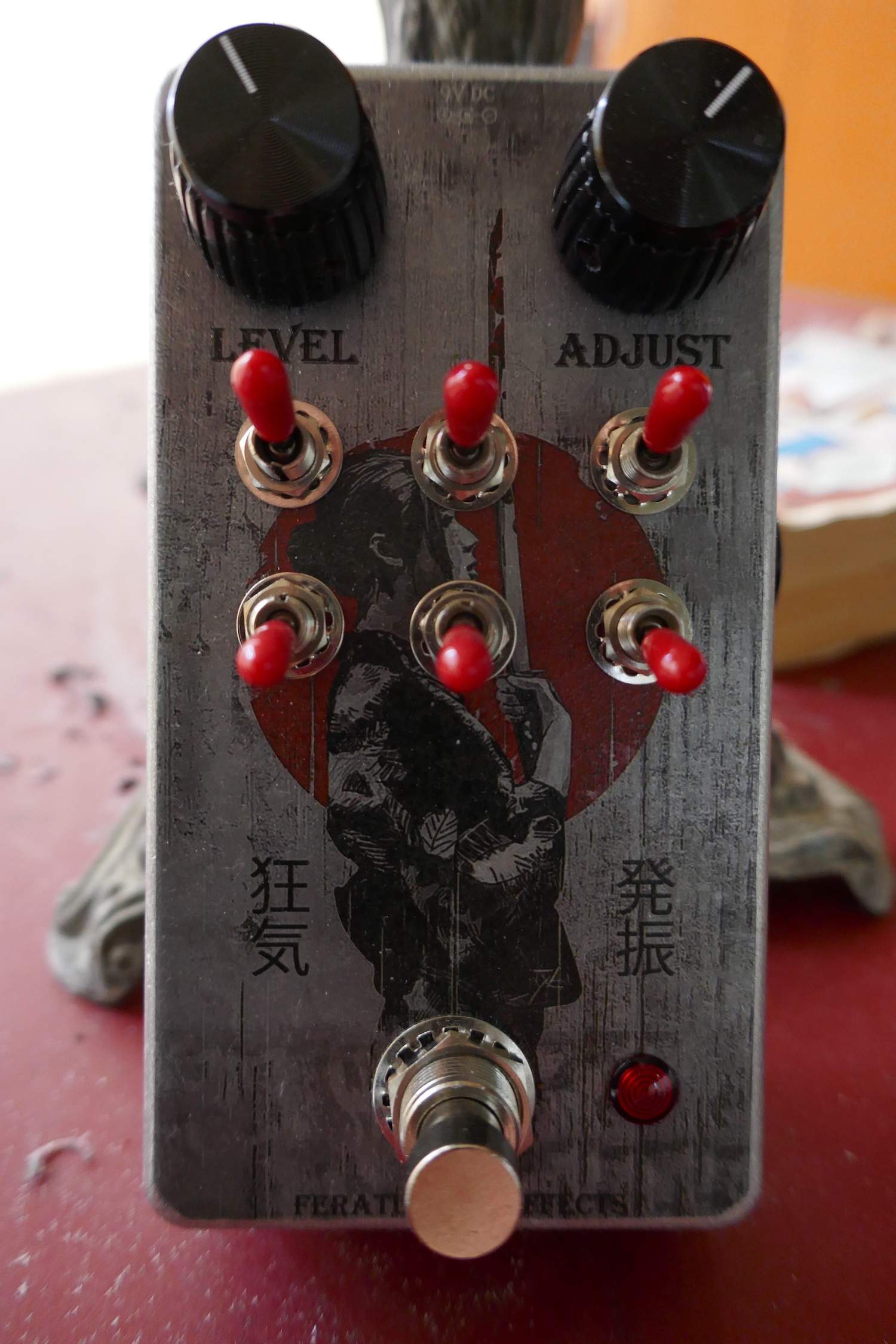

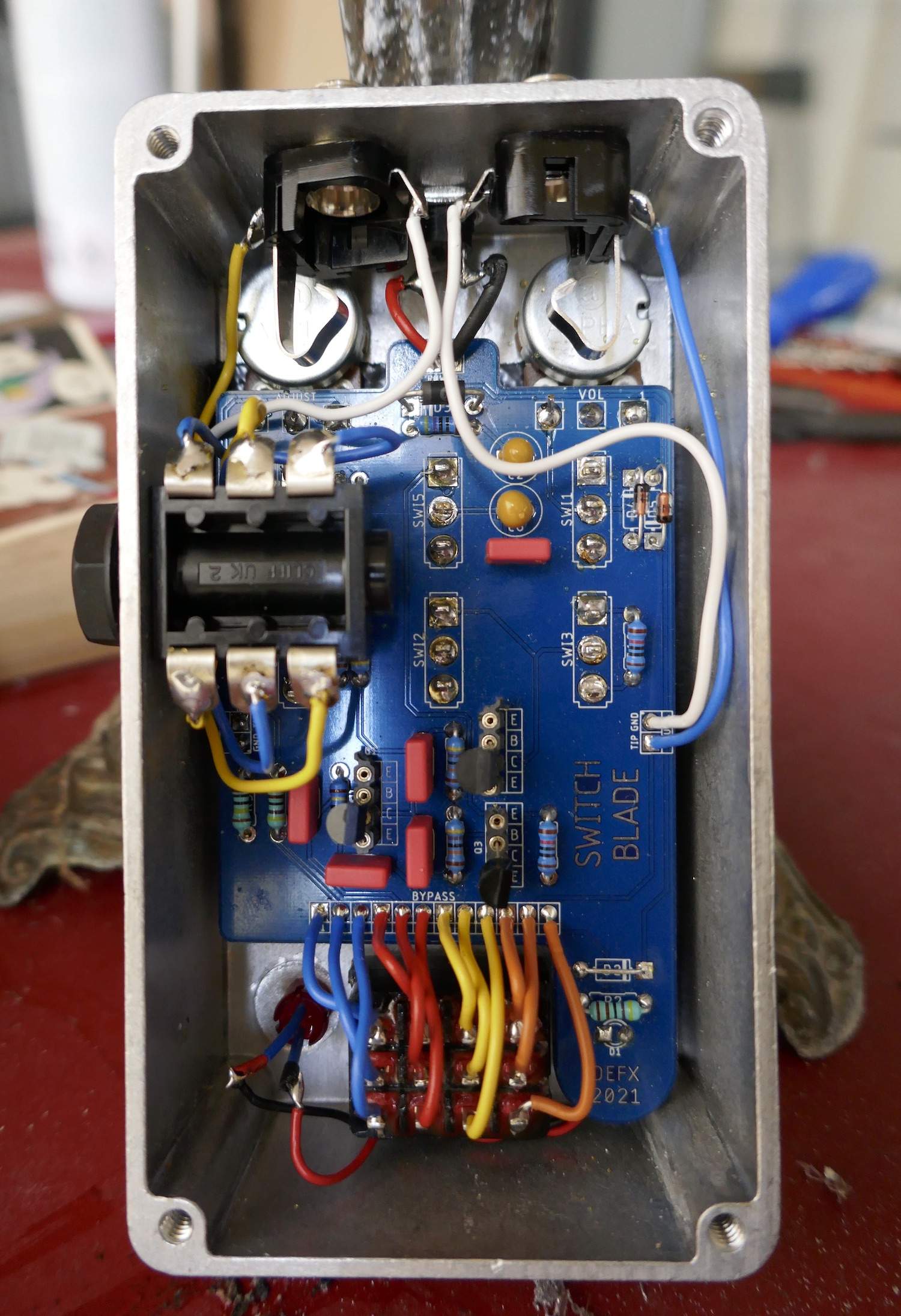

DEFX Switchblade, which is their recreation of the LAL Super Oscillo 88, with expression input. I like it a lot, but I'm a sucker for anything that oscillates. The switches give you a lot of options.



[mdalamond]

DEFX Switchblade, which is their recreation of the LAL Super Oscillo 88, with expression input. I like it a lot, but I'm a sucker for anything that oscillates. The switches give you a lot of options.

View attachment 4462410

View attachment 4462411

Wow, that a lot of switches. You could get lost for a long time with that one. Very cool.



[johnk_10]

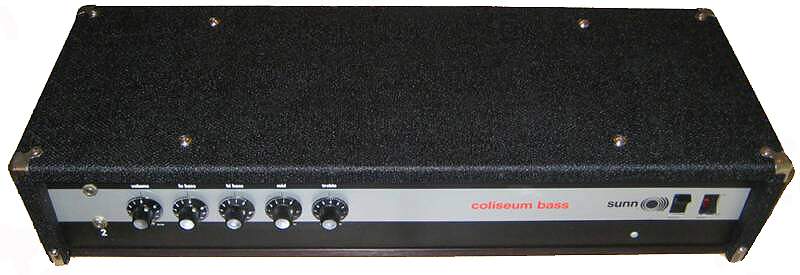

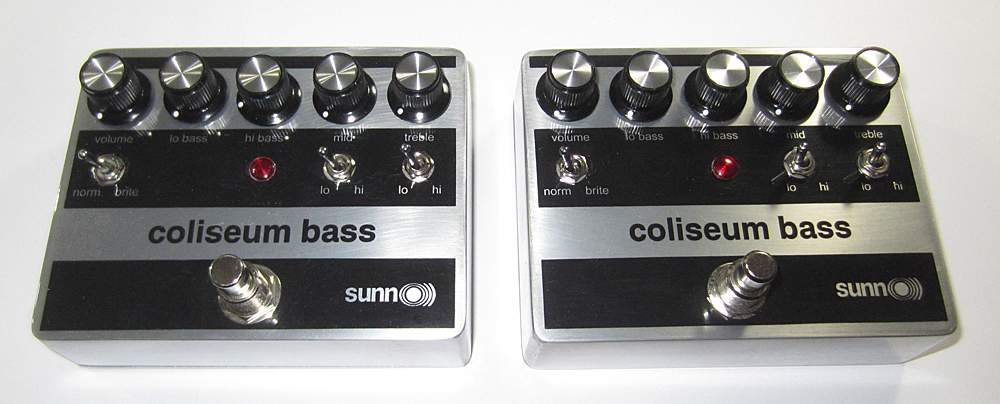

2 Coliseums completed:
