Are you a Tweeter Lover?

[Zooberwerx]

The pad on the Epifanis is on 50% or "normal" so there's some level of attenuation...there is no tweeter boost. The Acmes are at -1. Probably doesn't matter as I use a Broughton HPF/LPF set at 40 hz / 5 khz at the front-end of my signal chain...highly recommended!

Riis



[bumperbass]

I wonder whether I should disconnect the tweeter or take this approach. I don't spend a ton of time down there, but I do tune my 5th string as low as G sometimes, so I'd be setting a lower limit very low (if at all) to try and preserve some of that fundamental.

I know Broughton (https://www.broughtonaudio.com/product-page/low-high-pass-filter) makes one. Haven't really done much searching, because I don't play out much anymore.



[Wisebass]

Hi 999Brent

be interested to see what you all do...

I love my tweety pumped up and down and everywhere in between!

may the bass be with you

Wise(b)ass



[Wisebass]

Hi KBD

Depends on where the crossover splits the frequencies & what type of driver it is.
Horn tweeters are ok, but I have to suffice with them, because I play with some much O/D I'd blow a piezo tweeter in seconds, & I don't mean figuratively.

That' s why I use a cab that has no crossover.

The Speaker gets a fullrange signal and the tweeter is protected with a HPF.

When I use overdriven sounds, I turn the tweeter down (virtually off)

The speaker still produces enough high freqs for that.

When I go with all clean sounds I can put a little bit of extra cream on the cake.

Can be cool in places that swallow too much "presence" (I can hear myself better on stage that way)


greetings

Wise



[Killed_by_Death]

That' s why I use a cab that has no crossover.

The Speaker gets a fullrange signal and the tweeter is protected with a HPF.

That's the way it was on my MarkBass cabinet, but the pros told me it's still called a crossover.
Filter seems more appropriate to me, as well.



[Passinwind]

That's the way it was on my MarkBass cabinet, but the pros told me it's still called a crossover.
Filter seems more appropriate to me, as well.

The inductance of the woofer itself makes for a first order low pass filter, so in the system view there is arguably a full crossover in cabs like that. When you design an external solution you have to factor that initial filtering in, which gets complicated pretty fast.



[Wisebass]

Hi KBD

but the pros told me it's still called a crossover.

Well when the pros say so…

Filter seems more appropriate to me, as well.

I knew that!

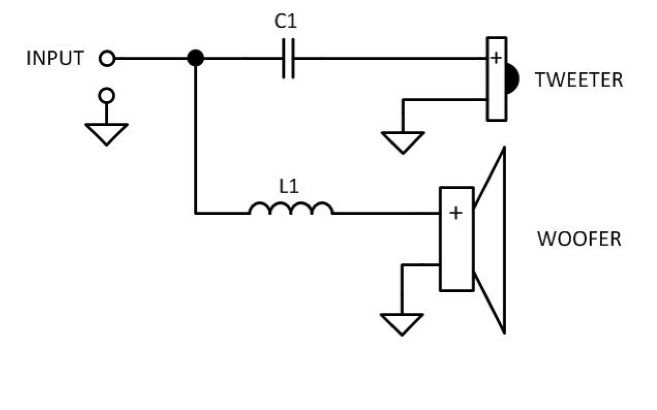

Crossovers can work this way:

...or this way…

Invalid Link Removed

In both cases the loudspeaker (woofer) produces only low content and the tweeter only high content.

That' s what I call a "real" crossover.

But that is that is my "hairsplitting" me. (the one who plays stainless steel rounds )

When you seperate woofer and tweeter (into 2 cabs),

you will have one cab with a HPF and one cab with a LPF.

And of course the pros will still call it a crossover.

greetings

Wise(b)ass
