Azola EUBs Megathread

Discussion in 'Electric Upright Basses (EUB's) [DB]' started by basss, Dec 3, 2004.


  1. 59jazz

    59jazz Infinite Rider on the Big Dogma Supporting Member

    I'm intrigued by the bridge.....nothing like the non-plate Bug I have. Are those threaded inserts where the strings rest? And is there much difference in sound between your bass and the Bugs without the bridge plate? Beautiful instrument you have there!

  2. 59jazz

    59jazz Infinite Rider on the Big Dogma Supporting Member

    Anyone know where I could find one similar to this? Aside from the one in the New Jersey Craigslist.

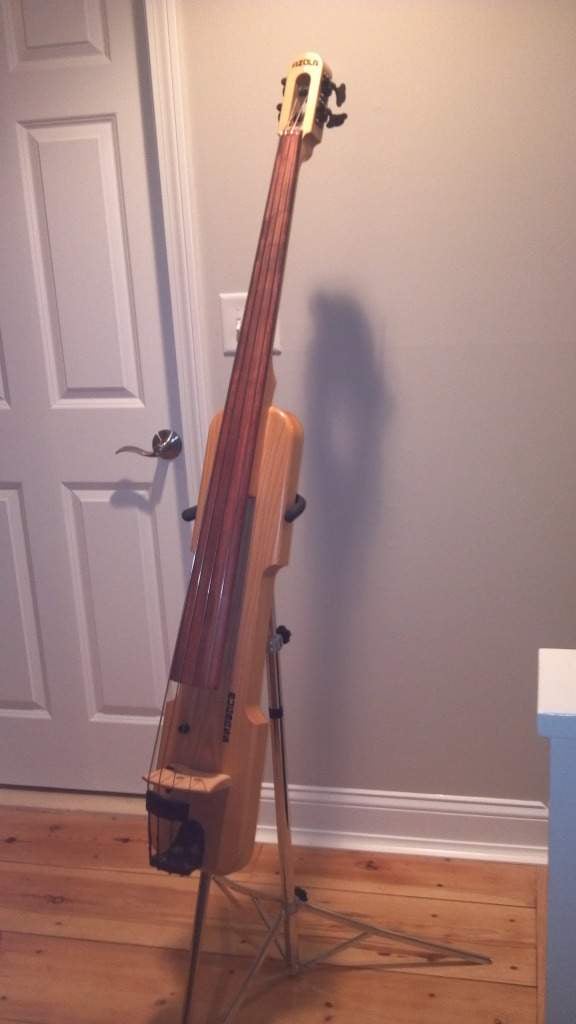

    AzolaBugBass02.

  3. Court Crawford

    Court Crawford

    Mar 3, 2015

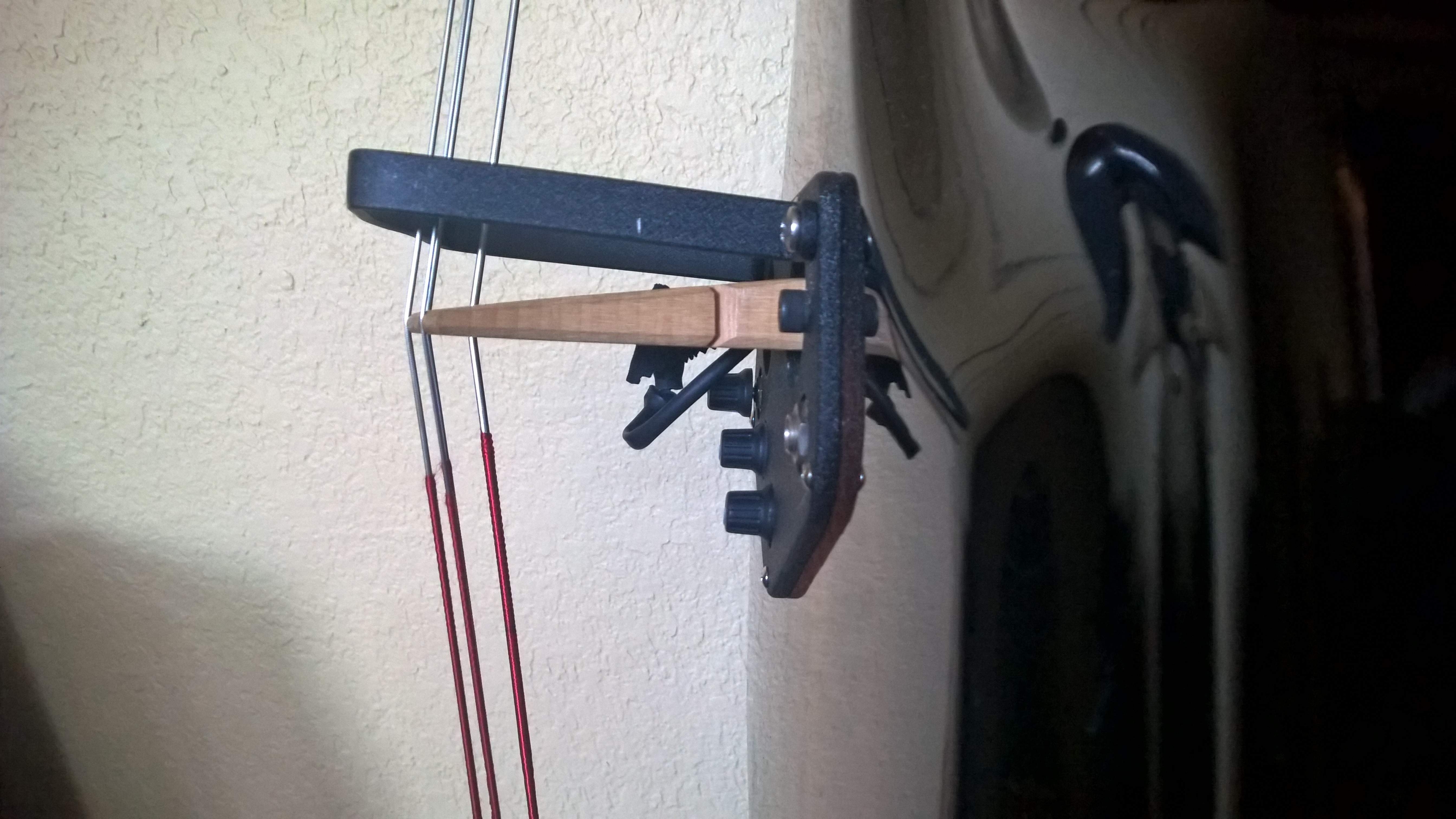

    WP_20151004_11_43_35_Pro. WP_20151004_11_43_55_Rich.
    Here is the current configuration. Note the small gap between the bridge foot and the diaphragm on the fingerboard side of the bridge. That used to bug me, because it suggested the full signal was not getting picked up by the passive pickups, but since I've relaxed about it, and played with a lighter touch, it hasn't happened again. It's good to get confirmation that this is not "normal". Where is a good source of bridge blanks for this bass? My upright Luther has no idea where to get a blank this size.

  4. This doesn't look like an original BugBass bridge, and indeed, the feet don't fully touch the diaphragms.
    Steve had its own design.
    You can get a blank wooden bridge that has similar size from Ray Ramirez:
    Accesories | Ray Ramírez Basses

    However:
    I've found out, in years experiments with EUBs, that small bridges like that are not the best with a wing pickup like the one used by the BugBass, which is a K&K BassMax. (I actually bought a bridge from Ray a few years ago)
    I got much better results with a regular 3/4 size bass bridge with the legs cut out.

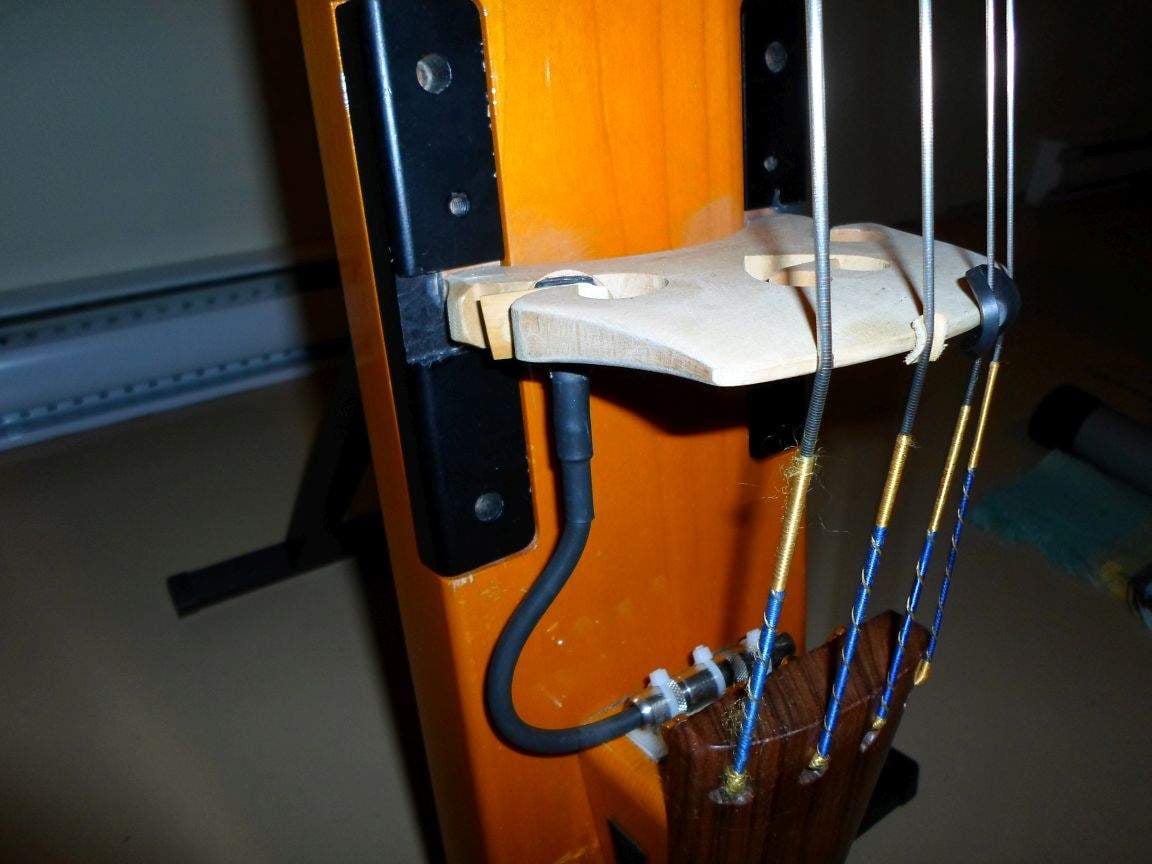

    EUB_004.

    Last edited: Oct 6, 2015
    Court Crawford likes this.
  5. Court Crawford

    Court Crawford

    Mar 3, 2015
    Francios, thanks again for the sound advice. I really appreciate it. I just got the bass back from a local luthier. She planed the neck to get rid of a bump, correcting the camber, and thereby also raising the nut about a millimeter to decrease the buzz. The most interesting thing was simply addressing the feet on the bridge. In the original photo those dimples of epoxy were actually suspending the bridge feet "on point". Our theory is that this is why the bridge was falling over while performing. Since getting the bass back today the tone is much more to my liking: the originally recorded flanging sound is no longer present, and so I was able to lower the action to get the tone I'm looking for, and I have high hopes the bridge won't wander in my next performance. The difference in tone simply due to removing that epoxy and planing the bridge feet so they are firmly seated on the passive diaphragms is tremendous.As an added bonus, the bass is louder too. What a difference a bridge makes! Also, for what it's worth, this is not a bug bass. It is one of the Ampeg branded Azolas. Serial #ABB70180.

  6. Les Fret

    Les Fret

    Sep 9, 2009
    What pickup system did they put in the Azola basses? I have heard a clip a '98 Azola lightning bug bass and that sounded really good. Did they use the same pickup for all Azola uprights? I can't find any info on internet anymore. I am too lazy to read all 26 pages of the topic.

  7. I bought a basic BugBass in 1997 and it had a K&K Bass Max.

  8. brianrost

    brianrost Gold Supporting Member

    Apr 26, 2000
    Boston, Taxachusetts
    My MiniBass has the K&K as does a vintage 1/4 Kay I had bought from Steve.

  9. Les Fret

    Les Fret

    Sep 9, 2009
    ok thanks. Never tried that one. Is it good?

  10. Yes, it's nice and not expensive.
    I use one on my DB.
    However, it didn't work that much good on the BugBass.
    That's why Steve added a second one on the bridge in later versions.
    With the small Azola bridges, a single BassMax was giving more bass and the top strings were weaker and sounded like they were far from the PU.

  11. I think the problem of weak high strings comes from the non-moving bridge feet and the pickup at the bass side only.
    I have a acoustic bass that needed two element pickups until the soundpost that was very close to the bridge foot was repositioned more away from the foot. After that the single element pickups on the bass side only worked.
    On my Clevinger solid body EUB I use a homemade two-element bridge foot pickup that works well (only a bit quiet) and a bass side bridge leg pickup (BassBalsereit) that doesn't represent the higher strings well.

    dylanjohnson likes this.
  12. Les Fret

    Les Fret

    Sep 9, 2009
    This is the clip I am talking about. Is that a K&K Bass max? You can see it in the beginning and around 2:00. And is that a lightning bug Azola? Great sound.


  13. I don't know what's the pickup but I don't think it's a Bass Max.

  14. donk

    donk

    Nov 5, 2006
    Not a bass max, they fit in a slot in the "leg".

  15. Hi all.

    Anyone know where I can buy a aluminum bridge for a Azola Baby bass ? the measures is a little different than a standard ampeg.

    Regards Jesper (Denmark)

  16. Les Fret

    Les Fret

    Sep 9, 2009
    ok, would be good to know. I really like the sound of that electric upright from John Thorne. Not sure if it is the bass or if it's the pickup? but it's sounds really good and more like a real double bass. Better than most electric uprights I have heard. That's what got me interested. So any ideas?

  17. They're testing a reverb unit from TC Electronic in that videoclip.
    It's not the flat output from the bass.
    Sounds somewhat like Eberhard Weber to me.

  18. Les Fret

    Les Fret

    Sep 9, 2009
    Yes I know but I can listen past that. The sound itself is very good regardless the reverb. I wonder whether it is the bass that sounds that good or the pickup?

  19. speyer

    speyer Supporting Member

    Oct 14, 2006
    Bowen Island, CANADA

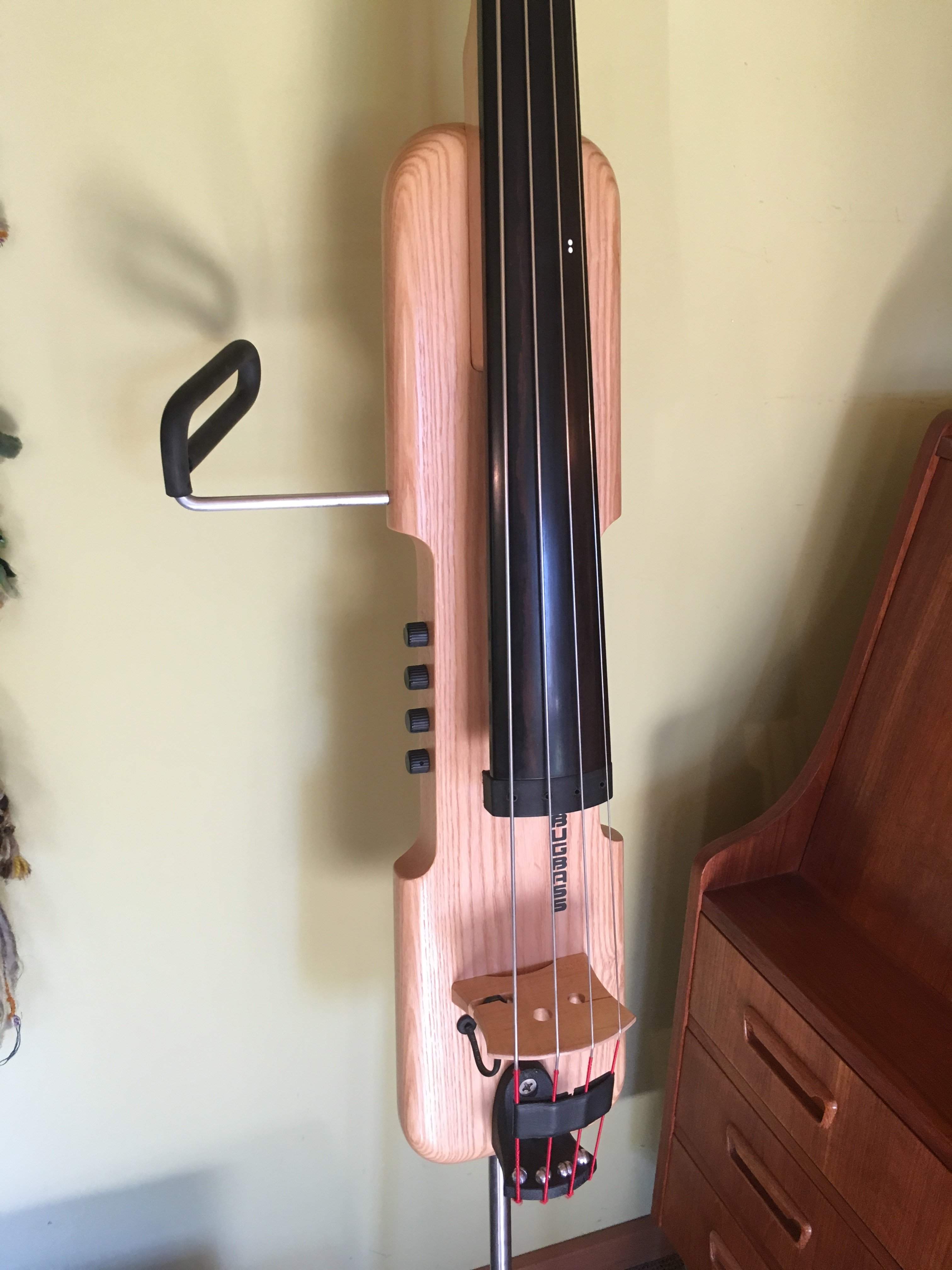

    image. Im finally a proud Azola owner! BugBass with some nice upgrades... What a solid bass! Played it last night at Rehersal and absolutely loved it. Very upright like in feel and great sound overall. :thumbsup:

    armybass and 59jazz like this.
  20. 59jazz

    59jazz Infinite Rider on the Big Dogma Supporting Member

    Pat, I'm glad you like the Bug. It has been used on various Latin Jazz gigs and has been used a time or two backing up Ariel Pocock. Not by me but by a gent I have worked with.
