basses for newbies (SX batch build thread)

Status
Not open for further replies.
Get your copper foil from Ebay then like I did. The seller was from Hong Kong I believe and it shipped to me direct. You get 10x more foil for the same money and shipping was included in the auction . . something like this:

http://cgi.ebay.com/60mm-X-30M-COPP...Accessories&hash=item3ef72e9464#ht_1433wt_656

WAYYY more than you need for 1 guitar, but the cost may be the same if you figure in shipping. . . Stew Mac stuff is a bit thicker though, but the conductive adhesive does not stick as well. .. (although it does conduct). I solder everything together anyways, so I don't care if the adhesive is conductive or not.

As an eBay Associate, TalkBass may earn a commission from qualifying purchases.
Get your copper foil from Ebay then like I did. The seller was from Hong Kong I believe and it shipped to me direct. You get 10x more foil for the same money and shipping was included in the auction . . something like this:

http://cgi.ebay.com/60mm-X-30M-COPP...Accessories&hash=item3ef72e9464#ht_1433wt_656

WAYYY more than you need for 1 guitar, but the cost may be the same if you figure in shipping. . . Stew Mac stuff is a bit thicker though, but the conductive adhesive does not stick as well. .. (although it does conduct). I solder everything together anyways, so I don't care if the adhesive is conductive or not.

I just checked the link... and i guess im going to buy it on stewmac because :eek:

Shipping & Handling

It will be mailed out as an international air parcel/letter with or without registration within 3 business days. The shipping time depends on the efficiency of your local post office. The following is the shipping time reference for some countries.

USA/Canada 10 days
Western Europe (excluding France, Spain and Italy) 6 days
France, Spain 10 days
Italy 21 days
South America 28 days :eek::eek::eek::eek:

With Stewmac people (i talked to their customer service, really kind people) it takes 7 days, the cheapest one.. i think it was 8.95$, and there's one a little more expensive but ships in 3 days.. i think (if my mind don't trick me right now) 22.45$

Thanks Chung! keep it up.. i check this thread every day haha.. looking forward for the pics with Babicz bridges installed (lucky you :spit:) haha :p

As an eBay Associate, TalkBass may earn a commission from qualifying purchases.
I've been getting my electronics from the guys at Invalid Link Removed I don't know if they ship internationally, but the shipping response time to California is insanely fast. I think all of my orders have arrived within 2 days. I get my pots,caps, and jacks from them.

In other news. . . I obtained my California Board of Equalization re-seller's permit today. . . so I can finalize my KMC music dealer account. . . so I can get some babicz bridges that are on back-order 'til June they say. The folks at Babicz indicate a large shipment going out soon, so I'm hoping for better, but that's what's going to be stalling the builds. No worries, I can finish up all other aspects of a few more basses and when the bridges come in, it'll be like Christmas for everyone. I can always go to the Gotoh 201's which seem to be working extremely well in #3. I did have to steal the stock SX saddles though due to height limitations.

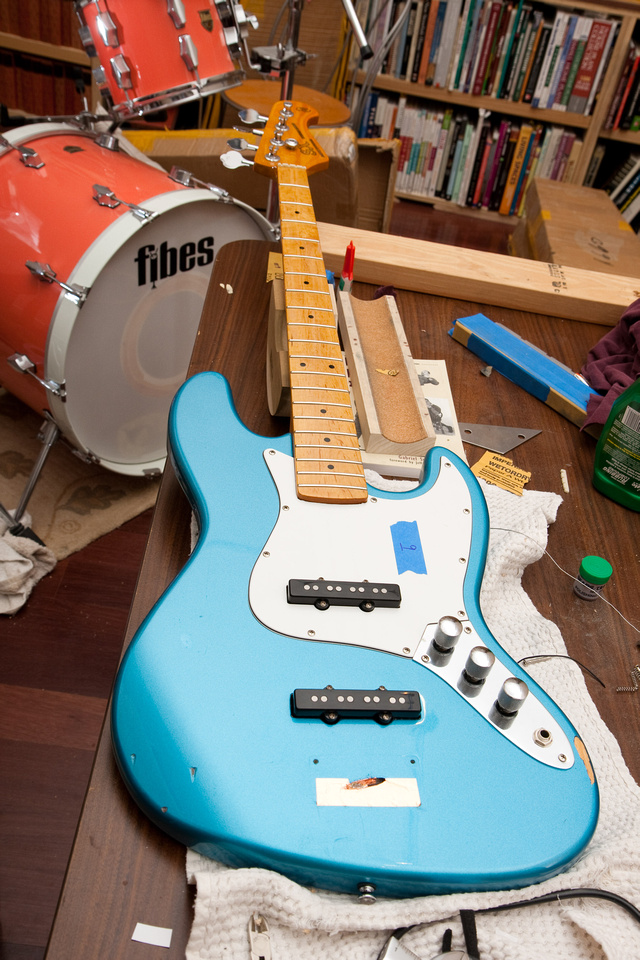

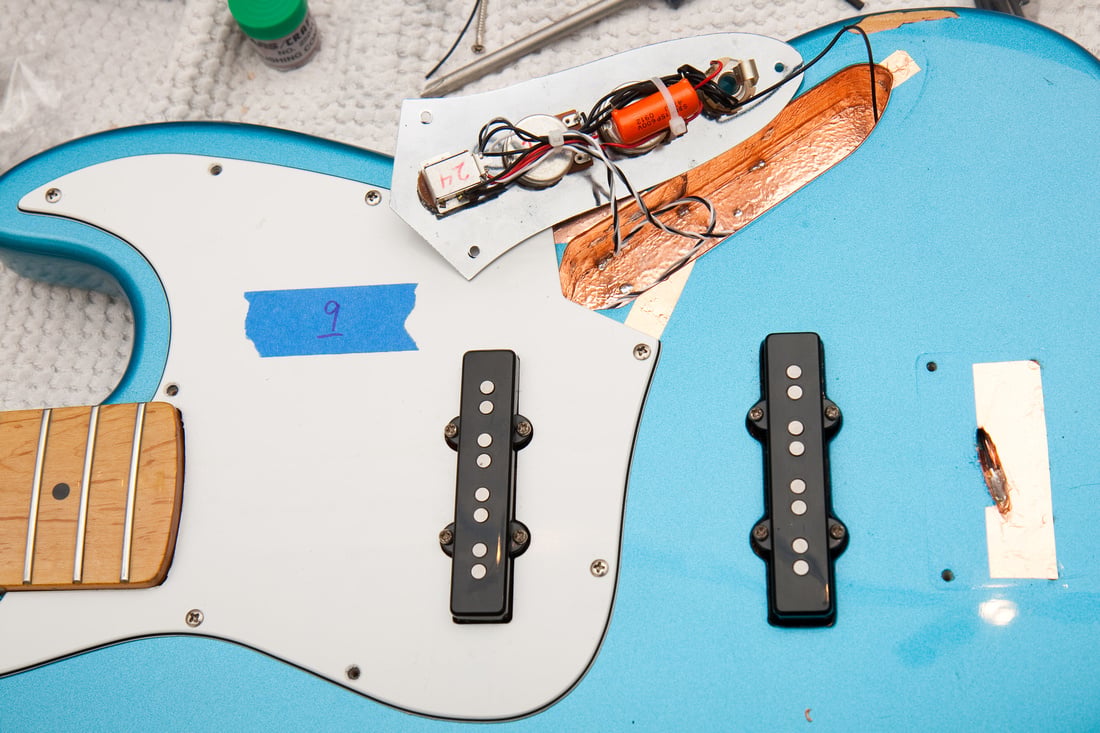

A little progress on #9 today. . . NJ4SE's are in and we're all wired up.





So, now, I'm just waiting for the Babicz FCH bridge. No word from KMC Music today so this may be a while.


A little progress on #9 today. . . NJ4SE's are in and we're all wired up.





So, now, I'm just waiting for the Babicz FCH bridge. No word from KMC Music today so this may be a while.

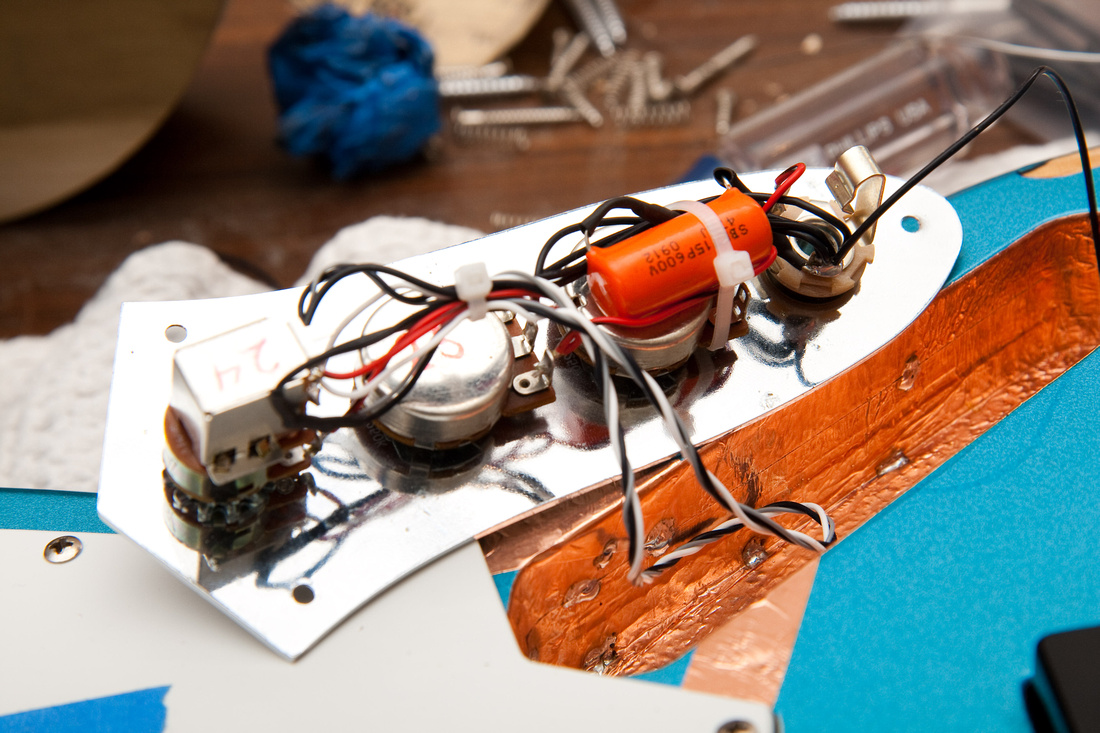

I'm excited to see the Babicz in action. Say, I notice the metallic leads coming out of the capacitor are covered with what looks like either electrical tape or insulation. Is this helpful?

Have been meaning to ask; why a 600 Volt orange drop cap; just convenient or do you hear a difference over the usual 400 Volt that a lot of guys use?

No reason in particular. . . they were marginally cheaper so I bought them, and I liked the way they sounded . . . a lot, so I figured I would just stick with what works.

Oh, about the shrink wrap around the cap leads, I don't think it makes a difference unless for some reason, it made contact with copper foil or another exposed wire. I just insulated it to be double sure.

My account with KMC music has been finalized and I have put in an order for 3 Babicz bridges. We'll see how they work out as soon as they get back in stock.

Sup' Chung! looking forward to the pics with Babicz bridge :smug: cause i'm debating between the Gotoh 201, Badass II with Grooved Saddles or Babicz FCH, so.. your review will mean A LOT to me :smug:

I recently saw a video on YT, that shows the Gotoh 201 vs. Badass II (both sounded EXACTLY the same to me, and i like Gotoh 201's look, the Badass looks kinda weird, and the 50$ difference made me like even more the Gotoh haha)

Oh i forgot! i made my Order on Stewmac YAY!

I ordered the 3 widths Copper Tape set (2", 3/4", 1/4"), 2 Switchcraft Mono Jacks and 1 Roller String Retainer...

29,20$ + 17,45$ (Shipping)! and they should be in my Venezuelan Home next saturday :hyper:

Keep it up Chung! Regards from Venezuela :D

Great Question! I've been wondering this exact thing lately, way to beat me to the punch. lol

Chunger: Keep up the great work! I honestly like watching these refurbs and low-end hotrod jobs more than than most custom builds. It's awesome to see what you can do with some el cheapo basses, time, and patience.

Kudos

I have a harder time rationalizing the need to for inserts on the bridge. . . the reason being there are 5-7 deep screws holding that thing on and the strings press the bridge down into the body as well. The forces acting against the bridge screws are really close to the screw locations. . . ~1/2" away.

The neck, however is at near center point of the instrument and the forces the joint has to contend with are primarily all the way over at the nut. There's a huge amount of leverage acting against those 4 screws.

But, I'm not a physicist or an engineer, so I'm just talking out of my butt.

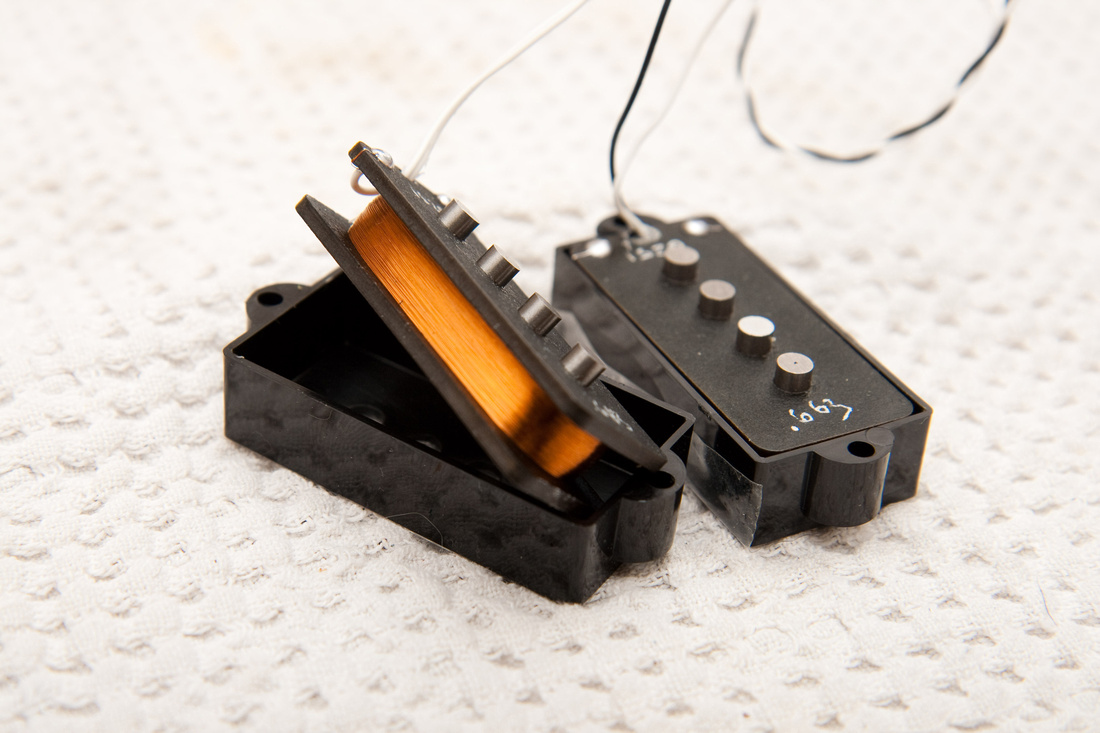

Santa, the guy in the brown truck came again today with a shipment from Nordstrand. . . I got part of my order and to my surprise, my custom pickup was finished and some stock NJ4SE's I guess were, well, not in stock.



OK, some explaining. . . I've been really happy with the stock NP4 pickup. #7 in my opinion really proves how great those things sound and I'm perfectly happy to run those all day. By design, they are a bit hollow-grindy and have some really good cutting midrange snap and high end articulation. I've been listening to some p-bass recordings and this really nails the tone.

I personally, however have always thought that the p-bass pickup should be a bit meatier and give me a bit fuller bottom. . . In testing, I am learning that you can't escape the laws of physics. Nordstrand custom wound a pickup 10% over for me which did bulk up the low end and gave some more forceful low mids, but I thought it sapped too much of the articulation and life out of the bass. . . although I've been playing that pickup for a while now in #4.

For this test, I spoke with Mike over at Norstrand just to make sure I'm not crazy. After all, they sell a lot of NP4's to super happy customers and I don't want to make light of the R&D efforts that went into making that combination. I felt that the low E string was dying a bit on my P's and this should not be the case because I feel the sound is in the wood. The pickup is just voiced with it's resonant frequencies a bit higher. After talking the Mike, we decided to try the stock NP4 winding, but with slightly longer magnets to see if we could get the rounder bottom end I want, but retain the clarity and signature p-bass sound.

This is why I love working with Nordstrand. . . they didn't dismiss my concerns but were eager to work with me to find an optimal configuration. They even suggested changing the magnets on just the E string to more directly address the problem, but I asked for the same poles all across the pickup. Mike said that every player is different. . . and from fingers to strings to wood to pickup to electronics creates a very complex and dynamic system and I should not dismiss what I think my ears are telling me.

My initial impression is that this pickup may be a real winner. It really responds well to the round wounds and gives a good weighty "bounce" to slap playing on the p-bass. I'm anxious to get it into the studio to make test samples. Jasaman's coming over tomorrow to drop off a student bass for work, so I want to bounce it off him and see what he thinks. . . is the difference signficant enough to justify the added cost and lead times to use this custom configuration as my standard P-bass pickup? Or should I just be happy with the stock NP4?
