Battery powering a Phil Jones Double Four

[RodRy]

specs say:
Item Dimensions 8.10 x 5.30 x 1.30 inches
so probably not.

Thanks for the info!
I feel like I need to make a call to PJB and see if they have a dimensional recommendation for these battery packs.



[lug]

Thanks for the info!
I feel like I need to make a call to PJB and see if they have a dimensional recommendation for these battery packs.

My alternate plan (which I will probably never get around to) is to put spacers to make the feet a bit longer and velco the battery to the bottom of the D4.



[redstrand]

Thanks for the info!
I feel like I need to make a call to PJB and see if they have a dimensional recommendation for these battery packs.

Specs are on amazon



[RodRy]

Specs are on amazon

Specs of the battery, yes. Did you see any of the handle mounting? That's really my question.



[redstrand]

Specs of the battery, yes. Did you see any of the handle mounting? That's really my question.

Misunderstood, I'm just getting the one the fits under it as it is



[RodRy]

Misunderstood, I'm just getting the one the fits under it as it is

Which one are you getting?



[redstrand]

The Powerade pilot pro 2, it doesn’t cut off like the higher capacity ones seemingly do. I don’t need it for super long periods, should be stellar



[Bass-Drum]

Just thought I'd report on the battery I'm using to power my double four.

I have a Dewalt cordless drill that uses the Dewalt 20v Max batteries.
I found an adapter that plugs into the battery and soldered a power plug onto the wires. I can now use my drill batteries to power the PJD4 for hours. Went about 2.5 hours at a rehearsal the other night and it still lit up all 3 LEDs indicating full power.

https://www.ebay.com/itm/1x-battery-adapter-for-DeWALT-20v-Max-18v-dock-power-connector-12-gauge-robotics/142979592702

View attachment 3472414

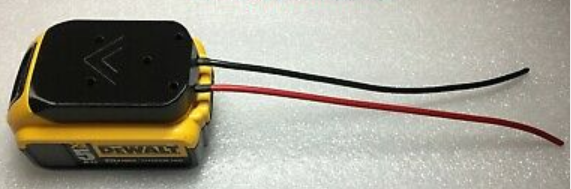

It's the black piece on top with bare wires. I believe the power plug is a 5.5x2.5 barrel.

I have several batteries for my drill, so I could go all day.

Just thought I'd report on the battery I'm using to power my double four.

I have a Dewalt cordless drill that uses the Dewalt 20v Max batteries.
I found an adapter that plugs into the battery and soldered a power plug onto the wires. I can now use my drill batteries to power the PJD4 for hours. Went about 2.5 hours at a rehearsal the other night and it still lit up all 3 LEDs indicating full power.

https://www.ebay.com/itm/1x-battery-adapter-for-DeWALT-20v-Max-18v-dock-power-connector-12-gauge-robotics/142979592702

View attachment 3472414

It's the black piece on top with bare wires. I believe the power plug is a 5.5x2.5 barrel.

I have several batteries for my drill, so I could go all day

Just thought I'd report on the battery I'm using to power my double four.

I have a Dewalt cordless drill that uses the Dewalt 20v Max batteries.
I found an adapter that plugs into the battery and soldered a power plug onto the wires. I can now use my drill batteries to power the PJD4 for hours. Went about 2.5 hours at a rehearsal the other night and it still lit up all 3 LEDs indicating full power.

https://www.ebay.com/itm/1x-battery-adapter-for-DeWALT-20v-Max-18v-dock-power-connector-12-gauge-robotics/142979592702

View attachment 3472414

It's the black piece on top with bare wires. I believe the power plug is a 5.5x2.5 barrel.

I have several batteries for my drill, so I could go all day.

I've been searching high and low for this!! Thank you for your post. I thought, I have so many 20v lithium ion batteries in my tool box. I knew there had to be an adapter. Is there a specific plug I should consider buying to solder onto the adapter?



[Bass-Drum]

I've been searching high and low for this!! Thank you for your post. I thought, I have so many 20v lithium ion batteries in my tool box. I knew there had to be an adapter. Is there a specific plug I should consider buying to solder onto the adapter?

Disregard my previous post. Found my answer in subsequent posts. Thank you once again for this information.



[MX21]



[redstrand]

Battery is on the way, I’ll use it for I the tithings too. But I’m happy to have a truly potable unit



[redstrand]

Yep. Works quite nice.



[RodRy]

Battery is on the way, I’ll use it for I the tithings too. But I’m happy to have a truly potable unit

What is "I the tithings"?



[RodRy]

Yep. Works quite nice.

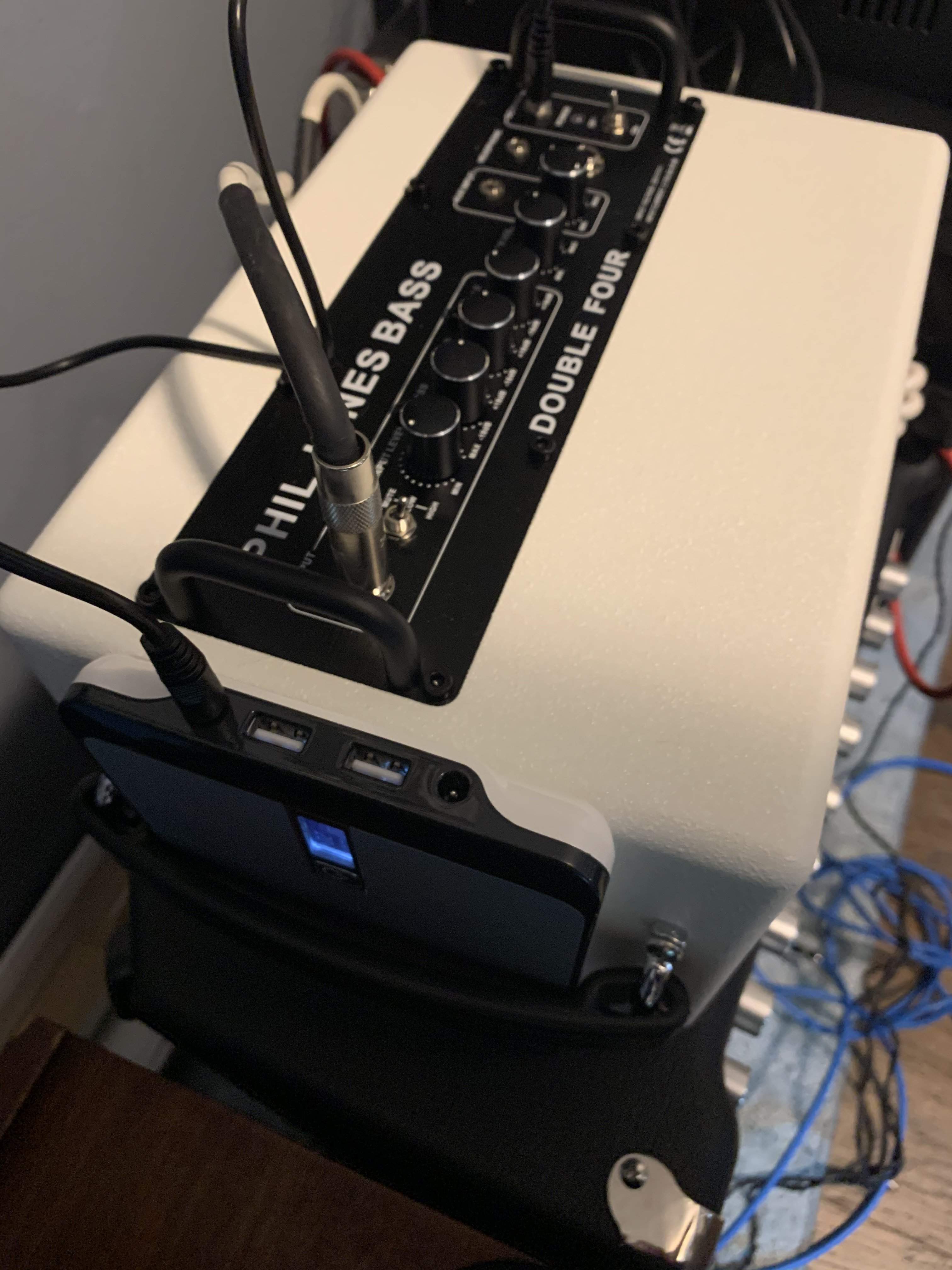

View attachment 3890960

Fits under the handle! That's what I'm looking for!
Thanks for the info, and the photo share. Hope it gives you some good playing time.



[redstrand]

What is "I the tithings"?

I have no idea what Siri was doing lol



[KohanMike]

I'm a total Apple fanboy since 1986, but Siri misunderstanding constantly, the power button on the side of the phone, and the virtual keyboard are a big pain the rear. That keyboard is what's forced people to stop using capital letters and punctuation because of how awkward it is.



[Brian Cook]

OK. I need your help guys (I am Not a techie)
I'm about to buy
Phil Jones Bass BG-75 Double Four 75W Bass Combo, Black
and a battery pack
Poweradd Pilot X7 20000mAh Power Bank Ultra High Capacity Portable Charger with Dual Fast Charging External Battery Pack
Two questions: Is this the pack I need? and Do I need to buy a connecting cable, and if so which one?
May thanks for any help
Brian



[redstrand]

OK. I need your help guys (I am Not a techie)
I'm about to buy
Phil Jones Bass BG-75 Double Four 75W Bass Combo, Black
and a battery pack
Poweradd Pilot X7 20000mAh Power Bank Ultra High Capacity Portable Charger with Dual Fast Charging External Battery Pack
Two questions: Is this the pack I need? and Do I need to buy a connecting cable, and if so which one?
May thanks for any help
Brian

It just needs to be one that can switch to 20v, mine came with the cable and ends, the cable has the end you need



[lug]

OK. I need your help guys (I am Not a techie)
I'm about to buy
Phil Jones Bass BG-75 Double Four 75W Bass Combo, Black
and a battery pack
Poweradd Pilot X7 20000mAh Power Bank Ultra High Capacity Portable Charger with Dual Fast Charging External Battery Pack
Two questions: Is this the pack I need? and Do I need to buy a connecting cable, and if so which one?
May thanks for any help
Brian

No. As far as I can tell, the X7 has no outputs except USB. You need the Pilot Pro or Pilot Pro 2 or any other that has a 20V output at 4.5 amp, minimum.



[redstrand]

No. As far as I can tell, the X7 has no outputs except USB. You need the Pilot Pro or Pilot Pro 2 or any other that has a 20V output at 4.5 amp, minimum.

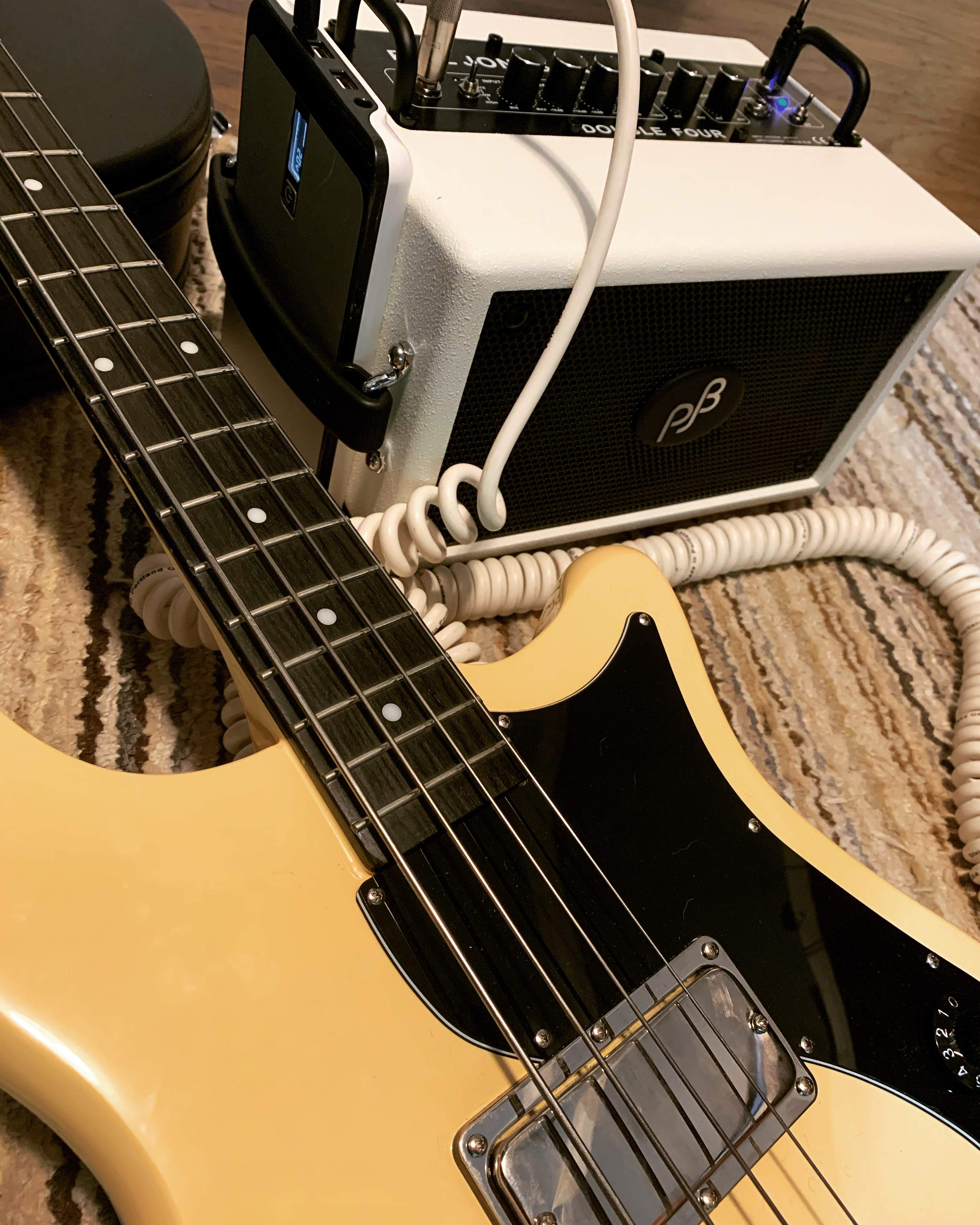

I have the pro 2 that's pictured
