Beardly Customs

[TerribleTim68]

#NeedsMoreNecks

Seriously tho, that thing is looking killer!



[rick0link]

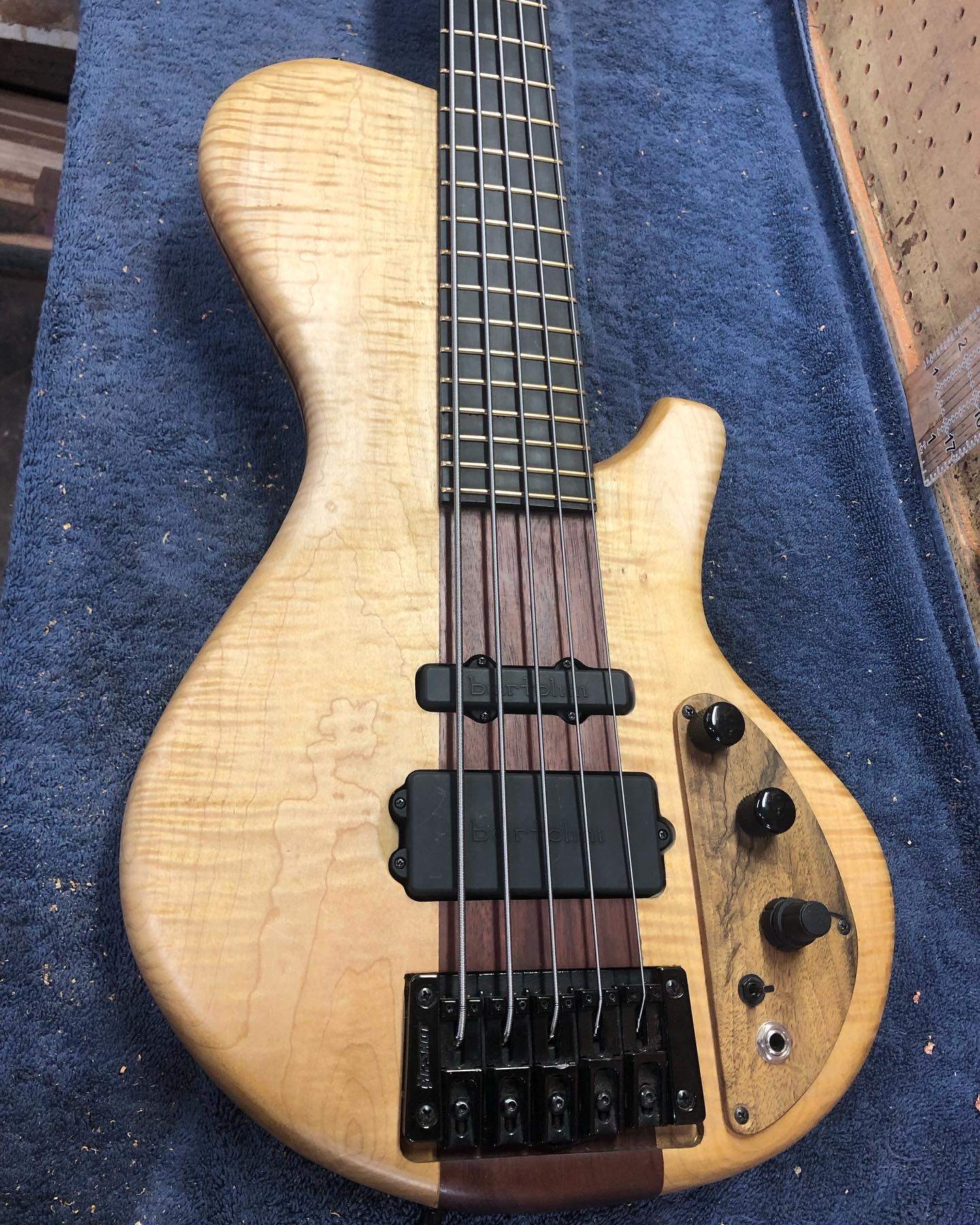

Some before and after shots of an upgrade to Chuckie's Beardly. Added a middle pickup, a 2-band preamp, and went all Bartolini.



[rick0link]

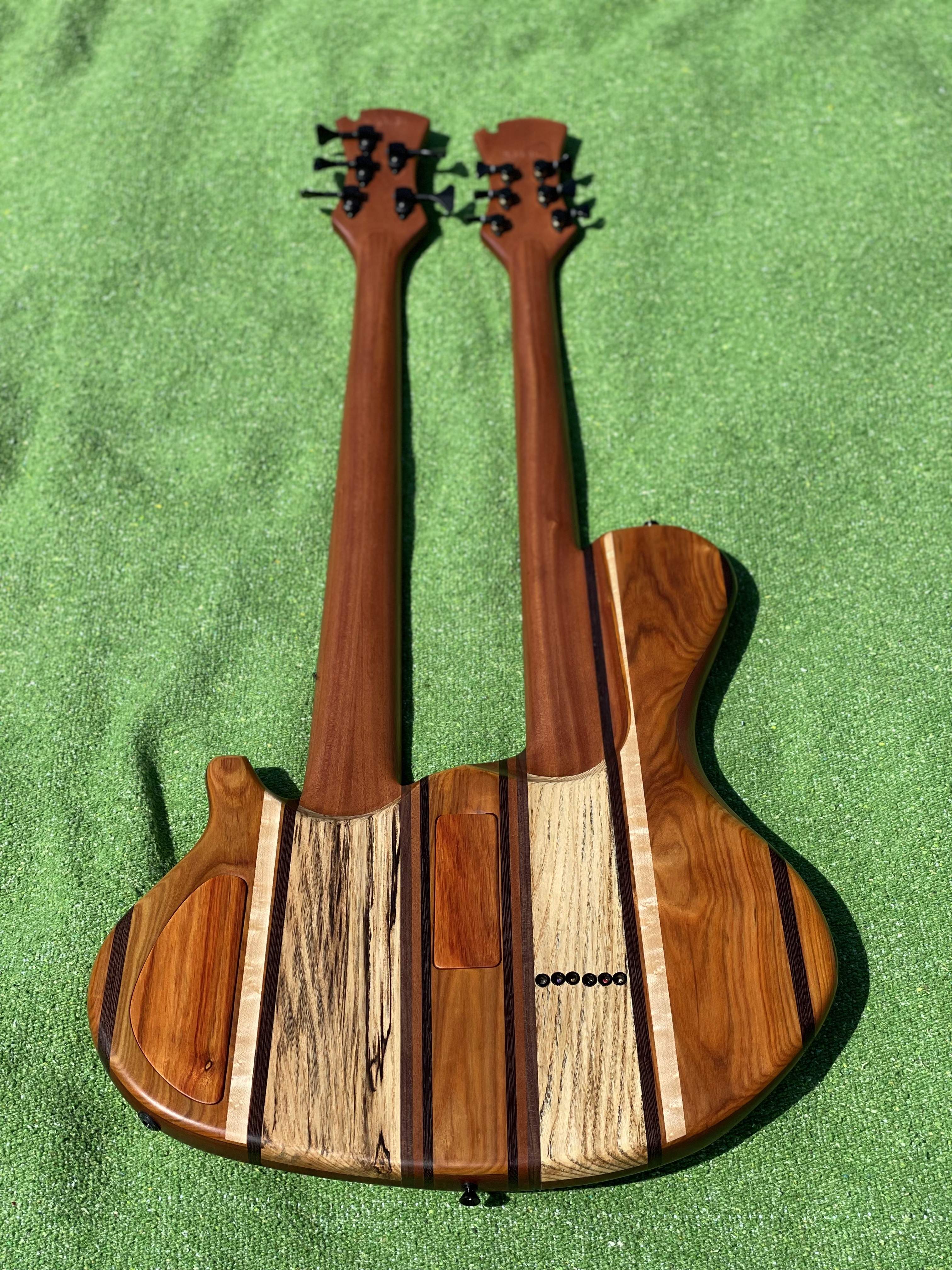

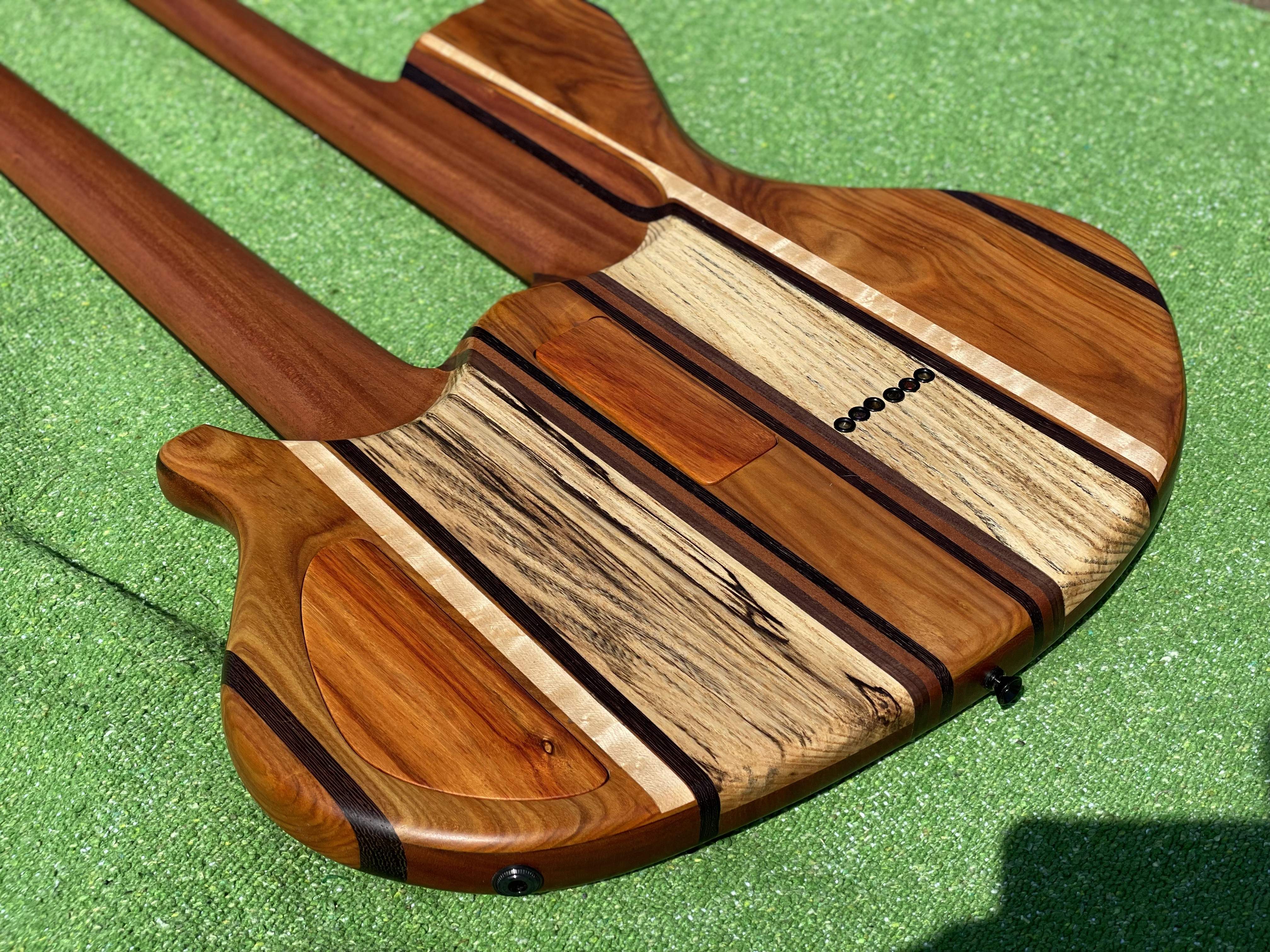

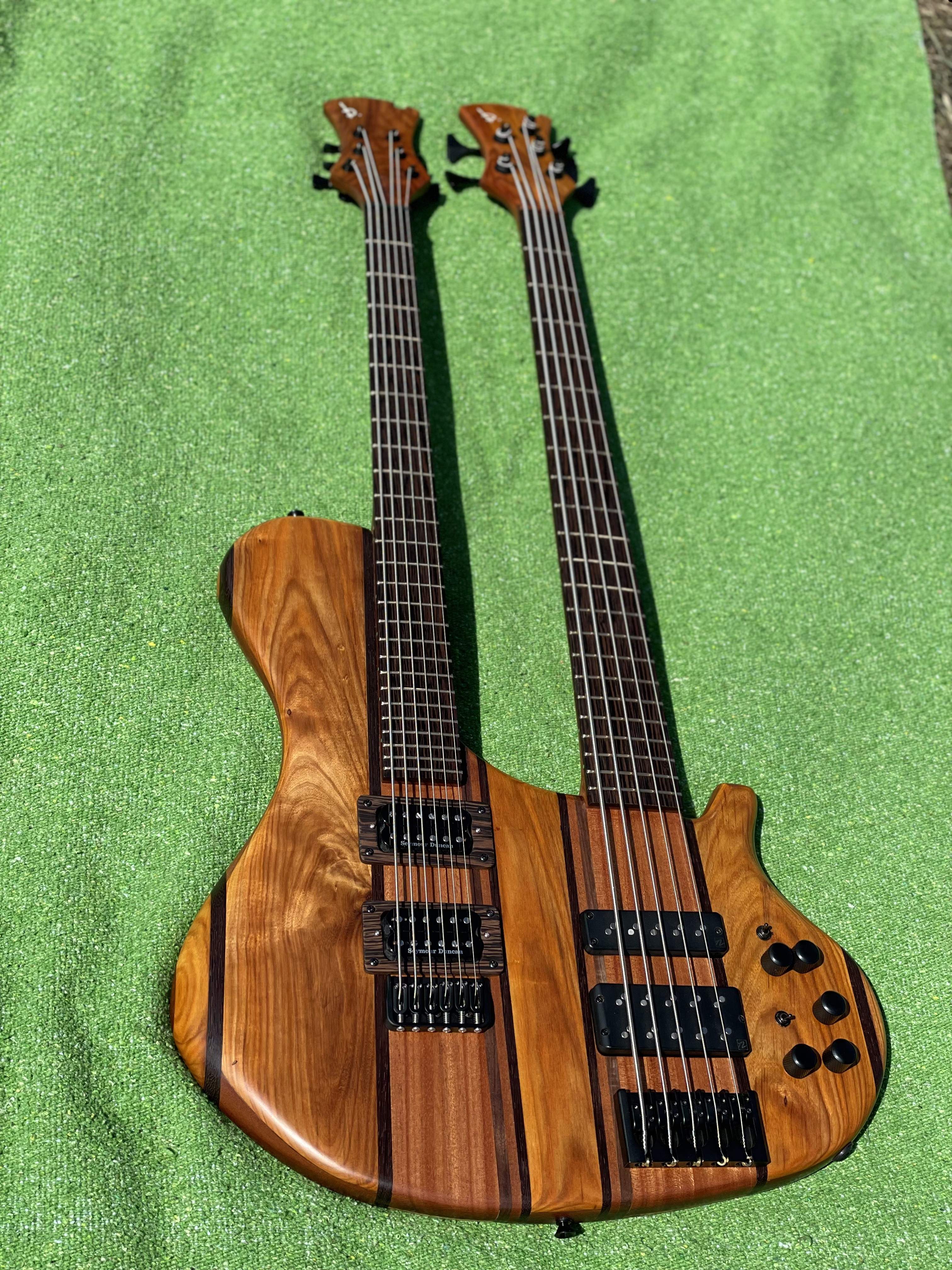

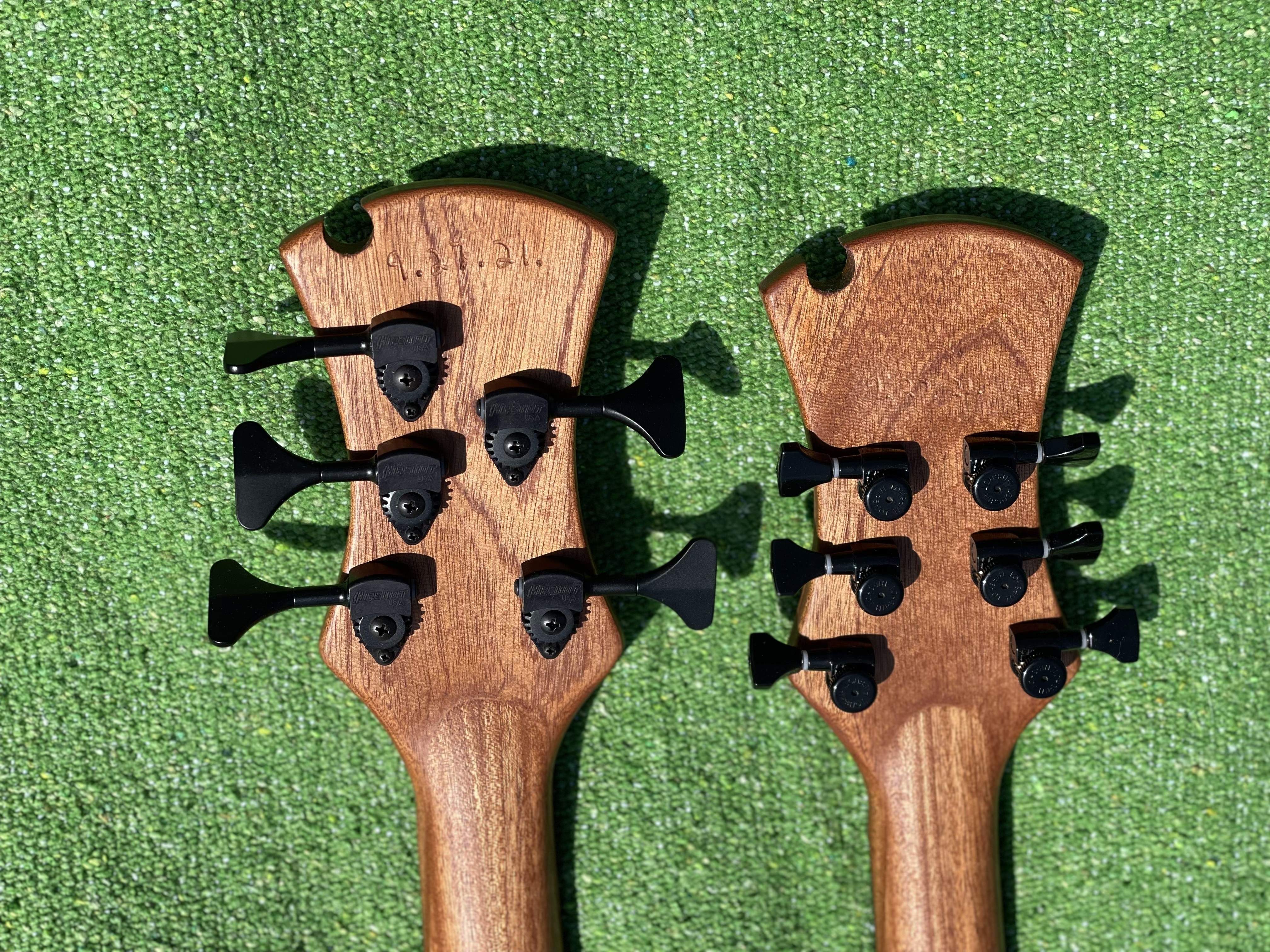

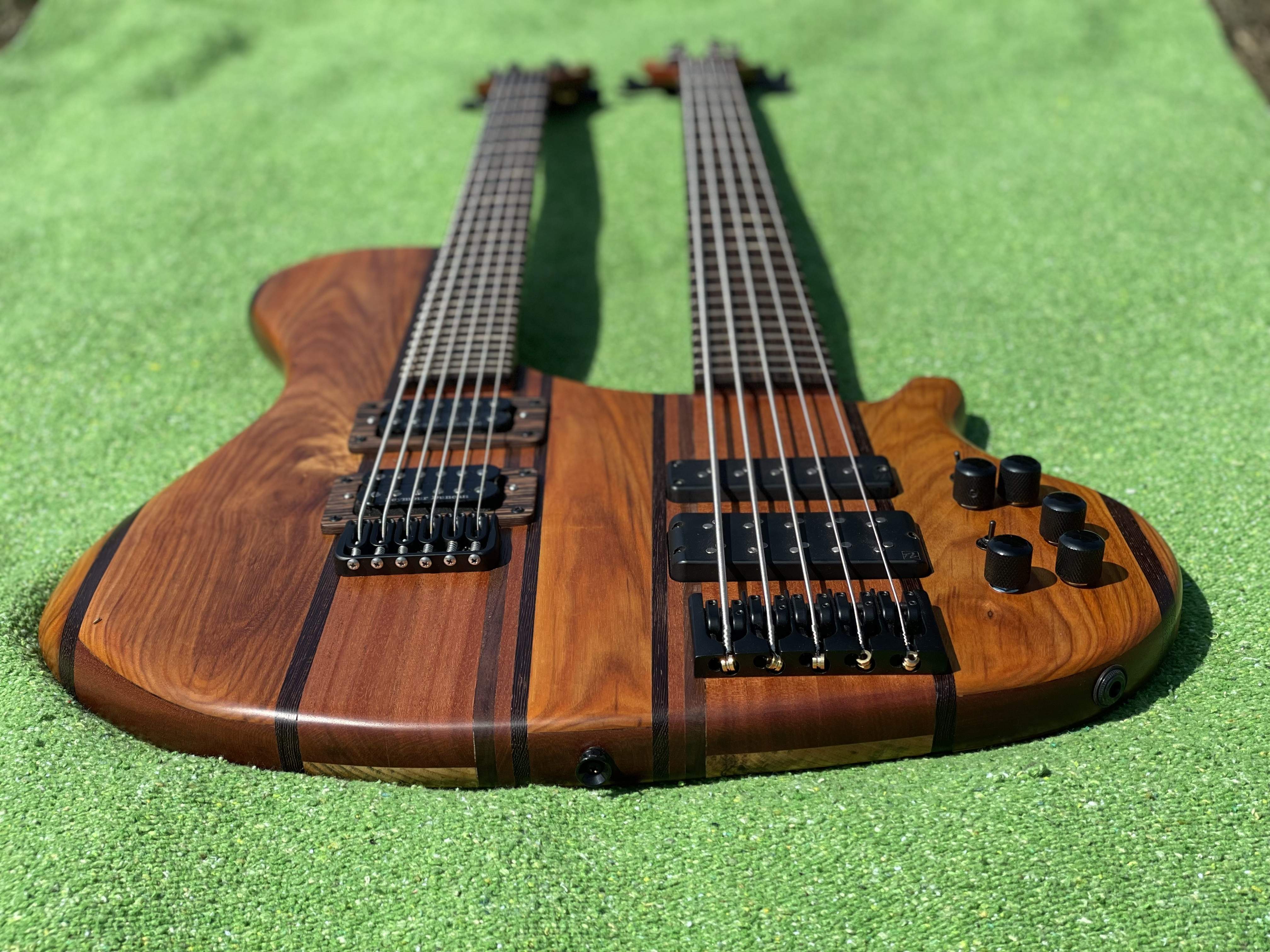

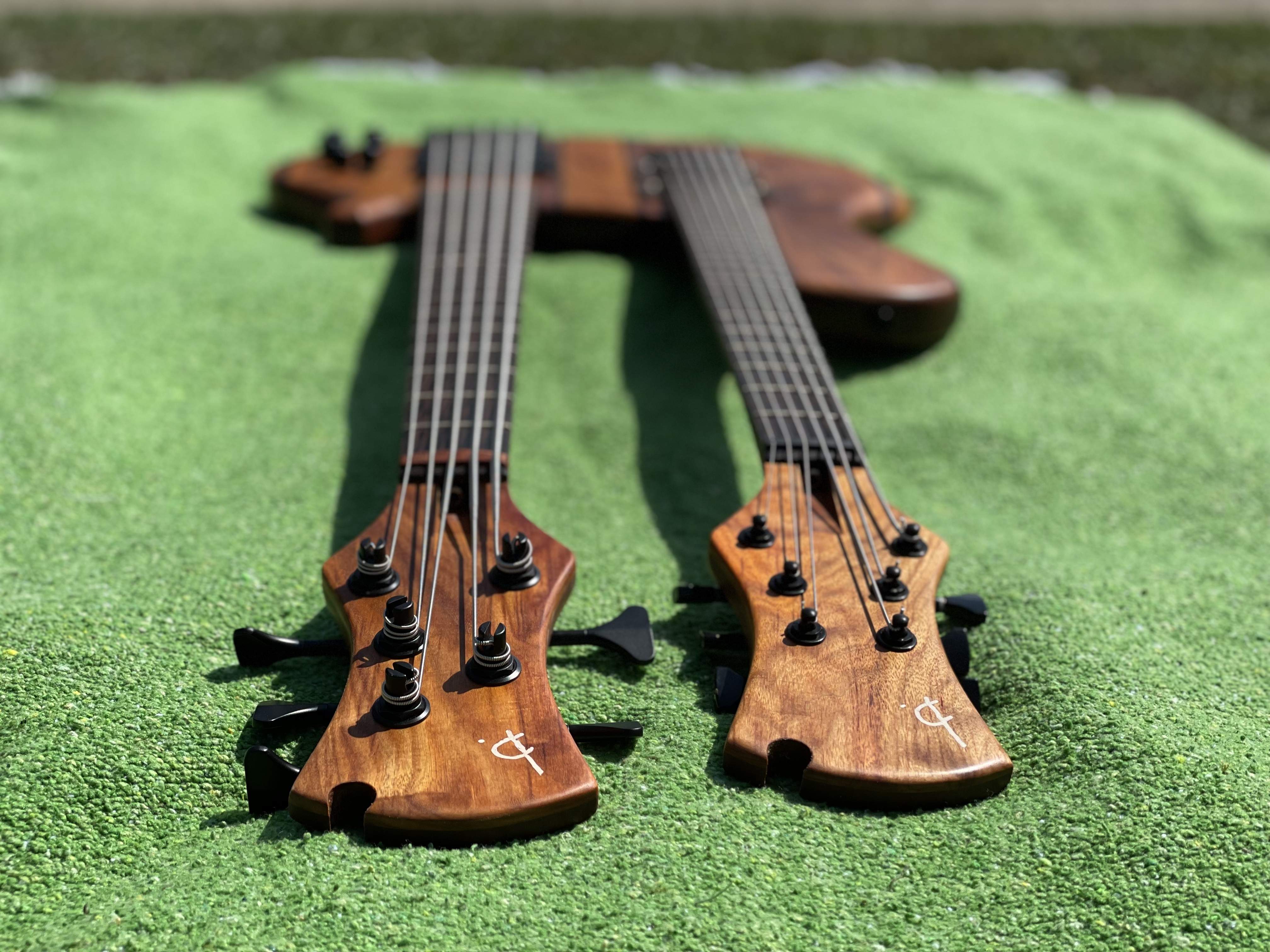

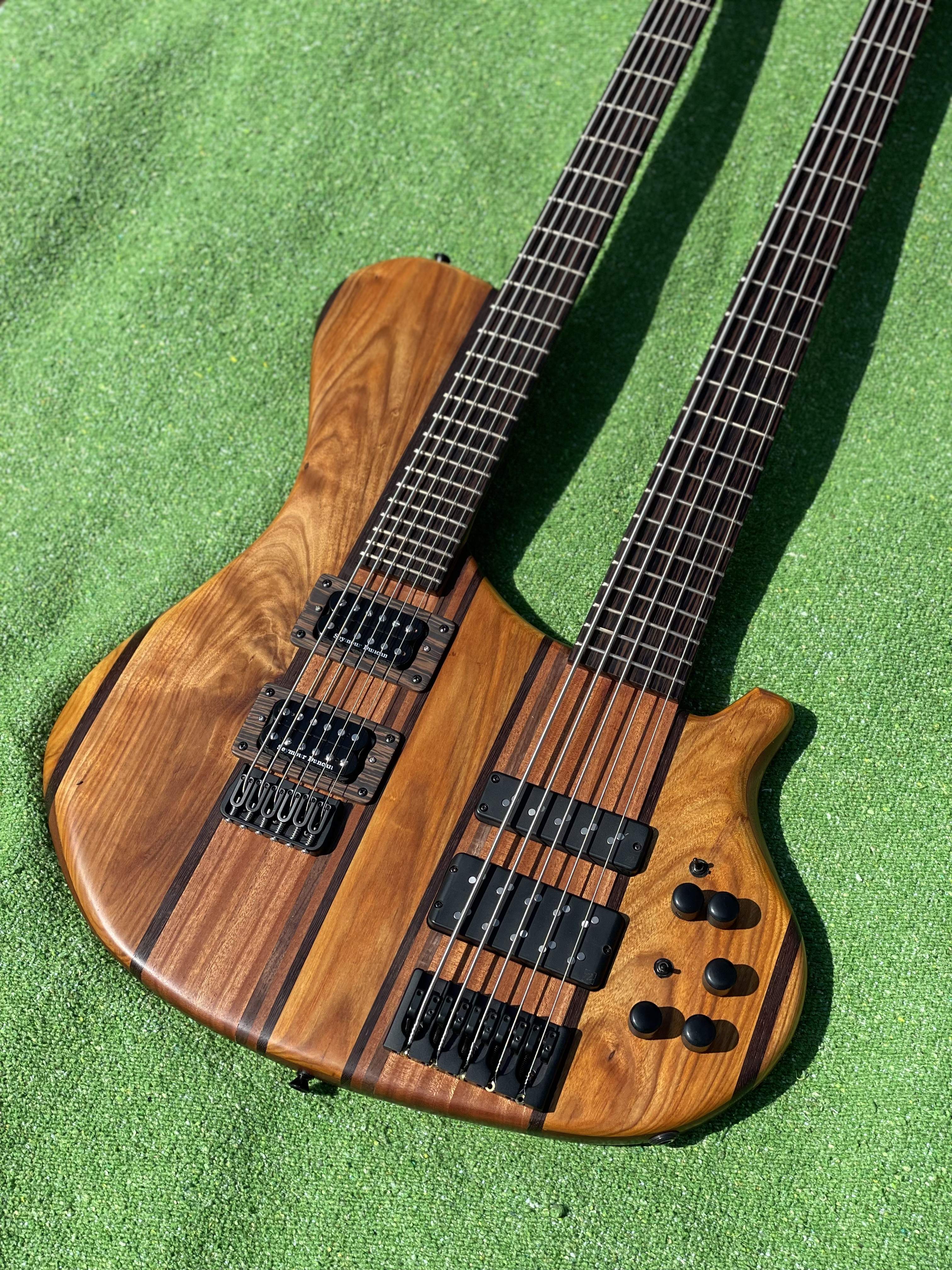

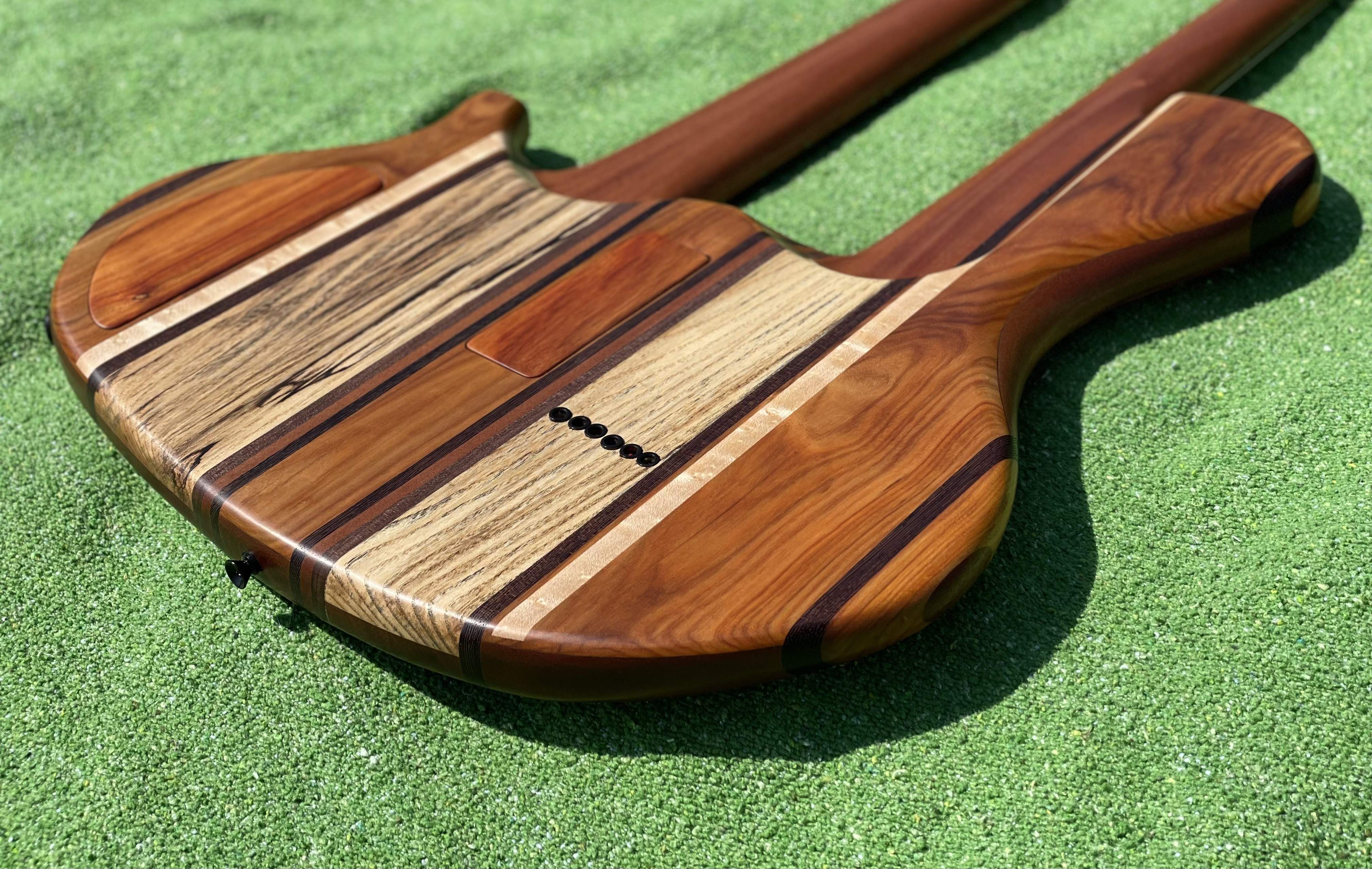

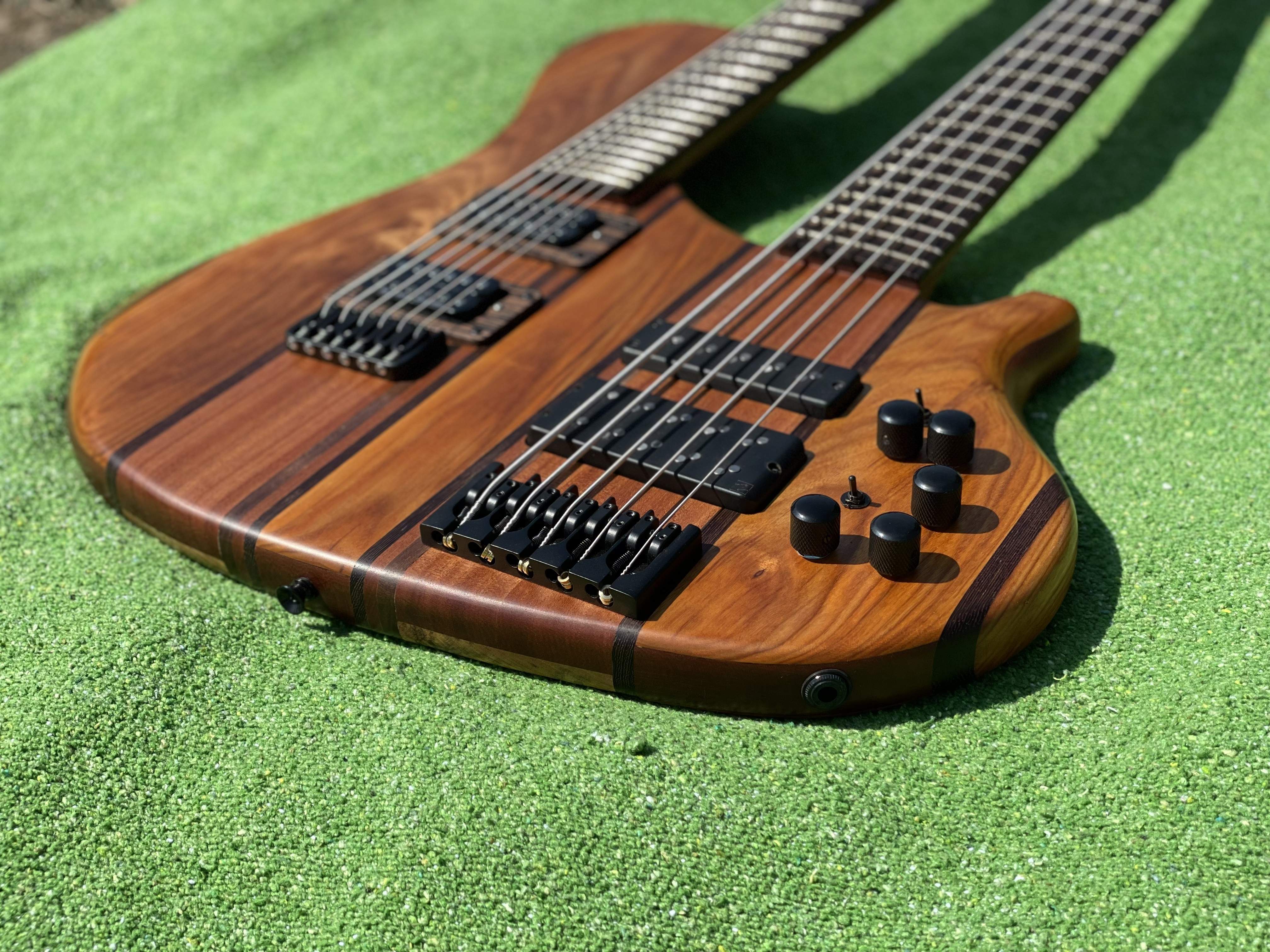

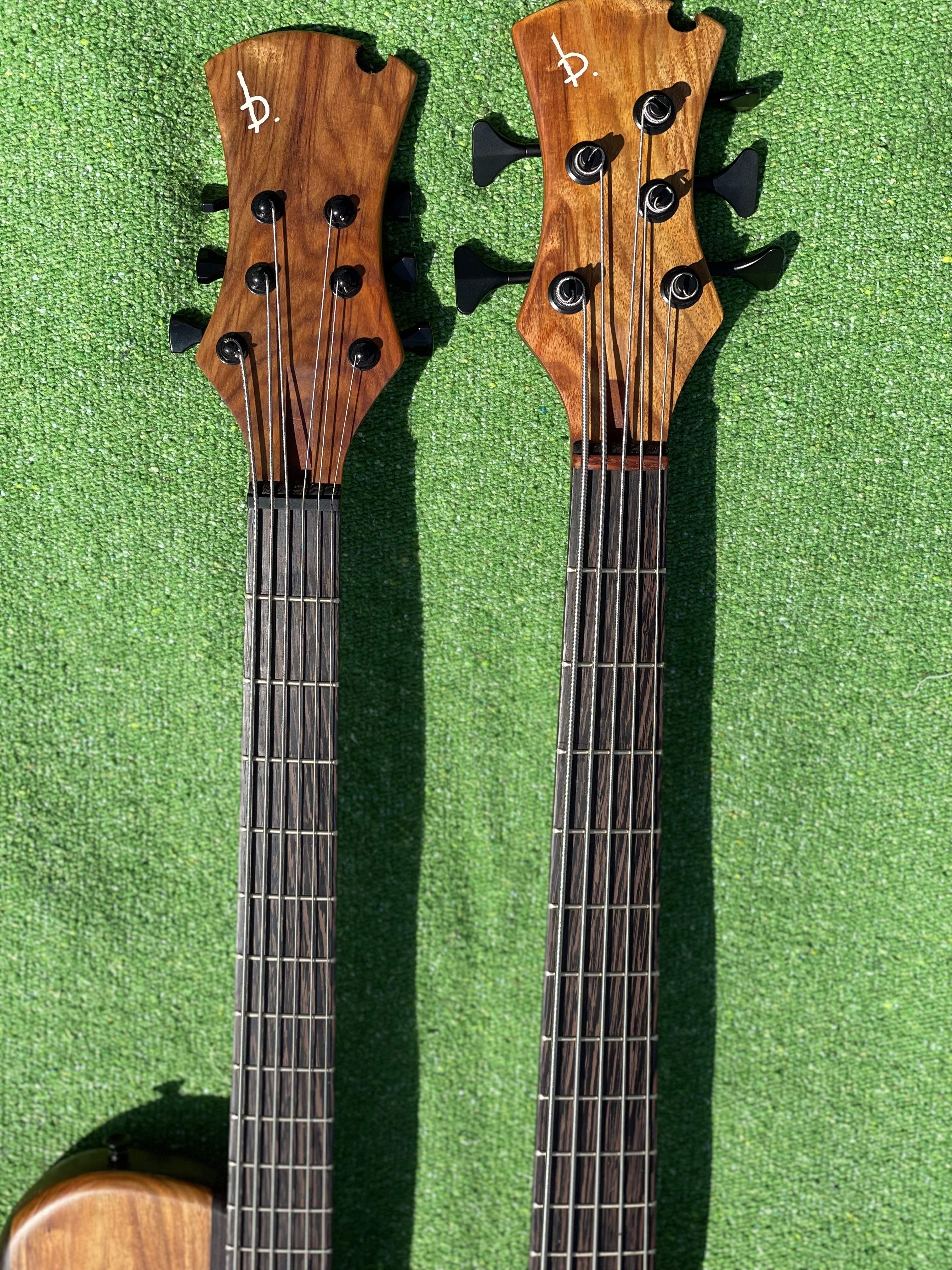

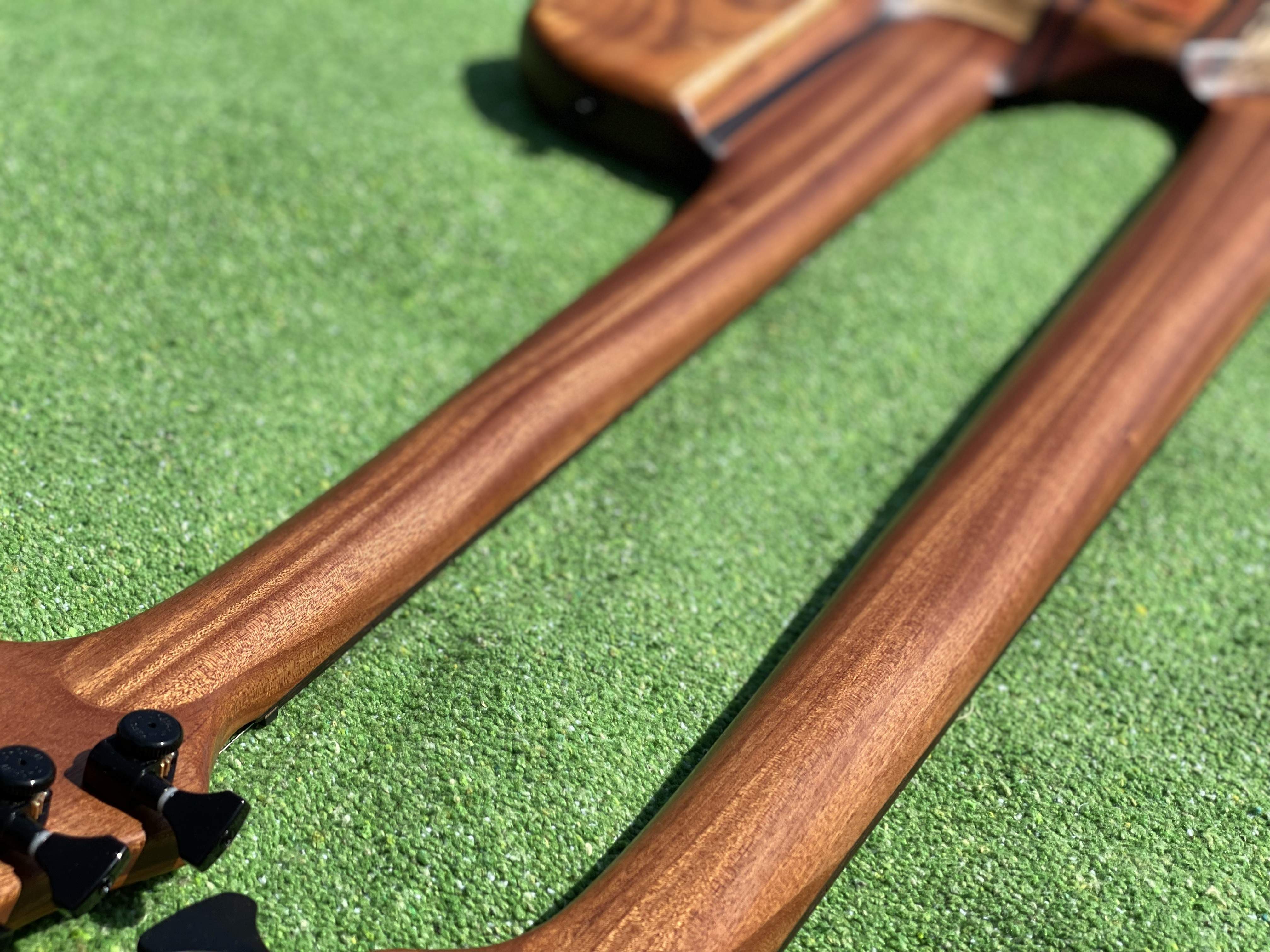

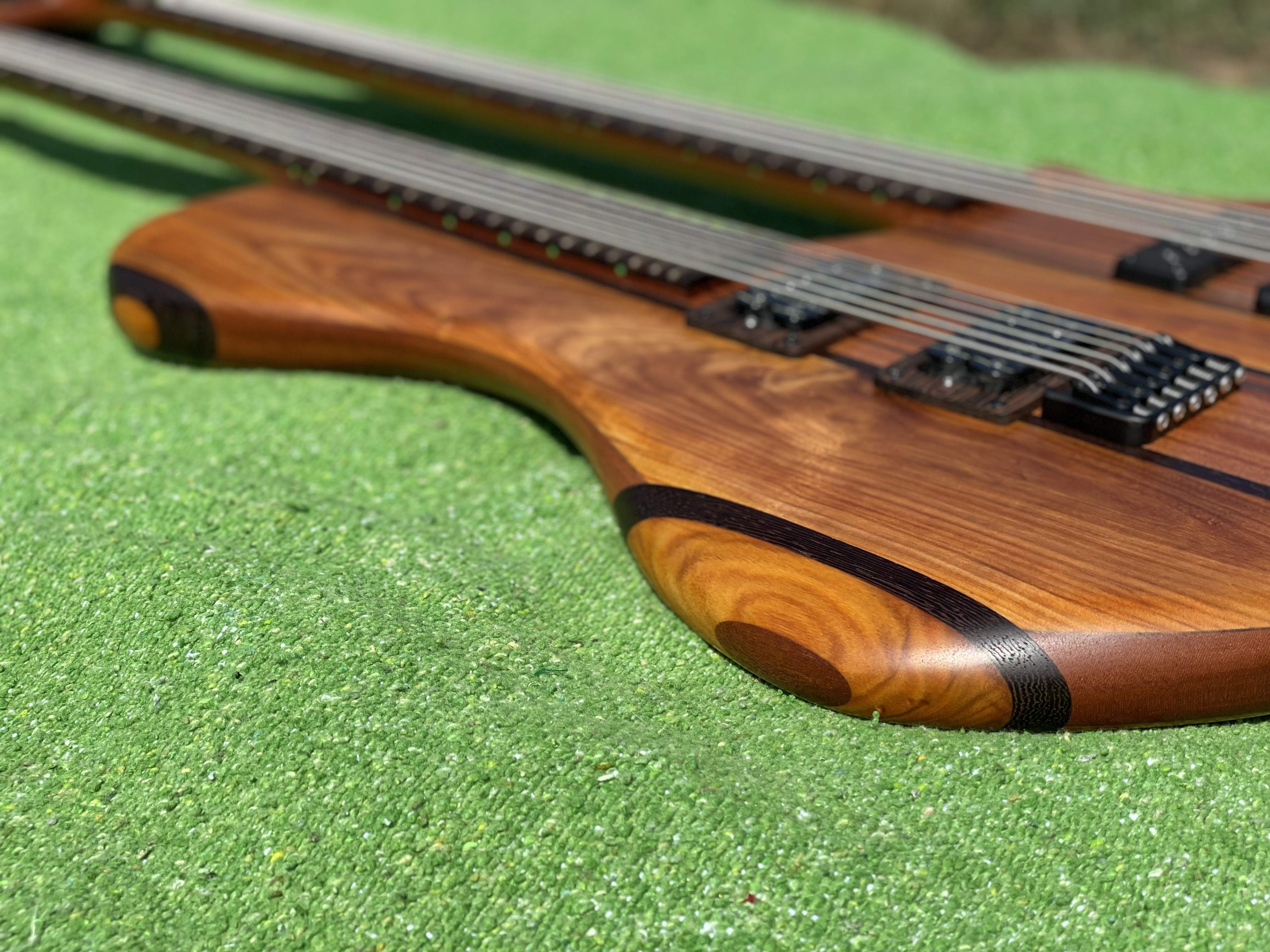

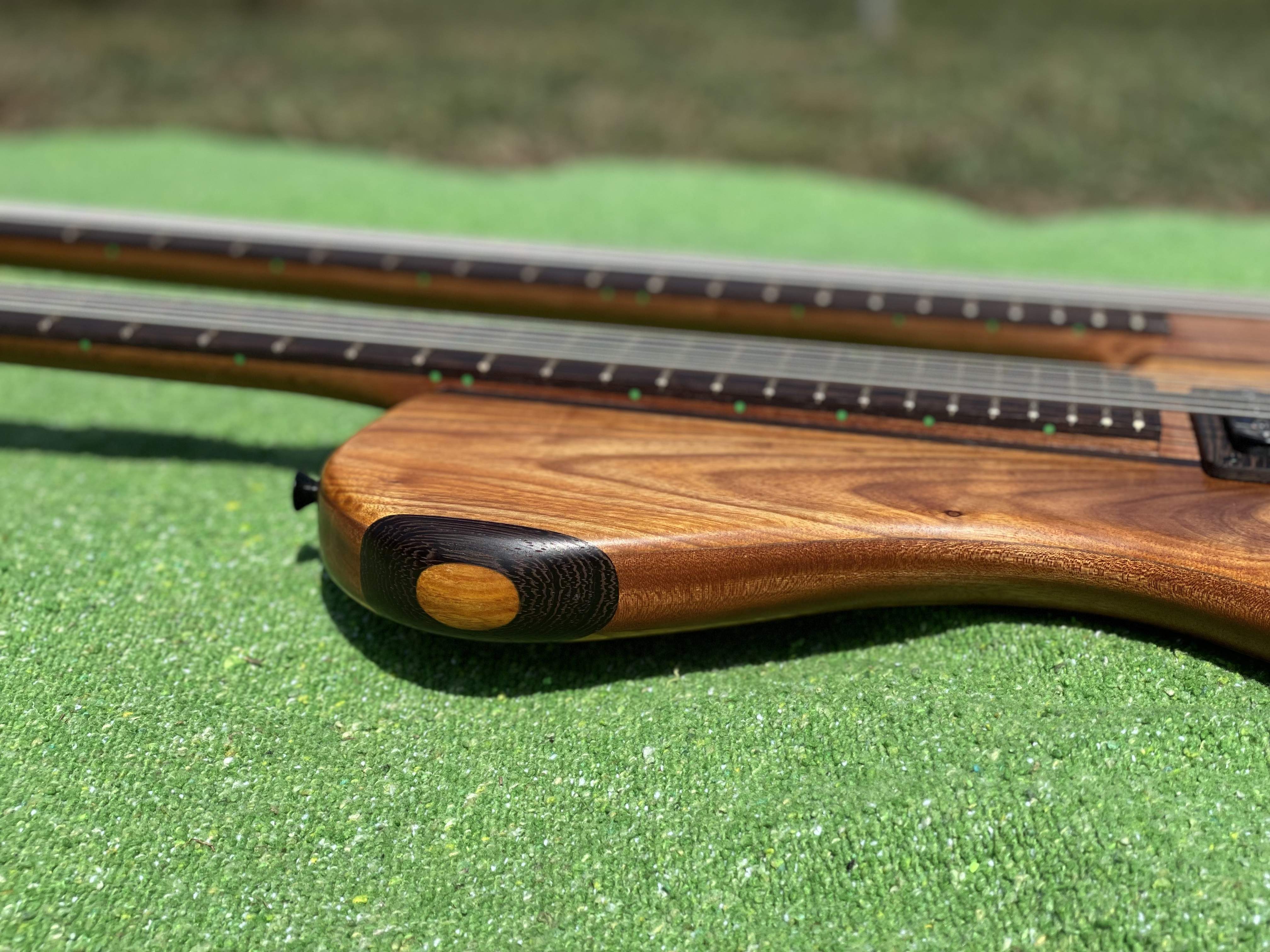

The doubleneck is all done. 30" baritone tuned E-E and 34" 5 string bass tuned B-G. Nordstrand bass pickups and Seymour Duncan guitar pickups. Hipshot hardware brings it all together.



[A9X]

Nice work.



[who]

The doubleneck is all done. 30" baritone tuned E-E and 34" 5 string bass tuned B-G. Nordstrand bass pickups and Seymour Duncan guitar pickups. Hipshot hardware brings it all together.

That's insane (in a good way). What is the electronics setup?



[rick0link]

That's insane (in a good way). What is the electronics setup?

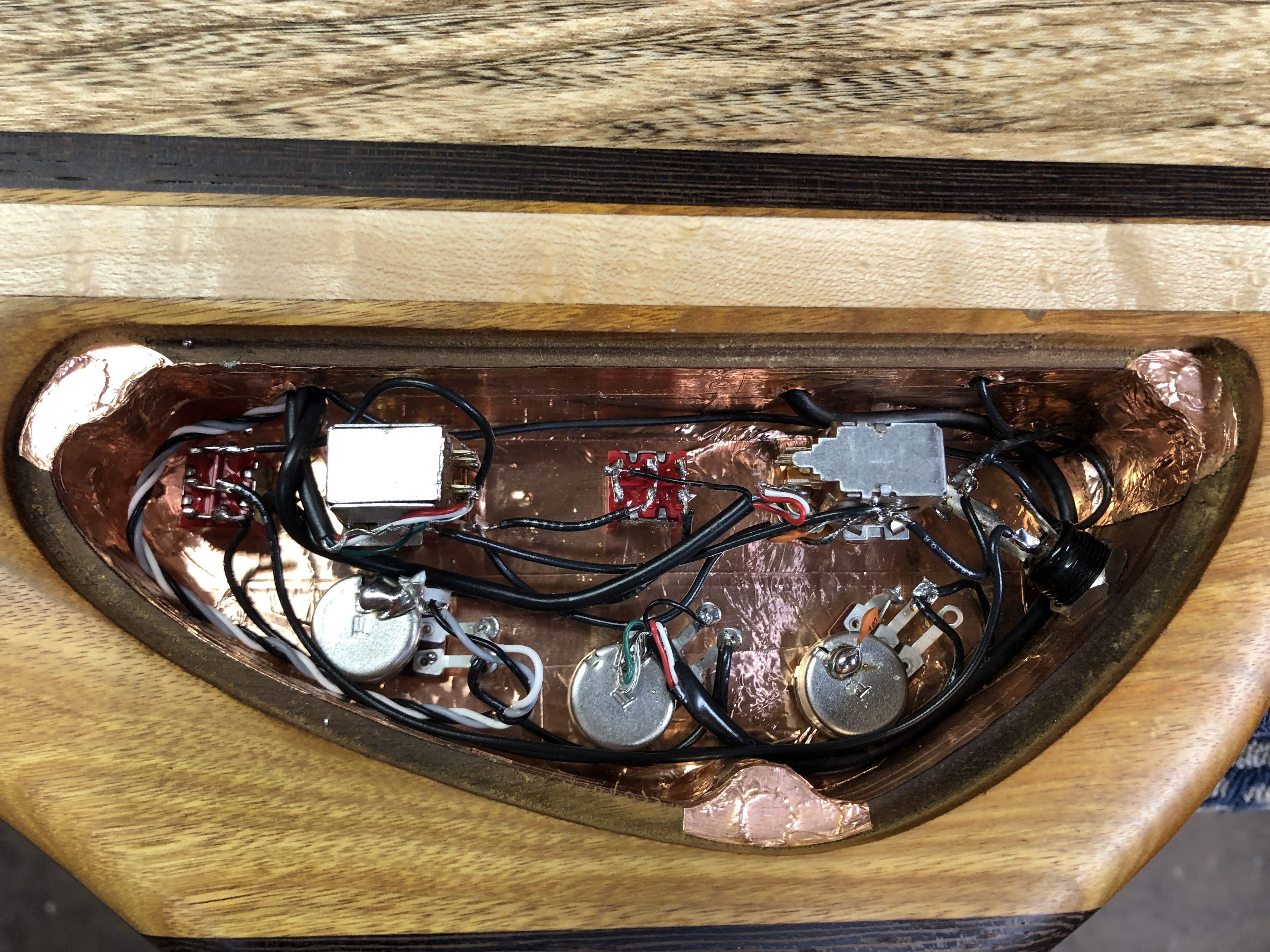

Here's the brains.

for the baritone it's vol/3-way pickup switch/tone with both tone and volume being push/pull coil taps. The bass is vol/vol/tone. There's also a 2-way toggle that allows the player to select which side to play.



[rick0link]

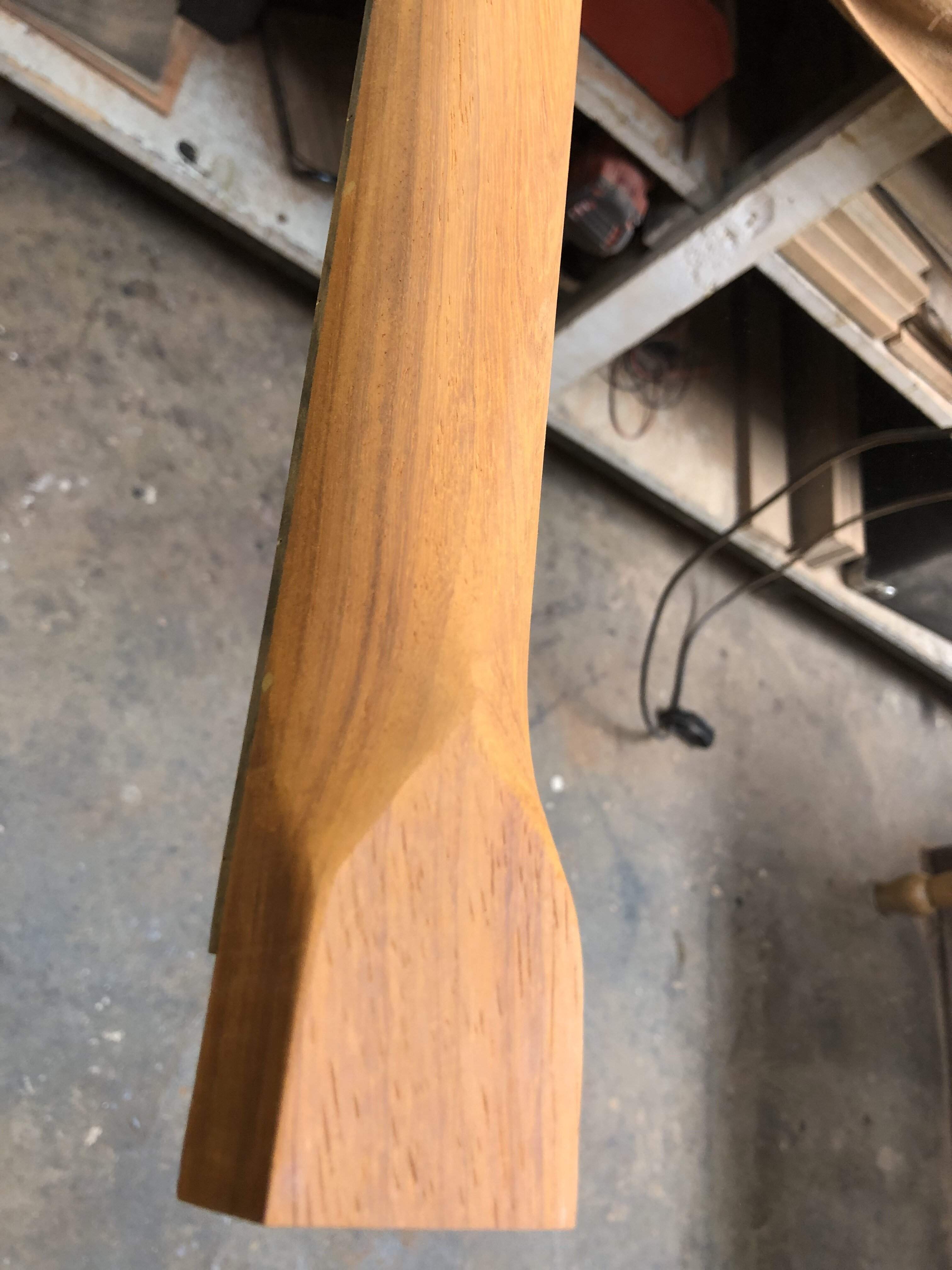

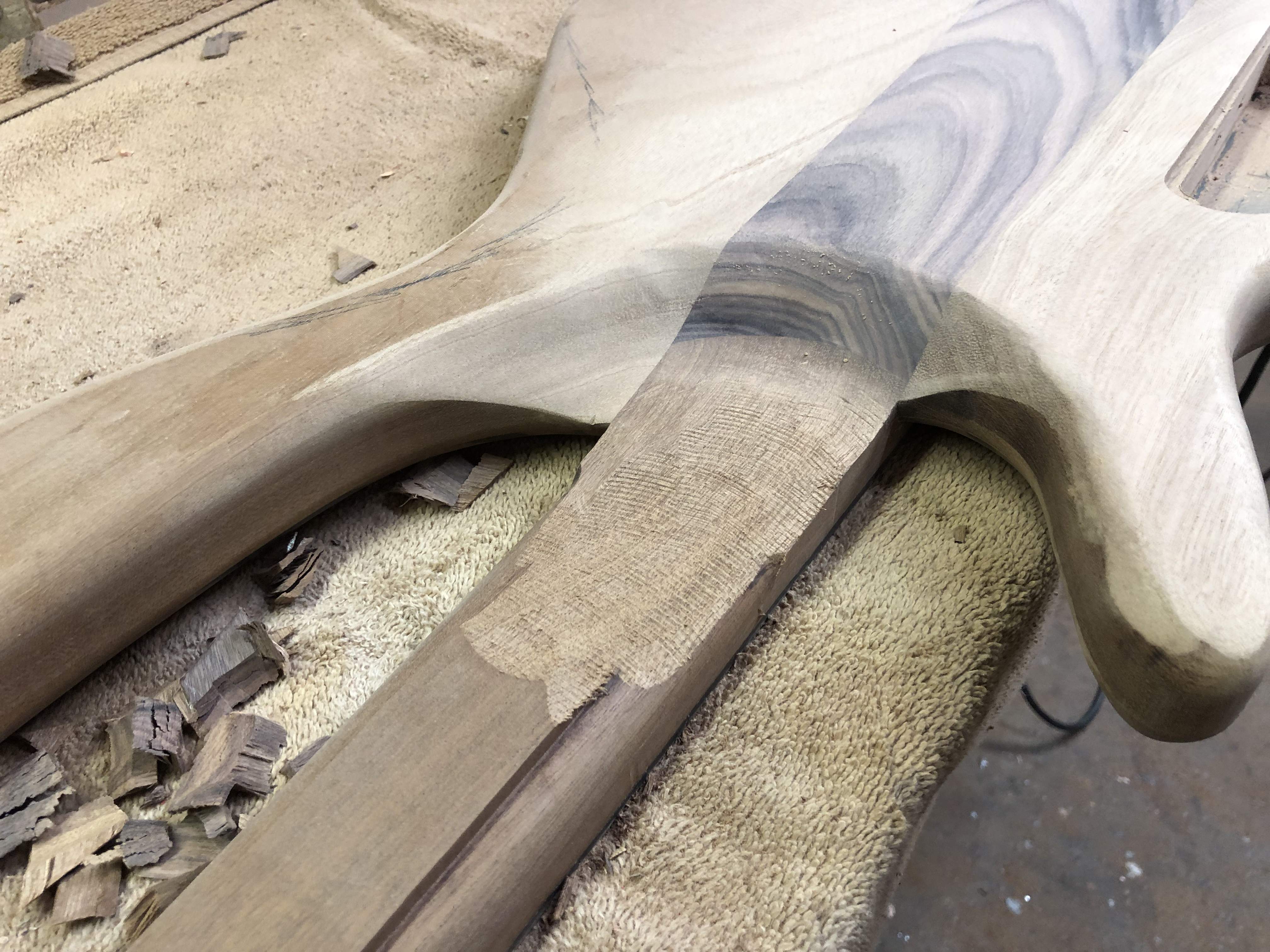

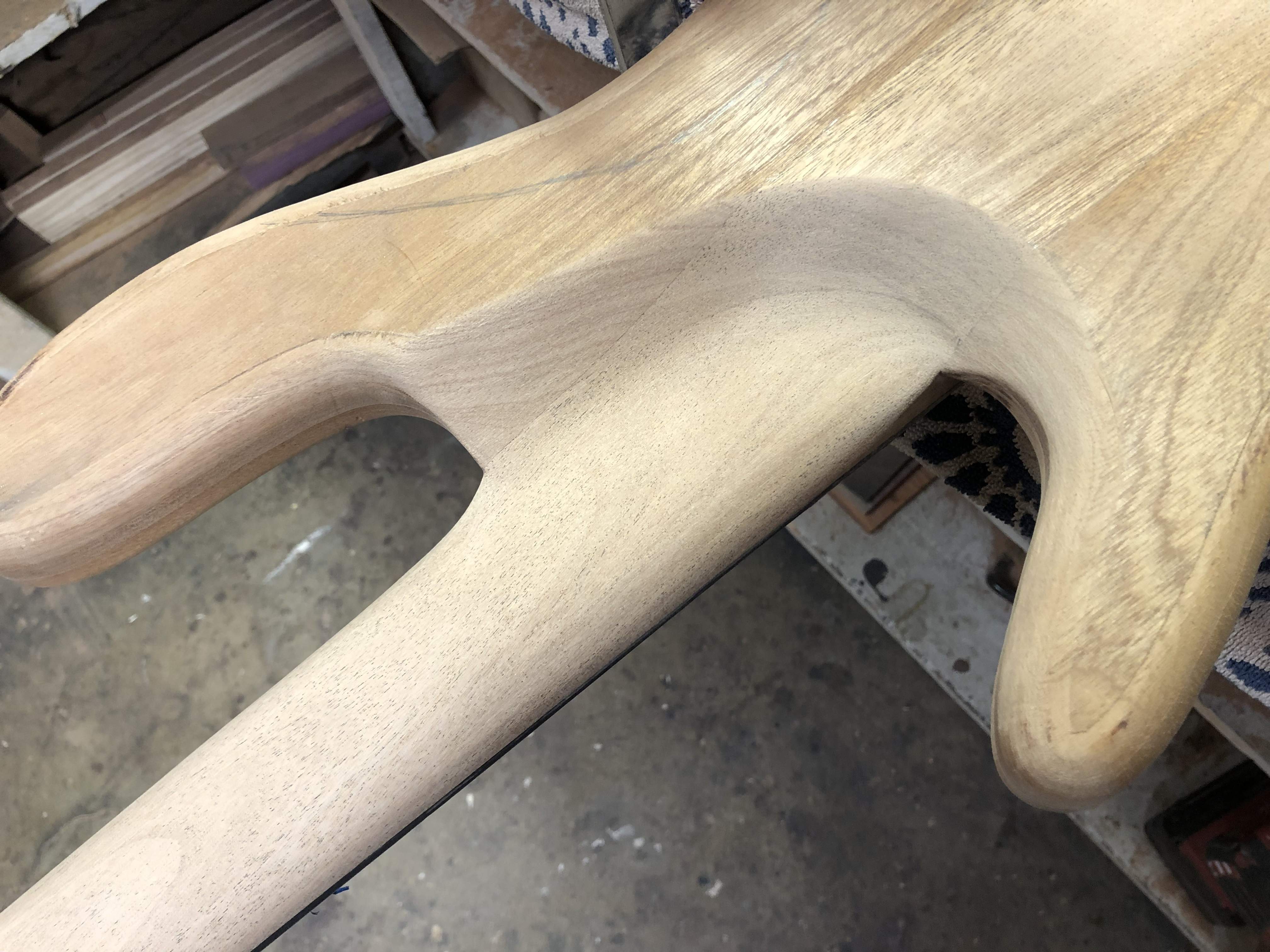

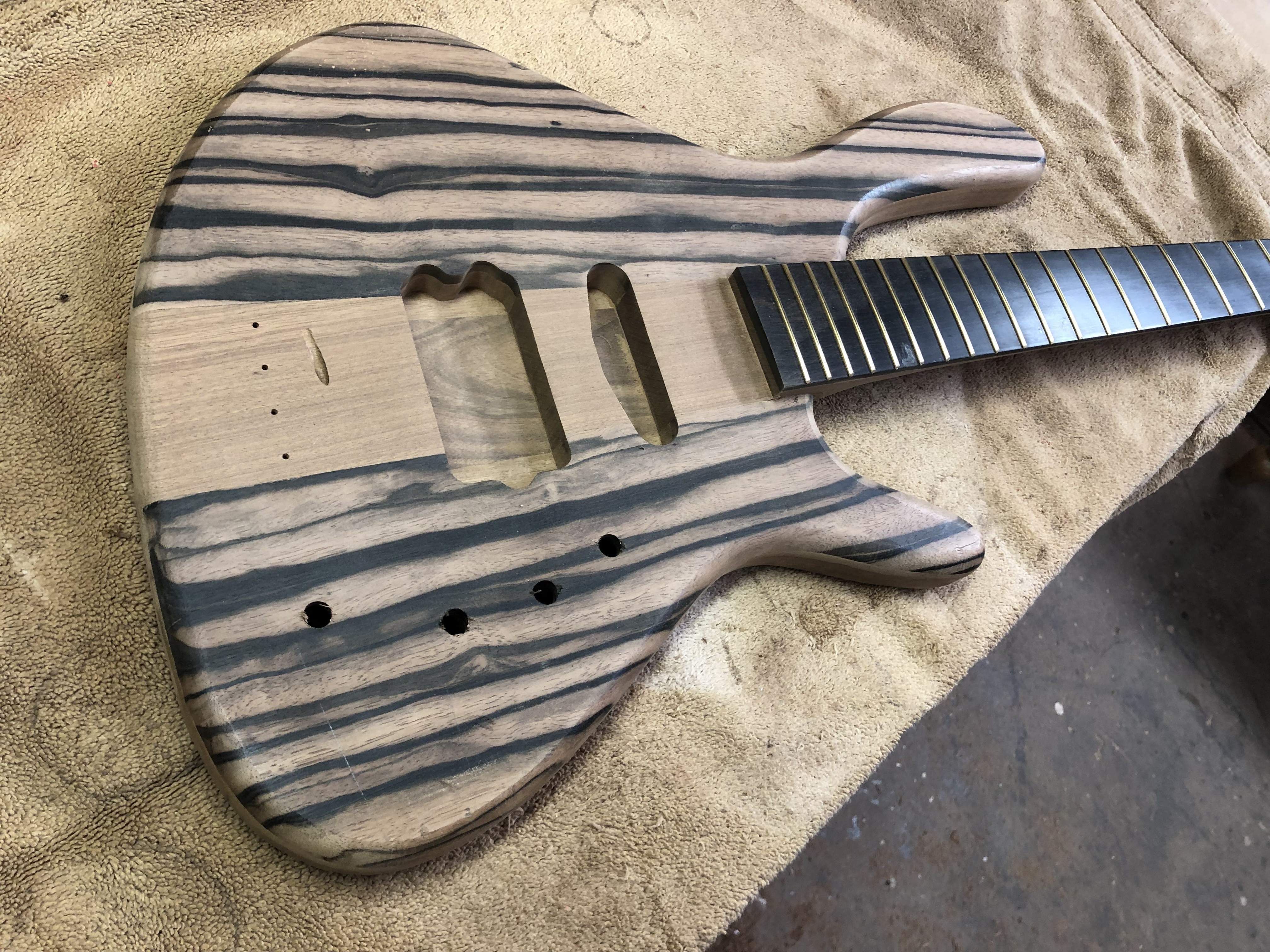

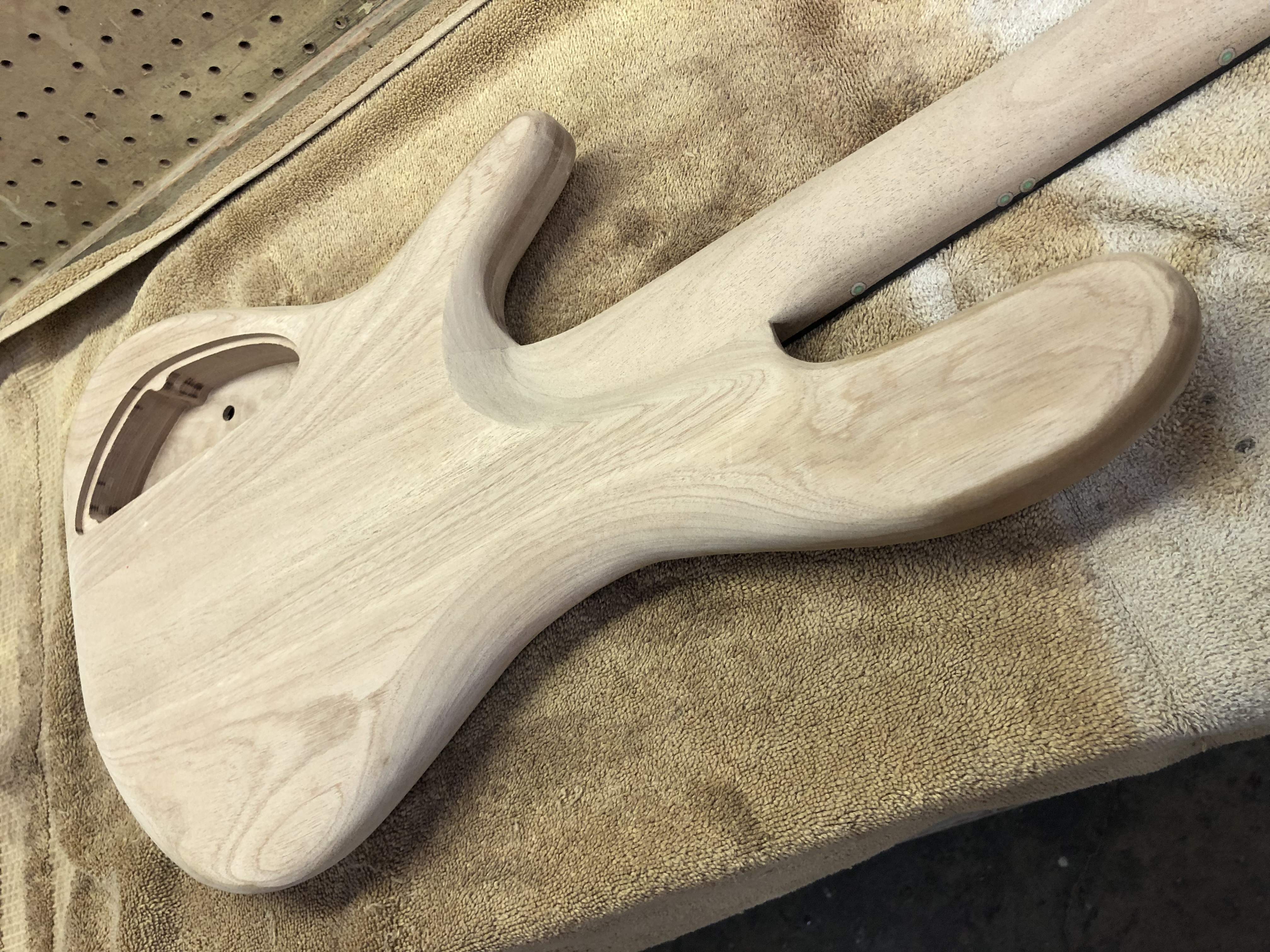

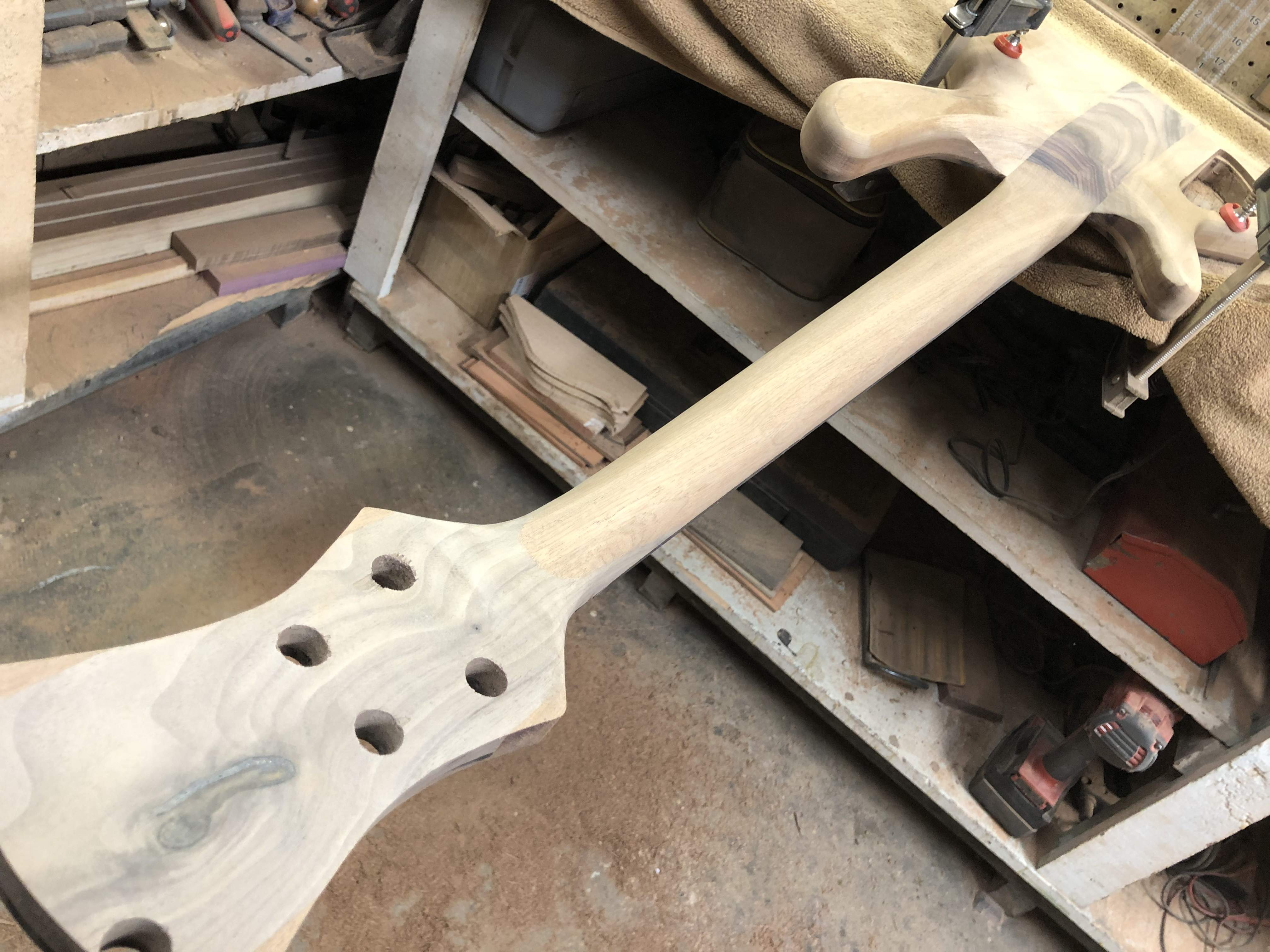

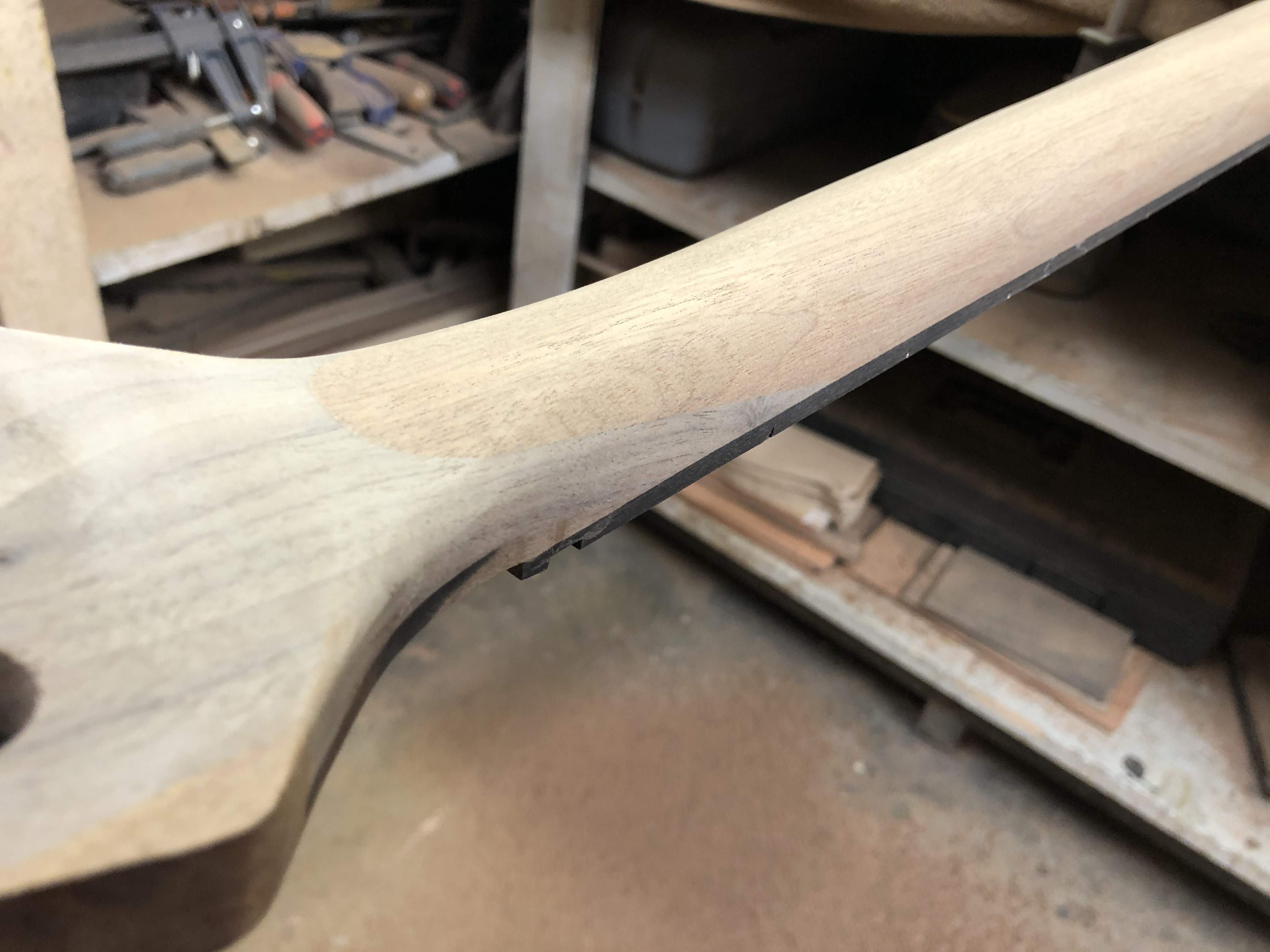

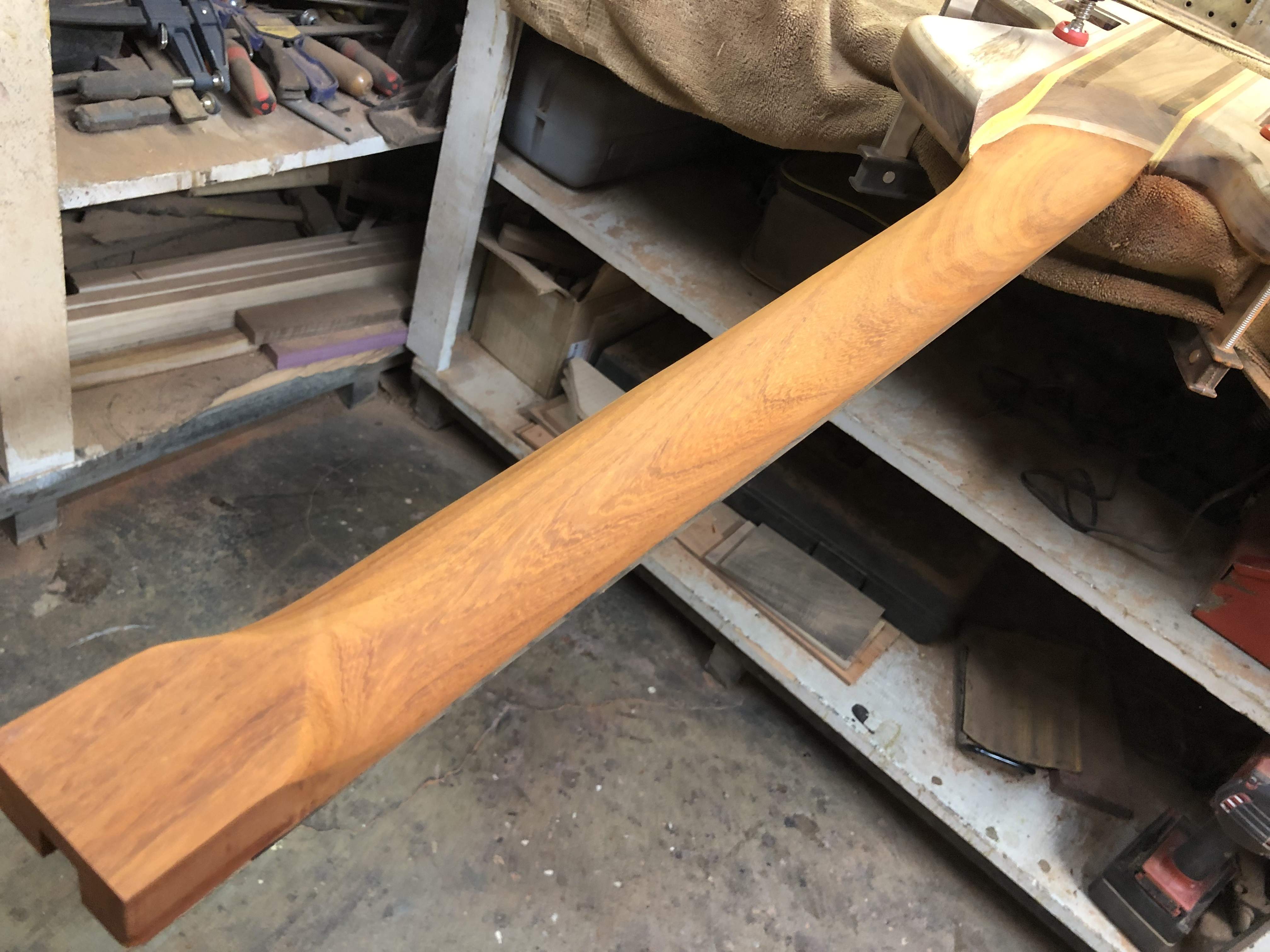

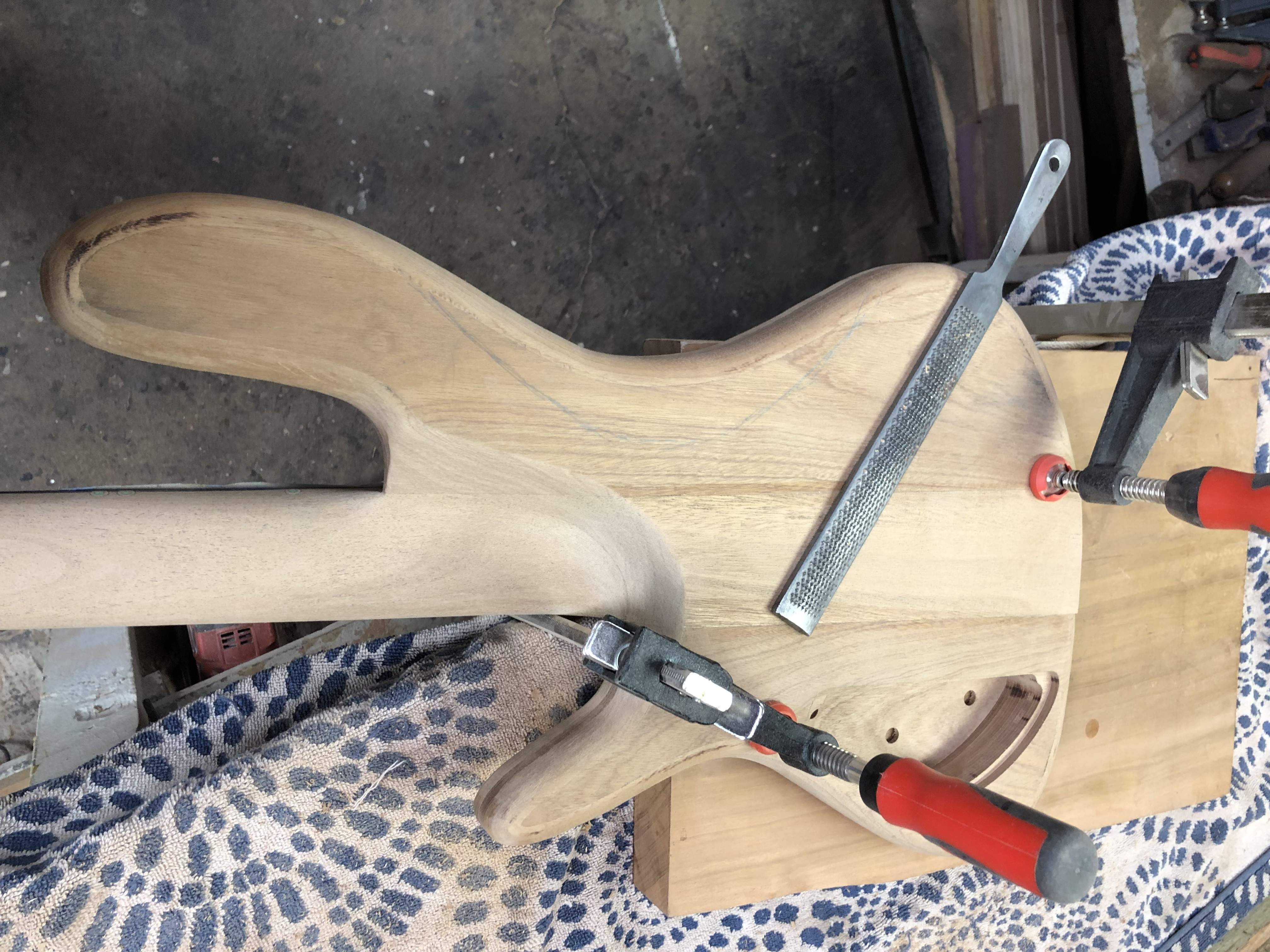

Three necks carved, two heel joints dug out, plenty of contour carving, and some sanding were all in order for today.



[rick0link]

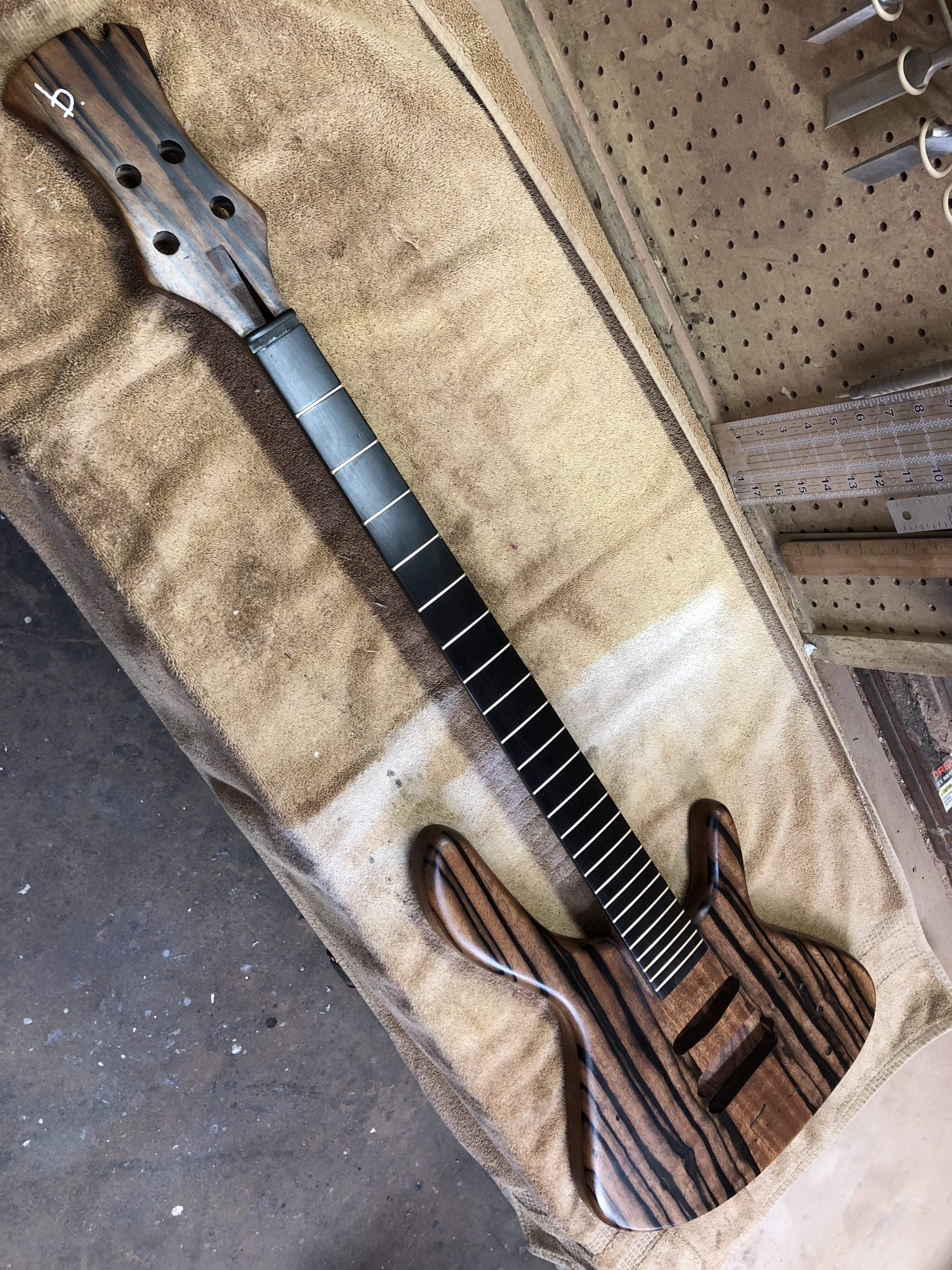

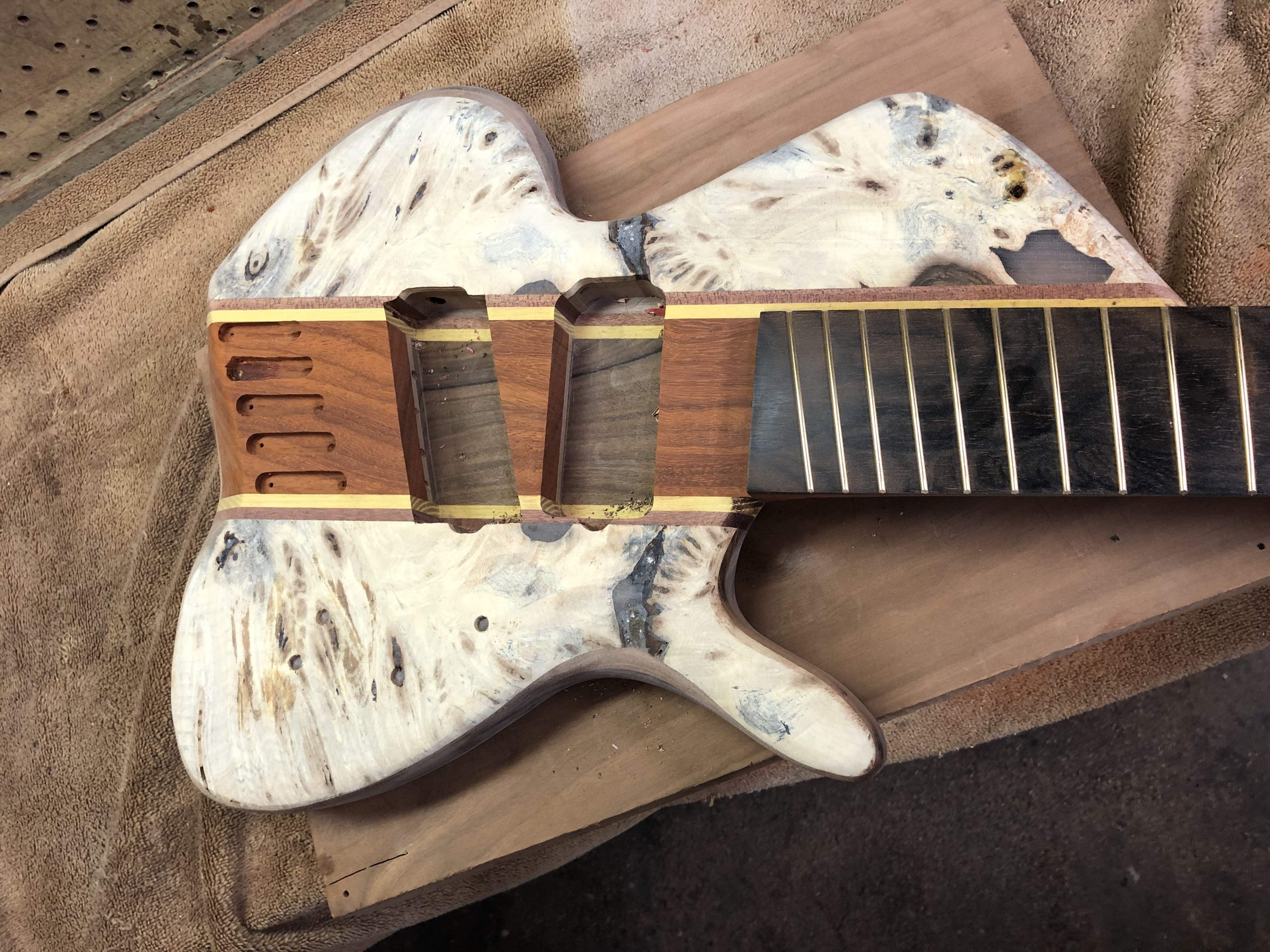

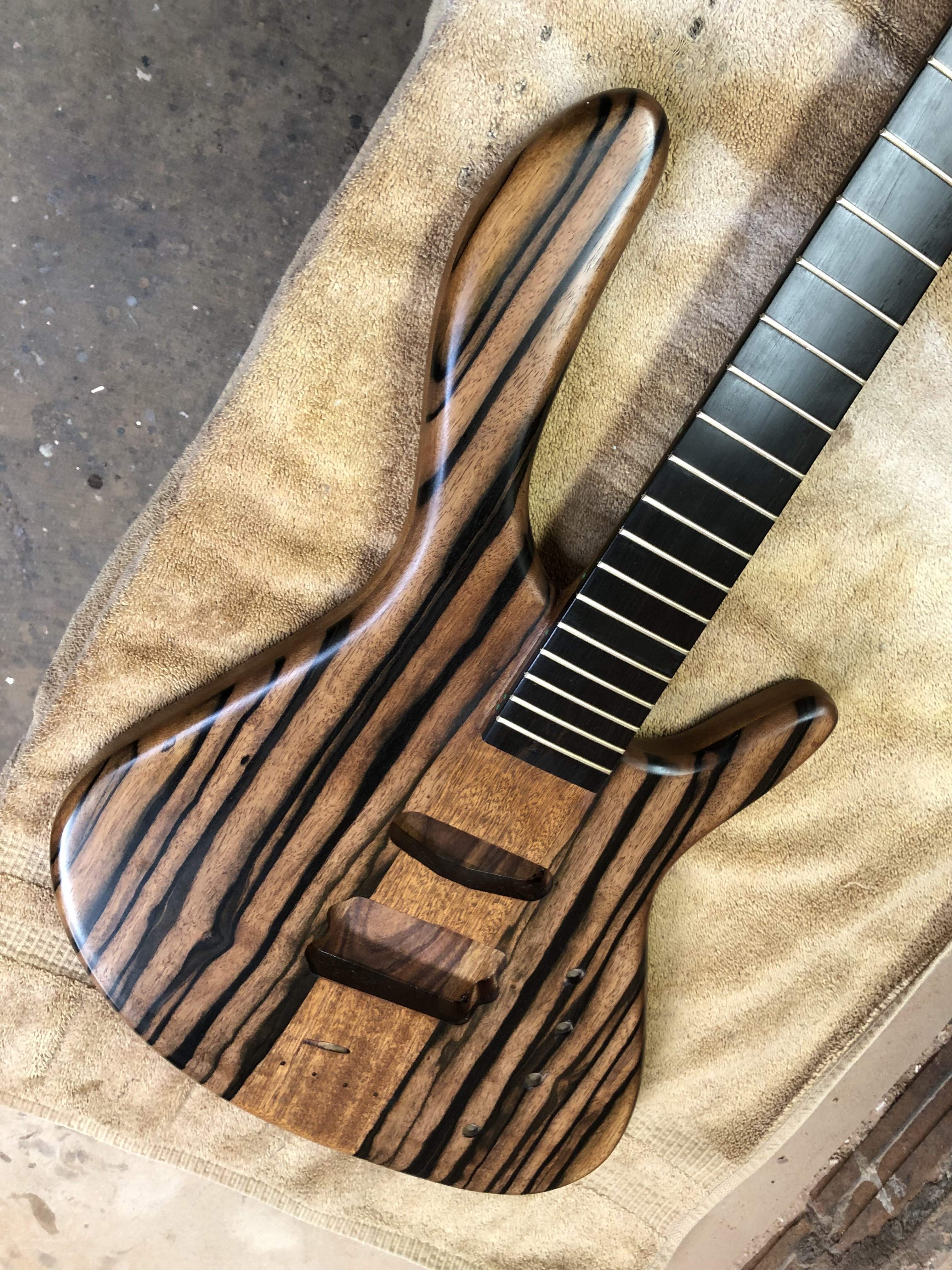

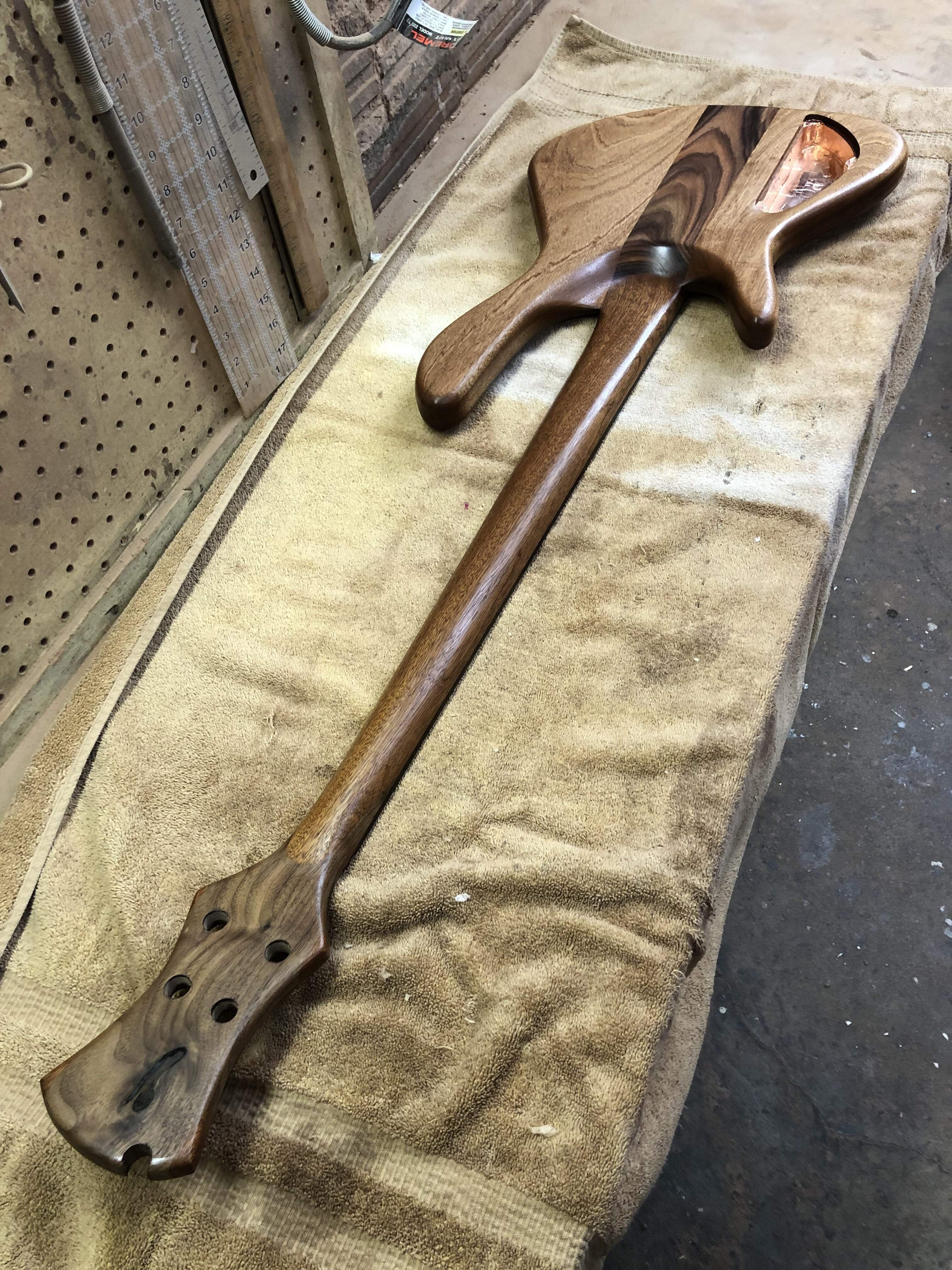

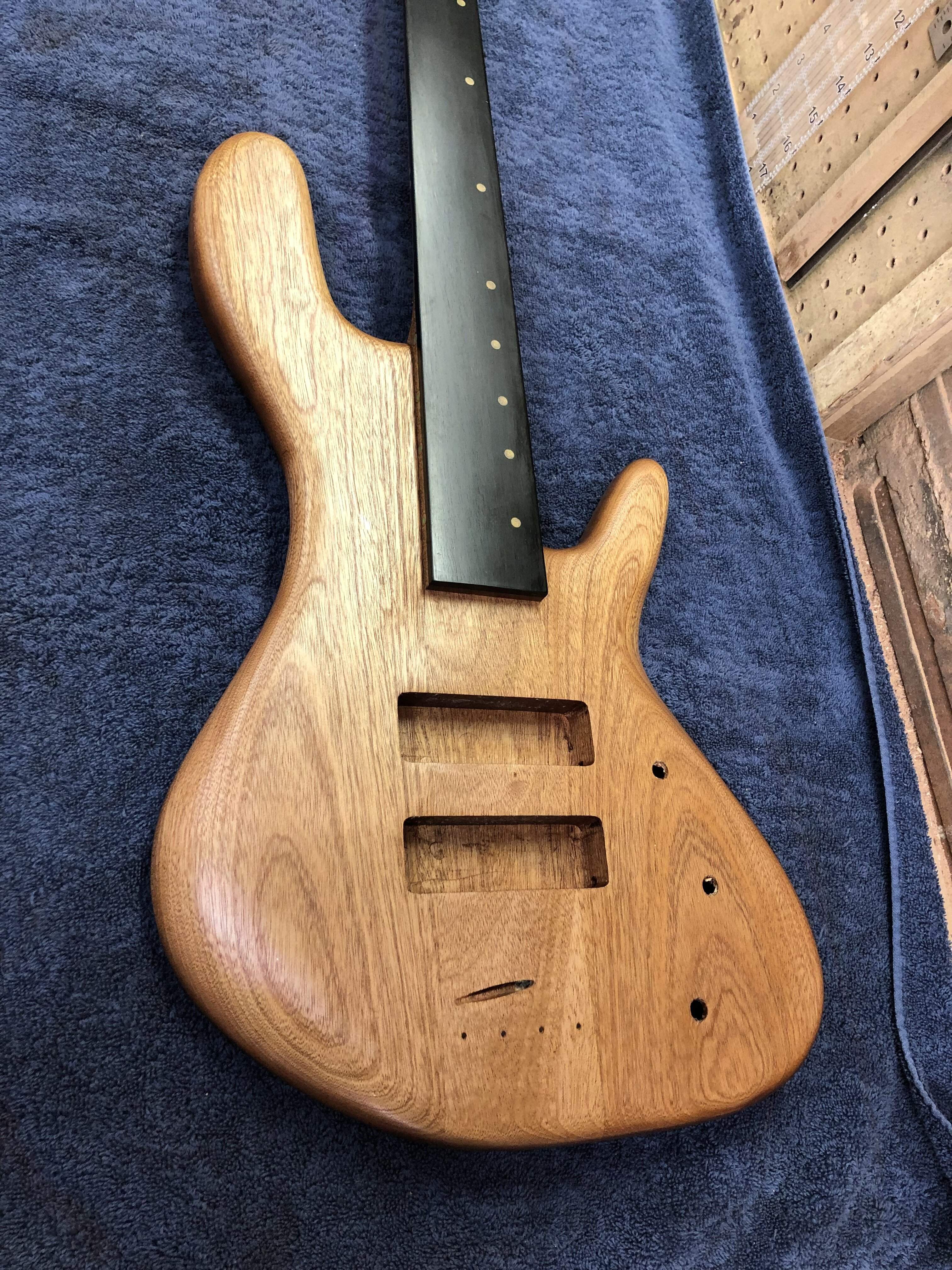

Both of these beauties had a meeting with the sandman yesterday and came out looking quite sharp.



[rick0link]

Here's a demo of the doubleneck.



[rick0link]

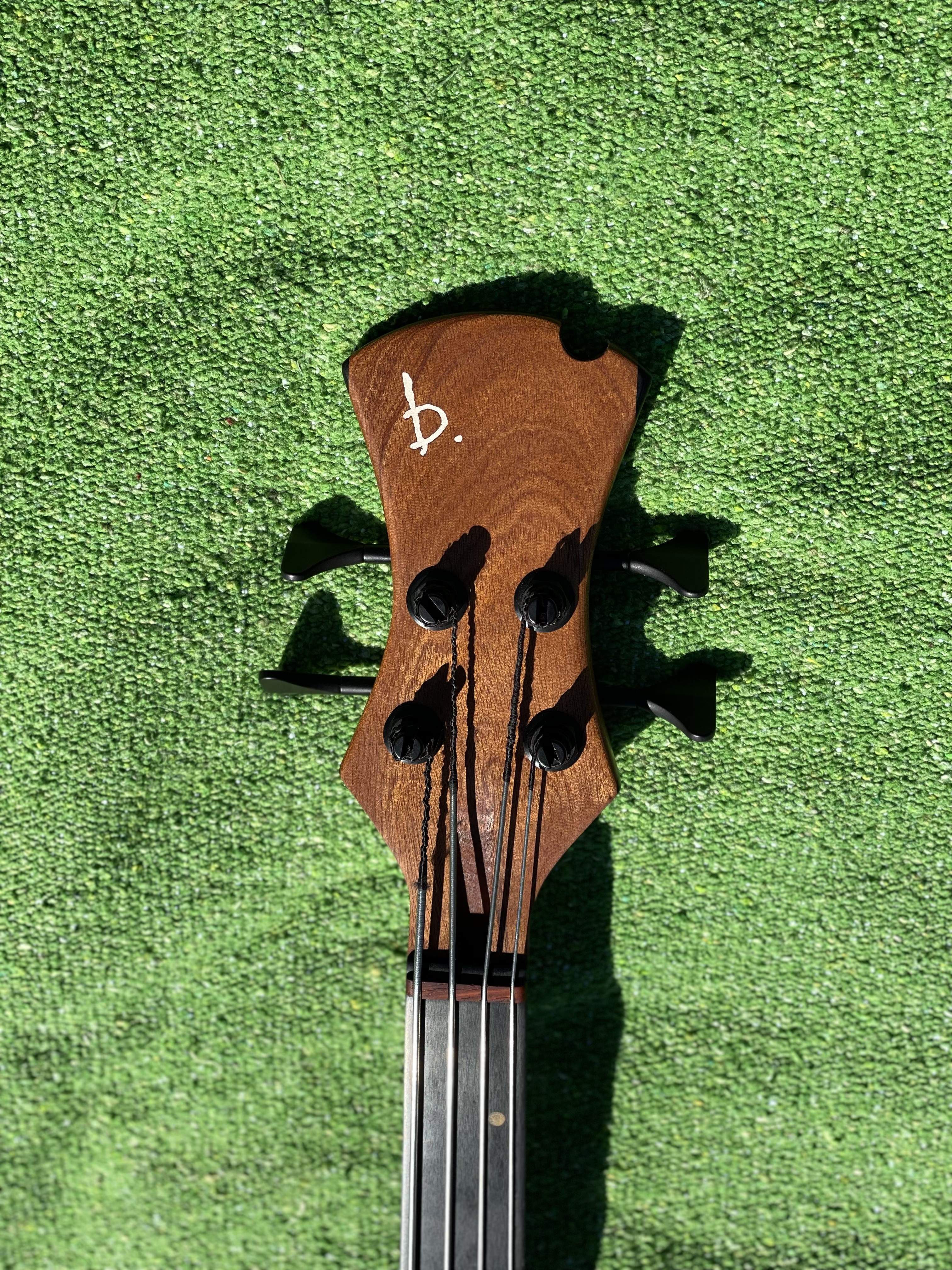

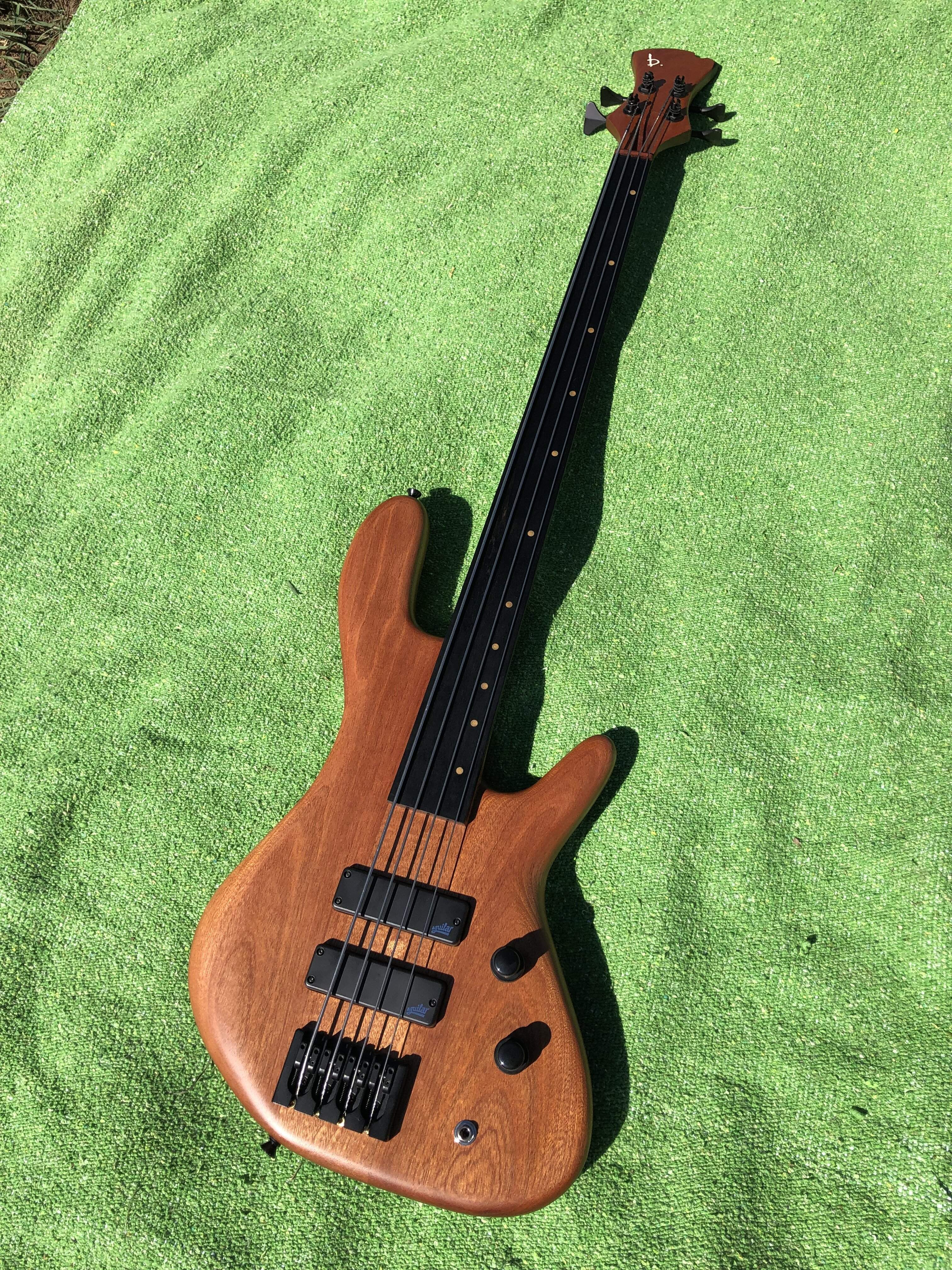

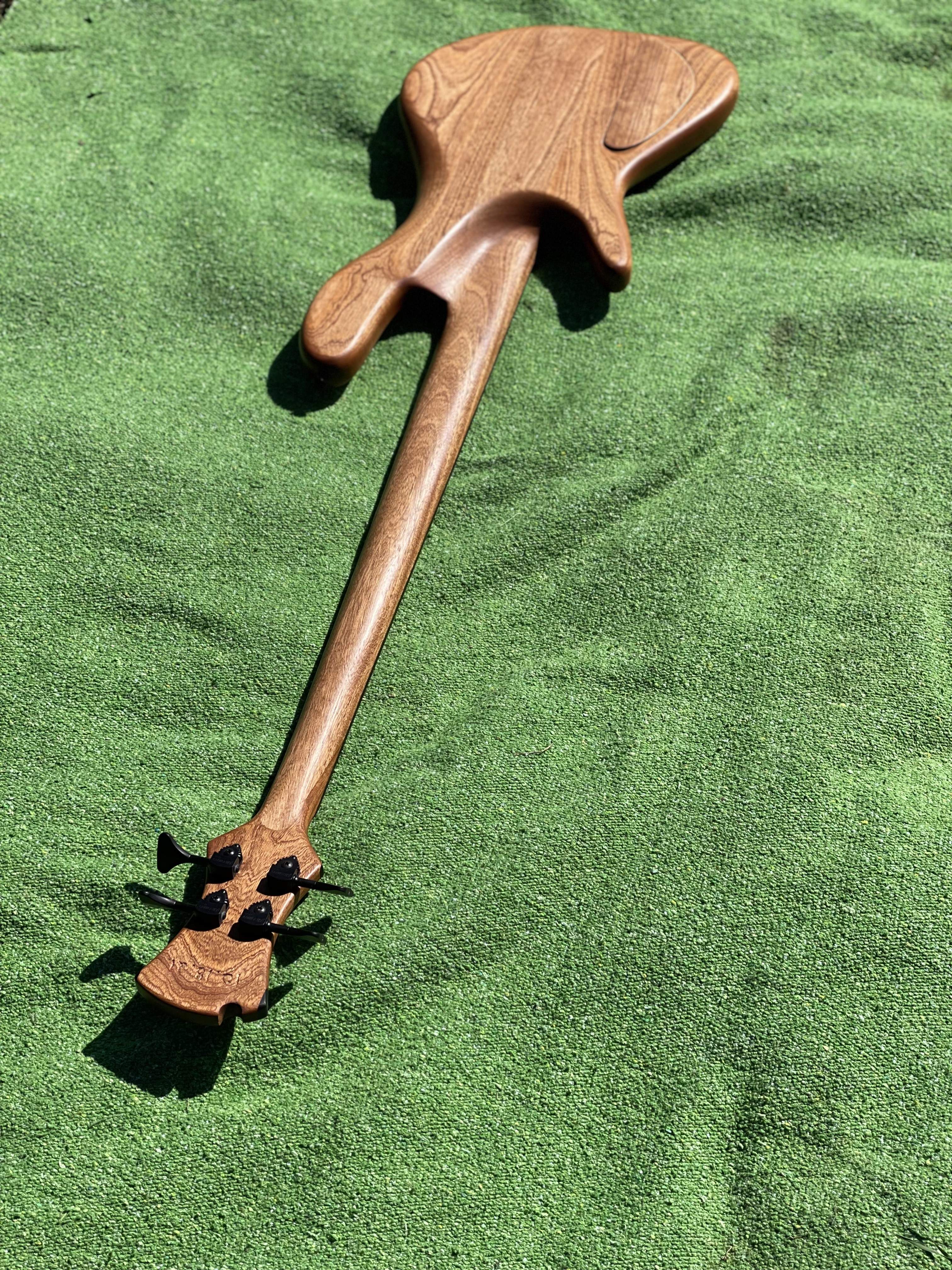

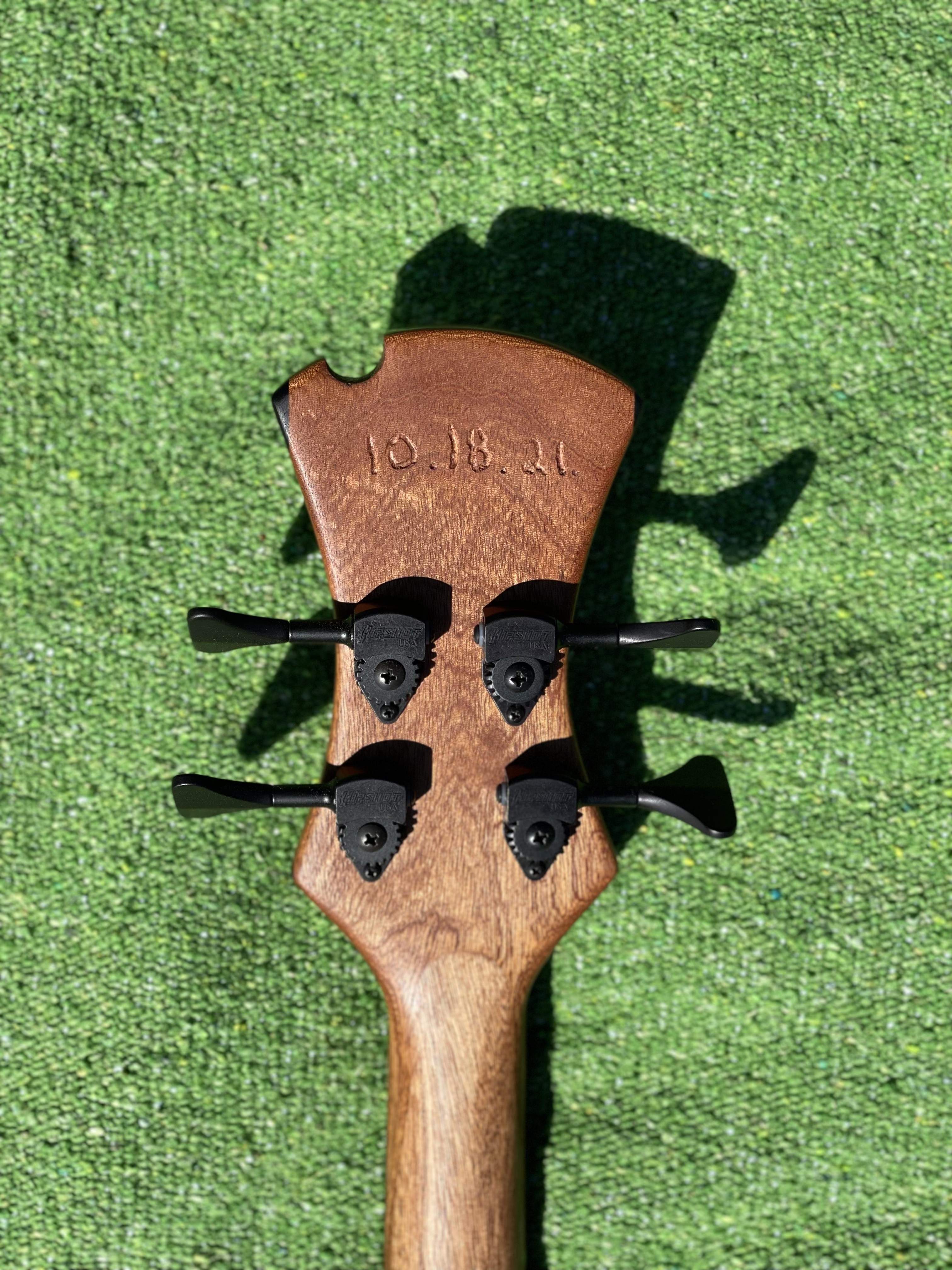

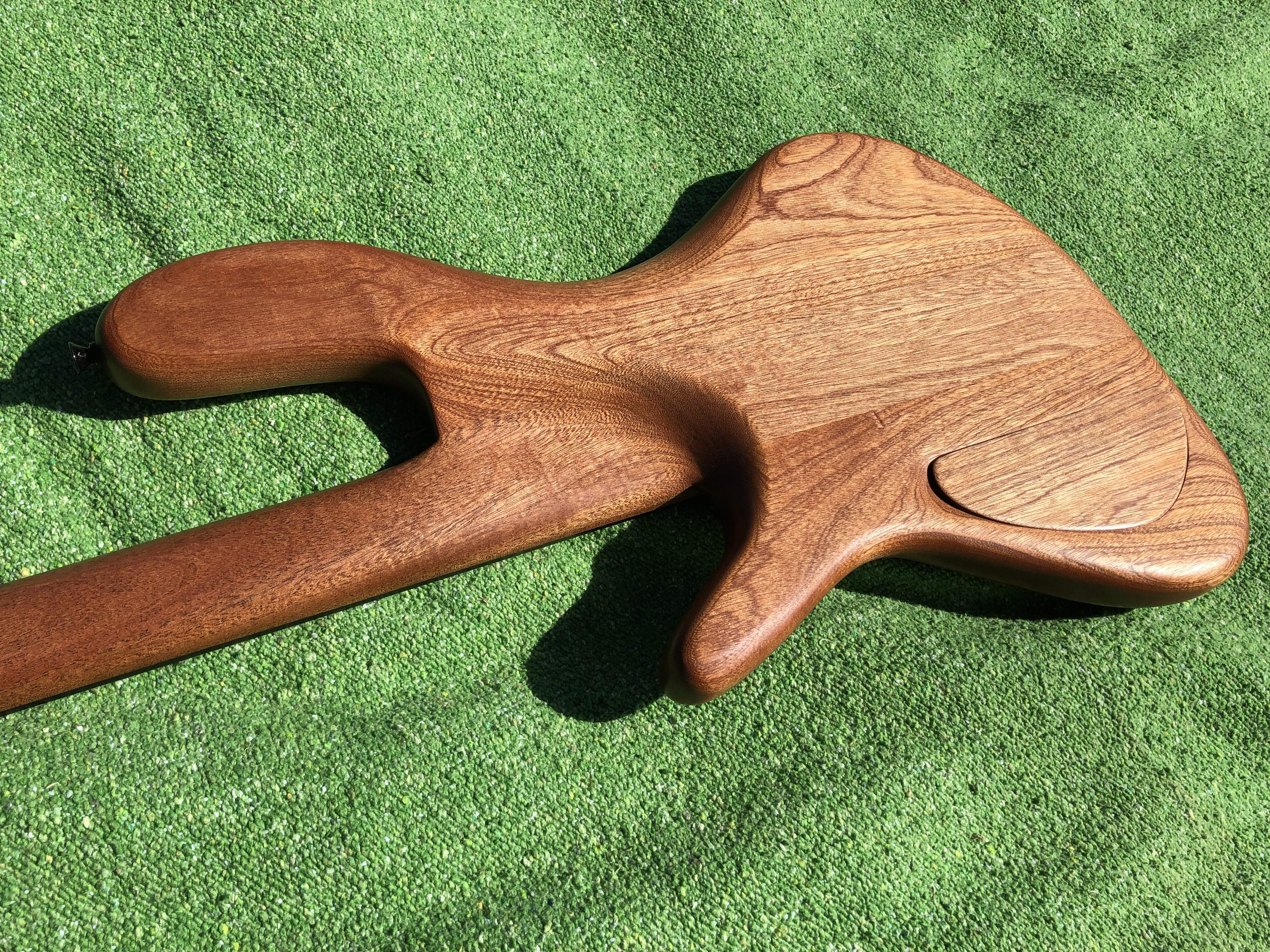

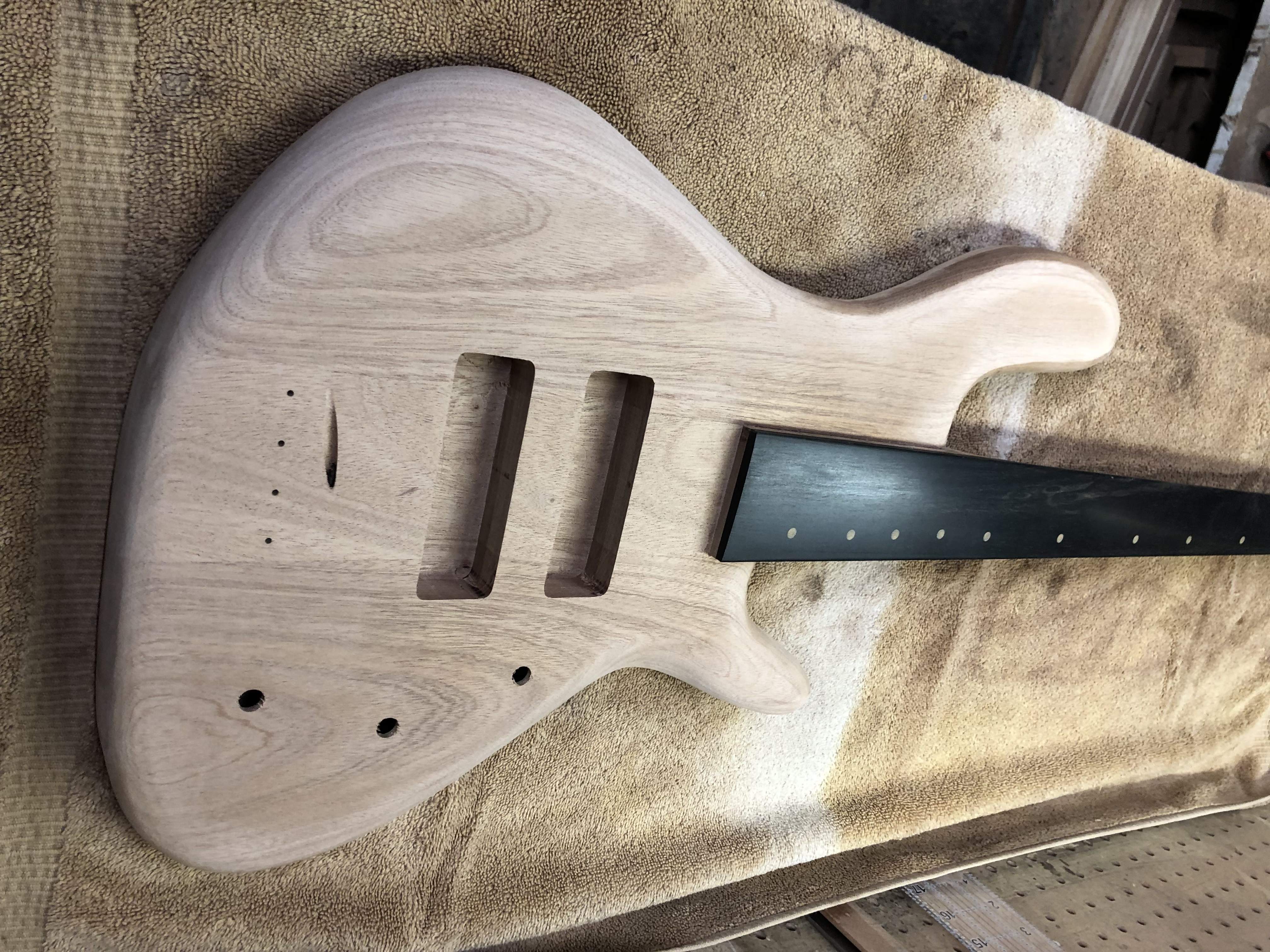

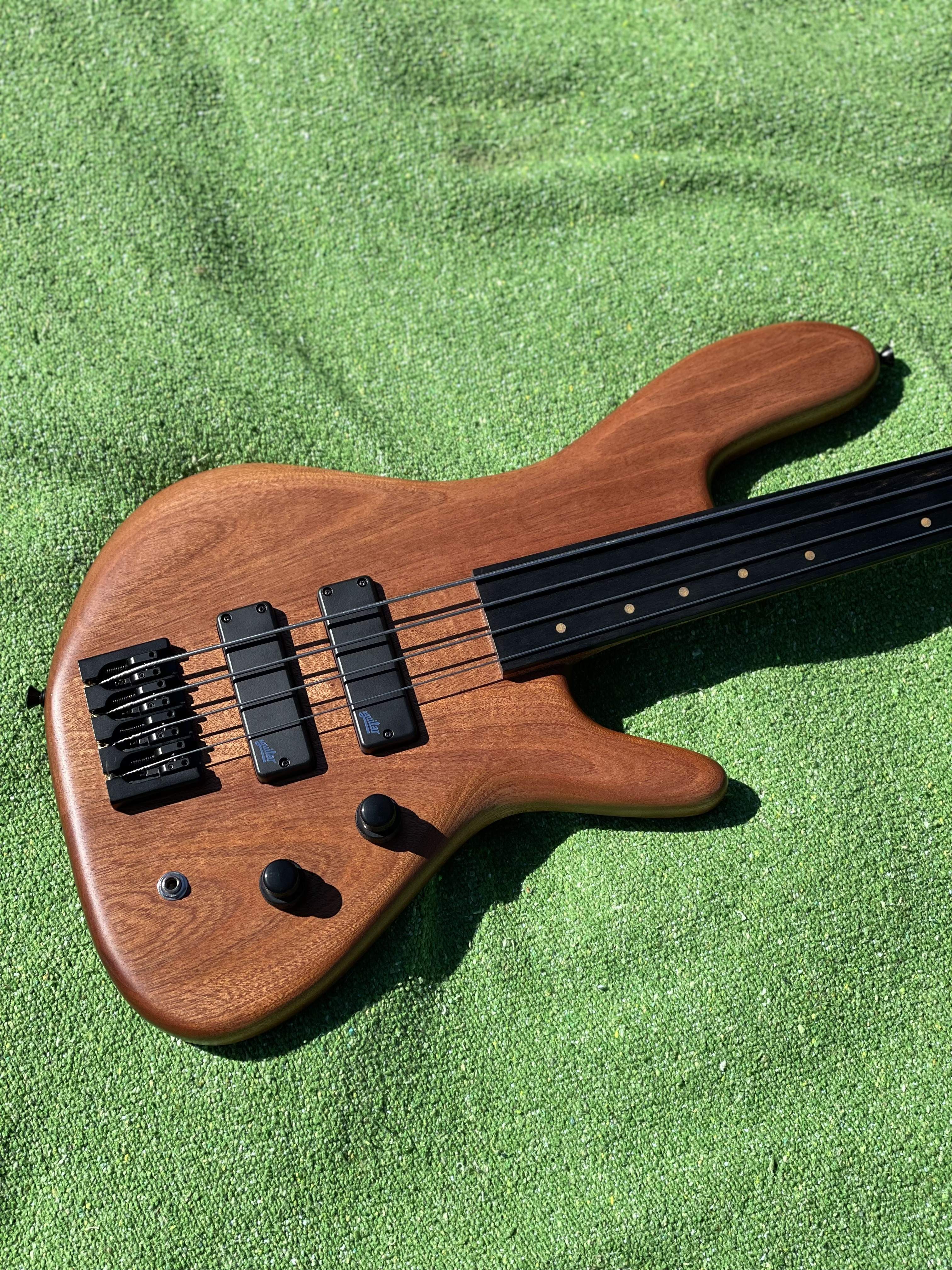

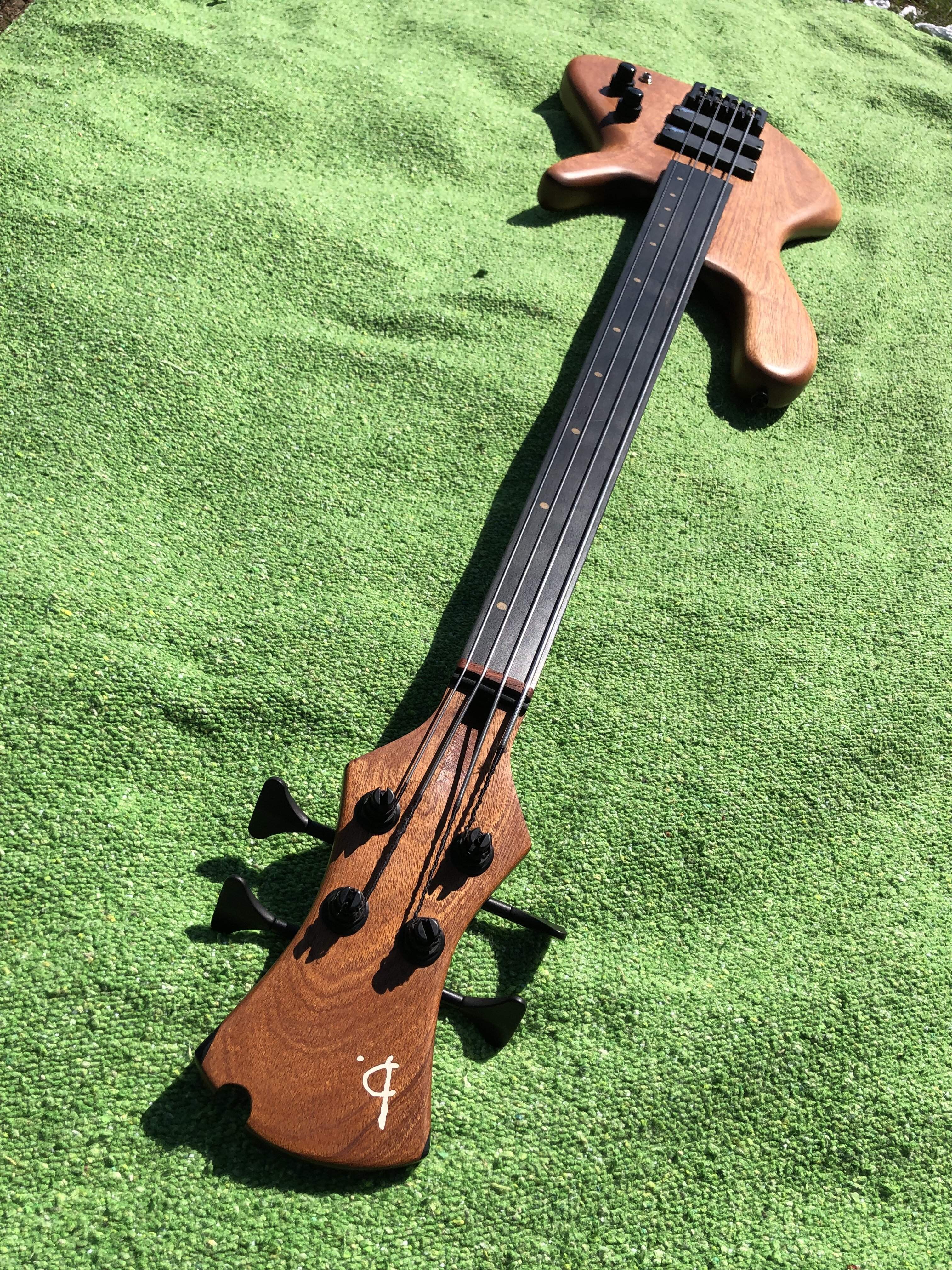

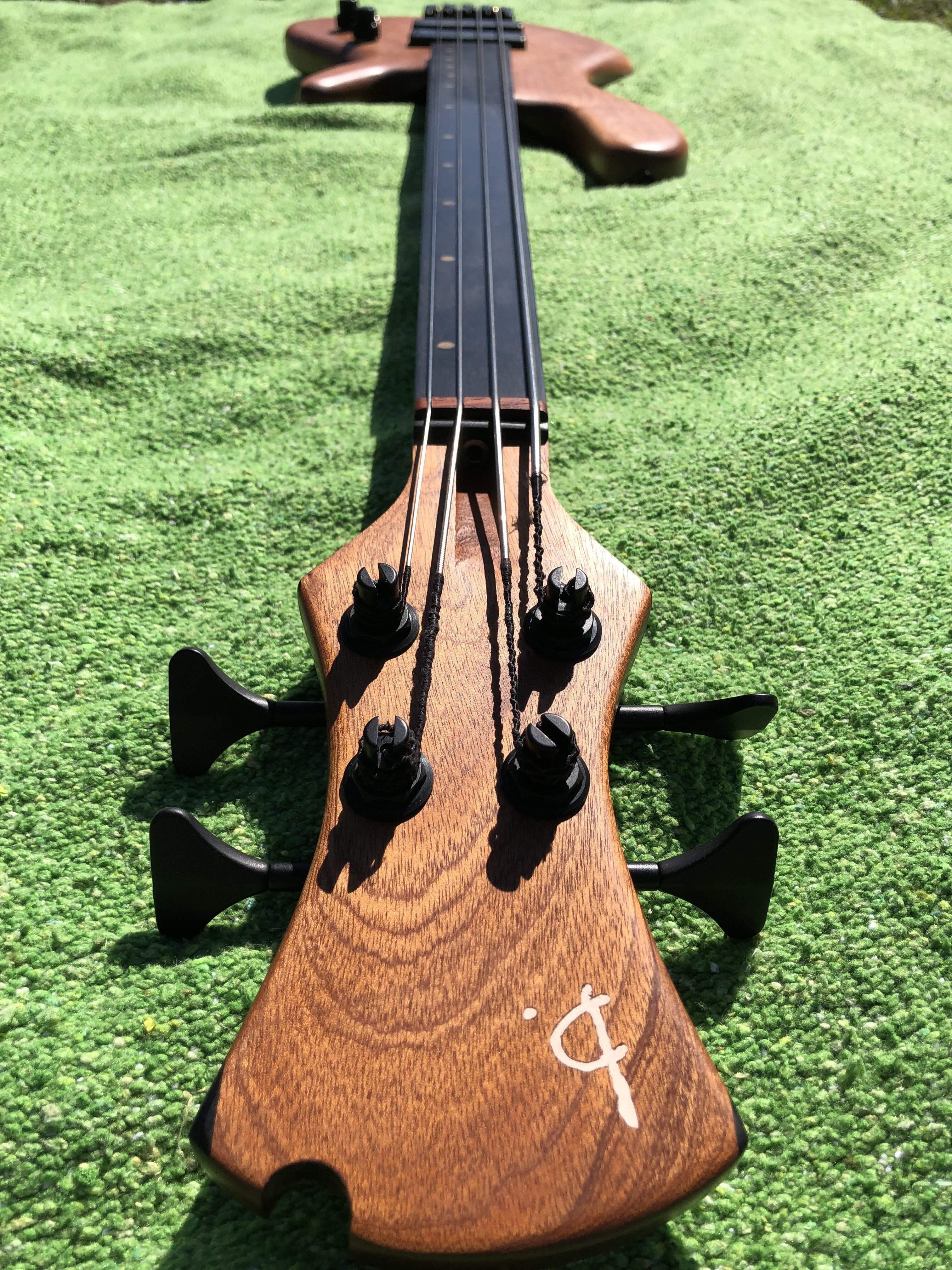

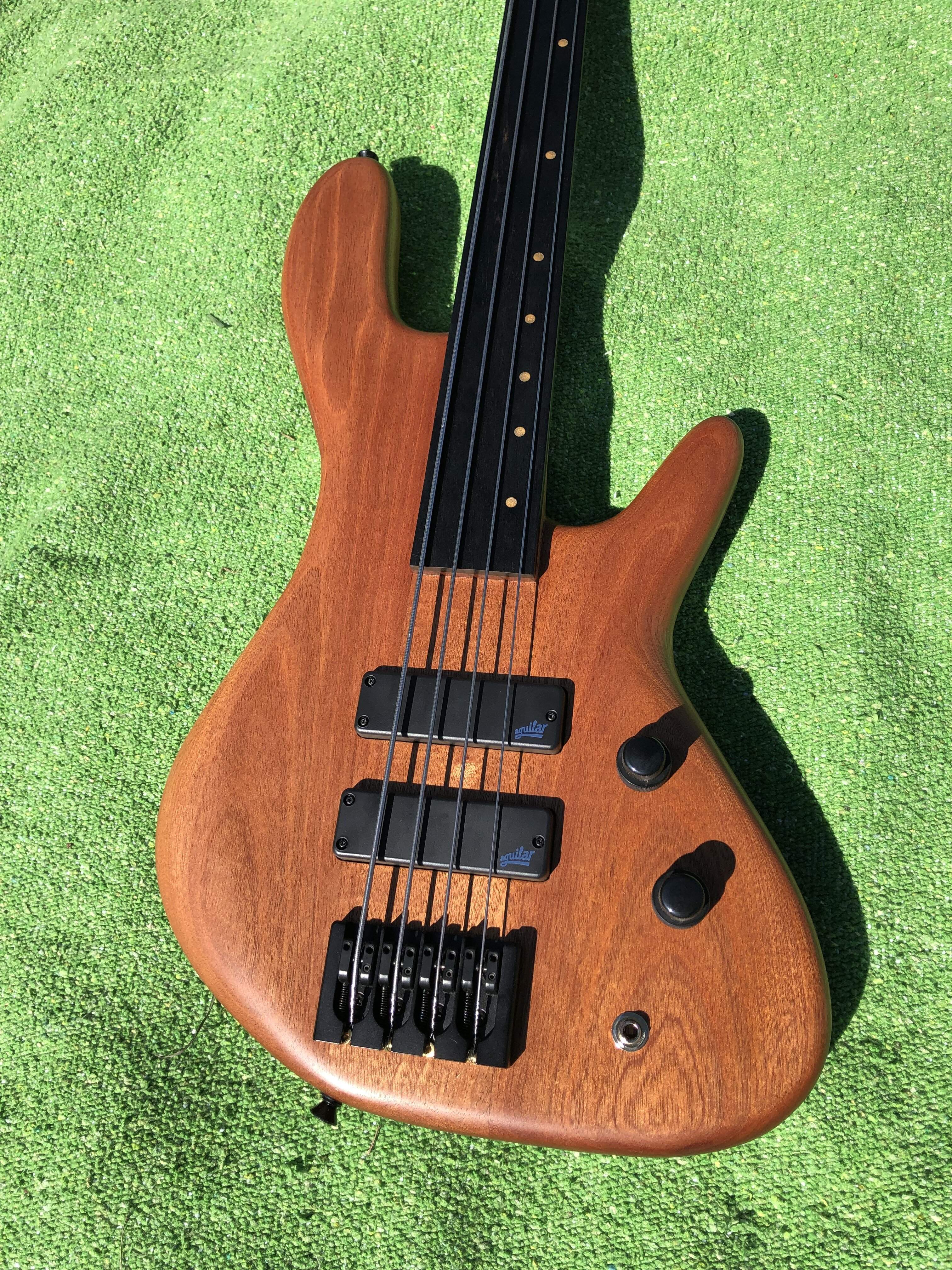

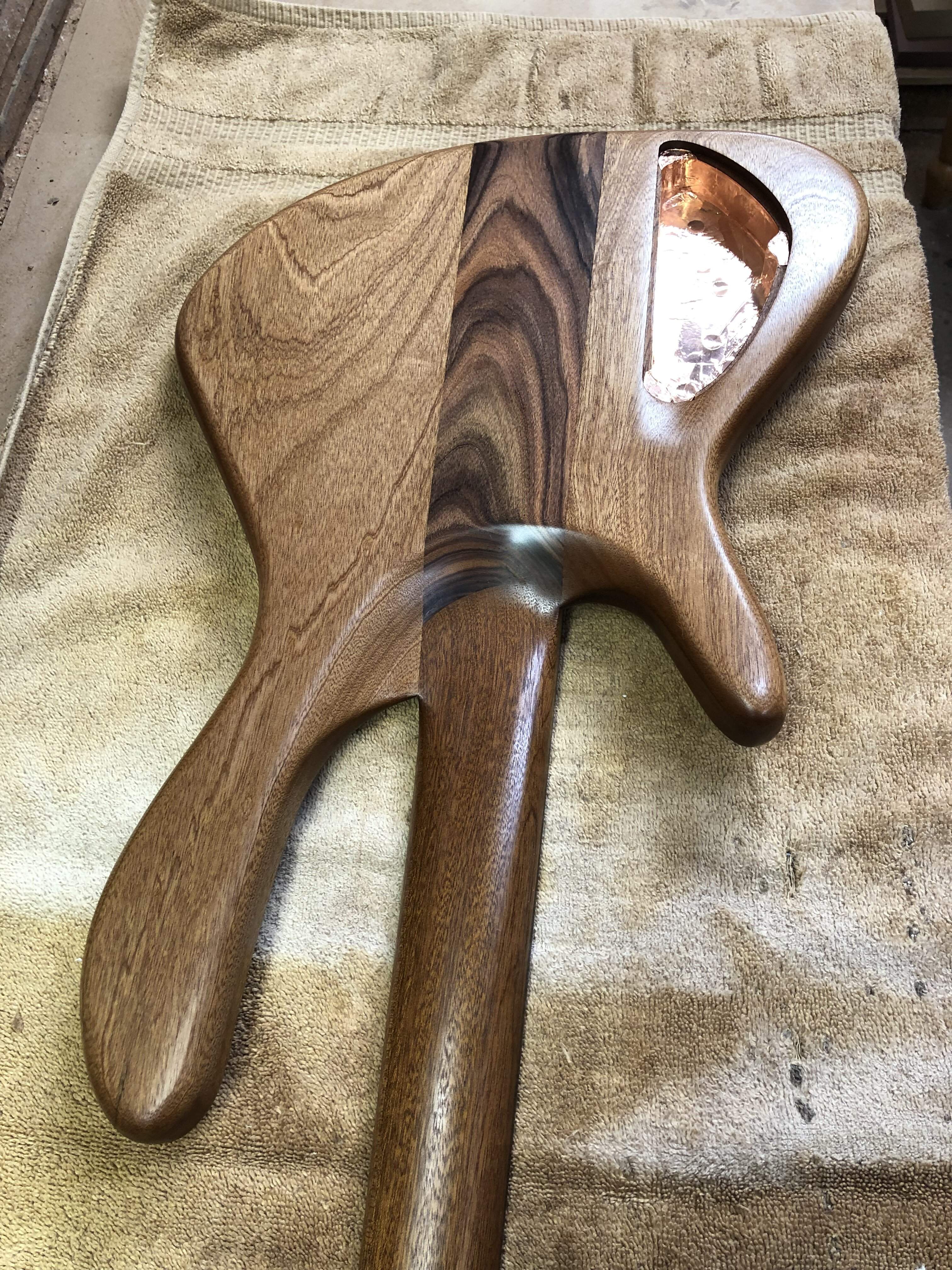

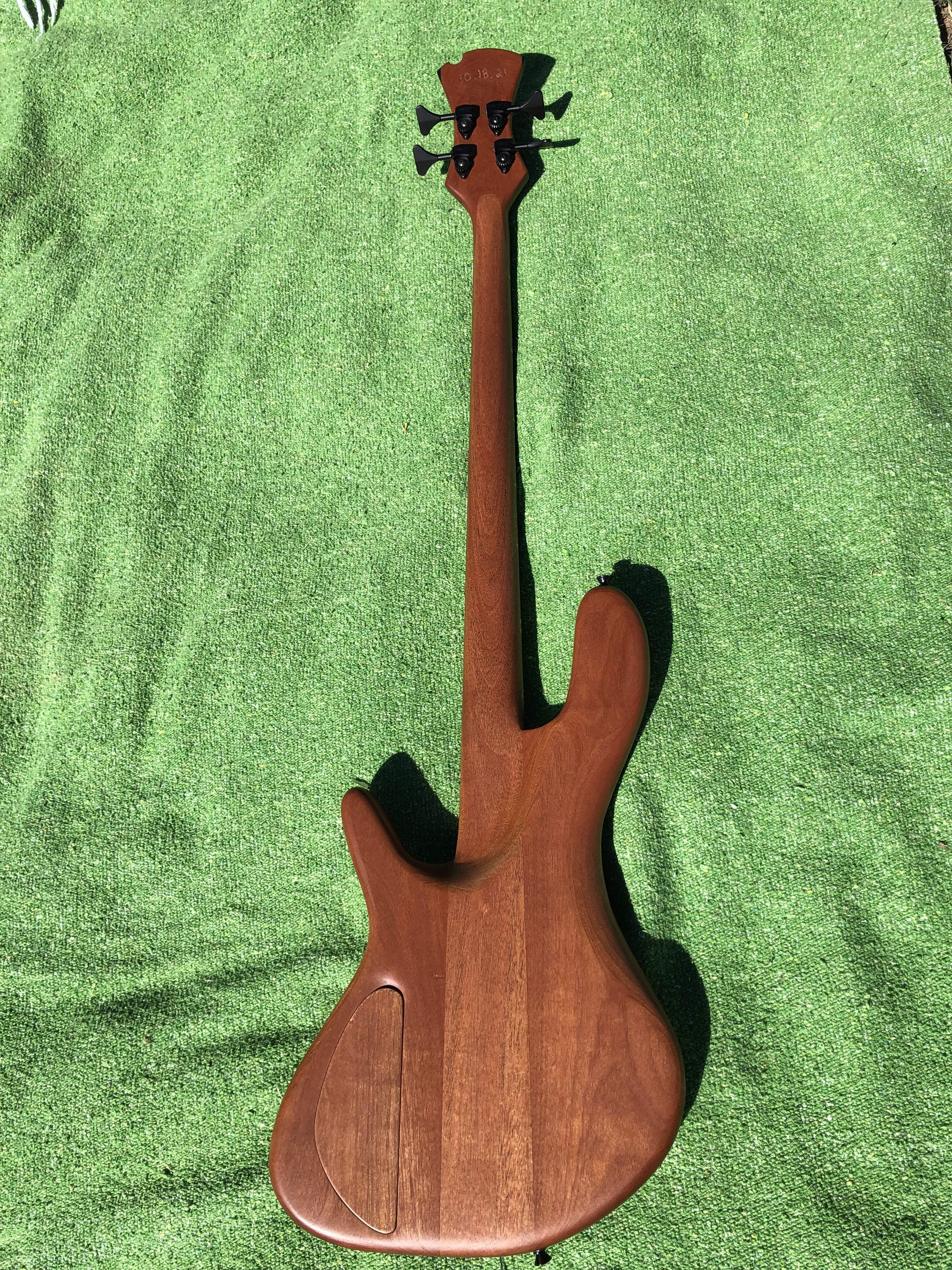

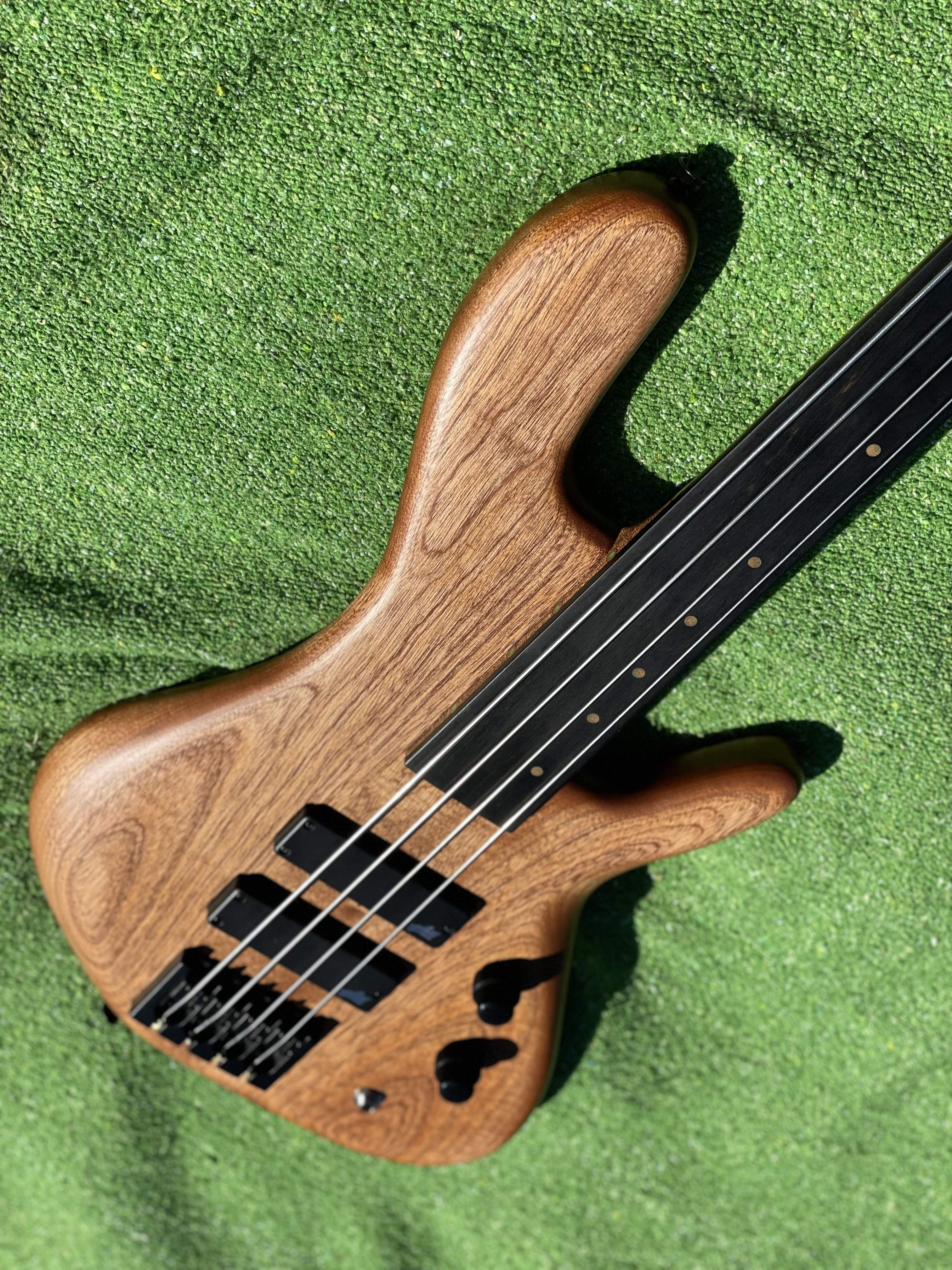

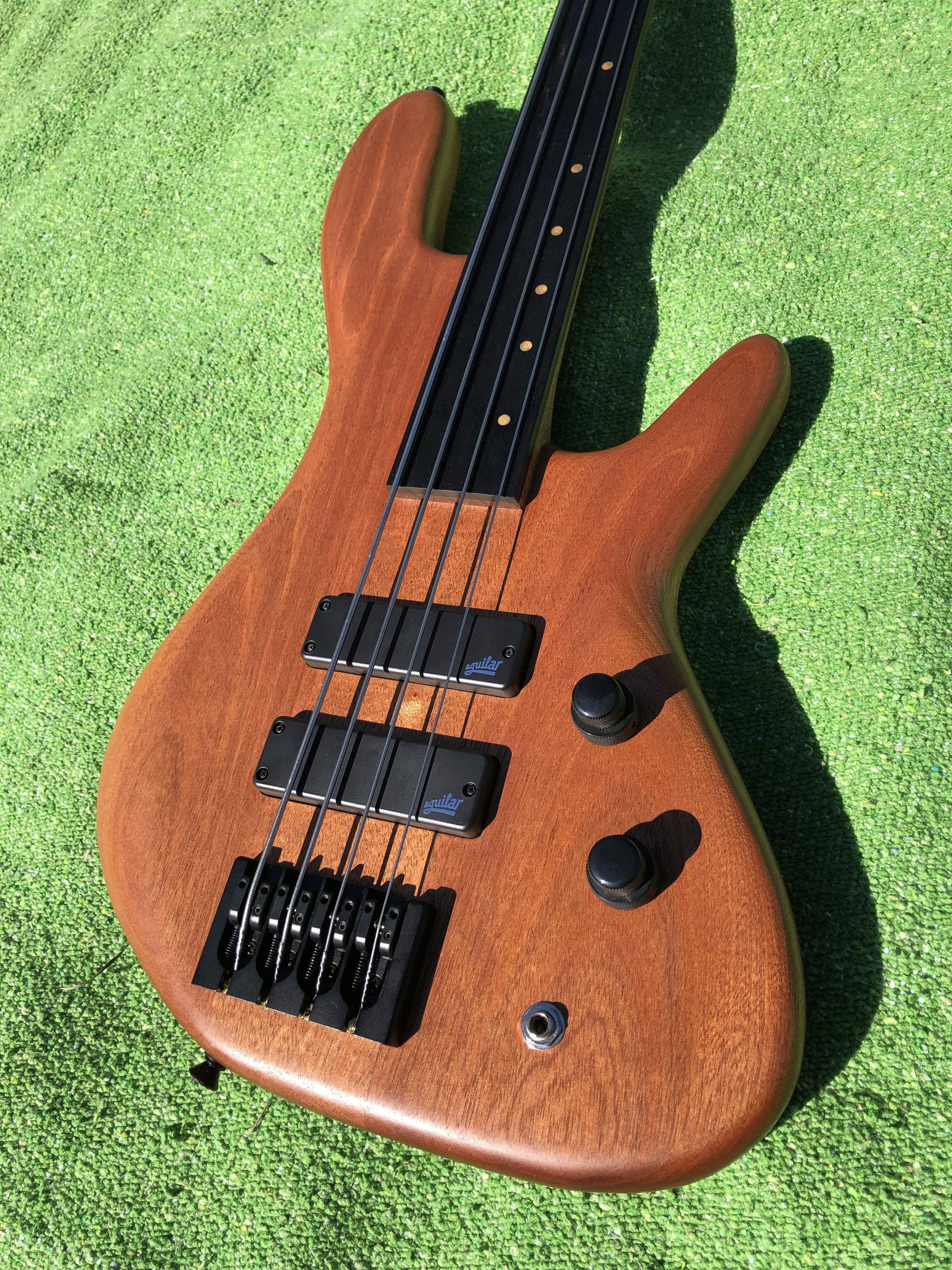

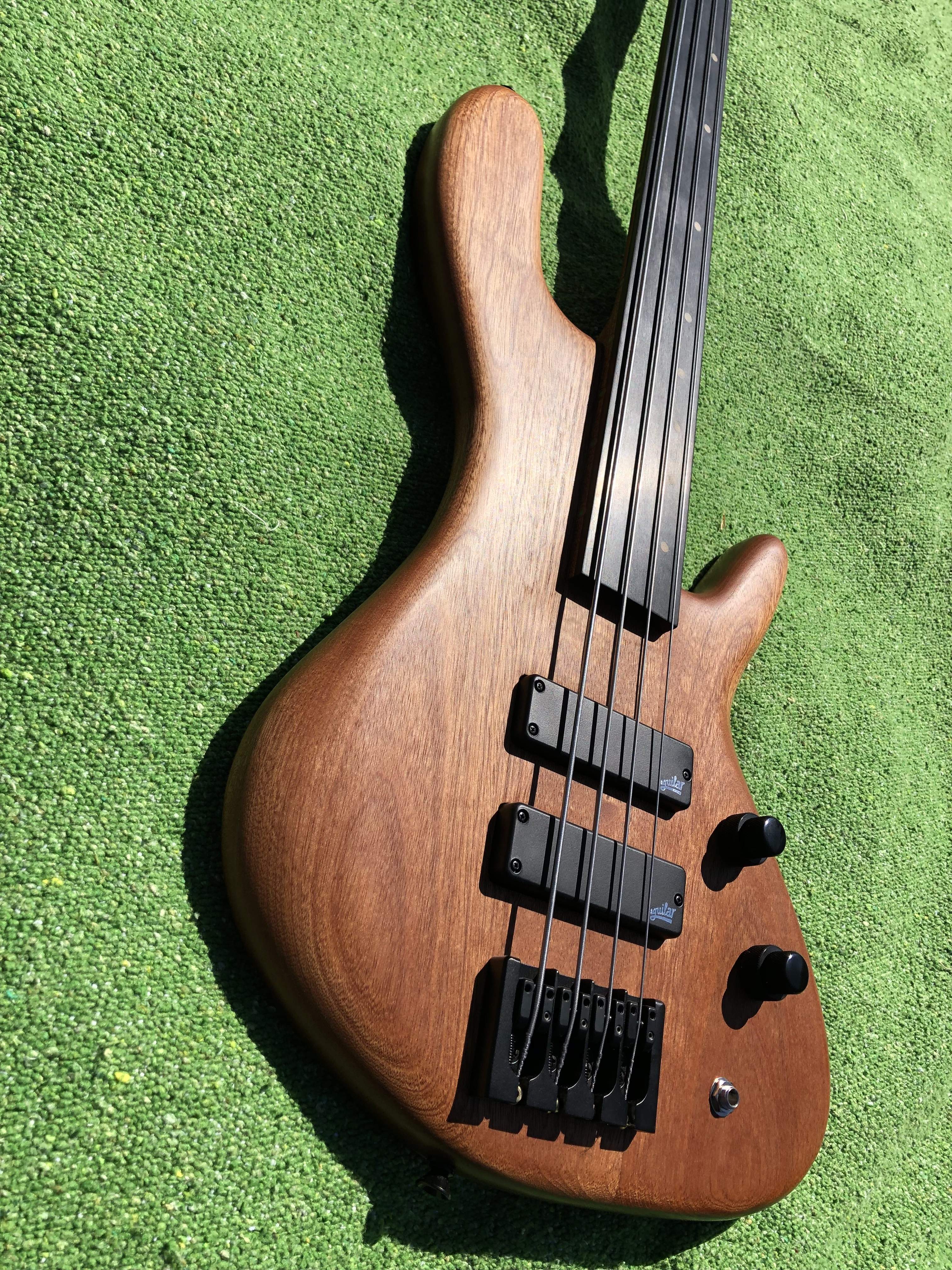

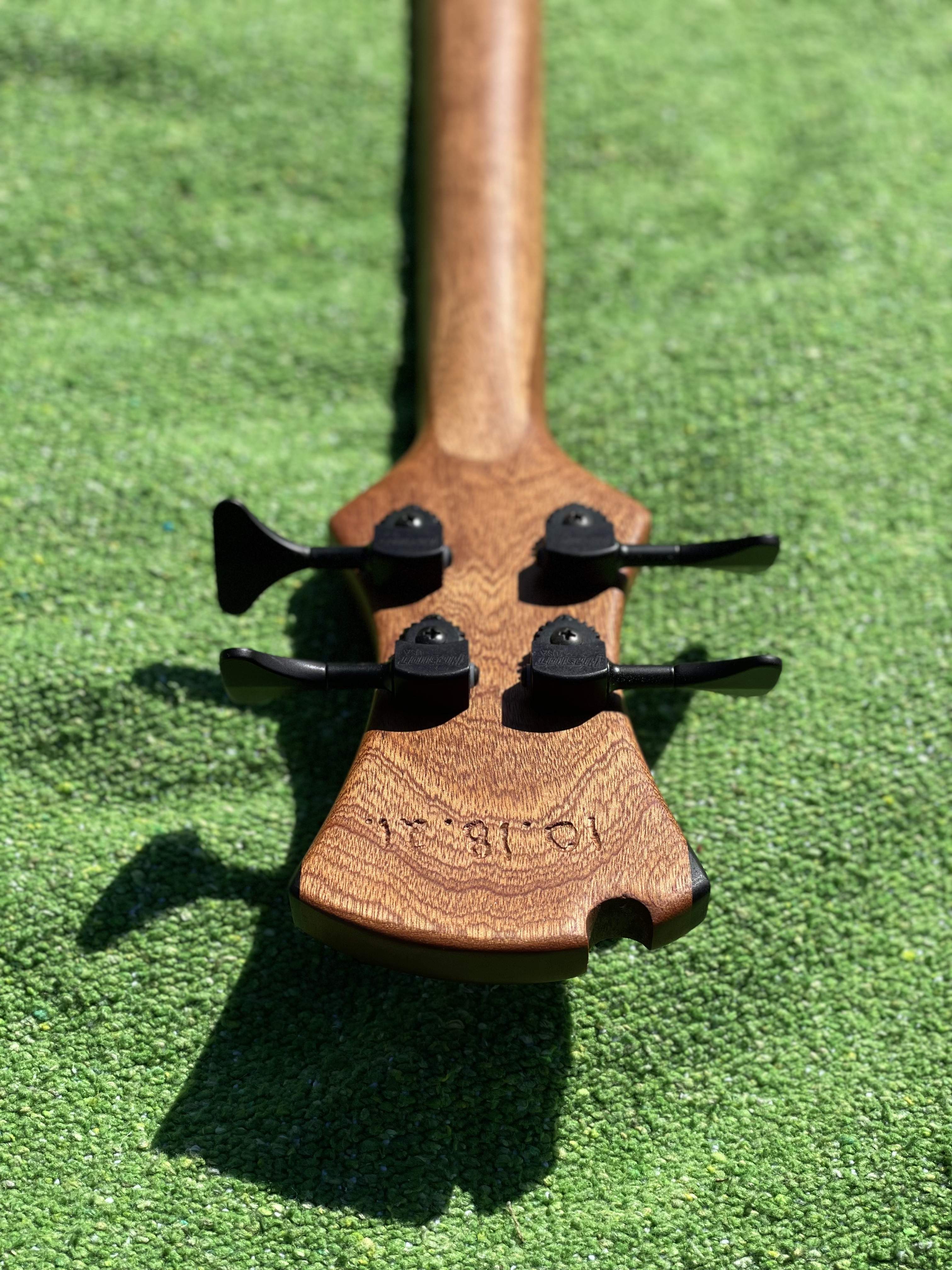

John's fretless sapele bass is ready to go home. All sapele, ebony fingerboard, and a cocobolo nut make up the woods. A pair of Aguilar DCs wired to a pair of stacked vol/tone knobs. Strung up with a set of Labella Deep Talking Bass flats.



[rick0link]

John stopped by on Monday to take his new bass home. He was very pleased and loves the way it plays, feels, and sounds. Welcome to the family John!!



[rick0link]

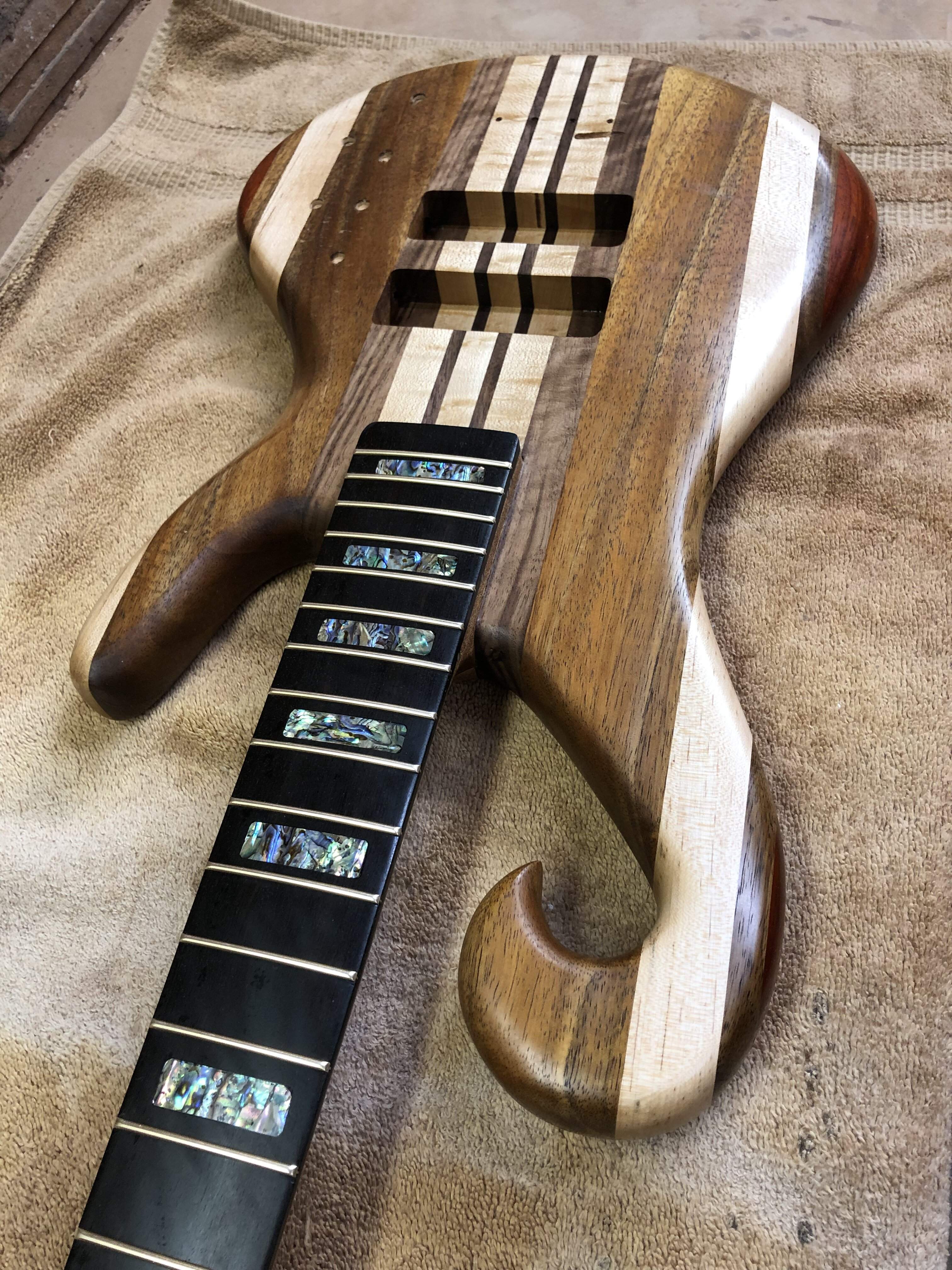

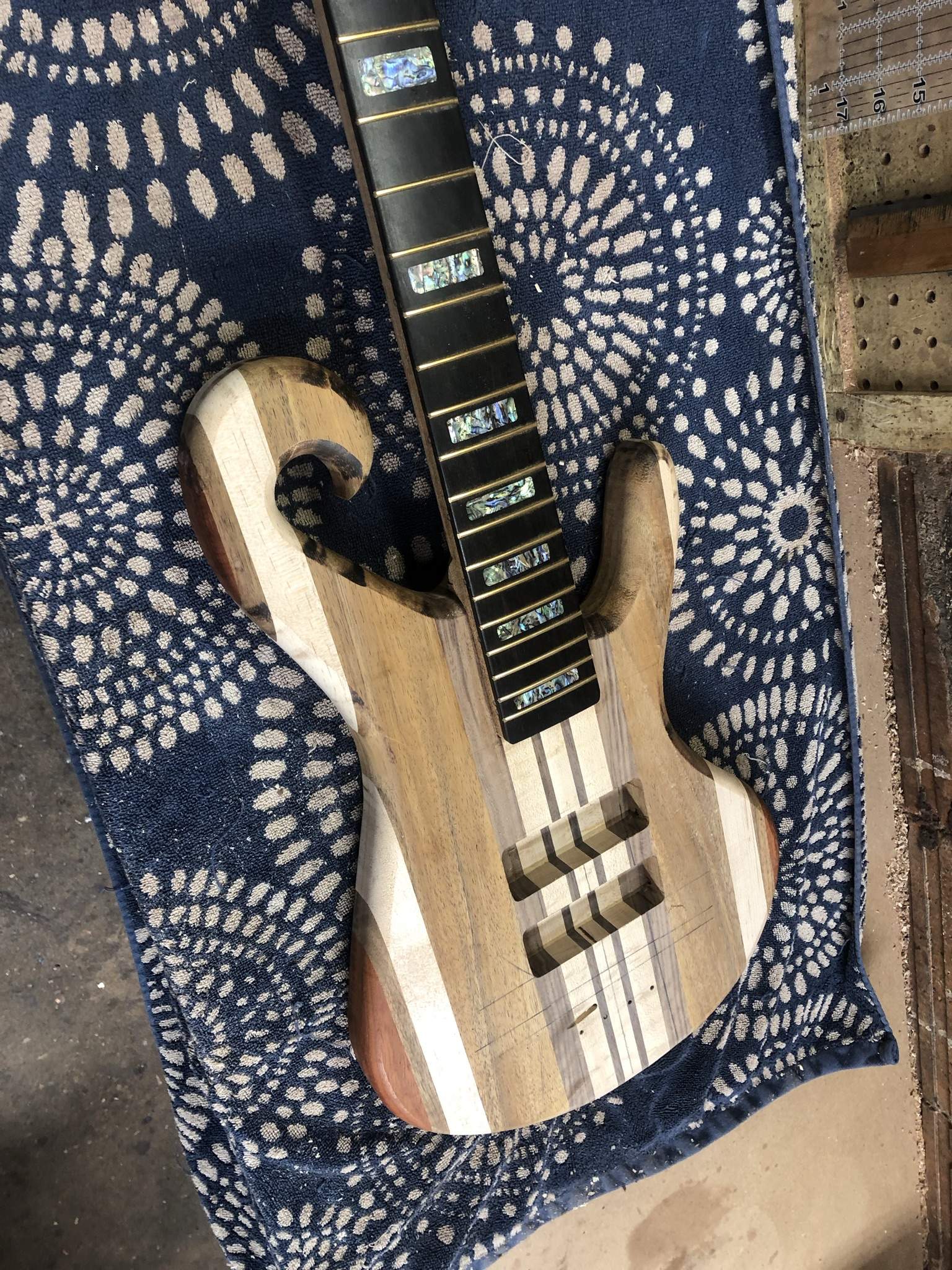

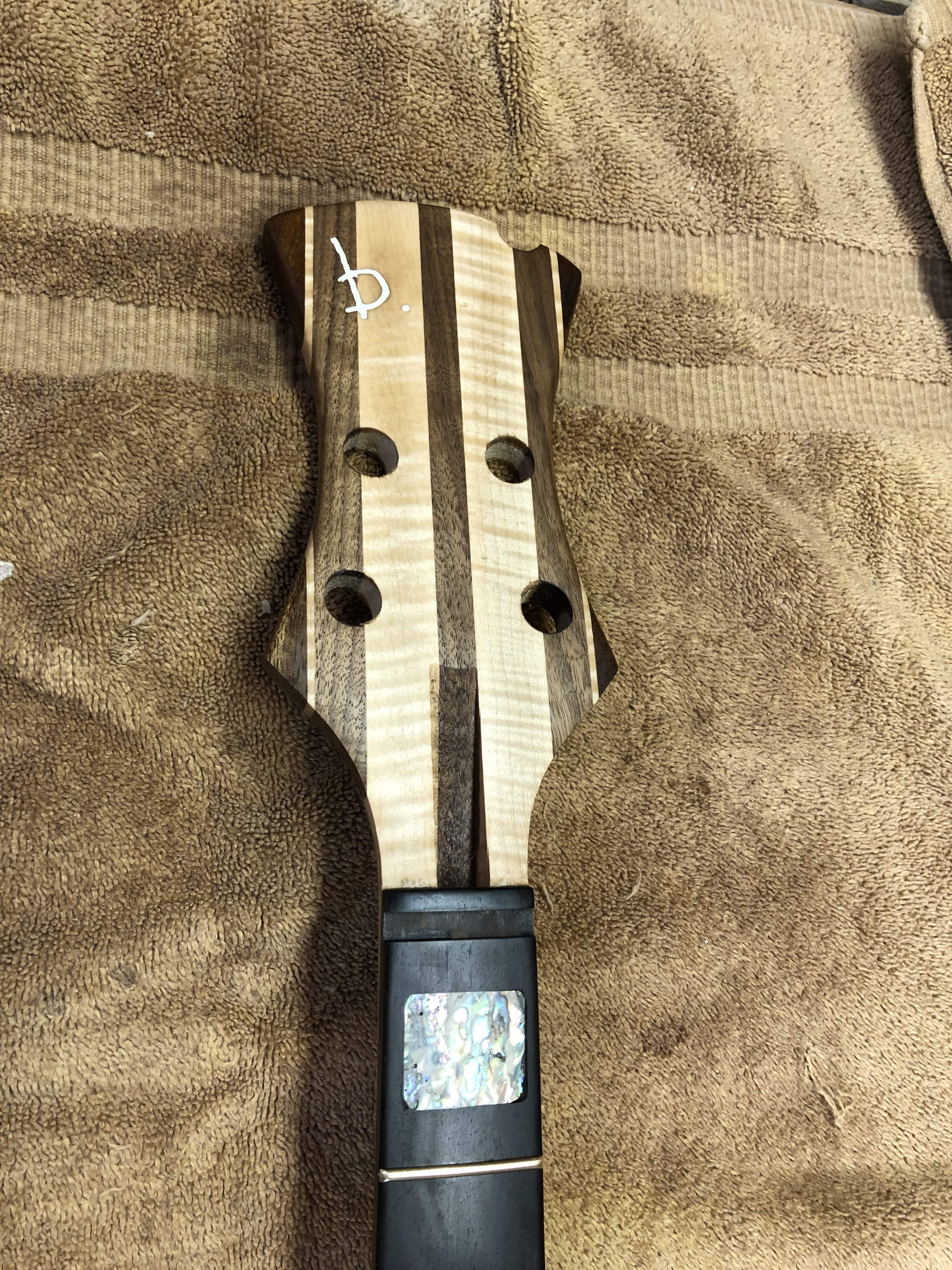

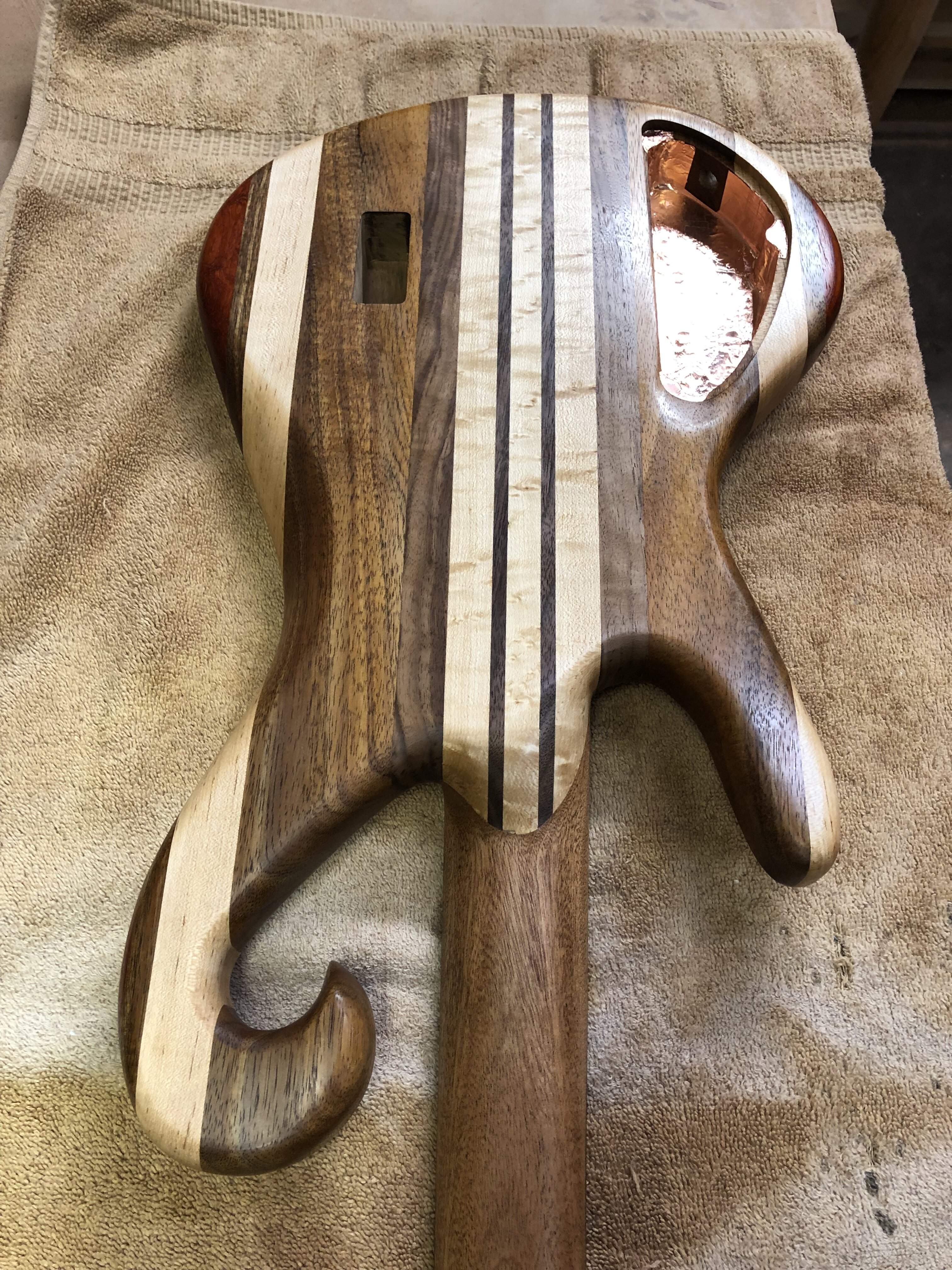

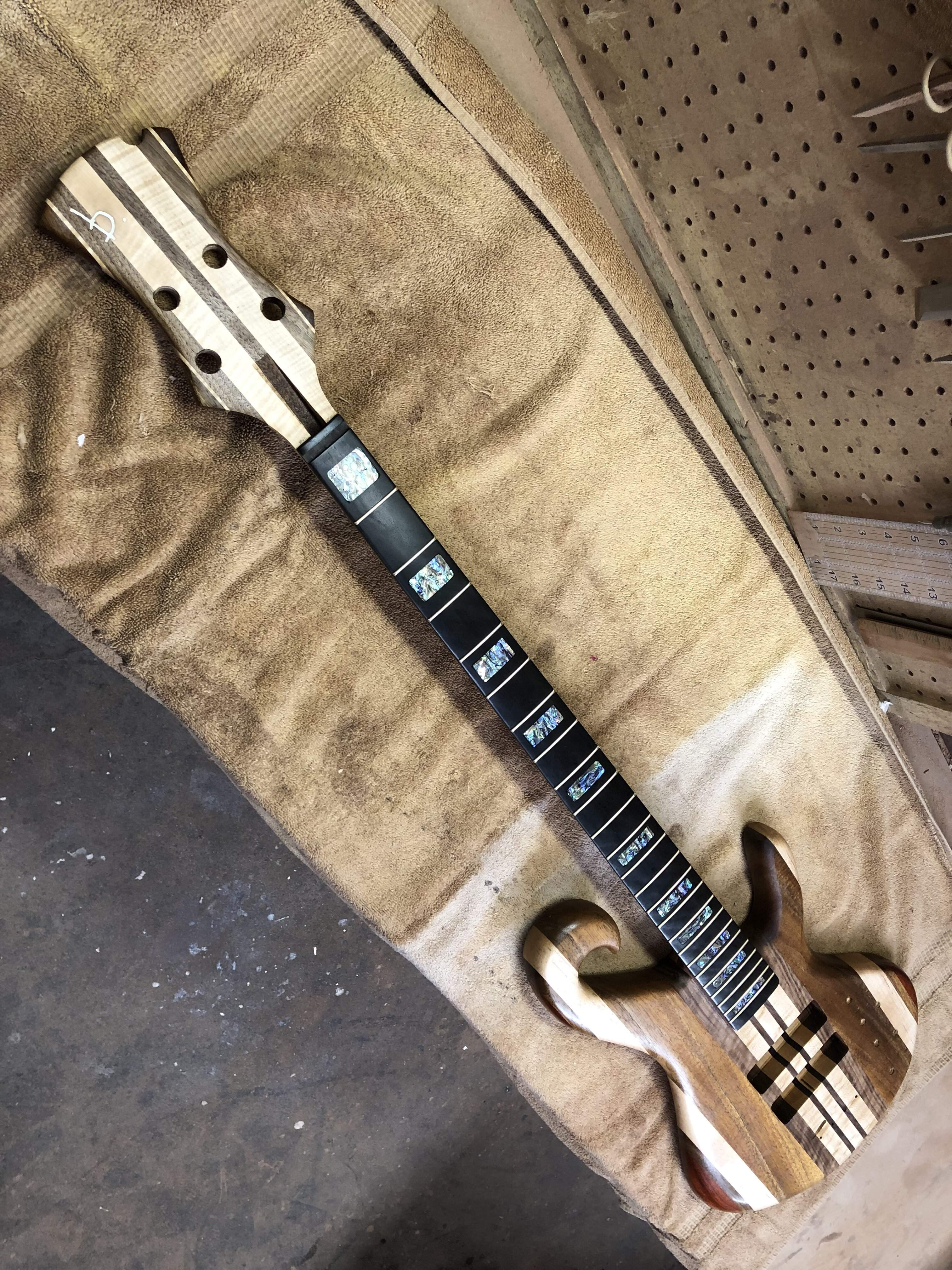

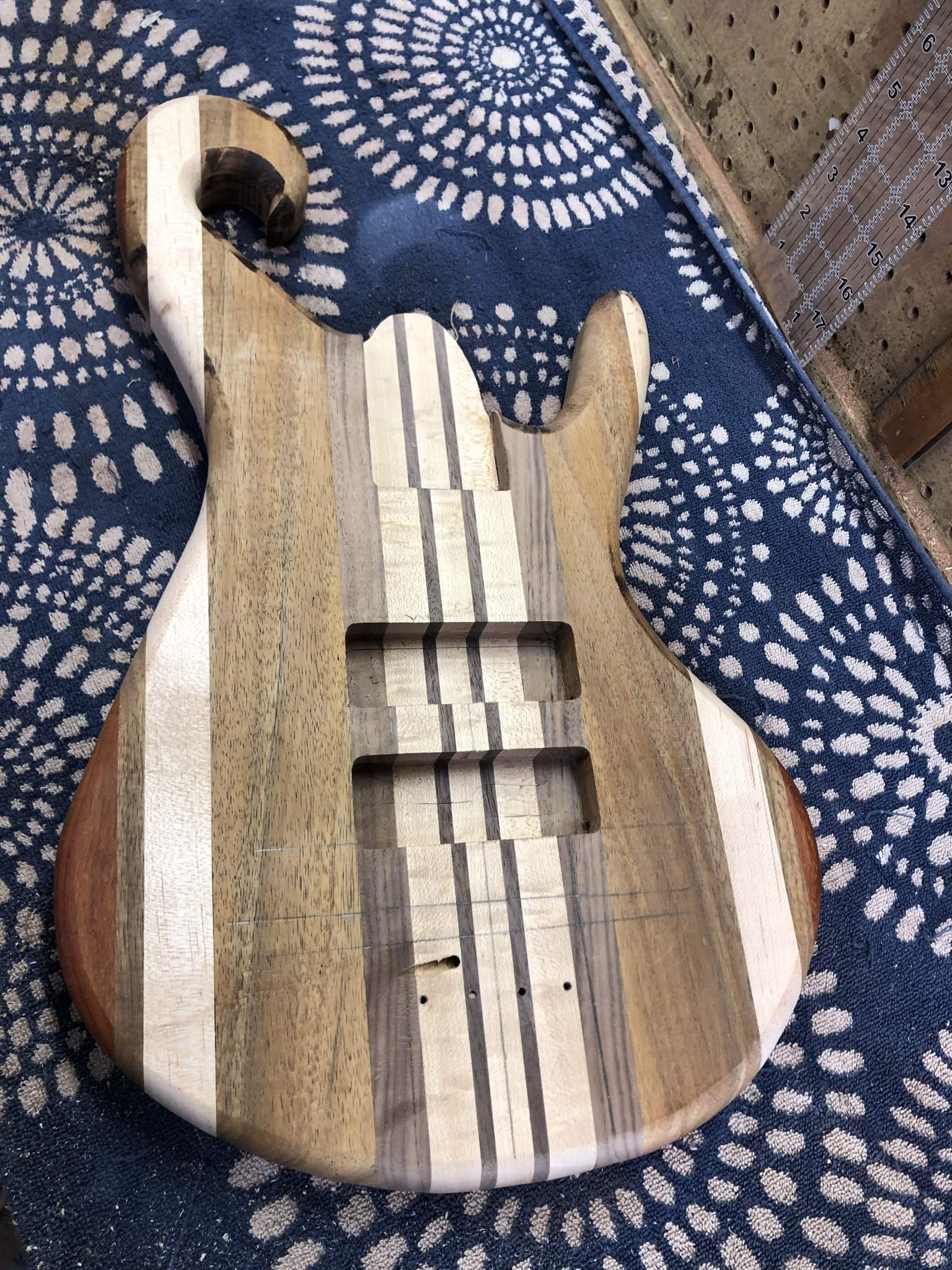

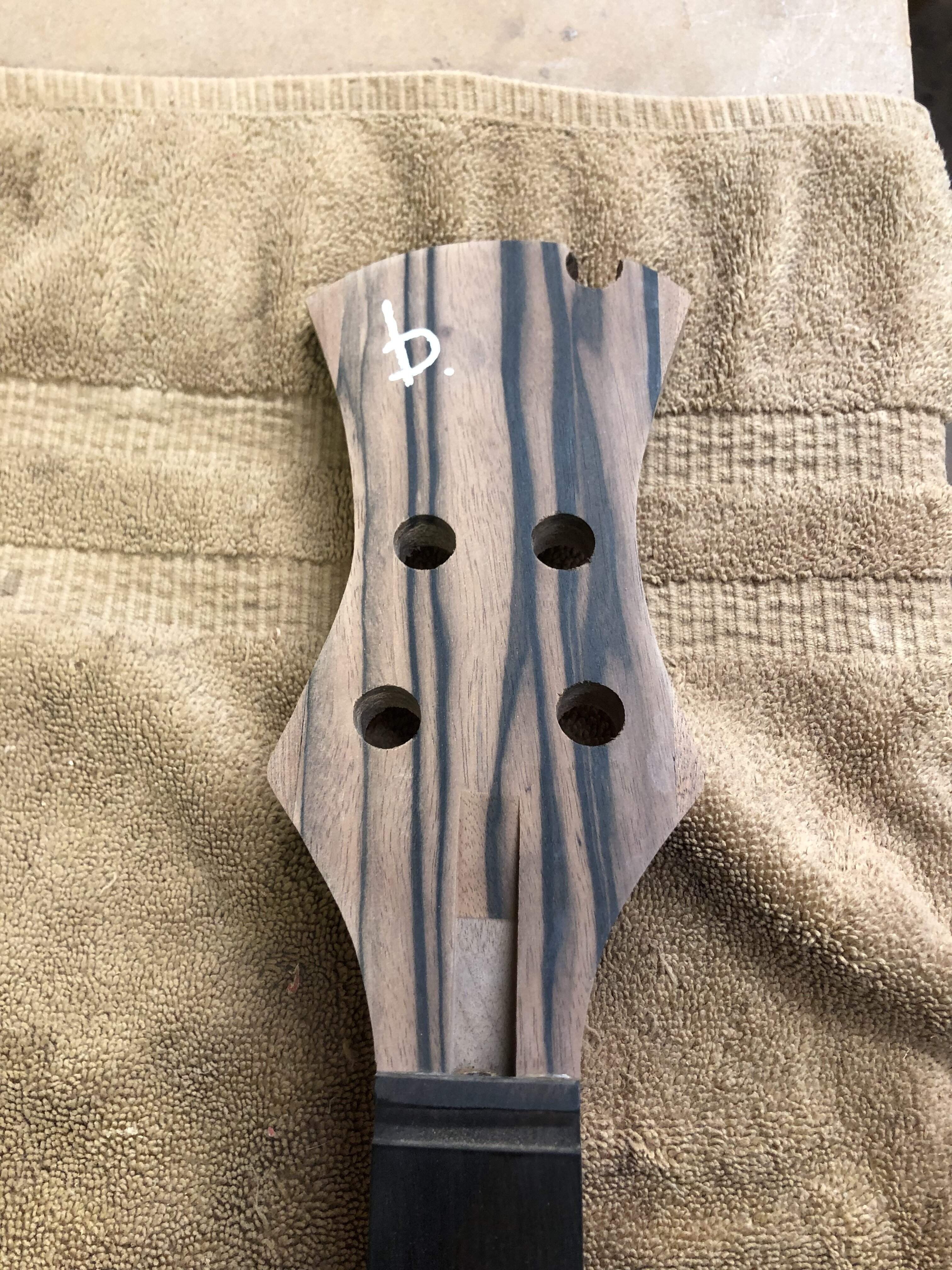

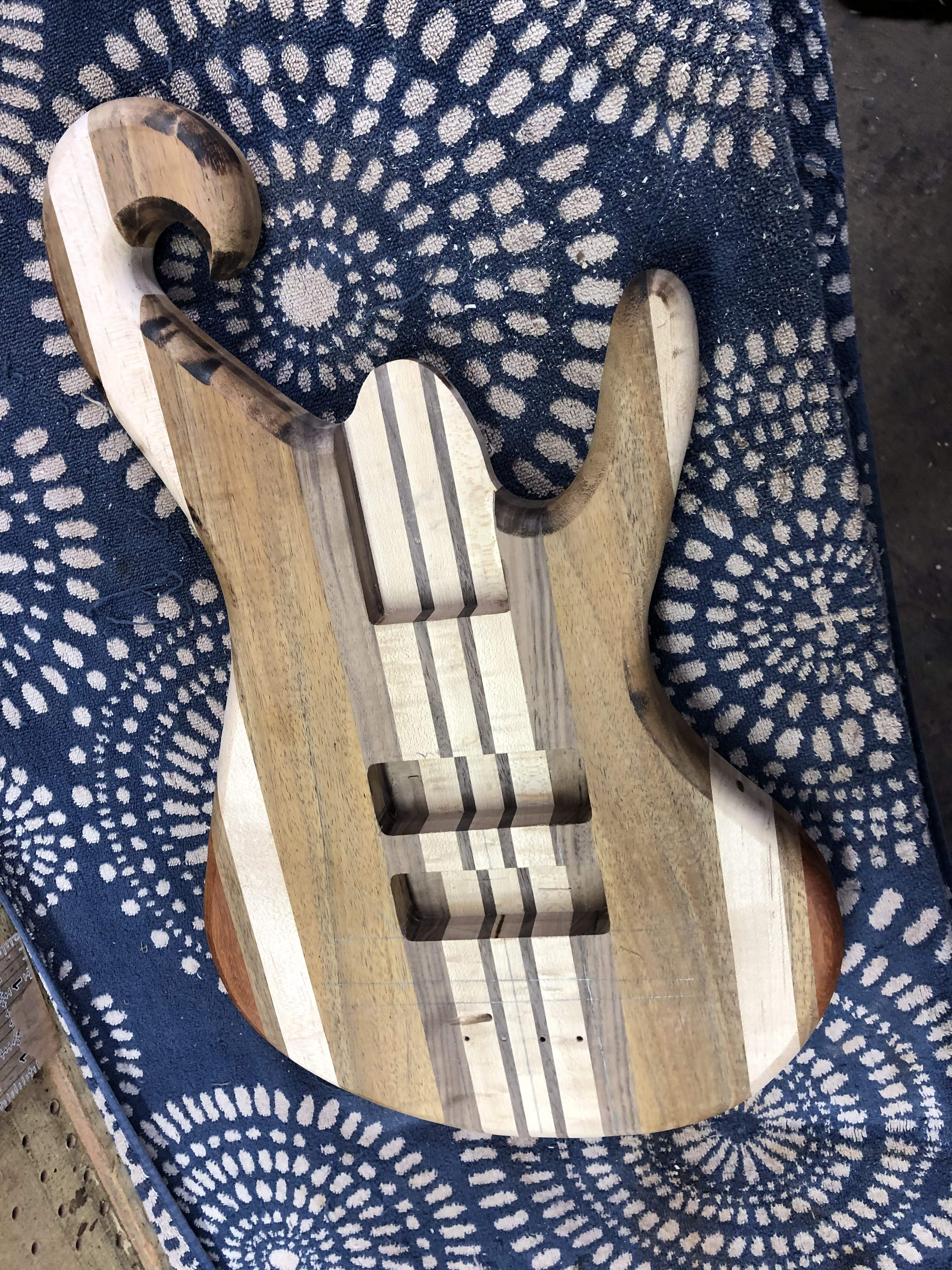

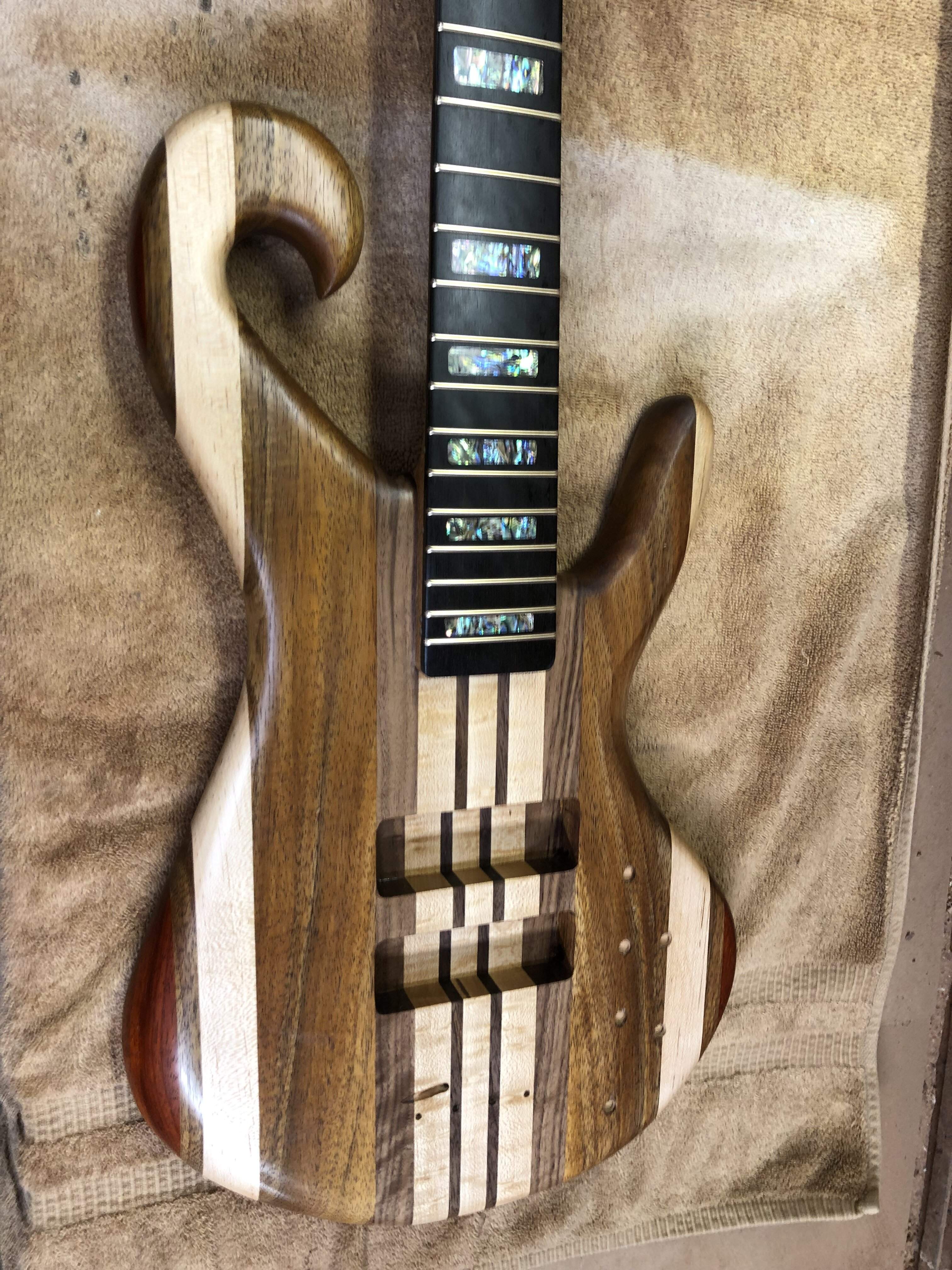

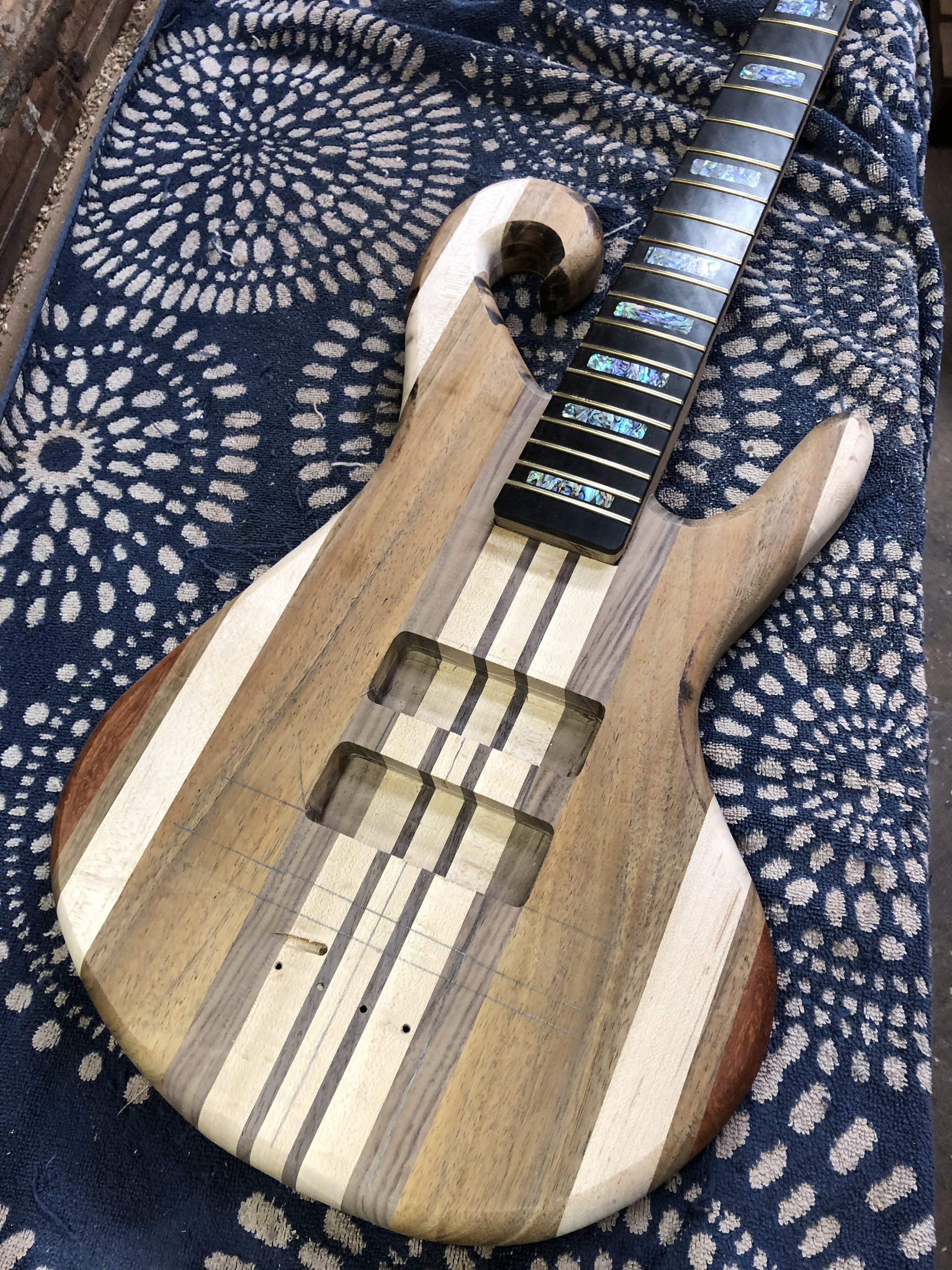

Making good progress on this set-neck rainbow-ish 4 string bass with some fancy inlays on the fretboard.



[rick0link]

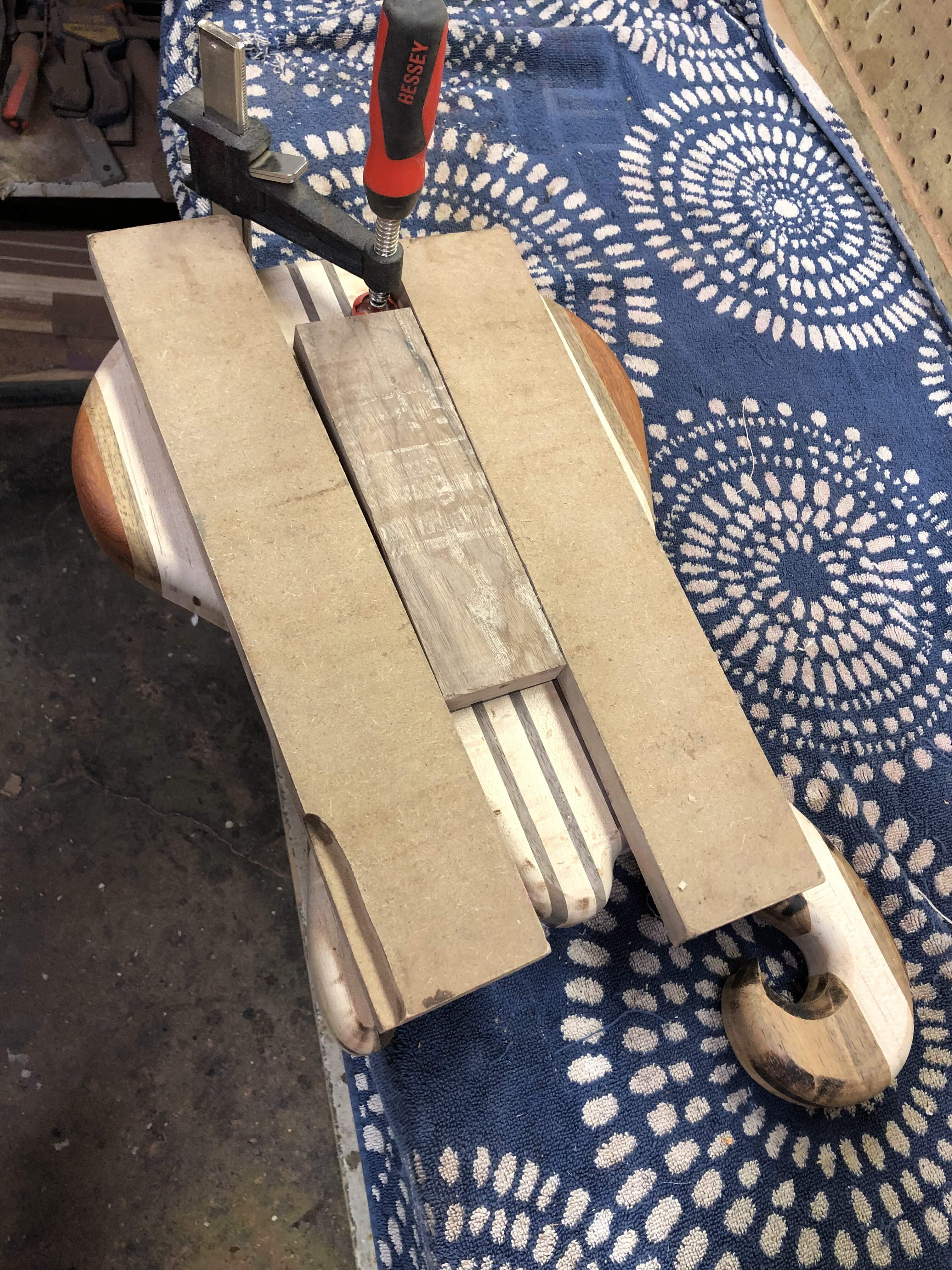

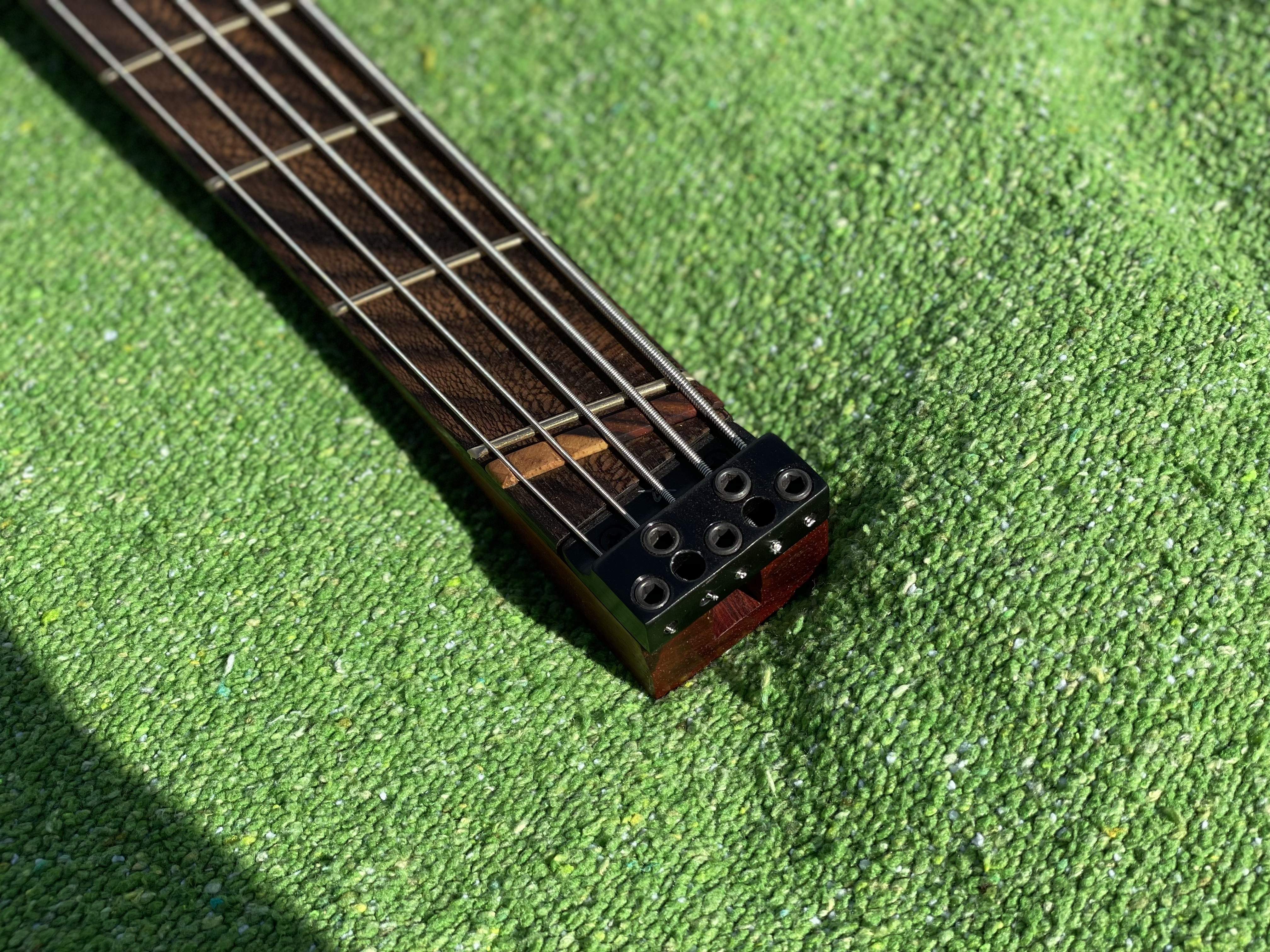

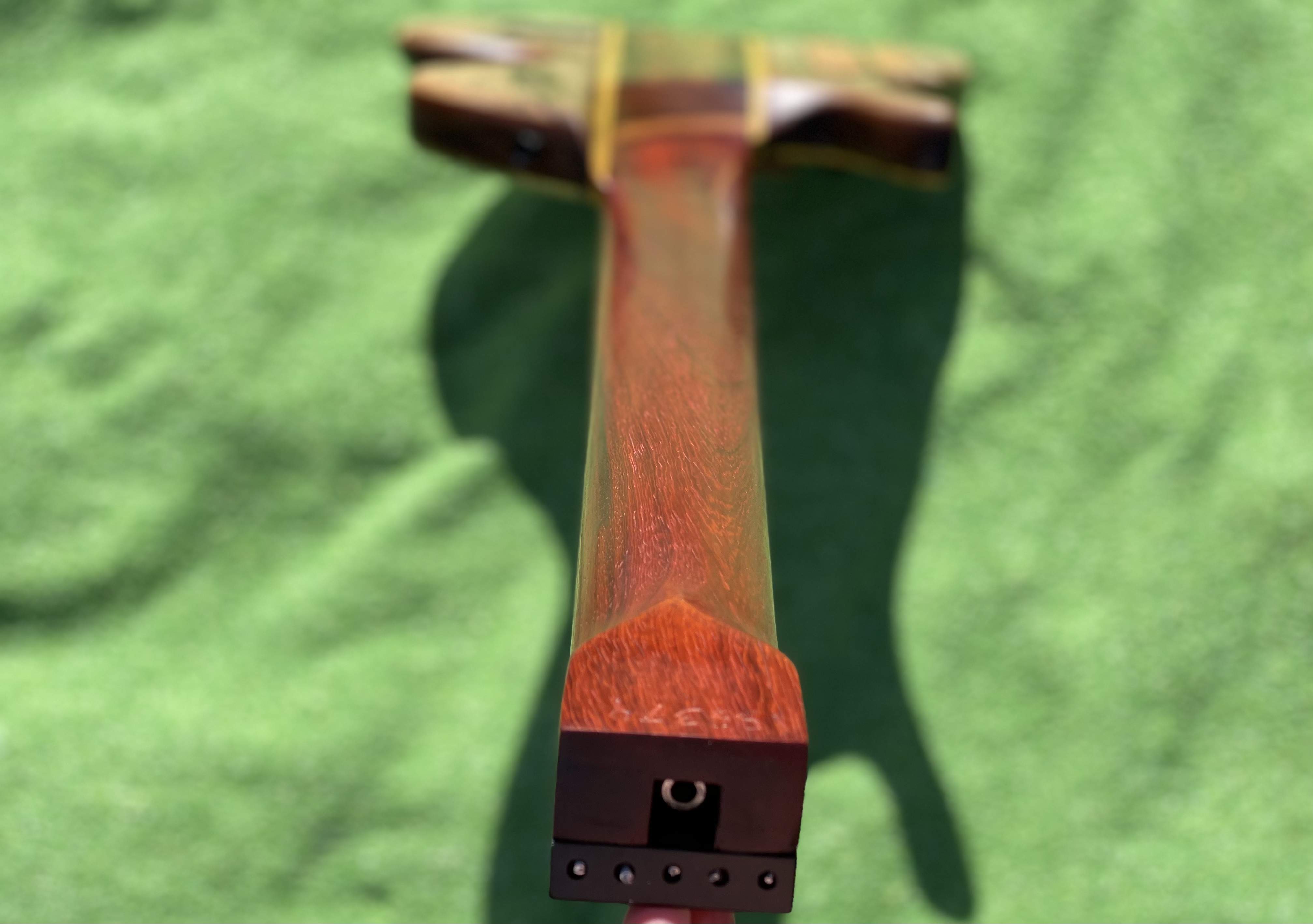

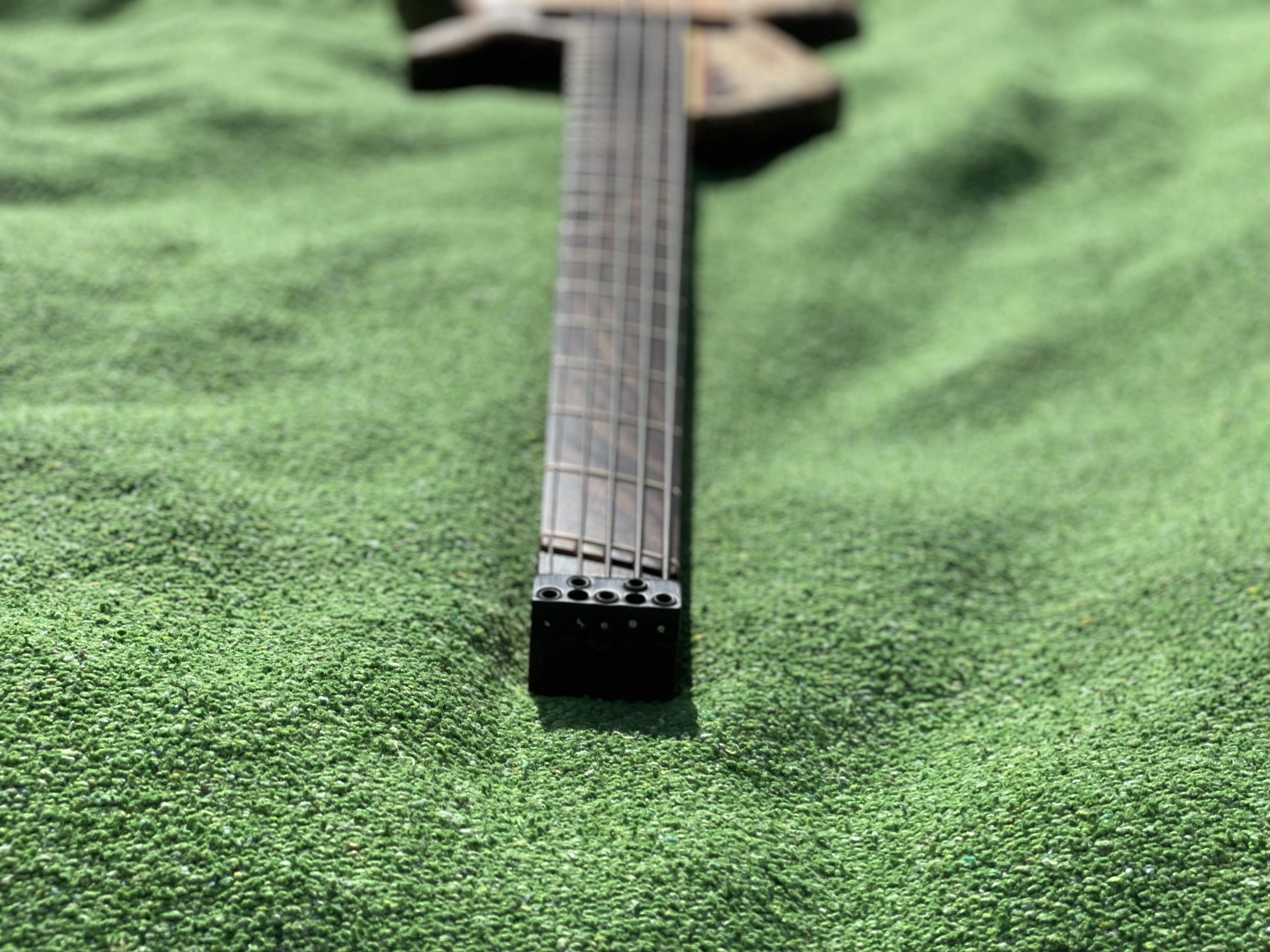

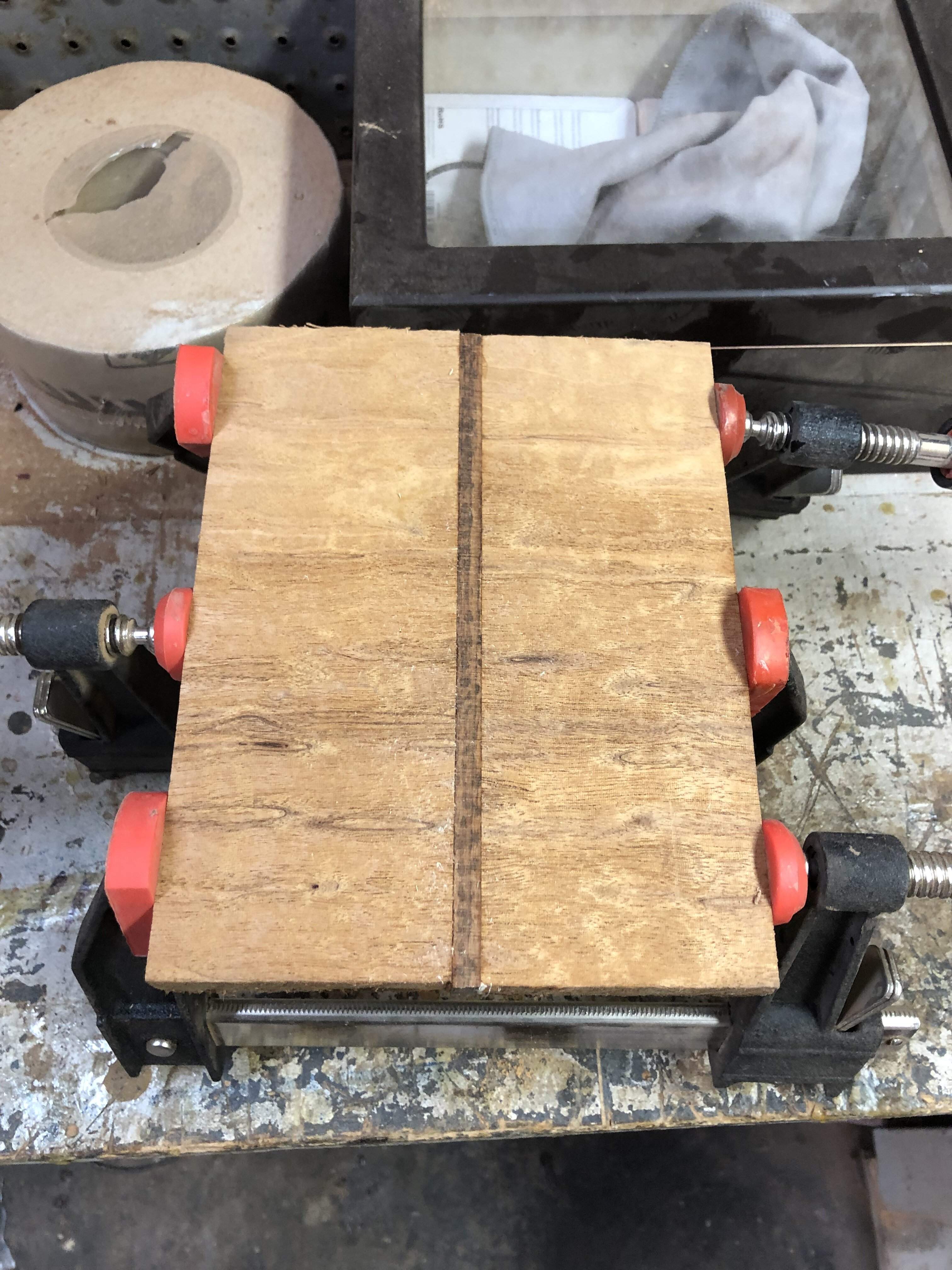

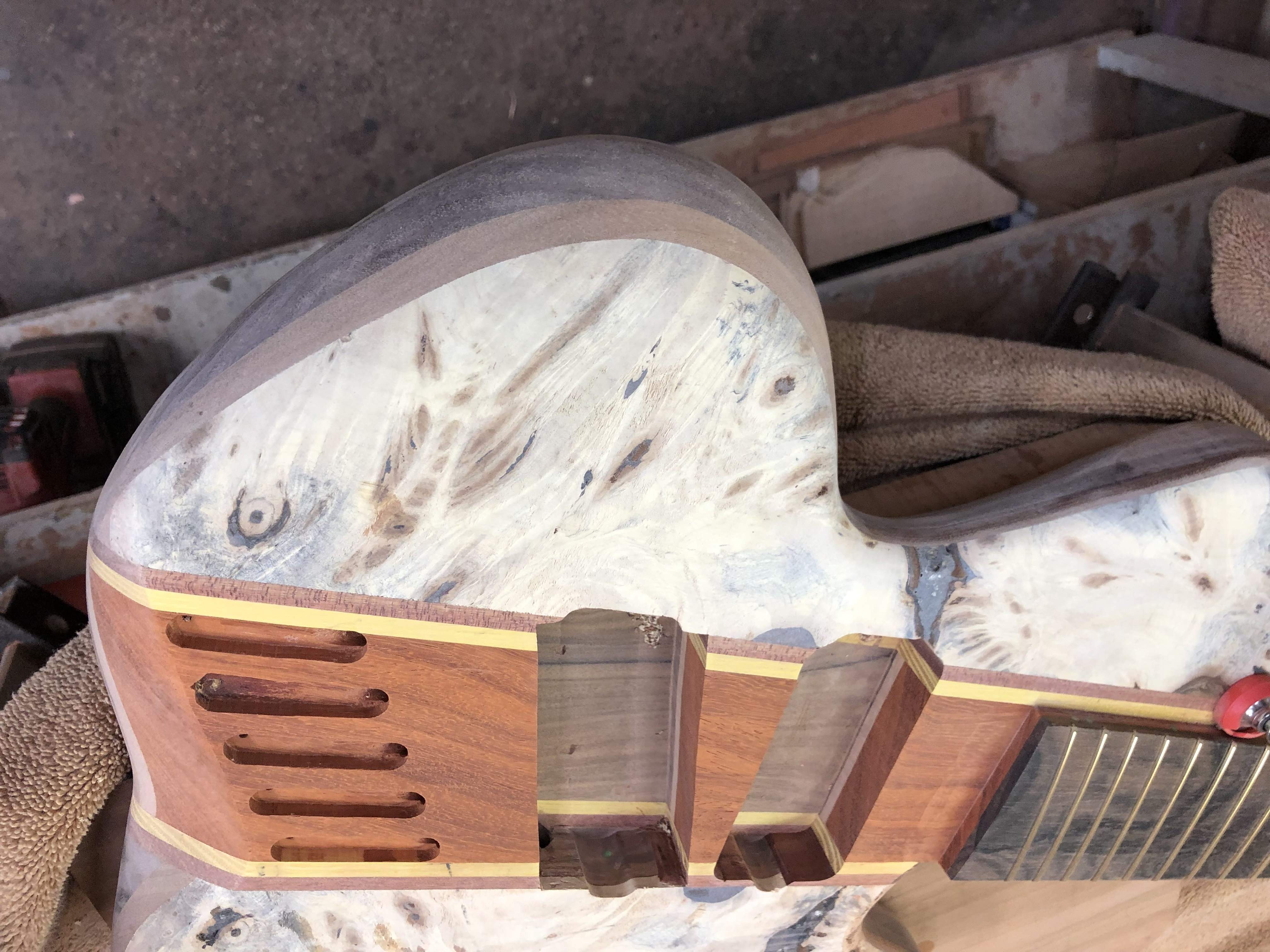

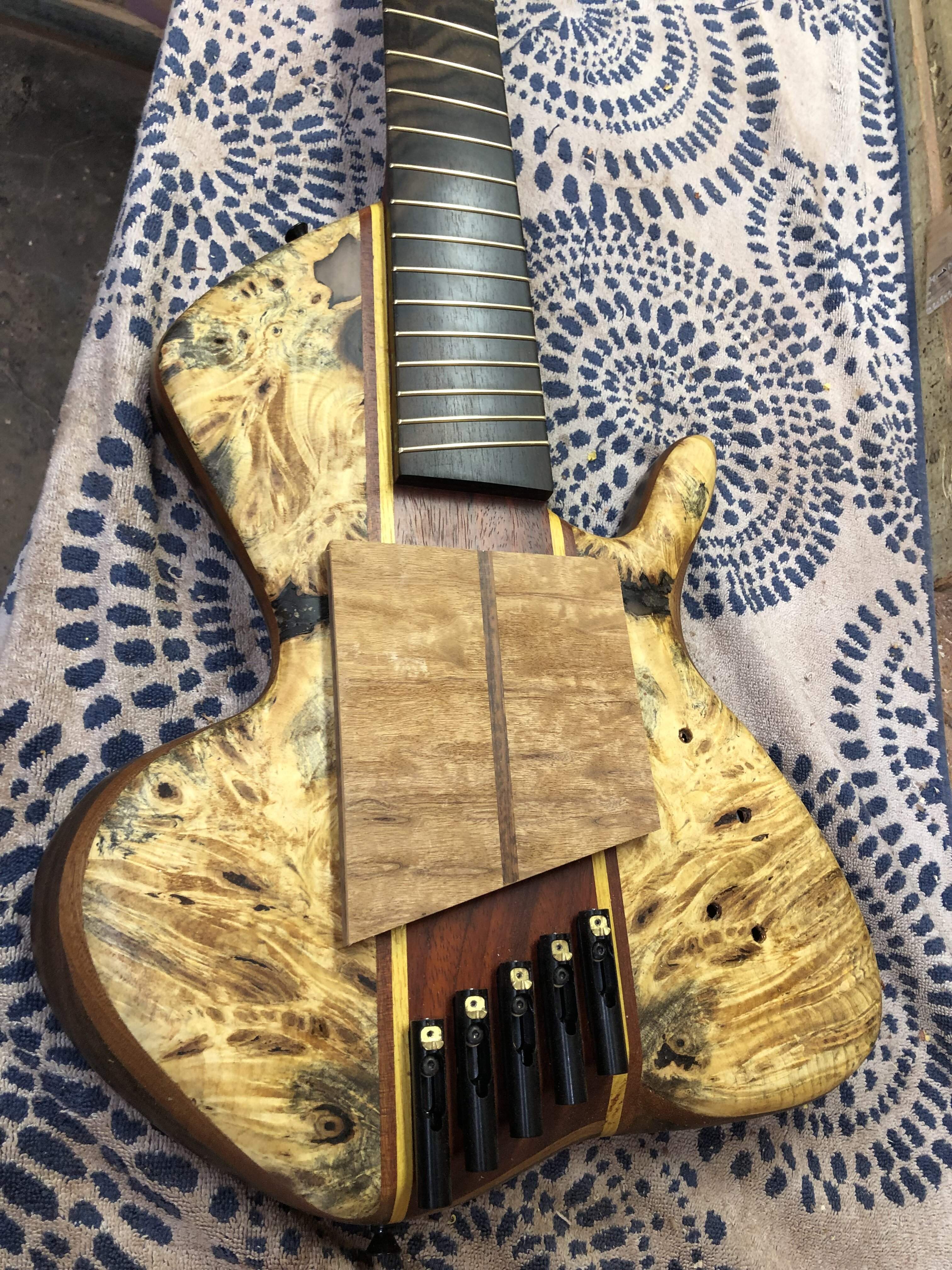

The very first Beardly Customs headless instrument is all finished up. Here's a few pictures of the construction of the ramp i made for it. Better pictures to follow.



[Slidlow]

The doubleneck is all done. 30" baritone tuned E-E and 34" 5 string bass tuned B-G. Nordstrand bass pickups and Seymour Duncan guitar pickups. Hipshot hardware brings it all together.

What string gauges did you use for 30" baritone E-E?



[rick0link]

What string gauges did you use for 30" baritone E-E?

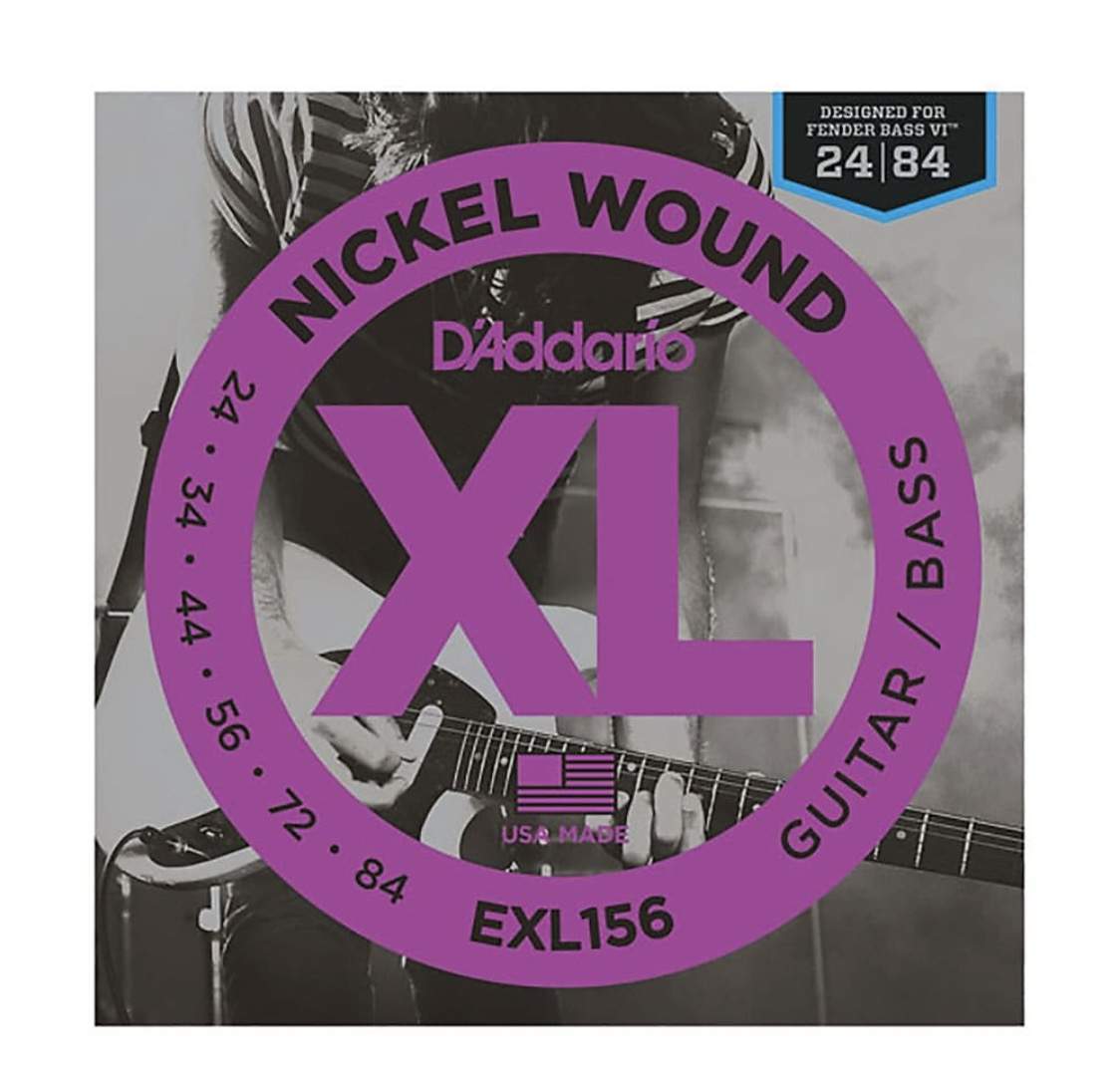

I used a set of these for the baritone.



[Slidlow]

I used a set of these for the baritone.

I don't believe those give baritone tuning. Just standard bass pitch. Baritone is guitar tuning and all strings need to be thinner. So what you have built is a five string bass and a bass 6 double neck.



[rick0link]

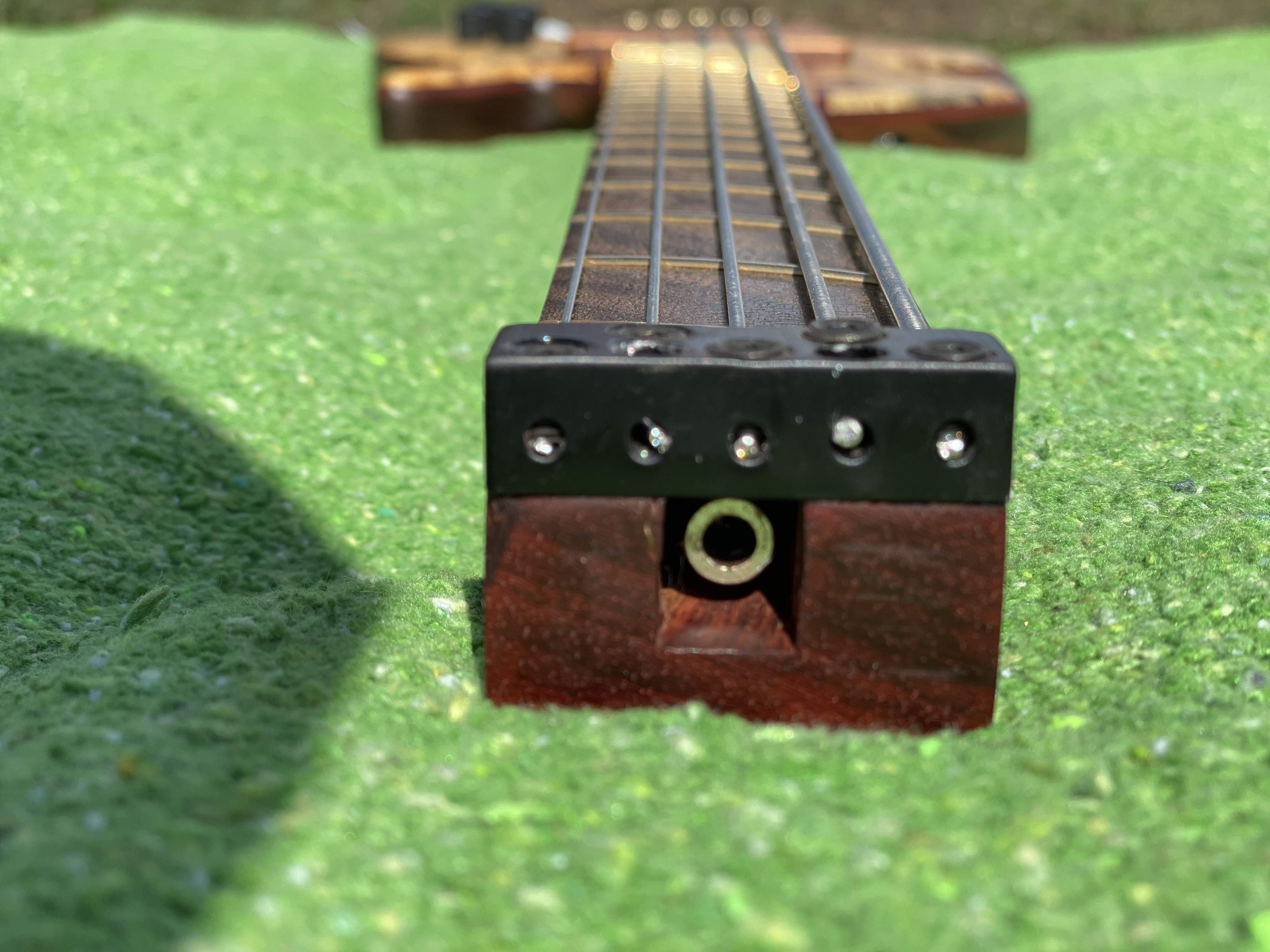

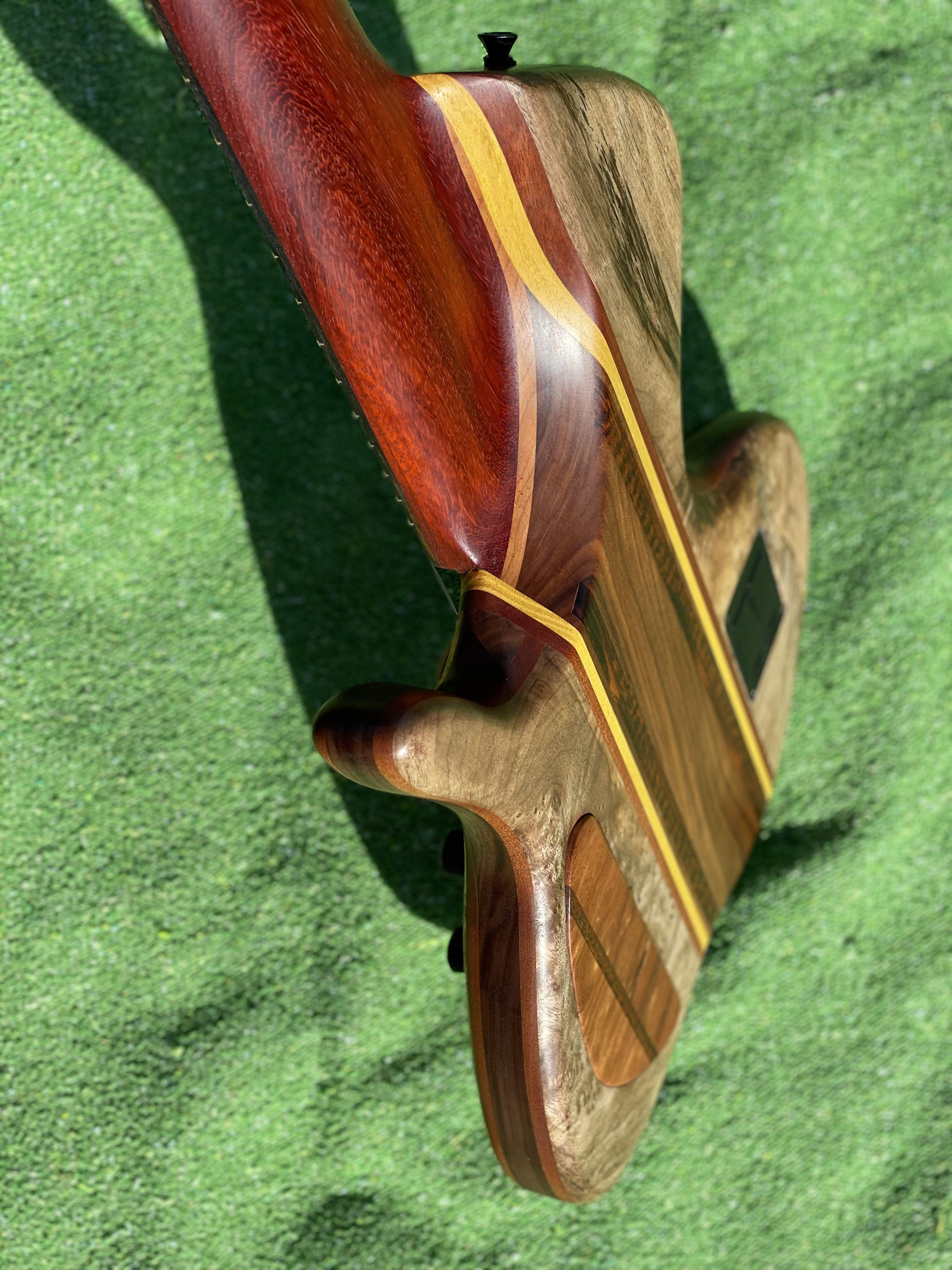

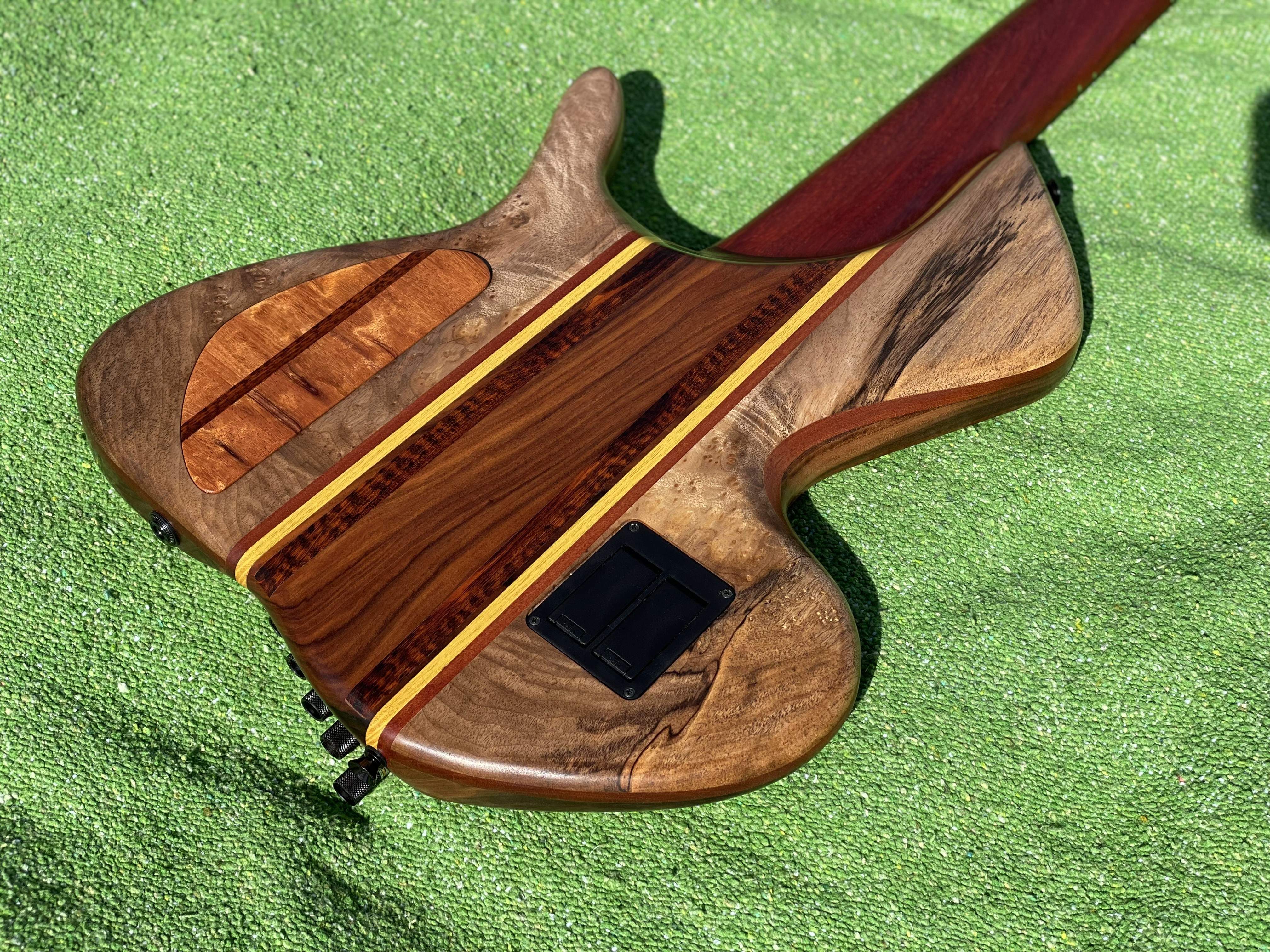

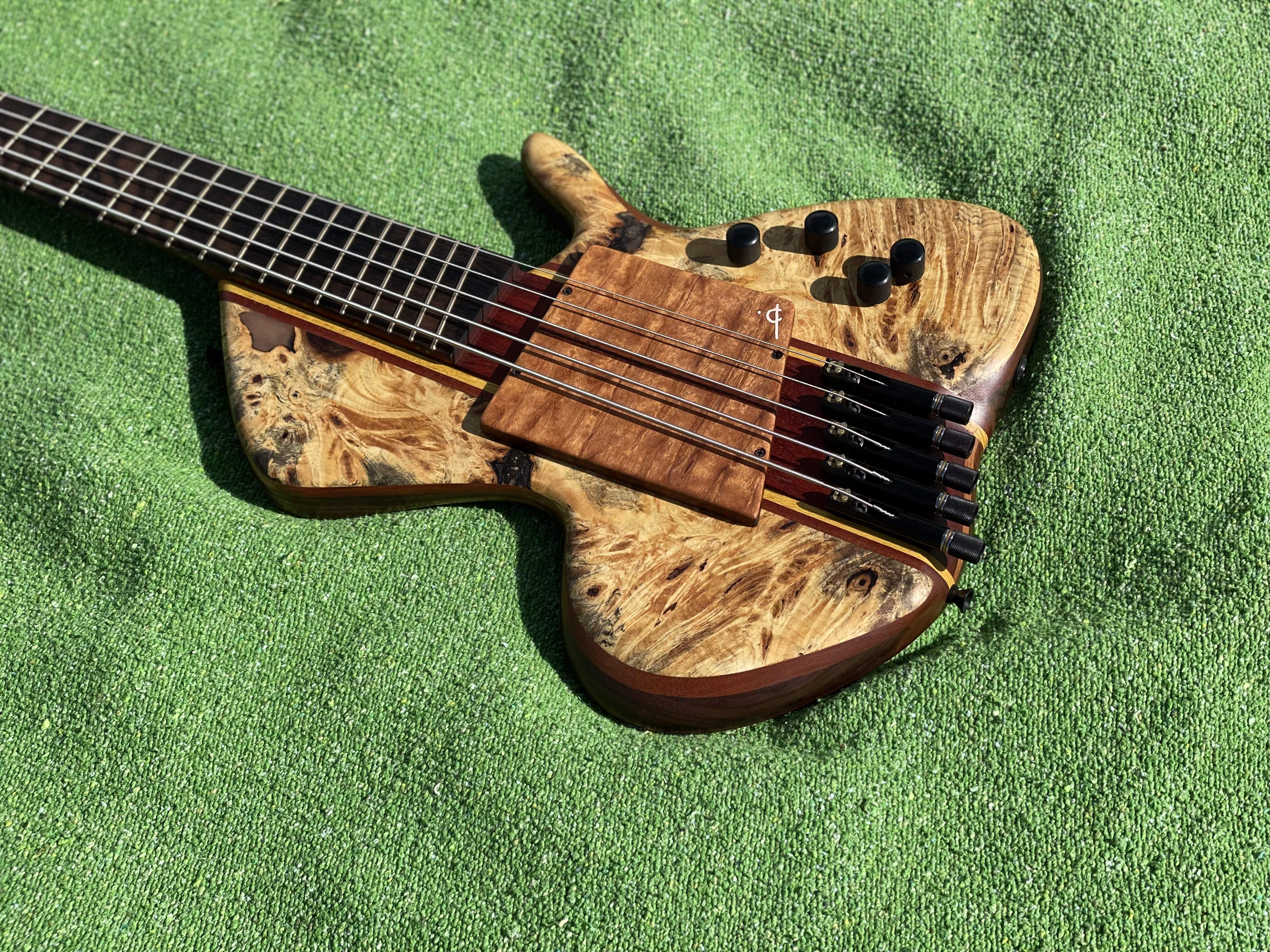

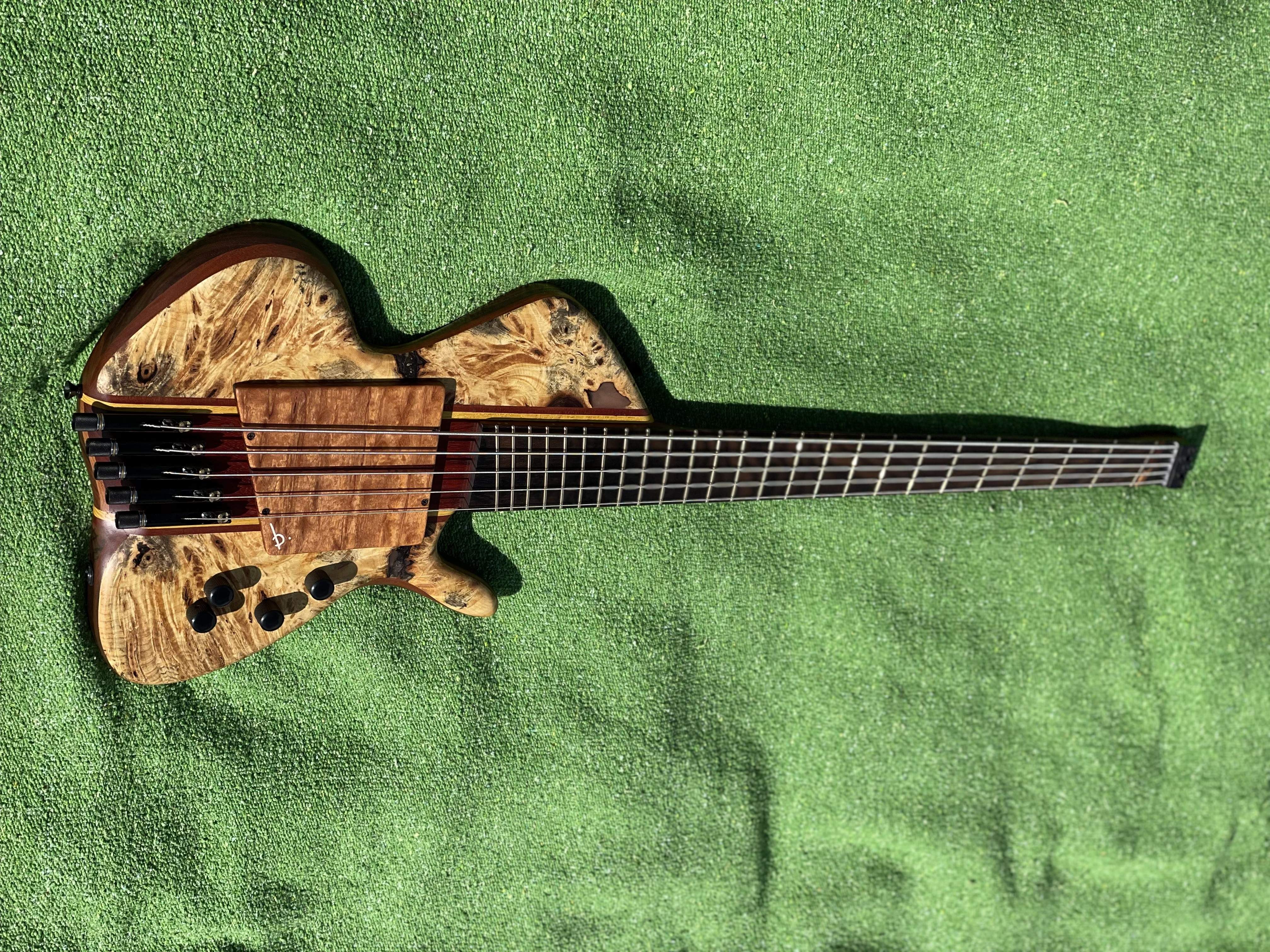

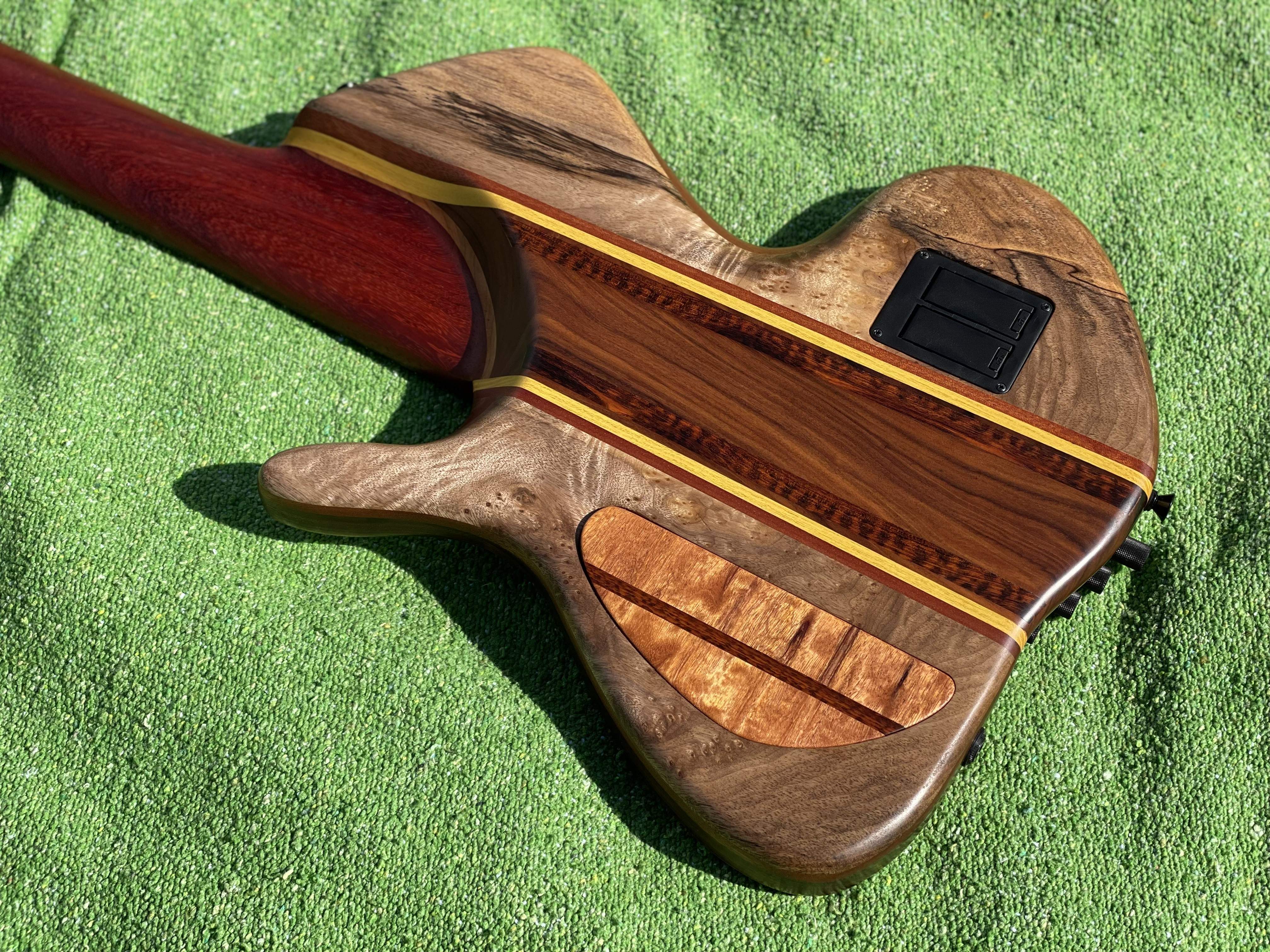

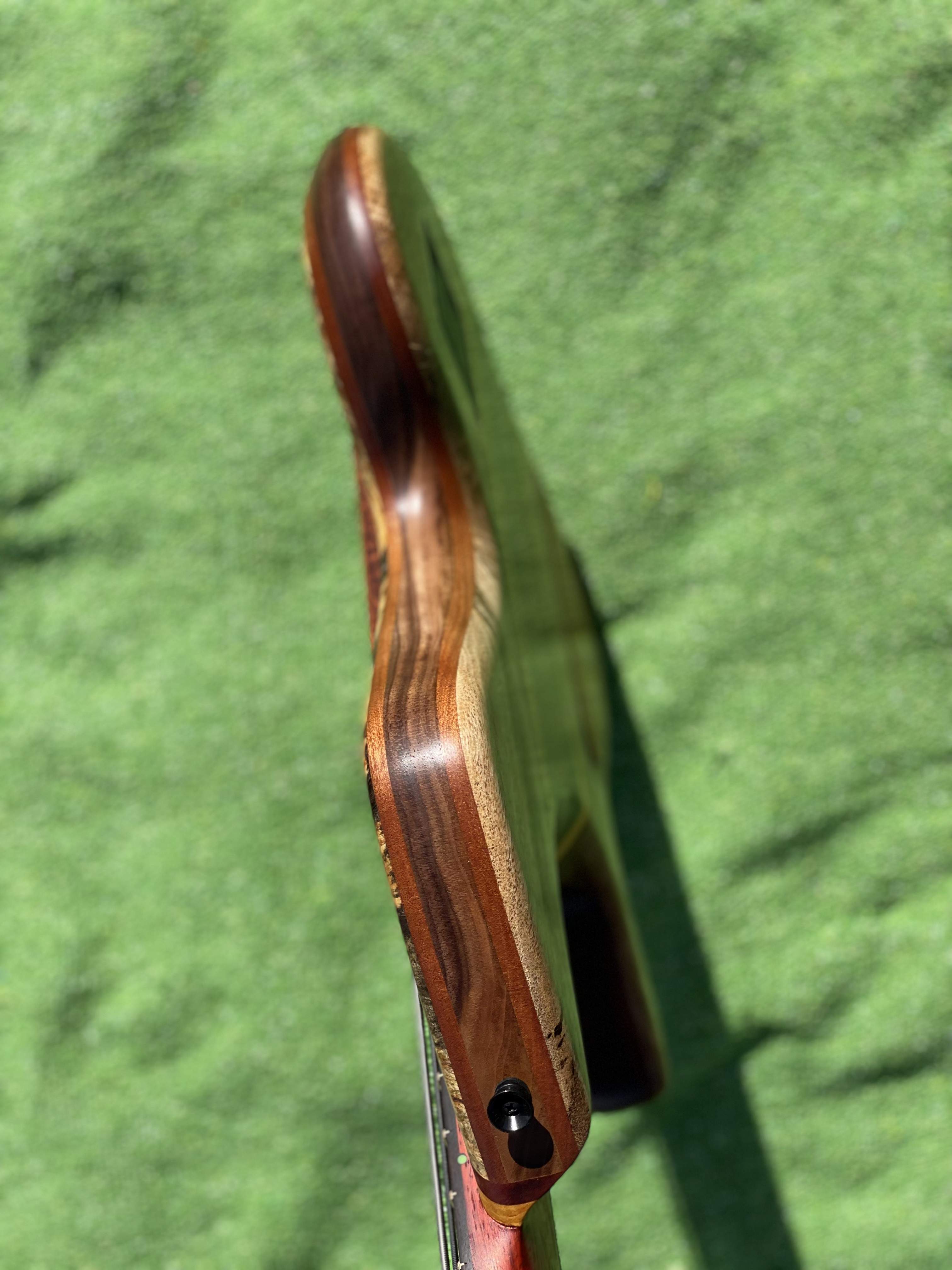

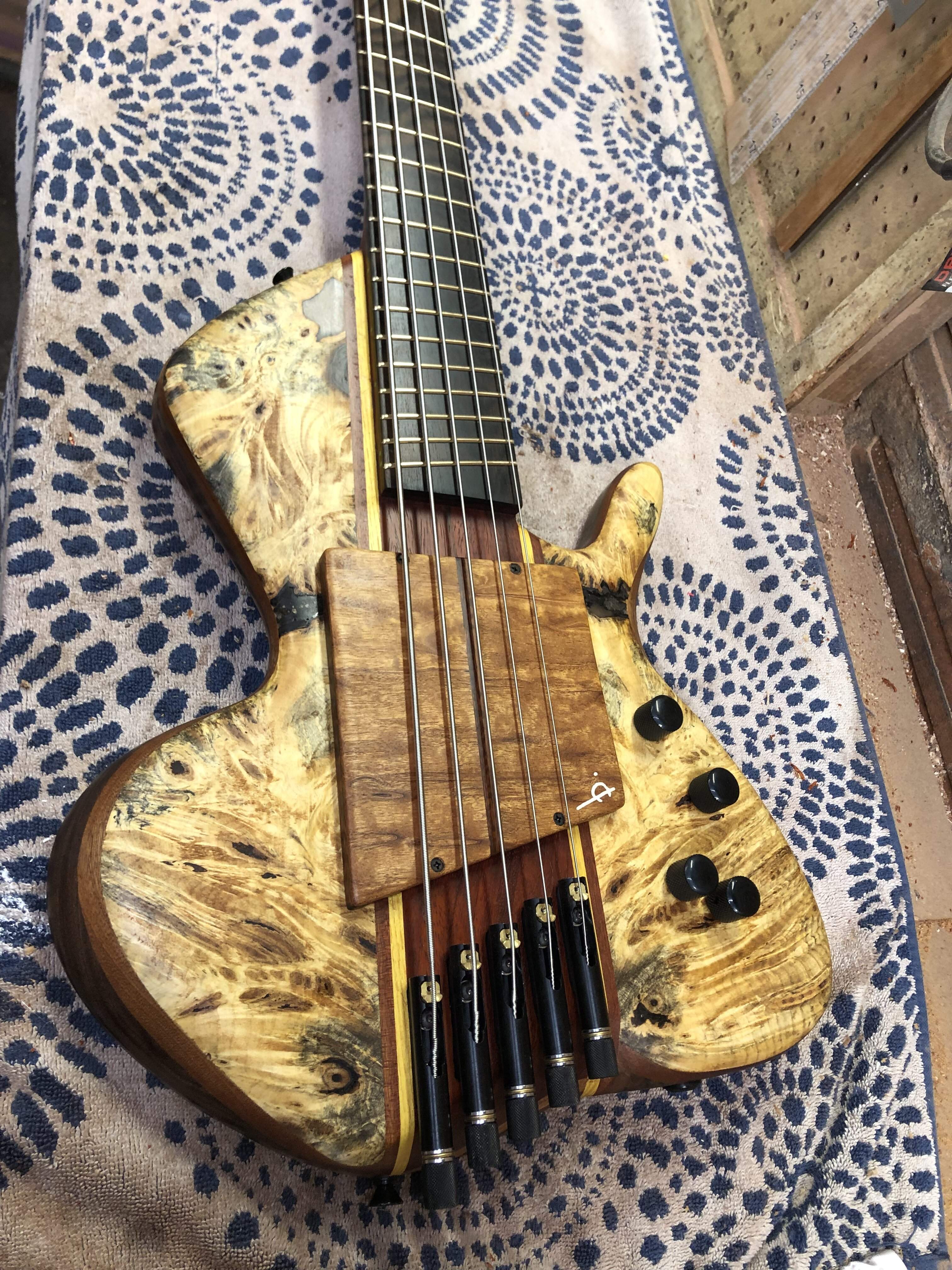

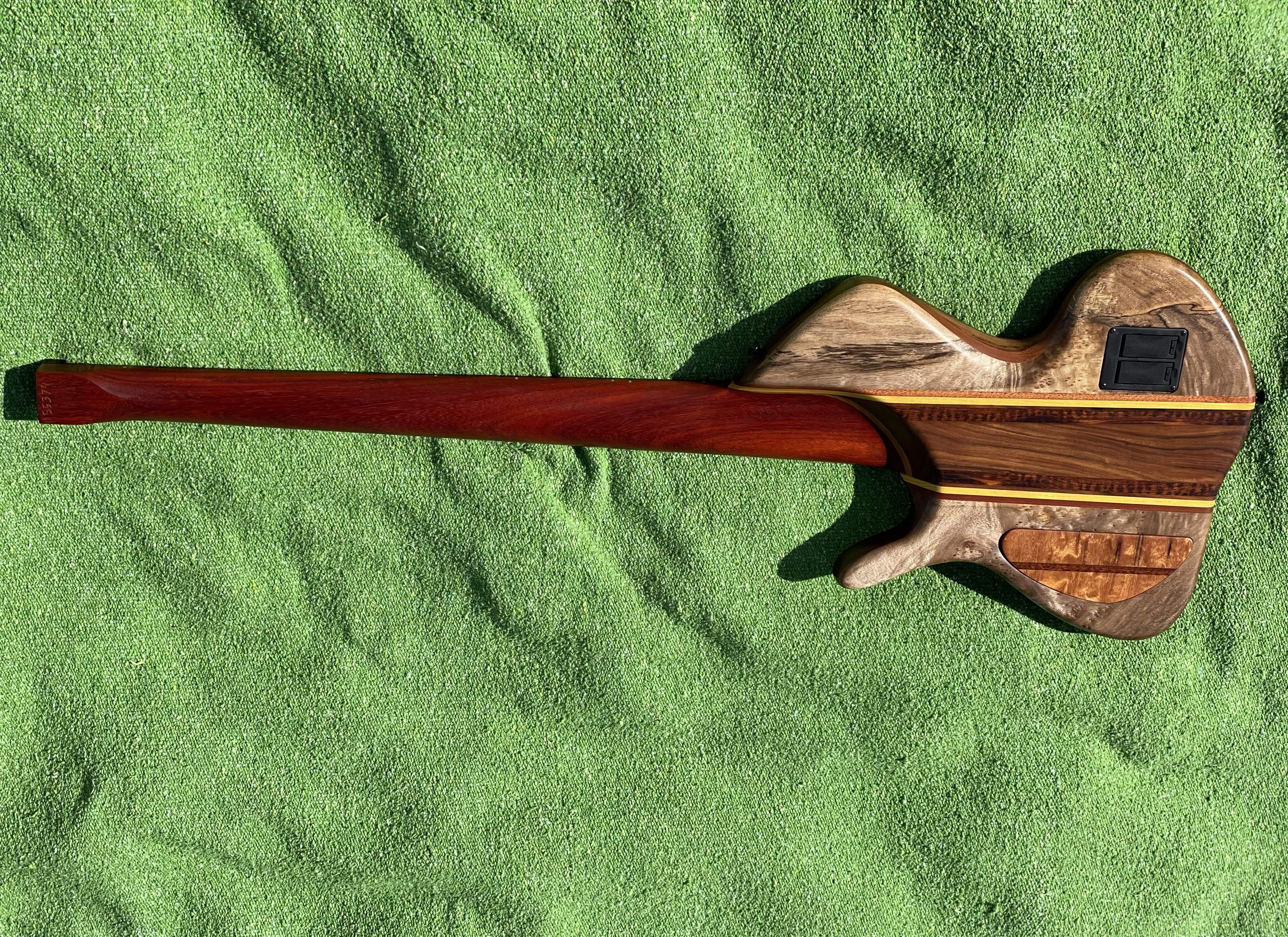

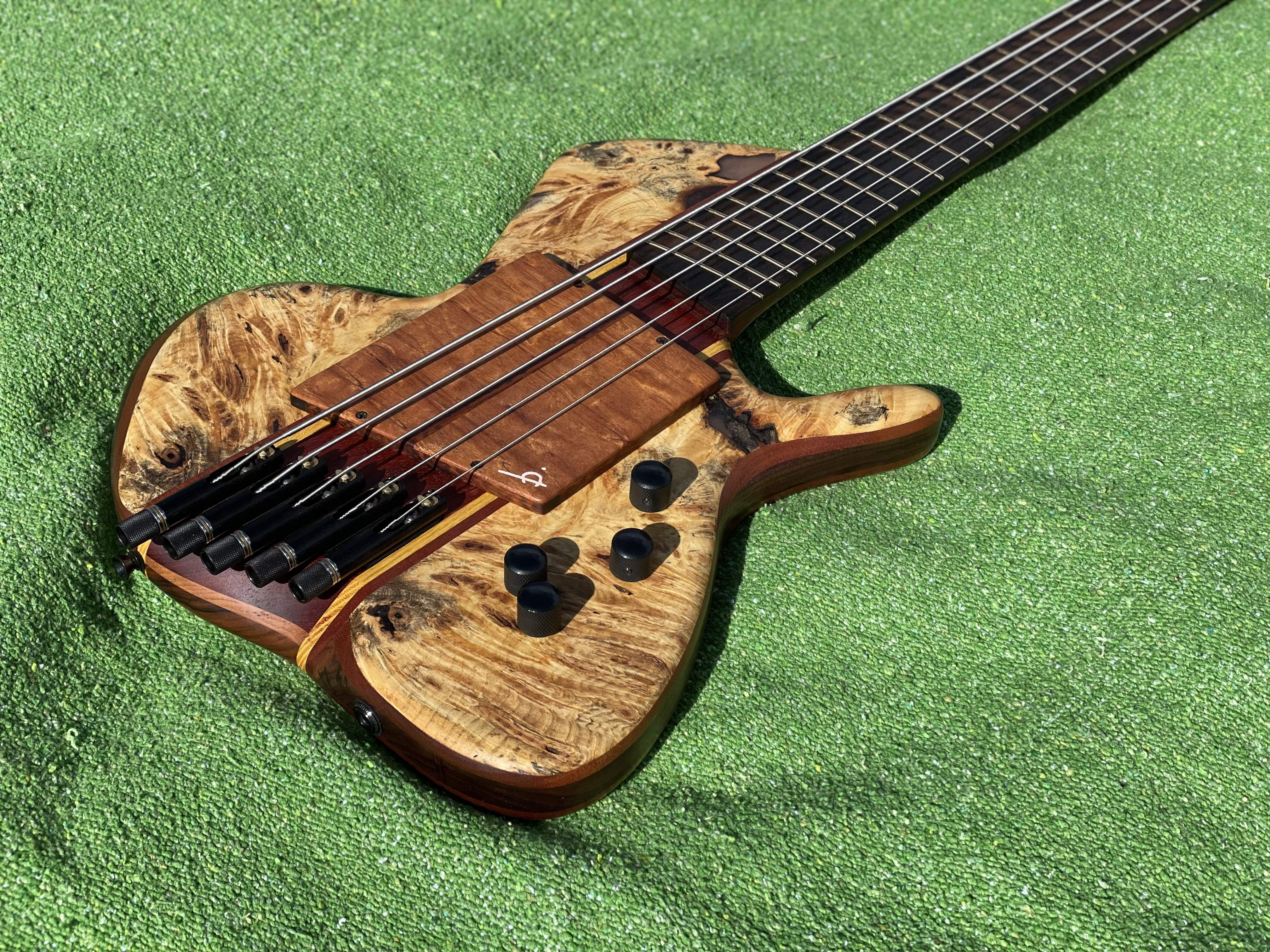

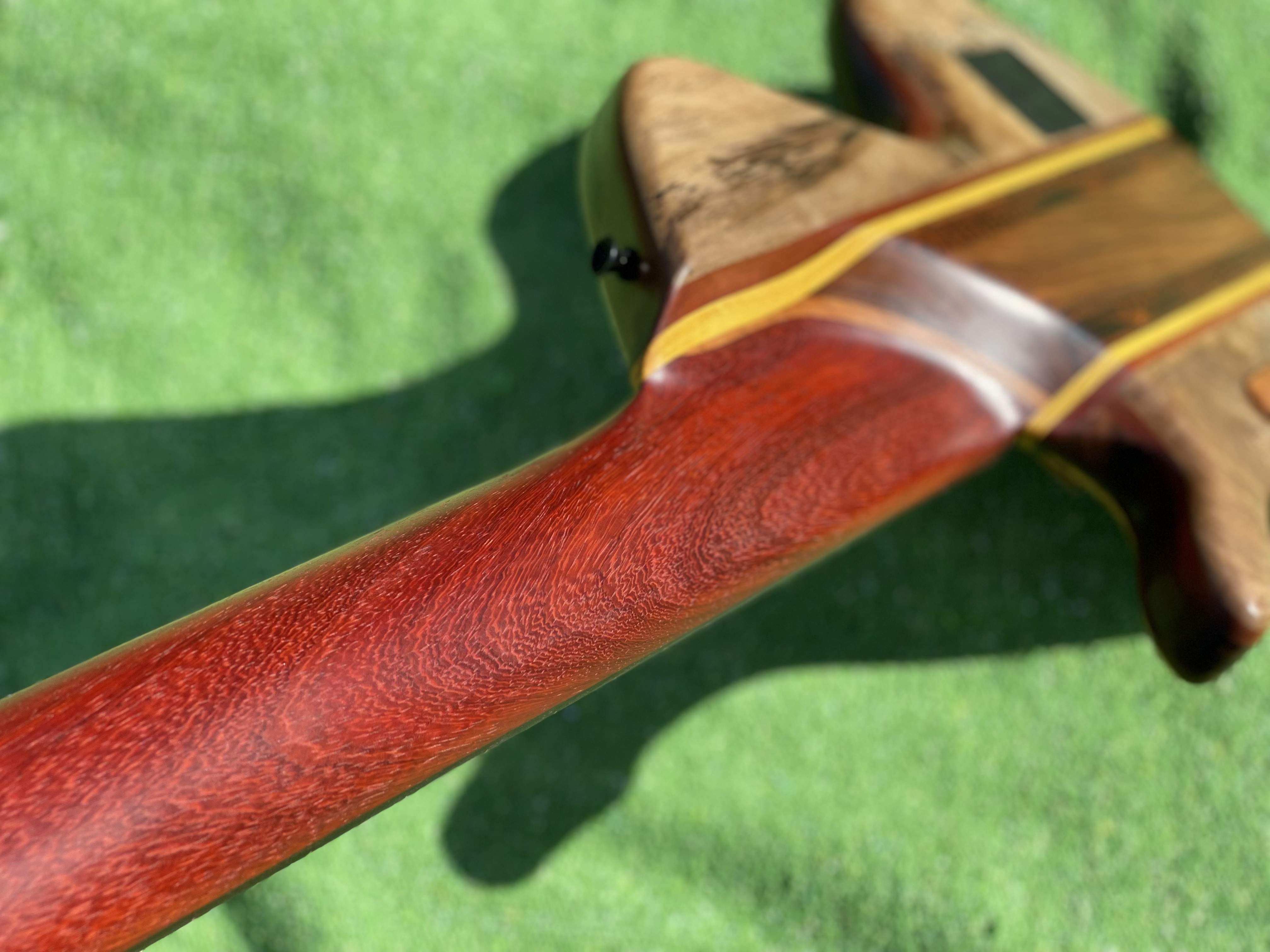

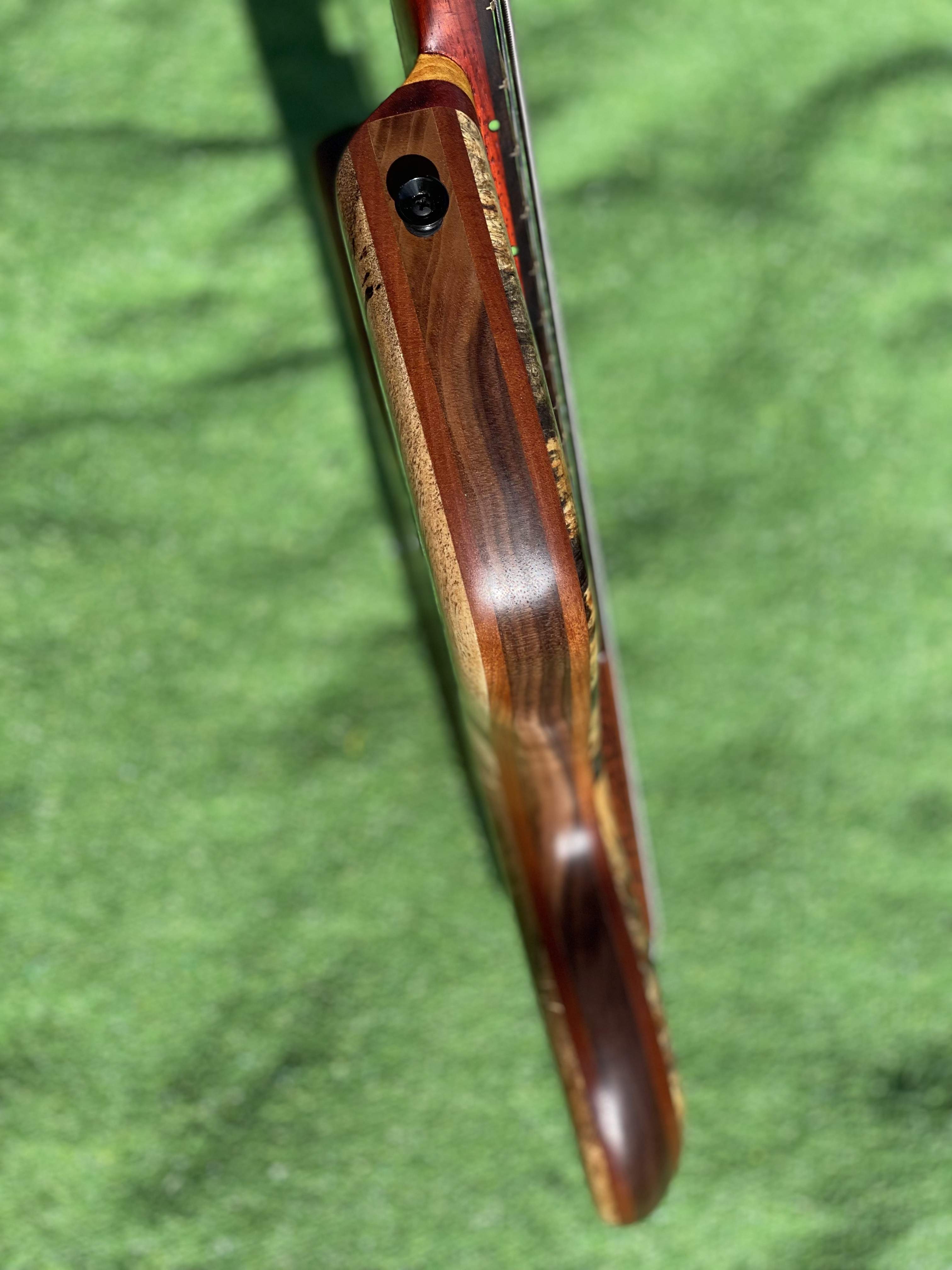

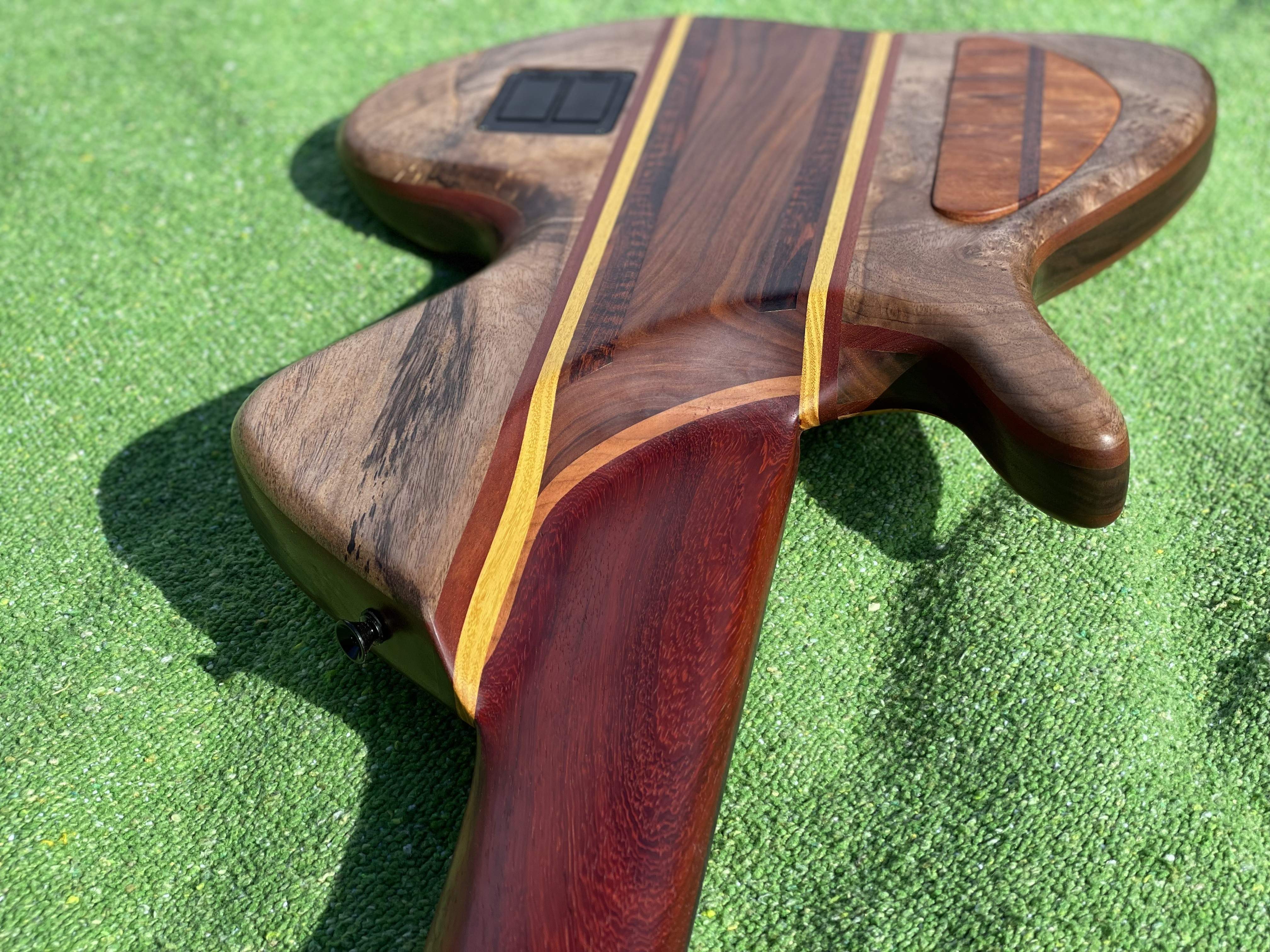

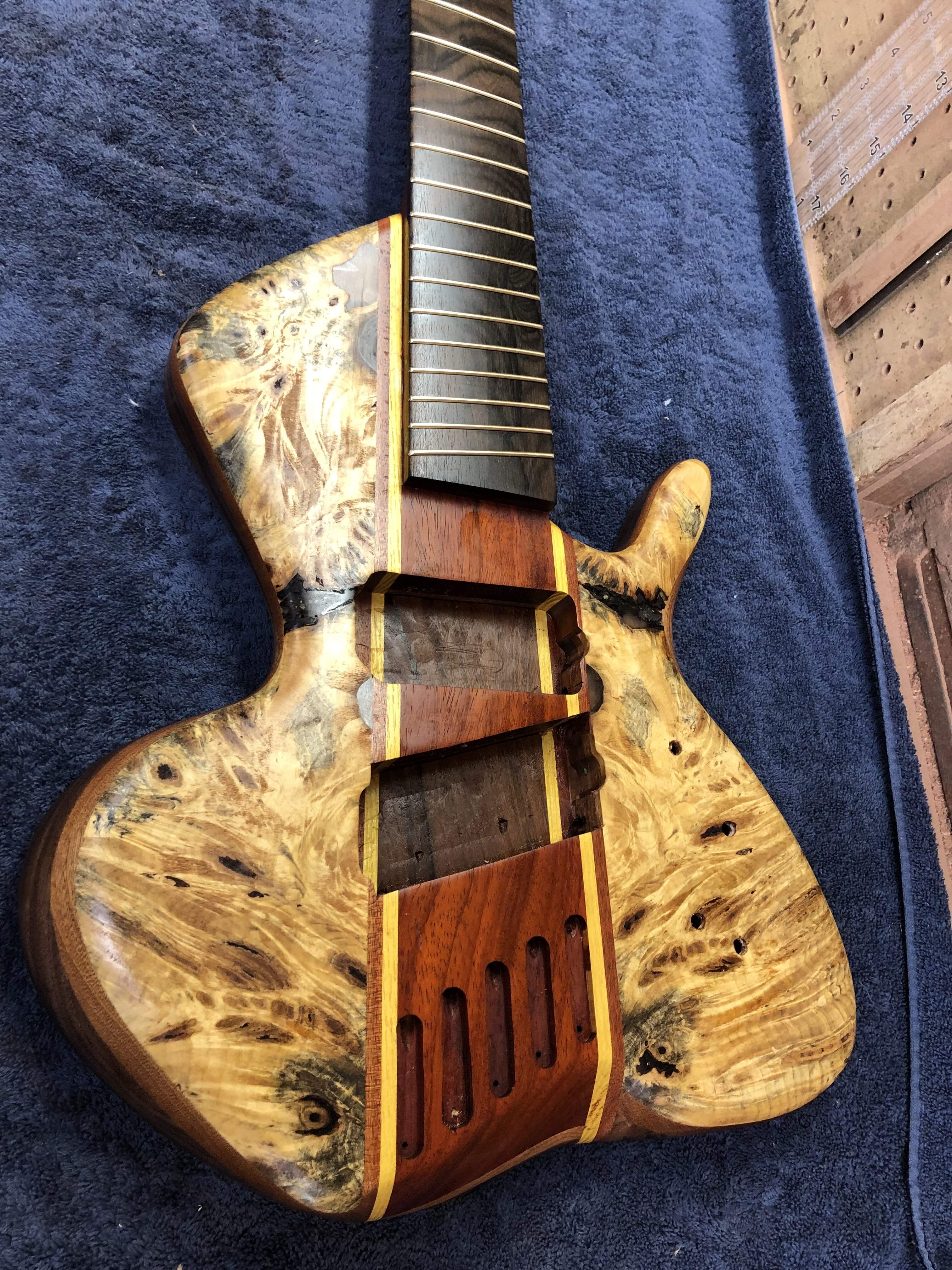

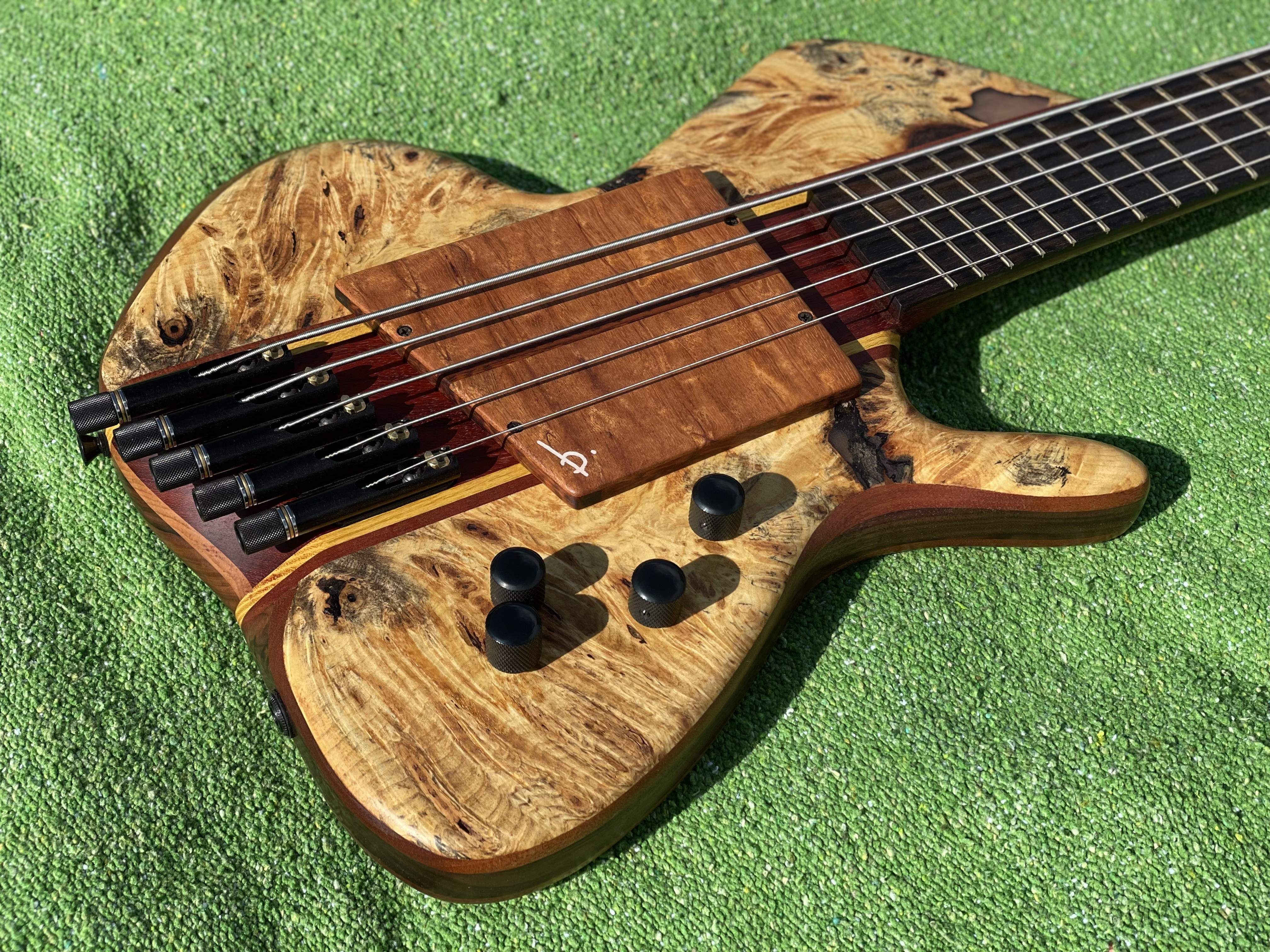

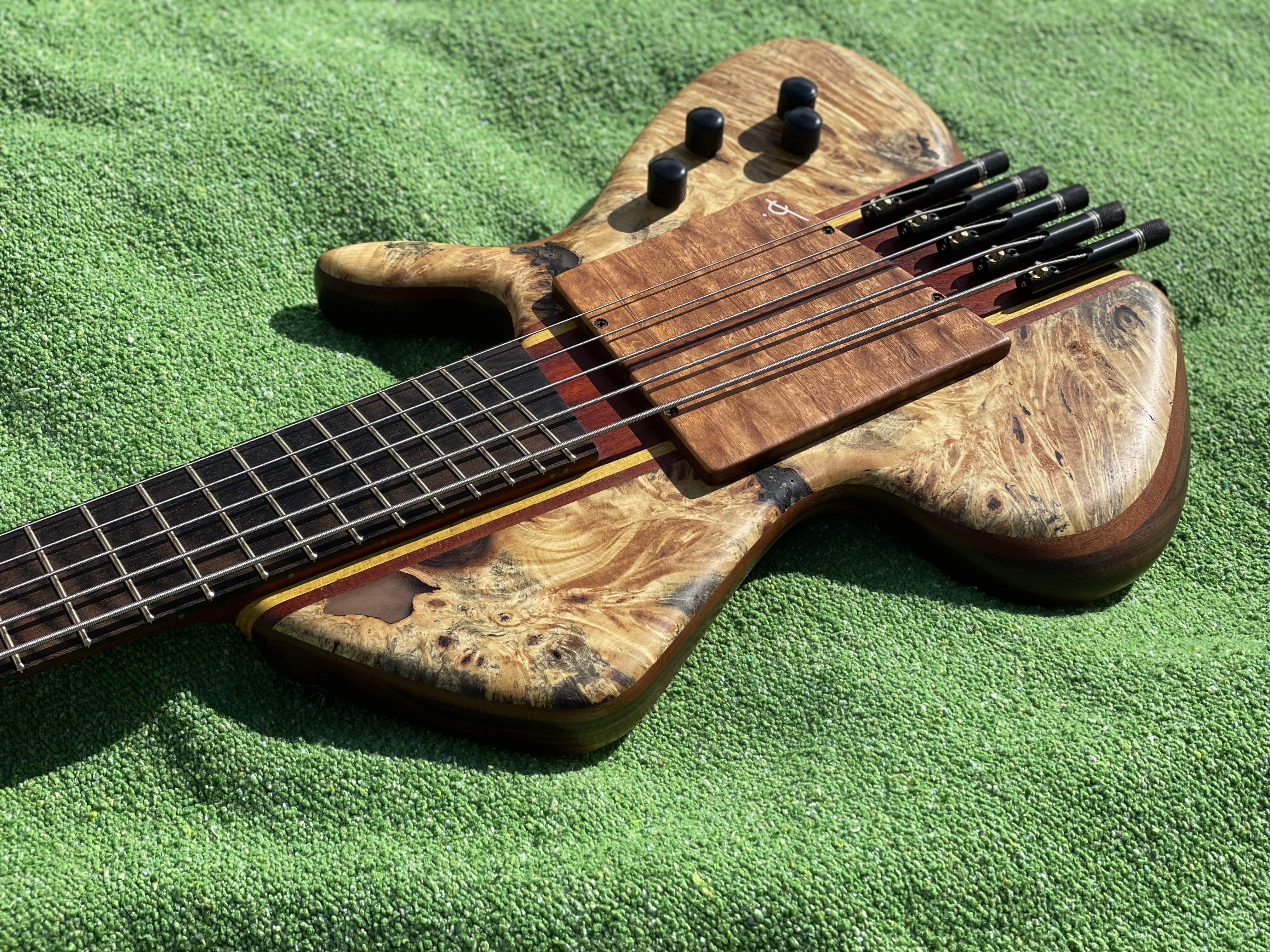

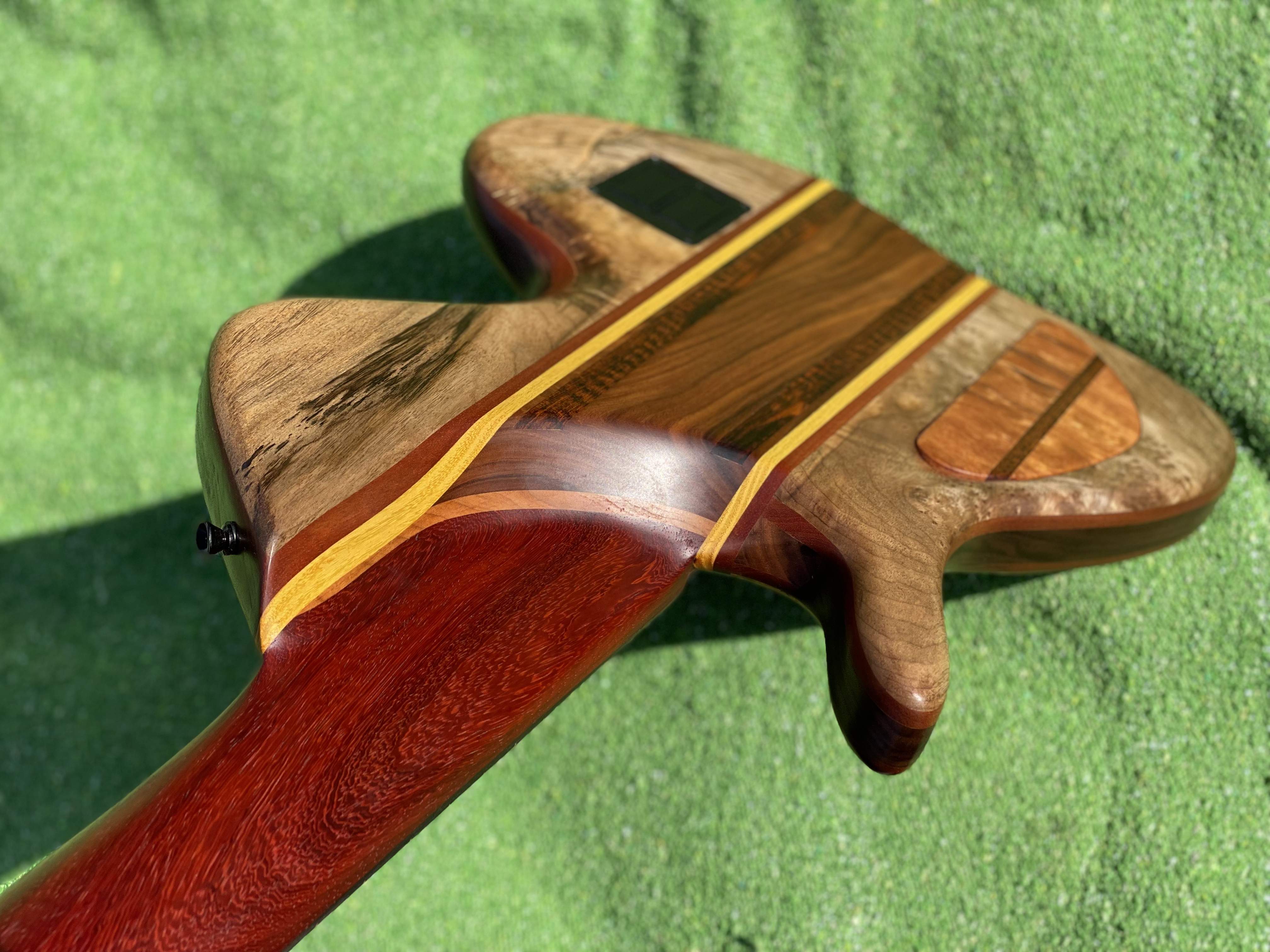

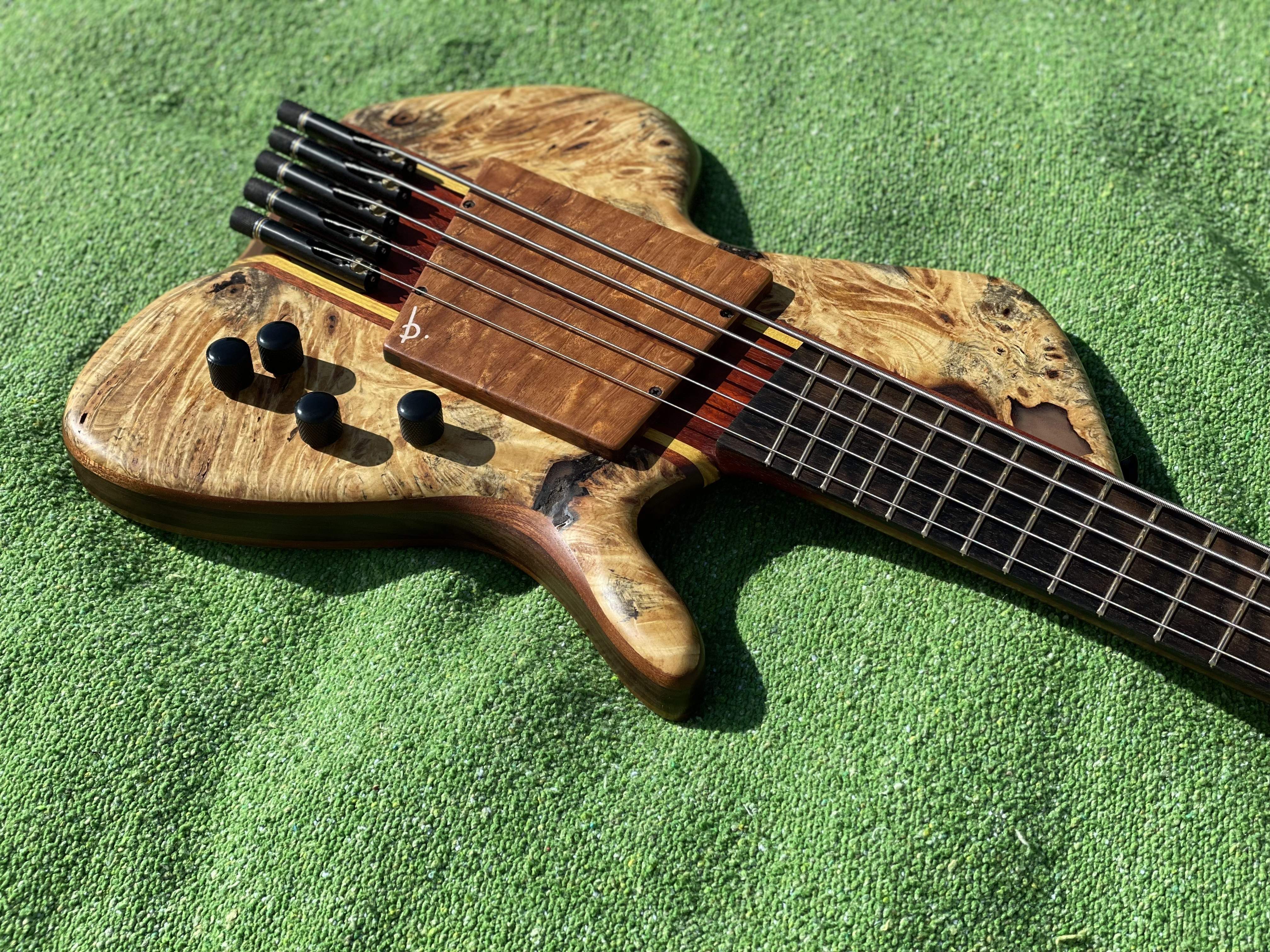

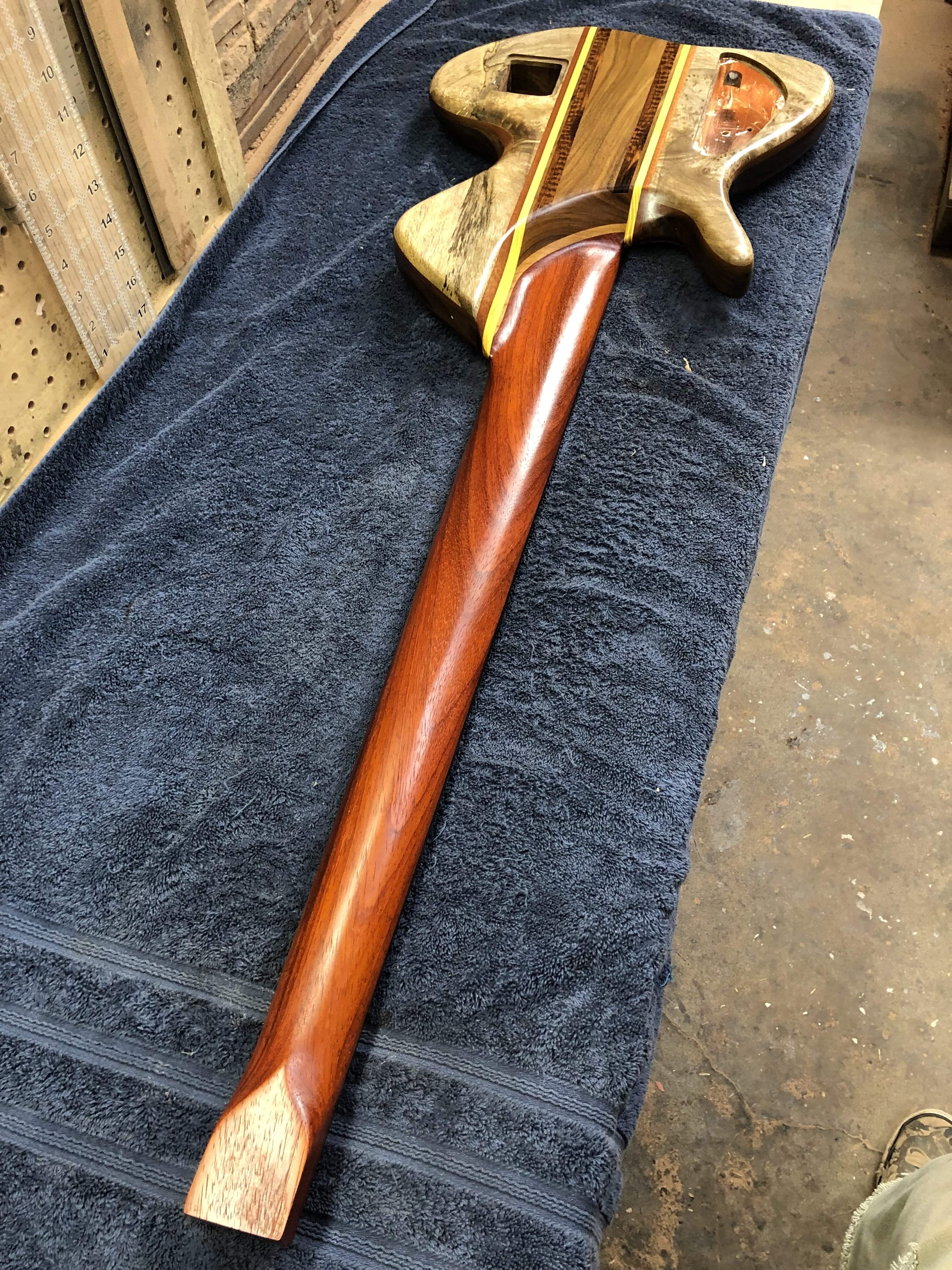

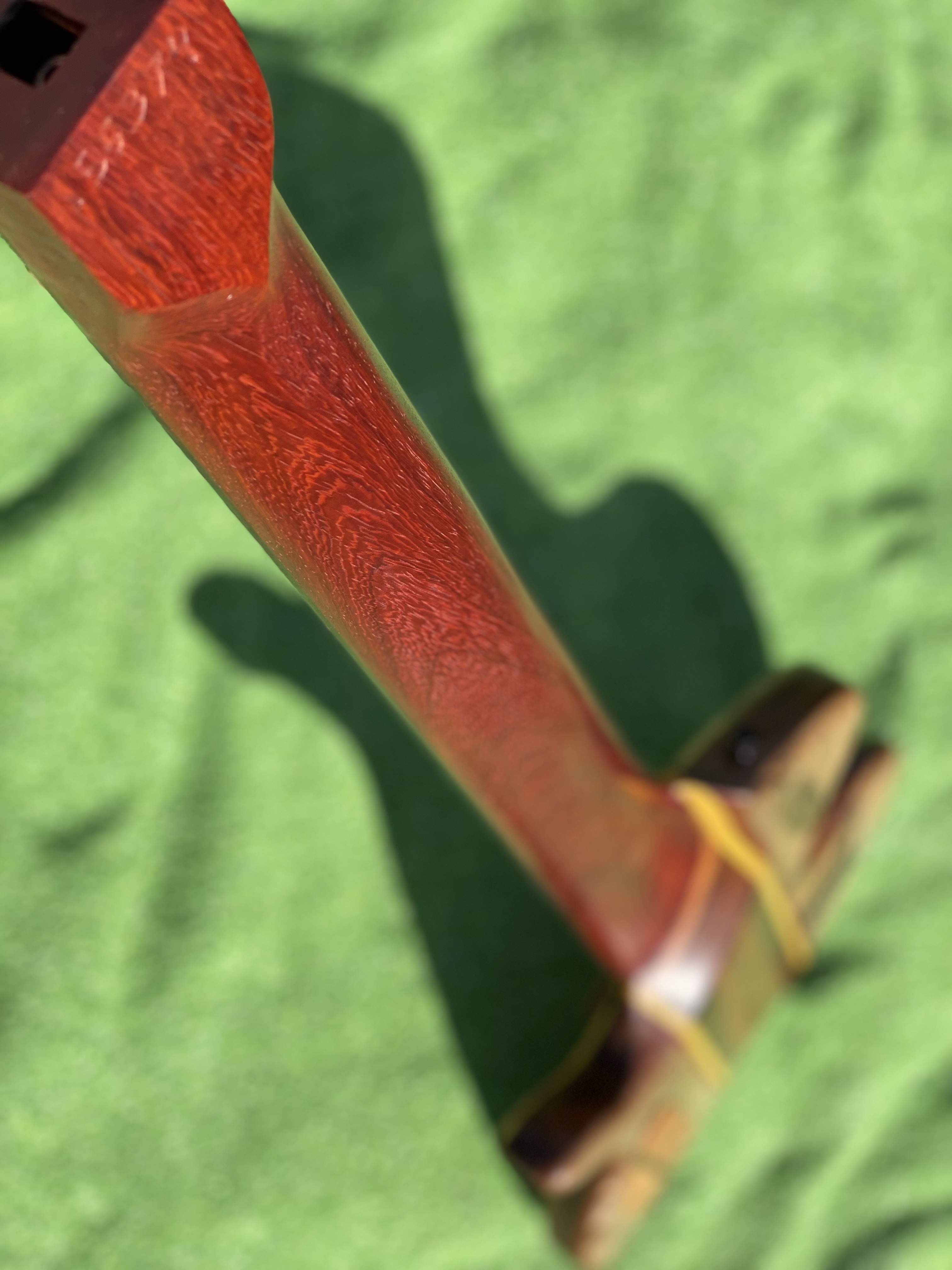

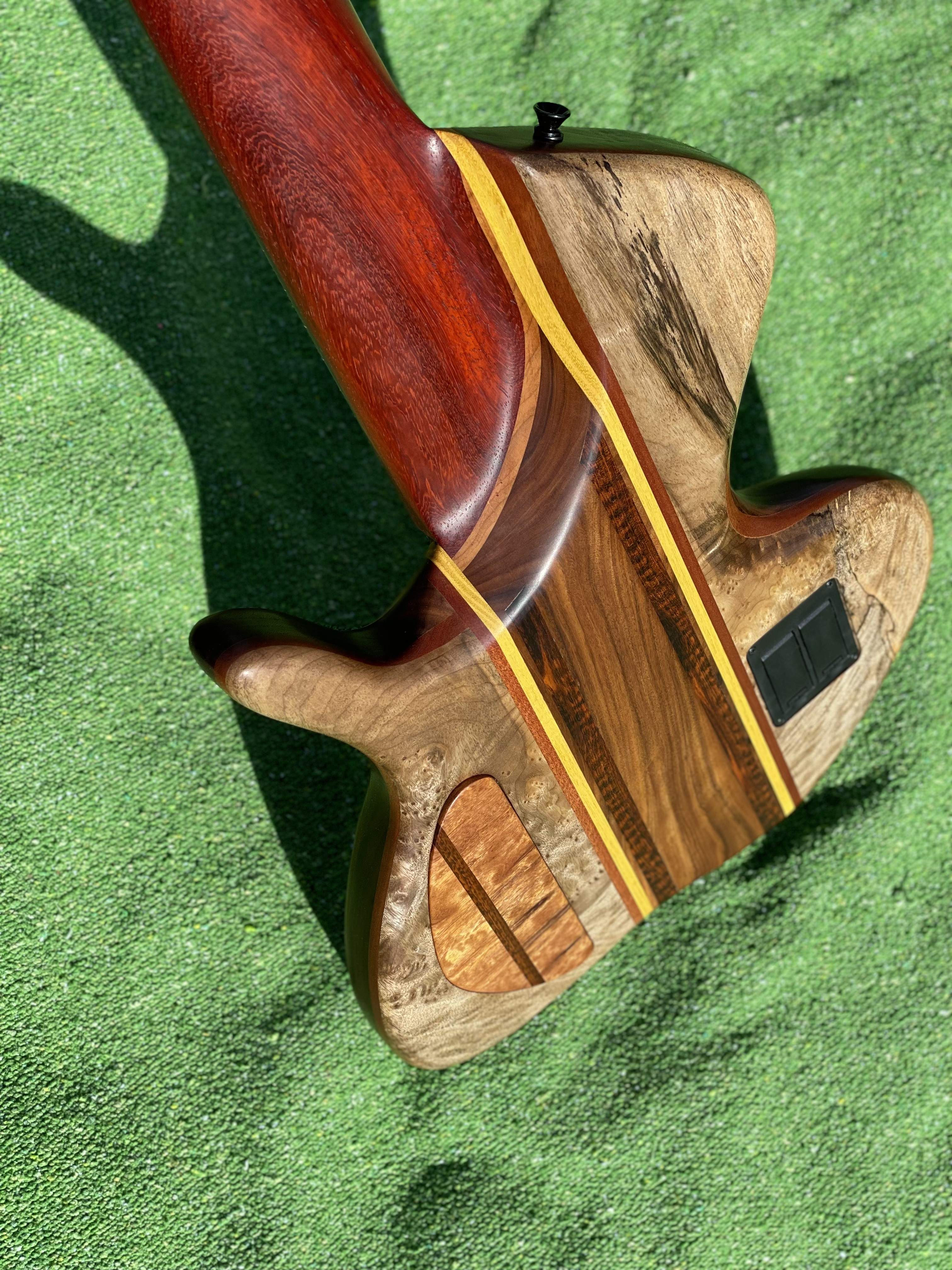

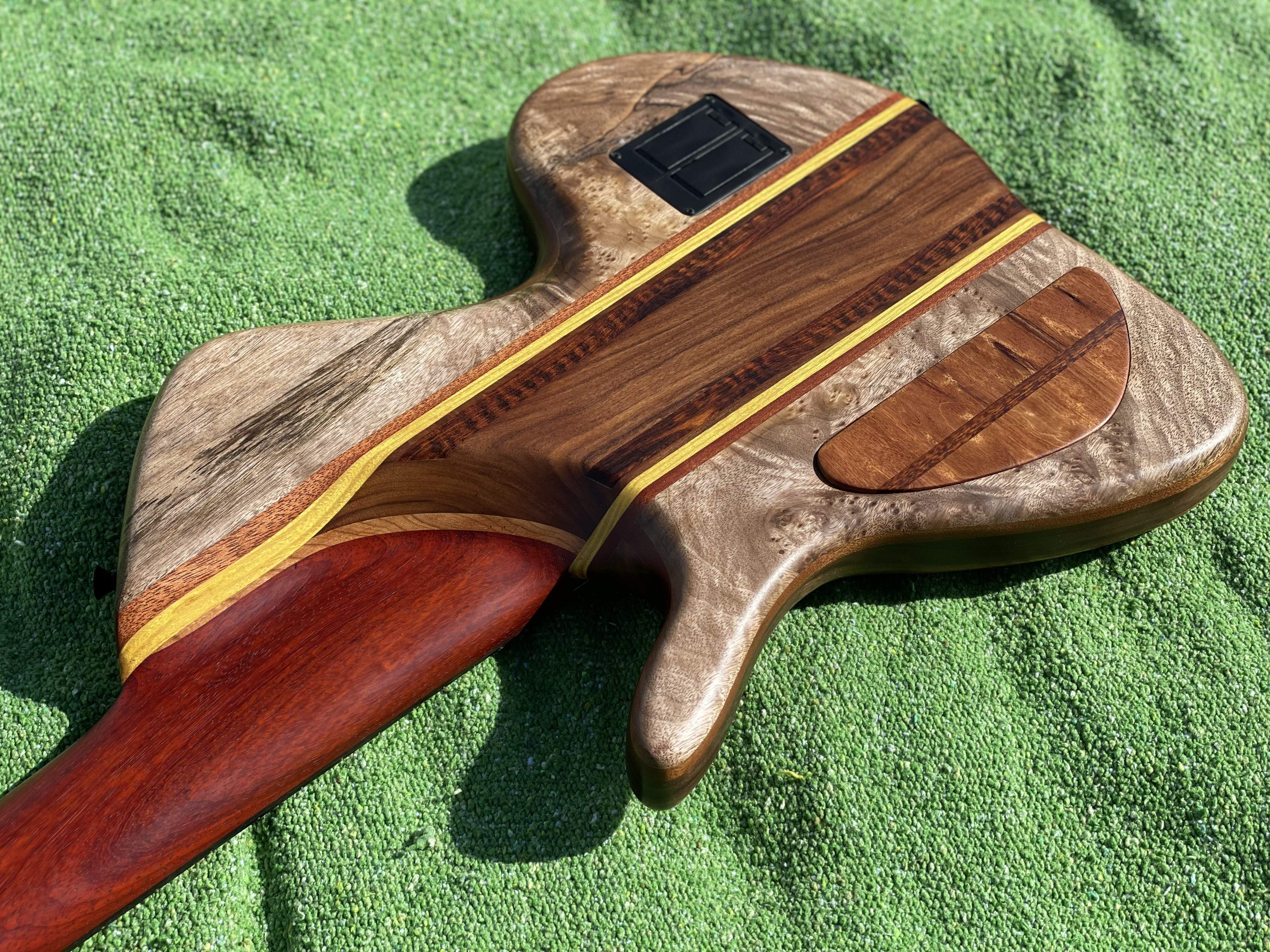

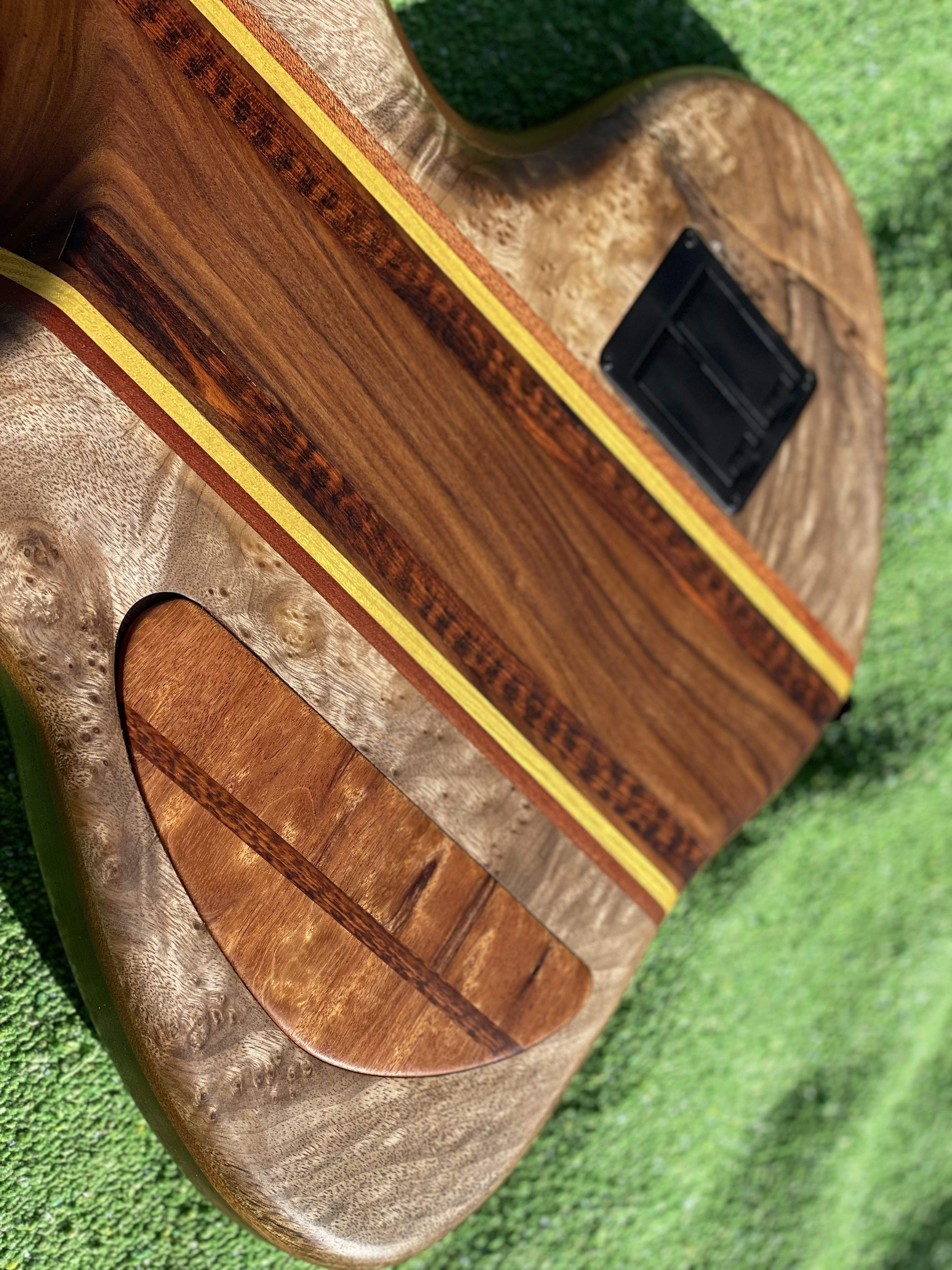

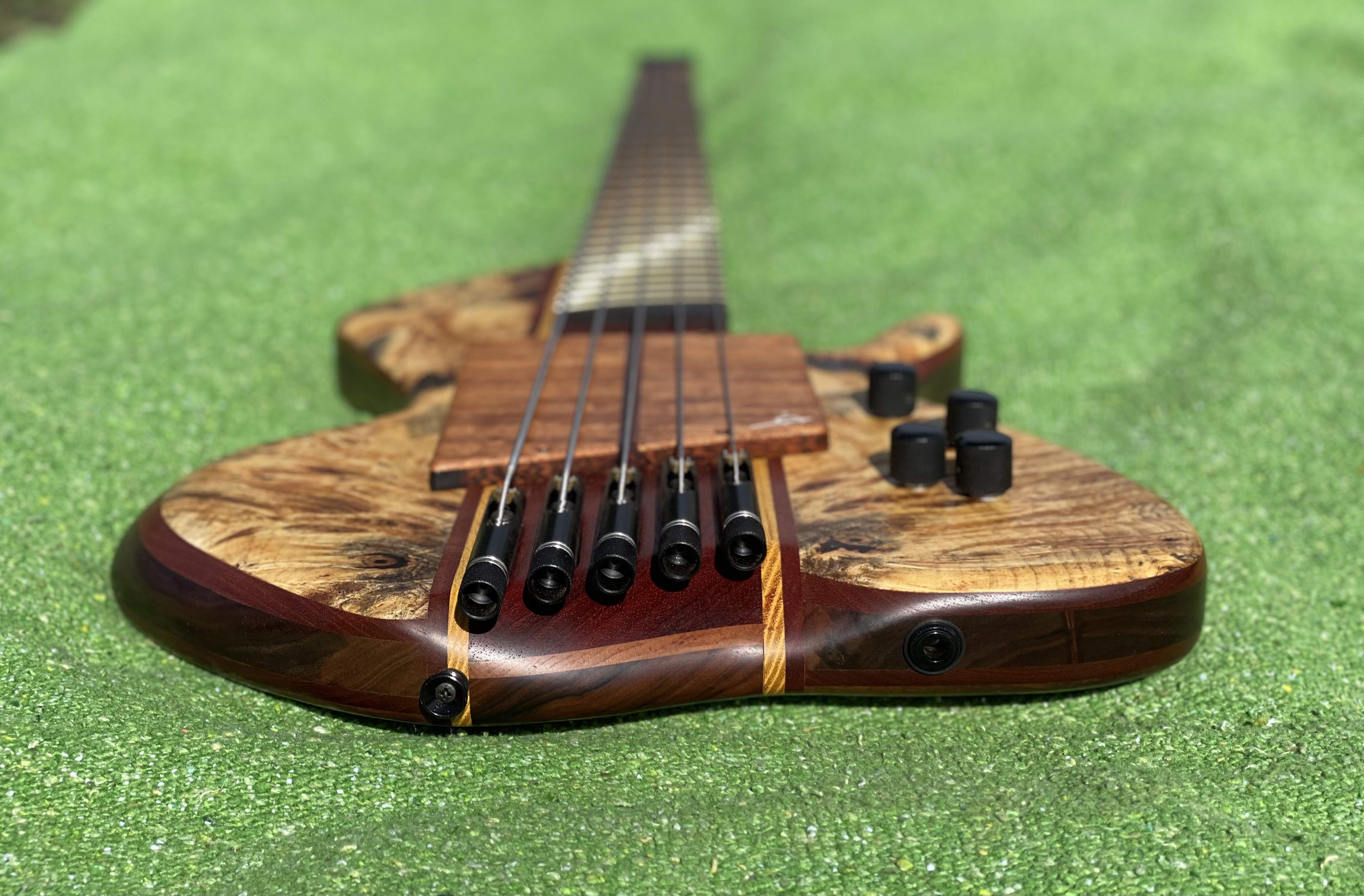

And that's a wrap!

Headless
37"-35" scale lengths

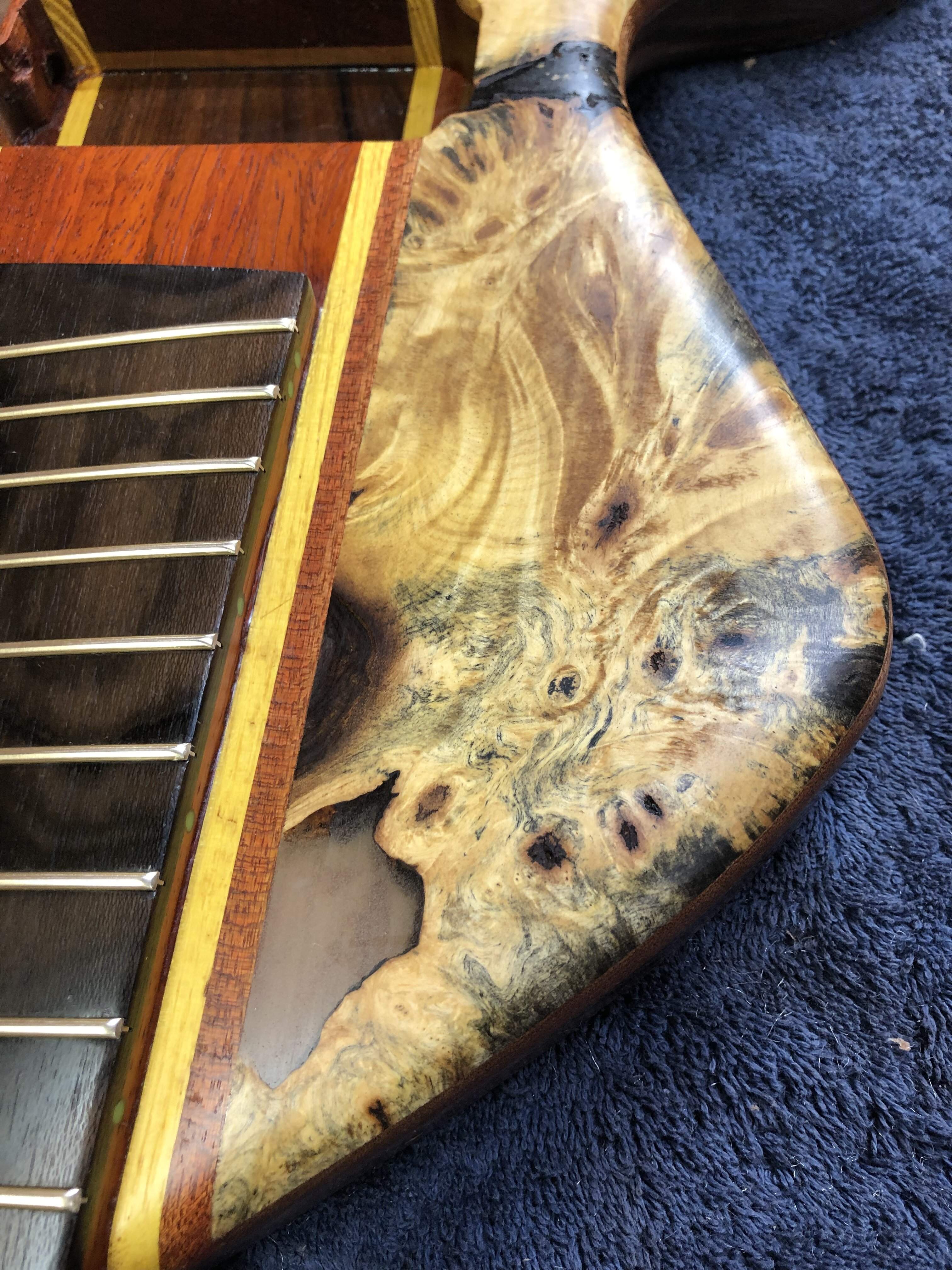

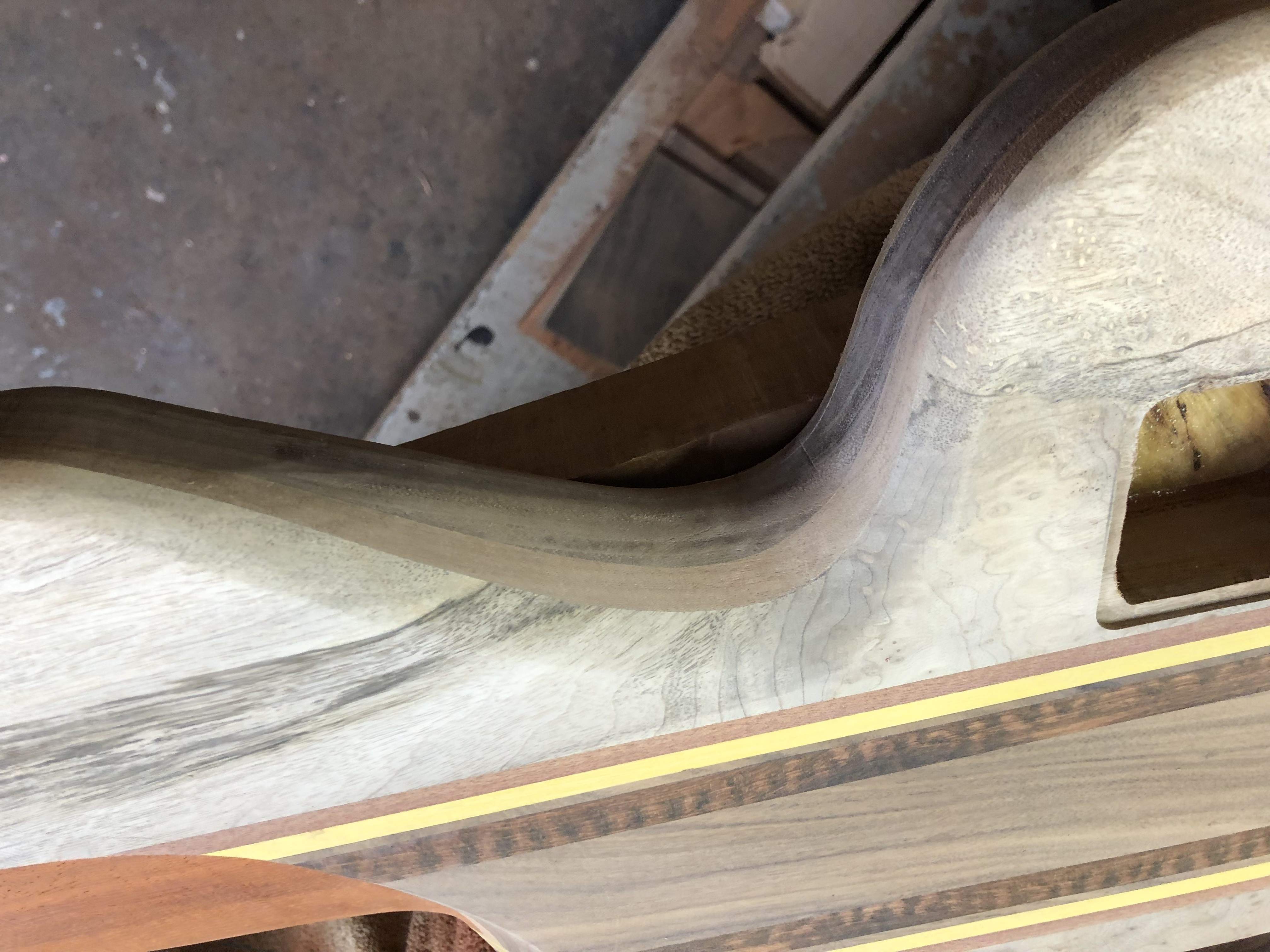

Buckeye burl/sapele/walnut/sapele/myrtle burl body with bloodwood and yellowheart stringers and snakewood stripes

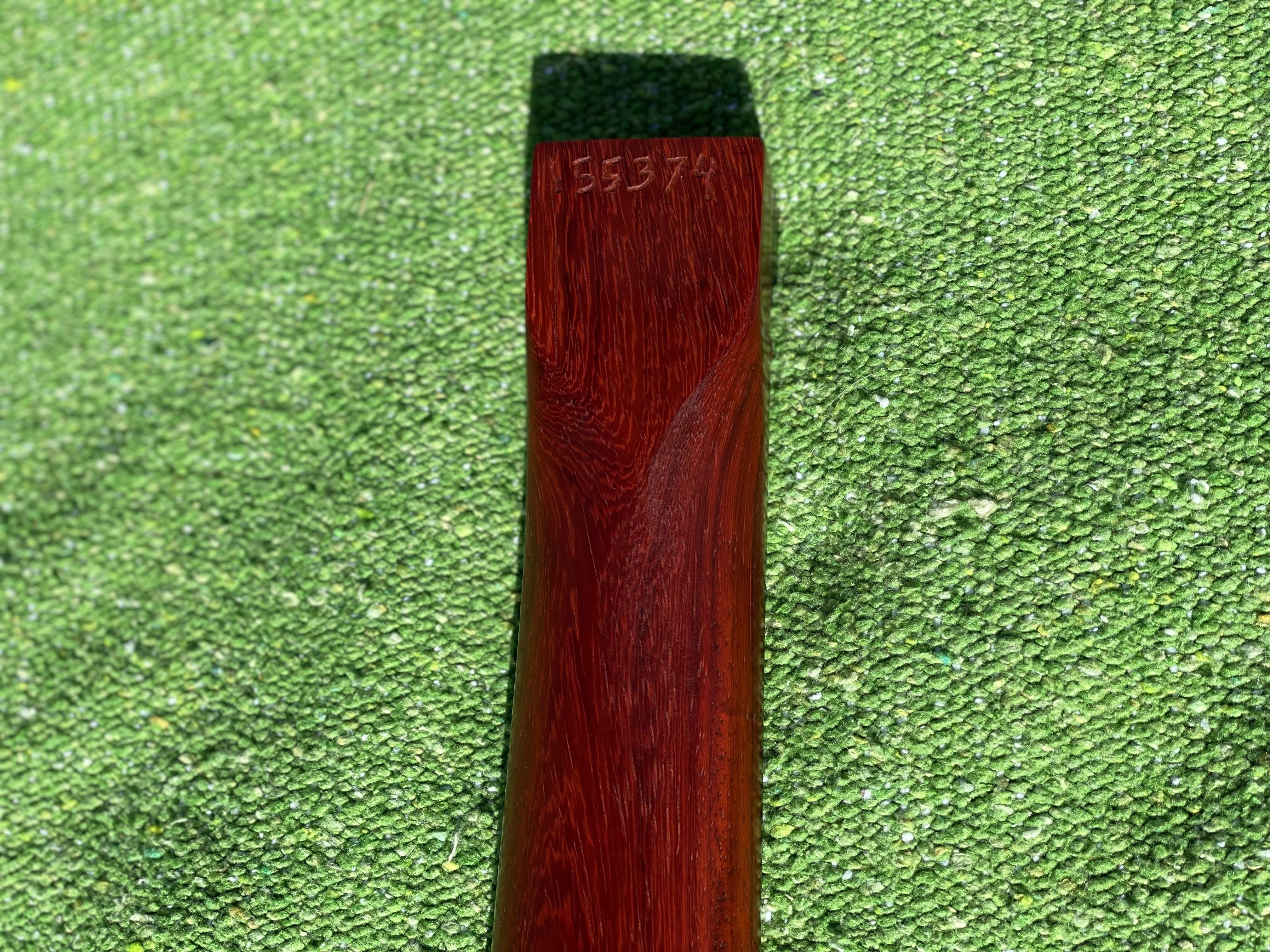

One piece padouk neck
Ziricote fretboard

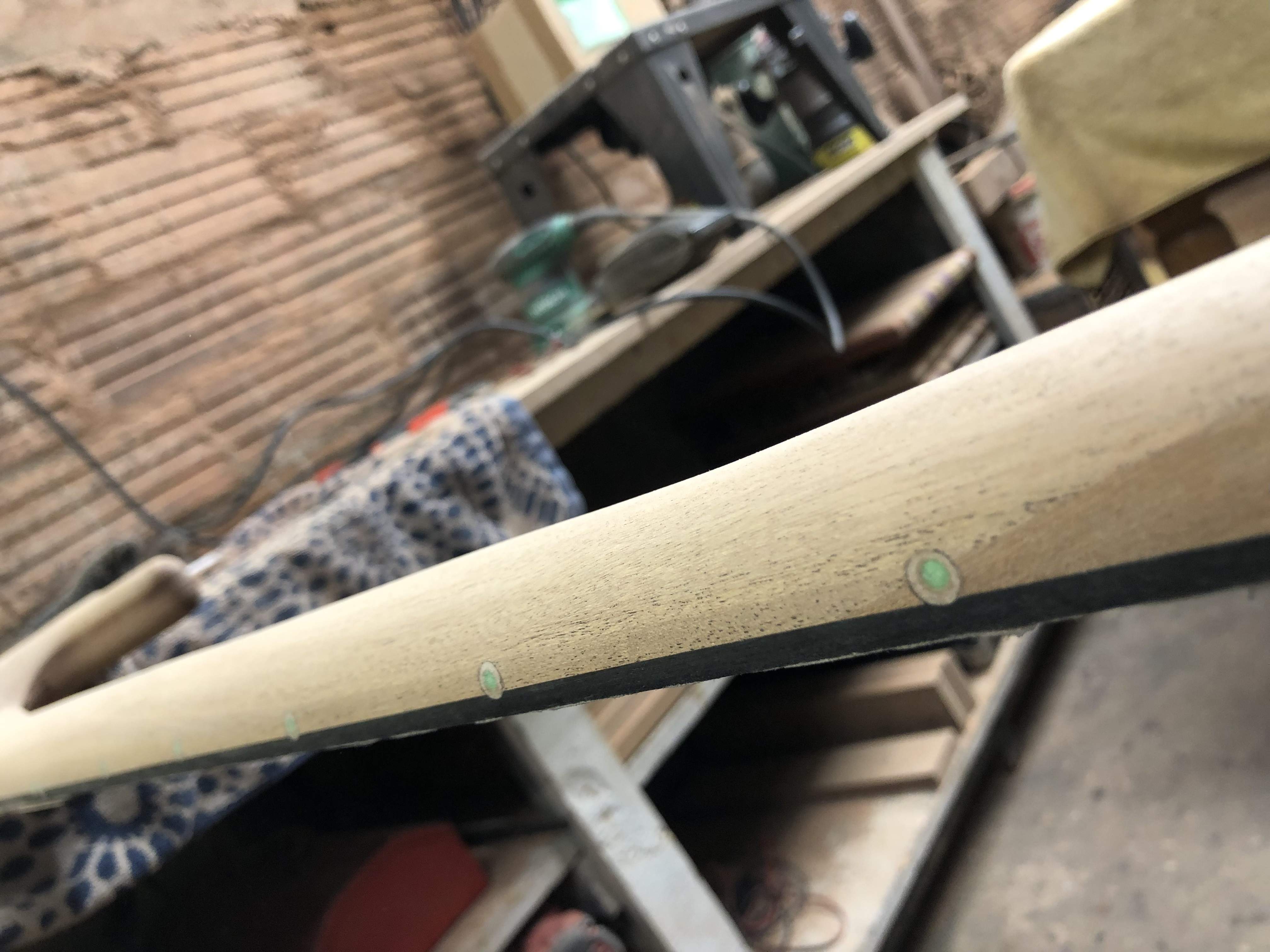

Glow in the dark side dots
24 frets with a zero fret
Cocobolo nut

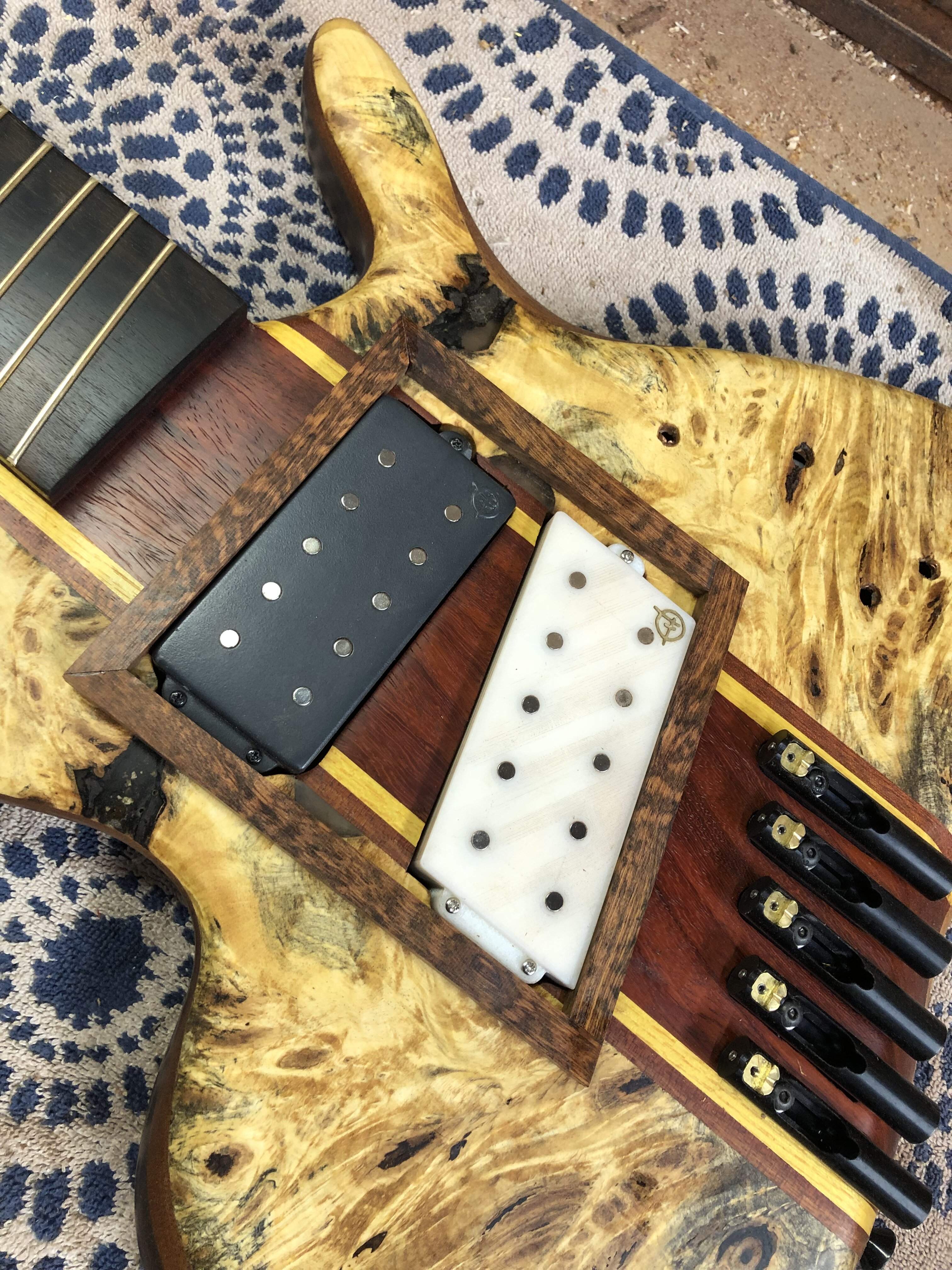

Dual Herrick multi-coil pickups

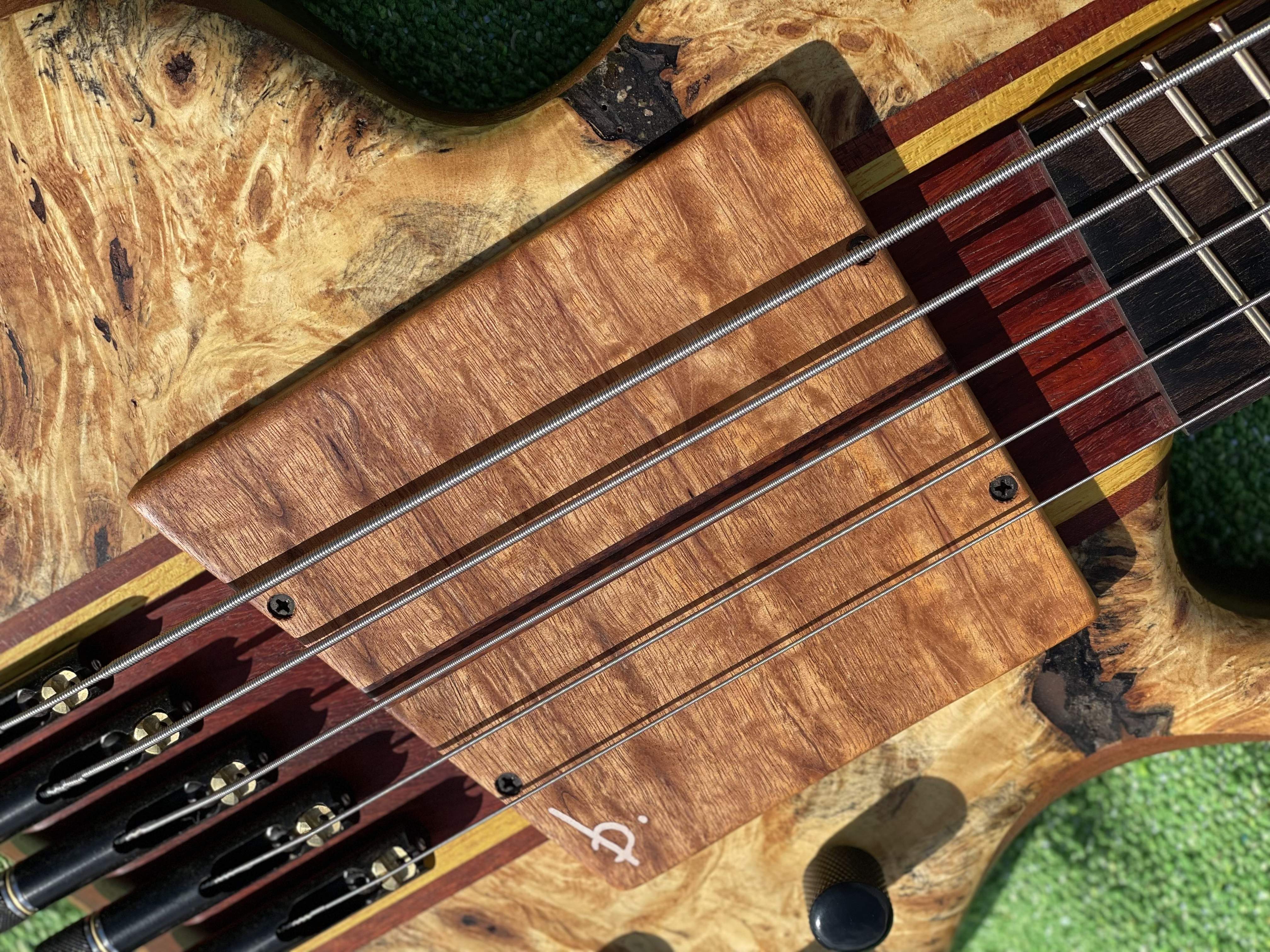

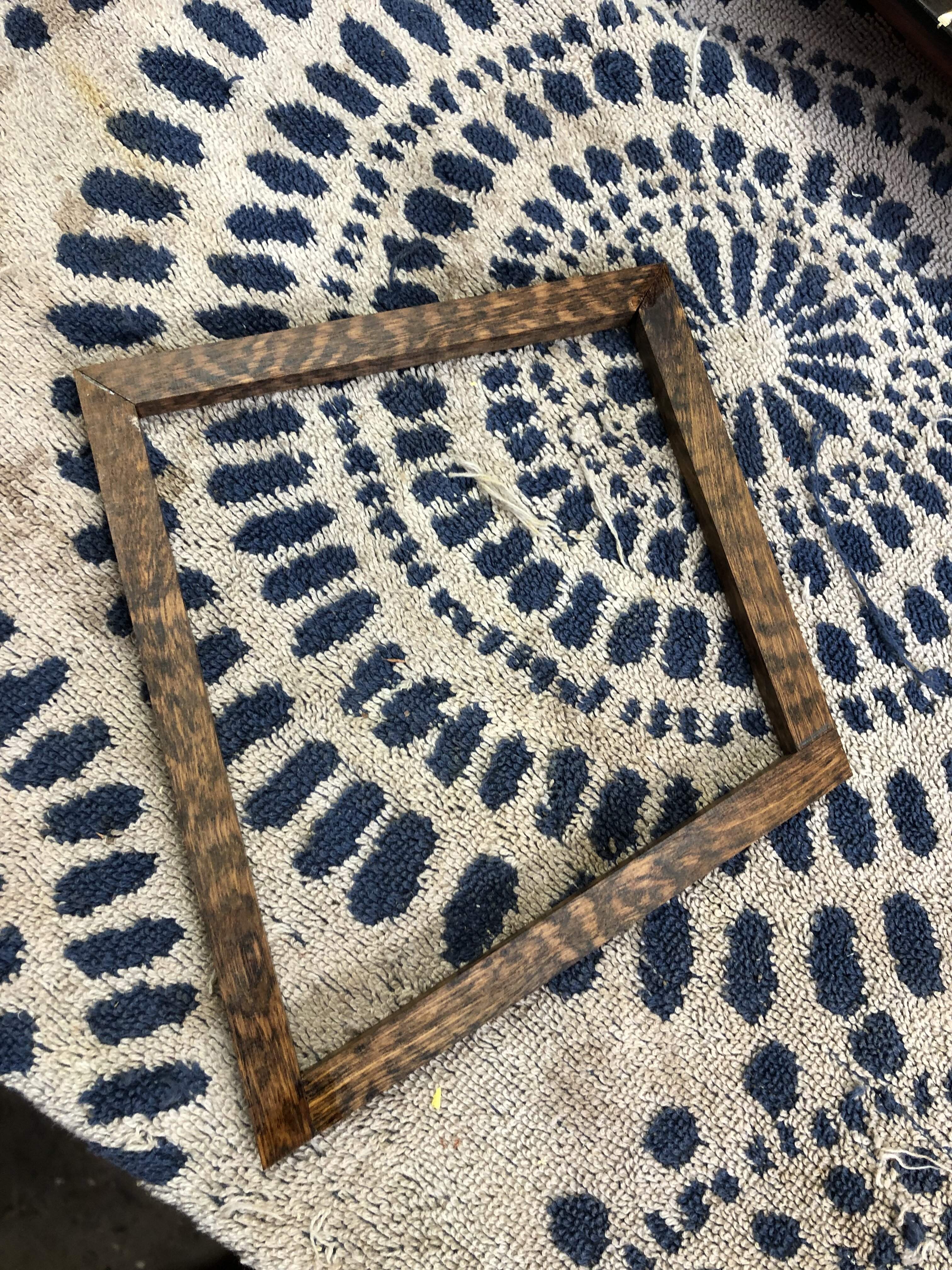

The tree/snakewood ramp pickup cover
18v Lusithand filter style preamp
Nova Guitar Parts headless system



[rick0link]



[rick0link]

Welcome to the family Brian!



[rick0link]

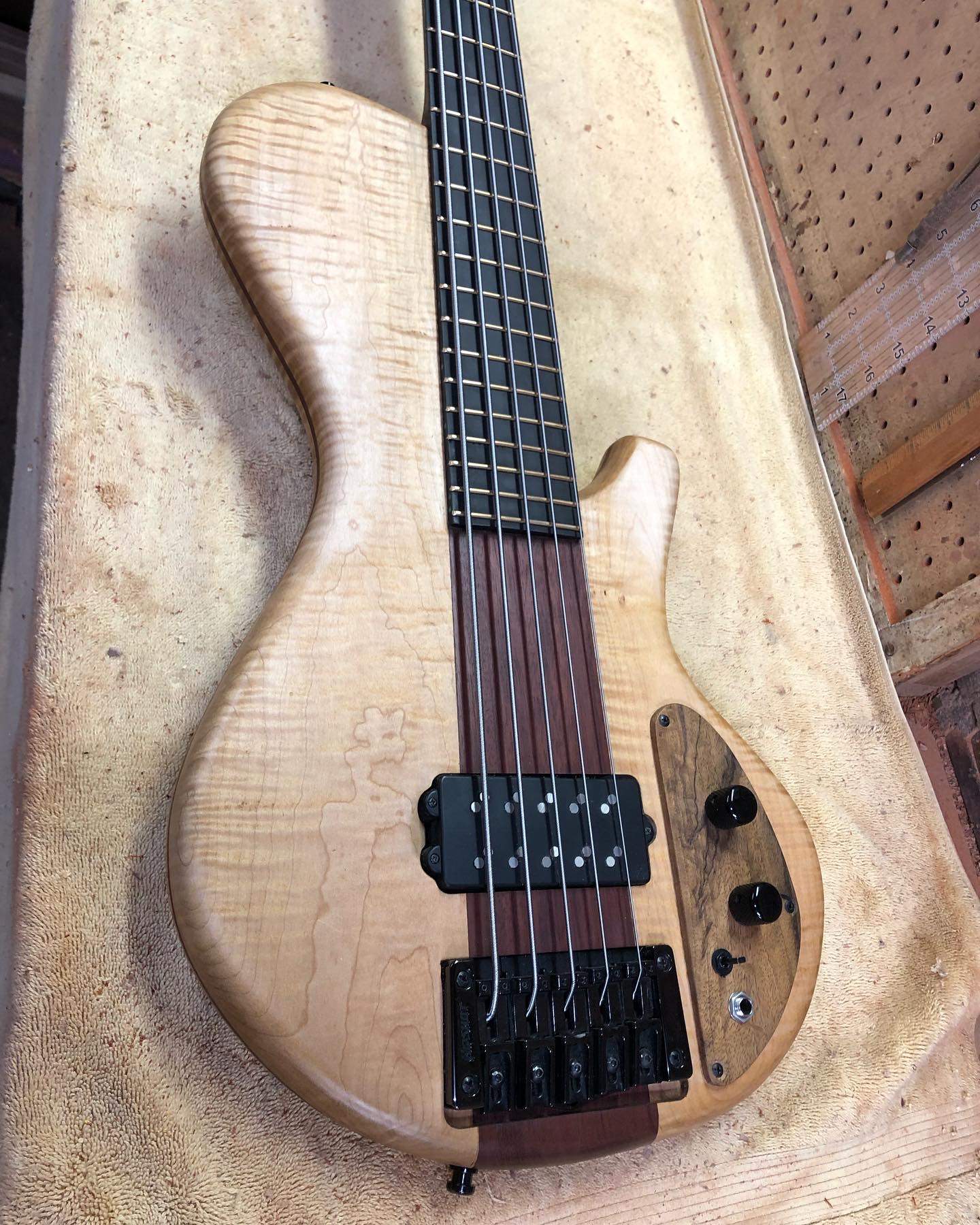

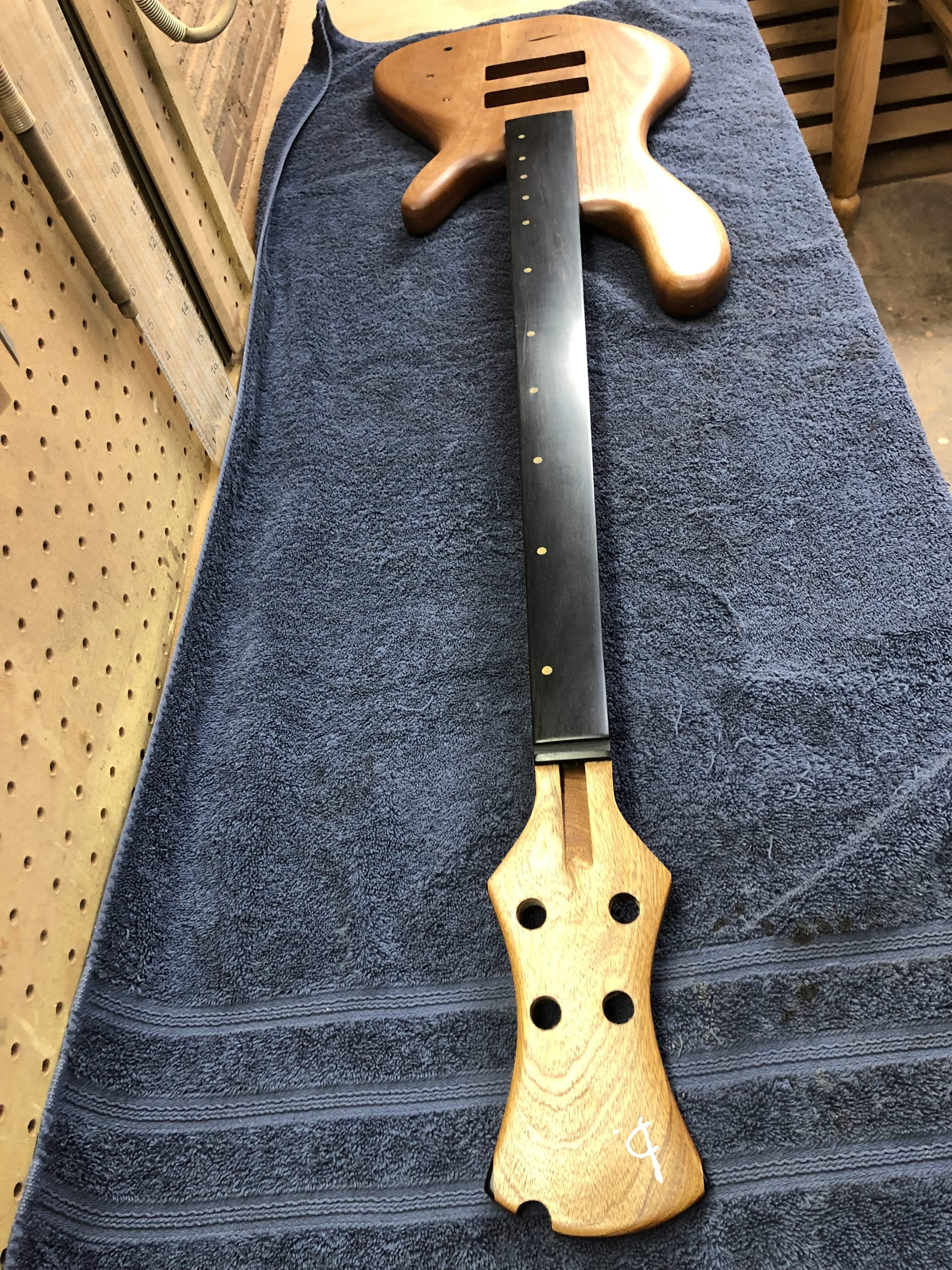

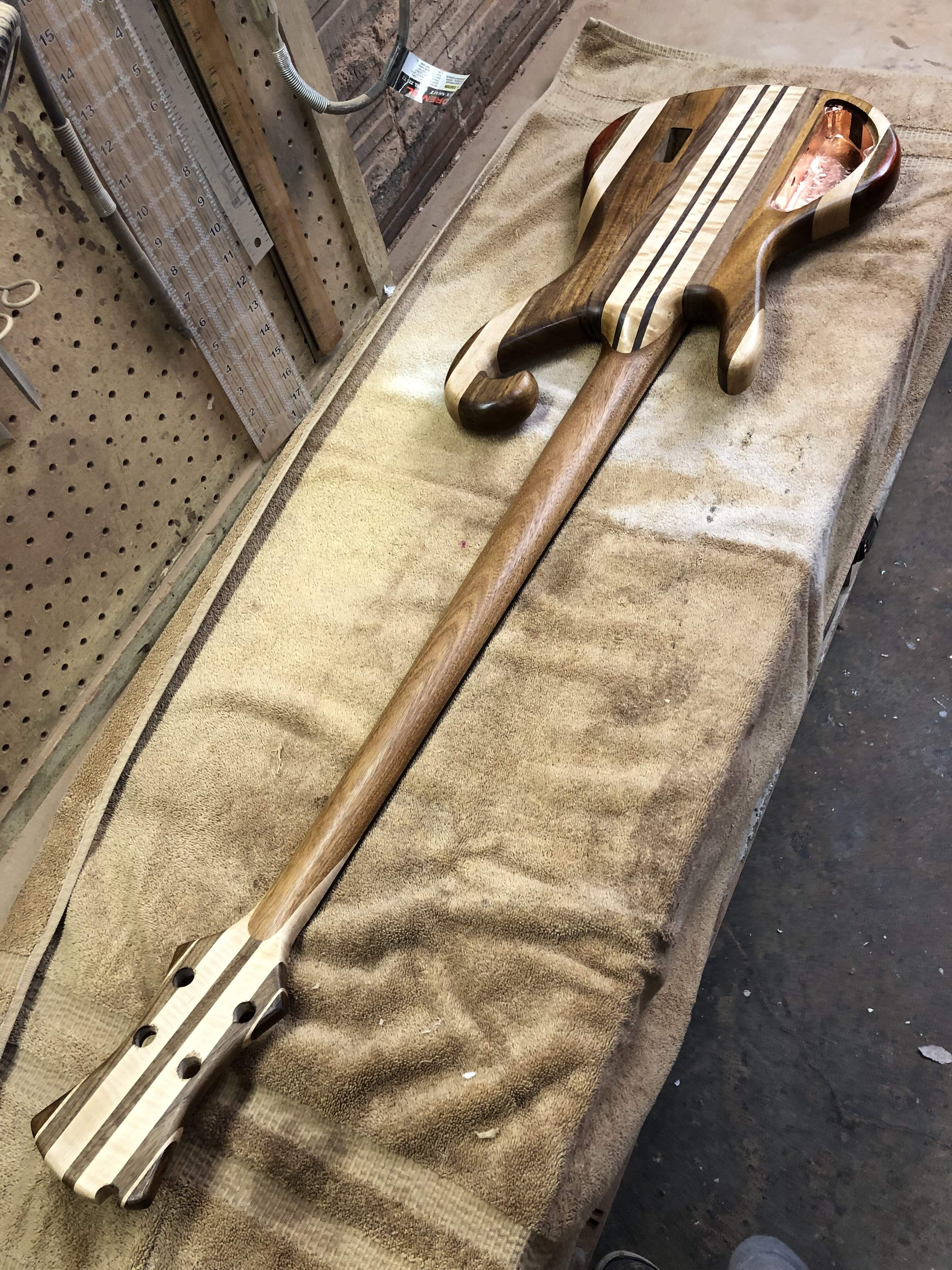

These two are nearing the end of their journey.
