Boss SY-1000!

#21
Updated list of SY-1000 Specifications

https://www.boss.info/global/products/sy-1000/specifications/

SPECIFICATIONS
Instruments parts 3 parts
Instruments types [Guitar mode]
Guitar synthesizer: 3 types (DYNAMIC SYNTH, OSC SYNTH, GR-300)
Electric guitar + Amp modeling: (Guitar = 13 types, Amp = 31 types)
Acoustic + Amp modeling: (Acoustic = 10 types, Amp = 31 types)
Bass + Amp modeling: (Bass = 3 types, Amp = 31 types)
Vio guitar modeling: 13 types
Poly FX: 5 types

[Bass mode]
Bass synthesizer: 3 types (DYNAMIC SYNTH, OSC SYNTH, ANALOG GR)
Bass + Amp modeling: (Bass = 11 types, Amp = 31 types)
AC bass + Amp modeling: (AC bass = 1 type, Amp = 31 types)
Electric guitar + Amp modeling: (Guitar = 3 types, Amp = 31 types)
Poly FX: 5 types

Alternate Tuning [Guitar mode]
OPEN (D, E, G, A), DROP (D to A), D-MODAL, NASHVILLE, SHIFT (-12 to +12),
USER, 12-string guitar function

[Bass mode]
SHIFT (-12 to +12), USER, 12-string bass function

Effects Over 150 types

Patch Memory Guitar mode: 200 (Preset) + 200 (User)
Bass mode: 200 (Preset) + 200 (User)

AD Conversion Divided Pickup: 32 bits + AF method
Normal Pickup: 32 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the
signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion 32 bits

Sample Rate 48 kHz

Normal Input Level GUITAR INPUT: -10 dBu
RETURN: -10 dBu

Maximum Input Level GUITAR INPUT: +16 dBu
RETURN: +8 dBu

Input Impedance GUITAR INPUT: 1 MΩ
RETURN: 1 MΩ

Normal Output Level MAIN OUTPUT (L/PHONES, R/MONO): -10 dBu
SUB OUTPUT (L, R/MONO): -10 dBu
SEND: -10 dBu

Output Impedance MAIN OUTPUT (L/PHONES, R/MONO): 44 Ω
SUB OUTPUT (L, R/MONO): 1 kΩ
SEND: 1 kΩ

Recommended Load Impedance MAIN OUTPUT (L/MONO, R): 10 kΩ or greater
*Phones: 44 Ω or greater
SUB OUTPUT (L, R/MONO): 10 kΩ or greater
SEND: 10 kΩ or greater

Controls BANK DOWN switch, BANK UP switch, CTL1--2 switches, 1--4 switches,
POWER switch, INST button, EFFECTS button, CTL button, EXIT button,
WRITE button, SYSTEM button, PAGE button
1--6 knobs, OUTPUT LEVEL knob

Display Graphic LCD (512 x 160 dots, backlit LCD)

Connectors GK IN connector: 13-pin DIN type
GUITAR INPUT jack, SEND jack, RETURN jack, MAIN OUTPUT (L/PHONES, R/MONO) jacks,
SUB OUTPUT (L, R/MONO) jacks: 1/4-inch phone type
CTL3, 4/EXP1 jack, CTL5, 6/EXP2 jack: 1/4-inch TRS phone type
USB COMPUTER port: USB B type (supports High-Speed USB, USB Audio, and USB MIDI)
MIDI (IN, OUT/THRU) connectors
DC IN jack

Power Supply AC adaptor

Current Draw 800 mA

Accessories AC adaptor(PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"

Options (sold separately) Divided pickup: GK-3 (for guitar), GK-3B (for bass guitar)
GK cable: GKC-5 (5 m, 15 feet), GKC-10 (10 m, 30 feet)
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Unit A/B/Y selector: Roland US-20
AC adaptor (PSB-1U)
* When purchasing an AC adapter, be sure to specify the adapter (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there.
(PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A)

SIZE AND WEIGHT
Width 345 mm
13-5/8 inches

Depth 245 mm
9-11/16 inches

Height 67 mm
2-11/16 inches

Weight (excluding AC adapter)2.5 kg
5 lbs 9 oz

* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.

  • Like
Reactions: mikewalker, Al Krow, Passinwind and 1 other person
#22

  • Like
Reactions: mikewalker and Krisfield
#24
Wow, not gonna lie I was interested for the synth capabilities, but seeing the amps and multi-fx options alongside I'm debating selling my HXFX for this. I think I need to dig through the manual and see about setting up parallel paths and drive options for the unit. If this can do what I use the HX for plus some basic synth features as well, I'll have a hard time talking myself out of it.

  • Like
Reactions: mikewalker and lesclaypoolsob
#26

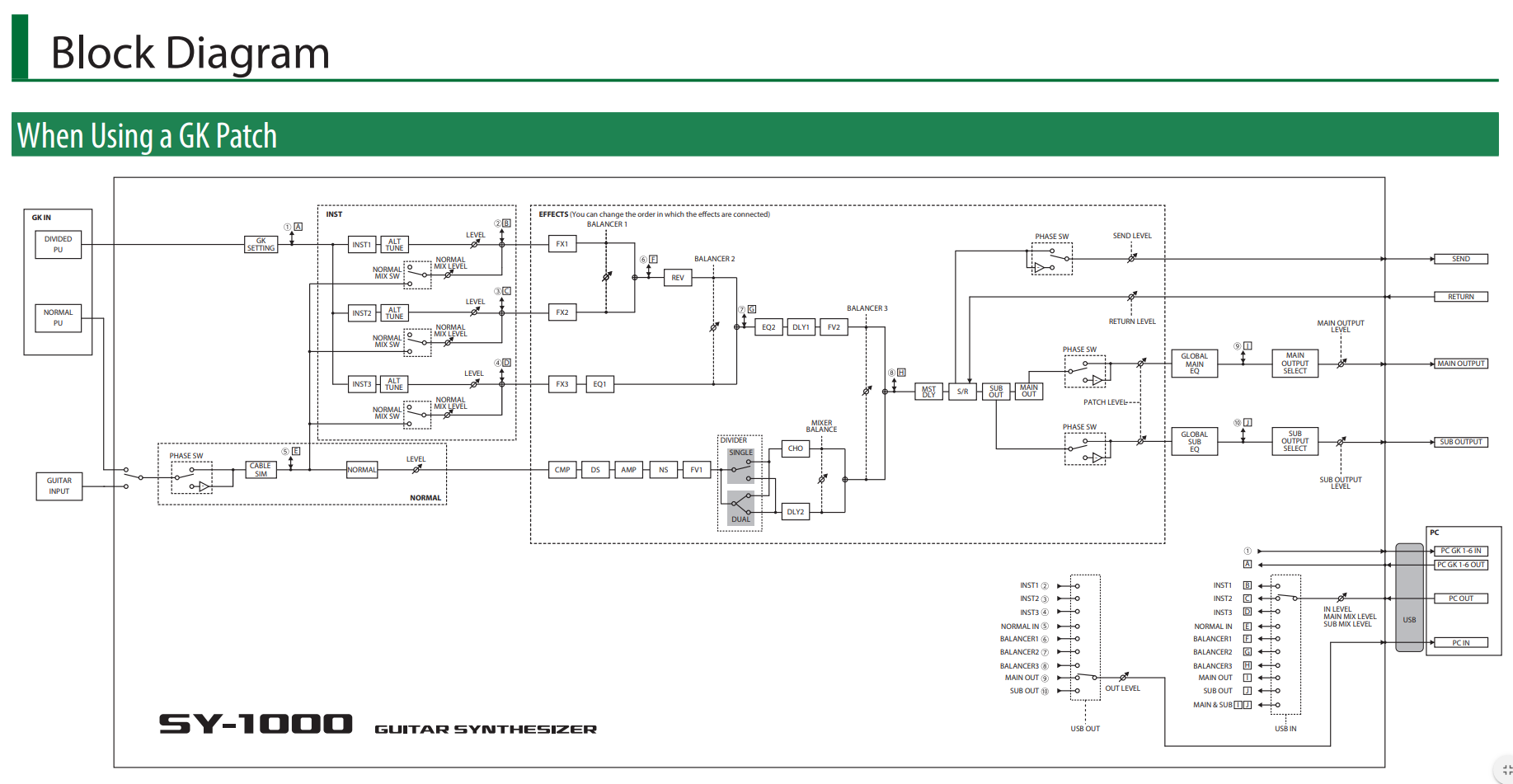

Inst blocks require the GK pickup. Normal is the 1/4 inch input. Was planning on it, but I may need a Godin A4. This device is perfectly designed to run two bass guitars. Synth and Analog.

Screen Shot 2019-12-14 at 2.07.37 AM.png

Last edited:
#28
So, is the dynamic synth a much improved version of the analog synth in the old V-Bass? Or is that the Analog GR? Nice to see two oscillators in the OSC synth (unlike one in the V-Bass).

Be interested to know if the OSC synth sounds a lot better than its predecessor in the V-Bass - which did not sound great.

My problem with these units is they operate as single oscillator synths which in the V-Bass and VB-99 sounded pretty thin compared to a real synth. I could deal with the latency but the thin sound and the annoying GK-3B (only place to mount it realistically on a Jazz Bass meant you had problems using a right angle 1/4” cable when not using the unit) is why I no longer have one.

I would love to proven wrong with the new unit.

Last edited:
#29
bass.slinger said:
So, is the dynamic synth a much improved version of the analog synth in the old V-Bass? Or is that the Analog GR? Nice to see two oscillators in the OSC synth (unlike one in the V-Bass).

Be interested to know if the OSC synth sounds a lot better than its predecessor in the V-Bass - which did not sound great.

My problem with these units is they operate as single oscillator synths which in the V-Bass and VB-99 sounded pretty thin compared to a real synth. I could deal with the latency but the thin sound and the annoying GK-3B (only place to mount it realistically on a Jazz Bass meant you had problems using a right angle 1/4” cable when not using the unit) is why I no longer have one.

I would love to proven wrong with the new unit.
Click to expand...

Very much improved, if you look at the SY-300 and SY-1 bass demos using a mono bass input, and multiply that by 6 with a GK hex pickup.




#31
bassteacher99 said:
It looks like the only access to the synth is with the GK pick up and the 1/4 inch plug is for effects only...... I hope I'm wrong but it looks like a gr55 and sy300 had an only slightly usable baby.
Click to expand...
It's a synth aimed at GK type pickup Users, perhaps the "SY" part could be misleading, it is basically the next evolution of the Roland VG99/VB99.
I think the 1/4" input can do limited amount of synth, but a GK input will give you synth per string, alternate tuning per string, and a few poly-effects, and the instrument modeling.
But it does not do PCM synth like the GR units do.

#32
I agree about the sy naming point you made, I was hoping it would be a powerful sy300..... it might turn out to be a bit of a Frankenstein
gumtown said:
It's a synth aimed at GK type pickup Users, perhaps the "SY" part could be misleading, it is basically the next evolution of the Roland VG99/VB99.
I think the 1/4" input can do limited amount of synth, but a GK input will give you synth per string, alternate tuning per string, and a few poly-effects, and the instrument modeling.
But it does not do PCM synth like the GR units do.
Click to expand...

  • Like
Reactions: Randy Ward
#33
gumtown said:
Very much improved, if you look at the SY-300 and SY-1 bass demos using a mono bass input, and multiply that by 6 with a GK hex pickup.
Click to expand...

My problem with all the SY-1/300 videos is that very few of them do not sound like a cheap toy when compared to a real synth. The Tone Report video is a really good exception. These units have a problem with producing a good analog pad (string or brass). It seems that good tracking units have poor sound and good sounding units have poor tracking. I have really wanted to like them, but just gave up on imitating a good synth sound in a pedal. Instead, I have migrated to pedals that mangle the bass sound in a synth way (TWA Great Divide, Korg G5, etc.). That said, the opening dynamic synth pad sound in the Boss video is really good and is making me want to hear more.

#37
diegom said:
OK. I am impressed!
The big question is: How does the effect section compare to a Helix?
If you were on the fence and had several 13-pin instruments, which one would you get?
Click to expand...

I just sold my Helix, and have ordered a SY-1000.
SY-1000 lets you run 4 parallel instruments (normal pickup + 3 models of bass's/guitars) each with its own separate preamp and cabinet settings and parallel chained effects all at the same time,
plus you get the great 32bit Boss 500 series effects found in the GT-1000.
You can have alternate tunings per string, different synths/models on different strings, poly Fx (effects per string).


This is way beyond a Helix.

  • Like
Reactions: amper, fokof and diegom
#38
gumtown said:
I just sold my Helix, and have ordered a SY-1000.
...
This is way beyond a Helix.
Click to expand...

Thank you for the detailed explanation of how you made your decision!
I wasn't sure about the depth of the effect section, but if they include some effects from the gt-1000, the quality is obviously there... In any case, if it's not enough, I can always get a Helix Stomp and run it through the loop! Overkill, I know!

Diego
