This might in fact be a copy down to the clipping diodes of an SVT.
I saw this and thought, "***?", but looked up the schematic and lo and behold, two diodes just before the inverter stage. Why on earth are those there?
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
This might in fact be a copy down to the clipping diodes of an SVT.
All tube path designs are all the same design, same circuit. There's only so much you can do with the same old tubes. There is no intellectual property left. There's nothing tricky. It's all published in books. It's just sourcing parts and creating manufacturing methods to put them together. B* has got this down. Their guitar amps have a big following.
This might in fact be a copy down to the clipping diodes of an SVT. If there's no IP left, what's it matter. Same amp but cheaper.
right. and that's exactly why all tube amps sound exactly alike.All tube path designs are all the same design, same circuit. There's only so much you can do with the same old tubes. There is no intellectual property left. There's nothing tricky. It's all published in books. It's just sourcing parts and creating manufacturing methods to put them together. B* has got this down. Their guitar amps have a big following.
This might in fact be a copy down to the clipping diodes of an SVT. If there's no IP left, what's it matter. Same amp but cheaper.
I saw this and thought, "***?", but looked up the schematic and lo and behold, two diodes just before the inverter stage. Why on earth are those there?
Guess I didn't make my point all that clearly probably due to wording it strangely, but what I meant about tube designs being tricky, is that if you build it poorly, it probably won't work well, and will inevitably fail. Overall I see the main difference between an Ampeg original and a B* clone coming down to three basic things:
(1) Component quality. To cut costs B* will be using cheaper components whenever possible. Ampeg might not break the bank on components either, but B* will go cheap all the way.
(2) Build quality. Cheap, fast soldering equates to shoddy connections that over time, will fail. I'd be willing to bet most of the B* amps that die on gigs are a result of poorly soldered connections that fall apart during transit.
(3) Quality control. Less thorough QC equals more problems cropping up during the lifetime of the product. When you factor in the cheap components which probably had very little QC to begin with in the factories they were built in, add to that generally shoddy constuction, and THEN factor in some crap QC at the B* factory, it begins to make sense why these amps have such a consistent reputation for dying when you need them most, typically after very little use.
B* also is able to cut costs due to the relative lack of R&D that goes into designing their products (since most are copied designs). That and not having to market as extensively as Ampeg, and all of the above build-related expenses more or less explains why they can offer the "same" product for much less money. But as they say, and as my past experience with this company has definitely confirmed... you get what you pay for.
I haven't seen the schematic but they could be used as a sort of limiter or they could be there to add distortion when hit with a large enough signal to get them to conduct. Are they across the signal path or ???
I'd agree with you in theory, though Bugera/B*hringer aren't known for making products with "kinks in the beginning". They have a consistently horrible track record from start to finish, with the exception of a handful of products that randomly seem to work.
I saw this and thought, "***?", but looked up the schematic and lo and behold, two diodes just before the inverter stage. Why on earth are those there?
Looks like a DC block to prevent DC leakage from a master amp while slaving two or more units. Any DC leakage from a weak coupling cap would cause severe problems to the slaved amp.

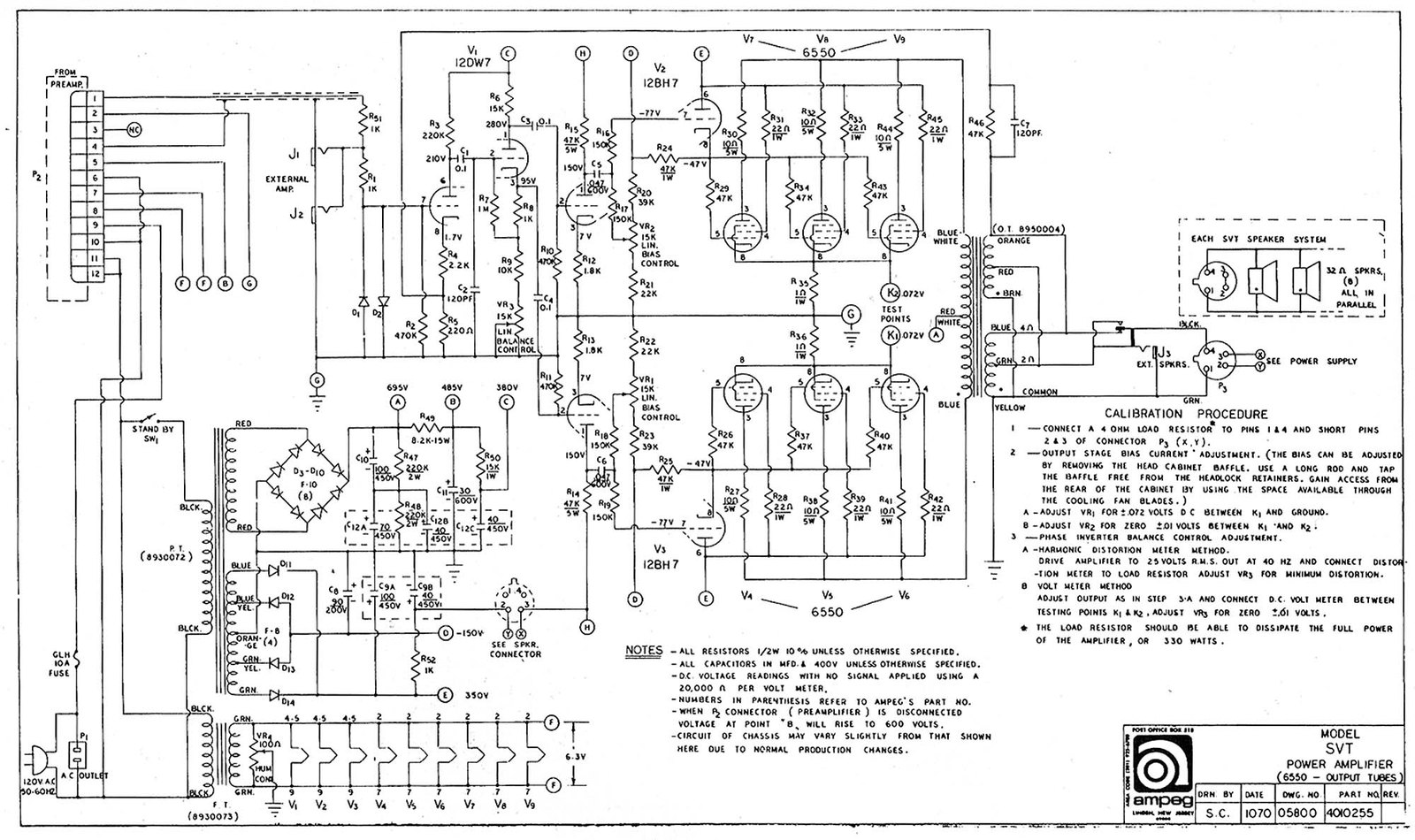

Perhaps, but I'm guessing that it functions as a limiter. Note that this is Joe Piazza's drawing of the original SVT power amp configuration (with 6550s), not the SVT-CL. One should check an original SVT schematic as I've found errors in Joe's redrawn schematics before.
Agedhorse, that sounds like: "Sit down, shutup and hold on"?![]()
