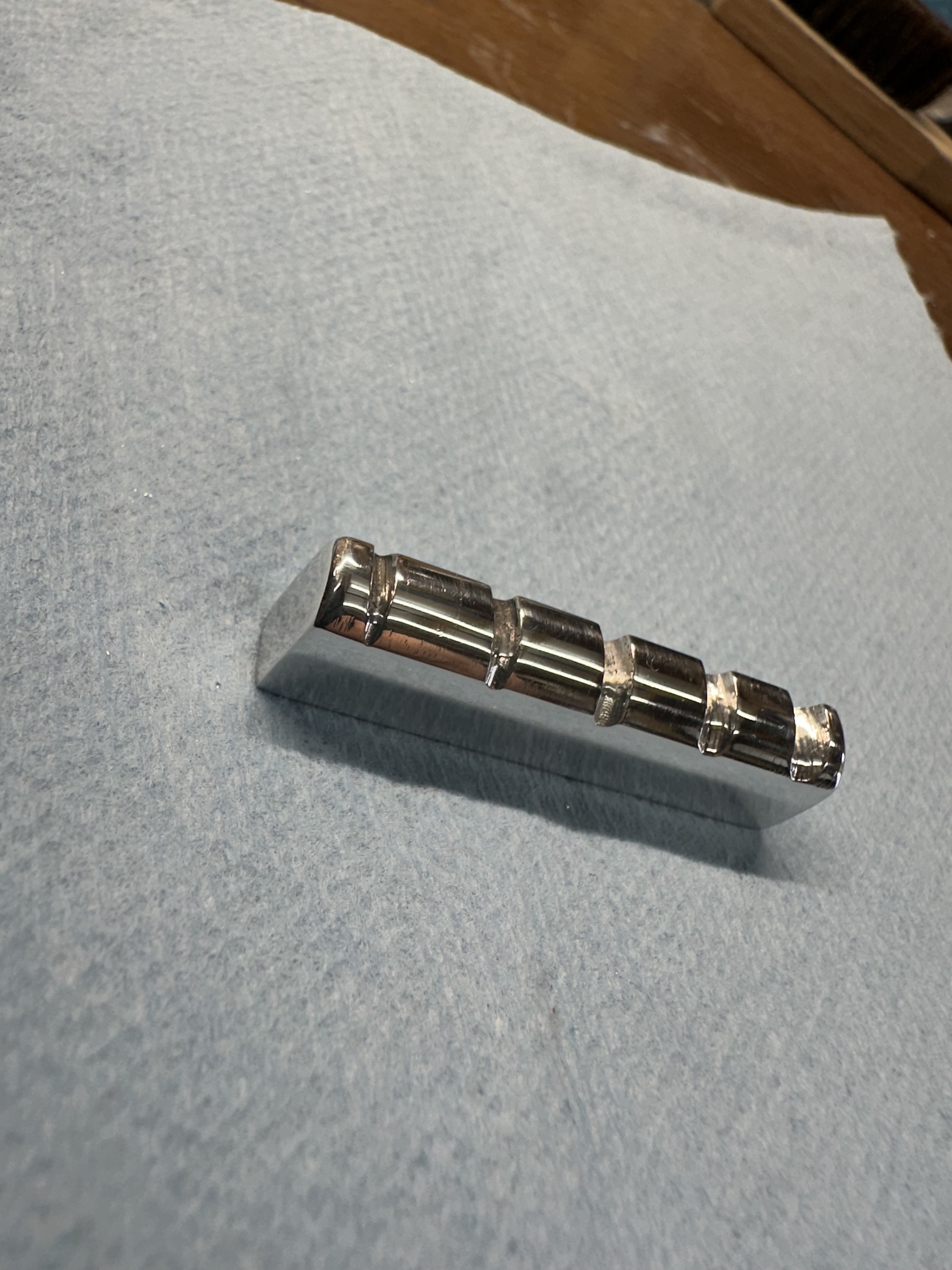

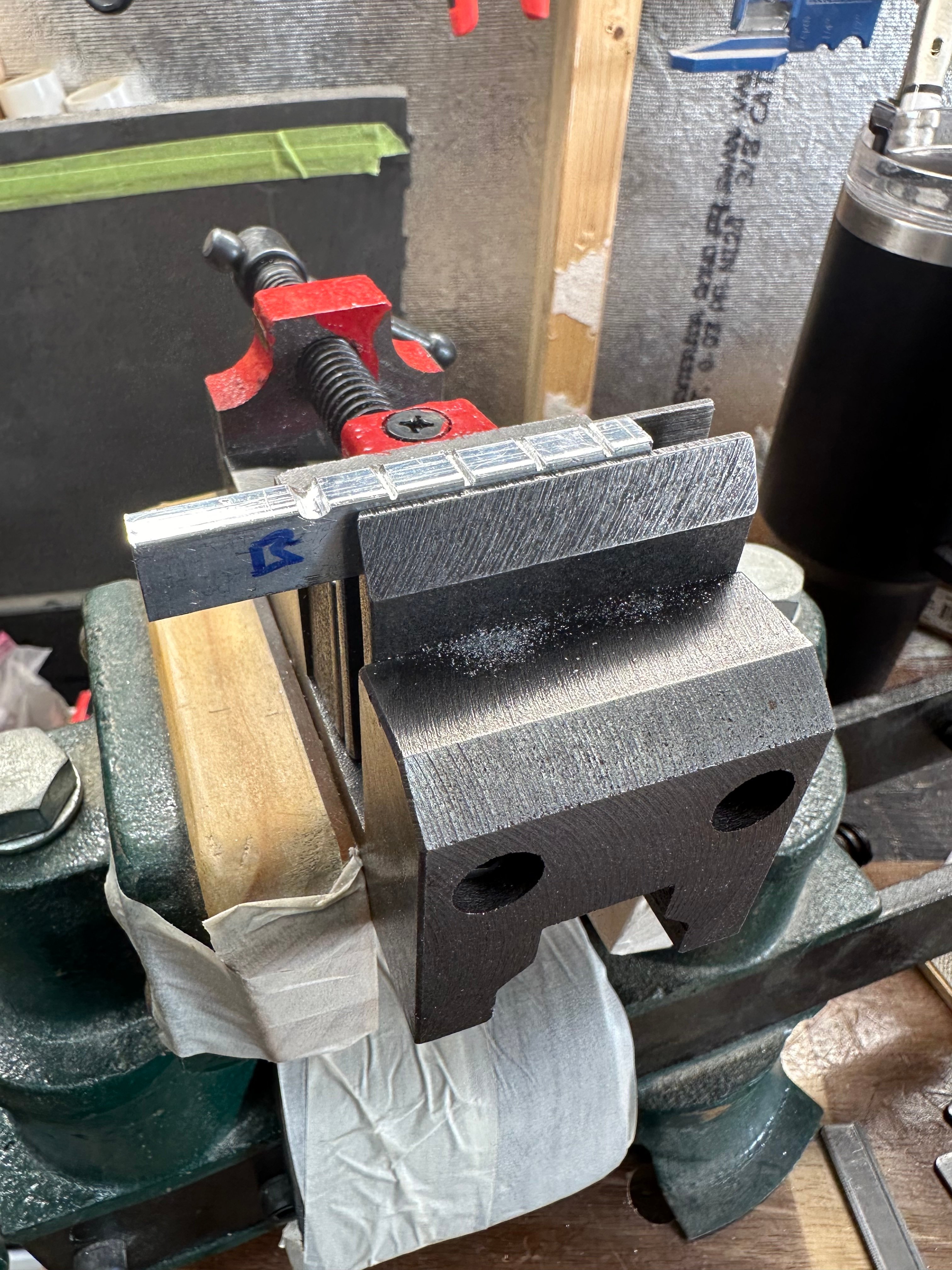

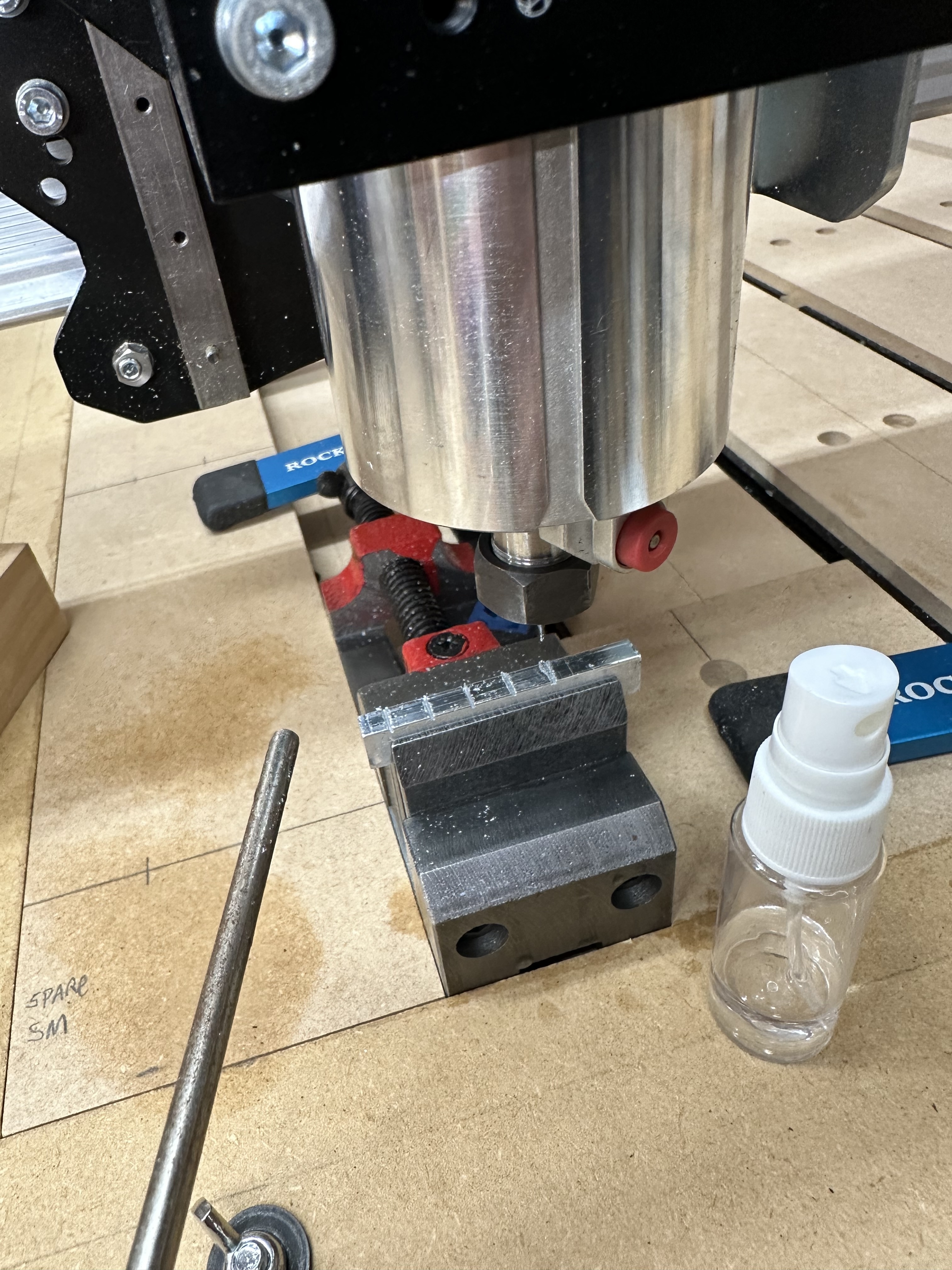

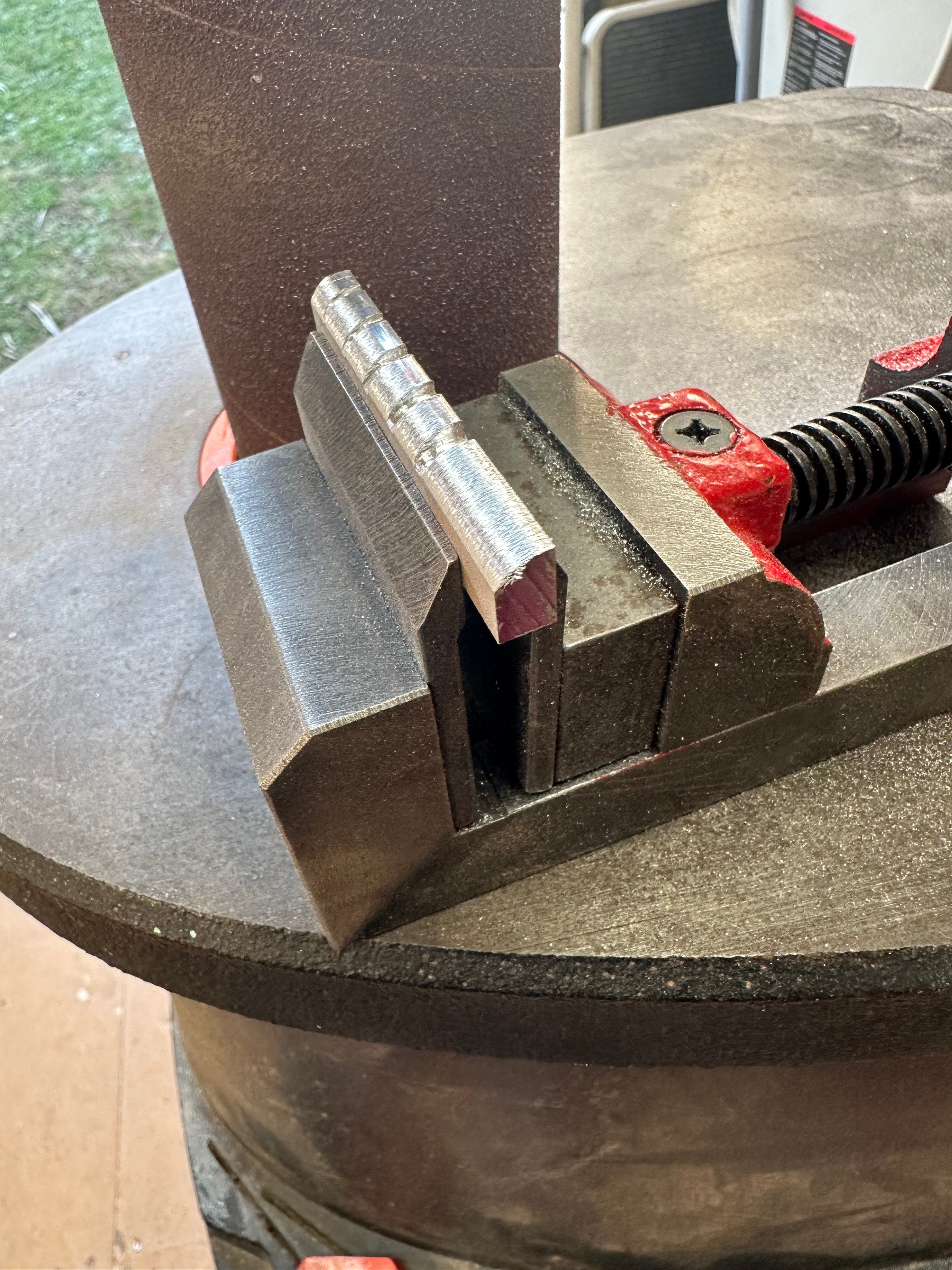

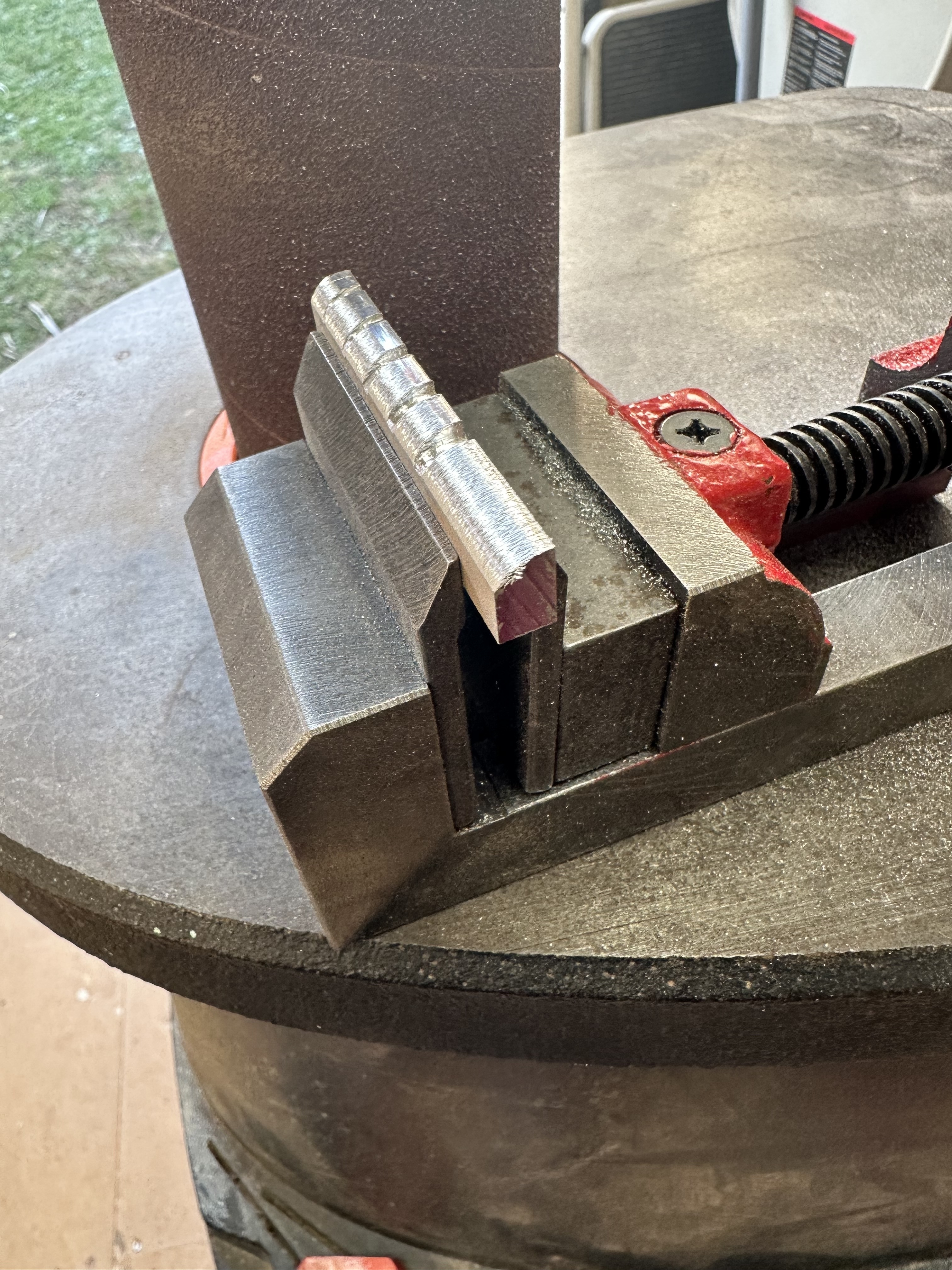

A few hybrid (traditional hand/CNC assist) operations I did back in January:

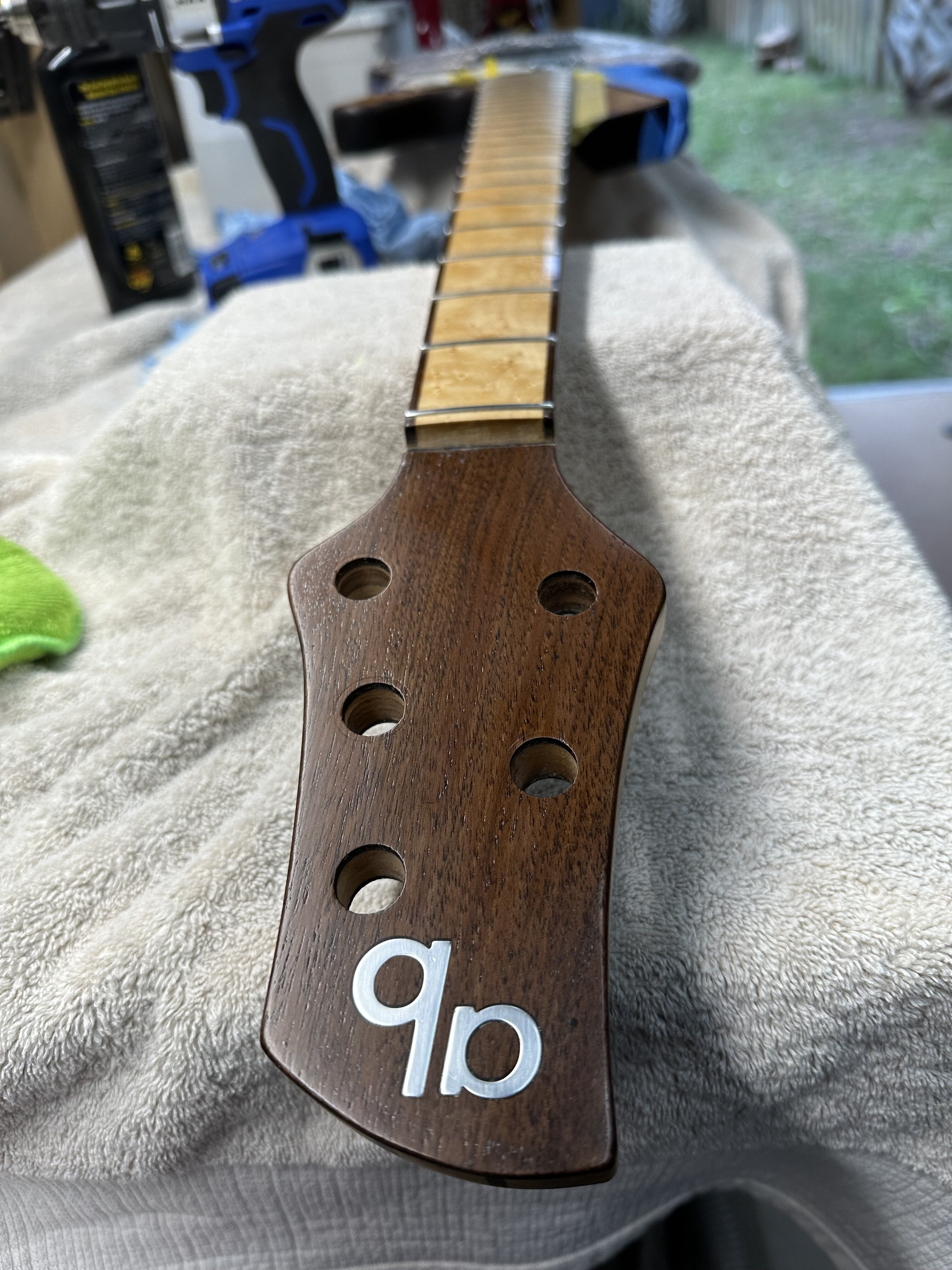

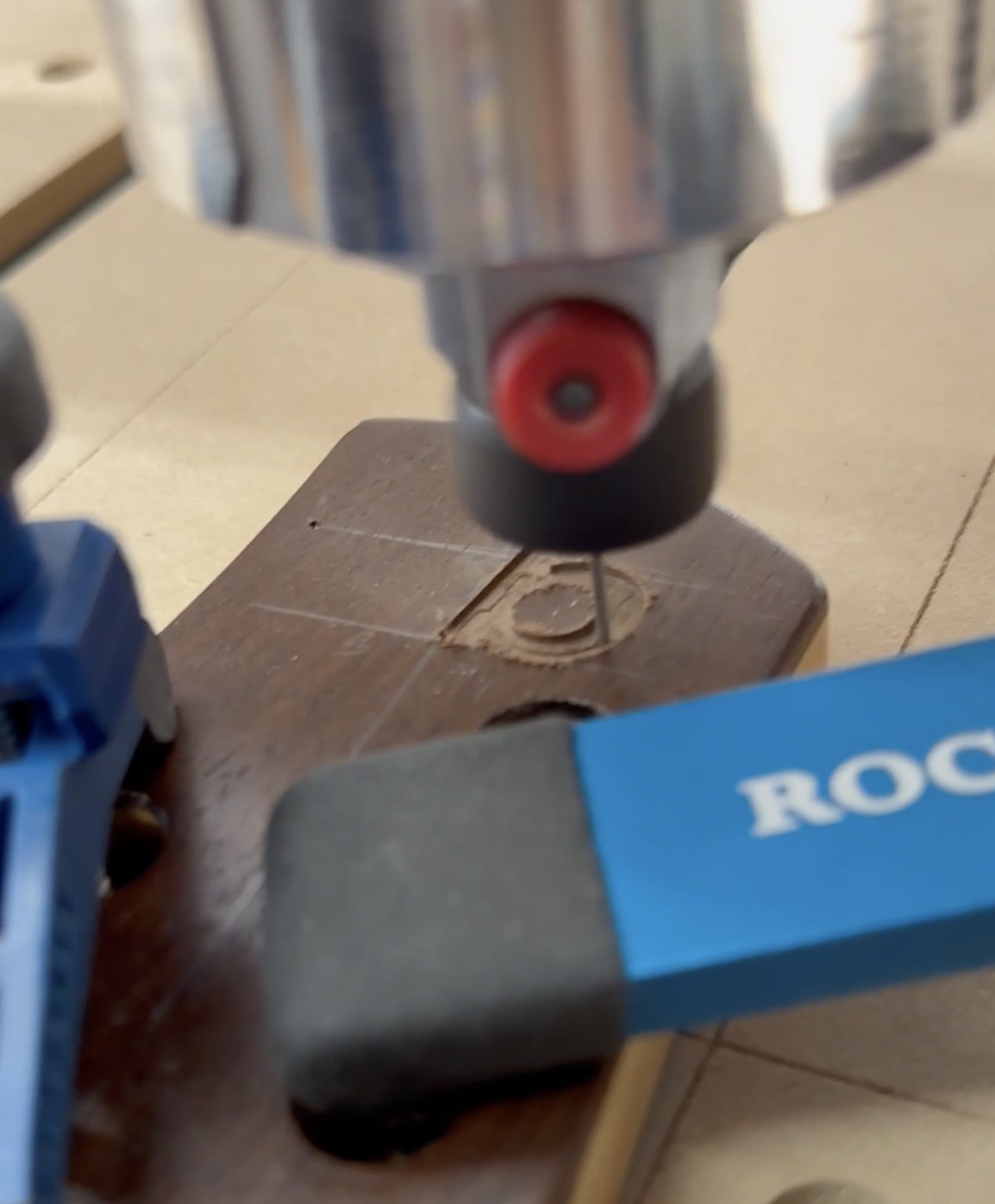

Then a peghead logo inlay (after the fact)


I'm smitten with Aluminum



[Bruce Johnson]

A few hybrid (traditional hand/CNC assist) operations I did back in January:

View attachment 7098743View attachment 7098744View attachment 7098746View attachment 7098748

Then a peghead logo inlay (after the fact)
View attachment 7098761View attachment 7098762

I'm smitten with Aluminum

Nice work! I often make brass or aluminum nuts that way, first using a small V-bit in the milling machine to roughly cut the slots, getting their positions accurate. Then hand file the slots to width and depth, and hand file the top shape. Those operations wouldn't be worth the trouble to do on a mill or a CNC. They are faster to do by hand.

And those aluminum inlays are very clean and professional looking. Now that's a job that a CNC machine can do very well.



[chinjazz]

Nice work! I often make brass or aluminum nuts that way, first using a small V-bit in the milling machine to roughly cut the slots, getting their positions accurate. Then hand file the slots to width and depth, and hand file the top shape. Those operations wouldn't be worth the trouble to do on a mill or a CNC. They are faster to do by hand.

And those aluminum inlays are very clean and professional looking. Now that's a job that a CNC machine can do very well.

Thanks Bruce!

Yes, and doing it by hand was so satisfying.
At this point I only use my CNC for pockets, cavities and some perimeter cuts. The rest is fun and by hand.
