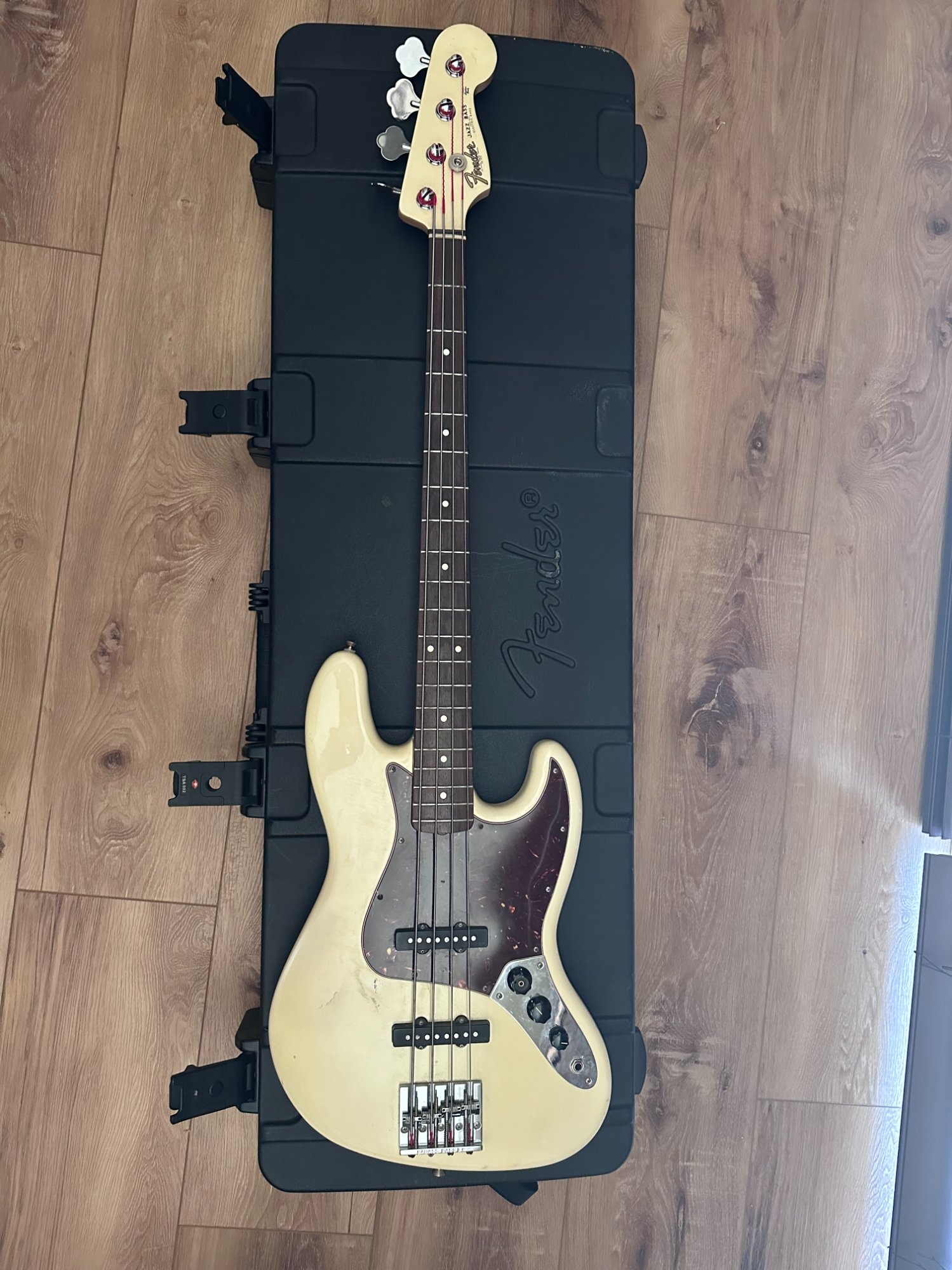

Can't Identify Fender Jazz Bass Version
- Thread starter naveman01
- Start date
Awesome! That's really helpful. Do you know where I can get a replacement knob for that? I don't remember what it looked like originally if it was just a push button on top of the knob or an additional knob.

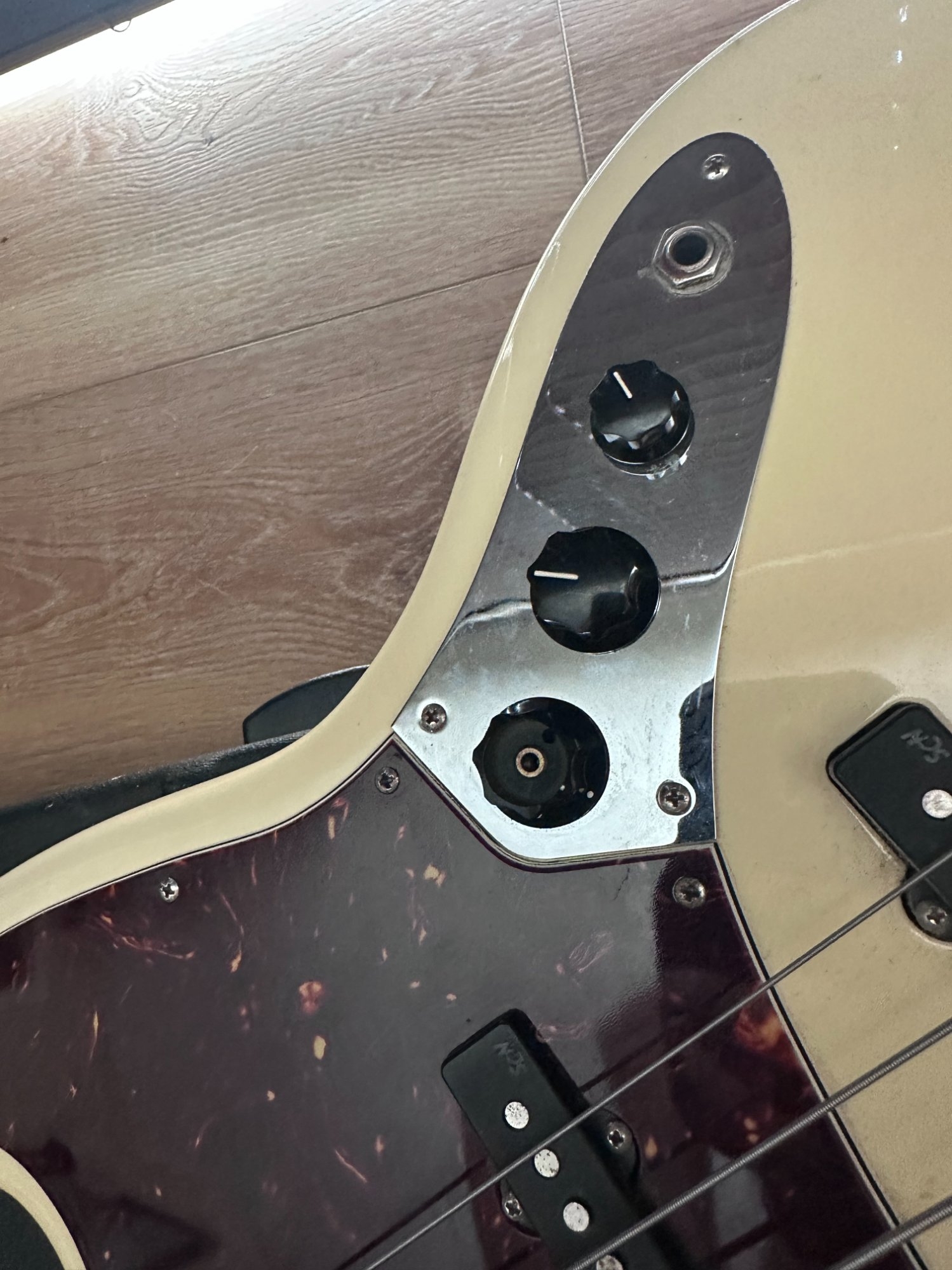

Yes there is a shaft. Looks like something screws into it but I can't find the part online.
Attachments

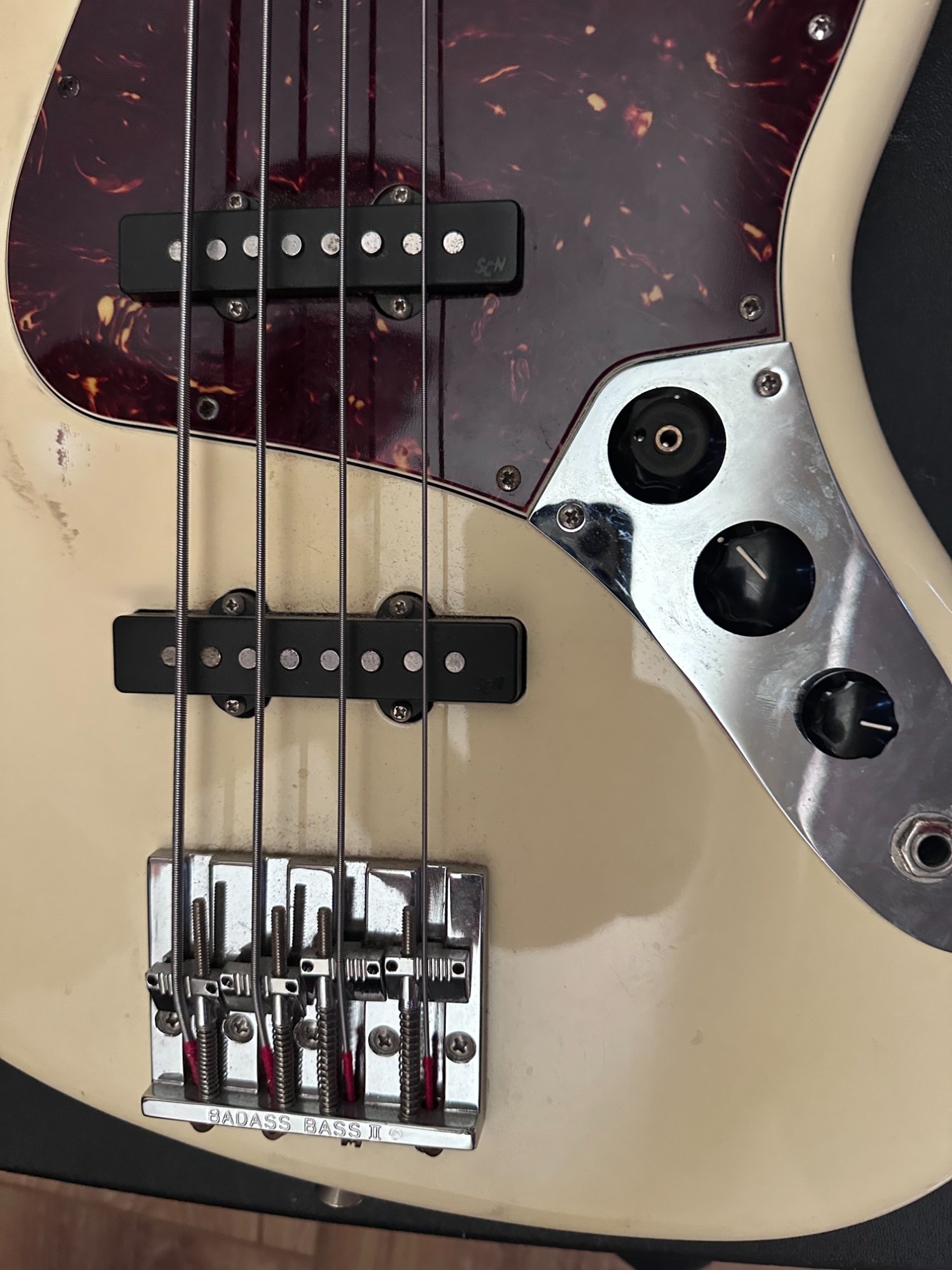

It looks exactly like that bass. Did it have an s1 switch\knob?Probably an '08 FSR Hot Rod Jazz, like the one I used to own, and wish I'd never sold.
For sale Fender ‘08 FSR Jazz White Nitro w/ Matching Headstock
This is an ‘08 short run (less than 250 made) US Fender Jazz Bass in white Nitro Lacquer with matching headstock. It comes with original deluxe US made G&G hard case that’s never left my house, hang tags, manual, case keys (still in the ziplock), and even the desiccant pack. The limited number...
- JEDI BASS (+142 /0 /-0)
- Views: 1K
- Reaction score: 7
- Category: For Sale: Bass Guitars
$1,499.00
Put the serial number in and it will tell you exactly what bass you have and then you can order the exact part.
serialnumberlookup.fender.com
Serial Number Lookup

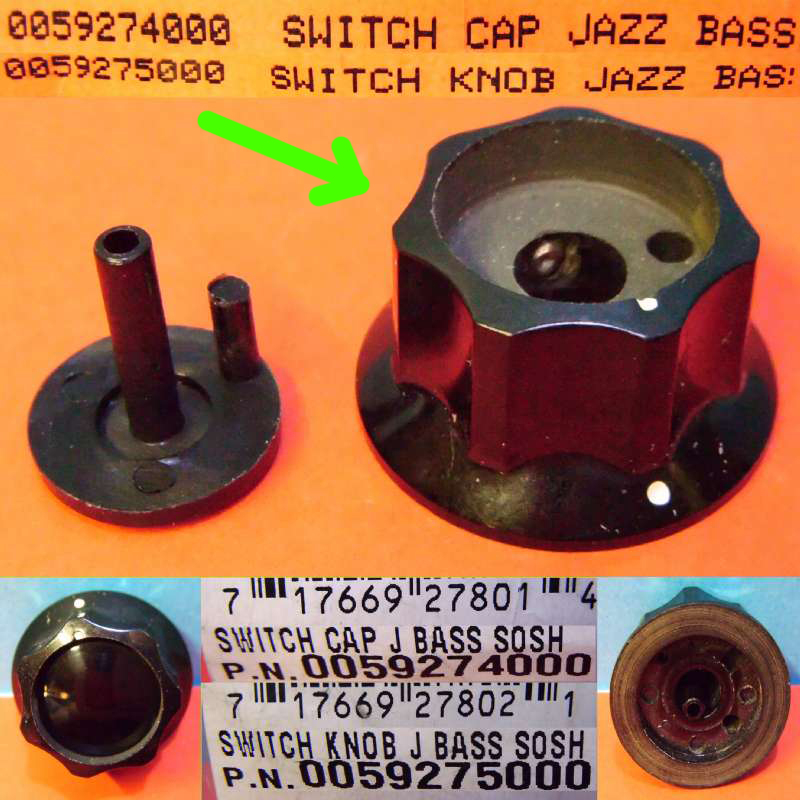

If you look carefully at the photo of the one that was for sale you can see there is an inner knob, but it's just a flat piece of plastic with a small indicator dot to show what position it was in relative to the main knob. Would probably be pretty easy to machine a replacement part, or even 3D print one?
That shaft has been pulled out, you need a whole new potentiometer, unfortunately.
I'm not sure, this might be the exact part: Invalid Link Removed
(Not sure because those are the values used in a passive bass, and this one's active.)
Can anyone verify the pot values for this exact model? I tried to google it, and it just took me to that Fender link...
(Not sure because those are the values used in a passive bass, and this one's active.)
Can anyone verify the pot values for this exact model? I tried to google it, and it just took me to that Fender link...
Here's what google AI says (don't trust it much, myself), but sounds like that's the part -
what concentric potentiometer is needed for a 20008 Fender FSR Hot Rod Jazz bass?
A 2008 Fender FSR Hot Rod Jazz Bass requires a concentric 250k/500k solid shaft potentiometer. This is the standard pot for vintage-style Jazz basses that use stacked volume and tone knobs for each pickup.
Key specifications
- Resistance: 250k on the bottom section (typically for tone) and 500k on the top section (typically for volume).
- Taper: Audio taper is the correct type for this application.
- Shaft Type: Solid shaft to accommodate concentric (stacked) knobs that mount with set screws. Push-on knobs will not work.
- Quantity: You will need two of these concentric pots to replace both control knobs on the bass.
Suitable replacement parts
- Genuine Fender: The official Fender replacement part (part #001-9268-049) is a
, often referenced for the '62 American Vintage Jazz Bass. - Aftermarket Options:High-quality replacements are also available from various parts suppliers:
- CTS: Often the same manufacturer as the original Fender parts.
- 920D Custom: Sells a CTS-made concentric pot specifically for Jazz Basses.
- Allparts: Offers a
CTS 250k/500k concentric pot.
Before you buy
- Check your knobs: Verify that your current knobs use a set screw to tighten onto the shaft, rather than being a push-on style. If you are replacing the knobs as well, make sure they are designed for concentric solid shaft pots.
- Consider a pre-wired harness: If you are not comfortable with soldering, pre-wired control plates are available from suppliers like Fralin Pickups. These come with the correct concentric pots, capacitors, and jack pre-installed on the control plate.
The potentiometer and inner (button) portion of that S1 knob are pretty easy to find. The outer portion of the knob is a bear to find! Don't lose the one you have.
I wonder what the button does? Probably switches off the preamp, so you can play in passive? Or does it change you from series to parallel on the p'ups?
