My latest build.
Born from the ashes and junk of a small luthier's shop, driven to hell and back as a test bed for various mad scientist experiments and at last resurrected from the grave.
It is my great pleasure to present to you the strangest relic I've ever encountered.

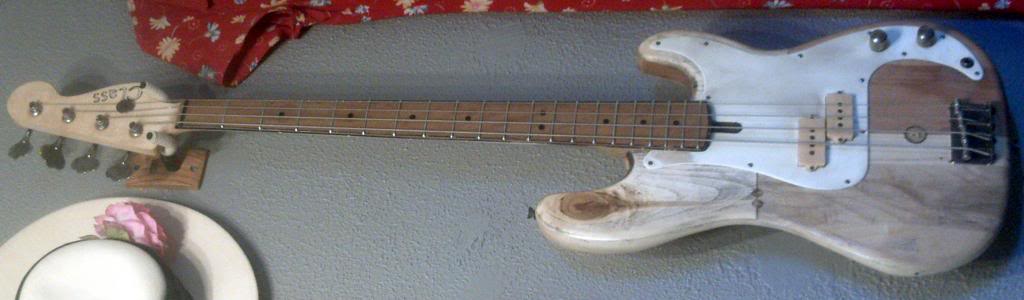

Its name is Tank.
Here's a little info on Tank.

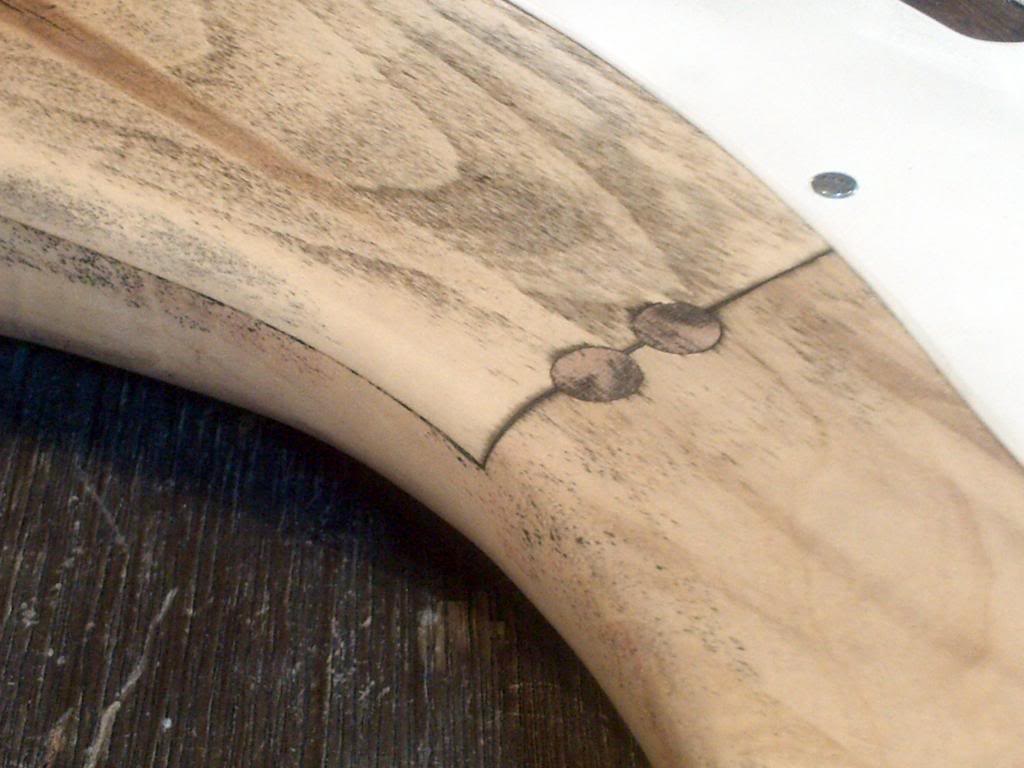

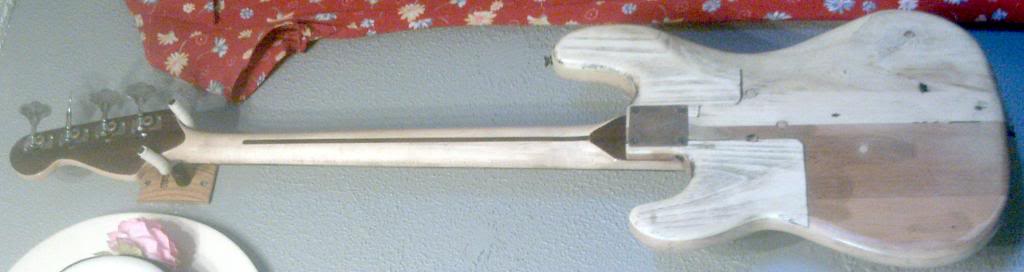

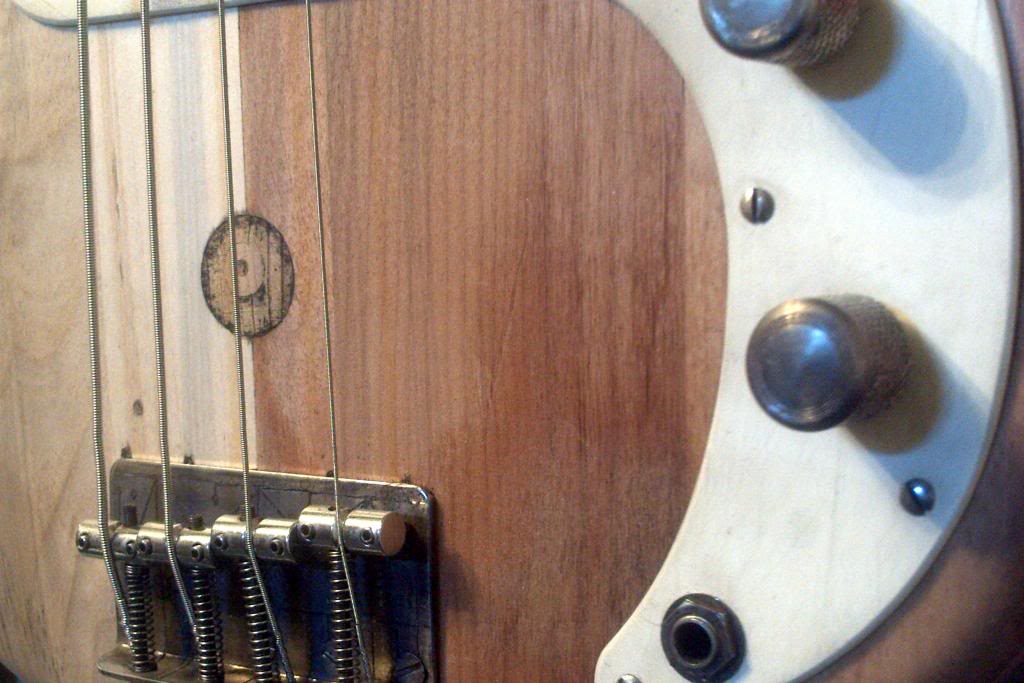

Tank's body is comprised of alder, basswood and white pine with dowels of maple, yellow pine and red oak. As well it sports a fair deal of fiberglass bondo and is finished with a light poly clear coat.
The maple portion of the neck originated from a 90's Squier.

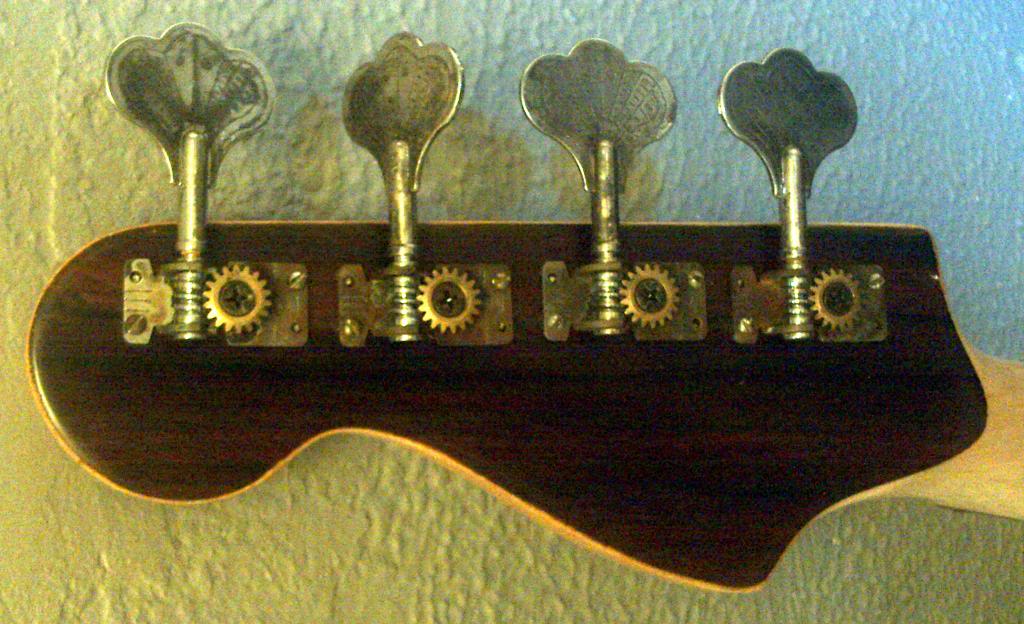

I added cocobolo veneer to the back of the heel and headstock, as well the headstock was re shaped slightly doweled and re-drilled to accommodate the new smaller tuners.
Lastly I put in a beefier truss rod, heel adjustable from where it was at the head and gave it a heavily lacquered mdf fingerboard with painted on black binding and black dot inlays.

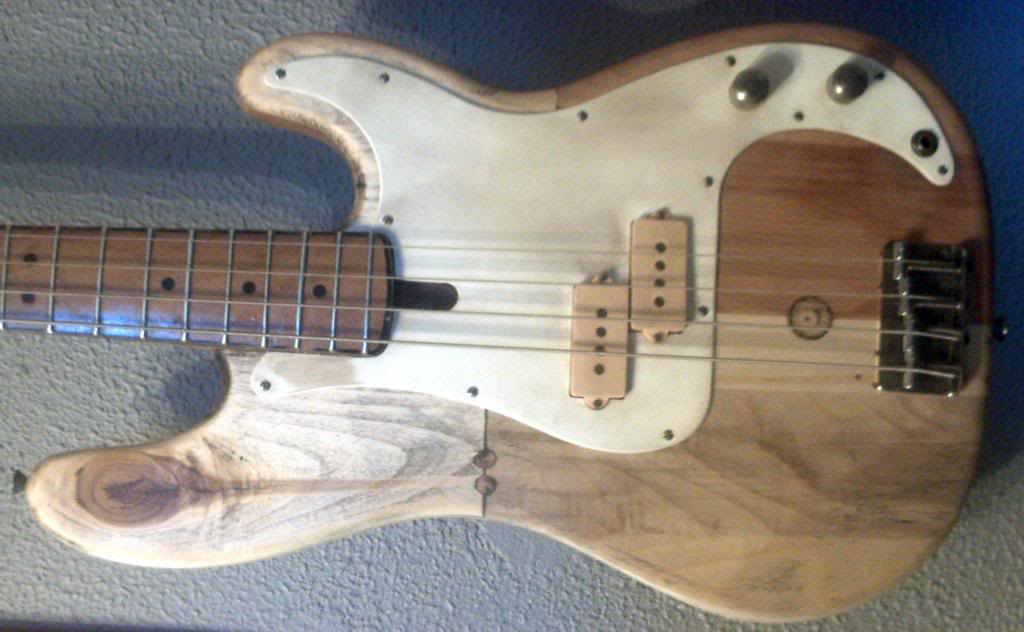

The pickguard also from some random squier of years past was converted from 14 hole to 13 hole, re-shaped slightly, painted white to cover filled holes and aged/stained.
The pickups came from a trade deal, (origin unknown) like everything else they where aged.
I put in 100k pots with a .047 cap.
The volume is push/pull to run either through the controls or straight to output.
The hardware is thrifty as heck!
Its bridge came from who knows where, the tuners and knobs are Squier.

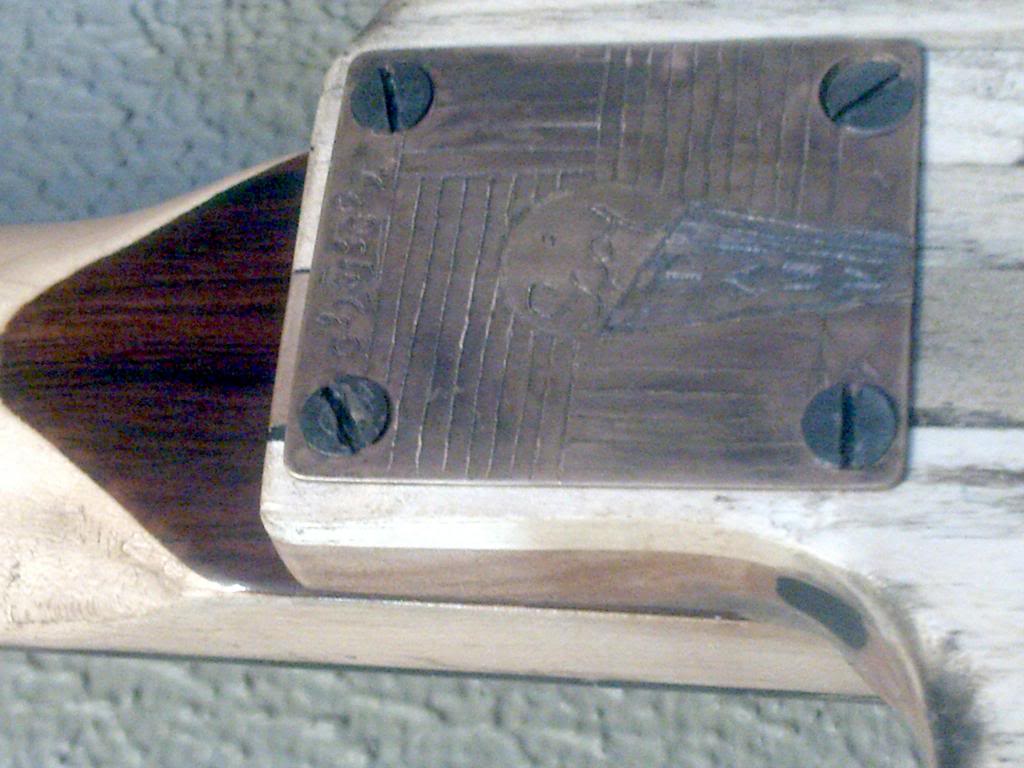

Those three where hand engraved out the wazoo along with a copper neck plate made from scratch.
The tuners originally had chrome covers on them which where removed and discarded followed by a bit of tweaking to get them all working well.

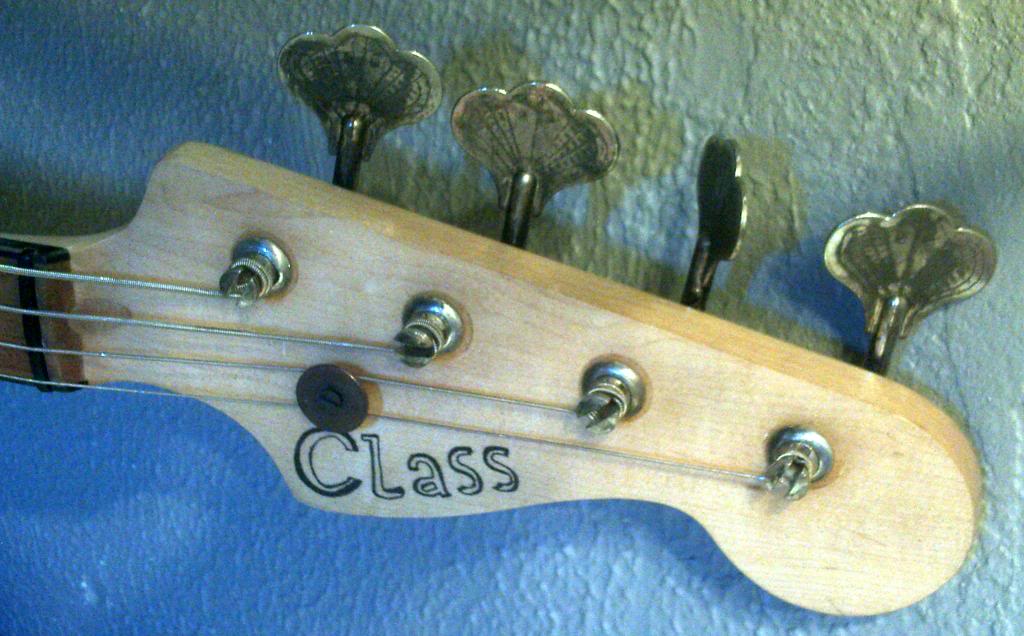

I used an old penny and some steel tube welded together to create a string tree and finally all the hardware along with all the slot head screws where lightly sanded (1500 grit) and treated with hydrochloric acid.
Last I have it setup with light roundwounds gauge 40-90, 6/64” on the E at the twelfth to 5/64” on the G
with .010” of relief.
The radius is 7.25 with a 1 5/8 wide nut and the frets are stewmac's medium highest for a vintage feel.
Did I miss anything???
