If 6mm is the pickup selector, wouldn't the volume and tone be 1/4"? So 2 1/4" and 1 6mm?
Sorry, I got twisted up with trying to go back and find the order confirmations from Fretnation, and gave mixed messages.

It’s further complicated by the fact that my D-Roc knob order, I screwed up and only ordered one of each, and got the third knob later. I can definitively say, after looking at other orders, that I ordered four 6mm and one 1/4”, for my NG3. So, 1/4” for the pup selector. Sorry for the confusion.

  • Like
Reactions: NOLA Bass
Hey Club, does anyone happen to have the wiring diagram for the 2x Series/Parallel Toggles on hands?

Thank you!

Sorry, I got twisted up with trying to go back and find the order confirmations from Fretnation, and gave mixed messages.

It’s further complicated by the fact that my D-Roc knob order, I screwed up and only ordered one of each, and got the third knob later. I can definitively say, after looking at other orders, that I ordered four 6mm and one 1/4”, for my NG3. So, 1/4” for the pup selector. Sorry for the confusion.

Thanks!

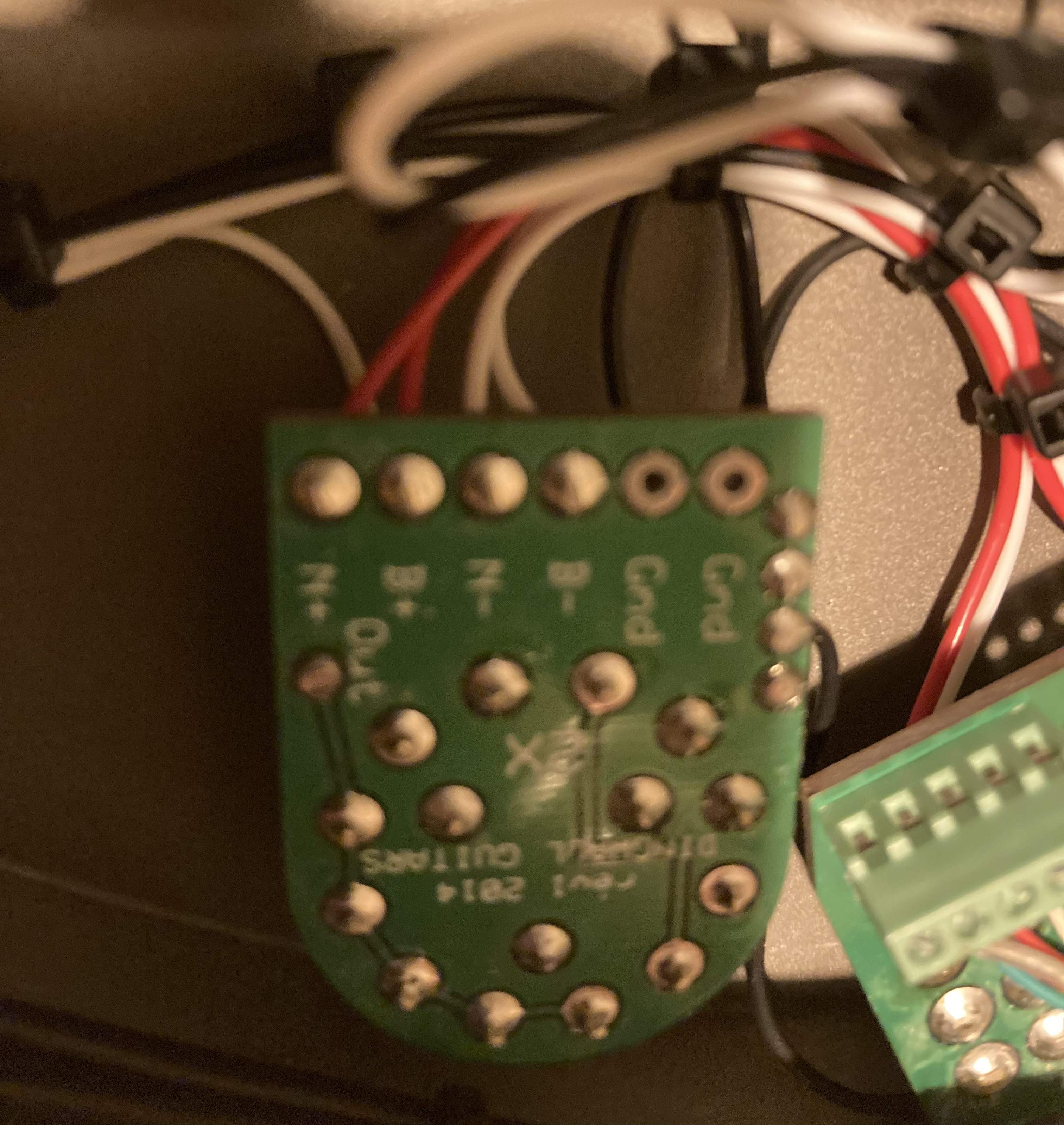

Hope this helps? From my passive AB1 - 2 pickups, with series/parallel for each pickup-


View attachment 5040894 View attachment 5040895

Thank you so much for the information! Do you happen to know which color represents which wire on the toggle modules?

Sorry I am trying to implement this toggle switch for a pair of Nordstrand Dingwall pickups on a parallel bass...just wanted to double check if the same colored wire means the same thing...

  • Like
Reactions: Katoosie
Thank you so much for the information! Do you happen to know which color represents which wire on the toggle modules?

Sorry I am trying to implement this toggle switch for a pair of Nordstrand Dingwall pickups on a parallel bass...just wanted to double check if the same colored wire means the same thing...

Sorry, beyond my pay grade - not sure if the lead colors are the same between DW and Nordstrand.

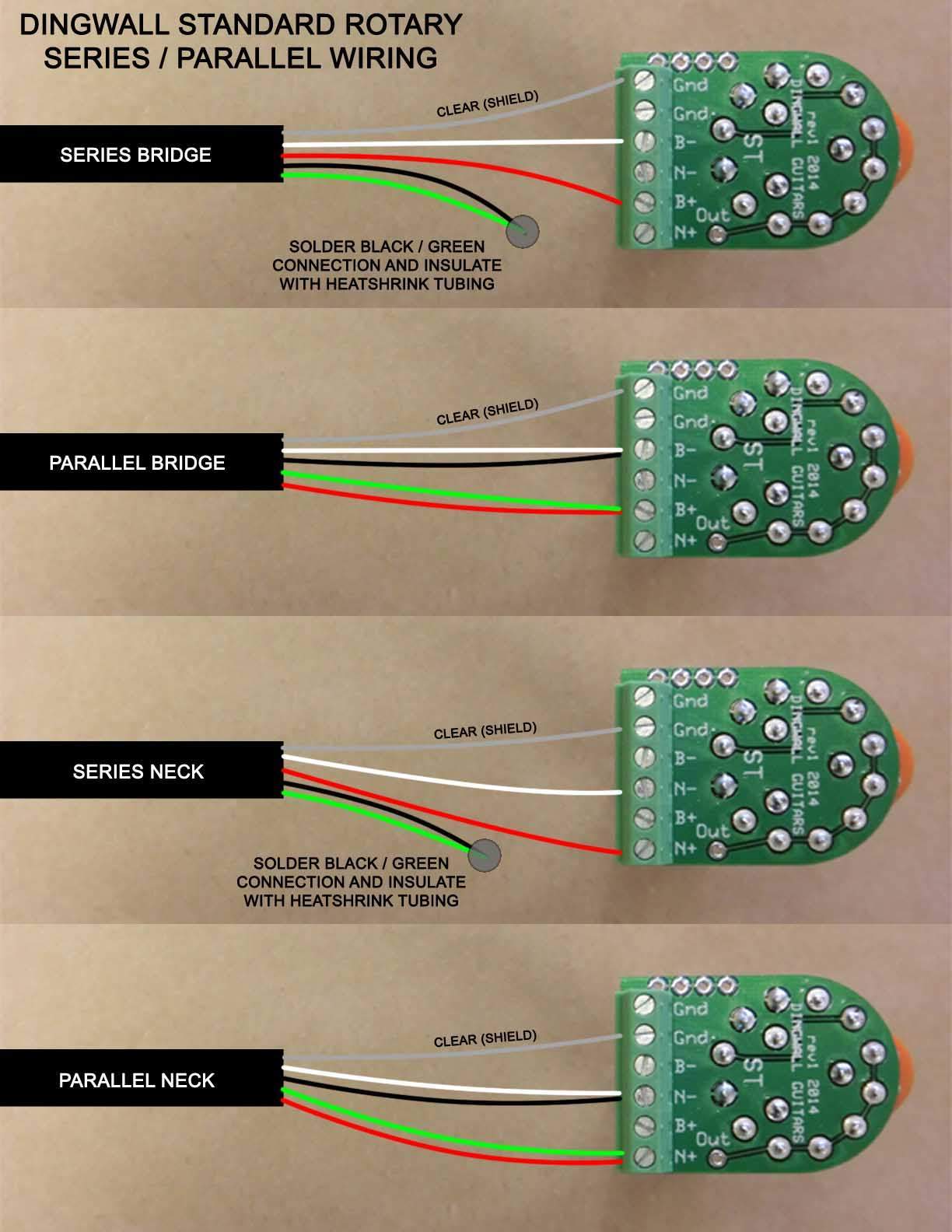

This is the series/parallel setup for DW :



Last edited:
  • Like
Reactions: Katoosie

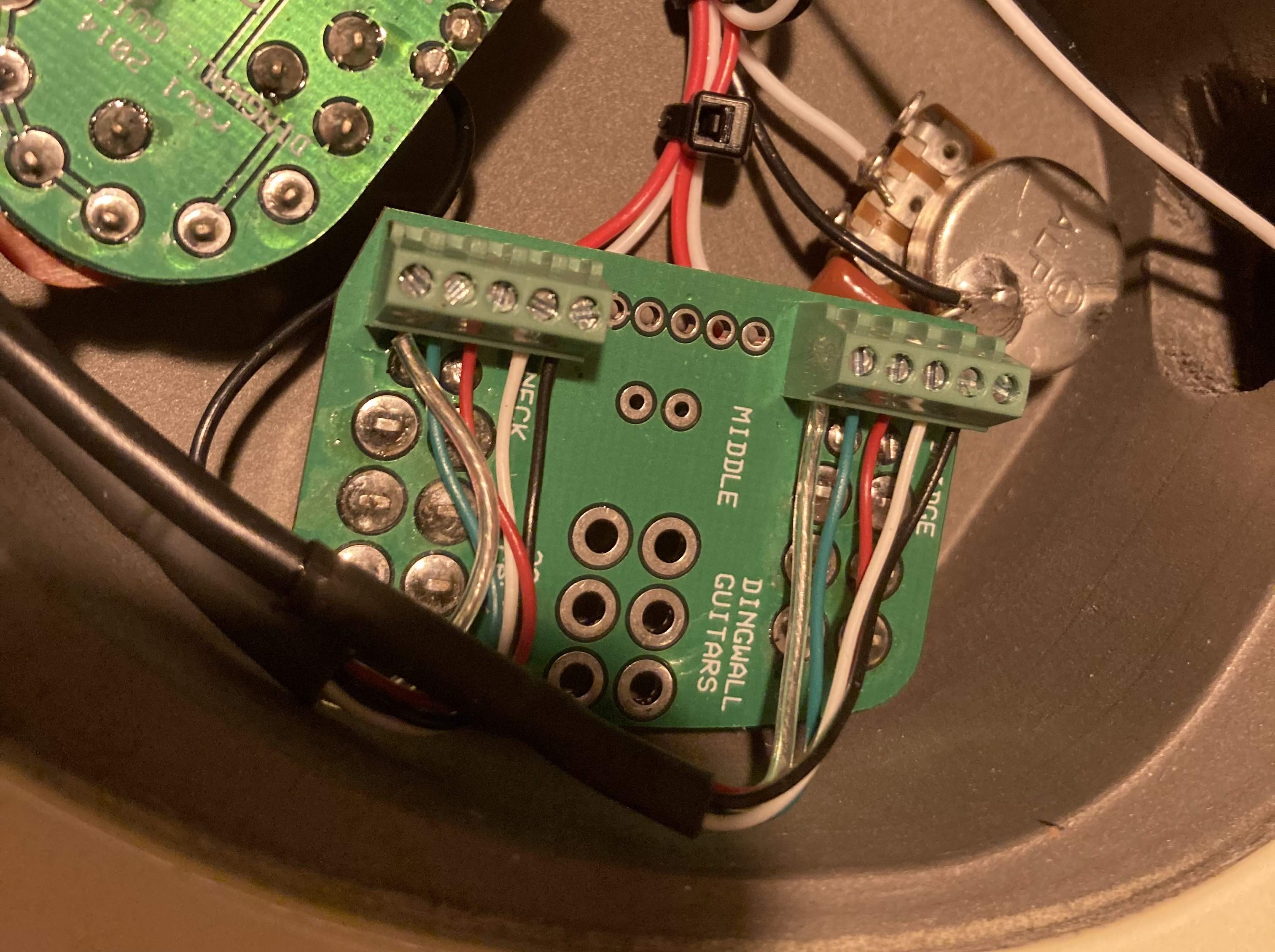

Here's a little more info that might help. I just did a crazy upgrade on my Ibanez SRF705 fretless earlier this year and put in a Zen Blade bridge and BigRig neck with parallel/single/series switching. The north coil is red/green and the south coil is black/white. Took me a while to realize that. o_O

I also did my NG3 in a similar manner, but I think the coil wires are different color codes and you can't run them split-coil (single coil.)

Hope the PDF helps.
