The AB1 is s/p/s, which apparently is standard for 3X. Interesting to see your ABZ is also wired s/s/s - especially since D-Birds/D-Rocs usually come with their neck coils in parallel and only bridge and middle in series, afaik.Yes, that is what it looks like. My guess is that is how the DBird was wired and my tech kept it like that when he put the 3X in. Now, that got me curious and I opened up my ABZ and AB1. They are both as they came from the factory as far as I know.

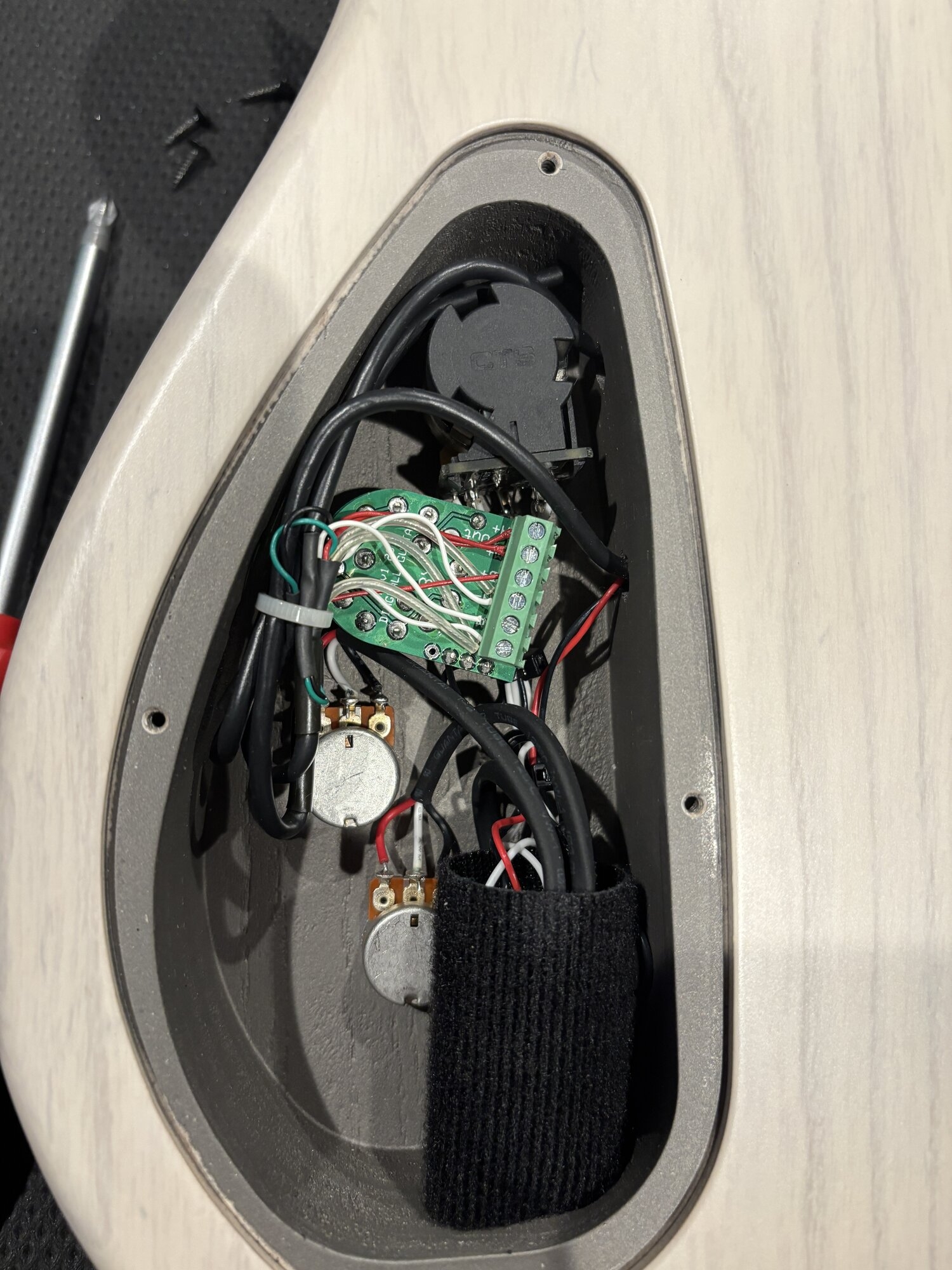

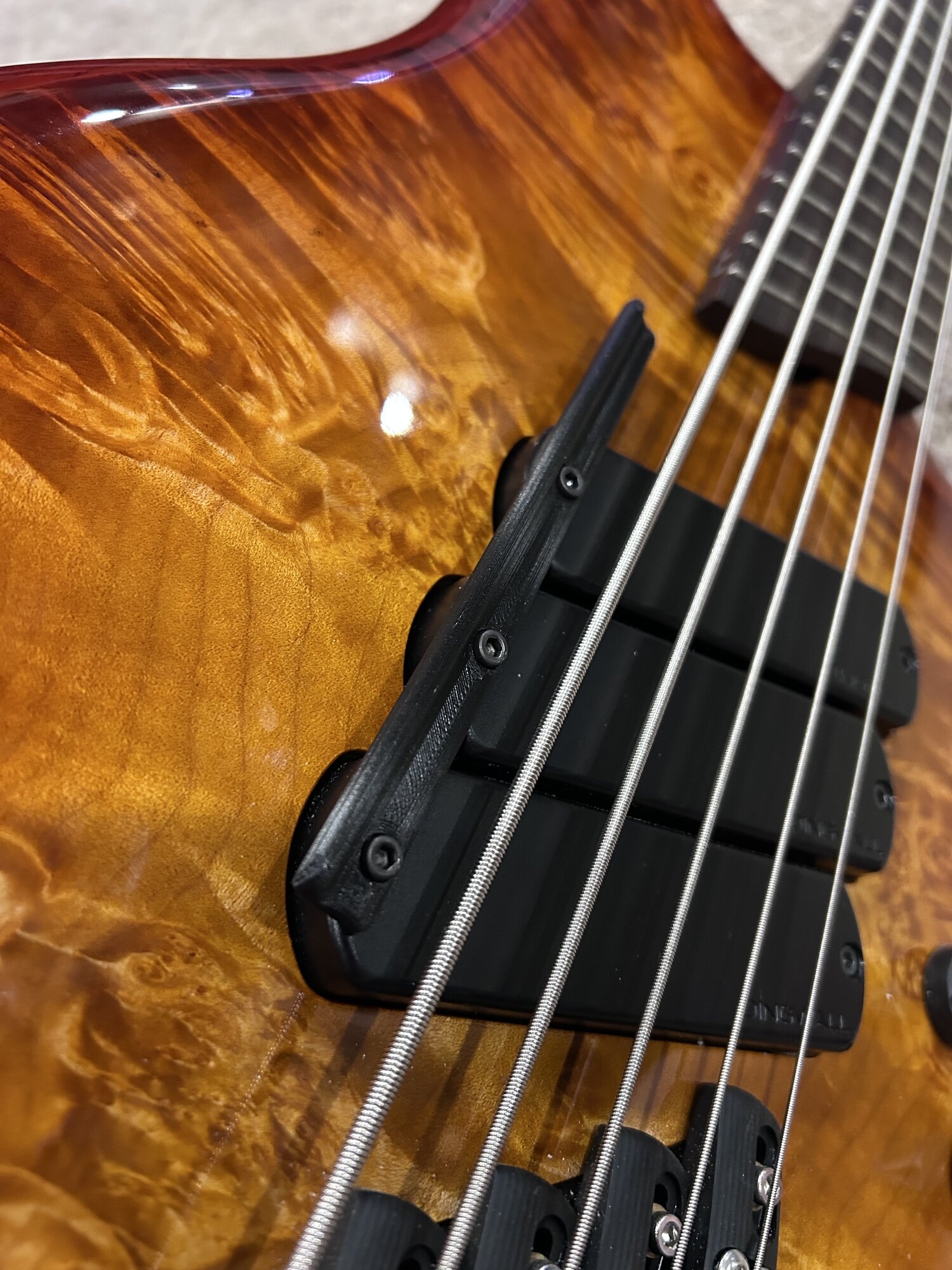

The ABZ (3x, FDV, Darkglass) appears to be wired the same way.
View attachment 7453521

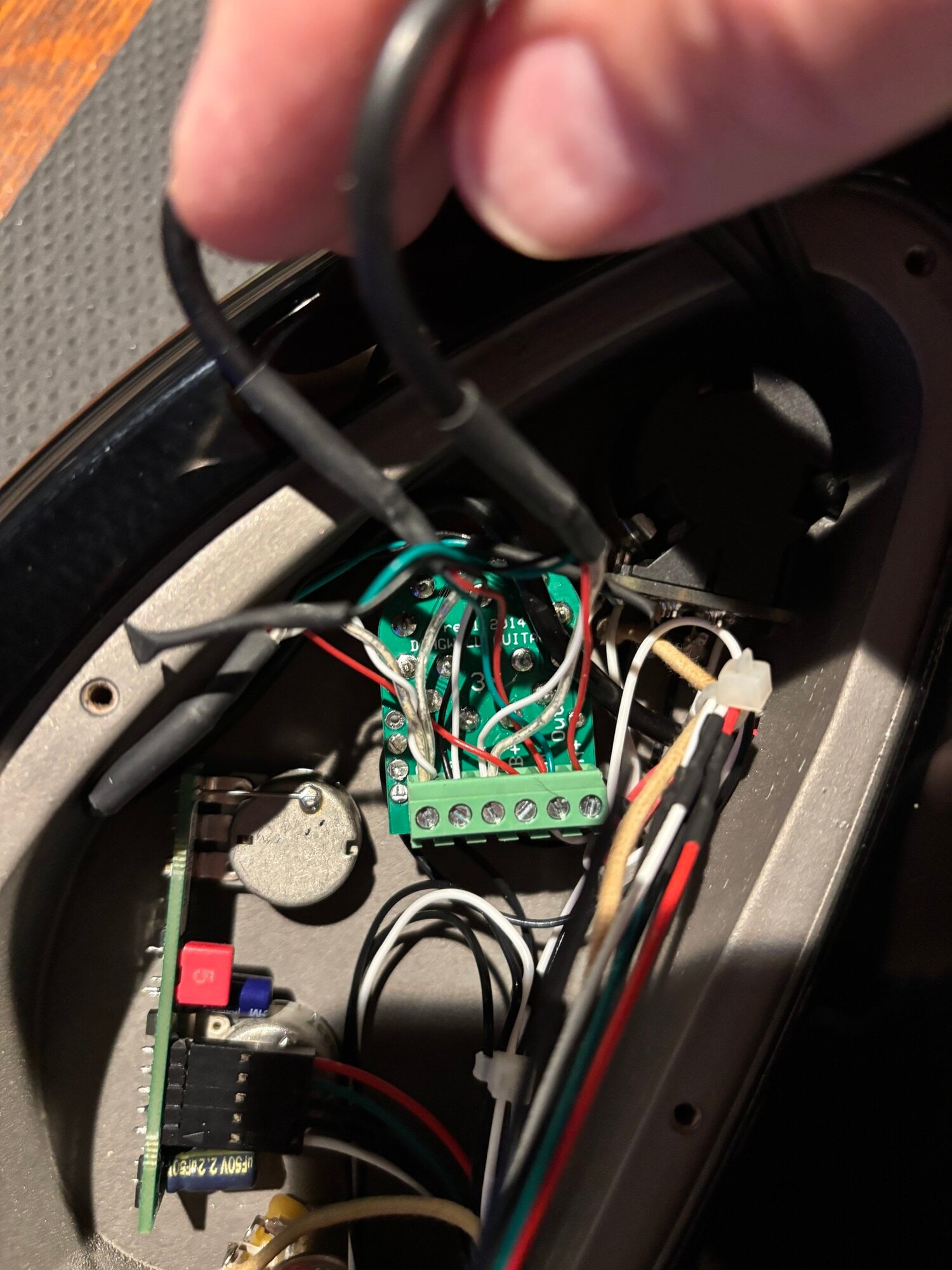

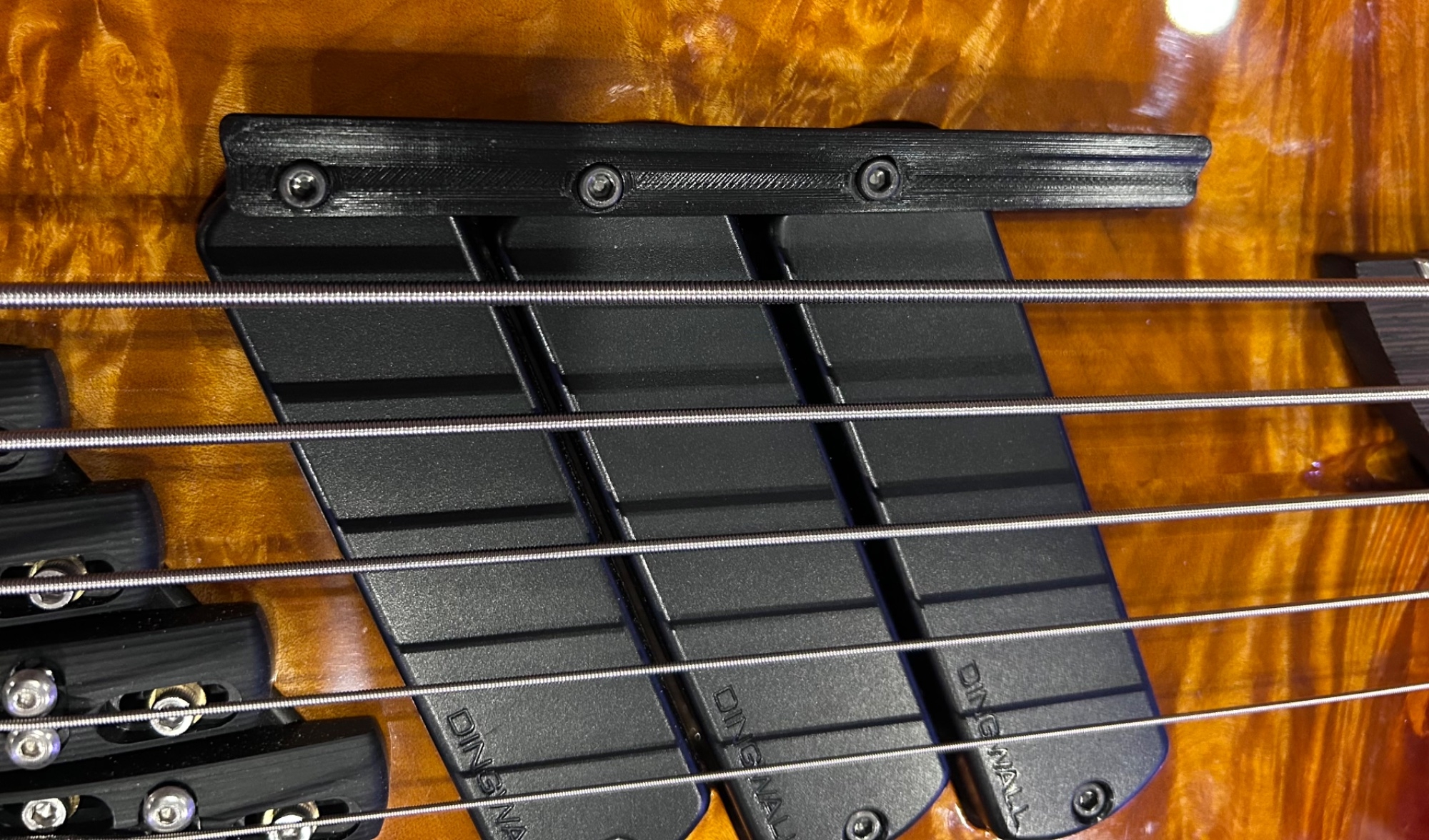

The ABI (3x, SFII, Neve preamp) however is wired differently.
View attachment 7453524

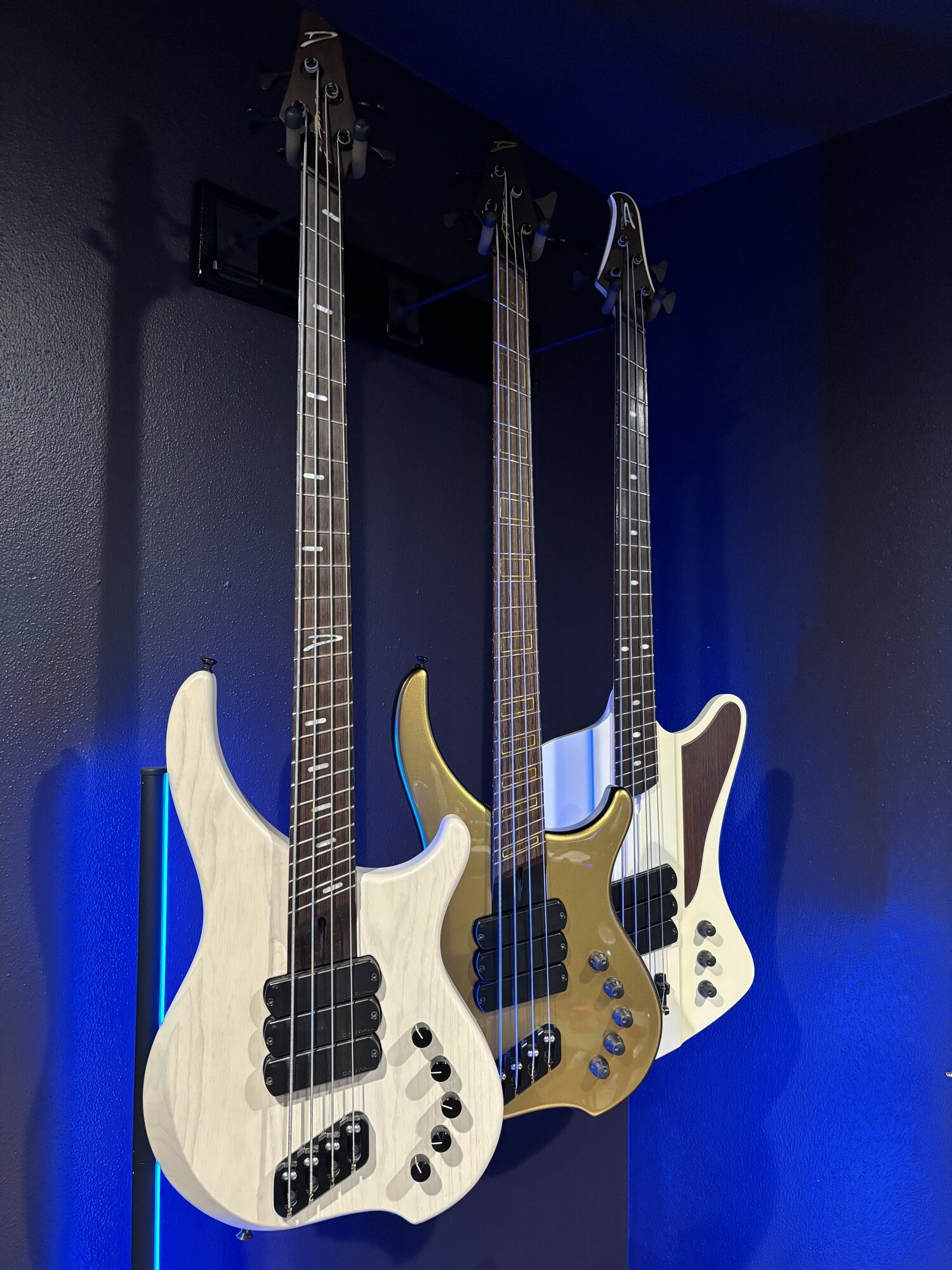

Four-string Dingwalls make me happySorry for the bit of a derail everyone. Here is a group shot of the collection for fun!
View attachment 7453526
