Dual P Pickup Club!

[bigtone23]

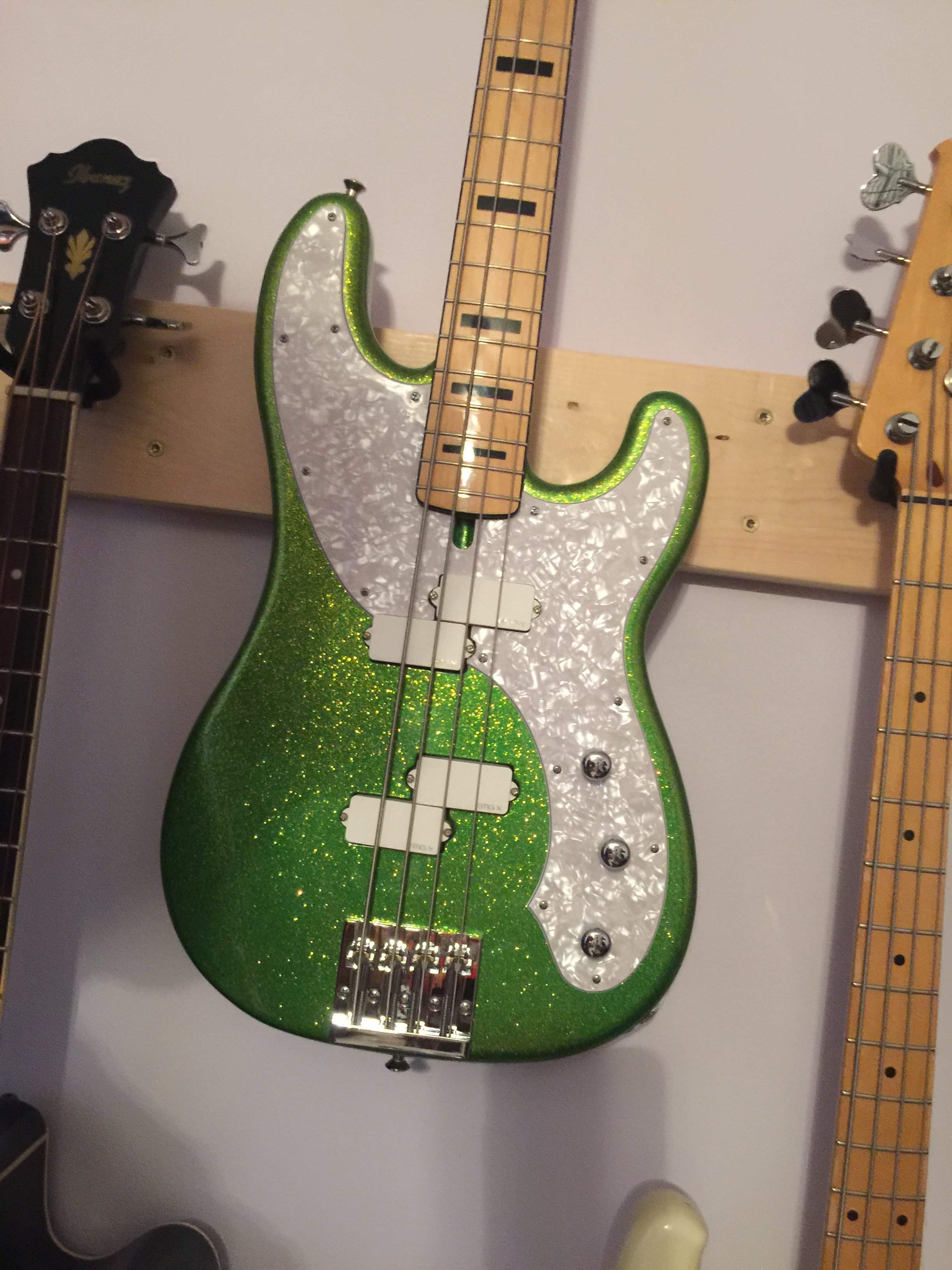

Mostly finished with the build.

That is soooo cool!
Love your PU placements, too, both give something different than the typical P/J or P/P found in the wild. The prototype Stingray has a split P in that spot, and your build carries that vibe!
That should turn out to be a very cool bass!!

*Inspired and heads out to the cold garage to rout out the current Frankenbuild...*



[JEDI BASS]

That is soooo cool!
Love your PU placements, too, both give something different than the typical P/J or P/P found in the wild. The prototype Stingray has a split P in that spot, and your build carries that vibe!
That should turn out to be a very cool bass!!

*Inspired and heads out to the cold garage to rout out the current Frankenbuild...*

Lmao, route away my friend!

Yeah, I’d love to own that Stingray prototype!



[JEDI BASS]

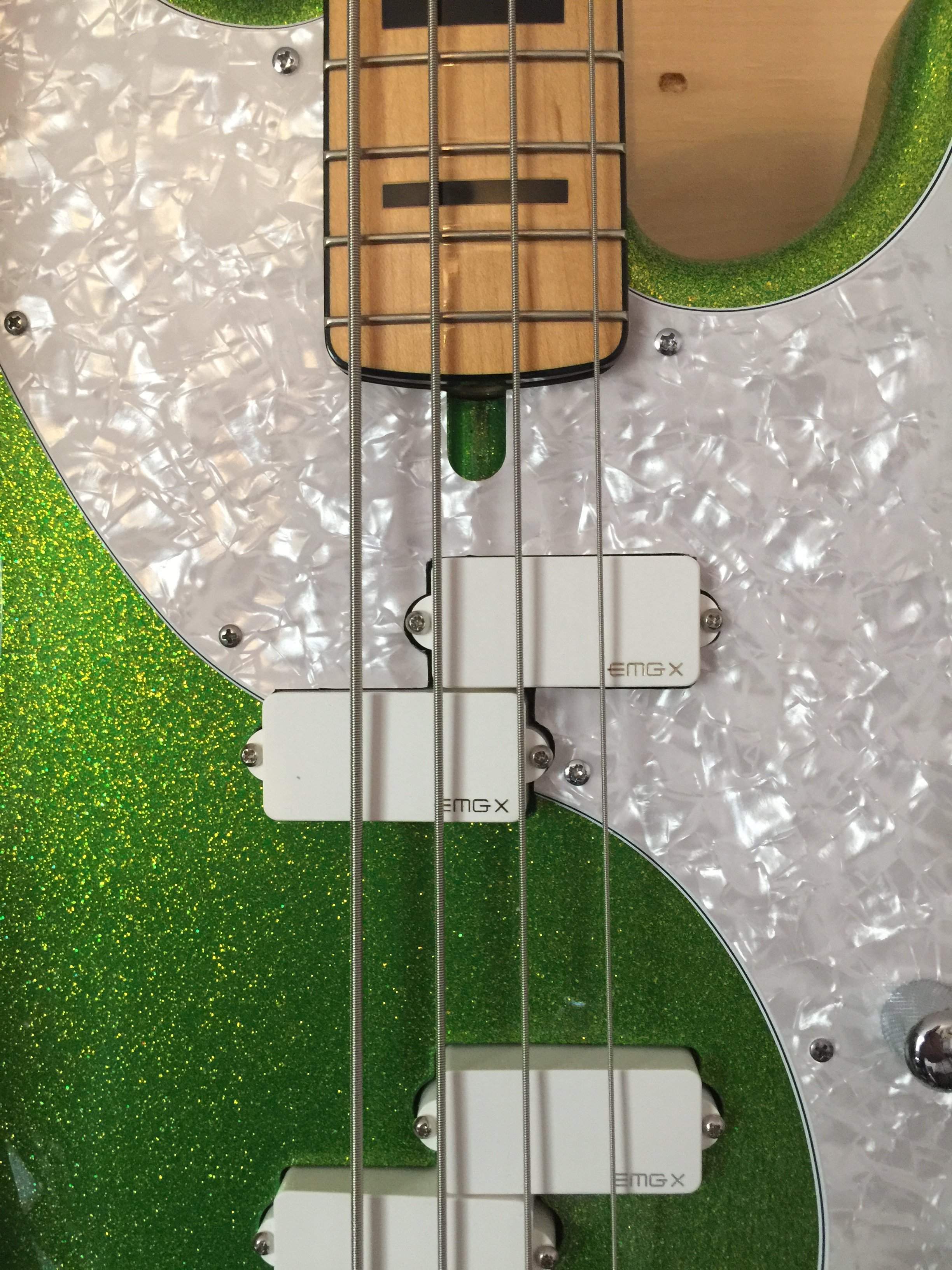

Warmoth’s routes are super accurate! But, the pickguard was a smidge off at the neck pocket, and was leaving me with no wiggle room at all. I was able to hand sand the guard a bit and get the neck to shift a mm or so, allowing the strings to align better, over the neck (see first and 2nd thumbnail for before and after), while keeping the bridge saddles centered.

Also, the special order lightweight swamp ash body was so light that, w/ the Fender tuners, I was getting some minor neck dive. So, I decided to replace them with Hipshot Ultralytes and to pass on the aluminum Hipshot string-thru bridge (and the plugging, drilling, and addition of ferrules), and went with a heavy kickass bridge. So, the goal was to add weight to the body and lighten the headstock. It worked. Now the bass sits at any angle I want, and it stays put. Also, the Kickass bridge is nice because it is so long that it uses up some length of the strings, keeping only the skinny part of my D’addario E string on the tuner post. I hate when the fat part starts wrapping around the post! That’s why most of my basses are string-thru-body.



[Goad]

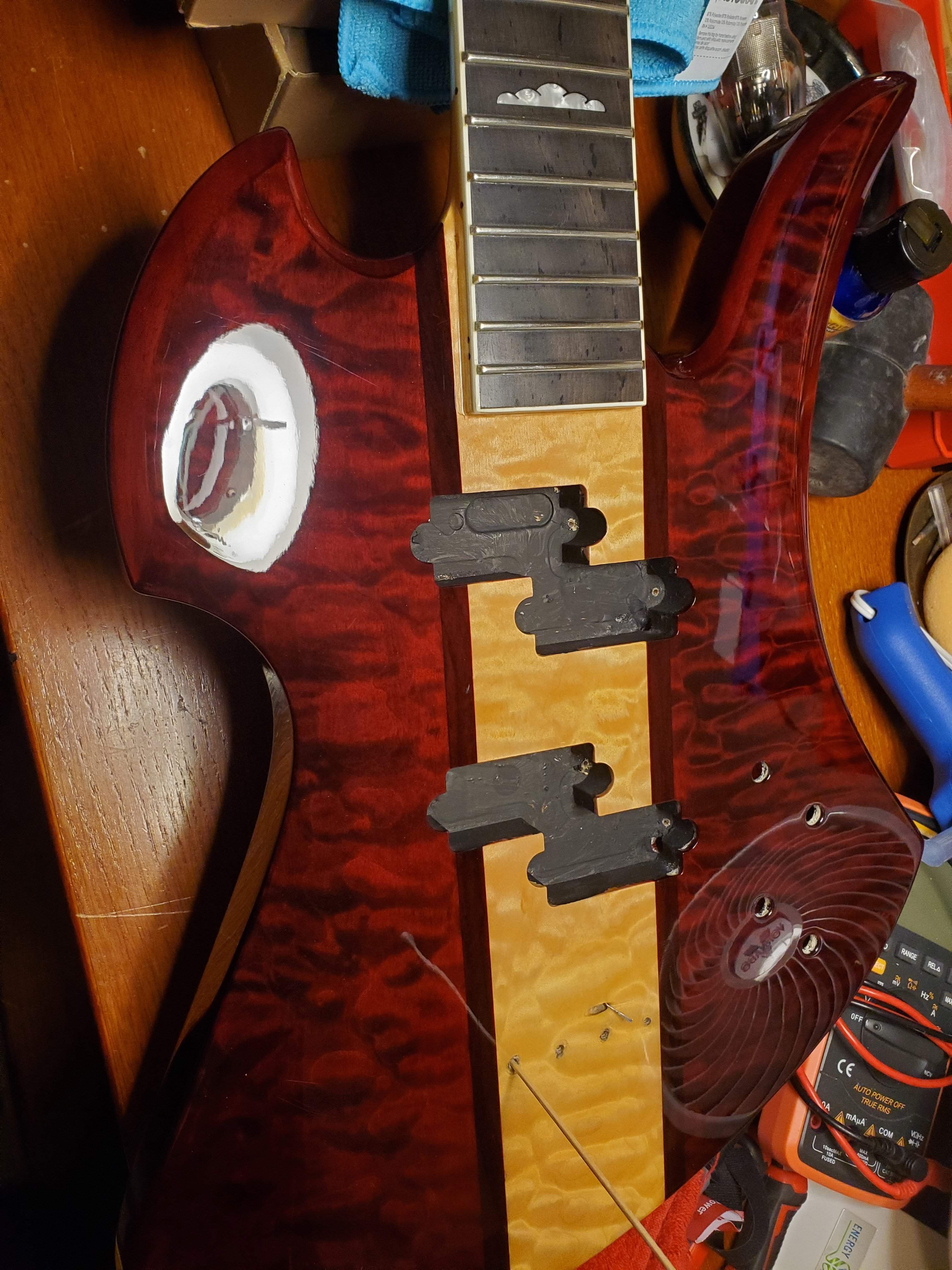

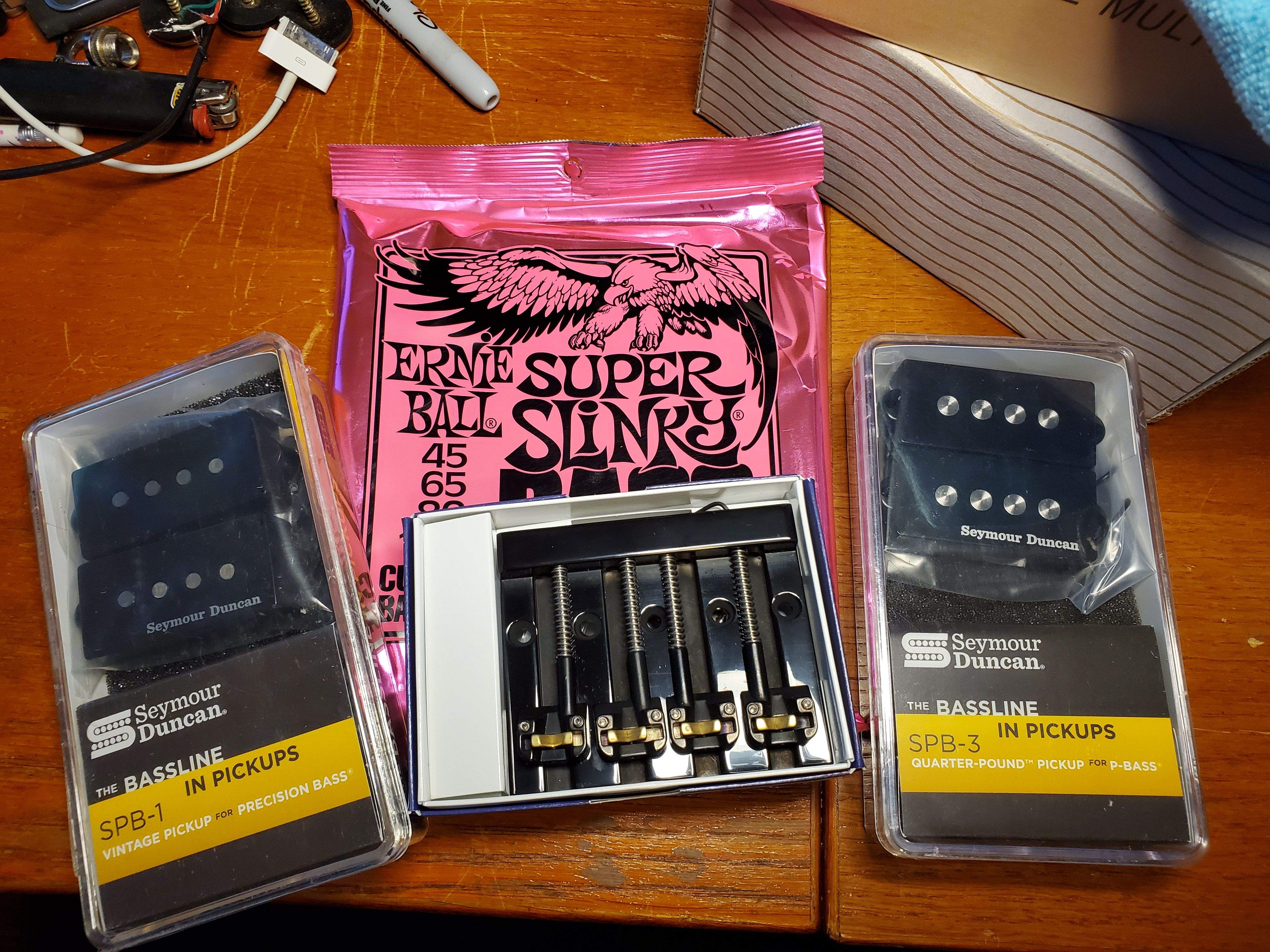

Recently scored this and am currently upgrading way more than I should. B.C. Rich Heritage Korean made Mockingbird. Gutted pre-amp, pickups, the whole works and am going with an SPB-1 Vintage in the neck and SPB-3 Quarter Pounder in the Bridge. Hipshot Kickass Bridge, Master volume, master tone and blend knob. I'll use the extra hole for a colorful kill switch, since that seems to be the cool thing the kids do now days...



[Malak the Mad]

Since my previous posts, I've made further mods to my Fender Blacktop Jazz.

(More pics on it's original thread! )



[tomd999]

Hiya,

OK, just found this club, only a little late to the party. ;-)

Warmoth swamp ash body in Sea Foam green, Gotoh legacy 7 screw bridge, Stew-Mac vintage pickups, CTS VV-T with a series/parallel switch, a MIJ '62 Jazz RI neck strung with EB Cobalt flats 45-105.



[Malak the Mad]

Hiya,

OK, just found this club, only a little late to the party. ;-)

Warmoth swamp ash body in Sea Foam green, Gotoh legacy 7 screw bridge, Stew-Mac vintage pickups, CTS VV-T with a series/parallel switch, a MIJ '62 Jazz RI neck strung with EB Cobalt flats 45-105.

View attachment 3805606

I'm betting she's as beastly sounding as she is beautiful!



[bigtone23]

Hiya,

OK, just found this club, only a little late to the party. ;-)

Warmoth swamp ash body in Sea Foam green, Gotoh legacy 7 screw bridge, Stew-Mac vintage pickups, CTS VV-T with a series/parallel switch, a MIJ '62 Jazz RI neck strung with EB Cobalt flats 45-105.

That's nice!
Is the series/parallel for modes of both pickups, or to run one pickup in series or parallel?



[tomd999]

Hiya,

Wired like a single coil Jazz, each pair treated as one pickup. I thought about doing a G&L on it with multiple switches to reverse phase of each pickup but that just made my head hurt and would have spoiled to clean look I was going for. If I want those kind of options I'll break out the one of the active basses like my L2K or El Toro, this one is simple.

Tom



[bdgotoh]



[Malak the Mad]

View attachment 3806638

Mind telling the uninitiated among us, like myself, what we're looking at?



[Geri O]

I have a Peavey TL6 on the way, should be here late this week or early next.

Does that count?

It will serve 3 purposes. I wanted a TL5. I wanted a 6-string (won’t sound like the TL5, oh, well). And I’ve always been curious about double P pickup basses. Oh, and reverse P arrangements, too. Man, this bass will be a grab-bag!....

Excited to see it!. There will be pics! (There are pics now, but they aren’t mine)



[ctmullins]

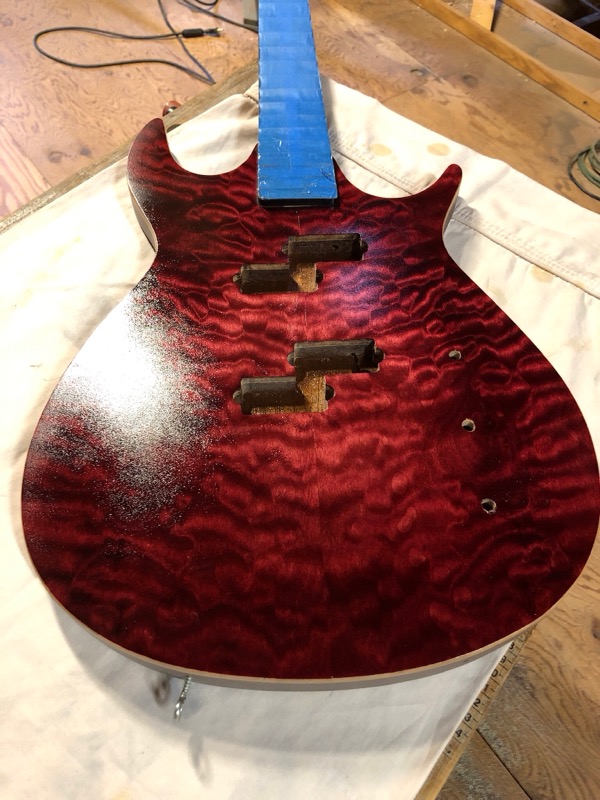

Well, what with the fresh wave of entries, might as well throw mine in too. Due to be wet-sanded and rubbed out in about a week:



[Malak the Mad]

Well, what with the fresh wave of entries, might as well throw mine in too. Due to be wet-sanded and rubbed out in about a week:

View attachment 3806741

I am loving that color! I have a Projekt on the back-burner that, if everything comes together right, should be in a similar transparent burgundy-ish red.



[bdgotoh]

Mind telling the uninitiated among us, like myself, what we're looking at?

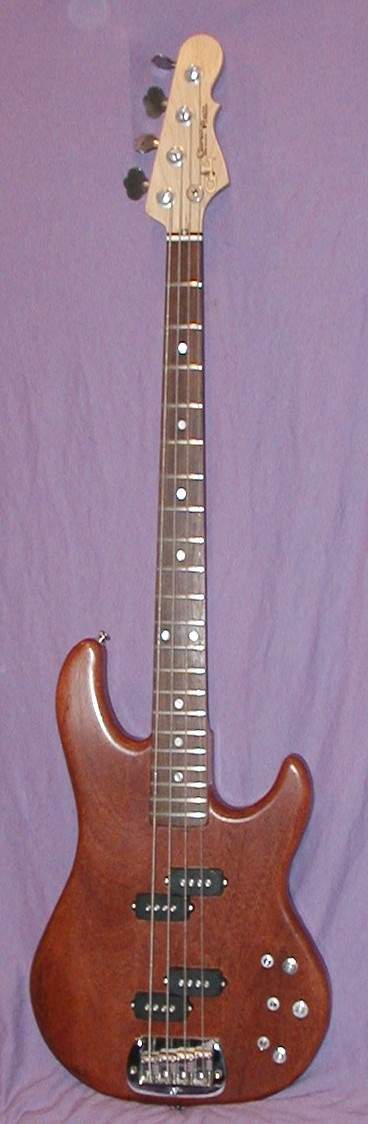

I call it the P2000. It's based on Leland Sklar's dual P in terms of pickup locations. The body is custom and shaped like a 3-bolt L2000. Pickups are split coil MFDs and the electronics are stock L2000, so you can run the pickups in series or parallel, and active or passive. Other than the body and the control cover, it's all stock G&L parts.



[bdgotoh]

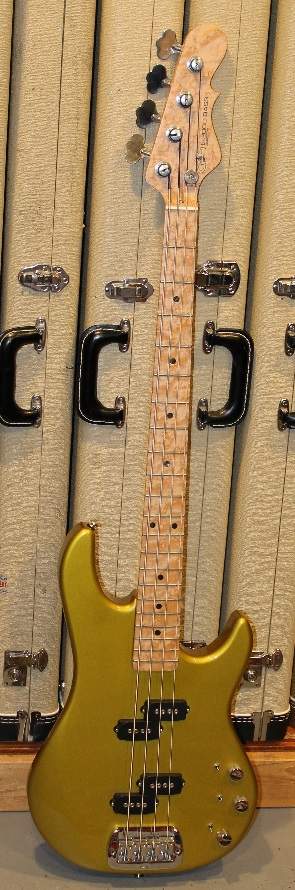

Here's the Candy Lemon P-2000, it's a classic early G&L color.



[JES]

I was wondering if it was a custom body or a refin...



[Music Man Dan]

Here's the Candy Lemon P-2000, it's a classic early G&L color.

That is absolutely incredible! Where did your source the custom body from?



[bdgotoh]

That is absolutely incredible! Where did your source the custom body from?

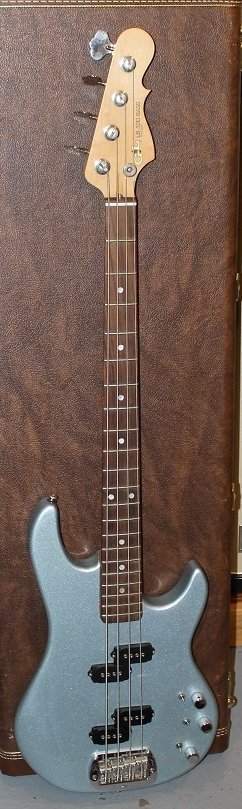

I made the candy lemon body and a friend who is good at painting and woodworking built the blue body, then sprayed both of them. This is what the candy lemon used to look like before he refinished it. The body is a solid chunk of Mahogany my Dad had laying around.



[Music Man Dan]

Now that's some incredible work! Great job! I love the L2K basses and I bet yours with the reversed PP pickups are now something awesome. Are those the G&L MFD pickups that you're using?

G&L has started to offer their Matador bass again. It's available from their custom shop. Unfortunately, even though it's a PP arrangement the pickups are not reversed like yours. Also, the pickups that G&L is using in the Matador are their alnico pickups, not their MFD pickups. I wish they'd allow more customization out of their Custom Shop....lol.
