First build in progress

Discussion in 'Luthier's Corner' started by bajerovaquero, Oct 23, 2010.


  1. My name is Eduardo and I live in Granada, Spain.:)

    I wanted to give special thanks to my friend and clasical guitar builder Mario Aracama for allowing me build in his shop (plenty of tools and pro advice).
    I´d like to thank everybody in LC for the best threads in bass building I´ve found in the internet.

    I also wanted to ask apologies for my bad english.:crying:

    So here we go:

    5 strings
    Fretless
    Neckthru
    Singlecut
    Three piece quartersawn maple neck
    Ash wings
    Ebony lined fingerboard
    Single string bridge 18mm spacing
    Bartolini 59cbjd in thumb bass position
    Volume Volume Tone
    Series-Paralel switch
    :hyper:

    Thats what I call start from the begining:

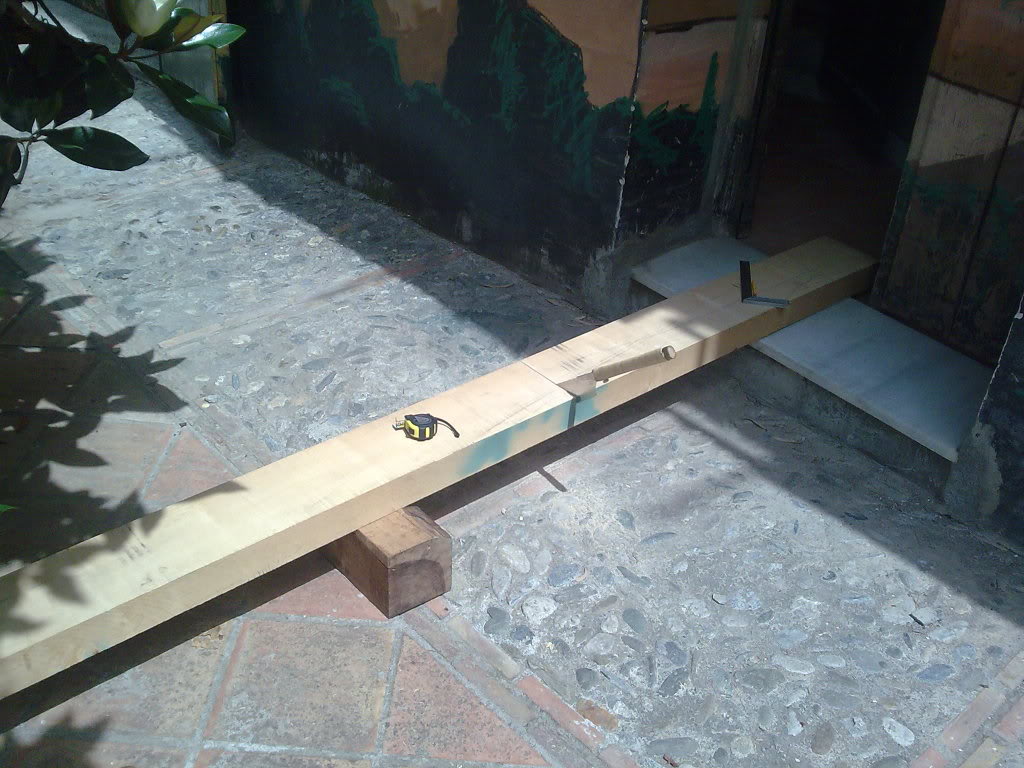

    Image0665.

    So here we have a beautiful piece of quartersawn maple the left top will be stored as fingerboard

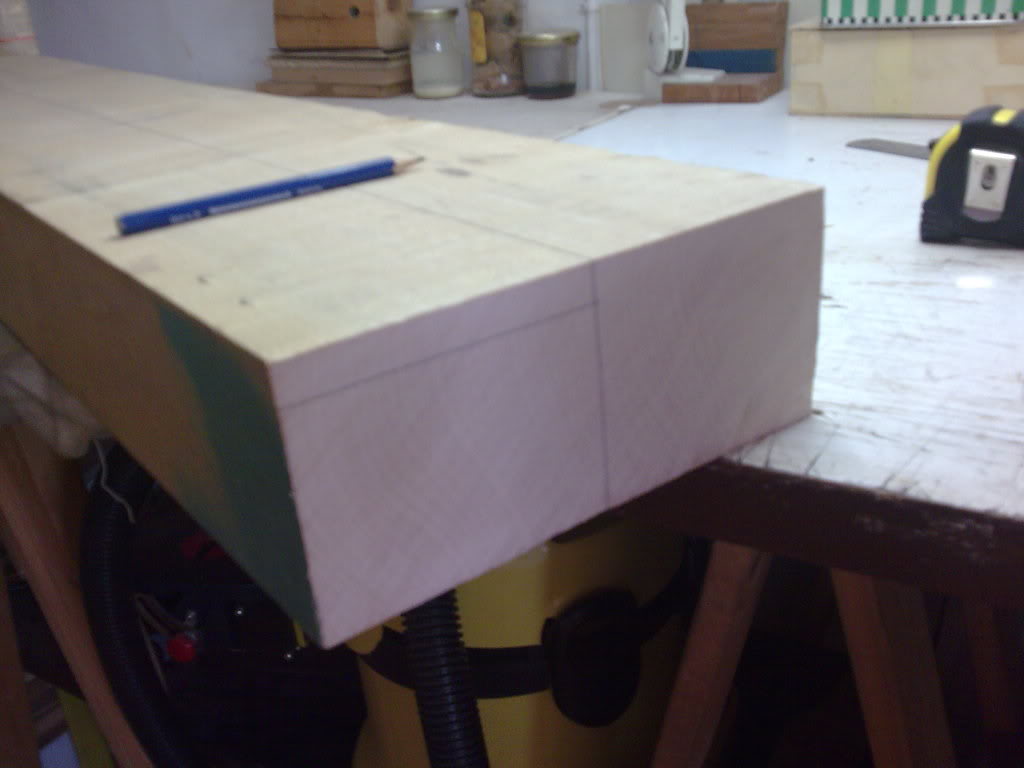

    Image0667.

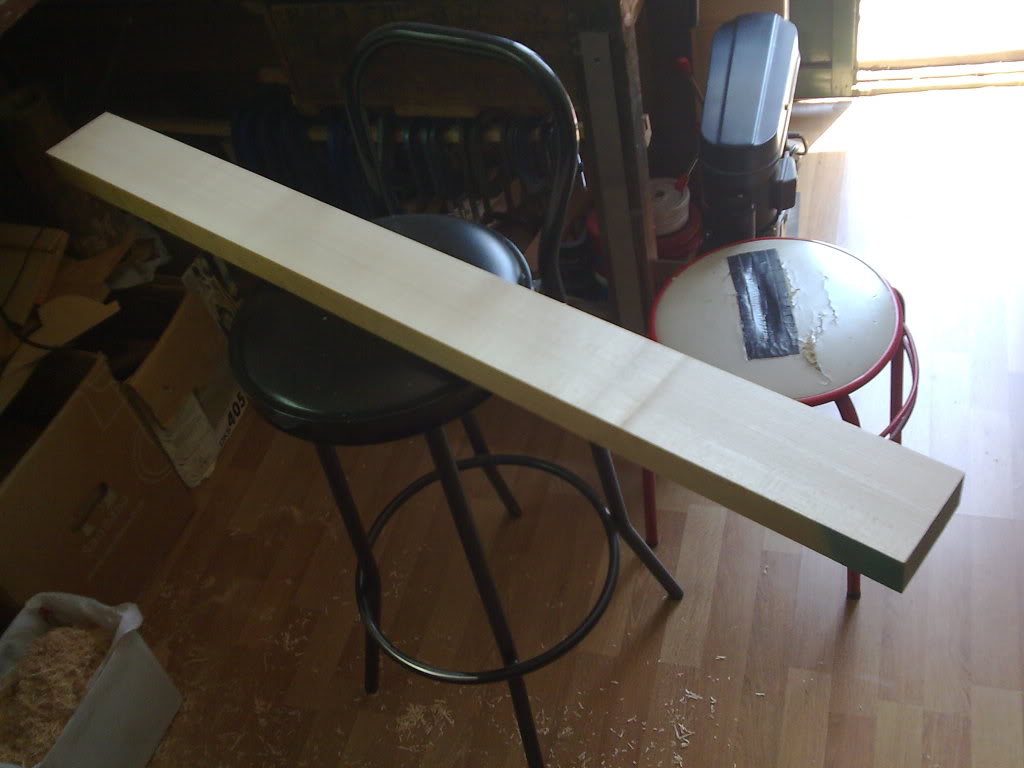

    The neck blank:
    Image0674.

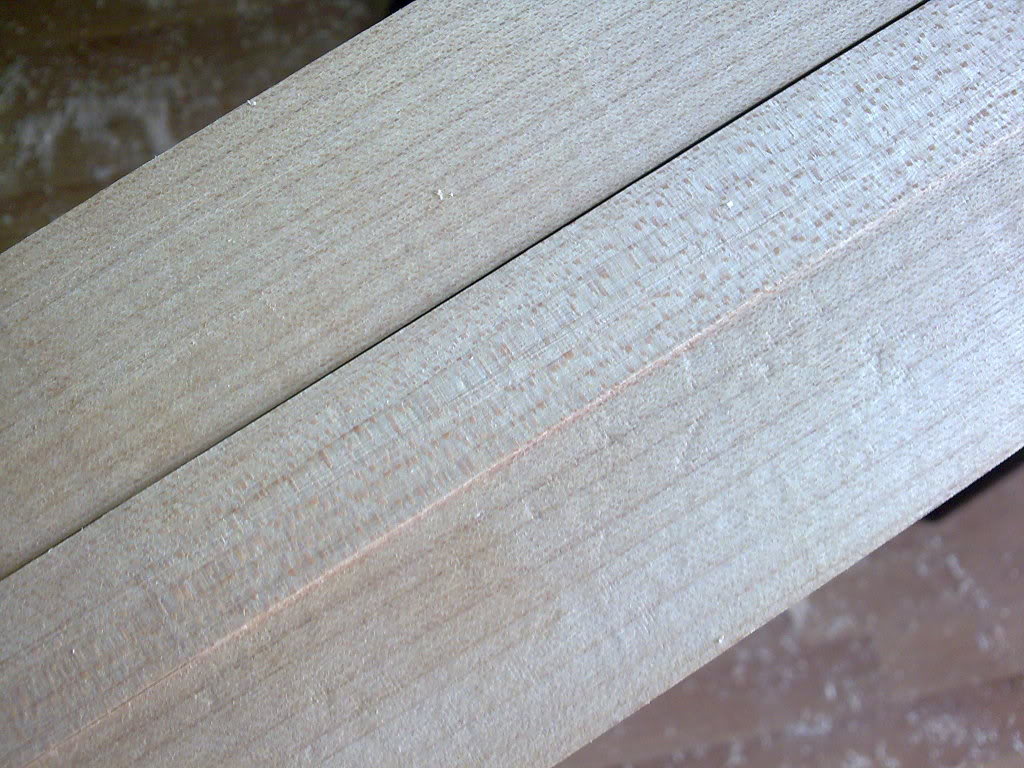

    Three pieces with reversed core:
    Image0678.

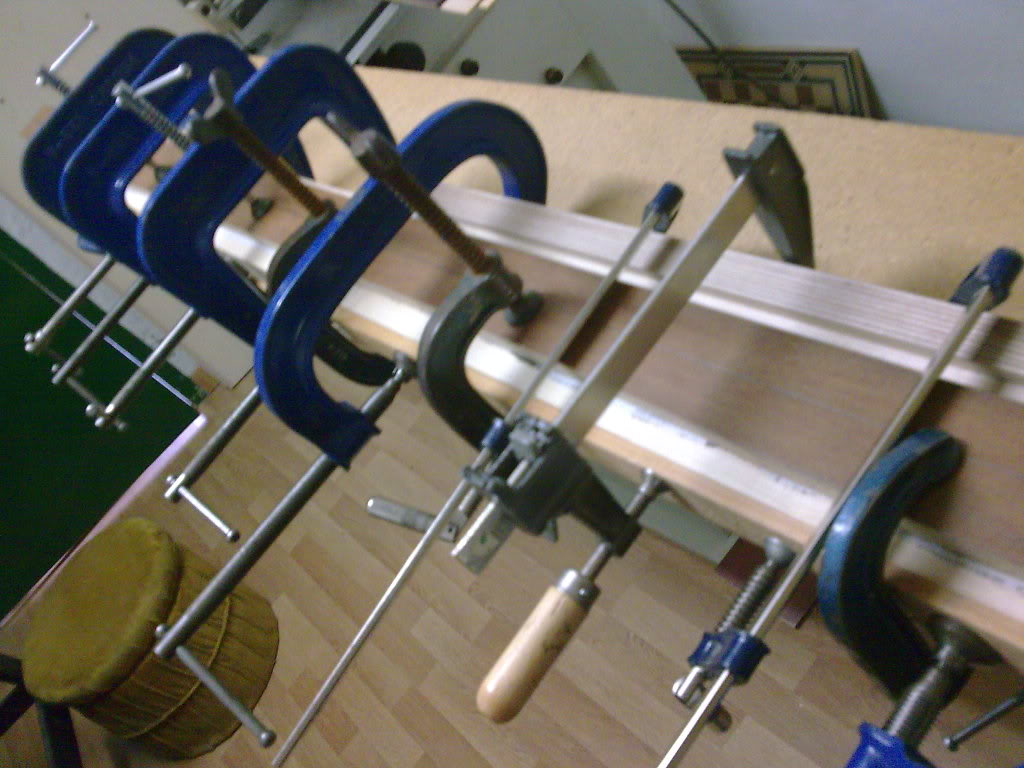

    Time for clamp, I use titebond and prepare the room at 40% humidity when gluing
    Image0683.

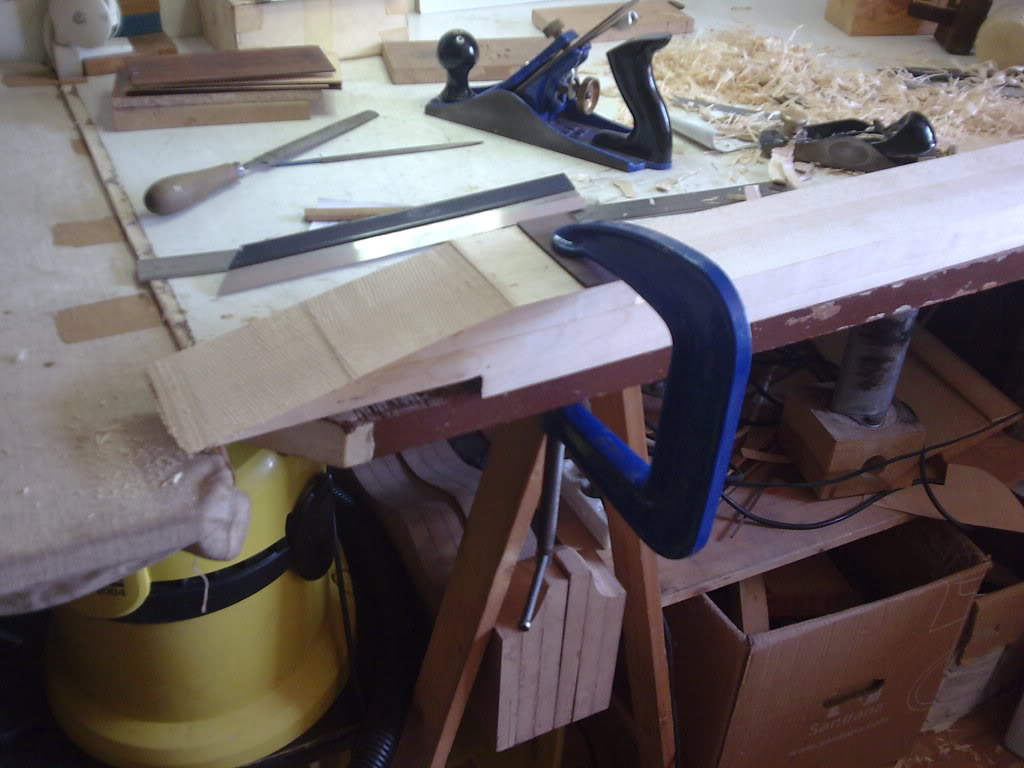

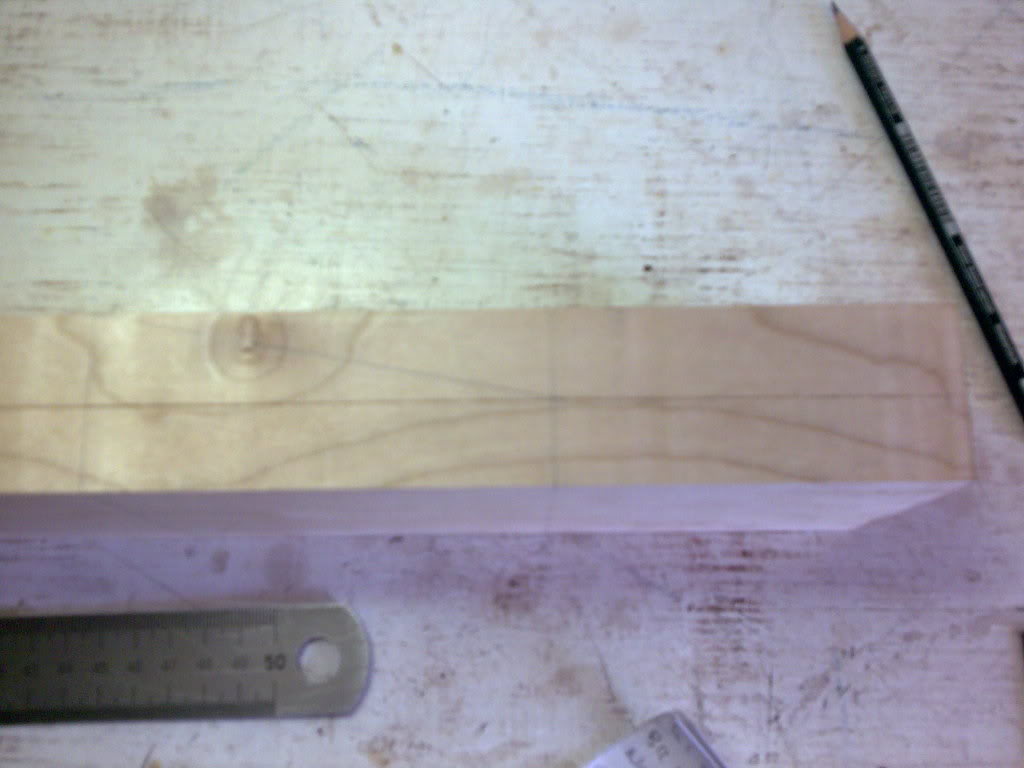

    Preparing to cut the scarf joint:
    Image0695.

    Ready for cleaning:
    Image0696.

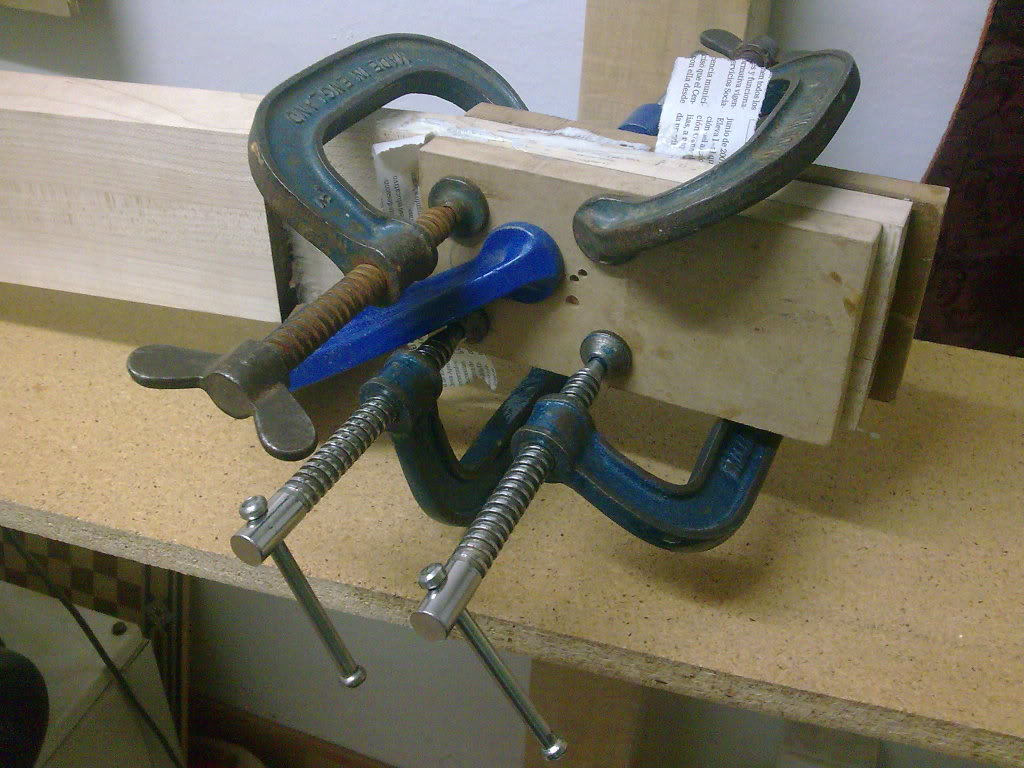

    Clamping the headstock:
    Image0699.

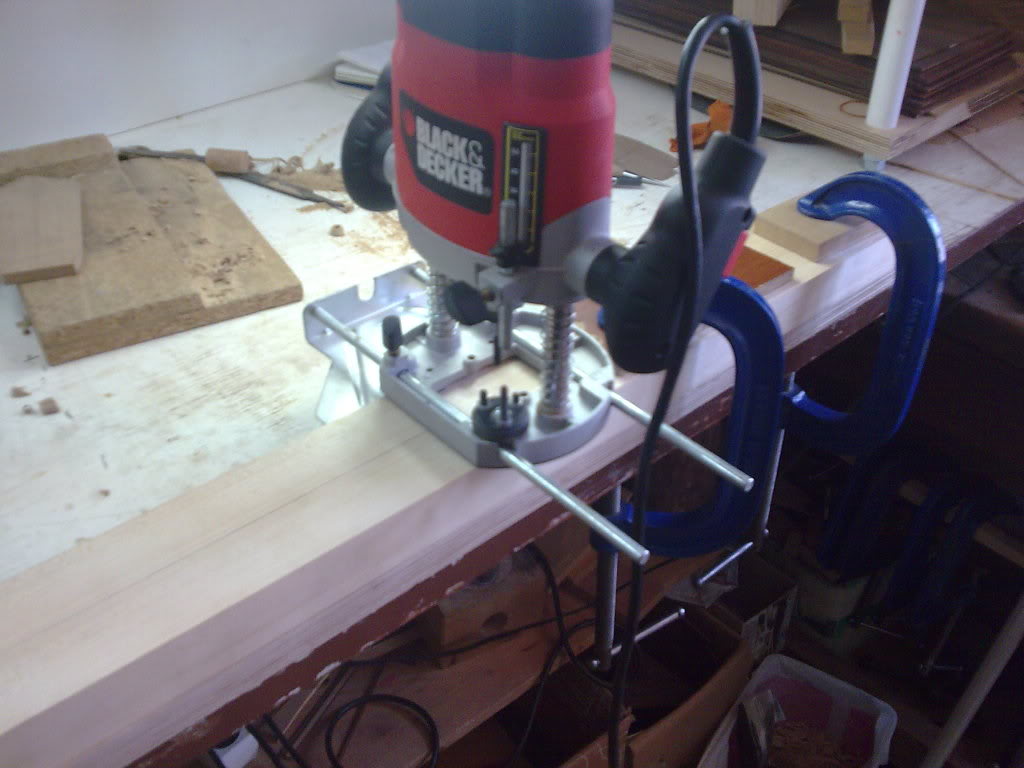

    So now we can place the nut, and route truss rod
    Image0701.

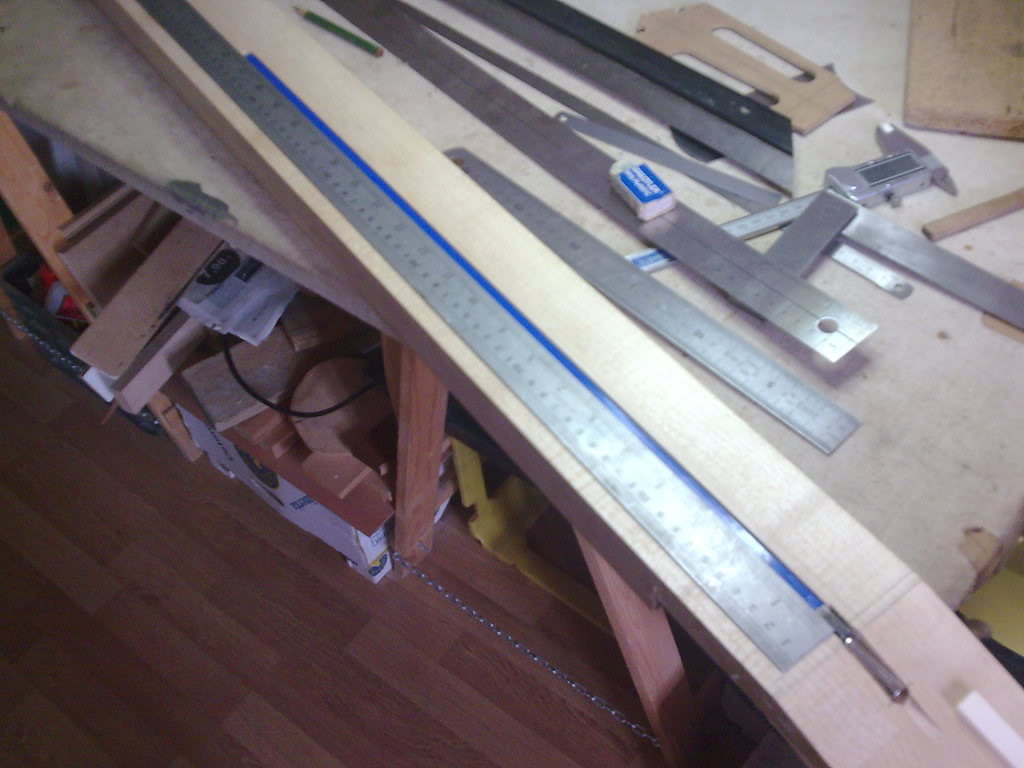

    Marking fretboard and bridge:
    Image0720.

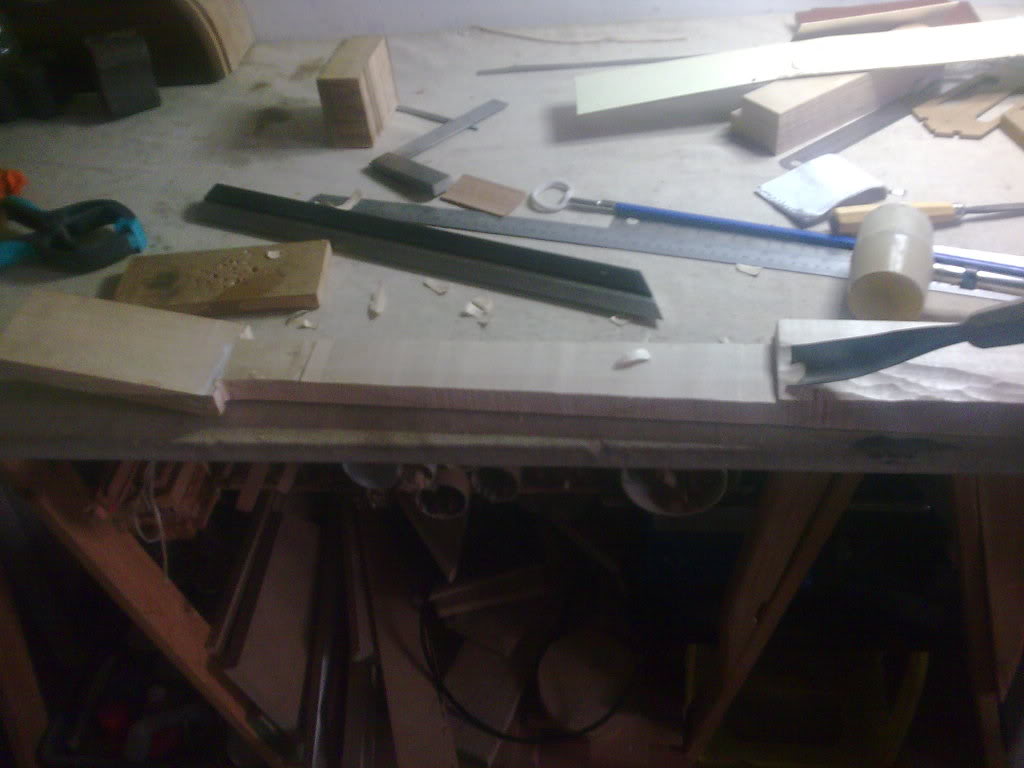

    This is a good moment to remove some wood
    Image0724.

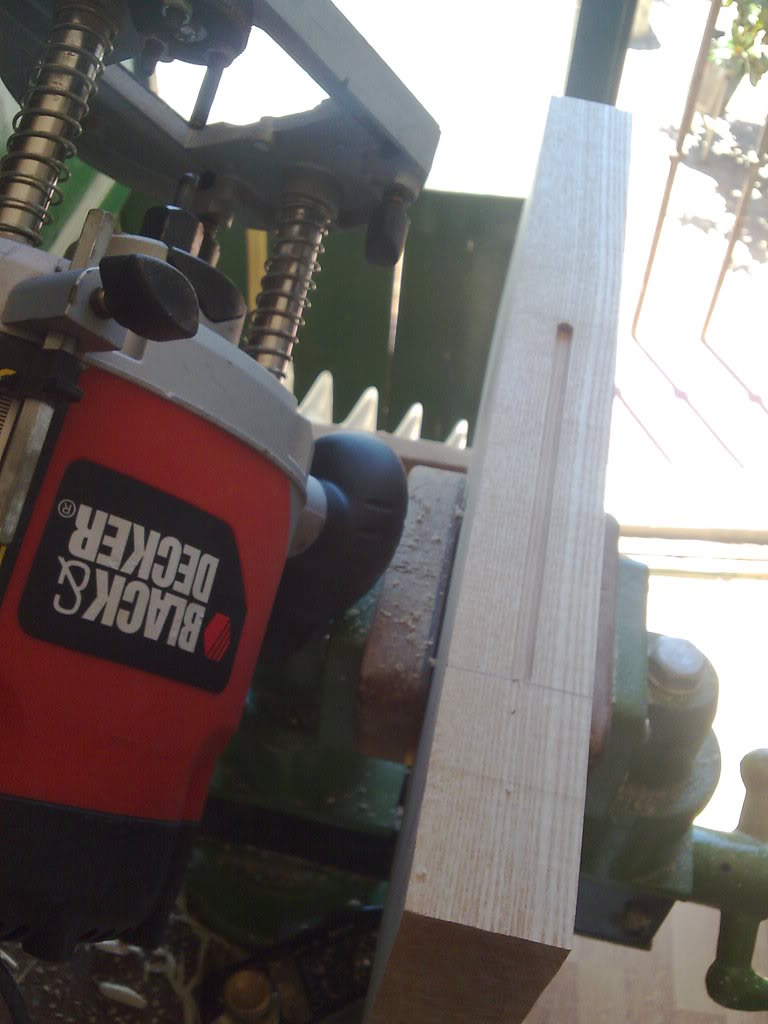

    I made some routing on the wing to make easier wiring
    Image0789.

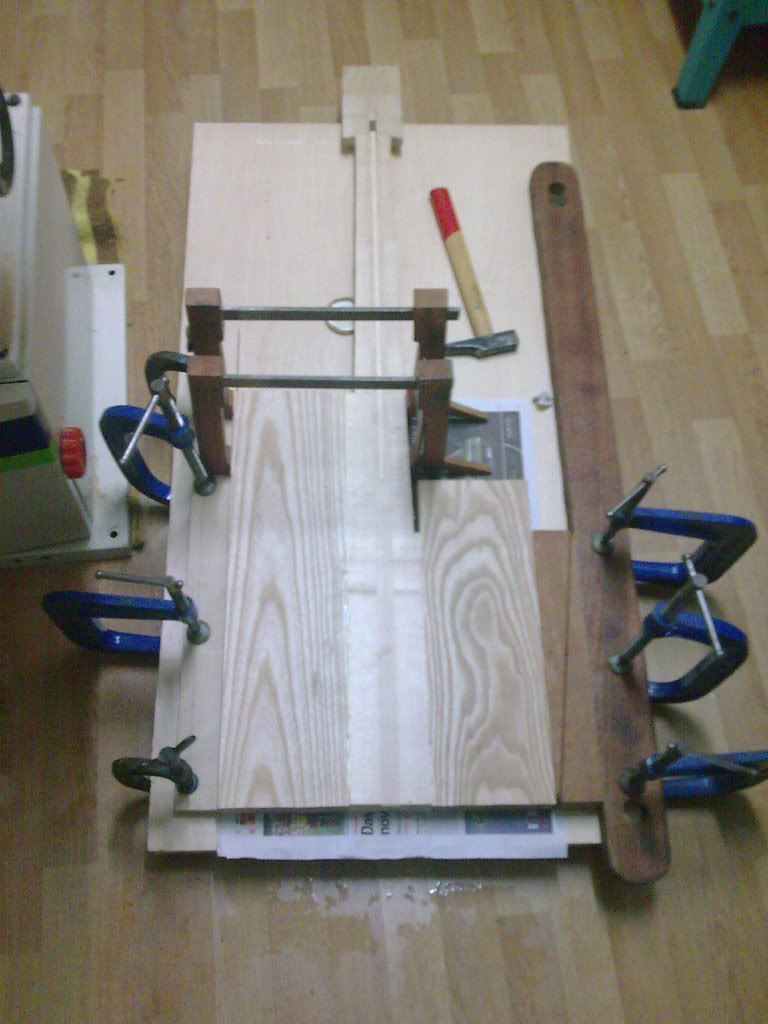

    Its time to glue the wings. Dont worry if you dont have big clamps I got a solution for you
    Image0791.

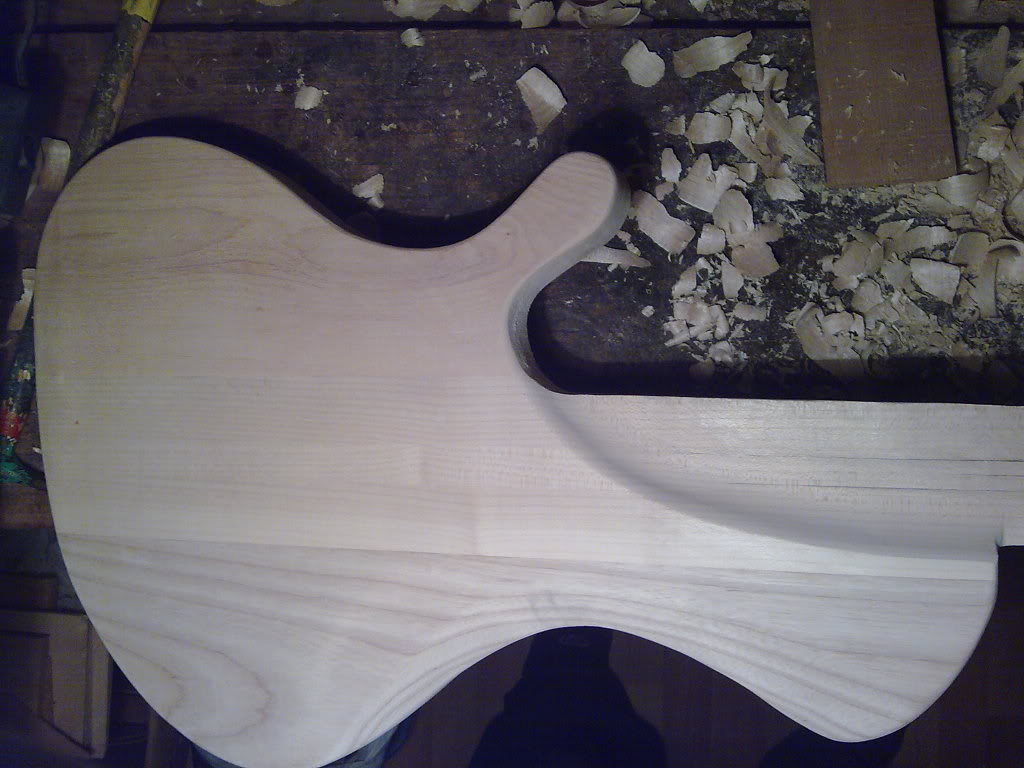

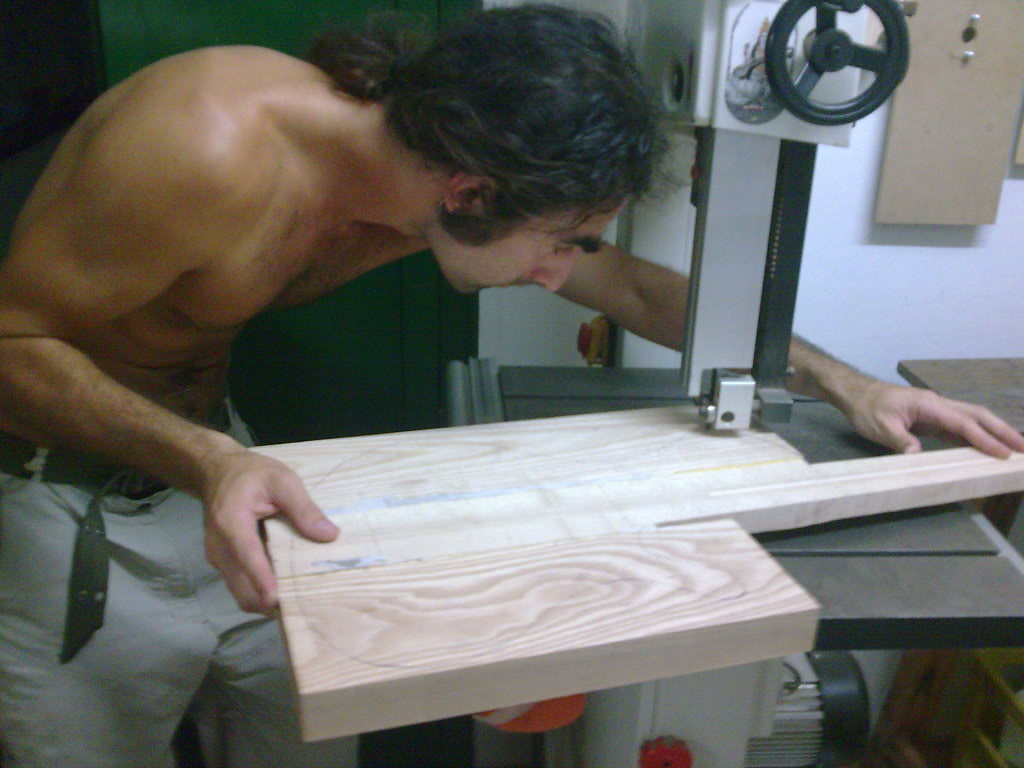

    So I copied my design with pencil and ready to bandsaw (Yes, I´m ugly as a f**k and its hot in the shop in summer)

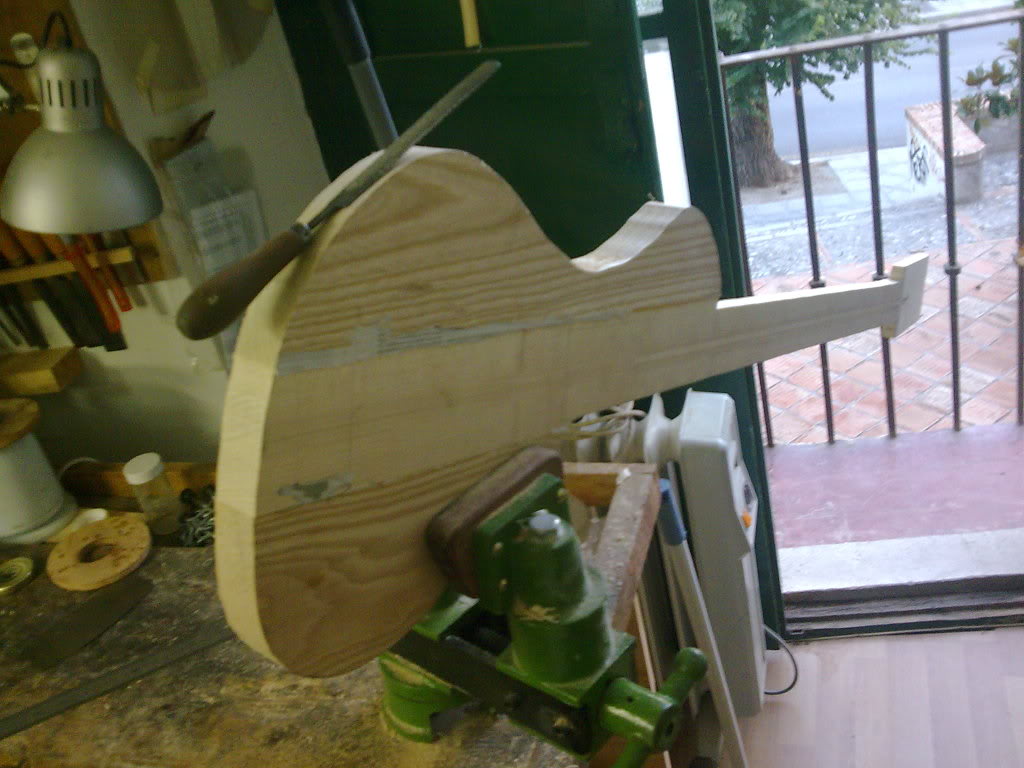

    Image0797.

    The curves arent really smooth so it needs some work
    Image0799.

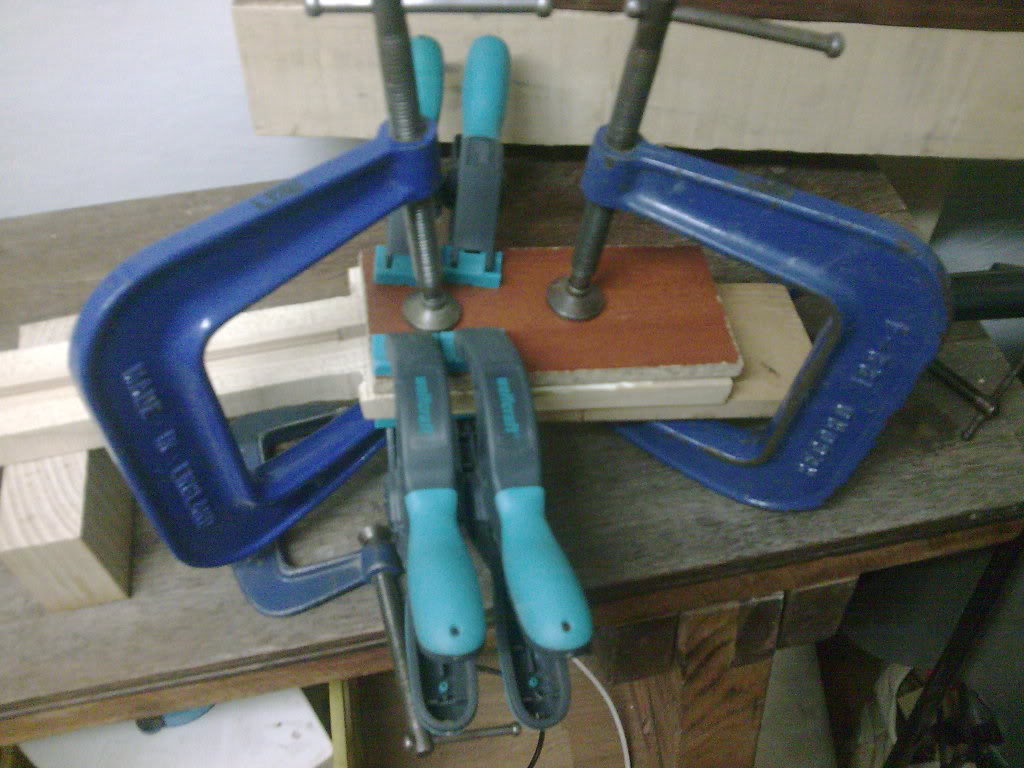

    I forgot gluing the headstock veener
    Image0806.

    I didn´t decide the headstock shape till the last moment, maybe you can guess what was my inspiration

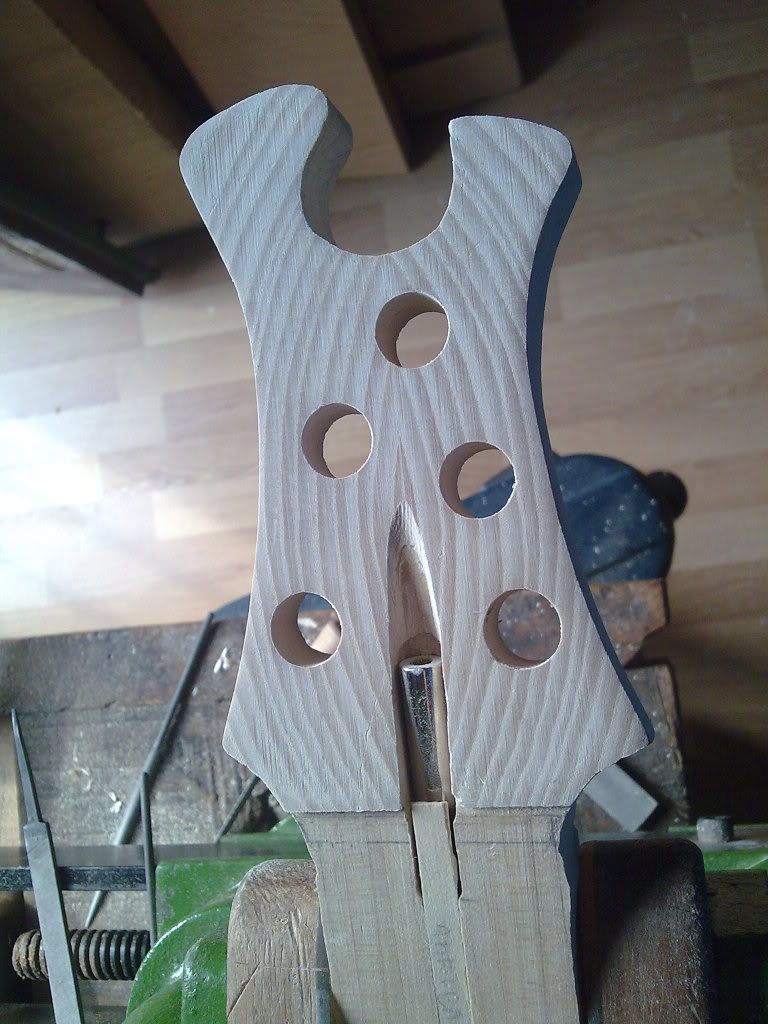

    Image0876.

    Comments and sugestions are welcome.:bassist:

    Saludos desde Granada!

  2. Likin it- I appreciate lots of pics, answers many questions. & IME, there are no ugly Spaniards. :D

  3. I don't know if its a valid concern or not, but how the grain is running on those headstock horns worries me. Looks like one good whack against a wall or amp cab and you could pop one off.

    EDIT: Missed the bit about the headstock veneer, doh! Nevermind.

    Besides that, thank you for posting so many pictures and this is shaping up to be a great first build!

  4. Very well done. You are off to a great start.

  5. Thanks for the comments

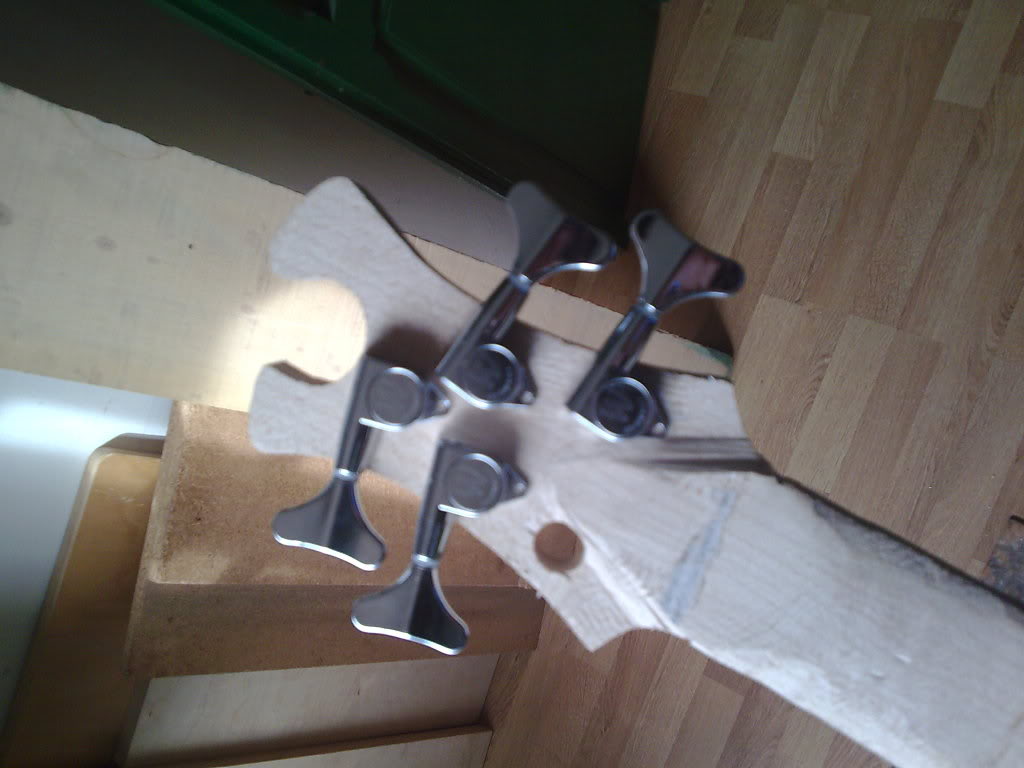

    I´ve made some adjust in the headstock to fit the tuners
    Image0860.

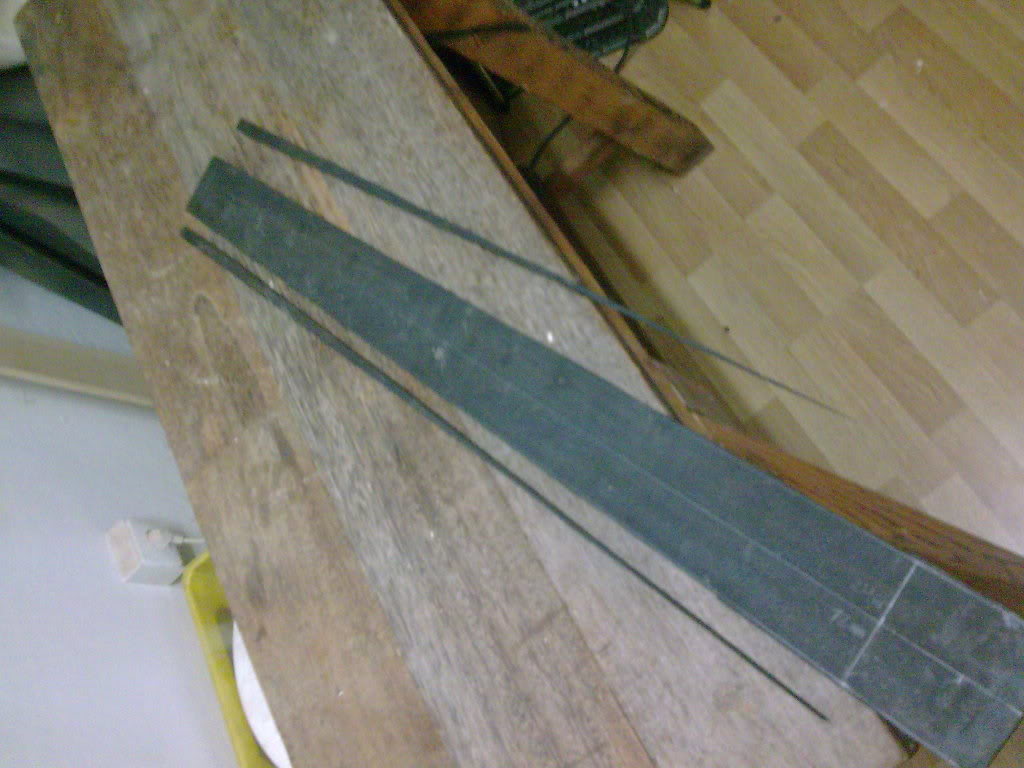

    Rough cut the fingerboard, I choose a 9mm with 28 frets
    Image0867.

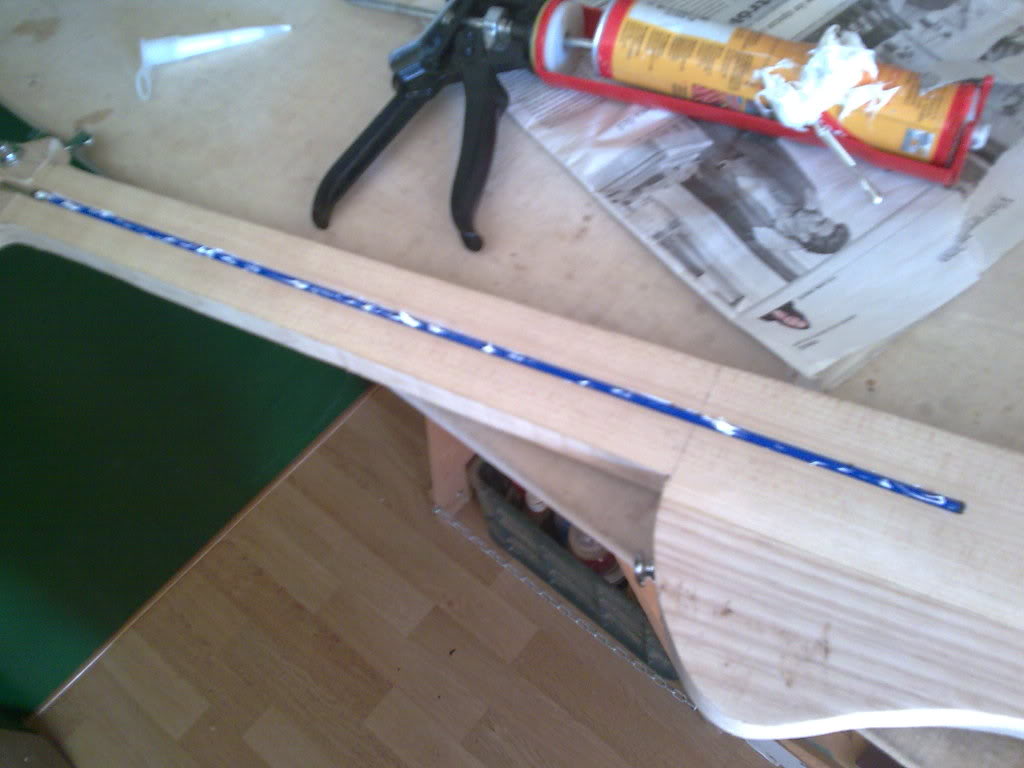

    I put some silicone on the truss rod to avoid rattle
    Image0872.

  6. THORRR

    THORRR Supporting Member

    Jun 26, 2010
    Parker, Colorado
    Hat's off to you for sheer ambition and skill!

    Way to go!!

    :hyper:

  7. Thanks for comments!:hyper:

    Fingerboards are a real pain in the ass
    This is my first try on a fingerboard here we go:

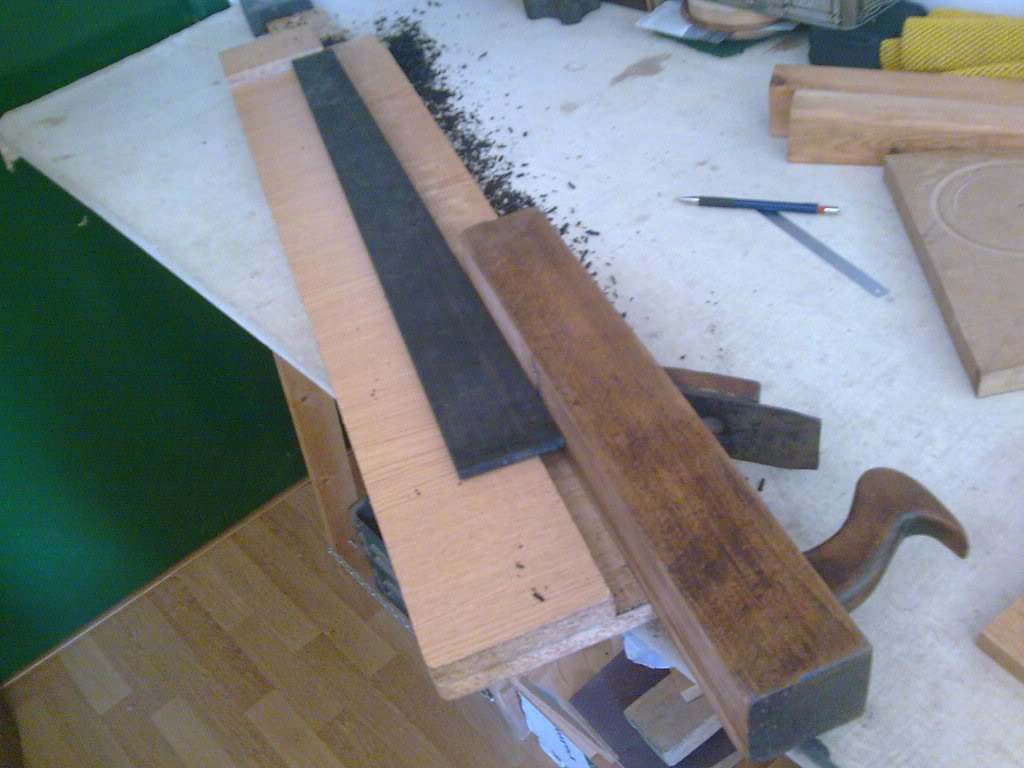

    The FB was rough cut. I finish this way and I´m sure its 90 degrees
    Image0868.

    The next time I´ll mark the fret slots before cutting fretboard.

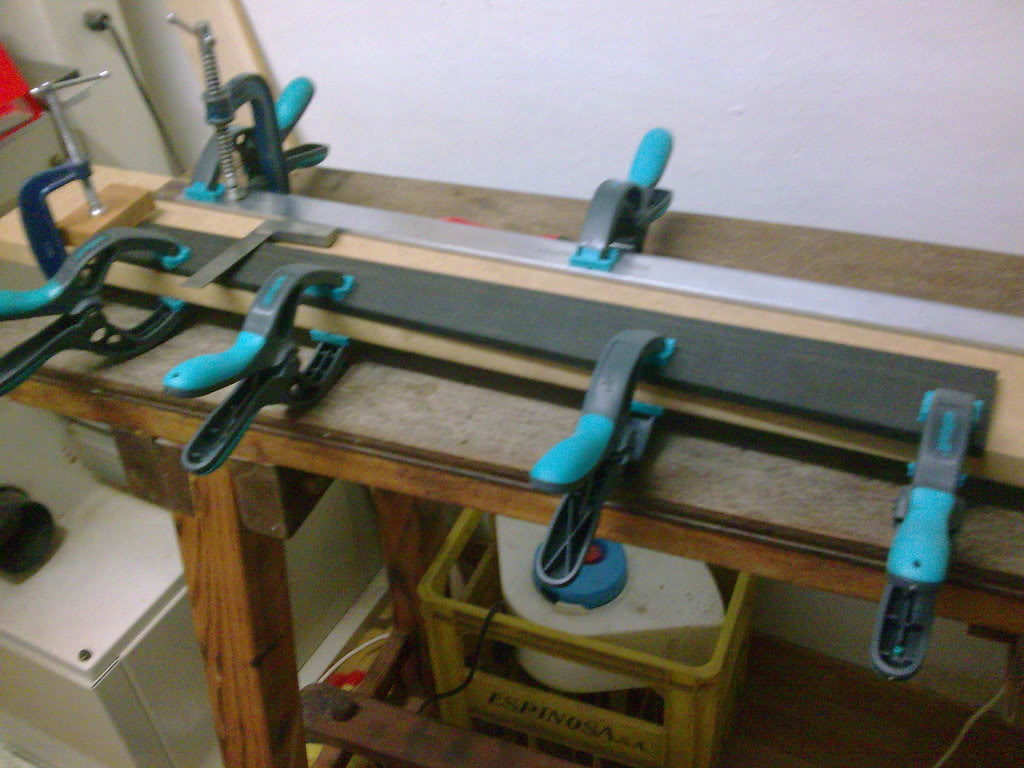

    I traced a middle line on FB and used a square.
    Image0888.

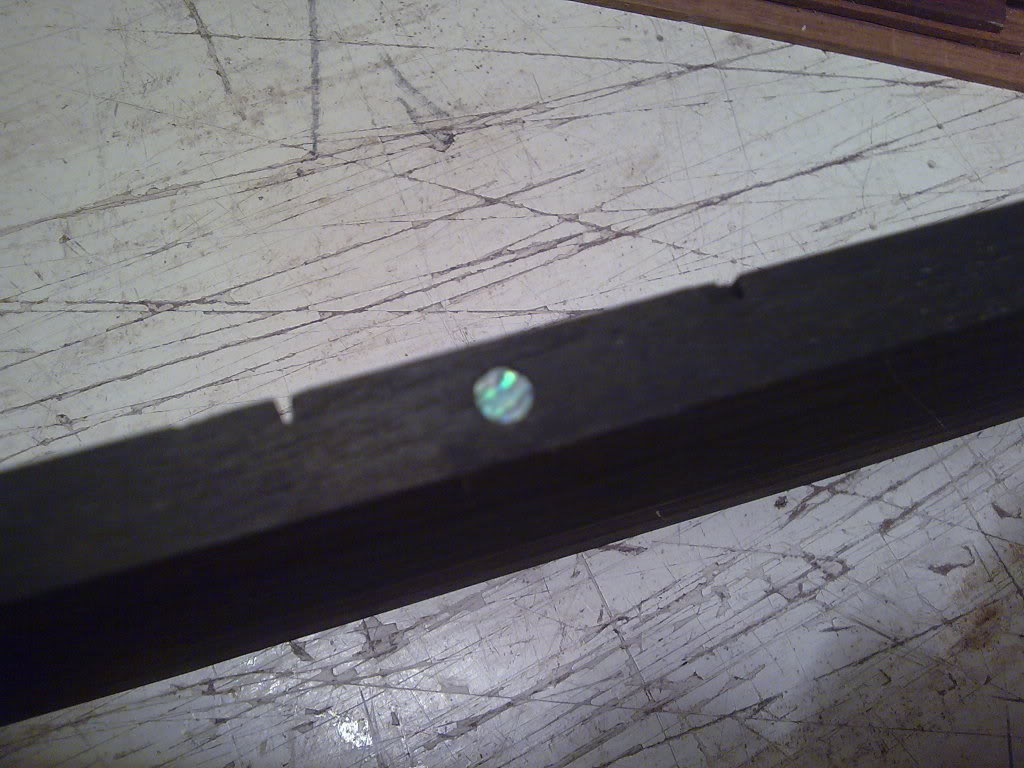

    4mm Avalon markers
    Image0898.

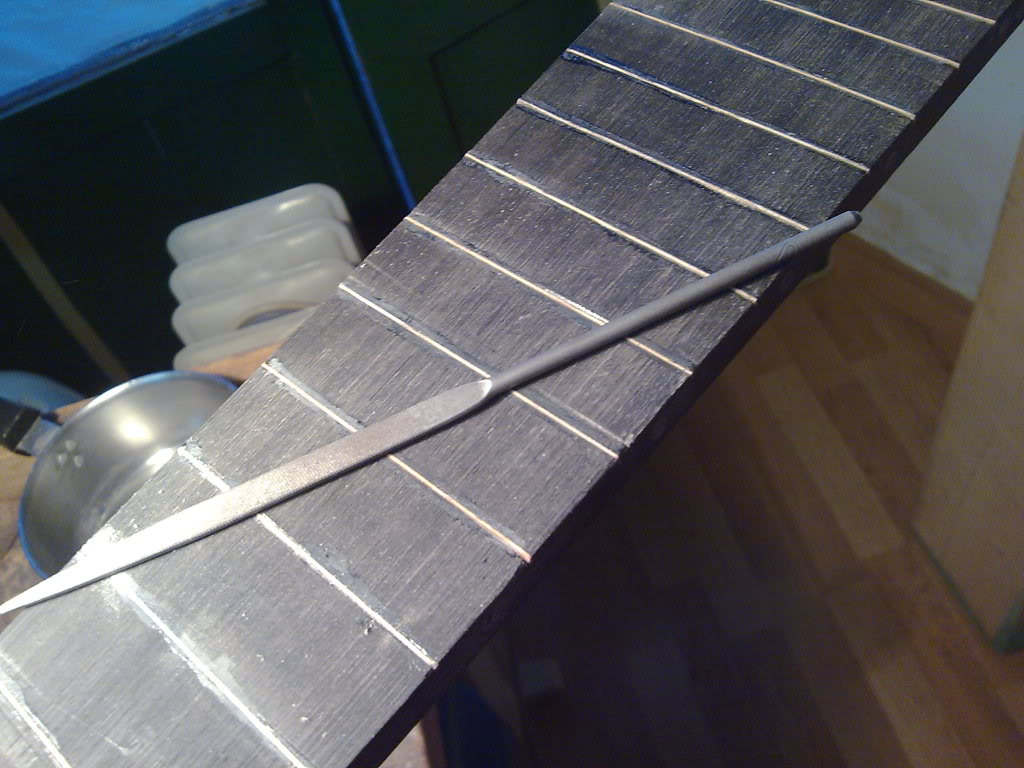

    I glued Brazilian rosewood sapwood with CA to line the FB.

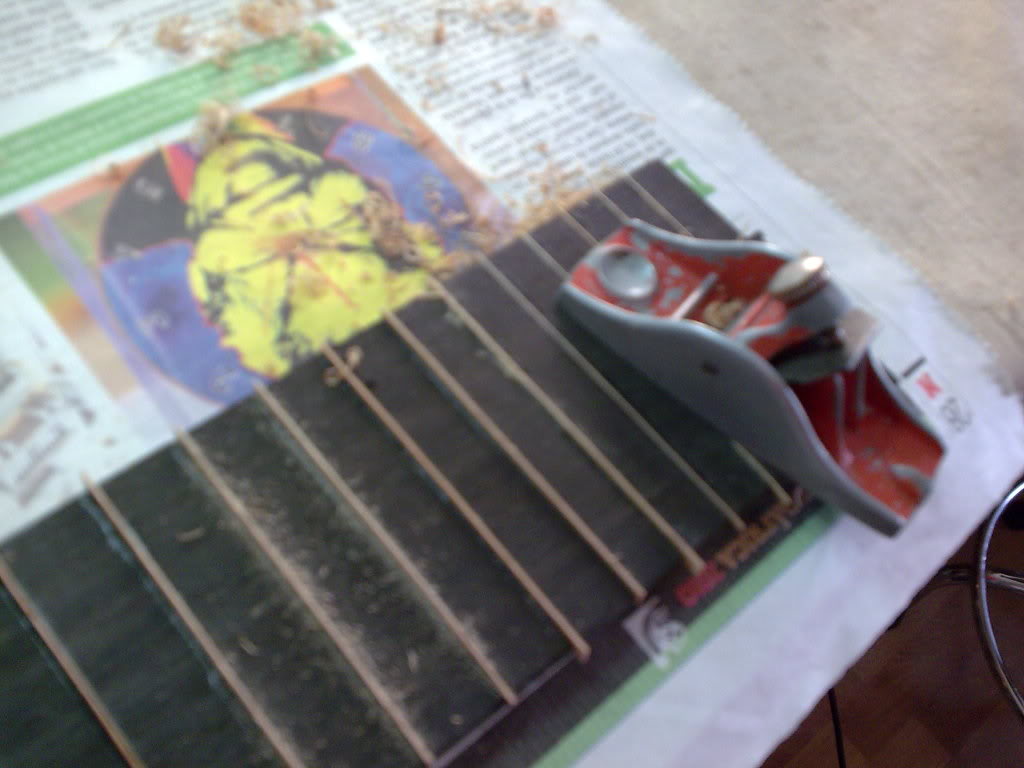

    Image0900.
    Image0905.

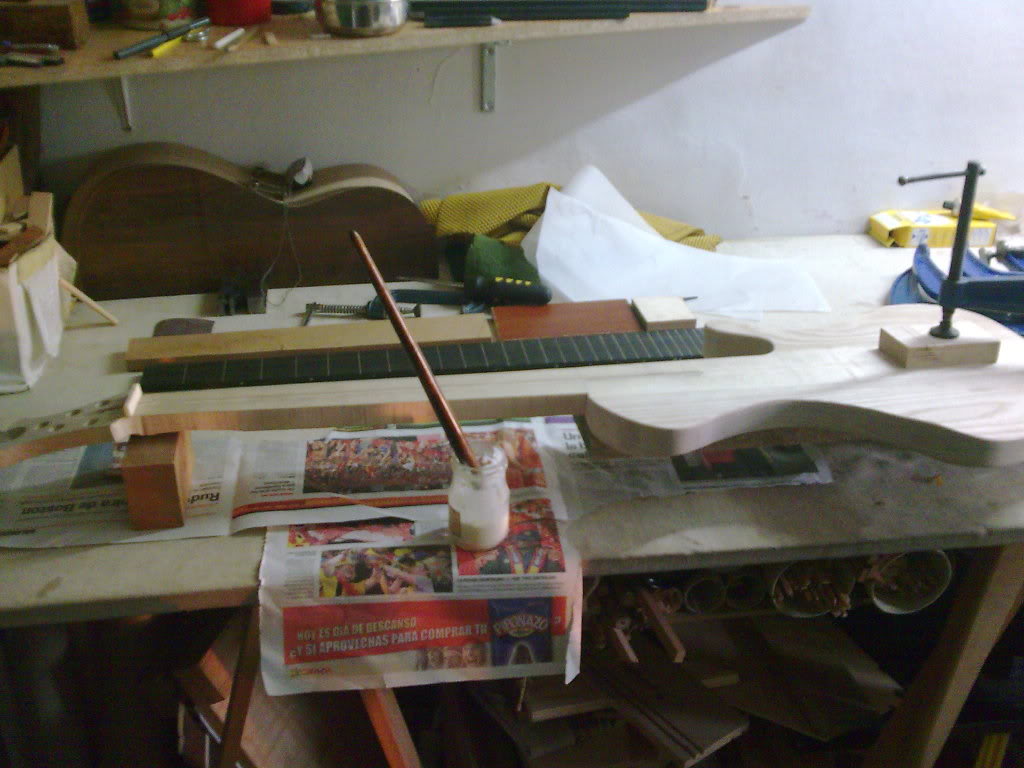

    I made some sanding, then the FB ir ready to glue
    Image0917.

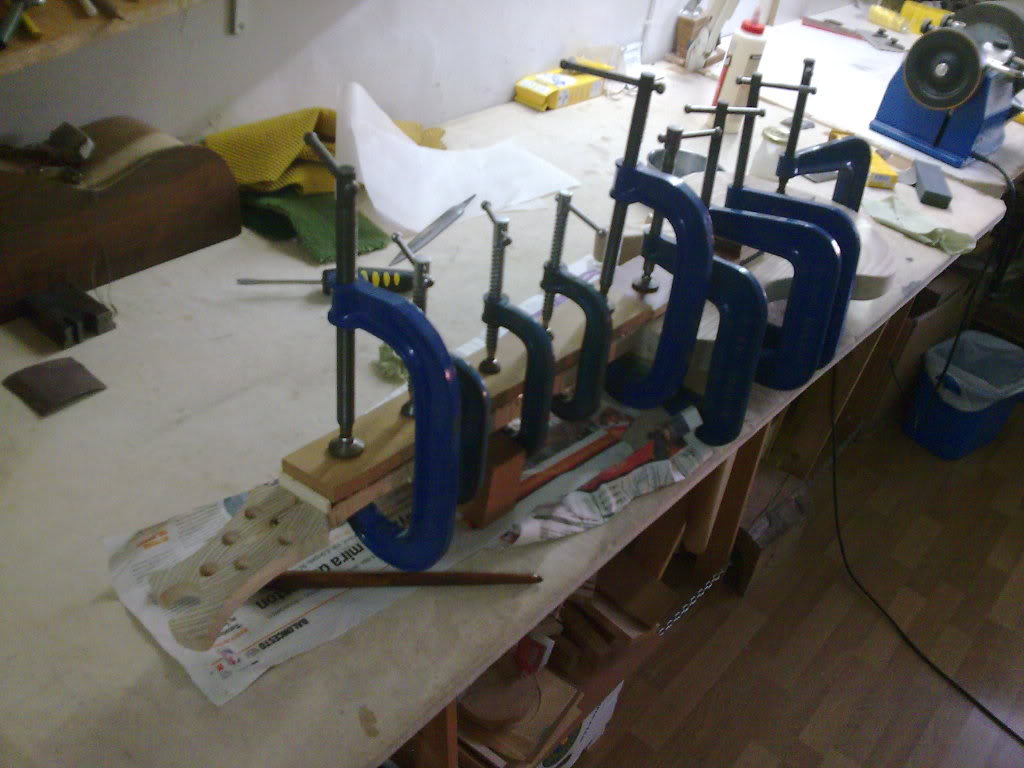

    Image0919.

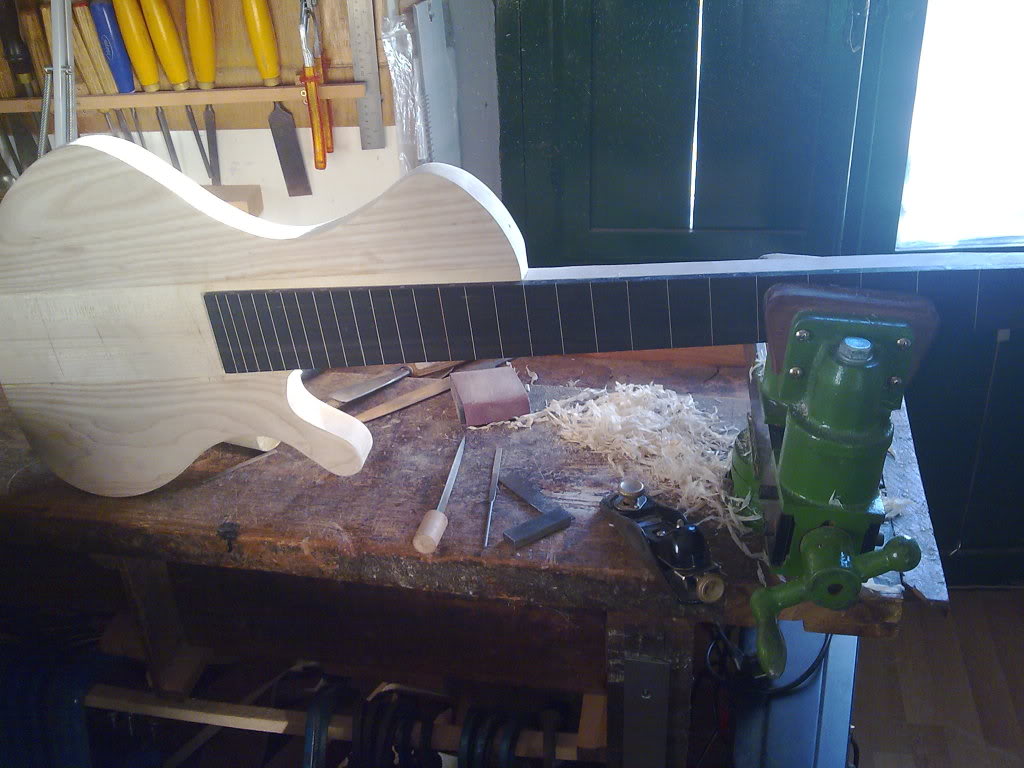

    Let it dry and cut the remanent of the neck
    Image0923.

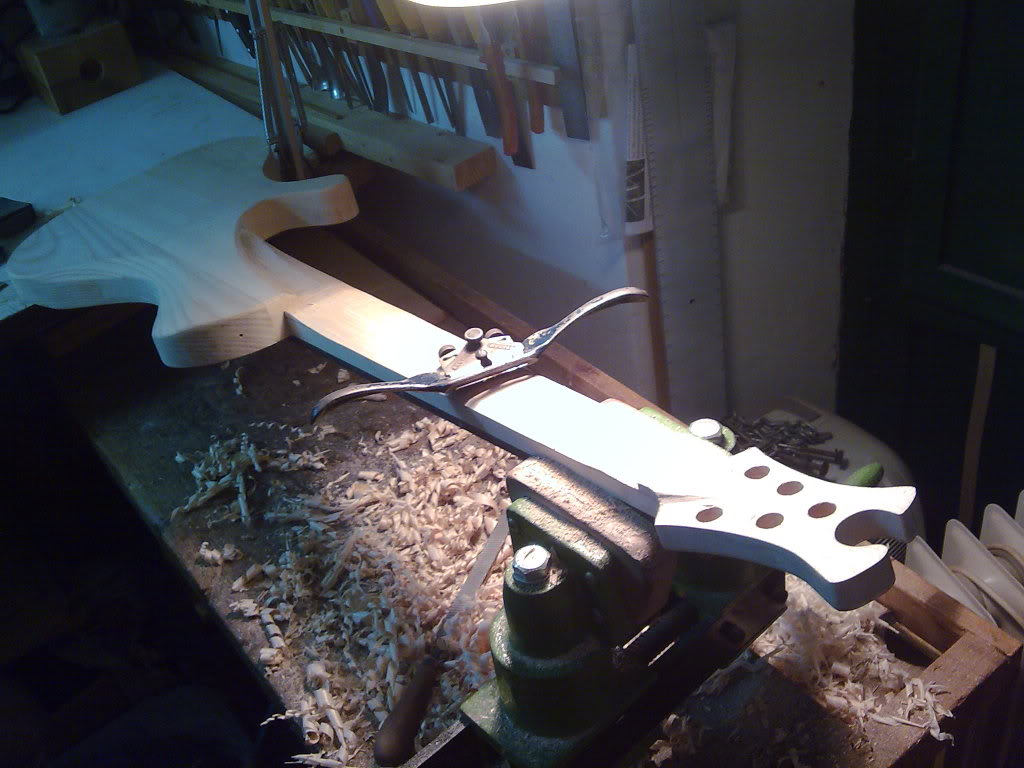

    The neck was 31 mm thick, and not even. I used spokeshave and rasp to make a straight line on the back of neck. 22mm on 1st, 24mm on 12th. It was great oportunity to feel the spokeshave on the hand without risk of screw the neck.
    Image0925.

    Carving this part is also a real pain
    Image0931.

    Wow! start to look like a BadASS:bassist:

  8. Awesome first build! I like the heel in the back.

  9. kuso

    kuso

    Feb 25, 2010
    Plymouth, MA
    Looks great! Do you think it's easier to glue the body wings, then bandsaw? Or in retrospect would it have been easier to saw each wing, then glue?

  10. I know most people do the second.
    I have no big clamps so I had to improvise a little...
    I found the second more accurate, of course you can rough cut and then finish when glued.
    Gluing first also let some improvisation margin, I mean I had a full scale pattern, but when I saw the curves on wood I changed a little the shape.
    To cut the whole shape I need to move the band saw;)

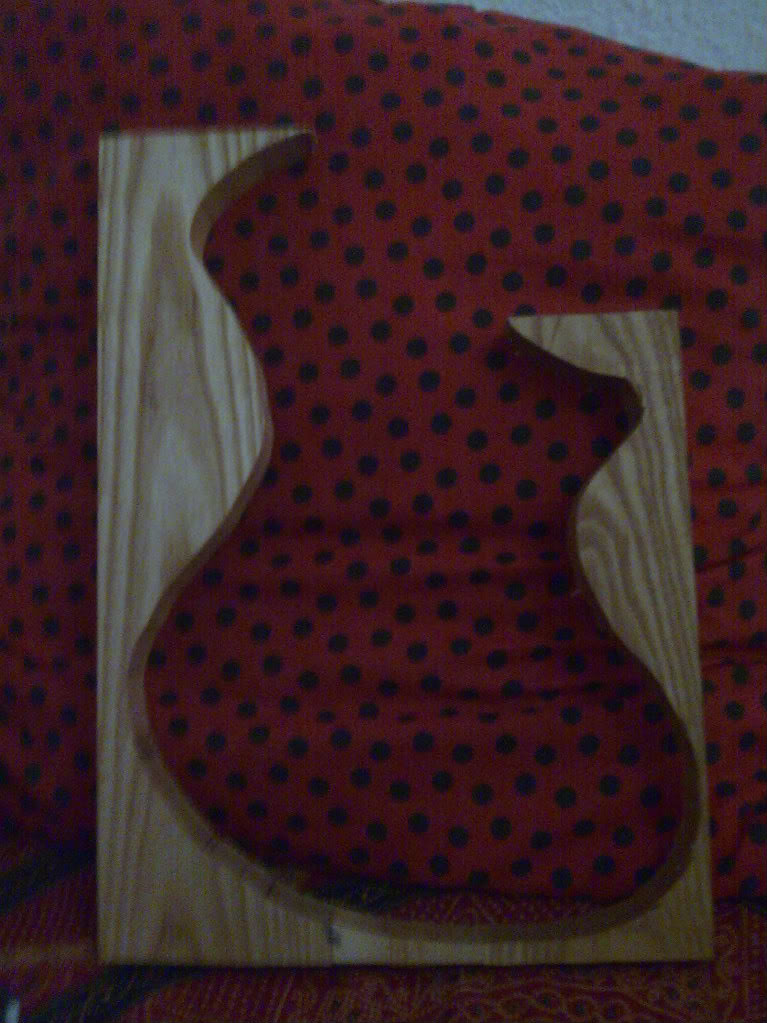

    I dont know I think is a matter of taste, but I love this
    piece of wood:
    Image0945.
    :bassist:

  11. Rickett Customs

    Rickett Customs

    Jul 30, 2007
    Southern Maryland
    Luthier: Rickett Customs...........www.rickettcustomguitars.com
    That looks great, Eduardo.

  12. panas

    panas

    Nov 5, 2007
    CONGRATULATIONSSSSSSSSSSSSSSSS!
    AWESOME !!
    looking forward to see it done!

  13. tjmdetroit

    tjmdetroit

    Jan 27, 2008
    Detroit, MI
    This is you FIRST build Eduardo?
    Bravo!!!!
    Tim

  14. Serek_Basses

    Serek_Basses Supporting Member

    Mar 26, 2009
    Chicago, IL
    Exciting developments!

  15. Akshat

    Akshat

    Dec 7, 2007
    New Delhi,India
    Keeping the Groove staying out of Treble
    wow looks totally awesome.Its practically the same as my ideal custom bass.make me one aswell??

  16. Thanks guys for the enthusiastic comments:D
    Ive finish the neck shape:hyper:
    I carved an asymmetric contour with the middle line displaced 1cm to the bass side, 21mm on 1st fret and 24 on 12th.

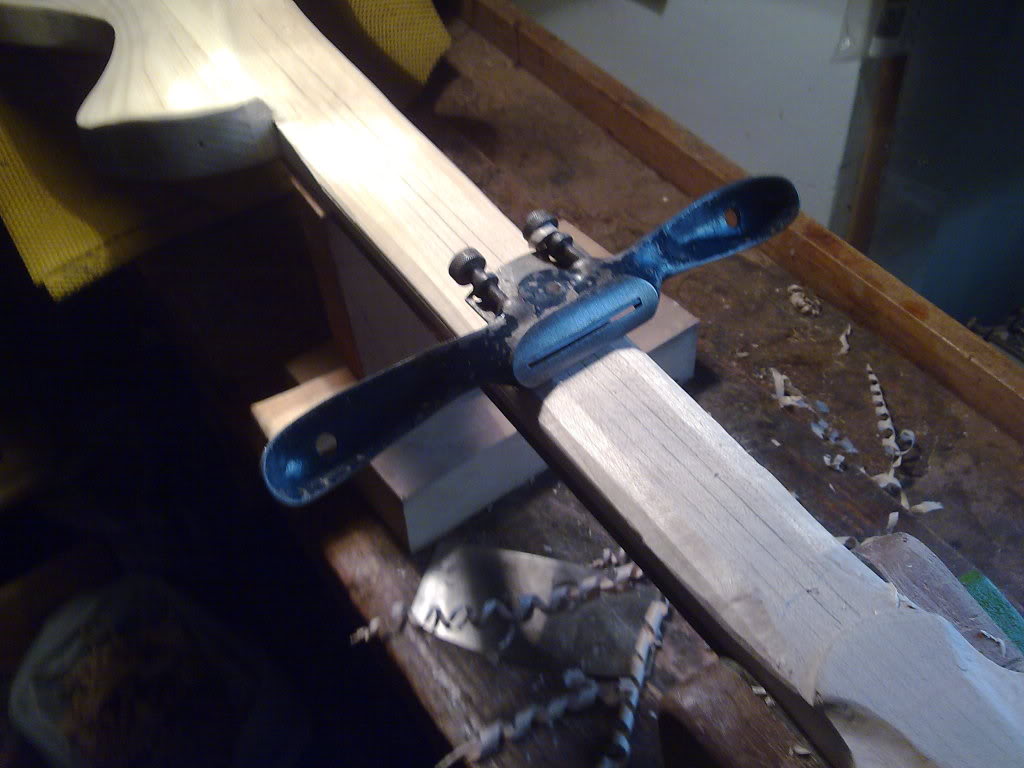

    Rough shaped with spokeshaw
    Image0932-1.

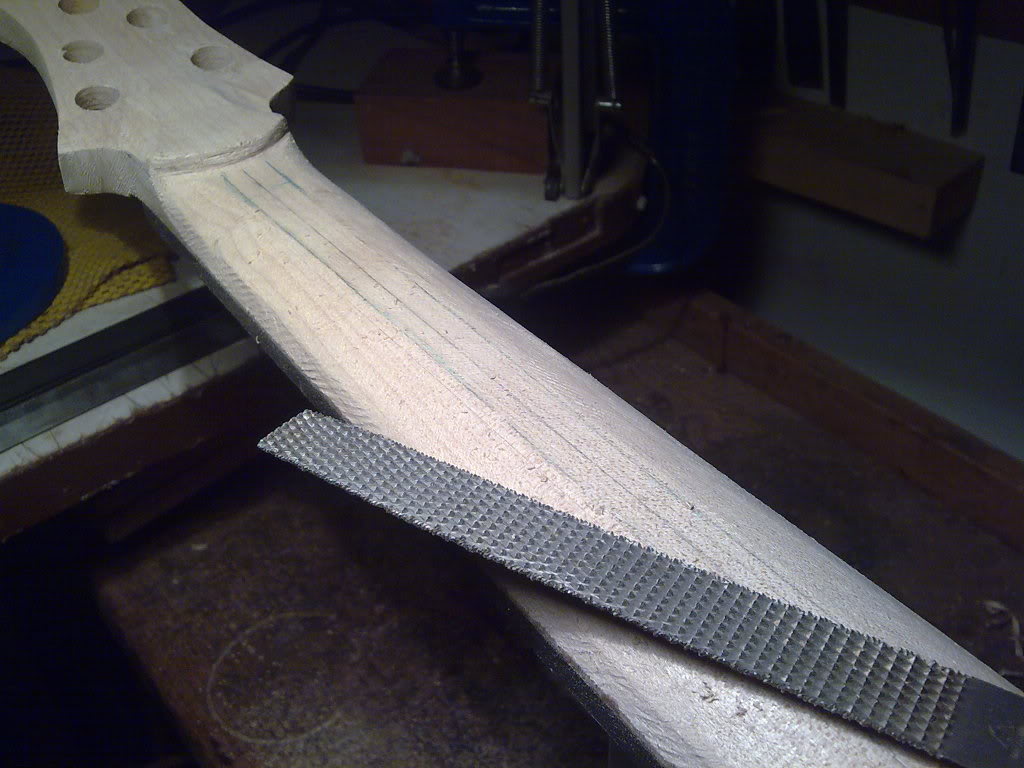

    Then some heavy rasp
    Image0934-1.

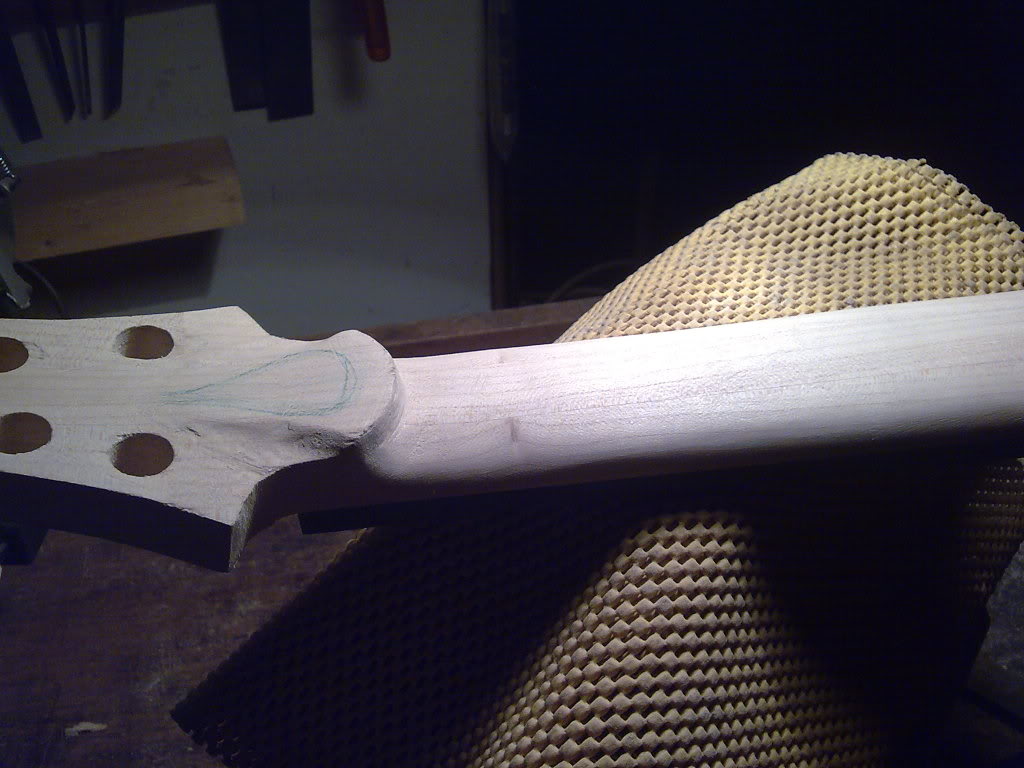

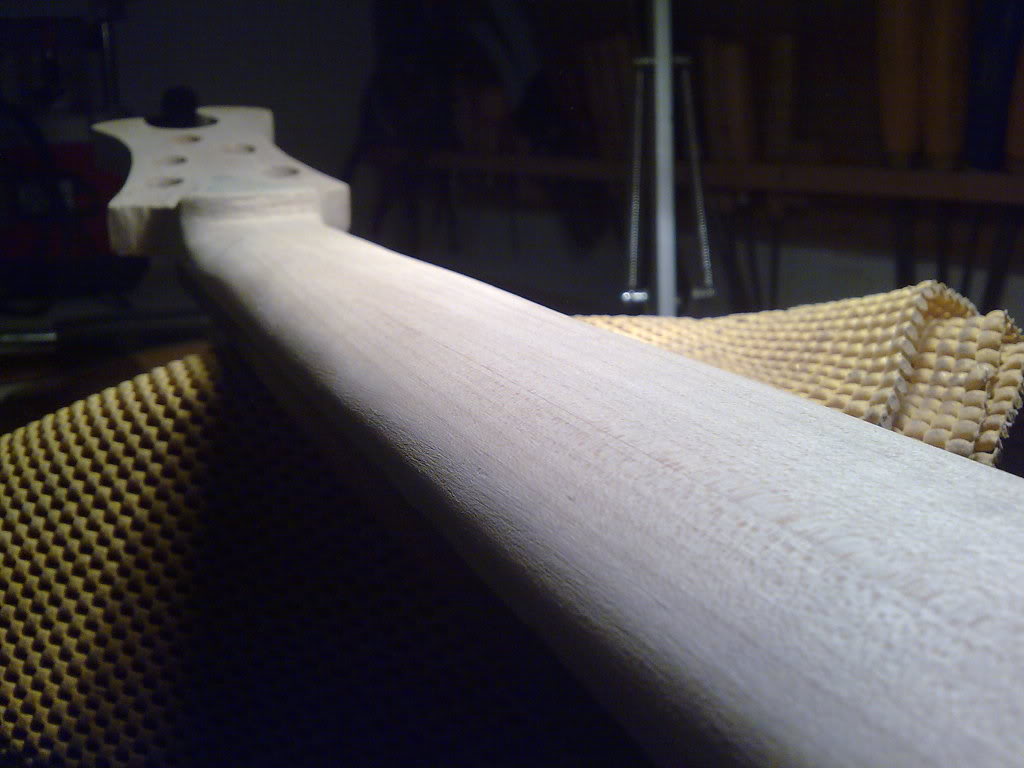

    Some fine rasp and 100 sanding block
    Image0943.
    Image0944.

    I found inspiration in the volute of my double bass, Its placed in the middle of the first fret. It needs some carving, I´ll tell you.
    :bassist:

  17. You are lucky!
    I got some hot pictures for you:hyper:

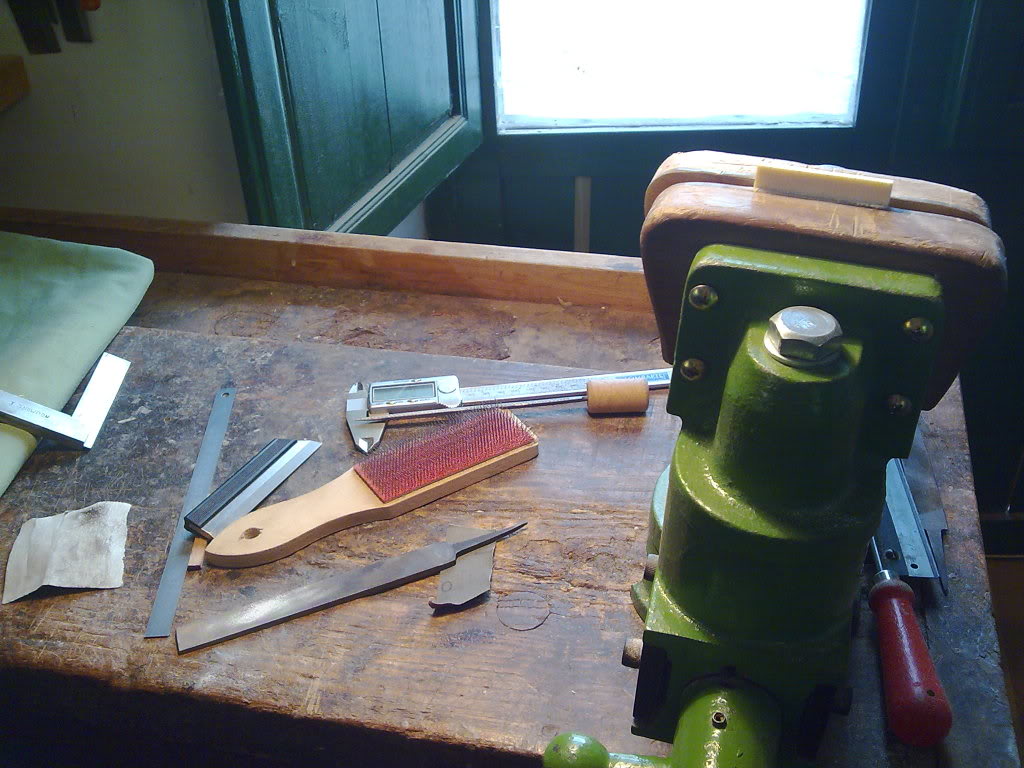

    Making the nut
    Image0948.

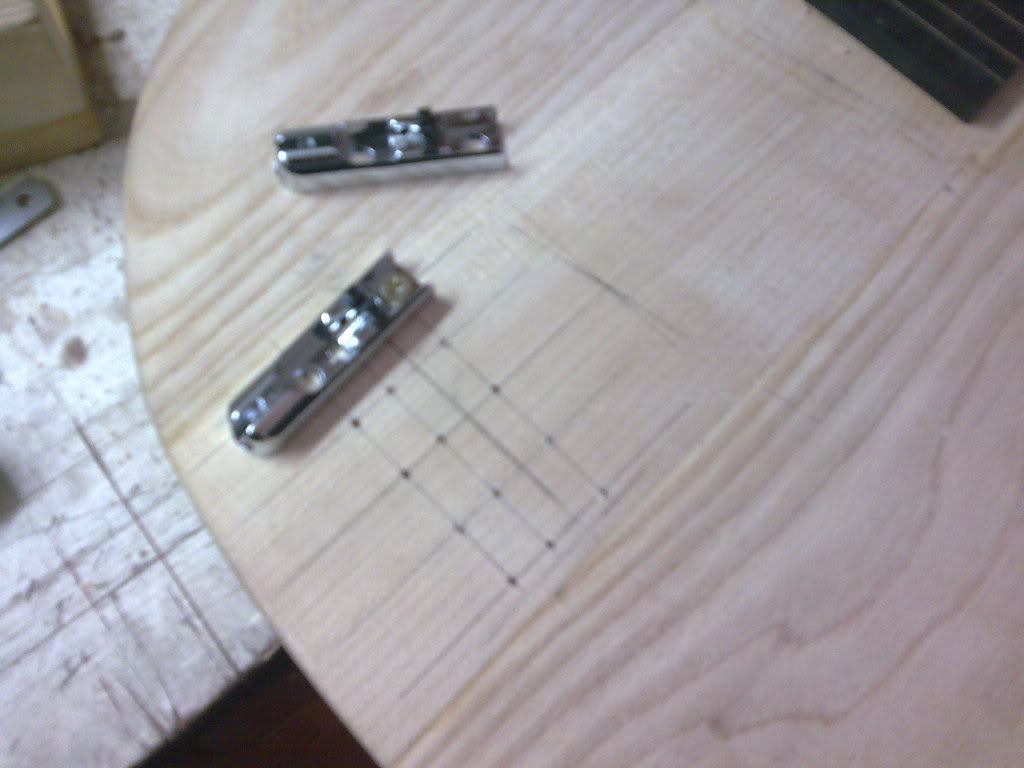

    So I got a nut, a fantastic body and the headstock is finished. I decided mark the bridge. This single string bridges are preety cheap and allows almost any string spacing. But you need to be careful placing the holes
    Image0949.

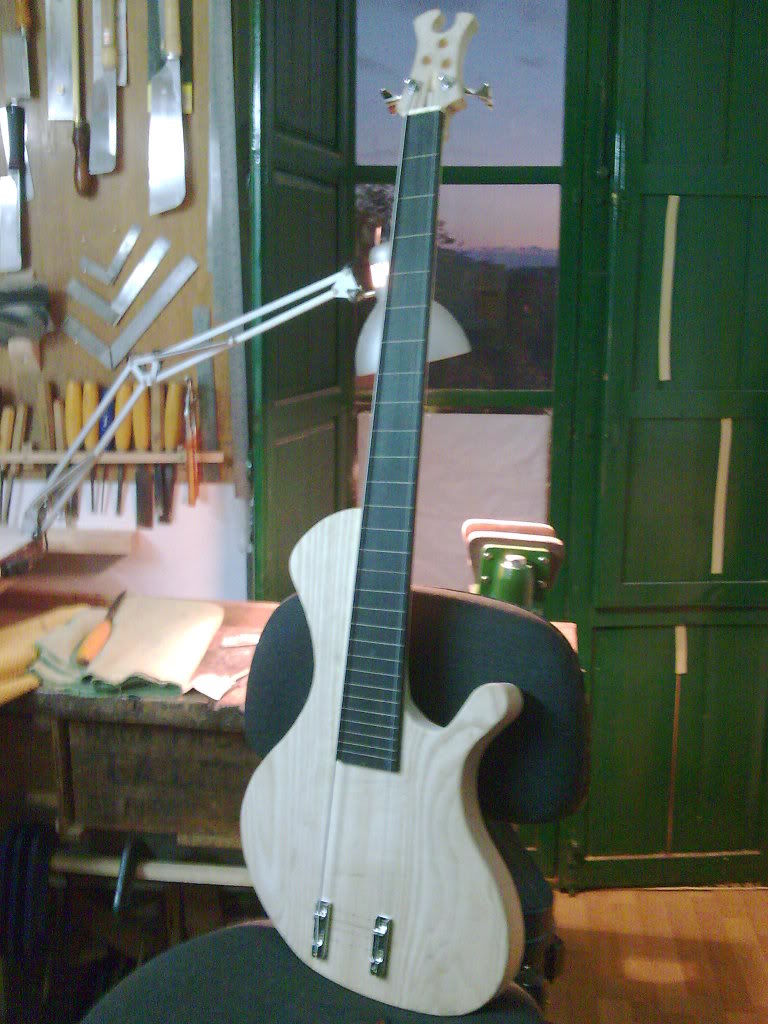

    I put the 1st and 5th strings to check everything is in its place
    Image0952.

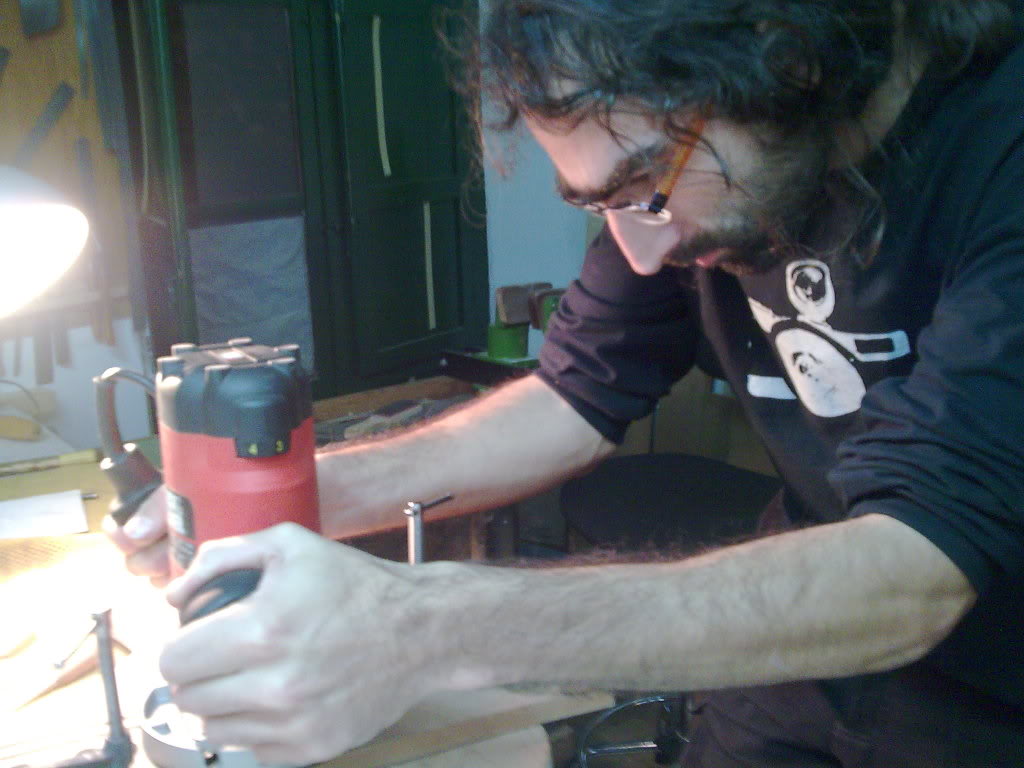

    Pickup routing
    Image0957.

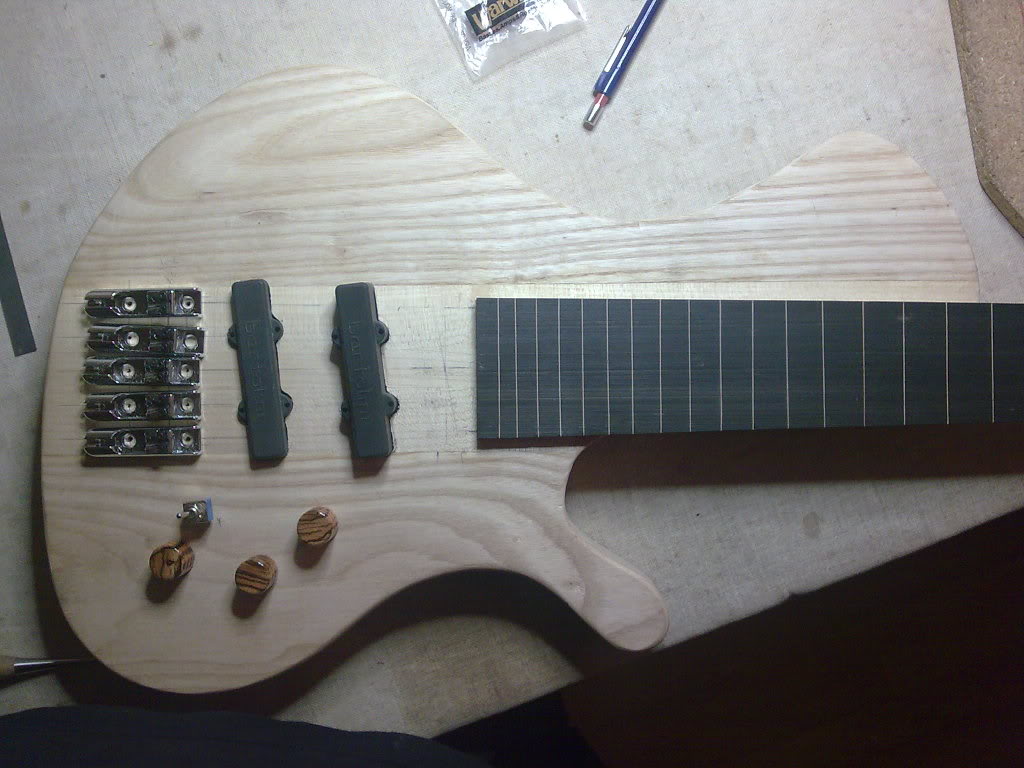

    Artistic shot, I wasnt sure how to place the pots so I placed the stuff, looks good:D
    Image0961.

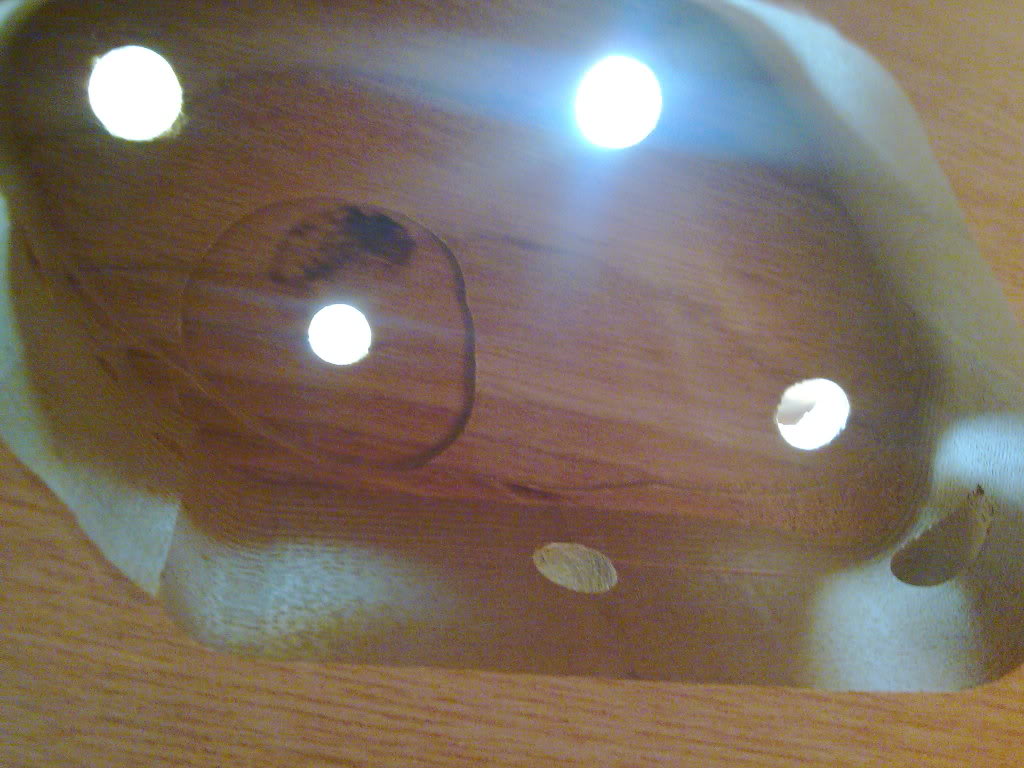

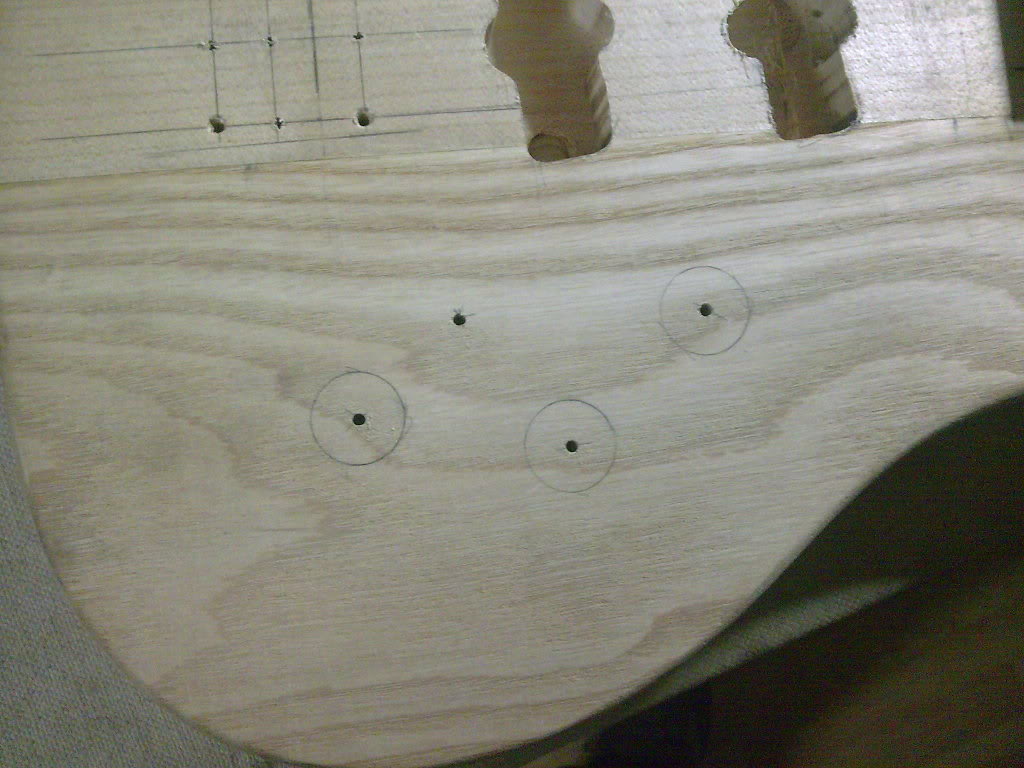

    I made pilot 4mm holes to the end to figure out the dimensions of the rear cavity draw it and routed, the deeper spot is for a dpdt switch
    Image0962.
    Image0964.

    :bassist:

  18. Wow! This looks great! My first build looks like crap. You obviously have put a lot of thought and time into this. Keep up the good work!

  19. Thanks I put over 90 hours of work to get to this point. ;)
    Also Im lucky for working in a classical guitar shop, and just looking is a constant lesson, I mean the guitar maker works perfect:
    http://www.guitarrasaracama.com/
    I´m doing all the stuff by my self but always keeping in mind the highest standard of guitar building cause the guy is building two guitars at this time.
    Another point maybe more important is not to rush, I can figure if doing the same alone and making mistakes for having no patience.
    Last this guy has some of the best and sharped tools you can imagine.

    Thanks for comment!

  20. Akshat

    Akshat

    Dec 7, 2007
    New Delhi,India
    Keeping the Groove staying out of Treble
    is it done yet? :p i cant wait to see it.
