Help me identify a speaker

[Sparkl]

Absolutely dispute it, the cabinet is no good as it is.

Hopefully you didn't buy the 410 from the same seller...

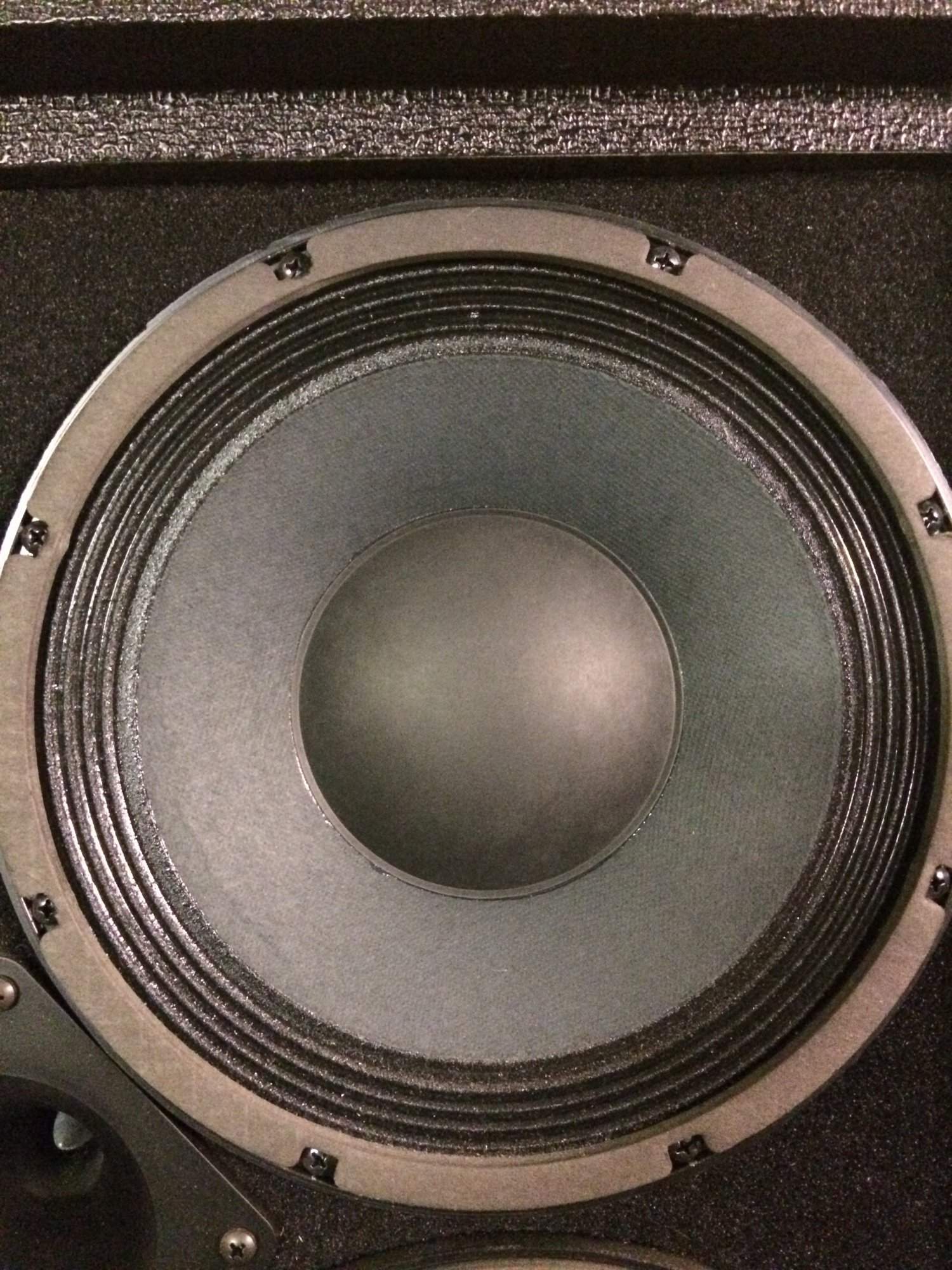

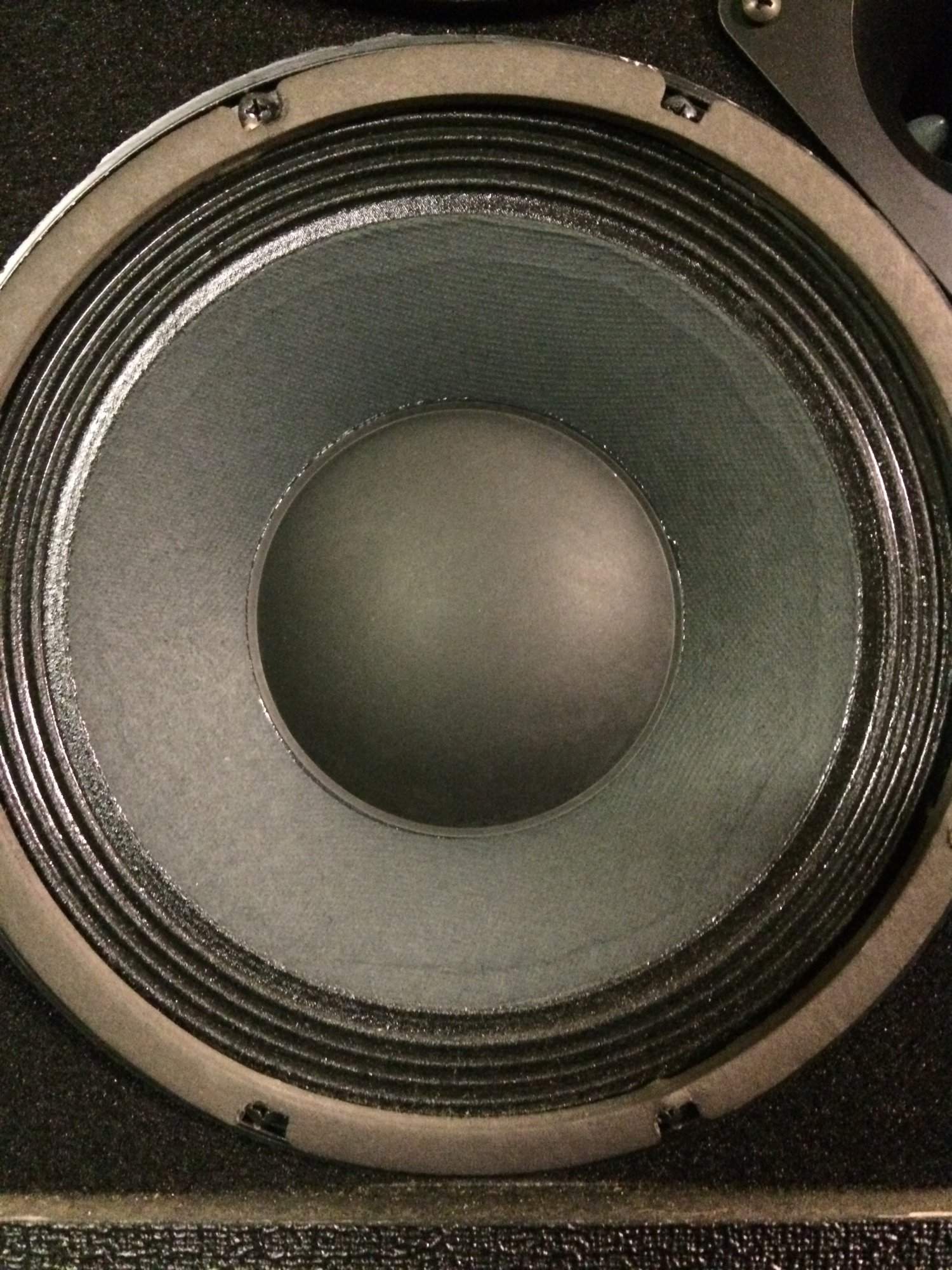

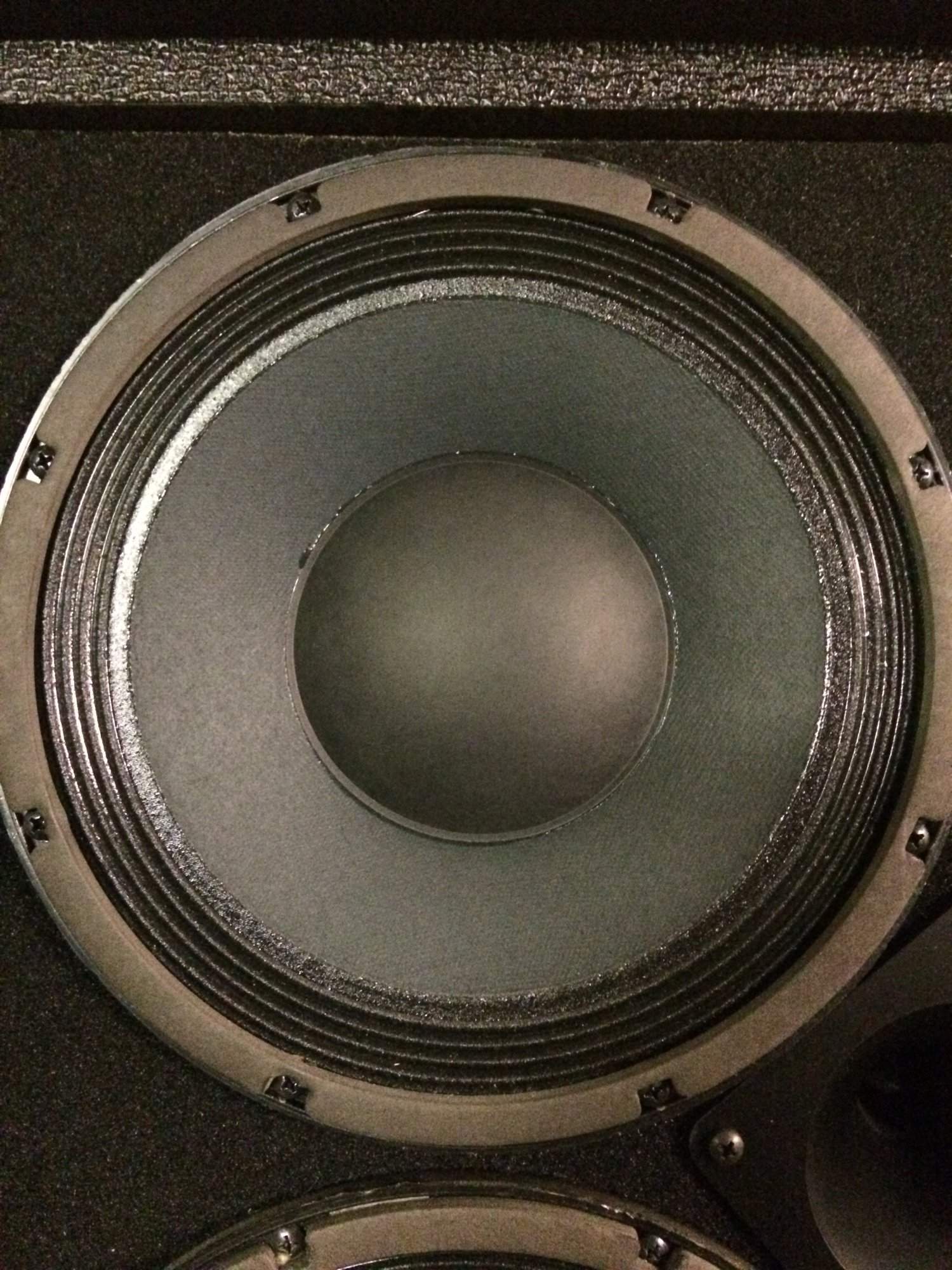

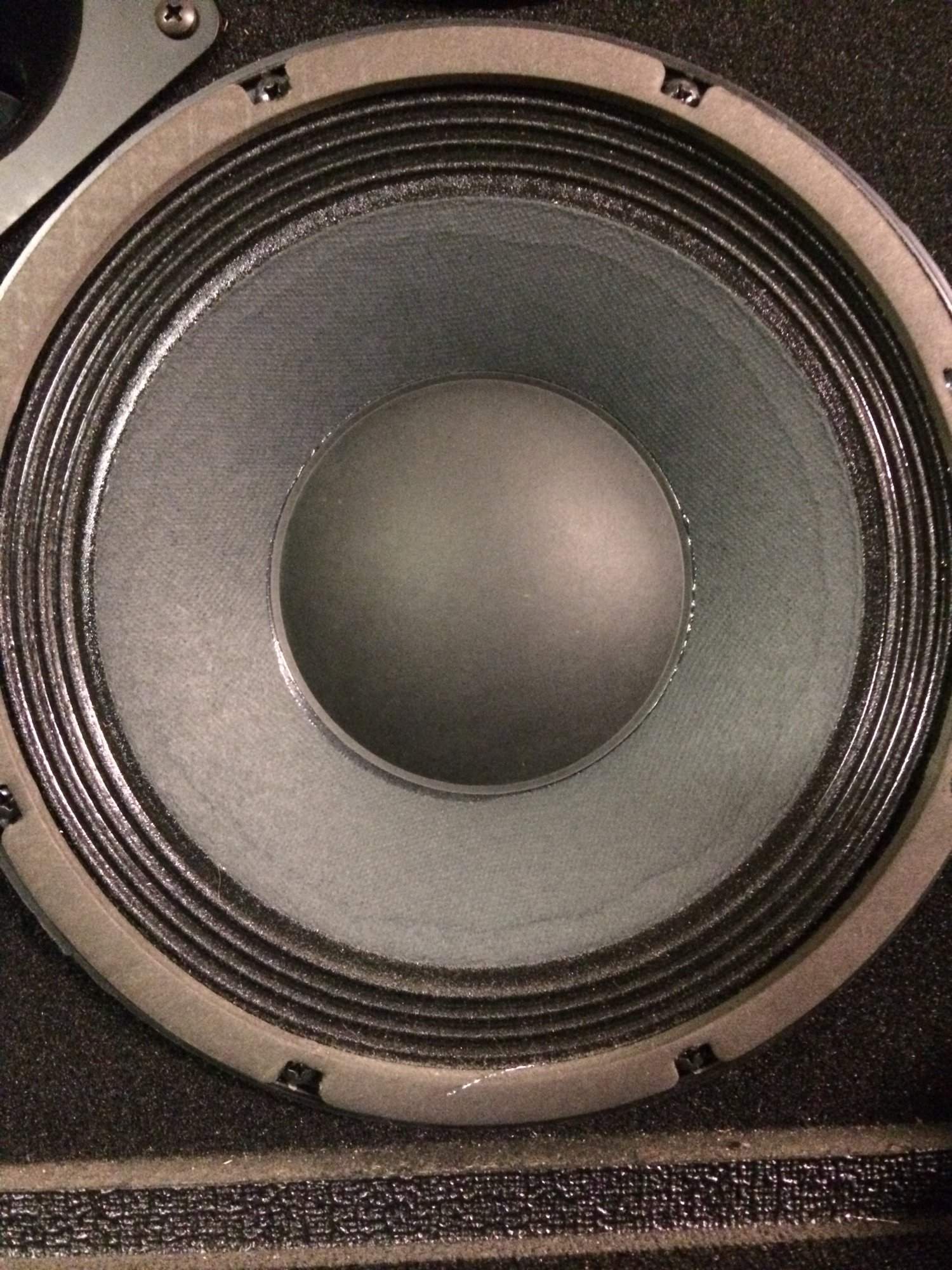

Hey Aged, here are the close up photos of the db410 speakers. I am actually worried about those "crack looking lines". They aren't torn nor does it look like it would be but what is this?



[Bass_Pounder]

Bottom two pictures look like cone creasing from overpowering.



[Sparkl]

Bottom two pictures look like cone creasing from overpowering.

How serious is this?



[Bass_Pounder]

How serious is this?

Very

Only fix is a recone or replace.

When you give the cab some power, does it sound farty/flabby ?



[Sparkl]

Very

Only fix is a recone or replace.

When you give the cab some power, does it sound farty/flabby ?

No.



[agedhorse]

Driver #2 is showing the beginnings of failure and is ready for a recone or replacement. Drivers #3 & 4 are completly shot and need recone or replacement. Driver #1 looks ok, from a distance.

So guys, remember my constant warnings about overpowering speakers and the danger of too much power? THIS is the result. For those who have been disrespectful of my position on this (in others threads), i unfortunately see this pretty often and now you can see it too.



[mmbongo]

Driver #2 is showing the beginnings of failure and is ready for a recone or replacement. Drivers #3 & 4 are completly shot and need recone or replacement. Driver #1 looks ok, from a distance.

So guys, remember my constant warnings about overpowering speakers and the danger of too much power? THIS is the result. For those who have been disrespectful of my position on this (in others threads), i unfortunately see this pretty often and now you can see it too.

In something like a 4x10 where all the speakers are wired together (all getting the same exact signal), is it possible to just overpower/damage two of them? Or would all four likely have some damage?



[InhumanResource]

Ugh. Now I'm going to pull the grill cloth off my ampegs and check out the cones. You guys made me paranoid.



[LeftyD]

I need a better pair of eyes and an education on what you see.



[InhumanResource]

I need a better pair of eyes and an education on what you see.

I think he is talking about the crease looking area that circles the entire cone, it looks almost like a water stain.



[Sparkl]

Driver #2 is showing the beginnings of failure and is ready for a recone or replacement. Drivers #3 & 4 are completly shot and need recone or replacement. Driver #1 looks ok, from a distance.

So guys, remember my constant warnings about overpowering speakers and the danger of too much power? THIS is the result. For those who have been disrespectful of my position on this (in others threads), i unfortunately see this pretty often and now you can see it too.

Thanks for your answer. Now only to figure out what to do :/

The cab doesn't fart though... but yeah this obviously needs to be resolved. Cab failure in the middle of a gig is a bummer.



[LeftyD]

I saw that stain and thought it was caused by water.



[Sparkl]

In something like a 4x10 where all the speakers are wired together (all getting the same exact signal), is it possible to just overpower/damage two of them? Or would all four likely have some damage?

These were my initial thoughts too. I guess all speakers don't get the same current all the time. Perhaps it also depends on the crossover design and other stuff.



[Sparkl]

I saw that stain and thought it was caused by water.

It's most definitely glue.



[agedhorse]

In something like a 4x10 where all the speakers are wired together (all getting the same exact signal), is it possible to just overpower/damage two of them? Or would all four likely have some damage?

Very unlikely, but one or two drivers may have been replaced. Regardless, a prudent move would be to have them all reconed or replaced, and be aware of the limits of that cabinet.



[agedhorse]

Thanks for your answer. Now only to figure out what to do :/

The cab doesn't fart though... but yeah this obviously needs to be resolved. Cab failure in the middle of a gig is a bummer.

The cabinet's low frequency response will certainly be much different than if the drivers are properly working.



[Sparkl]

Very unlikely, but one or two drivers may have been replaced. Regardless, a prudent move would be to have them all reconed or replaced, and be aware of the limits of that cabinet.

In this case, this cab was purchased in the year 2015 and hasn't been opened till now. I know the guy personally.



[Sparkl]

The cabinet's low frequency response will certainly be much different than if the drivers are properly working.

I see. Well this cab eats lows like a champ but I certainly have no clue about it since there are no other db410s nearby for me to compare. Oh well. Gotta learn somehow right?



[agedhorse]

In this case, this cab was purchased in the year 2015 and hasn't been opened till now. I know the guy personally.

As I said, it's hard to tell from the pictures.

I see. Well this cab eats lows like a champ but I certainly have no clue about it since there are no other db410s nearby for me to compare. Oh well. Gotta learn somehow right?

The LF distortion will be much higher, the damping will be much lower and the difference compared with a properly functioning cabinet should be very noticeable. The damage will continue to progress as long as you play it. That's how the materials fatigue process works.



[Sparkl]

As I said, it's hard to tell from the pictures.


The LF distortion will be much higher, the damping will be much lower and the difference compared with a properly functioning cabinet should be very noticeable. The damage will continue to progress as long as you play it. That's how the materials fatigue process works.

Thanks for info.

I am no expert for this, the only thing I can say is that if I go over this crease with my fingers it doesn't feel as cracked, more like a wrinkle of some sort.

Definitely some sort of damage to my eyes, hard to believe a speaker would be shipped like this.
