King Koa - Now With Nordy's!

[Ryan L.]

So, sell me your Bardens on the cheap so I can try them in mine.



[RocketMusic]

I might be up for that, Ryan! I've got a little pickup odyssey to get through first, though. I'm sure the Bardens will go back in before it's all over, for comparison if nothing else. And they did win out in the end last time I did this, so that could happen again...

I'll let you know if/when I'm done with them for good...



[RocketMusic]

Ah, I've been running the UBER-115 in my rig full range since the GA GTG... I just put it back to acting as a sub (150 Hz and below), and my rig is sounding MUCH better now. I can actually get some push down low now...

I still think I'm on the prowl for another cab solution, but at least I'm not living with bad tone at this point...

Man, I'm psycho!!!



[Ryan L.]

I might be up for that, Ryan! I've got a little pickup odyssey to get through first, though. I'm sure the Bardens will go back in before it's all over, for comparison if nothing else. And they did win out in the end last time I did this, so that could happen again...

I'll let you know if/when I'm done with them for good...

Yeah, if/when you decide you wanna get rid of em, shoot me a PM.



[RocketMusic]

I plugged King Koa w/ Barts and my outboard electronics into a Berg NV-610 this morning... whew, it's got the sound down low that I'm after, that's for sure. It's a bit barky in the upper mids, but I'm hoping a tweeter might help smooth that out... if not, I'll still be on the prowl for a cab solution...



[LilRay]

I plugged King Koa w/ Barts and my outboard electronics into a Berg NV-610 this morning... whew, it's got the sound down low that I'm after, that's for sure. It's a bit barky in the upper mids, but I'm hoping a tweeter might help smooth that out... if not, I'll still be on the prowl for a cab solution...

Let's get down to "the bottom line" as Henry Fonda said. Is this covert code for "I've ordered an NV-610 with a tweeter????"



God Bless, Ray



[RocketMusic]

Nope - Jim B. doesn't want any part of that, and understandably so. He is, however, up for selling me some parts that I can use to Frankenstein this thing... should be a fun project!



[LilRay]

Nope - Jim B. doesn't want any part of that, and understandably so. He is, however, up for selling me some parts that I can use to Frankenstein this thing... should be a fun project!

Oh Okay, I thought Jim had said he'd tweet one for you.

So where do you plan to install the tweet in the cab?



God Bless, Ray



[RocketMusic]

Oh Okay, I thought Jim had said he'd tweet one for you.

So where do you plan to install the tweet in the cab?



God Bless, Ray

I'll put it somewhere up high, I want it closer to my ear than my ankles. I'll work that out once the parts get here. Hopefully sometime next week...

Jim's suggestion was to wire it all up and give it a listen before drilling any holes... goes without saying, he's a smart dude. He understands his customer's insanity (that's me!).



[Ryan L.]

VERY interested to see how that project goes. That's the one main reason that kept me away from the NV610---I gots to have a tweeter.



[RocketMusic]



[Gard]

Time for a soldering party in Blacksburg!









(...watching this space closely, I really dig the NV610, and always found it just slightly TOO old-school for my tastes...)



[LilRay]

Time for a soldering party in Blacksburg!









(...watching this space closely, I really dig the NV610, and always found it just slightly TOO old-school for my tastes...)

I wonder if this goes well, if Jim might introduce an NV-610T (or M)?



God Bless, Ray



[RocketMusic]

Sweet Jeebus, this things sounds AMAZING with a tweeter!!! The lunatic has found something to ease his troubled mind!

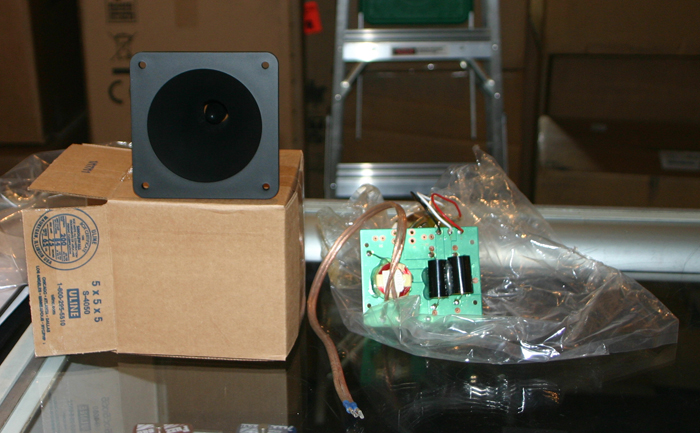

The 610 comes with an unpopulated crossover board installed. Jim sent me a populated crossover board, the tweeter and the tweeter level adjuster doo-hicky (sorry to get all technical on youse)...

Here's the stock/unpopulated crossover board dangling out the back...

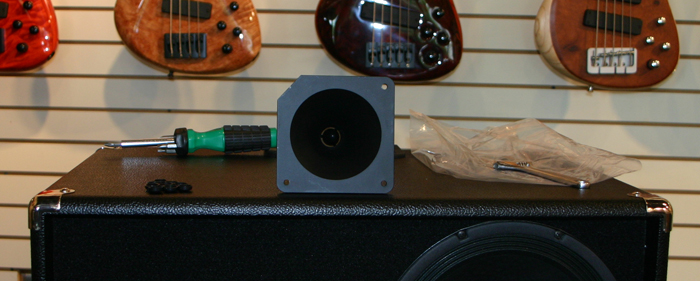

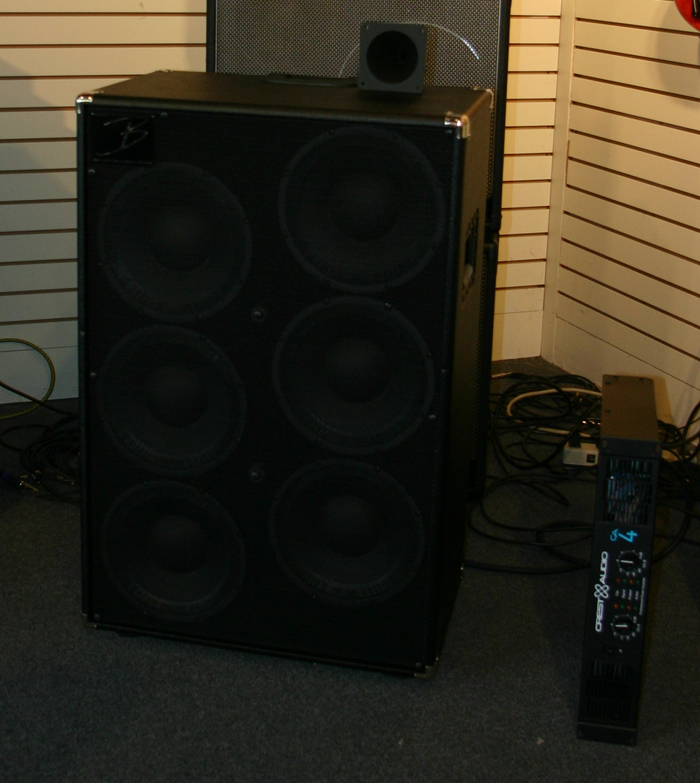

After swapping crossover boards, I just set the tweeter on top to hear what it sounds like... did I mention it sounds GREAT?!?!?

So the soldering part is done, now onto the drilling... YIKES - the point of no return!!



[RocketMusic]

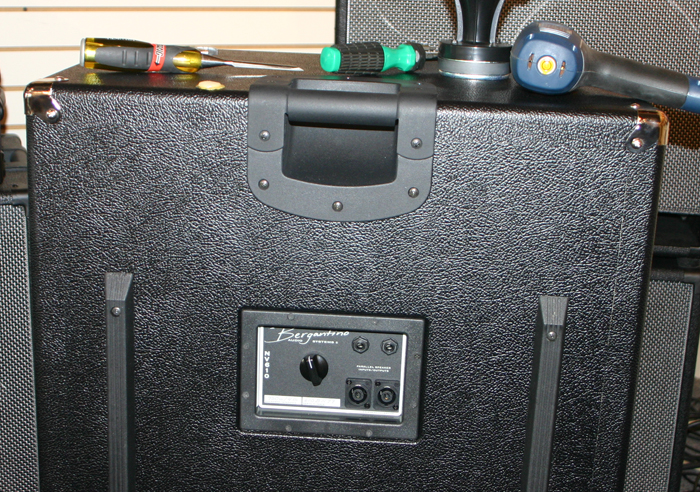

Here's a first! A Bergantino NV-610 cab with a tweeter level control!

This was actually really easy to install. There was a dab of epoxy or caulk covering the hole inside the jackplate to make it airtight. I used a chisel to scrape that off (you can see what I removed sitting to the left of the handle on top of the cab in the photo below). Then I drilled through the sticker on the back/outside of the jackplate to allow the shaft of the tweeter control to get through the jackplate... 8 screws later and BOOM! Back to airtight!

Now onto the front of the cab to install the tweeter itself!



[VroomVroom]

Nice, Greg. I'm very anxious to see the front. This amazing cab...with a tweeter...just wow.



[rodneyat]

Nice, Greg. I'm very anxious to see the front. This amazing cab...with a tweeter...just wow.

Now, if he ported it..he would REALLY have something.



[RocketMusic]

Roadblock #1 encountered and overcome. The tweeter was just a hair too large to fit anywhere on the baffle board. A grinder and a little courage to knock one of the corners off, and we're good to go!

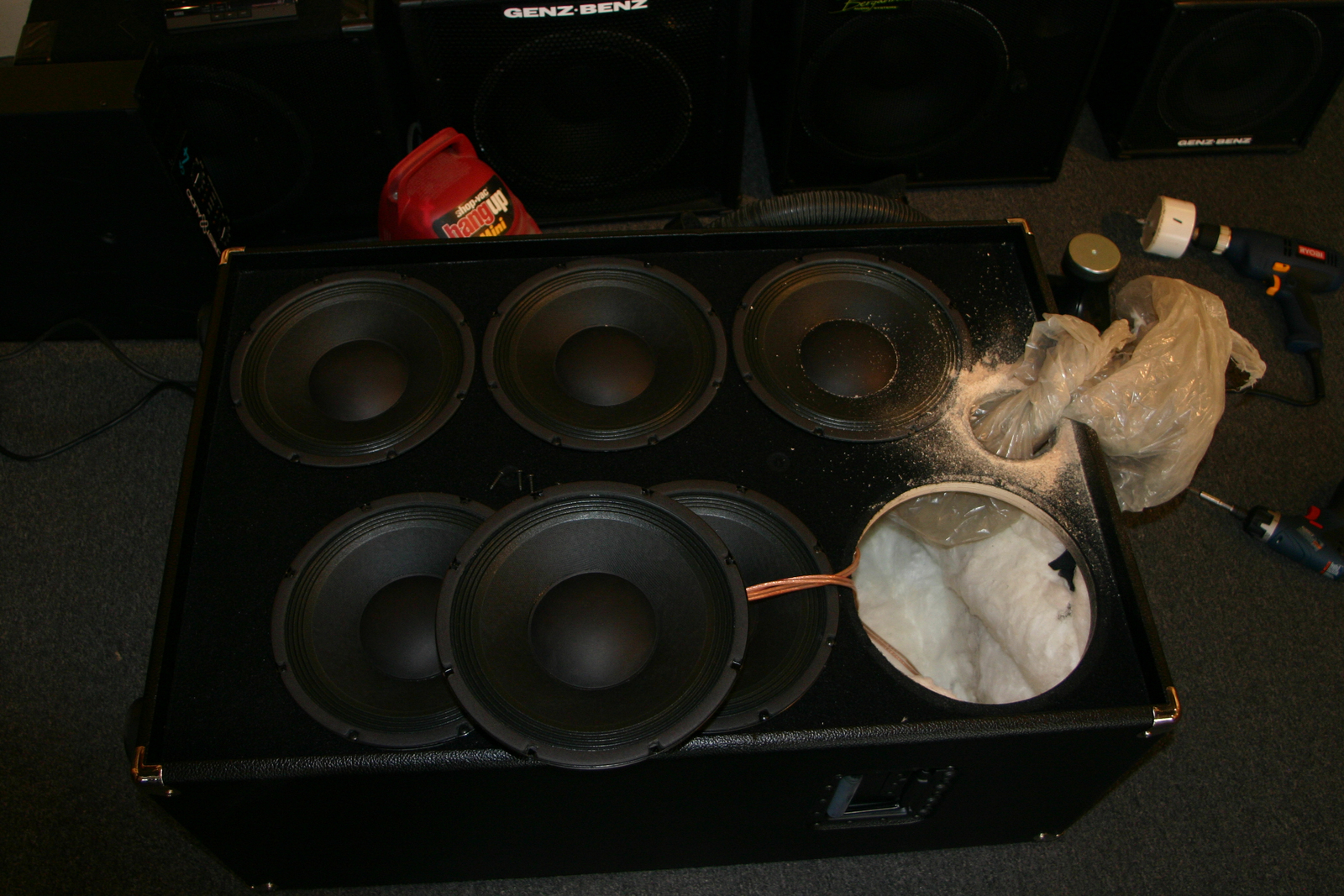

Here's what really took some balls. Perfectly good $1299 brand new cabinet? Meet 3.5" hole saw.

I'm so glad I've owned a music store these past 3-4 years... I never would have had the courage to do something like this before. Now, it's no big deal.

Nothing left to do but wire the tweeter and button it all back up!



[RocketMusic]

Now, if he ported it..he would REALLY have something.

Ports, schmorts. Just give it more power!



[LilRay]

Dood, You need a shop vac. There's no chance of wood bits or splinters hurting the drivers?

God Bless, Ray
